Additional Information

Construction

The hull of the Ericson 380 is constructed of a solid composite of fiberglass and resin although some core material is used in some flat sections above the waterline to add stiffness without excessive weight. The Ericson 380 utilizes an elaborate system of high strength fiberglass fabric and high-density foam to form a structural grid of transverse floors and longitudinal stringers. The grid is bonded to the hull throughout the bilge. Components such as keel, engine beds, mast step, structural bulkheads and rigging loads are all connected to the grid, resulting in a very rigid and strong structure. You won’t hear any creaking and groaning from hull and bulkhead flexing like you do with today’s production boats.

The decks are well laid out and feature substantial deck hardware that is well secured with backing plates. Sugar scoop transom with swim ladder for easy boarding. There is an anchor locker forward, rigging shrouds are well inboard for easy passage fore and aft, the toe rail is deck molded fiberglass. The only bright work to maintain being the deck hand rails and transom top. Large starboard lazzarette for storage of water toys.

Accommodations

The forward stateroom is a wide double V-berth with a private changing area and seat with a teak bi-fold door for privacy. Hanging lockers outboard on both sides with storage shelves and drawers under the berth. The aft owner's master stateroom is a wide double berth with a teak door for privacy, hanging locker and outboard storage shelf, as well as opening ports to the cockpit for light and air.

The head aft is a large compartment with a separate shower stall and head, mirror, toiletries compartment with shelves and a shower curtain. Hot & cold pressure water in head & shower. The holding tank is plumbed for deck pump out or mascerator overboard pump out.

The main salon is large with the U-shaped dinette to port that can covert to an additional 6' 6” double berth. To starboard is a settee opposite the dining table that also provides seating at the navigation desk. Large starboard and port lockers provide additional storage. A Cruiseair reverse cycle AC unit is also installed vented to the saloon and forward cabin for added comfort when on shore power.

In the galley, there is a 2 burner Force 10 propane stove and oven, with 12V refrigerator, tilt-out storage bin, tilt-out trash locker, storage lockers, and a deep double sink with both fresh (filtered) and salt water foot pumps.

Galley

• Two Burner Force 10 propane stove with crash bar
• 12V Dometic (Adler/Barbour) refrigerator – new 2023
• Double S/S sinks with hot & cold pressure water
• Fresh and Seawater foot pumps at sink
• Water filtration on fresh water foot pump
• Teak paper towel holder
• Teak cutlery drawers
• Large dry storage drawers and cabinets

Electronics & Navigation

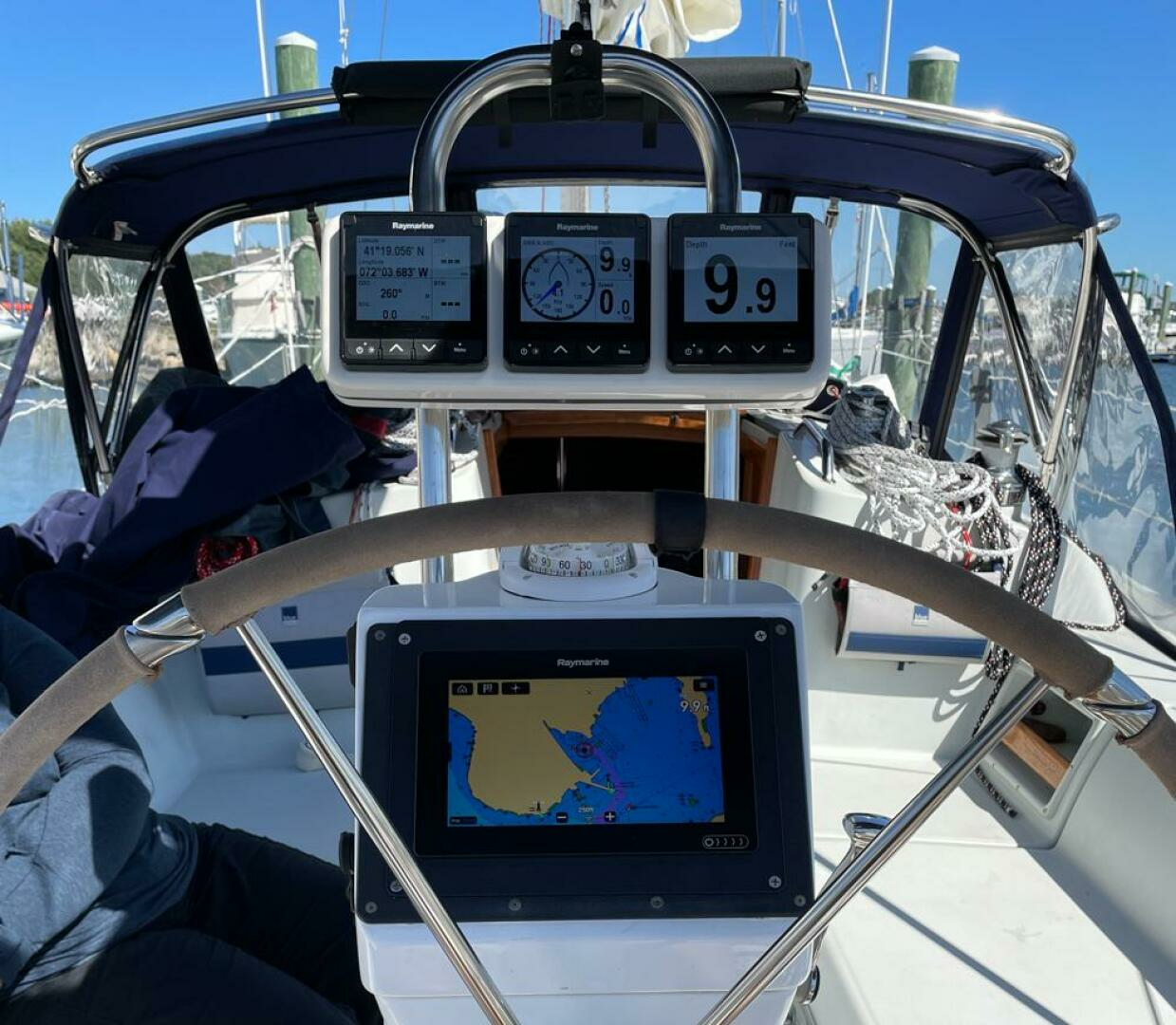

• Raymarine Axiom 9” Chart plotter at helm- new 2023
• Raymarine I70s Wind/Depth/Speed three displays at helm & one at Nav station - new 2023
• Raymarine SPX-10 SmartPilot with linear drive & P70 display control in cockpit
• Standard Horizon GX2400 VHF/GPS/AIS with RAM remote at helm & PA/Hailer on mast - new 2023
• Raymarine Quantum CHIRP Radar – new 2023
• Vesper XB8000 Class B AIS transceiver with WiFi - new 2019
• Pioneer AM/FM/SW/CD/USB/BT player - 2 speakers in cockpit & 2 in main salon - new 2023
• Skyworth 13.3” LED HDTV with DVD combo
• Shakespeare 15” Fiberglass TV Antenna on mast
• Weems & Plath Ship’s Clock & Barometer
• Ritchie Compass on helm - new 2023
• Windex
• Inclinometer

Electrical

• Two 100W Renogy Solar Panels on bimini (total 200W) – new 2023
• Blue Sky Energy 3000i MMPT Solar Charge Controller with echo charger - new 2023
• Two Group 31 110Ah AGM house batteries (total 220 Ah) – new 2023
• One Group 27 80Ah AGM engine start battery - new 2023
• Balmar 621 high output 70A Alternator & ARS-5 multi stage regulator - new 2018
• Xantrex/Heart Freedom 10 - Battery charger 50A / Inverter 1000W
• 12V outlets v-berth, master cabin, cockpit helm, 12V/USB outlets nav desk – new 2023
• One 50ft 30A power cables
• AC outlets with GFCI protection
• New LED light fittings & bulbs with dual red LED in head & cockpit helm – new 2023
• Alpenglowl teak red/white lights in saloon
• All other lights refitted to LED – new 2023
• Four 12V Caframo fans (2 in V-berth, 1 saloon, 1 master cabin) - new 2023

Mechanical

• 6 Gallon hot water cylinder with 110V and engine heat exchange
• Cruiseair 12K BTU Reverse Air conditioner
• One 10lb LPG tank under cockpit seat
• Electric bilge pump with electronic bilge switch
• High water level bilge alarm at nav desk & cockpit - new 2023
• Holding tank monitor
• Bronze flanged seacocks on all thru- hulls below water line
• PSSY dripless shaft seal
• 3 bladed Max-Prop
• Racor fuel filter with electric priming pump

Deck & Hull

• Bottom professionally stripped, barrier coated & bottom paint – 2019
• Edson pedestal – new 2017
• Bimini & Dodger with connector – new 2020
• Canvas covers for mainsail, helm, outboard, grill, winches & hatches
• 35lb Plow anchor with 50ft of 5/16” H/T chain & 200ft 5/8” rode
• 35lb Danforth anchor with 25ft chain and 200’ rode in anchor bag
• Electric windlass
• Seawater washdown in anchor locker
• 11 Lewmar opening ports with screens – new 2009
• Six Zarcor privacy CloZure shades for opening ports - new 2023
• Six Seaworthy Goods PortVisor rain-shades for opening ports - new 2023
• Two large overhead hatches upgraded with Oceanair shade/screens
• Cockpit Table – new 2023
• Cockpit Cushions
• Outboard Motor Mount
• Magma Kettle BBQ with rail mount – new 2023
• Aft rail flag holder & teak flag staff
• Cockpit storage bin
• Lewmar folding wheel – new 2023
• Leather shroud guards on turnbuckles
• Cockpit shower with hot and cold pressure water

Sails Handling

• Mainsail Quantum (2 reefing points) with lazyjack system - new 2024
• Genoa 135% Roller Furling Genoa with Sunbrella Cover and Foam luff Quantum - new 2020
• Asymmetrical Spinnaker UK Sails with sock and ATN Tacker – like new
• All new running rigging New England Ropes VPC line - new 2023
• 2 Lewmar 54 self tailing two speed primary sheet winches
• 2 Lewmar 30 self tailing two speed winches coach roof starboard side
• 1 Lewmar 30 self tailing two speed winch coach side port side
• 1 Lewmar 16 one speed winch coach roof port side
• Harken roller furler
• Spinnaker pole on deck
• Rigid boom vang
• All lines run back to cockpit
• Main Sheet traveler with 4:1 purchase led to cockpit
• Mid boom sheeting for unobstructed dodger installation
• Sailtec hydraulic back stay
• Inboard and outboard adjustable genoa sheet cars

Additional Included

• 2 Blade Fixed Prop
• Boat Hook
• 3 Fenders
• 8 Docklines
• Portable horn
• 1 Lifesling
• 2 Throwable Cushions
• Coast Guard Safety Package
• Boat manuals and charts
• West Marine tool set
• Tool box with engine fuel filters, spare belt etc.
• Max-prop grease gun & maintenance kit
• Freshwater hose 20ft
• Original destroyer wheel (spare)
• Spare parts for rigging, plumbing,, and sealers etc.
• Fairclough Winter Cover with frame

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
