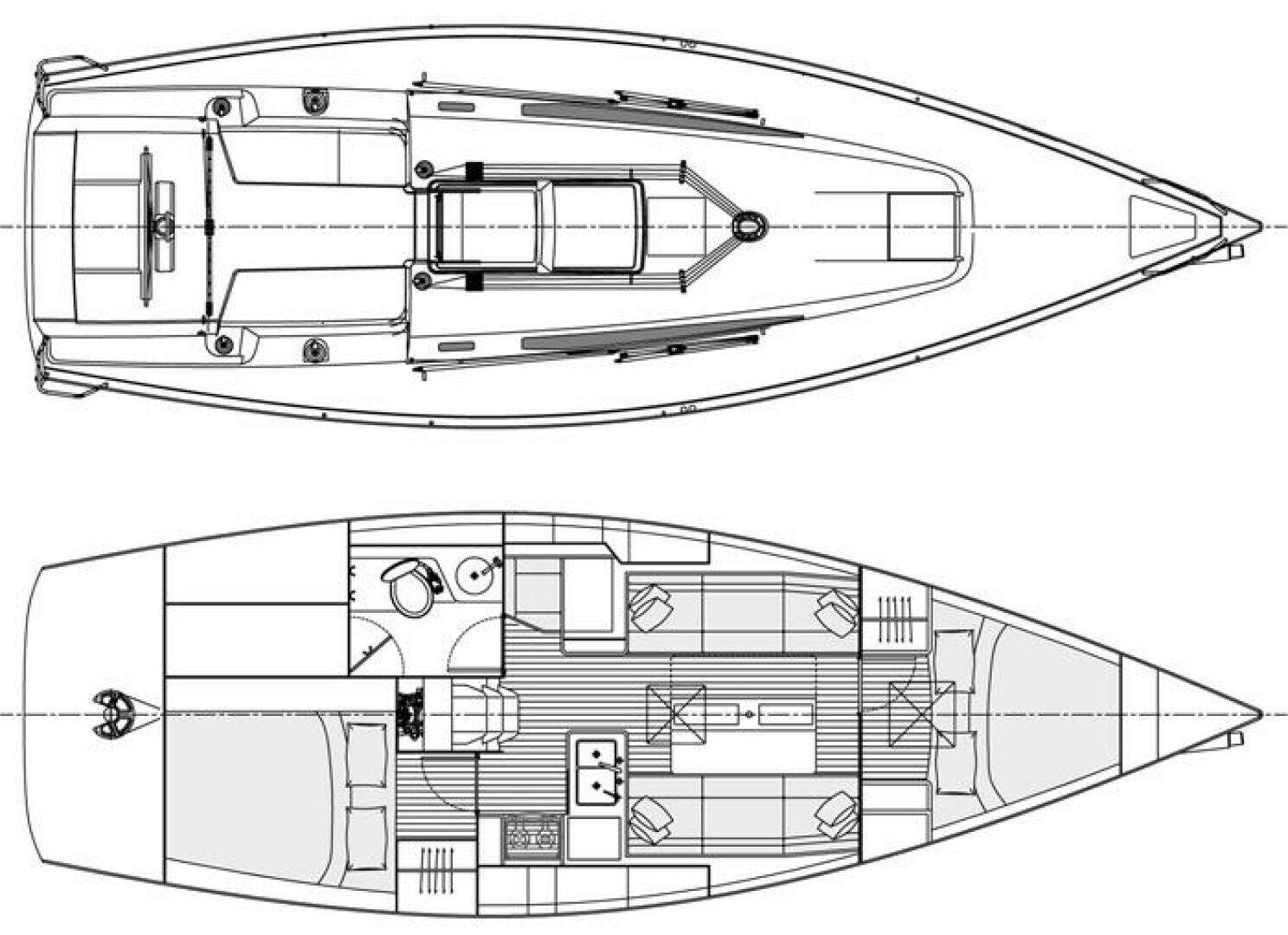

Accommodations

• Cold-molded, solid, and laminated walnut, finished in satin varnish. White finish on main bulkhead
• Removable, wood effect veneered floor panels with lockdown hardware and S/S metal ferrules and flush fasteners
• White laminated slat style ceilings on hull sides in main cabin and vinyl lined hull sides in forward and aft cabins
• Forward Stateroom with large hanging locker on starboard side, storage on port side, large double V-berth with storage underneath, shelf above berth on port side, water tank under forward V-berth and full-size access door to main cabin.

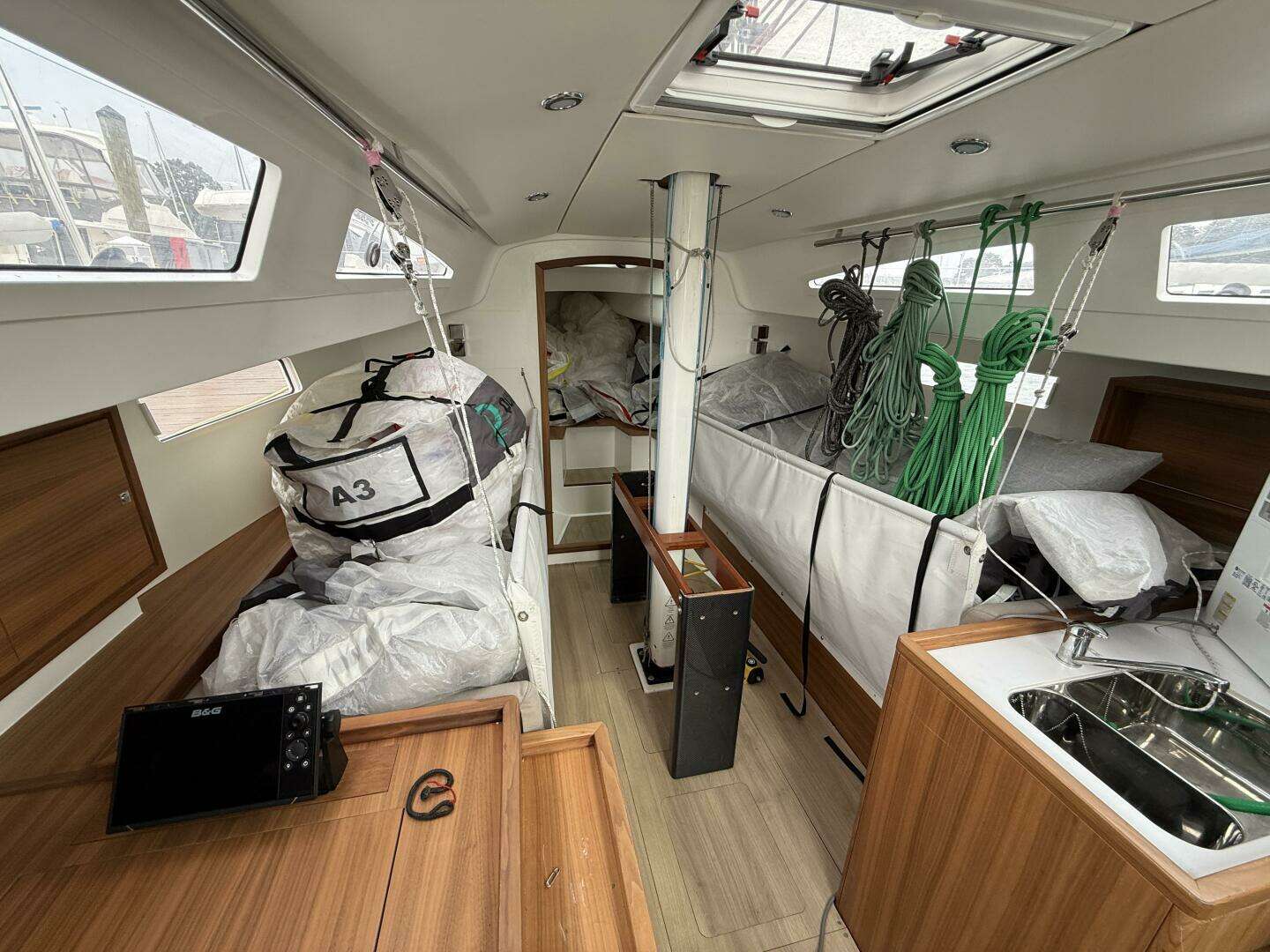

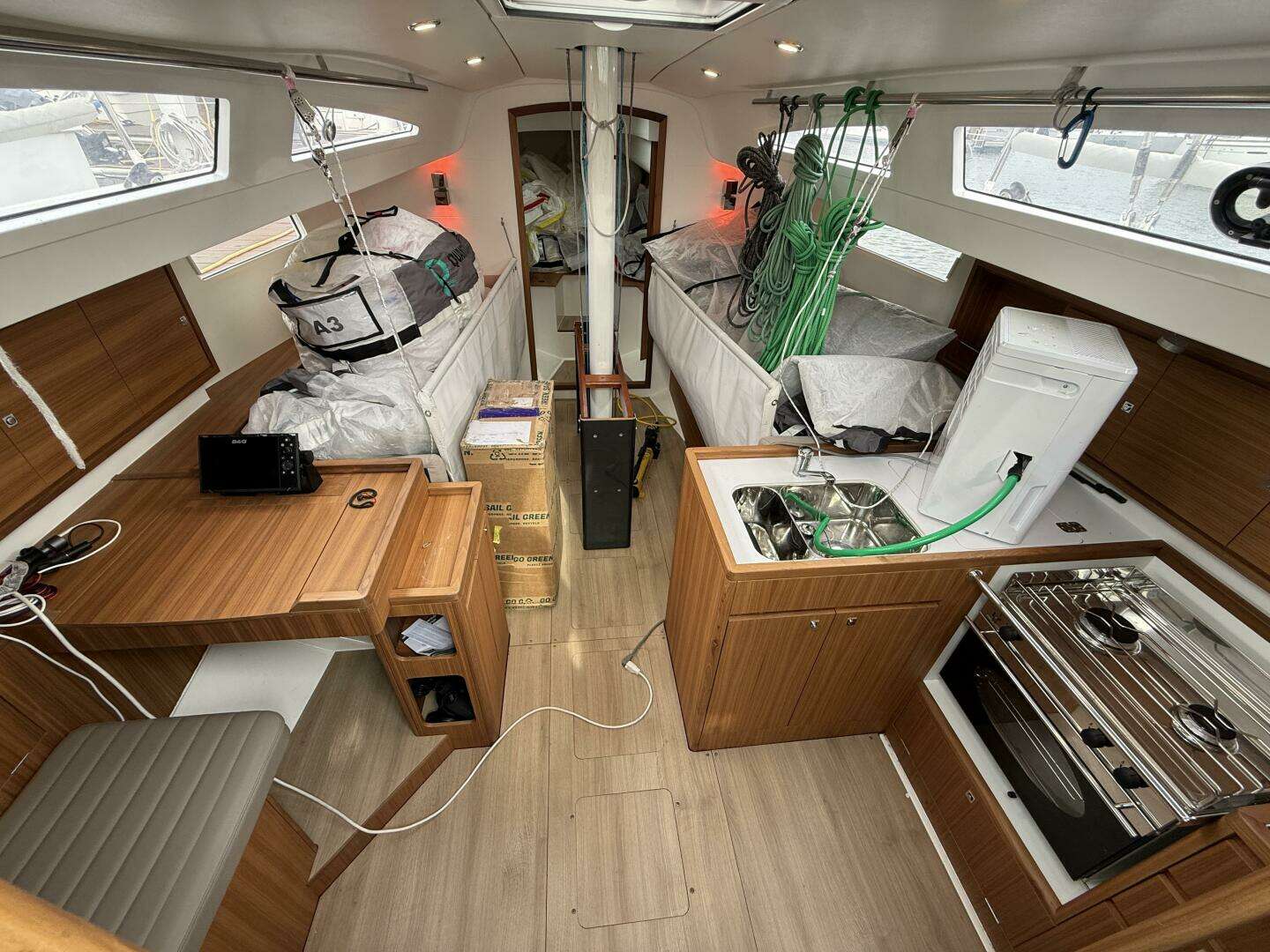

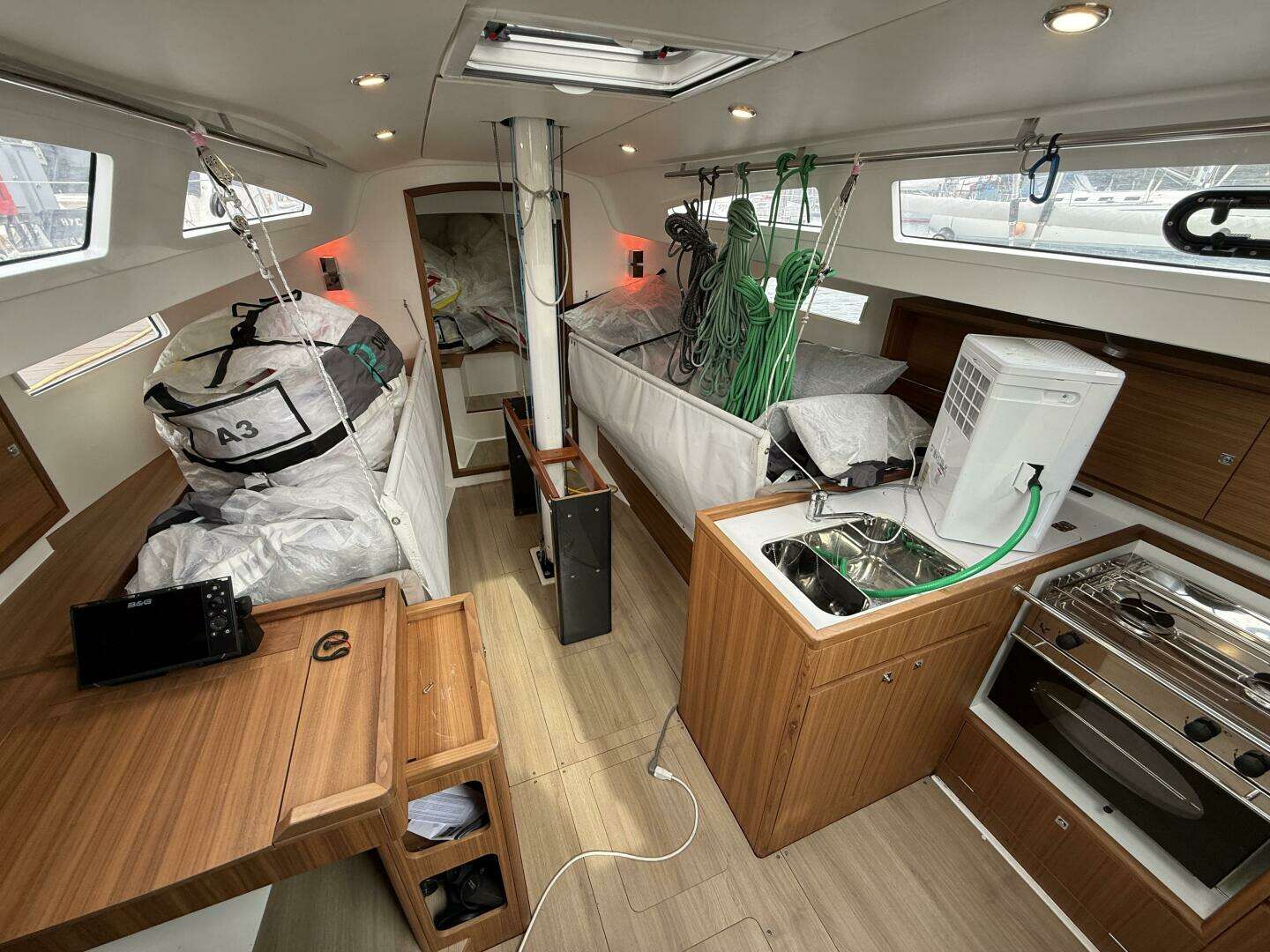

• Main Cabin with settee/berths to starboard and port side, large storage lockers behind backrests, table with drop leaves and bottle storage, and overhead stainless handrails

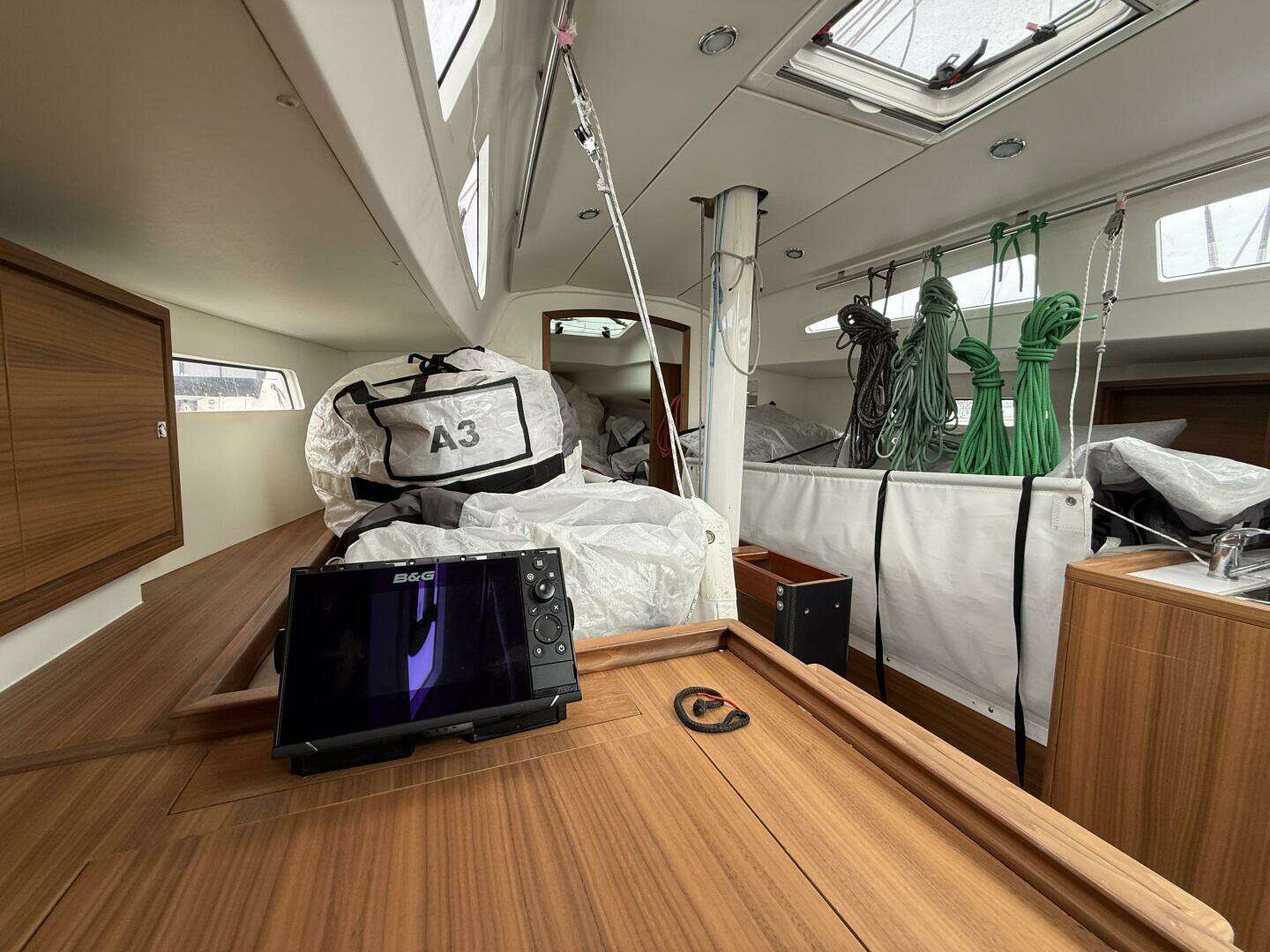

• Nav Station (to port) with large forward facing chart table, chart storage under table lid, locker under chart table shelf outboard, and large hinged instrument panel, outboard with electrical panel

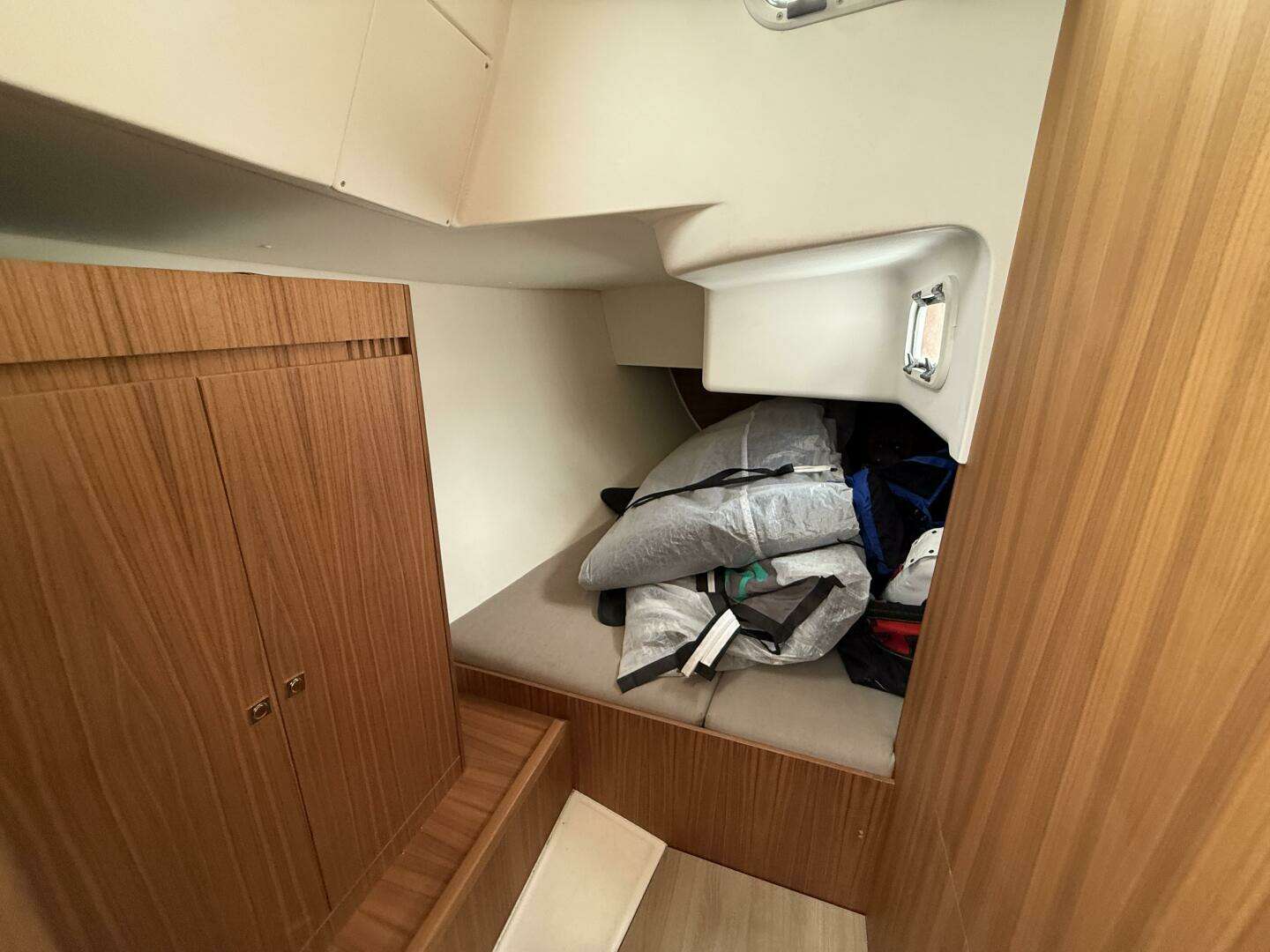

• Aft Cabin (to port) with access door to main cabin, large hanging locker, changing seat, double berth, access panel to engine and fuel tank under berth
• Companionway with white laminate bulkhead finish for superior wear resistance, entrance steps with angled treads, handrails integrated with bulkheads, main engine access through lifting panel and small storage bin near top of steps

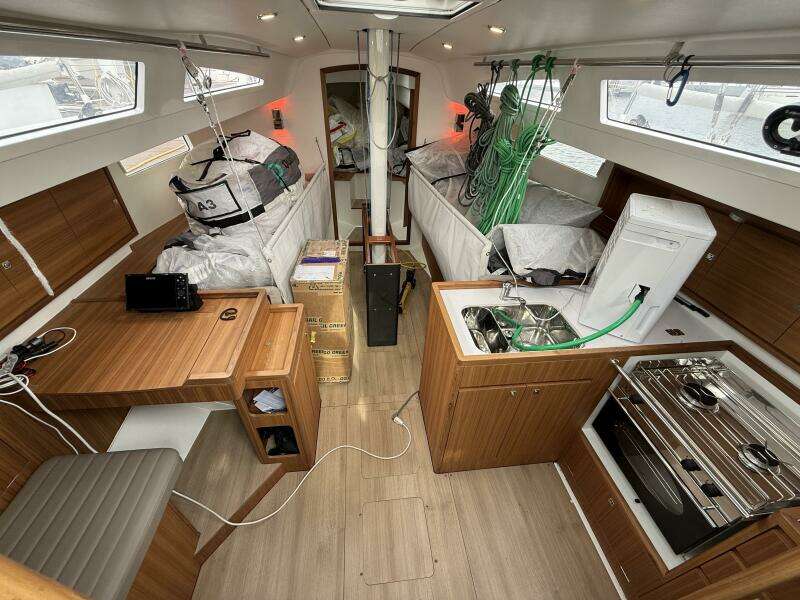

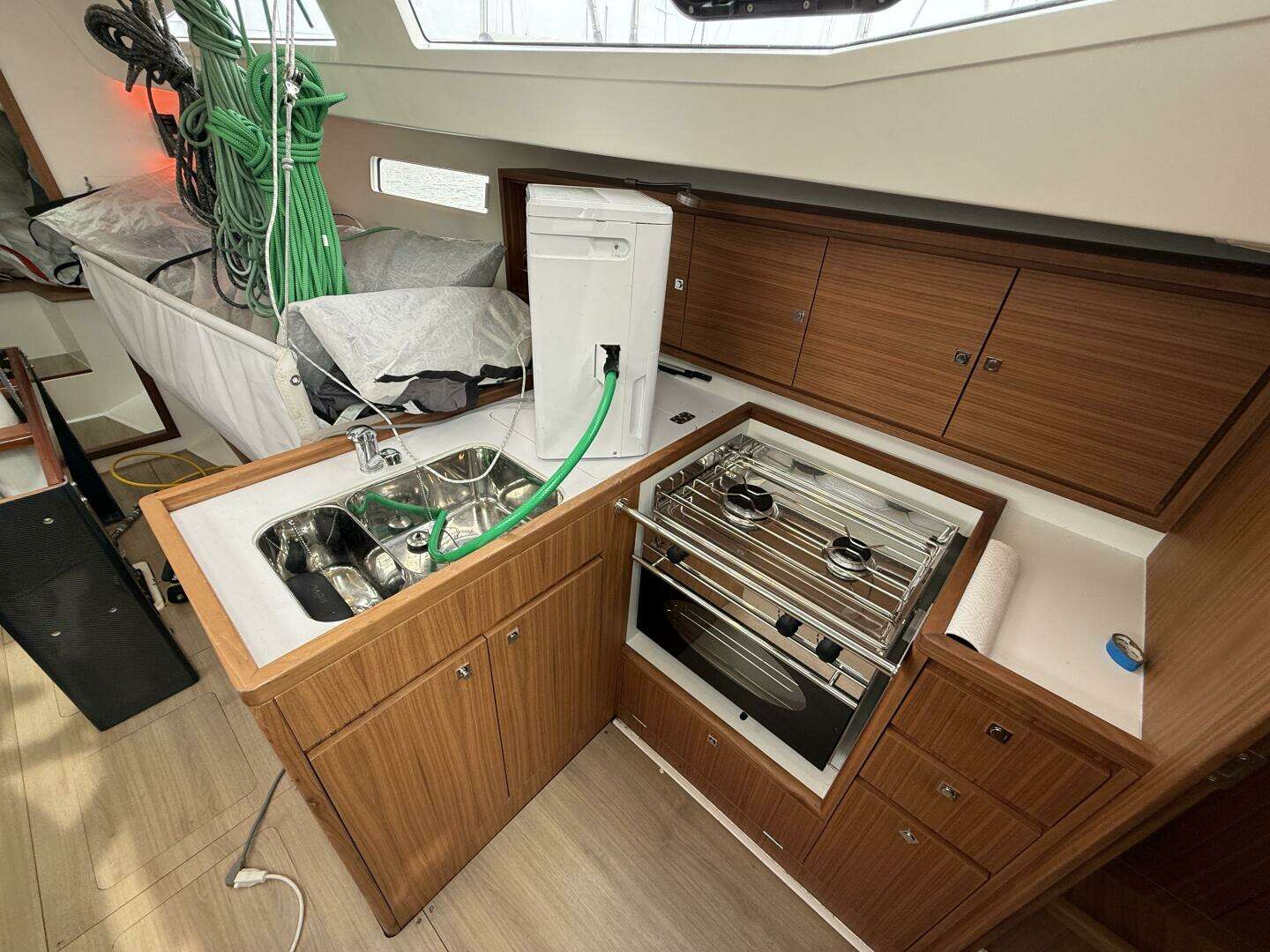

Galley

• L-shaped galley to starboard

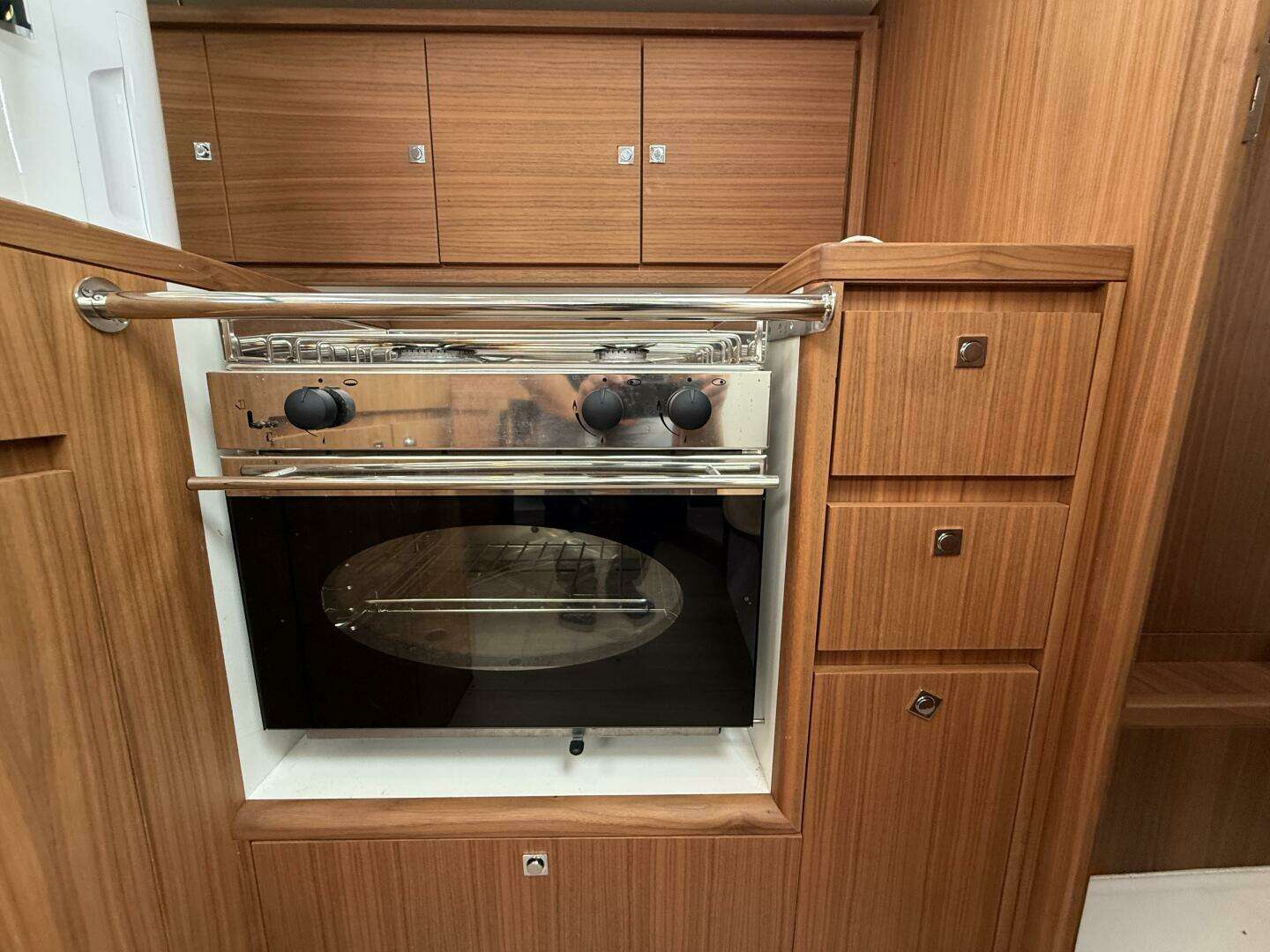

• Gimballed gas stove with oven and 2 burners
• Stainless-steel double sink
• Pressurized hot and cold-water system
• Large 23.8 gal. molded top-loading icebox/fridge
• Full length locker outboard of galley countertop
• Fiddles around the edge of the countertop
• Storage under sink with shelf and space for trash bin
• Utensil and storage drawers
• Ample storage for dry goods

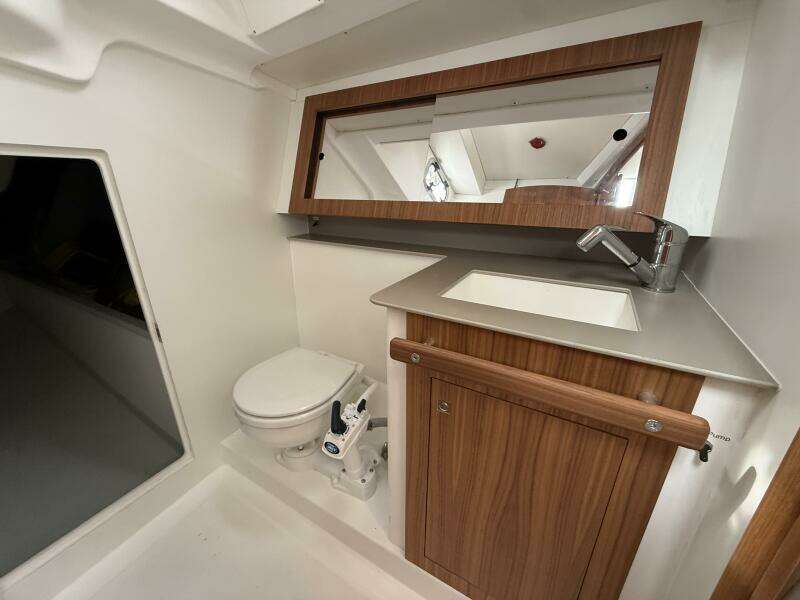

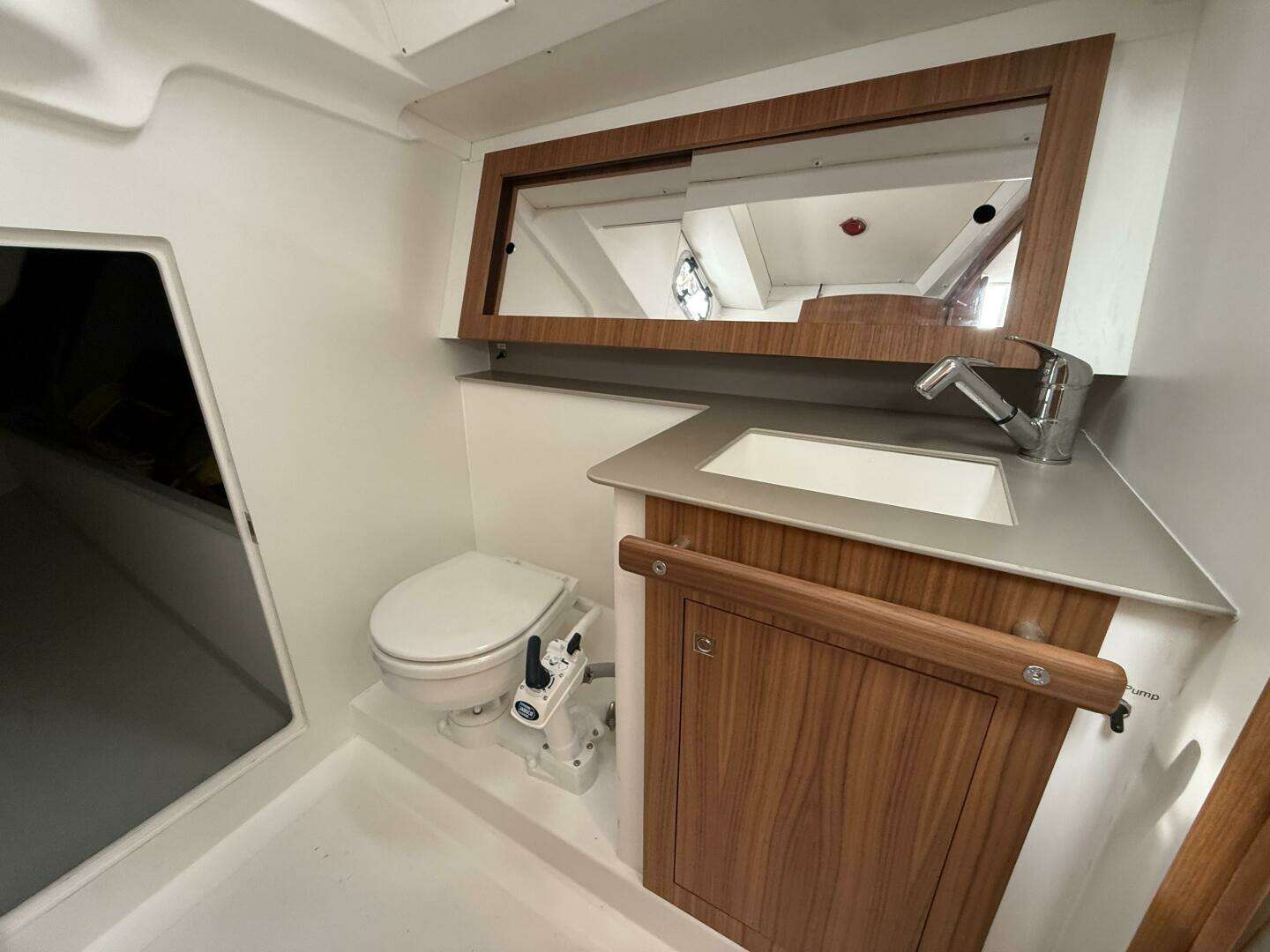

Head

• Aft Head (to starboard) with access door to main cabin
• Molded head platform for easier maintenance
• Integral shower tray
• Sink with access below to seacocks
• Pressurized hot and cold-water system
• Marine toilet
• Mirror
• Toilet roll holder and towel rail
• Vanity unit
• Shower grating
• Access door to cockpit storage locker area

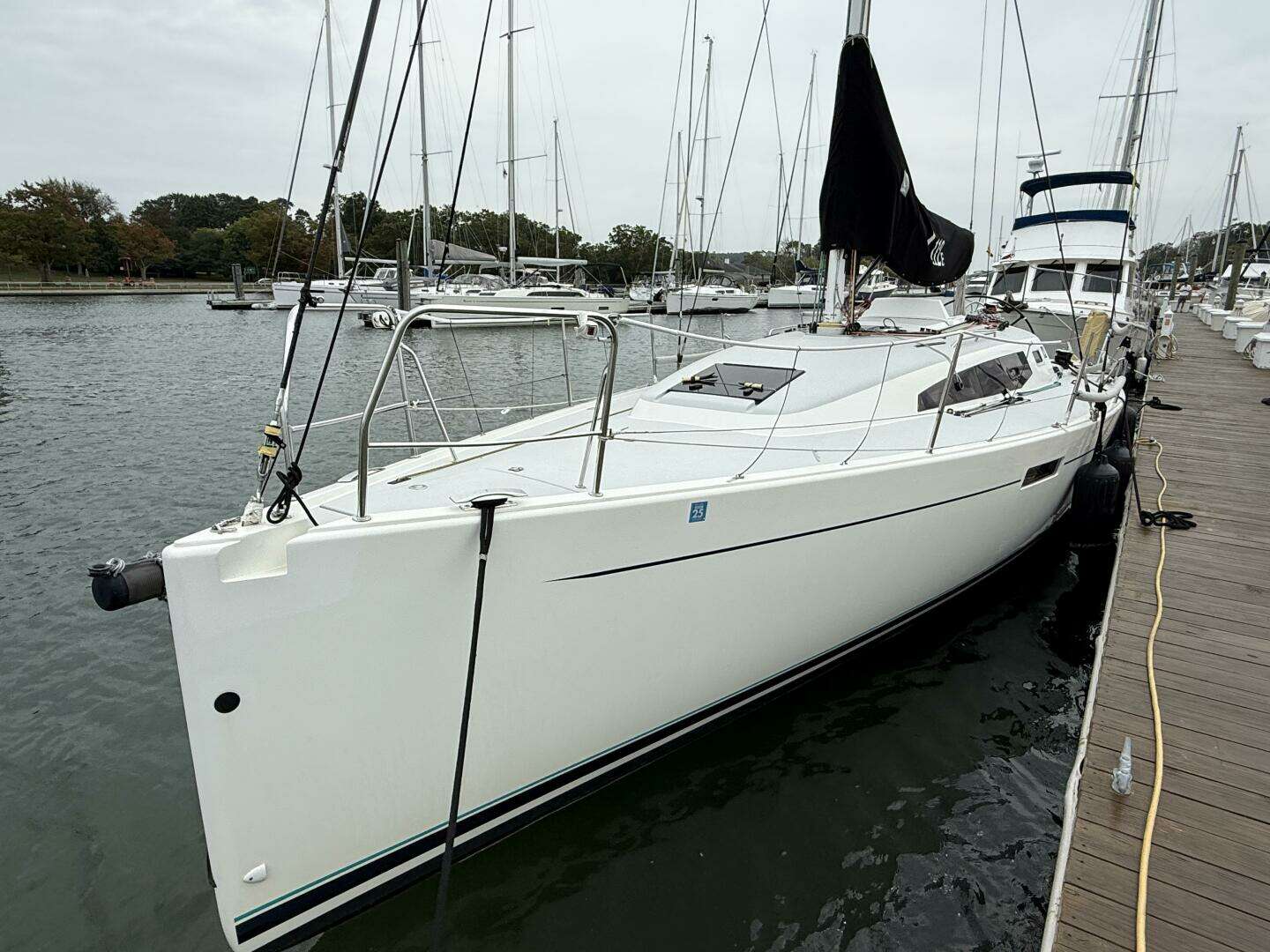

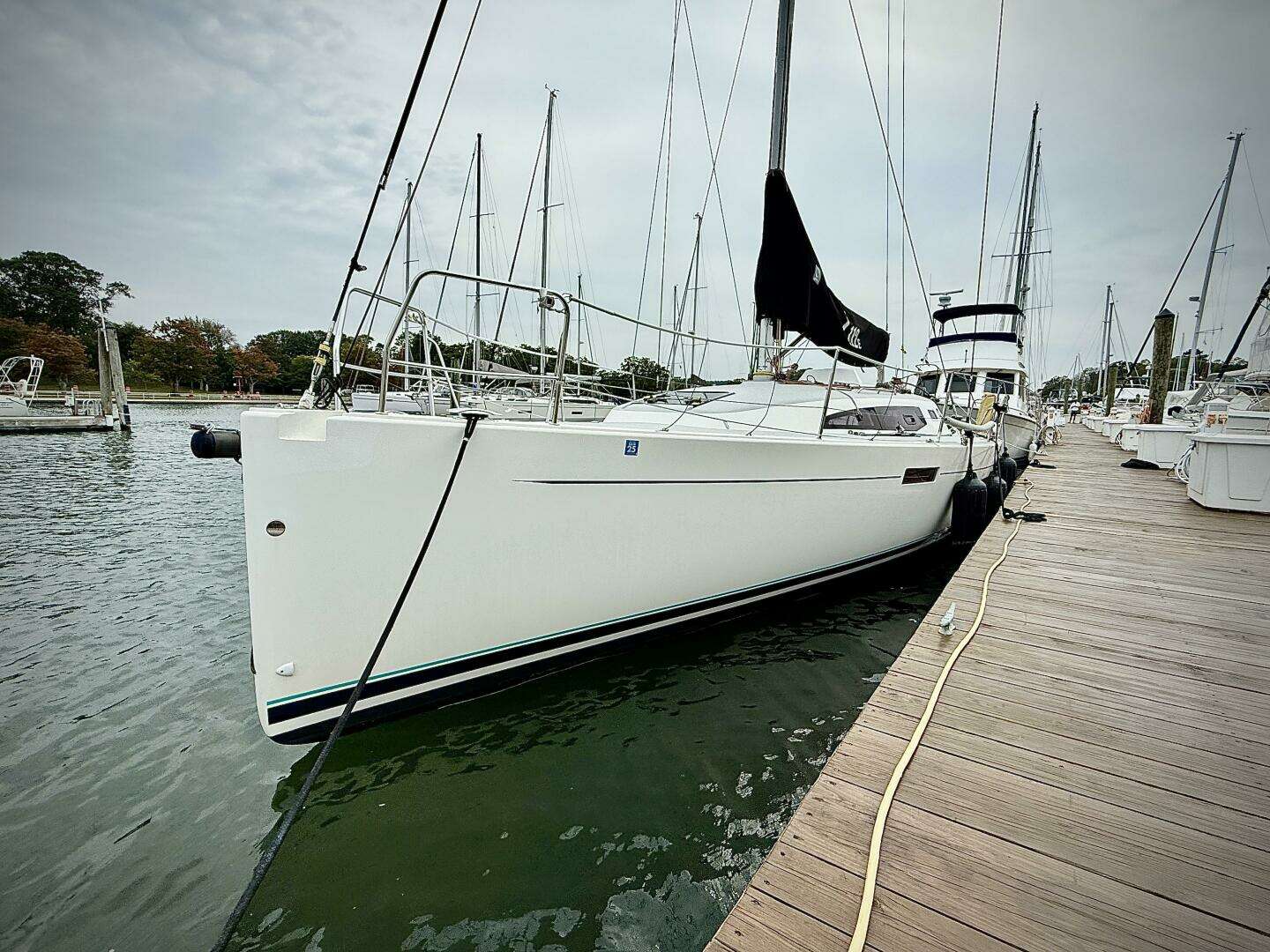

Hull and Deck

• End grained balsa composite construction using biaxial and unidirectional glass with vinylester resin on the outer hull layer for protection against hull blisters
• “SCRIMP” resin infusion system molding process for optimum laminate strength with 65-70% glass content in structural skins
• GRP infusion molded bulkhead bonded to hull and deck
• All intermediate bulkheads glassed to hull and deck for stiffness
• Heavy-duty fiberglass floor stringer grid infused, including mast structure
• Low VCG keel with encapsulated cast iron fin with lead bulb (6.9’ draft), bolted and bonded to hull with seamed joint to allow for easy removal

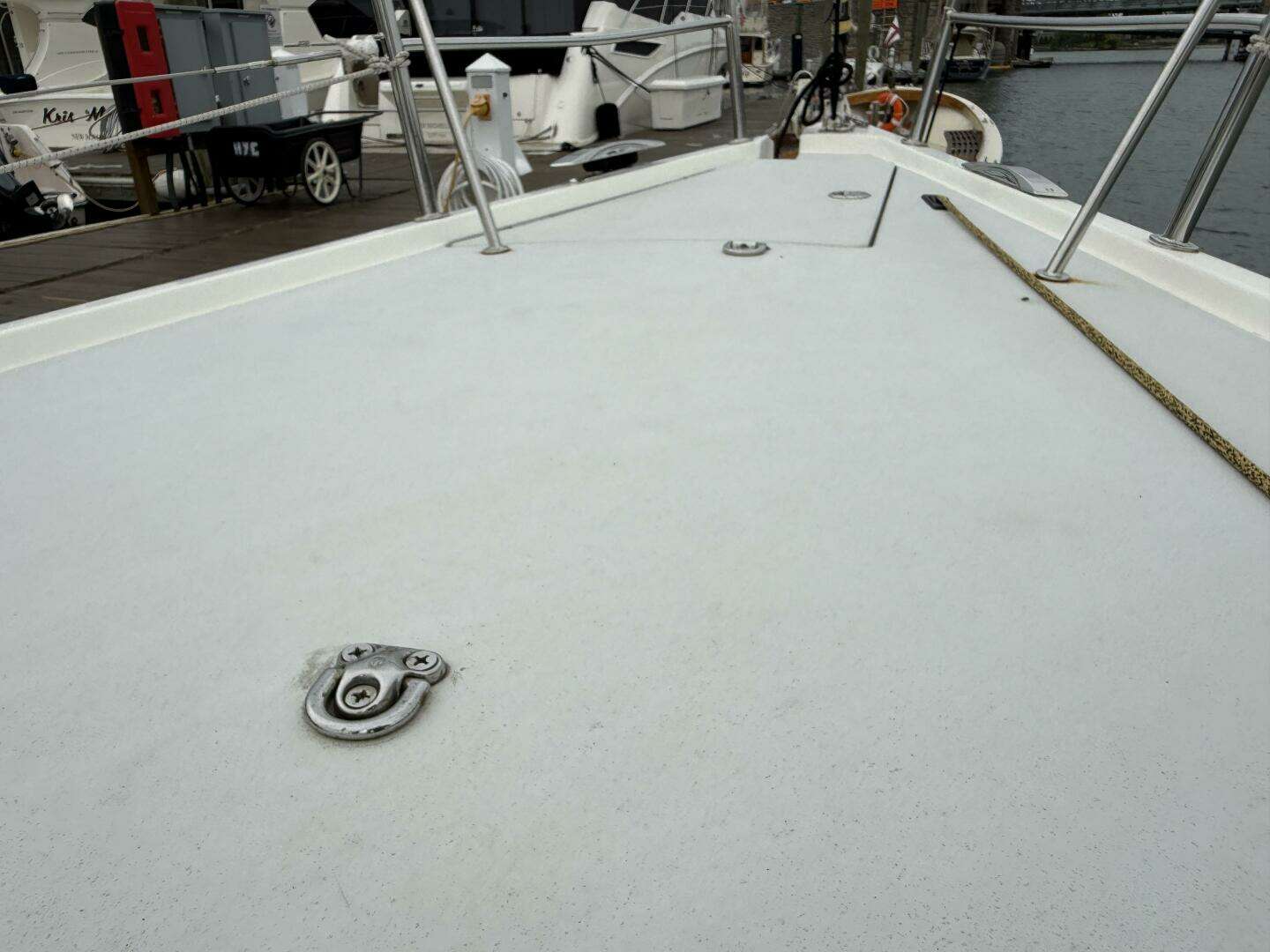

• Off-white two-tone deck with a high traction non-skid

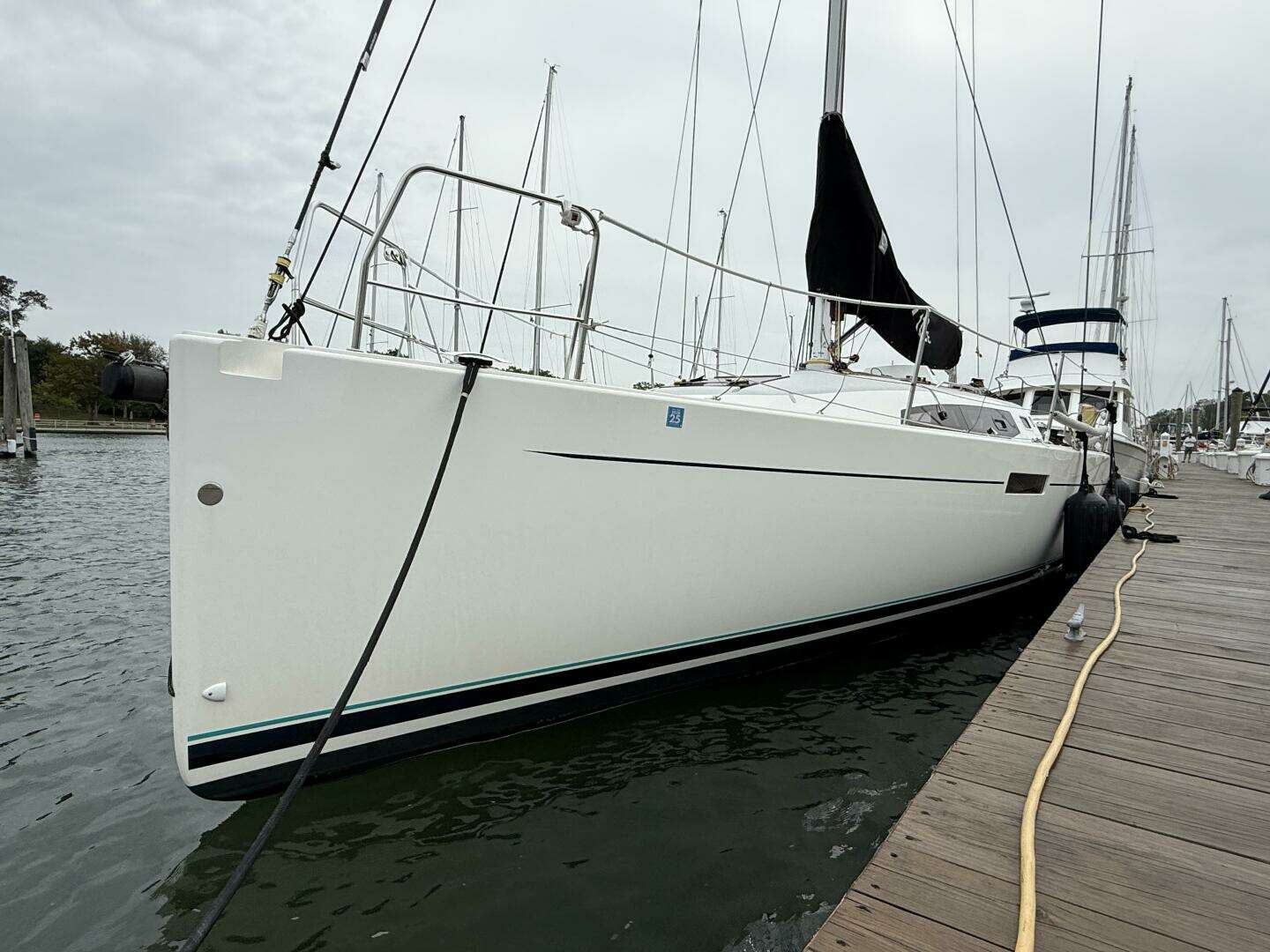

• White hull with gel coat integrated blue boot and cove stripe
• Integral, bulwark-style toe-rail around perimeter of deck

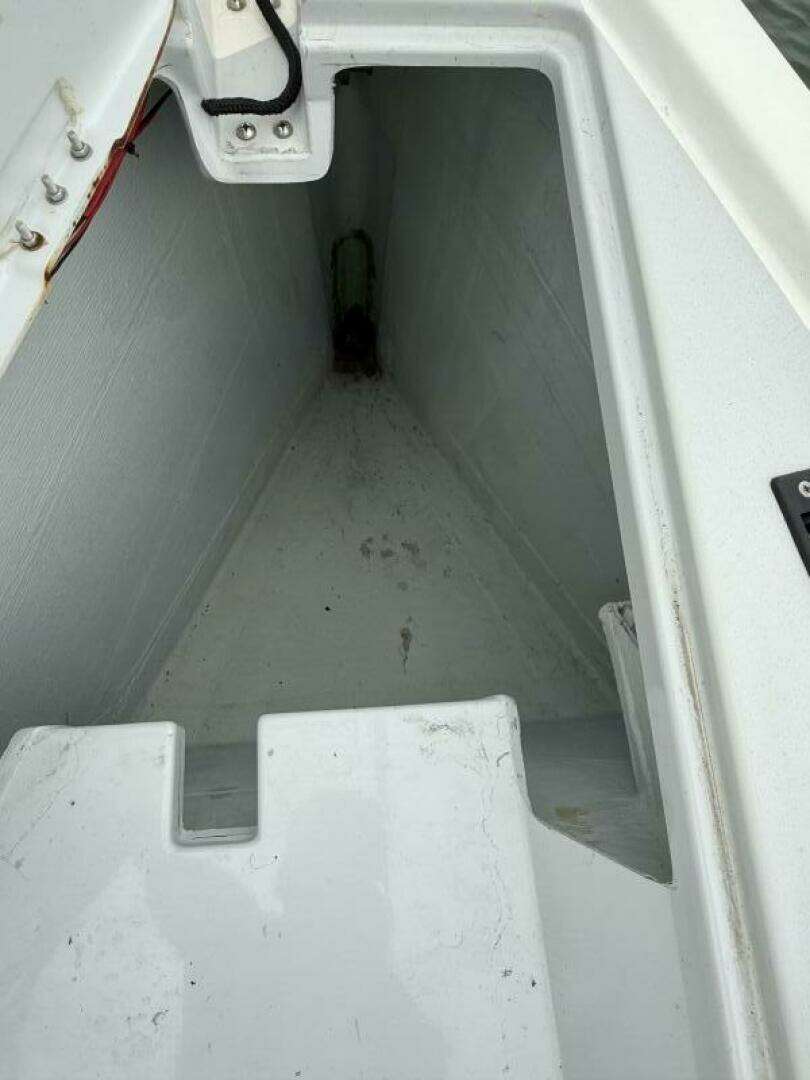

• Large capacity self-draining foredeck chain locker, with space for optional electric anchor windlass

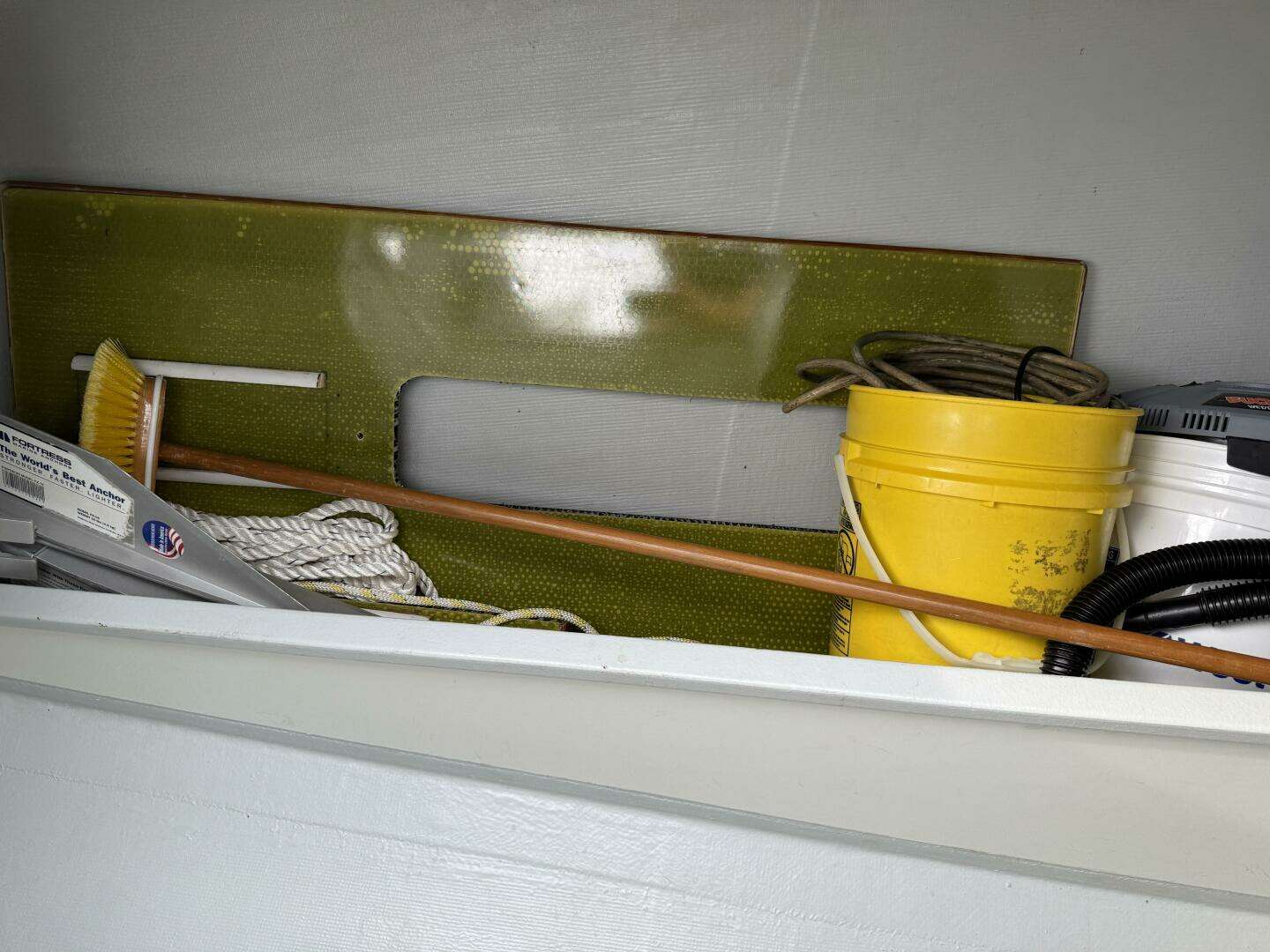

• Large cockpit storage locker on port side

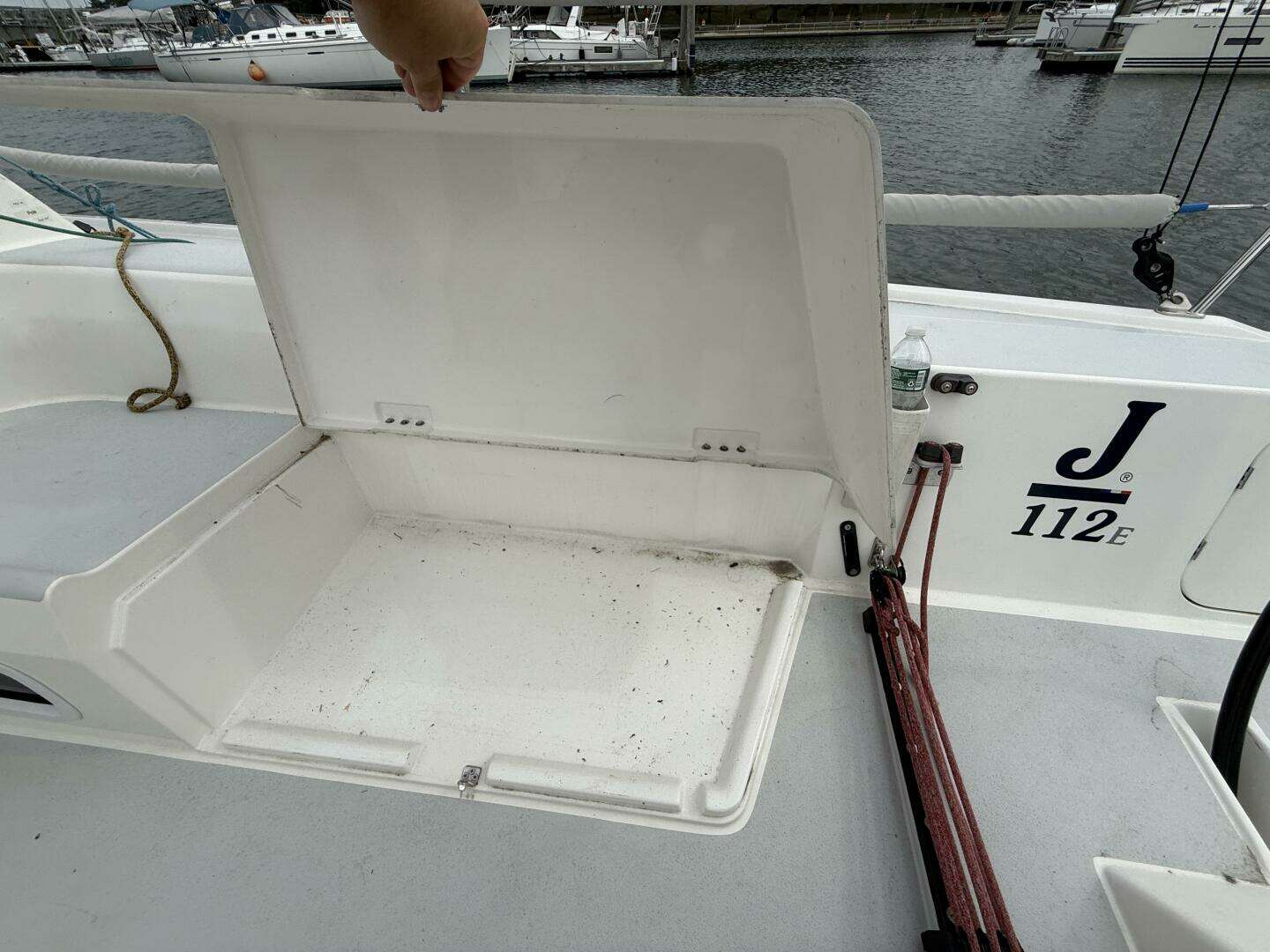

• Storage locker for life raft on starboard side
• Propane locker located in the cockpit
• Removable swimming ladder with SS mountings on aft end of cockpit floor
• Balanced spade rudder constructed with biaxial and unidirectional glass and large diameter S/S stock mounted in self-aligning bearings
• Composite wheel in lieu of standard
• Sunbrella padded lifeline covers (4) w/matching mainsail cover & J/112E logo
• Molded seahood instrument pod

Deck Hardware

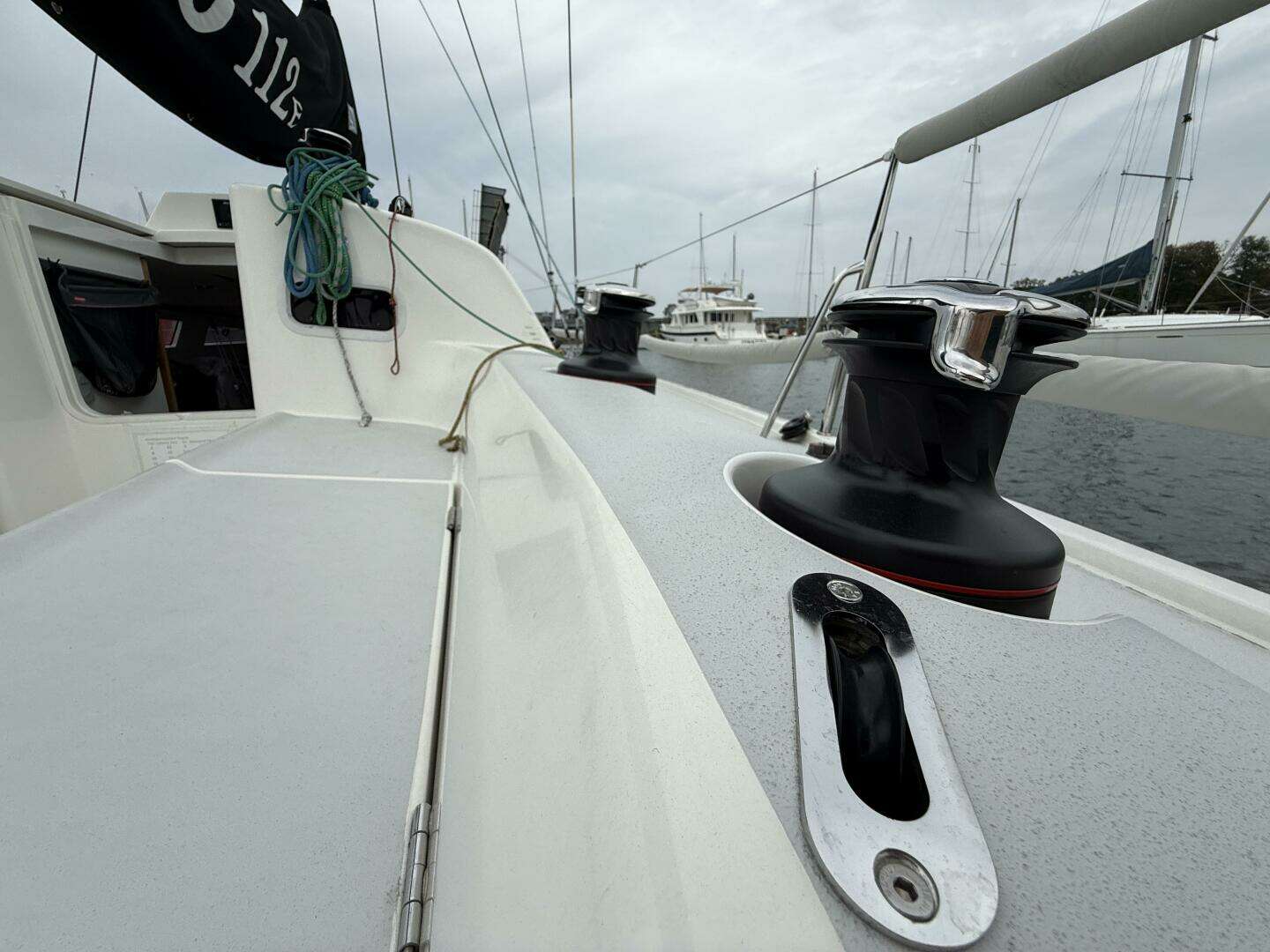

• 2 40 STA (self-tailing) mainsheet winches
• 2 46 STA (self-tailing) primary winches
• 2 35 STA (self-tailing) halyard winches
• 4 Aluminum lock-in winch handles with 4 PVC handle holders

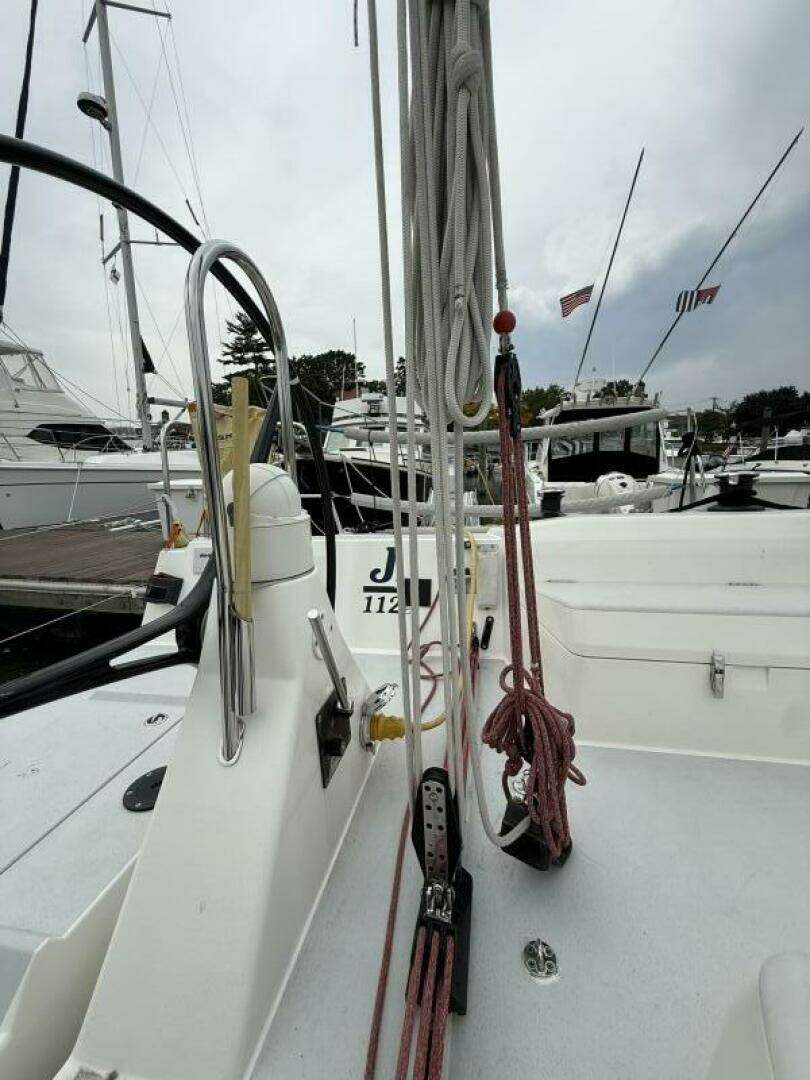

• Mainsheet system with 2:1 purchase, led to side winches
• Adjustable mainsheet traveler with control lines led to cleats on both sides
• Adjustable jib cars (2) with 6:1 purchase led to cleats on coach roof
• 2 low profile custom alloy fairleads for jib sheet led to the primary winches
• Spinnaker sheet blocks on pad eyes

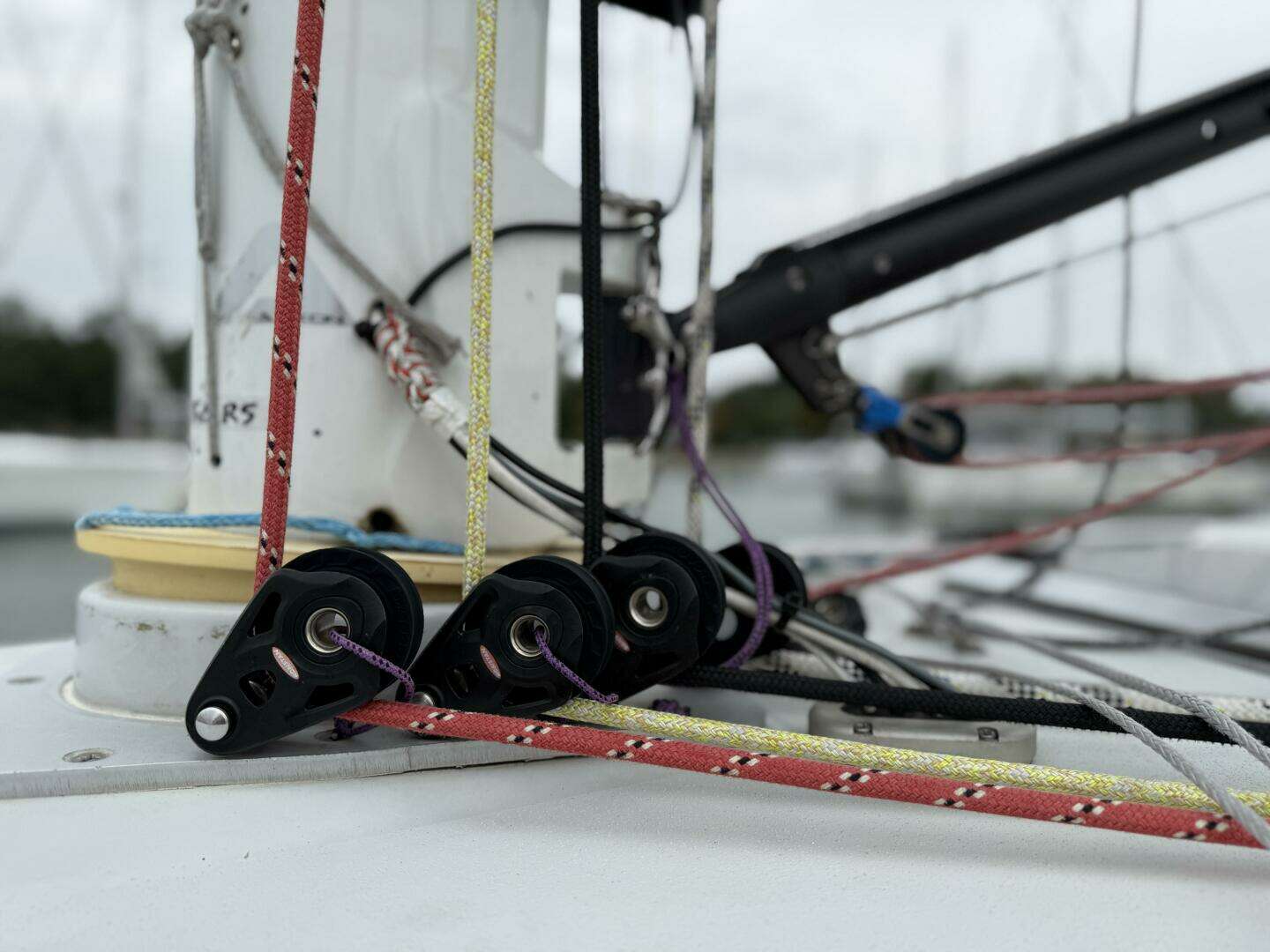

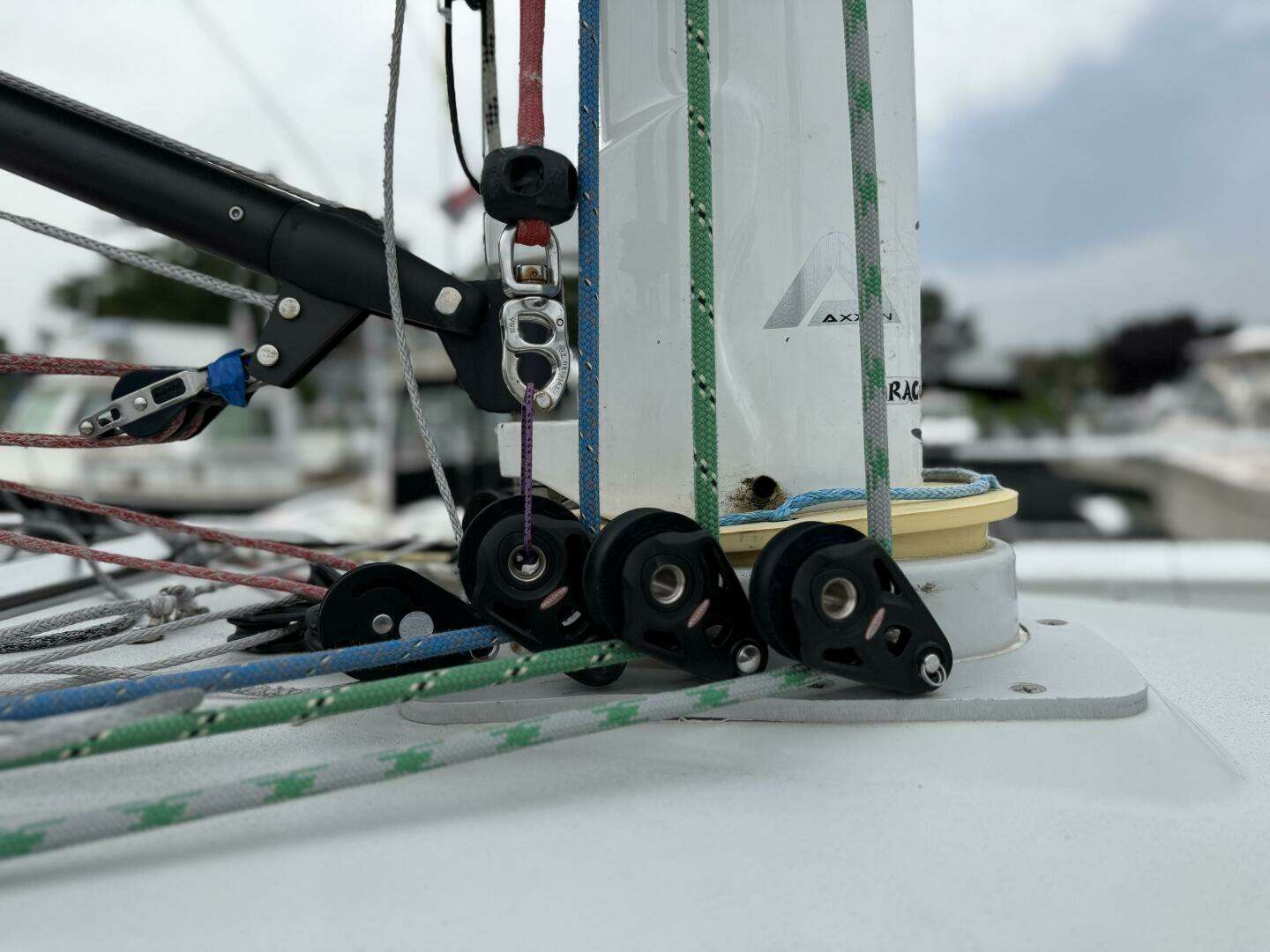

• 5 halyard/reef turning blocks

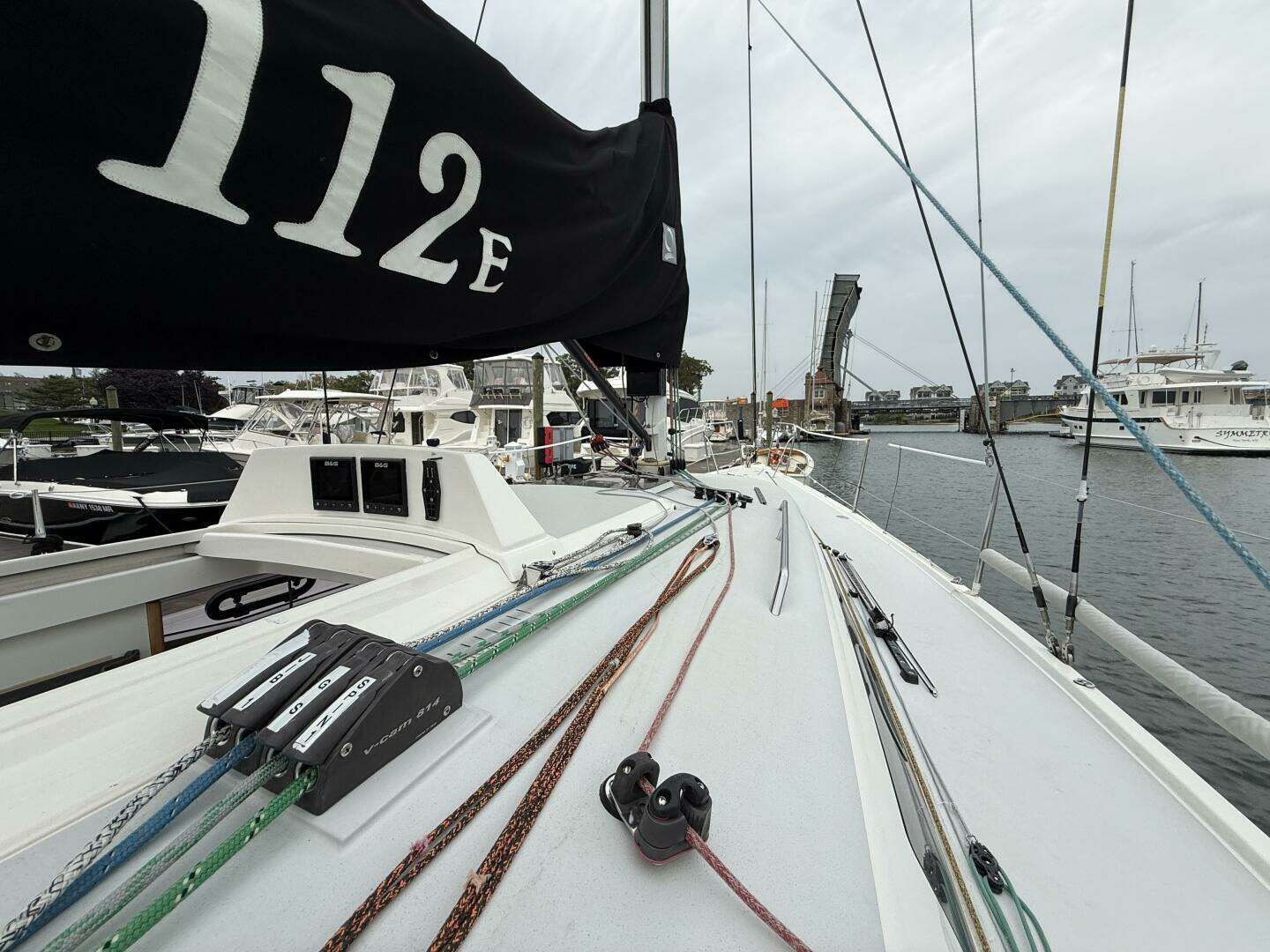

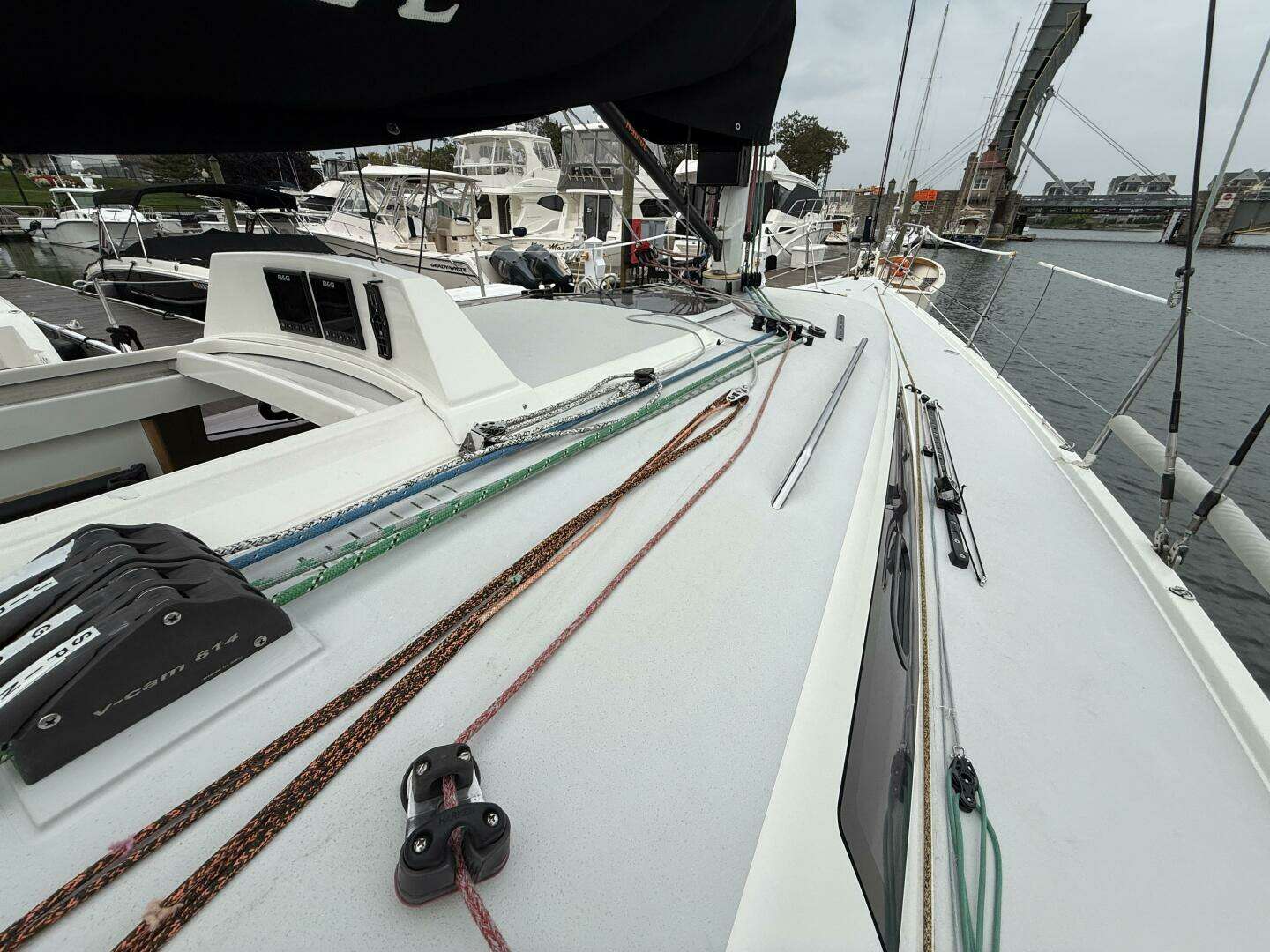

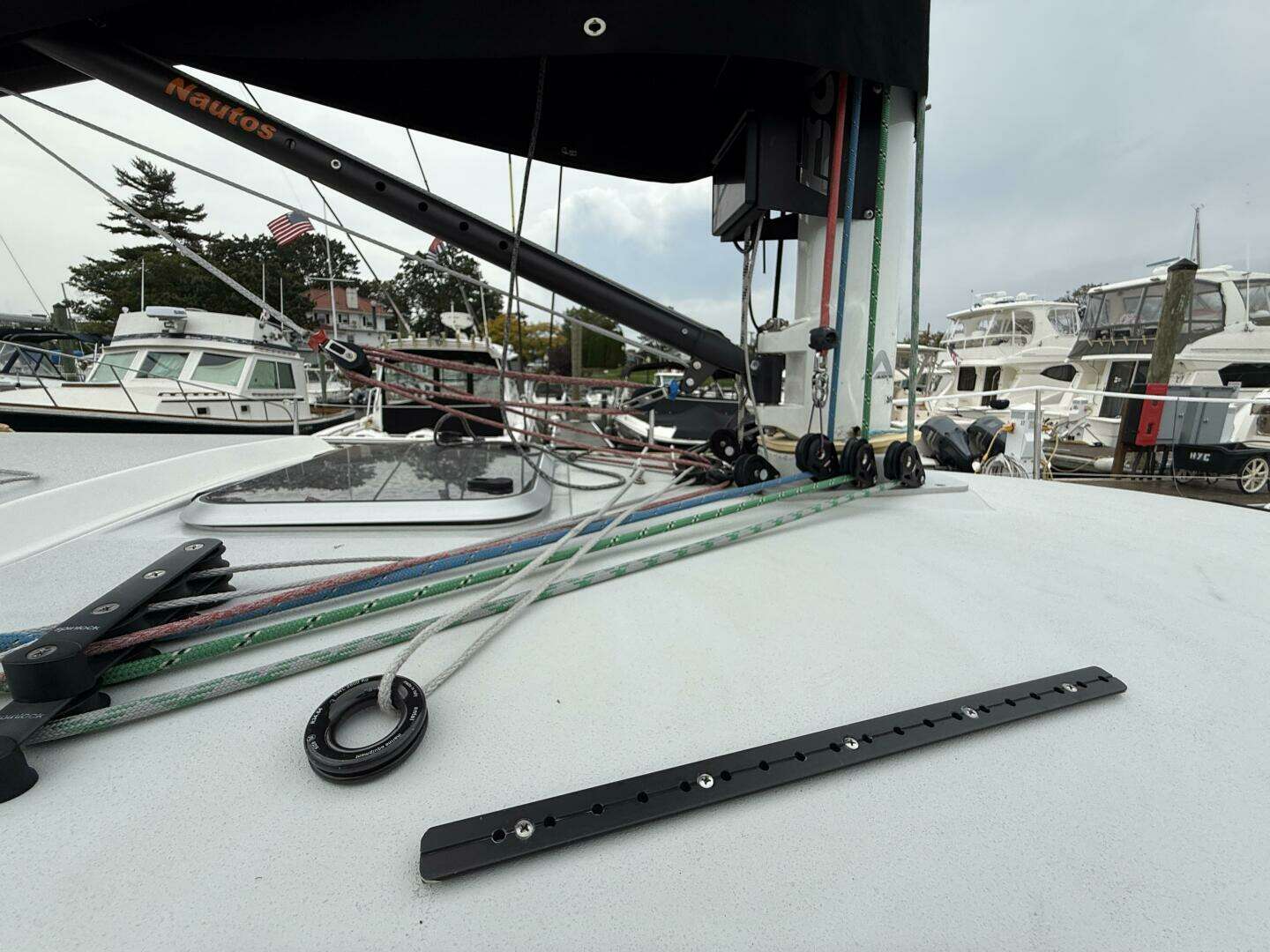

• Halyards led aft through 2 quadruple organizers and 4 rope clutches on each side of companionway
• Tack line led aft to clutch on starboard side of cabin house
• Bowsprit control line leading to a cam cleat on side of cabin house
• 4 mooring cleats
• Custom S/S stem plate with tack fitting, removable anchor roller (option)
• S/S chainplates for shrouds and backstay

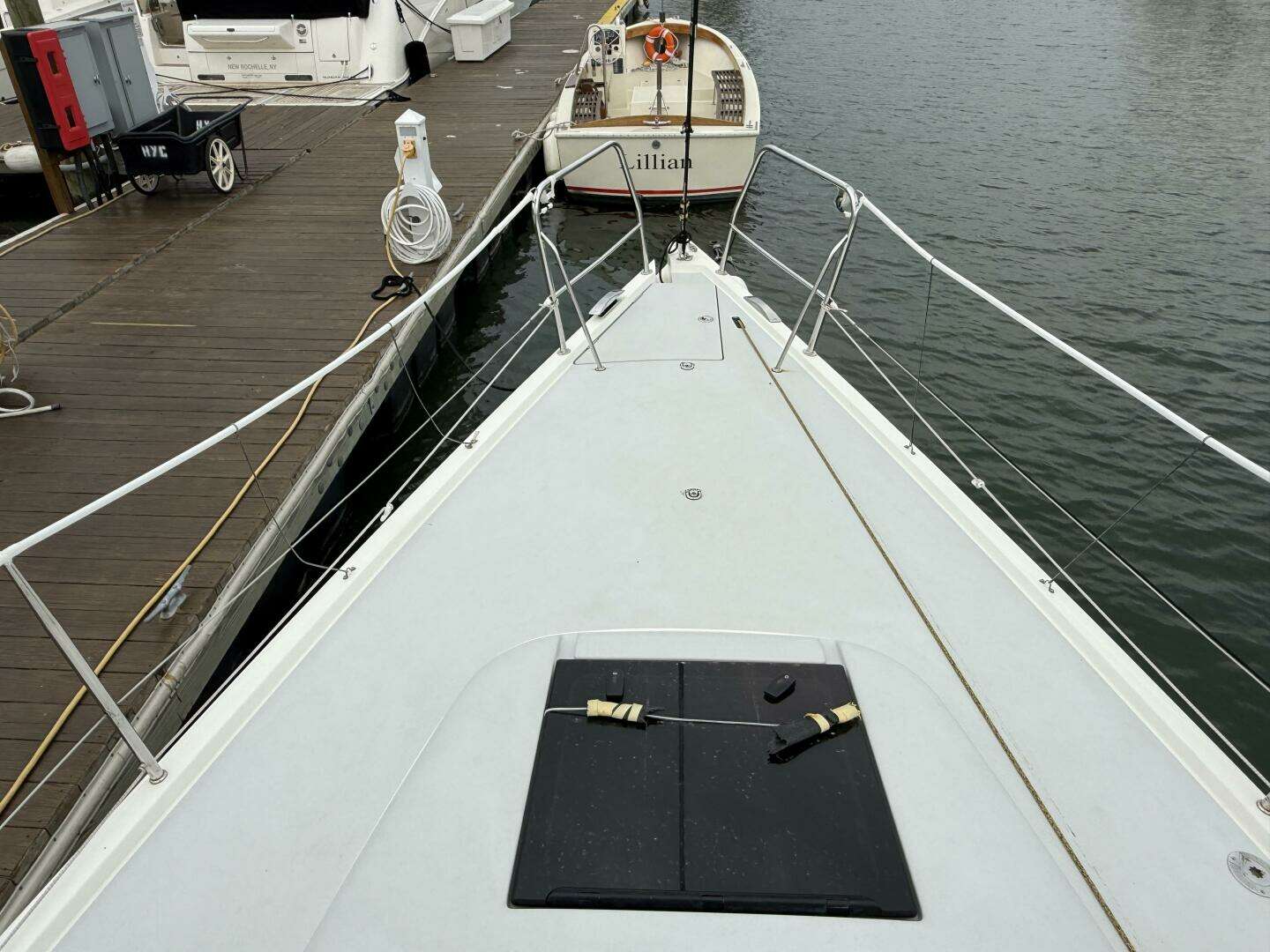

• Foredeck skylight opening hatch (500 x 500)
• Skylight opening hatch (450 x 320) over main salon
• 2 fixed ports integrated in the coach roof sides
• 2 opening ports (304 x 155) for aft cabin and head compartment
• 2 opening ports (350 x 170) on aft face of cabin trunk
• 1 opening port (350 x 170) in cockpit (aft cabin)
• 3 line bags
• 2 S/S handrails on coach roof
• S/S bow and stern rails with double rails
• Double S/S lifelines, 8 stainless stanchions, 4 with reinforcing leg, and two amidships lifeline gates (P & S) for easy boarding
• Sunbrella padded lifeline covers (4) w/matching mainsail cover & J/112E logo

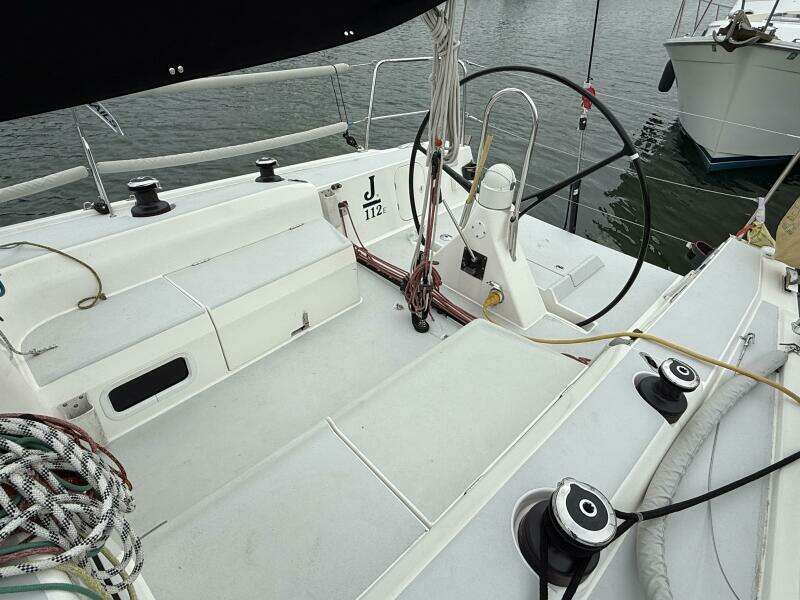

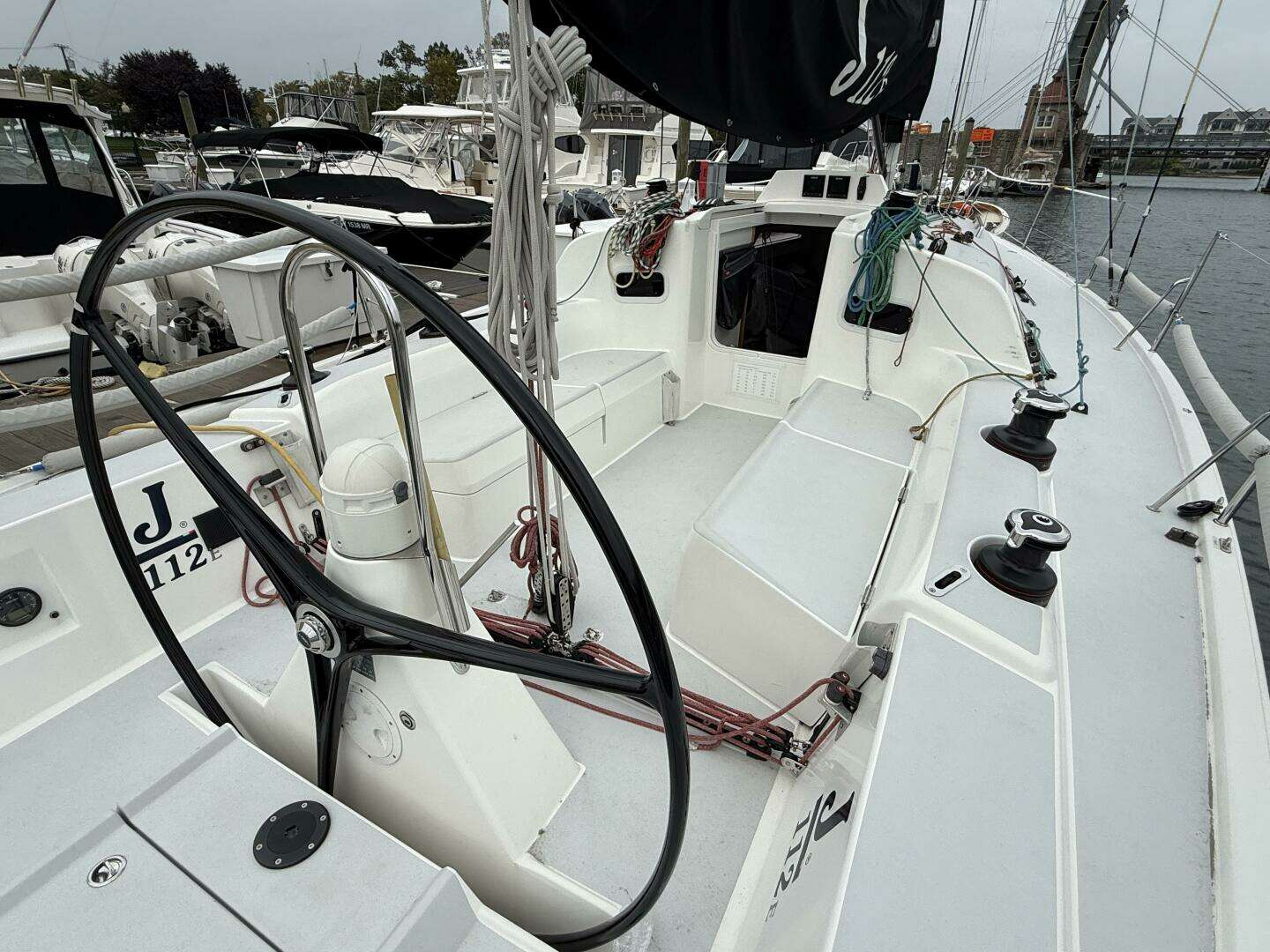

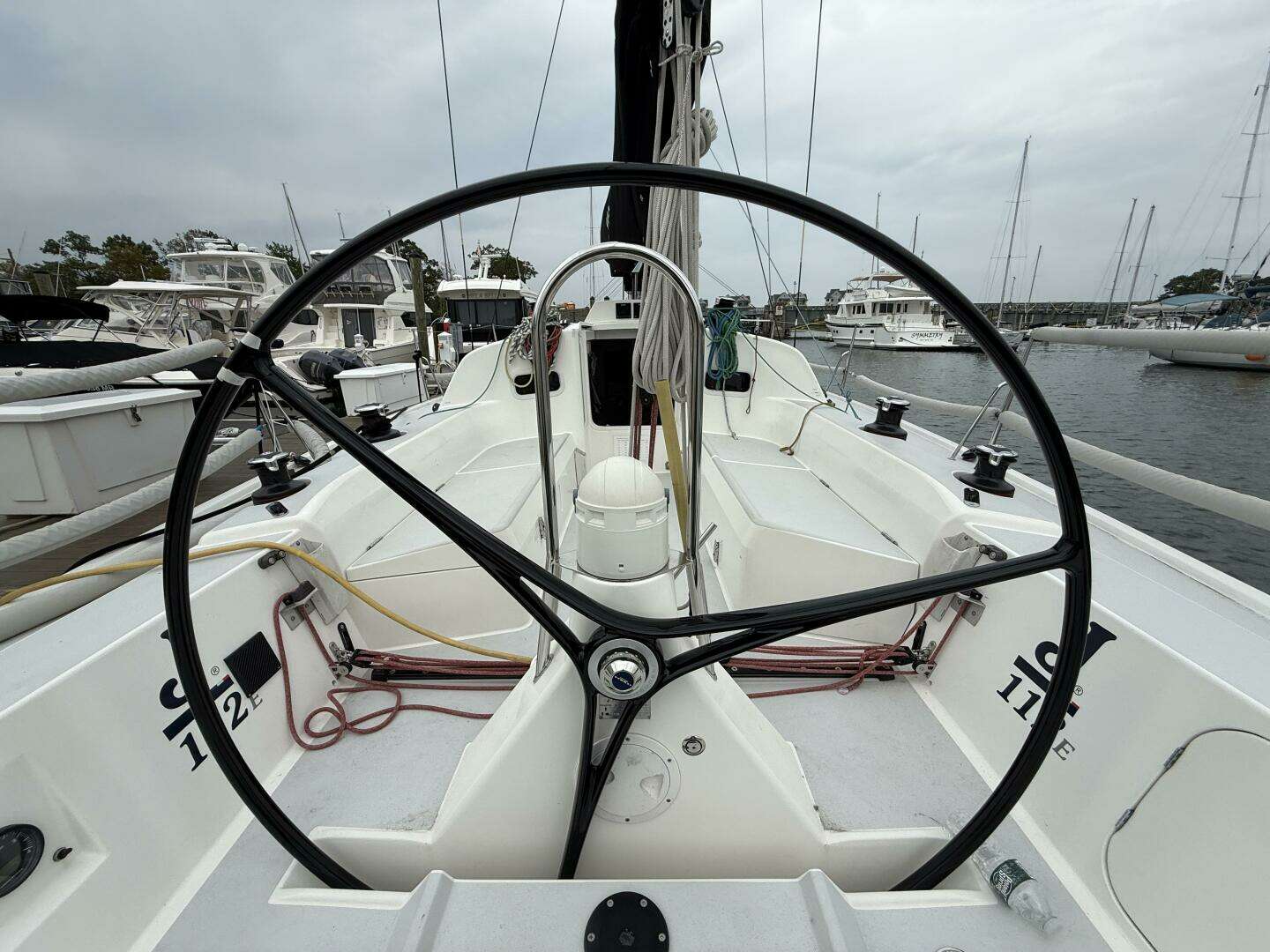

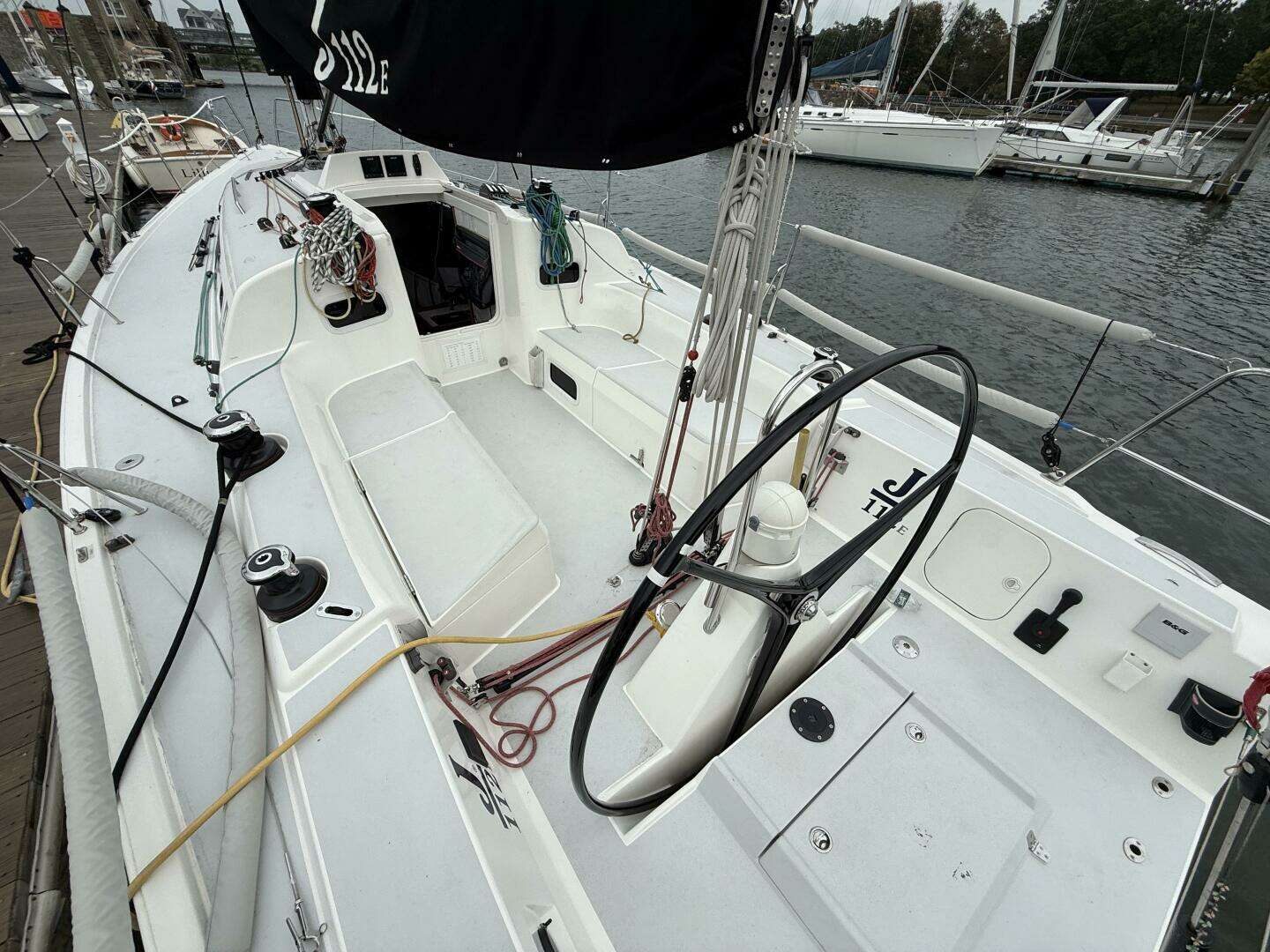

• 59” (1.5m) diameter aluminum steering wheel, powder-coated black, with natural leather grip on custom molded pedestal with 5’’ compass, brake and stainless guard
• Emergency tiller
• Acrylic companionway drop-board with lock and ventilation grid
• Drop-board storage rack in cockpit locker
• Flag holder

Sails

Quantum racing sail inventory:

• 2025 fusion m5 j1.5 (new)
• 2024 fusion m5 j2
• 2024 storm trysail
• 2023 fusion m7 main
• 2023 fusion m7 j1
• 2023 asymmetrical a1.5
• 2023 asymmetrical a3
• 2023 asymmetrical a2
• 2023 tri-radial spinnaker staysail
• 2023 ubi maior furler - fr125
• 2023 fusion m5 j2
• 2023 tri-radial j3.5
• 2023 asymmetrical a2
• 2023 asymmetrical cableless code 0

Spars and Rigging

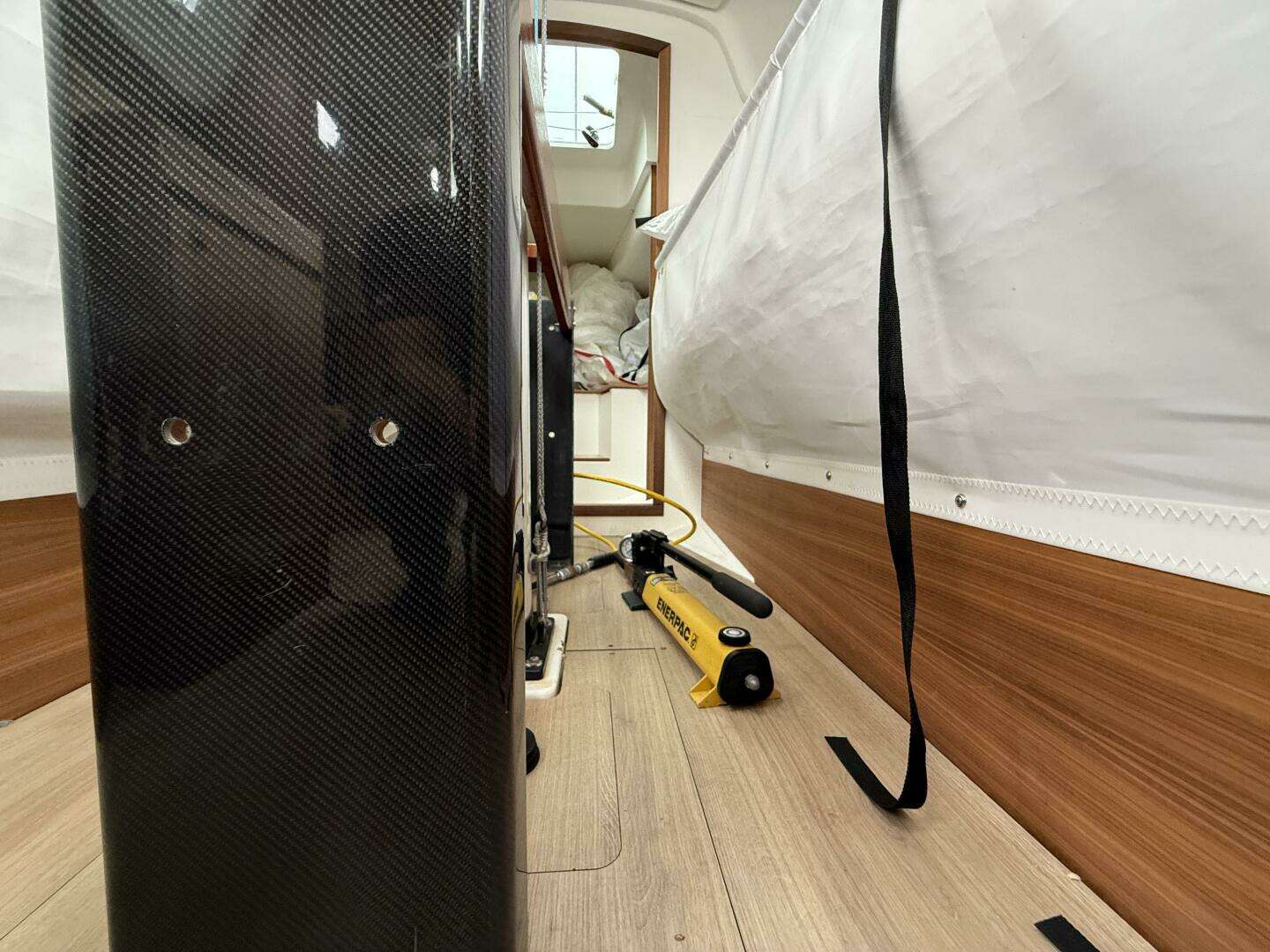

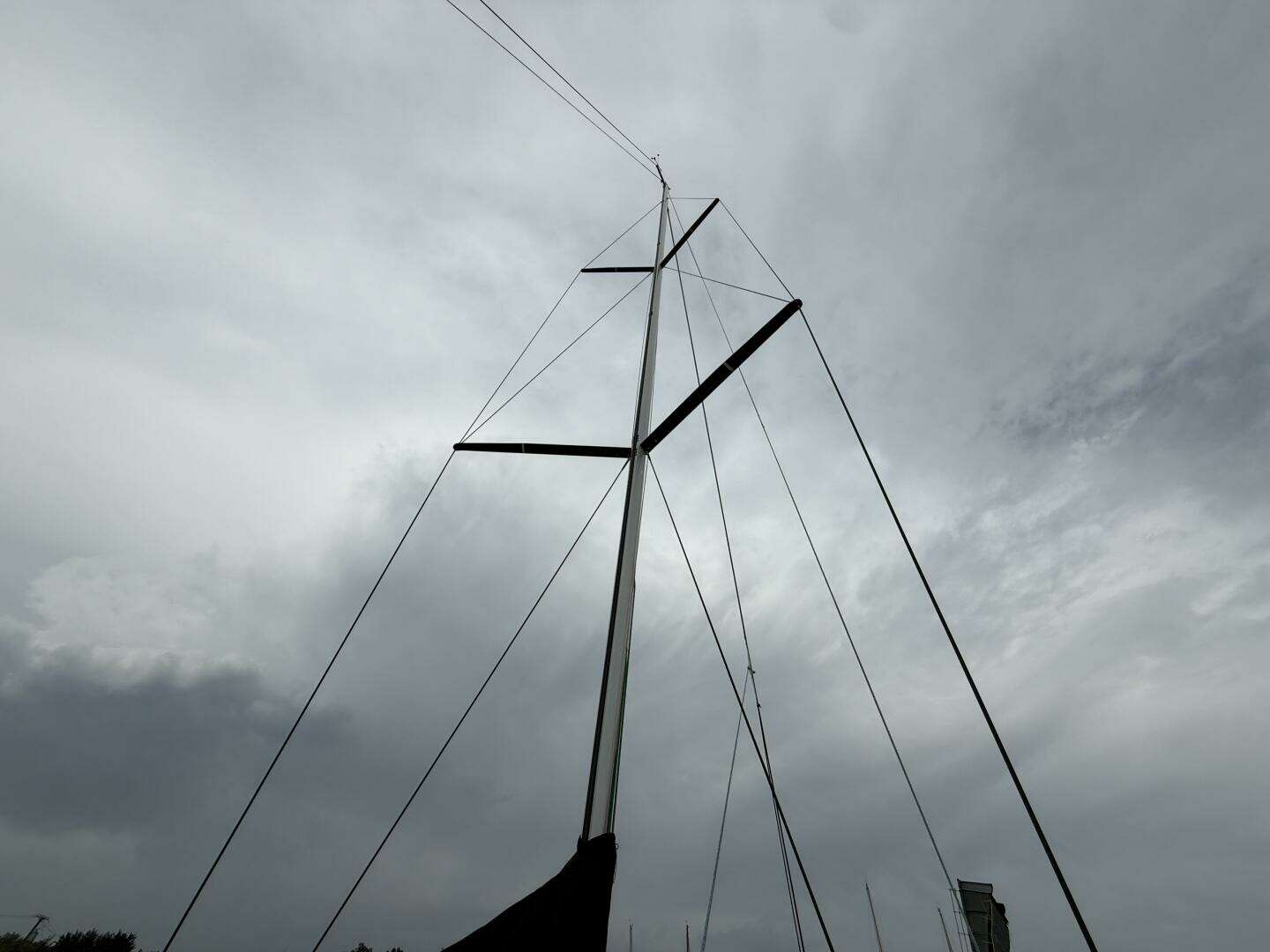

• Keel-stepped Axxon custom carbon mast
• Discontinuous rod rigging

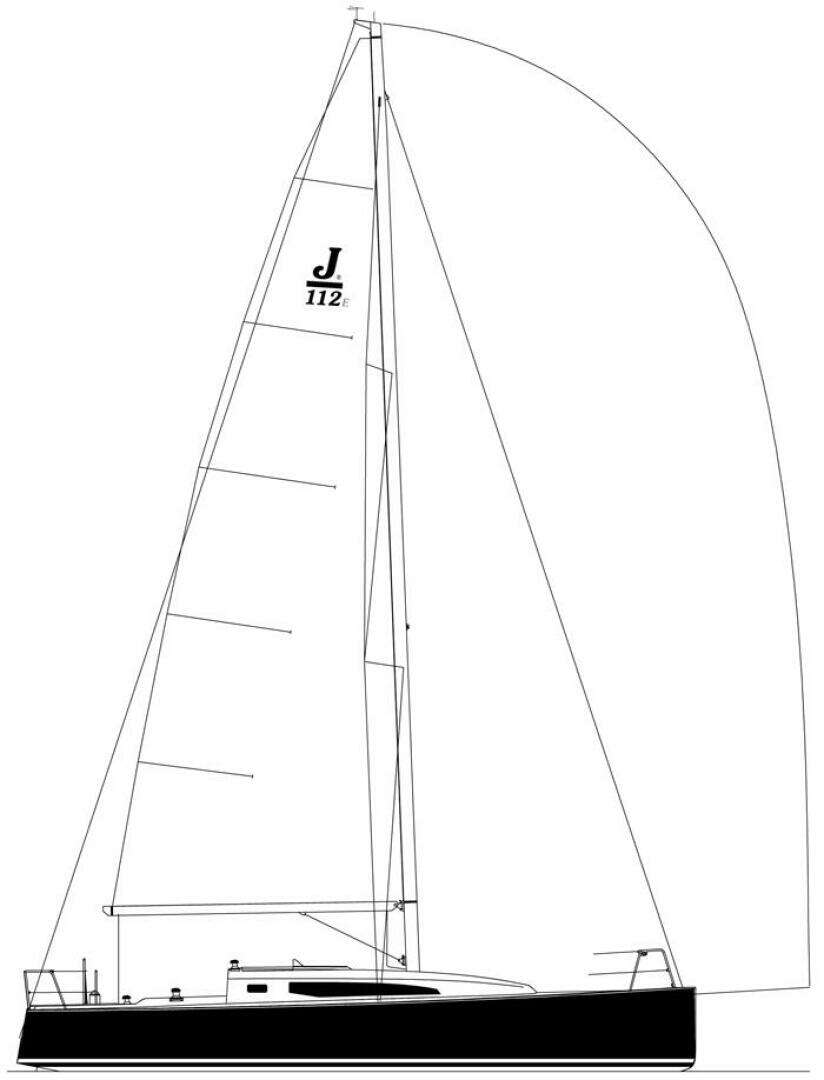

• Sloop Marconi fractional rig type with swept-back spreaders

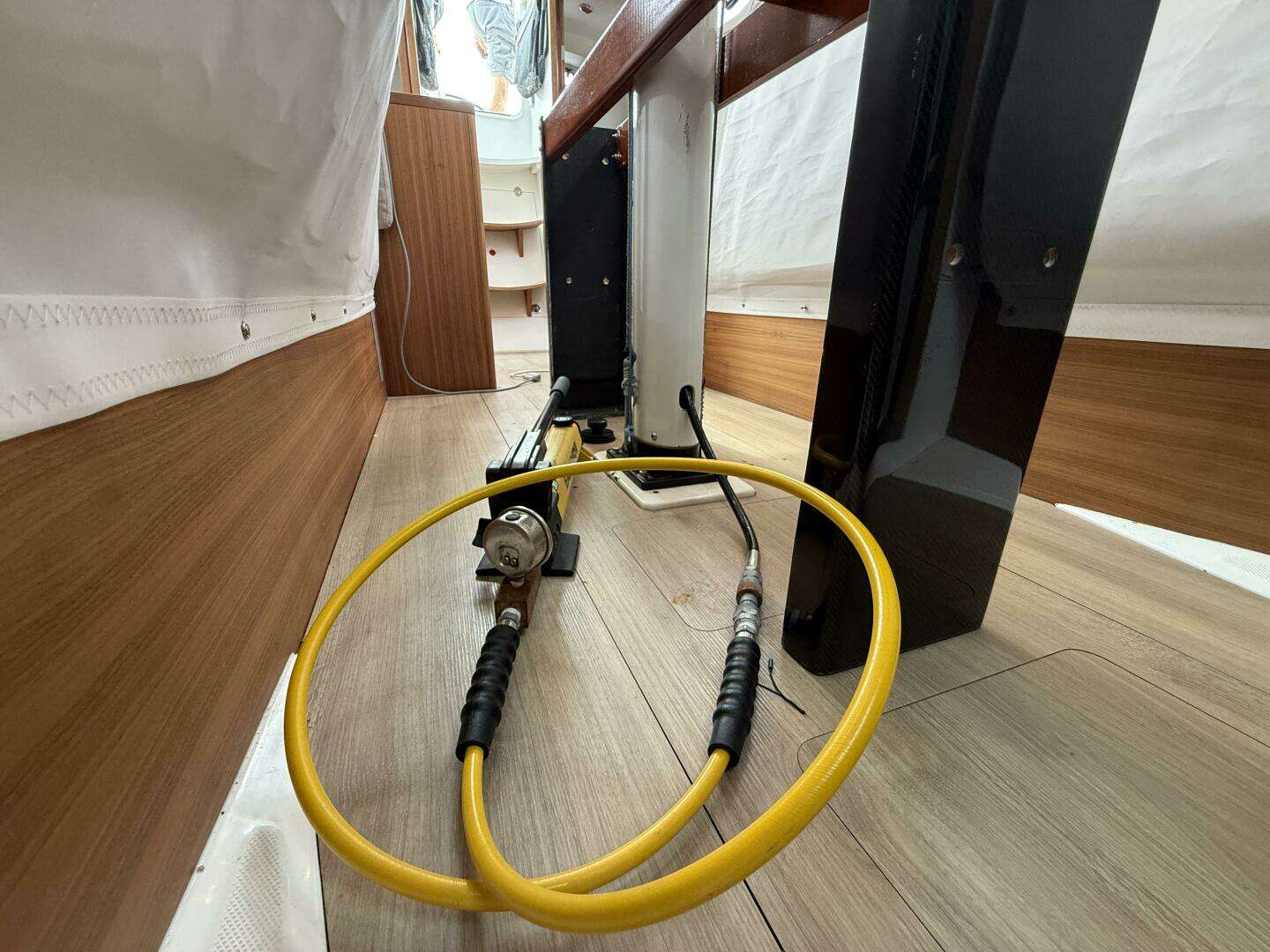

• Hydraulic backstay adjuster

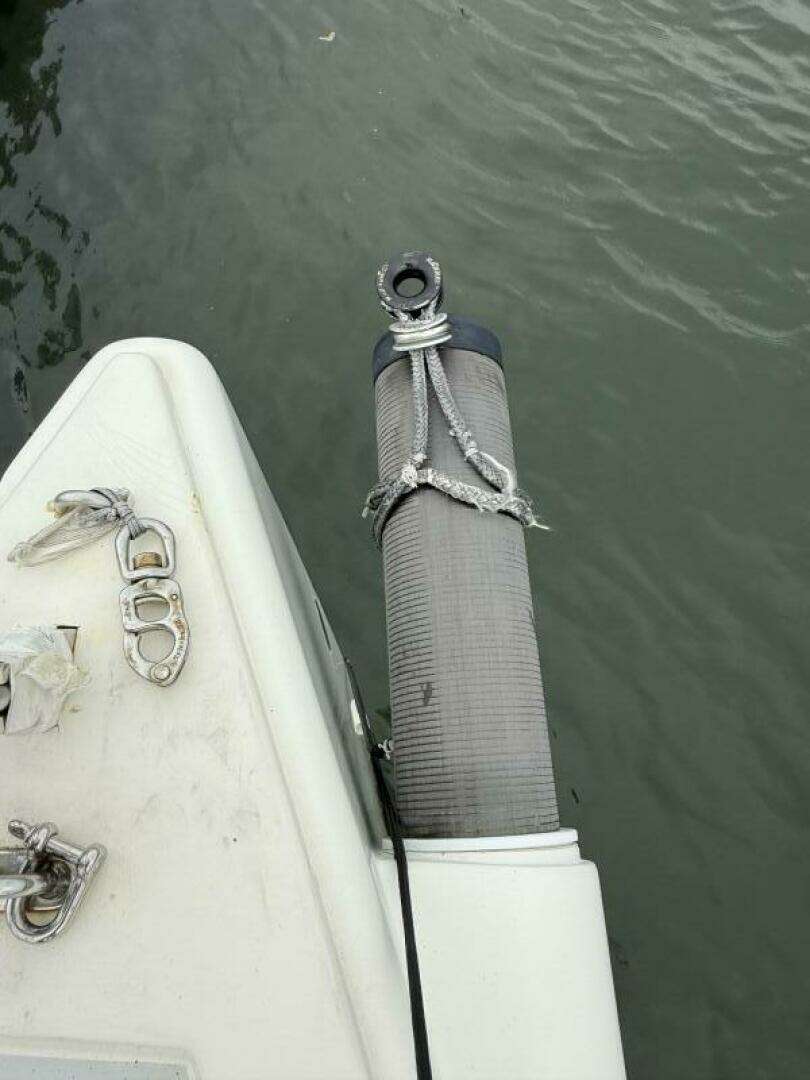

• Carbon bowsprit controlled from the cockpit, retracting into a sealed compartment with overboard drain
• Rigid boom vang with cascade purchase system
• Jib furling system with control line led to the cockpit
• Halyard package including 1 Dyneema main halyard, 1 Dyneema jib halyard, and 1 pre-stretched polyester spinnaker halyard with snap shackle

Plumbing and Electrical

• Manual cockpit operated bilge pump
• Automatic/manual electric bilge pump with float switch
• Pressurized hot and cold-water system
• 1 water tank (53 gallons) under V-berth
• Ice box drain
• Marine toilet
• 1 AGM battery 100AH & 1 engine battery 70AH with switches and double diode/circuit breaker
• 110V 30amp shorepower system with battery charger, and outlet in nav station

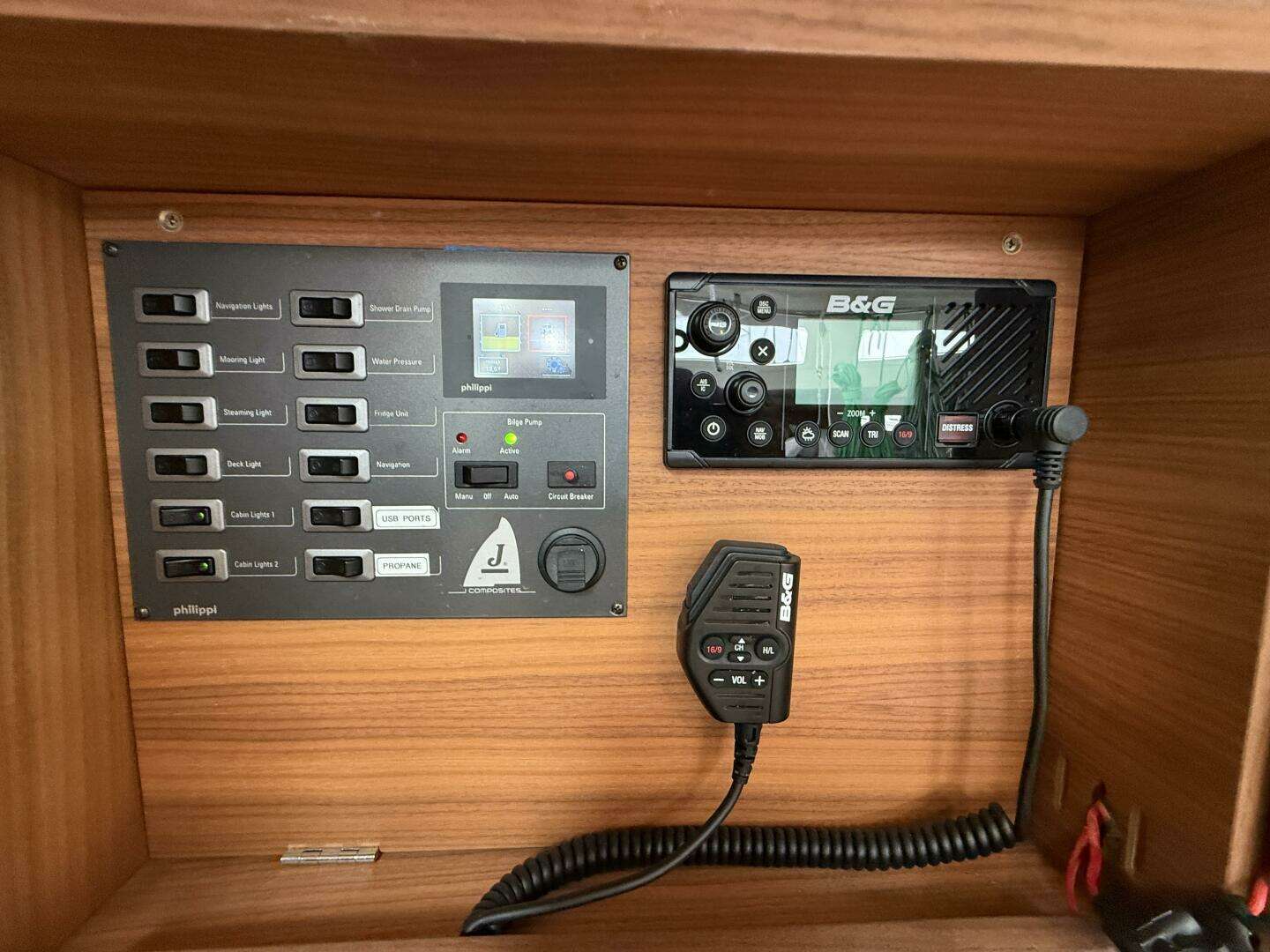

• 12V electric panel with fuel gauge and voltmeter
• DC lighting package including combination of ceiling and swiveling bulkhead-mounted tulip lights in all cabins
• Ceiling light in head
• Light in cockpit locker
• LED Navigation lights on pushpit and pulpit, and steaming light
• Rig grounded for protection against lightning

Electronics

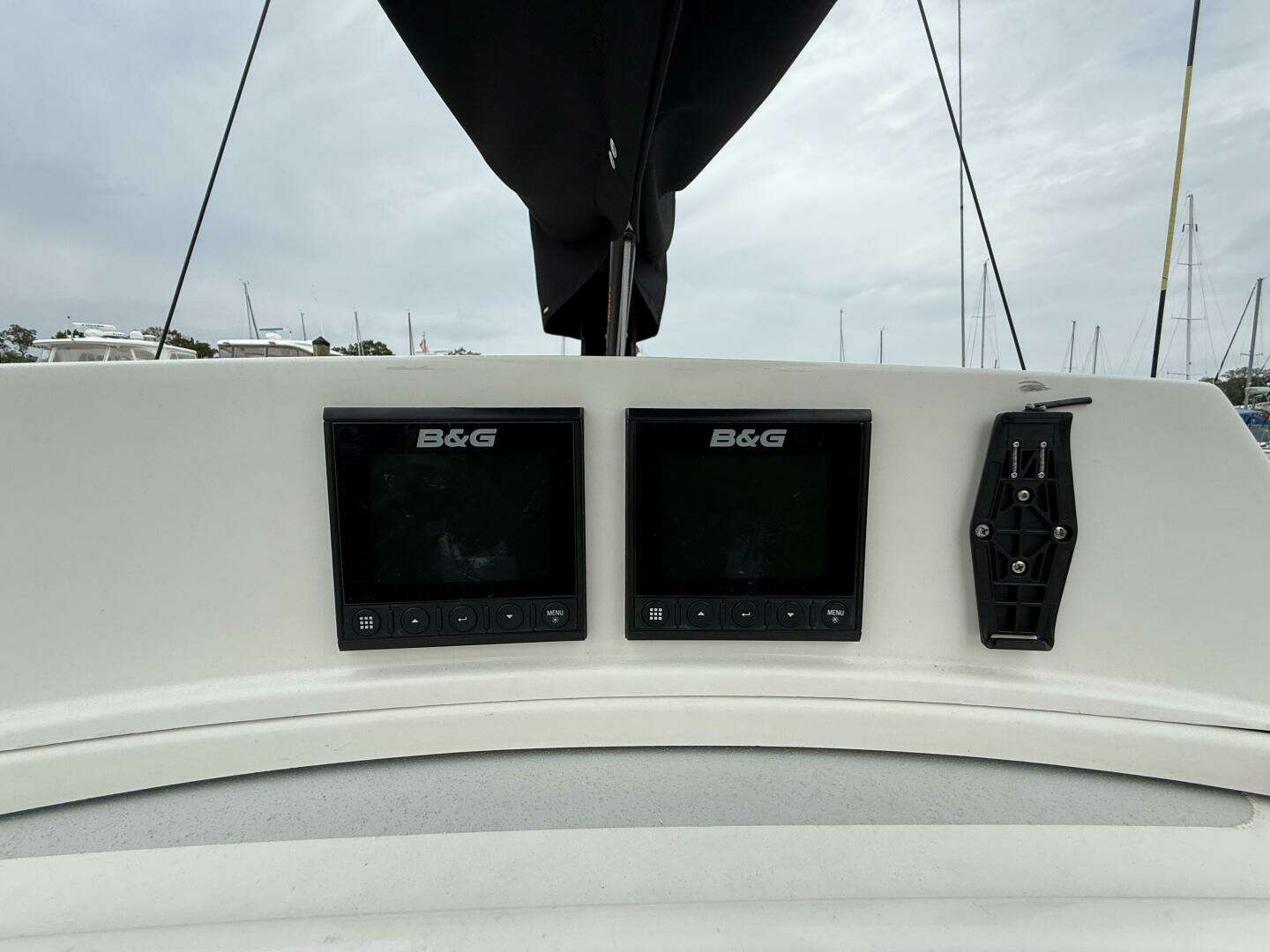

• B&G Hercules 5000 processor with 4x Triton2

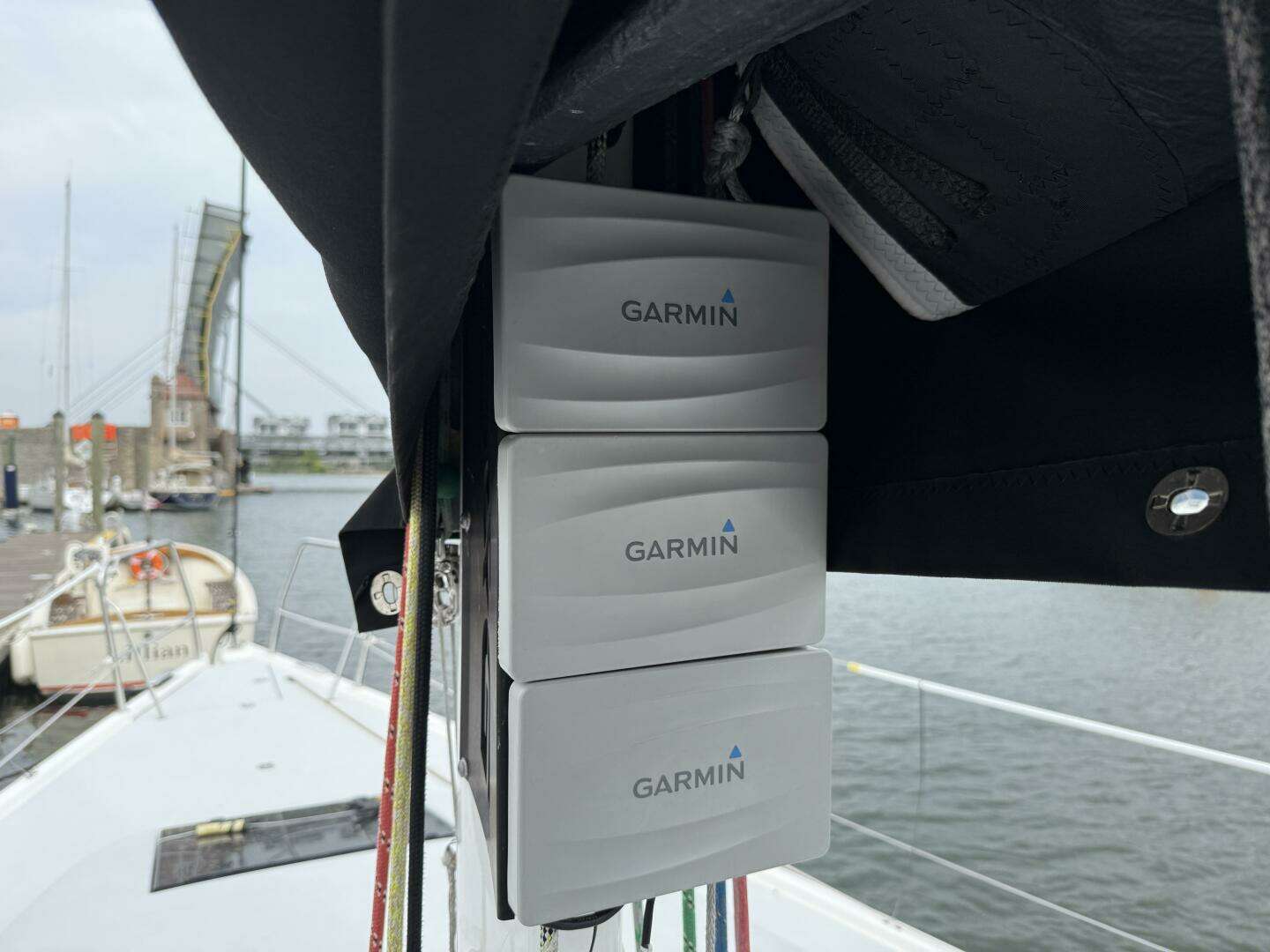

• 3x Garmin GNX large-format customizable displays
• B&G plotter at the NavDesk
• B&G VHF with a secondary cordless and AIS
• Molded seahood instrument pod

Engine and Mechanicals

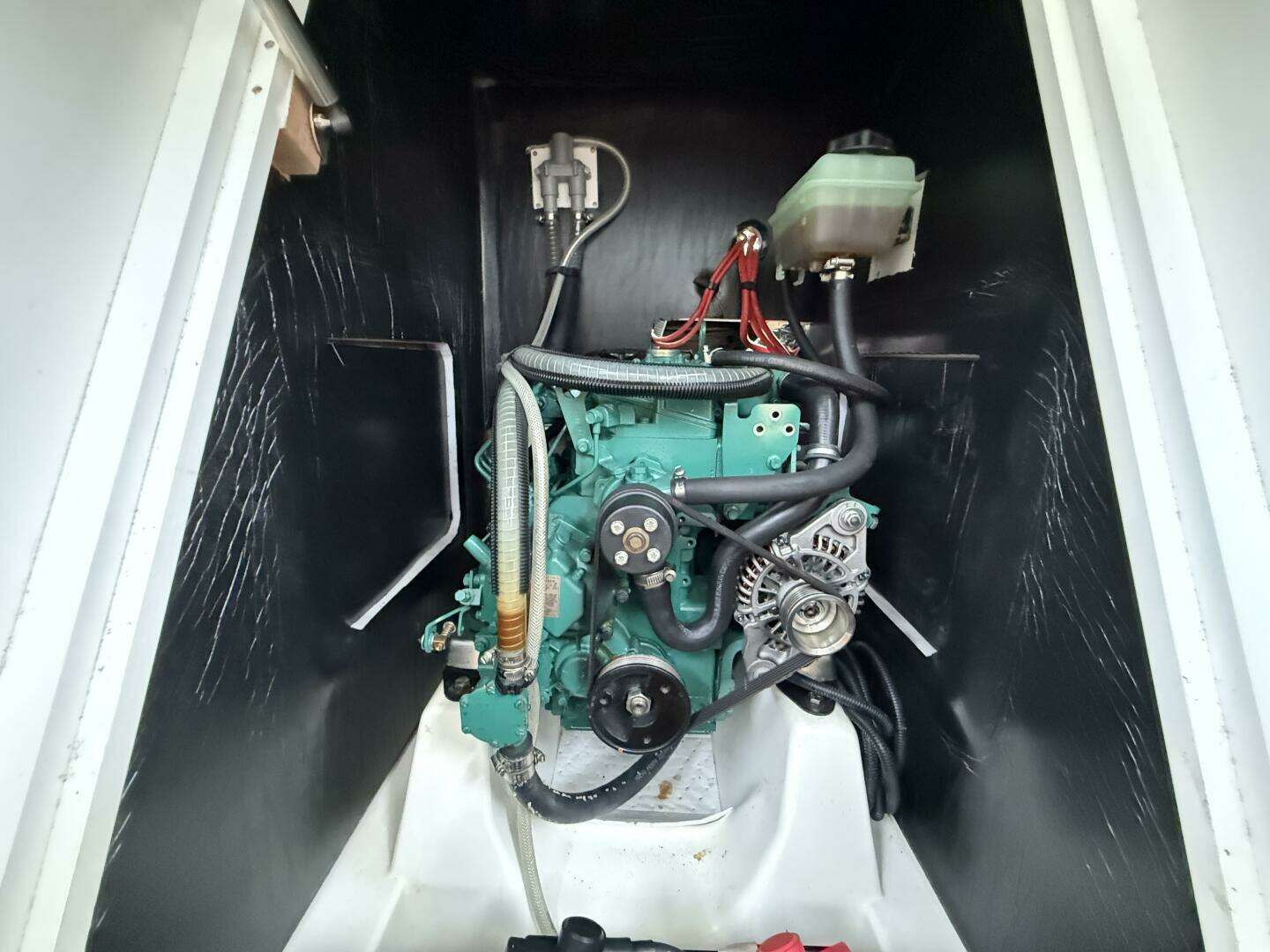

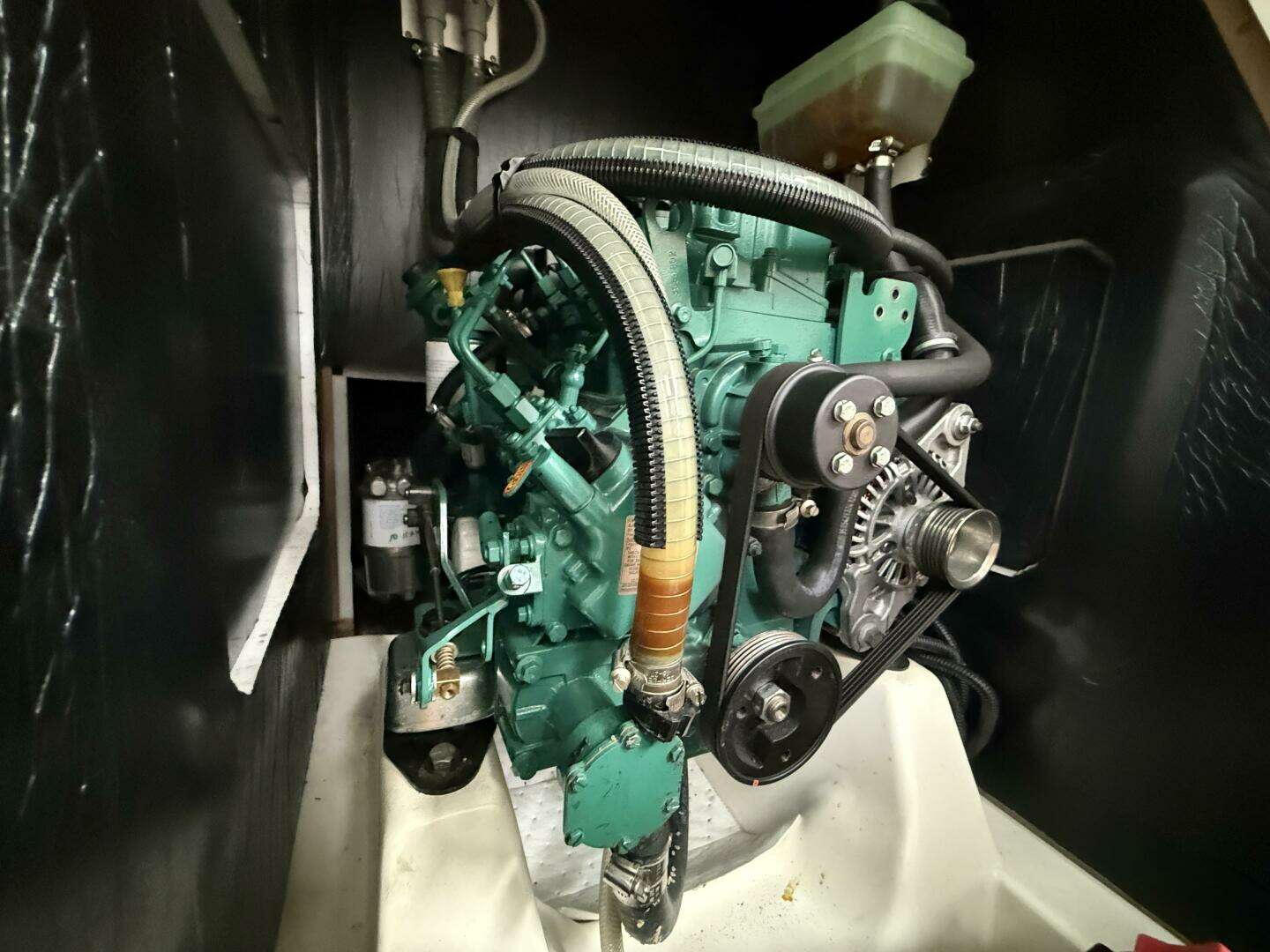

• Inboard diesel Volvo D1-30
• Saildrive
• 115 AH alternator with double diode
• Fresh water-cooling with heat exchanger

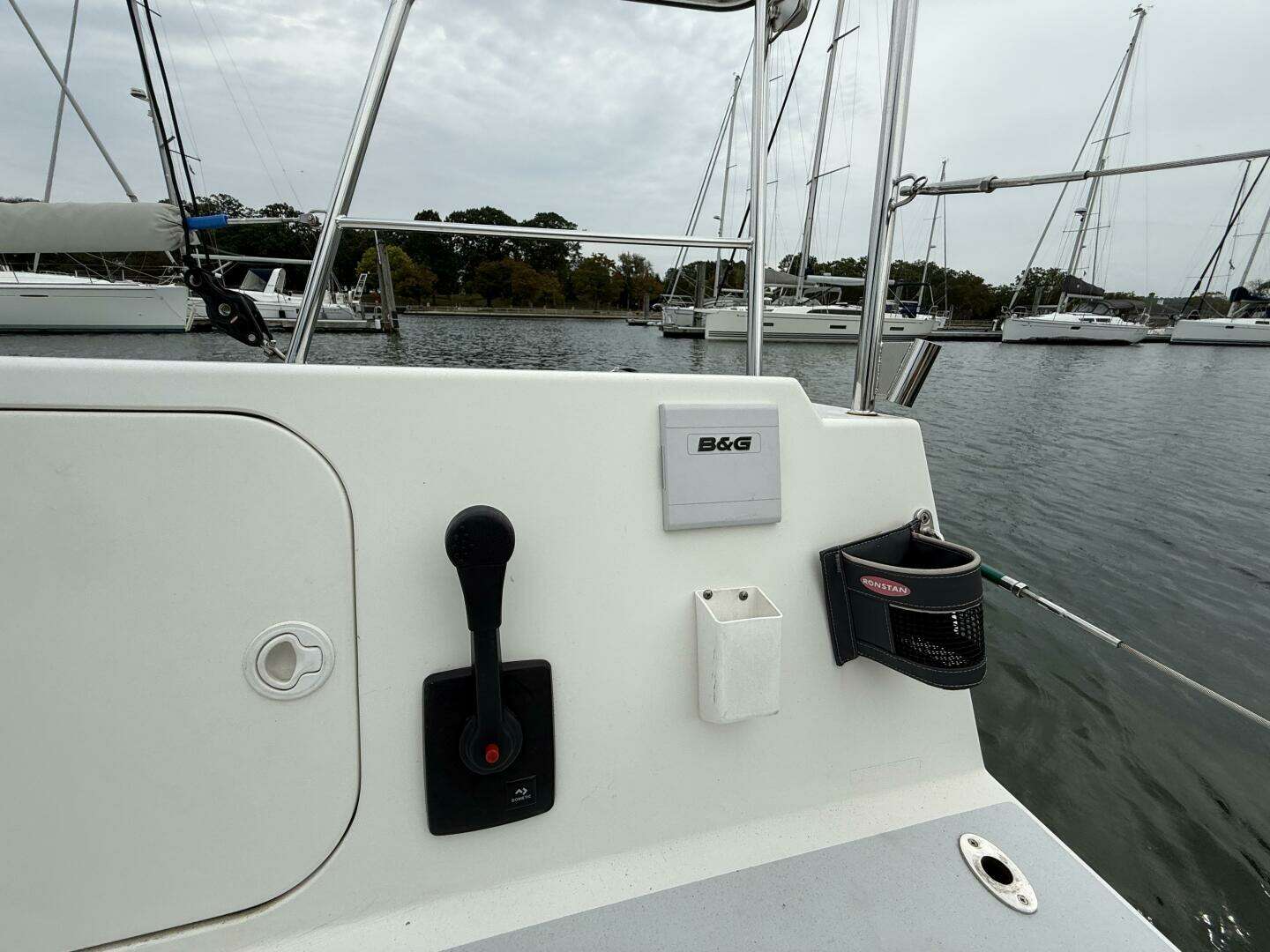

• Engine panel recessed in the cockpit with acrylic protection including RPM gauge, hour meter and alarms for oil pressure, low voltage and water temperature
• 18.5 gallons fuel tank under aft cabin berth
• Sound insulated engine compartment with ventilation ducts to the transom.
• 2 bladed folding prop

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
