2002 Custom 36'
10.97 m2002 Custom
36' (10.97 m) Zimmerman Z36
Explore with the Zimmerman z36, a rugged pleasure craft built on a proven commercial fishing hull by Atlantic Boat Company and completed by Zimmerman Marine. 500hp Yanmar Diesel, 3.5kW generator, bow thruster, Raymarine/Garmin electronics, stabilizing keel, solar panel, and more!
$ 299,000 USD
€ 290,206 Euros
$ 431,533 CAD
£ 240,551 GBP
Description
BHM 36 Hull by Atlantic Boat Company – Customized by Zimmerman Marine for Ultimate Pleasure Craft Exploration
Experience unparalleled adventure with the Zimmerman 36 – a rugged, customized pleasure craft built on the proven commercial fishing hull from the Atlantic Boat Company in Maine. Expertly finished by Zimmerman Marine, this vessel is designed for exploration and long journeys.
Key Features:
- Single 500hp Yanmar Diesel Engine with under 1190 hours for reliable performance.
- 3.5kW NexGen Generator with Sound Shield for power in remote locations.
- Vetus Bow Thruster for exceptional maneuverability in tight spaces.
- Full Raymarine/Garmin Electronics Suite to navigate with precision.
- Full Stabilizing Keel with Prop Protecting Strut for smooth, safe travels.
- Spacious Salon perfect for relaxation after a day of adventure.
- Roomy Stateroom and Head with Shower offering comfort on long journeys.
- Additional Coach Top Storage and Dinghy Davit with Crane for extra versatility.
- Solar Panel for eco-friendly power while off the grid.
Ready to explore the world on a vessel that combines durability and comfort? The Zimmerman 36 is your ultimate travel companion—built for adventure and ready to go.
LOA36'
LOA10.97''
Beam13'
Beam Inch2''
Draft Max Feet3'
Draft Max Inch10''
Fuel Tank (Gallons)315
Fuel Tank (Liters)1192.4
Fresh Water (Gallons)140
Fresh Water (Liters)529.96
Holding Tank (Gallons)40
Holding Tank (Liters)151.42
TypePower
ConditionUsed
Specifications
ABH36098F202
Power-Used
2002
13'2"
3'10"
1
1
Diesel
Fiberglass
315 Gallons (1192.4 Liters)
140 Gallons (529.96 Liters)
40 Gallons (151.42 Liters)
20000
Engines
Engine 1
- Engine Make: Yanmar
- ModelEngine Model: 6CXM-GTE2
- Engine TypeEngine Type: Inboard
- Drive TypeDrive Type: Direct
- Power HPPower HP: 500.00
- Power KWPower KW: 372.85
- Feul TypeFeul Type: Diesel
- HoursHours: 1190.00
- Engine LocationEngine Location: Middle
Full Details
Accommodations
- MarineAir Systems 16,000 BTU Air Conditioning with Reverse Cycle Heat with soft start
- Hurricane Diesel Heating System
Salon
- Cherry Wood Trim
- (2) Overhead Opening Lewmar Hatches with OceanAir Screen/Shades
- (2) Solar Vents with On/Off Switches
- (2) Stainless Steel Opening Portlights with Screens
- (3) Reading Lights
- (6) Overhead Lights with Dimmer
- Custom Bookcase to Starboard with Drawers and Chart Storage
- Flat Screen TV
- Hi-Lo Folding Lead Table
- L-Shaped Ultraleather Seating with 5” Dual Density Foam Cushions
- OceanAir Portshade for Portlights
- OceanAir Pull Down Blinds on Side and Aft Windows
- Stressless Recliner with Footrest
Port Nav Station
- Stidd Nav Seat to Port, Ultra-Leather, Narrow Slimline High Back with Foot Rest and Custom Pedestal, with X4 Recliner Footrest
- Build in Nav Station with Storage under
- Cantalupi Overhead Cabin Light, 12v
- Flat Screen TV
- Hella Directional 12V Fan at Nav Station

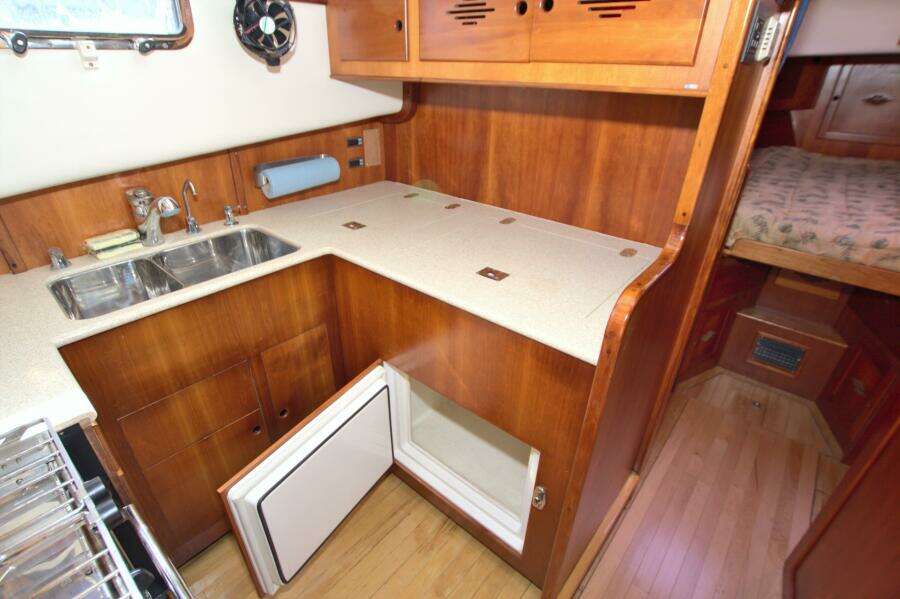

Galley
- (1) Stainless Steel Opening Portlights with Screens
- Directional 12V Light
- Engineered Maple Wood Flooring
- Force10 Three Burner Propane Range with Oven
- Gibraltar Countertop
- Hella Directional 12V Fan
- LG Microwave Convection Oven
- Merlin II Smart Speed Control for Danfoss Compressor
- OceanAir Portshade for Portlight
- Scandvik Double Stainless Steel sink with Designer Faucet
- Seagull IV Water Purifier with Separate Faucet at Sink
- Storage Above and Below Countertop
- Trident Marine Remote Propane Shutoff Control and fume detector
- Frigaboat Refrigeration Systems with Digital Thermostats in Fwd CountertopOne Top Loading Hatch with Bottom Opening Hatch, Frigomatic by Veco System
- Additional Top Loading Hatch

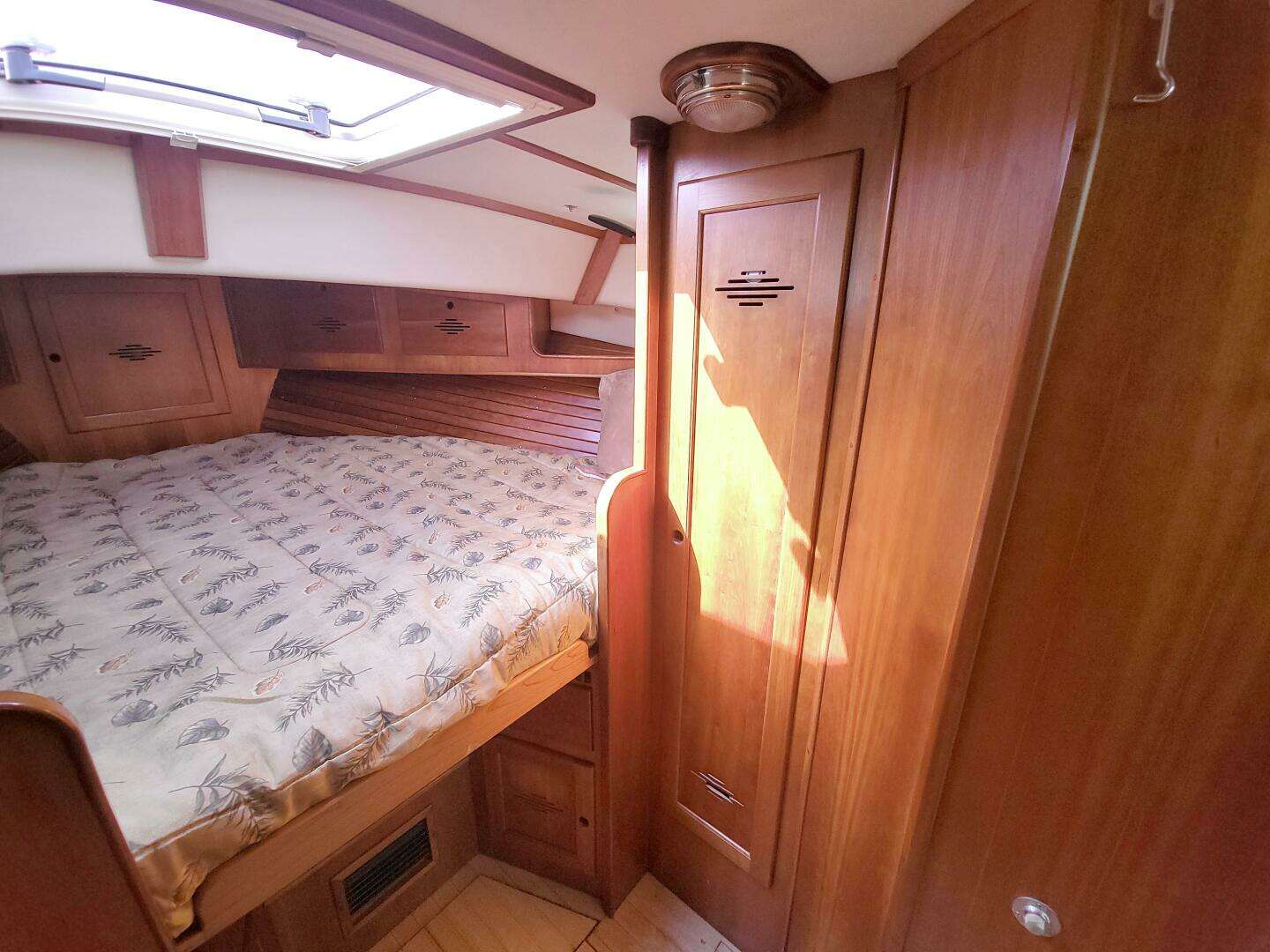

Stateroom
- (2) Reading Lights
- (4) Stainless Steel Opening Portlights with Screens
- Access to Forward Anchor Locker
- Cantalupi Overhead Cabin Light, 12v
- Cedar Lined Wardrobe Locker to Starboard
- Cherry Wood Ceiling Trim
- Dresser with Drawers to port
- Lewmar Overhead Opening Hatch with OceanAir Screen/Shade
- Port and Starboard Bookshelves above Berth
- Storage lockers Above Berth
- Storage under berth
- V-Berth with Custom Foam Mattress by Portland Mattress
- Wood Flooring
Head
- (2) Stainless Steel Opening Portlights with Screens
- (4) Overhead Lights
- Bi-Fold Shower Door with anodized Aluminum Frame
- Gibraltar Countertop
- Hella Directional 12V Fan
- Mirrored Bulkhead
- Molded Fiberglass Stall Shower with Sea and Locker
- OceanAir Portshade for Portlight
- Sea land Tank Monitor System
- Shower Sump Pump
- Solar Vent in Shower with On/Off Switch
- Tile Flooring
- Towel Hooks and Bar
- Vacu-Flush Head
Electronics and Helm Details
- Garmin 7212 Touch Screen GPS/Chart/Radar
- Garmin xHD Dome Radar
- Raymarine ST 6001+ AutoPilot
- Raymarine ST60 Tridata Depth/Speed/Trip
- Icom IC-M602 Marine VHF Radio
- Raymarine ST60 Wind (Overhead)
- (3) Raymarine ST60 Multi Displays (Overhead)
- Ideal Windlass Control (Overhead)
- Guest Spot Light Control (Overhead)
- Aluminum Sliding Door to Starboard to Deck
- Cantalupi Overhead Cabin Light, 12v
- Exalto Wiper Controller for the (3) Windshield Wipers
- Heart Systems Tank Tender monitoring System
- High Water Alarm
- Marine Stereo System with AN/FM/Bluetooth
- Racor Fuel Vacuum Gauge with Water Alarm
- Ritchie Compass
- Rosewood Trimmed Helm Wheel
- Dual Trumpet Air Horn
- Stidd Helm Chair, Ultra-Leather, Slimline High Back with Foot Rest and Custom Pedestal
- Teleflex Sea Star Power Assisted Hydraulic Steering
- Vetus Bow Thruster Control
- Yanmar Instrument and Control Cluster: Tachometer/Hourmeter, Water Temp, Oil Press, Stop/Start, and warning displays.
Electrical
- 3.5kw NexGen Generator w/ Sound Shield
- 120v AC Distribution Panel with Circuit Breakers and reverse polarity warning
- 12v DC Distribution Panel with Circuit Breakers and Voltmeter
- All Lights Upgraded to LED
- Aquasignal Series 50 Navigation Lights
- Balmar Alternator with Balmar MC-614 Voltage Regulator
- Bonding System with Galvanic Isolator
- Dual 30amp Shore Power with 50ft Power Cords
- Victron Battery Charger/Inverter
- Victron Solar Charger
- Xantrex Electrical System Monitor
- Batteries(2) Group 31 For Engine Start
- (2) 8D Odyssey AGM for House Bank

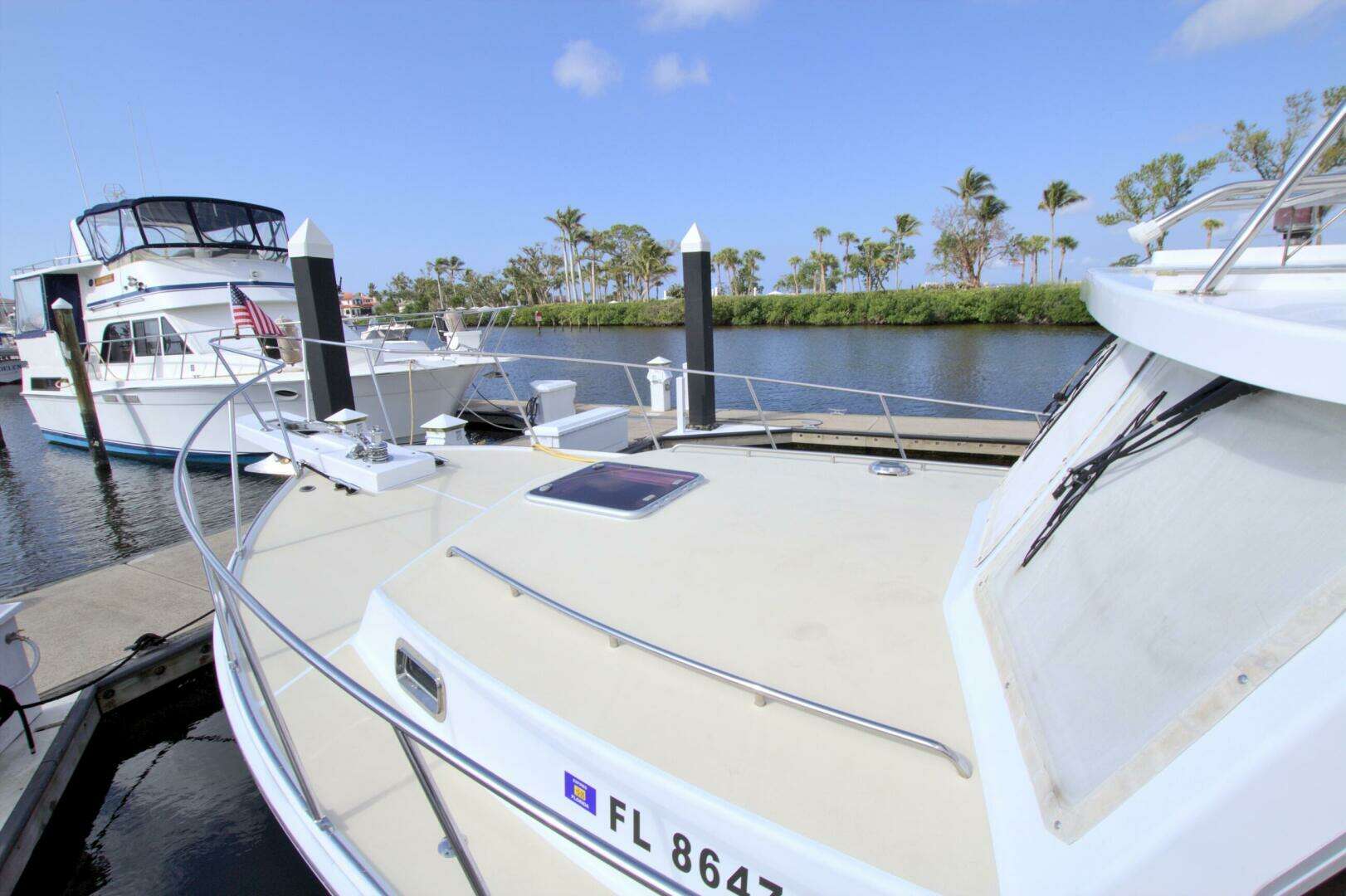

Deck
- (2) Pop-up Cleats on Swim platform
- (2) Stainless Steel Bow Chocks
- (6) 12” Stainless Steel Cleats
- 200ft Chain Rode, Marked every 30ft
- Aluminum Framed Windows with satin Anodize Finish and Tempered Glass, Opening on Sides, Fixed as Windshields
- Awl-Grip Painted Non Skid Deck
- Engine Vent Opening In Hull
- Ideal VC1 Vertical Windlass with Deck and Helm Controls
- Rub Rail with Stainless Steel Insert
- Saltwater Washdown Outlet on Foredeck
- Solid Fiberglass Bow Pulpit with Anchor Roller
- Spray Rails Painted with Awl-Grip to Match Hull Color
- Stainless Steel Bow Rail
- Stainless Steel Chain Stopper
- Stainless Steel Deck fills
- Stainless Steel Plow Anchor with Ball Joint Chain Link
- Swim platform with Ladder

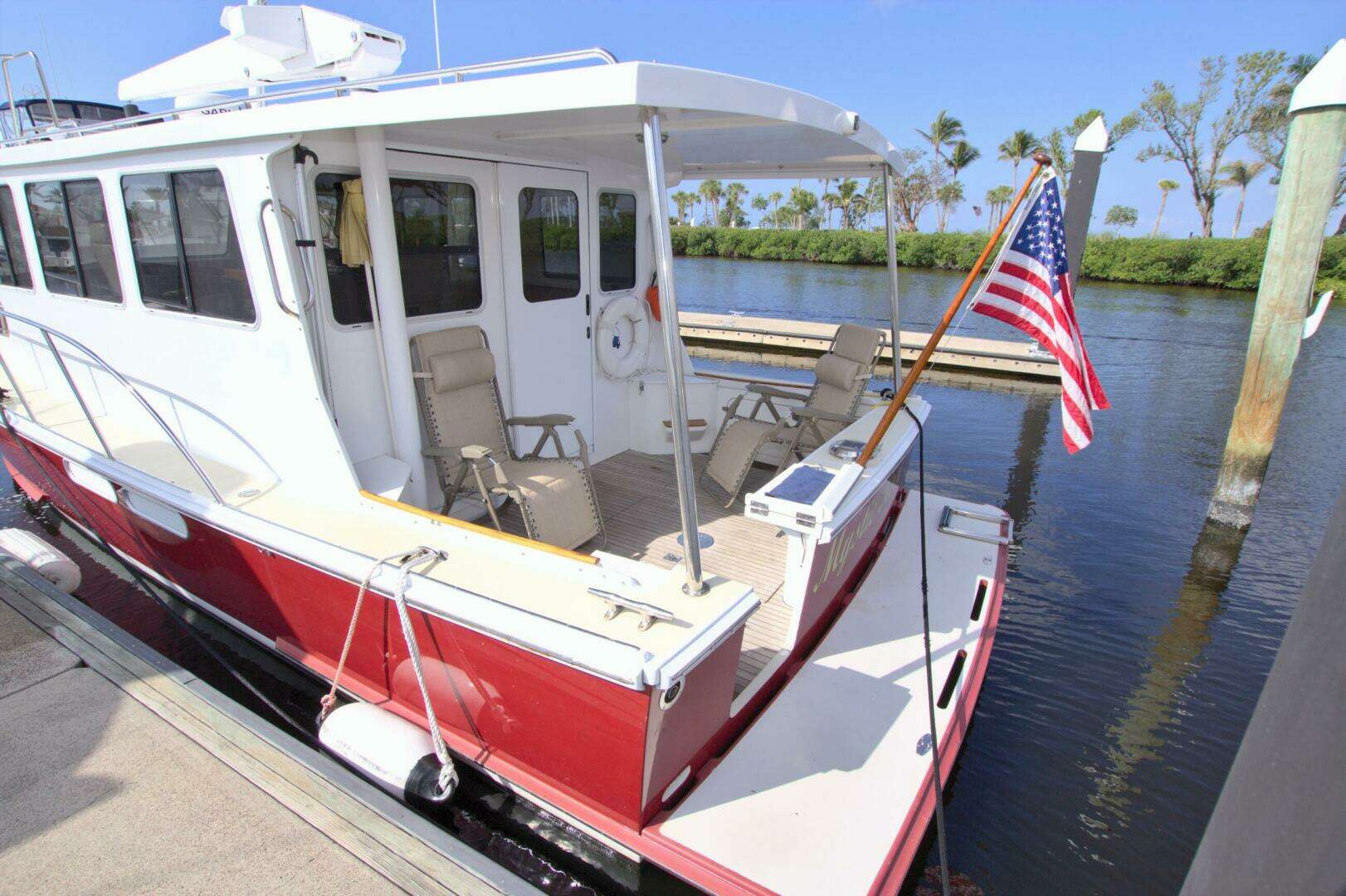

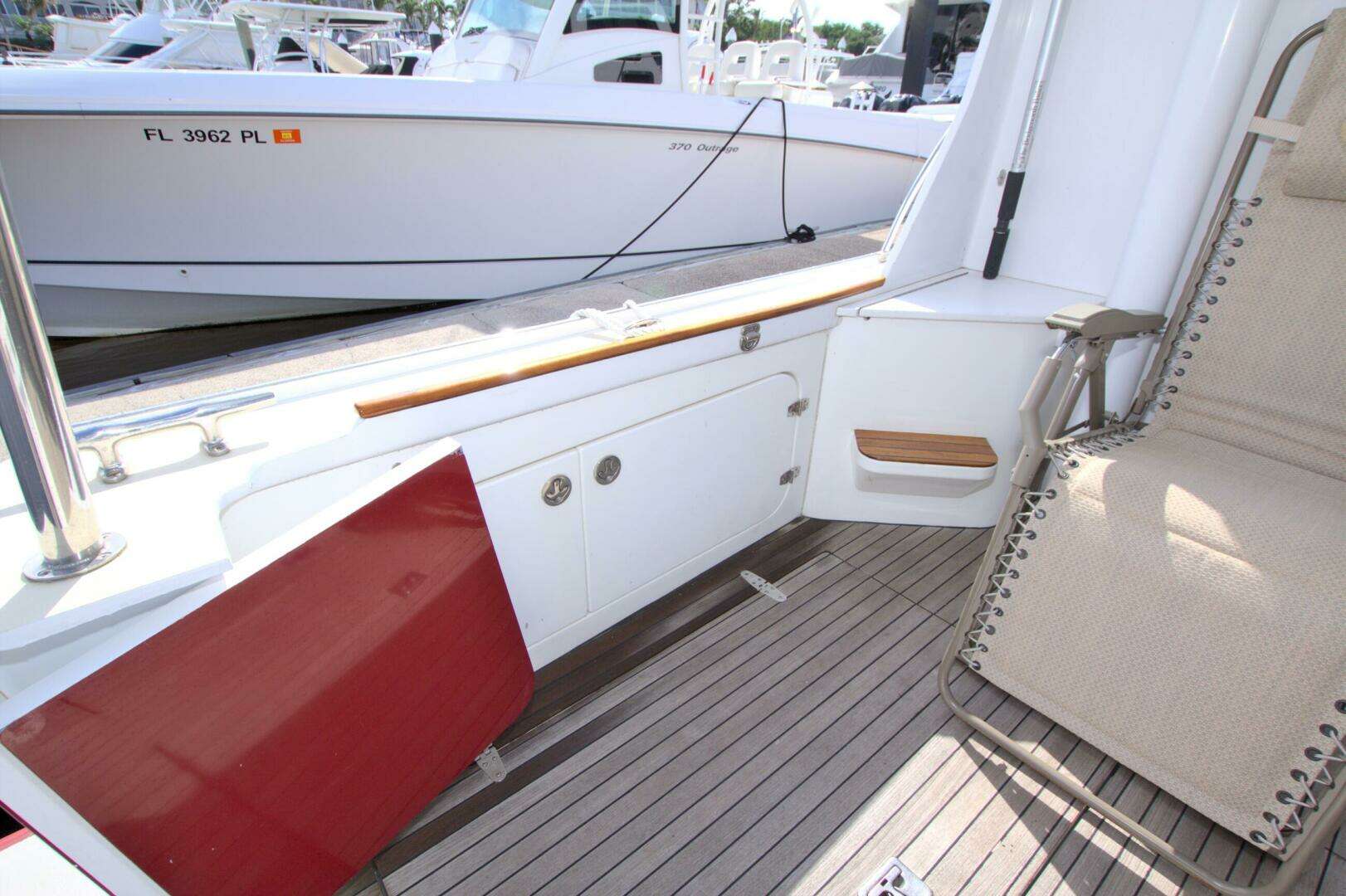

Cockpit
- (2) 6’8” Stainless Steel Handrails on Stern to Top
- (2) Stainless Steel Folding Cleats
- Aluminum Sliding Companion Way Door to Salon
- Extended Cabin top to Transom with Stainless Steel Supports
- Overhead 12v Light
- Port Cockpit Locker with Propane Storage and Ventilation
- Starboard Cockpit Locker with ESI Fuel Polishing System
- Stern Flag Holder
- Storage for (2) 10lbs Propane Cylinders
- Teak Cockpit Sole (Glued Down)
- Transom Shower with Hot/Cold Water
- Transom Tuna Door with Flip up Top
- Two Mounting Locations Starboard for Propane Grill
Cabin/Coach Top
- (2) 12.5’ Stainless Steel Handrails, Full Length of Top
- 48” Folding Aluminum Mast for Antennas and Lights
- Dinghy Chocks
- Flexible Solar Panel
- Guest M100 Remote Control Searchlight
- Nautical Structures MC 600 Lo-Profile Crane
- Stainless Steel Slide Away Ladder with Grab Rail Forward Port side
Hull
- All Structural Interior Members are laminated to Hull with vinylester resin
- Corecell PVC Foam Coring above waterline
Engine and Mechanical Details
- (1) Rule 3700 Bilge Pump
- (2) Aluminum Fuel Tanks
- (3) Rule 36 Bilge Pumps
- 5 Blade Propellor
- Aquamet 2” Propeller Shaft
- Bronze Seacocks and Thru Hulls
- Dripless Shaft Seal
- Drivesaver Vibration Dampening Coupler
- Dual Racor Fuel Filters with Select Valve
- Freshwater Pump
- Groco Raw Water Strainer
- Halon System
- IsoTherm Water Heater
- Jabsco Washdown Pump
- Morse Shift and Throttle Control
- Propeller Spurs
- Reverso Oil Change System
- Ultrasonic Sound Insulation
Exclusions
Owner's Personal Items
Mechanical Disclaimer
Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
