2017 Lurssen 348'

106.10 m
$ Call for Price
1800 Southeast 10th Avenue, Suite 400, 33316USAFort Lauderdale FL 33316 USA
Yachtr

2017 Lurssen 348' Full Displacement

  • 106.10 m
  • Diesel
  • Power
  • Motor Yachts
San Diego, California, United States
In Stock #2838689

2017 Lurssen Full Displacement

348' (106.10 m) AMADEA

Forfeited by order of United States District Court for the Southern District of New York. AMADEA is offered for sale by sealed bid auction that will close on September 10, 2025. Available to view in San Diego, California. Additional information available, call for auction website.

Tax Paid

Flag of Registry: United States

Port of Registry: Fort Lauderdale

San Diego, California, United States
   Vessel ID: 2838689
FEATURES:
   Appealing design by Espen Øino
   Highly detailed luxury interior executed by Francois Zuretti
   PYC compliant: up to 22 guests on board
   Eight stateroom configuration, plus a convertible meeting room located on the lower deck
   Private owner’s deck

2017 Lurssen 348' Full Displacement

  • 106.10 m
  • Diesel
  • Power
  • Motor Yachts
San Diego, California, United States
In Stock #2838689

Call for Price

*estimated foreign exchange

Description

FOR SALE BY SEALED BID AUCTION SEPTEMBER 10, 2025



Forfeited by order of United States District Court for the Southern District of New York. AMADEA is offered for sale by sealed bid auction that will close on September 10, 2025. Available to view in San Diego, California. Additional information available, call for auction website.

LOA348'

LOA Inch1''

LOA106.10''

Beam60'

Draft Max Feet13'

Draft Max Inch5''

Draft Min Feet13'

Fuel Tank (Gallons)103555.49

Fuel Tank (Liters)392000

Fresh Water (Gallons)20341.26

Fresh Water (Liters)77000

Holding Tank (Gallons)5415.53

Holding Tank (Liters)20500

TypePower

ConditionUsed

Specifications

Name

AMADEA

HIN/IMO

13688

348'1" (106.10 Meters)

Power-Used

Year

2017

Documented Year

2017

300'9"

13'5"

Cabins

8

Sleeps

16

Twin Berths

2

King Berths

7

Full Beam Master

Yes

Heads

8

Crew Cabins

21

Captain's Quarters

Yes

Crew Sleeps

36

Crew Mess

1

Elevator

Yes

Helideck

Commercial

Maximum Speed

20 Knots

Cruise Speed

13 Knots

Range NMI

8000

Fuel Type

Diesel

Super Structure Material

Aluminum

Hull Material

Steel

Hull Shape

Displacement

Air Conditioning

Yes

Stabilizers

Standard and Zero Speed

Stabilizers Brand

Quantum

Stern Thrusters

Yes

103555.49 Gallons (392000 Liters)

20341.26 Gallons (77000 Liters)

5415.53 Gallons (20500 Liters)

Gross Tonnage

4402

Displacement

3530

Dry Weight

1321

Classification

Lloyd's

Designer

Lürssen

Interior Designer

Francois Zuretti

Builder

Lürssen

Engines

Engine 1

  • Engine Make: MTU
  • ModelEngine Model: 20V
  • Engine TypeEngine Type: Inboard
  • Power HPPower HP: 5766.39
  • Power KWPower KW: 4300.00
  • Feul TypeFeul Type: Diesel
  • HoursHours: 4268.00
  • Engine LocationEngine Location: Port
  • Hours DateHours Date: 07-22-2025

Engine 2

  • Engine Make: MTU
  • ModelEngine Model: 20V
  • Engine TypeEngine Type: Inboard
  • Power HPPower HP: 5766.39
  • Power KWPower KW: 4300.00
  • Feul TypeFeul Type: Diesel
  • HoursHours: 4265.00
  • Engine LocationEngine Location: Starboard
  • Hours DateHours Date: 07-22-2025
  • Engine Quantity2
  • Generators

    Generator 1

    • Generator Make: Leroy Somer
    • Generator Model: LSAM 49.1 L11 AREP
    • Generator Hours: 20458
    • Generator Date Hours Recorded: 07/28/2025

    Generator 2

    • Generator Make: Leroy Somer
    • Generator Model: LSAM 49.1 L11 AREP
    • Generator Hours: 20394
    • Generator Date Hours Recorded: 07/28/2025

    Generator 3

    • Generator Make: Leroy Somer
    • Generator Model: LSAM 49.1 L11 AREP
    • Generator Hours: 20319
    • Generator Date Hours Recorded: 07/28/2025

    Multimedia

    Full Details

    Detailed Specification





    FOR SALE BY SEALED BID AUCTION SEPTEMBER 10, 2025



    Forfeited by order of United States District Court for the Southern District of New York. AMADEA is offered for sale by sealed bid auction that will close on September 10, 2025. Available to view in San Diego, California. Additional information available, call for auction website.



    MAIN CHARACTERISTICS



    Name: AMADEA

    Type: Motor Yacht

    Builder: Lürssen

    Year: 2017

    Hull No: 13688

    LOA (M/FT): 106.10 M (348’01”)

    LWL (M/FT): 91.68 M (300’09”)

    Length COR: 106.10 M (348’01”)

    Beam (M/FT): 18.30 M (60’00”)

    Draft (Half Load) (M/FT): 3.97 M (13’03”)

    Draft (Full Load) (M/FT): 4.10 M (13’05”)

    Gross Tonnage: 4,402 GT ITC

    Displacement: 3,530 t

    Hull Material: Steel

    Hull Configuration: Displacement

    Superstructure: Aluminum

    Decks: Teak

    Flag: USA (Previous CISR)

    Classification: LR 100 A1 PY, ECO (TOC) / LMC, UMS / Ship Right (BWMP(T)) Previously DNV GV 100A5 NC AUT PYC 36G)

    Naval Architect: Lürssen

    Exterior Designer: Espen Øino

    Interior Designer: Francois Zuretti

    Main Engines: 2 x MTU 20V 4300kW, 5766 HP diesel engines

    Speeds: Max: 20 knots

    Cruising: 13 knots

    Range: 8,000 nm @ 13 knots

    Guest Accommodation: 16 Guests in 8 staterooms

    Crew Accommodation: 36 crew in 21 cabins

    Helicopter Capacity: For operation of a Helicopter “Eurocopter EC 135 T2” or similar, D-Value: 12,000 mm, Maximum take-off weight is 4.5 tons



    INTRODUCTION



    Built to the highest standards at the renowned Lürssen shipyard, the 106.1m superyacht AMADEA delivers a truly one-of-a-kind experience.



    Fully compliant with the Passenger Yacht Code (PYC 12–36 pax), AMADEA accommodates up to 22 guests while cruising and offers luxurious overnight accommodations for 16 guests across 8 staterooms.



    AMADEA represents a unique offering in the 100m+ category—built to deliver a rare degree of privacy, permanence, and versatility. Built by Lürssen to Lloyd’s standards, with a steel hull, aluminum superstructure, and over 4,402 Gross Tons of internal volume for unmatched space, stability and scale. Espin Øino’s powerful profile balances seamlessly with Zuretti’s lavish, high-touch interior spaces. A dedicated Owner’s deck designed for privacy is fitted every appointment imaginable. Amadea has world-cruising autonomy with over 8,000 nautical miles of range and full helideck means AMADEA is built to roam far beyond the typical seasonal ports. Never commercially chartered or heavily used, AMADEA is ready for many years of global cruising.



    KEY FEATURES



    ·      Appealing design by Espen Øino

    ·      Highly detailed luxury interior executed by Francois Zuretti

    ·      PYC compliant: up to 22 guests on board

    ·      Eight stateroom configurations, plus a convertible meeting room located on the lower deck

    ·      Private owner’s deck featuring a forward-facing master cabin, outdoor Jacuzzi, dressing room, beauty salon, office, gym, living and dining area, bar, and a spacious skylounge

    ·      Guest spa equipped with a sauna, hammam, chromotherapy dip pool, massage room, and a relaxation room with a sea terrace that opens directly to the ocean

    ·      10-meter infinity pool

    ·      Private cinema with D-Box motion seating, located near the spa area

    ·      Six decks in total, with five dedicated exclusively to guest use

    ·      Two elevators servicing all decks — one for guests, one for crew and service operations

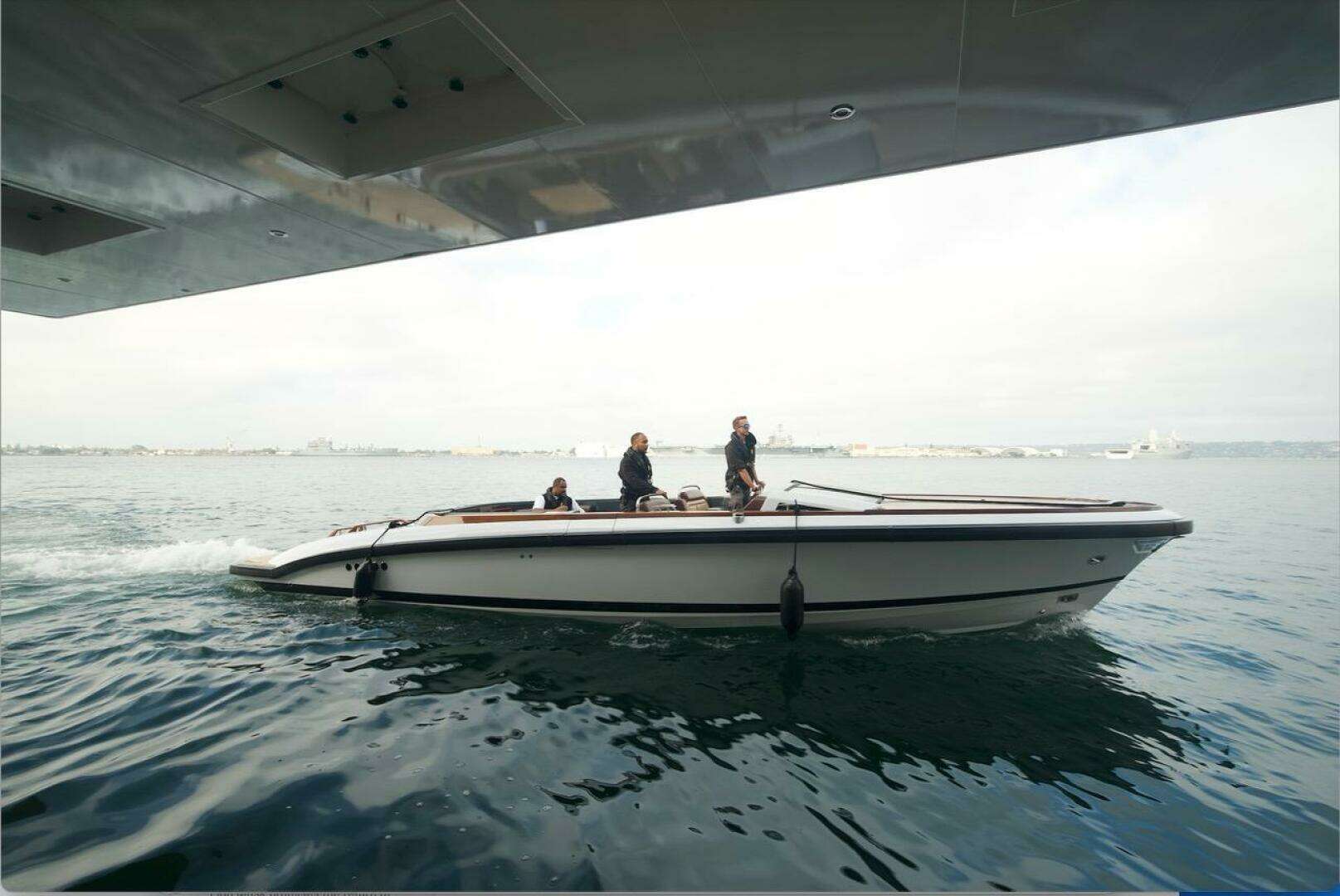

    ·      Three tenders – a 10.97m limousine tender, a 10.97m sports tender, and an 8.80m beach landing tender

    ·      Helipad designed to accommodate a Eurocopter EC135 or similar aircraft

    ·      Dynamic Positioning System for enhanced stability and precision at anchor

    ·      4,402 gross tons of internal volume

    ·      8,000-nautical mile range at a cruising speed of 13 knots



    CLASSIFICATION



    Flag: USA

    Port of Registry: Fort Lauderdale, FL

    Classification: Lloyds Register

    IACS Society: LR 100 A1 PY, ECO (TOC) / LMC, UMS / Ship Right (BWMP(T)) Previously DNV GV 100A5 NC AUT PYC 36G)

    Additional Class Information:

    Member of IACS

    US Tax Status: US Duty Paid

    IMO Number: 1012531

    MMSI Number: 368260150

    Official Registration: 1326610



    REGULATION



    Vessel Registration: Recreational USA

    Built to Commercial Compliance: PYC REG Code Part-B – Passenger Yacht Code 2017

    MARPOL Code: MARPOL 73/78

    Full ISM: Full ISM Compliant with Previous Cayman Island Shipping Registry

    ISPS: Full ISPS Compliant with Previous Cayman Island Shipping Registry

    MLC: Full MLC Compliant with Previous Cayman Island Shipping Registry



    DECKHEAD HEIGHTS



    Main Deck Exterior: 2.46 M (8‘01”)

    Main Deck Interior: 2.30 M (7‘06”)

    Owner’s Deck Interior: 2.17 M (7‘01”)

    Owner’s Deck Exterior: 2.42 M (8‘01”)

    Bridge Deck Interior: 2.17 M (7‘01”)

    Bridge Deck Exterior: 2.37 M (7‘09”)

    Lowed Deck Spa: 2.26 M (7’05”)



    ACCOMMODATIONS



    ·      Owner’s suite located exclusively on the dedicated owner’s deck

    ·      1 x VIP stateroom and 4 guest suites on main deck

    ·      1 x VIP suite and 1 x guest stateroom on bridge deck

    ·      Lower deck offers a convertible meeting room with a pull-out single sofa bed and full en suite head, allowing it to function as an additional guest cabin with private entrance

    ·      21 crew cabins accommodating up to 36 crew members



    M/Y AMADEA is a world-class superyacht that masterfully combines luxury, performance, and visionary design across every deck. From her refined interiors to expansive outdoor living areas, every element has been crafted to offer supreme comfort, outstanding entertainment, and truly unforgettable experiences at sea. With a total of six decks – five of which are fully dedicated to guest use – AMADEA offers remarkable volume, flow, and functionally throughout.



    TOP DECK



    Accessed via the main guest stairway or the guest elevator, the upper deck welcomes guests with a spacious lobby that includes a day head.

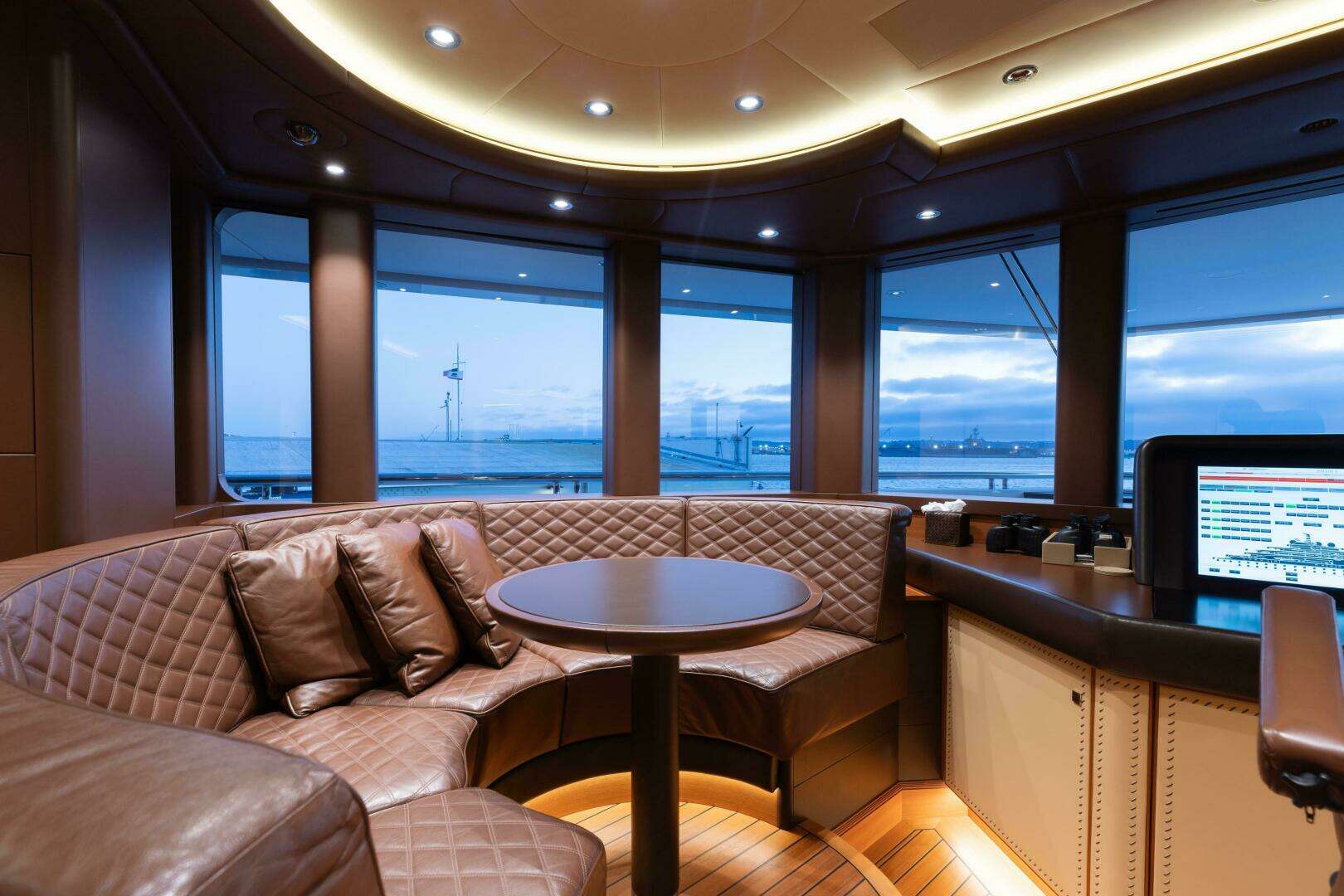

    Forward, you'll find the observation lounge, which offers two private sunbathing areas on the port and starboard sides, along with a large forward-facing seating area that overlooks the bow.

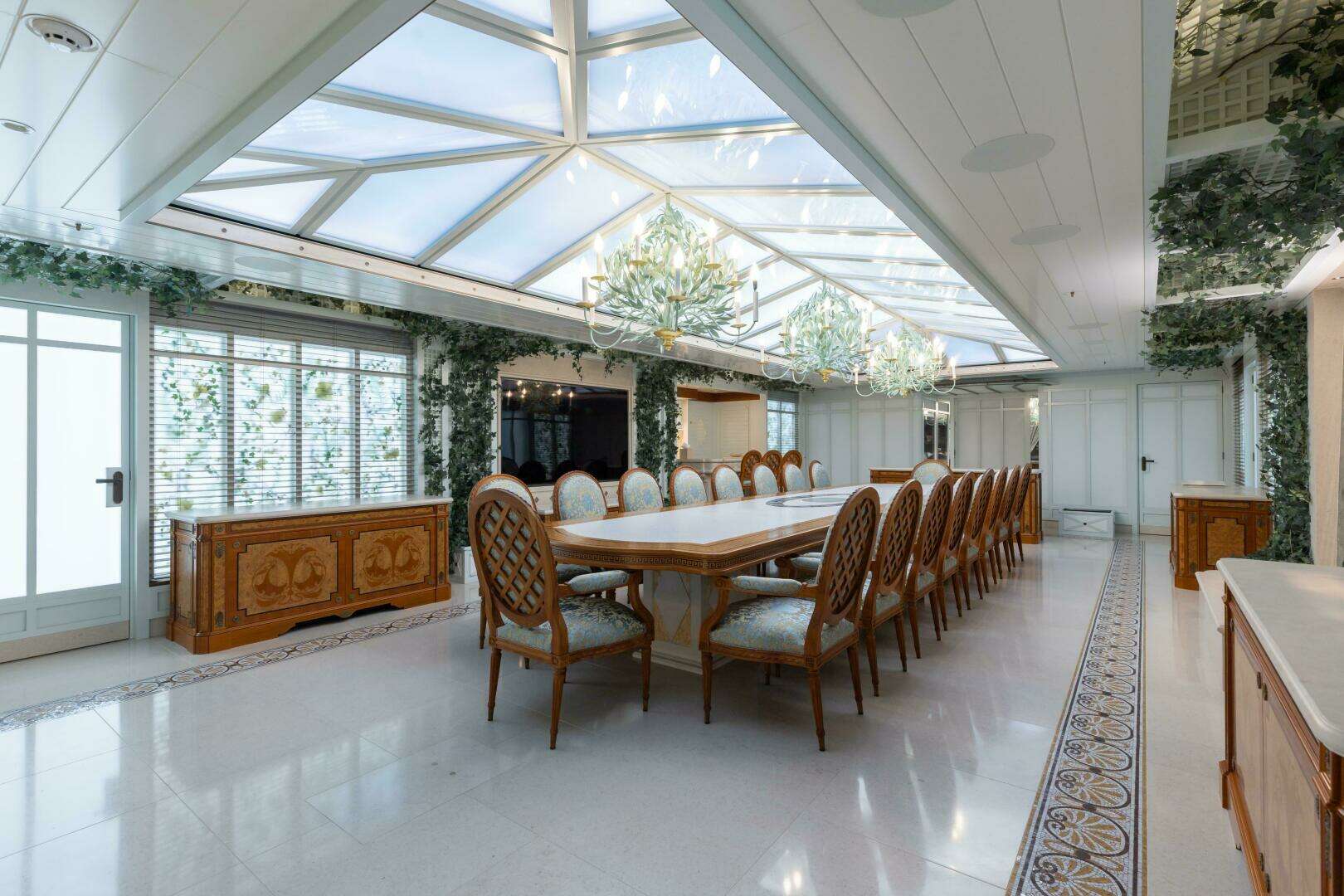

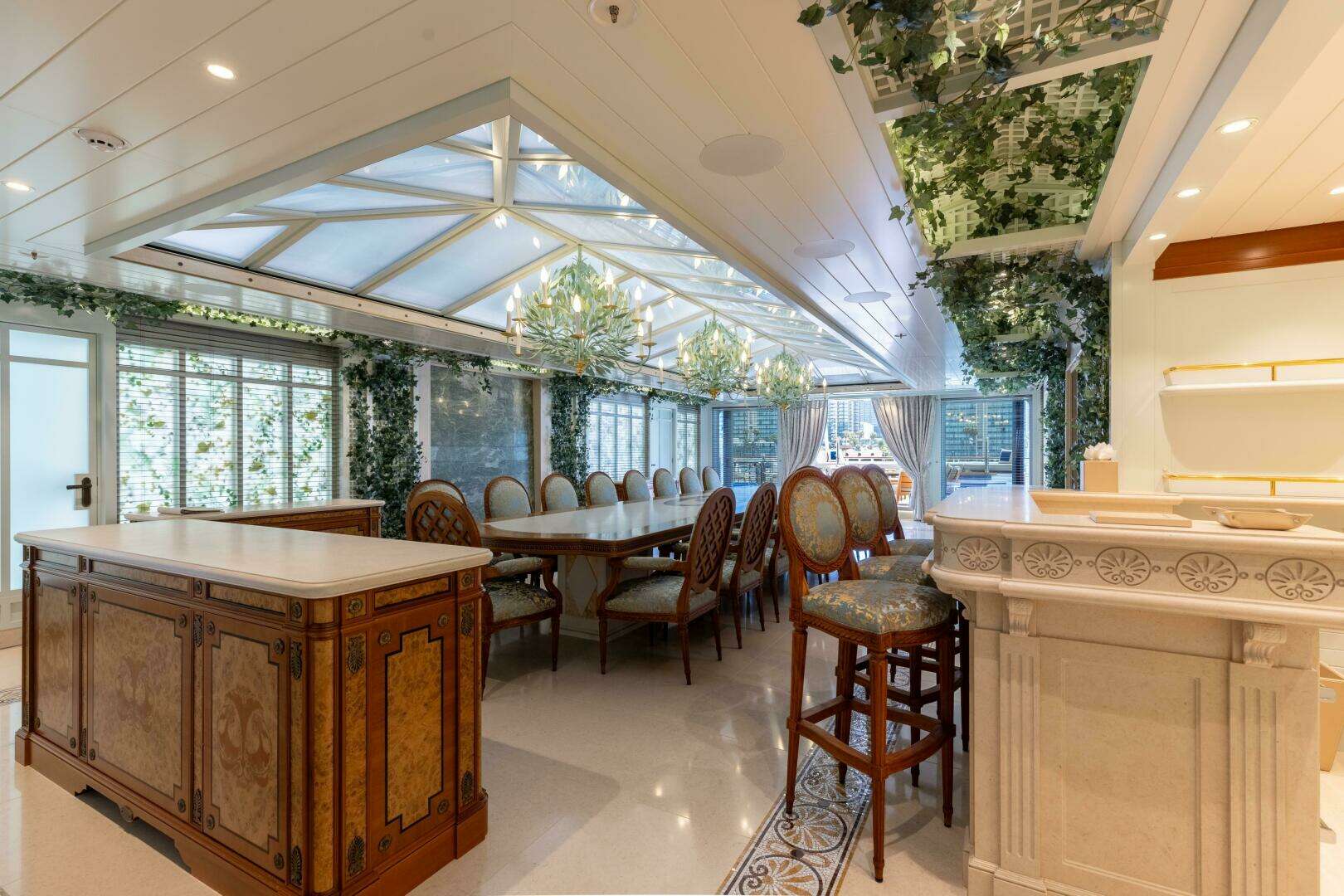

    Moving aft, guests enter the light-filled Winter Garden, an elegant indoor dining area that features a live lobster tank as part of the unique dining experience.



    The aft deck hosts a centerline Jacuzzi surrounded by sunbeds, which can be transformed into an outdoor disco. The Jacuzzi is fitted with a custom teak cover, allowing it to double as a stage for entertainment or events. A convenient outdoor shower is located on the port side.

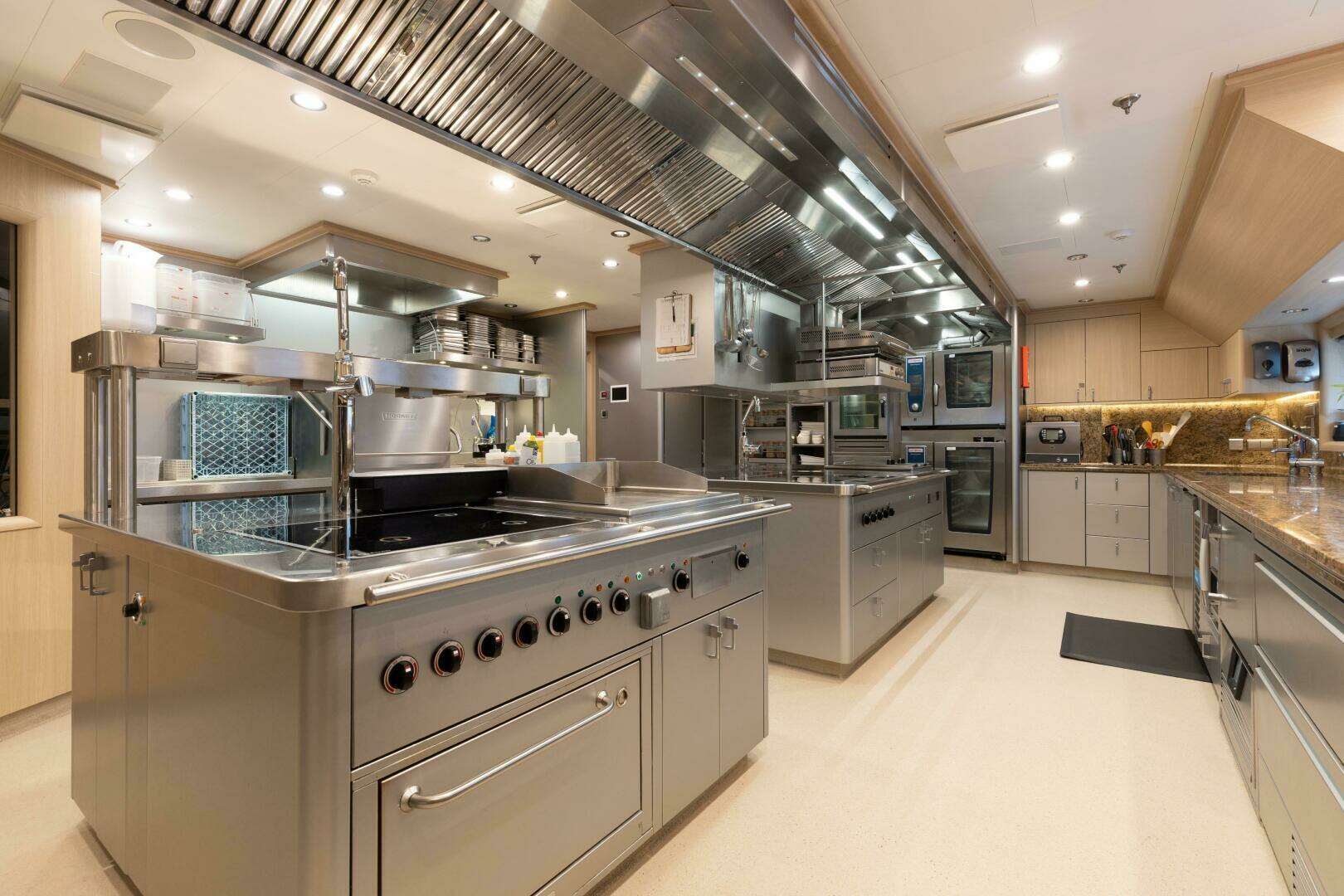

    A gourmet chef’s galley is directly connected to the Winter Garden, offering freshly prepared, made-to-order cuisine.



    BRIDGE DECK

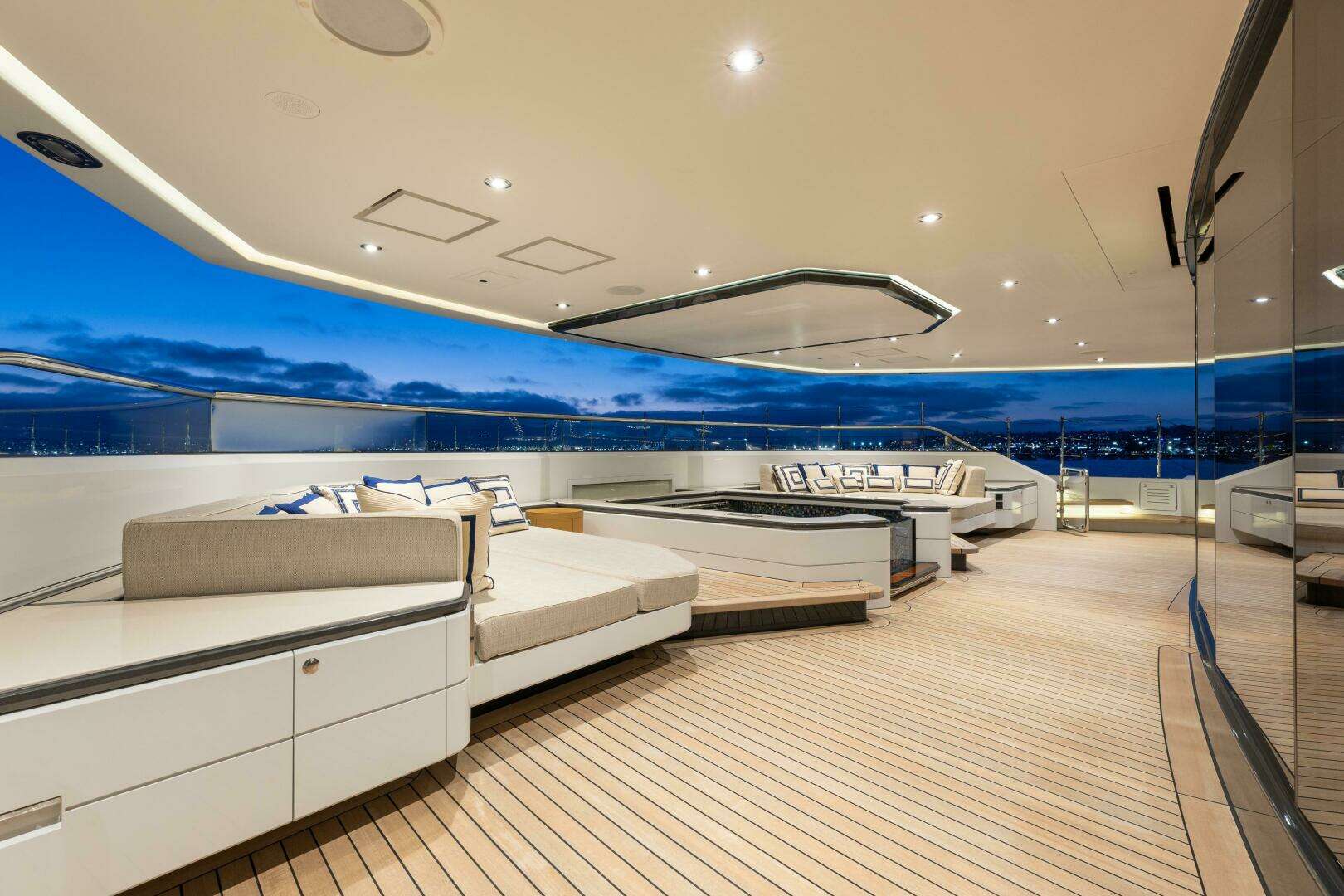

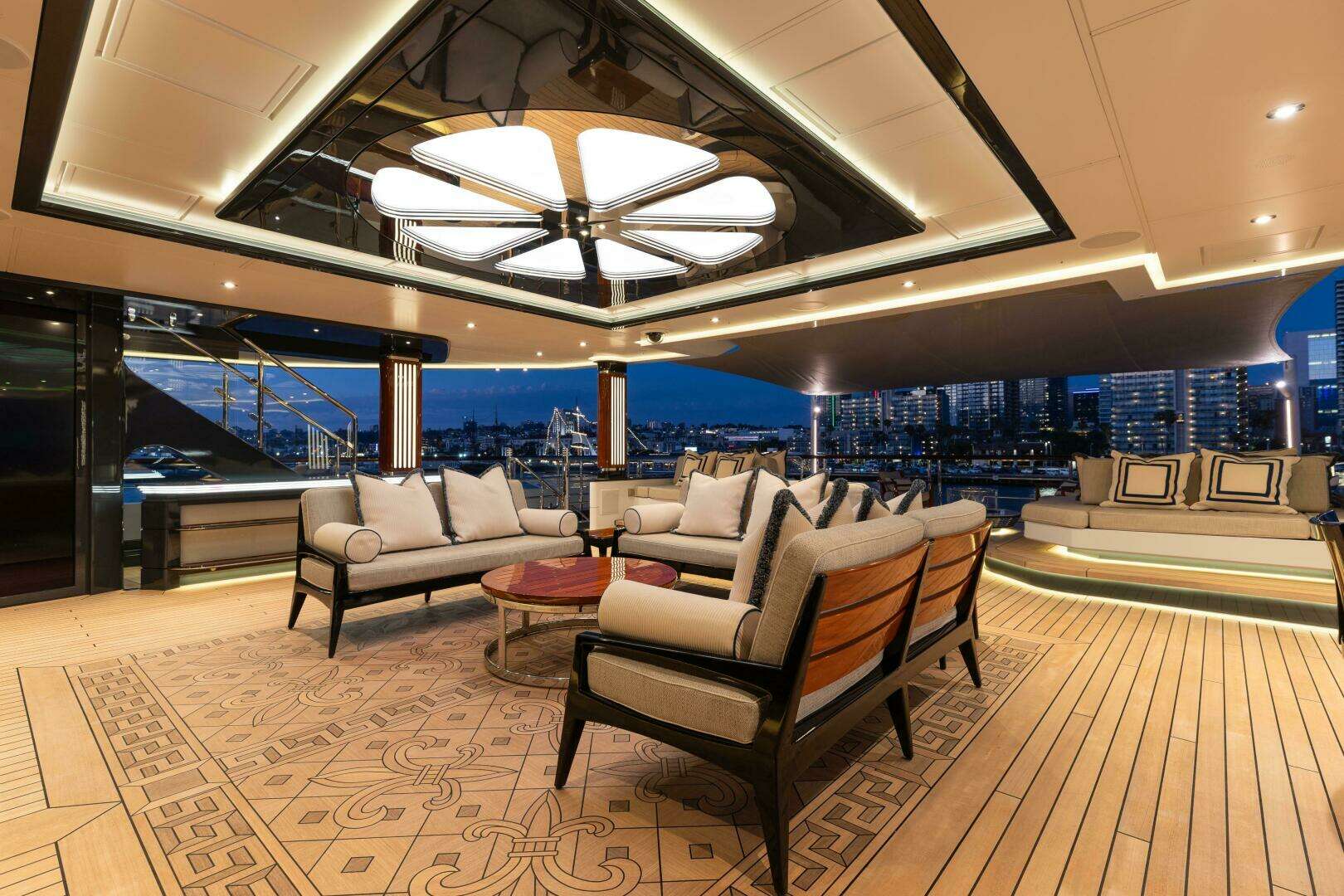

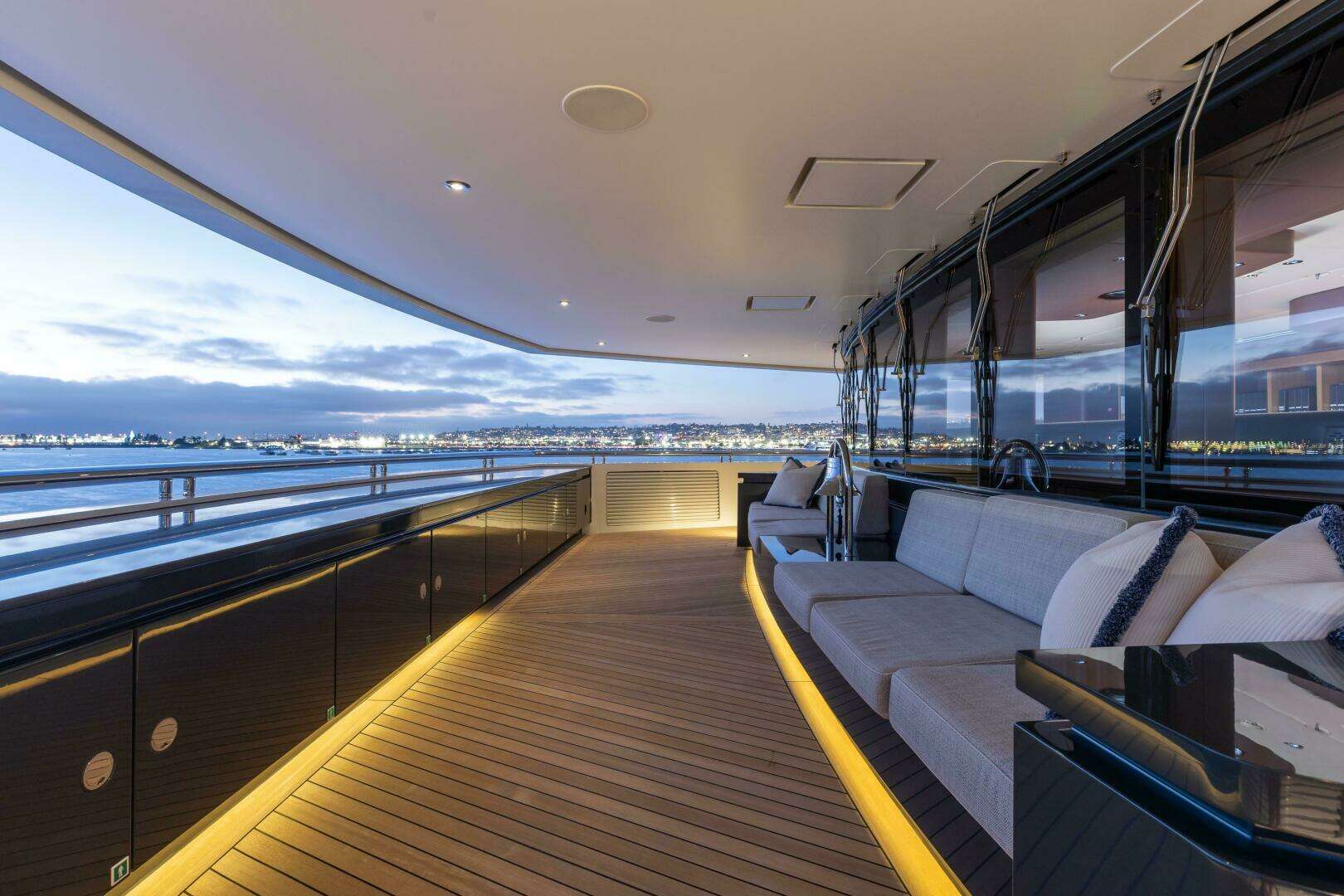

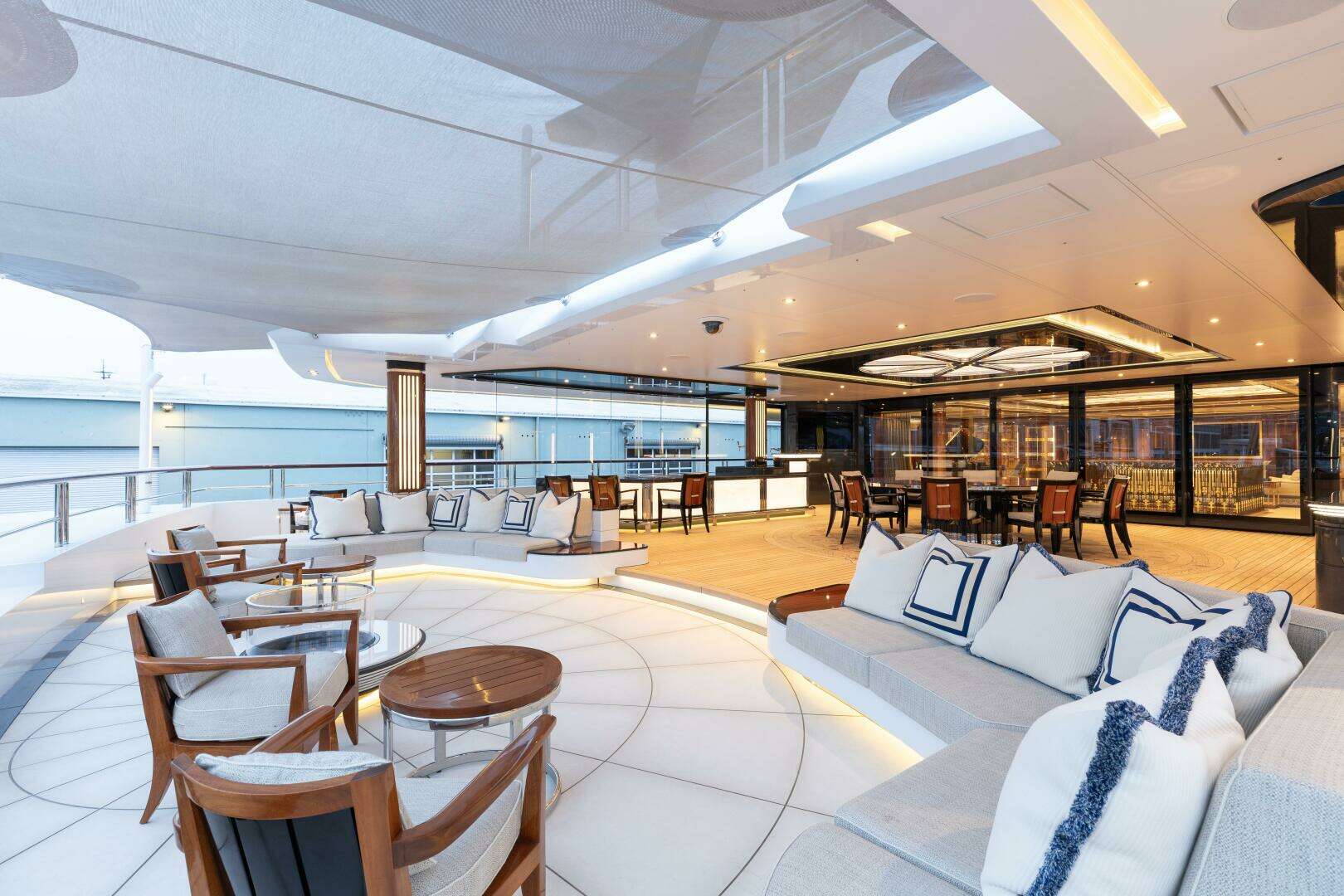

    The aft exterior of the bridge deck is purposefully designed for relaxed lounging and social gatherings. Sunbeds are positioned on both the port and starboard sides, flanking a central bio-ethanol fire pit.



    At the center, beneath a shaded overhead structure, is a comfortable conversation area with three sofas to starboard and a full-service bar to port, enhanced by integrated exterior overhead heating at each sitting area and air conditioning over the dining tables, ensuring year-round comfort even in hotter and cooler climates.

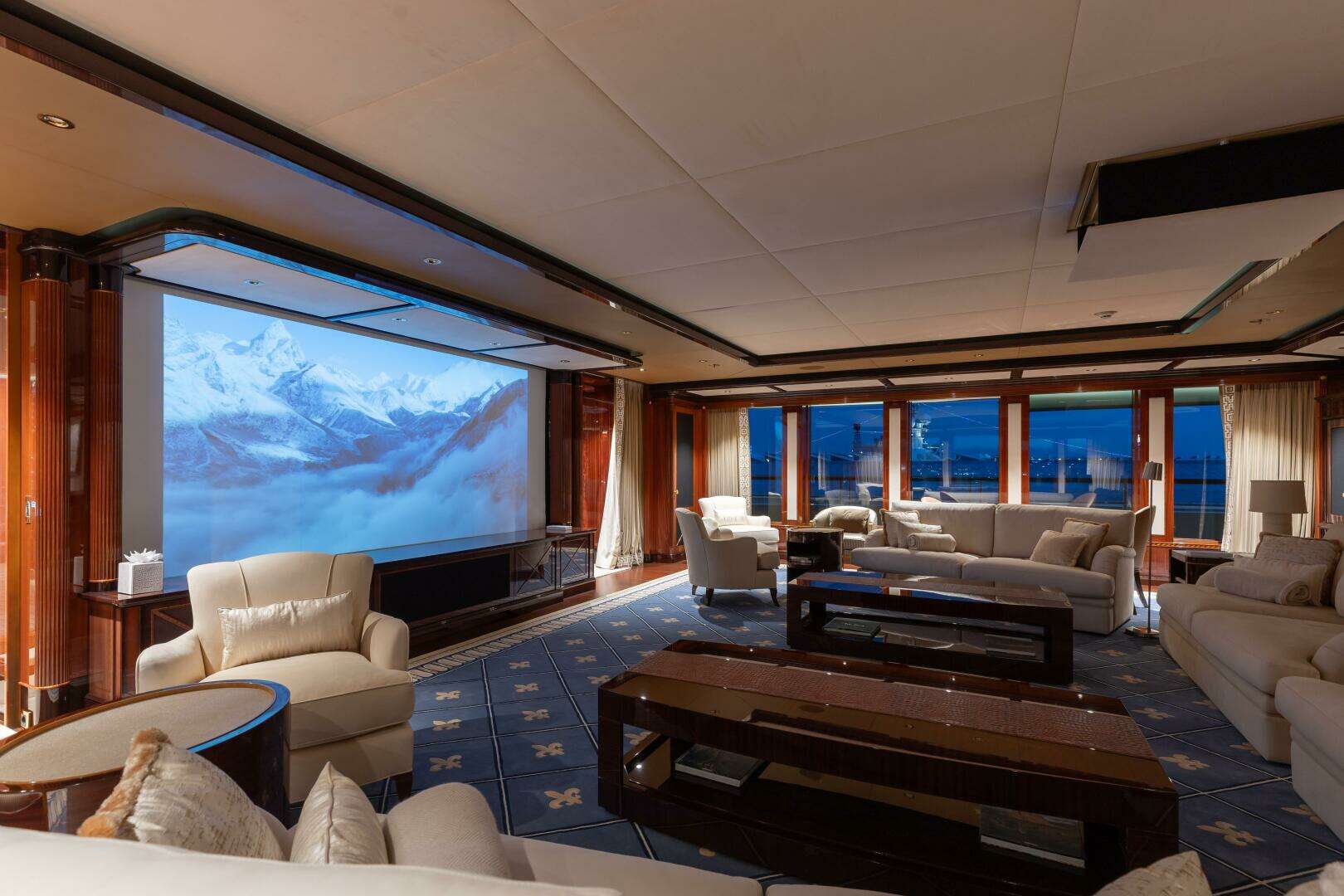

    Two sliding glass doors lead from this outdoor lounge into the cinema lounge.



    The bridge deck lounge features a spacious seating area and a game table, which seamlessly transforms into a private cinema for onboard movie nights. Forward on the starboard side is a full-service bar counter, which can be discreetly closed off using a sliding pocket door for privacy or service flexibility.



    Moving forward along the guest lobby, the port side houses a VIP stateroom featuring floor-to-ceiling sliding glass doors that open directly onto the deck, offering unobstructed views and private outdoor access. Opposite, on the starboard side, is a guest stateroom with floor-to-ceiling windows.



    Continuing forward, guests arrive at the central lobby, which includes the main stairwell to all decks as well as elevator access.



    Forward of the guest lobby on the port side is the first officer’s cabin. Just ahead lies the captain’s suite, also on the port side. Across from the captain’s suite is the ship’s office, which includes a glass-partitioned private office for the captain.



    Adjacent to the lobby leading to the wheelhouse is a crew day head.

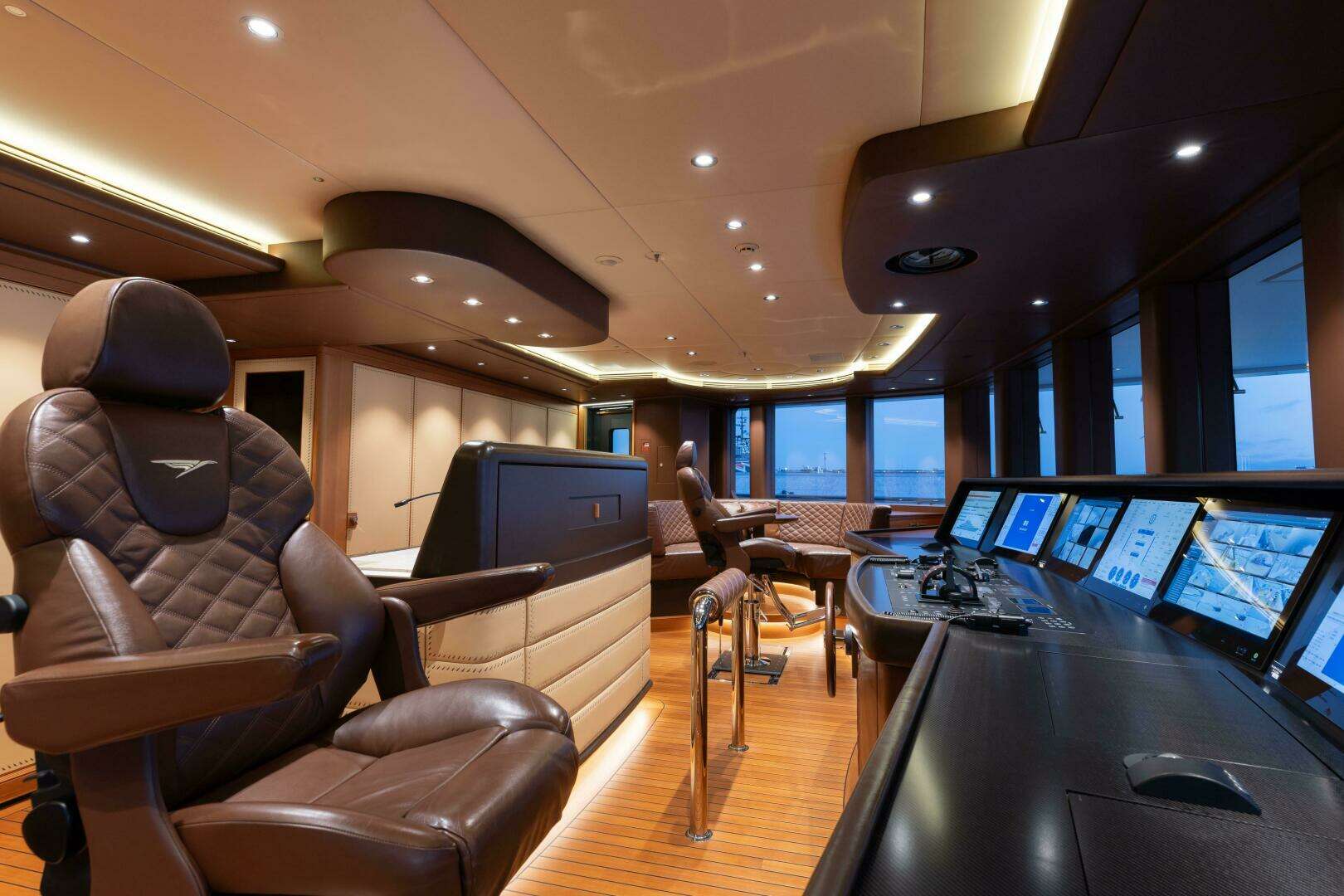

    The wheelhouse features a fully integrated bridge system with a central chart table, flanked by leather-covered lounges with tables on both the port and starboard sides — ideal for guests wishing to observe navigation and operations in comfort. On the aft starboard bulkhead, a desk and shelving unit provide secure storage for the yacht’s essential documentation.



    Stepping through either the port or starboard wheelhouse door, guests can access a forward outdoor settee overlooking the foredeck. Notably, the owner’s private deck remains concealed from this vantage point, preserving privacy.



    Additionally, port and starboard wing stations are located here, offering excellent visibility for precise close-quarters maneuvering.



    OWNER’S DECK

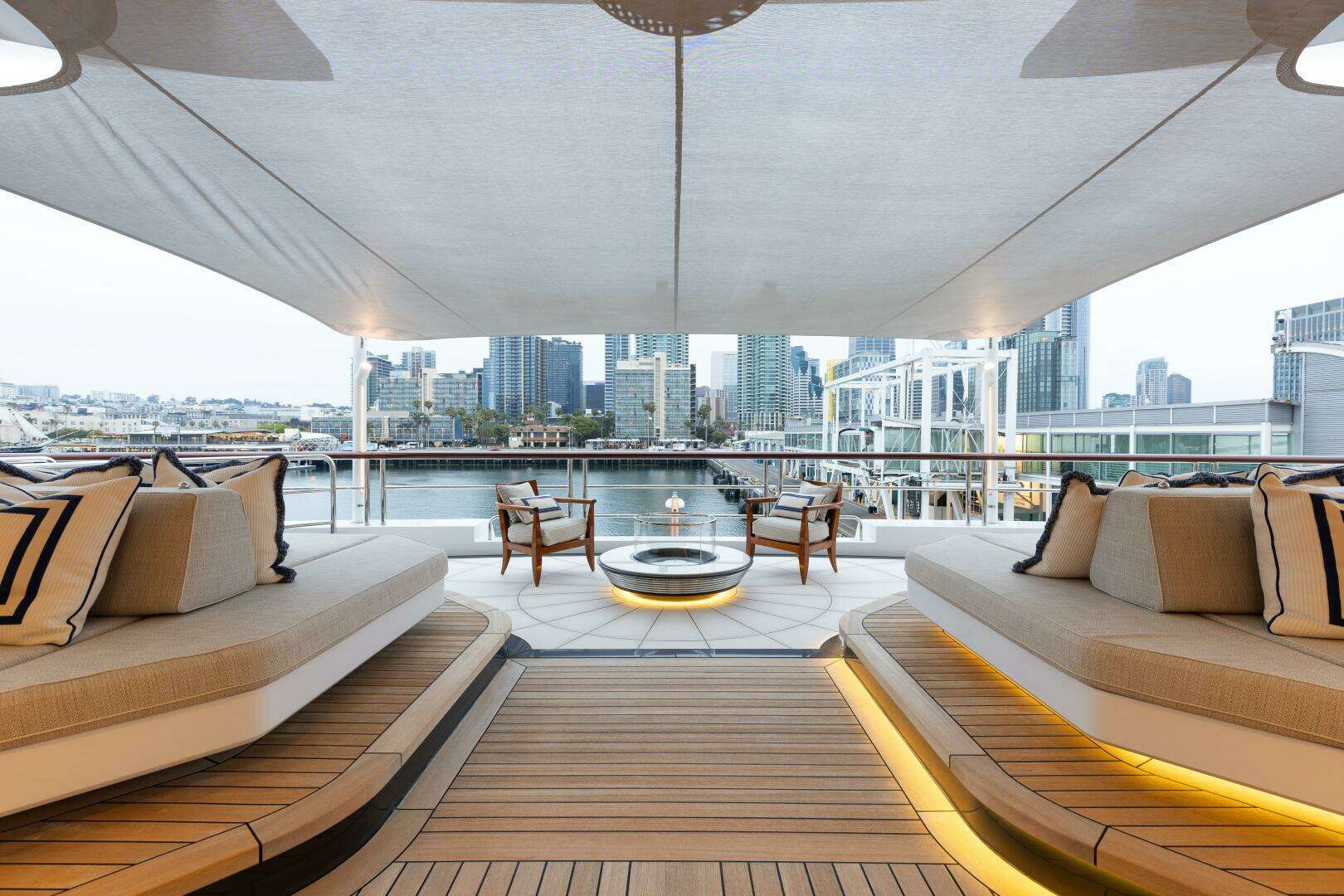

    The aft deck features a fire pit with built-in seating and loose chairs, on center is a round dining table for 16 guests, port side is a full-service bar and cooking grill. Starboard side are stairs up to the bridge deck or down to main deck.



    Going forward through glass sliding doors you enter the owner’s lounge. On center is an open foyer looking down to the main deck saloon. On the port side is a piano and games table. The Starboard side is a conversation area with a couch and barrel chairs. Forward on center is the open foyer looking through to the main deck saloon. Forward of the foyer, on center, is a lounge area with a TV and fireplace.

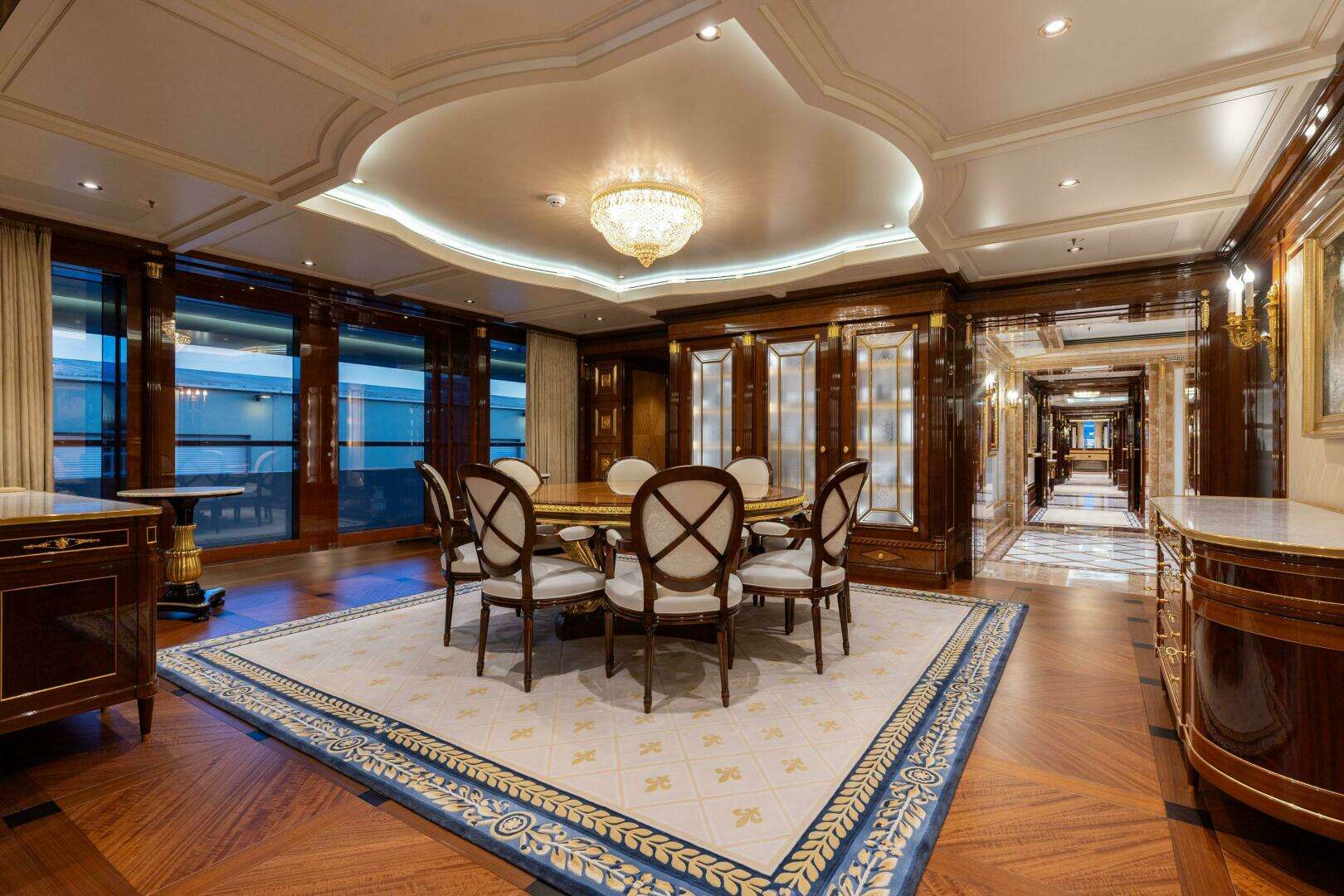

    Continuing forward of the lounge is the owner’s private dining area, with sliding glass doors leading to the exterior port side deck. Just aft of the dining area is an intimate full-service bar on center, flanked by wine cellars on both port and starboard sides.

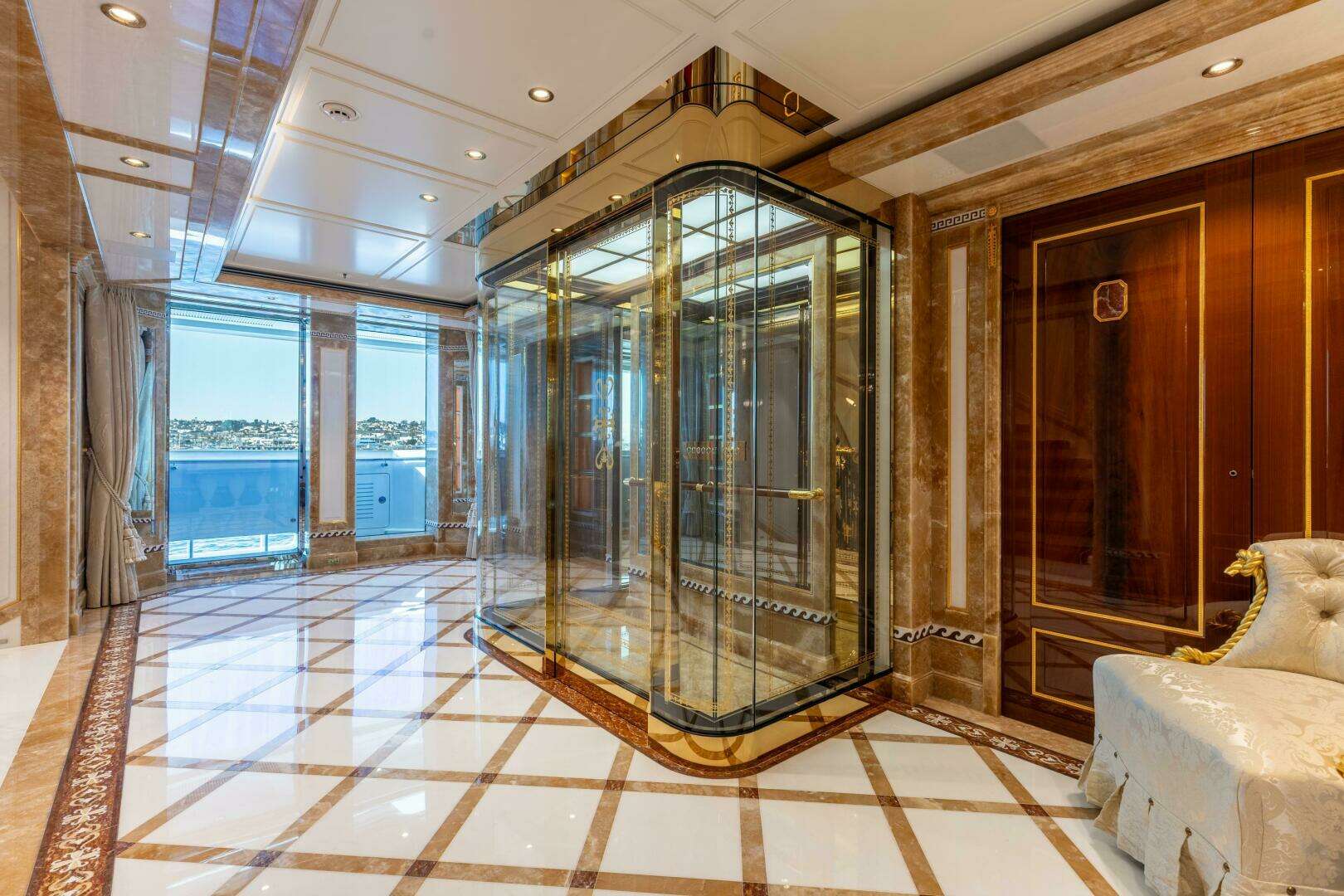

    Leaving the owners’ dining area going forward is the main lobby with elevator landing and main stairwell to all decks. Around the corner to starboard and just aft of the elevator ins the Owners fully equipped gym with sliding glass doors onto starboard exterior deck.



    Departing the lobby going forward you pass through a set of sliding doors into a small lobby where there’s a guest day head, for those visiting the owners dining room or lounge. Passing through another set of sliding doors you enter the owner’s private lobby with luggage storage and another day head on starboard, for guests visiting the owner’s office or beauty center. Further forward on the port side is the owner’s fully equipped beauty and massage center. Across from the beauty center on the starboard side the owner’s private office with sliding glass do leading outside.

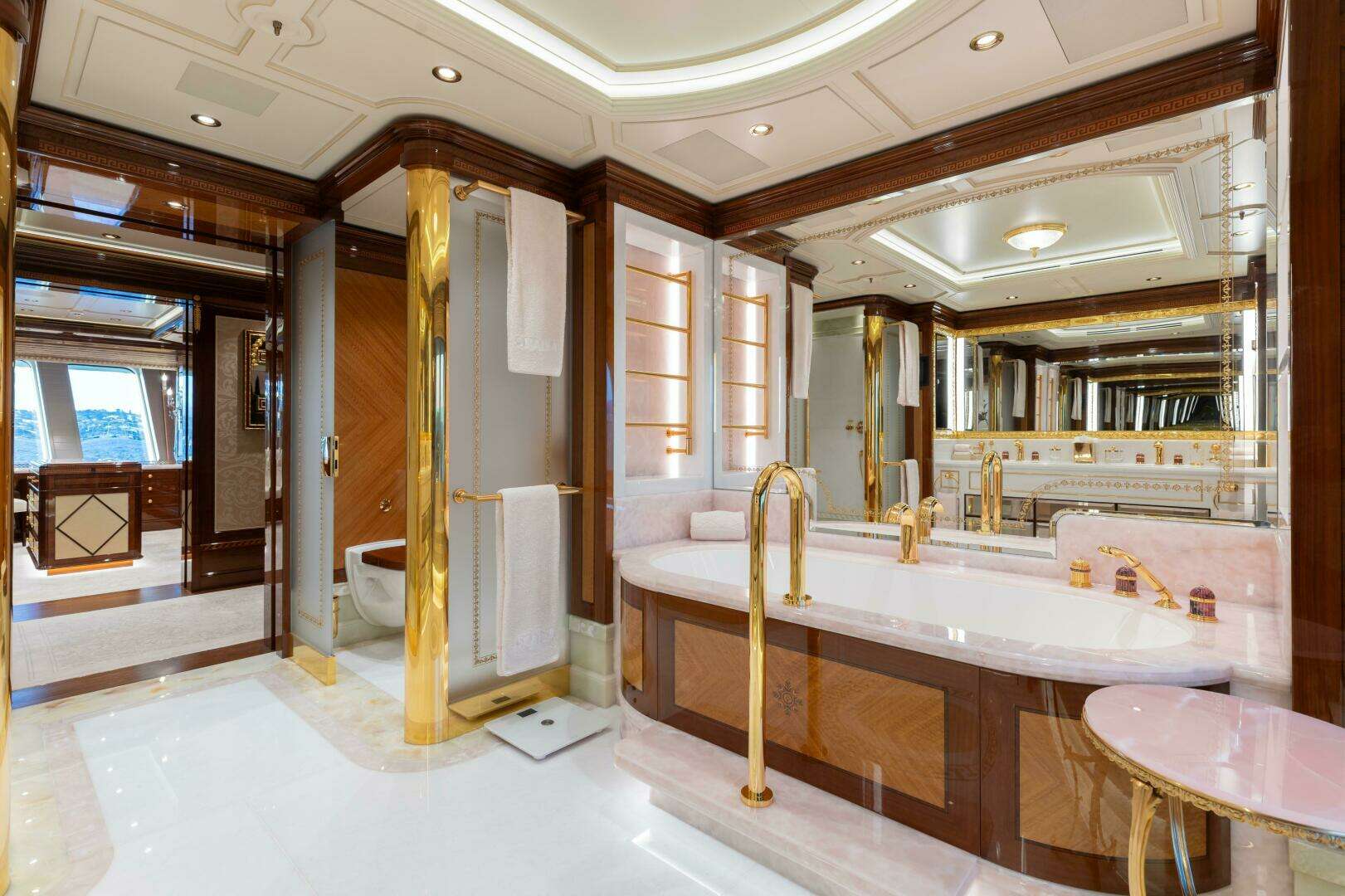

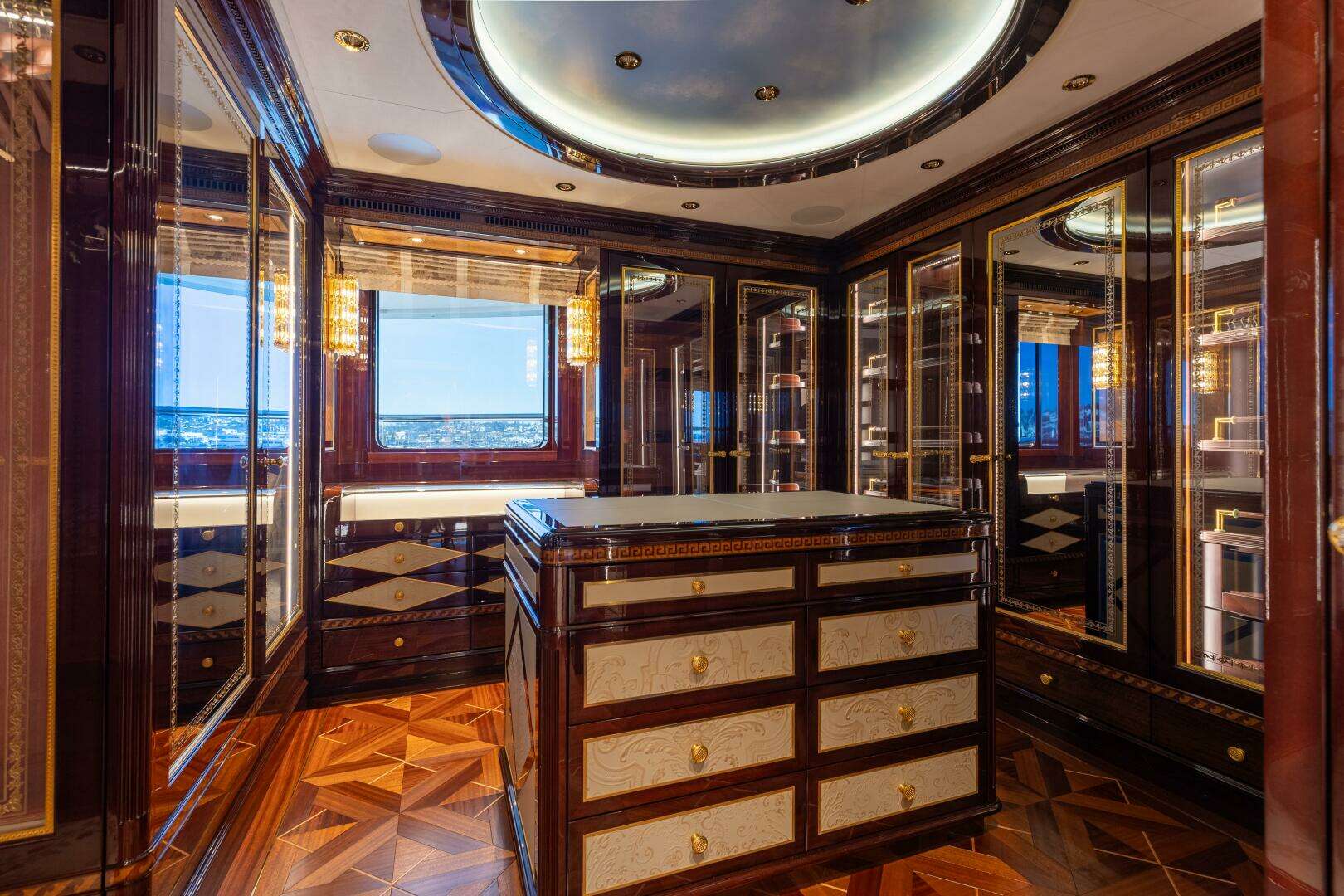

    Passing through another set of doors which isolates the owner’s suite, on the port is the owner’s head with full size bathtub, two wash basins, shower and his and her water closets with bidets in each. Across the starboard side is the very large his and her dressing room with every type of backlit storage imaginable.

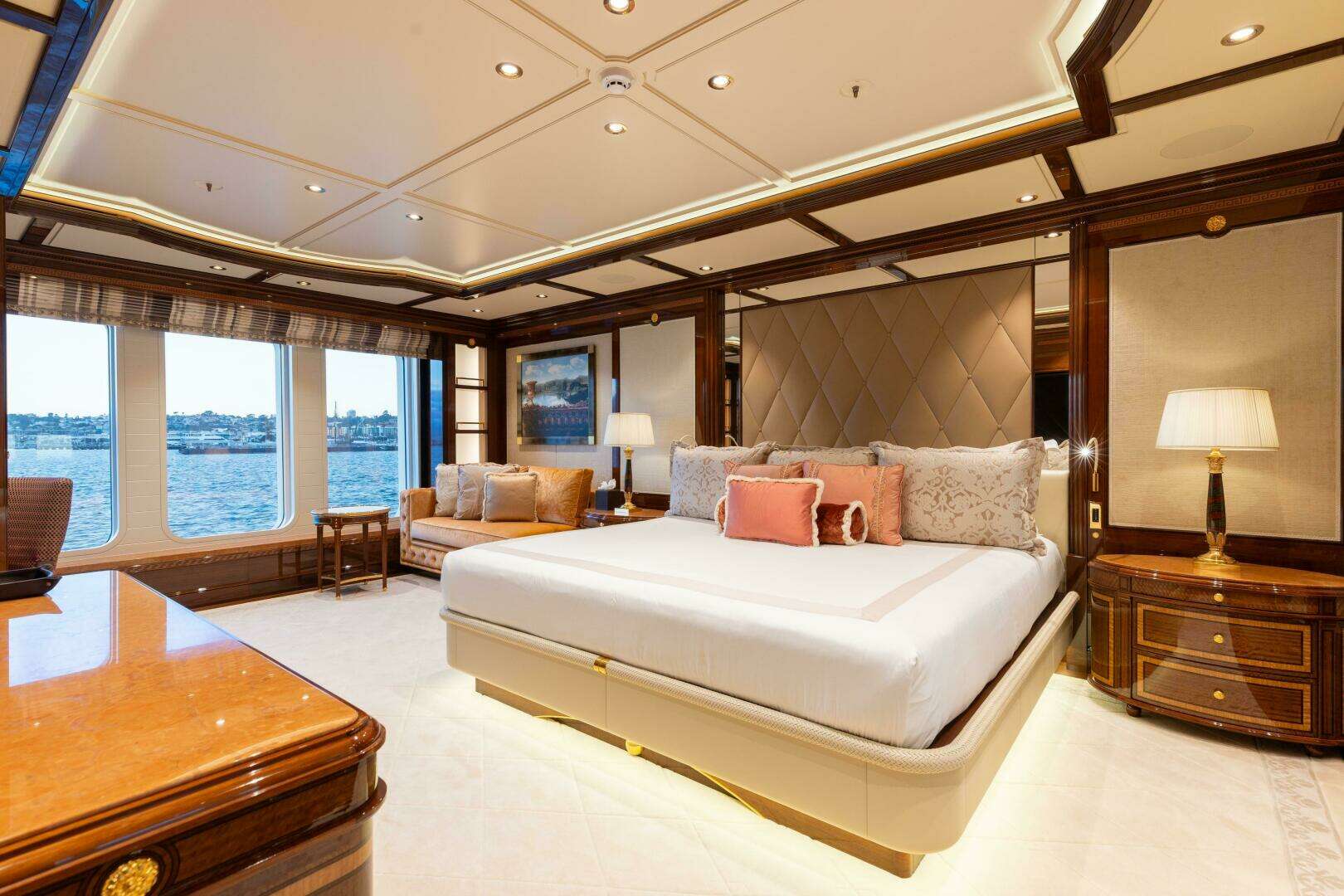

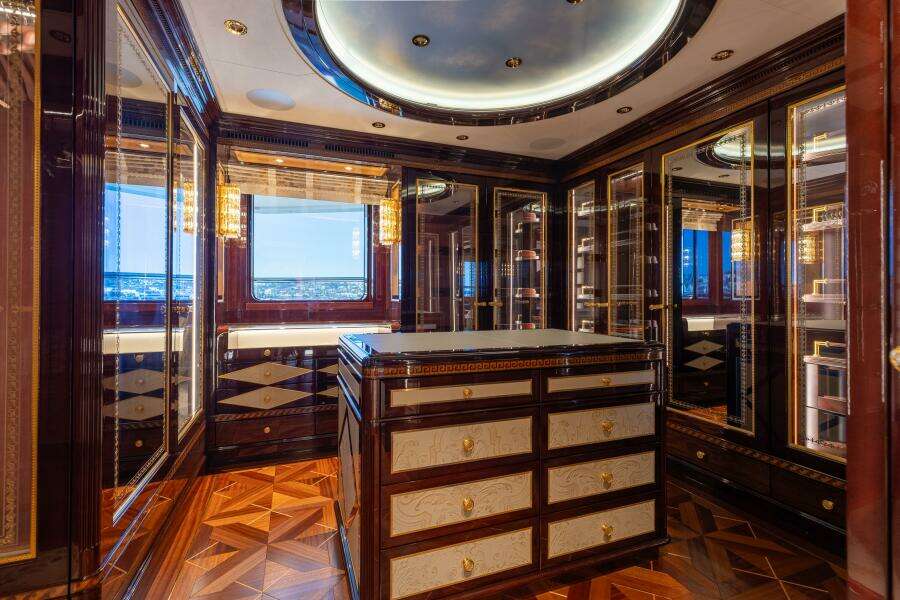

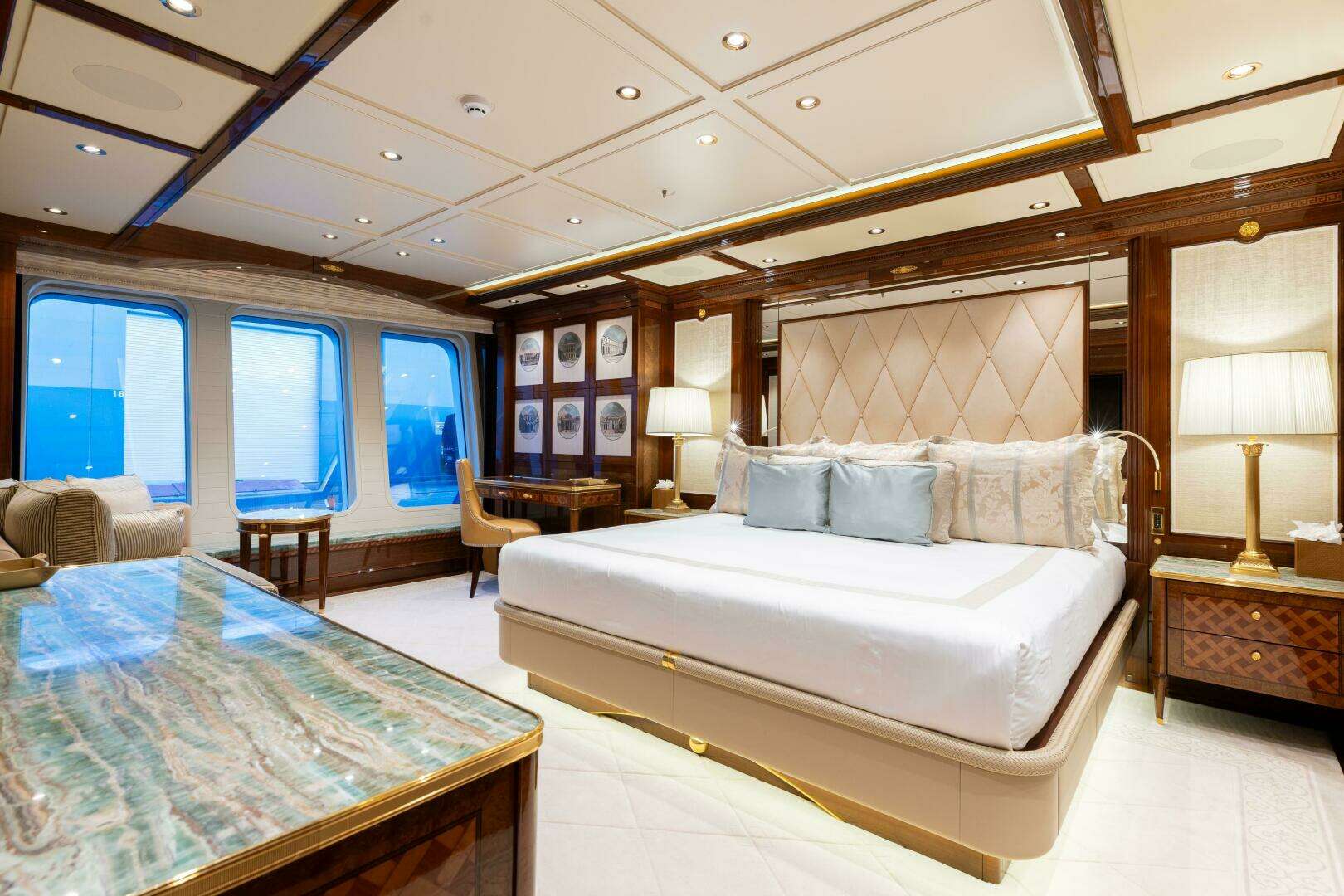

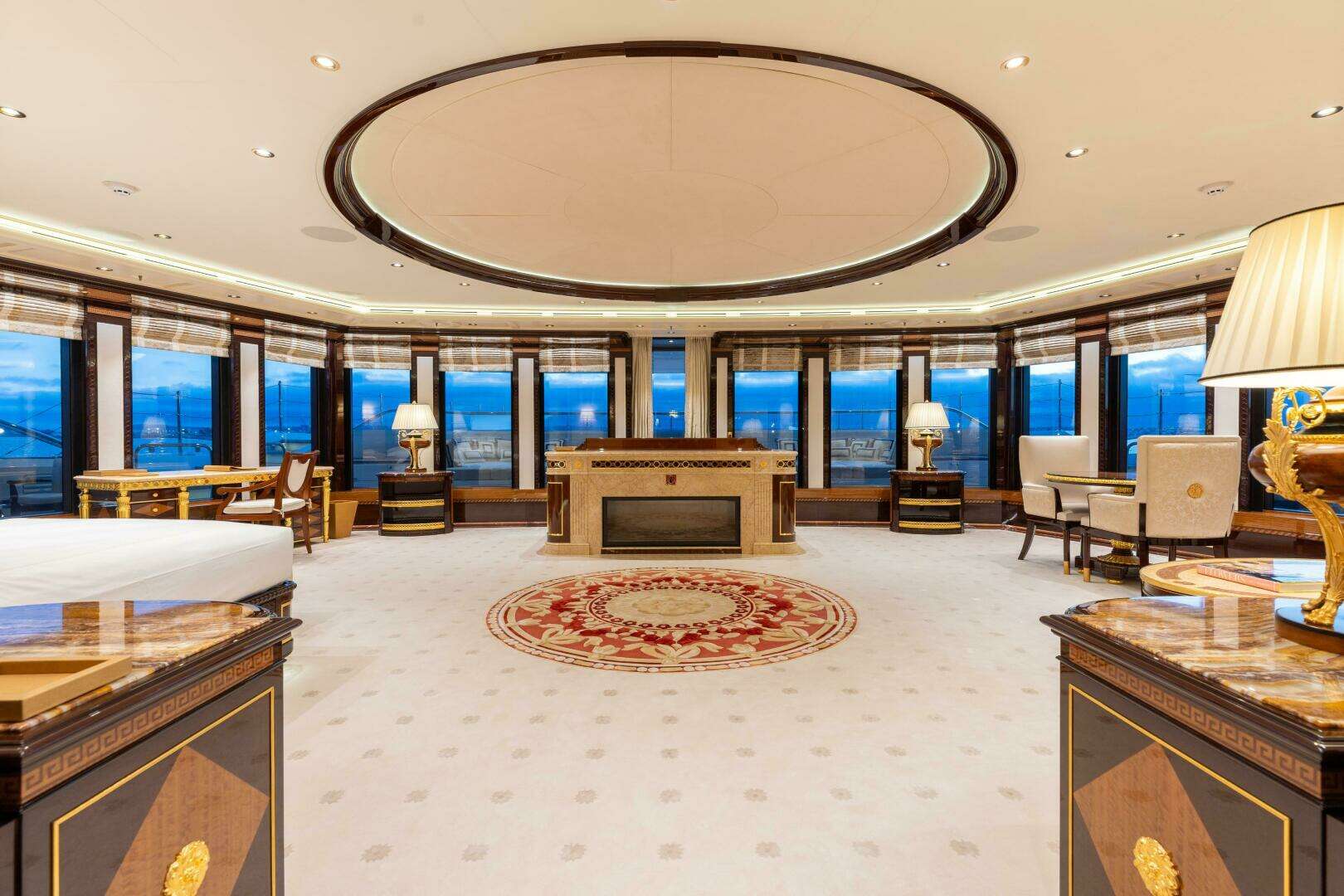

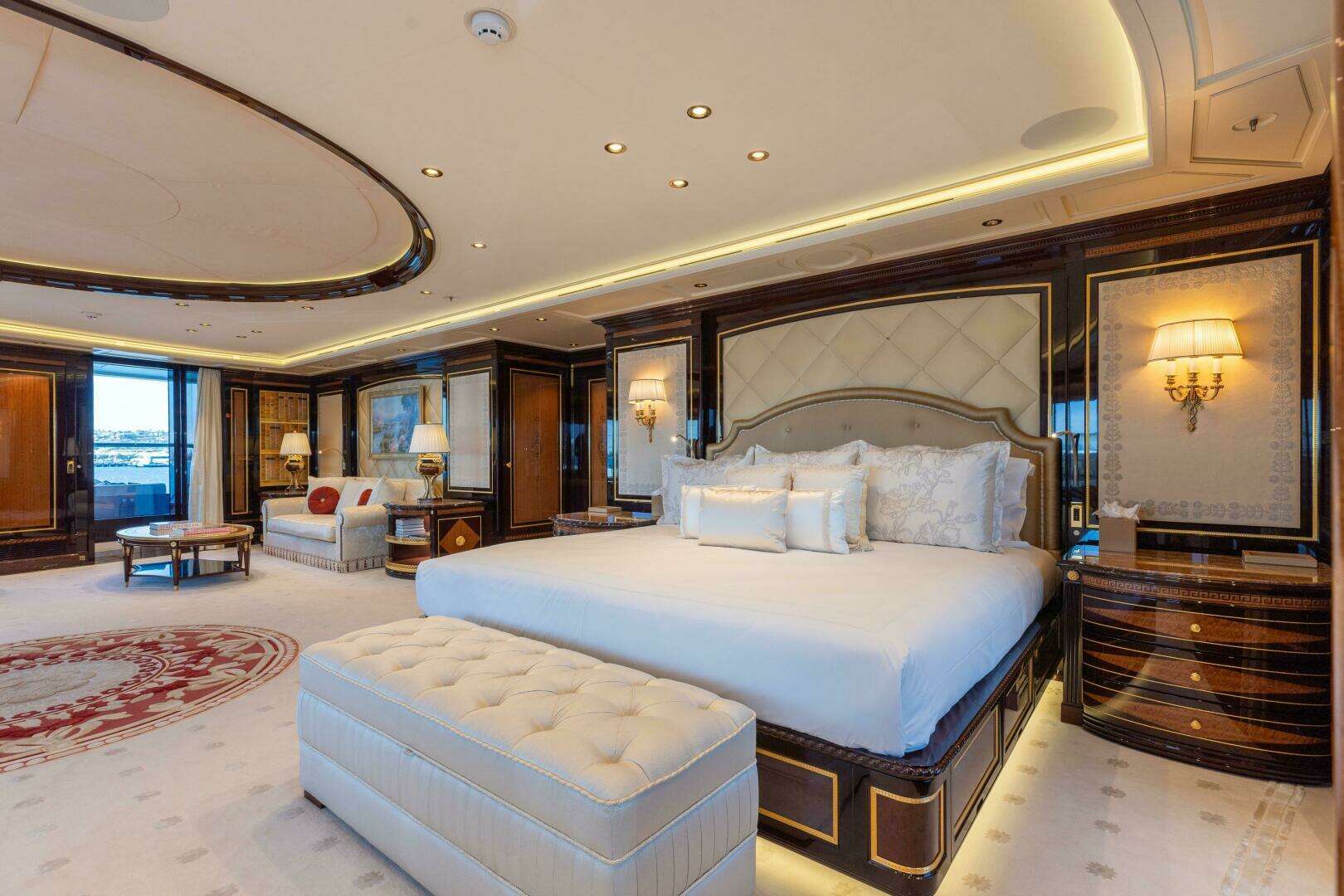

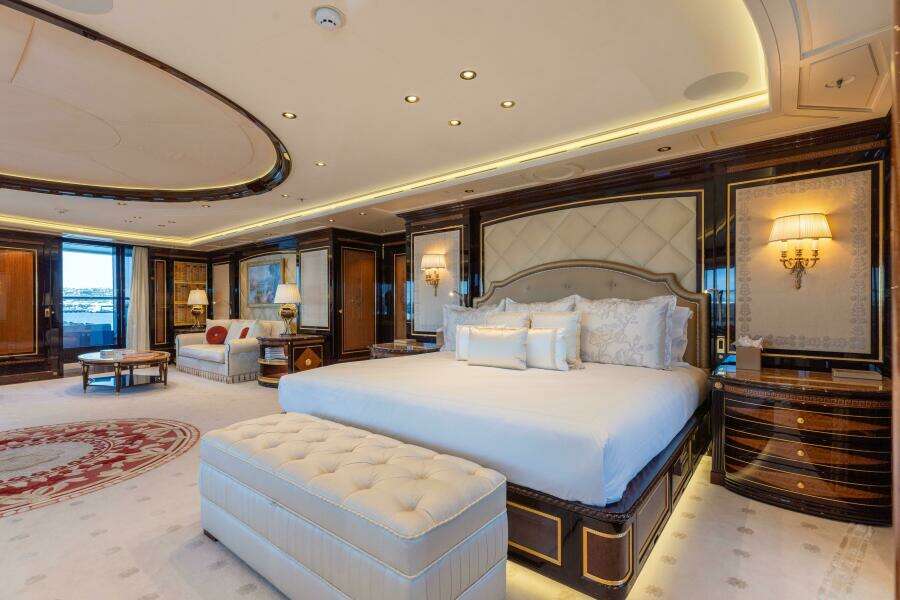

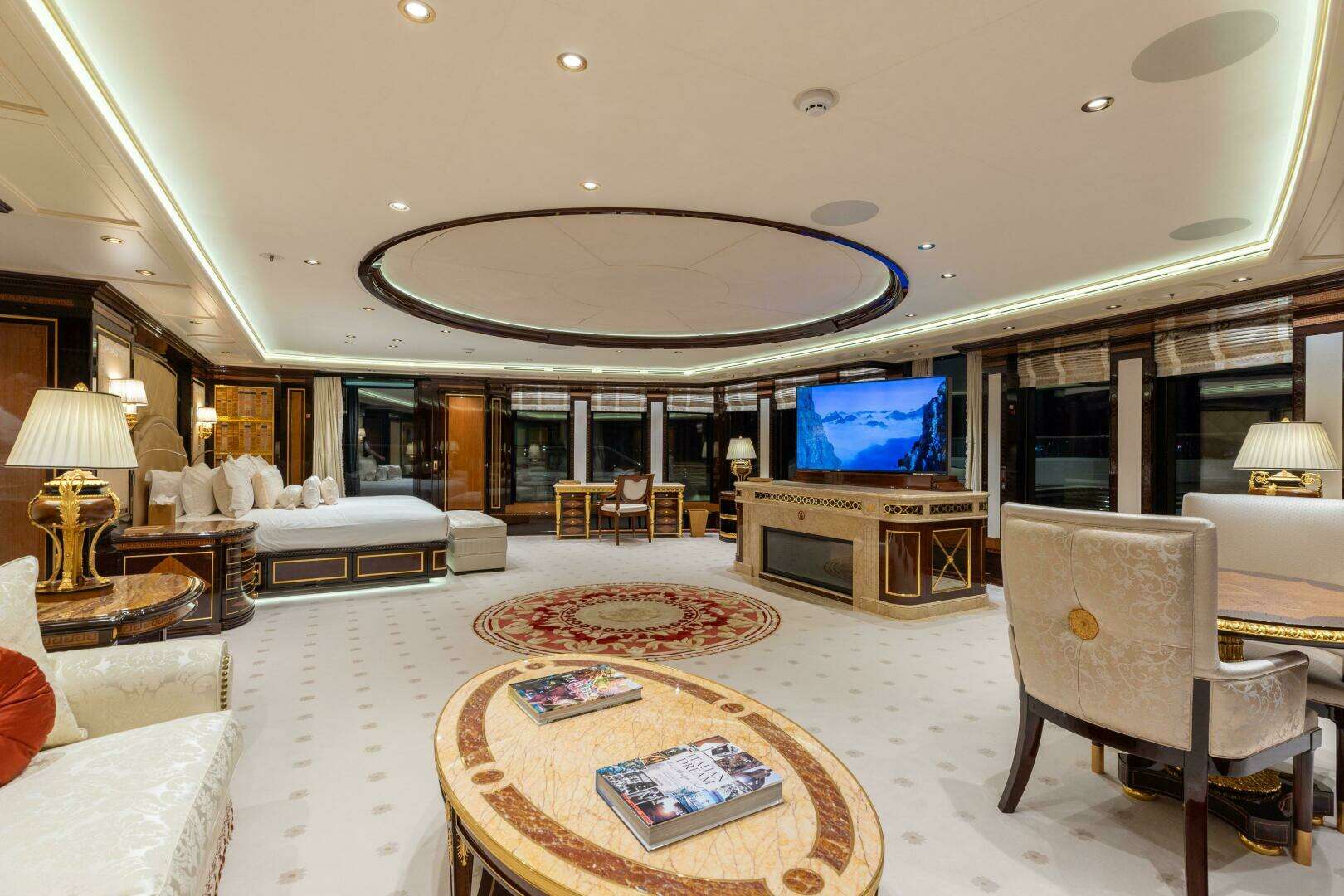

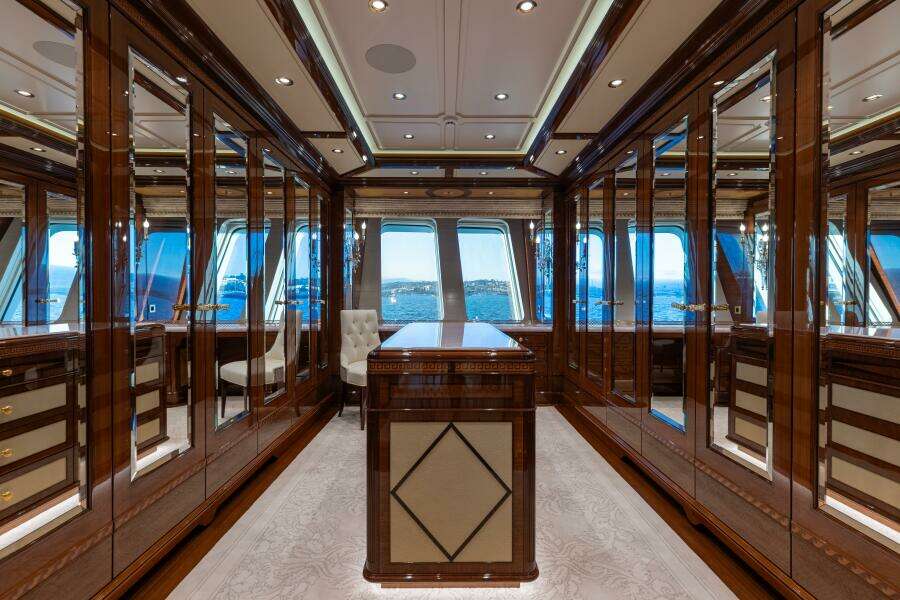

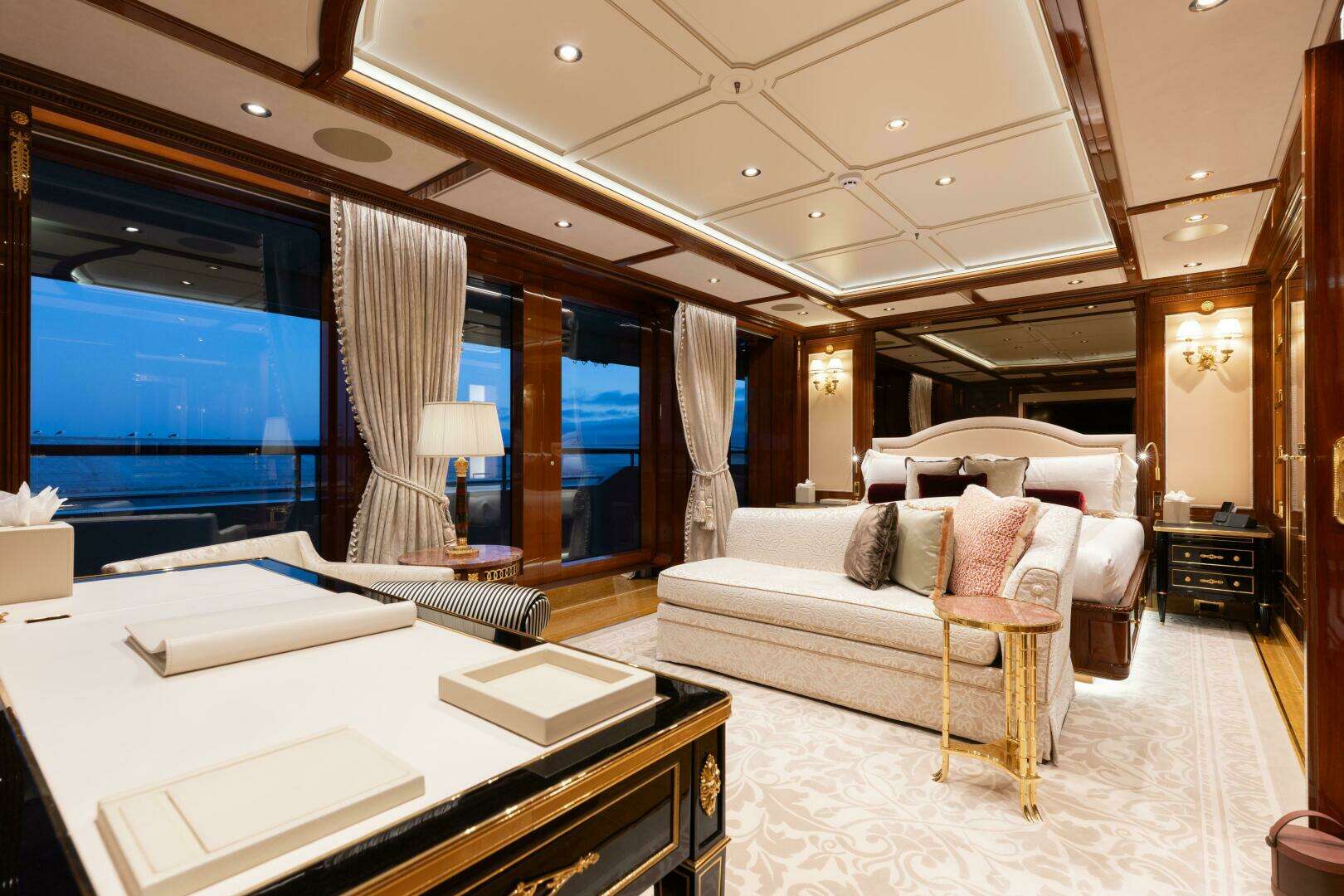

    Furthest forward are the owner’s 180-degree view stateroom with floor to ceiling windows. On the port side is a relaxing area with a sofa and chairs. On center is a fireplace with pop up TV built into the same cabinetry. Port side is the owner’s berth. On the starboard, port and center are sliding glass doors leading out to the deck.



    The exterior deck forward of the owner’s cabin features two sunbeds port and starboard sides with a jacuzzi on center. All this area is out of sight of guests and crew from decks above. From here the owner has direct access to the helideck on the bow.

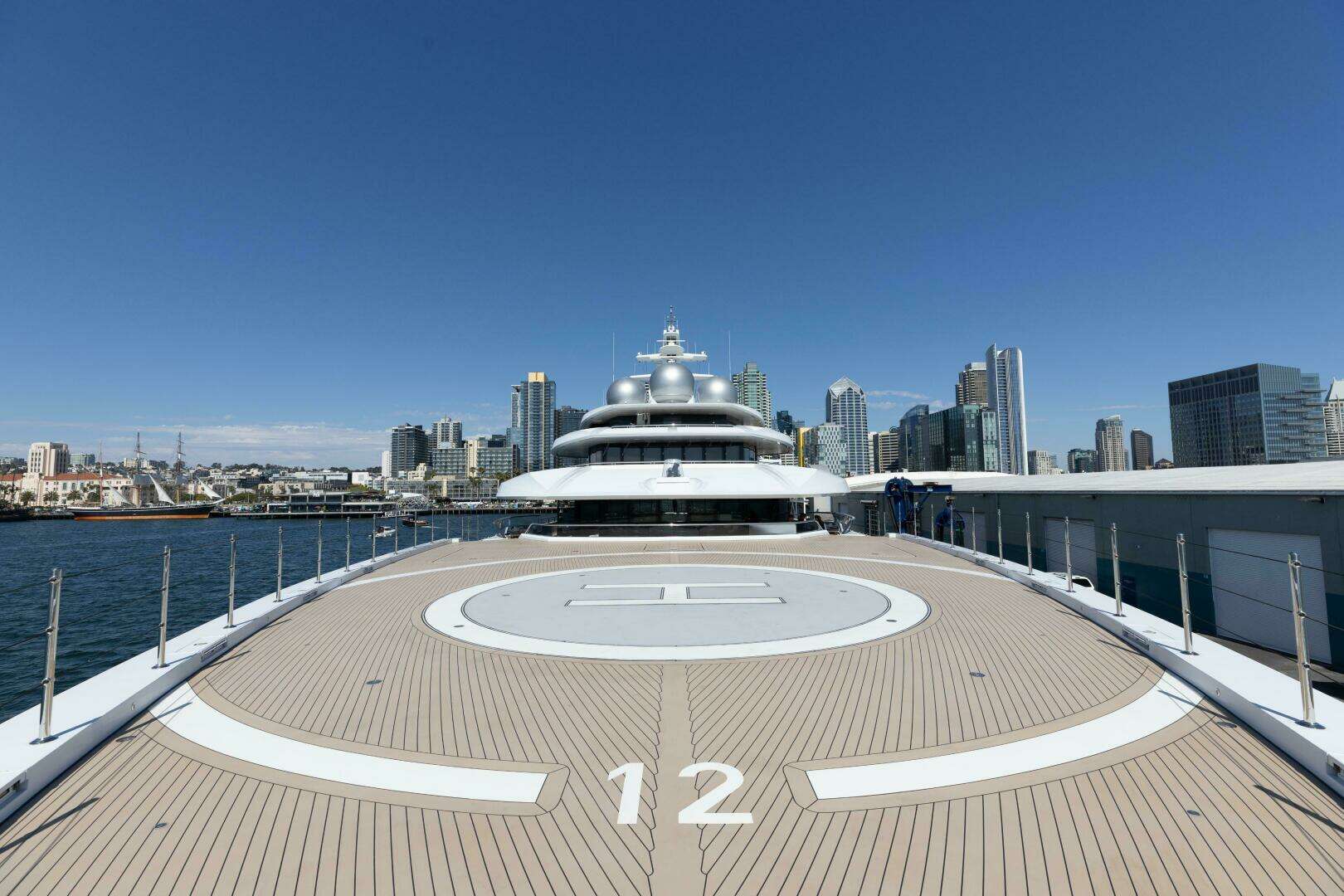

    Forward on the deck is a helipad.



    MAIN DECK

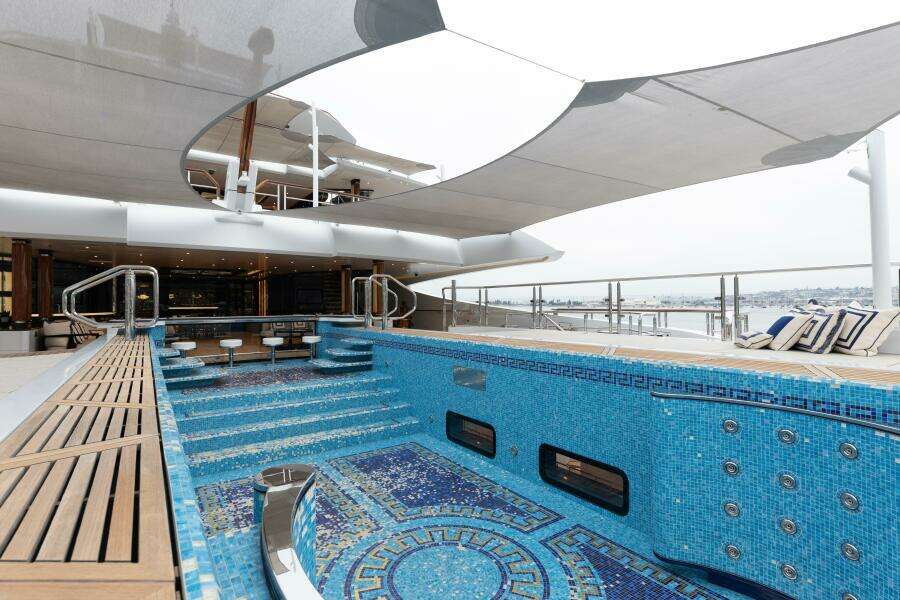

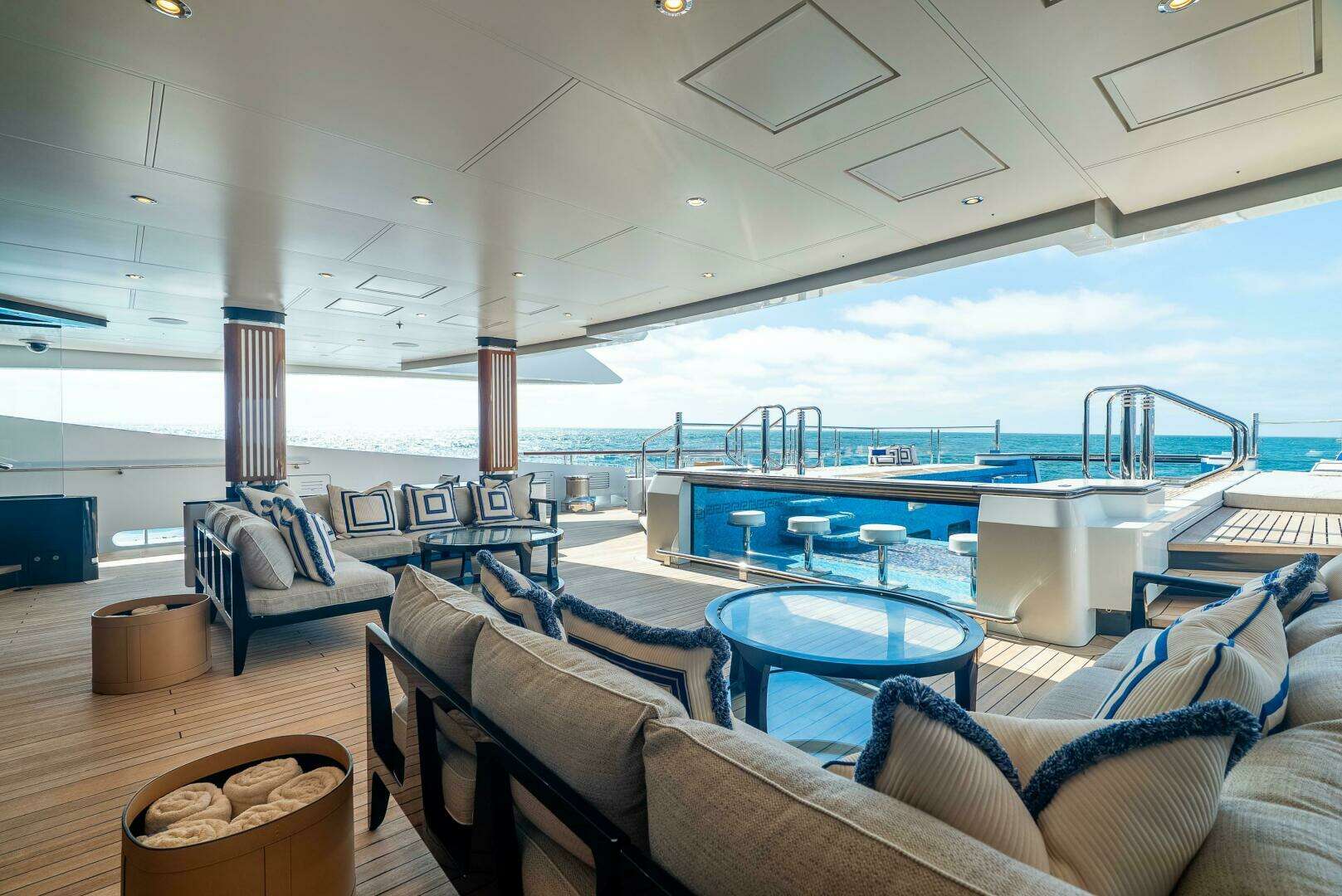

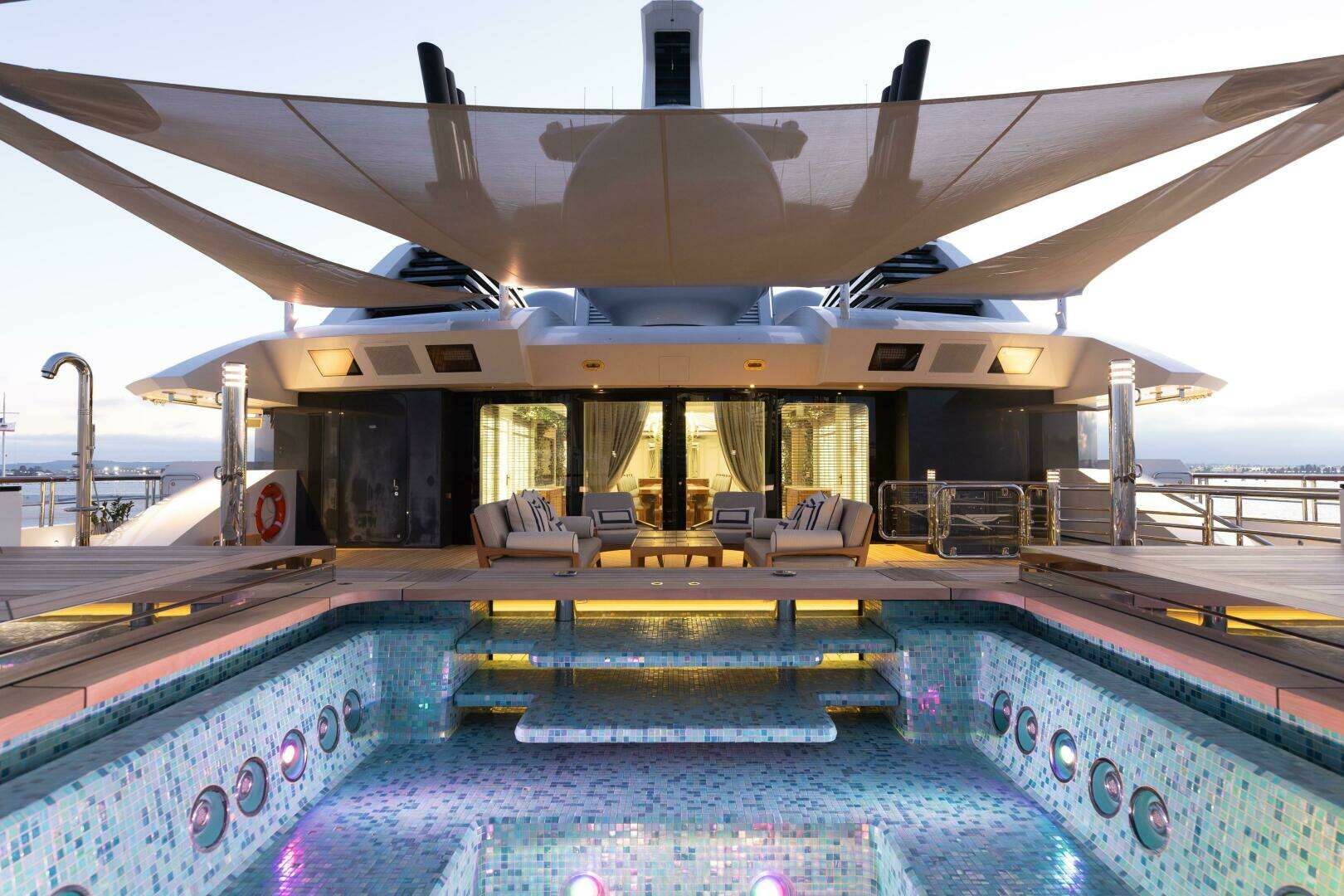

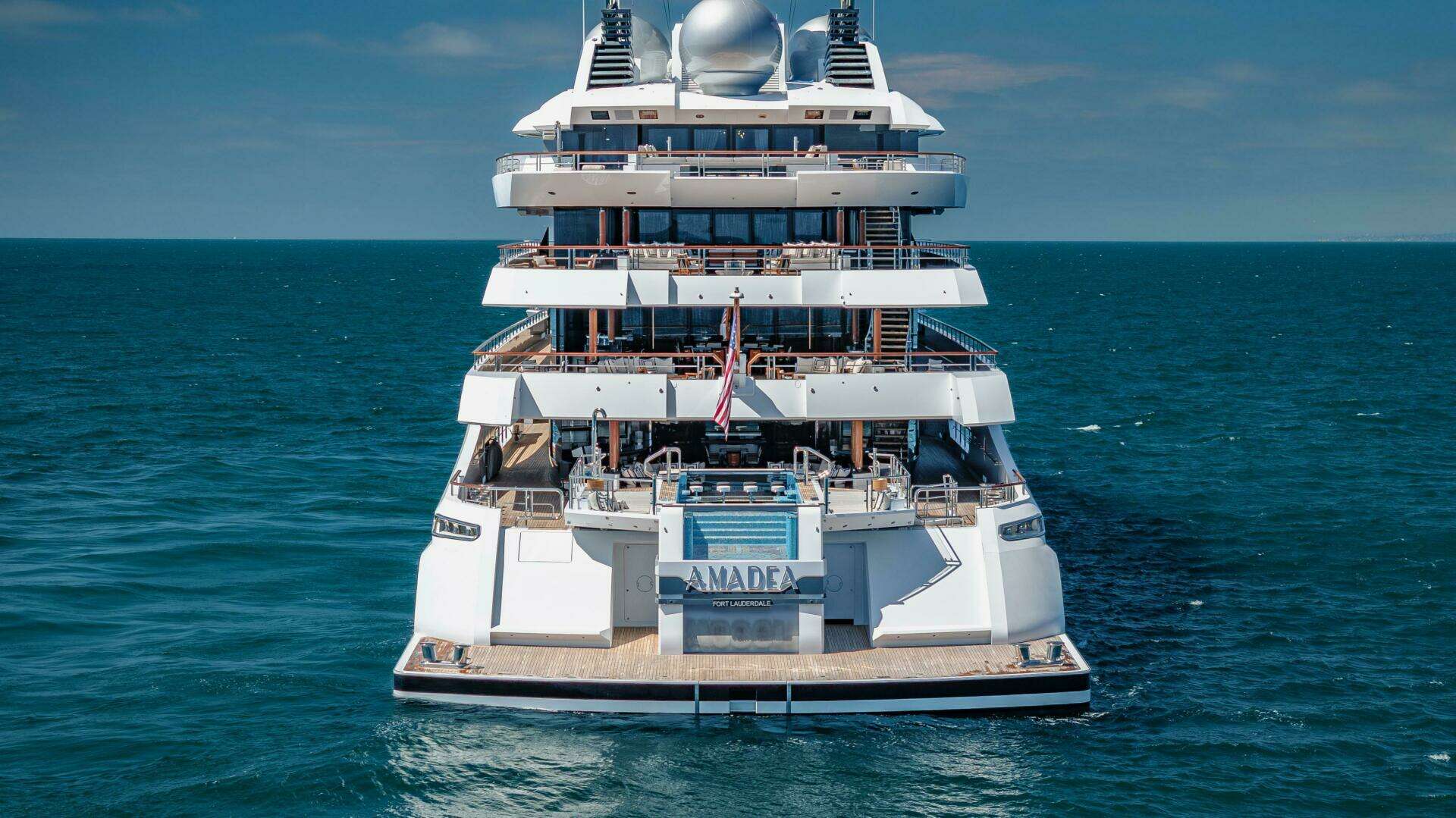

    Starting at the main deck aft, guests are welcomed by a stunning 10-meter infinity pool featuring jet massage stations and a swim-up bar. The pool is equipped with both heating and cooling systems, ensuring year-round comfort. On either side are sunbeds, with a shower located to port for convenient rinsing.



    Just forward of the pool, under the shaded overhead, are two settees, perfect for lounging in a cool, comfortable space. The overhead is equipped with integrated heating panels, ideal for use in cooler climates.



    Continuing forward beneath the overhead, the central area offers a casual conversation space with a table and six chairs, creating an inviting setting for informal dining or relaxing with drinks. A full-service bar is positioned to port. Around the corner on the starboard side of the main deck is a guest day head.

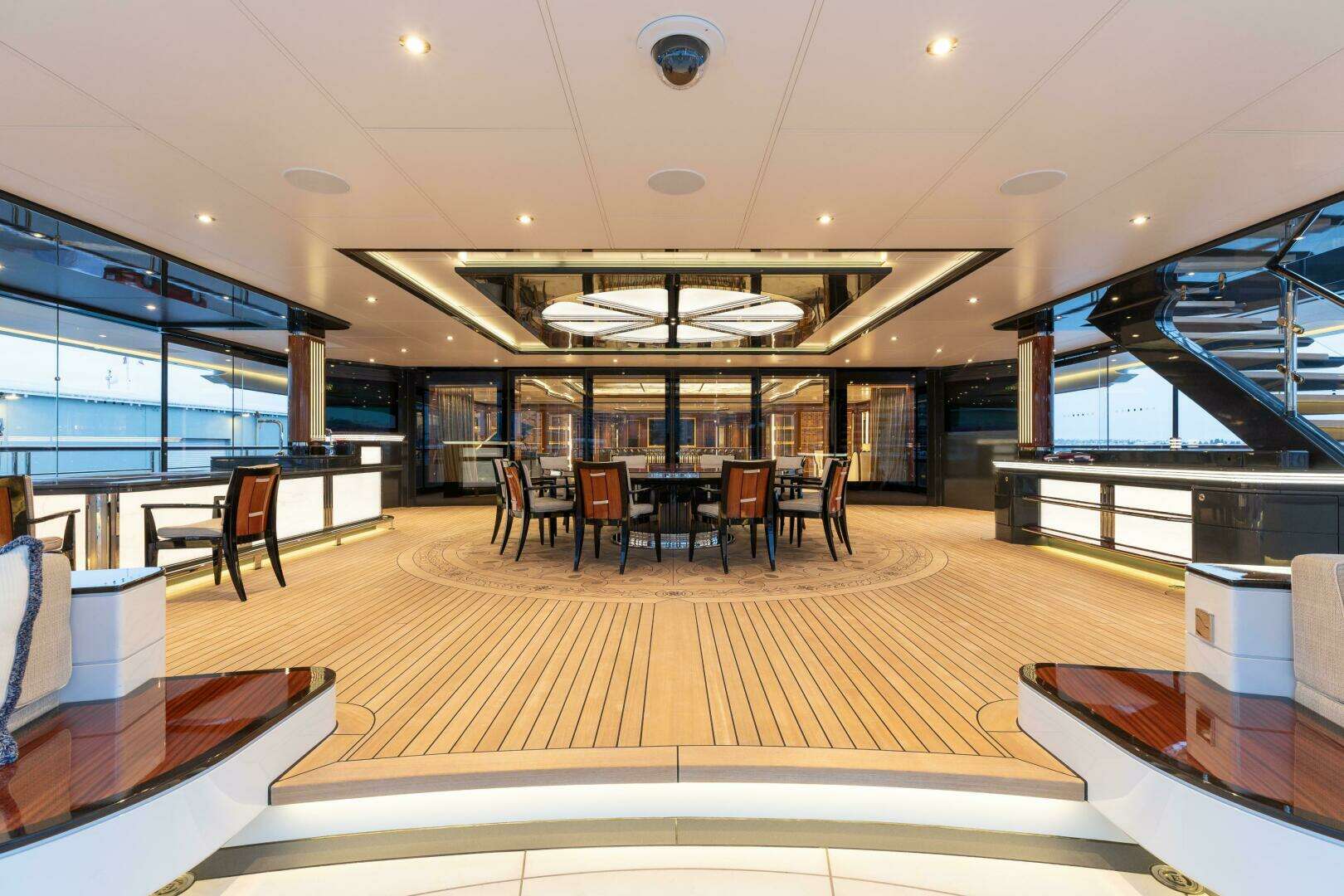

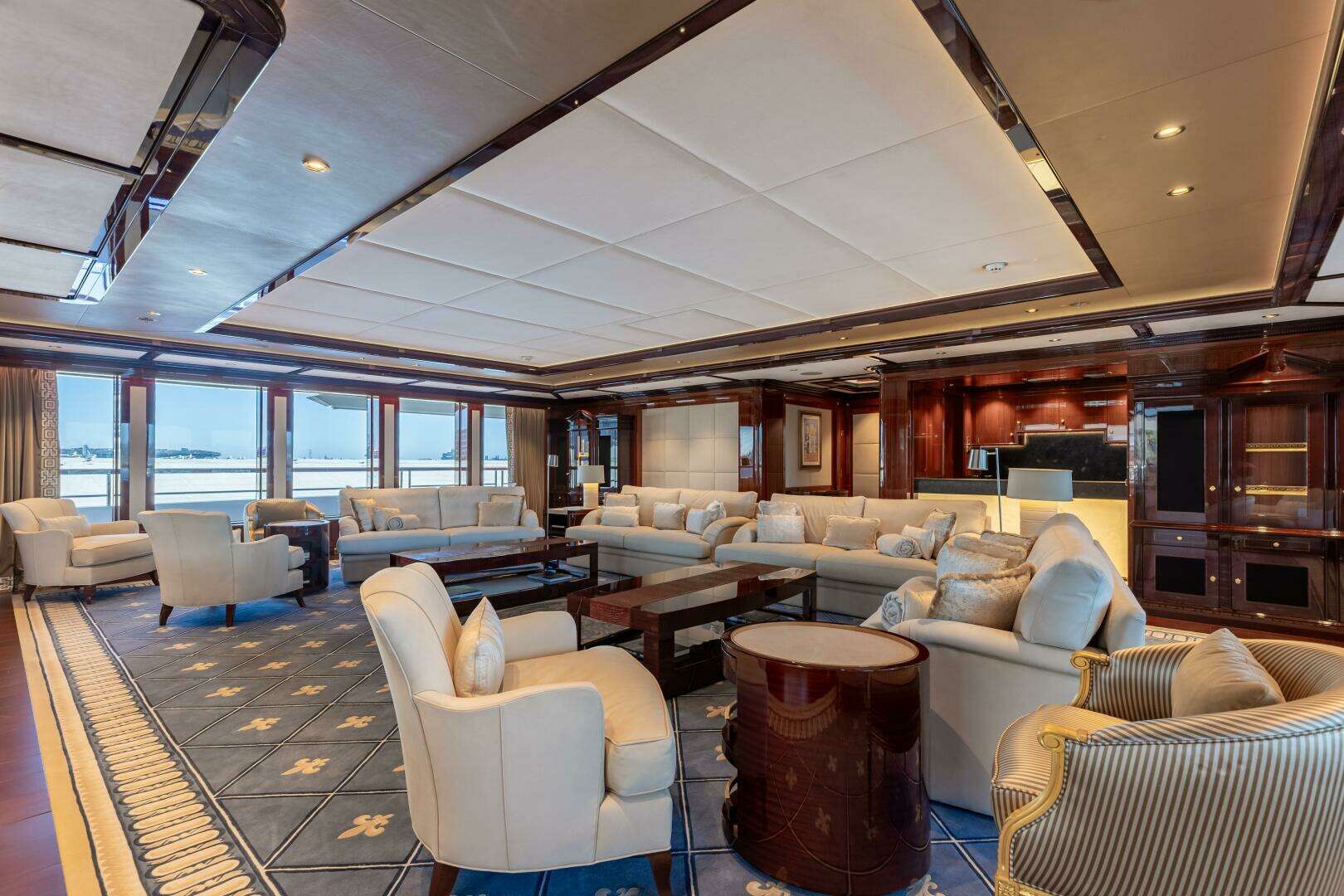

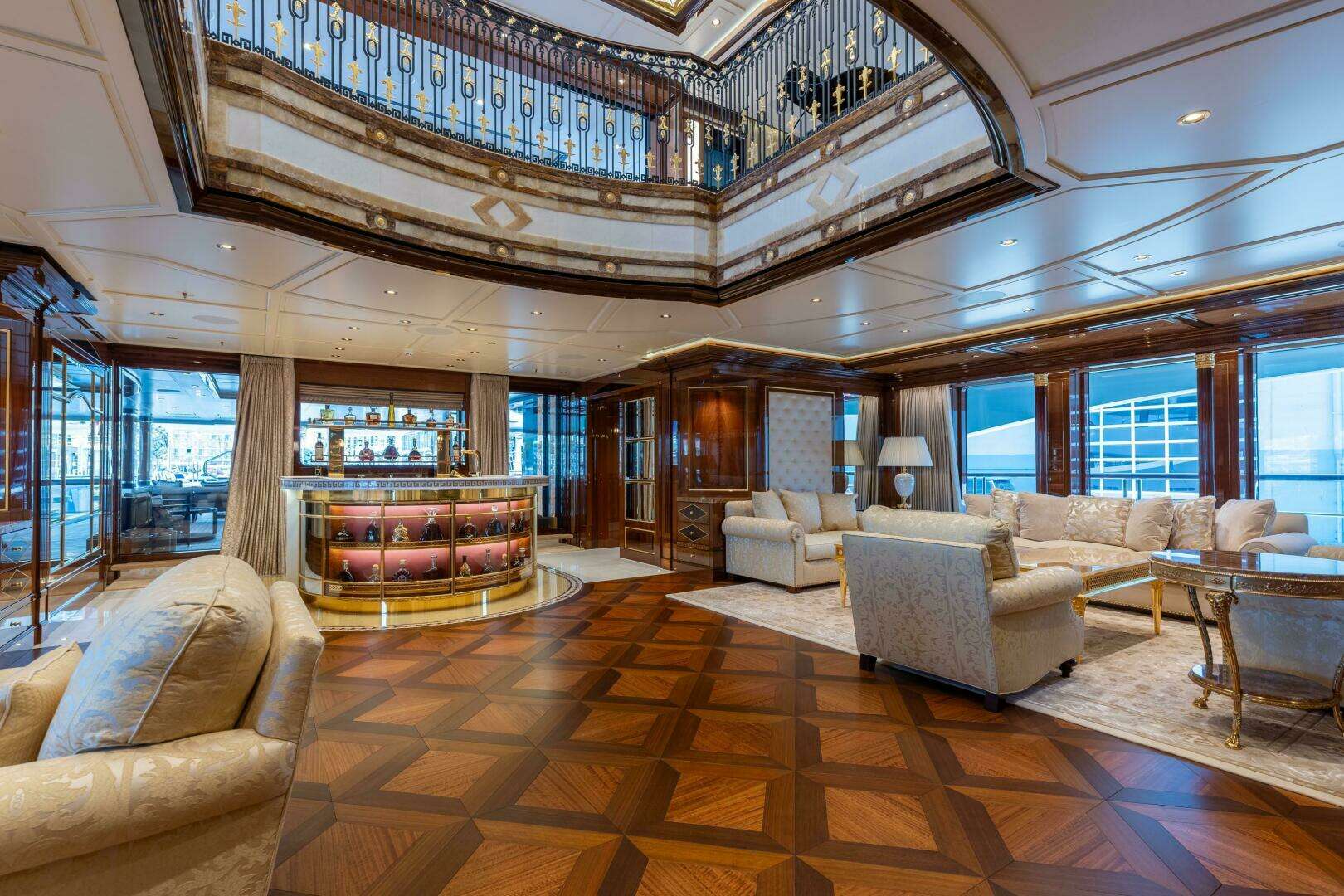

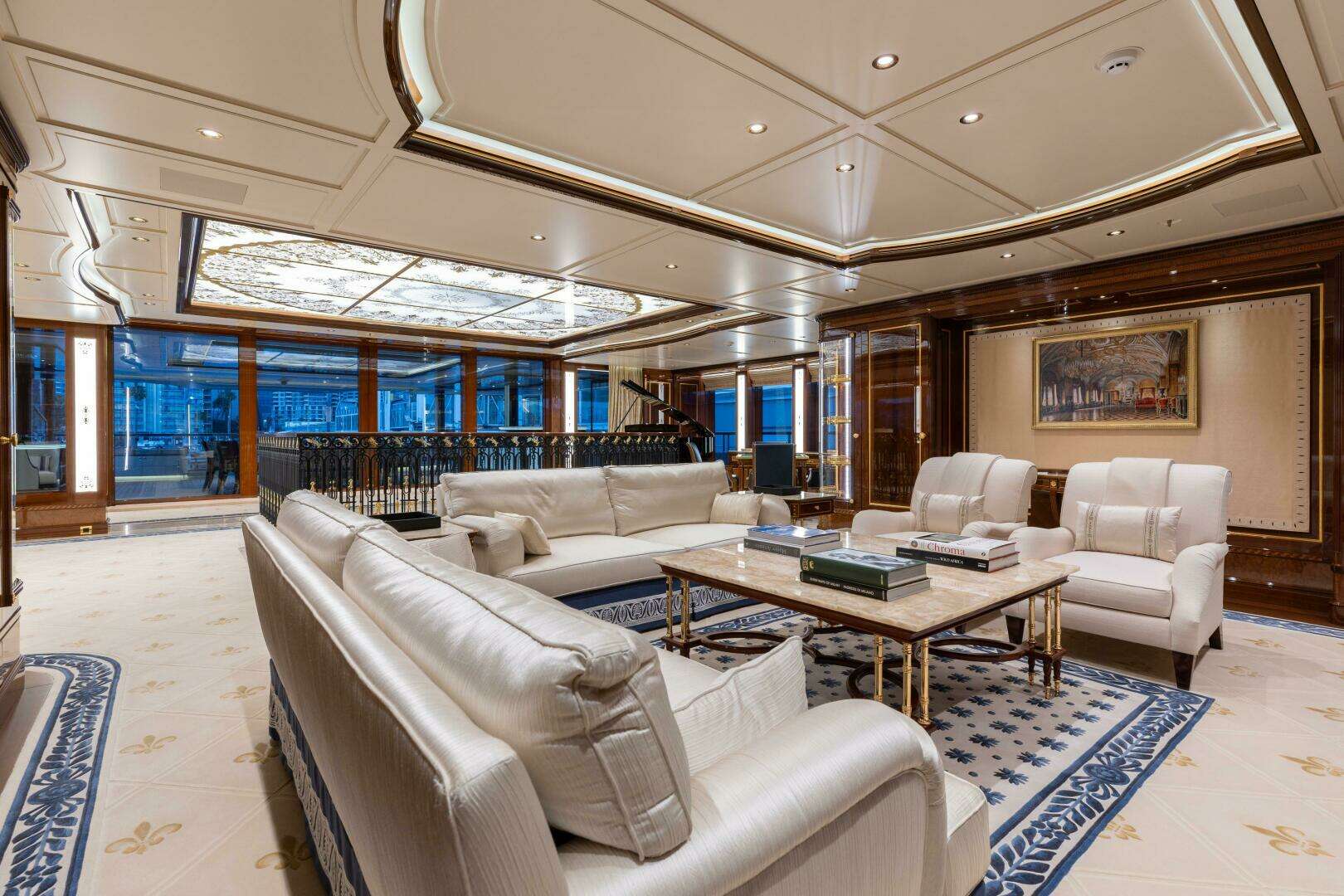

    The main salon is accessed via twin sliding glass doors from the aft deck. Along the aft bulkhead sits a full-service U-shaped bar. Just starboard of the bar is a discreetly integrated door providing direct access to the lower deck spa.

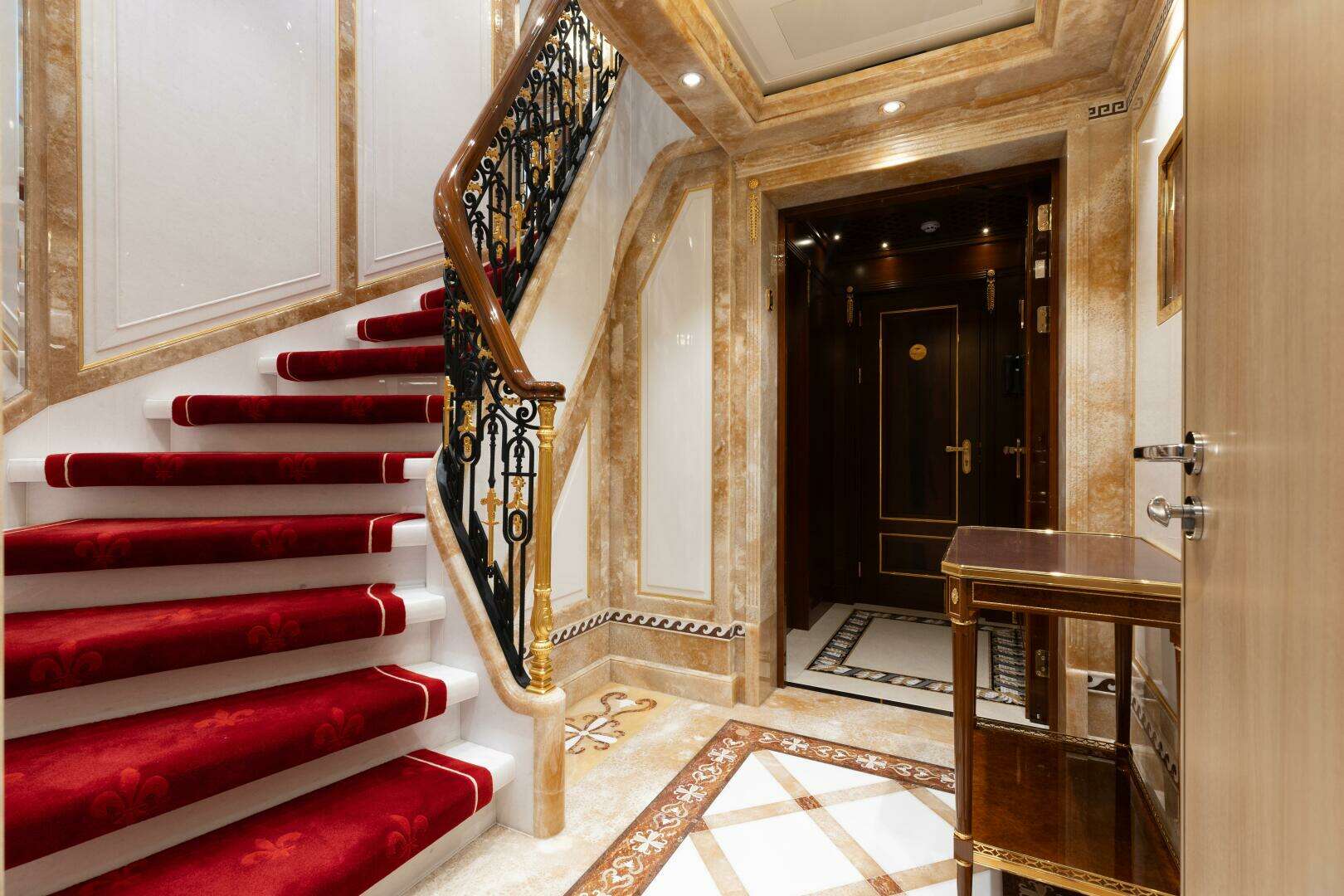

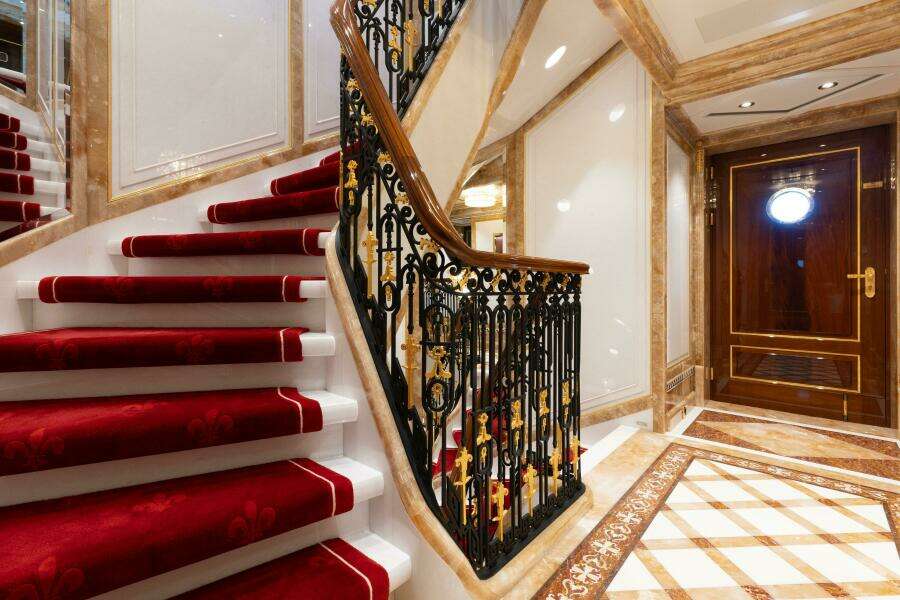

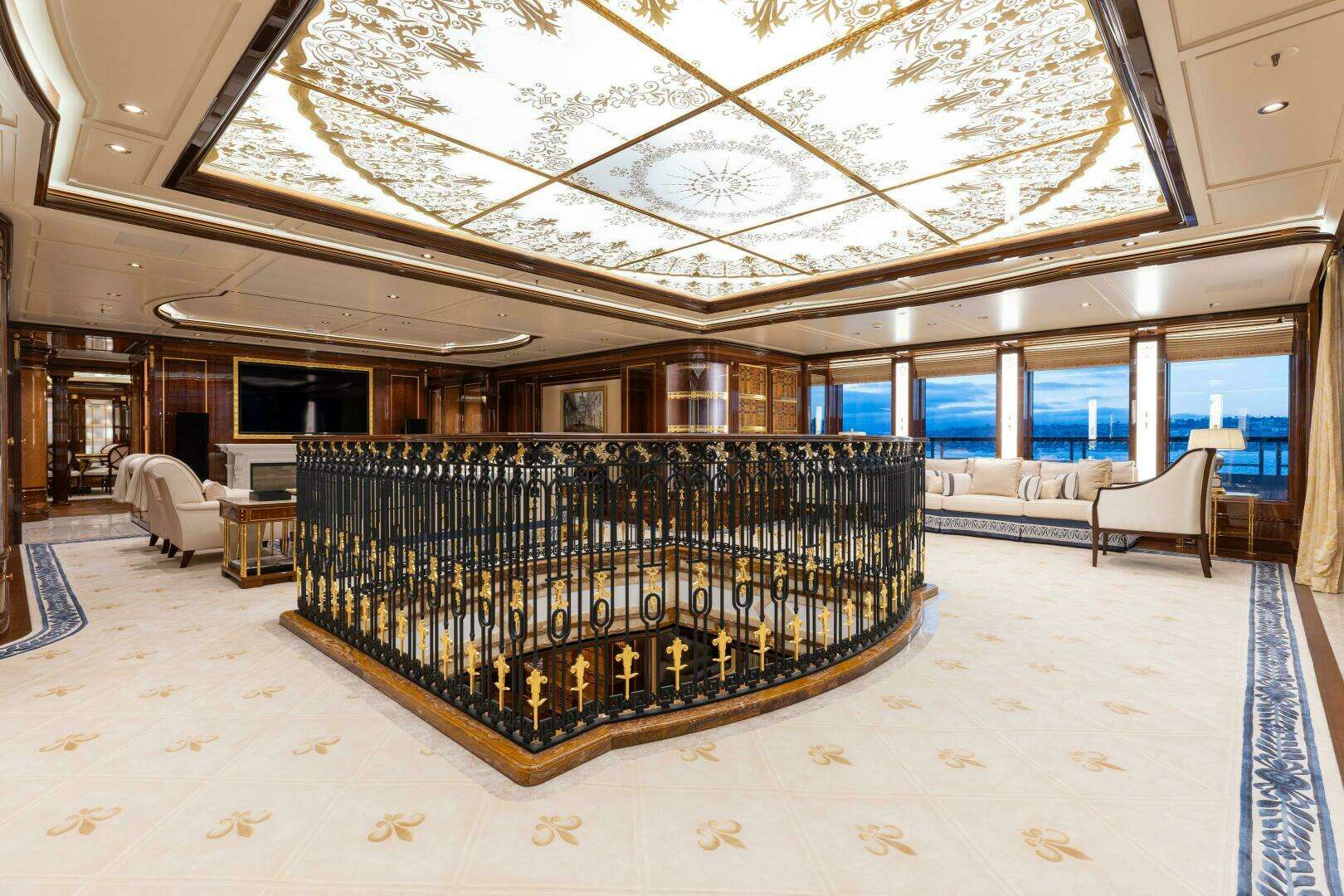

    At the heart of the salon is the grand main foyer, featuring a double-height atrium open to the owner’s deck above. On either side of this foyer are built-in sofa lounges.

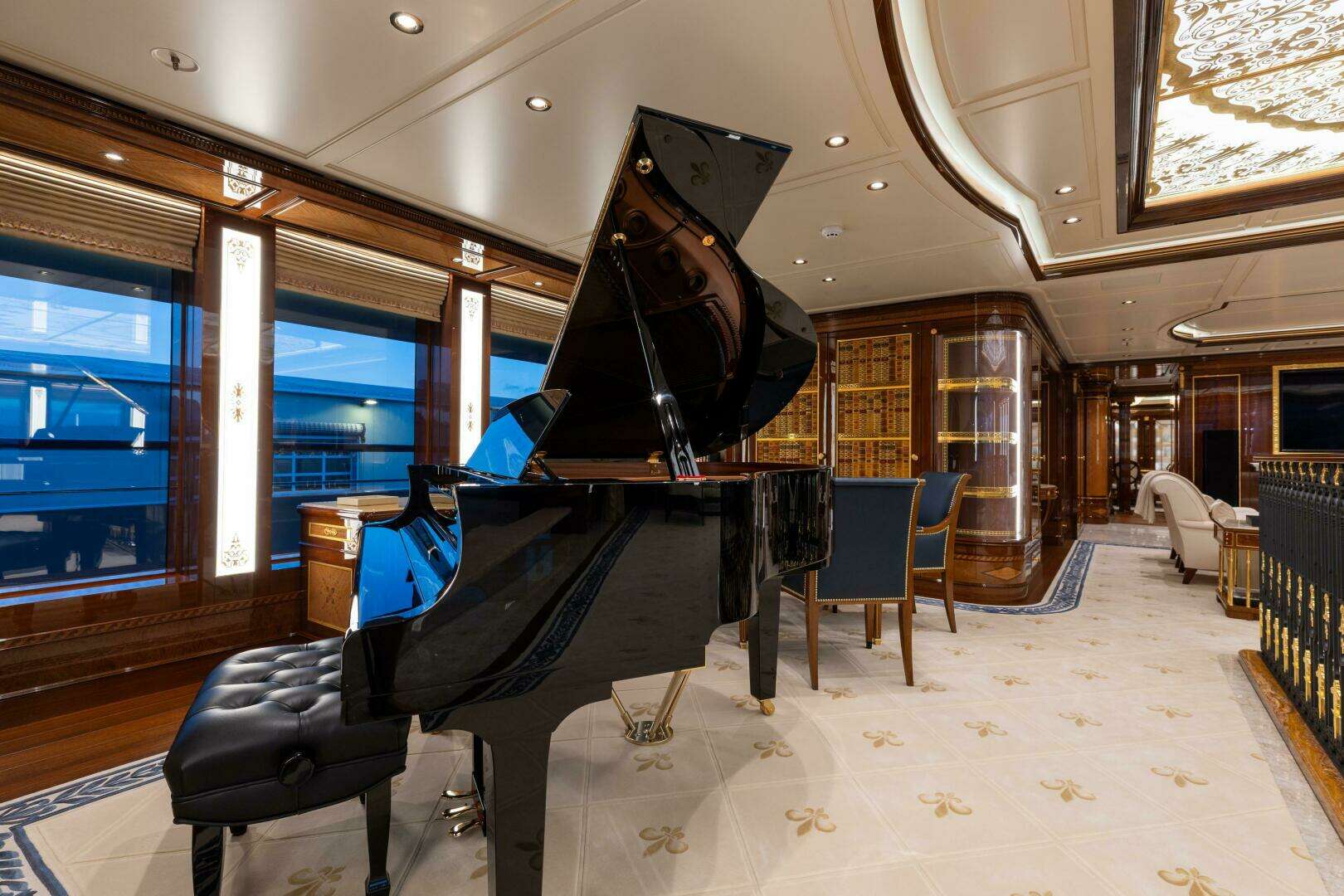

    Moving forward into the main seating area, guests will find a handcrafted wood-burning fireplace, a custom-made piano designed exclusively for AMADEA, and a game table.

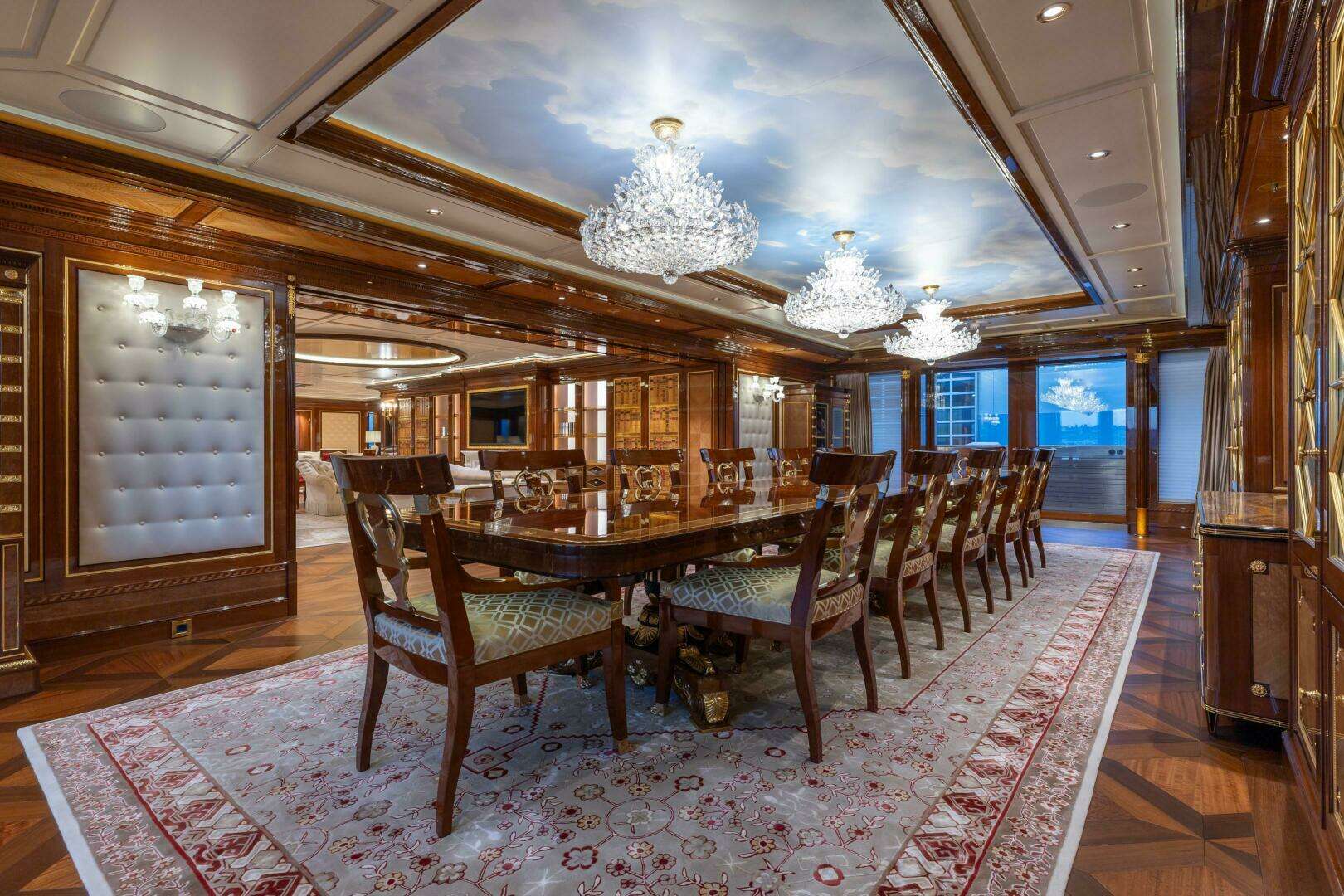

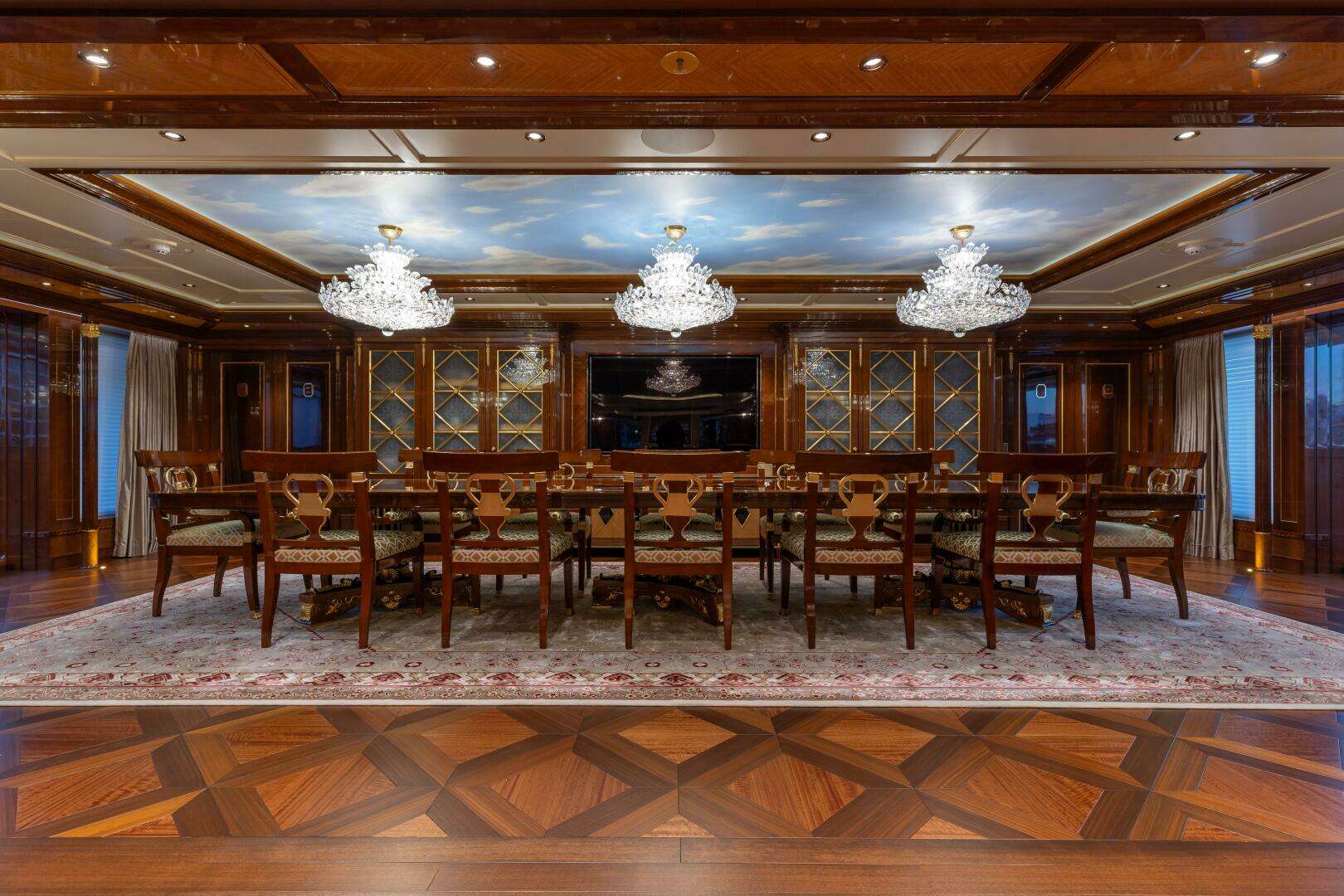

    Forward of the salon lies the formal dining room, designed to host up to 16 guests. The space is surrounded by fine China display cabinets. Sliding pocket doors allow the dining area to be fully enclosed, offering the option of privacy from the main saloon when desired.



    To port, a discreet entry leads to the main deck pantry. To starboard, guests access the main foyer, featuring the grand staircase and the glass-bottom guest elevator, both providing vertical access to all decks.



    Just forward of the foyer is a day head, conveniently located before entering the guest lobby, which serves as the central access point to the main guest accommodations.

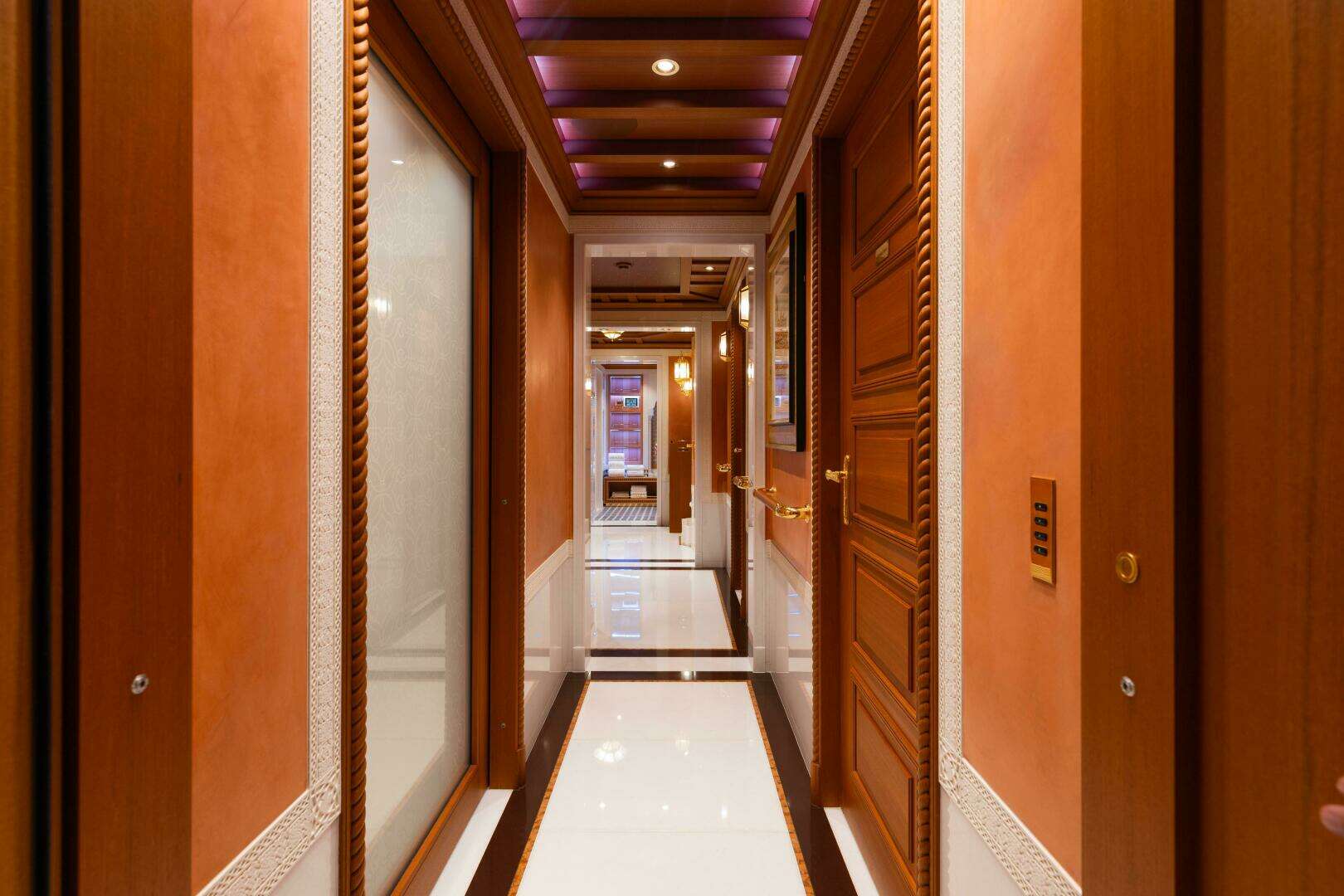

    From the guest lobby, a corridor leads forward to the guest accommodation area featuring four guest staterooms and one full-beam VIP suite.

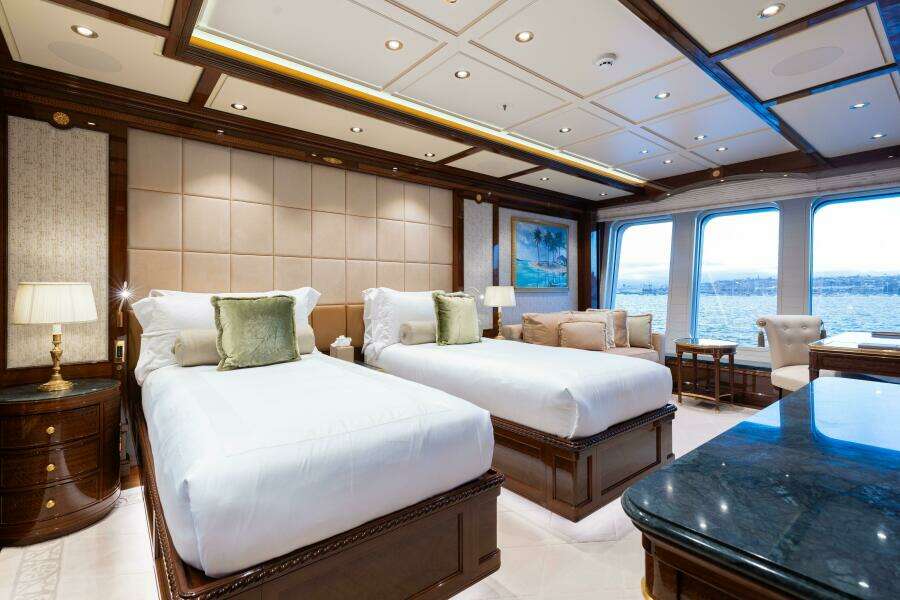

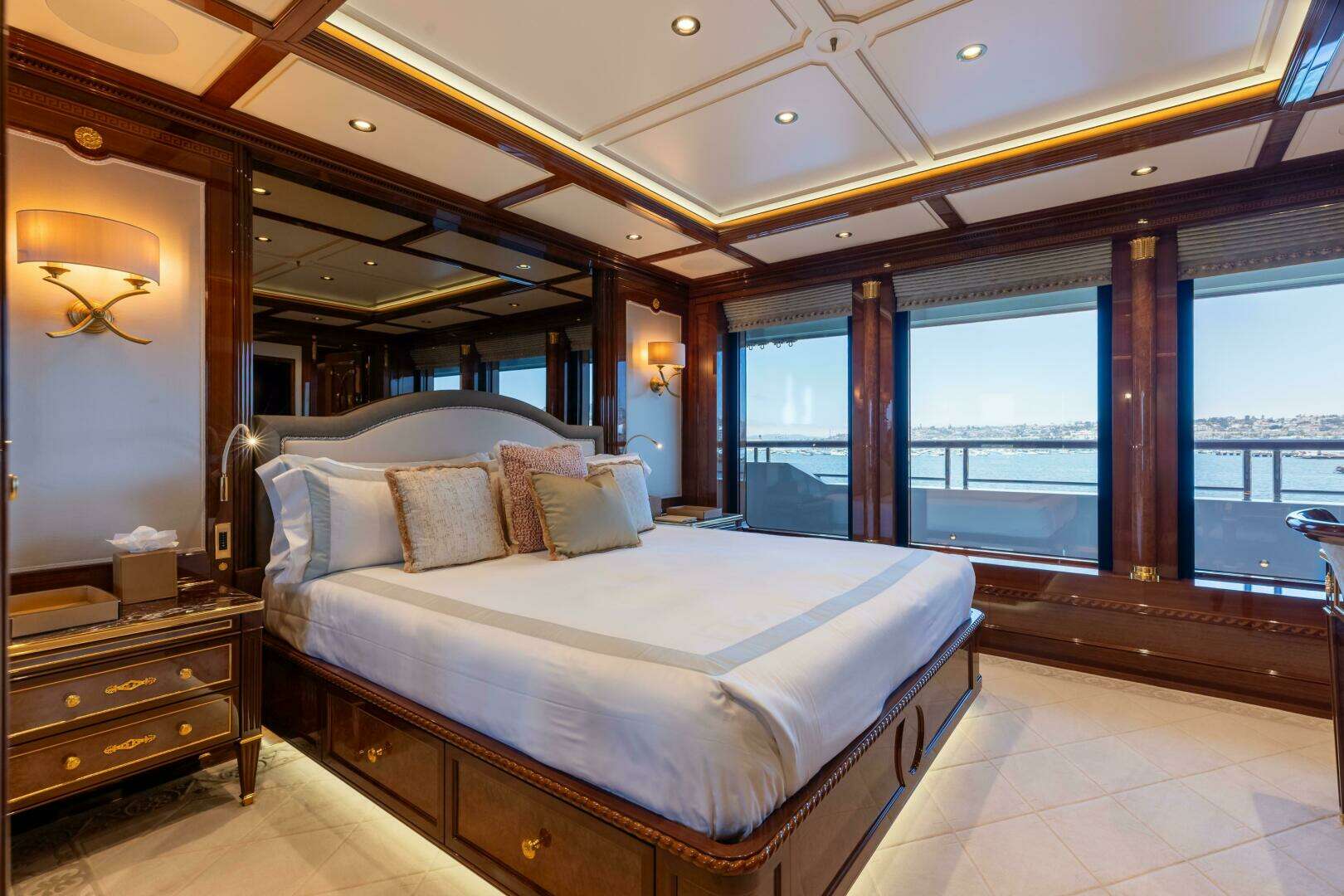

    Among the four guest staterooms are three king-size beds and one twin bed, each appointed with en suite bathrooms featuring showers and framed by three full-height windows; all guest areas are secured from crew access via a PAX key system, and the marble and granite floors throughout the guest spaces, including exterior areas—are heated for added comfort.



    The VIP suite, spanning the full beam of the yacht, offers enhanced space and elevated privacy.



    To port, the suite features a king-size berth, while the starboard side offers a private lounge area.

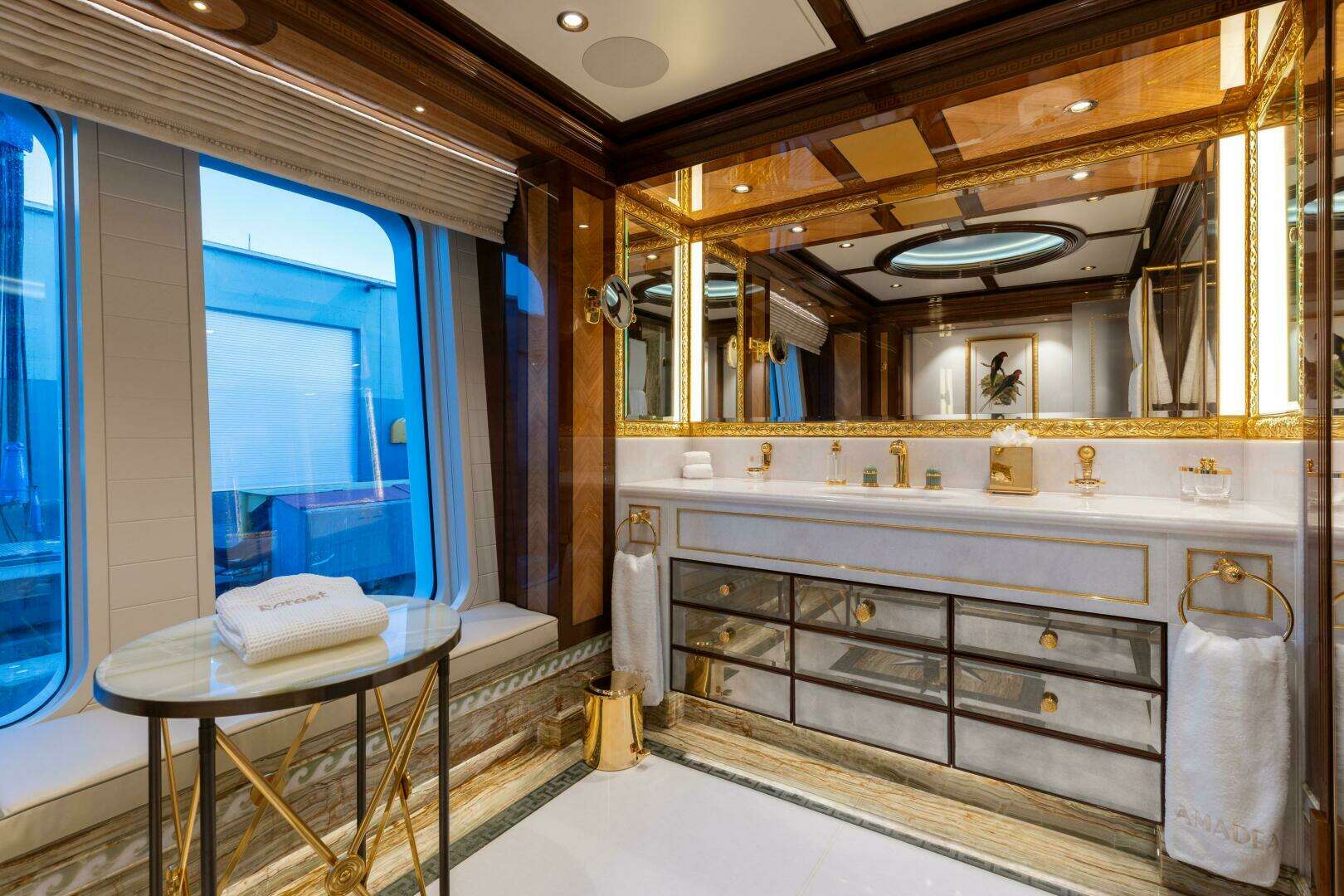

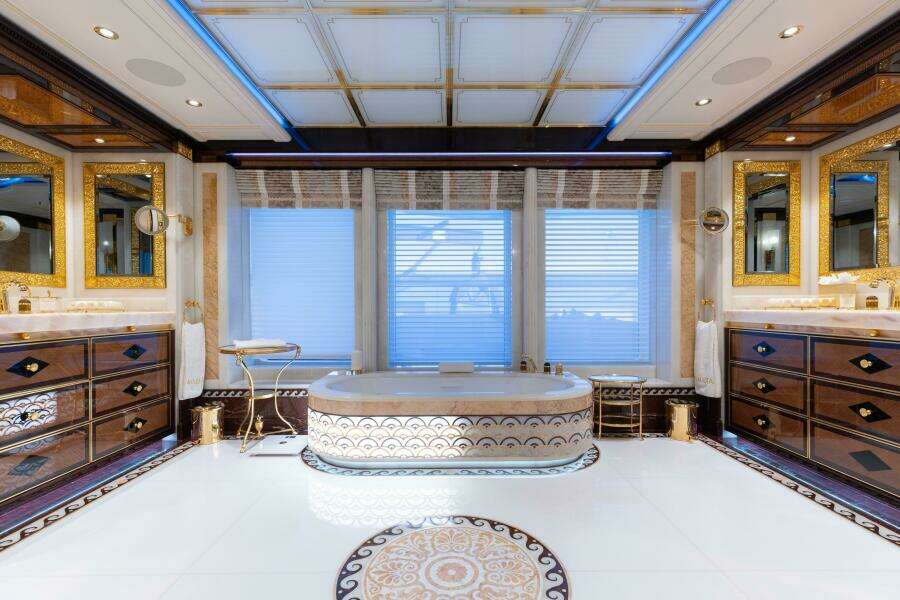

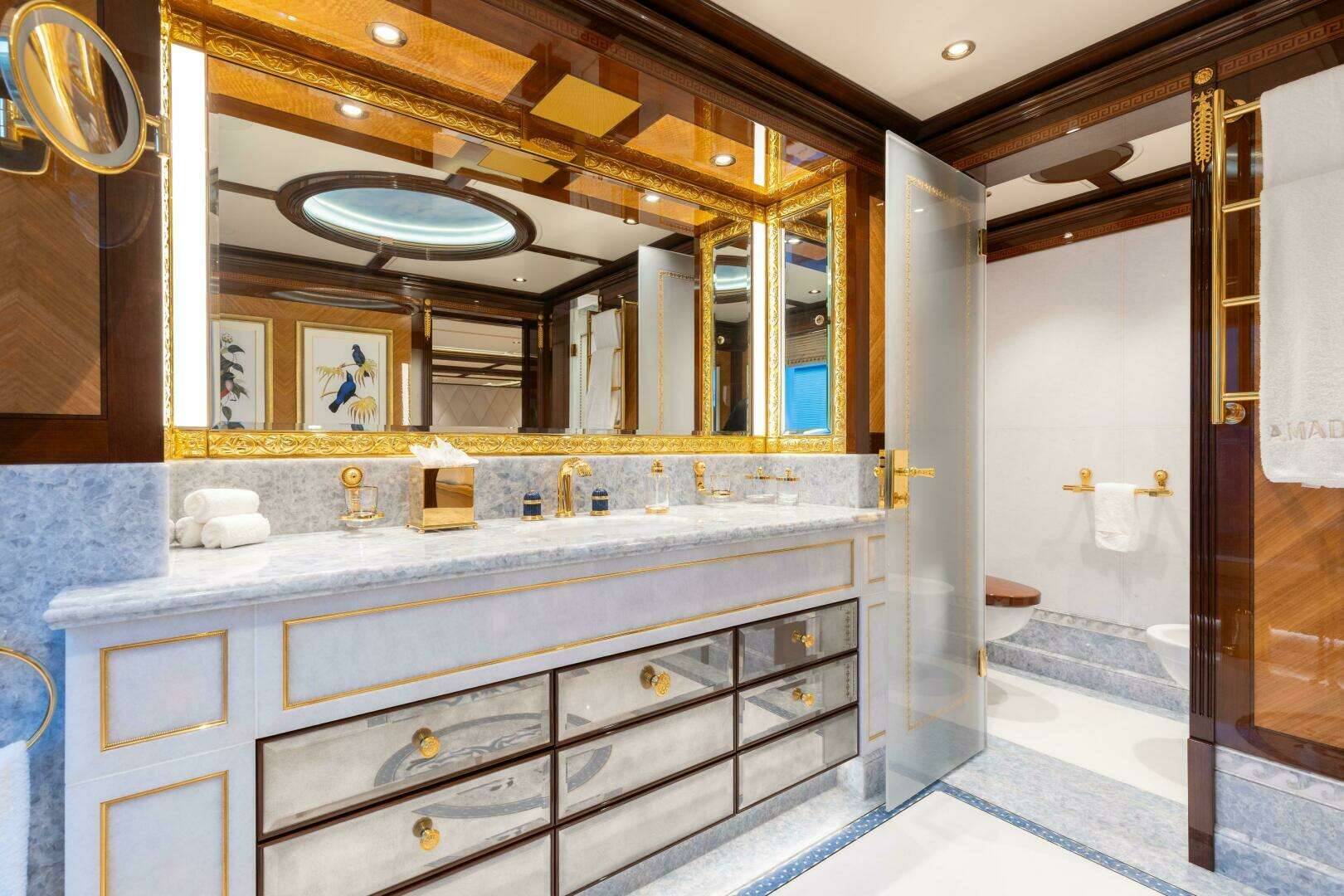

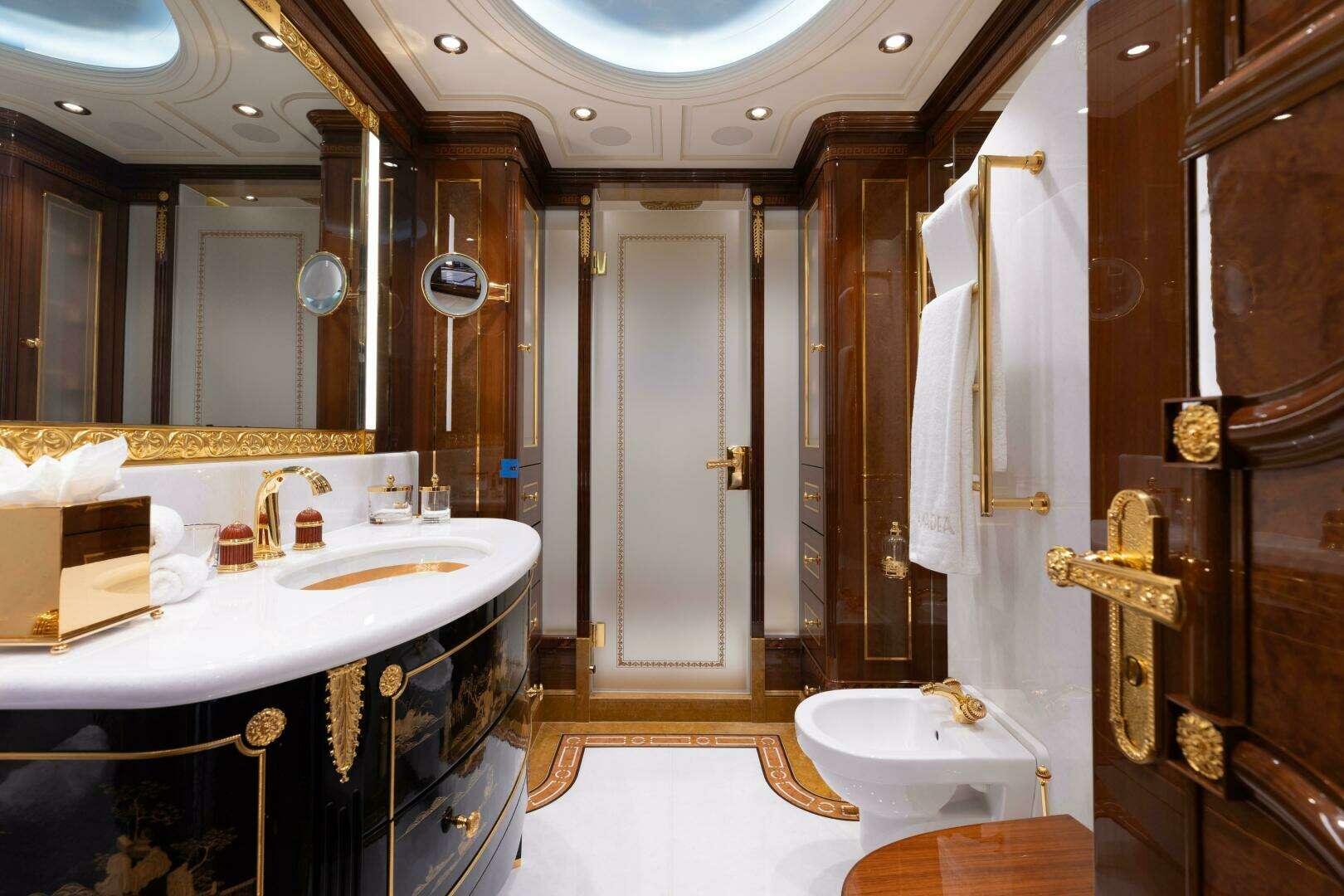

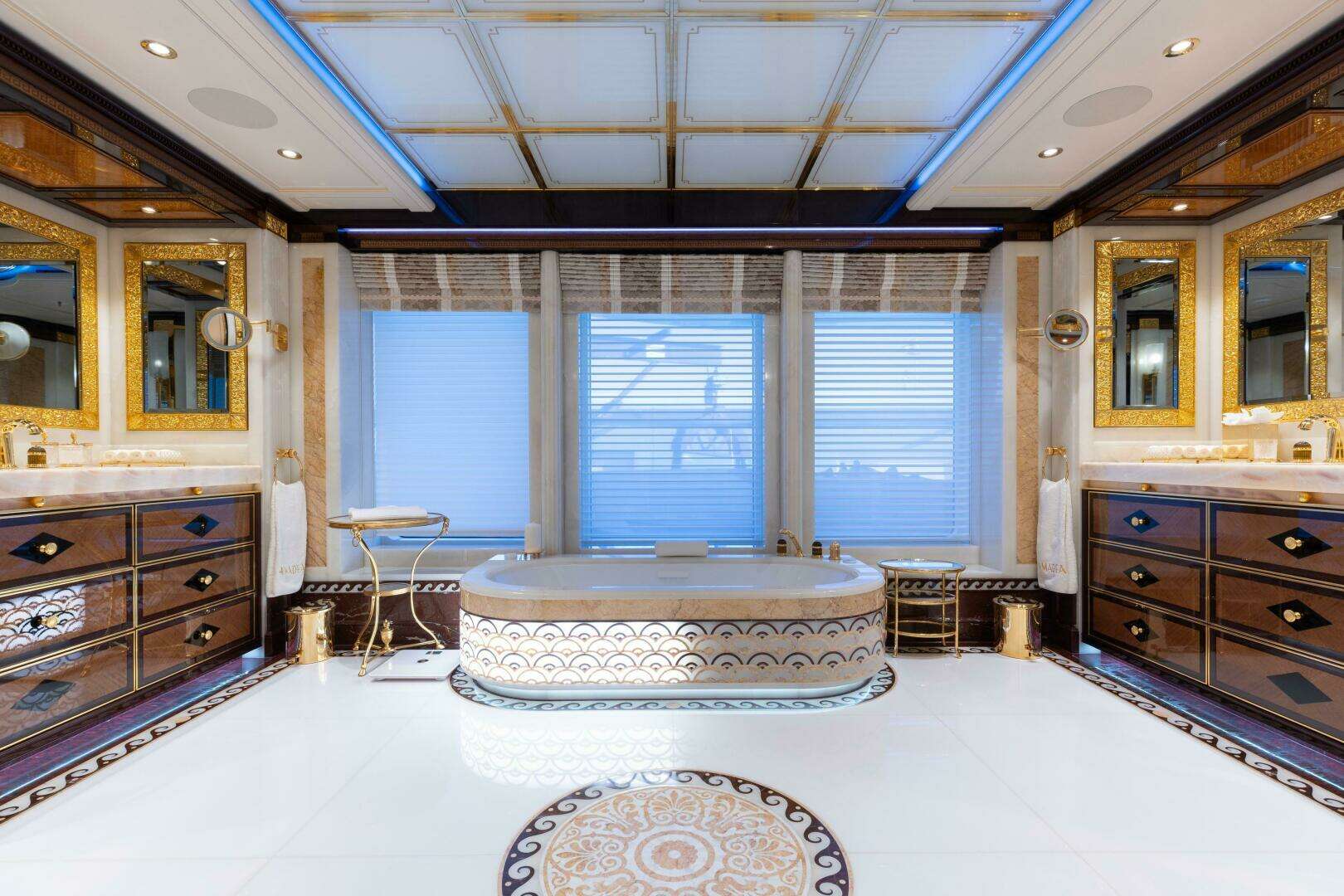

    Forward on the port side is the spacious VIP bathroom, appointed with a freestanding bathtub, and a separate walk-in shower. Opposite, on the starboard side, is a walk-in dressing room complete with a central island for storage and organization and an outboard-facing vanity/make-up table.



    LOWER DECK



    From the stern bathing platform, guests may ascend the starboard stairway to the main deck aft or continue forward into the tender garage area. Just before entering the garage, a conveniently located day head is available in the adjacent lobby.

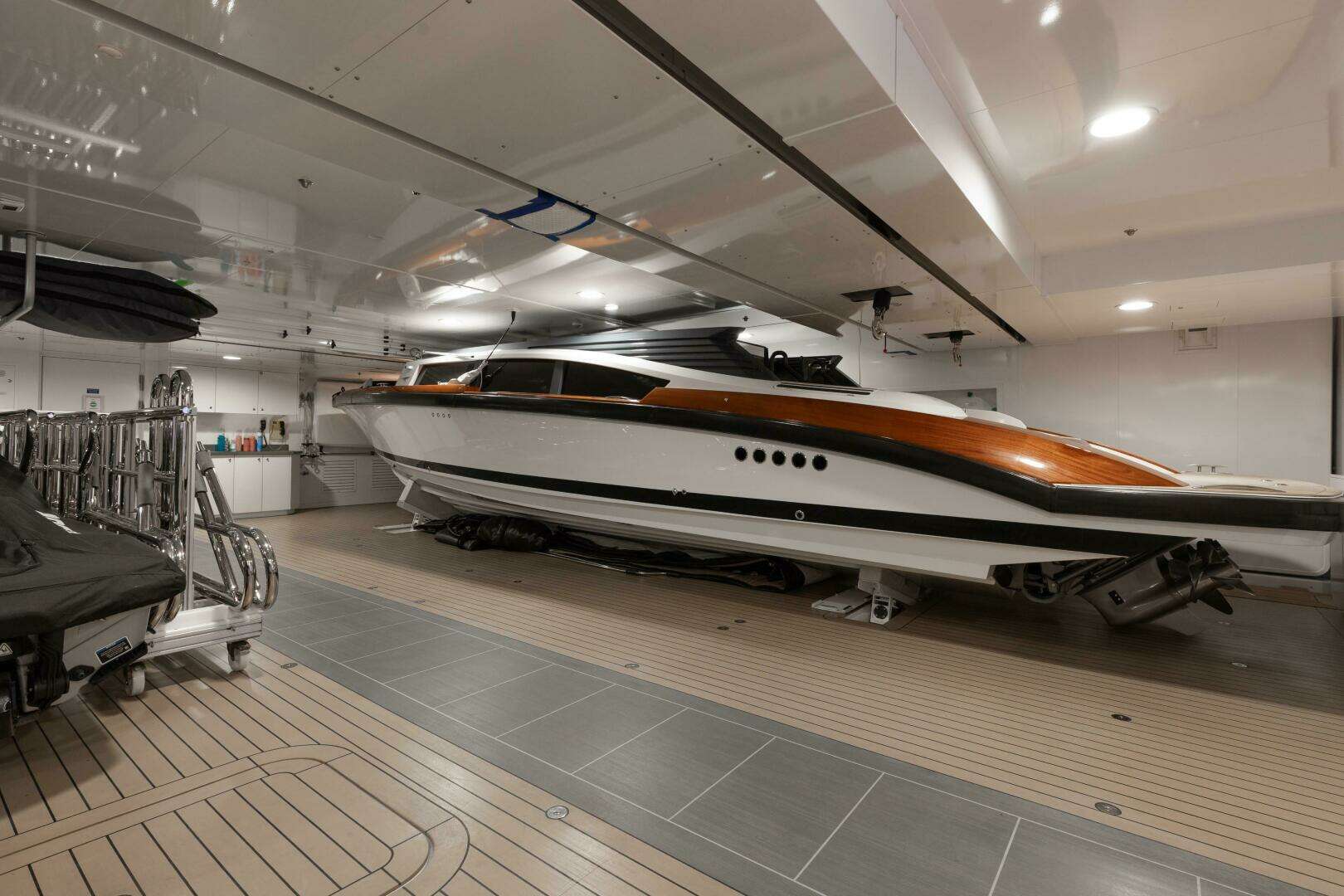

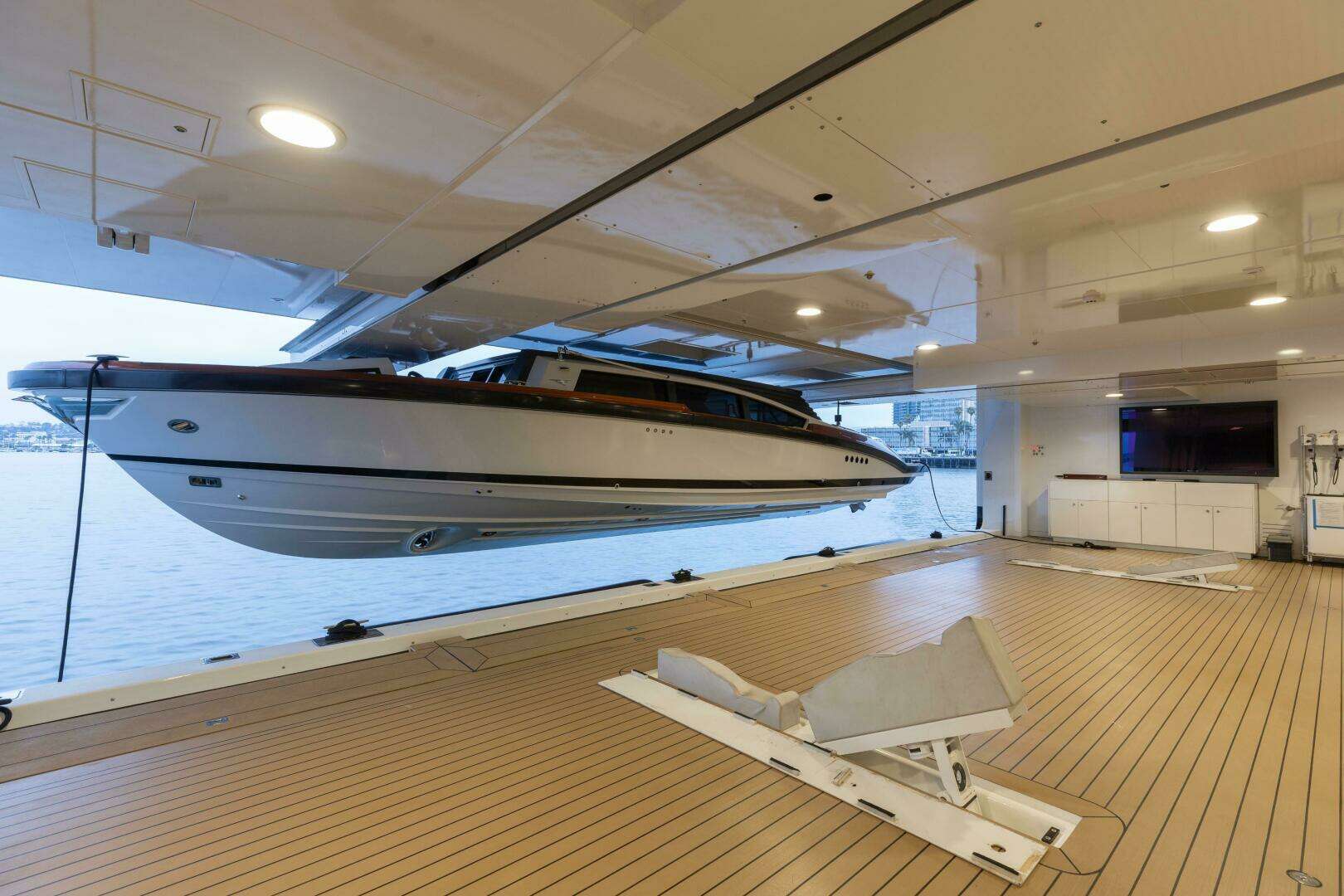

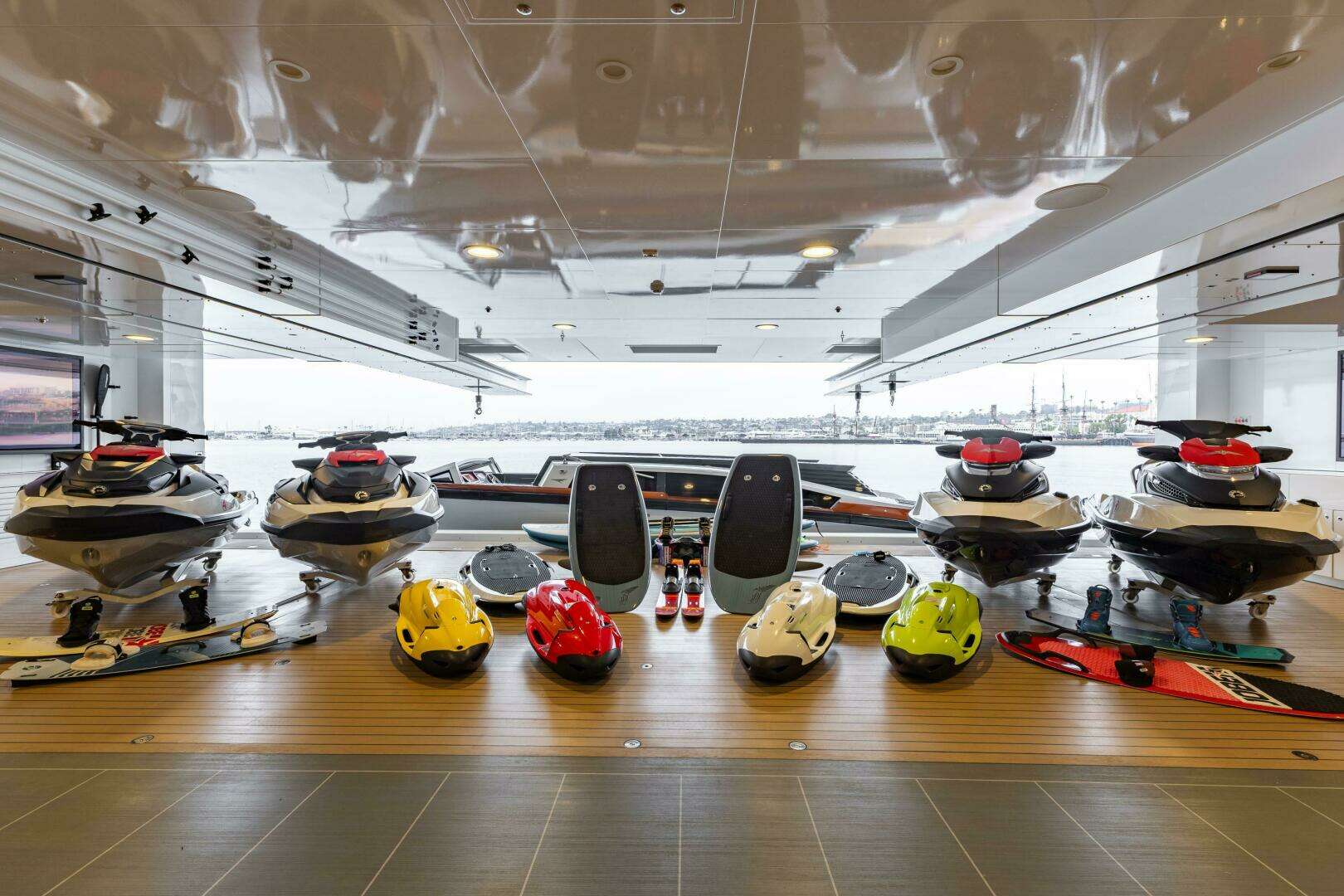

    The tender garage is equipped to support a wide array of watersports and excursions. It houses three tenders, four Wave runners, four Seabobs, two eFoils, and two jet boards.



    Hydraulic shell doors open to both port and starboard sides, enabling smooth launch and recovery operations. The space is further outfitted with a TV for crew or guest use and includes a fueling station.



    Continuing forward on the starboard side from the tender garage, guests arrive at a lobby area providing access to the Sea Terrace / Recreation Room, located to starboard.



    The area is also accessible via a concealed staircase located at the port-side at the aft end of the main deck salon.

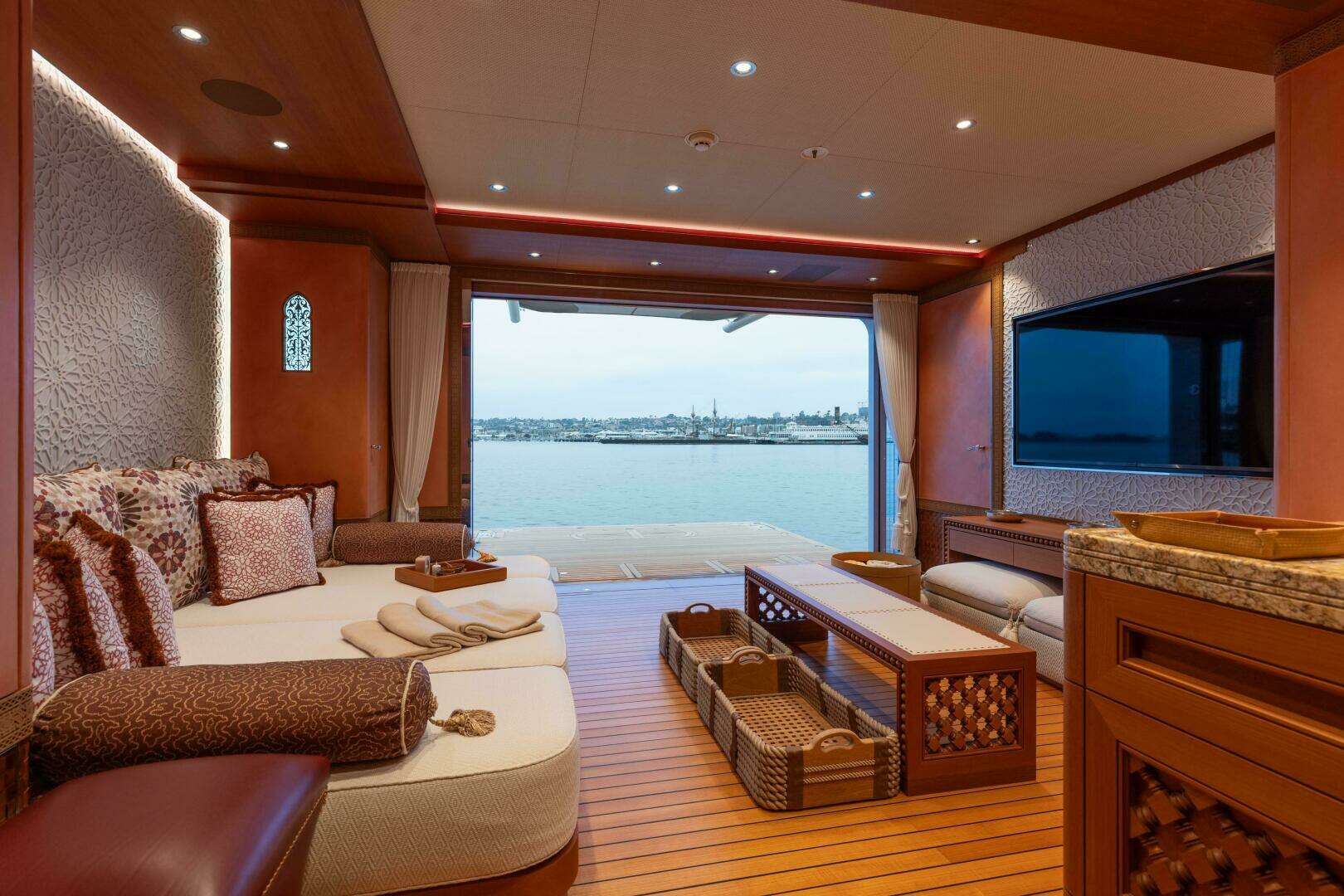

    The Sea Terrace / Recreation Lounge, located on the starboard side, features an opening shell door that folds out to create a private terrace over the ocean.



    Inside, the lounge is equipped with a large TV screen mounted on the forward bulkhead, a sofa, an ice maker, and a mini fridge.

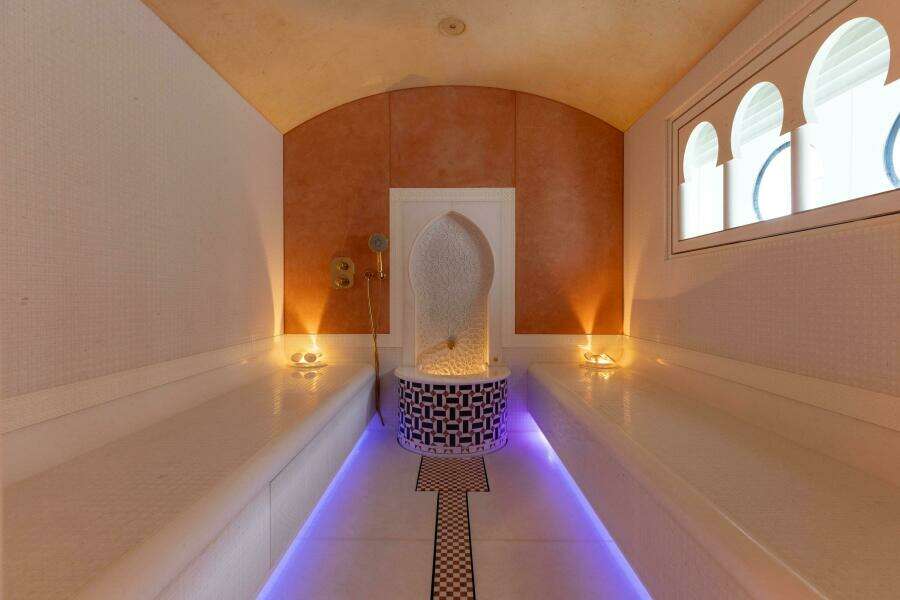

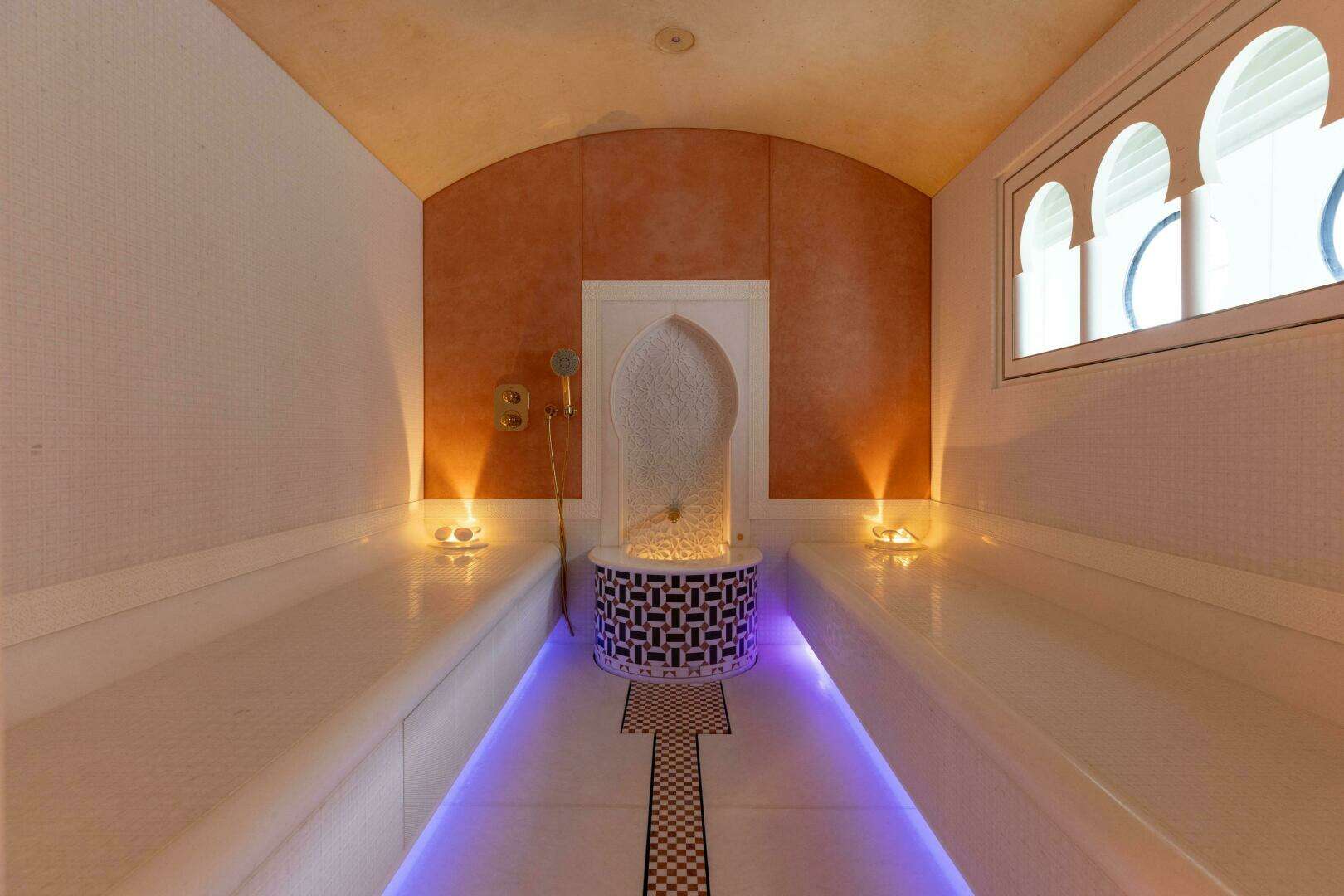

    The dedicated spa includes a hammam, chromotherapy suite, sauna, massage room, rain shower, and a day head, along with a private changing area for guest convenience.

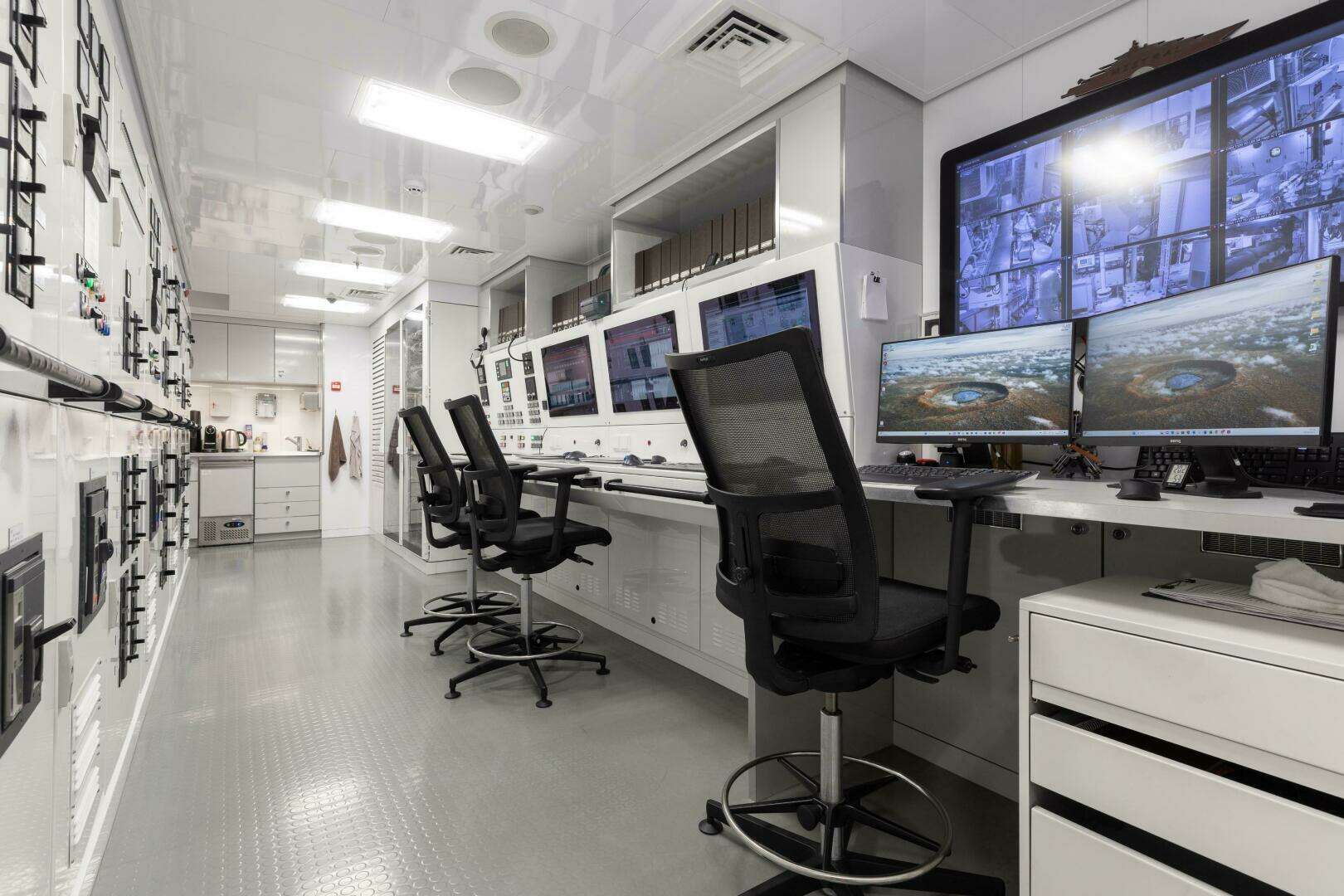

    Located forward of the spa area, there is the engine control room and onboard workshop.



    The engine control room can be accessed through the lobby connecting the tender garage and spa. An additional access point is available via the crew mess lobby, located forward of the engine room.



    Forward of the engine room, are the crew and service zones. On the starboard side is the crew mess. Opposite, on the port side, is the fully equipped galley, which includes a dedicated chef’s office.



    Continuing forward on the port side, the crew staircase offers vertical access up to the main deck and down to the tank deck. Adjacent to this area is a portside service shell door and a dedicated crew elevator, which serves every level up to the bridge deck.



    Further forward, the yacht houses a cooled garbage storage room, a temperature-controlled provisions store, and a dry stores area.



    Located on the starboard midship, the Sea Lobby serves as a guest boarding platform that opens directly to the ocean. This area is directly connected to a private meeting room.



    The meeting room is fully convertible and can be adapted into an additional cabin for guests, staff, or security personnel. It is equipped with a pull-out sofa, a large flat-screen TV, and a full-en-suite bathroom with shower.



    The Sea Lobby is directly connected to the main guest lobby, providing convenient access via both a staircase and the glass guest elevator, which services all decks.



    Also located on the lower deck are the yacht’s crew accommodations, comprising a total of 16 cabins—including 6 singles (one fitted with two bunks), 7 doubles, and 3 triples—supporting a crew complement of up to 36, with a TV installed at the foot of every crew bunk.



    TANK DECK

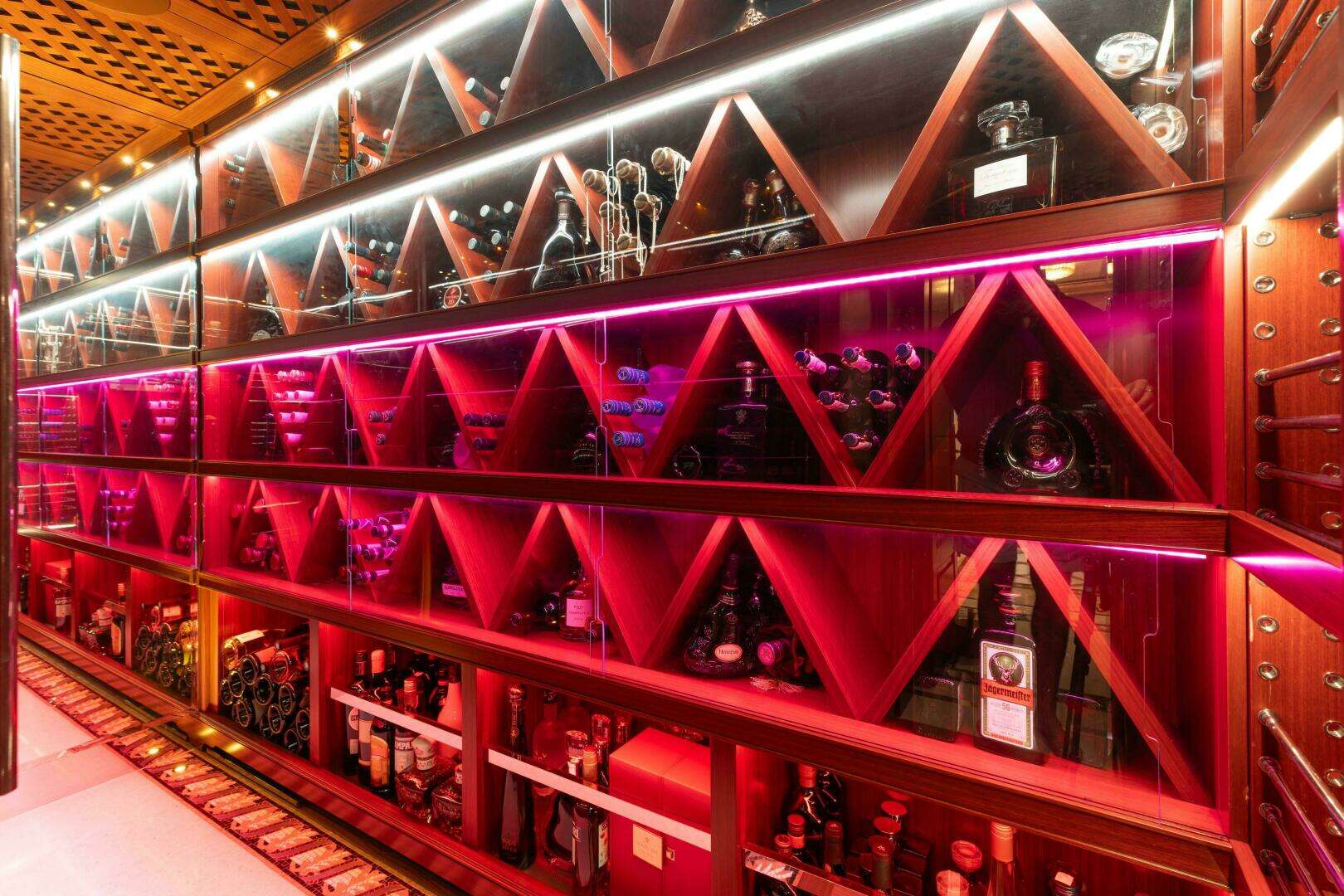

    Located on the tank deck, guests will find a dedicated cigar humidor and a climate-controlled wine cellar. This area is easily accessed via the guest stairwell or the glass guest elevator.



    Also located on the tank deck are a variety of essential operational and support spaces. Facilities include a fully equipped laundry room, a single staff cabin, and two additional single crew cabins.

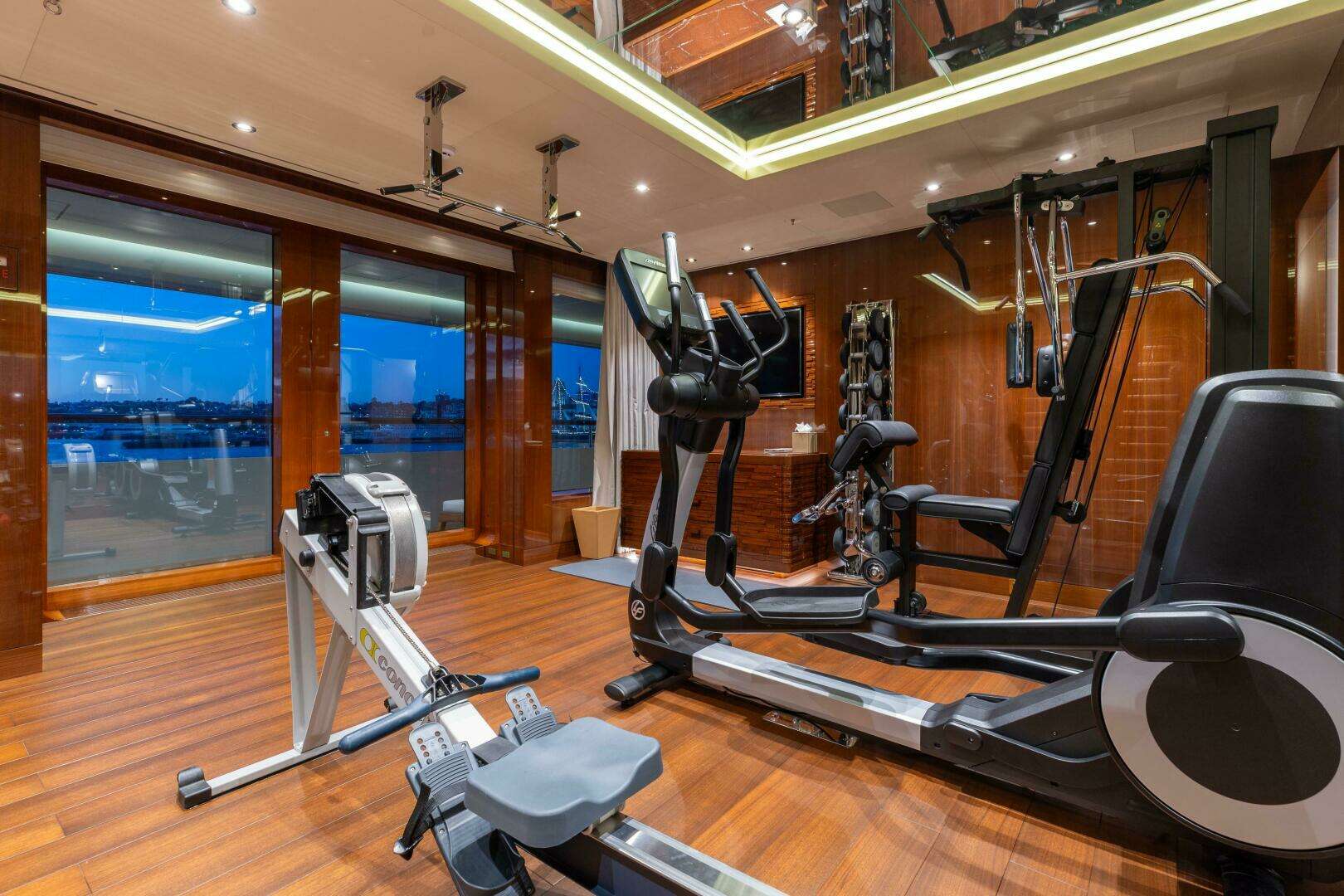

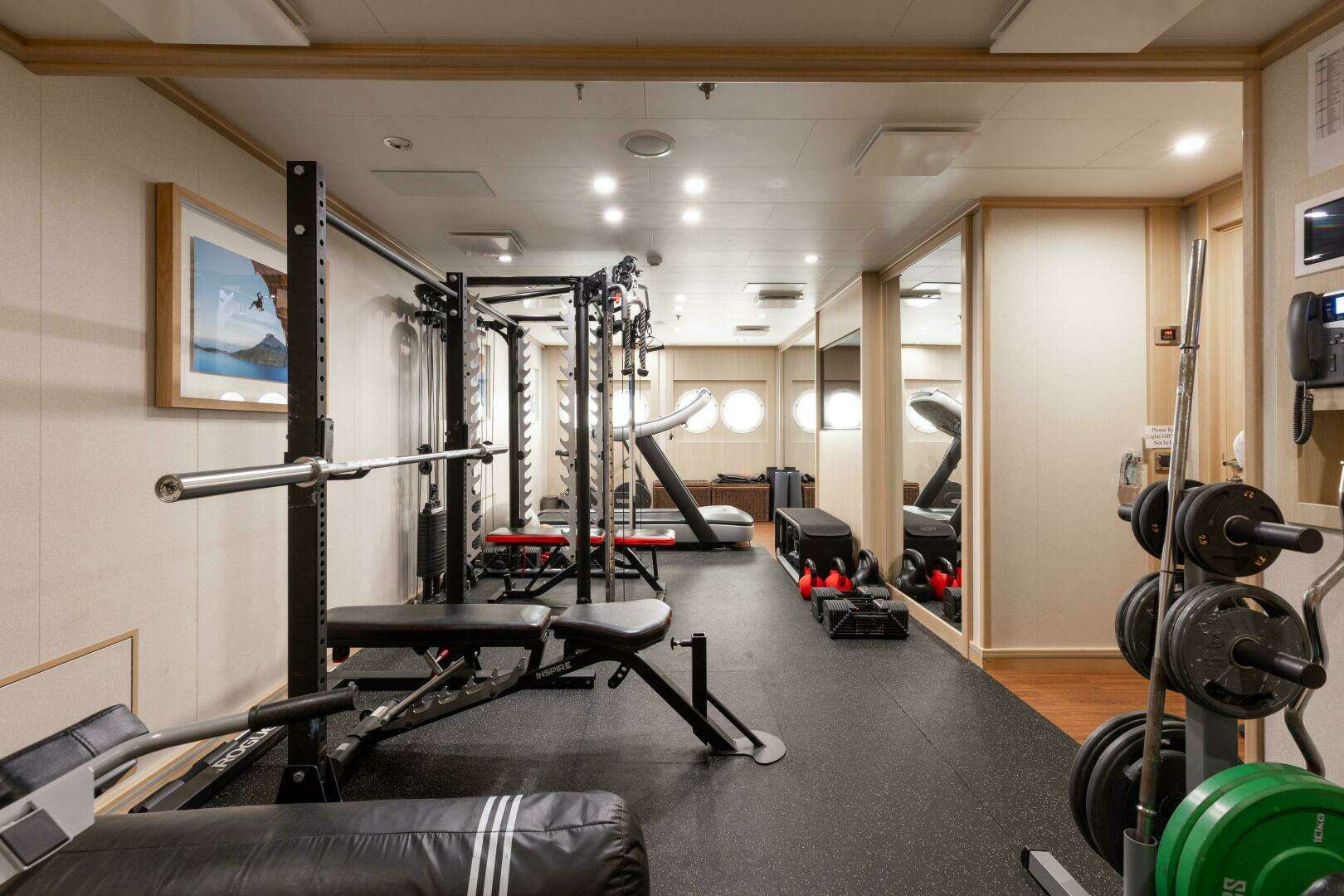

    The deck also houses a full-size infirmary and a dedicated crew gym, climate-controlled AV/IT room and two stabilizer compartments.



    Provisioning and storage areas include a walk-in freezer and refrigeration rooms, dry store, a crew uniform room, and a general storage room.



    CREW ACCOMMODATION



    Crew quarters are located on the lower and tank decks, featuring a mix of single, twin, and triple cabins accommodating up to 34 crew members, while the captain’s and first officer’s cabins are situated forward on the bridge deck; the captain’s cabin is equipped with a 55” Samsung TV that displays security camera feeds and the ECDIS system, along with two additional monitors for bridge information.



    CONSTRUCTION



    Hull Material: Steel

    Bulb: Yes

    Superstructure Material: Aluminum

    Decks Material: Teak

    Paint: ALEXSEAL

    Motor Hull Type: Monohull

    Motor Hull Sub Type: Displacement

    Number of Decks: 7



    CAPACITIES



    Gross Tonnage: 4,402 GT ITC

    Net Tonnage: 1321 NT ITC

    Displacement Tons: 3,530 t



    Fuel Capacity: 392,000 L (103,555 USG)

    Day Tank: 30,508 L (8,078 USG)

    Settling Tanks: 7,500 L (1,981 USG)

    Storage Tanks: 383,000 L (101,177 USG)

    Fresh Water Capacity: 77,000 L (20,341 USG)

    Water Makers: 2 x 25,000 L (6,604 USG) (per day)

    Grey Water: 6,300 L (1,664 USG)

    Black Water: 20,500 L (5,415 USG)

    Bilge Water Tank: 7,500 L (1,981 USG)

    Ballast Water: 374,000 L (98,800 USG)

    Lube Oil: 7,500 L (1,981 USG)

    Waste Oil: 13,000 L (3,434 USG)



    Speed/Consumption p/h /Range/RPM

    Maximum: 20 knots /1,157 litres p/h /5,000 nm @ 2,100 RPM

    Cruising: 13 knots /360 litresp/h / 8,000 nm @1,300 RPM

    Consumption at Anchor: 500 kw = 130 litres



    MAIN MACHINERY



    Main Engines: 2 x MTU 20V 4300kW, 5766 HP diesel engines

    Engine Hours: Port – 4,268

    Starboard – 4,265

    Propulsion Type: SCHAFFRAN VARIABLE PITCH PROPELLER'S

    Engine Controls: REXROTH Electronic Monitoring Control System (EMCS) with emergency stop.



    Engine Mounts: MTU Elastically mounted.

    Engines Exhaust System: Seawater

    Gear Boxes: 2 x REINTJES; LAF 1963HR; 5,792:1

    Shafting: 2 x SCHAFFRAN shaft lines from reverse reduction gears to five-bladed outboard turning controllable pitch propellers

    Propellers: Five-bladed controllable pitch propellers

    Engine Ventilation: Heinen & Hopman 4 x Supply Fan & 2x Exhaust Fan



    GENERATORS & ELECTRICITY

    Generators:3 x LEROY SOMER LSAM 49.1 L11 AREP 676 kVA; 541 kWe; 400 V, 50 Hz

    Main Generator Engines: 3 x 575 kWm diesel engine (MTU 12V 2000 M41A)

    Generator Hours: Overhaul at 18,000 hrs.

    Port – 20,458 + 2,458 hrs.                       (07/28/2025)

    Centre – 20,394 + 2,394 hrs.                  (07/28/2025)

    Starboard – 20,319 + 2,319 hrs.             (07/28/2025)

    Generator Fuel Consumption: It depends on load currently approx. 1,700 litres per day alongside the dock

    Generator Exhaust System: 3 x HUG diesel particle filters

    Emergency Generator: 1 x 312 kVA; 250 kWe; 400 V, 50 Hz (LEROY SOMER LSAM 47.2 S5)

    Emergency Generator Engine: 1 x 271 kWm diesel engine (MTU/DDC S60 6062HK51)

    Emergency Generator Hours: Minimum supply period in case of emergency: 36 hours

     Emergency Generator Hours:204

    Shore Power: 2 x 300 kVA shore connections

    Shore Power Converter: 2 x Shore connections, each 300kVA

    Batteries: 2 x batteries (approx. 160 Ah each) for the monitoring system

    1 x battery pack (approx. 100 Ah)

    1 x battery pack for 24 V consumers for navigation and safety equipment (approx. 160 Ah)

    1 x battery for starting of the emergency generator set (one mechanical starting device in addition)

    Battery Chargers: 2 x rectifier/ battery charger of approx. 60 / 80 A to charge the battery and net unit to supply the monitoring system and different consumers

    1 x 60 / 80 A (approx.) charger for the battery of the navigation and safety equipment

    2 x 20 A (approx.) charging rectifier to charge the starting battery of the emergency generator set

    Generator Start: 3 x MTU 12V 2000 M41, 575 kW

    UPS (uninterruptible power supplies): 1 x 60 kVA UPS-System (230 V/50 Hz)

    1 x 30 kVA UPS-System (230 V/50 Hz)




    AUXILIARY MACHINERY



    Steering Gear: 2 x JASTRAM hydraulic steering gear to BECKER twisted rudder

    Emergency Steering: Manual handwheel in Steering Gear Room

    Stern Thruster: 1 x VOITH 300 kW inline thruster system (360°)

    Pump Jet:1 x SCHOTTEL 400 kW electric pump jet

    Stabilizers: 2 x QUANTUM zero speed XT Fins (entendable type)

    Extendable fin integrated into the main fin, main fin not retractable

    Under Water Lights: 47 x Underwater Lights Limited, UL Ti MATE 75 SA, 150W

    Helm/Wing Station Controls: Littau installation for ECC, BCC & WCC’s, with foil covering for BCC & WCC



    Fuel System:1 x Diesel fuel system

    Tender Fuel System:1 x Diesel Tender fuels system in Tender Garage

    Fuel Filters: HUG FSN 16/400

    Fuel Oil Separator: 2 x Alfa Laval self-cleaning separators (max. 3300 L/h).

    Fuel Transfer Pump: 2 x Behrens Pump 3 spindle horizontal screw pump 12m3/hr.

    Fuel Filling Pump: Mahle Industrie Filtration Pumps

    Bunkering Station: Located in Steering Gear Room (port side)

    Petro Jerry Cans for Water Toys:14 x 20 liters (5 USG)

    Oily Bilge Water Separator: RWO Skit SDEB 1,0; capacity 1 m3/h

    Dirty Oil Pump: Behrens Rotary Lobe Pump 2m3/hr.

    Lubrication Oil Pump: Behrens Pump 3 spindle horizontal screw pump 2m3/hr.



    Firefighting & Bilge System:2 x Fire/Bilge Pumps, 1 x Emerg Fire Pump, 1 x Emerg Bilge Pump,

    All Behrens Pump Vertical Inline Centrifugal 60 m3/hr.

    Firefighting System: Connected to AMS, duty alarm panels, light column system, glass guest elevator, crew elevator, dumbwaiter, Hi-Fog® system, fire doors, GA/PA system and the watertight door system.



    Fresh Water System:HEM H48 duplex producer (2 x 25 m³/day), UV sterilizers, heaters, and softeners

    Fresh Water Makers: 1 x HEM H48 duplex freshwater producer (2 x 25 m3/day)

    Fresh Water Treatment: 2 x HEM Fresh water treatment system (15m3/h)



    Fresh Water Sterilizer:

    2 x KARBERG & SCHMITZ UV sterilizer unit

    Fresh Water Pressure: 7bar

    Hot & Cold Circulation Pump: 2 x Hot Water Pumps, 2 x Cold Pumps, 2 x Cool Water Pumps (All Behren Horizontal self-priming side channel pumps 3m3/hr.)

    Hot Water Heaters:4 x WESCO NAVY freshwater heater (2 x 1000 I & 2 x 600 I = 3200 I)

    Sea Water Pumps: Behrens Pump Vertical Inline Centrifugal 120m3/hr.



    Black & Grey Water System:DVZ-JZR 200 Biomaster (37 m³/day), vacuum and gravity systems.

    Black & Grey Water Treatment: 1 x DVZ-JZR 200 "Biomaster”; biological sewages treatment (37 m3/day)

    WC's (toilets/bidets): WALL MODEL, MOSAIK, WHITE

    Sanitary Vacuum System: Triton Evac Vacuum Interface Unit

    Sanitary Water System: N/A

    Black & Grey Water Pumps: Behrens Rotary Lobe Pump 6m3/hr.



    Garbage Management System: Impactor, Food Waste Extractor, & Glass Crusher.

    Garbage Compactor: 1 x Cooled garbage with a KLOSKA waste compactor & glass crusher

    Automatic Grease Trap: ACO Fresh Grease Separator Plant



    AC & Ventilation System:

    Air Conditioning: 1 x HEINEN & HOPMAN Single Pipe Central Air System

    Air Compressor: 2 x electric driven air-cooled air compressors

    2 x air receivers and miscellaneous reducing stations

    Air Handling Units: HEINEN & HOPMAN system with 10 zones

    Provision Refrigeration: 2 x Reciprocating Compressors & 2 x Seawater Cooled Condensers

    Engine Room AC: Fan Coil Unit

    Engine Room Ventilation: 4 x Supply Fans & 2 x Exhaust Fans controlled from the Scada Screen in the ECR. Intake on Bridge Deck, exhaust on Sun Deck

    Galley Ventilation & Extraction: Heinen & Hopman



    Hydraulic System:Gilbert & Schmalriede

    Hydraulic Power Packs: Fore, Mid & Aft HPUs 210bar

    Emergency Power Pack: Stored Hydraulic Power Pack, 42 x Accumulator 50litres 350bar.



    Antifouling System:Cathelco ICCP

    Type: Electrical and painted coating



    NAVIGATION & COMMUNICATION SYSTEMS



    NAVIGATION SYSTEMS

    Navigation Bridge: Raytheon Anschutz

    Monitors: Raytheon Anschutz

    X-Band Radar: 1 x X-Band radar system including application on various workstations

    S-Band Radar: 1 x S-Band radar system

    Multifunctional Workstation: Raytheon Anschutz

    Chart Plotter: Raytheon Anschutz

    UPS: Jovystar

    Magnetic Compass: 1 x Ceiling magnetic compass; Cassen & Plath

    Gyrocompass: 1 x Gyro compass system (2 x gyro) Raytheon STD 22

    Auto Pilot: Yes, NP5400 NAUTOPILOT

    Rudder Angle Indicator System: Anschutz

    Echo Sounder: 1 x Echosounder system with transducer tanks FURUNO FE-800

    1 x Farsounder system with transducer tank

    Fish Finder:FURUNO FCV-1200-BB

    Log System:1 x Speedlog system with gate valve

    Speed Log: 1 x Electromagnetic Speedlog; Skipper EML224

    Depth Sounder: FURUNO FE-800

    Video Sounder: Furuno FCV-1200-BB.

    DGPS: 2 x DGPS system

    GPS: SAAB R5 SUPREME

    AIS: 1 x AIS System; SAAB R5 SUPREME

    Navtex: FURUNO NX700

    Navigation Recorder:Voyage data recorder (black box) is installed

    Wind Instruments: Raytheon Anschutz; Lambrecht

    Horn: 1 x KAHLENBERG

    Navigation Lights: LOPO LIGHT

    Search Lights: 2 x CARLISLE & FINCH 200 W Xenon

    Underwater Lights:x 47

    Night Vision Camera: 2 x FLIR

    Tender Tracking System: SEETRAC + SAAB AIS tender tracking system

    Bridge Navigation Watch Alarm: Raytheon



    COMMUNICATION SYSTEMS

    SAT com: INMARSAT-C, Fleet Broadband, VSAT

    VSAT: 2 x VSAT system; SAILOR COBHAM

    INMARSAT – C: No. 1 for integrated Ship's Security Alert System (SSAS)

    No. 2 for Long Range Identification + Tracking Service (LRIT}

    INMARSAT 500:1 x INMARSAT 500 Fleet broadband communication system

    INMARSAT – F: SAILOR FBB 500 System

    GSM:1 x GSM system

    SSAS: 1 x Ship's Security Alert System (SSAS) (integrated into one INMARSAT-C satellite communication system)



    ECDIS:

    1 x ECDIS applications on various workstations; Raytheon Anschutz

    Telecom Systems: CISCO

    VHF Radiotelephones: SAILOR 6222

    Portable VHF: Icom ic-m87

    Portable GMDSS VHF: Sailor SP3520

    Iridium Satellite Phone: Thrane and Thrane COBHAM 3672A

    Internal Communication:1 x Public address system (combined with the general alarm system to GA/PA)

    1 x Telephone system including steward call capability (IP based)

    1 x Steward call system

    1 x Talk back system

    1 x Emergency order telegraph system (bridge/ engine room)

    1 x UHF system

    Telephone System: CISCO IP based Telephone System/ CISCO Call Manager Express

    Intercom System: AVB Ship Electronics

    MF/HF System:1 x MF/HF system; COBHAM SAILOR 6301

    1 x Crew VHF

    SGMDSS:COBHAM SAILOR

    Radar Transponders: Raytheon Anschutz

    Navtex System: 1 x Navtex system

    GMDSS Battery Plant: Jovyatlas

    Internal Ship’s Communication: CISCO



    DECK MACHINERY & EQUIPMENT



    Anchors: 2 x super high holding power (SHHP) anchors

    Anchor Chains: 2 x MESTER Anchor chain 9 shackles/ 261.25 m long

    2 x STEEN Anchor capstans, two speeds

    Anchor Windlass System: 2 x STEEN capstans, 2 x SHHP anchors.

    Cranes: 2 x GILBERT & SCHMALRIEDE rescue boat & life raft cranes

    2 x telescopic overhead FUCHS Tender boat beam crane system (swl. 1 x 2.6 t forward; 2 x 2.1 t aft) in Tender garage

    Warping Capstans: 2 x 8 t capstans aft; STEEN GmbH

    2 x 8 t capstans forward STEEN GmbH

    Ground Tackle: 2 x 9-shackle anchor chains, chain stoppers, counters.

    Bow Crane: Fuchs Crane

    Davits: N/A

    Passerelle: 1 x Hydraulic operated ALJO passerelle (length approx. 12.5 m, clear width 1.0 m)

    Accommodation Ladder:1 x GILBERT & SCHMALRIEDE accommodation ladder (working load max. 250 kg at 45° horizontal, length approx. 6.3 m, rotation of walkway is approx. 180°)

    Pilot/Embarkation Ladder: 1 x Removable pilot ladder for main deck, portside frame 50 (nine steps)

    2 x Removable embarkation ladder for owner's deck, starboard and portside, frame 73 (30 steps) with fixings at the bulwark gates

    Bathing Ladder:3 x Removable bathing ladders with fixing possibilities at the bathing platform, guest boarding platform and crew shell door

    Bathing Stair:1 x Hydraulic operated bathing stair, integrated into the bathing platform on lower deck aft

    Emergency Entering Ladder:1 x Emergency entering ladder is integrated fixed in the bathing stair on lower deck aft

    Swimming Step on stern:GILBERT & SCHMALRIEDE hydraulic



    SAFETY, SECURITY, & FIRE FIGHTING EQUIPMENT



    Security System: 1 x Door access system for selected doors

    CCTV: 1 x Television monitoring system (CCTV system network based)

    Monitors: Raytheon Anschutz

    Motion Sensors: N/A



    Ship’s Safe:

    Yes, ships office and captain’s cabin

    Doorbell: Yes

    Water Firefighting System: 1 x Sea water fire extinguishing system (max. capacity 180 m3/h)

    Fire Extinguishers: 71 x Fire extinguisher (fire class A, B, C and F)

    Fire Blankets:5 x Fire blankets

    Firemen Outfits:4 x Fireman outfits incl. suits and SCBA

    2 x Spare fireman outfits incl. suits without SCBA

    Breathing Air Bottles:6 x Breathing air bottles

    EEBD:26 x Emergency escape breathing device

    Gas Detection: Yes, alarm and system failure will be forwarded to the AMS

    Helicopter Firefighting System:Yes, stored in a box

    Smoke Detection: Integrated Fire Detection System with smoke/heat detectors and manual call points throughout accommodation and machinery spaces.

    Fire Alarm: DECKMA AFMS 3000

    Yes

    Rescue boat; see below

    Rescue Boat:2 x CASTOLDI rescue boats (each 4.25 m) for five + one person (SOLAS approved)

    Life Rafts:6 x David-launched life rafts of 25 persons each

    3 x Self-buoyant life rafts of 25 persons each

    Breathing Apparatus: 1

    Lifebuoys: 12 x Lifebuoys

    2 x Lifebuoys with quick release from the Wheelhouse (VI B 10)

    Lifejackets:101 x Life jackets (5 x children- & 96 x adult-sized)

    Immersion Suits: 80 x Immersion suits (5 x children and 75 adult-sized)

    Life Rings: 14 (4 x smoke and light, 8 x light and 2 x rings)

    EPIRB: 2 x Jotron Tron 60s

    SART: 2 x Jotron Tron SART20



    ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS



    Audio Visual System:VBH installation with core equipment installed in the central AV Room (VI T 12) on tank deck, including a Crestron DM-MD 128X128 matrix

    Entertainment System:2 x Sea Tel 9711-88 IMA VSAT antenna, C-Band & Ku-Band (sub-reflector), Comtech 60W & 20W BUC’s, for Internet connection.

    1 x Starlink Flat High-Performance pack (temporary installation)

    2 x Sea Tel ST94-21 (TVRO) Marine Satellite Television System

    Audio Equipment: A Dante based BSS Soundweb London network audio processing

    Audio & video on demand from Plex movie libraries

    Control: Crestron DM control and A/V distribution, interfacing with Lutron control/ automation

    Light Management: Interior: Lutron system; PMA installation

    Exterior: Lutron with DMX; PMA installation

    TV’s: Samsung 4K (UHD) TVs in guest areas

    Agath Mirror TV’s:Massage Room

    VIP Bathroom

    Guest Lift

    Owner’s Bathroom x 2

    Owner’s Beauty Centre x2

    Saffron Cabin Bathroom

    Indoor Cinema: Located in the Cinema Lounge

    159" screen, Sony VPL-VW1100ES 4K projector, 5.1 Surround, D-Box motion, karaoke, game consoles

    Outdoor Cinema: Located on bridge deck aft

    123” screen, Christie HD14K-M 13,500lm projector (removable); motorized cinema screen (built-in)

    Jacuzzi/ Bandstand (EF S 0) on sun deck aft is equipped with the possibility to arrange an exterior cinema, with a stand-alone screen and a Christie HD14K-M 13,500lm projector

    Karaoke System: Connection points on sun deck aft, bridge deck aft, owner’s deck aft, Cinema Lounge and Winter Patio

    2 x Art System karaoke

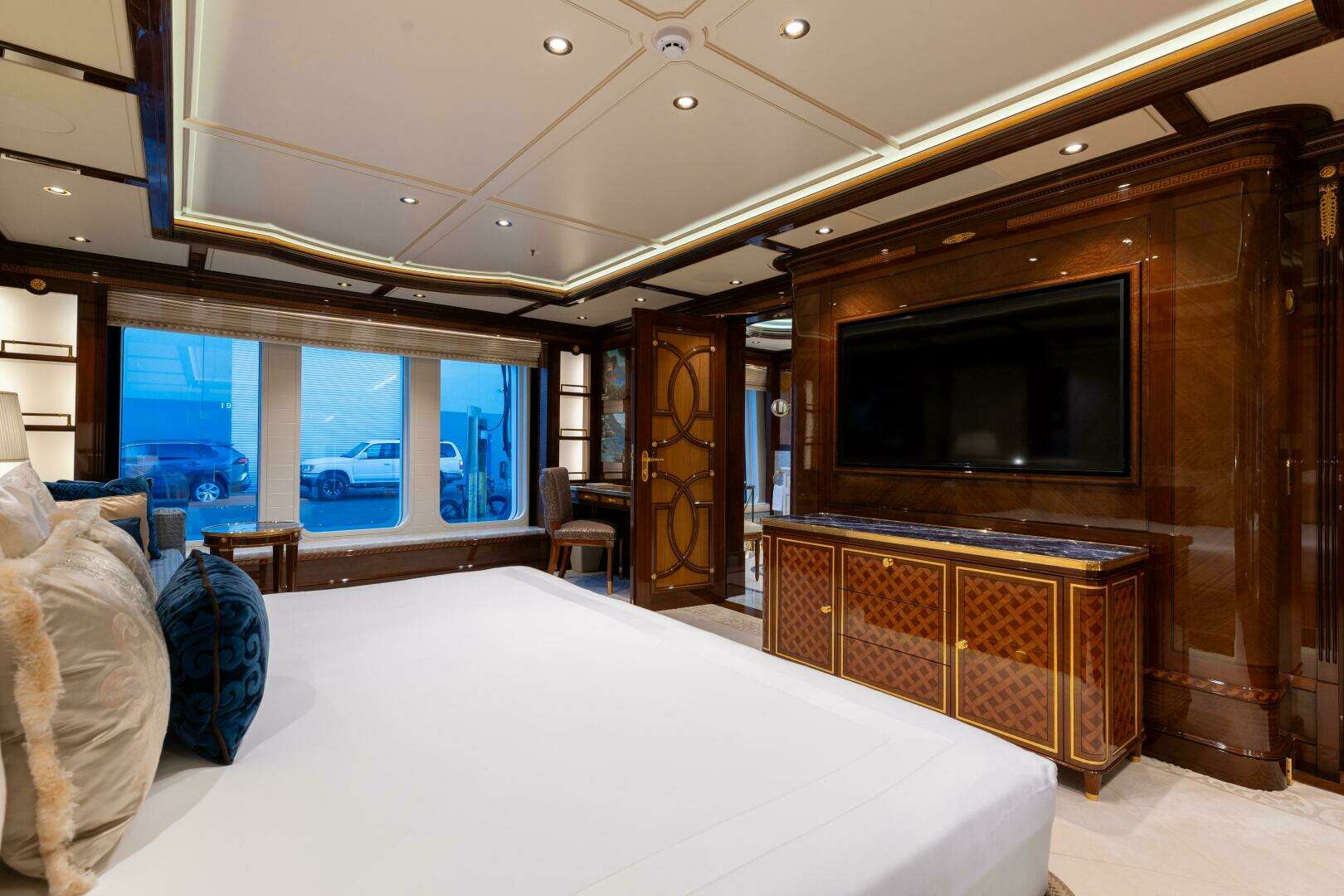

    Master Stateroom:65”4K Samsung TV on Future Automation lift & swivel, James Loudspeakers 7.1 surround sound

    VIP Stateroom: 2 x 65” Samsung 4K TV, James Loudspeakers 2 x 5.1 surround sound

    Guest Staterooms:55”4K Samsung TV, James Loudspeakers 5.1 surround sound

    Owner’s Lounge: Baby Grand Piano [connected to CD player Piano], standalone McIntosh sound system; McIntosh MCD550 SACD/CD Player, McIntosh C52 Audio Preamplifier, (x2) McIntosh MC Quad Balanced Power Amplifier, (x2) McIntosh Tower speakers, 65”4K Samsung TV, 7.1 James Loudspeakers surround sound

    Exterior Aft Decks (MD; OD; BD; SD): Built-in DJ Connection Points for connecting portable A/V equipment, e.g. mixing decks, PA speakers, microphones, show lighting, etc. Amongst other things, there are >4kW of PA speakers on board

    MD: 2 x 40” HD Samsung TV; 1 x 65”4K Samsung TV on Future Automation lift; multi-channel stereo James Loudspeakers.

    OD: 2 x 55”4K Samsung TV; multi-channel stereo James Loudspeakers.

    BD: 6 x 46” HD NEC TV (professional display model); James Loudspeakers 5.1 surround sound.

    SD: Fohhn, B&C and James Loudspeakers multi-channel stereo (>14kW)

    Baby Grand Piano [connected to CD player Piano], standalone McIntosh sound system, 65”4K Samsung TV, 7.1 James Loudspeakers surround sound



    IT:

    Cisco core (x2), access & local switches, and hosts (x2); Synology NAS/ SAN; Kerio firewall (x2)

    WIFI: 2 x Cisco 5508 Series Wireless Controllers (HA failover) with Cisco Aironet 2700 Series WAP’s

    Hybrid Digital PABX / VOIP: Cisco Call Manager Express Version 10.5 (Cisco 2921) as VoIP server to provide the IP telephones

    with internal and external call functionality



    GALLEY & LAUNDRY EQUIPMENT



    MAIN GALLEY EQUIPMENT

    Equipment: 2 x Rational oven, 1 Combo therm oven, Berner pizza oven, Berner Deep fat fryer, 2 Berner cooktop, Berner teppenaki grill



    Refrigeration/Freezer: 4 x Foster refrigerator, 1 x Foster drawer pull out freezer, Geze cool room

    Hoshizaki Ice maker



    Dishwasher:

    1 x Hobart sanitizer/dishwasher

    Other: Vacuum seal machine VACMIT, Foster blast chiller unit, Bartscher electric heat lamps, Bartscher Electric grill, Desktop computer

    2 x Fagor meat ager

    PANTRIES AND OTHERS:

    Bridge Deck’s “Cinema” Bar/Pantry: 1 x “Hoshizaki” Ice Maker

    1 x “Gaggenau” Fridge/Freezer

    1 x “Ideal EKP 73-Z” Dual Cooler Drawer Unit

    Owner’s Deck pantry:2 x “Miele Professional SpeedPlus” Dishwashers

    1 x “Hoshizaki” Ice Maker

    1 x “Eurocave” Wine Fridge

    1 x “Liebherr” Fridge

    1 x Panasonic NE-1037 Microwave

    1 x “Bartscher” Heat Lamp/Salamander Food Warmer

    1 x Stainless Steel Square Sink & Fawcett

    1 x “Zip” Insta Hot Boiling Water Dispenser

    Main Deck Pantry:1 x “Miele Professional SpeedPlus” Dishwasher

    1 x “Miele Professional” Dishwasher

    1 x “Panasonic NE-1037” Microwave

    1 x “La Cimbali M29 Select” Espresso Machine Station

    1 x “Eurocave” Wine Fridge

    1 x “Hoshizaki” Ice Maker

    1 x under counter Dual pull-out trash bin

    Tank Deck:1 x Pfortner Refrigerator

    1 x Pfortner Freezer

    1 x Dry store

    1 x Cooled store

    2 x “Manitowoc” Tower- Ice Makers large capacity

    Engine Control Room (ECR):1 x “Dometic” Drinks Fridge and 1x “Nespresso Pixie” Espresso Maker

    Lower Deck Crew Mess:2 x “XTRA” Fridges

    1 x “CoolGiants / COOLHOUSE AG” Under Counter Drawer Fridge & Freezer set                                                                                                   1 x “Hoshizaki” Ice Maker

    2 x “Miele” Dishwashers

    3 x “Scholl” Apparatebau GmbH & Co KG/ VK-007009, 15/68234 Bain Marie Sinks (with Heating Elements & Drain Controls underneath)

    1 x “Miele” Vacuum for Crew Mess

    1 x “Miele” Microwave

    1 x “Jura X6 All in One” Coffee/Espresso Grinder Station, 2x Sinks with taps, and

    1 x “Zip” Insta Hot Water Dispenser

    Lower Deck STBD Relaxation Room:Equipped with 1 x “Dometic” Drinks Fridge and 1x “Hoshizaki” Ice Maker

    Main Deck Bar (Interior Bar):1 x “NordCap- FKU 180 F1/W” Botte Cooler (Connected Beer Tap)

    1 x Gold Plated Beer Tap

    1 x “IDEAL” Stainless Steel Cooler Drawer Set

    1 x “Hoshizaki” Ice Maker

    1 x Gold Plated Sink (12’x 24” Peanut Shape) & Fawcet/Tap

    Main Deck Aft Bar (Exterior Bar):1 x “Hoshizaki” Ice Maker

    1 x “Ideal” Stainless Steel Cooler Drawers

    1 x Over Counter Beer Tap

     (Above is hooked up to MD Interior Bar’s “NordCap Bottle Cooler”)                                                                                                                                   1 x Stainless Steel Round Sink & Fawcet

    Four Under-Counter European Power Outlets, Controls for: Misting System, Aft Bar Lighting, Spot Cooling Controls, and Stone Heating Pool Area

    Owner’s Deck Bar (Exterior):1 x Over Counter Beer Tap hooked up to Bridge Deck Port Side’s

     “TM DESANA MAX” Cleaning Beverage Dispensing system

    (shared with Bridge Deck Bar Exterior]                                                                                                                                   1 x “Hoshizaki” Ice Maker

    1 x “IDEAL” Stainless Steel Drawer Coolers

    1 x “Teppanyaki” brand Grill

    1 x Stainless Steel Square Sink & Fawcet

    Bridge Deck’s “Cinema” Bar/Pantry (Interior):Equipped with all under counter:

    1 x “Hoshizaki” Ice Maker,

    1 x “Gaggenau” Fridge/Freezer, and 1x “IDEAL EKP 73-Z” Dual Cooler Drawer Unit

    Bridge Deck Bar (Exterior):1 x “CORNELIUS” Beer Tap hooked up to Bridge Deck Port Side’s

    “TM DESANA MAX” Cleaning Beverage Dispensing system [also shared with

    Owner’s Deck Bar Exterior]

    1 x “Hoshizaki” Ice Maker

    1 x “IDEAL” Stainless Steel Drawer Coolers

    1 x “Teppanyaki” brand Grill

    1 x Stainless Steel Square Sink & 1x “AXOR Hansgrohe” Fawcet/Tap

    Sundeck (Summer Galley):1 x “Roland” Heat Lamp Stand/Electric Salamander, “Roland” cooktop, “Roland” 1x “Teppanyaki” brand Grill, 2x “Roland” oven, 2x “Roland” fridge, 2x “Meiko” dishwashers, 2x “Alto-Shaam” food warmer trolley

    Sundeck “Summer Galley” Corridor: 2 x “Manitowoc” Tower- Ice Makers (large capacity)



    Sundeck (Winter Garden) Dylan Bar (Interior):Equipped with all under-counter:

    1 x “Hoshizaki” Ice Maker

    1 x “Miele” freezer with 3x plastic drawers

    8 x” IDEAL” stainless steel cooler drawers

    1 x Beer tap hooked up to “NordCap” Beer Cleaning & Dispensing system (located behind the wall thru Port Side Aft “Summer Galley Storeroom” corridor

    Tank Deck Cellar:Tank Deck Cellar Equipped with: 3x “Eurocave” Wine Fridges

    Owner’s Deck:Owner’s Deck Wine Cellar equipped with: 6x “IDEAL 2015” Wine Fridges

    Sundeck “Summer Galley” Corridor:1 x “Eurocave” Wine Fridge

    1 x “SUBZERO” Fridge

    Main Laundry:Laundry Room is Equipped with:                                                                                                                          1 x “VEIT “Boiler System

    2 x “VEIT Varioset“ Ironing Tables with

    2 x “Veit model 2181” Irons at each station

    3 x “Miele Professional” Commercial Washing Machines

    3 x “Miele Professional” Commercial Dryers

    2 x “Miele Professional PW 6065 Vario - Little Giants” Washing Machines

    2 x “Miele Professional PT 7136 - Little Giants” Dryers

    1 x “Miele HM 5316” Rotary (Roller) Iron

    1 x” VEIT 8363” Multiform Finisher for Quick Steaming/finishing shirts & jackets

    2 x Stainless Steel Sinks with 1x shared tap/Fawcett

    1 x “Janome” model 8330 Sewing Machine with cover Serial #532108729

    Owner’s Master Bathroom:1 x Dometic Drinks Fridge located in bathroom closet

    Owner’s Deck Gym:1 x Dometic Drinks Fridge (Under Counter in Credenza)



    OTHER EQUIPMENT



    Pool: 1 x Pool (approx. 39.7 m3) on main deck with holding tank

    1 x ENPRO Pool water treatment unit with heater and ph-dosing unit

    Jacuzzi:1 x Jacuzzi (approx. 1.4 m3) on owner's deck

    1 x Jacuzzi (approx. 4.1 m3) on sun deck

    1 x ENPRO Jacuzzi water treatment unit with heater and ph-dosing unit

    Sauna: 1 x Sauna with heat system on lower deck

    Hammam: 1 x Hammam with steam system on lower deck

    Guest Elevator: 1 x PREY glass guest elevator (max.7 persons, max. 570 kg) (from tank deck to sun deck)

    Crew Elevator:1 x “PREY” Crew elevator (max. 4 persons, max. 300 kg) (from tank deck to bridge deck)

    Dumbwaiter: 1 x “PREY” Dumbwaiter (max.180 kg) (from owner's deck to sun deck)

    Sun Awnings:Multiplex (all decks including swim platform)

    Gym Equipment:

    Owner’s Gym (Owner’s Deck):1 x “Technogym” Chrome Dumbbell 2kg

    1 x “Technogym” Chrome Dumbbell 3kg

    1 x “Lifefitness” Cross Trainer

    2 x “Technogym” Chrome Dumbbell 10kg

    1 x “Technogym” Fitness Ball

    2 x “Foglizzio” Leather Gym Basket

    1 x “Body Solid” Jump Rope

    1 x Technogym” Kinesis Pullet Station

    1 x LP Waist Support [Brand Unknown]

    1 x “Mantra” Sport Wheels

    1 x “Body Solid” Medicine Ball 11.3kg

    1 x “Body Solid” Medicine Ball 5.4kg

    1 x “Technogym” Multigym

    2 x “Summit” Bench

    1 x Pair “HAMMER” Push Up Bars (I set of 2)

    1 x Set “Body Solid” Resistance Bands (Set of 5)

    1 x Resistance Bands (Blue) (Brand Unknown)

    1 x “Concept 2” Rowing Machine

    1 x Set “TRX” Training Equipment

    1 x “Technogym” Wellness Pad

    1 x “Technogym” USB

    1 x “Technogym” Machine (Accessories Last Drawer)

    2 x “Technogym” Urethane Dumbbell 4 KG

    4 x “Technogym” Urethane Dumbbell 8 KG

    2 x “Technogym” Urethane Dumbbell 12 KG

    4 x “Technogym” Urethane Dumbbell 6 KG

    1 x Set “Adidas” Wrist Weight 0.5kg (1 set of 2)

    1 x Set “Adidas” Wrist Weight 1kg (1 set of 2)

    1 x “Manduka” Set of 2

    1 x “YogiGado” Set of 2

    1 x “Manduka” Yoga Mat

    1 x “Equatowel” Yoga Towel

    Tank Deck Crew Gym:1 x Powerline 45-degree hyper extension

    2 x Ab Roller

    1 x Domyos Ankle Weights

    1 x Barbell 20kg

    2 x Basketball

    1 x Rouge Bench

    1 x “Technogym” Bench with Dumbbells

    2 x Body Solid Booty Band

    1 x Adidas Boxing Gloves – 38 – 55kg

    1 x Adidas Boxing Gloves – 65 – 85kg

    2 x Boxing Pads

    1 x MiraFit Dumbbell set with Carry case

    1 x EX Bar

    6 x Body Training Fitness Mat

    1 x Hastings Foam Roller

    1 x Triggerpoint Foam Roller

    4 x Framed Art Reproduction Sports

    1 x Gorilla Sports Kettlebell 22kg

    1x Gorilla Sports Kettlebell 26kg

    1 x Adidas Hanging Boxing Bag

    1 x Concept2 Indoor Rower

    1 x Gorilla Sports Kettlebell 8kg

    1 x Gorilla Sports Kettlebell 18kg

    2 x Trigger Point Massage Ball

    1 x Hastings Medicine Ball – 10kg

    1 x Hastings Medicine Ball – 5kg

    1 x Body-Solid Olympic plate tree and bar holder

    1 x Brabantia Pedalette Bin

    4 x Powerblock adjustable dumbbells

    1 x Kroon push up bar set

    1 X RDX Sports R1 weighted vest

    1 x Health resistance bands

    1 x Rouge Fitness Rouge – s-1 Squat stand 2.0

    1 x Rouge Fitness Rouge – Single plate storage

    1 x Concept2 Rowing Machine

    2 x Gilbert Rugby Ball

    1 x Powrx Sandbags 5-15kg

    2 x Reebok Skipping Rope

    1 x Inspire SCS Smith cage system

    1 x Powermark strength band set

    8 x Table tennis paddles

    1 x Technogym – Bike Excite + Bike 700

    2 x Miel Wicker basket LxWxH: 17x17x18cm

    6 x Yogistar Yoga block

    2 x Yogistar Yoga/Pilates mat basic



    TENDERS & TOYS

    Tenders: 1 x 8.80 m Pascoe Beachlander (2016)

    1 x 10.97 m Windy Limousine (2016)

    1 x 10.97 m Windy Sport Open (2016)

    2 x 4.25 m Castoldi JT-14-RB Rescue Tenders (2016)

    Toys:2 x Sea-Doo GTX Limited 300 (2021)

    2 x Sea-Doo GTX Limited 300 (2017)

    2 x Cayago F5s Seabobs (2017)

    2 x Cayago F5sr Seabobs (2022)

    2 x Radinn Icebreaker jet boards (2019)

    2 x Lift 3 eFoils (2022)

    ZR Jetpack

    ZR Flyboard

    Inflatable slide from bridge deck

    Inflatable sea pool to prevent jellyfish stings 20 x 5m

    Aqua Glide Bouncer inflatable trampoline

    2 x Kayaks (one and two person models)

    4 x Standup paddleboards (2 rigid, 2 inflatable)

    4 x Complete sets of dive equipment

    BCD’s, bottles & regulators

    Jobe Omnia mulitpurpose board

    Jobe Allegre combo water ski’s

    Jobe Buzz Ski skimmer child’s water ski trainer

    Jobe Wakeboard Logo Series wakeboard

    Selection of towable inflatables

    Selection of wetsuits

    Selection of protective head gear

    Selection of fishing gear

    Diving Compressor: Bauer MU-20 Mini Verticus III 150-250 L/min 225-330 bar



    EXCLUSIONS



    Offered less any personal effects of the Captain and Crew.



    DISCLAIMER



    All speeds, measurements, capacities, consumptions, etc. may be approximate or estimated. Specifications provided for information only. Data was obtained from sources believed to be reliable and is not guaranteed by owner or brokers. Buyer assumes the responsibility to ascertain the correctness of all data contained herein and otherwise provided and must instruct his agent and surveyors to confirm all details for accuracy prior to purchase. Subject to prior sale price and inventory change or withdrawal from market without notice.



    Contact

    For more information about this yacht, please contact Josh Gulbranson We look forward to working with you!

    For more information about this yacht, please contact Josh Gulbranson. We look forward to working with you!

    For more information about this yacht, please contact Josh Gulbranson.

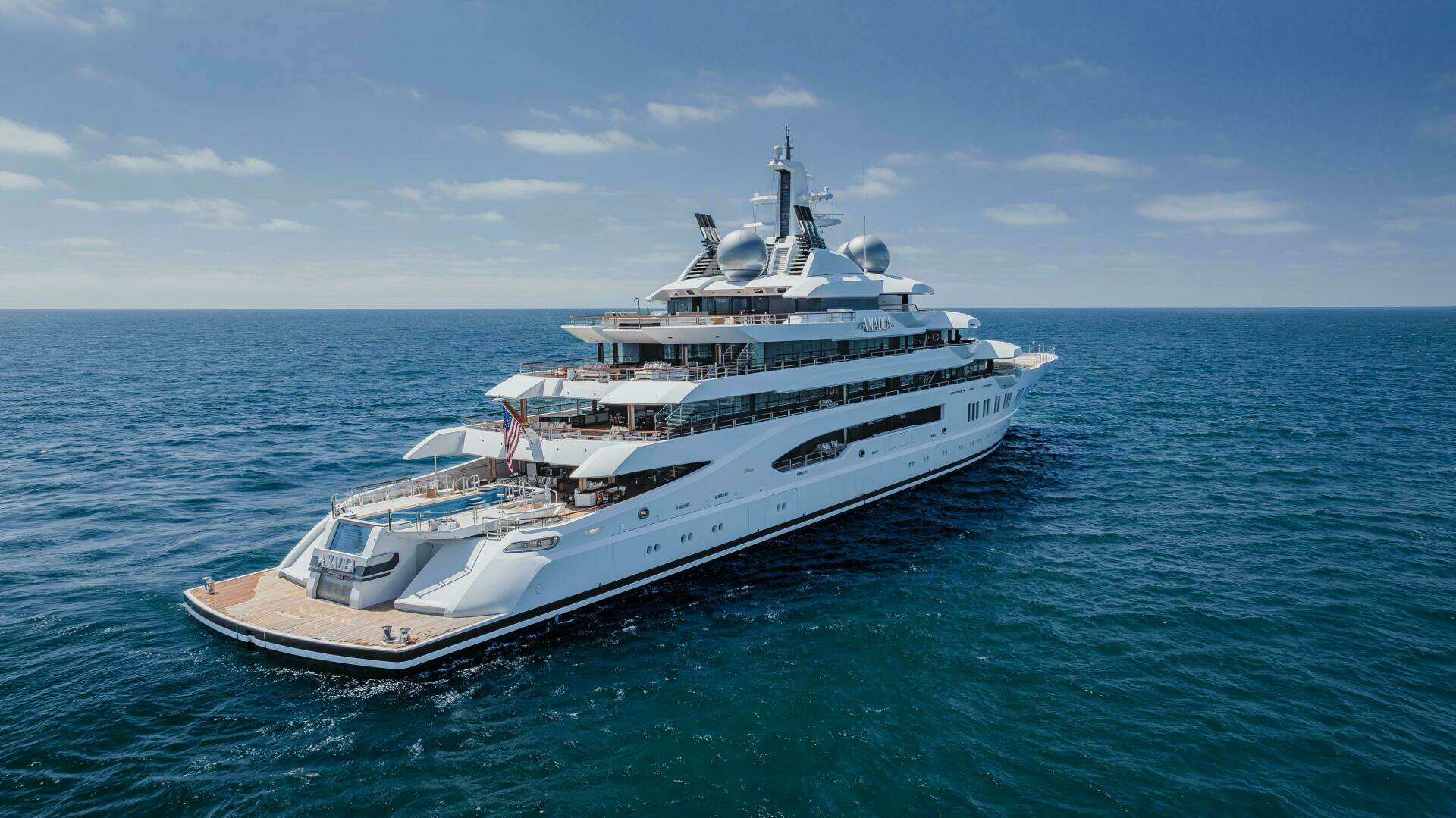

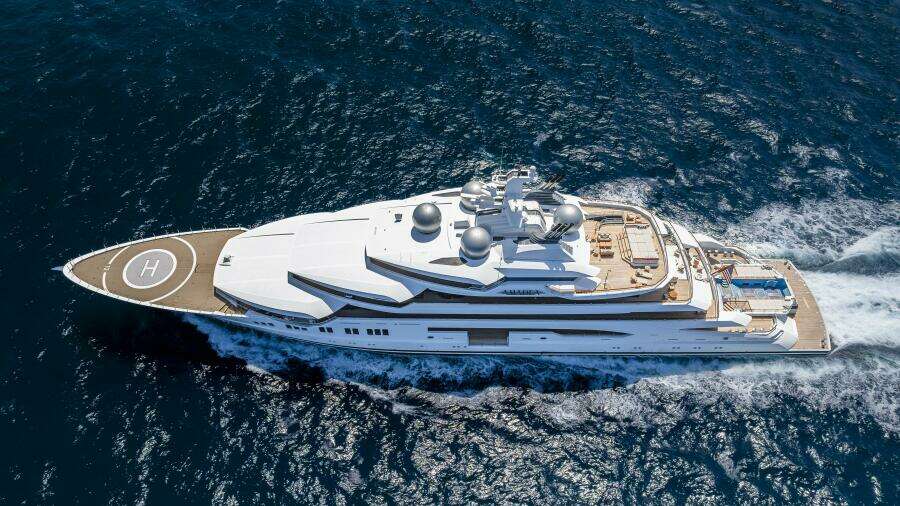

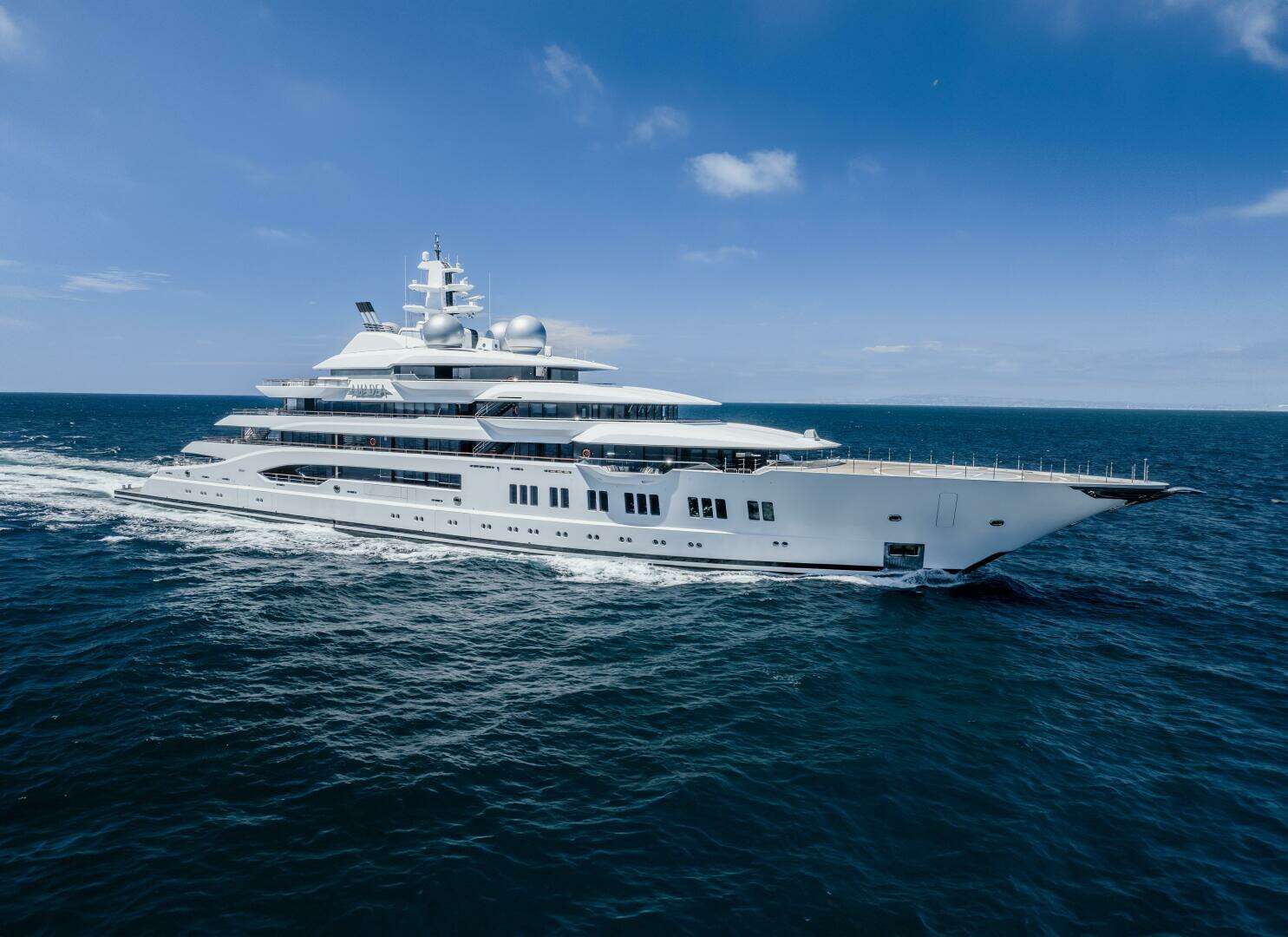

    AMADEA 348ft Lurssen Yacht For Sale
    Josh Gulbranson
    Sales Broker

    1800 Southeast 10th Avenue

    Suite 400

    Fort Lauderdale FL 33316 USA

    +1 954 629 7435
