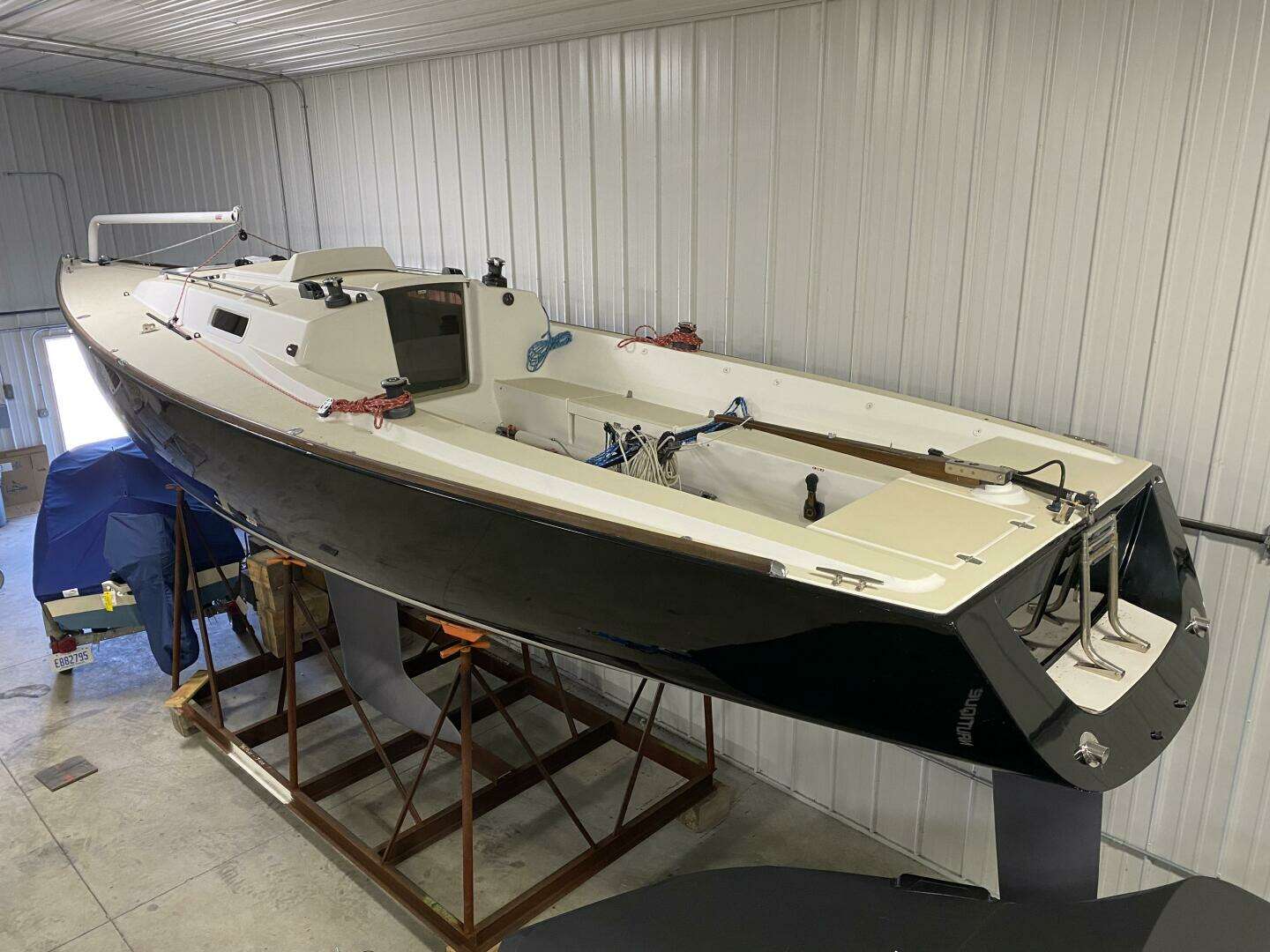

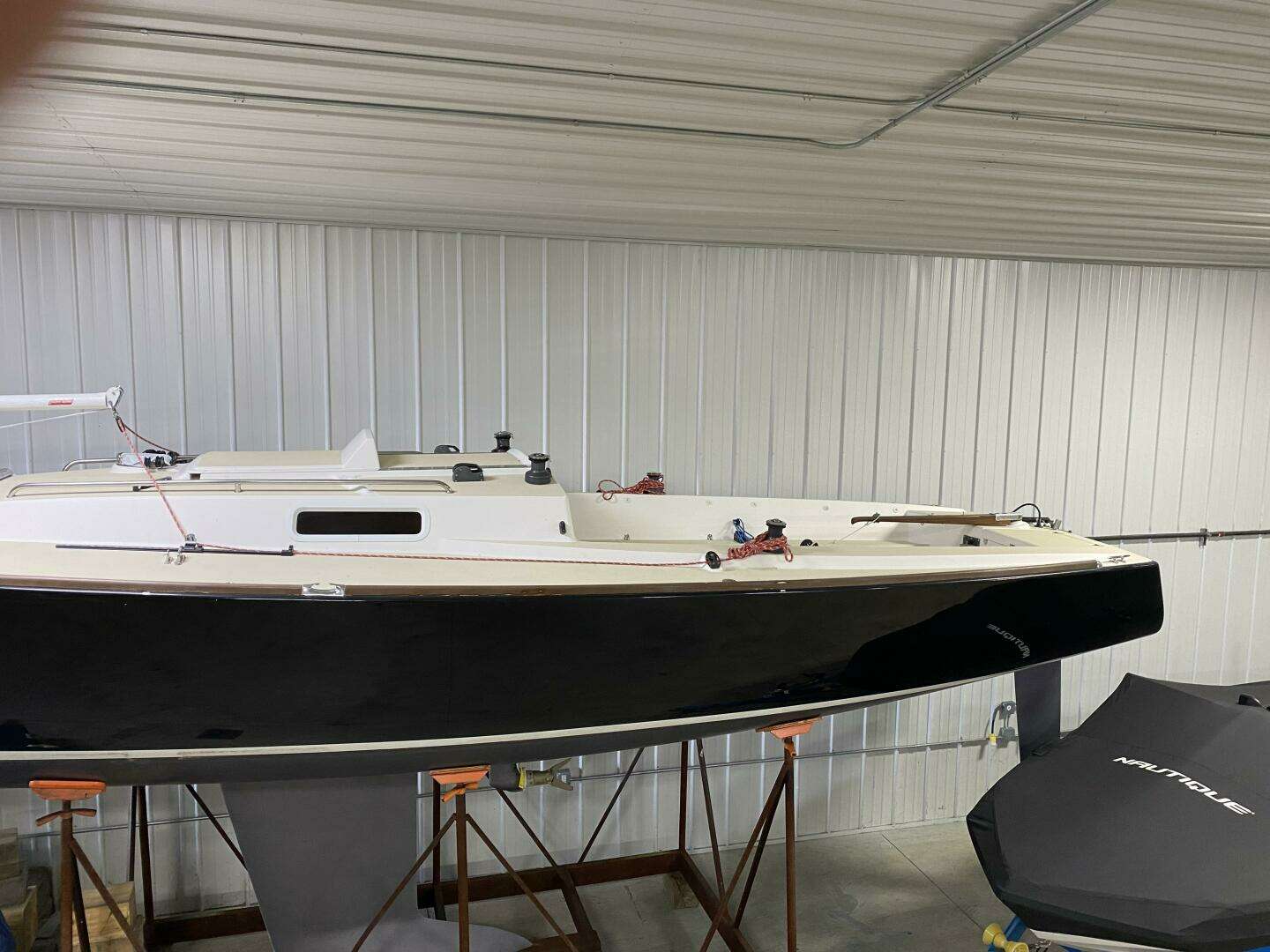

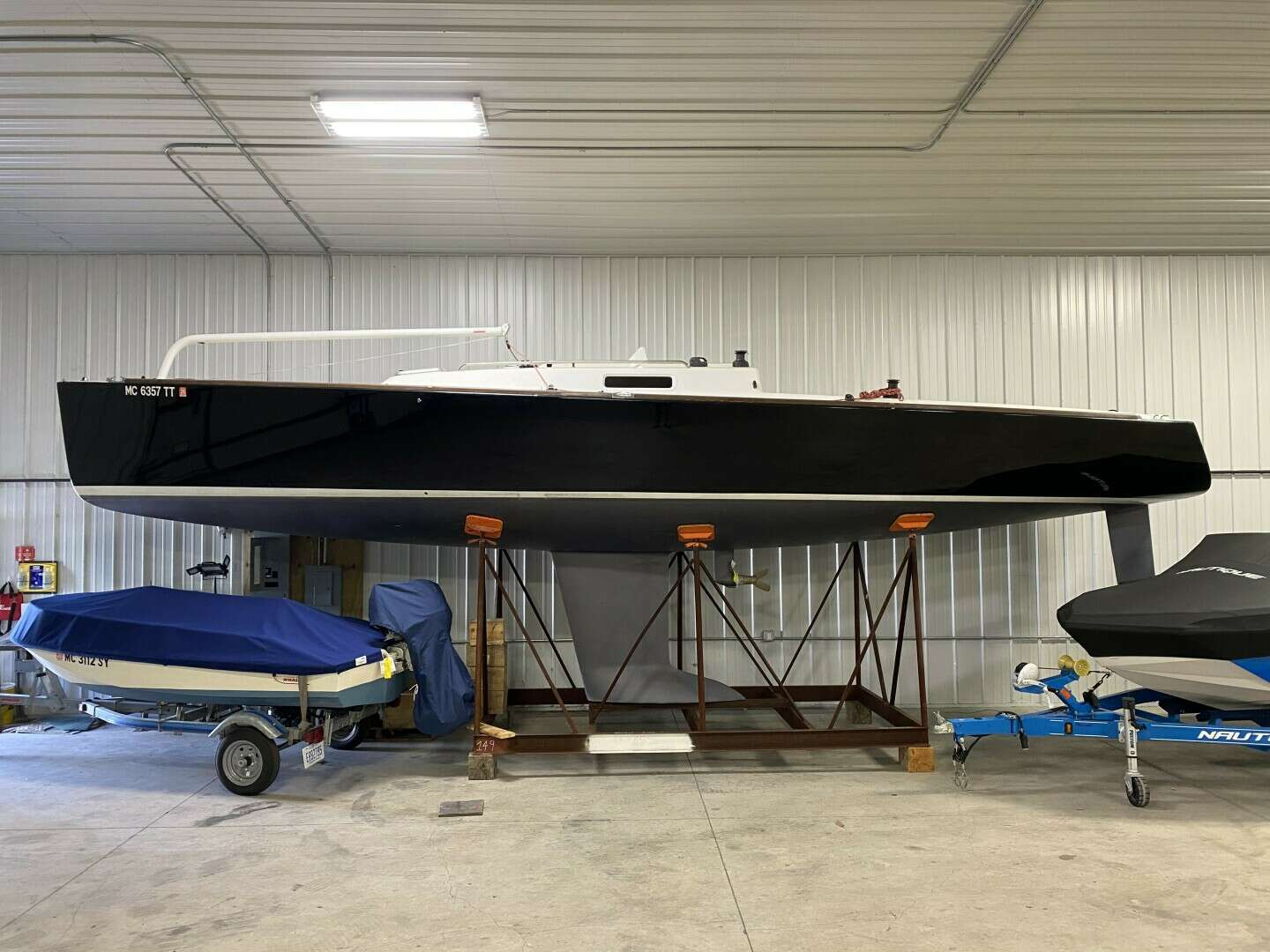

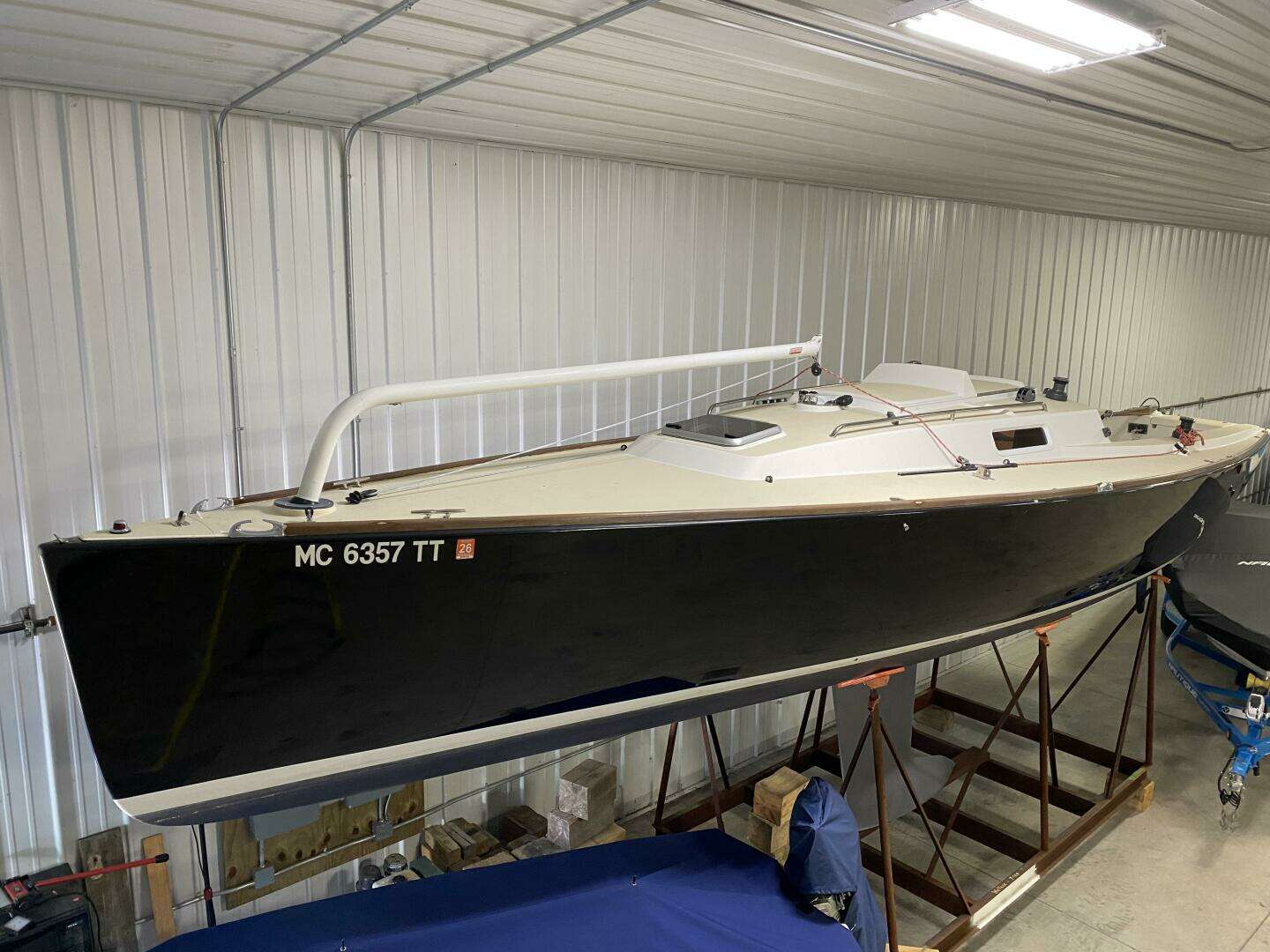

Hull and Deck

• Hull and deck built with resin infusion molding system using biaxial and unidirectional glass fabrics with Baltek end-grained balsa core.

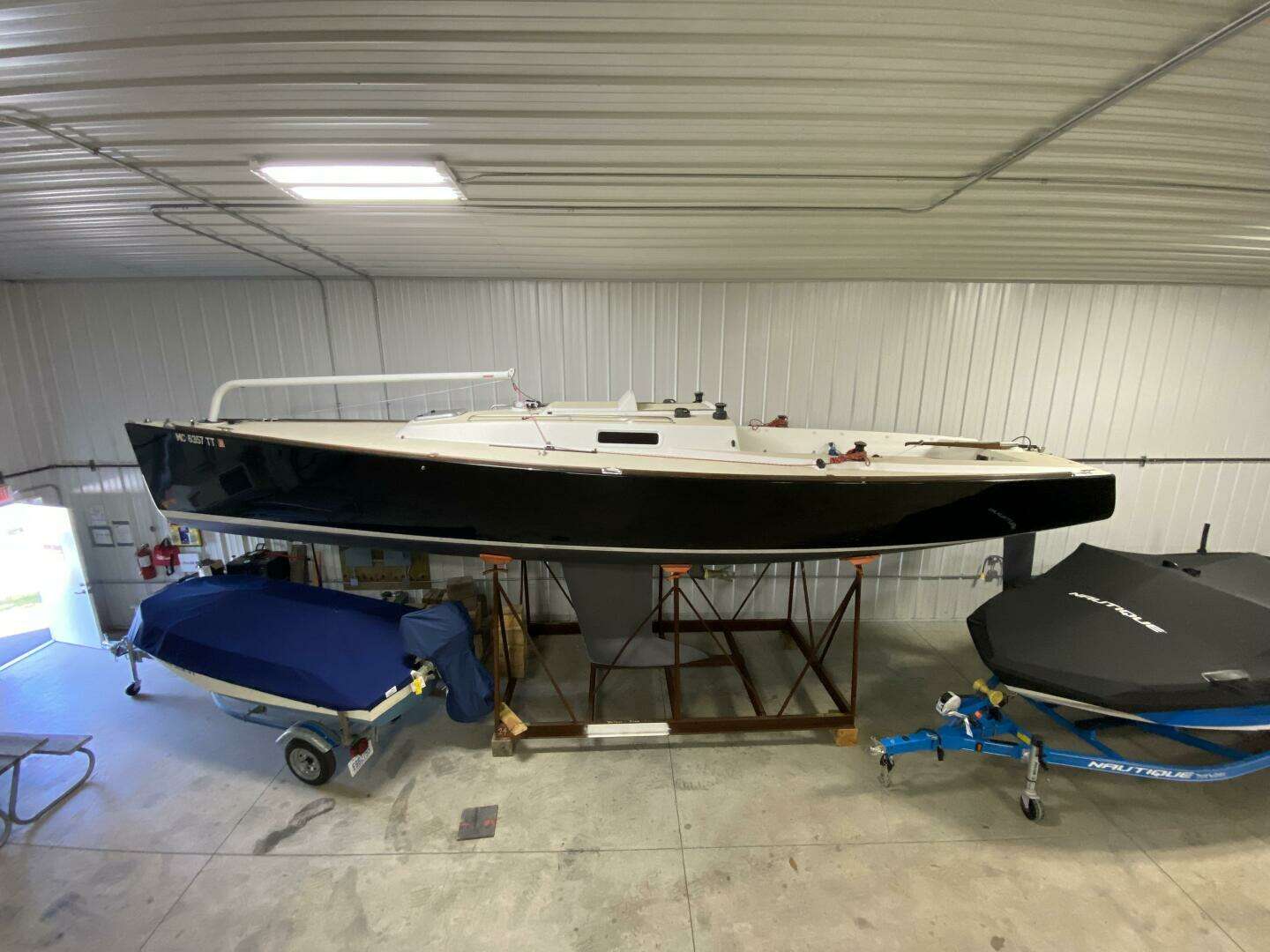

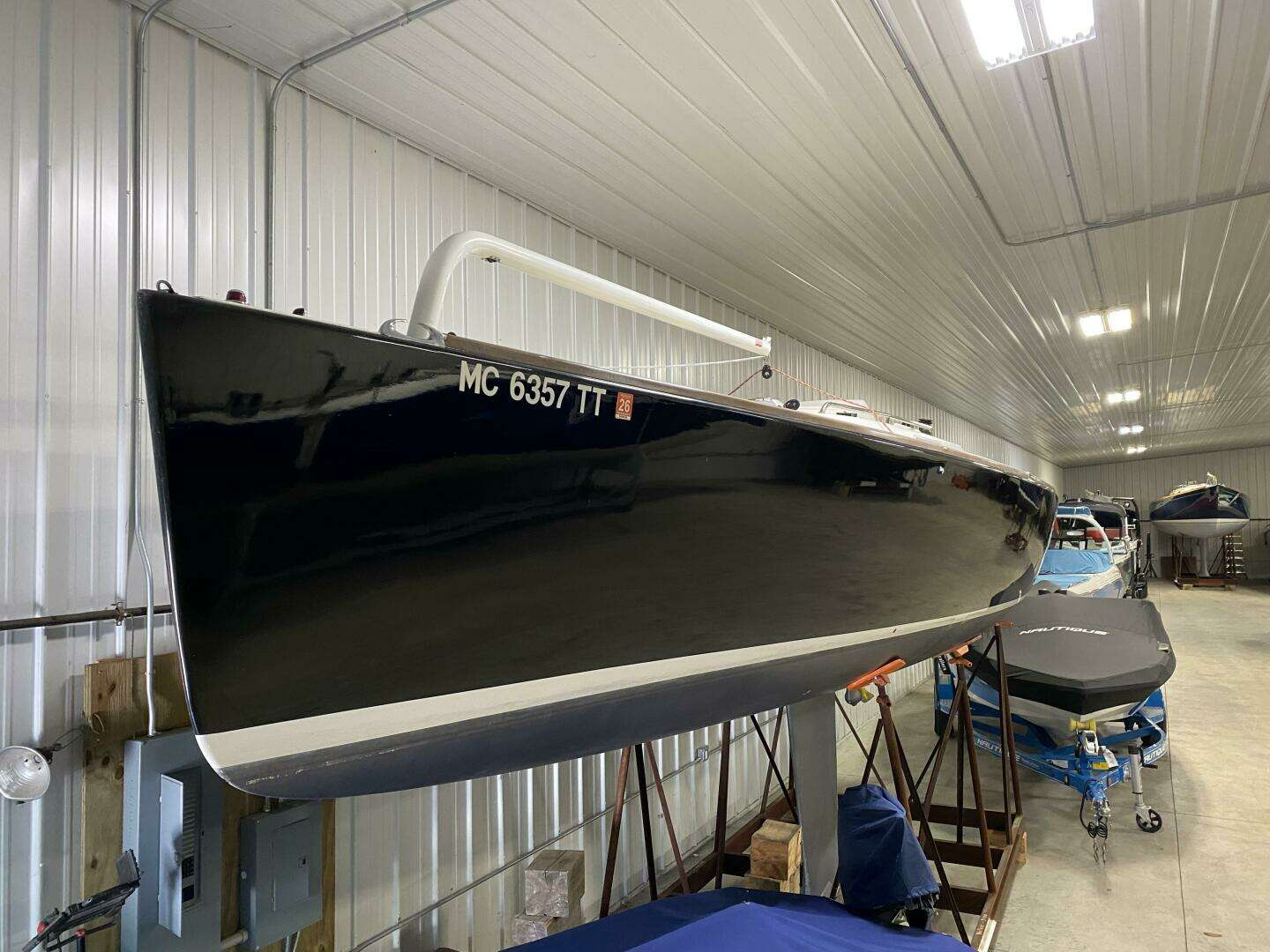

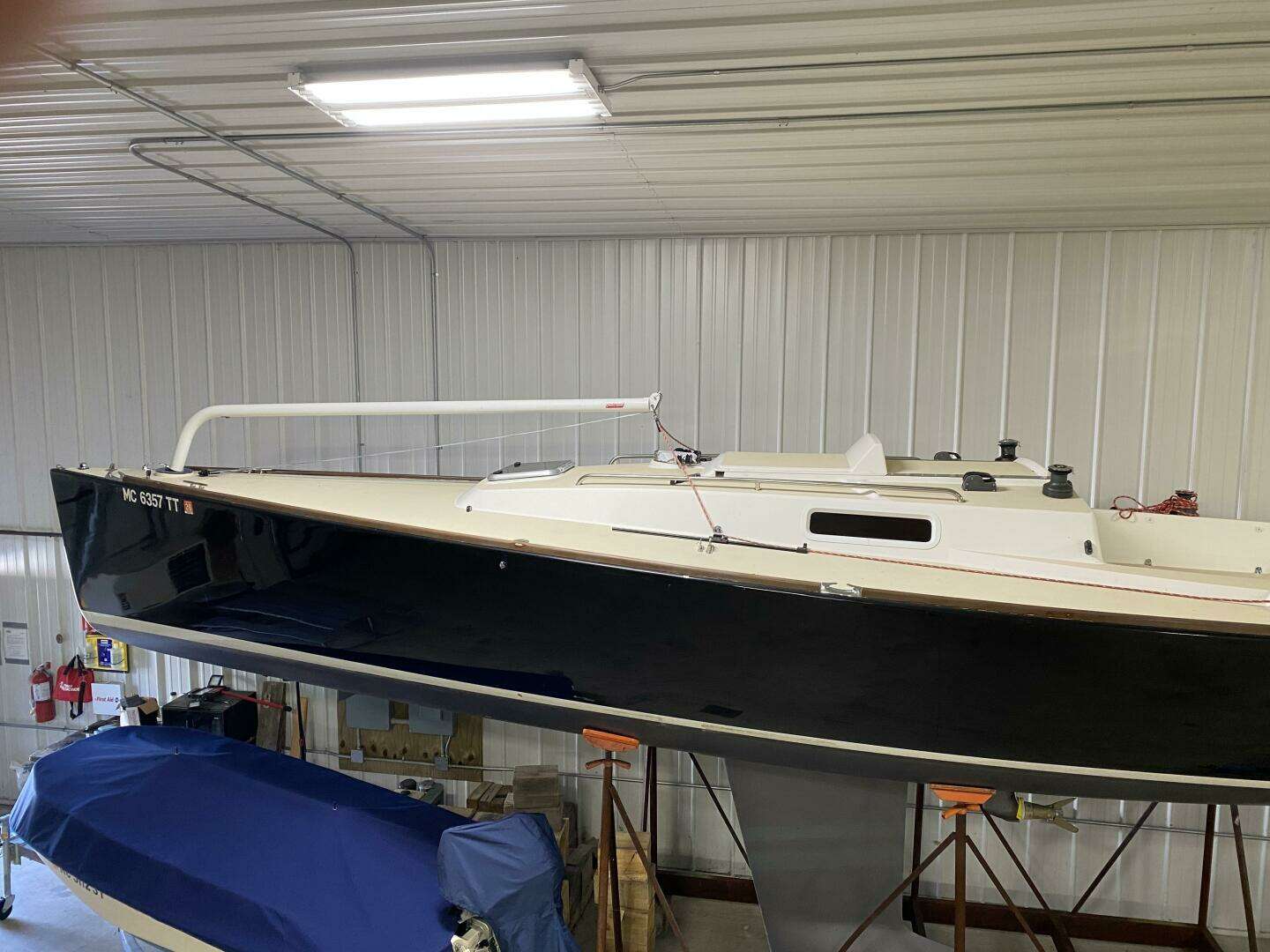

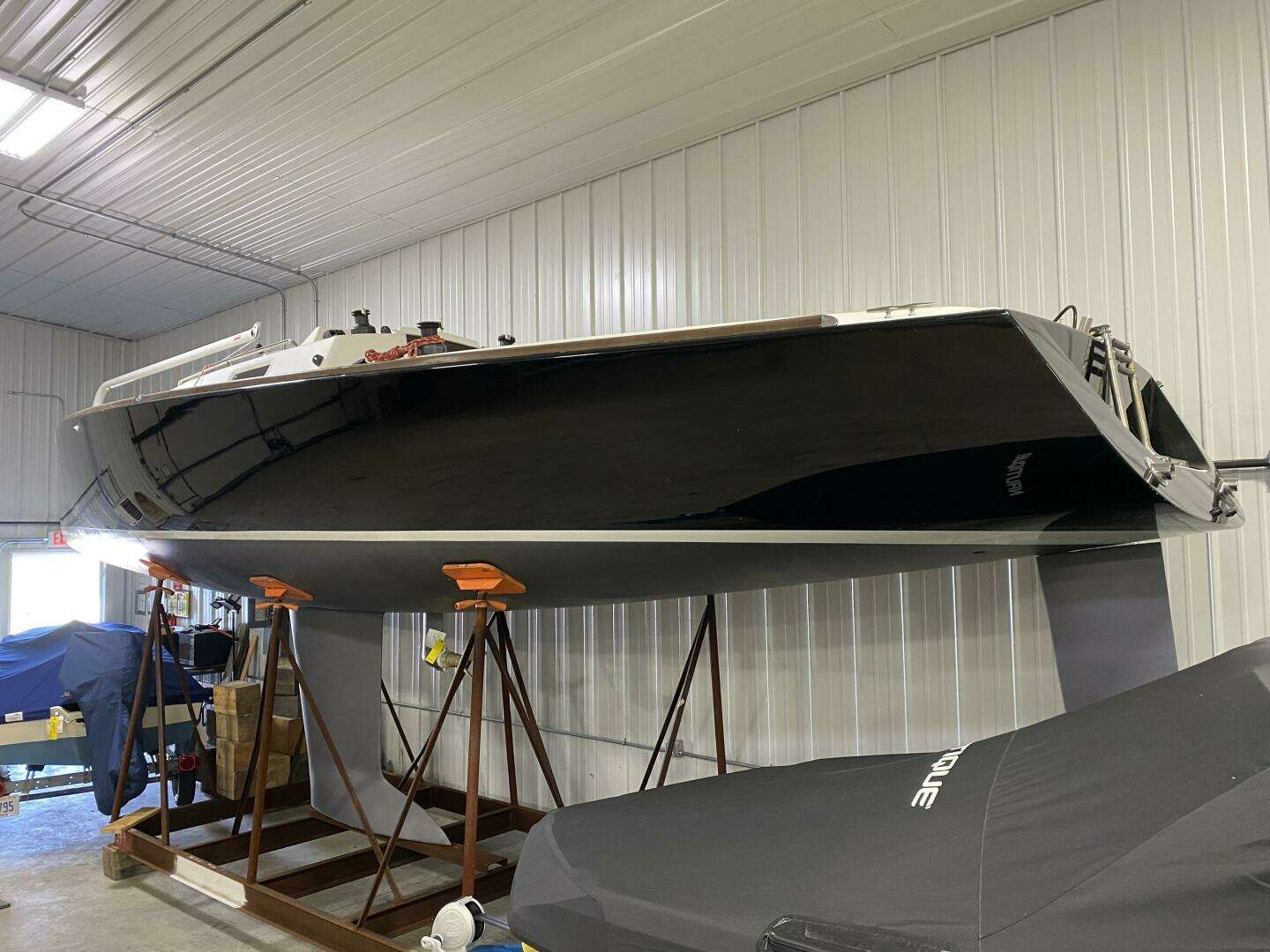

• Painted Awlgrip Super Jet Black hull with single White boot stripe.
• Two-tone deck Moondust.

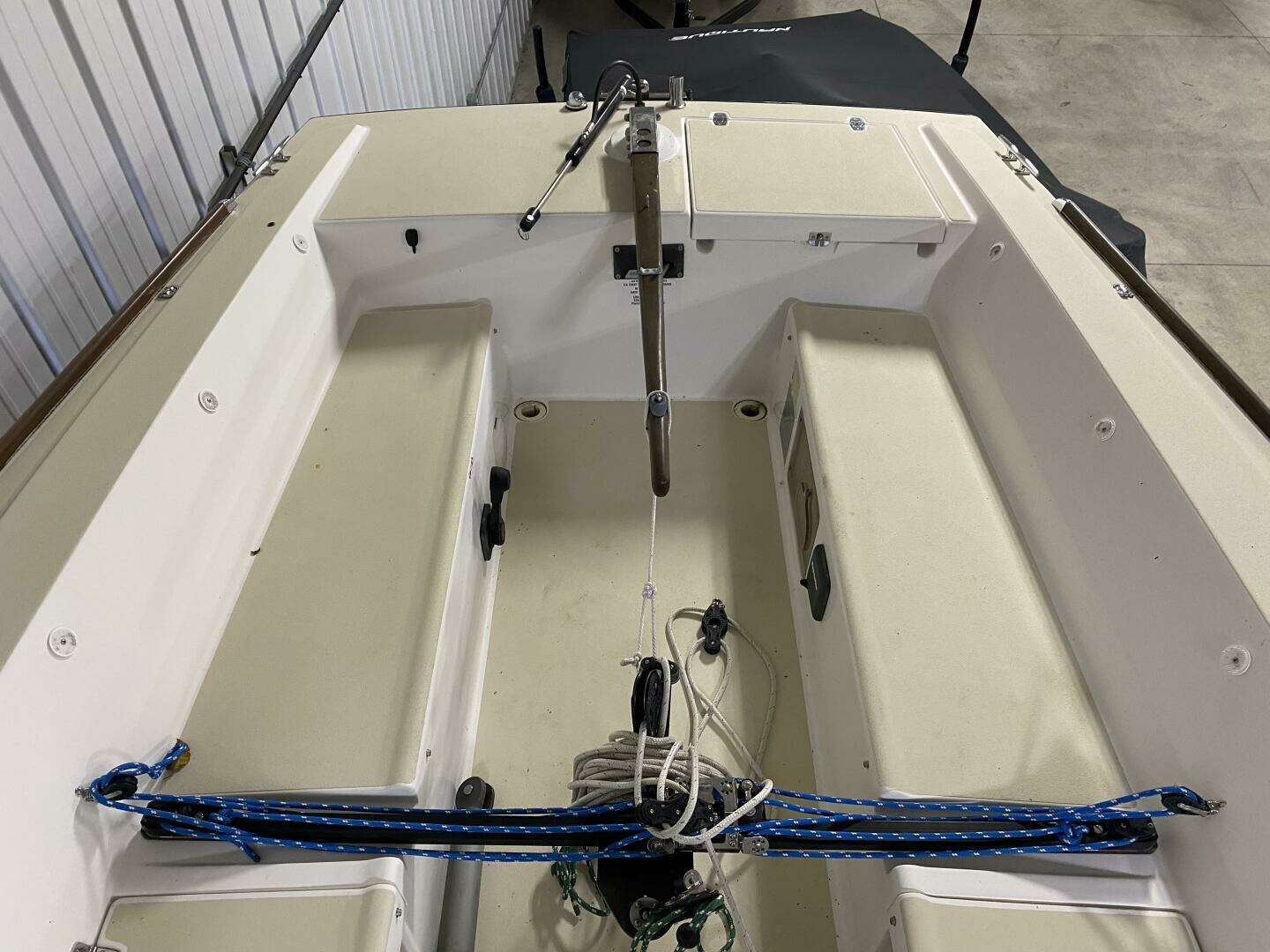

• Large sit-in cockpit with 9.5' seats having comfortable 13.75" backrests, and cockpit cushions.

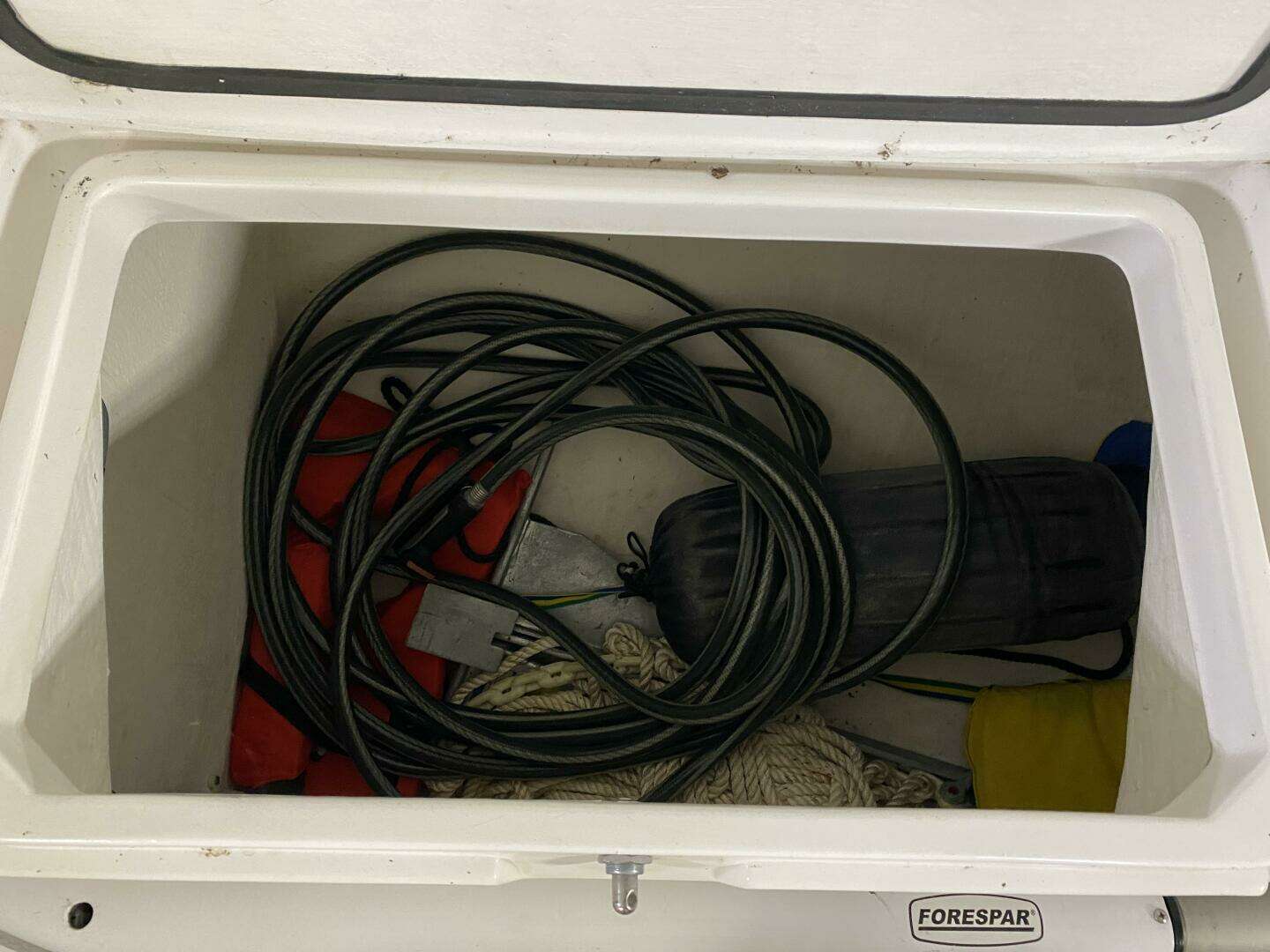

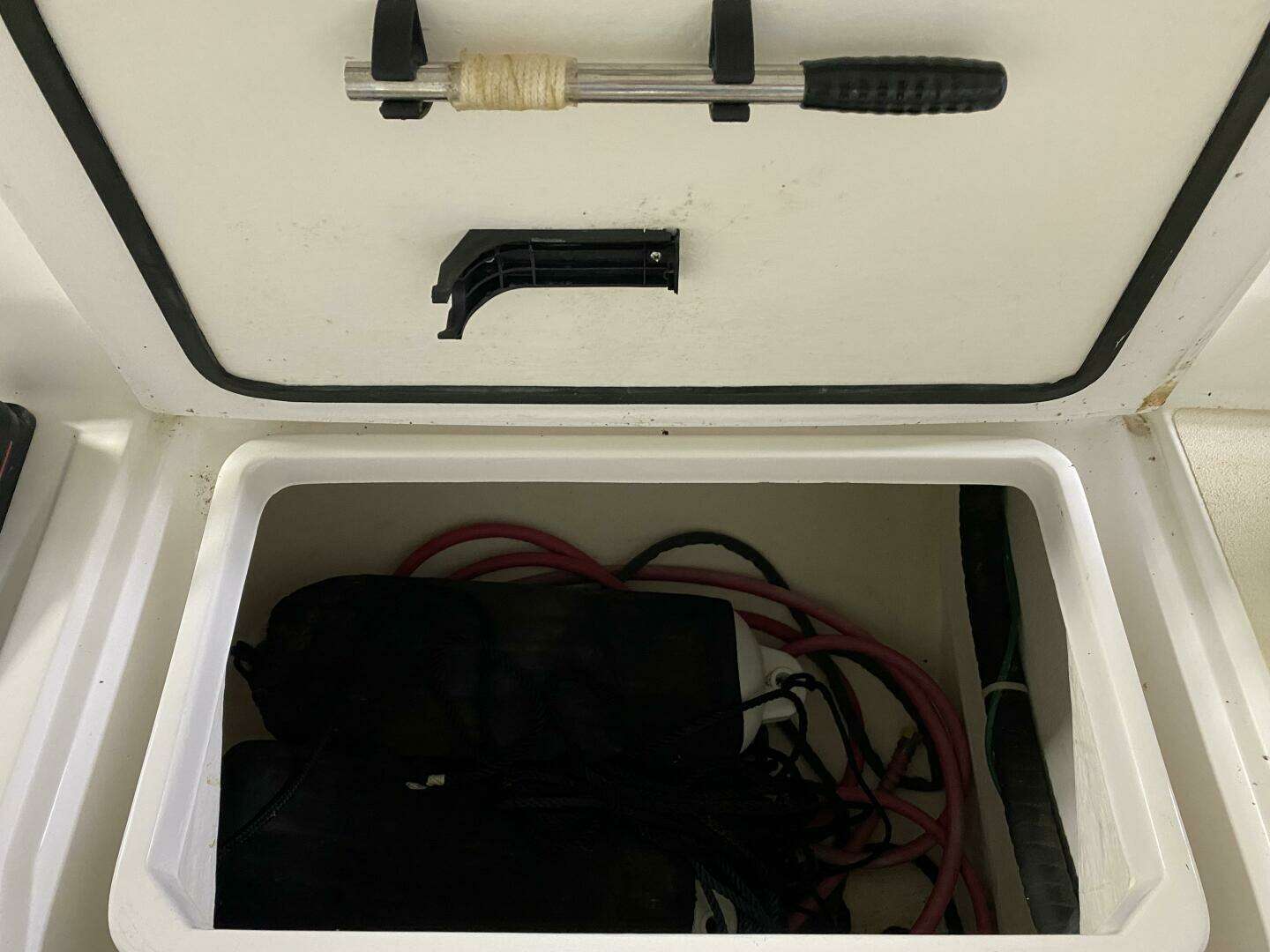

• Two cockpit seat storage lockers.
• One lazarette storage locker.

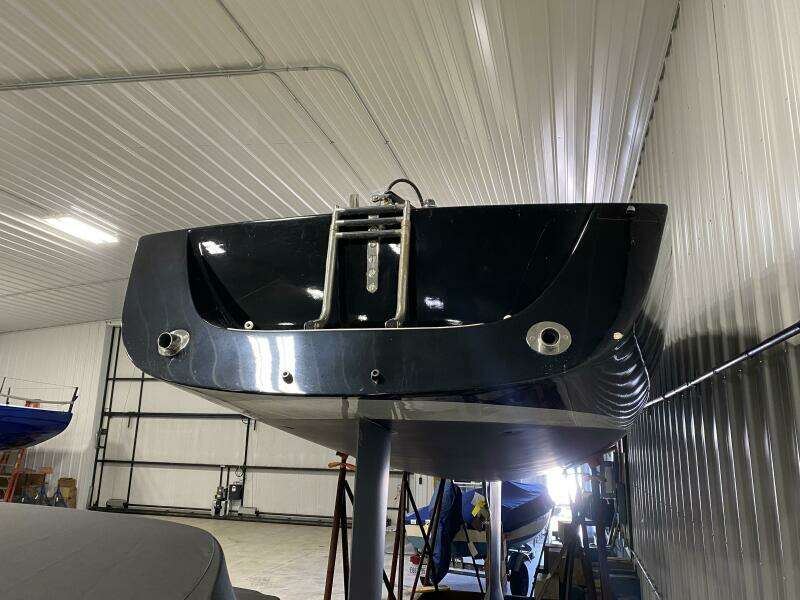

• Swimming and boarding platform sculpted into aft face of full height transom with integral safety ladder.

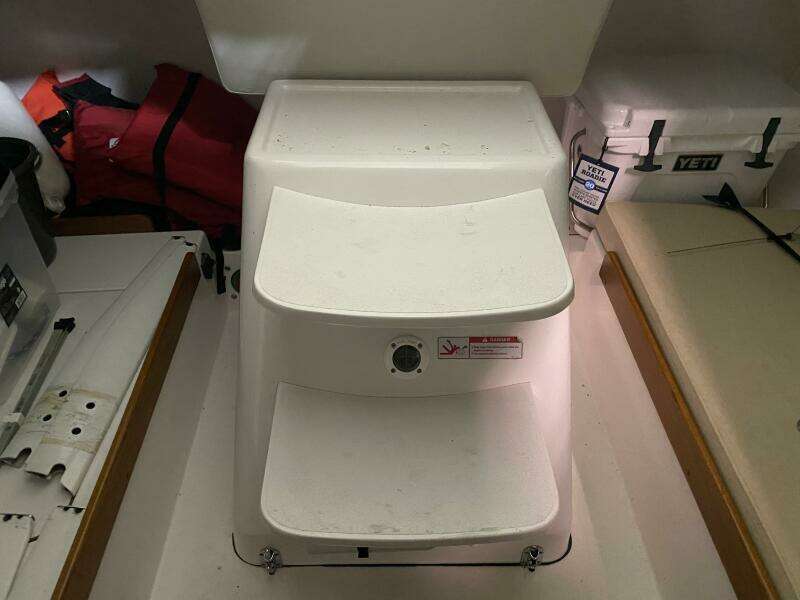

• Molded companionway seahood with instrument pod.
• Varnished, full length teak toe rails.
• Stainless steel handrails on cabin house.
• GRP molded main structural bulkhead, bonded to hull and deck as support for shroud chainplates with single opening to head and forepeak.
• Longitudinal and transverse keel support beams and integral mast step.

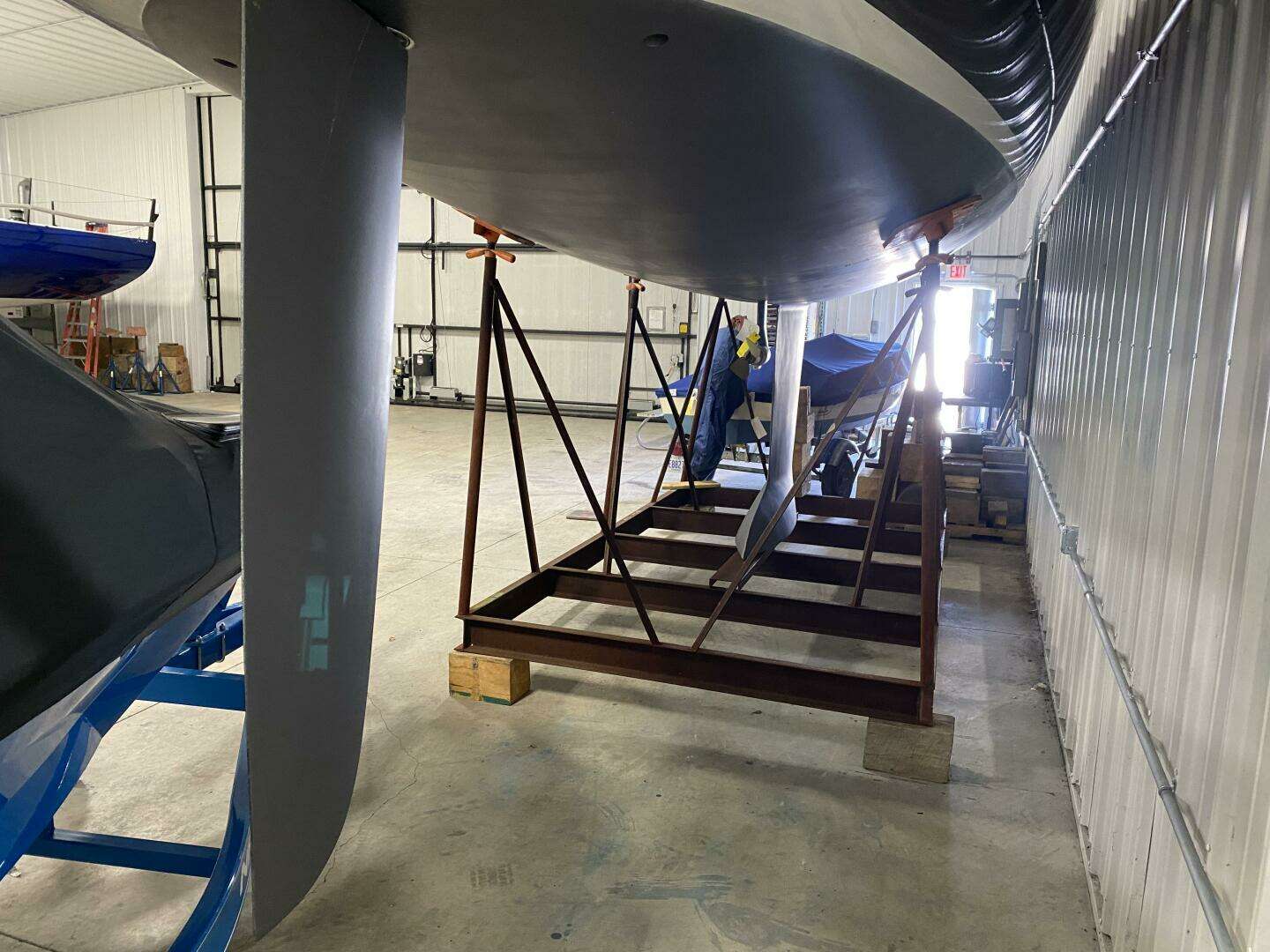

• Lead and antimony fixed 5.75' draft, fin keel with bulb bolted to a deep molded sump.

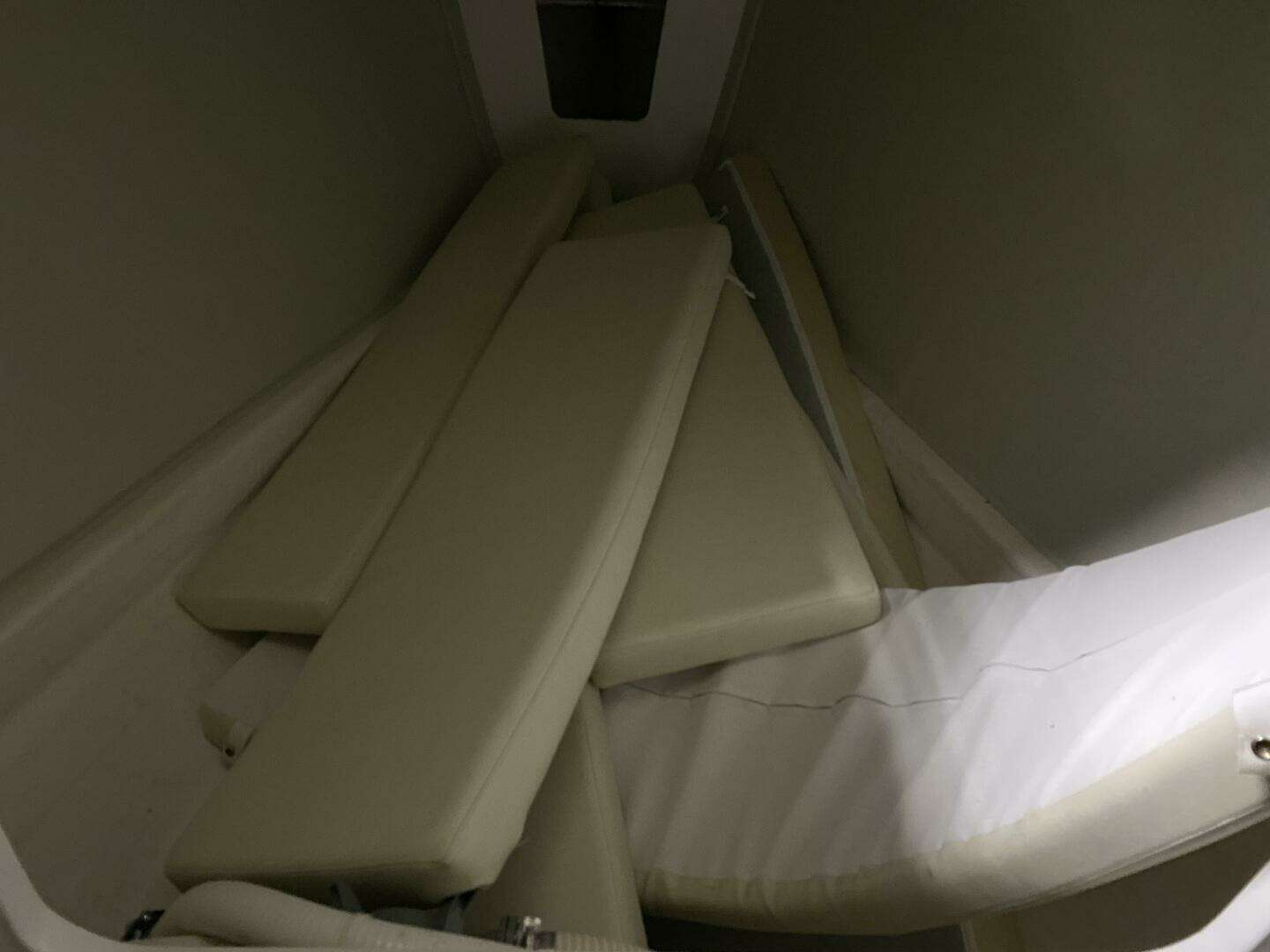

• Cockpit cushions and backrests in White

Mechanical and Steering

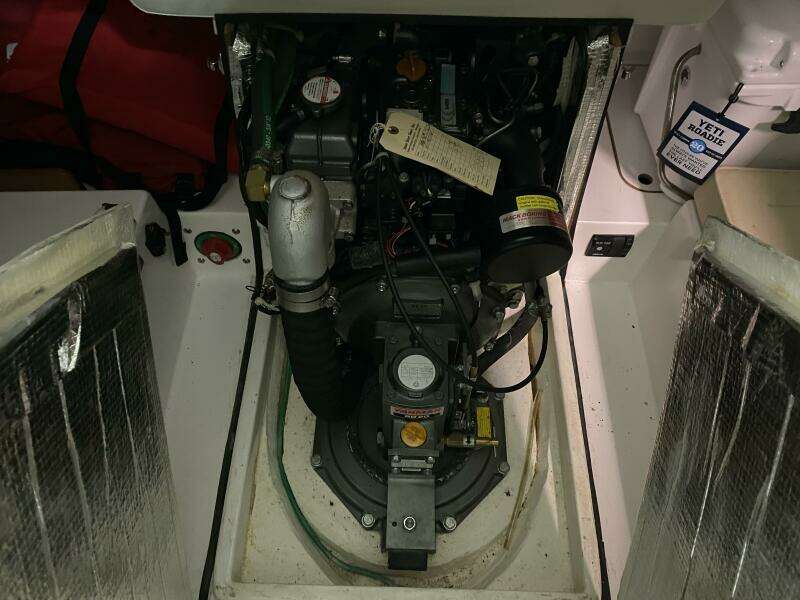

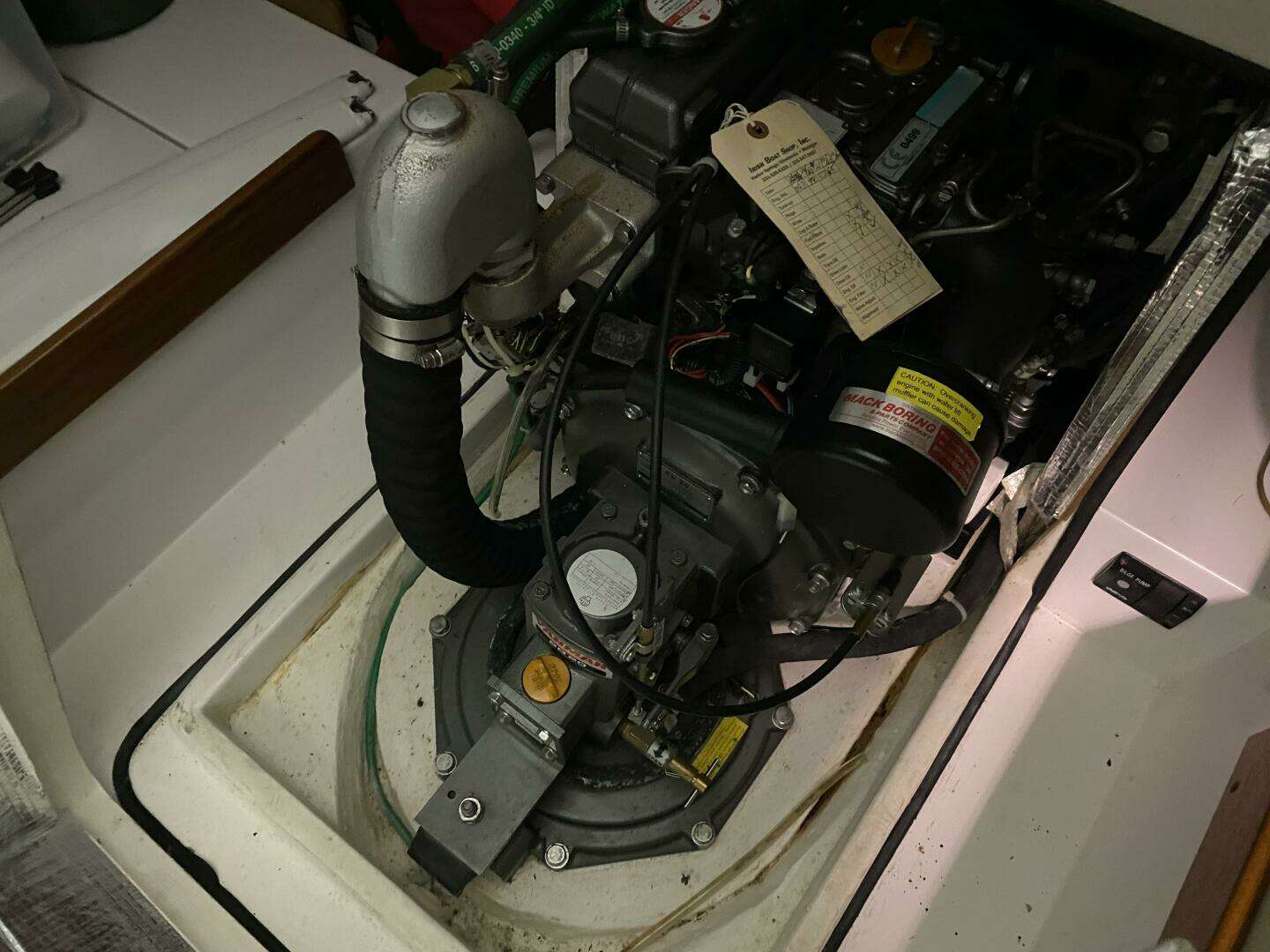

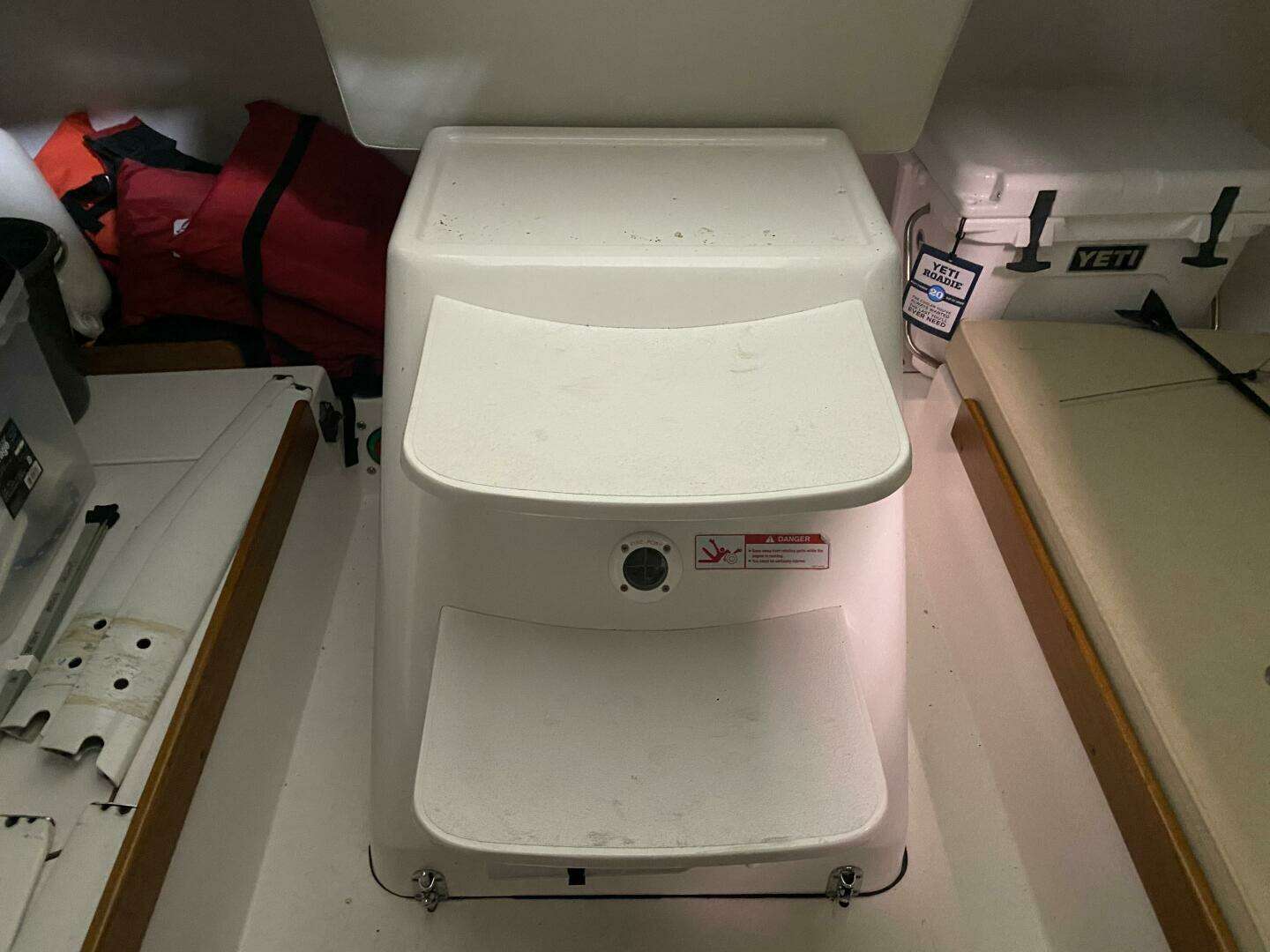

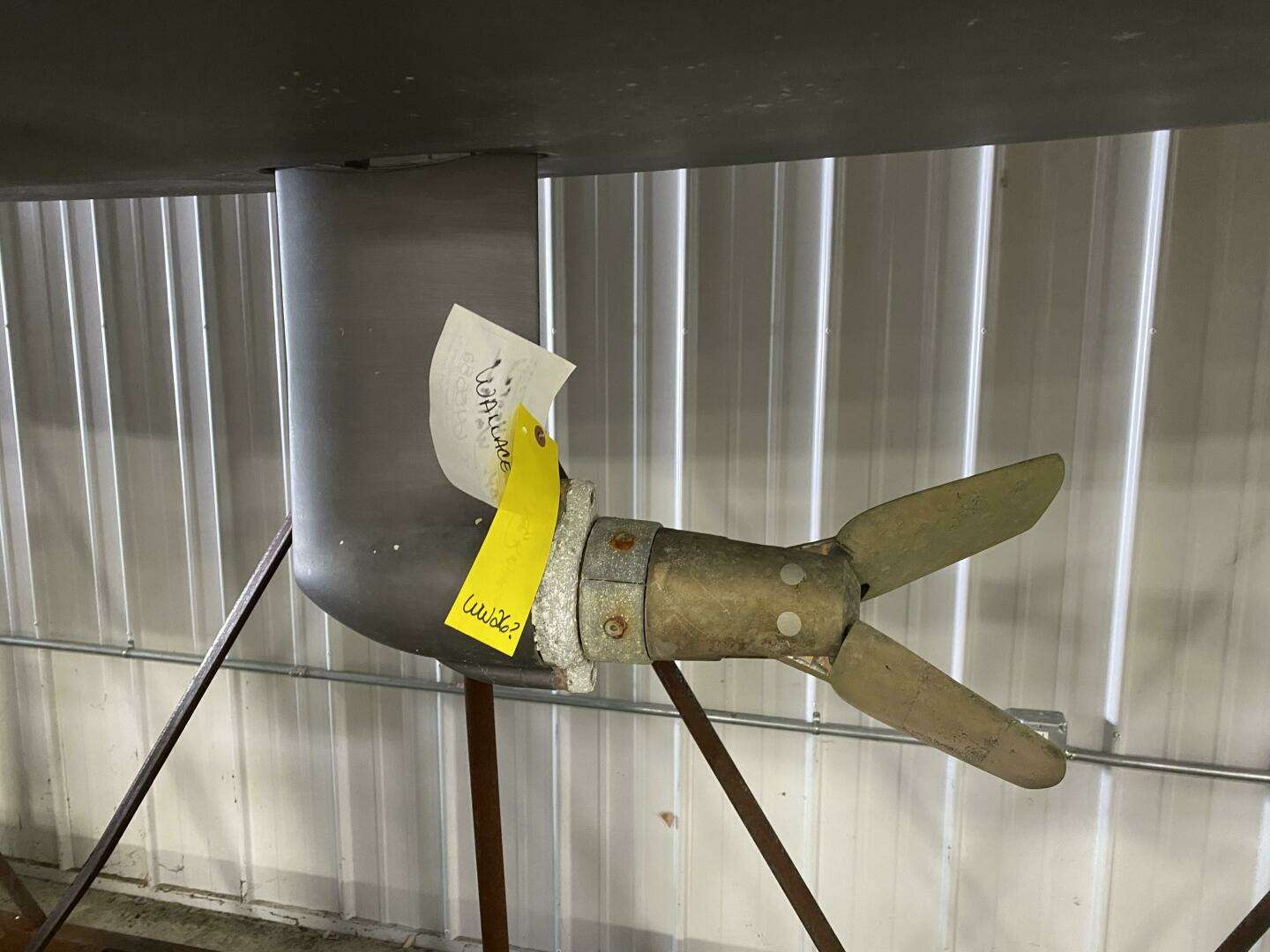

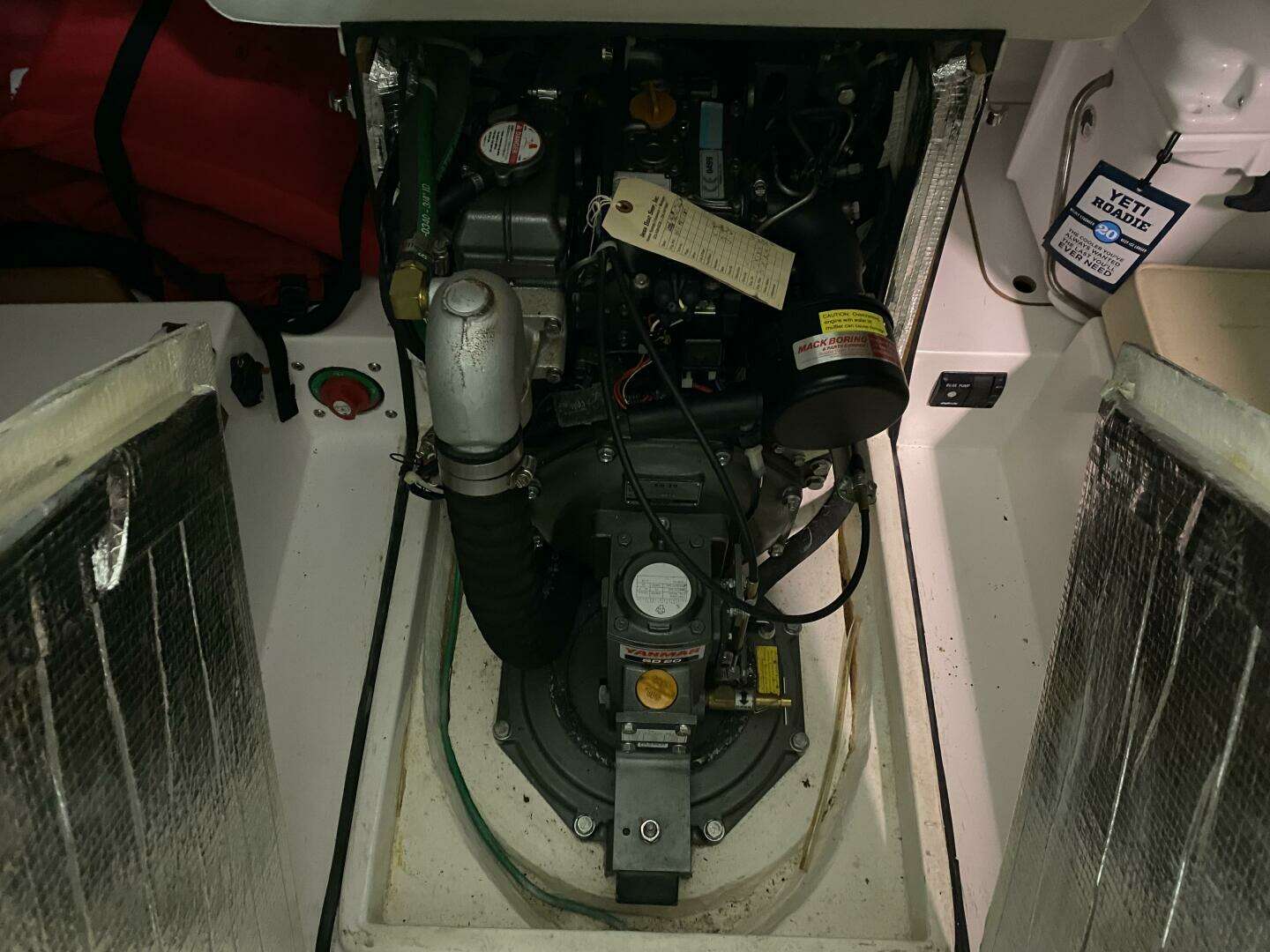

• 2 cylinder Yanmar 14HP diesel saildrive engine with Flex-O-Fold geared folding prop.

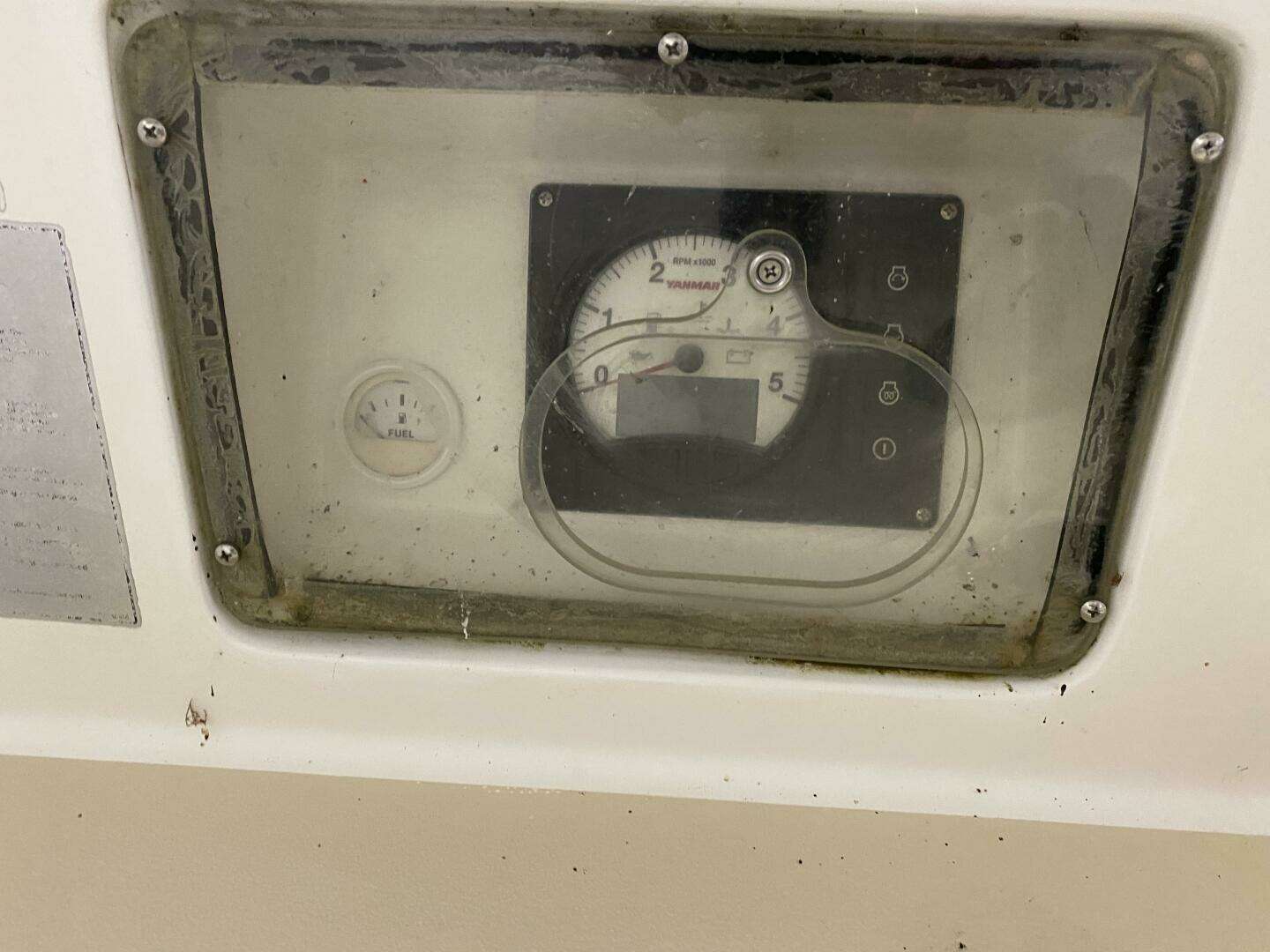

• Engine instrument panel with tachometer, engine hour gauge and water, oil pressure alarms in cockpit with acrylic cover.

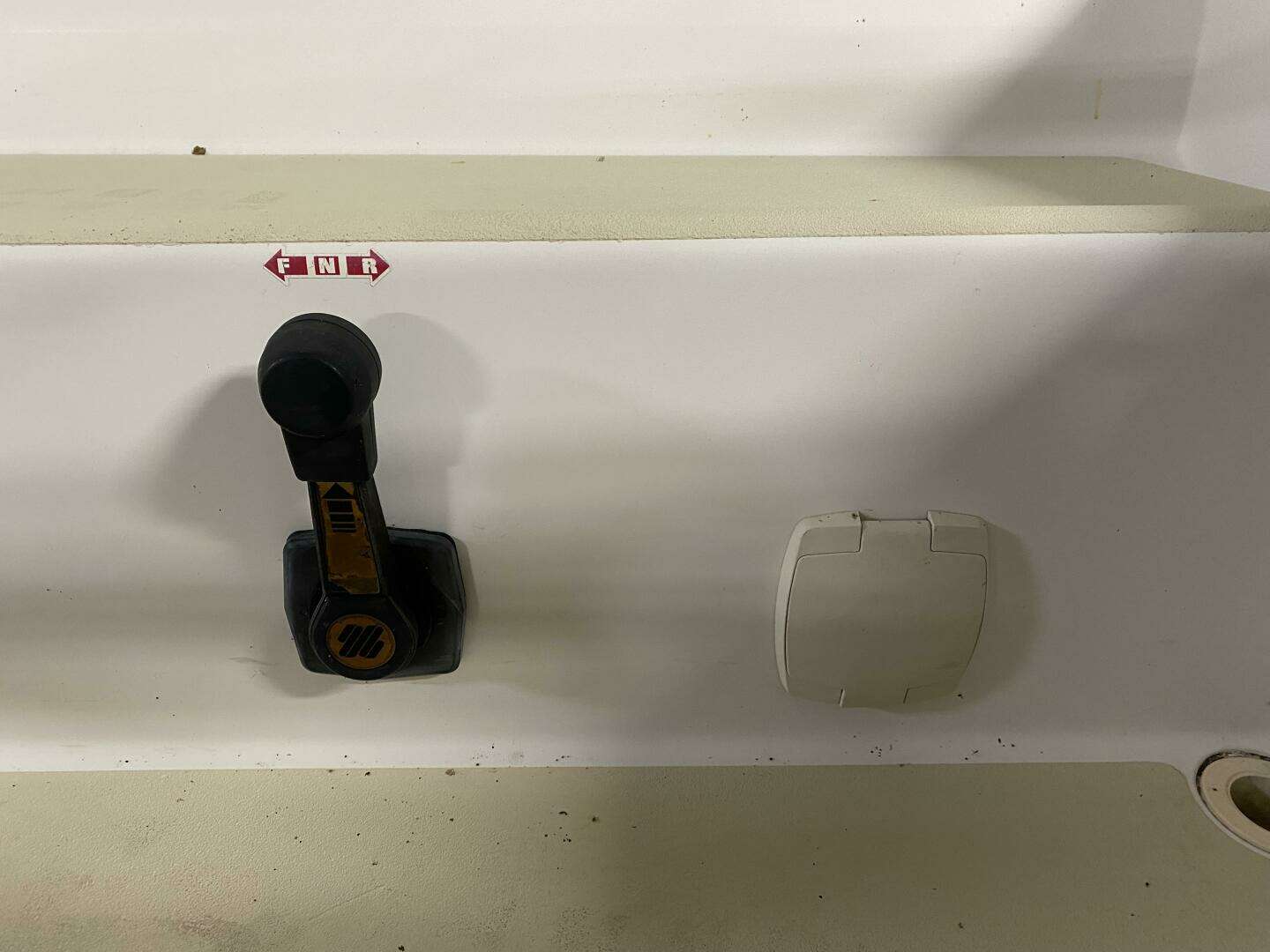

• Engine throttle control with neutral safety switch.
• 10-gallon fuel tank with baffles and inspection/clean out port.

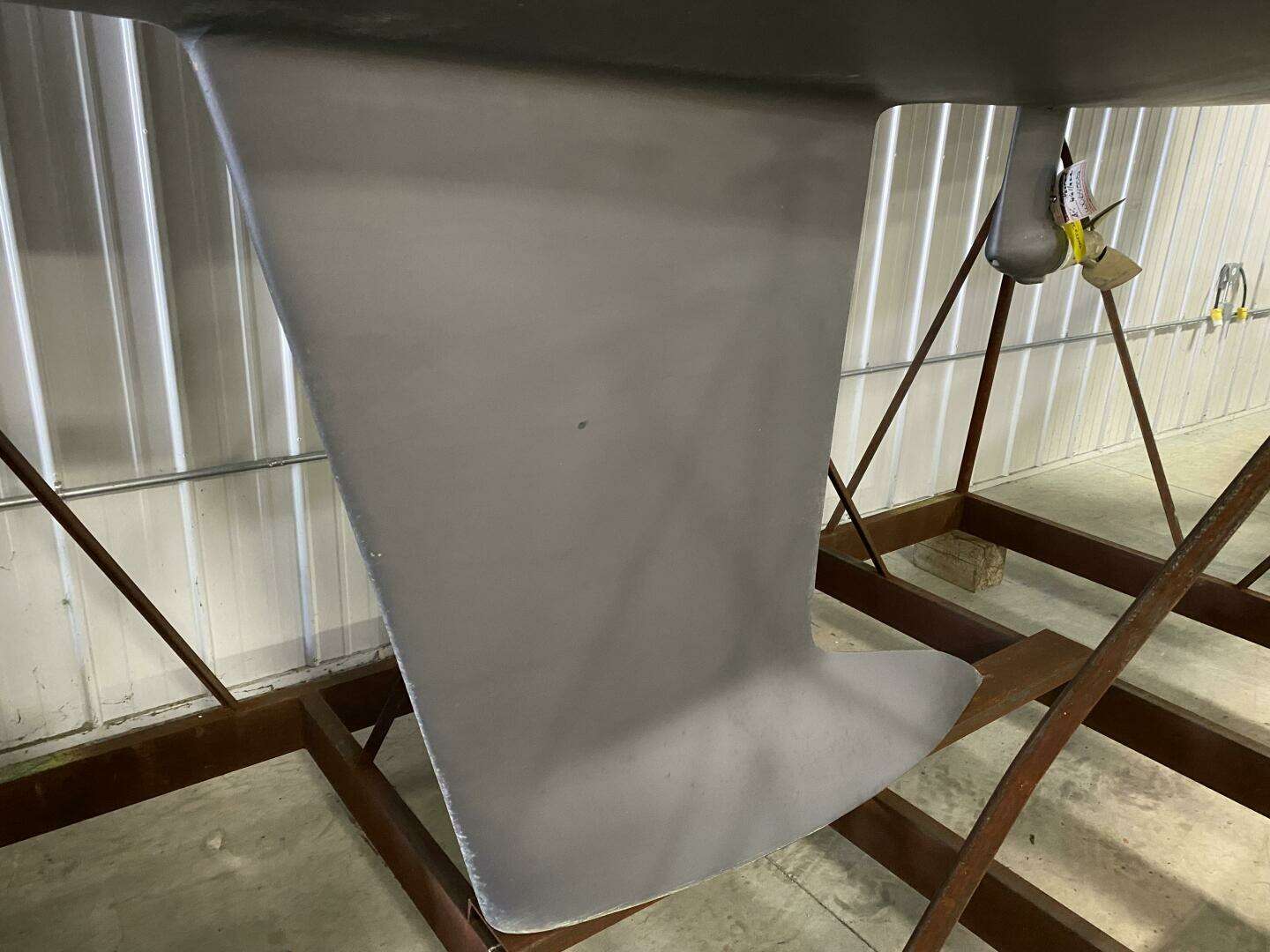

• Balanced hi-aspect spade rudder constructed using "E" glass with stainless rudder post and self-aligning Jefa rudder bearings.
• Curved laminated wood tiller with Spinlock tiller extension.

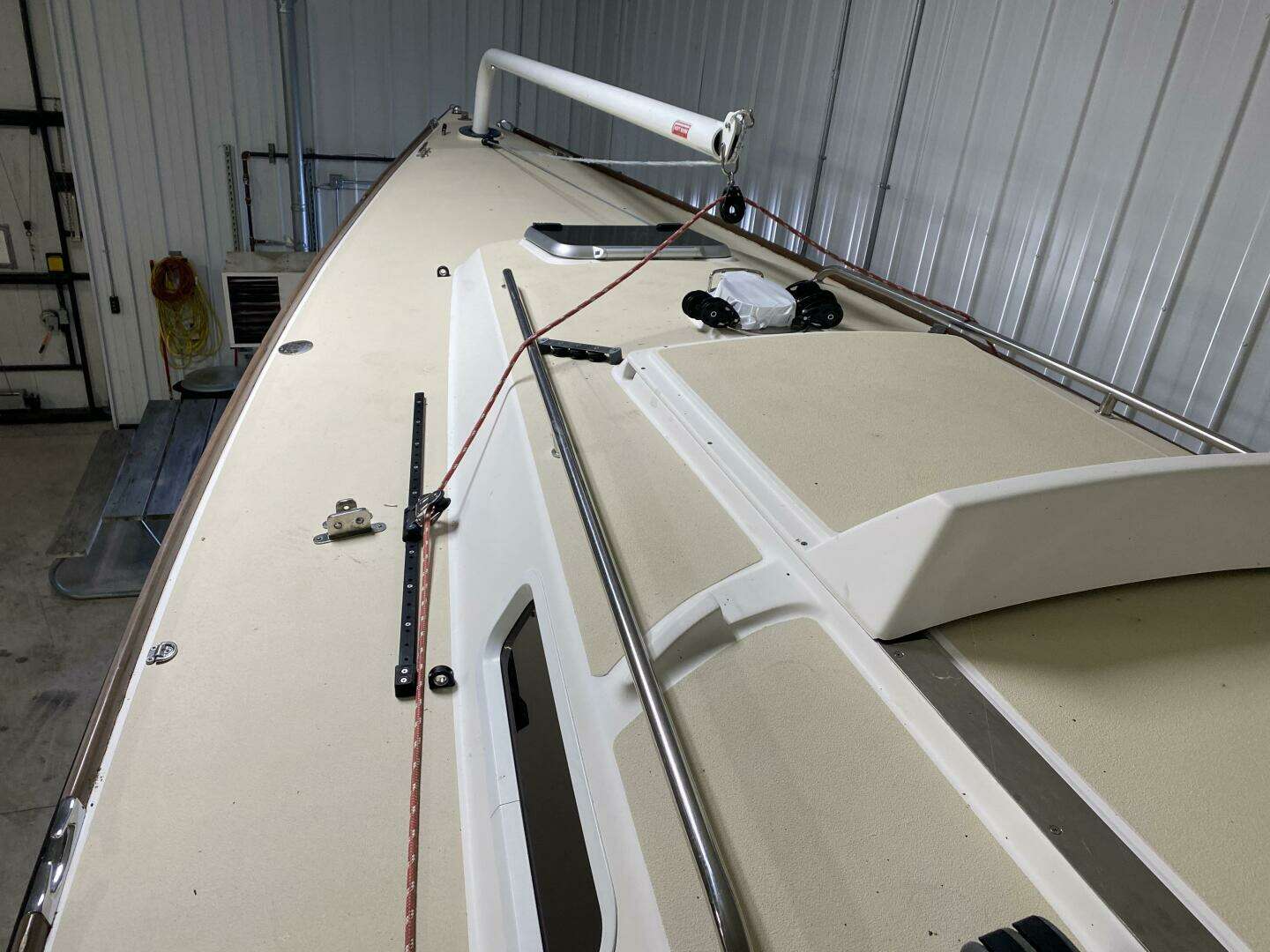

Deck Hardware

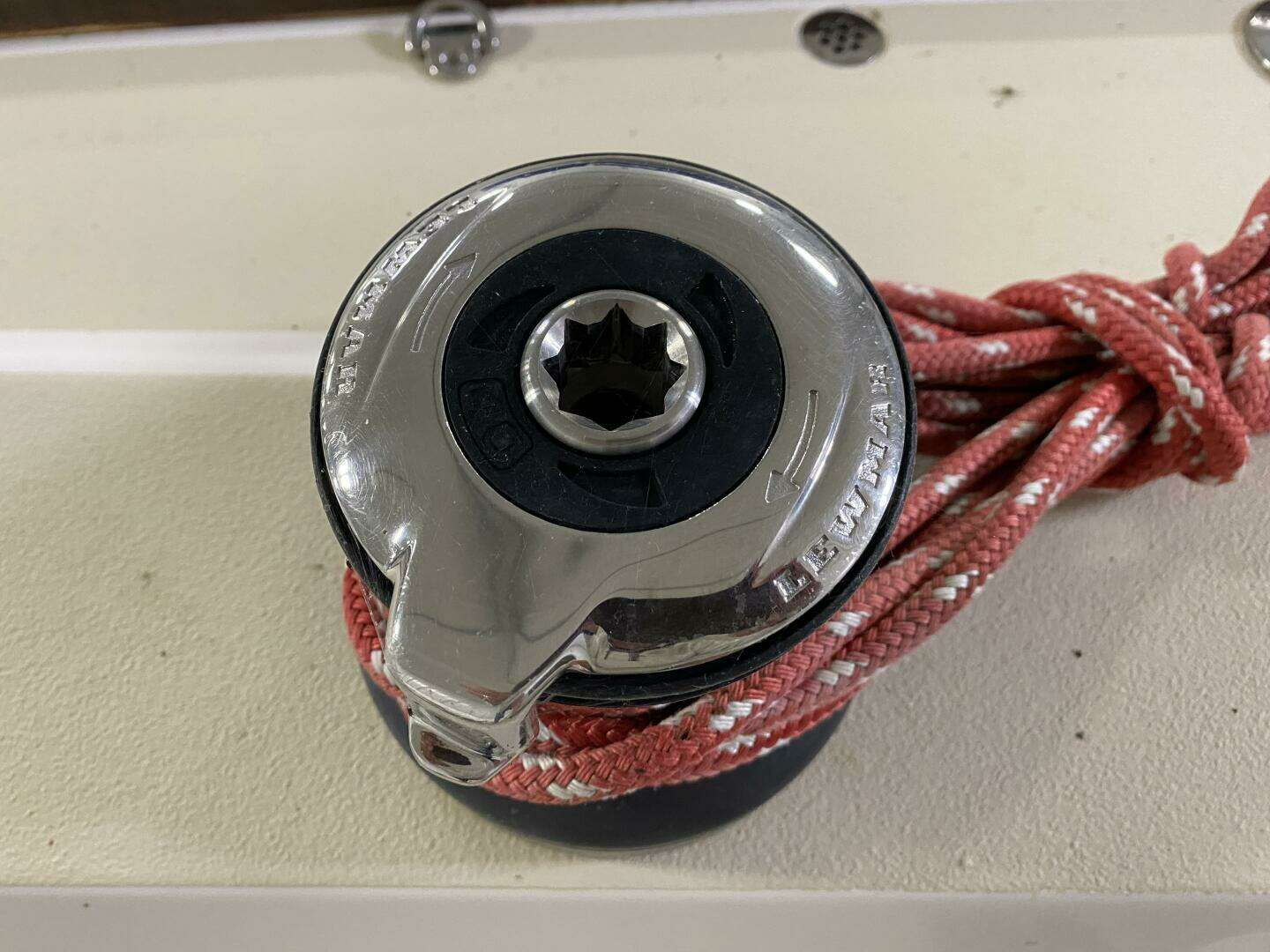

• Two Lewmar 40 2 speed self-tailing primary winches mounted on cockpit coaming.

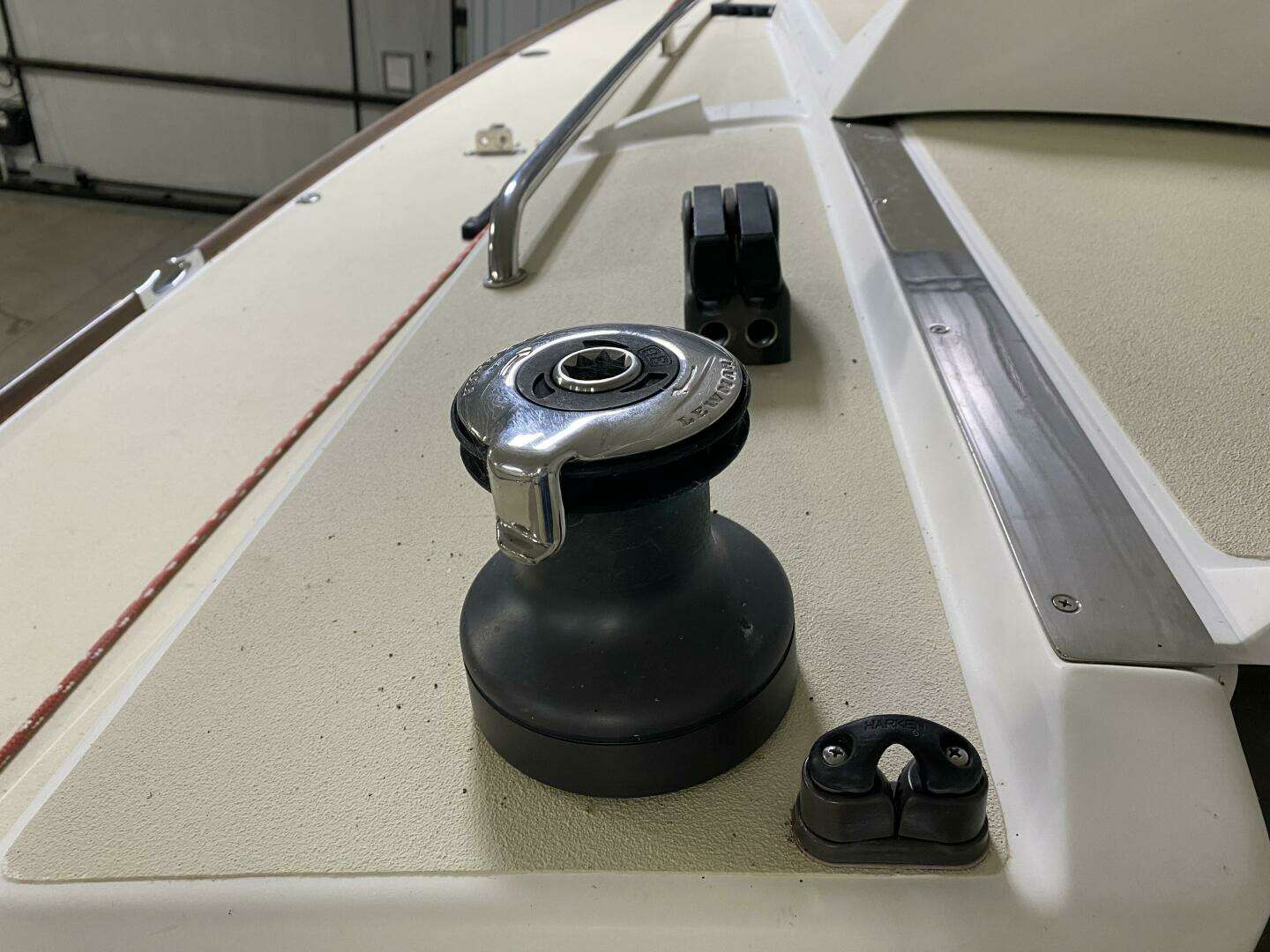

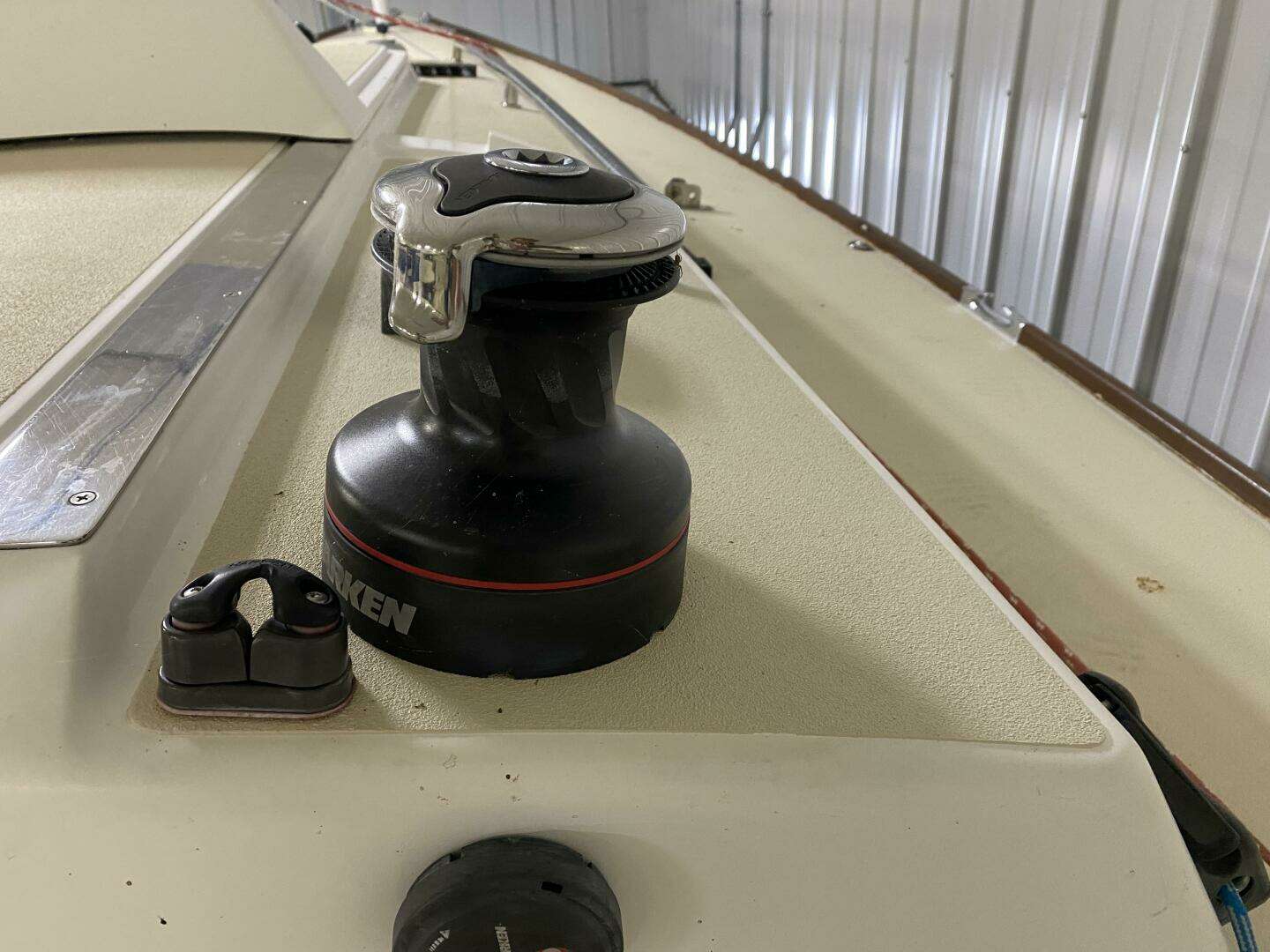

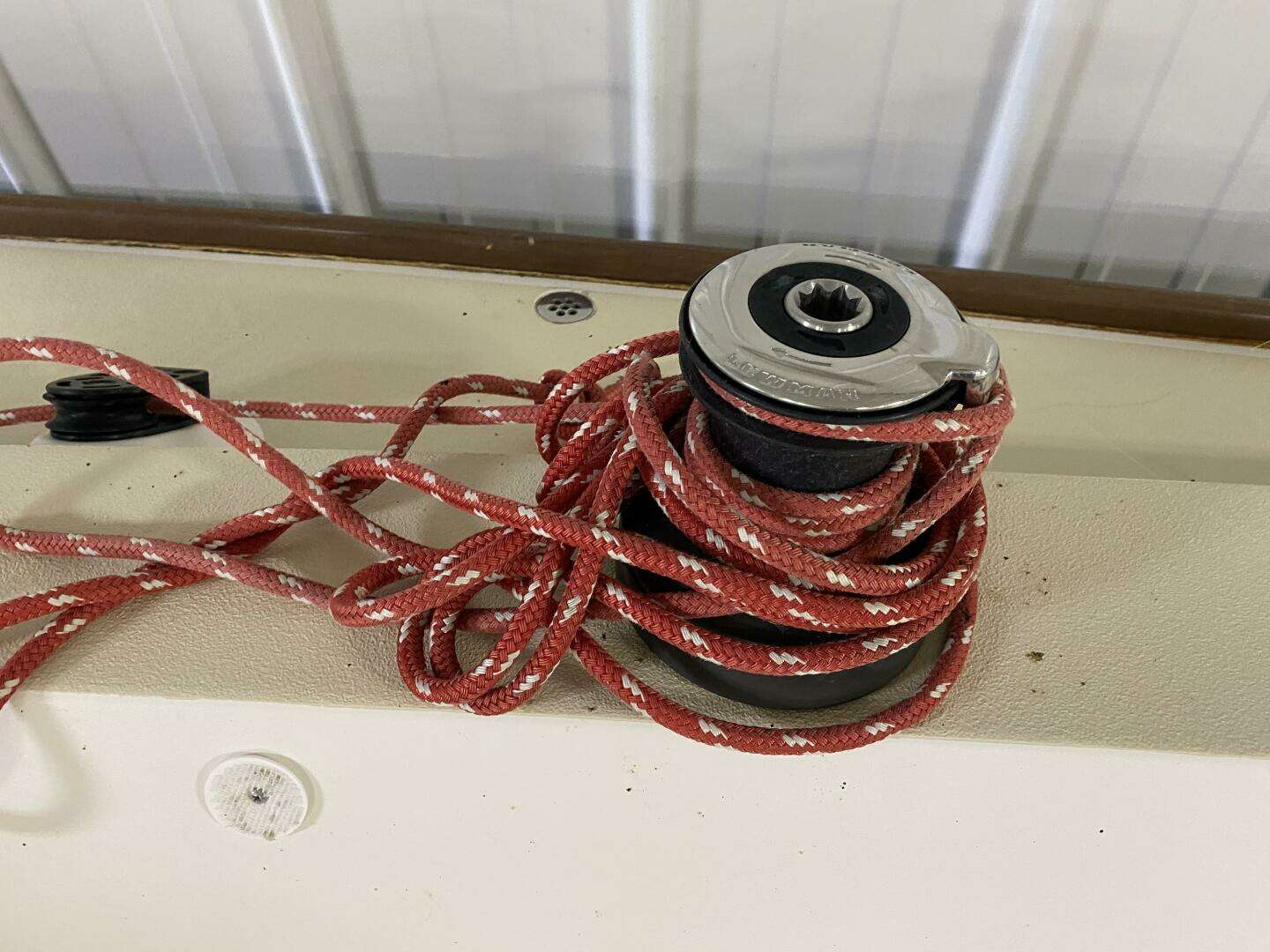

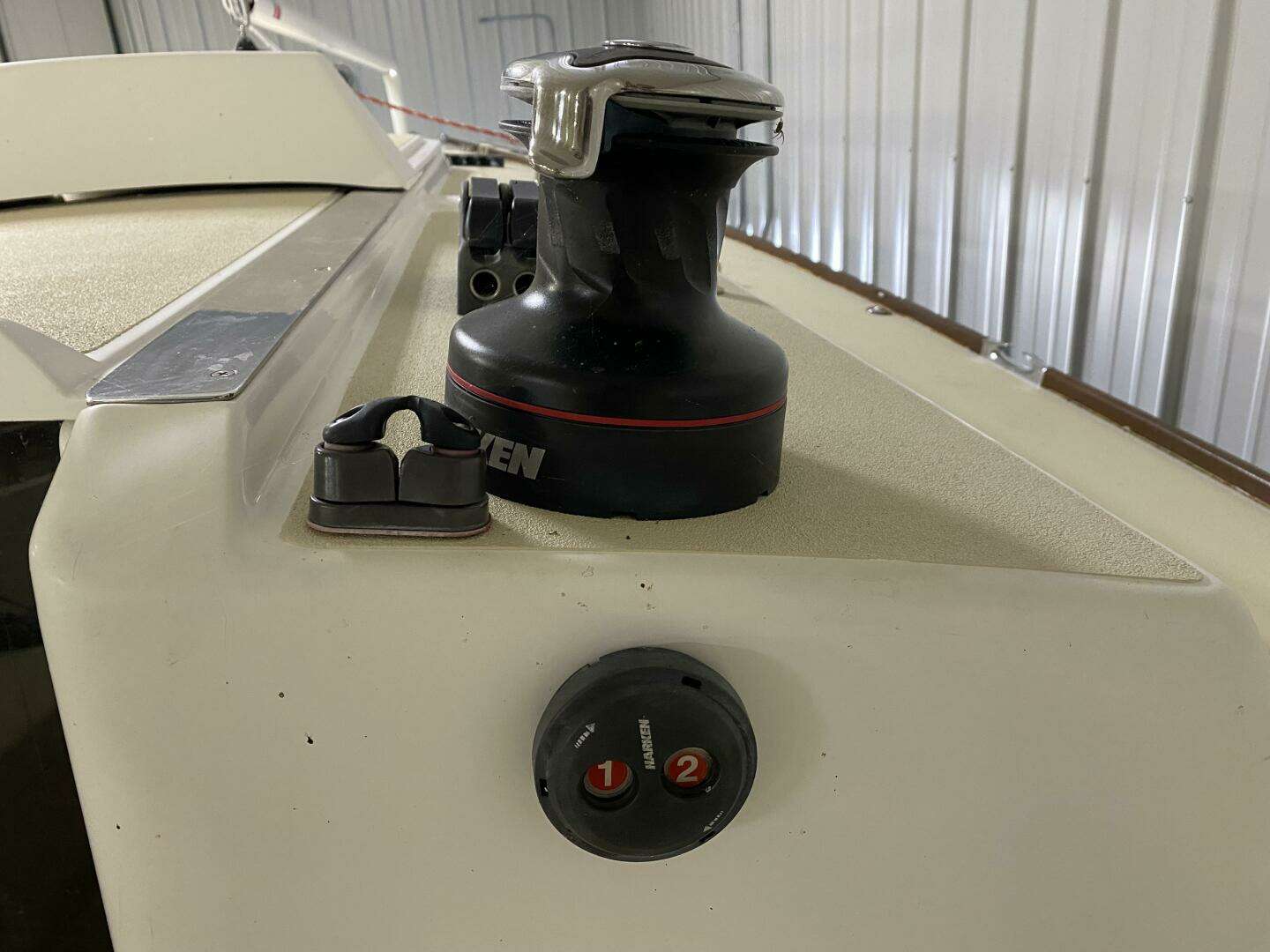

• Two Harken 35.2STA Radial 2 speed self-tailing winches mounted on cabin trunk.
• Spinlock triple sheave deck organizers (Port and Starboard).
• Two lock-in winch handles.
• Two PVC winch handle holders.
• Custom stainless mast collar.

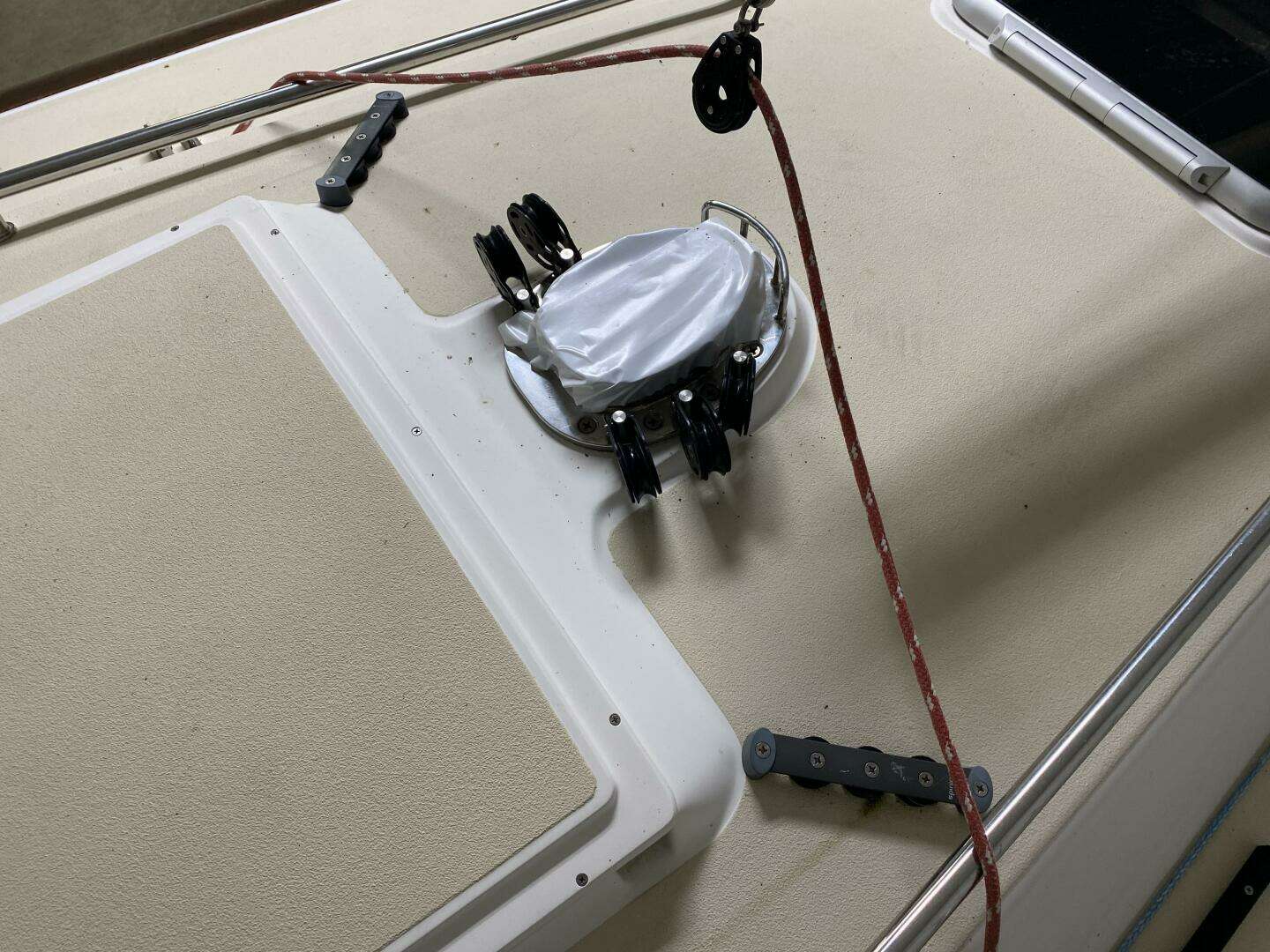

• Harken ESP mast mounted turning blocks
• Two double Spinlock XTS rope clutches on the cabin top.
• One single XTS rope clutch for tack line or jib boom outhaul.
• Two Harken 150 cam cleats on cabin top.
• Two Harken 150 cam cleats mounted near primary winches (for lazy spin sheets).
• Two fixed jib tracks each with plunger style jib cars.
• Harken mainsheet traveler track recessed in cockpit seat with 4:1 Harken "windward-sheeting" traveler control system.
• 6:1/24:1 Harken rough tune/fine tune mainsheet system leading to aluminum bracket on centerline fore and aft of traveler.

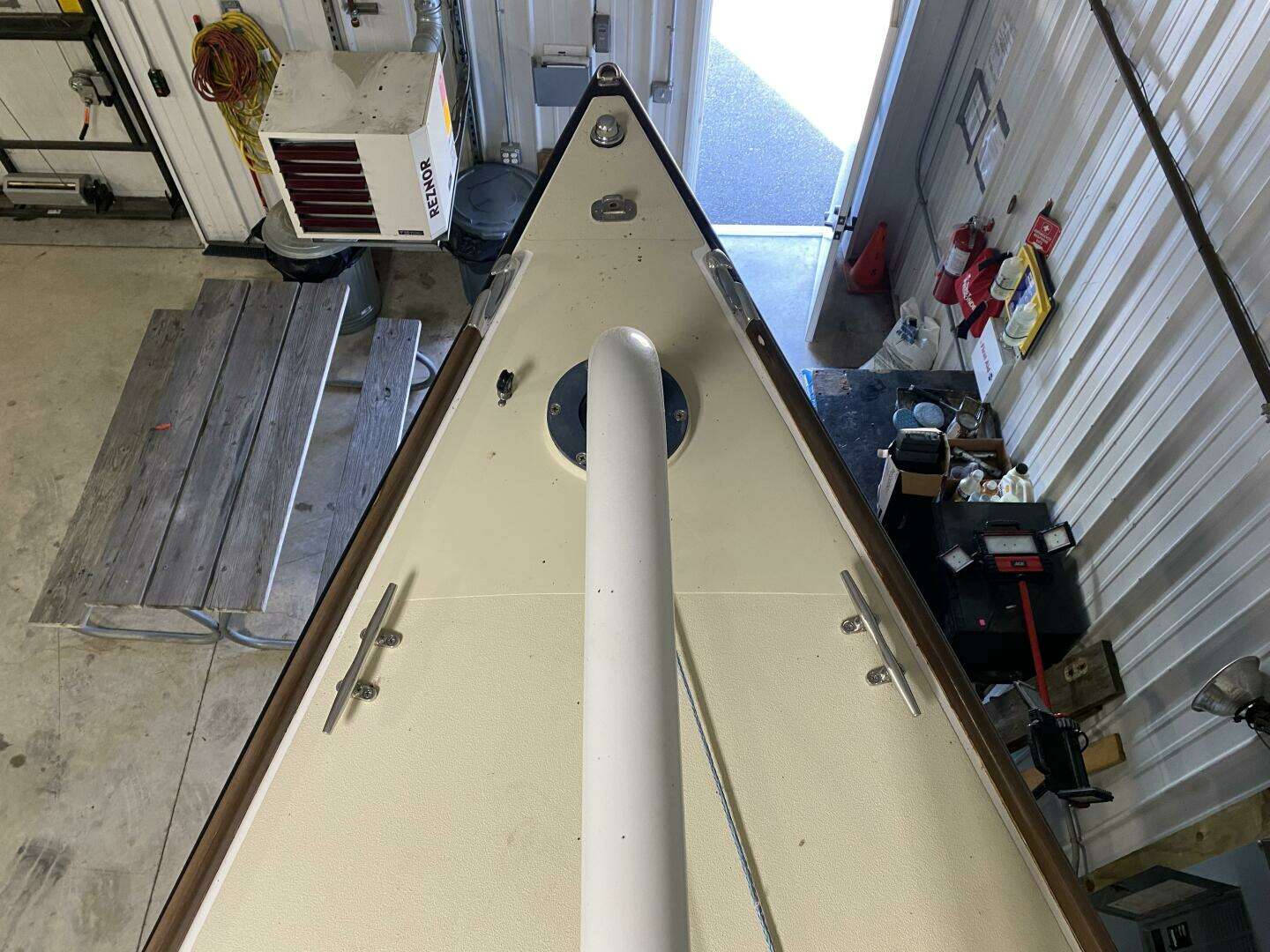

• Four SS mooring cleats (2 fwd, 2 aft).

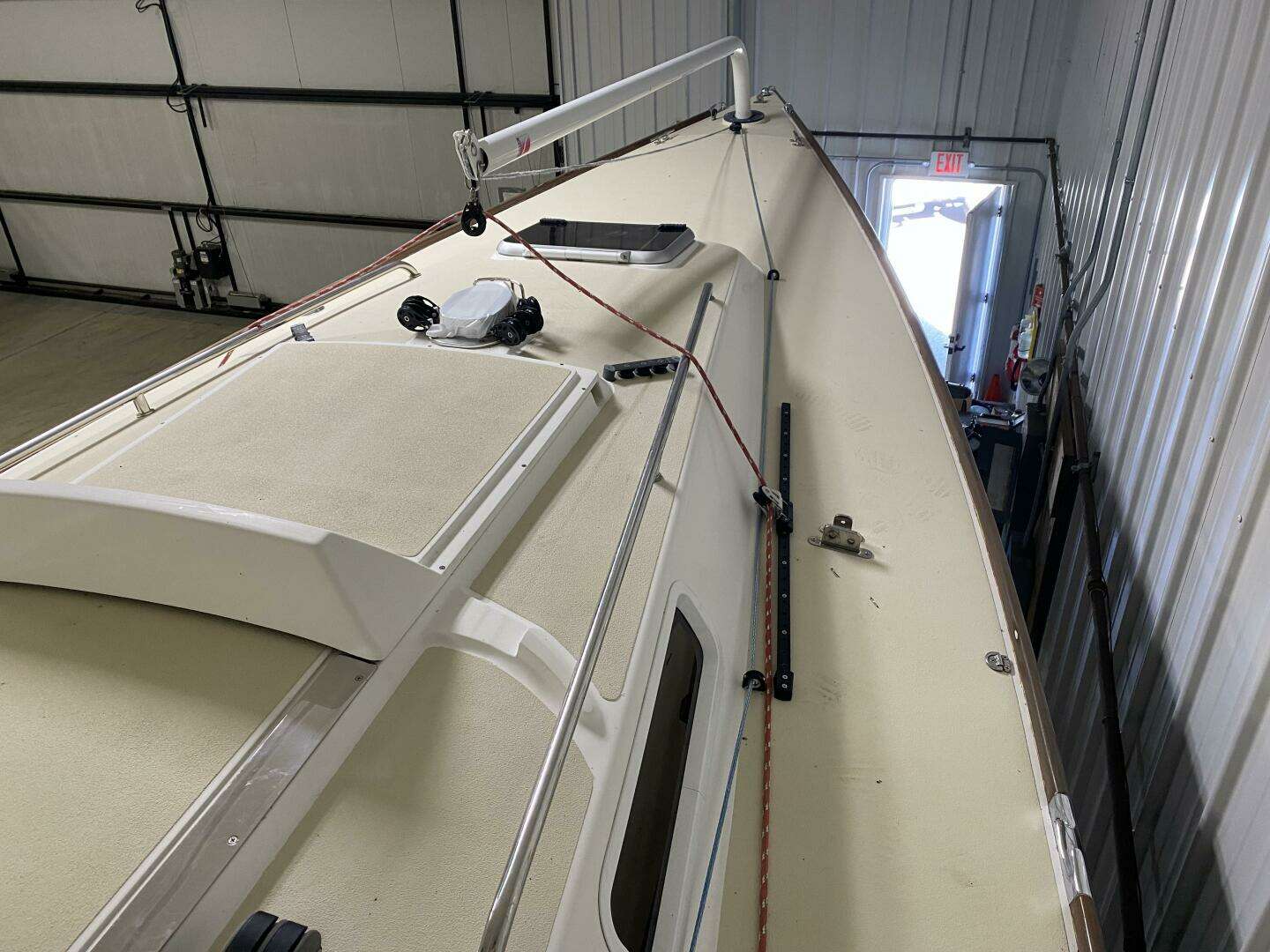

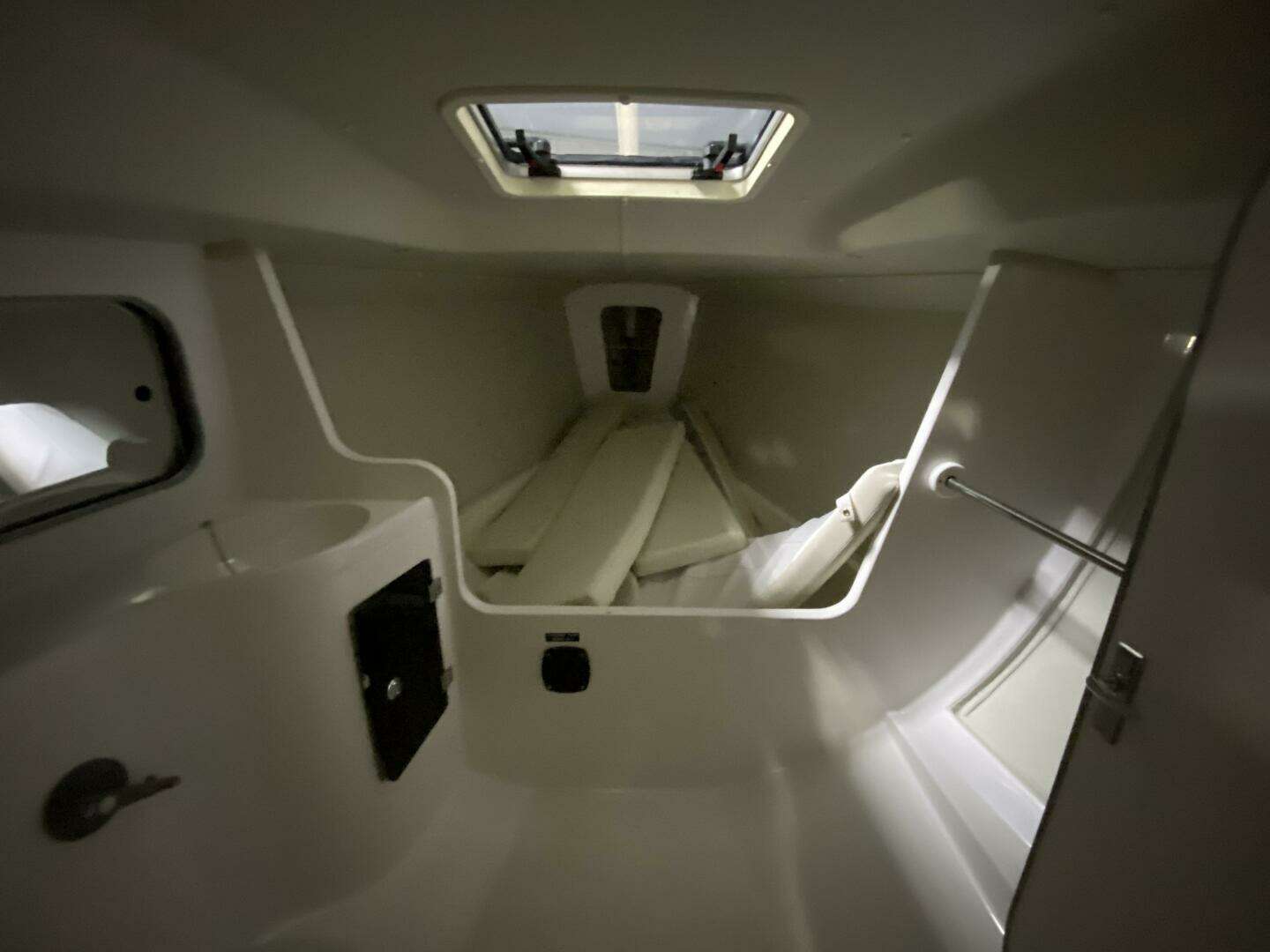

• Scandvik foredeck ventilation hatch.
• Two Gebo fixed ports in sides of cabin trunk.
• Molded companionway sliding hatch and acrylic offshore dropboard with inside/outside opening hasp
• Cockpit operated Henderson bilge pump.
• Custom SS chainplates, stemhead and backstay tang.
• Five (5) folding padeyes: one for spinnaker tack attachment on bow, and four attachment points for spinnaker blocks.

Electrical

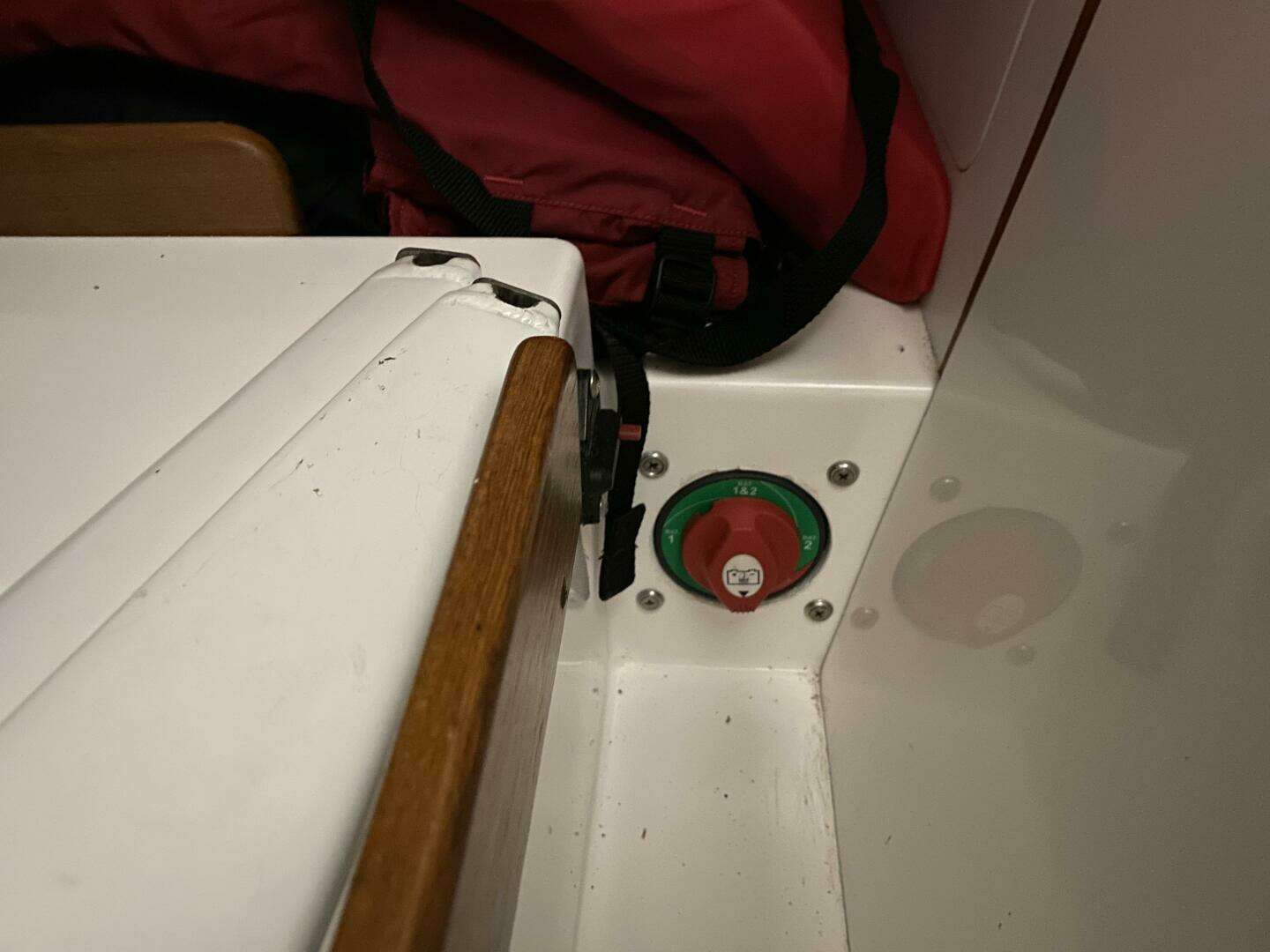

• Dual batteries with 12V DC battery switch.

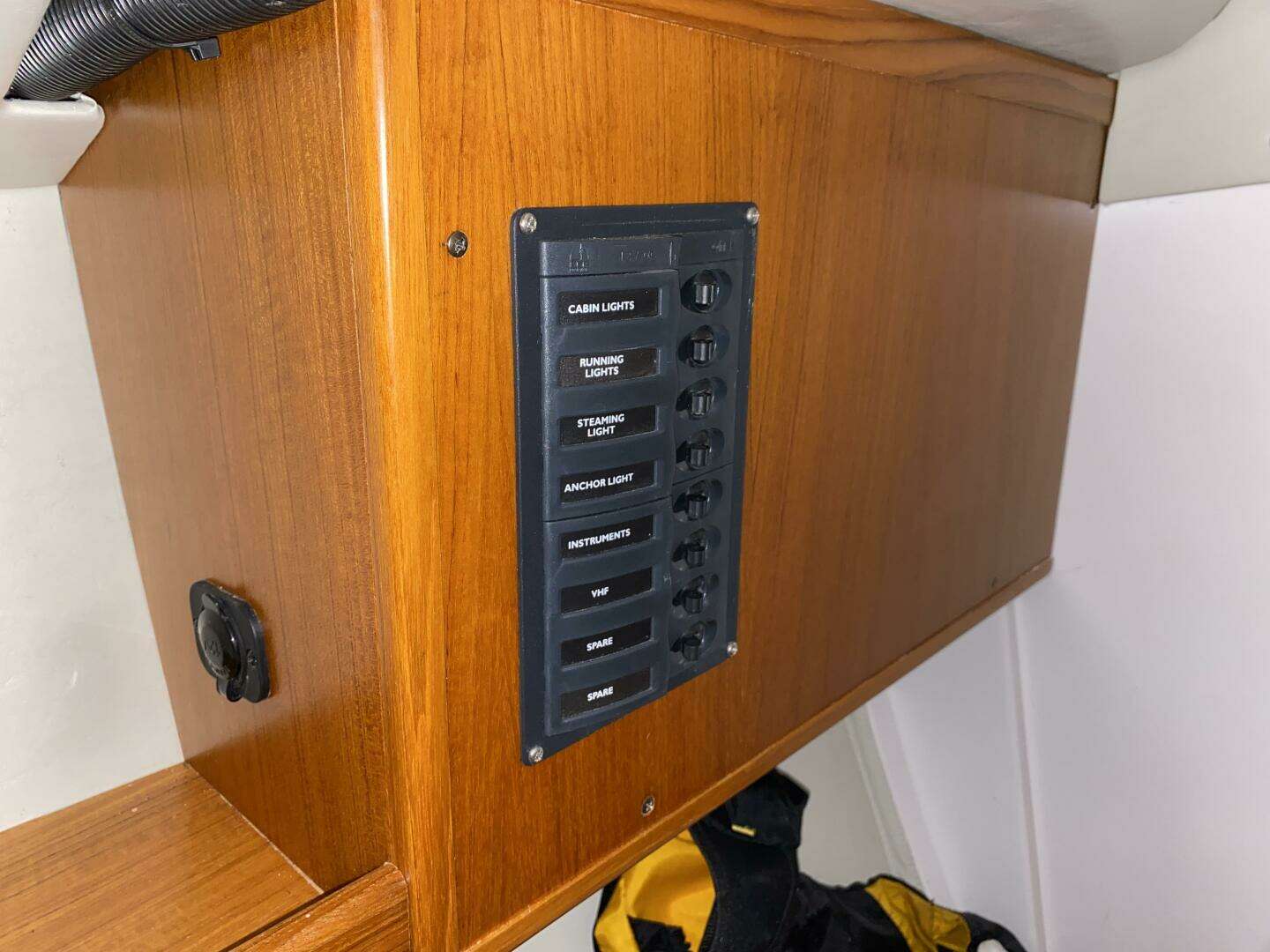

• 12V DC electrical distribution panel w/ 8 circuit breakers.
• Navigation and steaming lights.
• UL approved stranded, tinned copper ABYC color-coded wiring.
• Bonding system to meet ABYC regulations.
• Two swiveling halogen reading lights.
• One dome light in main cabin.
• One fluorescent light in head.

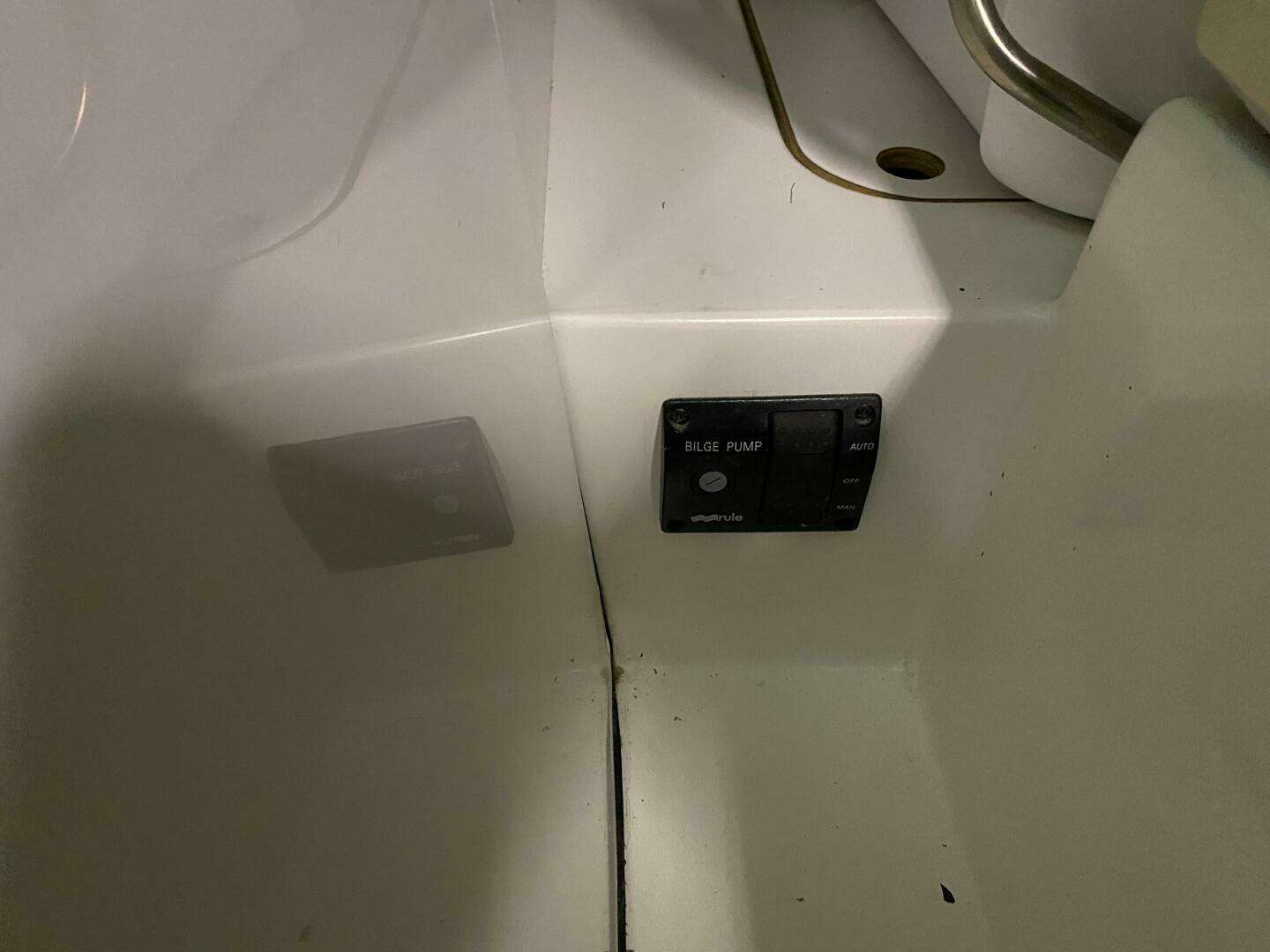

• Automatic electric bilge pump and panel switch for manual operation.

Spar and Rigging

• Tapered carbon fiber mast with double airfoil aluminum spreaders, main, jib, spin halyard and topping lift sheaves, spin/whisker pole track with sliding eye on front of mast, mast finished in Awlgrip off-white.
• G10 fiberglass mast step with fore/aft adjustment slots and SS padeye for through bolt securing of mast to step.
• Mast wedge kit.
• Aluminum Leisure Furl boom finished in Awlgrip off-white.
• Continuous rod rigging with turnbuckles.
• Running rigging with main halyard, jib halyard, spinnaker halyard, two jib sheets, main sheet, and traveler control lines.

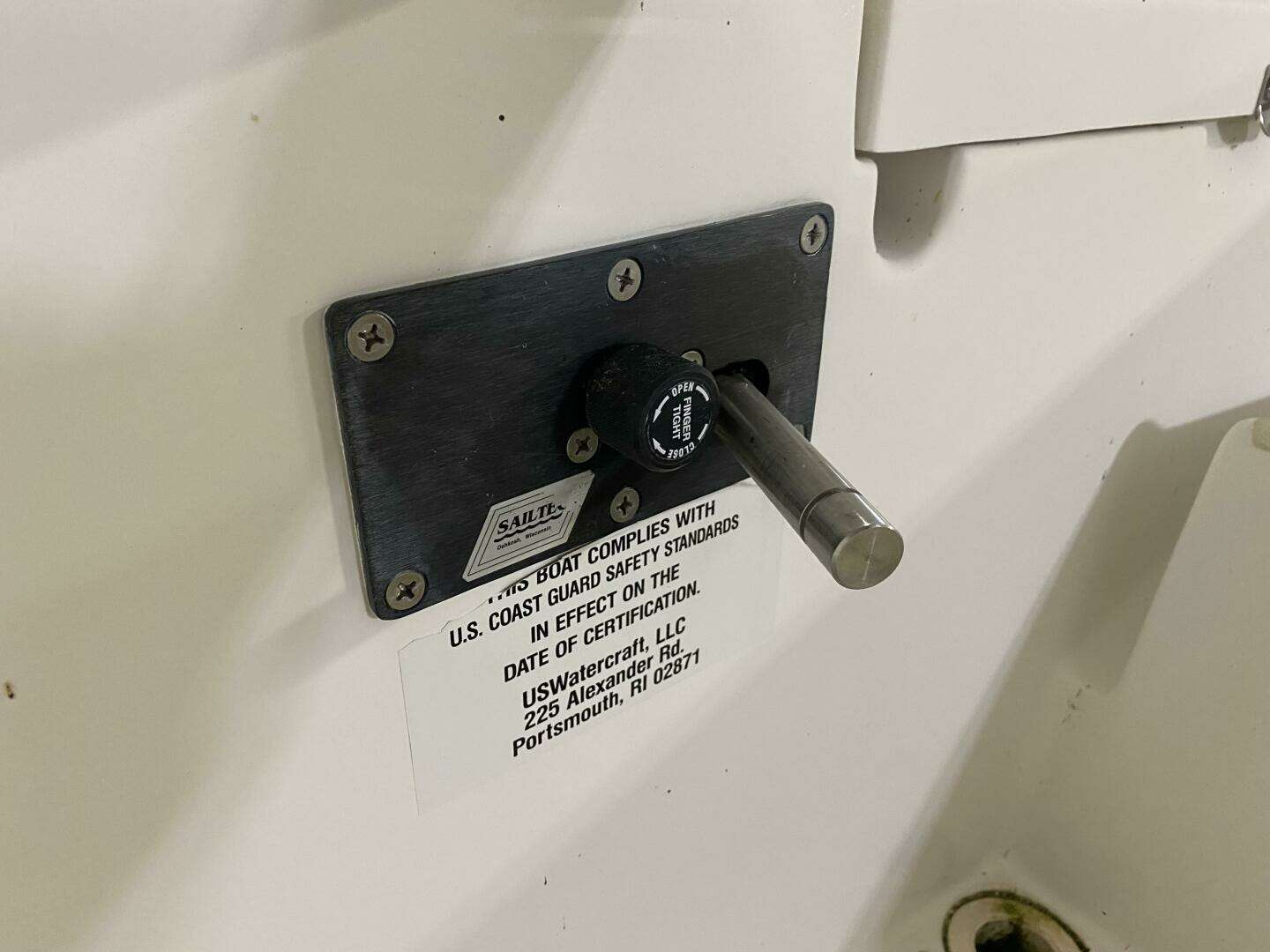

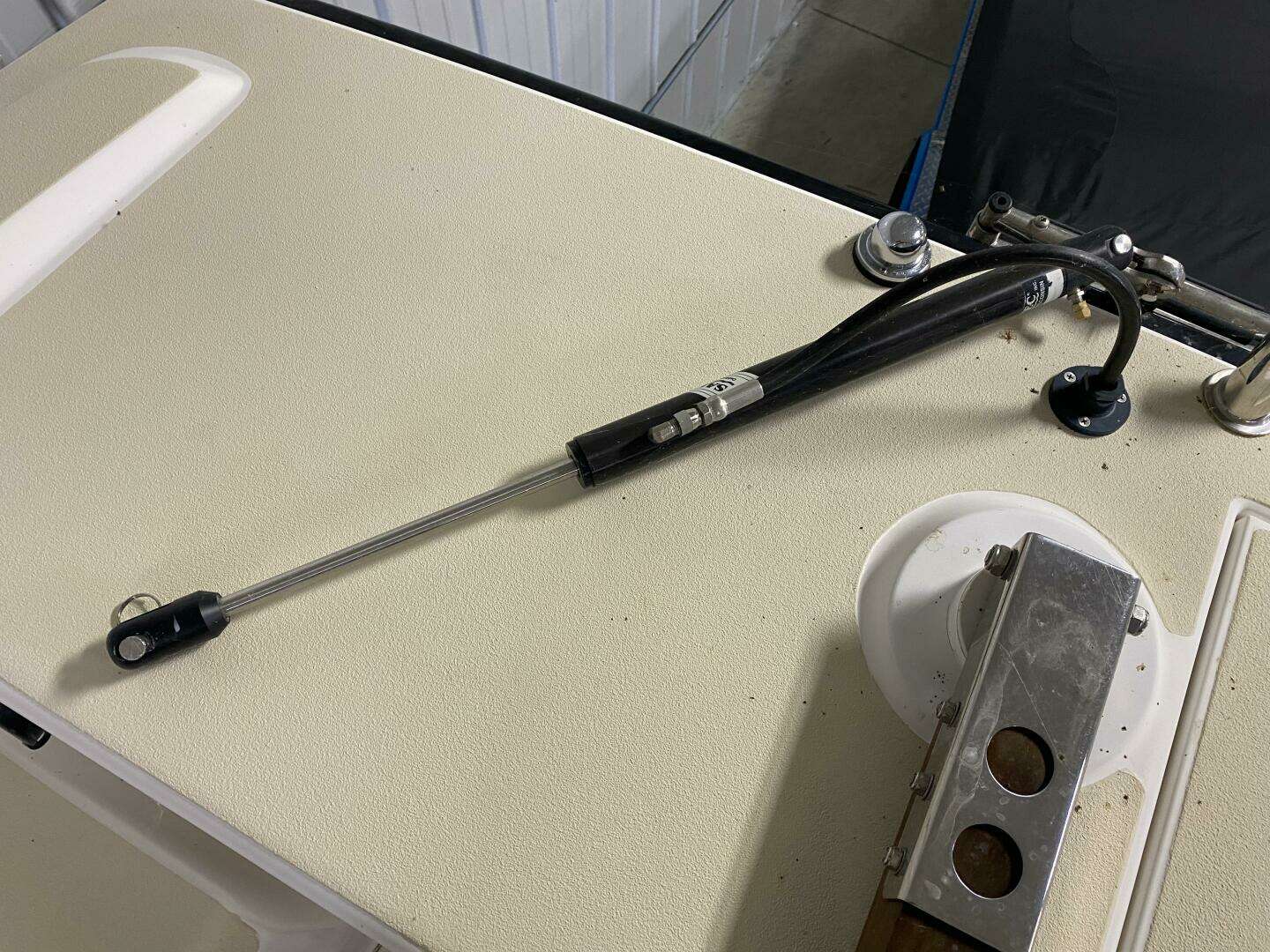

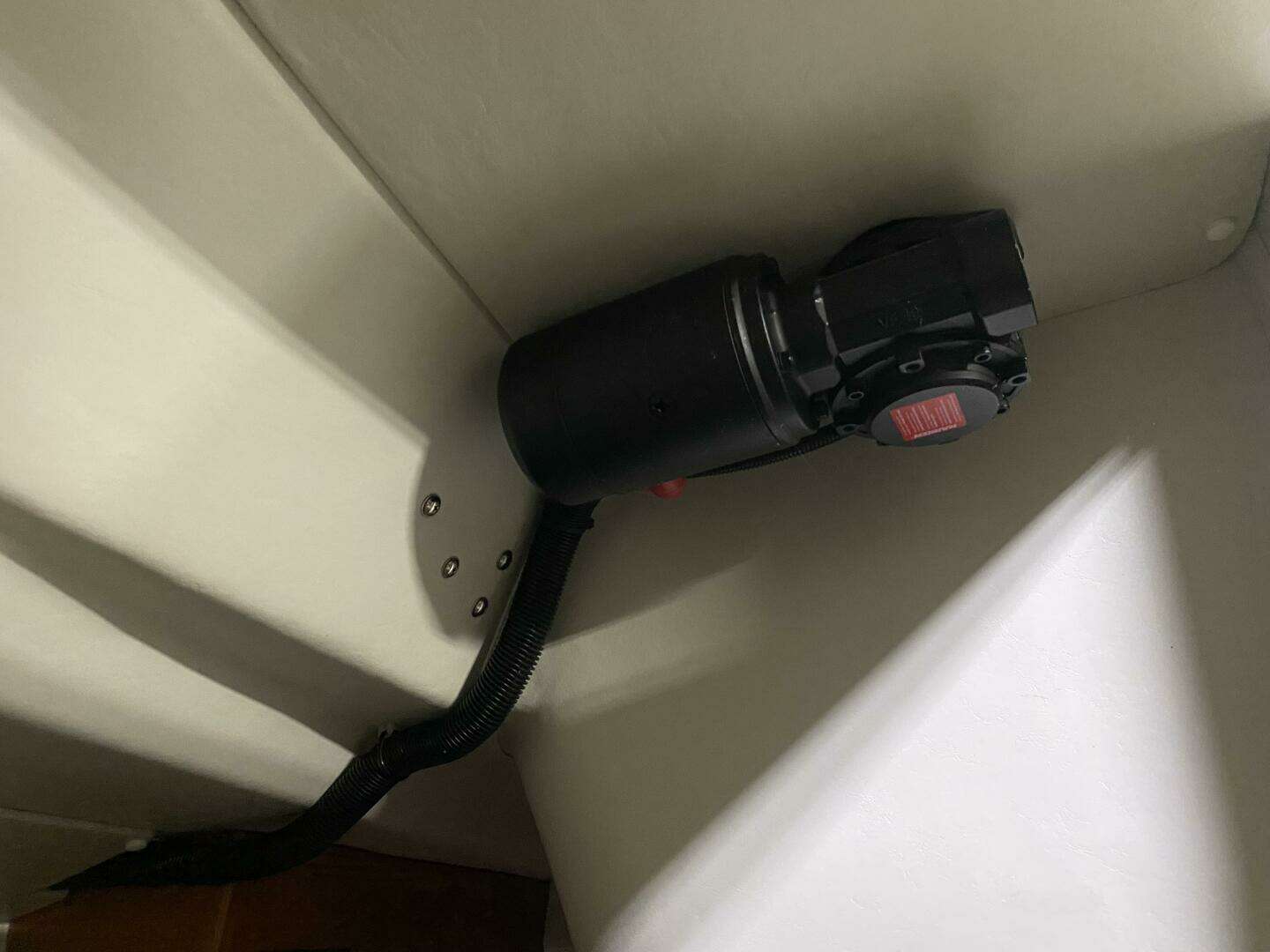

• Sailtech remote panel hydraulic backstay adjuster.
• Rigid boomvang with integral cleating.
• Harken Unit 0 headsail furler with control leading aft to cockpit.

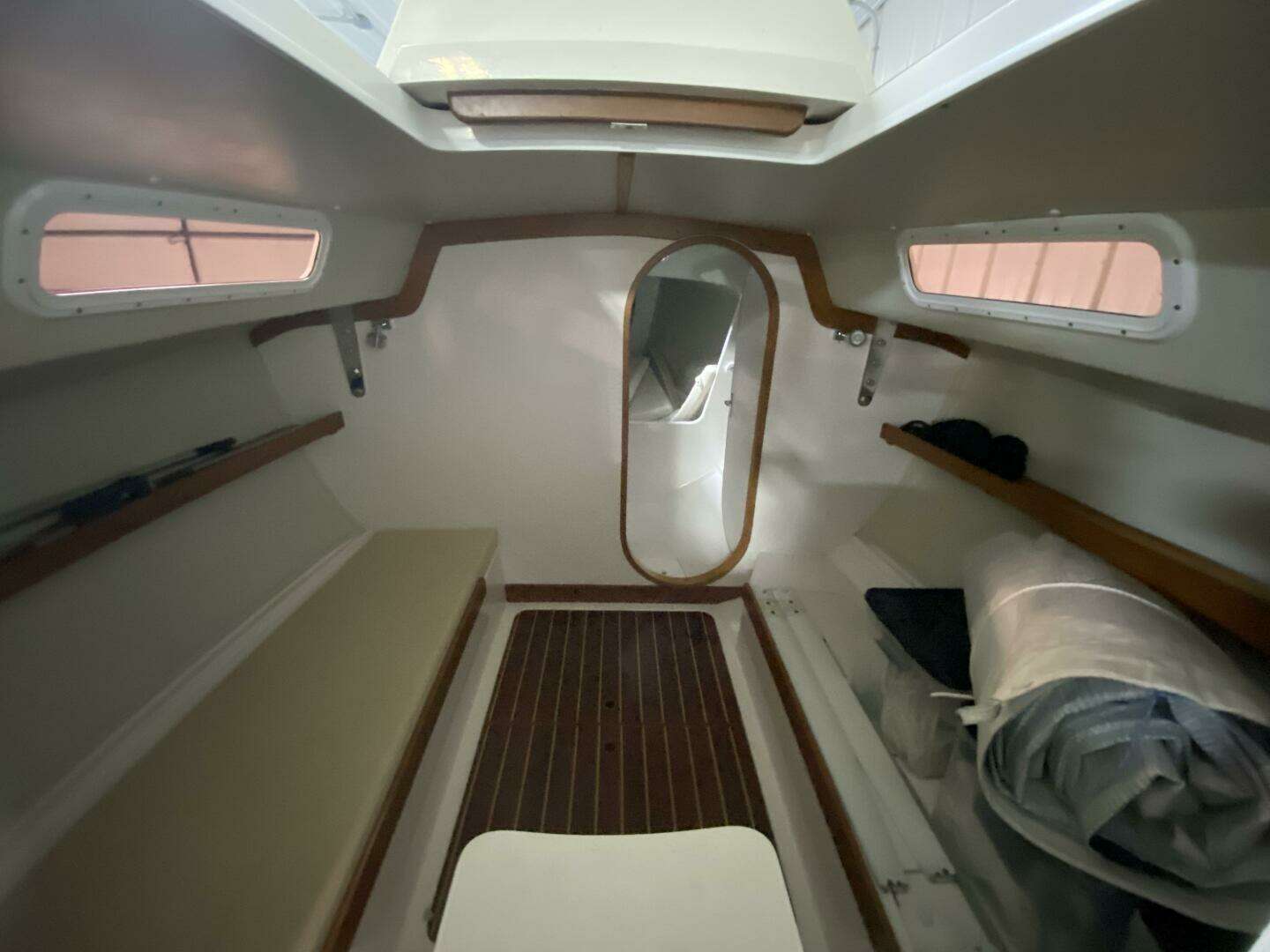

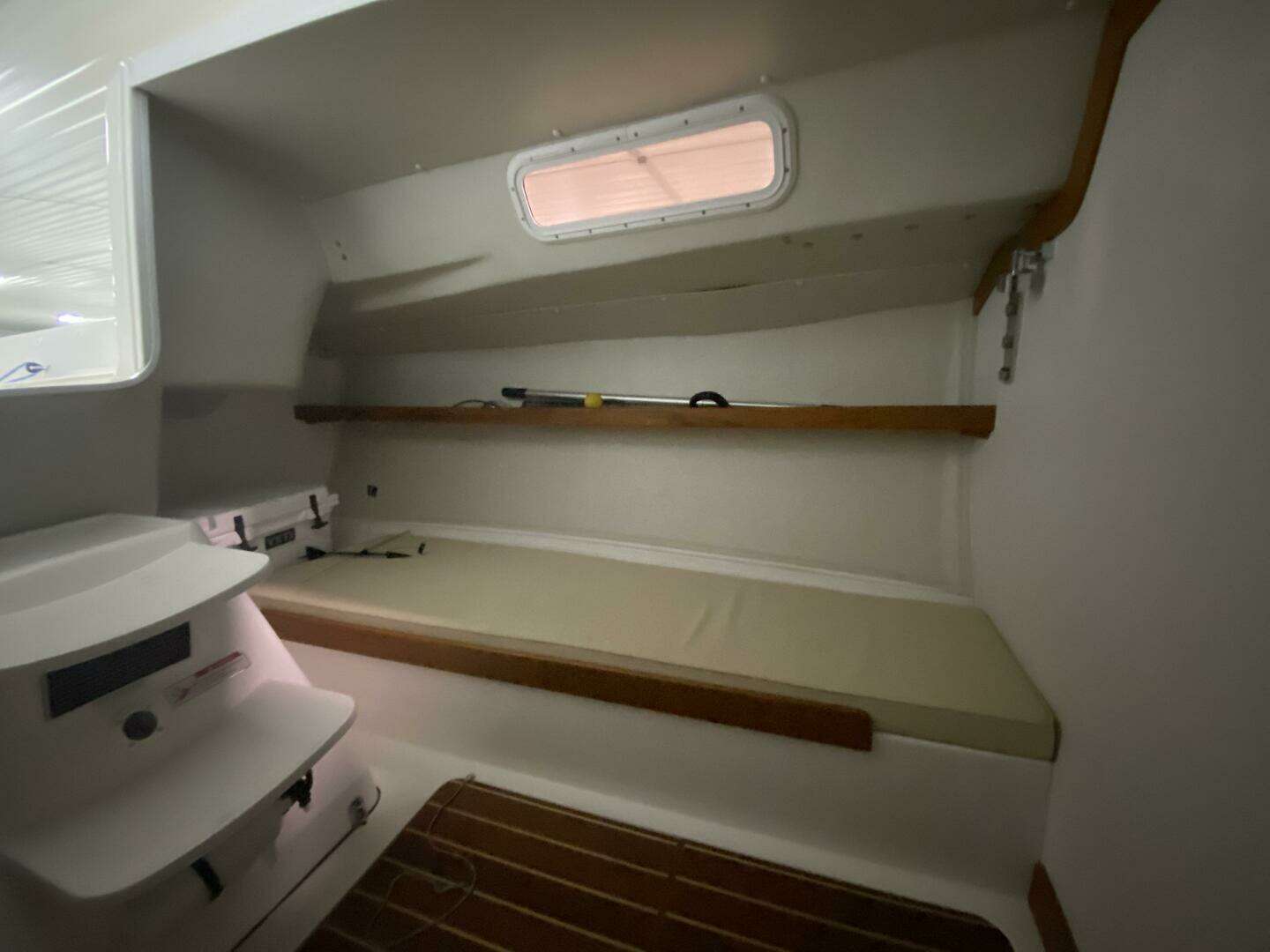

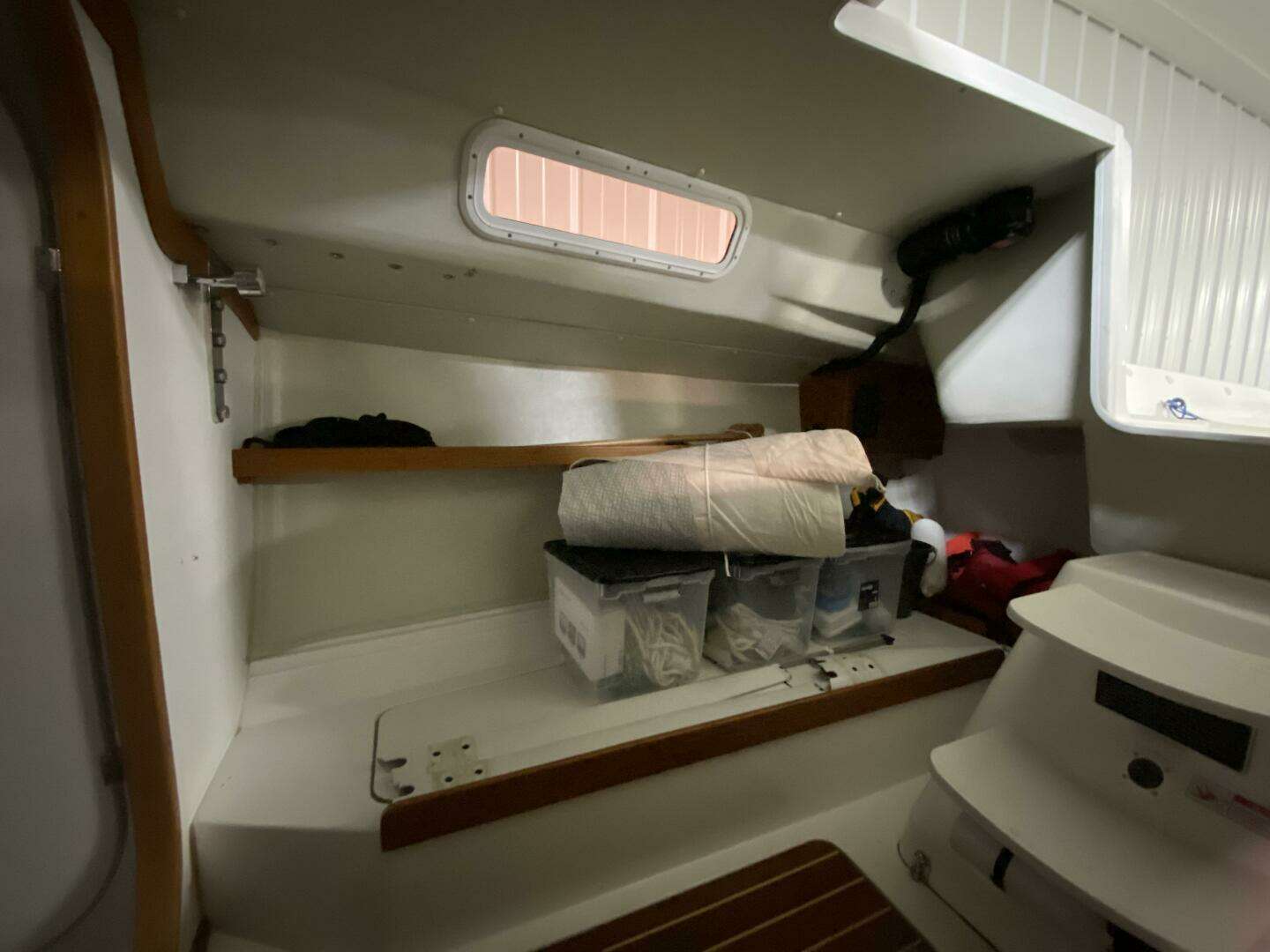

Interior

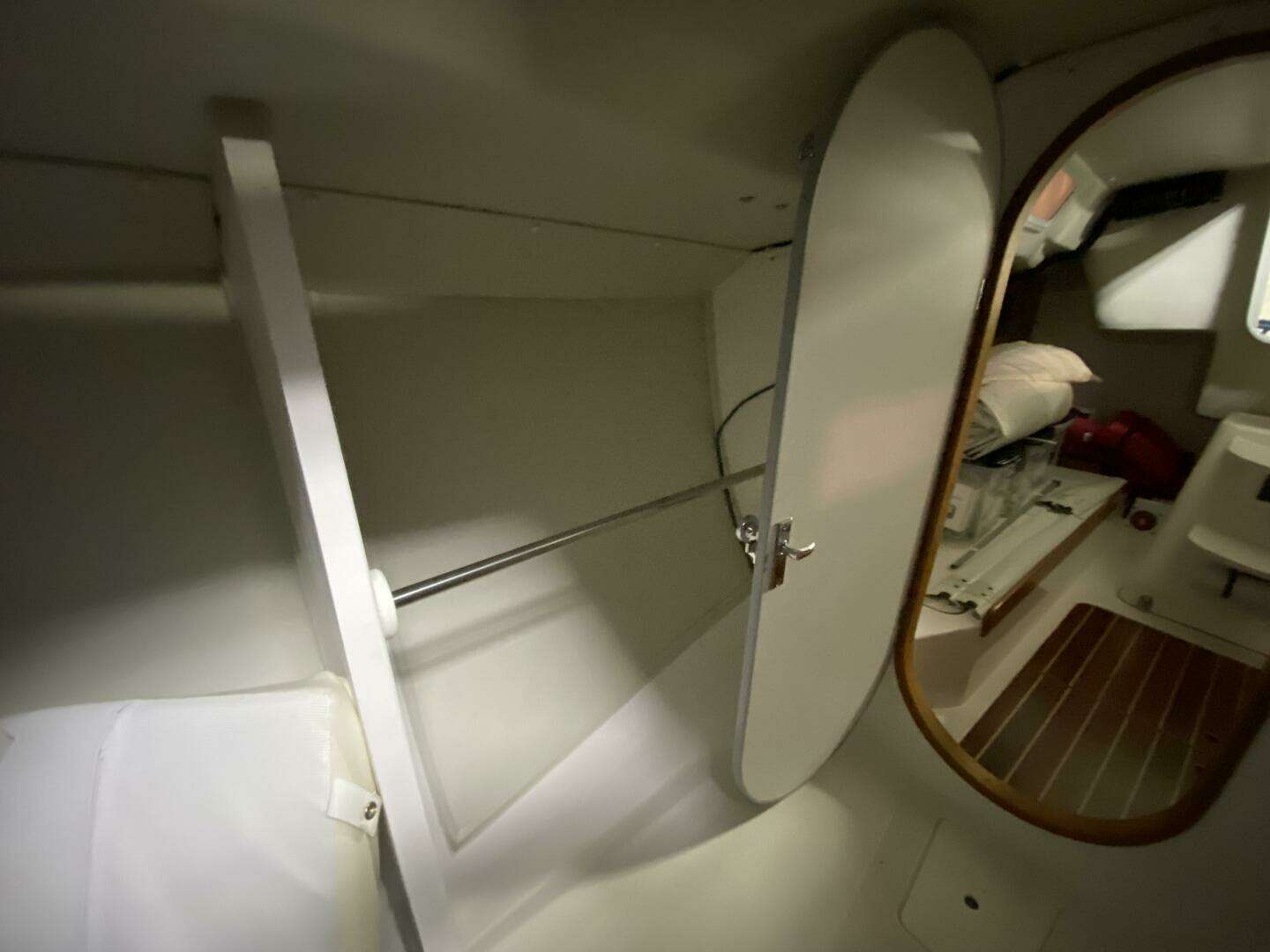

• Off-white laminated paneling with varnished cold molded teak trim oval door opening and white door.

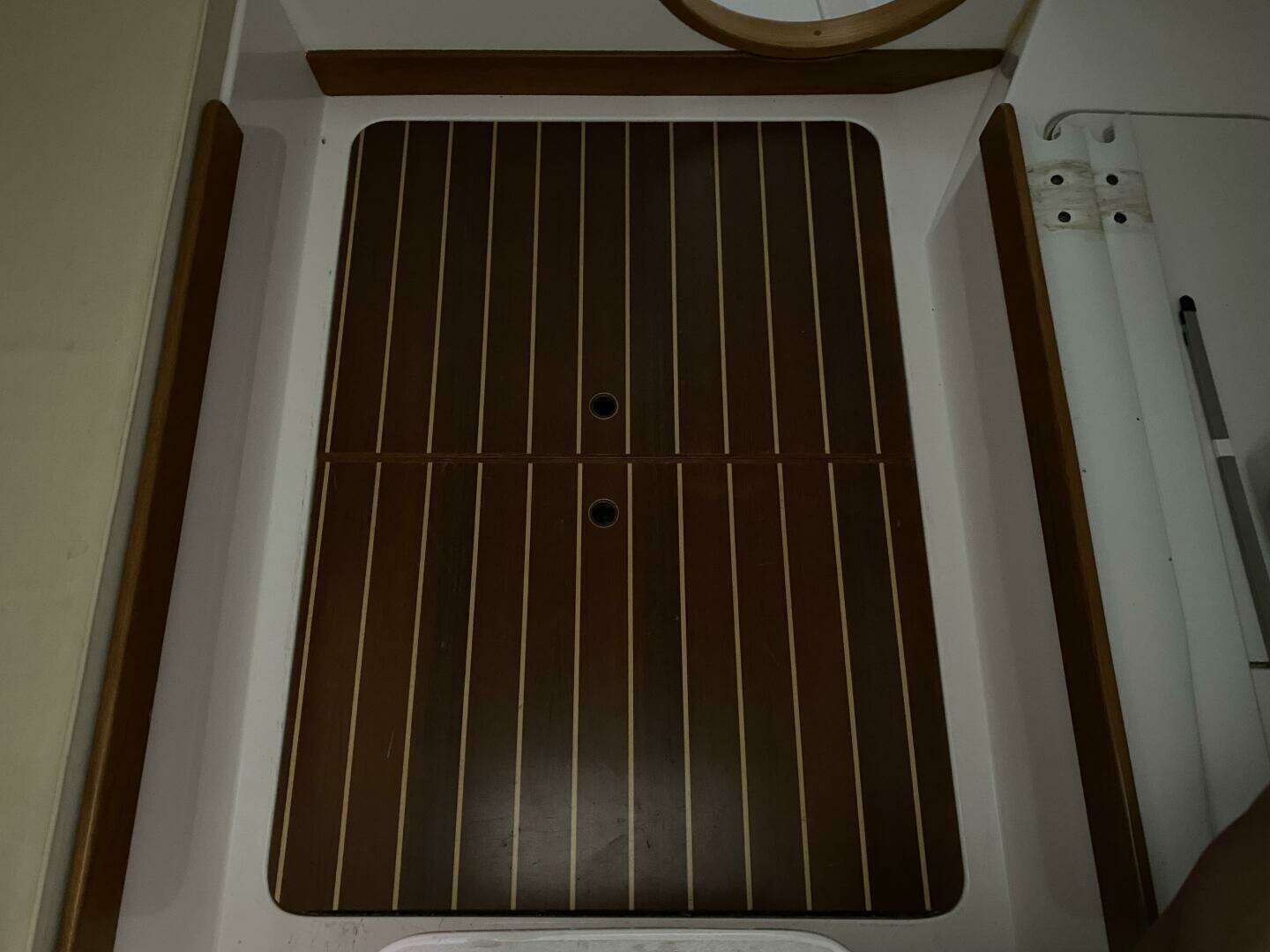

• Teak and holly synthetic high-wear cabin sole.
• Two-tone (beige) molded nonskid floor in head area.
• Teak trimmed backrest outboard of each settee berth.

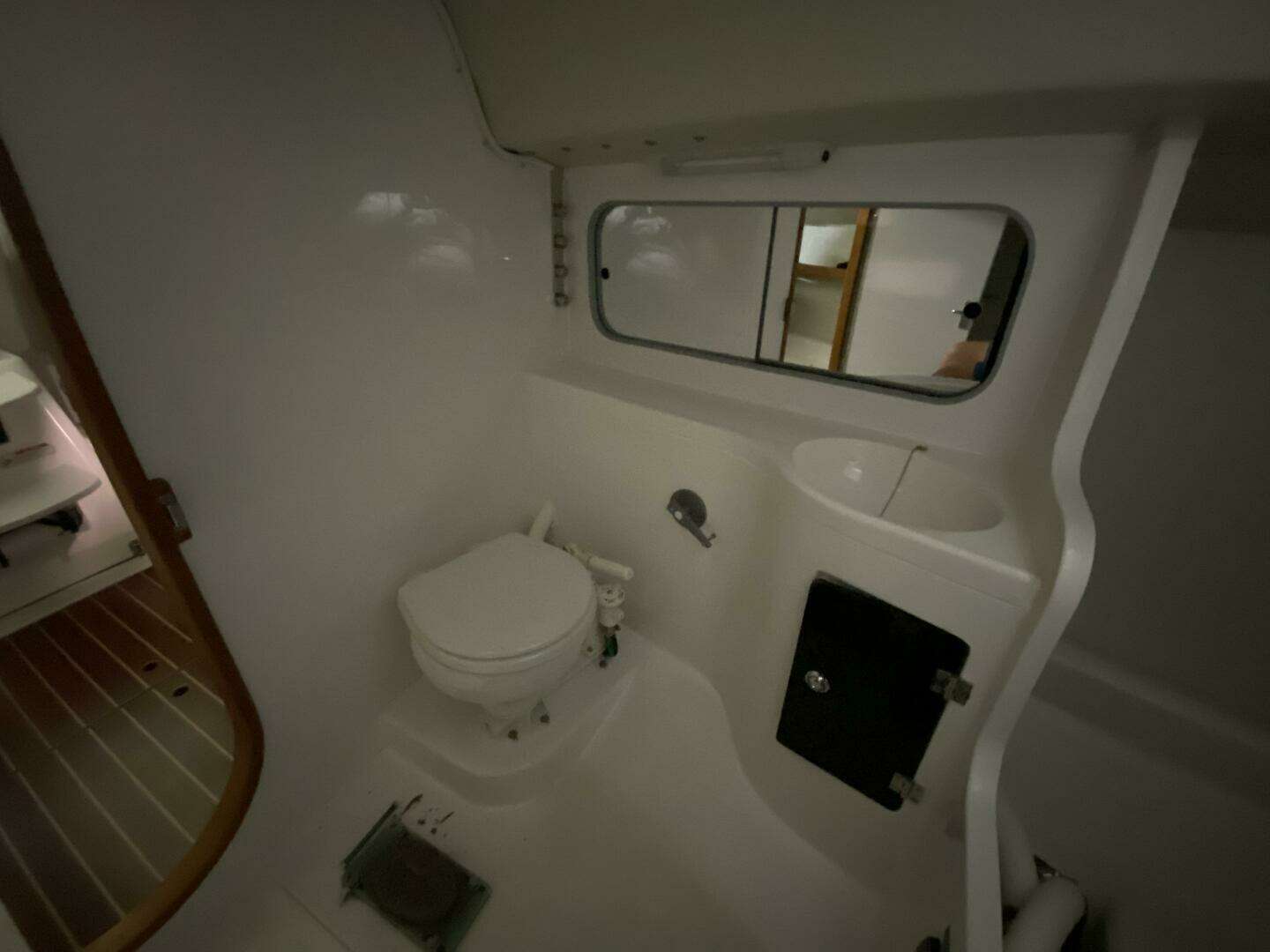

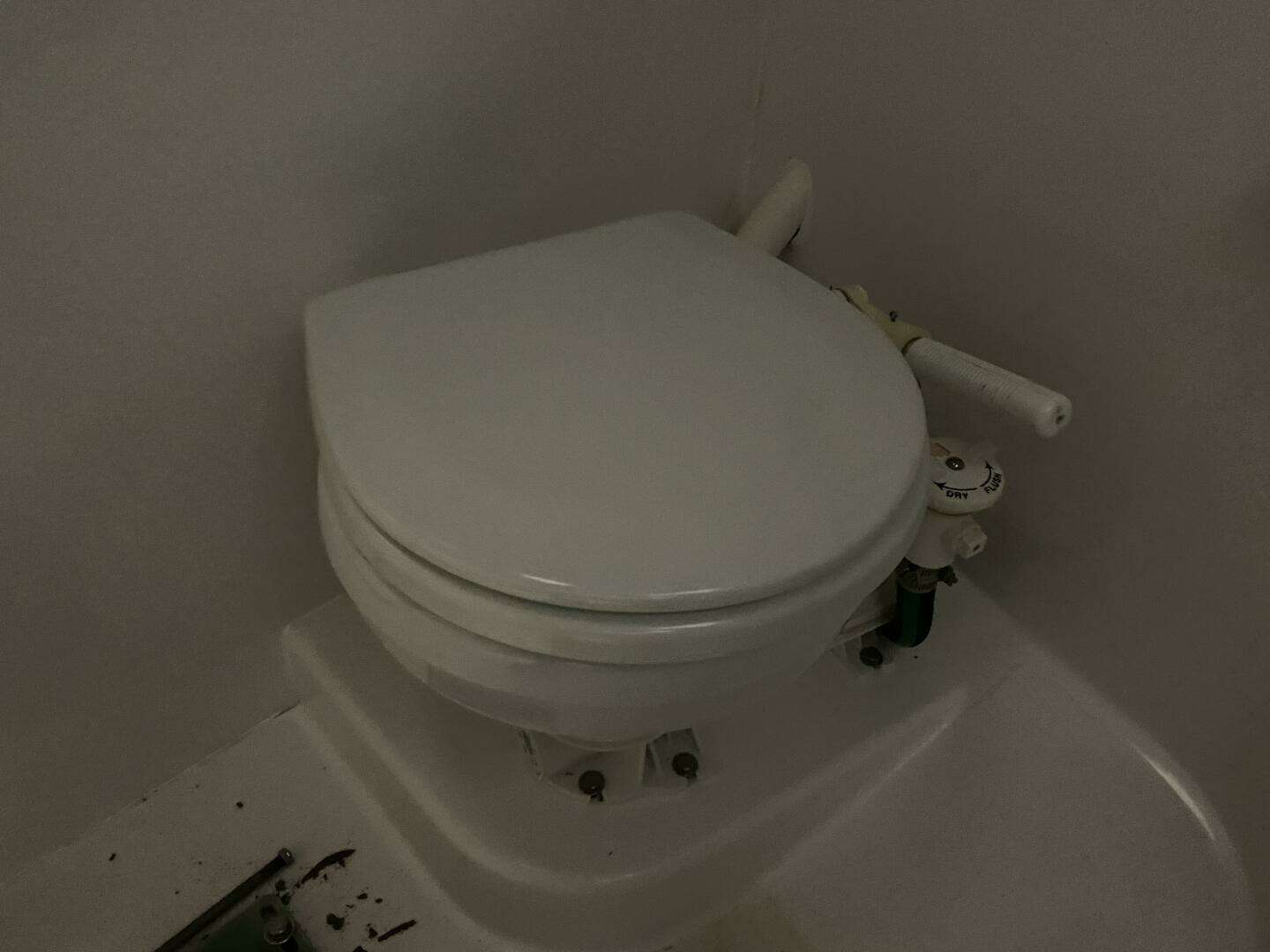

• Raritan PH-2 marine head with 14 gal holding tank and "Y" valve.

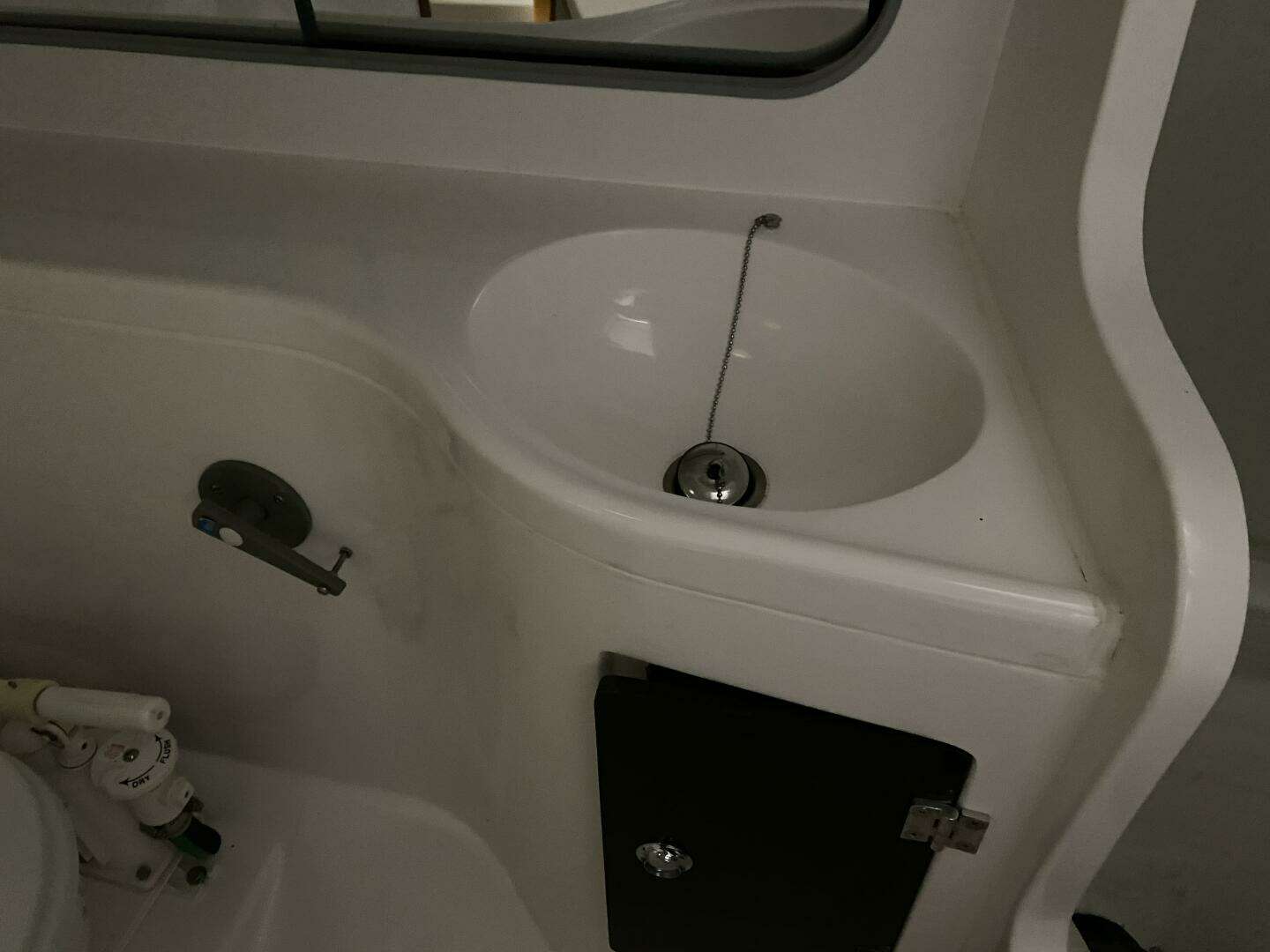

• Molded sink with overboard drain in head.

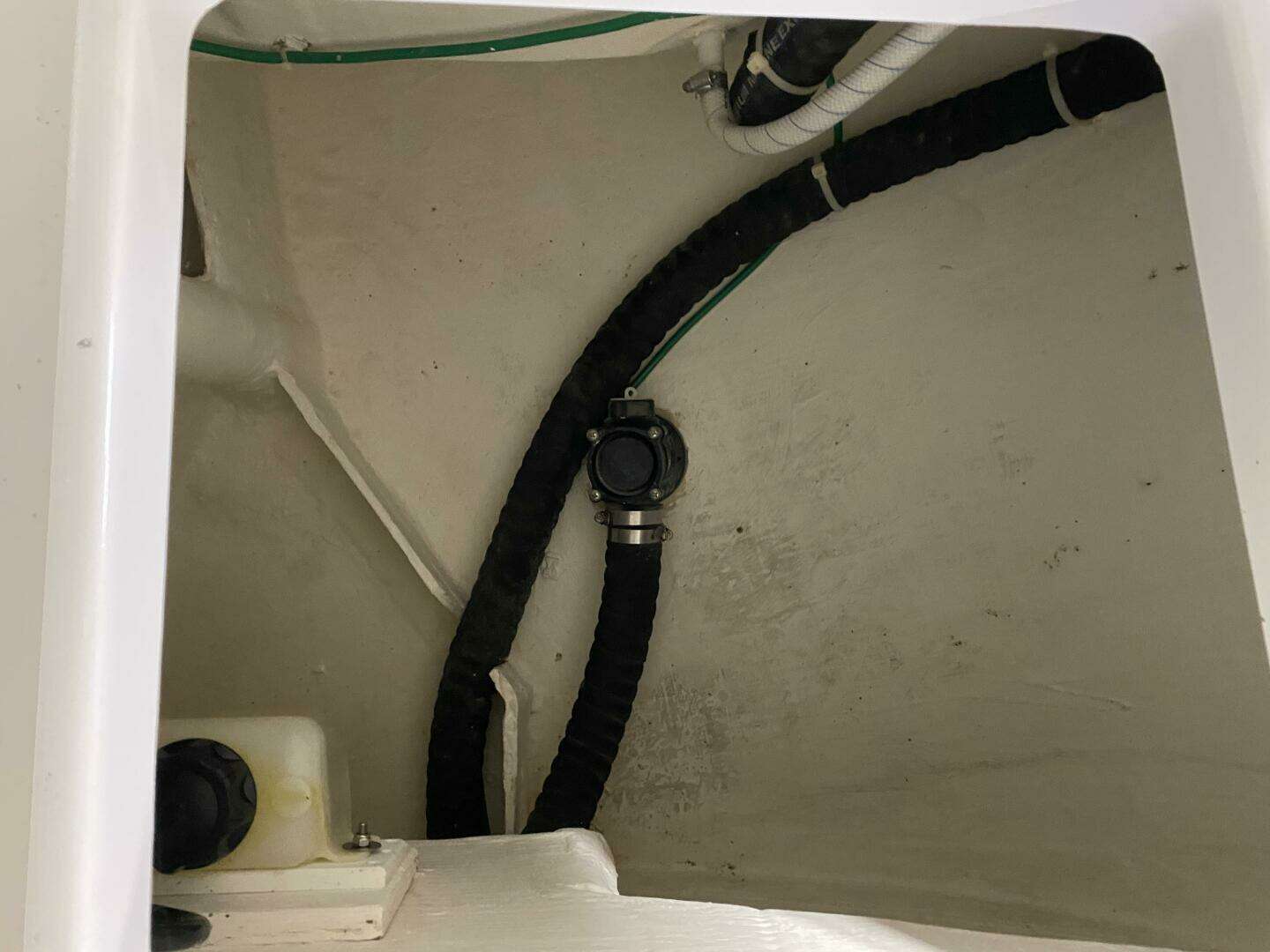

• Holding tank overboard discharge manual pump.
• Storage bin to starboard of head.
• Sunbrella fabric for settee cushions.
• Vinyl liner on main cabin and head overhead and hull.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
