Electronics & Helm

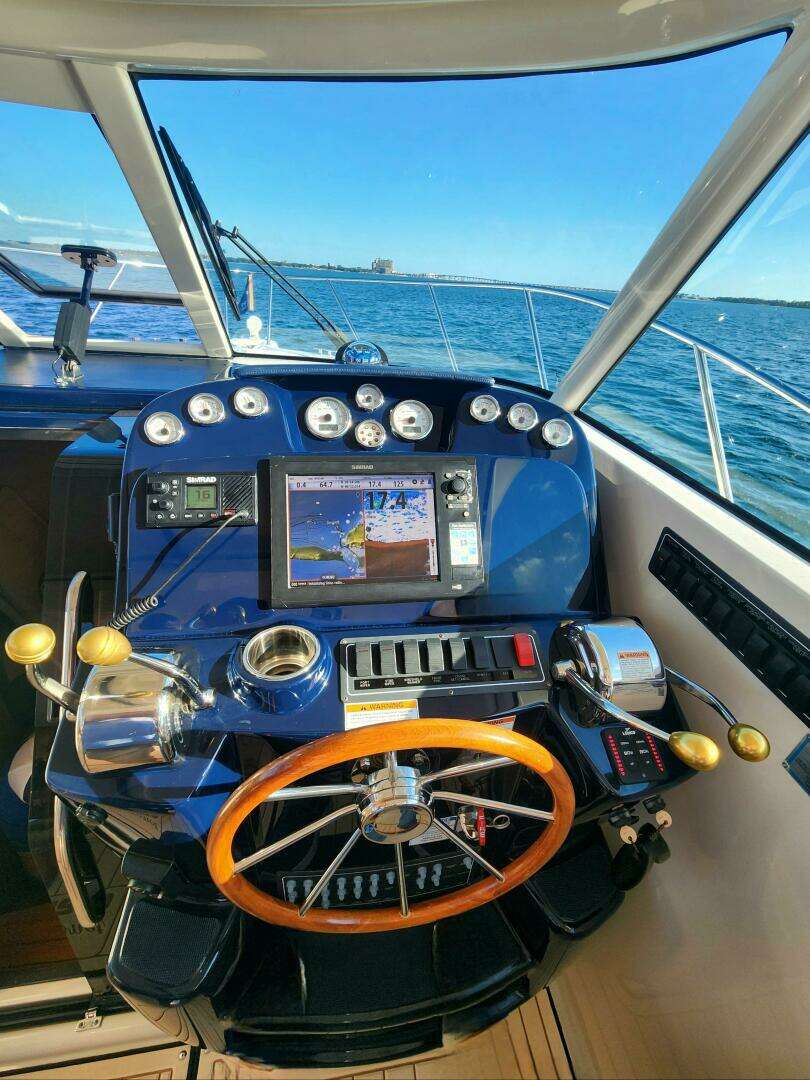

Starboard side helm has a great operational layout with simple, Flag Blue color with uncluttered white gauges, cup holders, SIMRAD 12" MFD, the signature wood trimmed TIARA Destroyer Wheel. All topped off with the 5" RICHIE Compass on center.

SIMRAD GO 12 XSE - Delivers a Touchscreen MFD with Navionics + features Chartplotter, HALO Radar, Echo Sounder, in a tablet style screen with wireless capability for seamless integration via your personal tablet or device including auto pilot and entertainment.

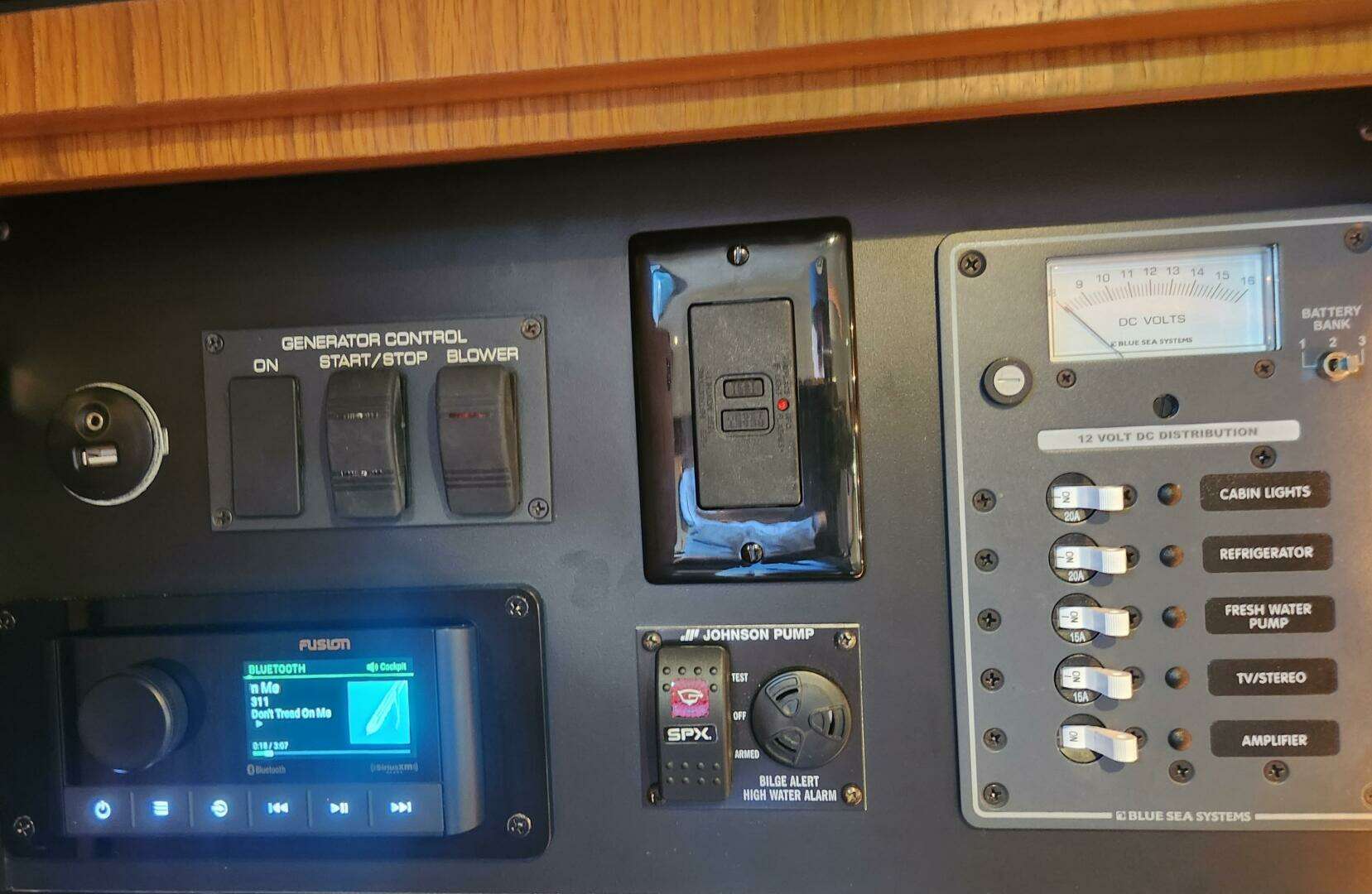

FUSION AUDIO - APOLLO Series NRX300 in the cabin with a Clarion Amplifier and remote operational controls. JL Audio Speakers w. separate tweeters surrounding the entire lounge and cabin with your best boating tunes.

Twin Crusader 6.0L gas engines are controlled with Tiara signature gold accent levers. The captain's chair is comfortable and wide with adjustability fore and aft with a molded nonslip foot panel.

Tiara Cruise Control- RPM+/- (Crusader Option only) This 2014 allows for RPM engine control at 25 RPM steps via a toggle. Cruise Control and Sync are included. Control response is part of the Helm Indicator Gauge Display on center.

Windshield- Great Taylor tempered tinted windshield with large side glass provides plenty of dry, safe views. The center forward opening windshield is motor operated with the push of a button.

SUNROOF- The manual opening sunroof operation is genius and can be adjusted for ventilation and wind in your hair enjoyment. Well designed and watertight.

HELM ACCESS- Helm is hinged for ease of access for service.

Engine & Mechanical

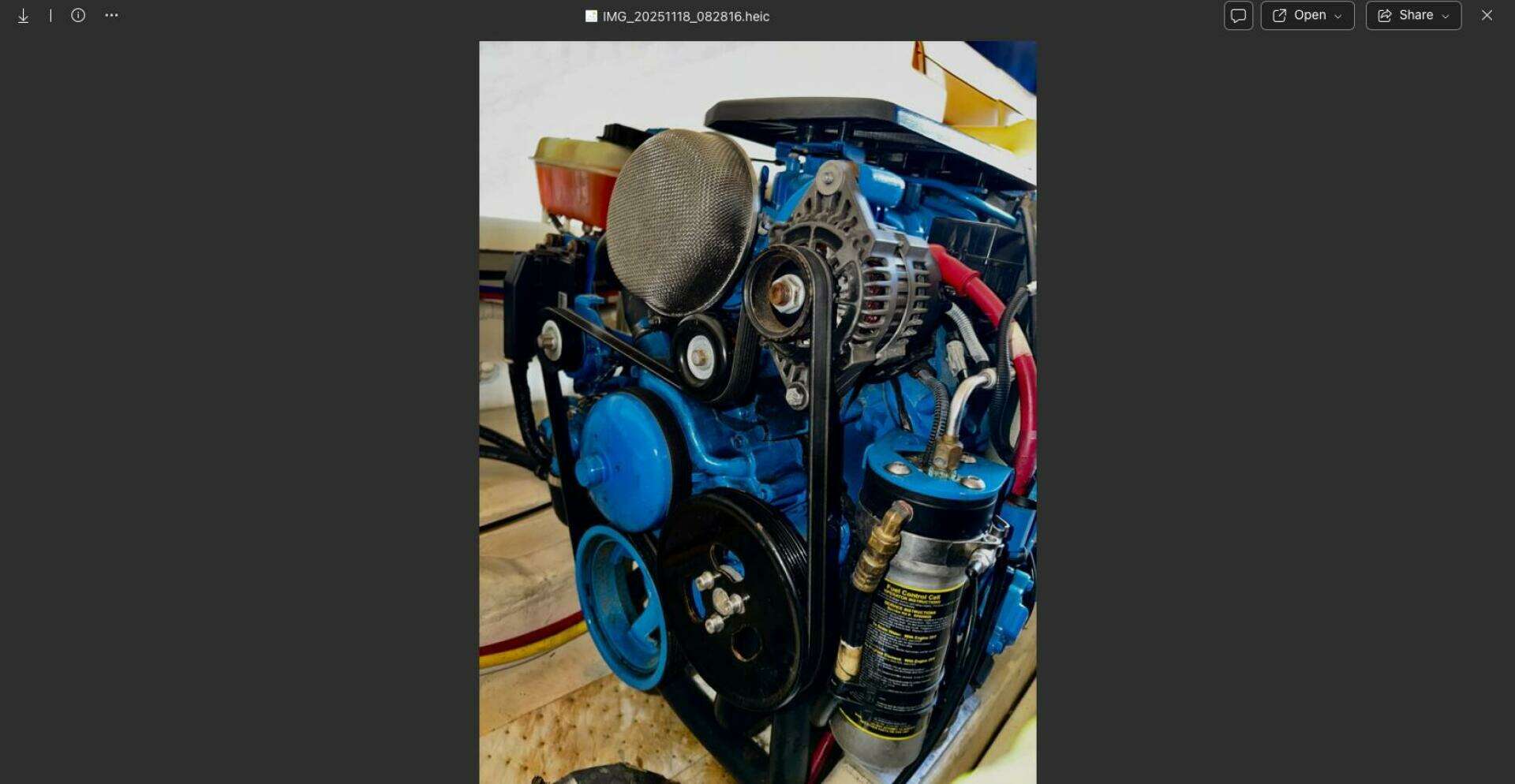

Main engines

• Twin Crusader 6.0 Liter, 375HP x 2 = 750 HP
• Hour meter: Port- 298 hours on the digital display
• Starboard- 295 hours on the digital display
• Number of cylinders: (2) V-eight (8) configuration
• Transmissions: ZF Model: ZF 63 A Ratio: 2.52: 2.54
• Alarm systems: Operational Engine start: 12 VDC
• Motor mounts: Steel motor mounts secured to longitudinal fiberglass stringers
• Engine cooling system: Raw water, good flow
• Fuel filters: Two (2) Racor primaries model #320RRAC02 - brand new
• Blower: Two (2) Jabsco flange mount 4”, 250 CRM, 12 VDC
• Emergency engine shutdown: Helm console Engine start: 12 VDC
• Sound proofing: Installed forward bulkhead
• Controls: Mechanical push/pull cables
• Alternators: Two (2) WAI model #8467-9N, 12 VDC, 70 amps
• Double clamped: Yes Approved type hose: Yes
• Cooled: Raw water cooled
• Engine room illumination: Good Engine room bilges: Good
• Condition of the engine room: Good

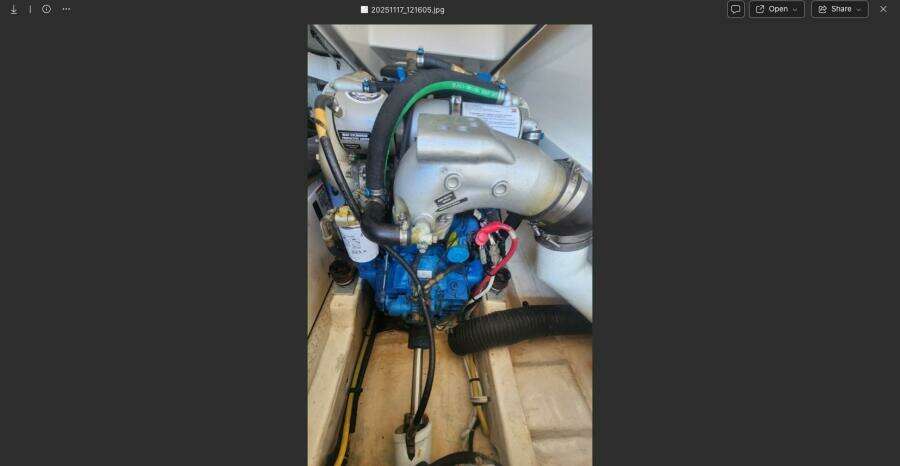

GENERATOR

• Make: Kohler Type: Gasoline KW: 5 kw
• Model: 5EKDSKSHLD120V
• RPM: 3600 @ 60 Hz Hour meter: 73.7 on digital display
• Cooling: Sea water Auto shutdown
• Fuel filter: Racor model #S3228SUL marine fuel filter/water separator
• Starting: 12 VDC Location: Engine room, outboard to port
• Sound shield: Equipped Pan under the engine

Deck

Stem to Stern

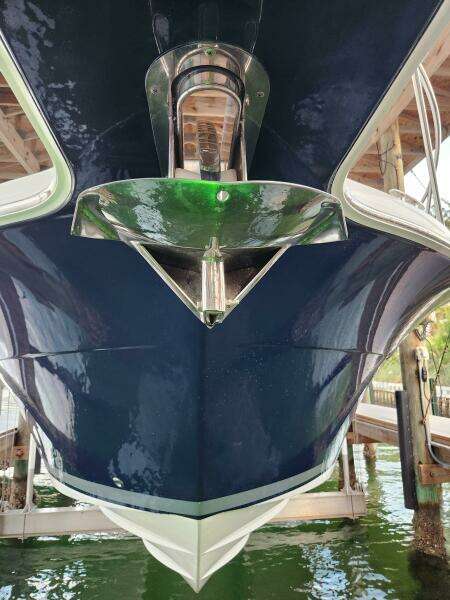

• Bow Pulpit w/ High Stainless 1" Railing
• ACR Dual Beam Remote Control Spotlight on bow
• Lewmar V700 Stainless Windless (remote + on deck foot controls)
• Polished Stainless Plow Anchor on Heavy Duty Roller
• Flush mounted Pop-Up Horn Cleats
• Diamond Molded Weather Deck Non-Skid
• 22" Bomar opening centerline deck hatch on bow over stateroom
• Twin Windshield Wipers/Washers
• Centerline Windshield Vent (motorized)
• Taylor Tempered Panromantic Tinted Glass
• Opening SS Port Holes by Trend Marine

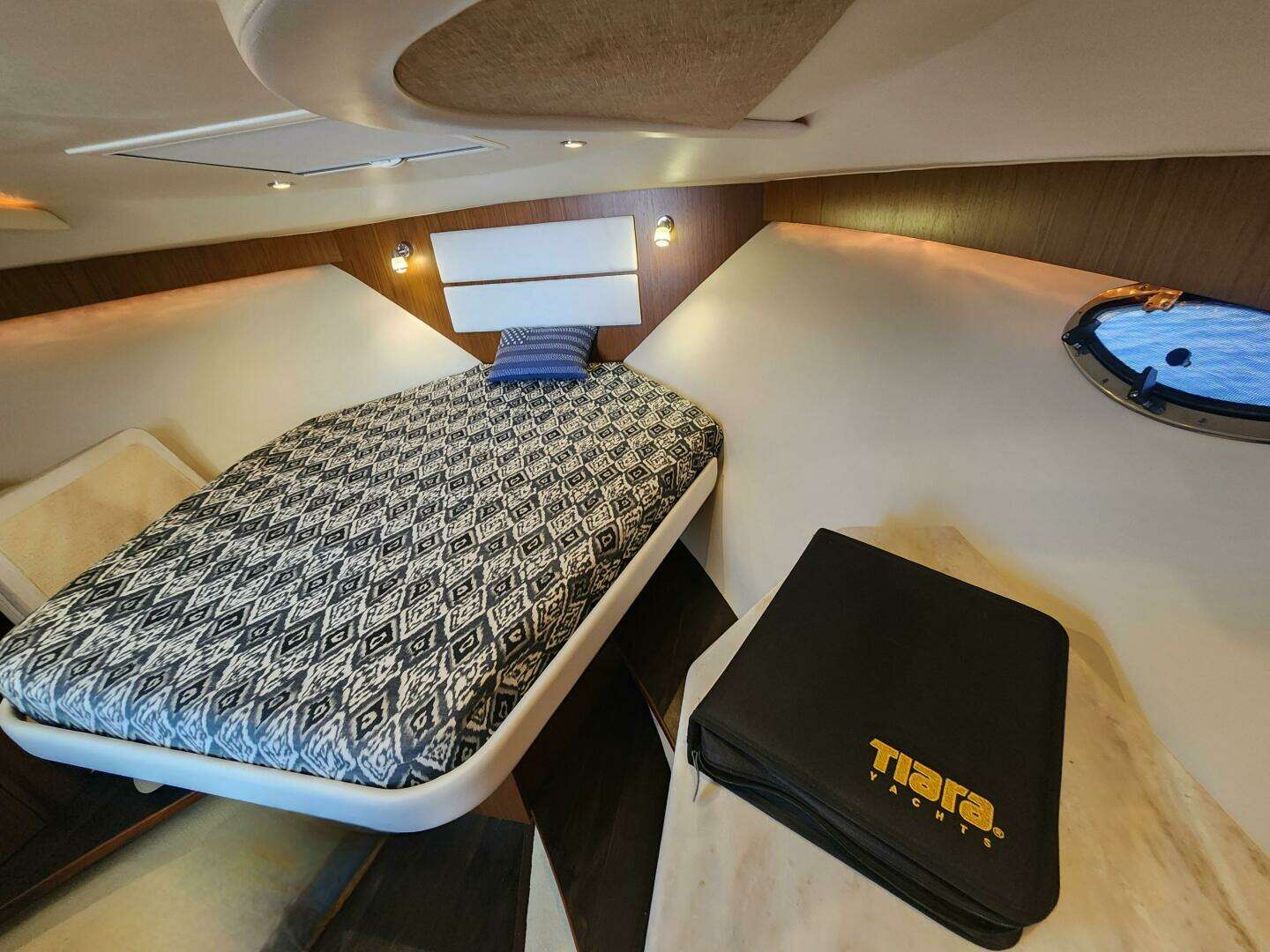

• Stateroom window shades, screens, curtains
• Dual Air Horns by Fiamm "Fultone"
• Simrad Radar Dome & GPS Antenna
• 8' Shakespeare VHF Antenna
• Manual Sunroof - Tiara has a genius simple track and lock system

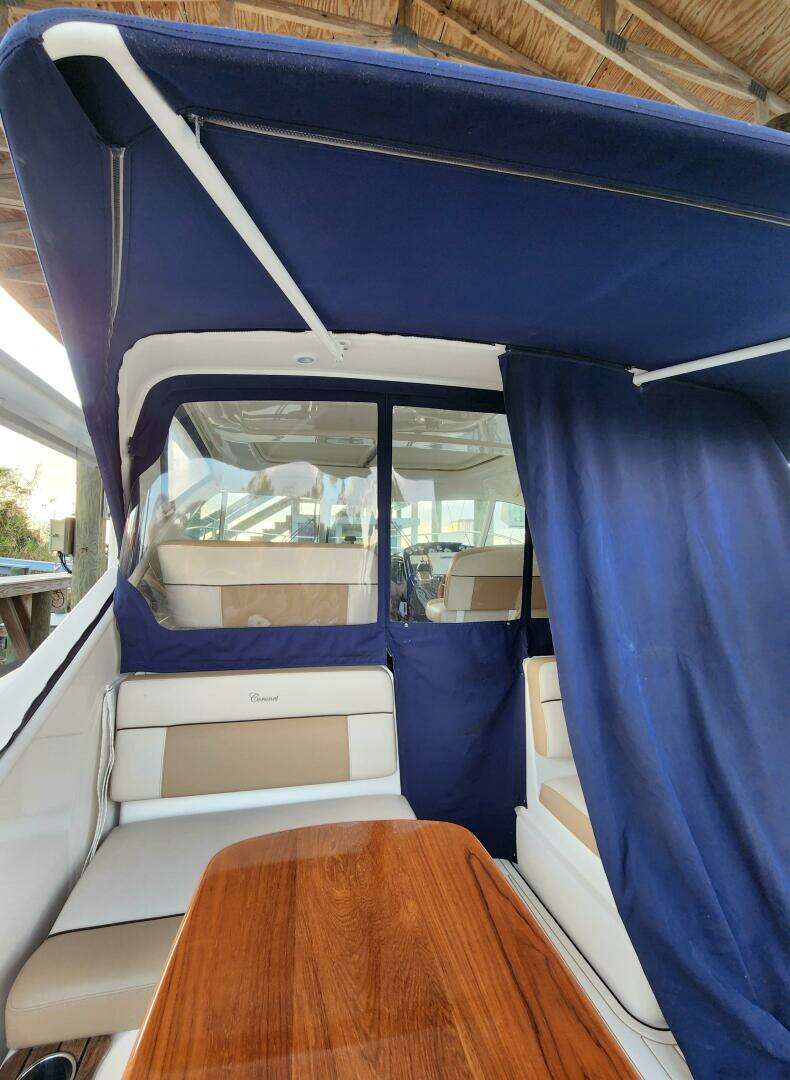

• Full Canvas Enclosure with isinglass + Aft Deck Cover (blue)

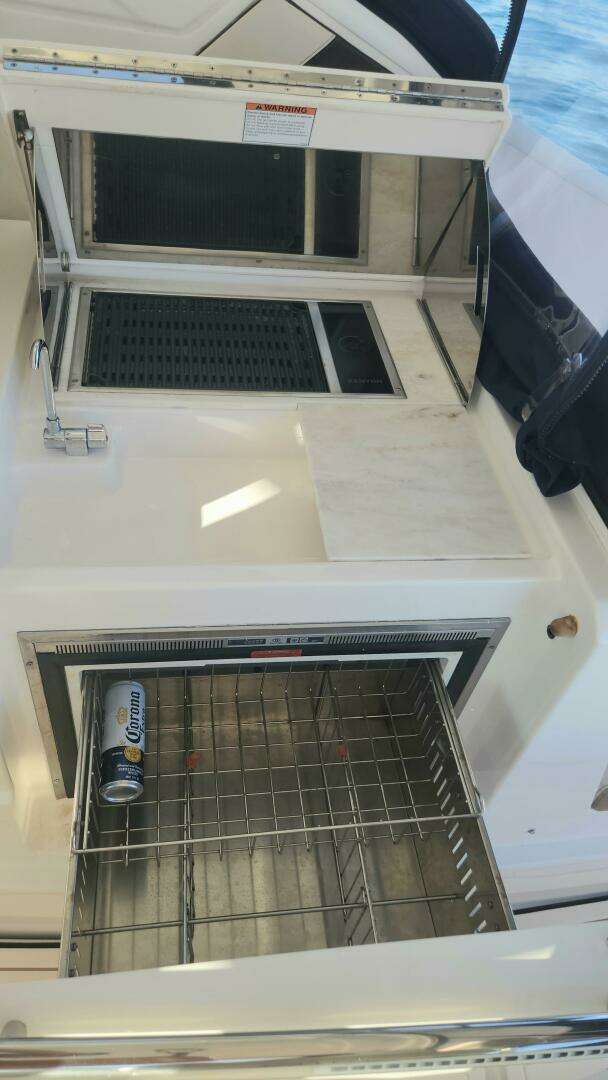

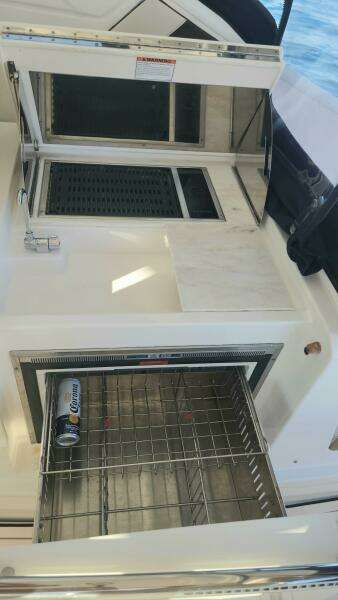

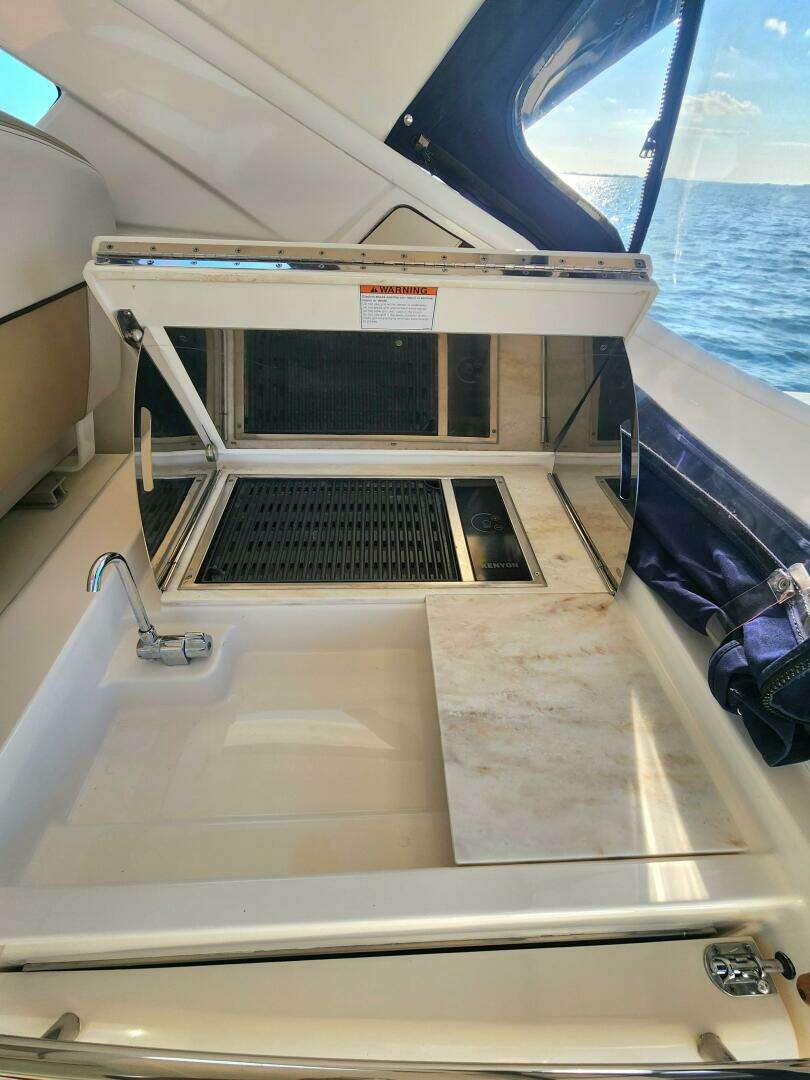

• Midship enclosed Wet Bar with Kenyon Grill, Fridge, Counter Space w. cabinet and storage for grill tools, plates and utensils. All trimmed in SS and marble within the canvas enclosure.

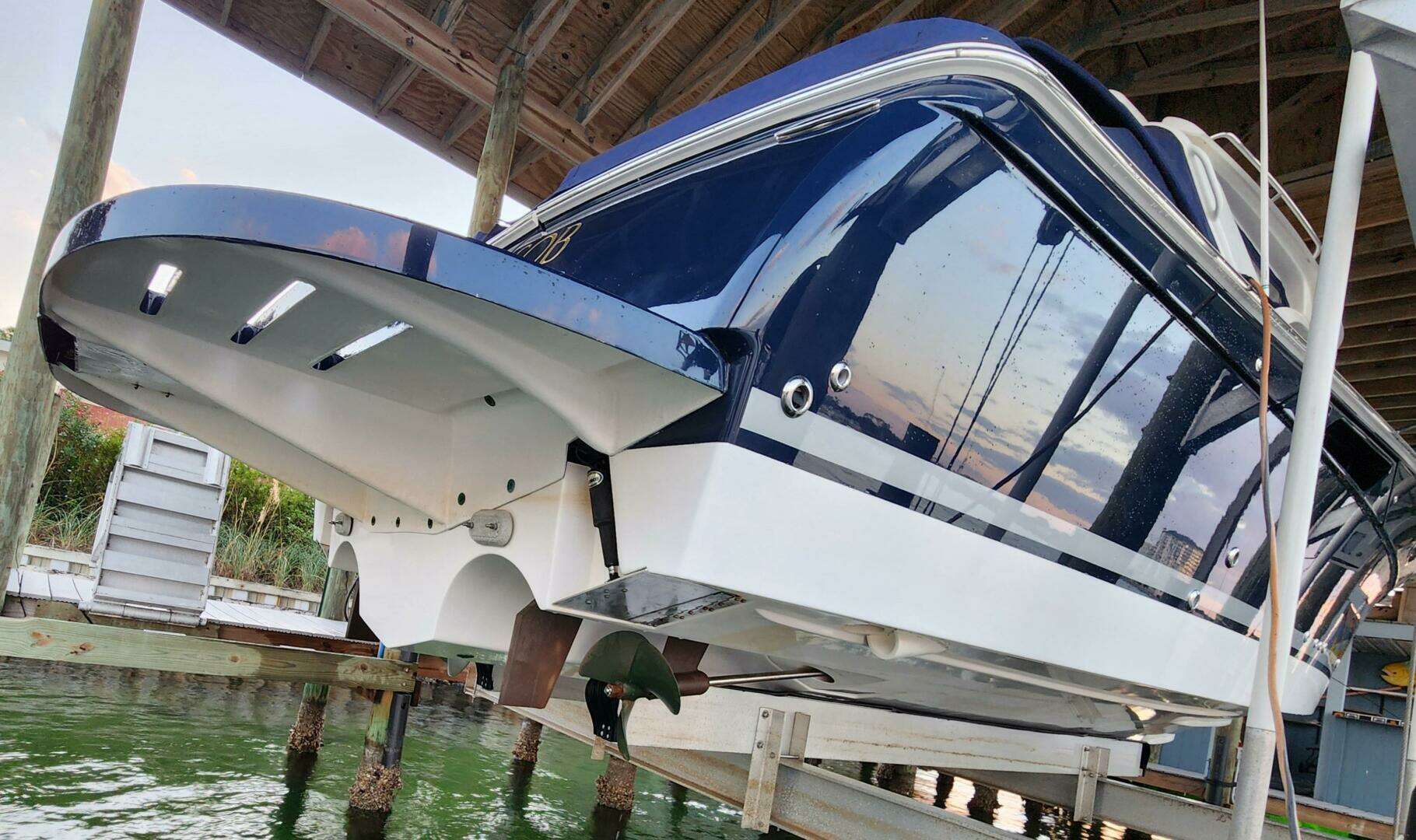

• Aft Deck 30" Awning (blue) fixed power coated tubing
• 2 sets of Full Snap Down Custom Marine Mat Flooring with Tiara Logo
• Handrails - Teak & SS on the aft deck surround, Companionway & Helm
• Rubrails - Composite SS in good condition
• Fireboy - Fire Suppression System (ER), Emergency Engine Shutdown
• USCG Safety Equipment, Plaques & PFD (6)
• High Water Alarm, 3 Rule Bilge Pumps (2) 2000gph; (1) 500gph
• CO2 & Smoke Alarms
• Lighting is well placed in the overhead hardtop, cabin and courtesy lights
• Shore power 120vac, 30amp x 50' cord. Fresh water Washdown (Dockside inlet), Hot and Cold Cockpit Shower all easily accessed at the transom entry inside the cockpit.
• Lenco Trim Tab System Recessed and effective Trim Tabs for safety comfort

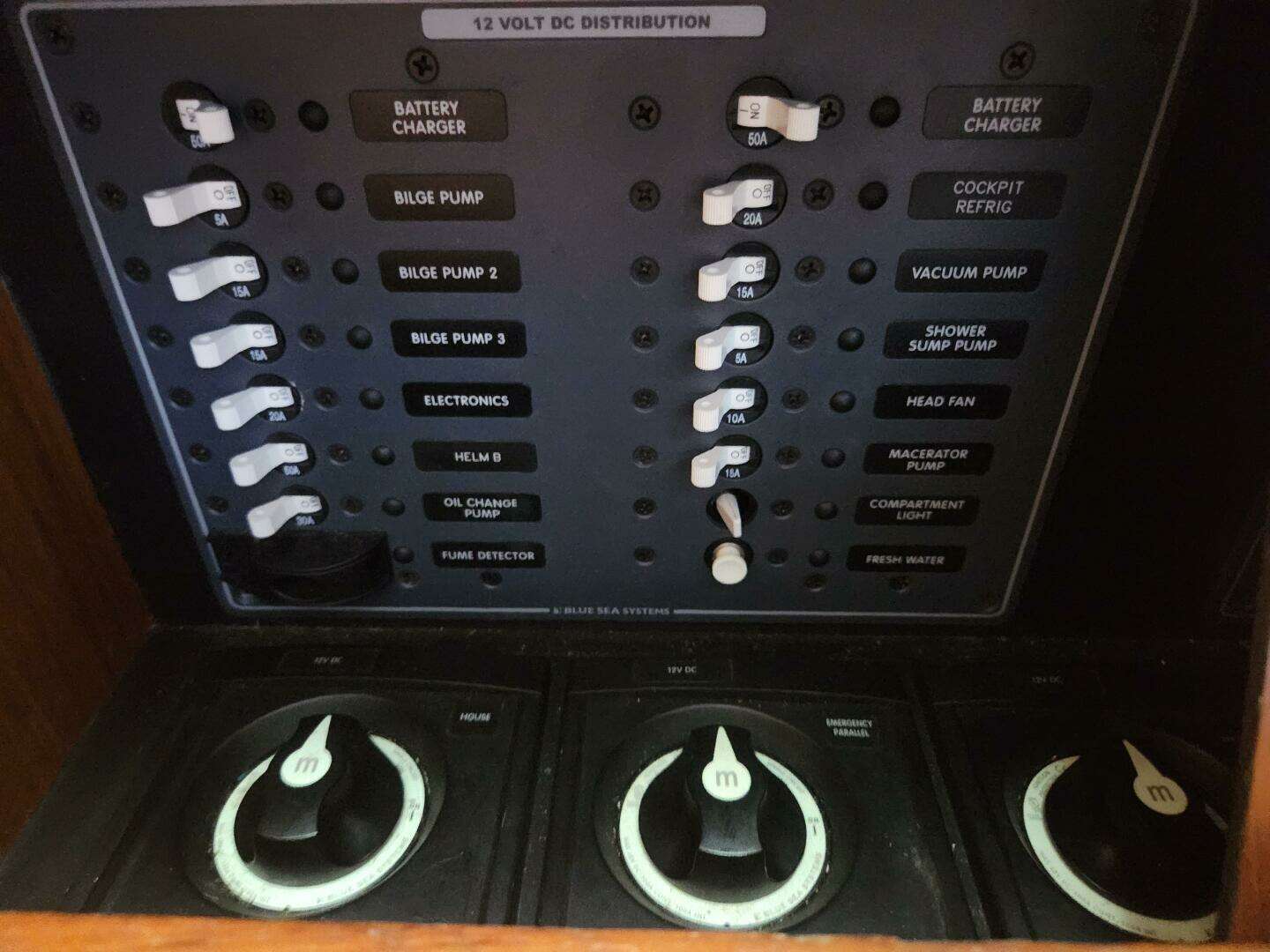

• WEMA Guage at the main electrical panel Freshwater Tank (120g)
• Waste Water - indicator light

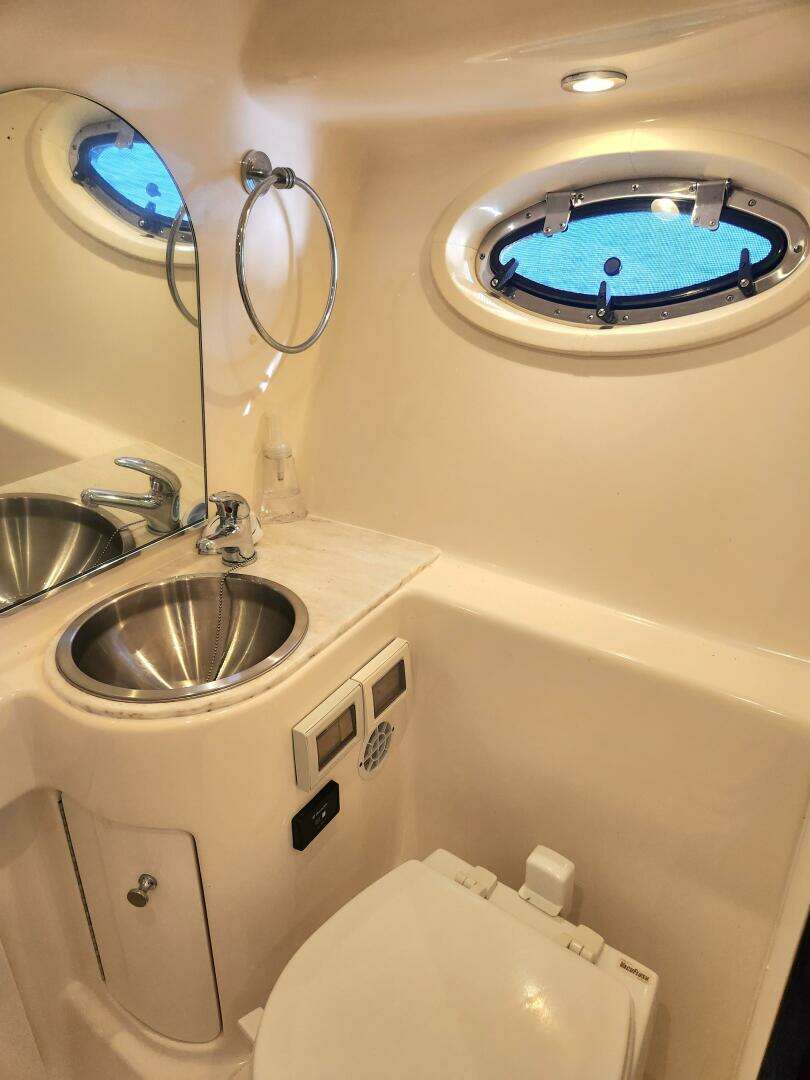

• Vacuflush Head - 20g Holding Tank/ Dometic Macerator
• Shower - 6g Hot Water Heater 120v (Seaward model F600) w. sump.
• Engine Room - Electric Hydraulic Lift Assist. Lighted and well designed.

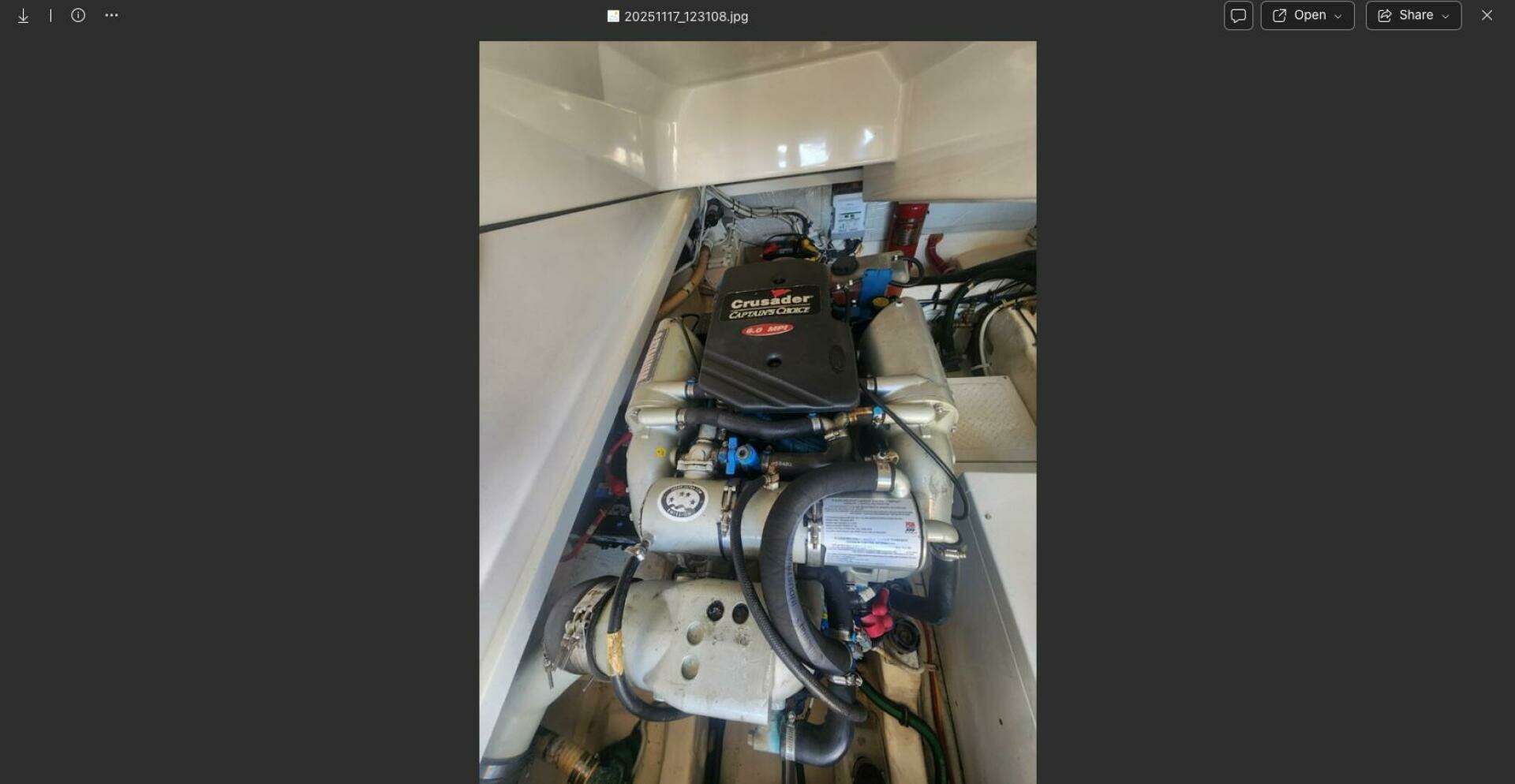

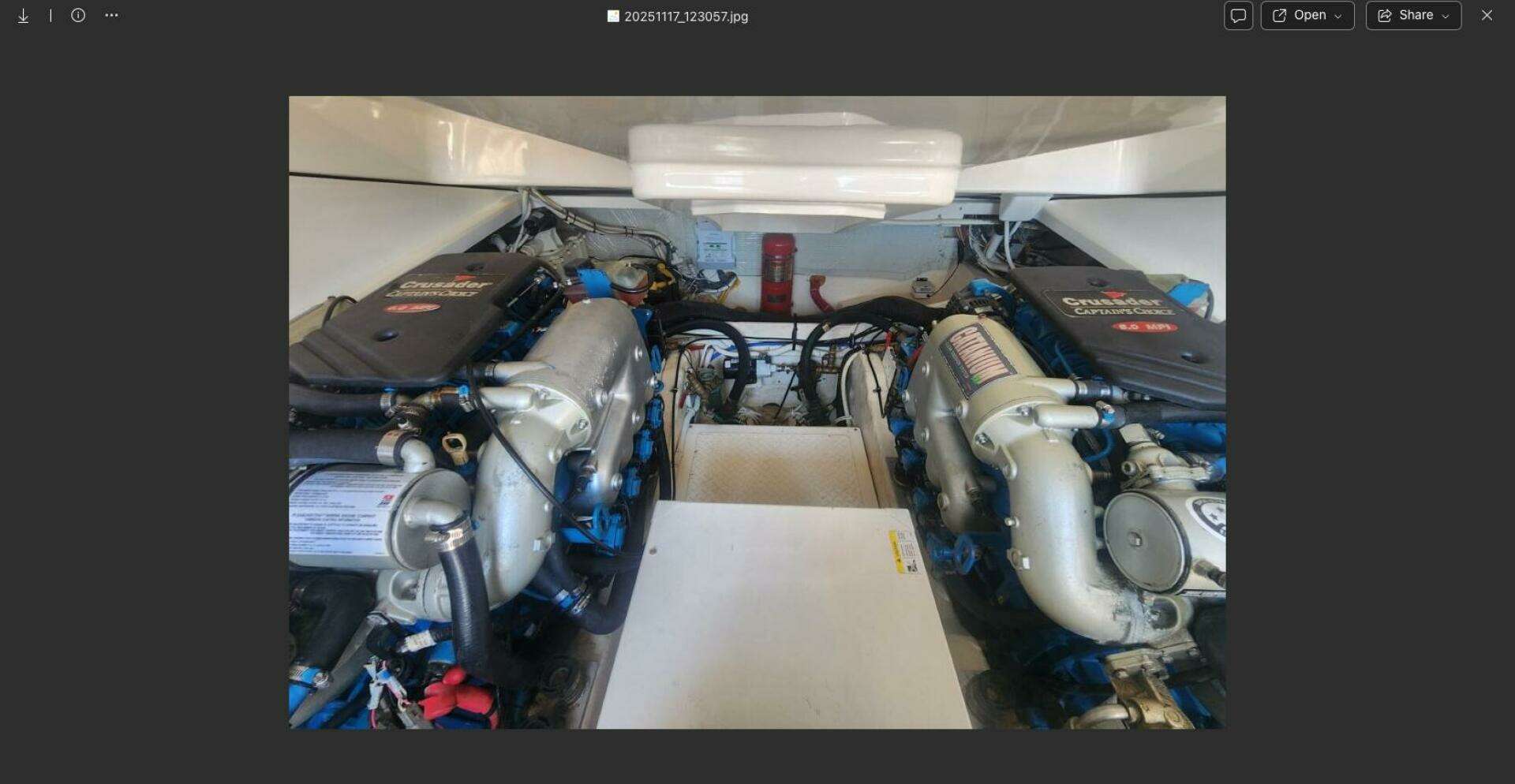

• Engine Room - Soundproof with Generator and Twin Crusader 6.0L 375hp
• Direct Drive - 3 Blade Nibal Props 18" with PSS Dripless Seals
• Batteries - (5) 2 NEW 2025 House grp 31/845CCA, Eng. 2 Autocraft 8D
• Battery Charger - ProMariner / ProNautic#1230P 30amp
• Battery Switch - (3) Located at companionway cabin. Has Parallel w. helm controlled solenoid.
• Helm Access - Helm is hinged to allow access for service.
• Custom Freshwater Engine Flush

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
