Interior Layout & Features

Interior & Accommodations: Entry to the cabin is via a wide companionway and a step down. To port is a sink, cabinetry, and the electrical panel. To starboard is a compact galley with a two-burner ceramic stove top, ample storage, and counter space. Headroom is tallest (approx. 6') under the companionway.

The forward salon features a centerline folding teak table and port/starboard settees. Generous glass windows provide natural light, and the combination of white surfaces and warm teak creates a comfortable ambiance. Forward to port is an enclosed head compartment. A sizable V-berth is located in the forepeak.

Interior Features:

• Teak bulkheads and millwork
• Vented storage cabinets
• Fitted carpet on cabin sole
• Sink and cabinetry to port
• Long sliding drawer aft
• Wallas ceramic diesel stove with fiddles

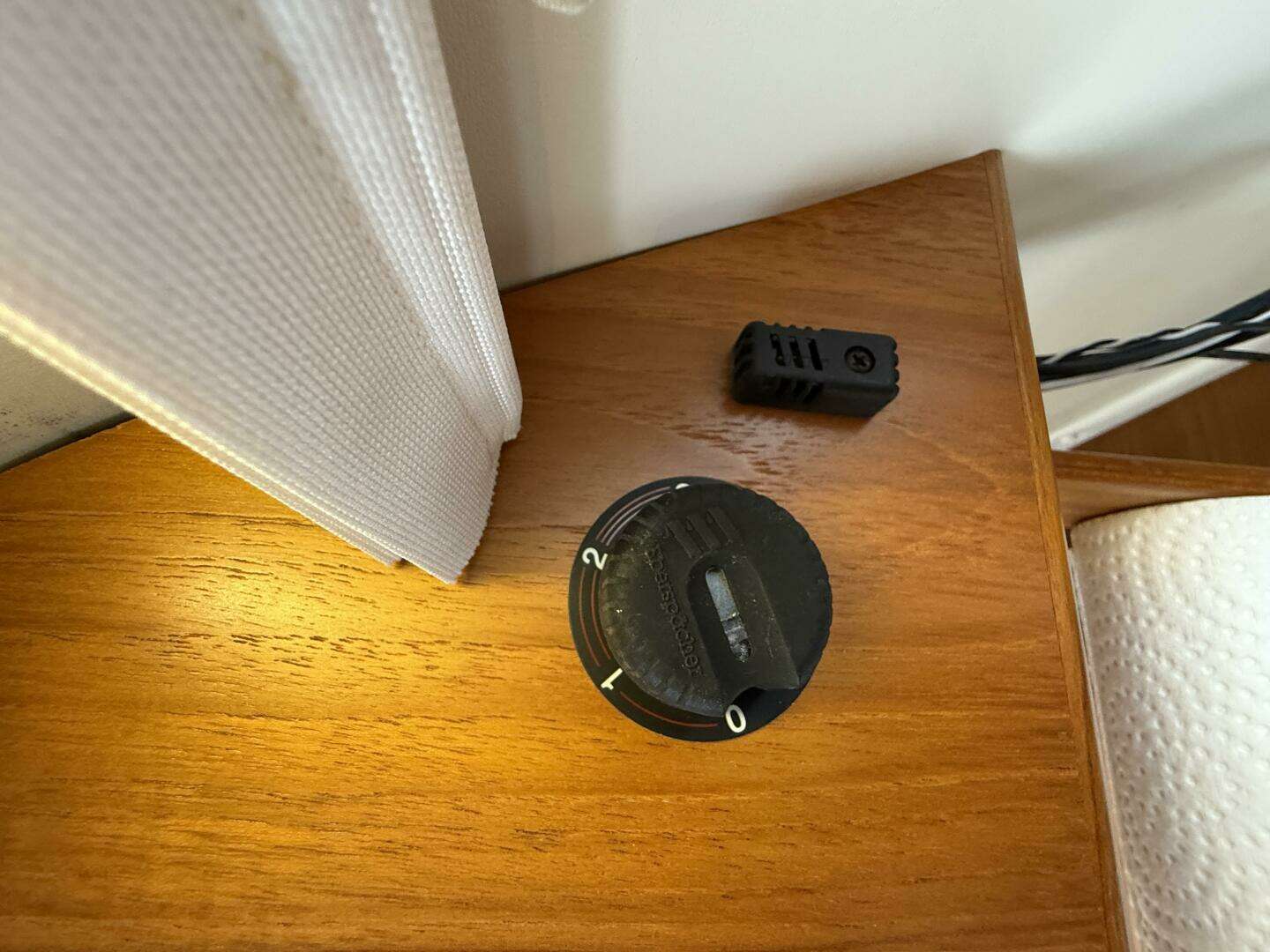

• Espar 1800W diesel heater
• Glass cabin windows for light and durability
• Storage under settees and V-berth
• Settees convert to two single berths
• Folding teak dining table

Deck, Sails, Rigging, Electronics

Electronics

• Raymarine HybridTouch 7" chartplotter
• Garmin Multidata display (knotmeter, depth)
• Garmin wind sensor (speed & direction)
• Raymarine ST4000 tiller drive autopilot
• ICOM IC-M1V handheld VHF radio
• Fusion Marine MS-RA200 stereo with two cabin speakers

Sails

• UK Sails full-batten TapeDrive mainsail (2015)
• Stack pack mainsail cover
• Furling TapeDrive jib with UV protection (2015)
• Furling screecher
• Asymmetrical spinnaker with dousing sock

Rigging

• Deck-stepped, white-painted carbon fiber mast with double diamond spreaders
• Aluminum boom
• Internal halyards
• Wire stays
• Double tensionable backstays
• Dyneema masthead backstay for screecher
• Folding composite bowsprit

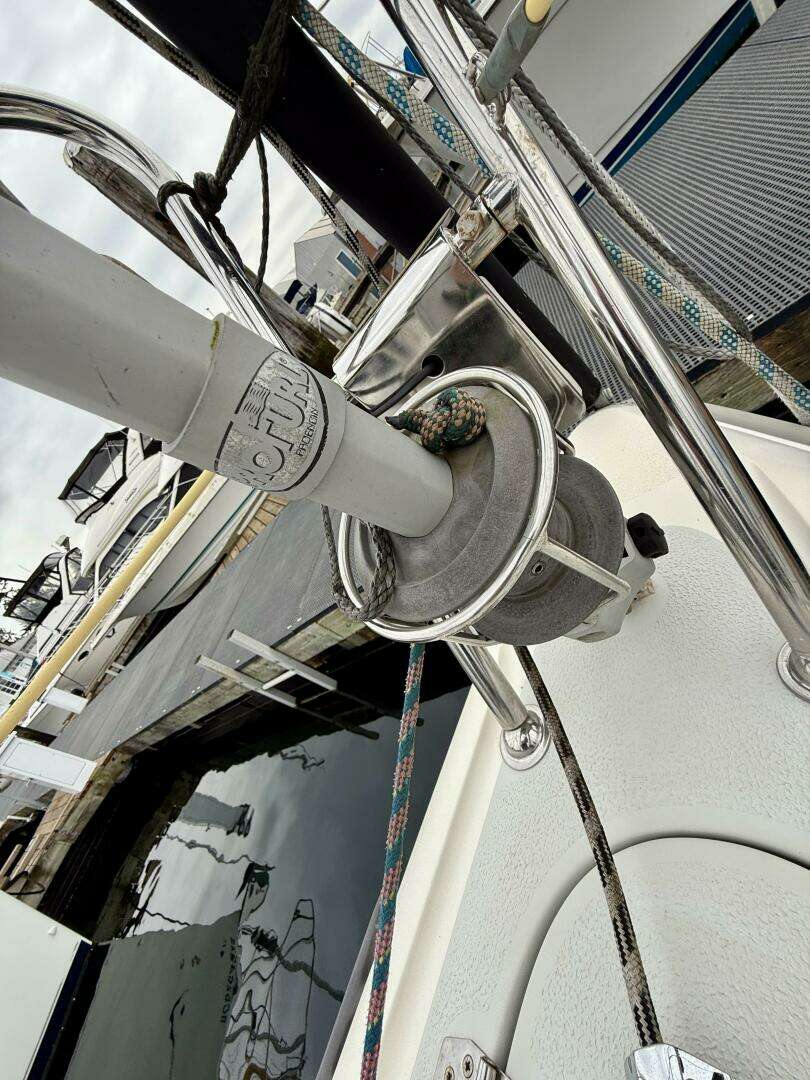

• ProFurl jib furler
• Cockpit traveler
• Sail tracks on coach roof
• Barber hauler systems for genoa and spinnaker
• All lines lead aft to cockpit through clutches
• Two bulkhead line bags for tail management
• Anderson winches: Two #28ST in cockpit, two #40ST on cabin top
• Cordless winch driver tool for easy ama deployment/retraction

Deck & Trampolines

• Beam transitions from 6.8m (22.3') to 3.1m (10.2') in minutes
• Road travel beam: 2.5m (8.2')
• Folded LOA: 10.5m (34.4')
• Stainless lifting eyes and cables
• Canvas dodger
• Bimini with canvas enclosure
• Folding telescopic swim ladder on transom

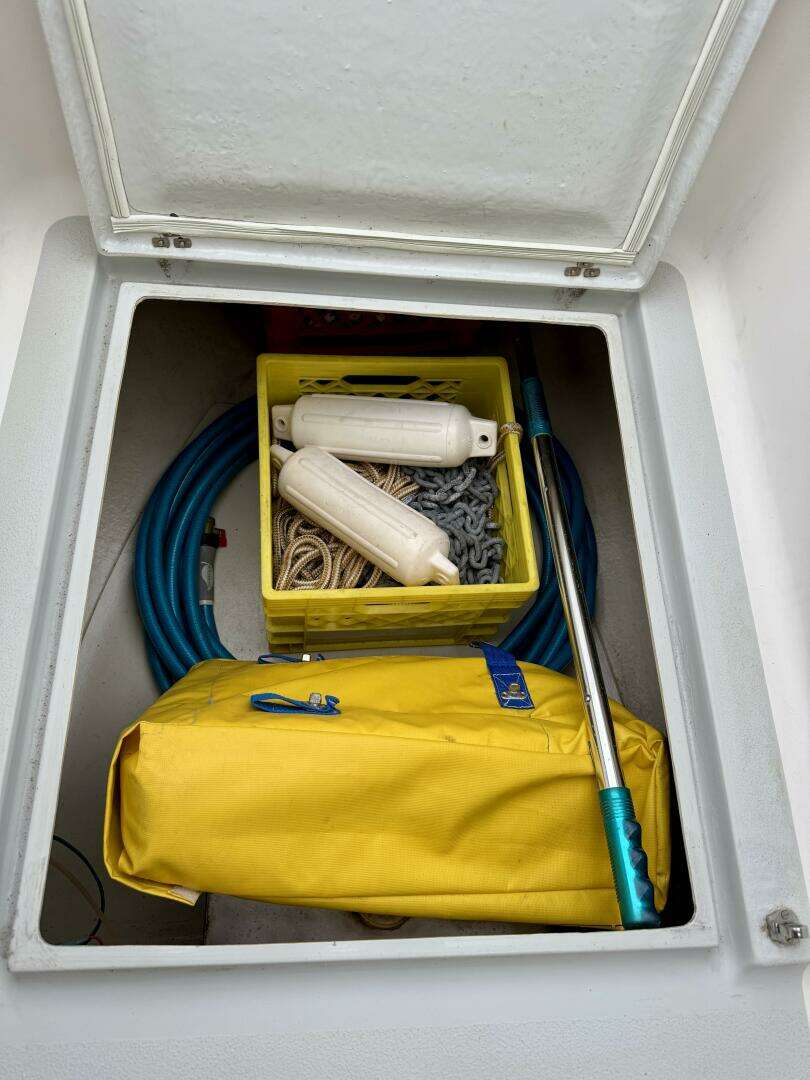

• Large storage hatch under cockpit
• Port cockpit storage locker
• 12V refrigerated ice box in starboard cockpit locker
• Two 12m2 trampolines (one per side)
• Ama storage via deck hatches
• Clear, uncluttered foredeck
• Opening foredeck hatch from below
• Companionway drop board converts into cockpit table (Laguna system)
• U-bolts mounted under traveler
• Stainless anchor roller
• Delta plow anchor with chain and line rode

Electrical System

• Shorepower system with 15A cable
• Main AC double-pole breaker
• Mastervolt IVO 50A smart charger (two-bank)
• House battery: 12V 100Ah LiFePO4
• Start battery: 12V 18Ah lead-acid
• 6A engine alternator
• Balmar digital battery monitor
• Factory DC panel with voltage meter and resettable breakers
• GFCI AC outlet in galley
• 12V LED lighting throughout

Mechanical & Plumbing

• 9.9HP outboard, electric start and trim with manual backup
• Outboard linked to rudder for enhanced maneuverability (forward & reverse)
• Autopilot integrates with outboard steering

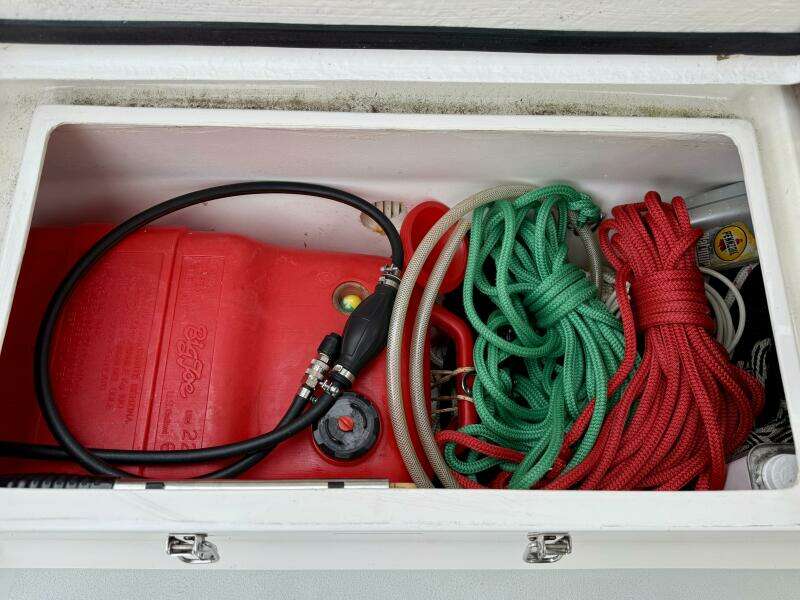

• 20 Liter petrol/gasoline tank in vented locker
• Separate 10 liter diesel tank for heater and stove
• Manual and electric bilge pumps
• 60L holding tank with gauge, overboard discharge, and deck pump-out
• 12V Alder Barbour refrigeration in starboard cockpit icebox

Sailing & Additonal

Sailing & Performance From the factory: "Seaworthiness - Dragonflys have proved their seaworthiness over the years in all conditions. The sleek lines cut through the waves, pounding and rolling in a seaway is something they leave to the monohulls."

Performance Features:

• High buoyancy floats
• Carbon fiber mast reduces weight aloft
• Swing Wing system for retractable amas
• Kick-up centerboard system
• Kick-up balanced rudder
• Tiller steering with extension
• Linked outboard and tiller for manual or autopilot control

Construction

• GRP foam sandwich hull and cabin
• Fully laminated construction
• Forward collision bulkhead in main hull
• Three watertight compartments in each float for full flotation

Maintenance Notes

• Engine oil last changed: July 2024
• No zincs on underbody
• Antifouling paint renewed: July 2024 (Micron CSC)
• Waterstays replaced: March 2016
• Side stays and forestay upgraded for screecher in 2012; inspected by Blackline Marine in 2016
• Diamond spreader stays inspected by Blackline Marine in 2016
• Rudder downhaul cable replaced with Dyneema
• Annual inspection completed on wing/beam bolts and nuts
• Wing/beam pivot bolt upgraded from 16mm stainless to 18mm phosphor bronze (ACCUFab)

Additional Equipment

• Mooring lines and fenders
• Basic safety gear
• Original factory shipping cradle converted to yard and launching trailer
• Magma Propane BBQ with Scotty mount
• Lifesling
