Additional Information

Wayfarer has striking lines and is a marina favorite wherever she graces. Yanmar 440 diesel engine, powered, stunning bright work, Brand New 16 “ Garmin chart plotter/ radar, autopilot.

•  Fiberglass T-top

•  New console dodger – Ivory Stamoid and poly carbon clear enclosure

•  Vacuflush® marine head, with 10-gallon holding tank, and overboard discharge

•  Real Teak and Holly sole in head

•  Fiberglass molded sink, with pressurized water, and an insulated cooler built-in to the engine box top

•  Cockpit freshwater washdown or shower

•  Teak decks

•  New 2024 Garmin 16" chart plotter with new digital radar dome

•  Raymarine autopilot

Hull and Deck

Hull is DualGuard® Composite construction Kevlar® E-glass skin with balsa core carbon fiber inner skin, SCRIMP® with Vinylester resin. Deck and cockpit are E-glass with balsa and closed cell foam core, SCRIMP® molded with vinylester resin. The side decks have a molded-in nonskid pattern.

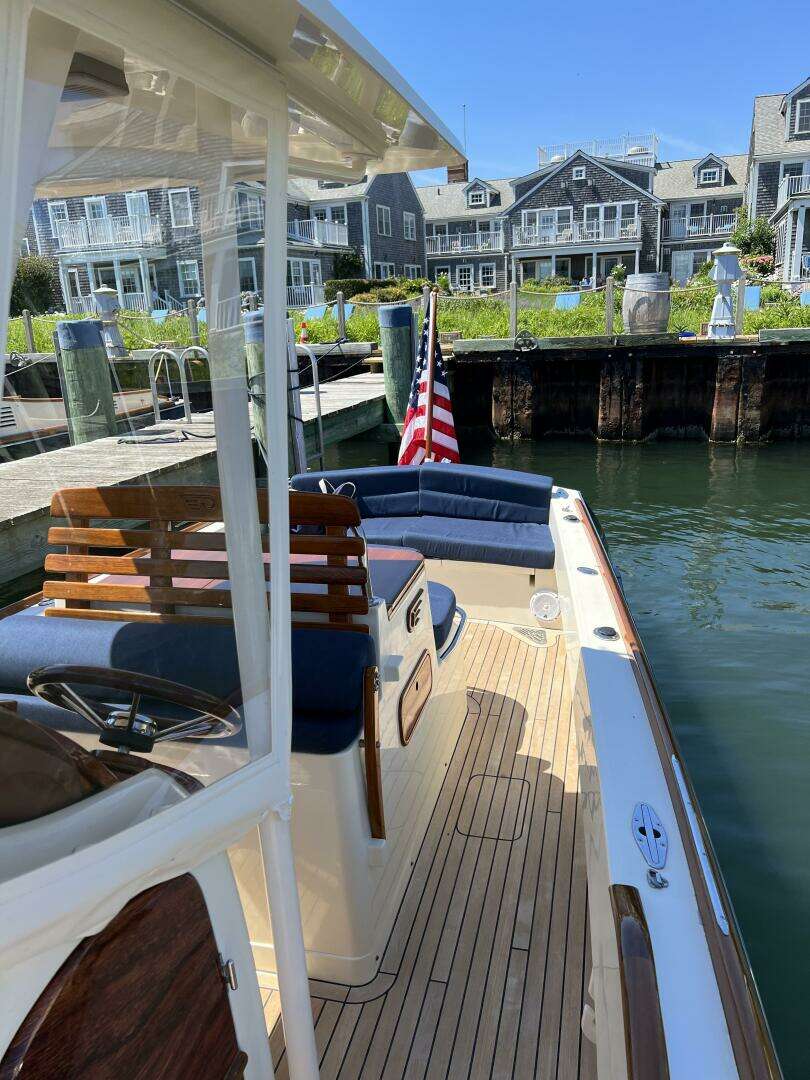

•  Solid Teak deck sole throughout the cockpit

•  Flag Blue Awlgrip topsides – Show like new / Perfect

•  Light cream gelcoat deck with molded-in nonskid

•  Double Cream boot stripe

•  Green bottom paint

•  Molded in self-draining foredeck anchor locker with hinged hatch

•  Fiberglass T-top - with aluminum frame painted to match deck

•  Spotlight with point pad remote

•  LED deck light with console switch, anchor light

•  New Chrome Kahlenberg Air Horn mounted on T- Top

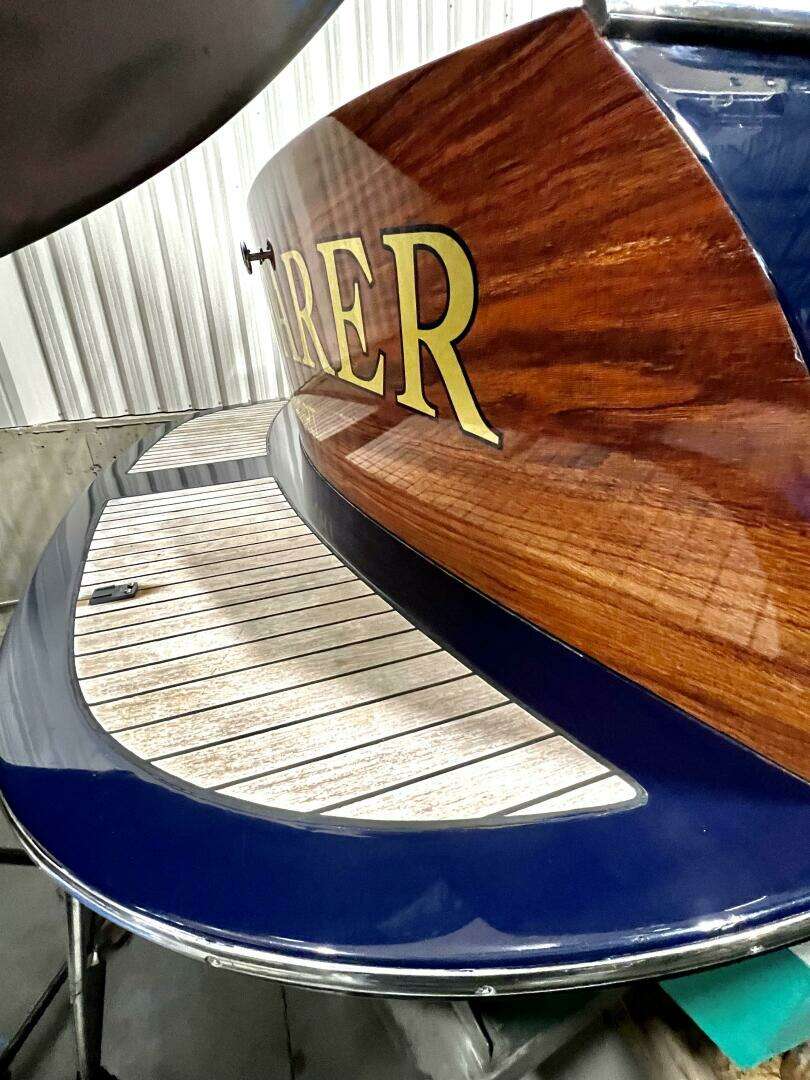

•  Hinckley designed heavy-duty fiberglass swim platform has custom teak decking

   stainless steel brackets and half-round rub rail

•  Newer Telescoping, stainless steel, 3-step folding swim ladder, stores hides under

   swim platform

•  Optional low profile ski/wake hook deck

•  Rounded, tapered, varnished teak toe rail with Hinckley profile

•  Stainless steel half-round on fiberglass molded rub rail

•  Profile Hinckley 316L stainless steel bow chocks

•  6 x Stainless steel pull-up cleats

•  4 x Fender Wichard padeyes – port and starboard

•  Full length of boat Toe rail stainless steel half-round

•  Stern mounted 4’ varnished teak staff with flush socket

•  Varnished teak bow burgee with flush socket

Vessel Walk-Through

Forward

•  Wrap-around, forward, cushioned seating for five (5)

•  Three storage lockers are located underneath the seating

•  Forward, removable and collapsible platform with cushion converts forward seating

   area into a sun lounge

Center Steering Console

•  Console has a molded Plexiglass venturi-style windshield

•  New Poly Carbon Clear console protection with Stamoid

•  Forward end of the console has cushioned seating for two

•  Insulated cooler/locker or dry storage is located under the console forward seating

Head Area

•  Accessed by a lockable door on the side of the steering console

•  Vacu-flush® head

•  Opening port provides ventilation to the head area

•  Main breaker panel

•  Overhead 12-volt dome light

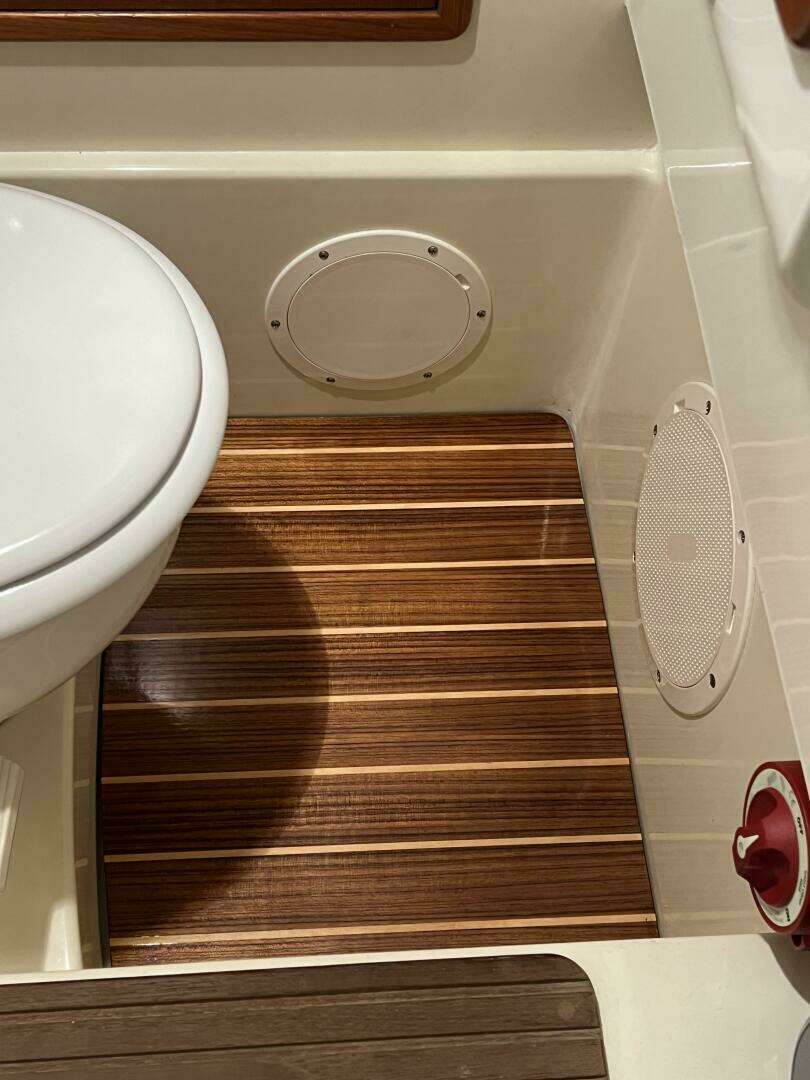

•  Real Teak and Holly Sole in Head

Helm Station

•  Varnished teak dash- All completely stripped at Hinckley and built back up with 12 coats of varnish

•  14” Stainless steel steering wheel with varnished wood rim

•  Hinckley JetStick® - integrates forward and aft motion, steering, and the bow thruster

•  Engine gauges and Morris single-lever clutch/throttle control

•  Trim tab controls and gauges

•  Jet steering angle indicator and voltmeter

•  Ritchie compass

•  Windlass control

•  12-Volt cigarette-style outlet with weatherproof cover for Phone or other charging

•  Double helm-seat with a varnished teak-slatted back rest

•  Extra thick new roll cushion for the helm seat with custom chrome fittings for easy up and down

•  Seat flips up to form leaning post

•  Stainless steel footrest with wood tread

Helm Nav/ Electronics Equipment

•  2024 New16 inch Garmin color Radar/GPS/chartplotter and 2-kW 18” radome

•  New Icom command mic VHF radio

•  Raymarine autopilot

•  Clarion Audio System

Engine Box

•  Just aft of the steering console is the insulated engine box

•  Double helm seat mounted forward

•  Aft-facing seating for two on aft end of engine box with cushions

•  Sink with pressurized freshwater - accessed through varnished teak top

•  Insulated cooler - accessed through varnished teak top

•  Electric-lift for engine box - with switch on console

Aft Cockpit

•  Aft settee faces forward with cushioned seating for three and two storage lockers under

•  Freshwater shower - aft in starboard corner of the cockpit

•  Direct drainage scuppers with stainless steel scupper grates

•  12-Volt LED deck light mounted on aft end of T-Top - with switch at console

Electrical System

12-Volt DC electrical system includes:

•  Low resistance, heavy copper wired and zinc anode electrical ground bonding system

•  Batteries total 420-amp/hrs

•  Lifeline Starting: 1 x 12-Volt Lifeline AGM group 31 - 750 MCCA battery 2 years old

•  Lifeline House: 1 x 12-Volt 4-D 210-amp/hr Lifeline – 2 years old

•  Heavy-duty battery switches for engine and house

•  80-Amp engine alternator

•  20-Amp multi-stage battery charger

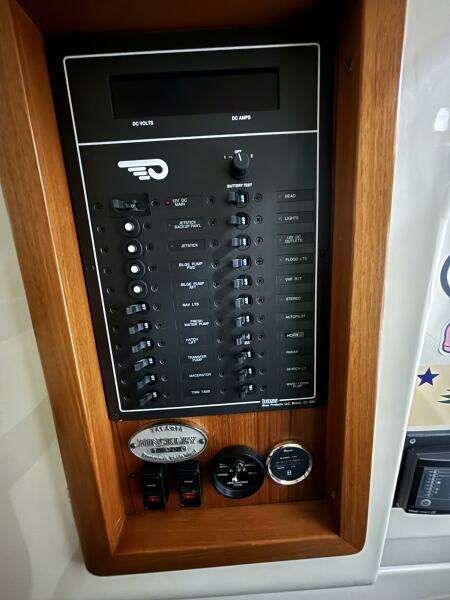

•  12-Volt distribution panel with breakers, volt and amp meter

•  2 x 12-volt “cigarette style” outlet- at helm and in head area

Mechanical/Engine Details

•  Yanmar 440-HP diesel

•  Hamilton 292 Jet Drive

•  Twin Disc ZF IRM220PL transmission

•  12-volt DC 5” bow thruster

•  Two New steel trim tabs Clean no bottom Paint

•  Hinckley “JetStick ®” steering control system - is integrated with bow thruster

•  Racor fuel/water separator filter

•  Tachometer with engine hours, oil pressure, water temperature and fuel gauges

•  Bell alarm for low oil pressure, and high-water temperature gauges

•  Reversible oil transfer pump for engine and transmission

•  Manual hydraulic steering pump

•  2 x Electric 1500-gph, 12-volt bilge pumps with float switches

•  Whale emergency bilge pump mounted in Forward cockpit locker

•  Pressurized freshwater water system

•  Marelon® ball-valve seacocks

Engine area

•  Lead-lined foam insulated engine box with double gaskets on cover

•  Baffled and insulated engine air intake

•  Halon fire suppression system in engine compartment, with automatic engine shut-down

Tankage

•  2 x 50-Gallon heavy gauge polyethylene fuel tanks

•  20-Gallon water tank

•  10-Gallon holding tank

Additional Equipment

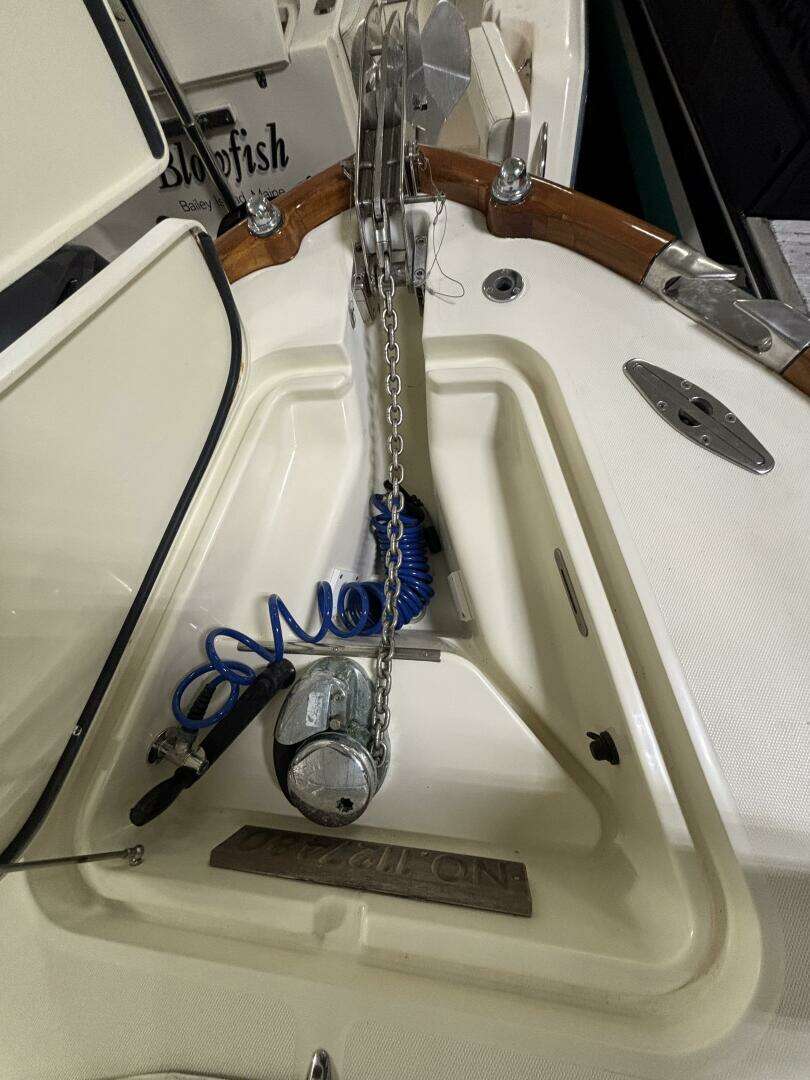

•  Muir electric windlass in foredeck anchor locker

•  Hinckley designed polished stainless steel folding anchor roller

•  Windlass controls at helm and wired remote in anchor locker

•  Polished stainless steel Delta anchor with 15’ stainless steel chain, and 150’ anchor rode

•  Running lights

•  2 x Fire extinguishers

•  Dock lines and fenders

•  Forward center console seating cover

•  Stamoid weather covers for sole and engine box

•  New Trim tabs- Silver clean no bottom paint
