VESSEL CONSTRUCTION

CONFIGURATION: Masthead Sloop

MATERIAL: Fiberglass reinforced plastic ( FRP)

EXTERIOR HULL : Blue gelcoat

BULKHEADS: one, partial

TRANSOM: Vertical with built in FRP

BILGE: Accessible shallow bilge under the cabin sole

SWIM GRID: N/A

HULL/DECK JOINT: Overlapped, bolted, with nitrile rub rail

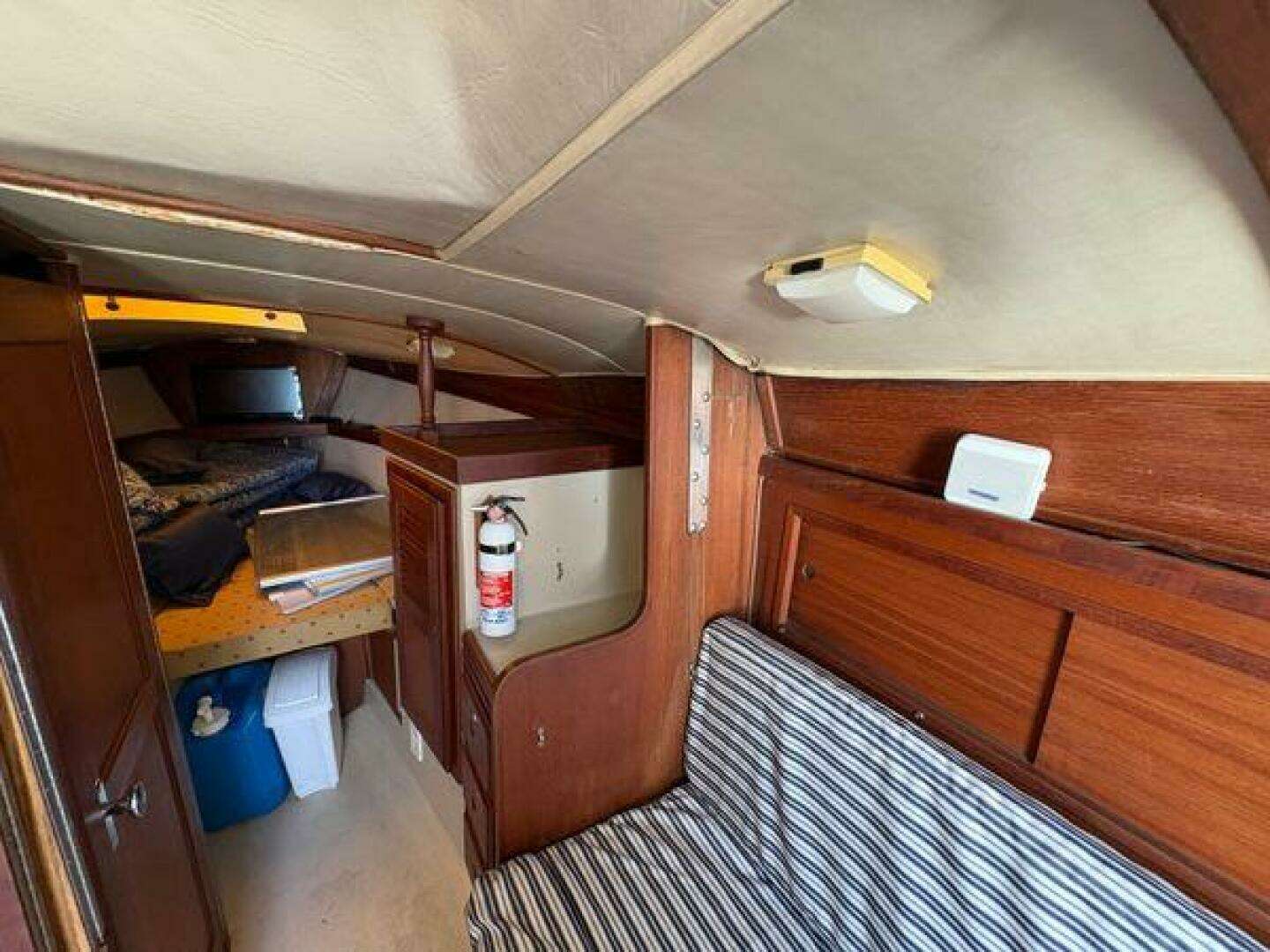

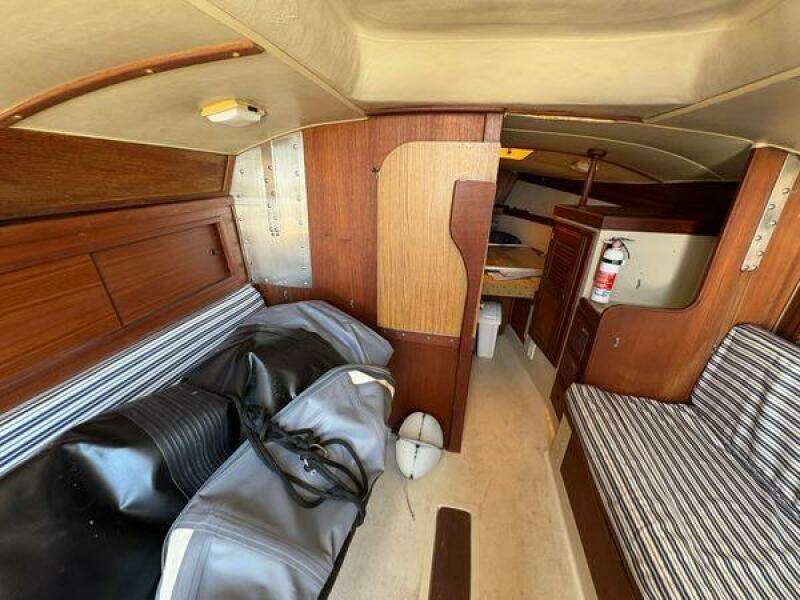

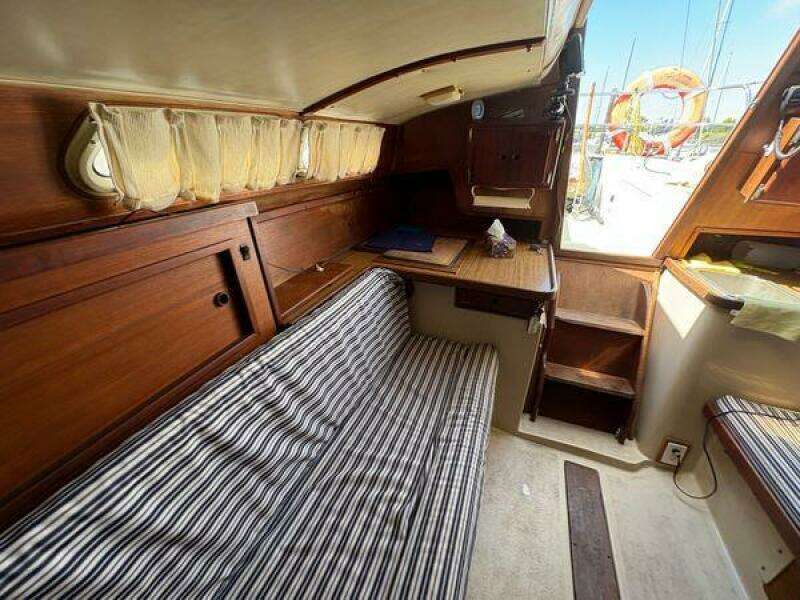

INTERIOR FINISH: Composite sole and fabric up

BOAT DATA

Vessel : 27 ft fiberglass sailing sloop

Vessel type: Displacement hull with fin keel and spade rudder

Vessel registration: 13K31797

Vessel HIN#: CPY00737M81H-N27

Propulsion type: Sail/Auxiliary gasoline outboard

Engine Model: Yamaha T 9.9 XEHA 9.9 HP

Engine year: 2004

Engine SN: 6AVKX1019288

Length Over all: 27’ 0”

Beam: 9' 2"

Draft: 4’ 3” (min.)

Displacement: 6, 000 lbs.

Ballast: 2, 400 lbs.

Hull material: Fiberglass reinforced plastic (FRP)

Boat built: 1981 Capital Yachts, Harbor City, CA, USA

DECK MACHINERY AND EQUIPMENT

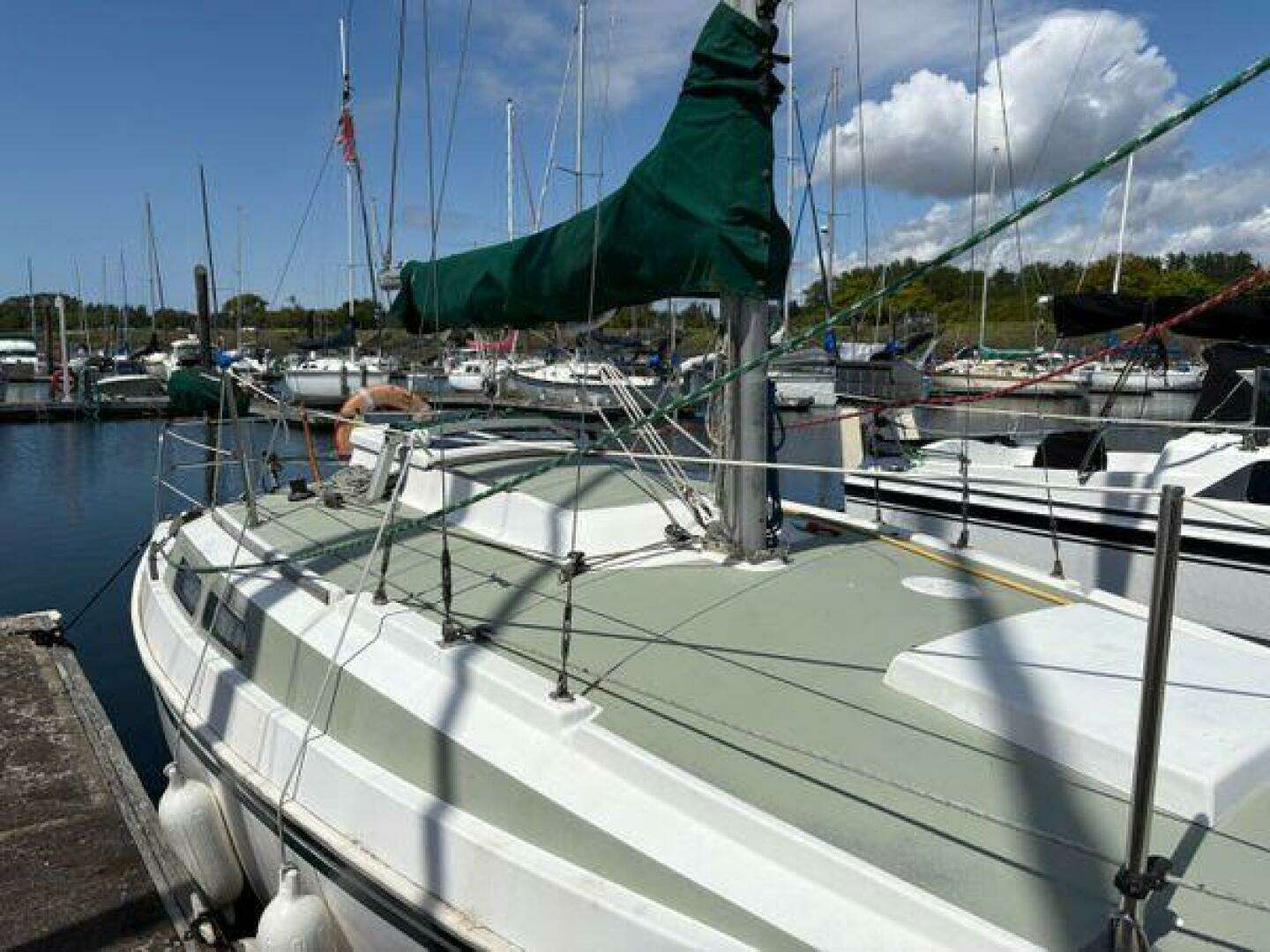

PVC coated 316 Stainless-steel double lifelines around decks, on stainless steel

stanchions

Stainless pulpits and push pits

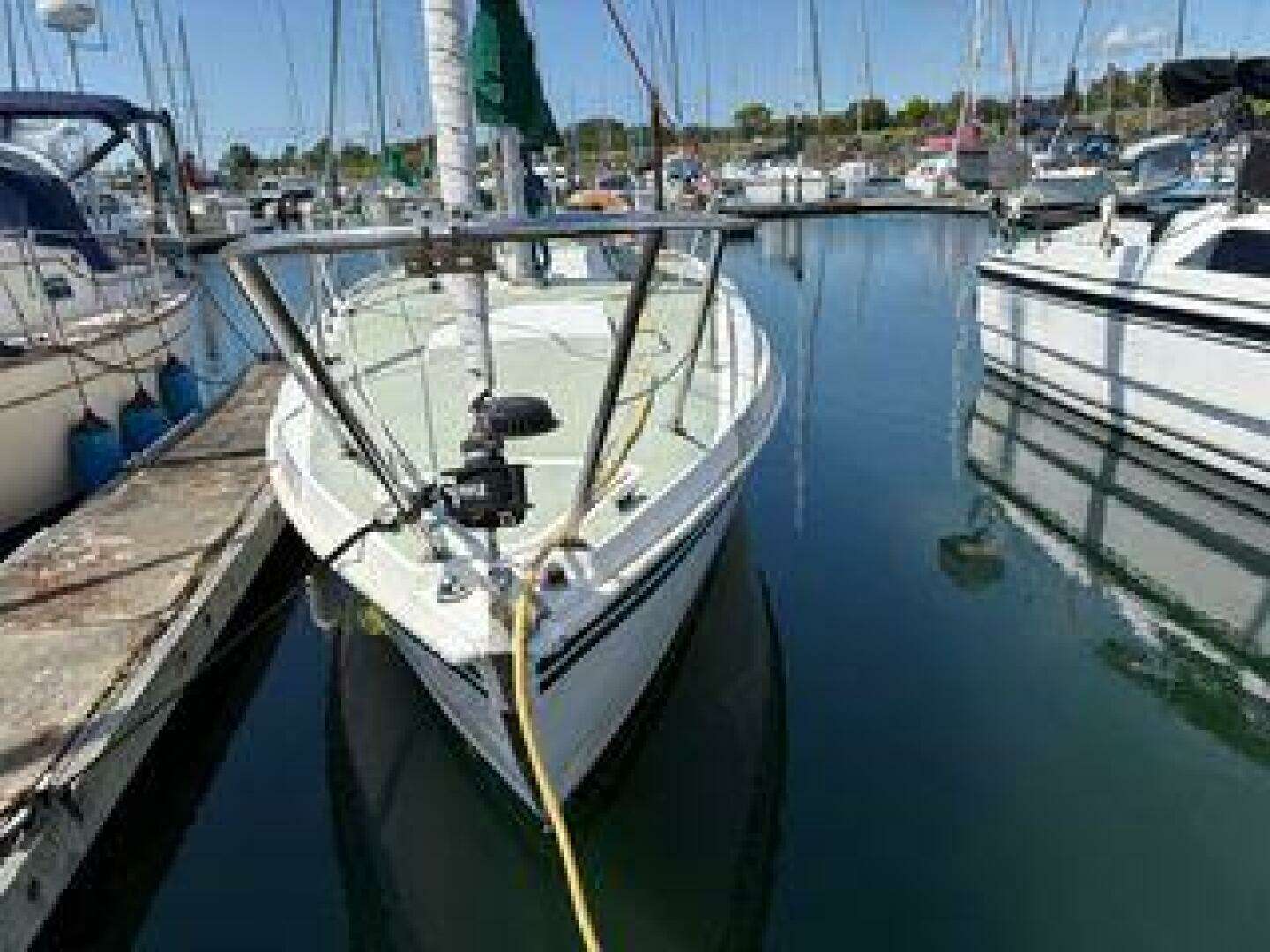

Stainless steel bowsprit and anchor roller

Ground Tackle

One Deltafast Set #14 anchor with estimated 50’ galvanized chain 5/16” and 200’

nylon rode

One spare Danforth anchor – cockpit locker

Compasses: Suunto 4” on bulkhead

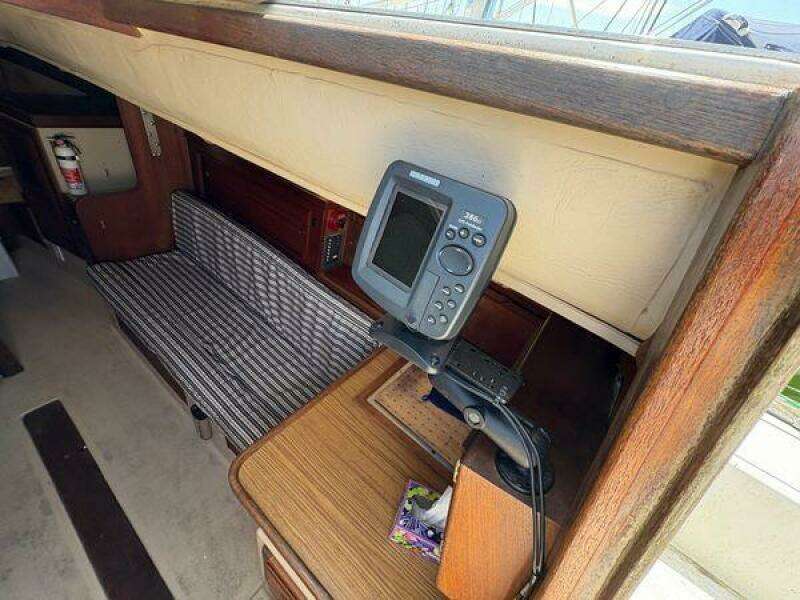

Chart plotter: Humminbird 386CI with GPS and Fishinder

VHF Radio: Motorola Triton M100

Autopilot: N/A

Stereo: Kenwood KDC-135

TV: Fluid 24” LED TV – V-berth

STANDING RIGGING

Furler: Harken

Forestay: 1x19 stainless wire (316 SS) – 1/8”

Backstay: 1x19 stainless wire (316 SS) – 1/8”

Fixed Shroud: 1x19 stainless wire (316 SS) – 3/16”

Chain Plates: Stainless Steel

Mast: Aluminum Z-Spar

Masthead: Not inspected

Boom: Aluminum-Z Spar

Goose Neck: Aluminum

Stem head: Anchor Roller

Traveler: N/A

Boom Vang: 1000 lbs SWL kit

Spinnaker Pole: N/A

WINCHES

Primary: (2) Lewmar 30 two speed – main sheet

Secondary: (2) Lewmar 7 single speed – on cabin top

Main Sheet: Blocks

Halyards: 2 Lewmar 7 – mast

POWER

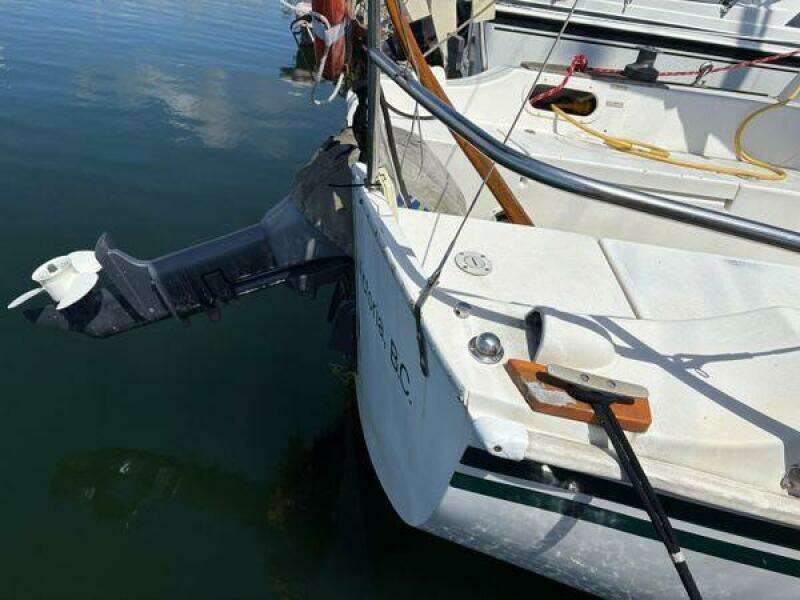

Auxiliary propulsion power is provided by a Yamaha 9.9 HP four stroke gasoline

outboard motor.

Fuel is stored in the 5-gallon original steel fuel tank located beneath the cockpit,

and it is supplied to the engine via copper tubing, through in-line filter.

Both the steering and propulsion are controlled from the cockpit. The steering is by

tiller handle to the spade type fiberglass rudder, while shifting and throttle controls

are on the motor’s tiller handle.
