General Specifications:

• Overall Length (L.O.A) 7,90 m 25’11’’

• Hull length 7,50 m 24’7’’

• L.W.L. 7,35 m 24’1’’

• Hull Beam 2,75 m 9’

• Draught with retractable keel 0,85 - 1,85 m 2’9’’ - 6’1’’

• Ballast with retractable keel 620 kg 1,367 lbs

• Shallow draft 1,45 m 4’9’’

• Shallow ballast weight 615 kg 1,356 lbs

• Air draft 12,50 m 41’

• Light displacement (EC) 2 150 kg 4,740 lbs

• Fuel tank capacity 30 L 8 US Gal

• Fresh water capacity 40 L 11 US Gal

• Engine power 14 HP 14 HP

• Mainsail 24,50 m² 264 sq ft

• Genoa 120 % 14,30 m² 154 sq ft

• Code 0 24,9 m² 268 sq ft

• Asymmetrical spinnaker 56 m² 603 sq ft

• I 9,17 m 30’1’’

• J 3m 9’10’’

• P 9,50 m 31’2’’

• E 3,90 m 12’10’’

• Finot Conq and Associates

CONSTRUCTION:

Design made following European Directive requirements and according to CE certification.

• Monolithic hull in polyester

• Structural hull liner made with unidirectional fabrics laminated and bonded evenly to the hull

• Deck in sandwich (fiberglass / Balsa wood / polyester resin)

• Accessible areas covered in a ’’Picot’’ type non-slip surface

• Interior deck hull liner cemented to deck

• Hull-deck joint screwed, bonded and trimmed with 1 toerail

• Cast iron fixed keel, fastened to vessel with a system of screws and stainless steel backing plates

• Retractable keel: in cast iron - pivoted and adjusted with a manual system of lifting screw and winch handle

• 2 Rectractable and adjustable rudders

• White hull, Dark grey hull decoration

RIGGING:

• 9/10 freestanding anodized aluminum mast, single spreaders

• Anodized aluminum boom

• Discontinuous stainless steel standing rigging

• Shroud chainplates attached to hull/deck joint

• Mainsail track on transom beam

• 1 Adjustable boom vang by hoist

• 1 Genoa furler - 1 Fore-stay secured to bow fitting

• 2 Genoa sheet tracks with back and forth adjustable car -Rigging run back to cockpit

• Complete running rigging: 2 Genoa sheets, 1 Genoa halyard,1 mainsheet with block and tackle system, 1 Main halyard, 2 Reef lines, 1 Mainsail foot

• 2 Pulleys with clutch

• 2 Triple clutches

• 2 Jamming cleats

WINCHES:

• 2 Aluminium winches self tailing (H16.1 STA)

• 1 Winch handle holder

• 1 Winch handle

MOORING -ANCHORING GEAR:

• Self-draining chain locker - 1 Clench ring - 1 Hood cove

• Single roller stainless steel bow fitting - Integral - 2 Fitted fairleads

• 4 Aluminum mooring cleats

SAFETY ON DECK:

• 1 Stainless steel 3 leg pulpit

• 2 Stainless steel aft pushpits

• Stainless steel single lifeline and stanchions

COCKPIT:

• Self-bailing cockpit

• 2 Lockers with shelves

• 1 1 Position of the liferaft (aft cockipt)

• 1 Solid wood tiller with extension

• Polyester cockpit benches

AFT TRANSOM:

• 1 Stainless steel swimming ladder

• 1 Stainless steel handhold

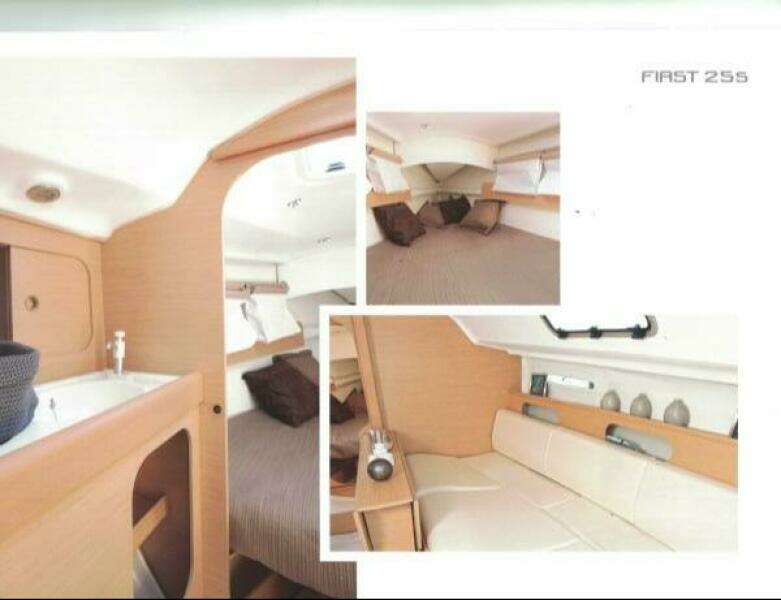

INTERIOR:

• Woodwork: Light Alpi teak

• White ceruse oak laminate flooring, Polyester, Non-slip

• Vinyl fabric spar ceiling

• PVC Arredo upholstery

COMPANIONWAY:

Headroom: 1,77 m / 5’10’’

• 1 Polyester companionway hatch with fitted window – Wooden door

• Polyester companionway - Non-slip surface steps

FORWARD CABIN:

Headroom: 1,56 m / 5’1’’

• Double bed (1,90 m x 1,50 m / 6’3’’ x 4’11’’) - Foam mattress with cover

• Storage

• 1 Opening hatch on deck house

• Sliding door

HEAD:

• 1 Polyester sink - Hand pump - Spout

• 1 Cupboard - 1 Hanging locker

• 1 Mirror

• Cubby hole lockers and storage along the hull

• 1 Marine toilet

• 1 Fixed deck house hatch

SALON:

• Headroom: 1,70 m / 5’7’’

• 2 Bench seats with mattress and cover:

- Starboard bench seat (2,05 m x 0,60 m / 6’9’’ x 2’) convertible to double berth (standard)

- Port bench seat (1,95 m x 0,60 m / 6’5’’ x 2’) usable as single berth

• Wooden salon table - 2 Trim tab

• Cubbyholes along the hull

• Storage under bench seats

• 2 Fixed hull portholes

• 2 Opening ports in coachroof

GALLEY:

Headroom: 1,62 m / 5’4’’

• Polyester sink with spout - Foot pump - Cutting board

• Storage cubbyholes and storage under sink

• 1 Polyester 50 L icebox with baskets - top opening

• Space for cooker

• "Stainless steel wire" bottle rack

CHART TABLE:

• Control console with flap 0,70 x 0,60 m / 2’4’’ x 2’

• 1 Storage under table

• 1 Navigation instrument panel

ENGINE:

• Engine Yanmar 14 HP / HP

• Engine control in cockpit - Engine panel located in cockpit

• Engine compartment - Soundproofing foam

• 1 Fuel tank (30 L / 8 US Gal)

• Sea water filter, diesel and decanter

• Stainless steel shaft line - Chair in glass epoxy compound

• Fixed two-blade propeller

• 1 Access to engine through the hinged swing-up companionway with handhold

ELECTRICITY:

• 1 12 V 80 Amp battery

• 1 12 V and 6 function electrical panel - Fuses

• Navigation lights on masthead

• Lighting: Ceiling lights and lamp fittings

PLUMBING:

• 1 Rotomolded water tanks (50 L / 13 US Gal)

• 1 Manual bilge pump

• 1 Rigid sewage tank (50 L / 13 US Gal)

Standard Boat as listed above, including the following Additional Equipment and Services:

Factory Supplied Equipment:

Lifting Keel

White Hull

Yanmar 2YM15 Diesel

Alpi Fair Teak Woodwork

PERFORMANCE PACK:

• 1 Dacron square top mainsail

• 1 Jib Dacron on furler

• Code 0 on furler

• Asymmetrical spinnaker rigging with swing pole

• Lazy bag + Lazy jack

• Steering compass on partition

• Natural solid wood slatted cockpit benches

Electronics: Wireless multi-function display, Log, Speed, Depth, Temp & Wind

CD Radio Player and two speakers in the salon

Two coach roof winches Harken 35.2 Self Tailers, instead of standard

Two folding blade propeller

Additional opening hatch in toilet

Windex on Masthead

Dealer-Supplied Items:

Docklines & Fenders

Anchor Package-anchor, chain and nylon rode

Safety Gear Package

Triad Trailer Float-Off Package w/spare tire, LED lights, Rear Jack, Ratchet Straps

Battery Charger and Cockpit Plug Installed (port side)

VHF Radio Installed
