Specifications

Specifications

LOA 27/ 4"

Beam 9' 0"

Draft (hull/prop) 1' 6"/ 2' 9"

Displacement 7,000 lbs. (fully loaded)

Fuel Capacity 100 U.S. Gallons

Water Capacity 15 U.S. Gallons

Top Speed (std pwr) 41 kts.

HULL

Solid E-glass bottom laminate

Closed cell foam-cored topsides

Vinylester osmosis barrier

Foam-cored E-glass stringers & bulkheads

Painted bilge

Extruded vinyl sheer guard

Molded interior liner

DECK

E-glass fabric with closed cell foam-cored laminate & molded non-skid pattern

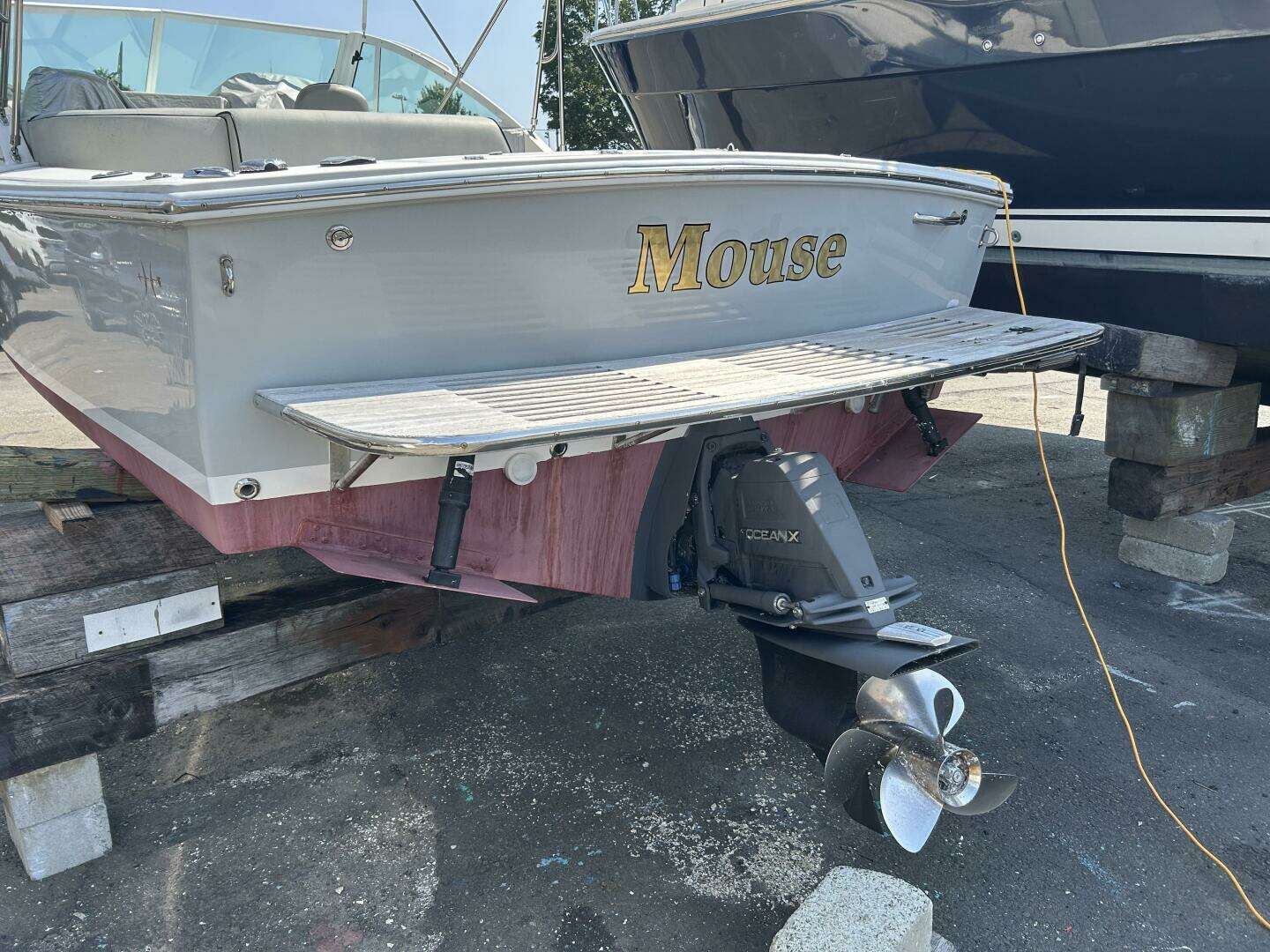

Swim platform Armstrong outboard bracket with telescoping swim ladder and composite teak

Anchor locker Molded into foredeck with hinged hatch

Handrails (2) S.S. foredeck handrails (1) on each side of Lewmar foredeck hatch

Chocks (2) S.S. bow chocks

Cleats (4) pull-up S.S. 8" cleats & (1) 10" bow cleat

Windshield White powder-coated with handrails, side vents & Solex glass

Wipers Pantograph port & starboard with windshield washers

Lights LED USCG-approved running lights

Hatch Lewmar cabin hatch with screen

Fender pad eyes (4) Wichard pad eyes (2) port & (2) starboard

Fills S.S water, fuel & waste

Rod holders (2) S.S.

Stern eyes (2) S.S.

Drink holders (5) one at helm, two portside & two on engine box

Transom locker (2) molded into transom / drains

Foam High density foam core in way of high load hardware

CABIN

Access Varnished teak companionway doors and sliding hatch (with covers)

Berths V-berth with storage under

Head Electric saltwater head with diverter Y-valve & holding tank

Lighting S.S. dome light

Storage Locker to port

Cabin sole Durable faux teak & holly sole Interior Fiberglass overhead deck liner and pan (floor liner)

COCKPIT

Bimini top S.S. Bimini bow with S. S. handholds port / stbd sides with Stamoid Bimini top (w/ storage sock) & clear vinyl front filler curtain

Covers Stamoid covers for teak companion way, helm console, electrical panel, p/s glove box and wet bar

Curtain package Includes side (with zip-out openings), front and stern curtains (3-pieces) with clear vinyl

Helm Fiberglass control console with varnished teak shelf, handholds & trim; custom wood. steering wheel

Compass Ritchie (calibration included)

Seating Adjustable sport helm seat (w/ storage beneath) and adjustable sport companion seat, Molded portside L-settee with insulated cooler within (drains overboard) and matching cushions

Cushions Luxor leather with choice of contrasting piping

Wet bar Corian counter top with Corian cover, S.S. cold-water pressure sink, varnished teak fiddles, 12-volt S.S. refrigerator, & tip-out waste bin

Drainage Self-bailing cockpit with guttered hatches

Shower Cold pressure water on transom (flush mounted)

Lighting (2) LED courtesy bridgedeck lights, LED strip lighting under coaming in cockpit and lighting in forward sole compartment

Straps (3) Safety straps on bimini top on both port and starboard sides to assist with side deck passages

MECHANICAL & ELECTRICAL

Engine data to interface with chartplotter

Propeller S.S. 4-bladed prop

Steering Hydraulic

Fuel (1) 100-gallon tank

Water (1) 15-gallon tank

Bilge pumps (1) 1,100 GPH aft (automatic), (1) 2000 GPH midships (automatic), high-water bilge alarm

Batteries (2) 12-volt marine-grade AGM, 10-amp battery charger, transom-mounted rotary switch

VHF radio Garmin VHF 110

Electrical outlet (1) 12-volt outlet at helm

Horn AFI flush-mount 12-volt air horn
