DESCRIPTION OF THE YACHT

Simena… an ancient city that carries the echoes of centuries of maritime heritage.


She is the perfect blend of traditional sailing and modern technology. Her hybrid
propulsion architecture offers the best of both worlds - the comfort of a motor yacht
combined with the thrill of sails.

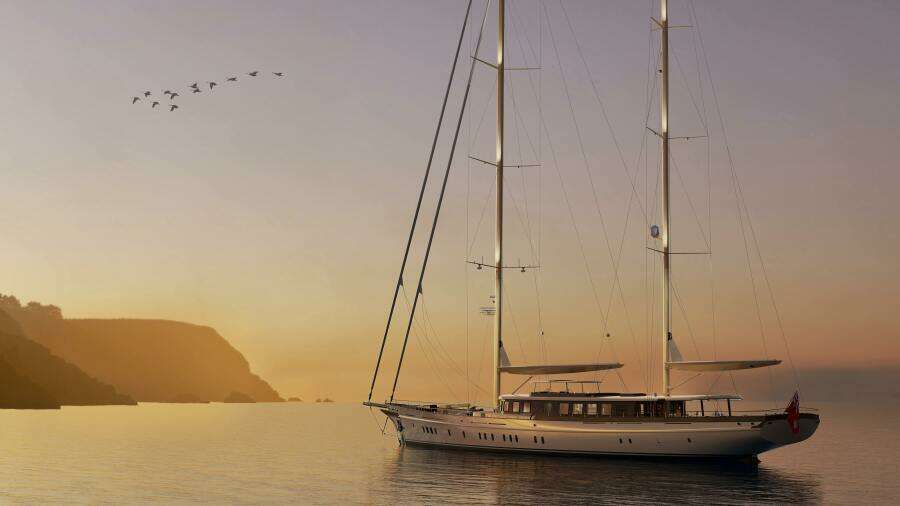

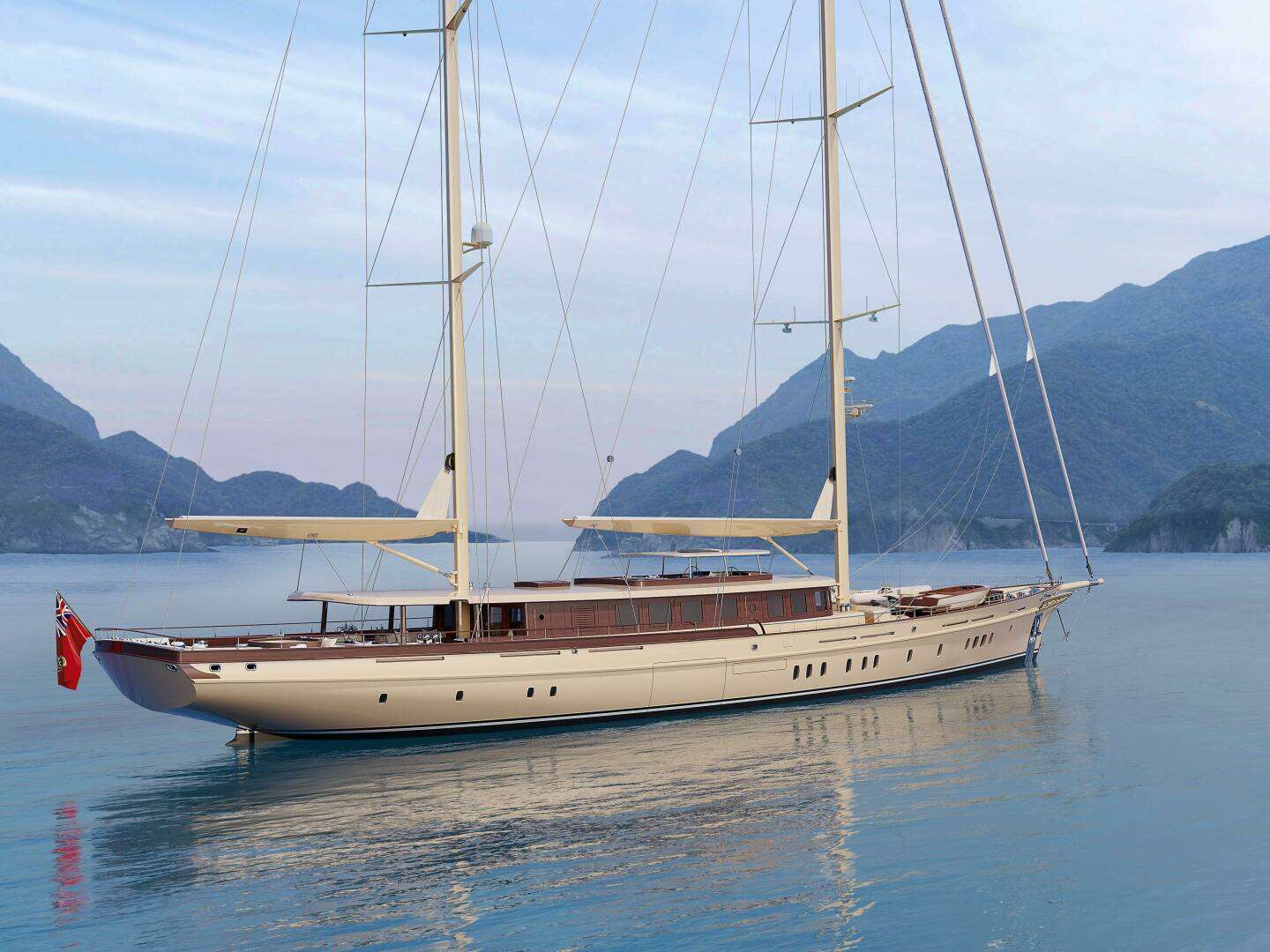

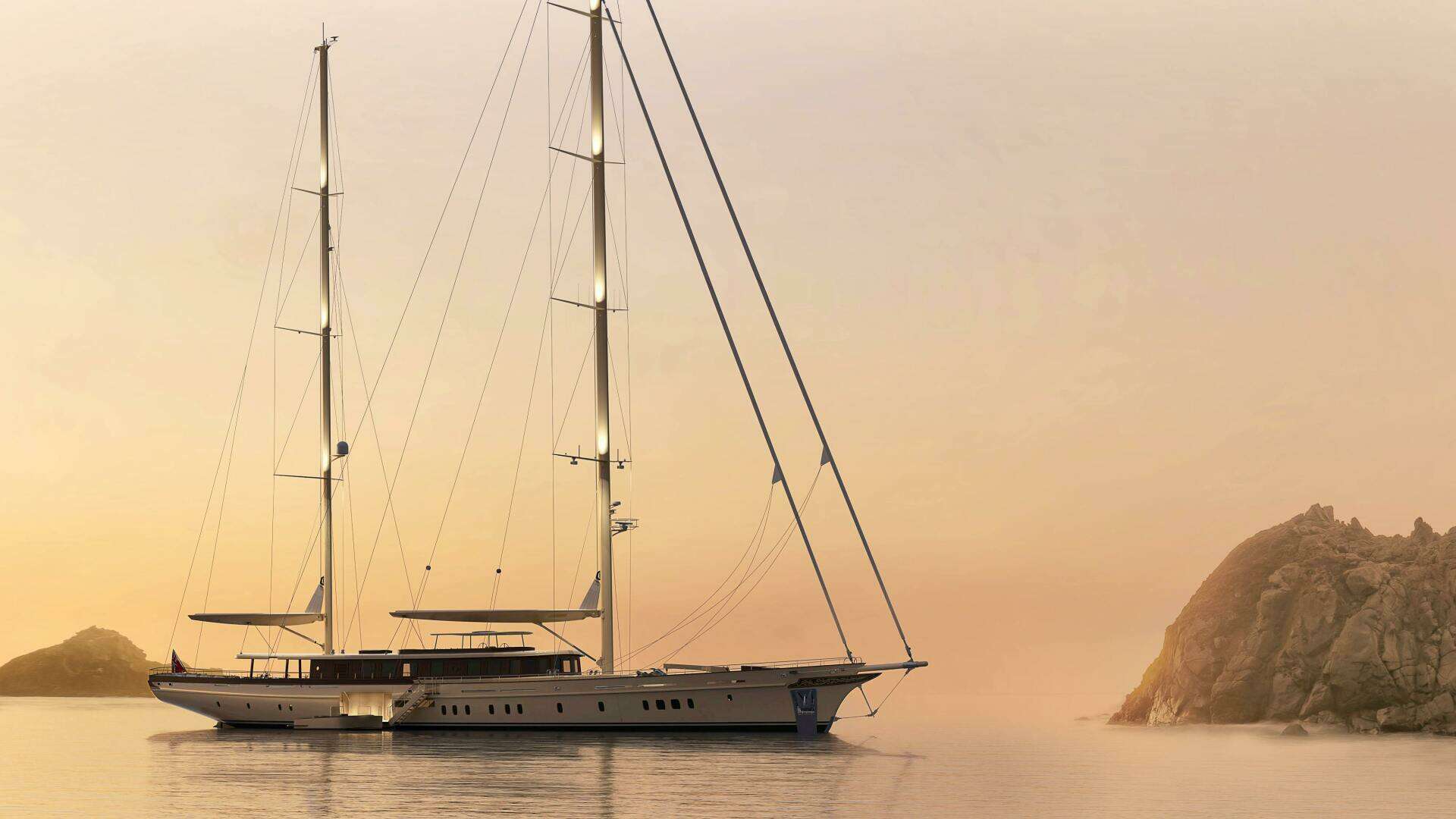

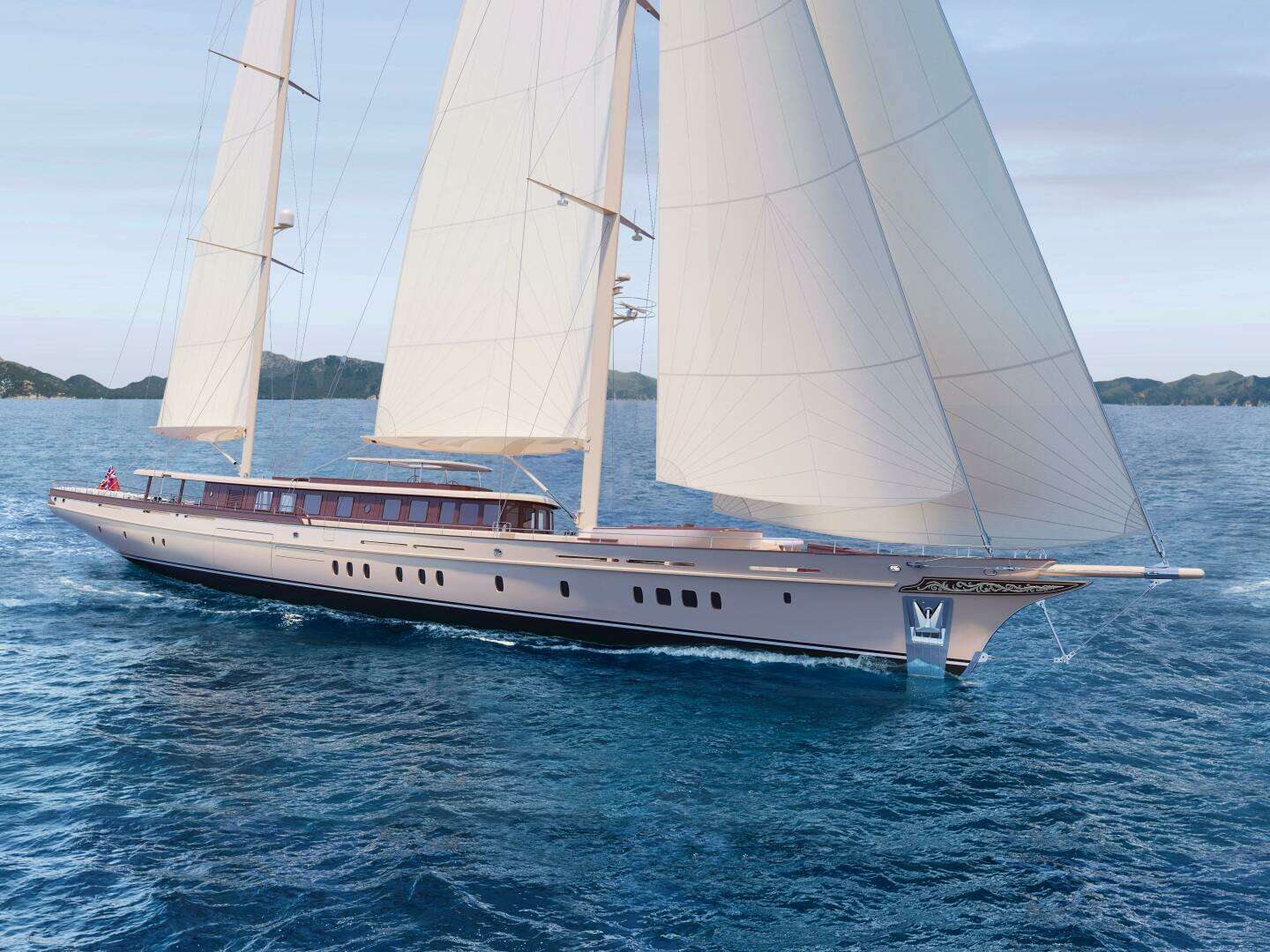

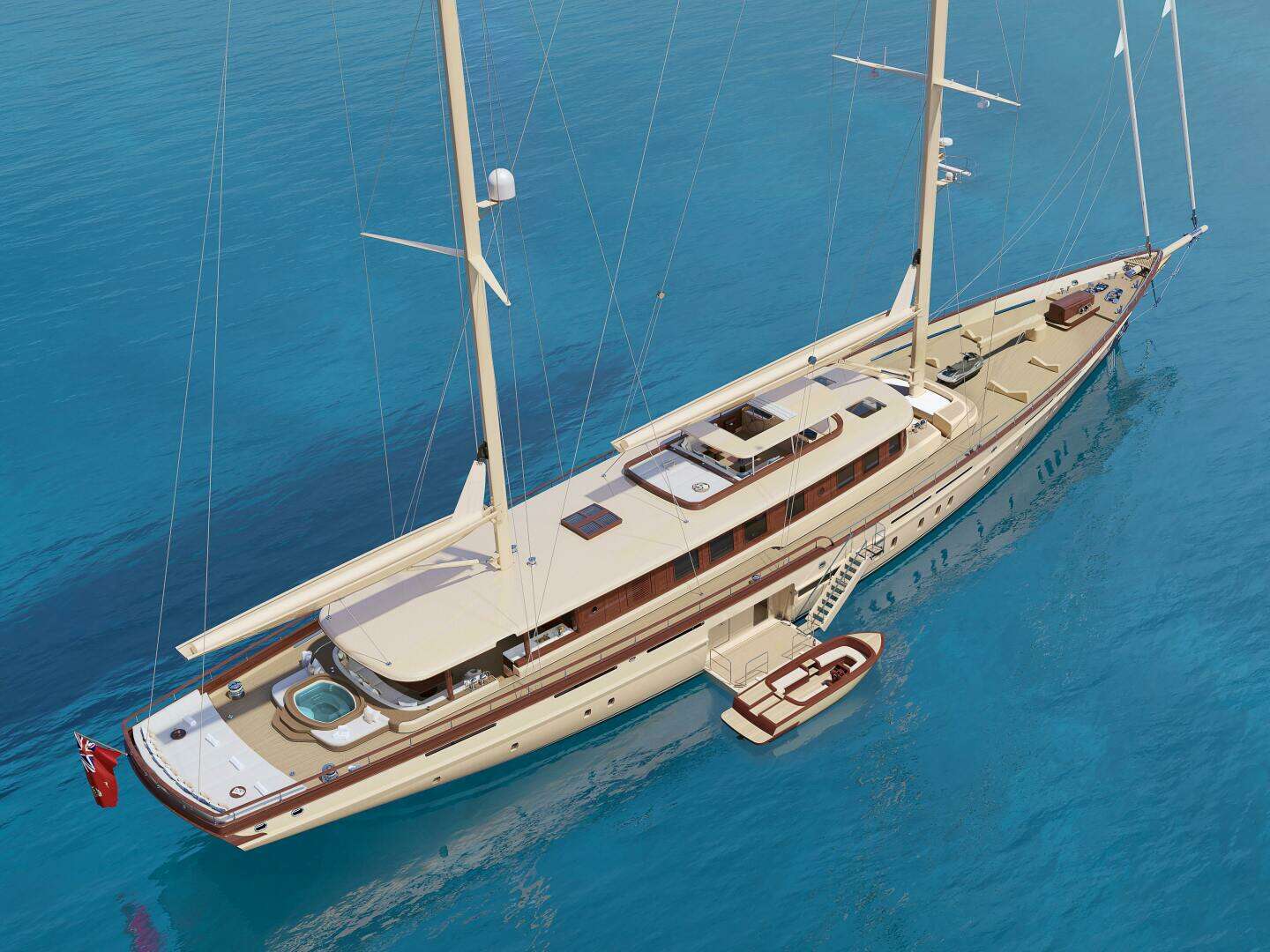

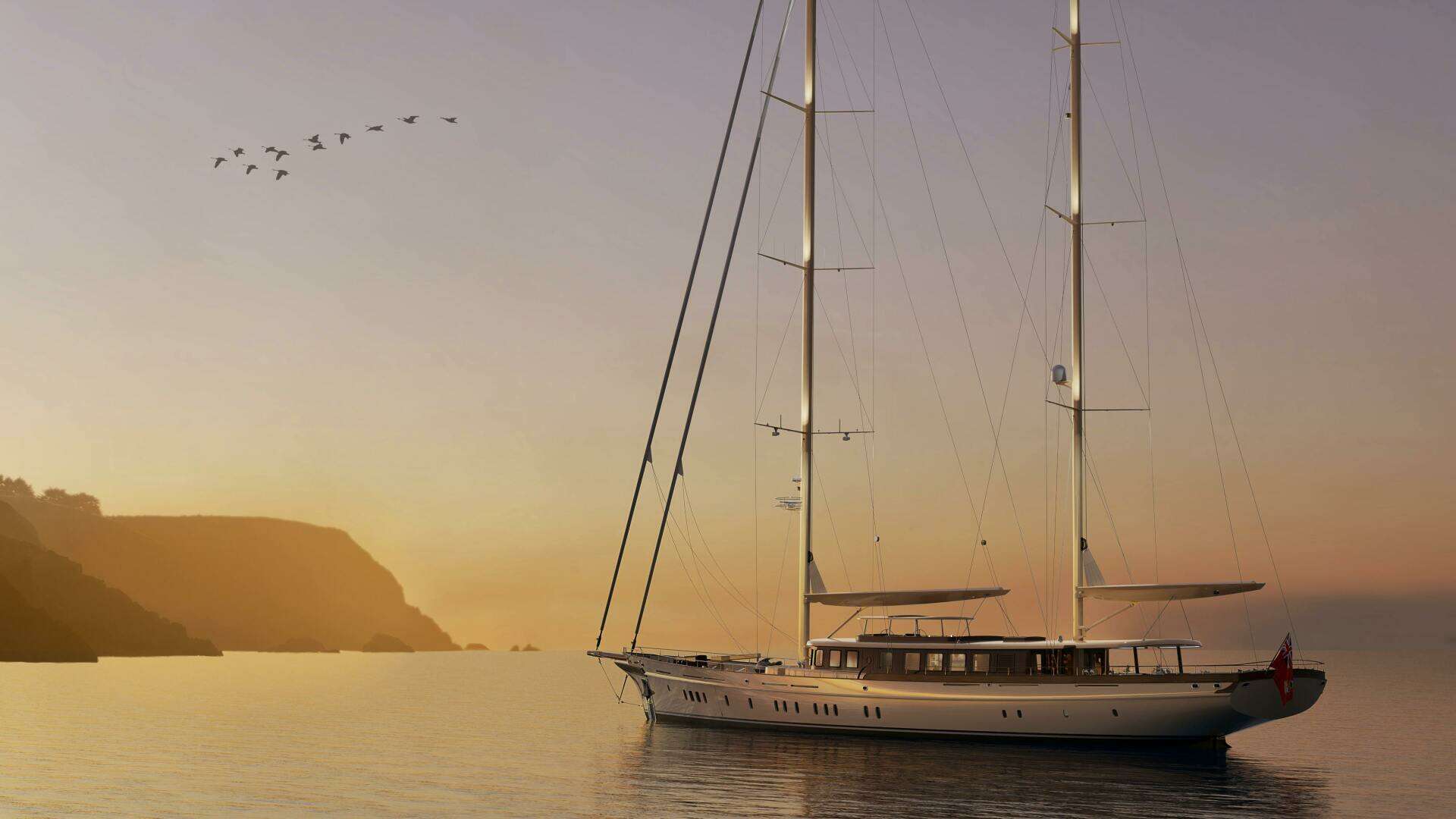

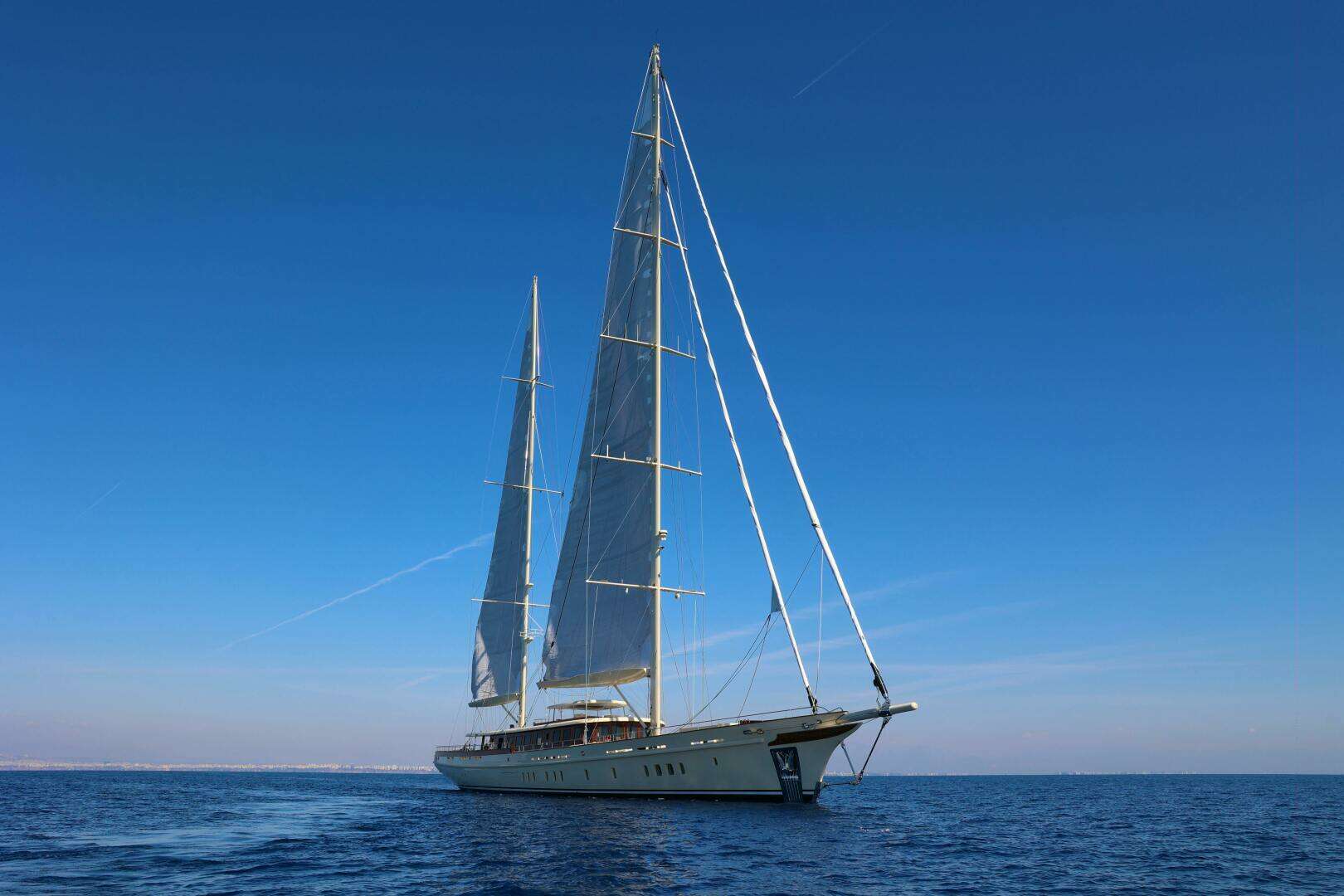

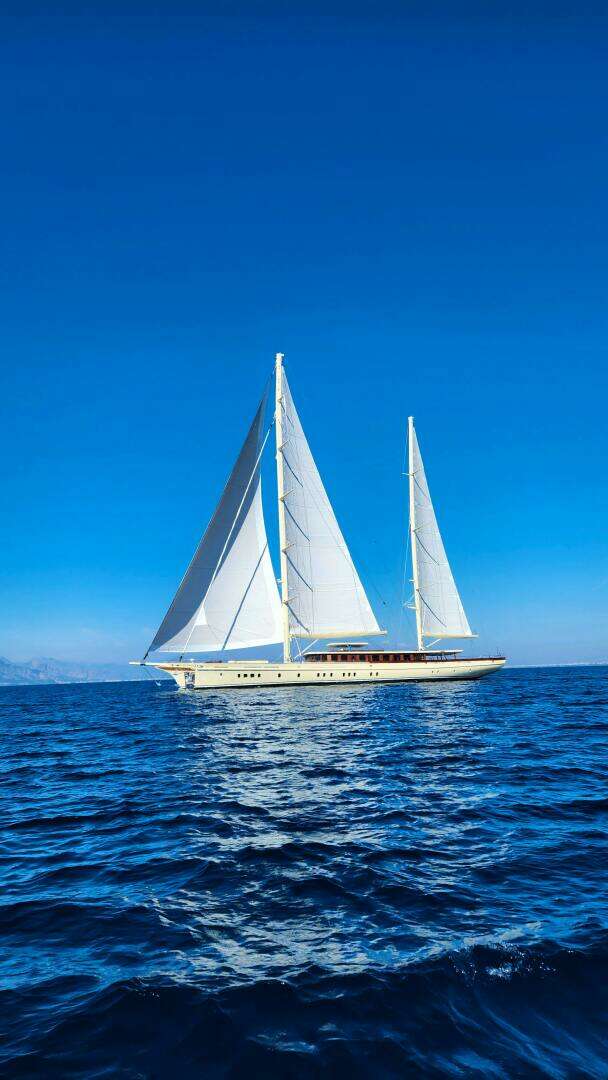

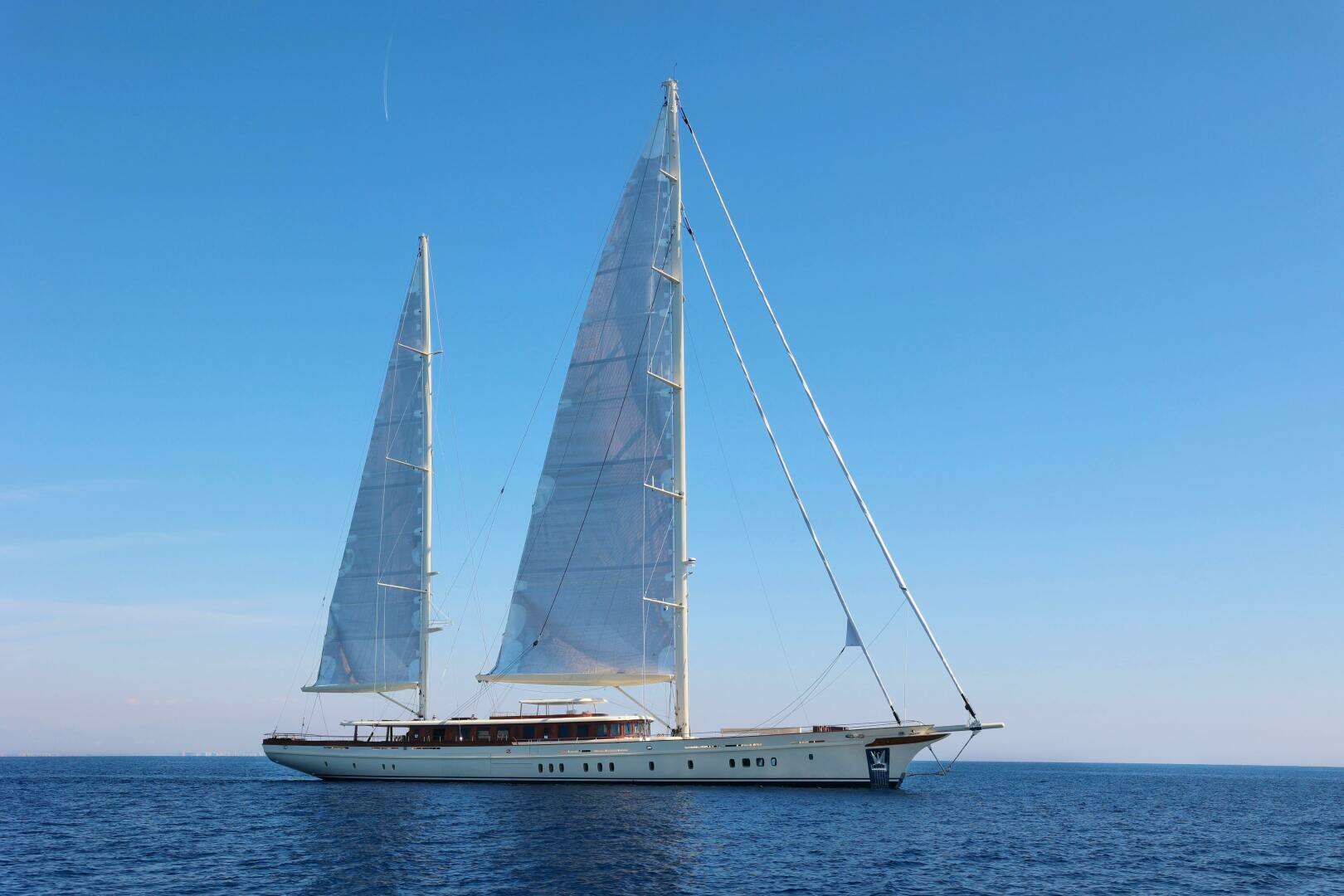

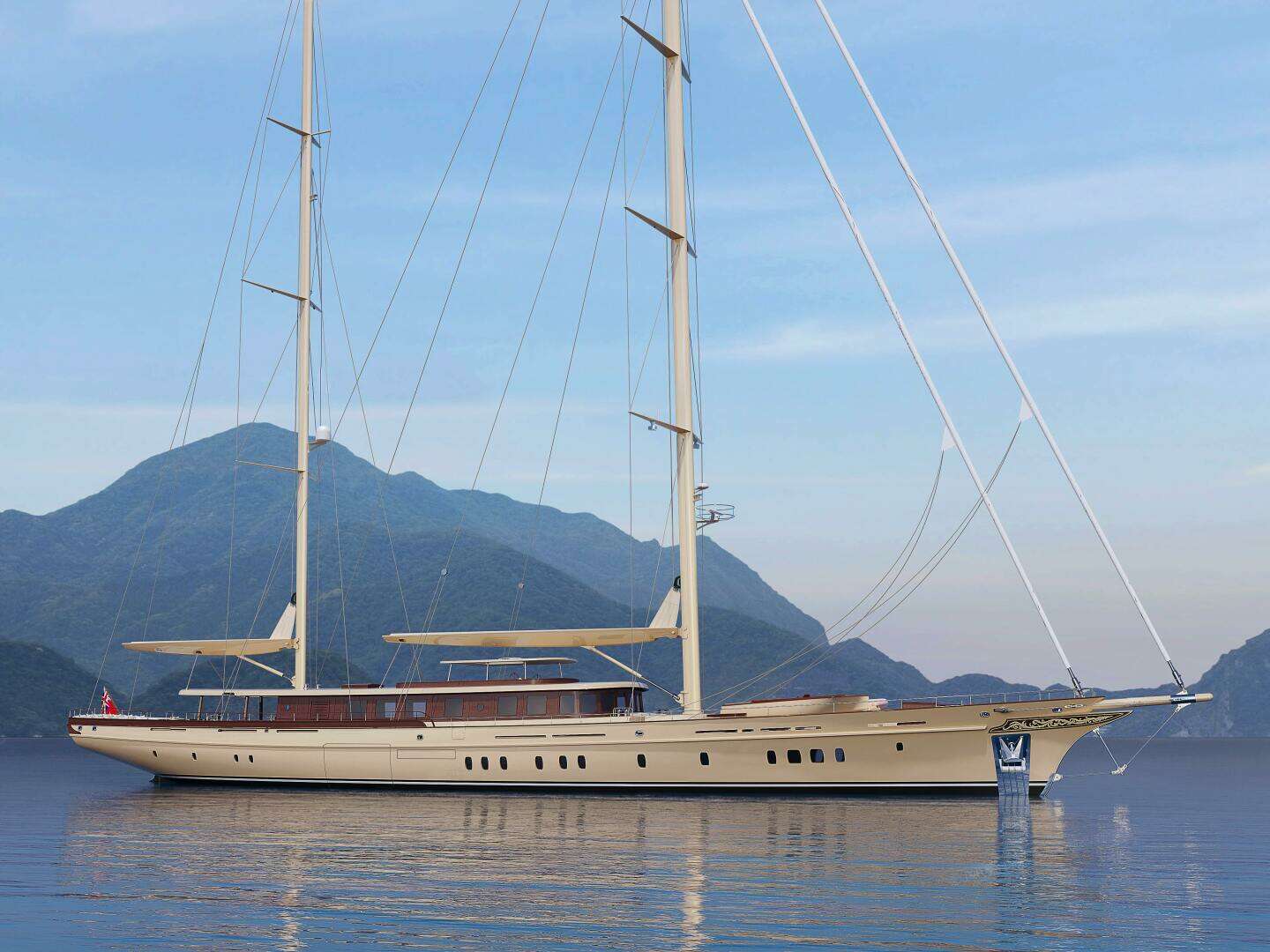

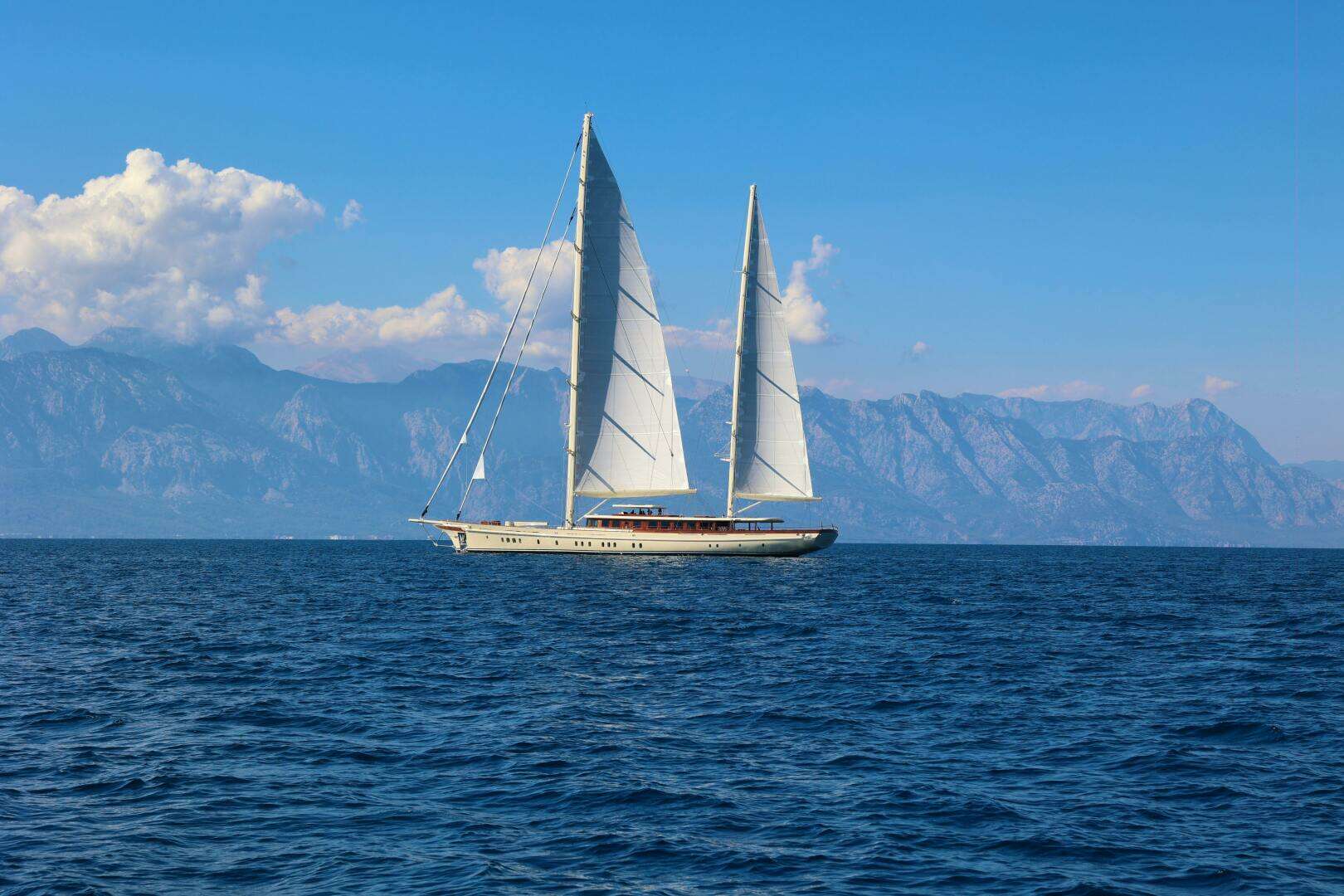

Simena is a luxury, performance cruising ketch, designed by Taka Yachts with classic lines and fitted with state-of-the-art parallel hybrid technology offering a clean, classic feel to a contemporary interior by Design Unlimited.

A yacht capable of cruising the world's oceans in utmost comfort, safety, and style.

Built with a marine-grade steel hull and the largest composite (carbon and GRP) superstructure of a yacht of this type to date.

Aluminum masts with stainless rod rigging by acclaimed naval engineer Chris Mitchell.

The Parallel Hybrid propulsion system allows for six different modes of diesel, electric, combined, and regeneration.

When delivered, Simena 62 will join a fleet of 12 Sailing Yachts over 60m size range under 500GT.

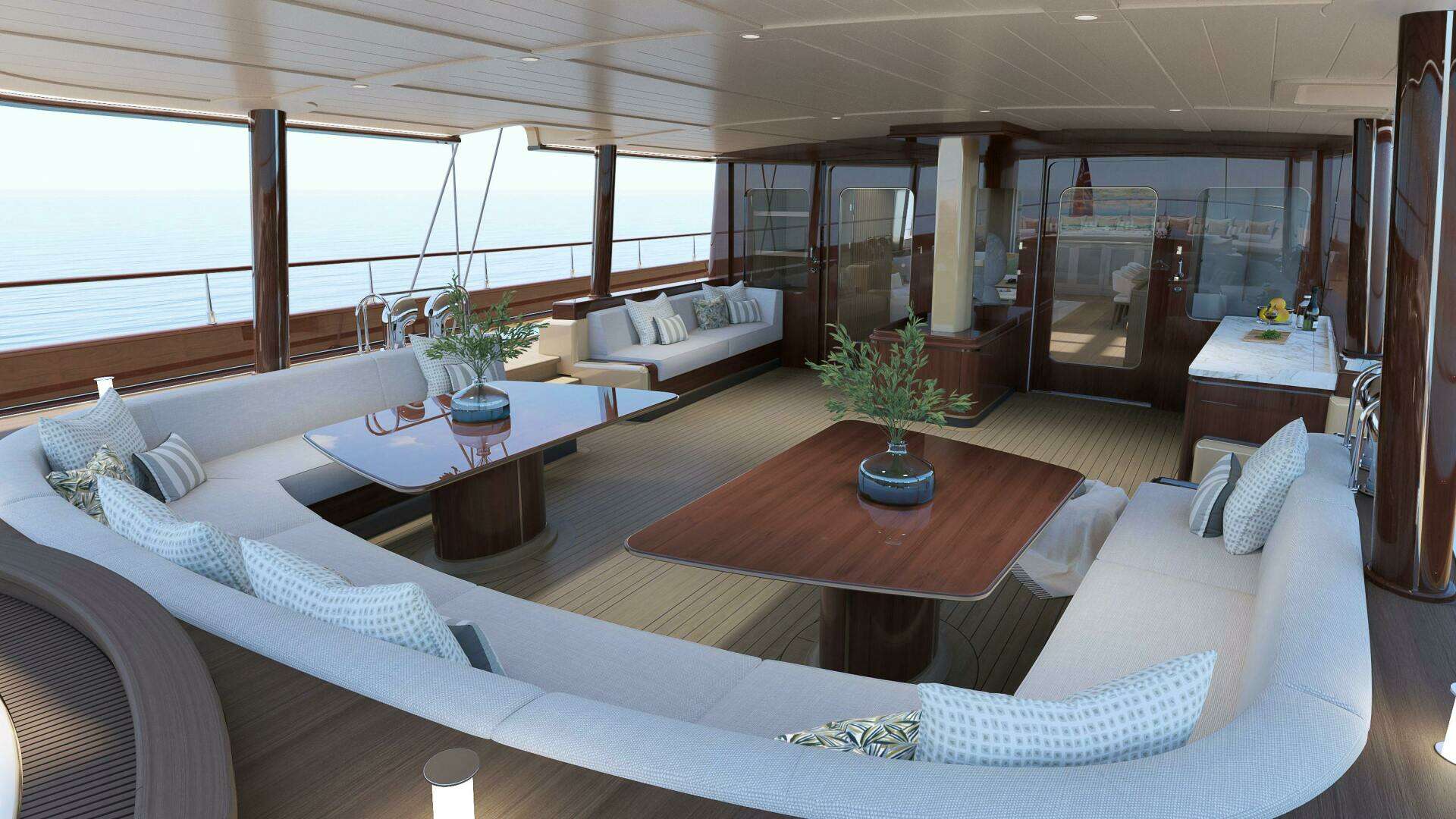

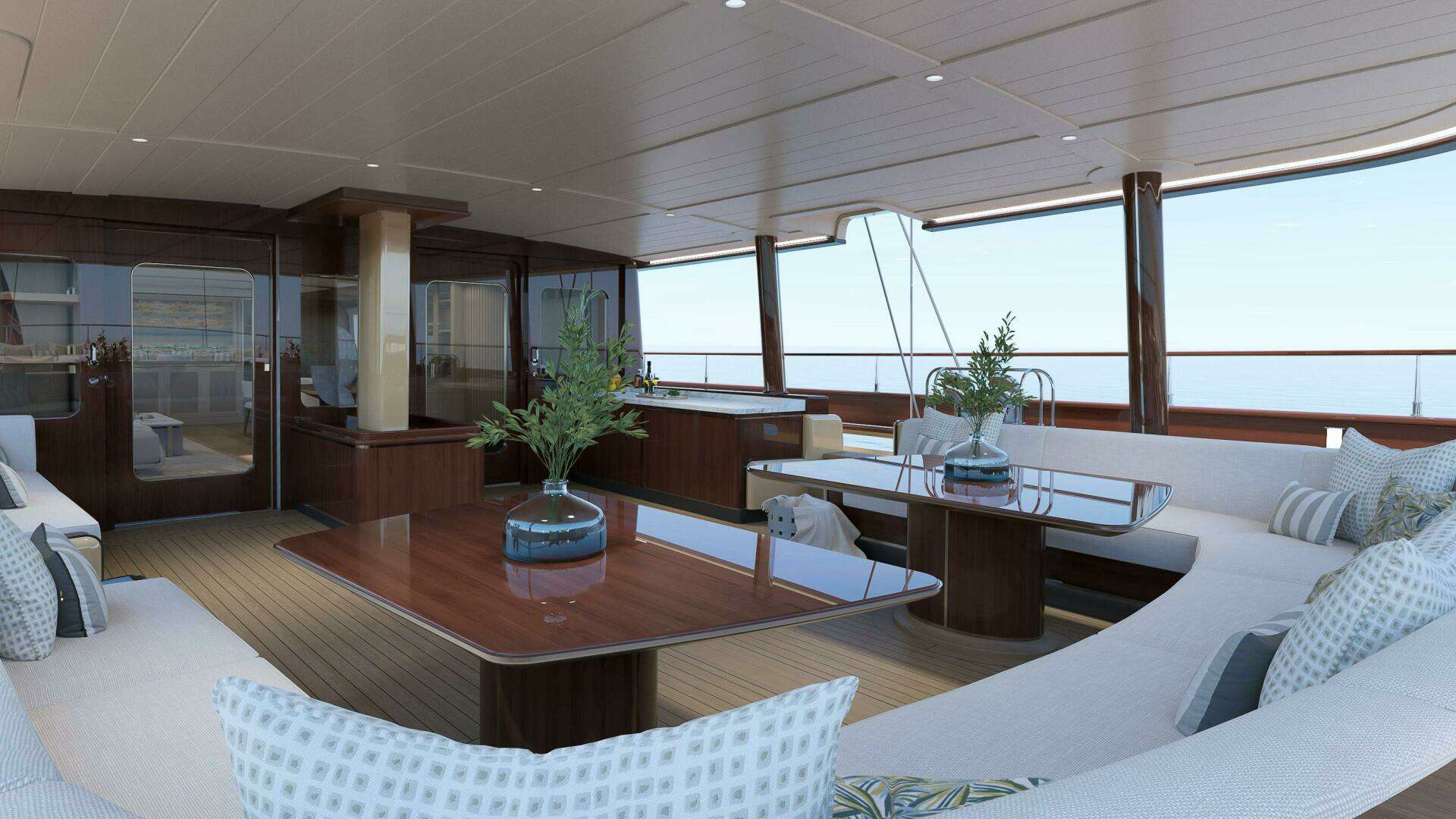

The maindeck aft is tailored for unforgettable social gatherings, providing an exquisite setting for panoramic views.

With its vast sunbed area, convertible dining table for 14 persons, U-shaped large lounge sofas, fully equipped wet-bar station and jacuzzi; it is the perfect place for evening soirees or afternoon relaxation.

Fully Retractable Gangway and carbon swimming ladder located at aft.


Sundeck port and stbd wing stations opening with an automatic companionway door from main deck.

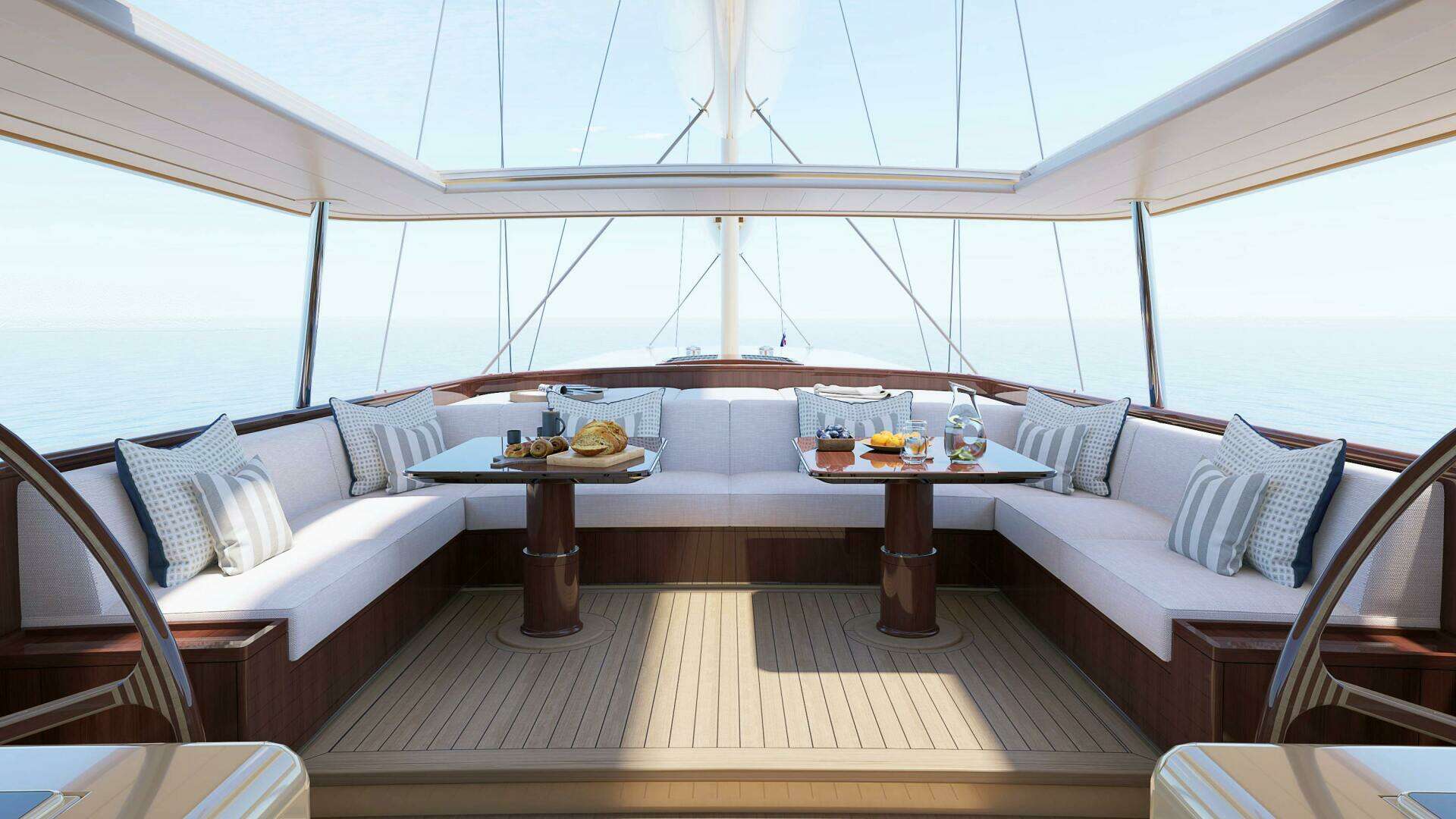

The flybridge offers shade and magnificent views, while there is also a more private foredeck lounge


Foredeck large sofas and with coffee table located in front of the wheelhouse welcoming
60 m2 open deck.

SIMENA - Highlights at a glance

• Rina Charter
• Unrestricted Navigation
• RIG Certification
• Cayman Islands Registry
• High Strength Steel (AH36) Hull and Carbon epoxy foam Superstructure.
• Certified Crane with 1500 SWL located on foredeck.
• Custom carbon-composite 7,5m limo tender with Yanmar diesel engine.
• Custom RIB with Yanmar diesel engine.
• Comprehensive NAVCOM equipment.
• CCTV System consists of 36 cameras including night vision.
• Pop-up exterior lights
• Underwater lights.
• LED lighting for minimizing environmental impact.
• Retractable projector screen at main deck aft for movie nights. Retractable sun awning at Sundeck.
• Ethically sourced real Myanmar teak decking provided for all exterior decks.
• Custom-made mahogany steering wheels.

• Awlgrip paint system.

• The yacht is fully insulated to achieve fire protection, temperature, and humidity control, as well as noise and vibration dampening.

• Alarm Monitoring System, General Alarm, and Fire Detection System

ACCOMMODATION, INTERIOR AND EXTERIOR DESCRIPTION

elegant, relaxed and sanctuary
“Marrying traditional yachting values with contemporary technology and design, SIMENA’s interior styling aims to create a relaxed and refined sanctuary fit for escapism and the entertaining of family and friends when required.”
Mark Tucker -Design Unlimited
Simena Interior Designer


Her classically inspired interior, influenced by the ‘golden era’ of yachting, merges timeless elegance with contemporary design. Hints of glamour shine through the finishes and fittings, creating a lasting impression. Walnut forms the foundation of the interior, complemented by tonal textured leathers and fabrics, accented with antiqued brass touches.

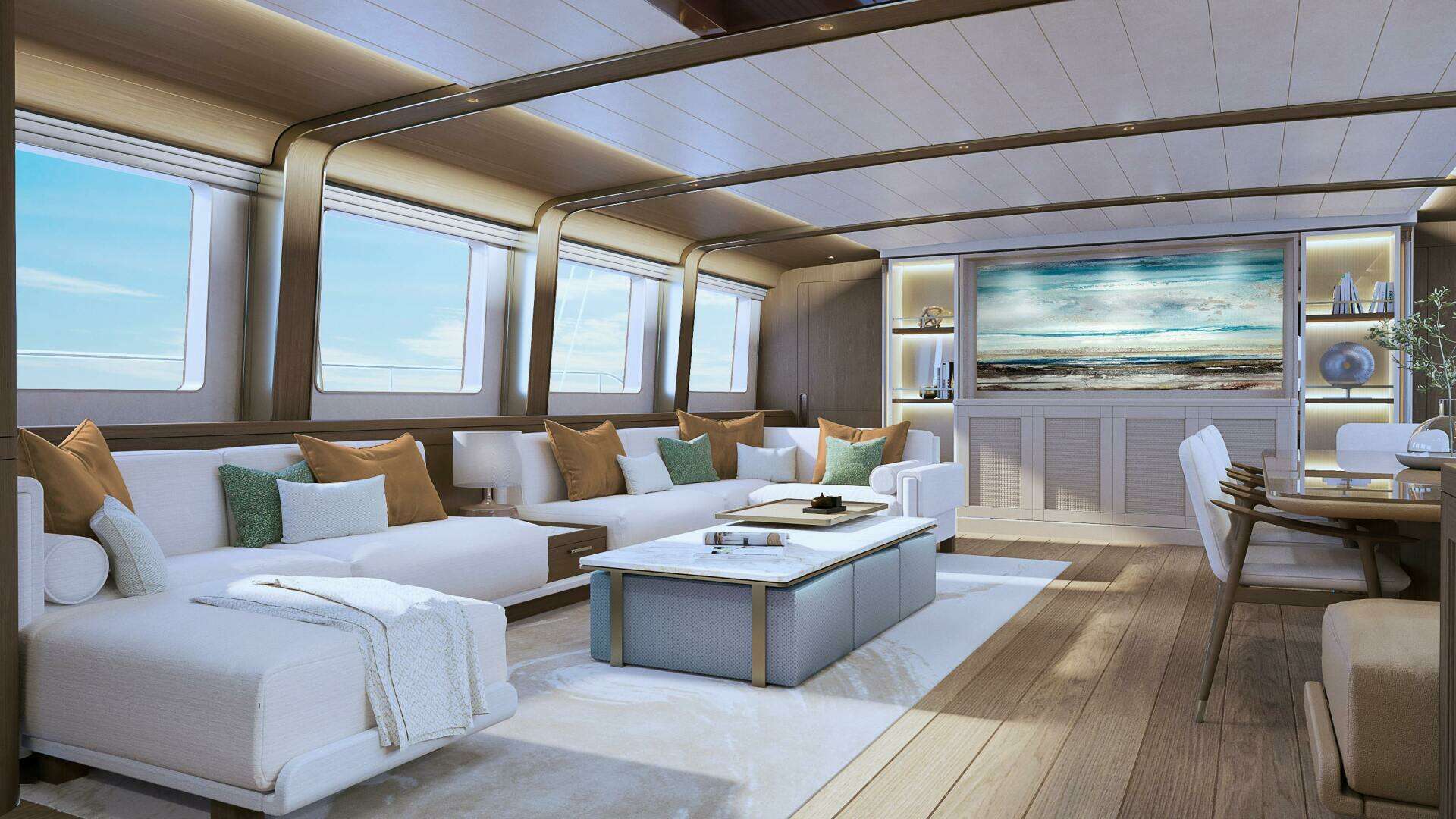

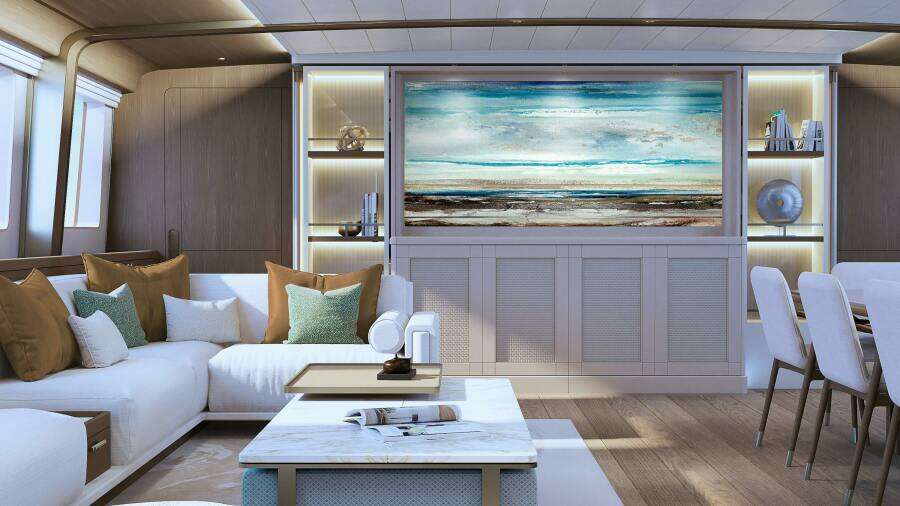

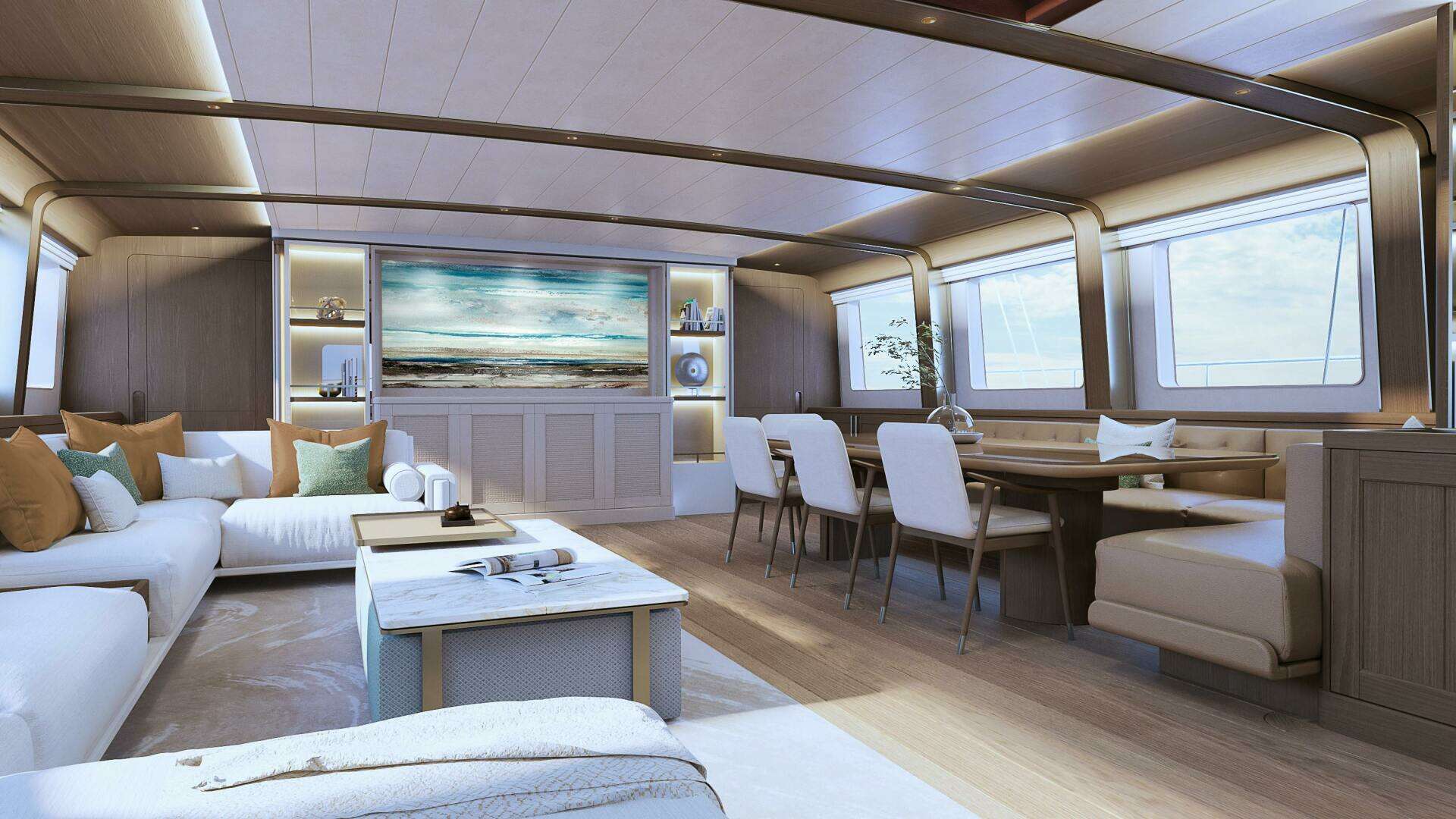

The magnificent deckhouse saloon offers a refined space for formal dining and lounging, boasting spectacular sea views and meeting the expectations of modern living.

ACCOMMODATION:


The Yacht is designed and outftted to accommodate 12 guests and 9 crew.

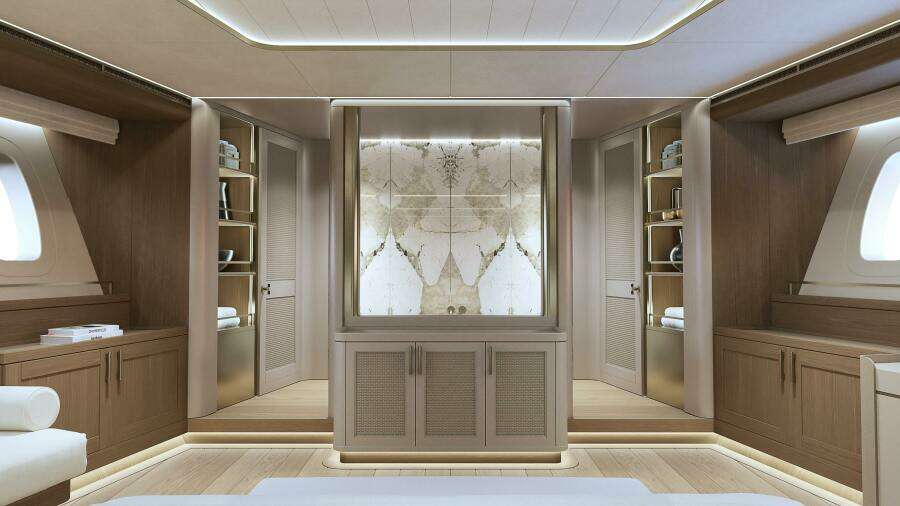

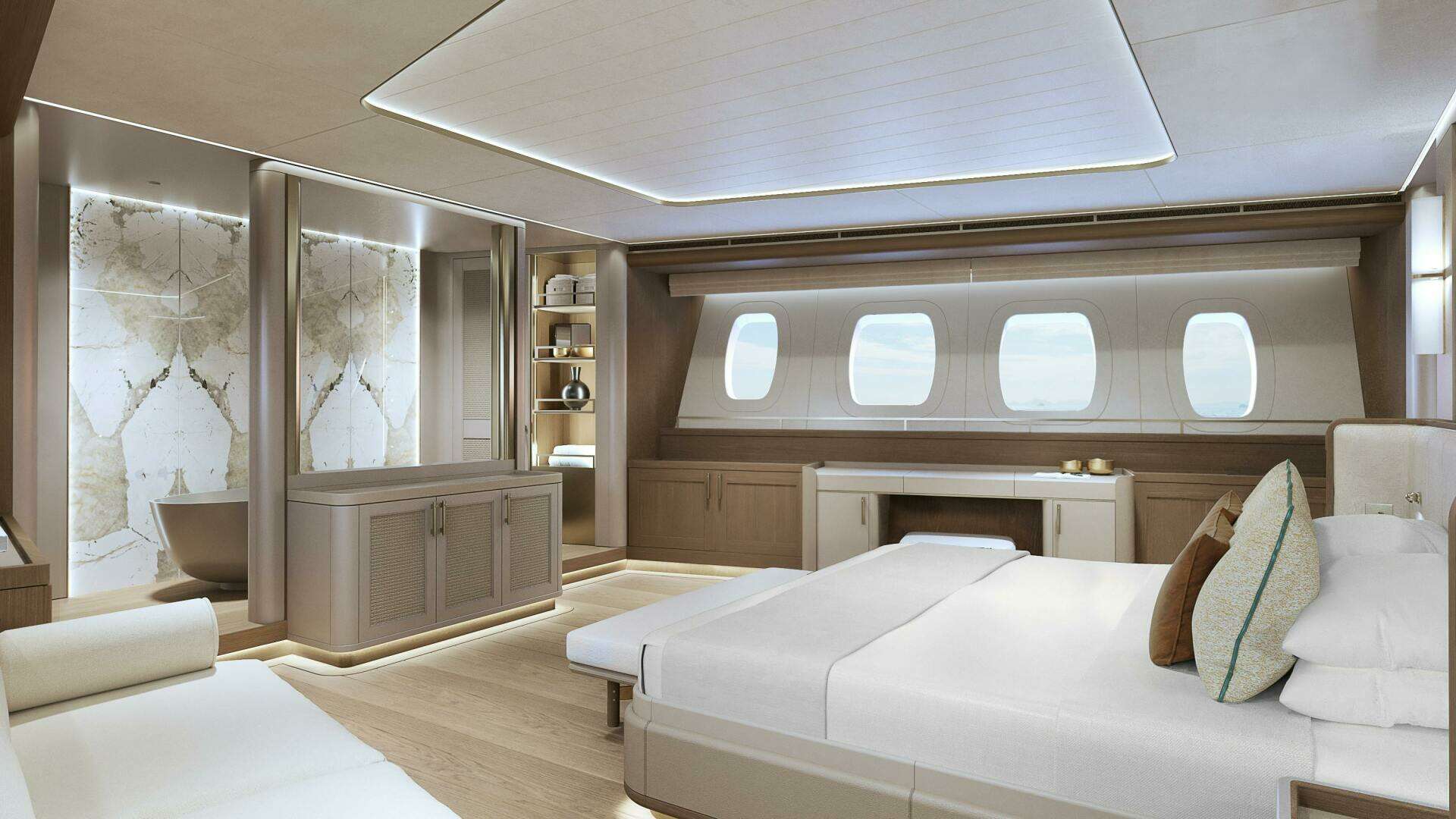

Ower's Suite: The full-beam owner’s suite, positioned forward on the main deck, boasts luxurious amenities for unparalleled comfort. Enjoy a walk-around berth, a private hot tub framed by marble, a spacious en-suite, and a dressing room.


Carefully illuminated fine woven metals encased in glass create semi-transparent divisions behind the king-size bed, while textural woven leather panels framed within the furniture construction add subtle yet distinctive feature elements within the cabin.

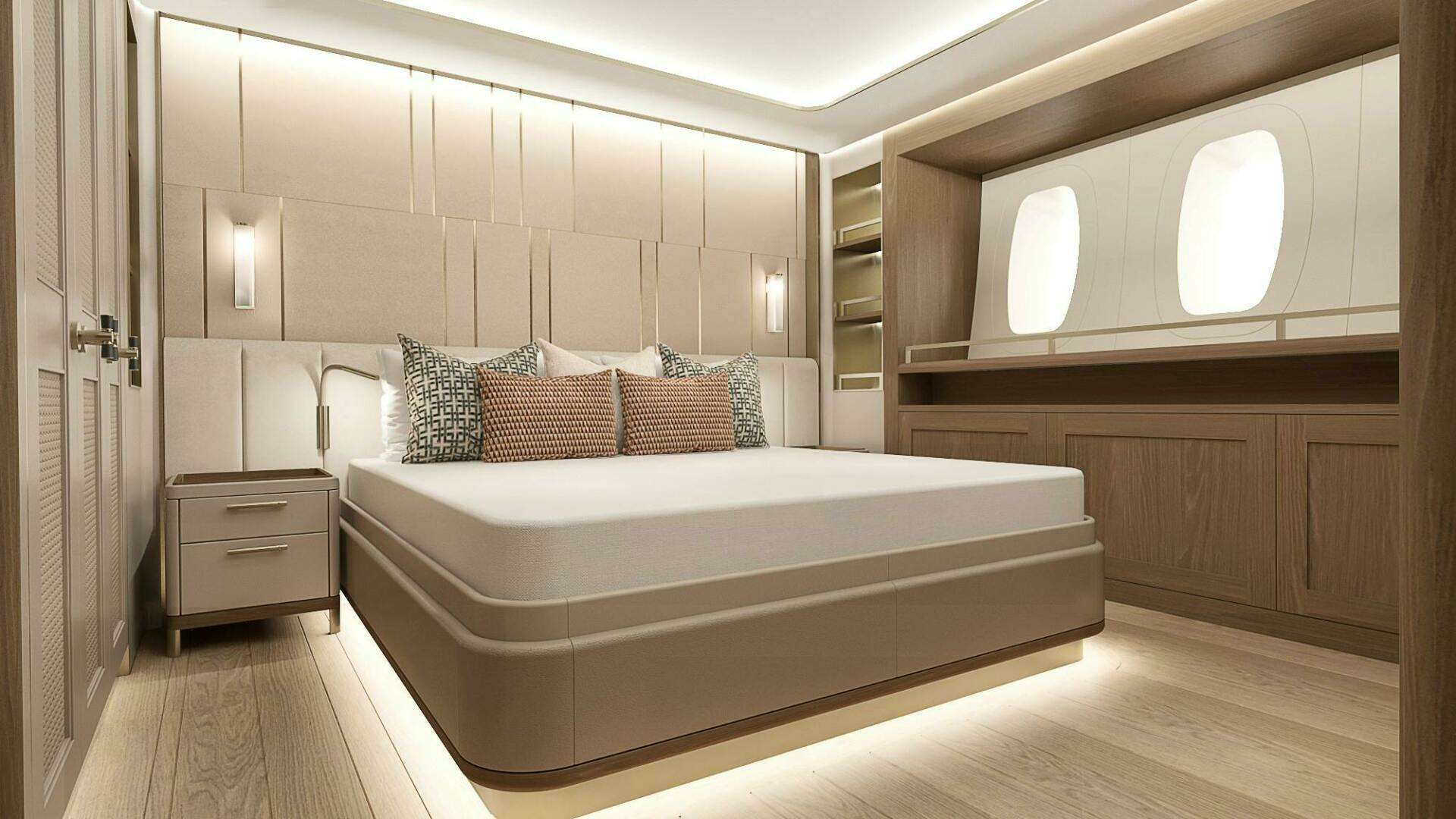

Guests Cabins: Offering luxurious accommodations, this vessel features three lavish double guest cabins, each with a private closet, vanity desk, sofa, and bathroom with a separate shower. Additionally, two twin guest cabins provide a cozy retreat with the option of bunk beds, a closet, and an en-suite bathroom with a separate shower.

The arrangement of the guest accommodation was tailored to offer clean, relaxed geometry within the spaces, whilst ensuring generous stowage and en-suites. Soft edges and geometry in the furniture, with generous handrails in transition spaces, feed into the comfort of the guests. Showers are a combination of patterned tiles alongside Calacatta Oro and Patagonia White marbles.

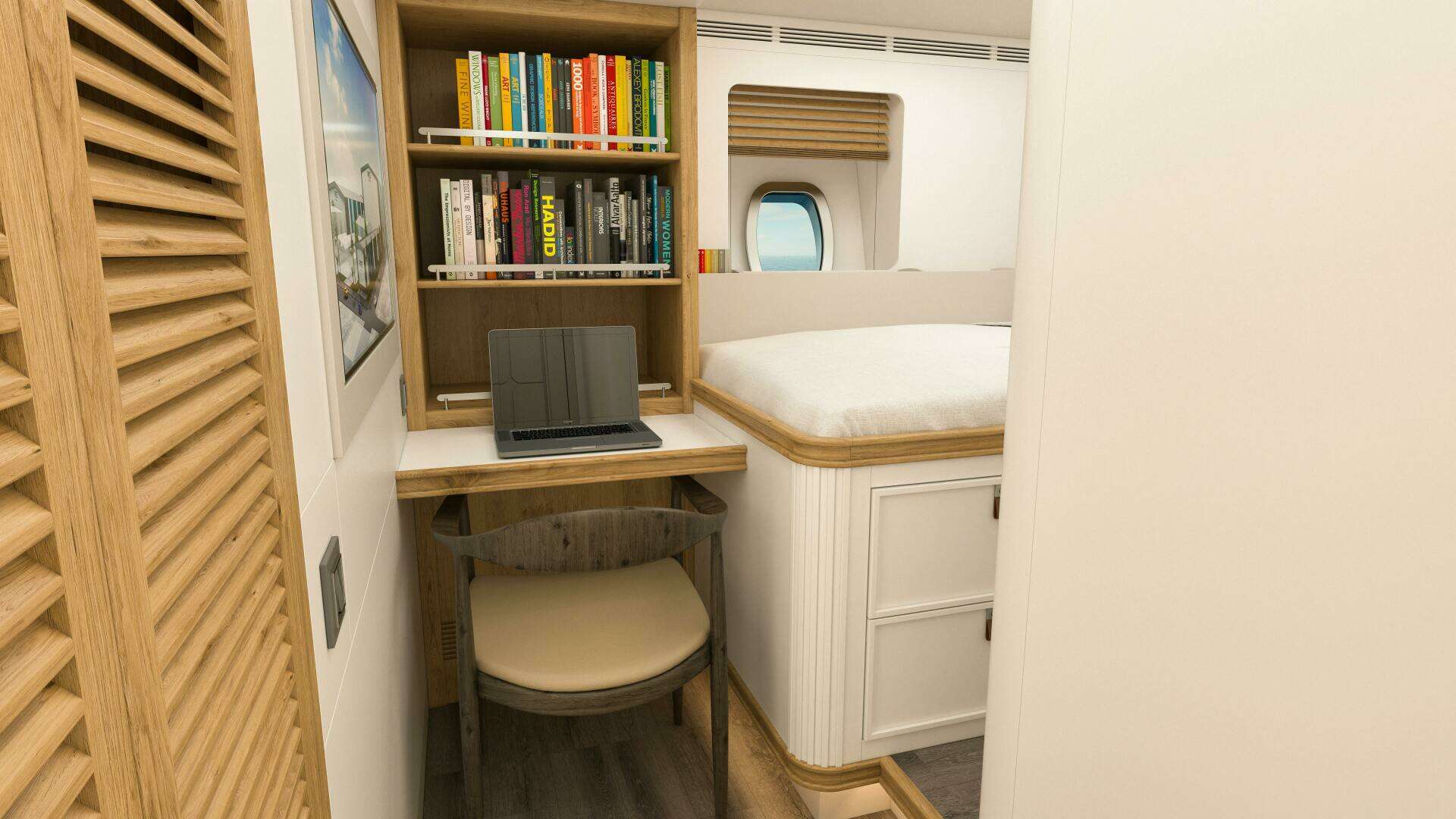

Crew Area and Accommodation: Crew accommodations are thoughtfully designed with the captain's cabin and three twin crew bunk cabins located at aft, complete with private bathrooms and separate showers. A fully equipped galley, crew mess, dry storage, and engine room cater to operational efficiency. Furthermore, a laundry area is strategically positioned, featuring additional freezers for added storage capacity.

As an optional extension, two additional twin crew bunk cabins can be located at the forward section, sharing a dedicated bathroom for enhanced crew comfort and privacy.

INTERIOR:

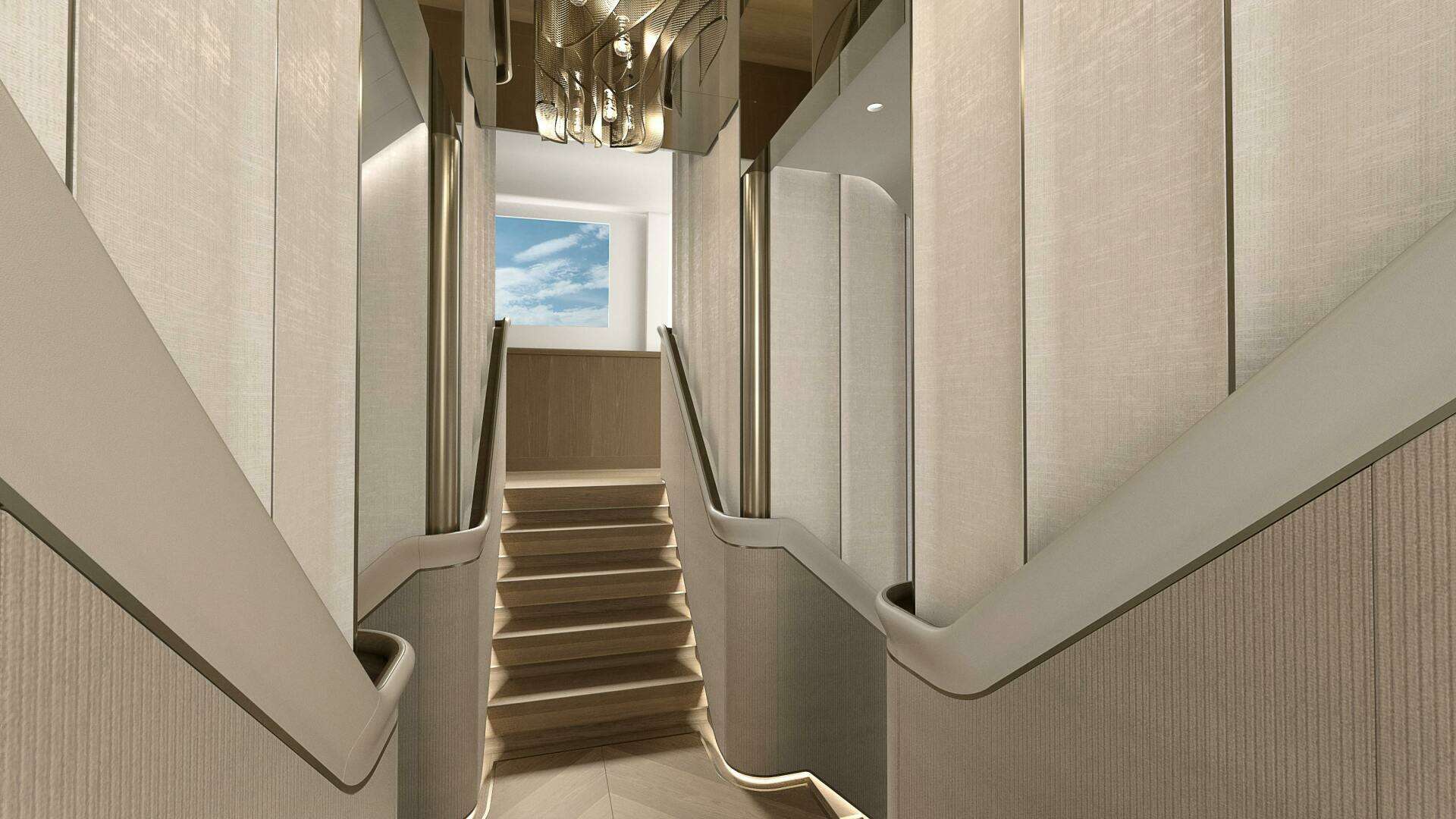

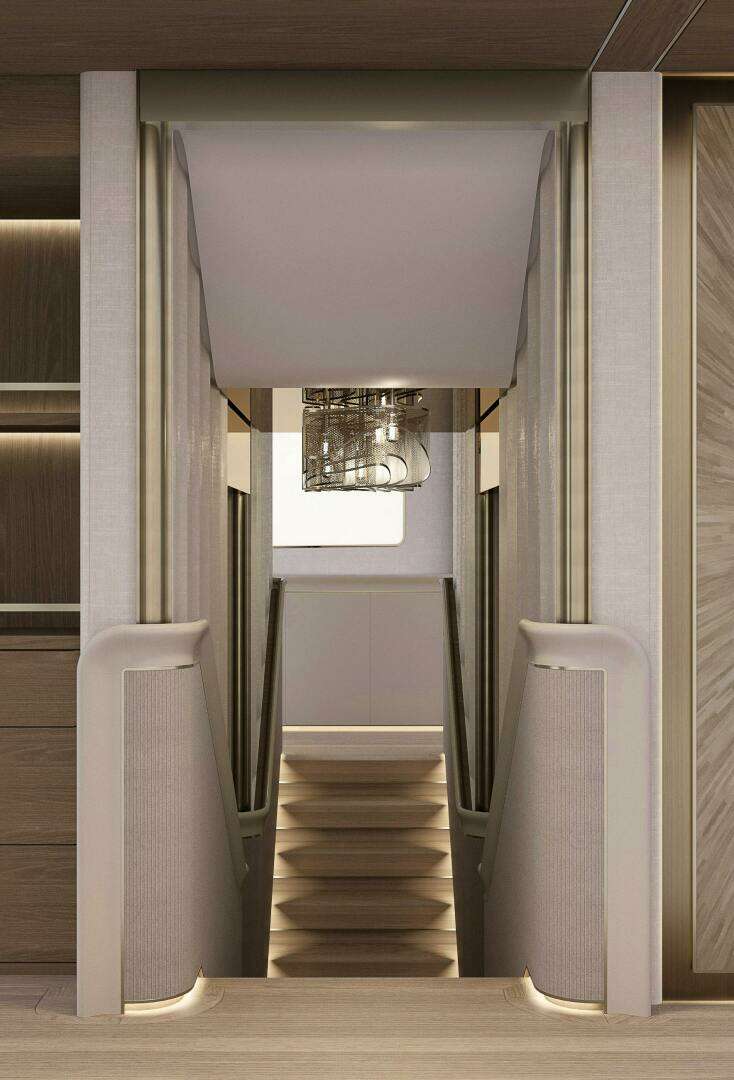

The layout creates an elegant design to highlight the flow of the staircase in its different directions using considered geometry and finishes to complement the space.


The combination of walnut, brass, and leather makes for a glamourous and elegant feeling within the staircase, flanked by brass pillars and tinted mirrors all complementing one another.
Exquisite custom feature lighting inspired by the dynamic shapes and mesmerizing flow of the Eastern Mediterranean Sea currents.

• Moisture resistant treated hardwoods.
• High quality marine insulated plywoods.
• Waterproof adhesives.
• Veneer with UV-resistant finishes and coatings.
• Advanced lightweight solutions.
• Honeycombed strength substructures.
• Flame-retardant upholstery and soft furnishings.
• Marble bathroom walls and floors.
• Genuine leather headboards.
• Suites have 230v outlets plus USB charging and wireless chargers.
• Decorative wall sconces.
• Chandelier, custom design.
• Automatic Curtains and Blinds.


The exterior joinery keeps the roots of tradition embedded with mahogany elements alongside luxurious exterior upholstery.

Sundeck port and stbd wing stations opening with an automatic companionway door from main deck.

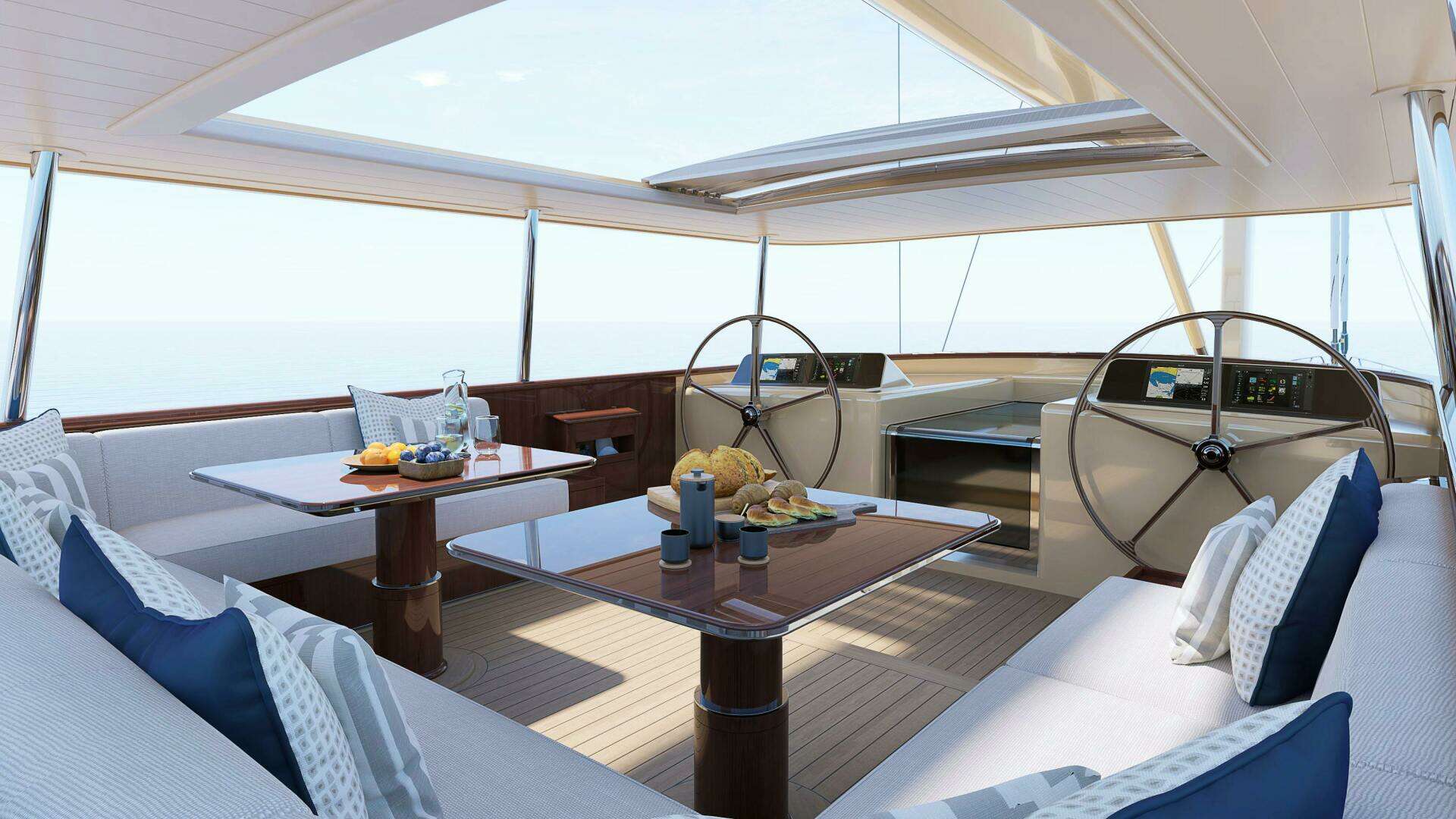

The flybridge offers shade and magnificent vistas with a retractable sun awning while an exclusive 60m2 private foredeck lounge serves for perfect sunset parties.

Aft Deck: The aft deck offers a luxurious outdoor oasis, featuring large sunbeds and a Jacuzzi surrounded by plush side sofas. Aft, a convertible dining table accommodates up to 14 guests, complemented by a U-shaped lounge sofa perfect for al fresco entertaining. A fully equipped wet bar station with ample storage ensures refreshments are always close at hand.

Sundeck/Flybridge:  Accessed via an automatic sliding glass companionway, the flybridge is low-key and functional. With twin helm stations port and starboard, panoramic visibility combined with a sliding sunroof to provide visibility to rig and sails. A comfortable lounging sofa and coffee table are complemented by another huge sun lounging pad aft.

Foredeck:    On the foredeck, a sofa and coffee table create another inviting lounge area in front of the wheelhouse. Completing the amenities, a crane facilitates launching the custom limousine tender and rescue boat from the foredeck. The resulting foredeck space is vast and could lend itself as a shaded-chillout area during the day and dance floor by night.

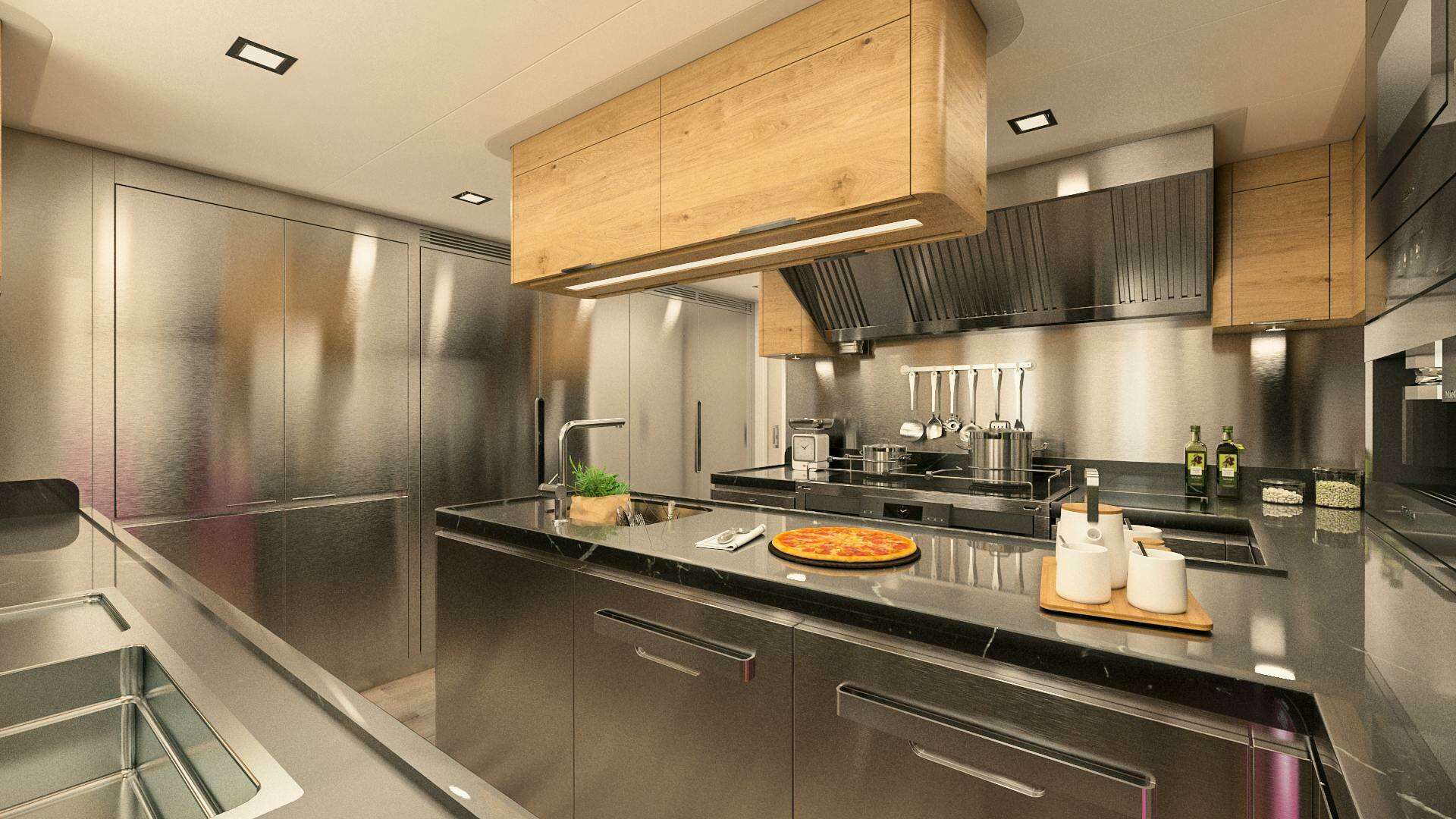

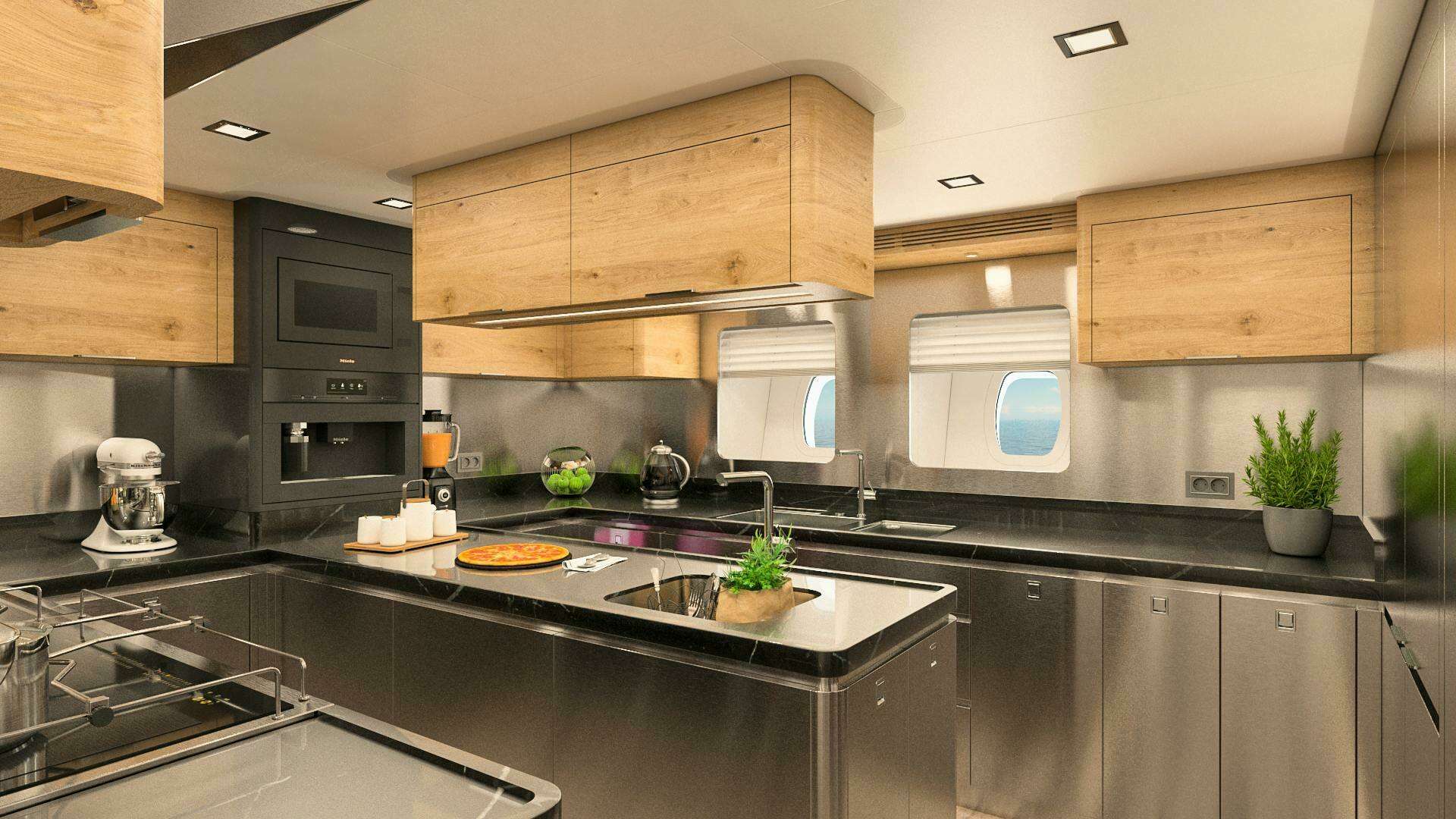

INTERIOR APPLIANCES

• DISHWASHER 2x MIELE  BUILT-IN STAINLESS STEEL
• FRIDGE 4x MIELE
• INDUCTION HOB 1x MIELE
• TEPPAN-YAKI 1x MIELE
• OVEN 1x MIELE GLASS CERAMIC
• MICROWAVE 1x MIELE
• COFFEE MACHINE 1x MIELE
• TRASH COMPACTOR 1x ADEMA
• VENTILATION 1x ELECTROLUX PROFESSIONAL
• ICE MAKER 1x VITRIFRIGO STAINLESS STEEL
• FREEZER 1x BOSCH
• HOUSING 1 set GN ESCAPE GIMBALLED COOKER HOUSING with sturdy sea rails and pan clamps -STAINLESS STEEL

• WINE COOLER 1x MIELE BUILT-IN GLASS

• GRILL 1x KENYON STAINLESS STEEL
• FRIDGE 1x VITRIFRIGO DRINKS STAINLESS STEEL
• ICEMAKER 1x VITRIFRIGO STAINLESS STEEL

• FRIDGE 2x VITRIFRIGO STAINLESS STEEL

• FREEZER 1x VITRIFRIGO STAINLESS STEEL
• FRIDGE 1x VITRIFRIGO STAINLESS STEEL

• WASHING MACHINE 2x MIELE
• DRYER 2x MIELE
• IRON 1x MIELE ROTARY IRON

• FREEZER 2x VITRIFRIGO STAINLESS STEEL

PROPULSION ARCHITECTURE

The parallel hybrid propulsion by means of a single MAN diesel engine driving with Servogear Ecofow Propulsor solution of CP-Propeller also generated by a 220kW e-engine.
Three diesel generator sets to be installed for the electric power supply of the yacht. Electro-hydraulic tensile steering to be performed by a single rudder.
Tunnel type 120kW bow thruster and 100kW stern thruster will enhance manoeuvring.


An electronic remote-control system for propulsion for the vessel with CP-propellers is designed according to the fail-safe principle and is built up with a high level of redundancy.

1. Diesel Mode Only the MAN engine is running for propulsion
2. Electric Only Mode: Only the E- Motor is running for propulsion
3. Diesel + PTO Mode: The MAN Engine is running for propulsion, and the E- Motor supplies electric power.
4. PTO Mode: The MAN Engine is running so that only the E-motor supplies the electric power.
5. Hydro Generator Mode: MAN Engine turned off and the yacht makes way under sails. The E–motor is running from the propeller's
   turning force and supplying electric power.
6. Pure Sailing Mode: TheMAN Engine and E-Motor are turned off and the propeller is in feathering pitch condition and not turning.


• PROPULSION POWER 1102 kW
• E-ENGINE 220 kW
• TOTAL GEN SETS POWER 258 kW
• TOP SPEED (incl. EPM) 15 knots
• TOP SPEED (ME only) 14,5 knots
• SPEED EPM only 6 knots
• CRUISE SPEED 11 knots
• TARGET RANGE 4000 Nm @ cruise speed

Compared to similar-sized sailing vessels her top speed will be 1 knot above the average. Range of 4000NM @11 knots cruising speed. 220kW e-motors supplemented by single 882kW diesel engine for а top speed of 14,5 knots. Silent operation under e-power up to 6 knots.

Advantages of CPP

Efficient Propulsion: Leads to lower fuel consumption and economic operation,
Reduced Noise and Vibrations: Creates а quieter and more comfortaЫe environment.
Slimmer and Efficient Equipment: Optimizes space and weight considerations for improved vessel performance.
Reduced Hull Resistance: Enhances overall hydrodynamic efficiency.
Wider Operational Range: Provides flexibility in various operational conditions.
Emission Reduction: Reduces NOx and СО2 emissions.
Improved Fuel Economy: Enhances fuel efficiency for extended cruising range.

MACHINERY

• MAIN ENGINES MAN 1x Marine Diesel Engines (882kW@ 2100RPM)
• CPP PROPULSION SYSTEM SERVOGEAR 1x Electric Motor, Ramme, 220kW @ 2100RPM
• REDUCTION GEARBOX ZF 1x (red. ratio 4,250: 1), for CW - rotating propeller
• PROPELLER SERVOGEAR 1x Fully Feathering 4-bladed propeller
• GENERATORS:  CAT 3x (107kVA) @ 1500rpm Marin Generator Set – 400V / 50Hz / Three phase / IP23

AUXILIARY & ANCILLARY EQUIPMENT

• GENERATORS:  CAT 3x C4.4 86ekW (107kVA) @ 1500rpm Marin Generator Set – 400V / 50Hz / Three phase / IP23
• ELECTRICITY: 3x400V AC - 220V AC / 50Hz +24V DC
• BATTERIES & CHARGERS: MASTERVOLT AGM & Gel Batteries for starters, service and emergency use
• LIGHTING:  BCM, CANTALUPI LED Downlights, rope lights, courtesy lights, reading lights or equivalent
• UNDERWATER LIGHT: UNDW.LIGHTS 18x Warm White
• STEERING SYSTEM JASTRAM Hydraulic
• BOW THRUSTER VETH 1x 120 kW tunnel type
• STERN THRUSTER VETH 1x 100 Kw tunnel type
• FUEL SEPARATOR ALFA LAVAL MIB 503 Solid Retaining Separation System
• OILY BILGE SEPARATOR EPE Poseidon Fit 0.5
• FIRE/BILGE PUMPS GIANNECSCHI Electric Fire & Bilge Pumps, or equivalent
• WATERMAKER AQUAPRIME 1x Dual 461,61 Silence Proplus, 380V 50Hz, 15 m3/day
• HYDROPHORE GIANNECSHI 2x Idrojet 4B 230/400V 3PH 50Hz
• WATER HEATERS GIANNECSHI 3x 200 l, 2x3.0kW 3PH 220/400V inox OR2
• PUMPS GIANNECSHI Systems’ pumps
• COMPRESSOR ATLASCOPCO 2x G3P-10, 22 M3/H, 10 Bar
• ER FAN, DAMPER, GIANNECSHI 2x Axial Fan 230/400V 3PH 50Hz 5.5kW w/ silencer and damper
• SEWAGE TREATMENT HAMANN HLCP025, 6000 l/day
• WC SYSTEM JETS Vacuum Toilet System

• HVAC 605.000 BTU chiller system with 89.740 BTU FAMU capacity

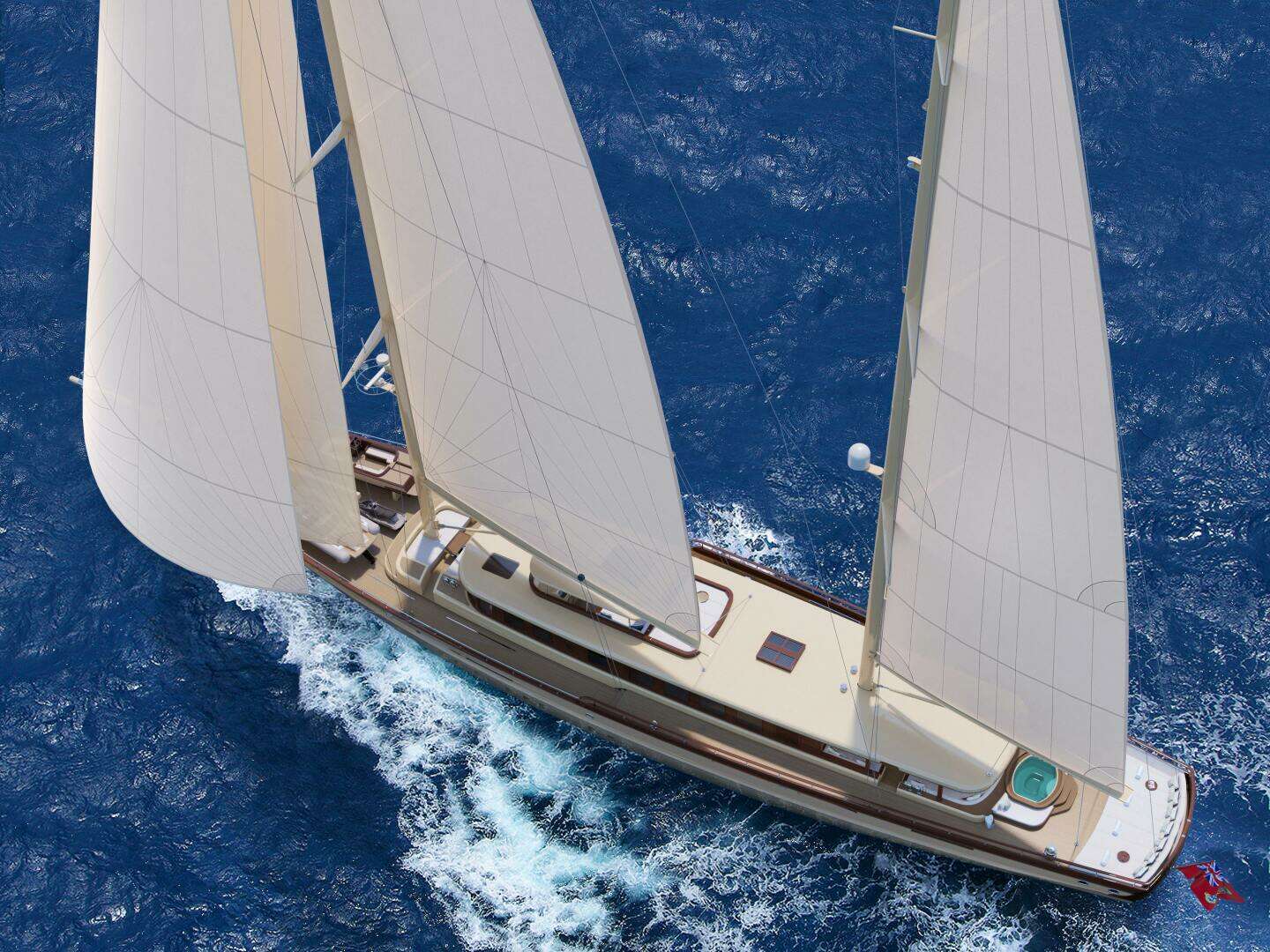

RIGGING & SAILS

Rigging, Masts & Sails

Captive winches and furlers by Bamar.

Blocks, drum winches, deck rails, mast rails and cars by Antal.

Sails Stratis 11000CT by Doyle.

Rods by BSI.

Pistons and cylinders by OMS.

• MAIN SAIL (470m2)
• MIZZEN SAIL ( 249m2) with carbon battens
• GENOA (597m2)
• STAY SAIL (356m2)
• STORM JIB ( 143m2)

DECK EQUIPMENT

Classic with character
Exterior joinery keeps the roots of tradition embedded with varnished mahogany elements alongside luxurious exterior upholstery.

• ANCHOR WINDLASSES DATA 2x Hydraulic

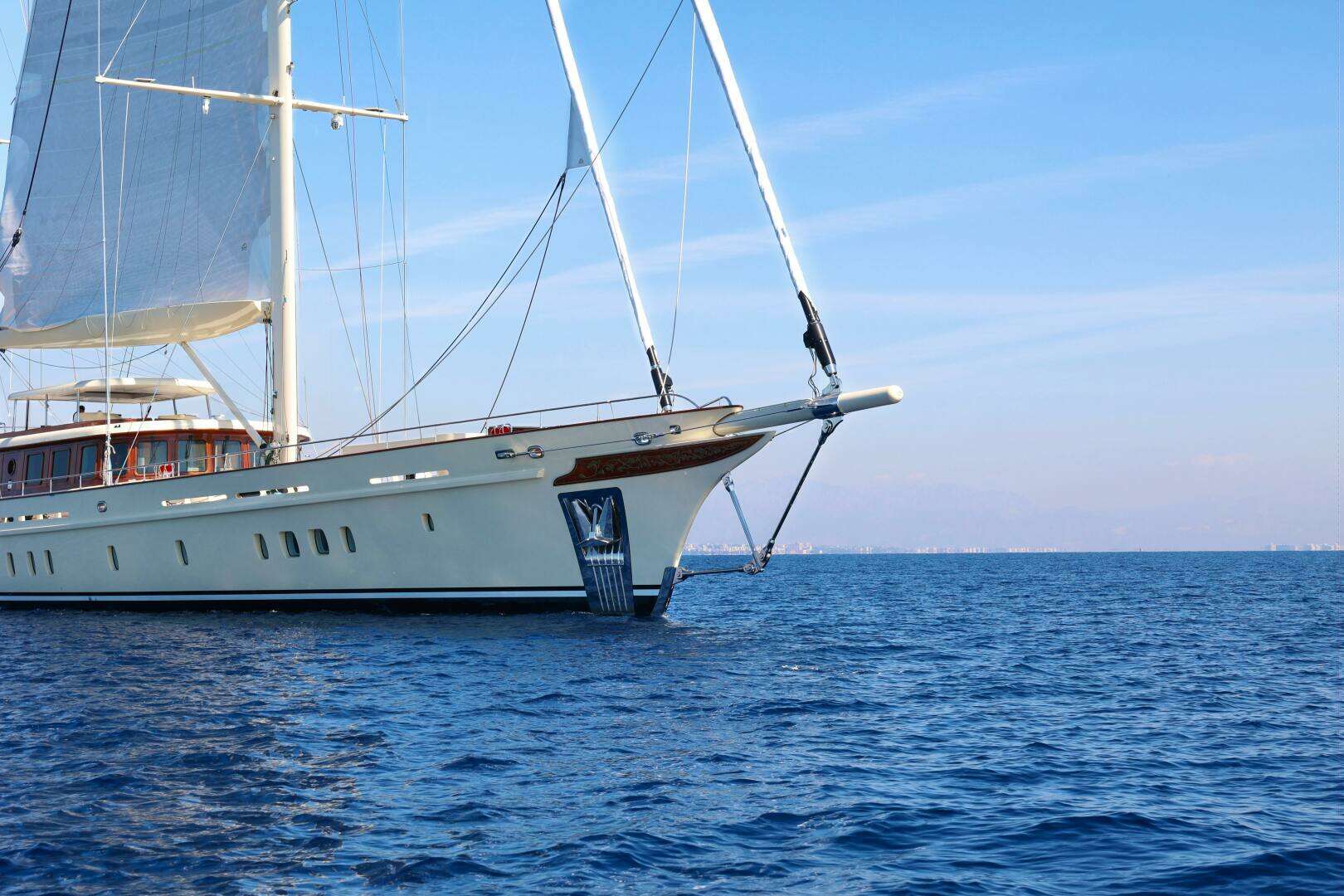

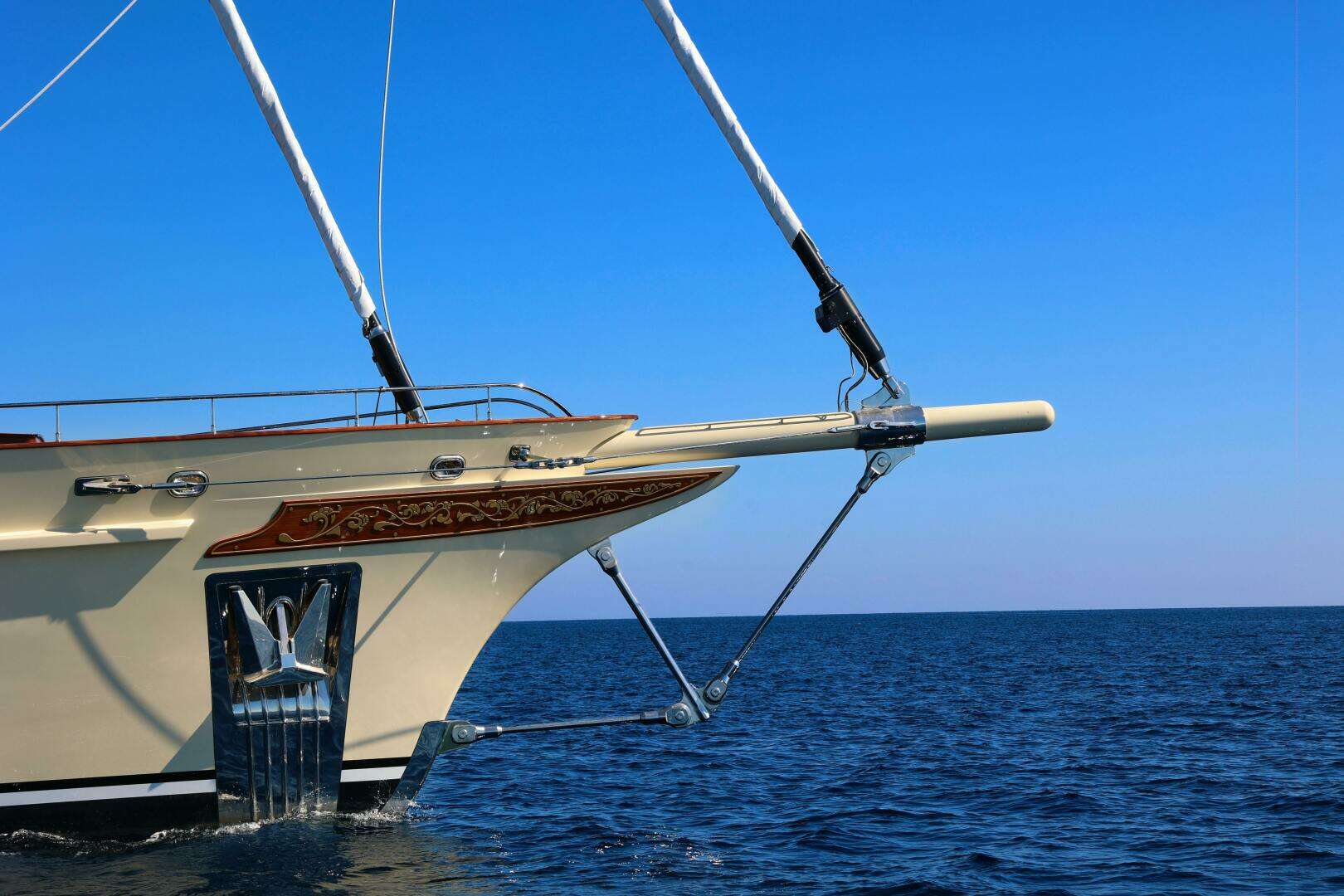

• ANCHORS AND CHAIN CUSTOM 2x 430kg Polished Stainless Steel 316L
• HORN KAHLENBERG 1x White Twin Trumpet
• RESCUE CRANE OCEAN GROUP 1x Certified crane installed on the forward deck, 1500 SWL, “men-riding”, MCA compliant
• PASARELLE OCEAN GROUP 1x Fully retractable hydraulic gangway
• BOARDING LADDER OCEAN GROUP 1x Hydraulic side ladder
• SIDE PLATFORM MAKRO 1x Hydraulic side platform stbd
• JACUZZI CUSTOM 1x Located on aft Maindeck
• MOORING FAIRLEADS CUSTOM Stainless Steel 316L polished
• STANCHIONS & RAILINGS CUSTOM Stainless Steel 316L polished stanchions with mahogany capping
• SHIP’S BELL CUSTOM Chromed Bronze with engraving of ship’s name and year, polished
• BIMINI MAKE FAST 1x Electrically operated sunroof at sundeck, or equivalent
• AWNING (Owner Supply) DOKAR Manual sun awning for aft deck
• WEATHERTIGHT DOORS OCEAN GROUP 2x Manual Salon Sliding Entrance Door and, 1x Automatic Companionway Sliding Door Sundeck Entrance
• BOFOR 1x Manual L-Shaped Dog-House Entrance
• PANTOGRAPH DOORS BOFOR 2x Manual Weathertight Doors Port & Stbd Lobby Entrance and, 1x Manual Weathertight Door Port Salon Crew Entrance
• WATERTIGHT DOORS BOFOR Watertight hinged interior doors for technical areas and APMARINE Owner Sliding Door
• HATCHES BOFOR Stainless Steel 316L, watertight
• STEERING WHEELS: Custom-made in mahogany
• LED Underwater lights to minimize environmental impact.

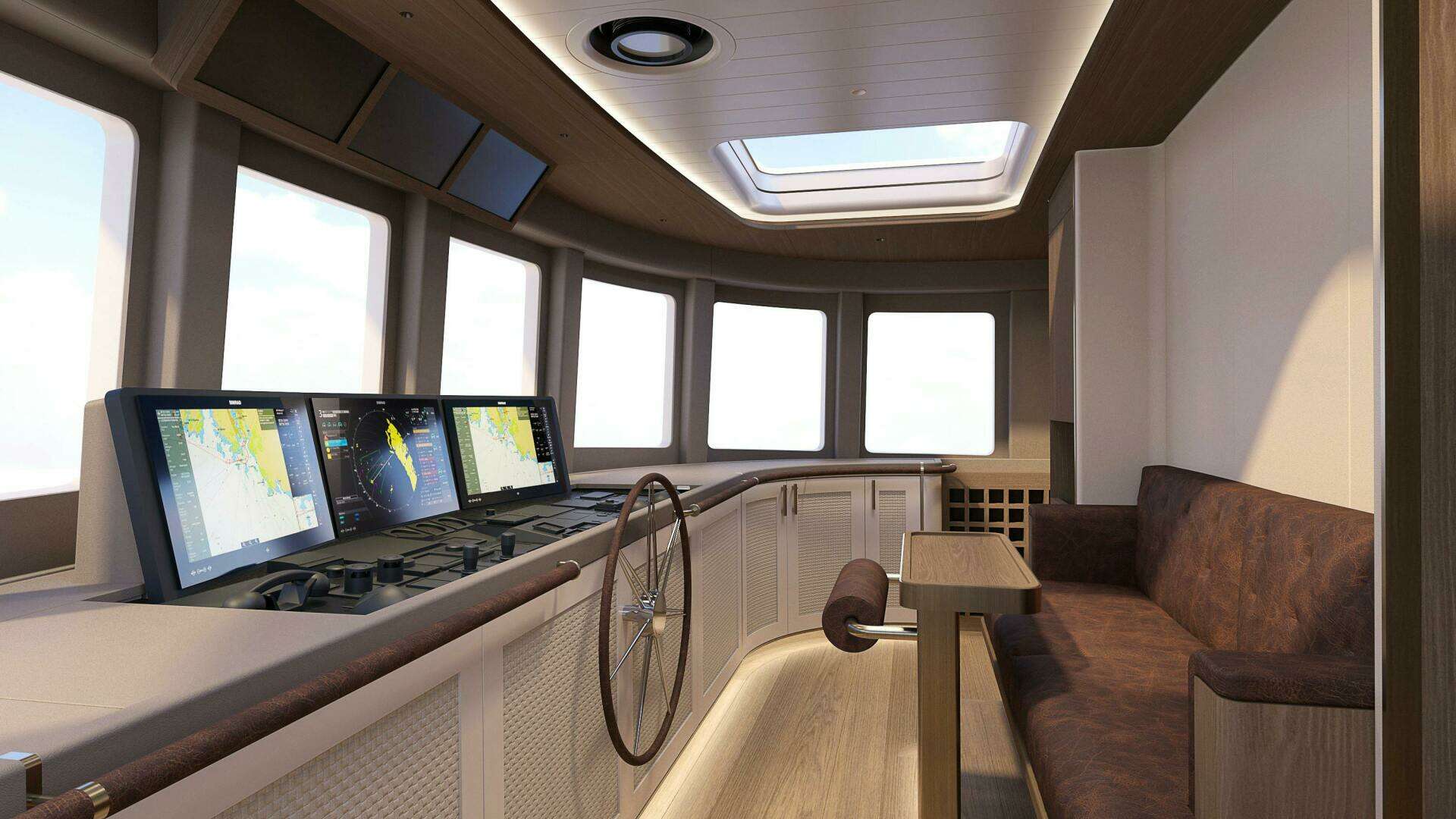

NAVIGATION & COMMUNICATION EQUIPMENT

• X-BAND RADAR SYSTEM SIMRAD

• DOME RADAR SIMRAD

• DUAL ECDIS SIMRAD

• MULTI-FUNCTIONAL NAVIGATION SYSTEM B&G

• NAVIGATION INSTRUMENT PACK B&G

• GPS NAVIGATOR SIMRAD

• AUTO PILOT SIMRAD

• GPS COMPASS COMNAV

• MAGNETIC COMPASS C&P

• ECHO SOUNDER SKIPPER

• DOPPLER SPEED LOG SKIPPER

• AIS SIMRAD Class A AIS with Pilot Plug & GPS Antenna

• GMDSS A3 AREA COMMUNICATION SYSTEM SAILOR

• BNWAS PROMAR

• EMERGENCY INTERCOM PHONTECH

• INTERNET STARLINK

ELECTRICAL SYSTEM

PAINT SYSTEM

AUDIO/VISUAL ENTERTAINMENT SYSTEMS

AV SYSTEM Independent Yet Interconnected

The yacht is equipped with a tailor-made and user-friendly Audio Video Entertainment System and Lighting Automation throughout the yacht for a premium onboard experience. Guests
have the flexibility to customize audio settings, volume levels, and even lighting preferences for each independent zone.

user friendly
Guests can download a user-friendly application on their smartphones or use the dedicated iPads for each area to control all aspects of the AV system, including sound, lighting, TV lifts, CCTV, air conditioning, projection system, and curtains. The system allows guests to create custom scenes and settings for different occasions.


Lighting Automation
Automated lighting system adjusts ambient lighting based on time of day, mood, or
activity, enhancing comfort and ambiance.


Sound Control
High-quality sound system with customizable settings for different areas.

Air Conditioning Integration
Seamless integration with the yacht's air conditioning system allows guests to control
climate settings for optimal comfort.

TV Lifts and Projection System
Automated TV lifts and projection system provide versatile entertainment options,
seamlessly integrated into the AV system.

CCTV Monitoring
CCTV cameras integrated with the AV system enable remote monitoring ensuring security.


Curtain Systems Control
Motorized curtain systems controlled via touch screen (iPad) allow guests to adjust
privacy, light fltration, and views with ease.


Customizable Scenes
Create custom scenes that combine sound, lighting, air conditioning, TV displays, projection screen, CCTV, and curtain positions for personalized onboard experiences

• MAIN SALON Ultra HD 75” TV, 5x B&W Speaker, B&W Black Subwoofer, Denon Amplifier, Dune HD Real Vision 4K Media Player,2x speaker for bathroom
• OWNER SUITE ULTRA TV 55” TV, 2x B&W Speaker, B&W  Black Subwoofer, Marantz Amplifier, Dune HD Real Vision 4K Media Player
• GUEST CABINS ULTRA HD 43” TV, 2x Lithe Audio Bluetooth Speaker, Dune HD Real Vision 4KMedia Player (5 Zones)
• WHEELHOUSE 1x Lithe Audio Bluetooth Speaker
• CAPTAIN CABIN ULTRA HD 43” TV, 2x Lithe Audio Bluetooth Speaker, Dune HD Real Vision 4K Media Player
• CREW MESS ULTRA HD 43” TV, 2x Lithe Audio Bluetooth Speaker, Dune HD Real Vision 4KMedia Player
• CREW BANK CABINS 2x Lithe Audio Bluetooth Speaker (5 zone)
• GALLEY 1x Lithe Audio Bluetooth Speaker
• MAINDECK AFT 4x JL Audio Speaker, JL Audio Subwoofer, JLAudio Marine Amplifier 2x JL Audio Speaker, JL Audio Marine Amplifier Samsung Projection, Vividstorm  Projector Motorised Screen
• MAINDECK FWD 4x JL Audio Speaker, JL Audio  Subwoofer, JL Audio Marine Amplifier
• SUNDECK 2x JL Audio, JL Audio Subwoofer, JL Audio  Marine Amplifier

CCTV SYSTEM

• CCTV SYSTEM The CCTV shall include the following functionality; motion detection, pre-set position-based recording, and disk backup. Monitoring stations; Wheelhouse NavCom display & Sundeck NavCom Displays, Owner Cabin TV, and Captain Cabin TV.
• CCTV SYSTEM 1x Avigilon Indoor IP Camera, 1x Avigillon Outdoor IP Camera, Synology CCTV Station with license
• CCTV SYSTEM 1x Flir Thermal Kamera, 4x Flir Camera, 31x Flir ArielQuad Hd Mini Dome.

TENDER & TOYS (OWNER SUPPLY)

• Custom carbon-composite 7,5m limo tender with Yanmar diesel engine.
• Custom RIB with Yanmar diesel engine.

FIRE & SAFETY

• ZODIAC 4x A Pack Liferaft 10 person, or equivalent
• CUSTOM Rescue Boat Tender, 7.5mt w/ Yanmar 250HP @3800Rpm (Northstar Orion 7_converted)

The yacht is fully insulated to achieve fire protection, temperature, and humidity control, as well as noise and vibration dampening.

• NOVEC 1230 Fire Extinguishing System FOR Engine Room, or equivalent Portable fire extinguishers located throughout in accommodation Firefighting equipment according to Classification and Flag State.

• Customized Engine Alarm Monitoring System
• CONSILIUM Fire Detection & Alarm System, or equivalent
• General Alarm System
• Internal Doors & Escape Hatches Alarm System

TANKAGE & CAPACITIES

• With a vast 14.000 liters of fresh water tank capacity, the yacht features a robust 15m³/day water maker capacity, providing a continuous and efficient supply of fresh water.
• Sewage treatment system with 6000l/day capacity.
• HVAC 605.000 BTU chiller system with 89.740 BTU FAMU capacity.
• 12.000 liters of Grey & Black Water tank capacity.
• 45.600 liters of Fuel tank capacity.
