Detailed Specifications

MAIN CHARACTERISTICS

Name: HELIOS 3

Type: Motor Yacht with bulbous bow

Builder: Delta Marine Industries

Year: 2012

Extension at Delta: 2017

Refit Year: 2022

LOA (m/ft): 53.84m (177’0)

Beam (m/ft): 10.3m (33’10")

Draft (Half Load) (m/ft): 2.8m (9’2”)

Draft (Full Load) (m/ft): 2.9m (9’6”)

Gross Tonnage: 776

Displacement (Fully Loaded): 578

ISM: Full

Hull Material: GRP

Hull Configuration: Full Displacement

Superstructure: Composite

Decks: Teak

Flag: Marshall Islands

Classification: Lloyds Maltese Cross 100A1 SSC YACHT G6 MONO MCH

MCA: Load Line Certificate, Private Registry

Naval Architect: Delta Design Group

Exterior Designer: Delta Design Group

Interior Designer: Delta Design Group

Main Engines: 2 x Caterpillar 3512 B, 1650 hp each

Speeds: Maximum: 16.8 knots @1650 rpm

Cruising: 13.5 knots @ 1300 rpm

Economy: 12.5 knots @ 1200 rpm

Range: 5000nm @ 10 knots @ 1000 rpm

Guest Accommodation: Accommodations for 16 Guests in 7 Staterooms

Crew Accommodation: Accommodations for 14 Crew in 6 twin cabins and 1 queen cabin

OVERVIEW

HELIOS 3 was completed in 2012 and purchased in 2015 by her current owner who immediately sent her to Delta, the original builder in Seattle, Washington for an extension and refit which took until January 2017 to complete. No other shipyard in the world could be trusted to do such an extensive job, in GRP, at any cost and certainly not in keeping with the quality that Delta always builds to. During this 18-month process, HELIOS 3 hull was lengthened by approximately 13 feet (4m), her bridge deck was lengthened by approximately 8 feet (2.5m) and every inch from her bilge to her mast was renewed, replaced, rebuilt or refitted. The extension itself cost well in excess of $12 million and the total refit cost was in excess of $17 million. At today’s prices, to replicate her extension and refit, we expect the extension might cost well in excess of $20 million and the total refit cost to be well over $25 million. Now, after world-wide cruising including multiple trans- Atlantic and trans-Pacific crossings, HELIOS 3 has proven herself as an amazing “go anywhere at any time” cruising yacht and her near perfect condition means she is literally ready to go anywhere at a moment’s notice. Her storage capacities are truly amazing, from her stand up bilges to vast refrigeration capacities. Her fiberglass construction is very heavy in a solid layup for her hull with a composite superstructure so long-term paint maintenance is minimized. Only on your close inspection will it be evident what pedigree, build quality, proper maintenance and stable long-term crew mean.

 MEASUREMENTS

Total Exterior Decks: 356m² (3831 ft²)

Total Interior: 622m² (6698 ft²)

Bridge Deck Total (Interior): 178m² (1919 ft²)

Owners Suite: 78.1m² (841 ft²)

Bridge Deck Guest Stateroom: 14.4m² (155 ft²)

Foyer: 18.9m² (203 ft²)

Pilot House and Ship’s Office: 38m² (408 ft²)

Captain’s Stateroom: 13.8m² (148 ft²)

Day Head: 1.9m² (20 ft²)

Main Deck Total (Interior): 241.5m² (2599 ft²)

Main Salon and Dining Room: 84.4m² (908 ft²)

Media Room: 26.7m² (287 ft²)

Gym: 20.7m² (223 ft²)

Children’s/Pilots Stateroom: 12.2m² (131 ft²)

Foyer: 29.4m² (316 ft²)

Day Head: 1.9m² (20 ft²)

Lower Deck Total (Guest): 99.8m² (1074 ft²)

Queen Guest Stateroom: 21.7m² (234 ft²)

Queen Guest Stateroom:21.7m²: 234 ft²:

Olympic Queen Stateroom: 17.6m² (189 ft²)

Twin/King Stateroom: 17.6m² (188 ft²)

Foyer: 9.7m² (104 ft²)

Crew Quarters: 102.8m² (948 +158) 1106 ft²

Exterior Decks:

Sun Deck: 121 m² (1303 ft²)

Bridge Deck Aft: 58.8 m² (633 ft²)

Bridge Deck (Portuguese Bridge): 21.2 m² (228 ft²)

Foredeck: 43.6 m² (469 ft²)

Main Deck Aft: 60.7 m² (653 ft²)

Main Side Decks: 36.4 m² (392 ft²)

Swim Platform: 14.2 m² (153 ft²)

HEADROOM

Main Deck Exterior: 2.26m (7’6”)

Main Deck Interior: 2.16m (7’1”)

Owner’s Deck Interior: 2.26m (7’6”)

Owner’s Deck Exterior: 2.11m (7’0”)

Bridge Deck Interior: 2.11m (7’0”)

Bridge Deck Exterior: 2.26m (7’6”)

ACCOMMODATIONS

OVERVIEW

HELIOS 3 accommodates 16 guests in seven staterooms. With an owner’s stateroom and a twin berth guest stateroom located on the bridge deck, four lower deck guest staterooms, three of which are queen staterooms and the fourth, a twin stateroom (with additional pullman berth) conveniently converts to a king stateroom. There is also a triple berth children’s stateroom on the main deck forward on the port side. All have en suite bathrooms.

GENERAL ARRANGEMENT: please refer to the GA drawing to follow the description below

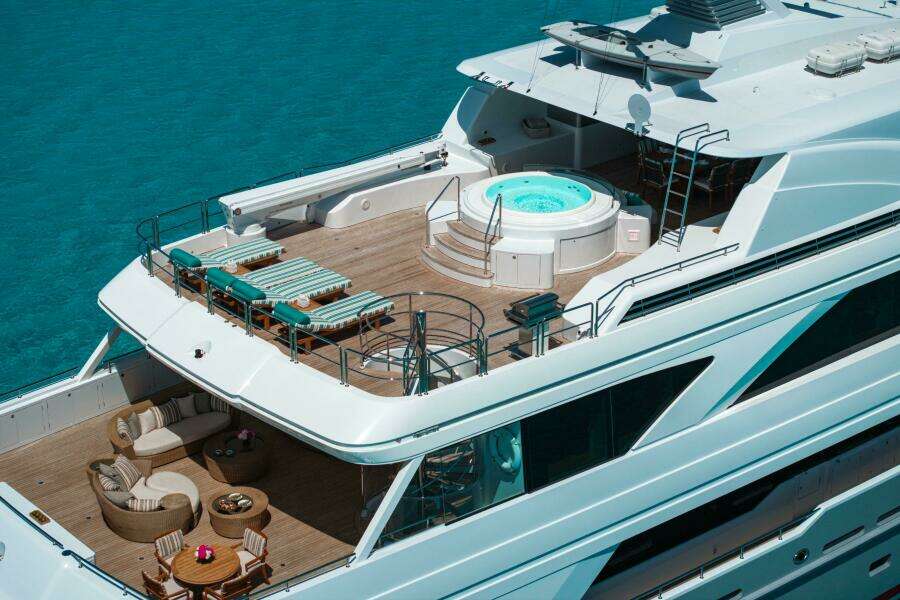

Sun Deck

There is a horseshoe shaped bar to port looking fore and aft around the elevator casing with the elevator opening to starboard adjacent a built-in seating area with easy chairs. An electric hatch forward gives access to the internal staircase all the way down to the lower deck. There is a teak dining table under the hardtop, there are TVs on both the forward and portside bulkhead, and a day bathroom with a shower to port. A large whirlpool tub is further aft on the centerline with seating around. There are chaise lounges aft on the sundeck and a Nautical Structures crane for launching a RIB tender or water toys if stored in this area. A circular staircase goes down on the starboard side to the aft owner’s deck.

Bridge Deck

Foredeck carries 2 x wave runners and 2 x stand-up jet skis, all launched by a Nautical Structures crane. The bosun’s locker is huge with full headroom and generous storage capacity. A Portuguese bridge is in front of the wheelhouse. The bridge has a guest viewing gallery with raised settees and tables for the owner and two helm chairs for crew. The ships office is aft to port ahead of the captain’s cabin with island queen berth and en suite bathroom. The foyer and central staircase are to starboard with the day head outboard. The elevator comes out in the aft foyer just ahead of the entrance to the bridge deck twin guest stateroom with en suite with tub/shower, with the expansive owner’s office opposite to starboard. Further aft into the owner’s foyer with walk-in closet outboard and bathroom with oversized shower and separate bathtub, his and her sinks, two toilet rooms (one with bidet) and a large walk-in centerline closet inboard. The master stateroom is full width for privacy with settee to port, vanity to starboard and aft facing king berth. There is access out a single inconspicuous door to the owner’s aft deck with couches and tables, round daybed, a small dining or games table to starboard and a bar to port. There is circular staircase access to the sundeck or down to the aft deck.

Main Deck

All the way forward to port is a children/guide/pilot/instructor/teacher stateroom with twin lower and single upper bunk berths and a bathroom with shower just outside the door, shared also with the gym. The gym is large with great windows and plenty of usable space and equipment. Opposite to starboard is a media room with 65” curved TV, games and built in wine cooler. A little aft is a computer workstation area for guests with two monitors, desks and mini bar. The day head is further aft ahead of the main deck lobby with staircase and elevator access.

The main deck galley is well sized and to port, with crew mess and walk in fridge and freezers just ahead. The galley has extensive granite topped U shaped counters, pantry service aft and a door into the elevator for easy food service to every deck.

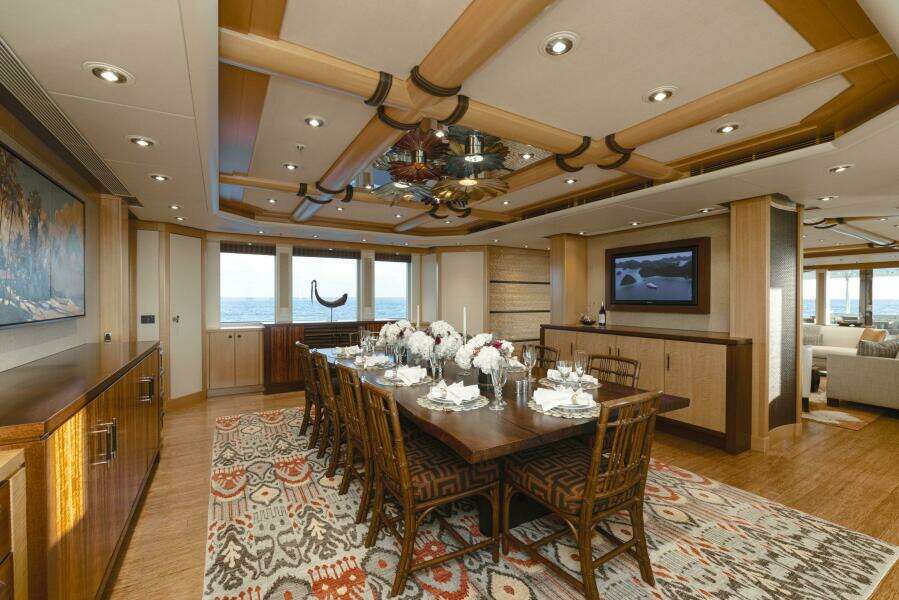

The dining room further aft features a solid slab table with natural, unfinished edges seating twelve and plenty of china, glassware and service ware stored in the surrounding cabinetry.

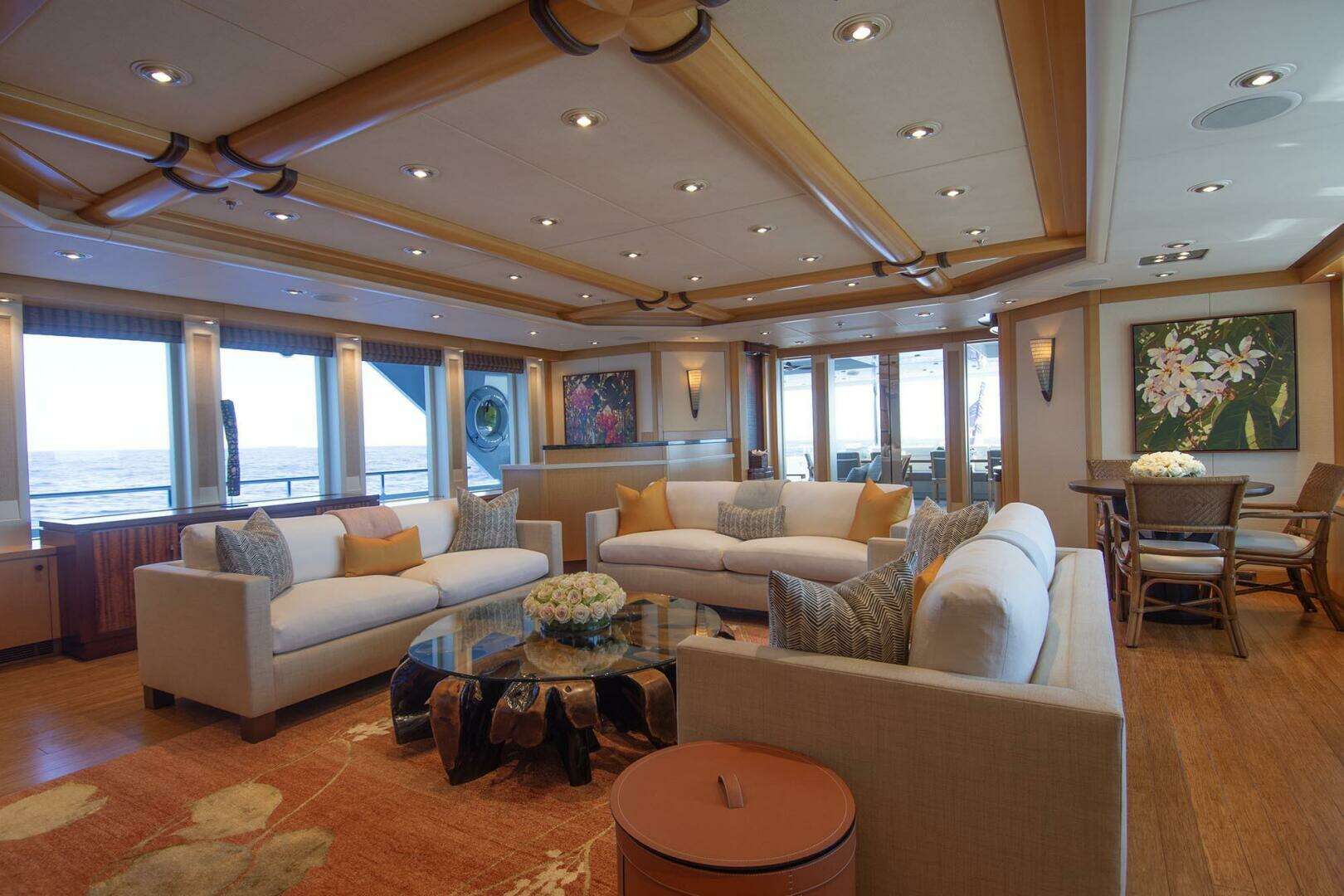

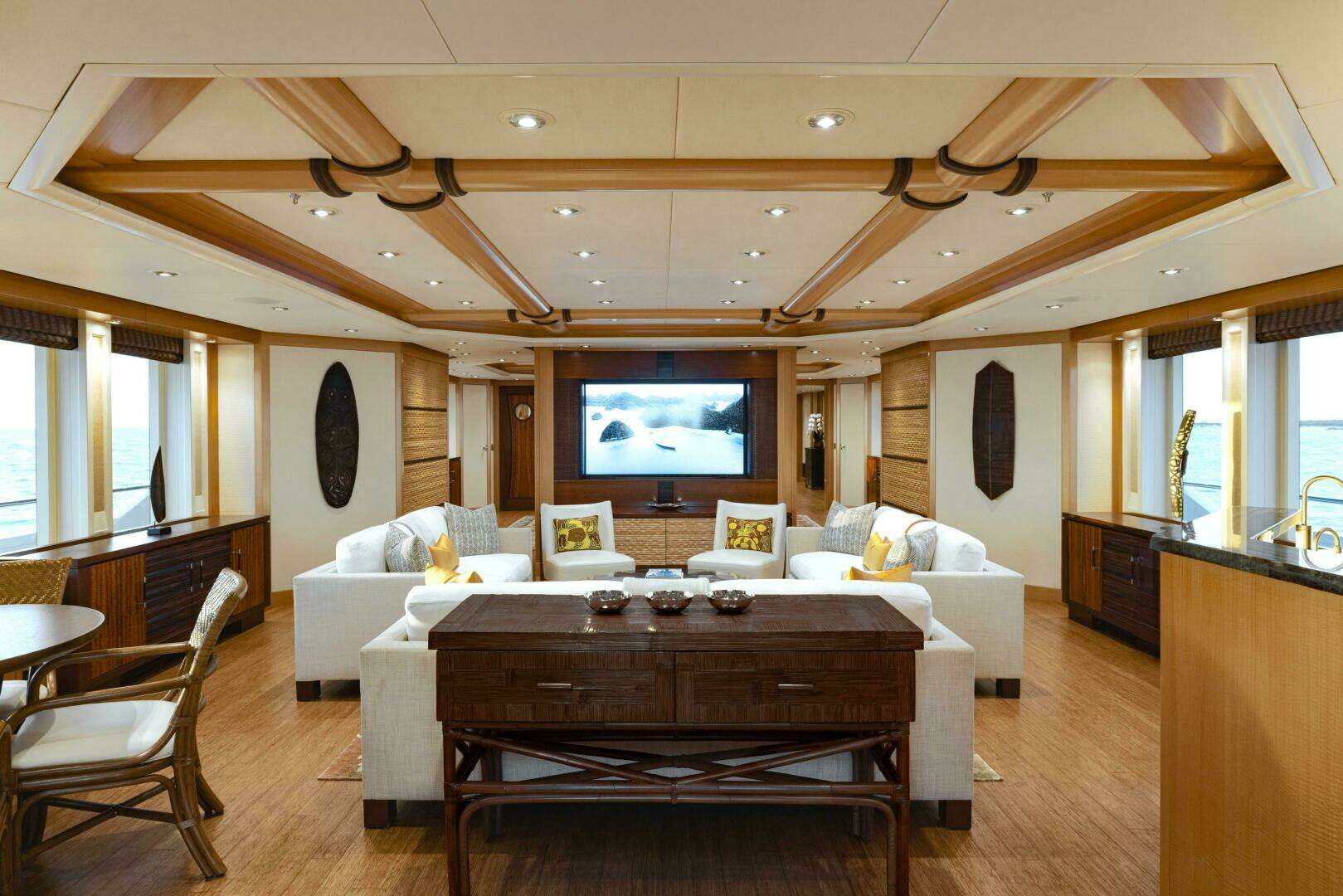

The main salon is further aft with easy chairs and couches around the centerline coffee table, a games table aft to port and a standup bar to starboard.

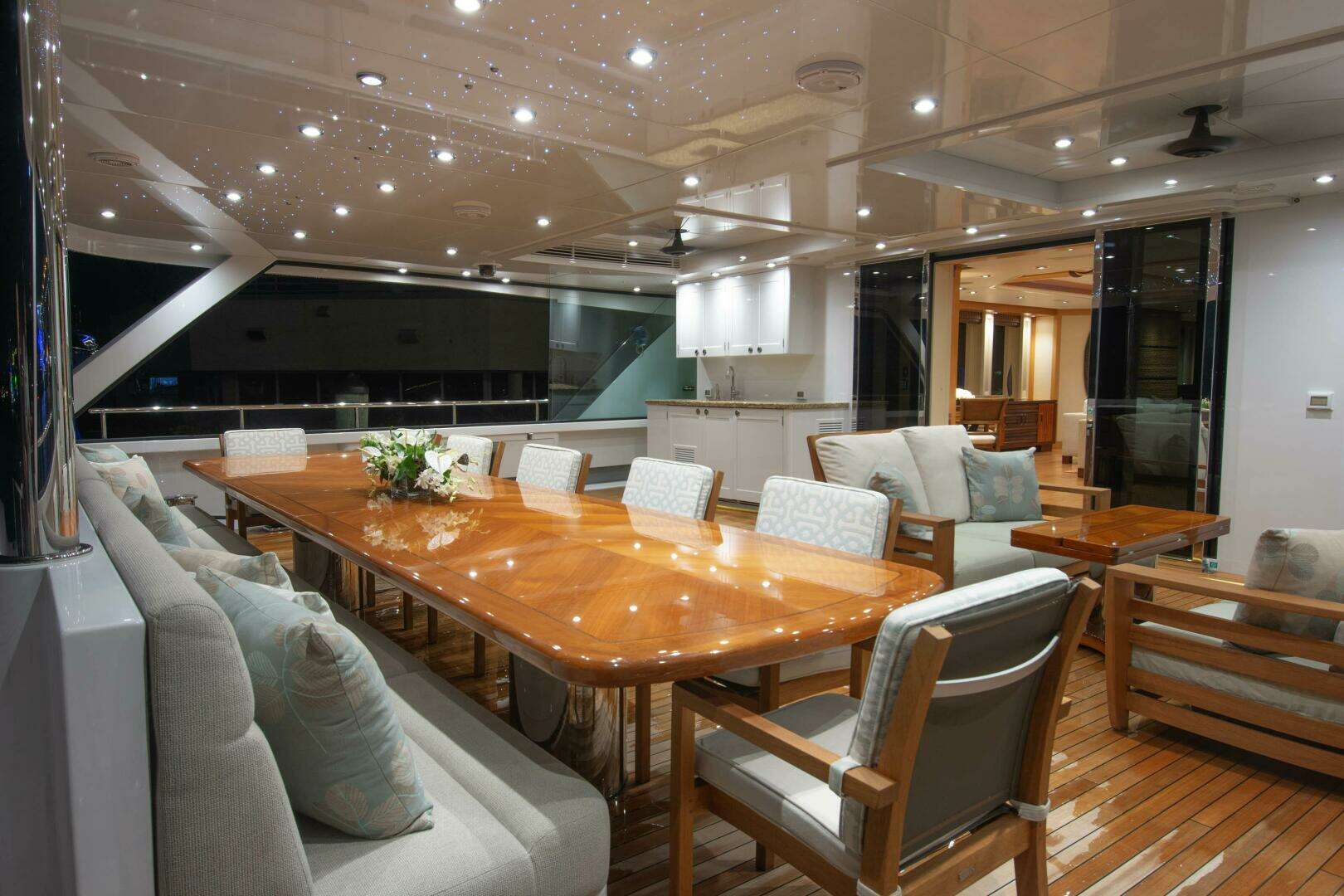

The main deck aft is where the hull extension is most noticeable. It is an amazing aft deck with love seats nestled in an area to starboard, buffet tables either side, sliding glass windows for wind protection and a teak dining table seating sixteen guests aft. There is a bar forward and double sliding doors to the main salon.

There is passarelle access to starboard and port side staircase access down to the swim platform.

Lower Deck

There are five double crew cabins forward and a double engineer’s cabin aft for a total of 14 crew including double captain’s cabin on the bridge. The commercial style laundry is to port and there is “secret” crew access to the lower deck guest staterooms for servicing. Please note the air-conditioned standup storage areas under the crew’s quarters, complementing the vast storage capacities elsewhere.

There are four guest staterooms on the lower deck. Forward to starboard is a twin berth stateroom #1 that can convert to a king berth stateroom, and it also has a pullman berth for versatility. Opposite is guest stateroom #2 with centerline queen. These staterooms have en suites with showers.

Guest staterooms #3 and #4 are further aft with centerline queens and bathrooms with tub/showers.

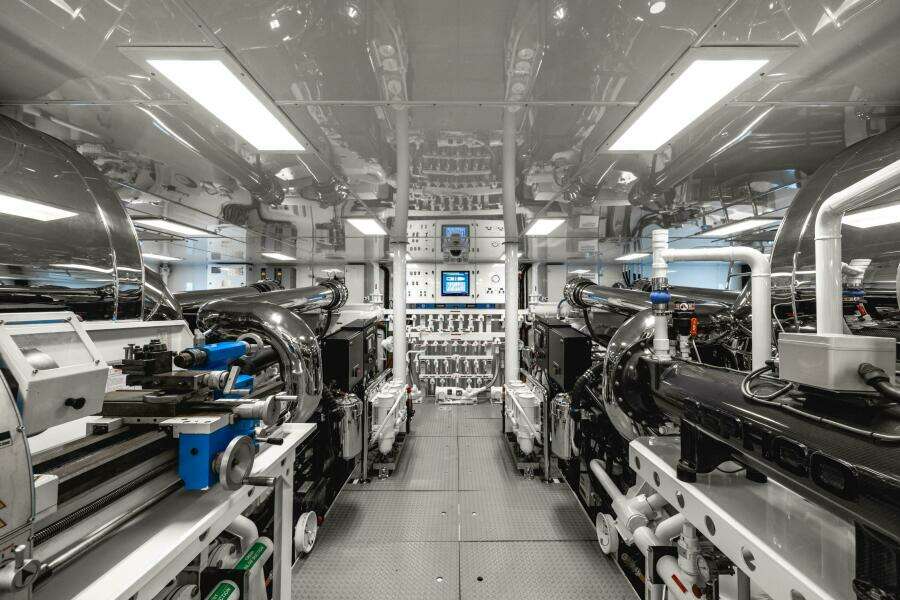

The engine room is further aft with control room aft to port ahead of the twin berth engineer’s cabin with en suite bathroom with shower.

The 19’ Novurania Chase diesel RIB tender sits in a center line garage. The lazarette is to starboard with dive locker and dive room aft to port. Aft of the tender is the beach club area that sets up nicely with teak tables and chairs. The transom door is above offering some shade to the large swim platform when it is open.

CAPACITIES

Gross Tonnage: 776

Net Tonnage: 232

Displacement Tons: 578

Fuel Capacity: 80,326 l (21,220 USG)

Day Tank: 2 x 19,953 l (5,271 USG)

Sludge Tanks: 1 x 197 l (52 USG)

Storage Tanks: 2 x 9146 l (2,416 USG)

Fuel Storage Tanks: 2 x 11053 l (2,920 USG)

Fresh Water Capacity: 2 x 6329 l (1,672 USG)

Water Makers Spot Zero: 2 x 22,712 l (6,000 USG) each per day

Grey Water: 1 x 8294 l (2,191 USG)

Black Water: 1 x 6,746 l (1,782 USG)

Ballast Water: 1 x 6,890 l (1,820 USG)

Lube Oil: 1 x 1,537 l (406 USG)

Waste Oil: 1 x 1,438 l (380 USG)

Speed:

Maximum speed: 16.8 kts, 72 USG each per hour, 2,300nm range at 1650 RPM

Cruising speed: 13.5 kts, 43 USG each per hour, 3,000nm range at 1300 RPM

Economical speed: 11 kts, 25 USG each per hour, 4,000nm range at 1100 RP<

Generator Consumption at Anchor: 8 USG per hour each

MAIN MACHINERY

Main Engines: Twin 3512B Caterpillar, 1650 hp each

Engine Hours (March 2025): Port 13,600hrs total –Top end rebuilt at 12,420hrs (2024)

Starboard 13,600hrs –Top end rebuilt at 12,420hrs (2024)

Propulsion Type: Twin Screw

Engine Controls: Prime Mover Controls

Engine Mounts: Soundown

Engines Exhaust System: De Angelo

Gear Boxes: ZF Reduction Ratio 4.06:1

Shafting: 2 x Delta 5#, Stainless Steel Temet 25

Propellers: 2 x 5 blade NiBrAl -Veem 68”D x 70.9” Pitch

Engine Ventilation: 2 x 7.5 kw Woods

GENERATORS & ELECTRICITY

Output/Electricity: 12/24/240/480 Volt 60 hz

Generators: 2 x 150kw John Deere 6068’s new 2021 with Sea Clean Soot Cleaners & load bank Sephco 75kw

Generator Hours (March 2025): Port 13,000 total hours - Rebuilt 2024 @11,400 hours

Starboard 13,000 total hours - Rebuilt 2024 @11,200 hours

Generator Fuel Consumption: Average 8 gph each

Generator Exhaust System: Sound Down Water Lift Separators and Sea Clean Soot Cleaners

Shore Power: 2 x Asea 75kw water cooled (150kw)

Batteries: Dedicated Start Banks for each Generator & Main Engine, new 2024 & 2025 respectively

2 x House Banks, new 2025

2 x GMDSS Banks

Battery Chargers: 5 x Victron Energy

Generator Start: Gensys 2.0

UPS (uninterruptible power supplies): Multiple UPS throughout vessel

AUXILIARY MACHINERY

Steering System: Jastram

Steering Gear: Twin Ram, new 2025

Emergency Steering: Helm Station with Solenoid operation in lazarette

Bow Thruster: Quantum QT 150hp

Stabilizers: Quantum QC-1800 Zero Speed x 2 fins

Under Water Lights: 6 x Sea Vision in stern

Helm/Wing Station Controls: Prime Mover Controls

Fuel Filters: Racor Primary

Fuel Oil Separator: Westfalia

Fuel Transfer Pump: 2 x Blackmer/Baldor

Fuel Filling Pump: 1 x Duro

Bunkering Stations: Port and Starboard Main Deck

Oily Bilge Water Separator: Recovered Energy Boss

Dirty Oil Pump: Haight/Baldor

Lubrication Oil Pump: Haight/Baldor

Firefighting & Bilge System: Semco

Firefighting & Bilge Pump: Flomax

Fresh Water System: 2 x Grudfoss pumps on VFD’s

Fresh Water Makers: 2 x Spot Zero XZ-HD 6000/5000 gpd each, new 2021

Fresh Water Treatment: UV

Fresh Water Pressure: 75 psi

Hot & Cold Circulation Pump: Grundfoss

Hot Water Boilers: 2 x 10kw Hubbell plus 1 X 18 kw Rheem Booster

Sea Water Pumps: WEG / Danfoss for Watermakers

Black & Grey Water System: Headhunter MSD

Black & Grey Water Treatment: Headhunter MSD

WC's (toilets/bidets): Headhunter

Sanitary Water System: Dedicated Fresh Water pump

Black & Grey Water Pumps: Condaria Diaphragm

Garbage Compactor: KitchenAid

Automatic Grease Trap: Enzyme Treatment

AC & Ventilation System: Chilled Water Fan Coils

Air Conditioning: 3 x Technicold Compressors 2024/2025 with 3 x Titanium condensers,

Air Compressor: 2 x Atlas

Air Handling Units: Dometic CW

Provision Refrigeration: Arctic Blast/Heatcraft

Engine Room AC: Aqua Air

Engine Room Ventilation: Woods

Galley Ventilation & Extraction: Streivor Air System UV light in galley hood

Hydraulic System: Quantum

Hydraulic Power Packs: Quantum, new PTO pumps 2025

Emergency Power Pack: Manual

Exterior Paint: Awlgrip

Antifouling System: Micron 99

NAVIGATION & COMMUNICATION SYSTEMS

NAVIGATION SYSTEMS

Navigation Bridge:

Monitors: 5 x Hatteland

X-Band Radar: Furuno

S-Band Radar: Furuno

Chart Plotter: Transas NaviSailor 4000 ECS

UPS: Multiple Eaton units throughout

Magnetic Compass: Ritchie plus a spare

Gyrocompass: Sperry Marine

Auto Pilot: Sperry Marine Navipliot 4000

Rudder Angle Indicator System: Sperry Marine

Echo Sounder: Furuno Navnet

Speed Log: Furuno GS 100

Depth Sounder: Furuno FE 800

DGPS: Furuno GS 100

GPS: Furuno GP 33

AIS: Furuno FA-150

Navtex: Furuno NX- 700

Wind Instruments: Brooks and Gatehouse H3000

Horn: Kahlenberg 3 x trumpet

Search Lights: ACR

Night Vision Camera: FLIR M-series

Tender Tracking System: AIS

Bridge Navigation Watch Alarm: Furuno BR-510

Ships Computer: Lenovo Server

COMMUNICATION SYSTEMS

Sat com #1: Thrane and Thrane, FB250

Sat Com #2: Thrane and Thrane, FB 500

Inmarsat – C: Furuno Felcom 15

SSAS: Furuno IC-307

Starlink : 2 x Maritime Starlink, 1 x dual antenna, 1 x single antenna

Telecom Systems:

VHF Radiotelephones: 2 x Sailor 6222 VHF DSC

Portable VHF: 4 x Icom M94D

Portable GMDSS VHF: 3 x Icom -GM1600

Telephone System: Panasonic KX TDA 100

Intercom System: Panasonic KX TDA 100

GMDSS Battery Plant: Yes

Guest Phones: Panasonic desk phones

Internal Ship’s Communication: 35 x Kenwood Pro Talk (approx.)

DECK MACHINERY & EQUIPMENT

Anchors: 2 x 635KG HHP Balanced Stainless Steel Manson

Anchor Chains: Galvanized U2, 22mm stud link, 6 shackles (540’) port, 5 shackles (450’) starboard

Anchor Windlass System: 2 x Maxwell SY 22 Hydraulic

Cranes: Sun Deck: Nautical Structures Hydraulic EZ300FB

Warping Capstans: 2 x Maxwell VC 8000 hydraulic with foot controls

Bow Crane: Nautical Structures 2200 with dedicated power pack for wave runners/toys

Bow Davit: Portable Atlas 2500

Passarelle: Nautical Structures

Side Boarding Ladder: Custom carbon fiber

Swimming Ladder: Custom Multiplex carbon Fiber

Awnings: Multiplex owners deck and aft deck

SAFETY, SECURITY, & FIRE FIGHTING EQUIPMENT

Security System:

CCTV: Exacvision with 10 x Vivotek cameras

Door Sensors:All connected via AMS

Ship’s Safe: 2 x Burg Wachter Pointsafe, Captain and Owner

Fixed Firefighting System: Water Mist Notifier/Demfoss Semco throughout

Gas Detection: Notifier, RKI GX-3R,

Smoke Detection: Notifier

Fire Alarm: ULC Signal Systems

Alarms (AMS): Imtech Alarm and Monitoring system

Life Rafts: 6 x 12 person Viking DK12 SOLAS A

Breathing Apparatus: 5 x sets SCBA; 2 x carbon fiber tanks 4500psi, 3 x steel tanks 2200psi

5 x EEBD Oceanco M20.2

Lifejackets: HELIOS 3: 68 x Viking man/auto 275N SOLAS Type 1, 3 x child Remploy,

7 x Mustang, 1 x Hirise

In Novurania tender: 2 x Mustang

In Sun Ra tender: 2 x Mustang, 2 x Viking, 14 x Sospender

Immersion Suits: 28 x Immarsion PS2004 Universal , 5 x small,

In Sun Ra tender: 2 x Universal

Life Rings: 3 x with lights, 2 x MOB with lights and smoke, 2 x with line, 1x Bare, 1x Lifesling

4 x Pain and Wessex 250 line throwers

EPIRB: 2 x ACR Global Fix

SART: 3 x McMurdo S4 SART

Flares and Signals: HELIOS 3 – 3 x grab bags: 2 x Orange smoke, 6 x Red handheld, 4 x Red parachute

Sun Ra tender: – 1 x grab bag: 2 x red handheld, 4 x flare gun cartridges

Jet Ski’s – 2 x red handheld, 2 x red parachute

Medical Equipment:20 x Global Med Kit, Yacht Lifeline Oxygen pack and Oxygen concentrator, pediatric kit, infusion pack, urinary catheterization pack, 3 x Trauma response packs, rebreather pocket mask, Heartstart Phiilips defibrillator, Tempus IC2.

ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS

Video Equipment: Kaleidescape Hard Drive

Audio Equipment: Marantz Surround Sound AVR

Controls: Crestron with iPads

Main Salon and Dining: 70” Samsung and 42” Panasonic plasma

Master Stateroom: 55” Panasonic Plasma with lift

Owners Lounge: 40” Samsung with lift and tilt

Bridge deck stateroom: 22” Sony LCD

Twin/King Stateroom: 26” Sony LCD

Queen Stateroom: 26” Sony LCD

Olympic Queen: 26” Sony LCD

Children’s Stateroom: 32” Samsung

Gym: 42” Panasonic and 24” LG

Media Room / Computer Station: 65” Samsung Curved TV, 1x Play Station 4, 1 x Nintendo Wii, 1 x Xbox ,1 x Oppo, Blu Ray Player, 1 x Eaton UPS, 1 x Concept AVR, PaKedge Router, 2 x 23” LCD computer displays

Bridge Guest Gallery: 65” Samsung LCD

Exterior:

Sun Deck: 2 x 55” Samsung LCD, JL Audio speakers

Crew:

Captain’s Cabin: 37” Panasonic Plasma

Crew Mess: 40” Samsung

Crew Cabins X 5: Mini LG Projectors per berth

Engineers Cabin 6: 42” Samsung

Galley: 22” LG TV

WIFI: Kerio, Ruckus Router with 2 x Starlink feeds

GALLEY & LAUNDRY EQUIPMENT

MAIN GALLEY EQUIPMENT

Cooking Equipment: MKN Oven -Junior Magic Pilot, Miele Oven-H7580BP

4 x Gaggenau double induction plates, Hatco Overhead food warmer

Refrigeration/Freezer: Arctic Blast/Cospolich walk in fridge (287.1 cu ft) plus freezer (235 cu ft)

2 x Northland full size fridge in galley

Dishwasher: Hobart LXe 90 second cycle

Hood Cleaner: Streivor self-cleaning ultra violet hood/greased cleaner

Other: Patriot induction deep fryer

Stainless steel BBQ on sun deck

PANTRIES AND OTHERS:

Refrigeration/Freezer: Sub-Zero undercounter

Dishwasher: Hobart LXe 90 second cycle

Other: U-Line Ice maker

Various coffee makers

CREW MESS

Microwave: GE

Refrigeration/Freezer: Northland full size

GUEST AREAS:

Gym: U-Line undercounter fridge

Owners Lounge: U-Line undercounter fridge, microwave

Media Lounge Bar: Sub-Zero undercounter fridge, Sub-Zero ice maker

Main Deck: Sub-Zero undercounter fridge, Sub=Zero ice maker

Main Salon: Sub-Zero undercounter fridge

Sun Deck: U-Line undercounter fridge and ice maker

Owners Deck: Sub-Zero undercounter fridge, Sub-Zero ice maker

Wine Storage: 2 x Sub-Zero 132 bottle capacity in media room

LAUNDRY:

Main Laundry Equipment: 3 x Miele PW6065 plus washers

3 x Miele PT7128plus dryers, 1 x Miele Touchtronic T9802 XL dryer, 1 x Laurastar Smart U Iron, 1 x Laurastar Lift Extra Iron, 1 x Miele Rotary Iron

Deck Laundry Equipment: 1 x LG ThinQ washer/dryer in bosun’s locker

OTHER EQUIPMENT

Spa Tub: Sun deck aft

Guest Elevator: Lift Emotion 3 person to all 4 decks incl sundeck. Also has access to galley

Gym Equipment: Peloton, Life Fitness life cycle, Life Fitness treadmill. See separate extensive inventory

TENDERS & TOYS

Tenders: 1 x 40’ Intrepid 400 center console tender with hardtop, shower and bathroom, powered by 2 x Volvo D6400AF 400hp diesel engines with stern drives

1 x 19’ Novurania Chase with 260hp Yanmar diesel engine with Hamilton jet drive

Jet Skis: 2 x Yamaha Waverunner GP18008-YB

2 x Yamaha Jet Ski stand-up SJ1050-Y

Toys: 2 x Seabob F5 S

FRIB 330

Henshaw inflatable 4.5m landing craft

Hobie Kayaks – 2 x Mirage, 1 x Oasis, 1 x Revolution 2

Laser 4.7m sailing dinghy

E – LIFT Foil L5 Sport

Diving Compressor: Tecoma 7200

Scuba Tanks:10

EXCLUSIONS

Exclusions include all of Owner's personal effects. A detailed list of inventory and exclusions will be provided pursuant to a purchase agreement.

DISCLAIMER

All speeds, measurements, capacities, consumptions, etc. may be approximate or estimated. Specifications provided for information only. Data was obtained from sources believed to be reliable and is not guaranteed by owner or brokers. Buyer assumes the responsibility to ascertain the correctness of all data contained herein and otherwise provided and must instruct his agent and surveyors to confirm all details for accuracy prior to purchase. Subject to prior sale price and inventory change or withdrawal from market without notice.
