Detailed Specification

z

MAIN CHARACTERISTICS

Name: FLORENTIA

Type: Motor yacht

Builder: Rossinavi

Year: 2020

Hull No: FR039

LOA (M/FT): 52.00 M (170’07”)

LWL (M/FT): 45.55 M (149’05”)

Beam Overall (M/FT): 10.35 M (34’01”)

Beam moulded (M/FT): 10.11 M (32’02”)

Draft (Half Load) (M/FT): 2.70 M (8’10”)

Draft (Full Load) (M/FT): 2.92 M (9’07”)

Gross Tonnage: 810

Displacement: 729

Net Tonnage: 243

Hull Material: Steel

Superstructure: Aluminium

Decks: Teak

Flag: Cayman Islands

Classification: Lloyd’s Register

Naval Architect: Arrabito Naval Architects

Exterior Designer: Stefano Vafiadis, Studio Vafiadis

Interior Designer: A++ Carlo Colombo

Main Engines: 2 x CAT 3512E

Speeds: 17 Knots Max

13.5 Knots Cruising

12 Knots Economical

Range: 3,500 nm @ 12 kn

Guest Accommodation: 12 guests in 6 staterooms

Crew Accommodation: 11 Crew In 6 Cabins

Helicopter Capacity: No

COMMENTS AND NOTEWORTHY FEATURES AT A GLANCE

·      In immaculate condition and privately operated only by a professional crew of 11

·      6 staterooms, up to 12 guests on 4 decks, sculptural spiral-railed staircase at the main-deck lobby

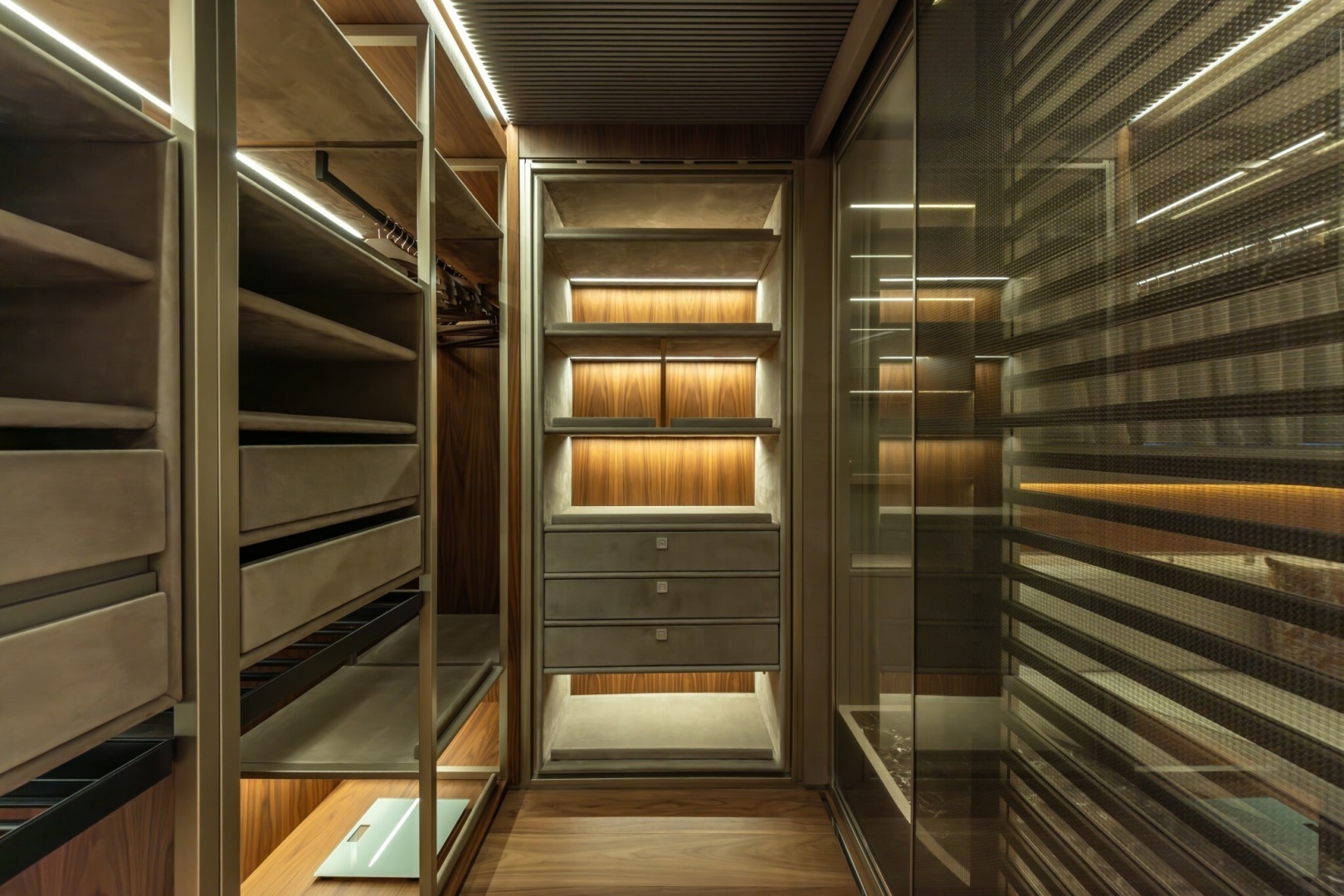

·      Master stateroom with 2 walk-in wardrobes, his-and-hers

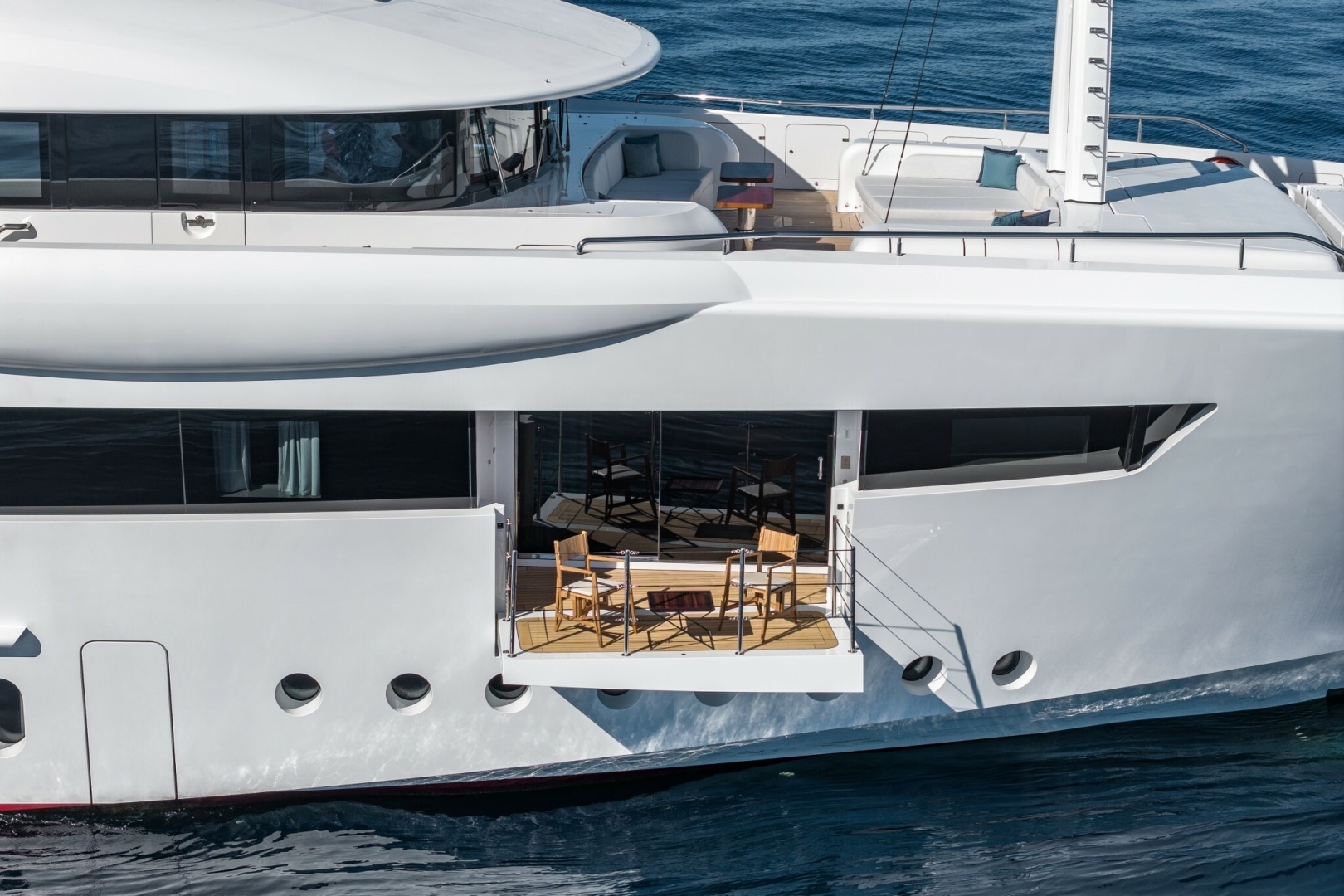

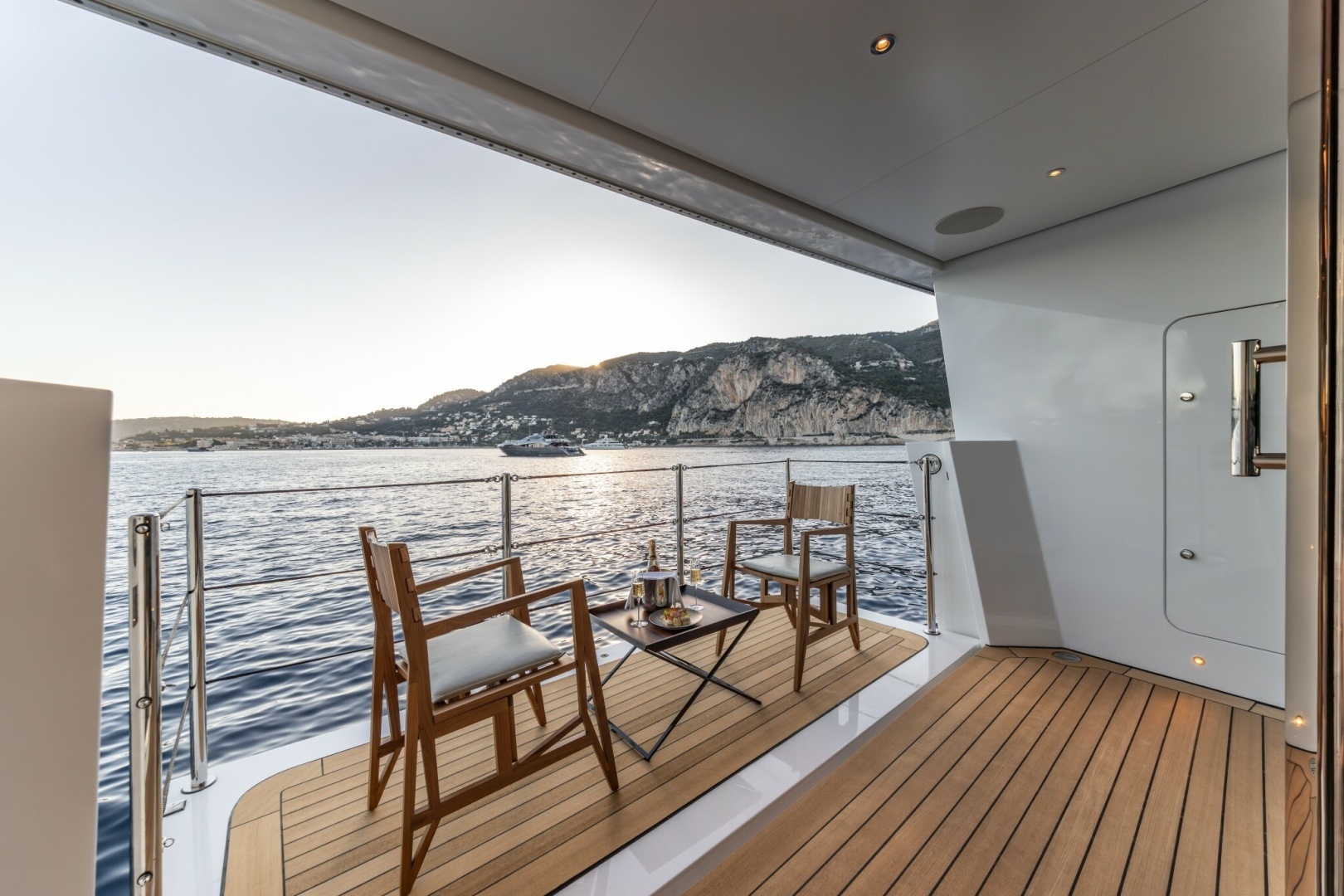

·      2^nd master stateroom on the top deck with private forward terrace and bathtub

·      Residence-like comfort with 810 GT and 2.35 m ceiling heights

·      Hull optimised for long-range cruising, up to 3,500 nm range and reaches 17 knots

·      Shallow 2.70 m draft enabling extended cruising grounds

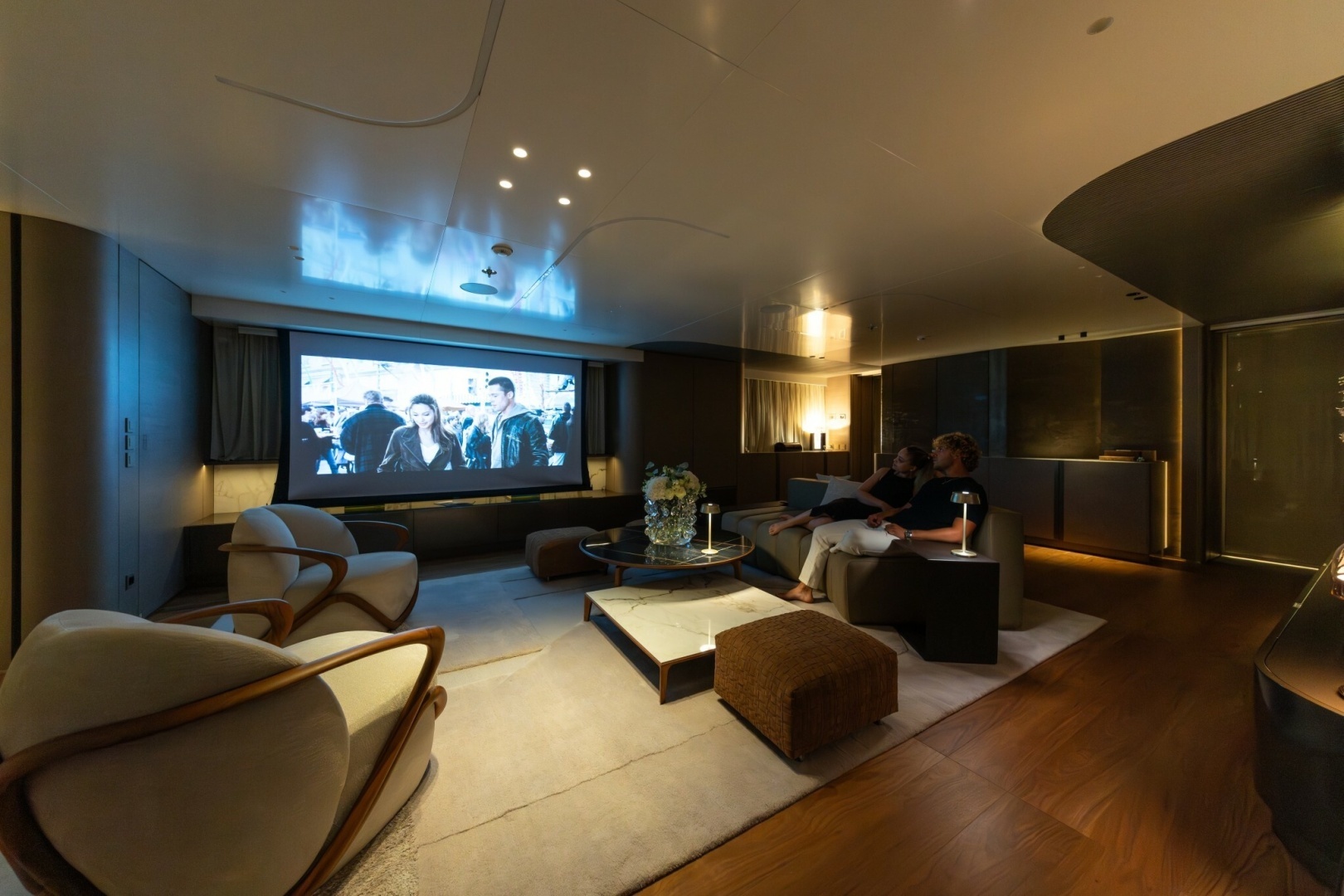

·      Sky lounge converts to a full cinema via ceiling-concealed projector

·      Multi-award-winning interior architecture — IYAA Main Salon & Master Stateroom Winner 2021

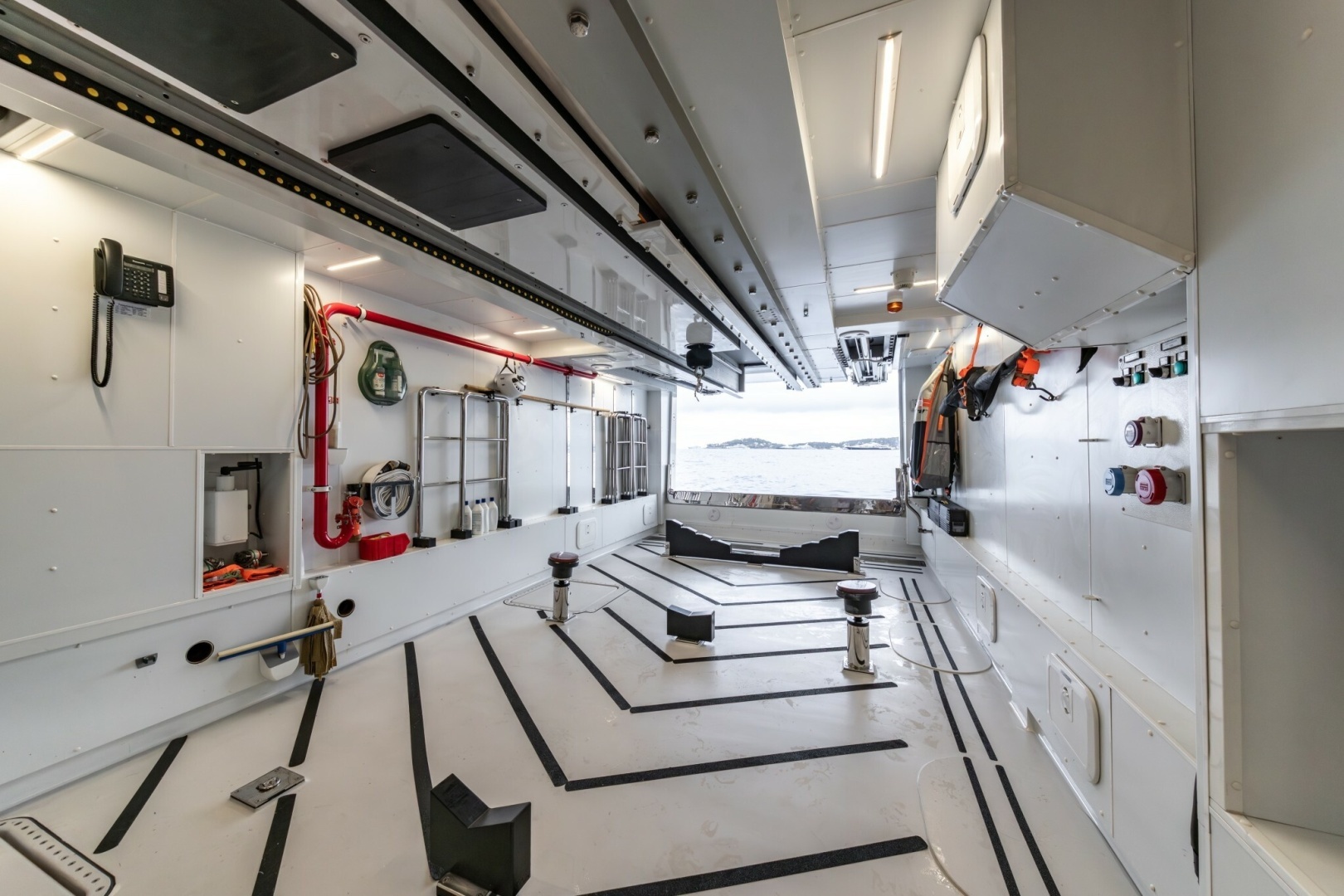

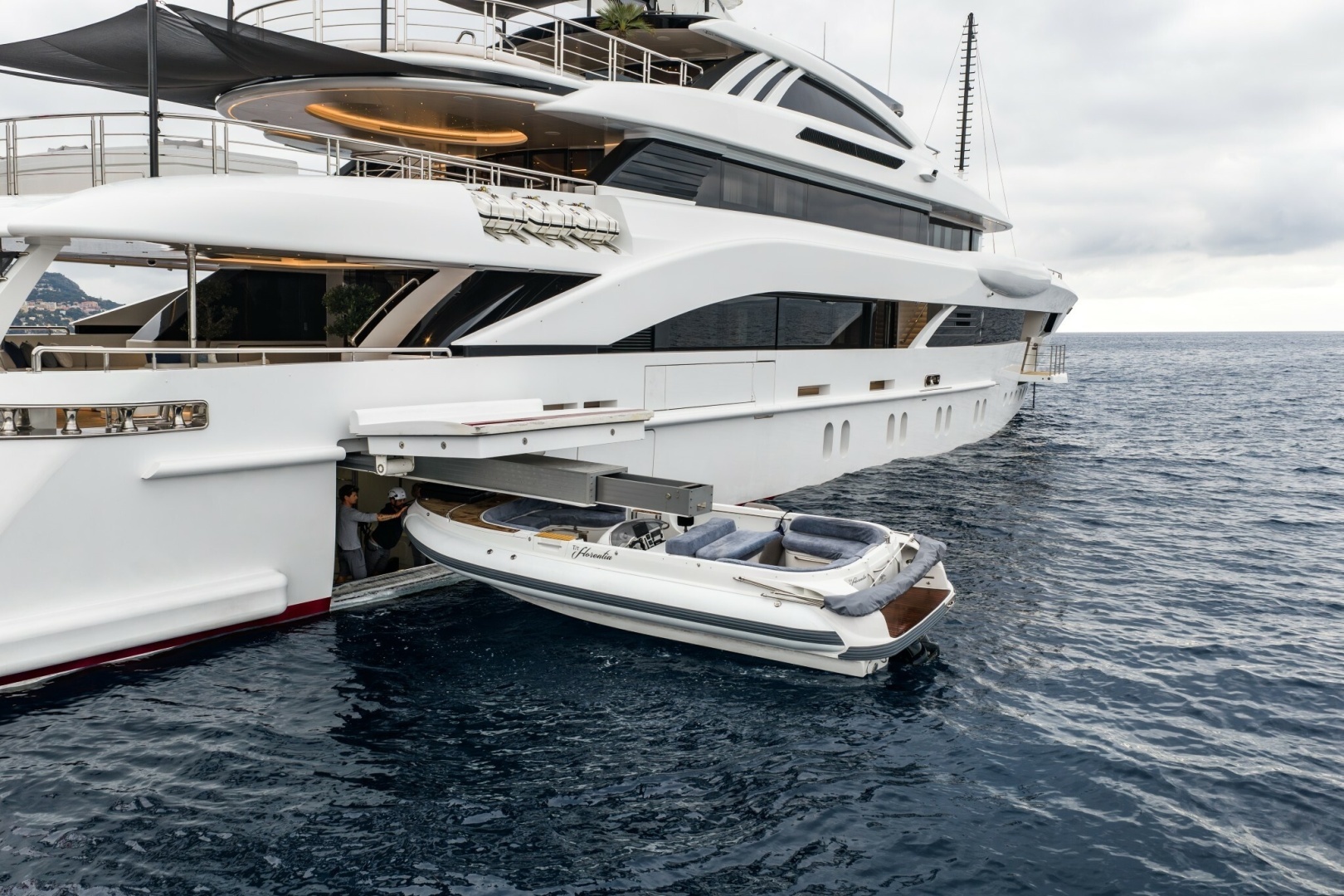

·      Side-loading tender garage preserves an undisturbed beach club for guests

classification

Flag: Cayman Islands

Port of Registry: George Town

Classification: Lloyd’s Register (LR)

Classification Notation: +100A1 SSC yacht Mono G6 + LMC Unrestricted nav

MCA: Yes

ISPS: Yes

ISM: Yes

IMO Number: 9842841

MMSI Number: 319199700

Official Registration: 750192

Home Port: Ventimiglia

Ice Class: No

regulation

Vessel Registration: Private

Built to Commercial Compliance: Yes

MARPOL Code: Yes

Full ISM: No

Mini ISM: Yes

ISPS: Yes

MLC: Yes

SQUARE METERS

TOTAL EXTERIOR DECKS: 363,3 M² (9,910.6 FT²)

TOTAL INTERIOR: 326 M² (3,509.2 FT²)

Sun Deck: 34 M² (366.0 FT²)

Bridge Deck Total (Interior): 62,6 M² (673.8 FT²)

Upper Saloon: 53,6 M² (577.0 FT²)

Lobby: 6,4 M² (68.9 FT²)

Powder Room: 2,6 M² (28.0 FT²)

Main Deck Total (Interior): 141 M² (1,517.7 FT²)

Main Saloon: 77,6 M² (835.3 FT²)

Dining Room: 23 M² (247.6 FT²)

Owner’s Stateroom: 53 M² (570.5 FT²)

Lobby: 7,8 M² (83.9 FT²)

Powder room: 2,6 M² (28.0 FT²)

Lower Deck Total (Guest): 88,5 M² (952.6 FT²)

VIP Stateroom port / stbd 24,7 M² (265.9 FT²)

Twin Stateroom port    19,7 M² (212.1 FT²)

Twin Stateroom stbd 14,4 M² (155.0 FT²)

Lobby: 5,0 M² (53.8 FT²)

Crew Quarters: 58 M² (624.3 FT²)

DECKHEAD HEIGHTS

Main Deck Exterior: 2,35 M (7’ 08”)

Main Deck Interior: 2,35 M (7’ 08”)

Owner’s Deck Interior: 2,20 M (7’ 02”)

Owner’s Deck Exterior: 2,20 M (7’ 02”)

Bridge Deck Interior: 2,20 M (7’ 02”)

Bridge Deck Exterior: 2,20 M (7’ 02”)

Lowed Deck: 2,20 M (7’ 02”)

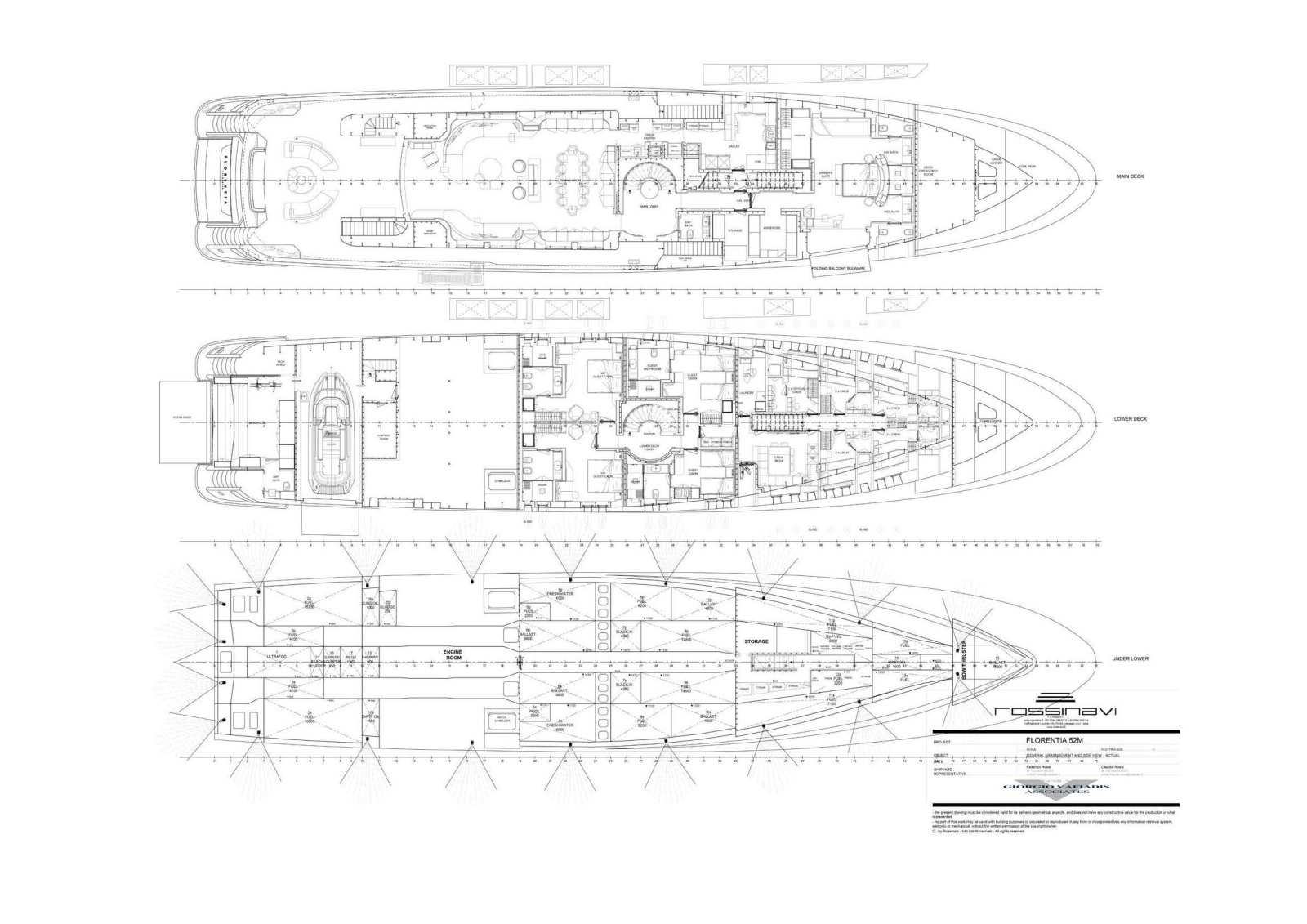

ACCOMMODATIONS

OVERVIEW:

FLORENTIA accommodates twelve guests across six en-suite staterooms over four decks. Two of those staterooms are designed as masters: the main-deck Owner's suite forward, and the unique very private sun-deck VIP stateroom with its own private forward terrace and aft sundeck with Jacuzzi pool.

ACCOMMODATIONS:

Accommodation is for up to 12 guests comprising a master stateroom forward of the main deck with a private balcony and two walk-in wardrobes. The stateroom also features a striking ring-shaped mirror artwork above the bed to reflect light in all directions.

Elsewhere, a VIP suite can be found on the fly deck, complete with a balcony at the bow and access to the outdoor hot tub at the stern. Two double guest staterooms as well as two twin staterooms sit on the lower deck alongside the crew quarters, which comprises a kitchen, living room, laundry.

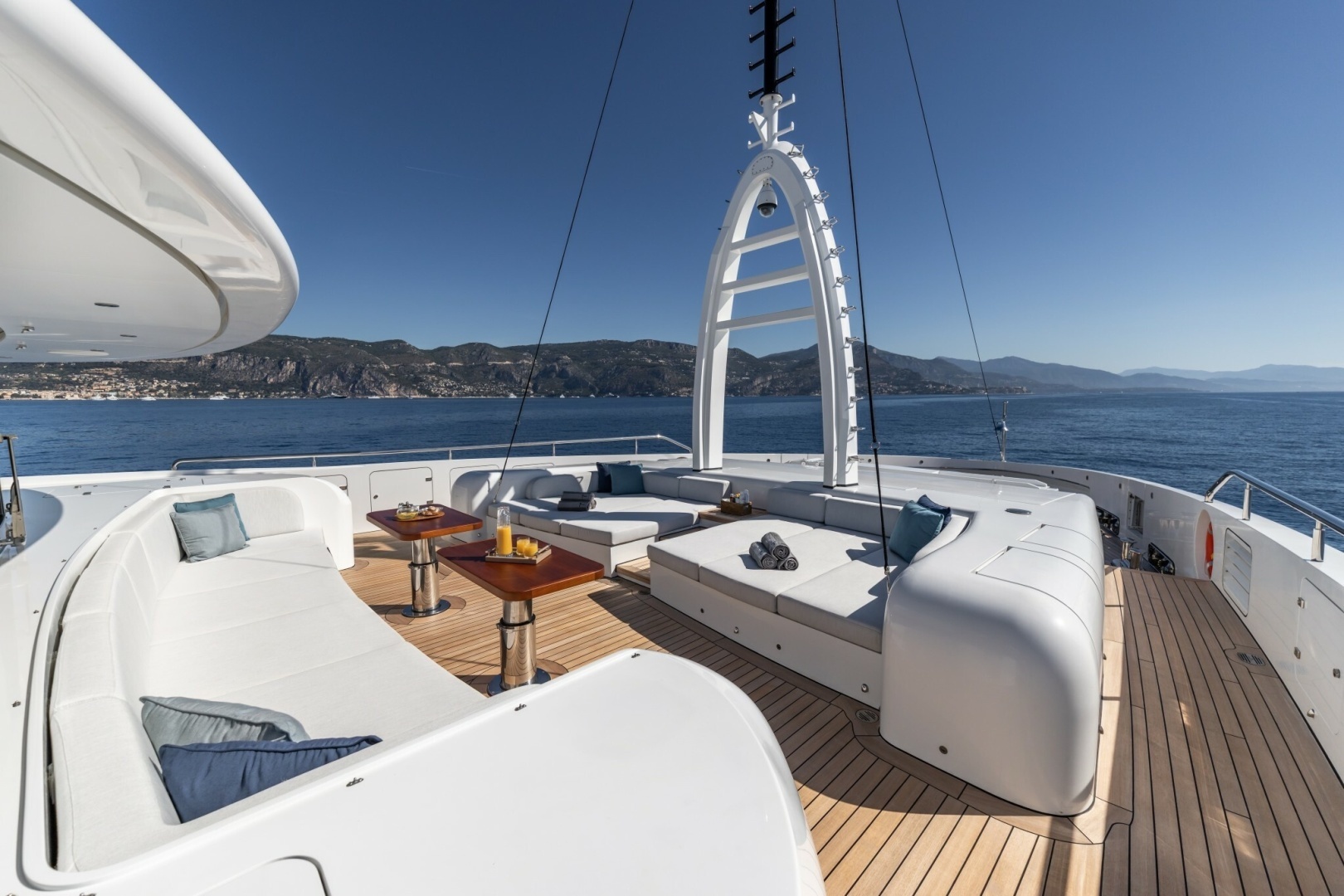

SUN DECK:

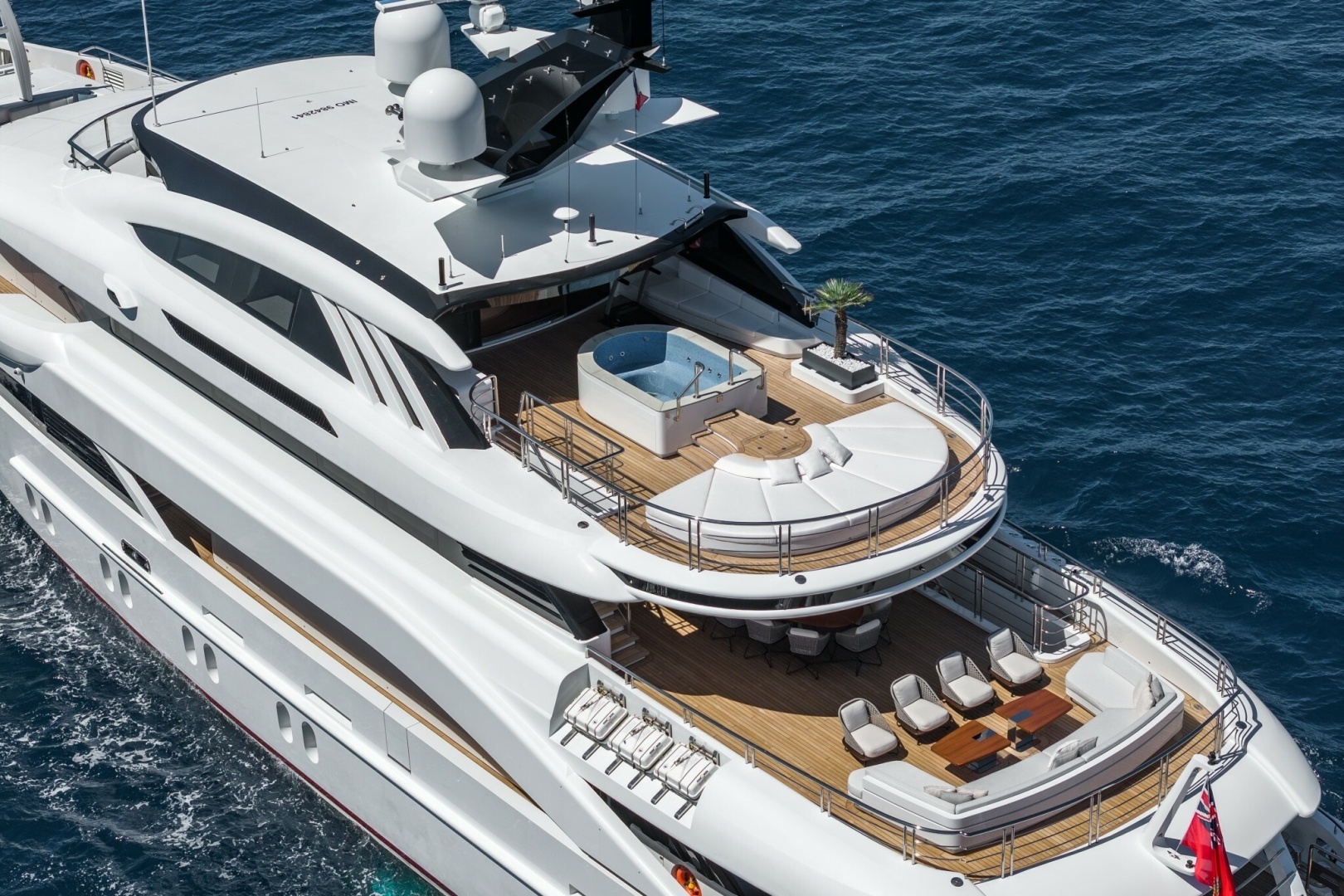

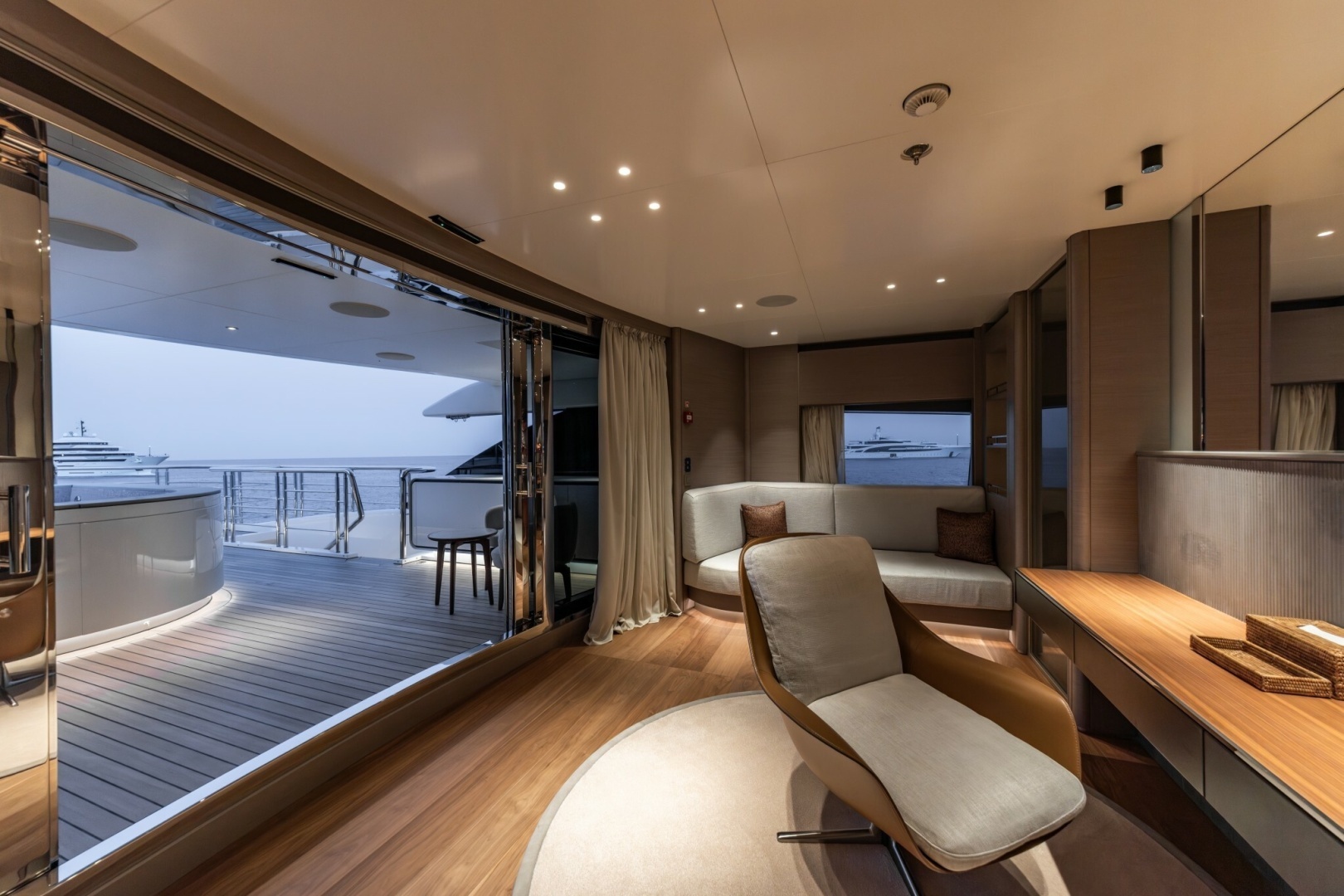

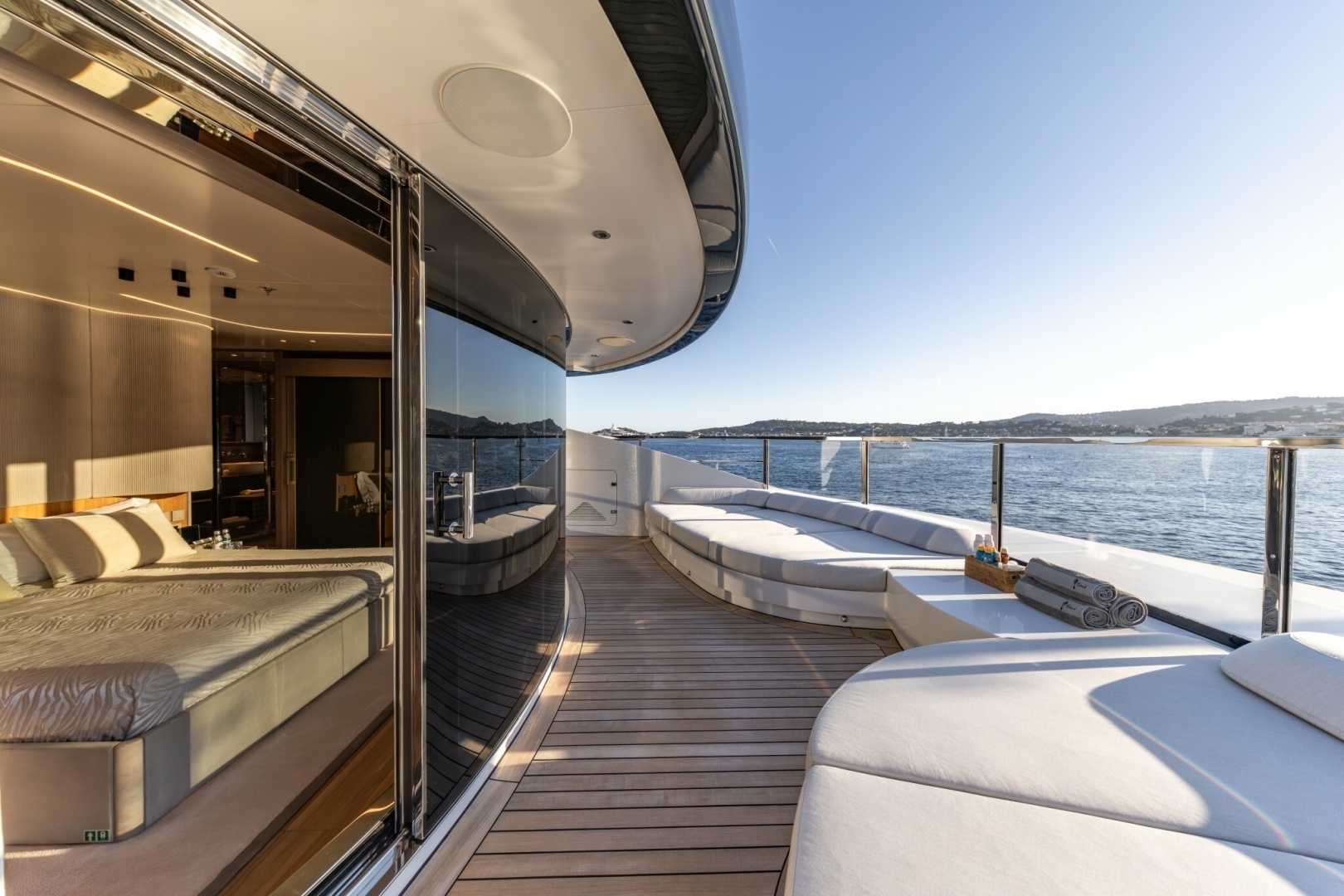

The uppermost deck is crowned by a panoramic VIP stateroom positioned forward facing design is the equivalent of a second master. A queen-bed faces forward with full-height glass sliders to a private terrace with sunbeds, seating and side tables; the en-suite includes sink, toilet, bidet and bathtub. Aft of the stateroom and foyer, the sun deck opens to a generous social area: a spa-pool jacuzzi seating multiple guests with a curved sunbed bank fitted aft, under hardtop seating to starboard for shade from the sun and wet bar on port side.

BRIDGE / UPPER DECK

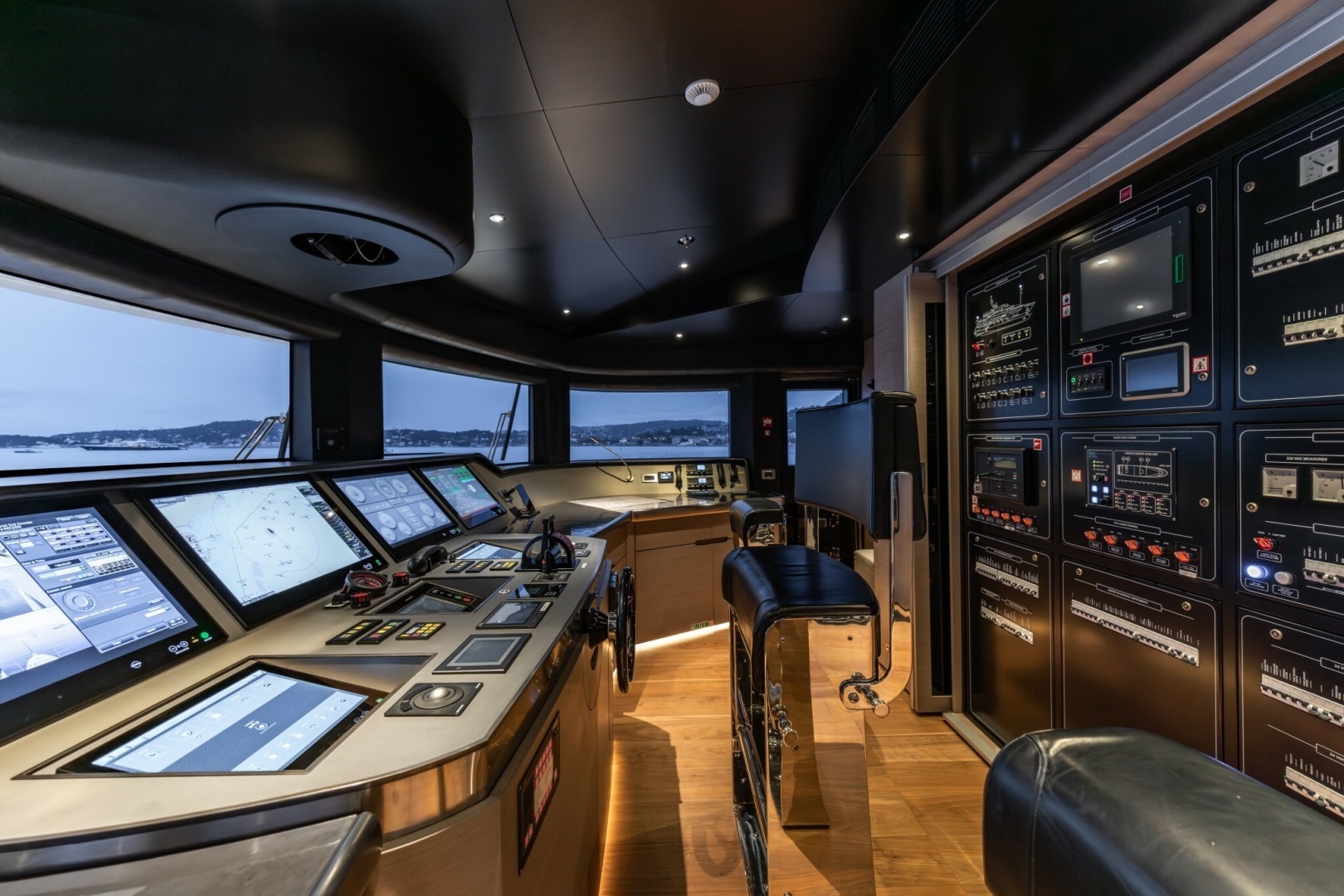

Bridge controls forward, Captain's cabin behind. On port side aft of the bridge is a crew office and service pantry. Aft of the guest foyers is the multifunctional sky lounge aft. The sky lounge converts to a full cinema by means of a ceiling concealed projector, with a plush sofa-bed facing a forward widescreen display, a double-sided settee facing a starboard, and a casual aft seating area which leads to the aft deck through opening glass sliders. The aft alfresco terrace seats all twelve guests at a single dining table beneath the shade of the sundeck overhang, served by a dedicated wet bar to starboard. Port side are stairs leading to the sundeck. The aft dining areas feature large built-in settees. Forward of the wheelhouse is a large built in settee and lounge area and further forward is the rescue tender storage.

MAIN DECK:

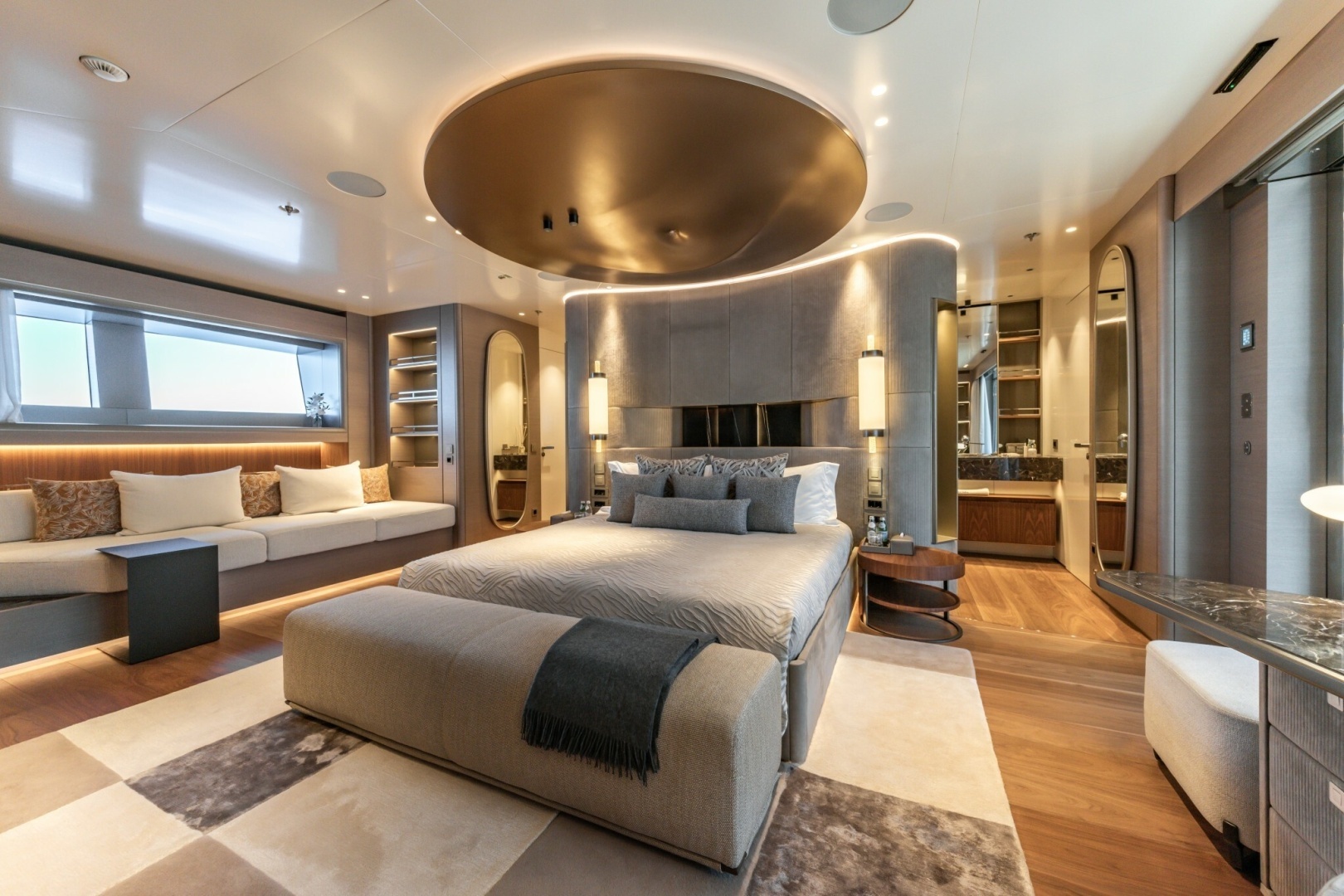

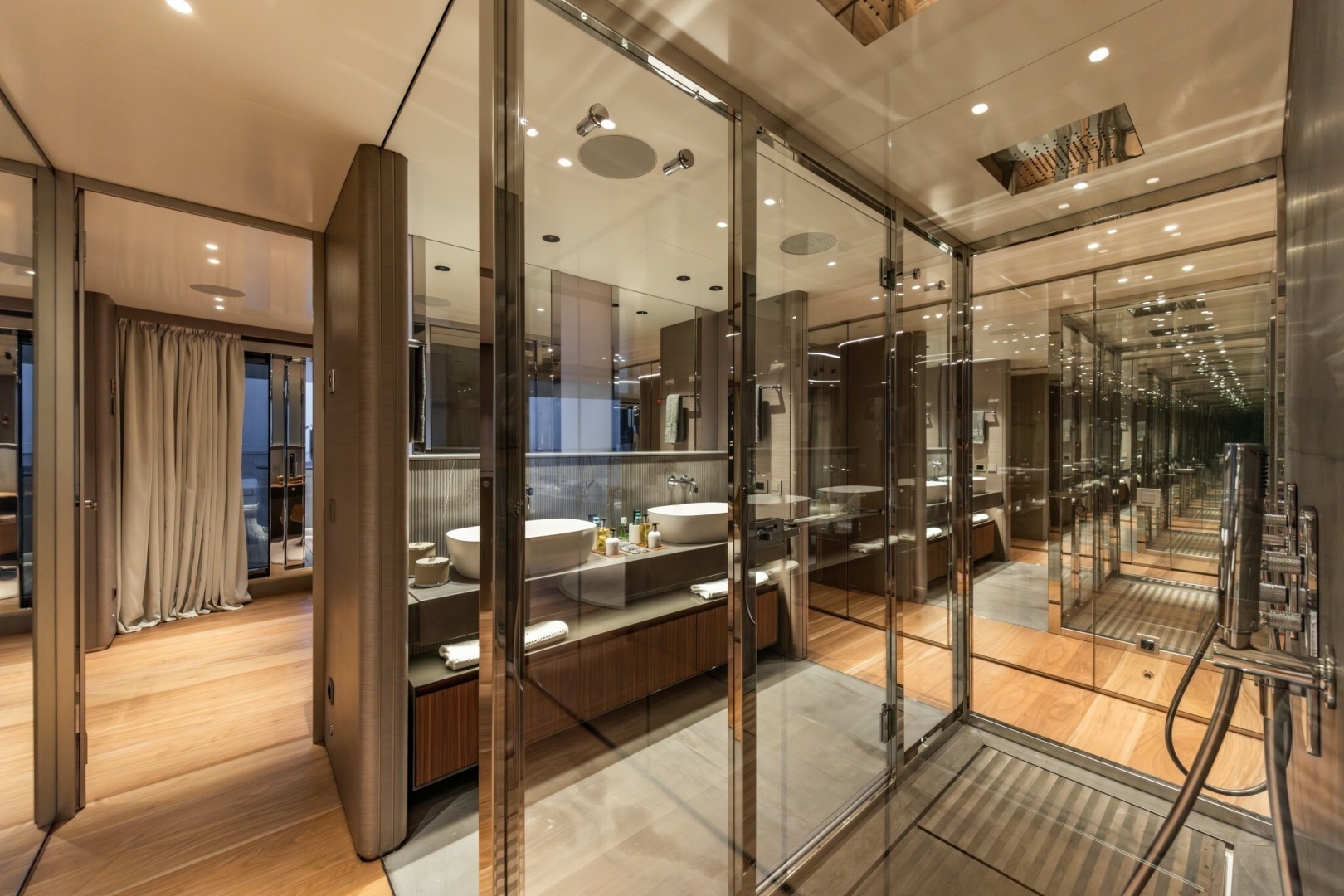

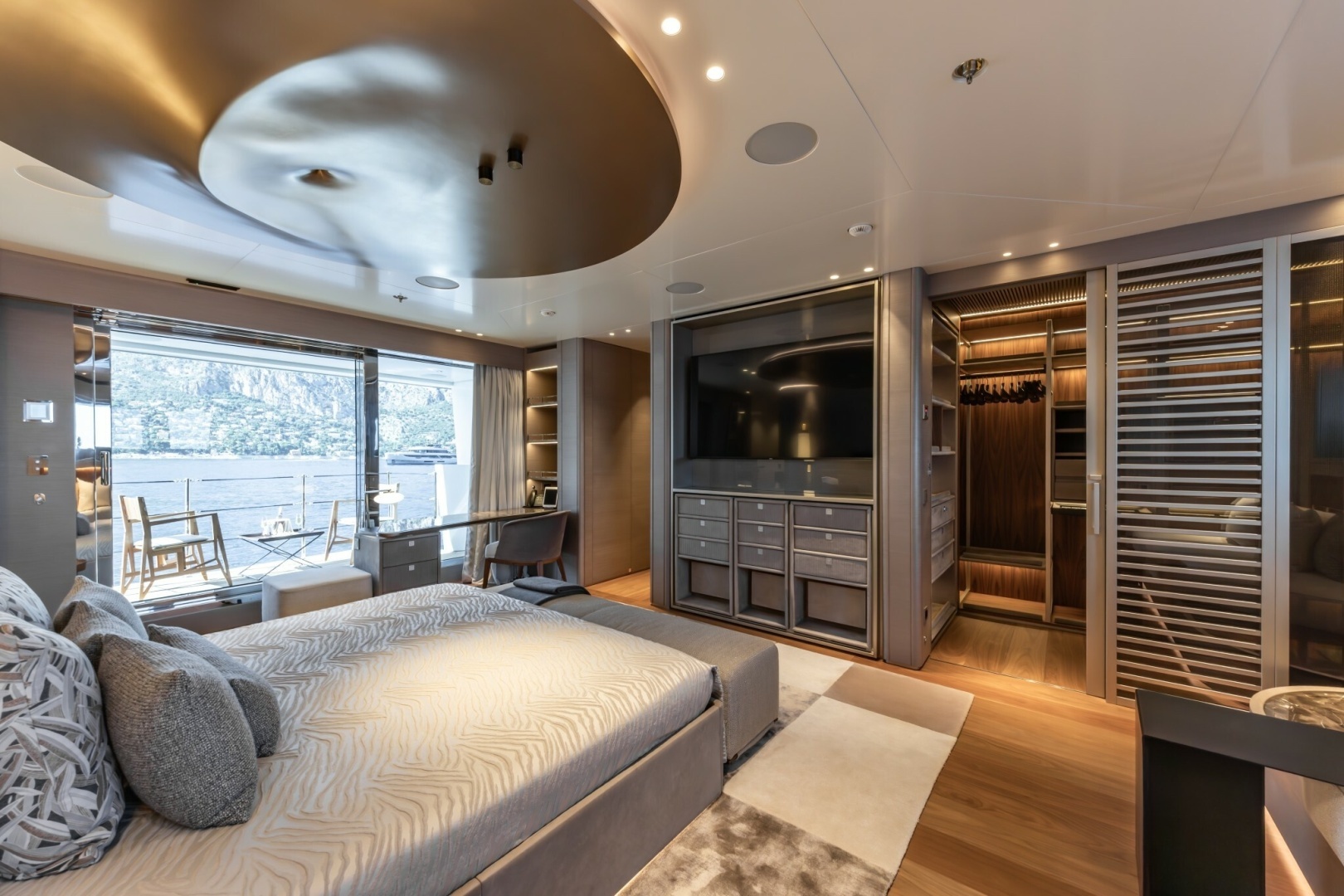

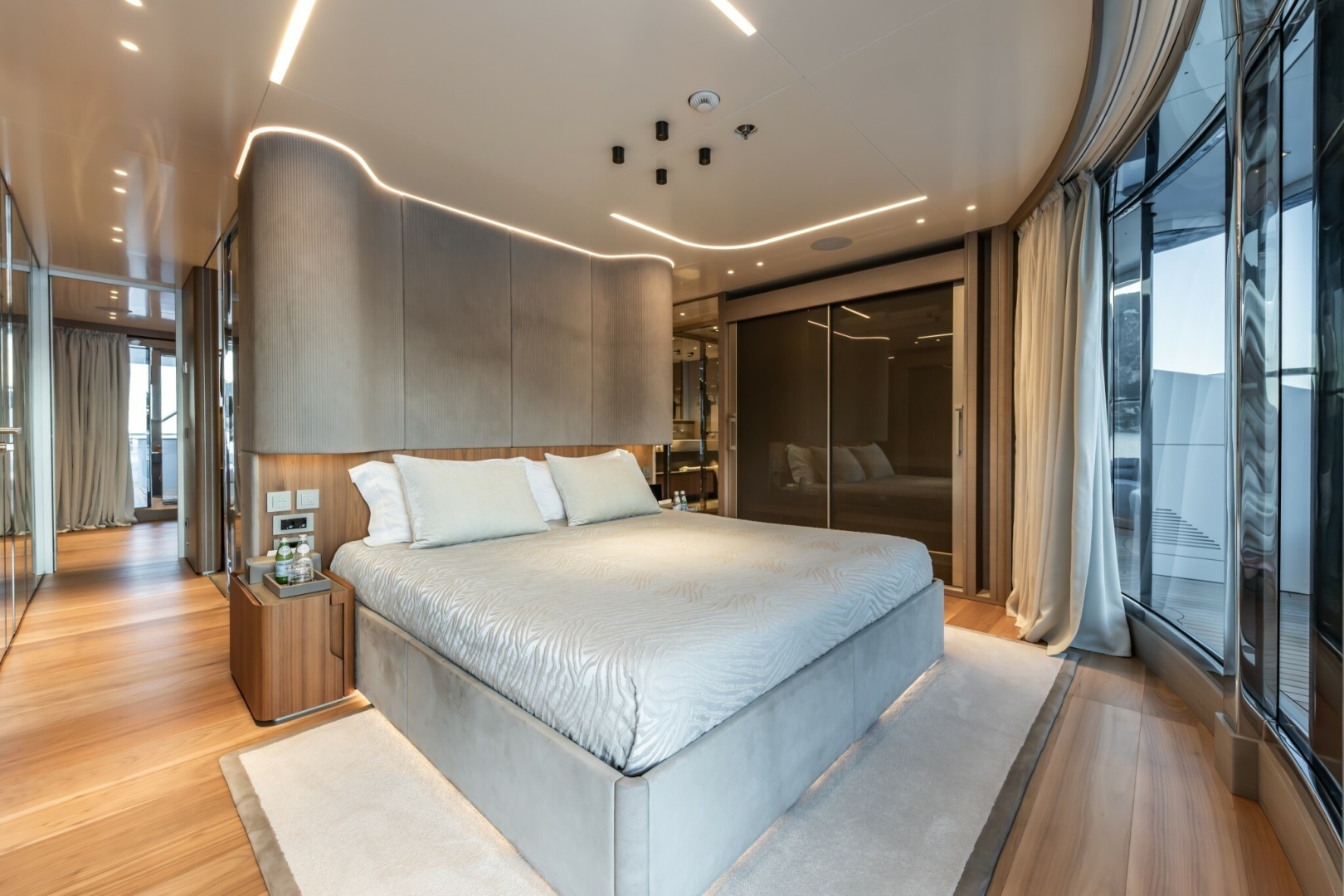

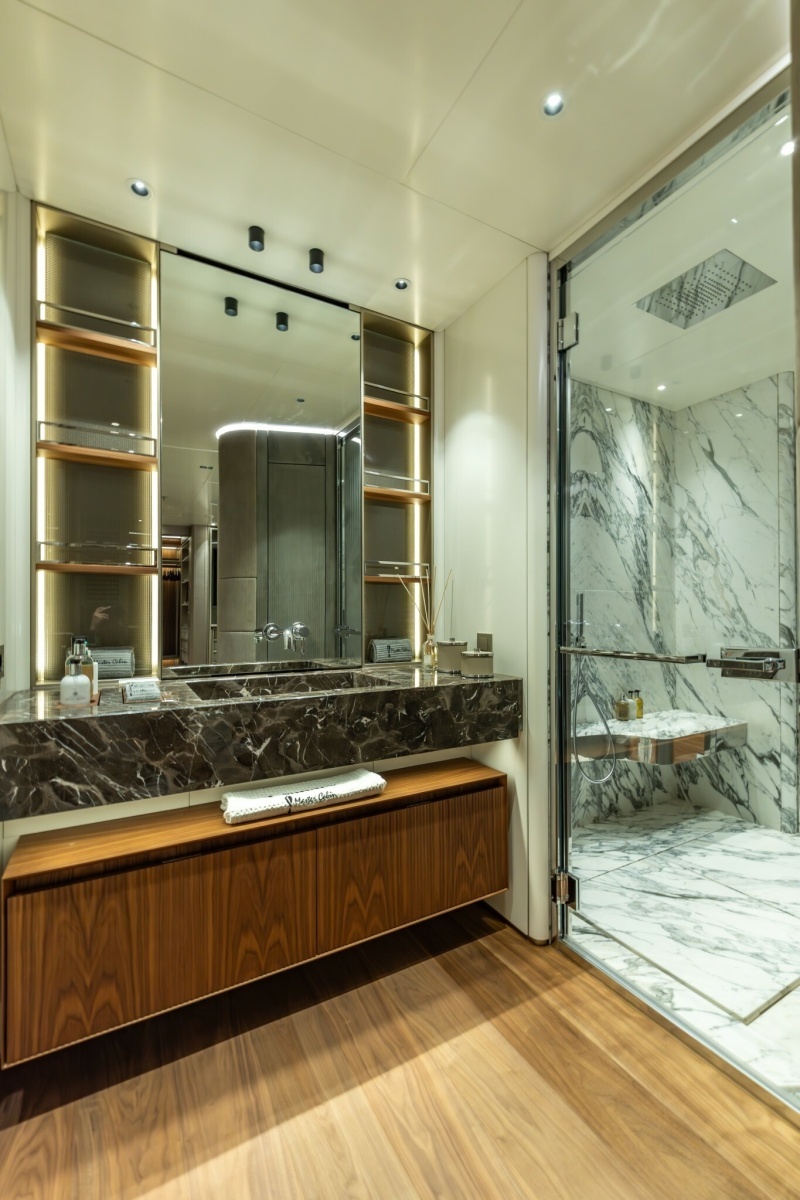

Forward is the full-beam Owner's suite, with king bed on center, widescreen television opposite on the aft bulkhead, port-side daybed sofa, and the signature fold-down balcony. The stateroom features a curvaceous saddle-stitched leather headboard and a circular mirrored ceiling artwork that reflects daylight onto the bed below. The forward en-suite is configured as his-and-her heads, each with a sink and enclosed toilet/bidet, sharing a central shower. In the stateroom are two walk in wardrobe closets.

Port side aft of the maser stateroom is the galley and full size service pantry.

Starboard side of the Master stateroom is the guest lobby with guest dayhead.

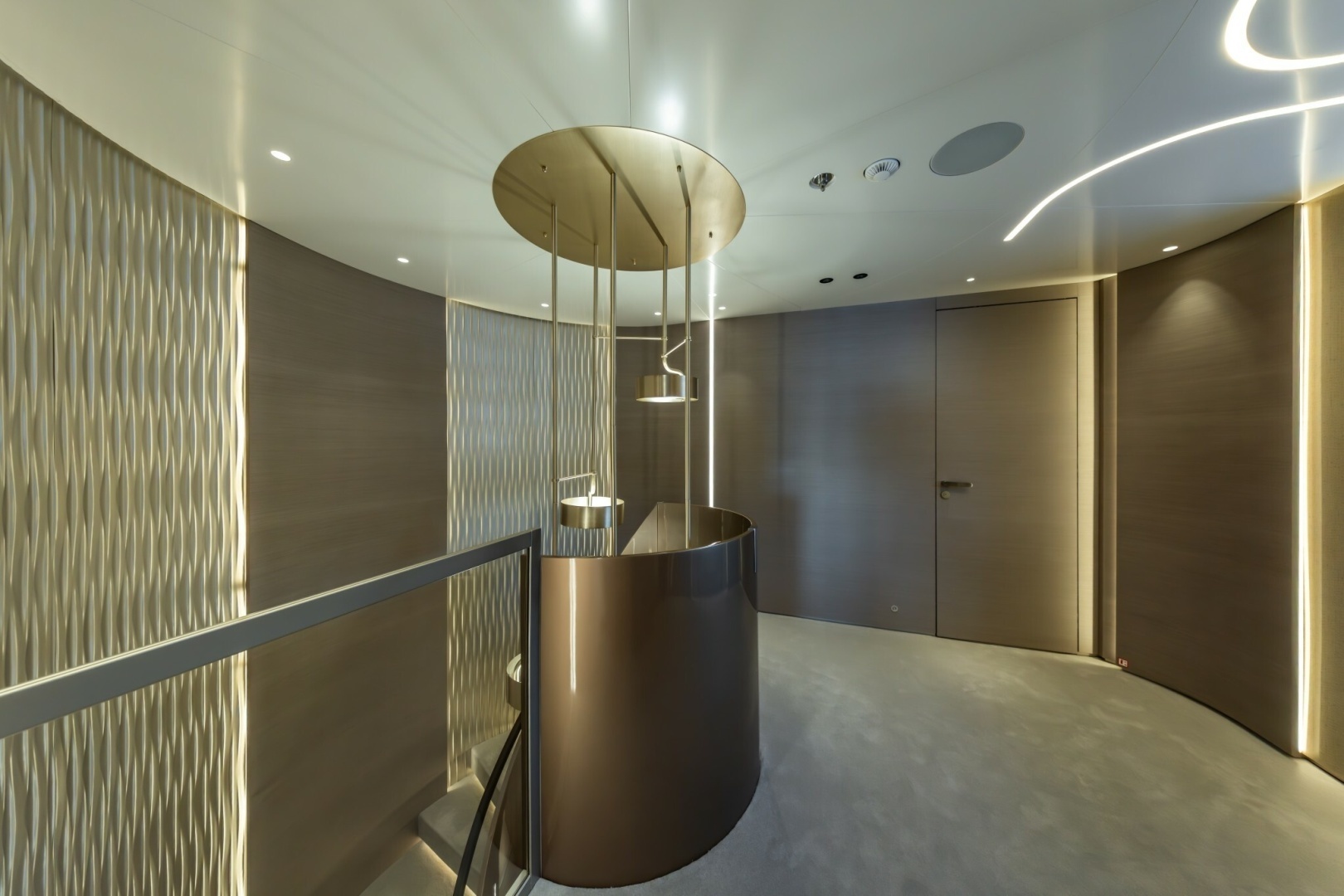

The lobby features a distinguished spiral-railed staircase leading to the upper and lower decks.

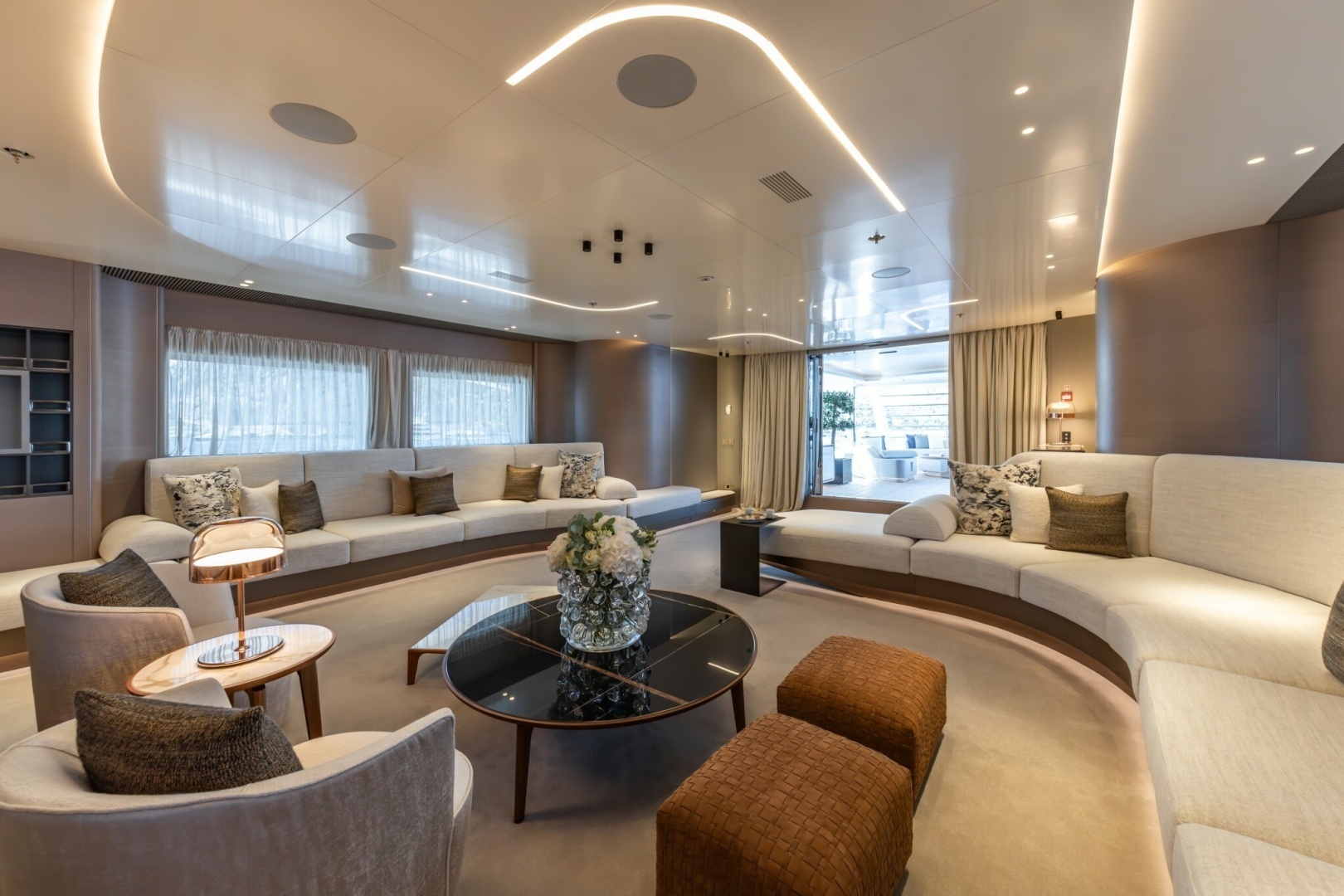

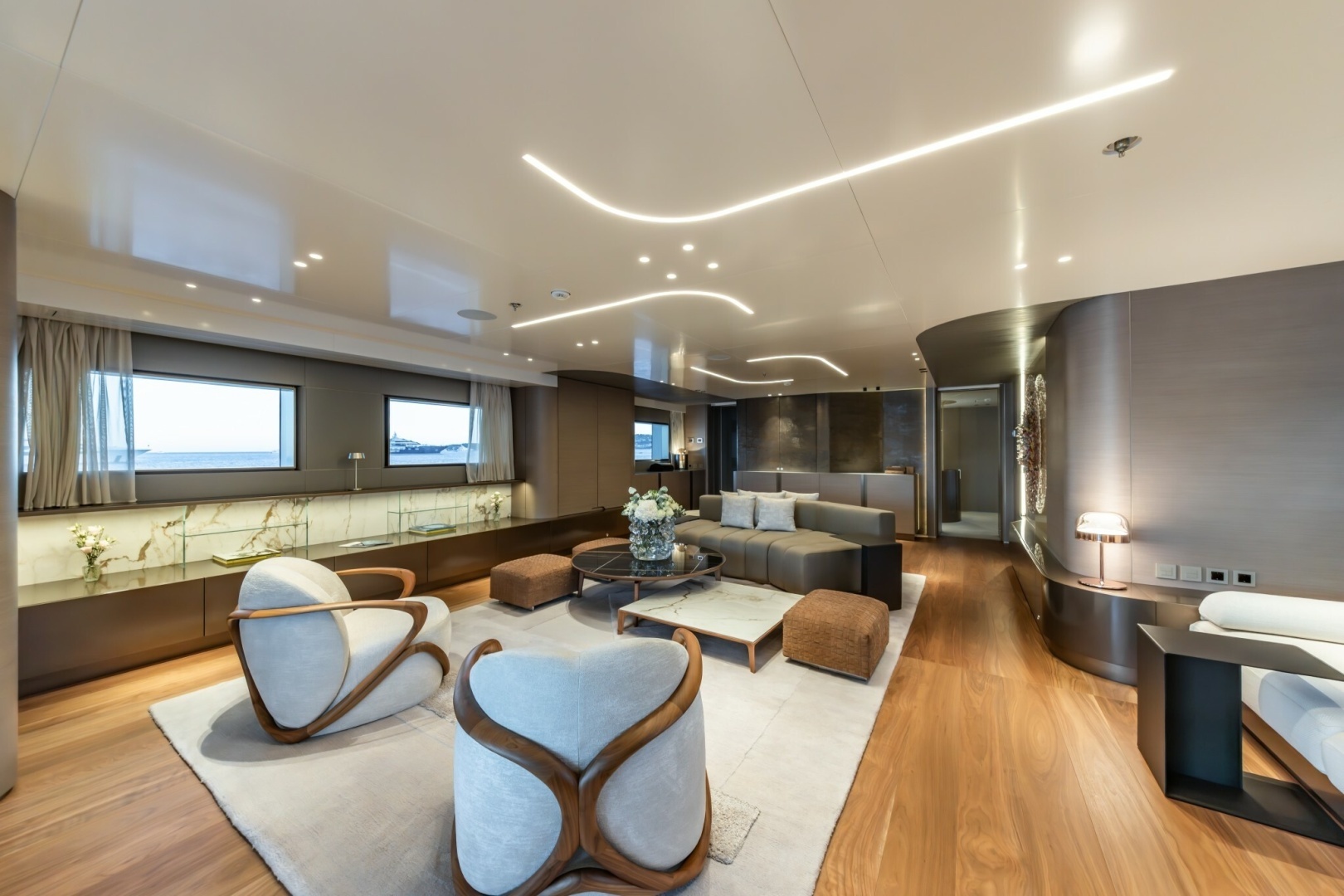

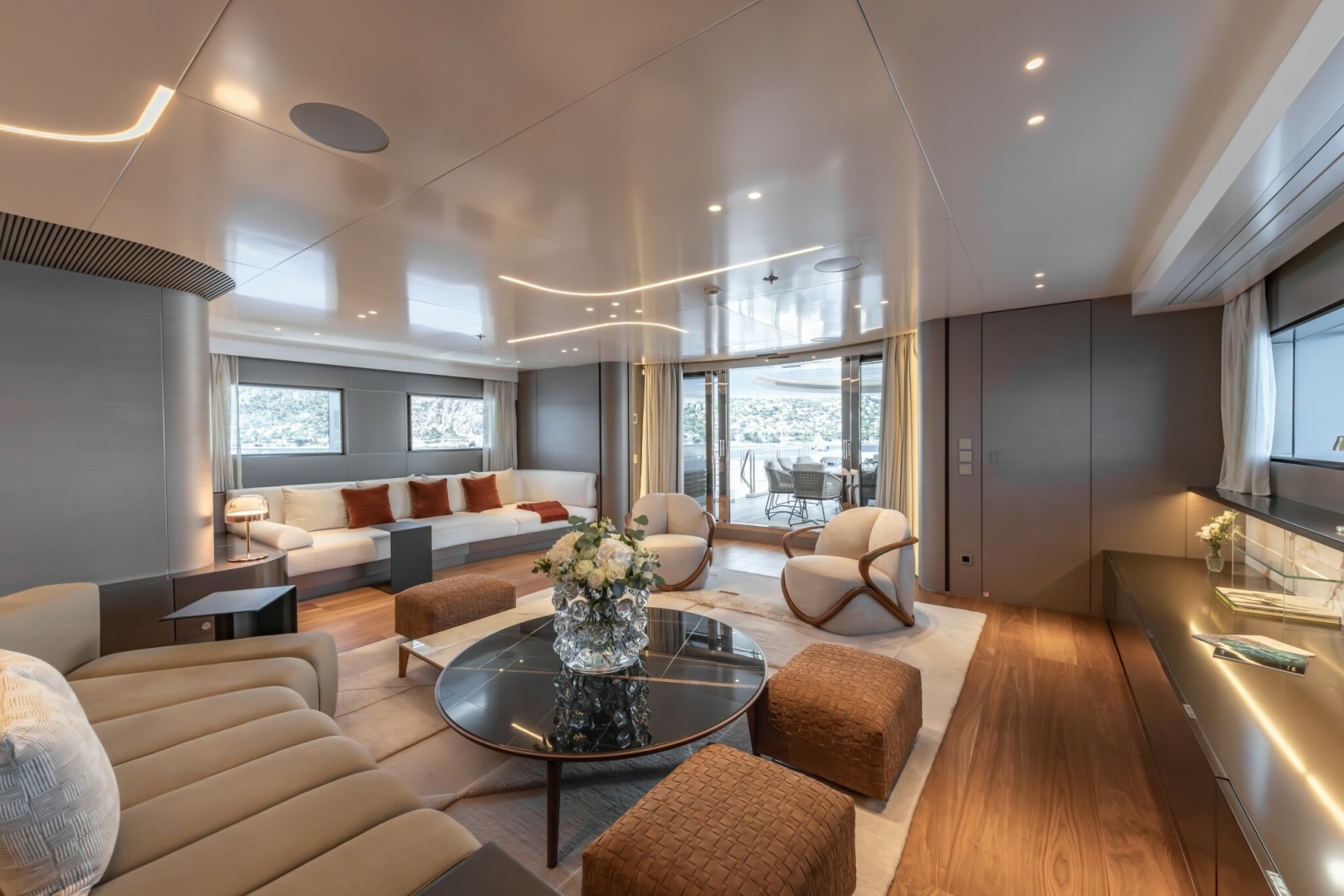

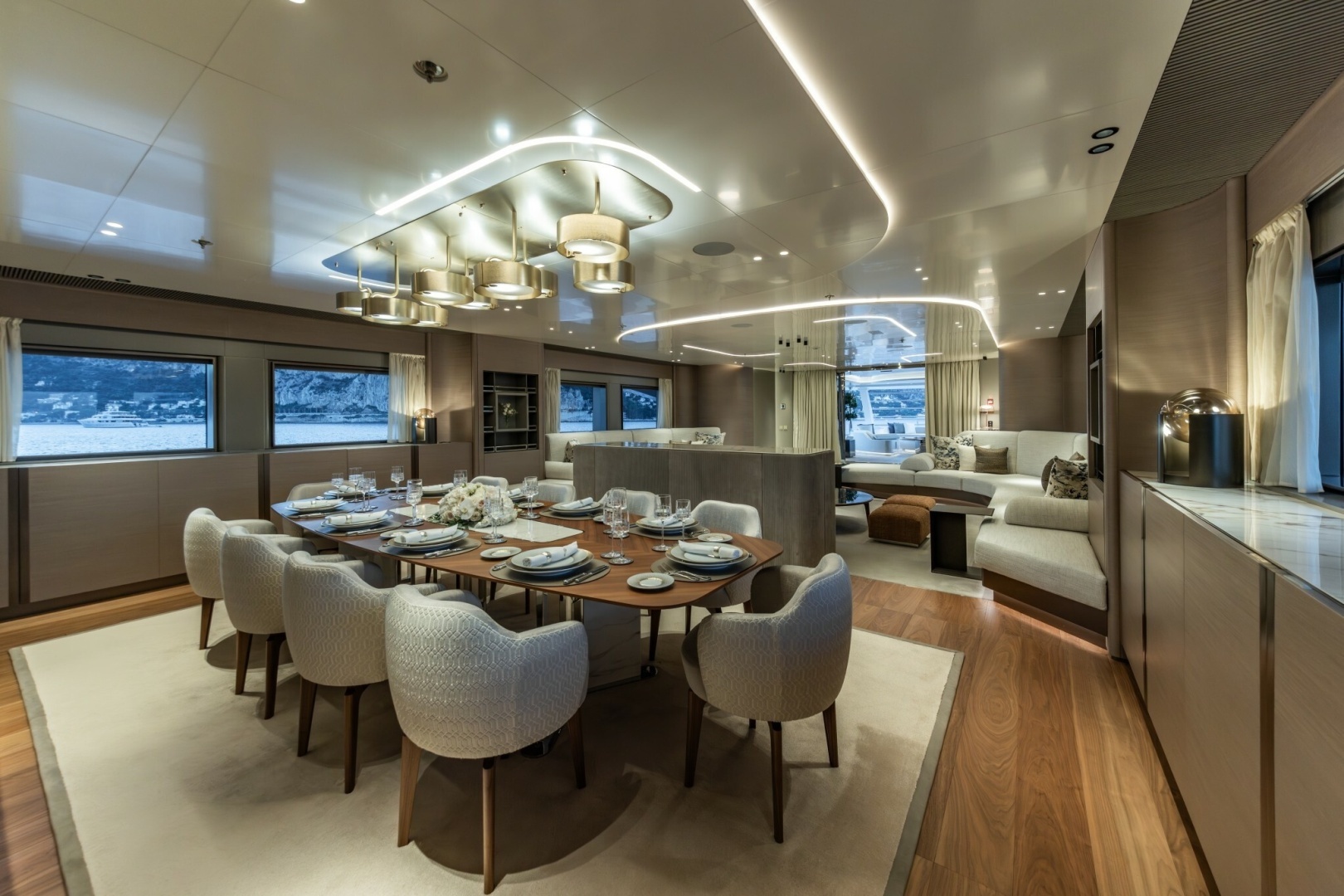

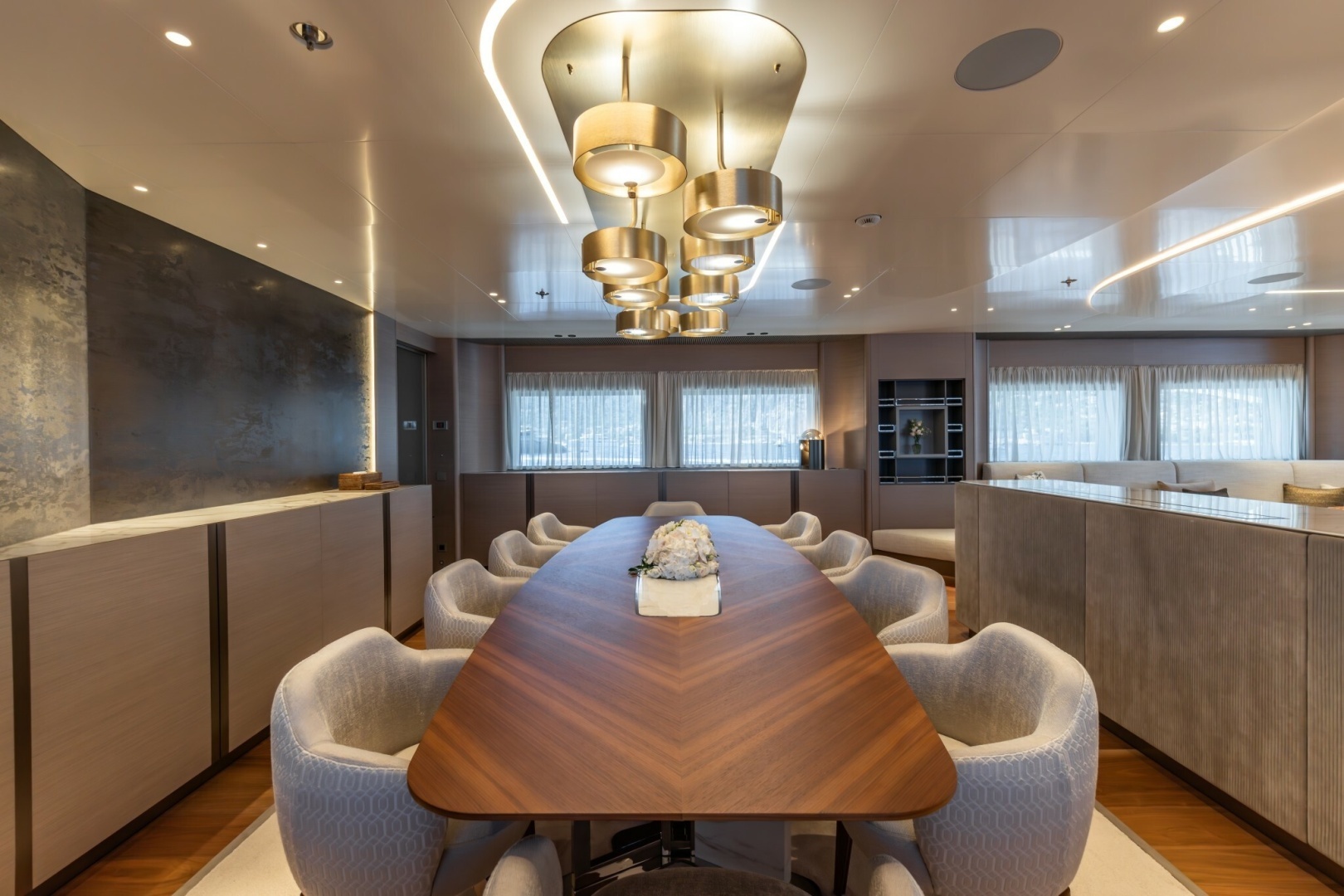

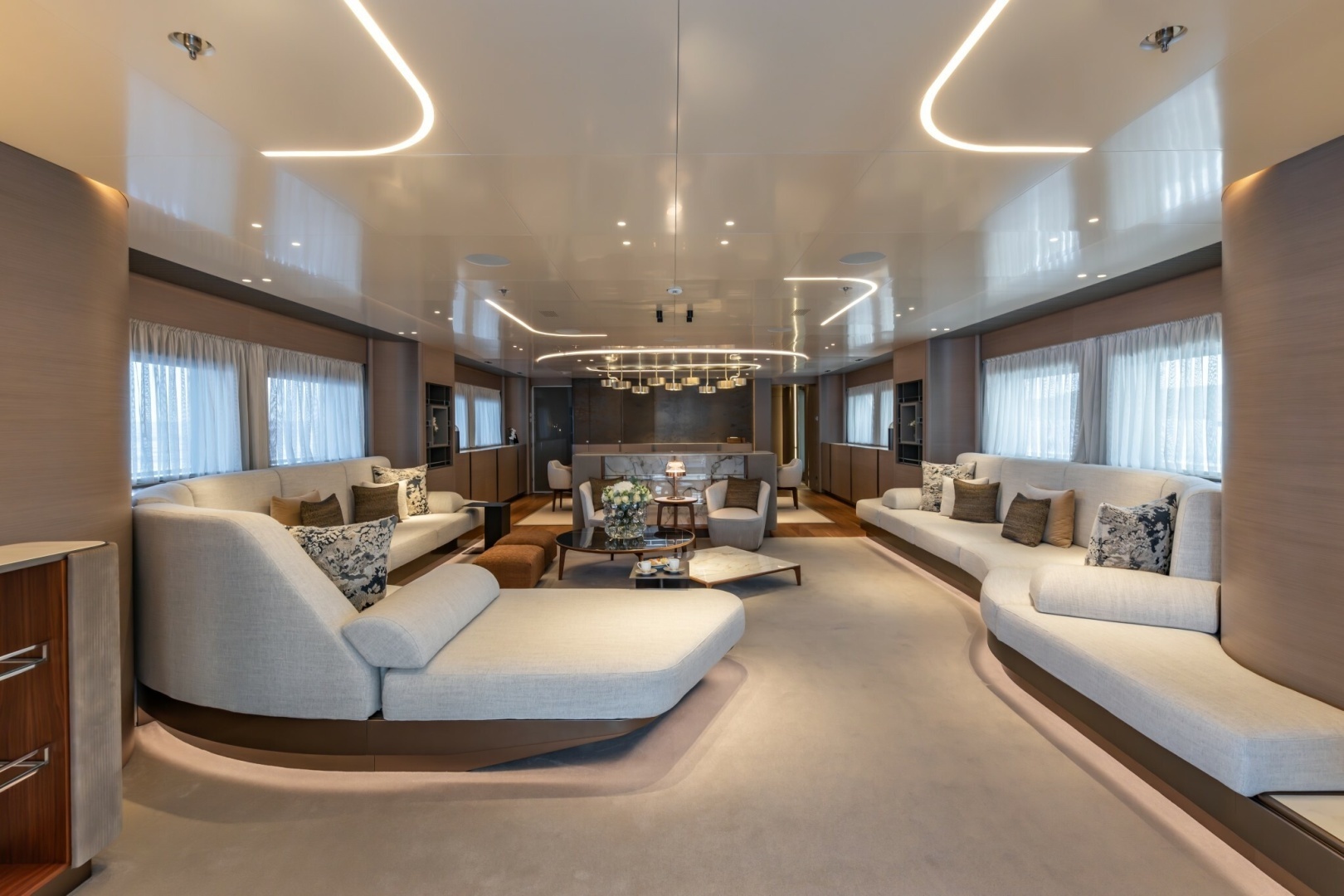

Aft of the foyer is the main salon and formal dining room with an open-plan displaying Florentia’s large volume. Living aft, dining forward. The saloon features two very large L-shape built-in settees and a small seating area before exiting out the large glass sliding doors to the aft deck.

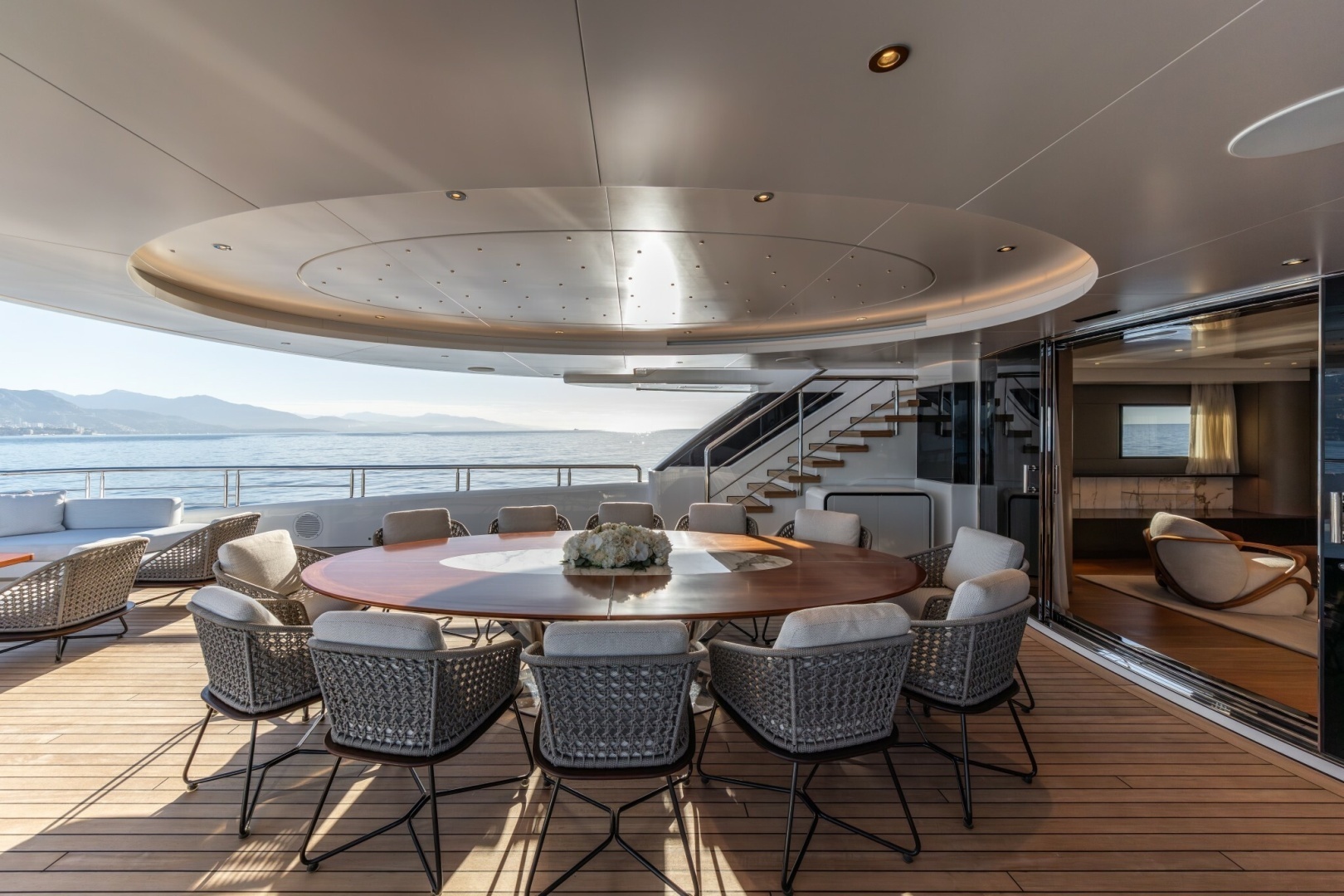

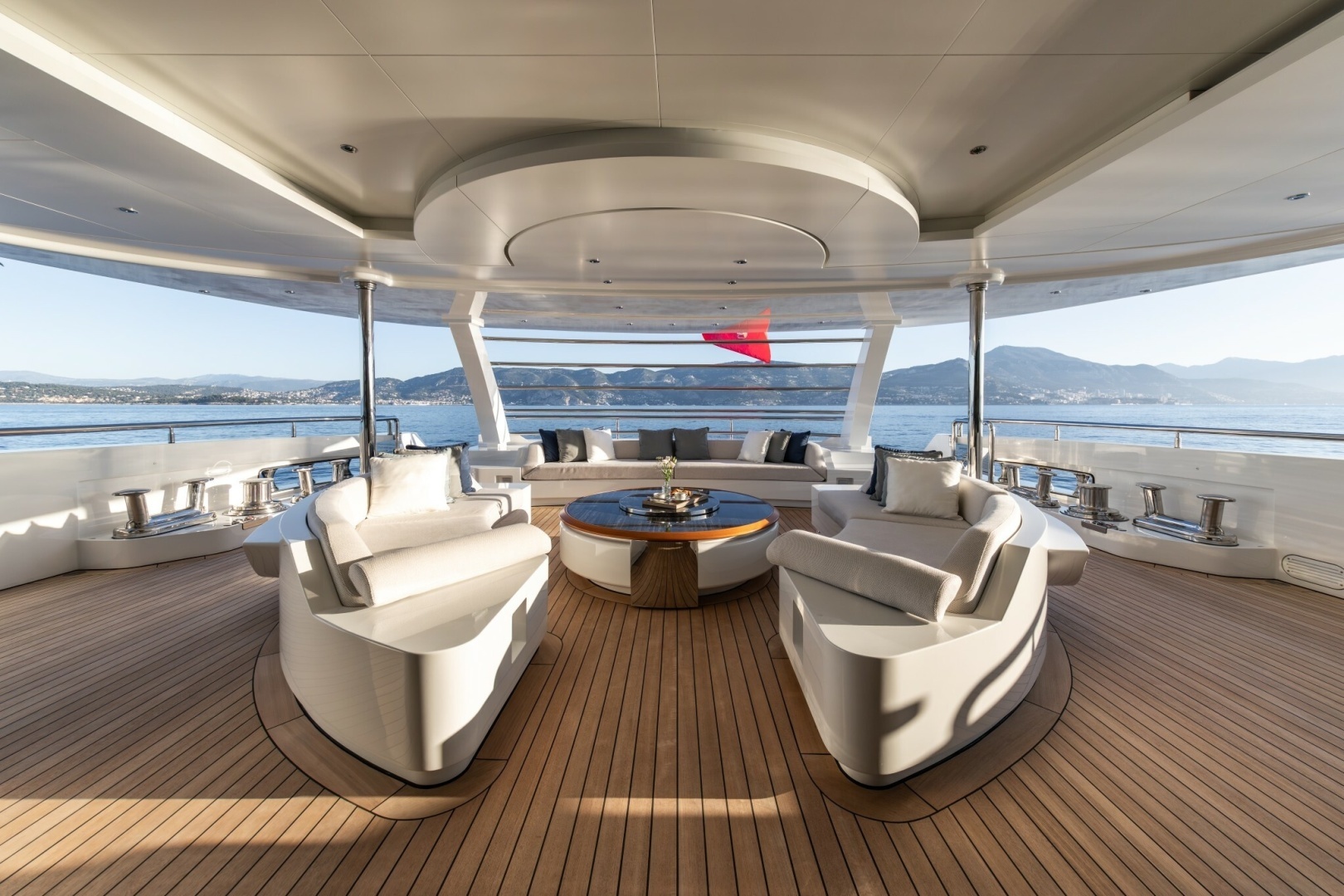

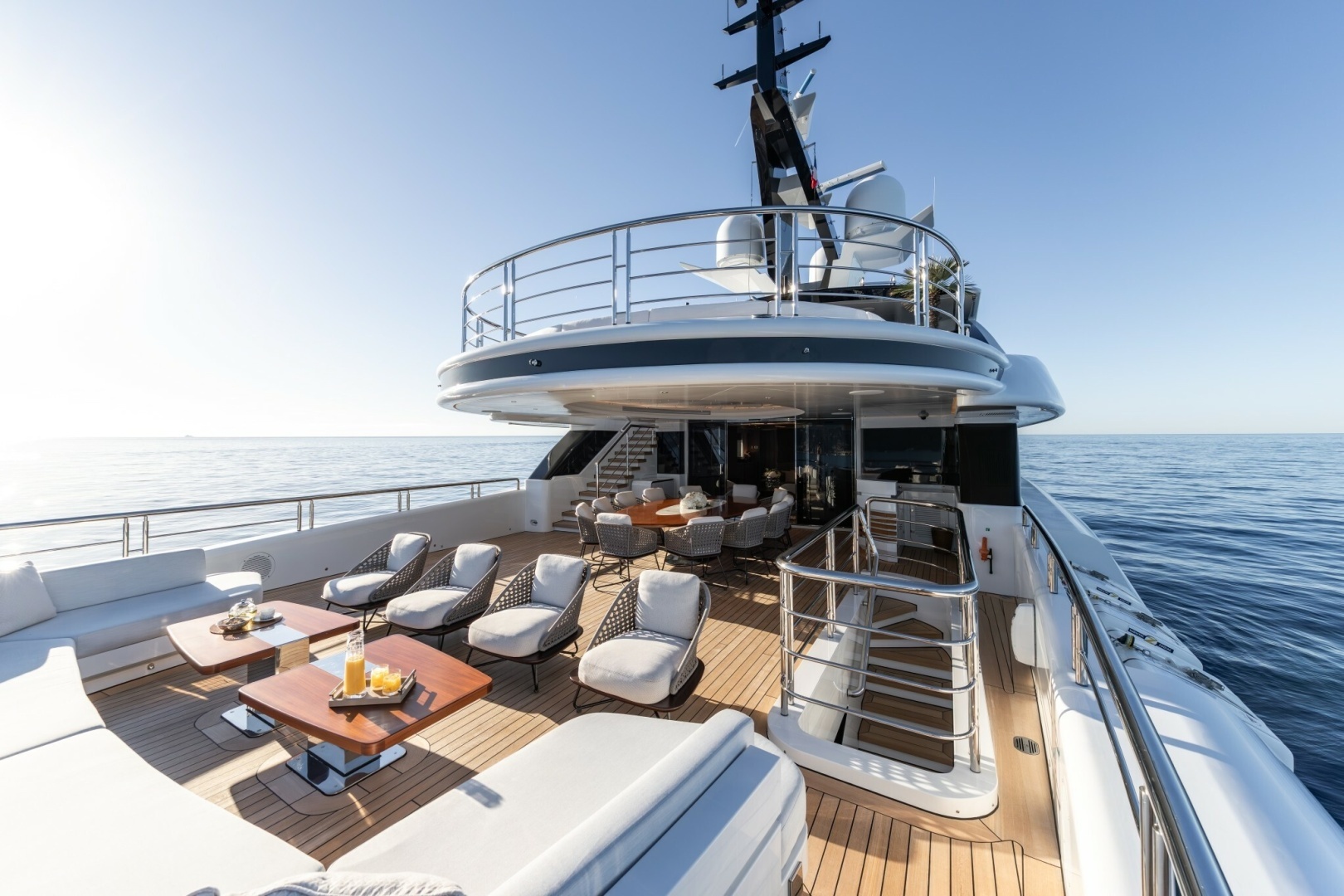

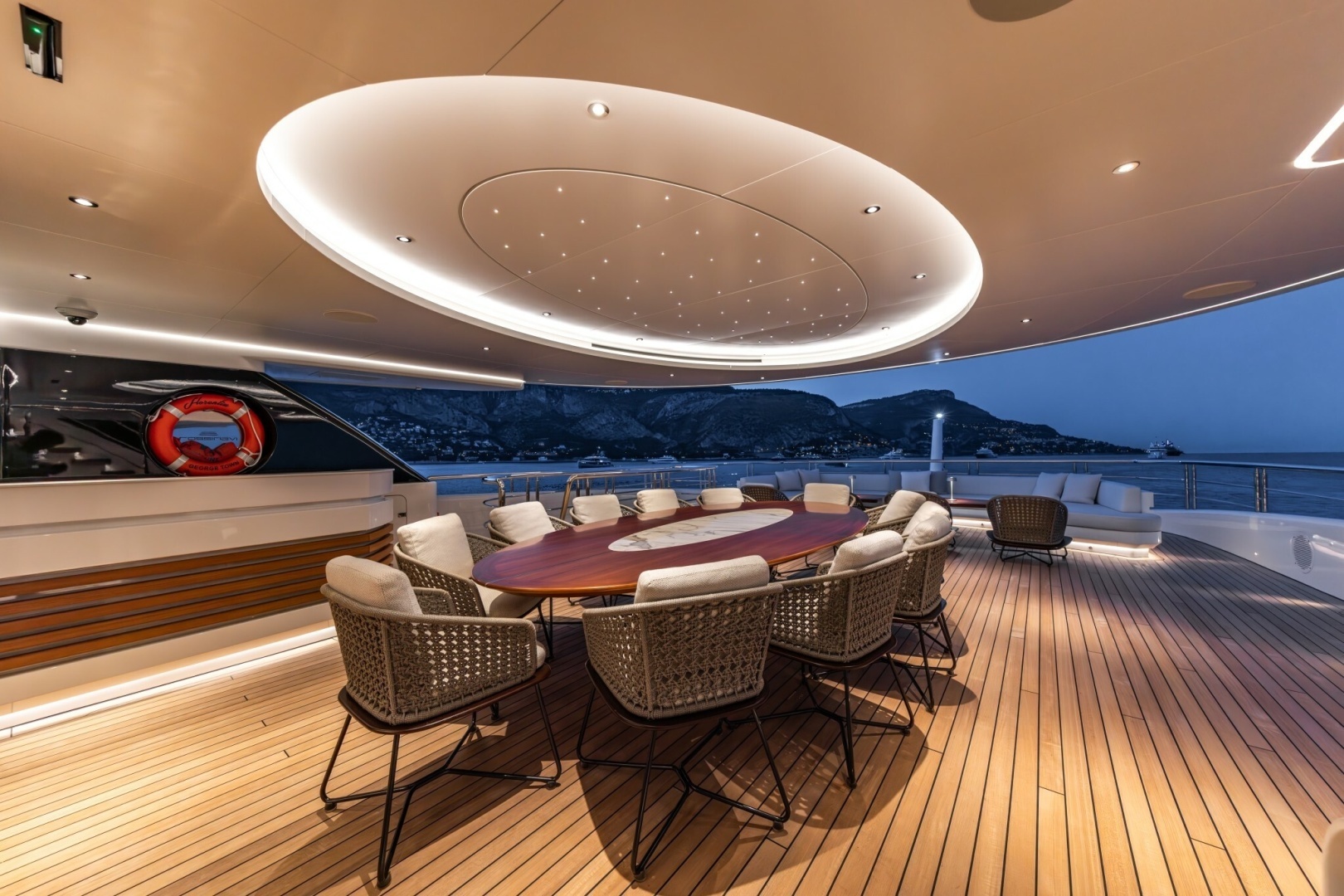

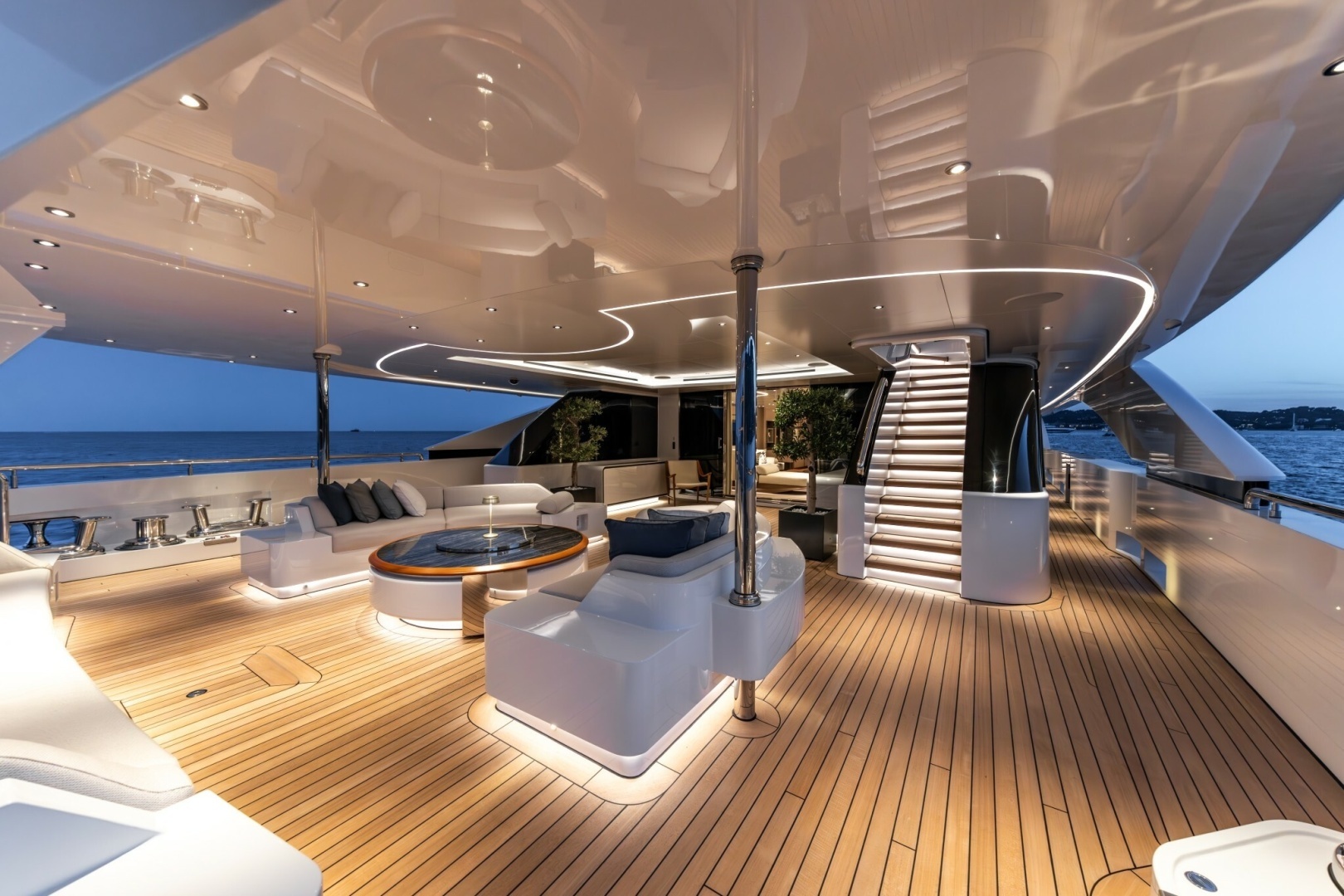

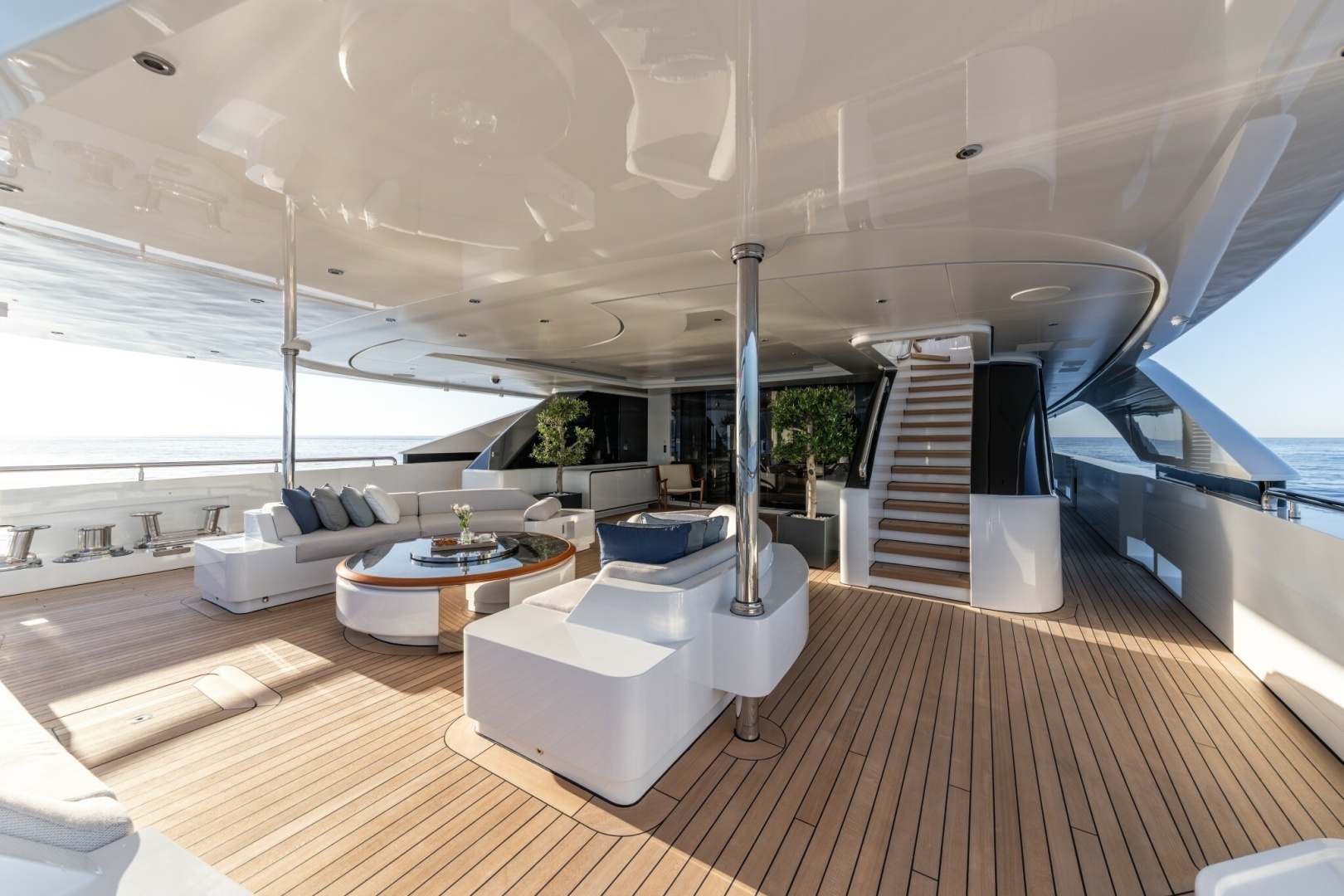

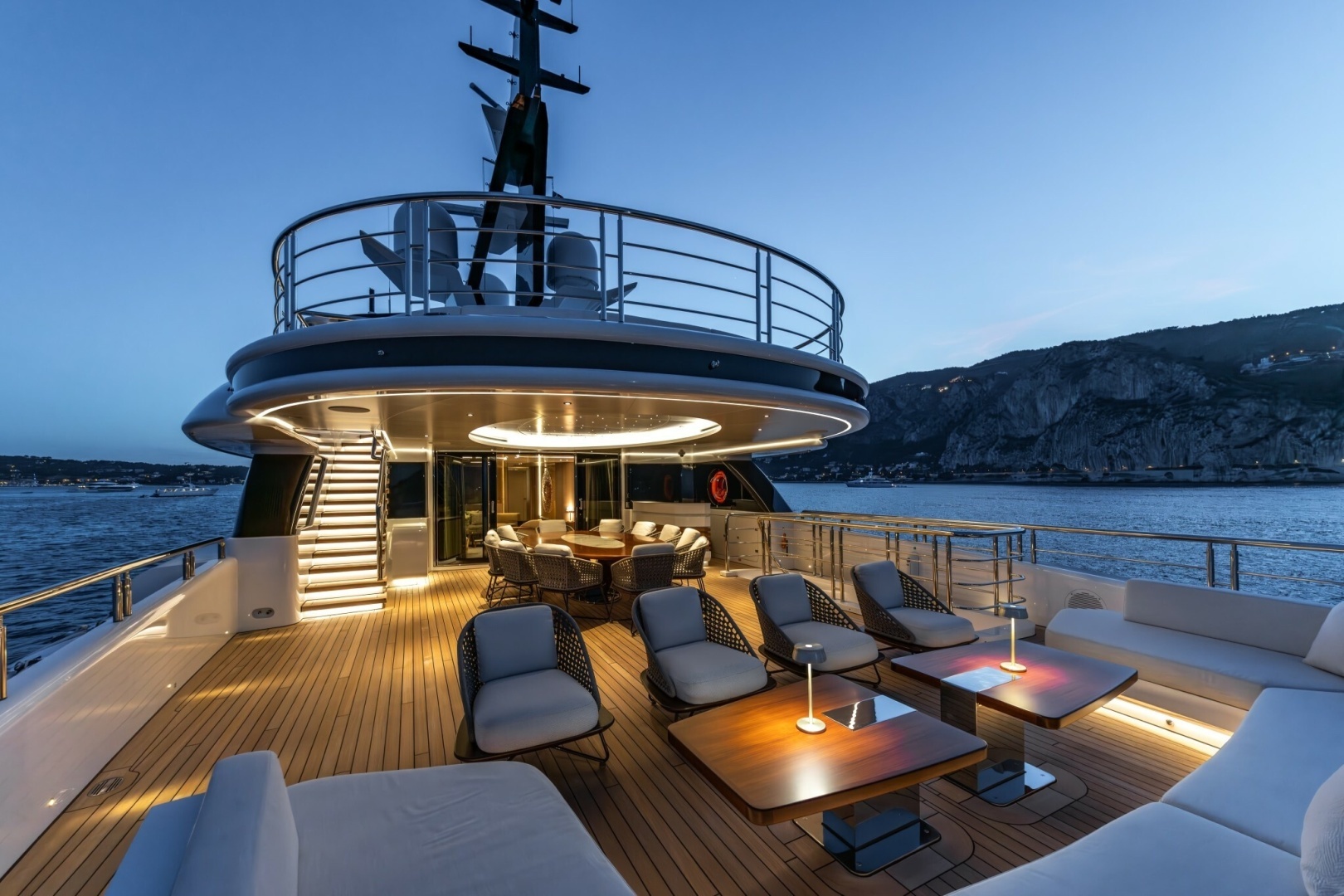

The aft deck has large seating areas under shade, perfect to coffee or cocktail meetings. There are stairs leading down to the beach club on both port and starboard sides. There is also a door port side forward of the aft deck which leads internally to the tender bay and further into the beach club.

FOREDECK:

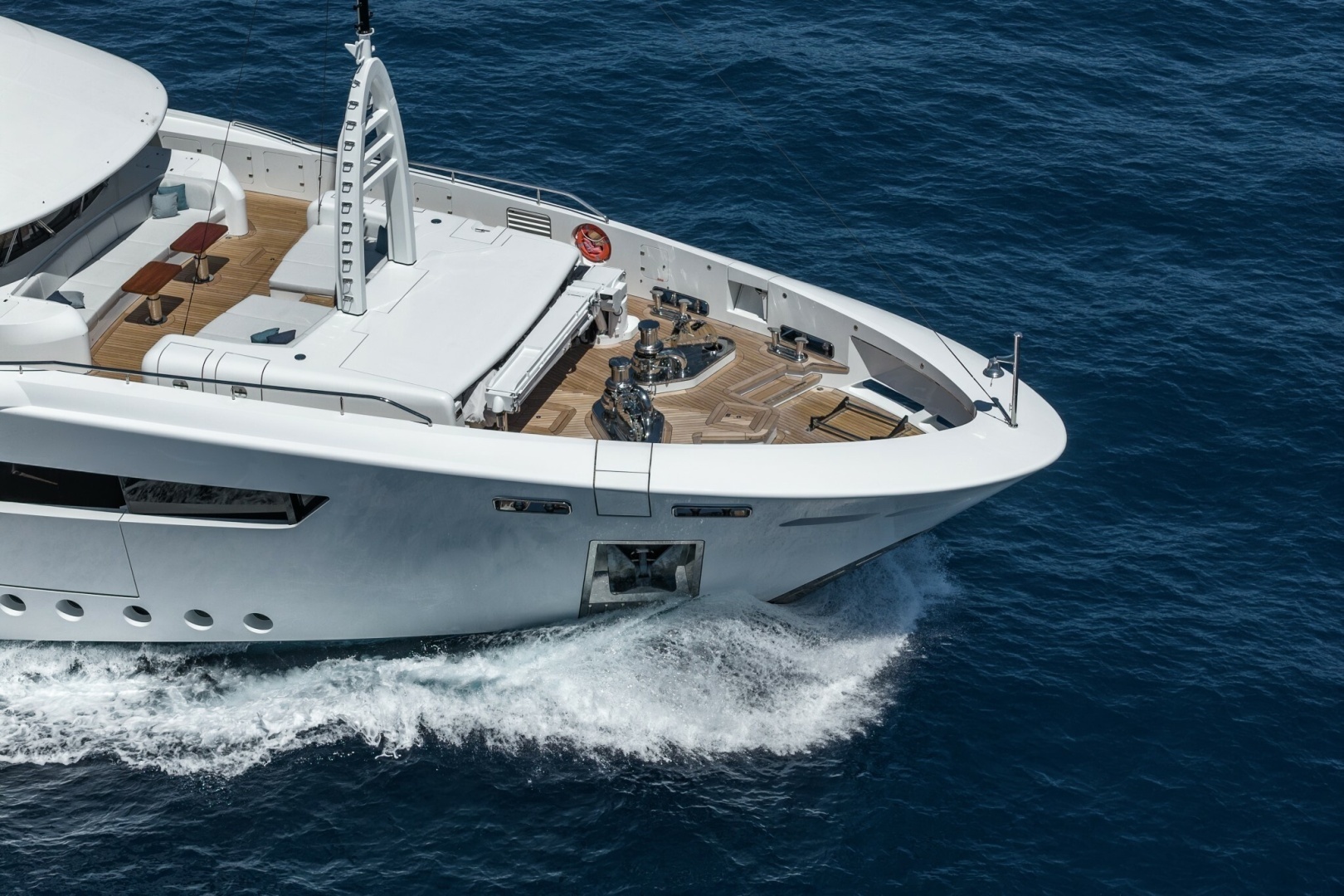

A dedicated foredeck seating area with sculptural table — a private exterior zone forward of the bridge, providing an additional outdoor sanctuary distinct from the main aft and sundeck spaces.

LOWER DECK:

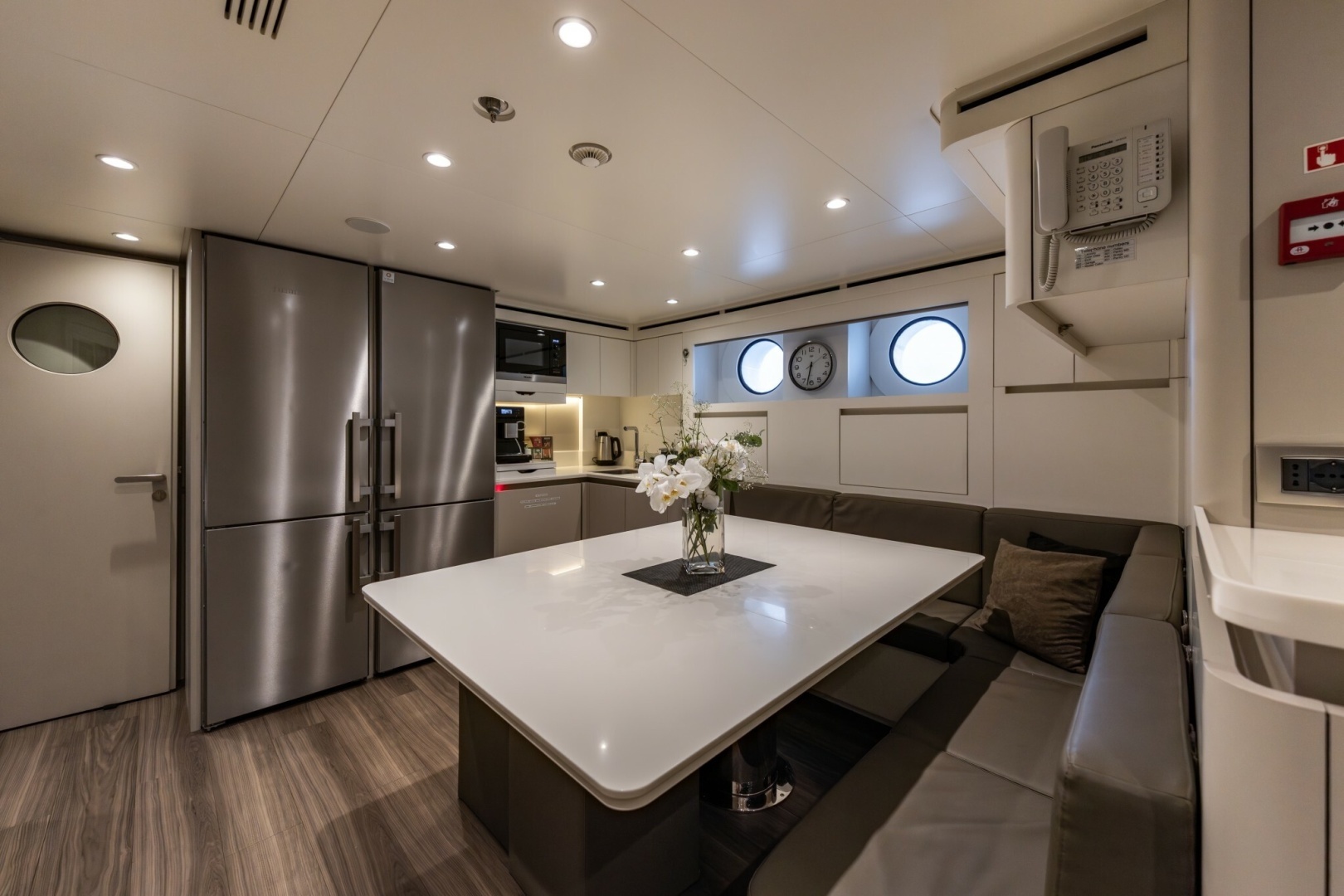

Forward: crew accommodation in five twin staterooms with 10 berths and ensuite heads. Full crew lounge on starboard side with laundry on port side.

Guest Staterooms

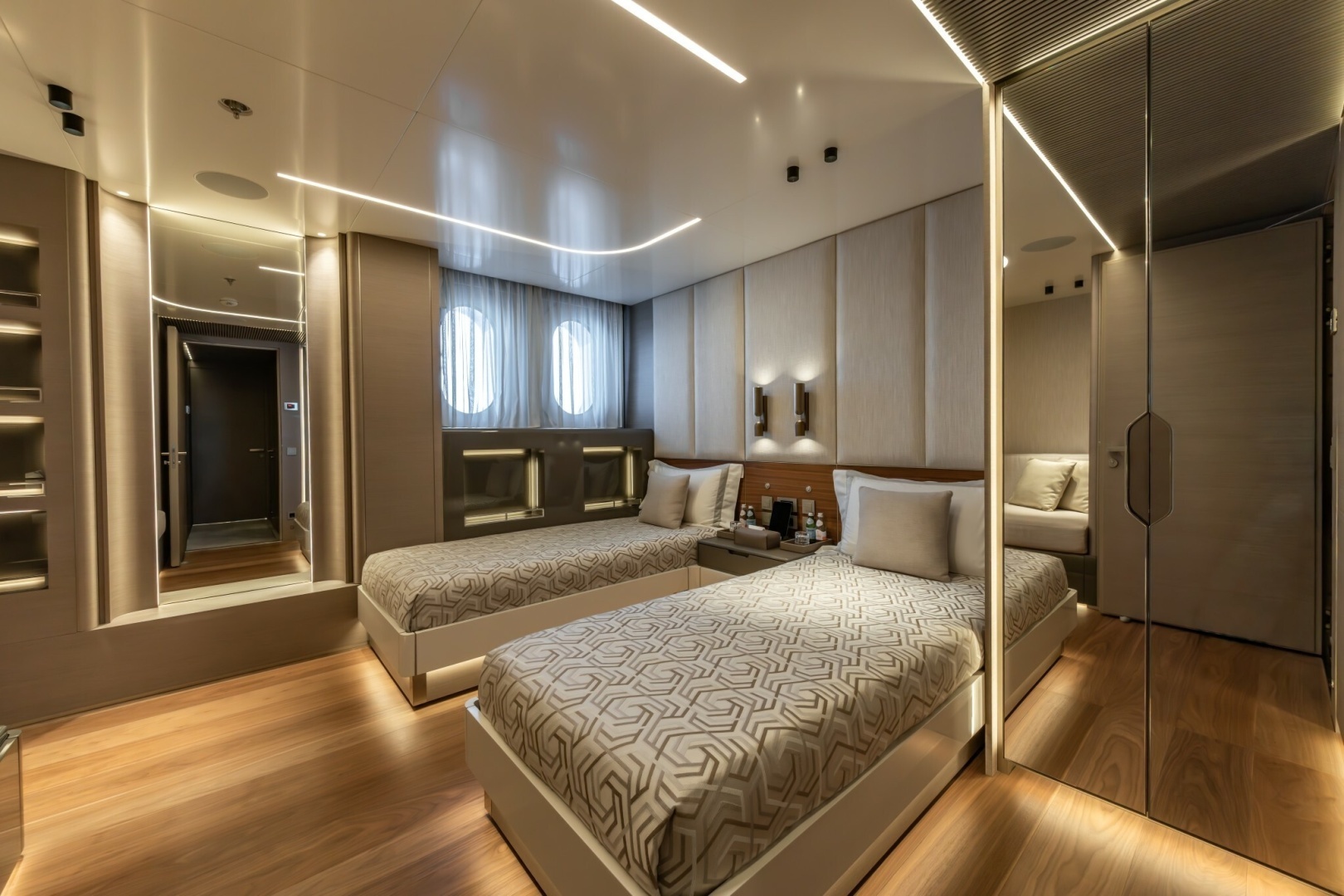

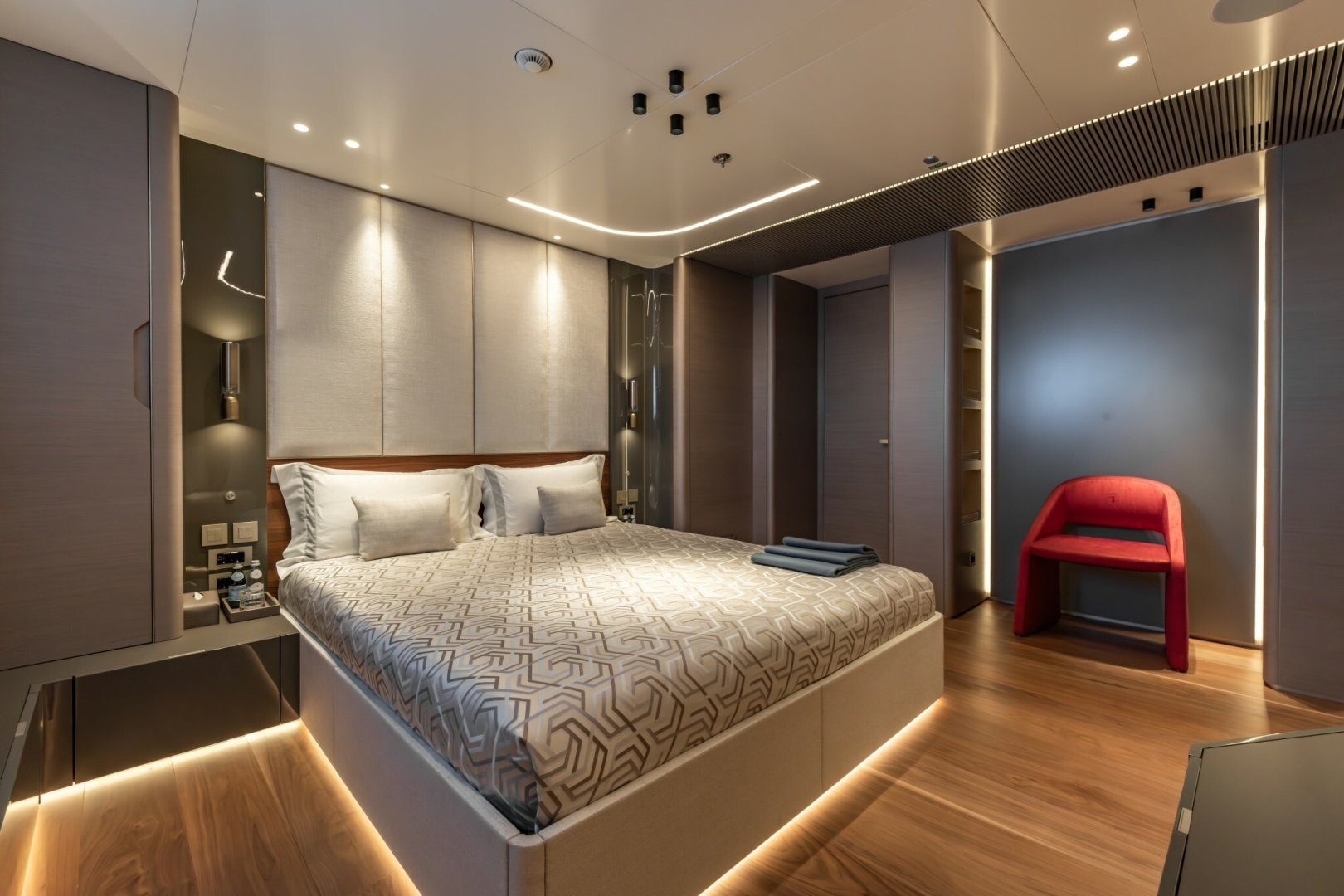

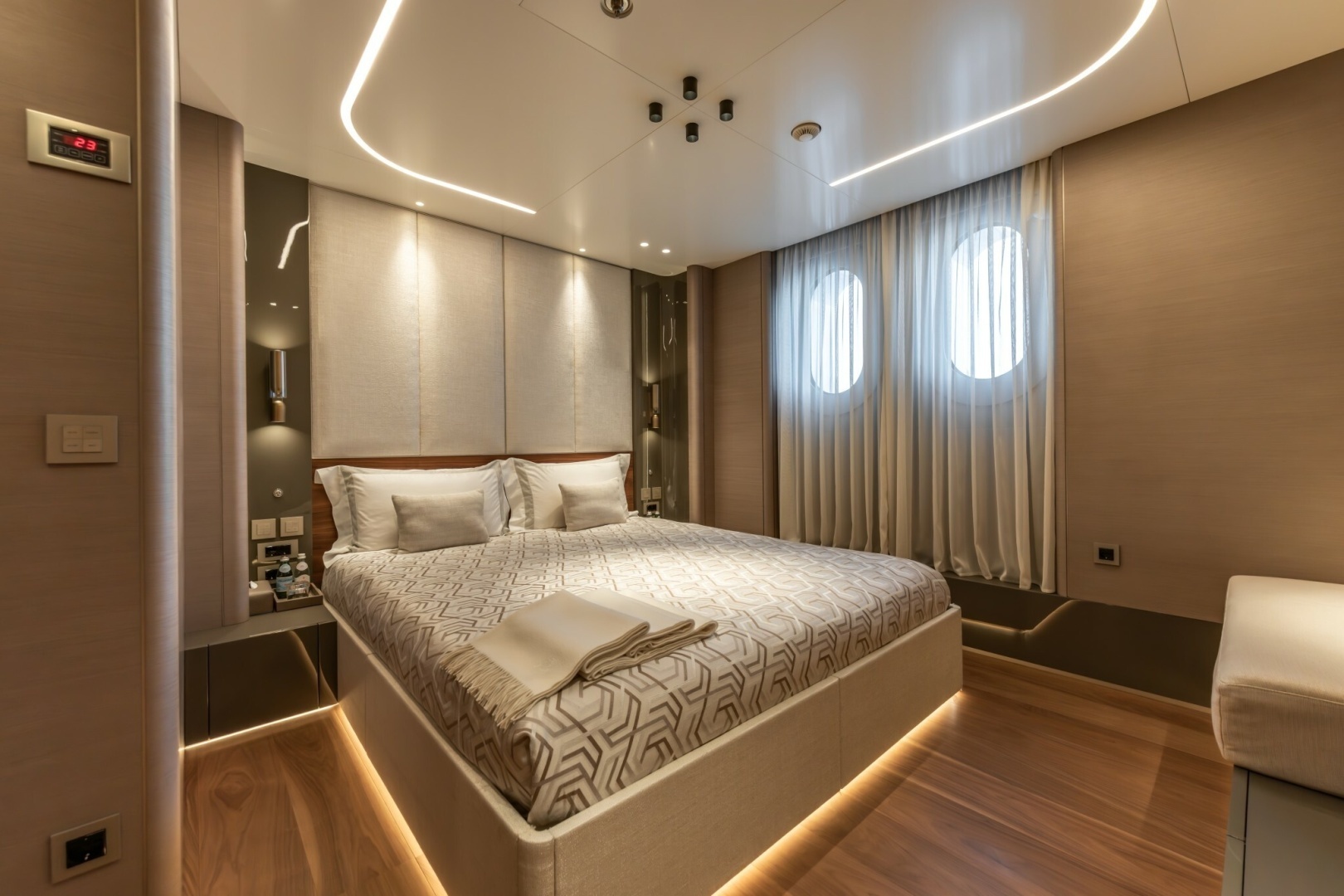

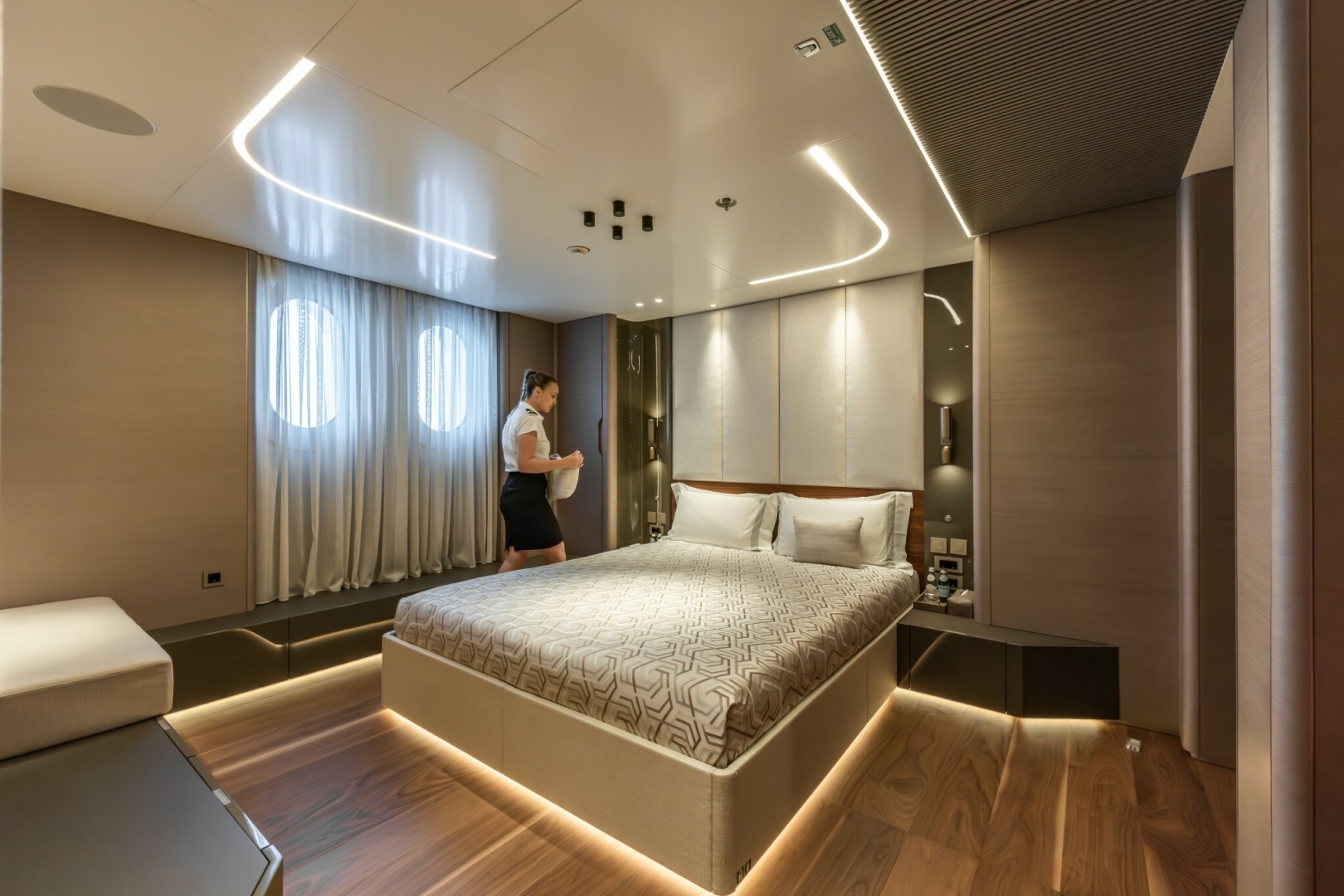

Amidships there are four further guest staterooms — two symmetrical VIP staterooms aft with king berths and two twin staterooms forward. All guest staterooms have ensuite heads with showers.

On center is the lower deck guest lobby, which has a door into the crew areas allowing for direct crew service.

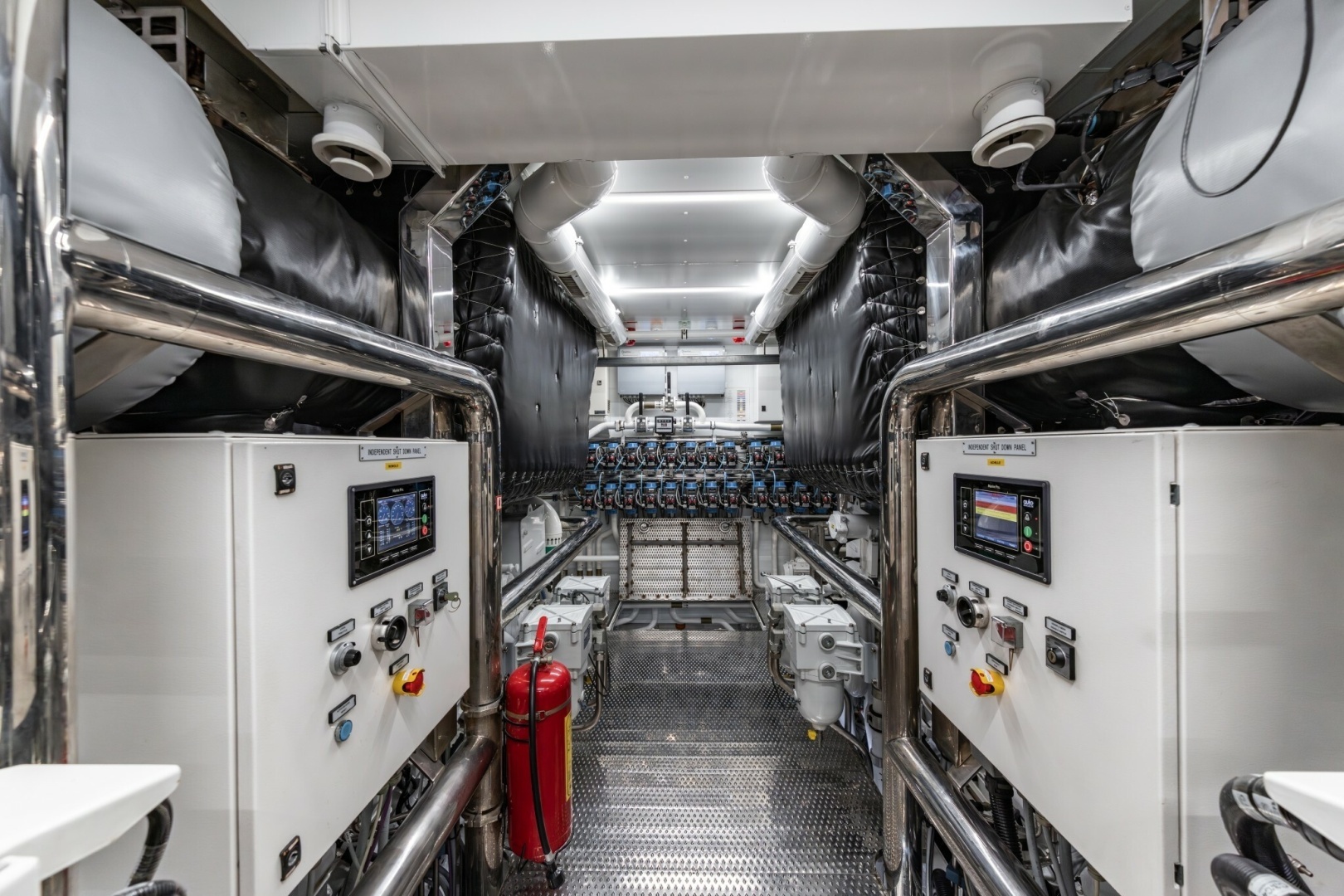

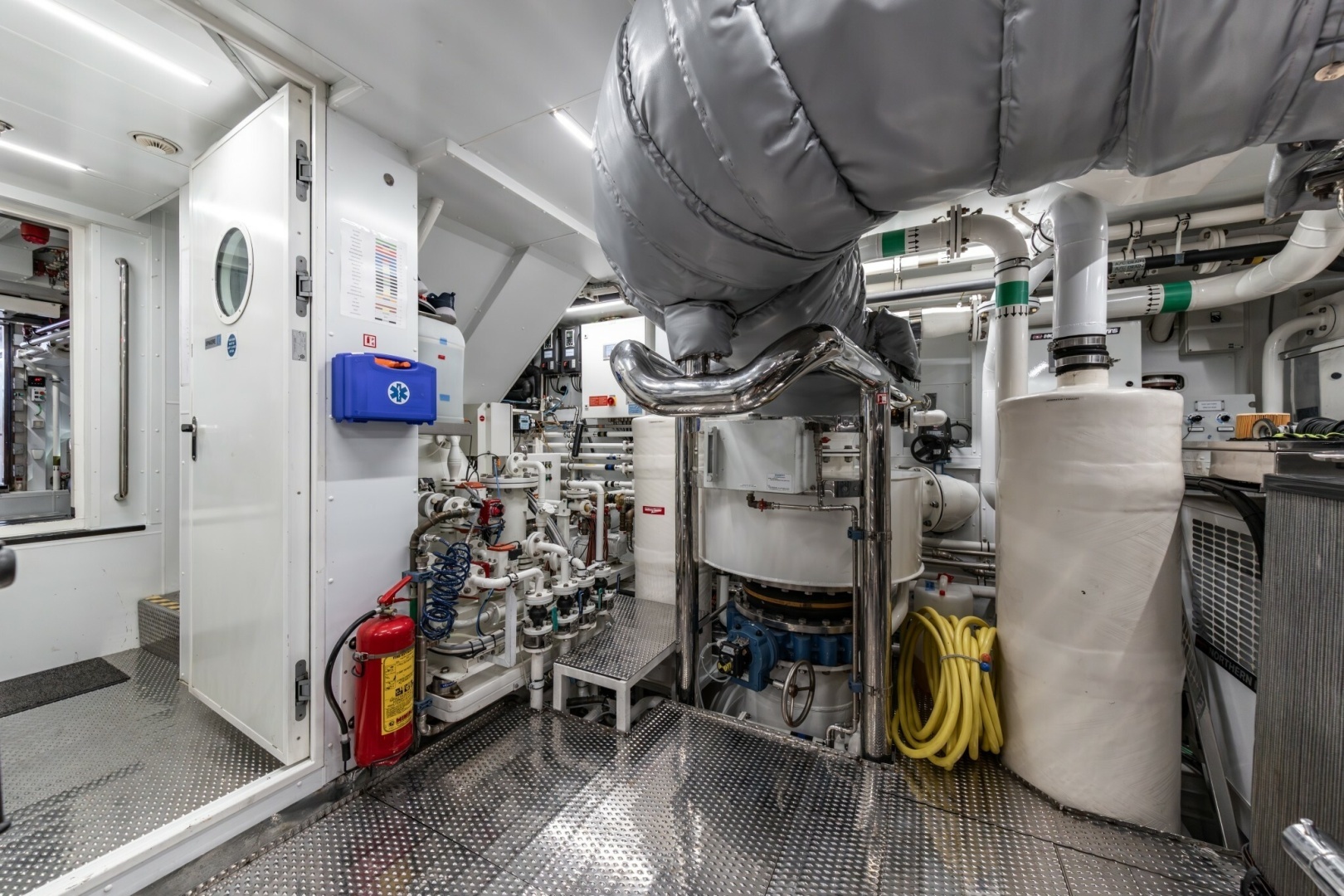

Aft of the guest areas is the engine room with air conditioned control room. Further aft is access to the tender bay with port side opening shell door to tender loading and stairwell to the main deck aft.

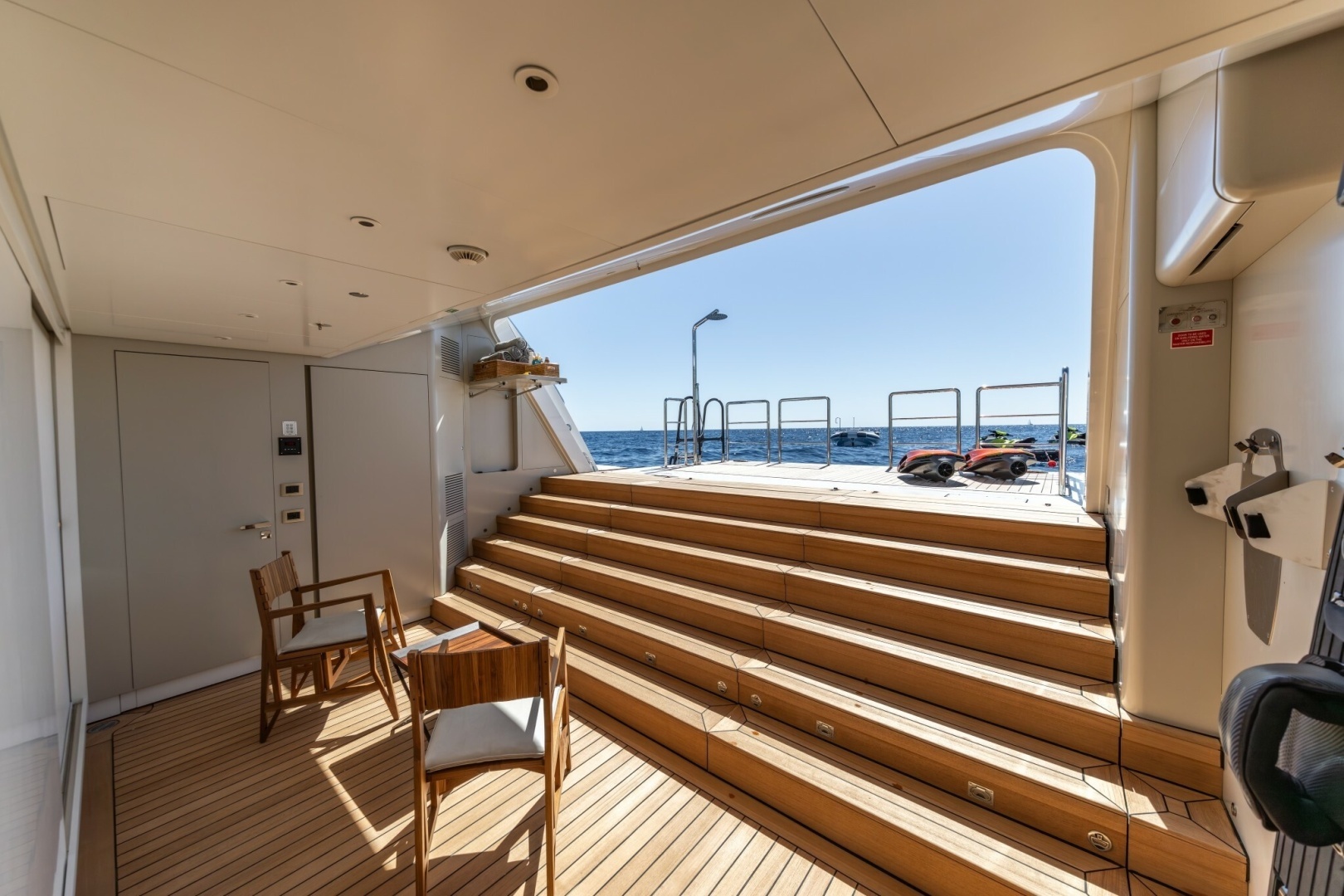

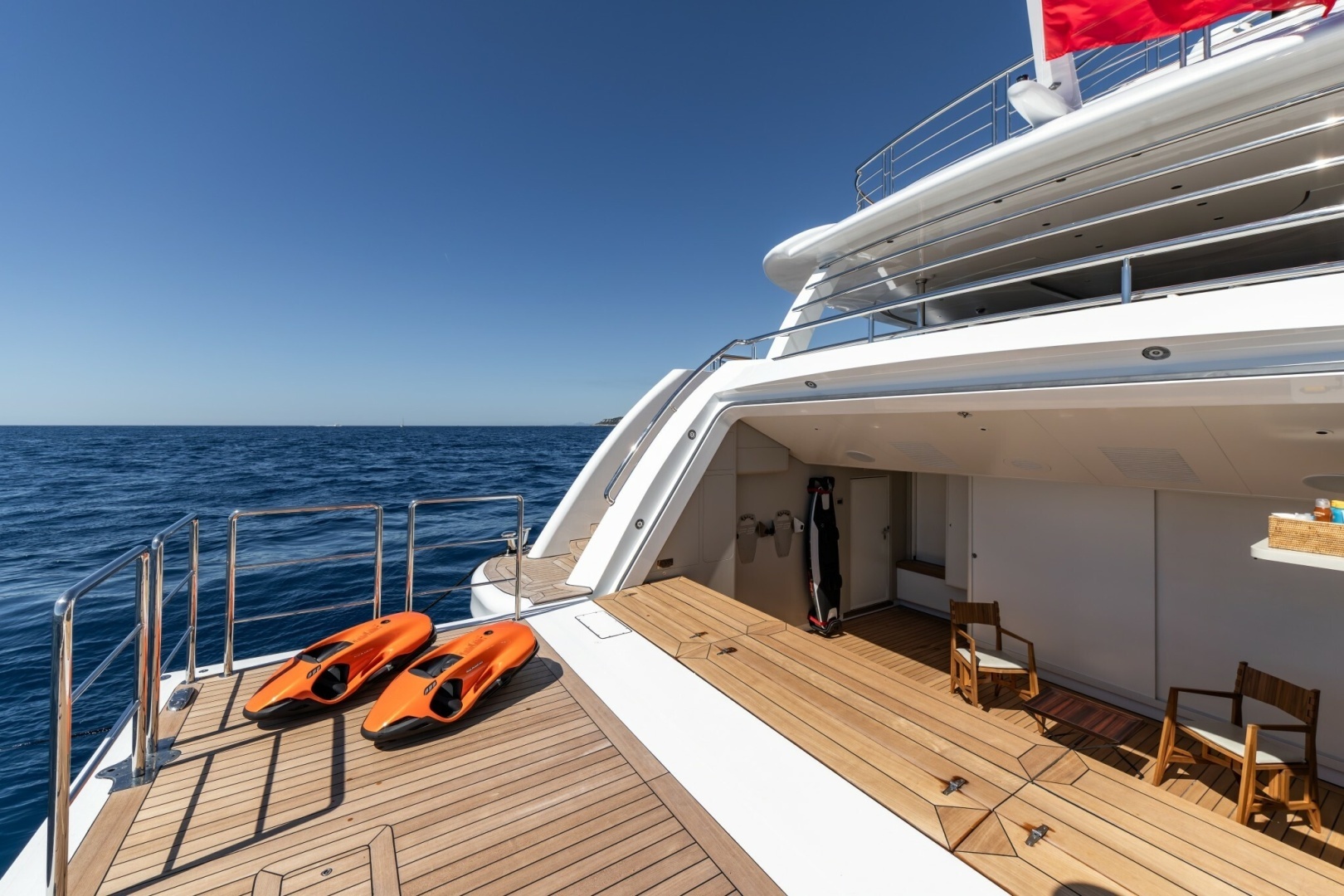

The stern area is given entirely to a beach club, with toy storage and day head on the starboard side. The beach club can be entered through the tender bay on through the large dropdown stern door “swim platform”.

The swim platform has a show and folding stairs to the sea for swimming. On port and starboard side are stairs up to the aft deck.

FLOOR TO CEILING HEIGHTS:

LOWER DECK:

Guest stateroom: 2,200mm;

MAIN DECK:

Salon and Owner’s suite: 2,350mm

UPPER DECK:

Sky Lounge: 2,200mm

TOP DECK:

VIP stateroom: 2,150mm

CONSTRUCTION

Hull Material: Steel / Aluminium

Superstructure Material: Aluminium

Decks Material: Teak

Paint: Jotun

Motor Hull Type: Full displacement

Number of Decks: 4

CAPACITIES

Gross Tonnage: 810

Net Tonnage: 243

Displacement Tons: 729

Fuel Capacity: 100,740 Litres (26,417 Gallons)

Day Tank: 21,800 Litres (5,759 Gallons)

Fresh Water Capacity: 12,000 Litres (3,170 Gallons)

Water Makers: 2 x 250 lt 500 Litres (132 Gallons)

Grey Water: 5,500 Litres (1,460 Gallons)

Black Water: 9,000 Litres (2,378 Gallons)

Bilge Water Tank: 1,460 Litres (386 Gallons)

Ballast Water: 43,500 Litres (11,492 Gallons)

Lube Oil: 1,000 Litres (264 Gallons)

Waste Oil: 1,000 Litres (264 Gallons)

Dirty Lube Oil 1,500 Litres (396 Gallons)

Speed Consumption p/h Range RPM

Maximum: 17.0 Knots / 900 nm / 1800

Cruising: 13.5 Knots / 360 nm / 1300

12 Knots / 200 / 3,500 nm / 1100

MAIN MACHINERY

Main Engines: 2 x CAT 3512E at 1,926KW / 2,583HP, diesel.

Engine Hours: Port: 1,357(30th July 2026), Serial Number: SY600100

Starboard: 1,358 (30th July 2026), Serial Number: SY600101

Gear Boxes: N° ZF 7641

Propellers: 2 x 1800 mm 5 blade bronze aluminum rolla

GENERATORS & ELECTRICITY

Generators: 3 x Northern Lights M1066 A

Generator Hours: Port: 5,493 (30th July 2026), Serial number: WA-6004789-0618

Starboard: 5,879 (30th July 2026) Serial nber: WA-6004790-0618

Mid: 6,048 (30th July 2026) Serial number: WA-6004788-0618

Generator Fuel Consumption: 12 lt / h

Generator Exhaust System: Dry

Emergency Generator: Northern light 105 Kw

Emergency Generator Hours: 17 hrs

Shore Power: Eekels

Shore Power Converter: Mar power SPC – II 150 KVA

Shore Power Transformer: Nil

Batteries: 12 V/Ah

Battery Chargers: Master volt

Voltage: 220 V

Frequency: 50 Hz

AUXILIARY MACHINERY

Steering System: Opem system 3000 da Nm

Emergency Steering: Opem system

Bow Thruster: DUALIS BTM 160 EA 160 KW

Stern Thruster: DUALIS BTM 85 EA 75 KW

Stabilizers: One pair of CMC Marine - Stabilis Electra Mod. Long Range LR200 zero speed, Fin stabilizers

Stabilizers at anchor Yes

Stabilizers underway: Yes

Under Water Lights: Yes

Helm/Wing Station Controls: Yes

FUEL & OIL SYSTEM

Fuel Oil Separator: Alfa Laval PA 605

Fuel Transfer Pump: Gianneschi mab

Fuel Filling Pump: Gianneschi mab

Bunkering Station: Mid ship port/stbd

Oily Bilge Water Separator: DVZ -FSU 150 lt/h

Dirty Oil Pump: Gianneschi mab

Lubrication Oil Pump: Gianneschi mab

FIREFIGHTING & BILGE SYSTEM

Firefighting & Bilge Pump: 3 x Gianneschi ACB 531-C

FRESH WATER SYSTEM

Fresh Water Makers: Idromar Duplex 500lt/h

Fresh Water Treatment: Idromar

Waste Water Treatment: Hamman HL PLUS 025

Fresh Water Pressure: 4,5 to 6 bar

Hot & Cold Circulation Pump: 2 x Gianneschi

Hot Water Boilers: 3 x Gianneschi 300LT

Sea Water Pumps: Gianneschi

BLACK & GREY WATER SYSTEM

WC's (toilets/bidets): Vacuum system JETS 50 MBA

Sanitary Vacuum System: Jets pump

Sanitary Water System: Jets

Black & Grey Water Pumps: Jets

GARBAGE MANAGEMENTSYSTEM

Capacity: As per garbage plan

Garbage Compactor: No

Fast Freezer Locker: No

Garbage Cold Storage Room: No

Automatic Grease Trap: No

AC & VENTILATION SYSTEM

Air Conditioning: Heinen & Hopman

Air Compressor: Heinen Hopman

Air Handling Units: Poseidon Bauer Kompressor

Provision Refrigeration: Liebherr

Engine Room AC: Gianneschi

Engine Room Ventilation: Gianneschi

Galley Ventilation & Extraction: EC centrifugal module Type K3 G250

HYDRAULIC SYSTEM

Hydraulic Power Packs: Rossinavi custom

Emergency Power Pack: Rossinavi custom

ANTIFOULING SYSTEM

Type: Lamers

NAVIGATION & COMMUNICATION SYSTEMS

NAVIGATION SYSTEMS

X-Band Radar: Furuno RCU-025

S-Band Radar: Furuno RCU-014

Radar: 2 x Furuno X-S

Sonar: Skipper

Chart Plotter: Navi Sailor 4000 – Maxsea

Electronic chart system: ECDIS Transas

Magnetic Compass: Jupiter Compass

Gyrocompass: Plat Navigat 100

Auto Pilot: NAVIS APH 5000

Rudder Angle Indicator System: Opem system

Echo Sounder: Skipper, ECHO 2 B744V

Depth Sounder: Skipper

Video Sounder: No

GPS: 2 x Furuno GP 170

Log: Ben Anthea BB

AIS: Furuno

Navtex: Furuno NX- 700

Wind Instruments: Team Italia

Horn: ABS MODEL: KB-30A

Search Lights: Indemar

Night Vision Camera: No

Tender Tracking System: No

Bridge Navigation Watch Alarm: Furuno BR-510

Weather Fax: Navtex NX-700

Ships Computer: Macbook

Instrumentation system: Team Italia System

COMMUNICATION SYSTEMS

INMARSAT – C: SAT-C

SSAS: Sailor

Fleet 77: Sailor Handset

Portable VHF: 2 x Sailor 6222

Portable GMDSS VHF: 3 x Sailor GMDSS

Broadband internet V-SAT Starlink

Iridium Satellite Phone: Cobham

Intercom – Talk Back: Vingtor ctb 10

Telephone System: Panasonic

VHF handheld Radios: 3 x VHF Sailor GMDSS

VHF: 2 x Sailor

SSB: Sailor

GSM: Sailor

Navtex Receiver: Furuno

GMDSS Battery Plant: Yes

Guest Phones: No

Internal Ship’s Communication: Icon

Printer / fax: Sailor printer

DECK MACHINERY & EQUIPMENT

Anchor & Chains: 2 x Pool HHP 585 kg- tot 385mt- 24 mm

Anchor Windlass System: Opem system

Cranes: Rossinavi shipyard

Windlass: 2 x Open system 9 KW

Passerelle: Opac mare MOD 1203

Side Boarding Ladder: Opac mare

Sea-stair: No

Stern Boarding Gangway: Opac mare

Bathing ladder: Opac mare 3600-9

Stern Captans: 2 x Open system 5,5 KW

Swimming Ladder: Yes, Carbon Fiber

Paint Exterior: Joton

Paint Underwater: Jotun

SAFETY, SECURITY, & FIREFIGHTING EQUIPMENT

Security cameras Network Disk Recorder WJ-NX 200 Panasonic

CCTV: Yes

Ship’s Safe: Autoprime system - Ultrafog System

Doorbell: Yes

Fixed Firefighting System: Yes

Firefighting Equipment: 2 x Fireman outfits

Gas Detection: Yes

Smoke Detection: Yes

Fire Alarm: Yes

Ship alarms Inelteh

Alarms: Yes

Intruder alarms: Auto prime

MOB Boat: 2

Life Rafts: 6 x Zodiac

Breathing Apparatus: 4 x DRAGER

Lifejackets: 26 adults+ 5 children

Immersion Suits: 23 adults + 6 children

Life Rings: 6

EPIRB: 1

SART: 2

Flares and Signals: 12-flares, 4 – signals line

Medical Equipment: Medical set up – MCA MSN 1905

ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS

Video Equipment: Video work

Satellite: TV-SAT

Music system: Crestron system

Audio Equipment: Airplay

Control: Tablet

Light Management: Button or tablet

Main Salon: TV

Master Stateroom: TV

VIP Stateroom: Airplay

Guest Staterooms: TV, Airplay

SINEMA Lounge: Video projector

Exterior, Aft Deck, Bar, Bridge Deck: Airplay

Captain’s Cabin: TV

Crew Mess: TV

 GALLEY & LauNDRY EQUIPMENT

MAIN GALLEY EQUIPMENT

Refrigeration/Freezer: Liebherr- 2 x Custom Frigomar

Liebherr-Custom Frigomar

Dumb-waiter Bertazzoni Lift

Dishwasher: 3 x Miele

Oven: Rational 101

Stove: Miele KM 6388

Microwave: 2 x Miele

Icemaker: 3 x Hoshizaki

Washing machine: 2 x Miele

Dryer: 2 x Miele

CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT

Microwave: 1 x Miele

Refrigeration/Freezer: 2 x Liebherr

Dishwasher: 1 x Miele

Wine Storage: Wine cellar EuroCave

Main Laundry Equipment: 2 x washing machine Miele

 2 x dryer Miele

 1 x ironing table VAPOR GB

OTHER EQUIPMENT

Pool: Hot tub

Spa Tub: No

Sauna: No

Hammam: No

Guest Elevator: No

Dumbwaiter: Yes

Gym Equipment: Yes

Sun Awnings: Yes

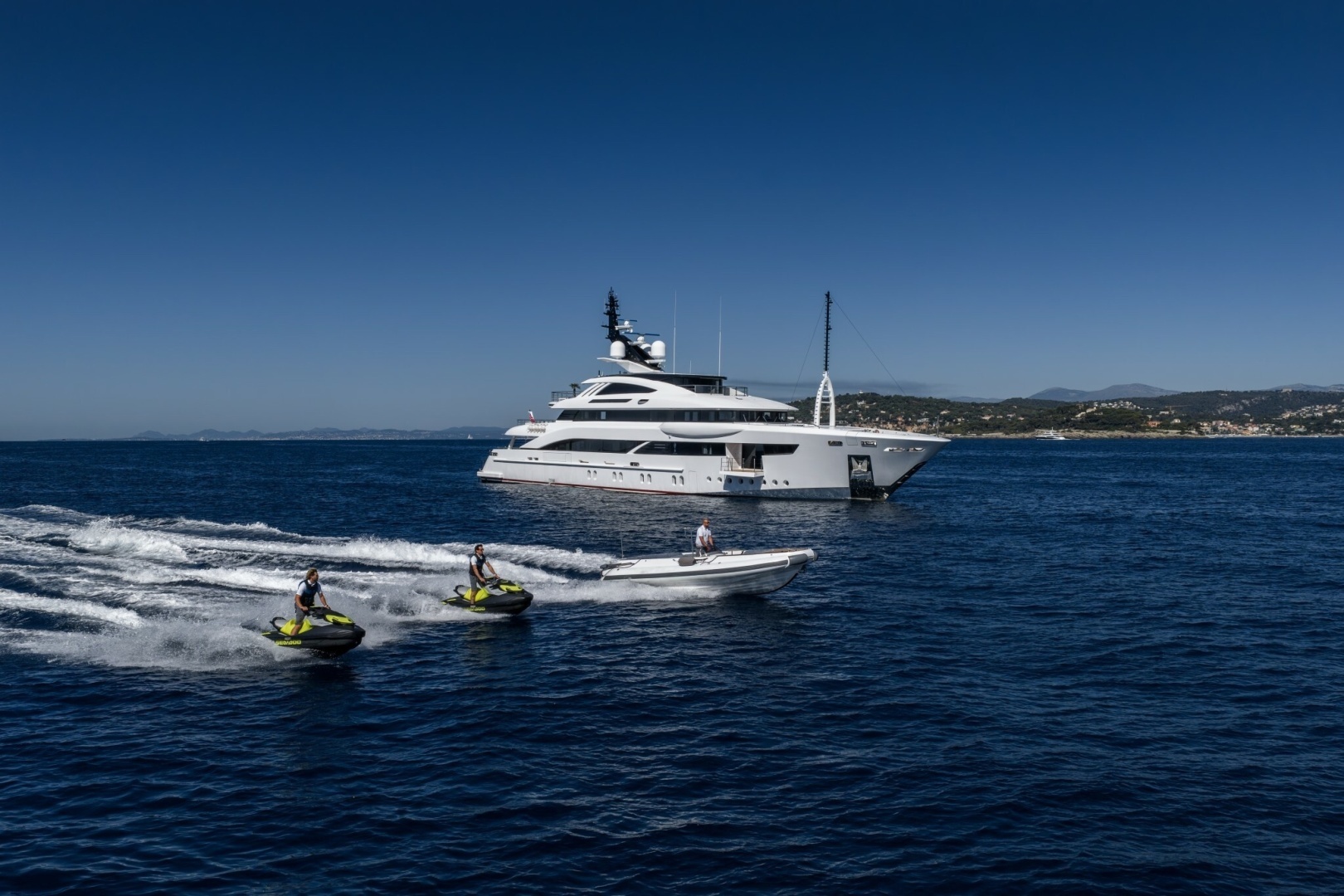

TENDERS & TOYS

Tenders: Castoldi JT 23 – Castoldi JT 14 RB

Jet Skis: 2 x Seadoo GTX 500

Toys: E-FOIL 1 x E-Foil

AWAKE 1 x Ravik S

SEABOB 2 x Seabob F9

Diving Compressor: Air compressor Atlas

Dive Board: No

Note: Subject to change and/or negotiation during the buying process.

NOT AVAILABLE FOR SALE OR CHARTER TO U.S. RESIDENTS WHILE IN U.S. WATERS

Yachts offered are subject to availability. The particulars are believed to be correct but are not guaranteed and may not be used for contractual purposes. Specification provided for information only.
