2017 Overmarine 163'

49.90 m
€ 23,950,000 Euros
LE BEAU RIVAGE 9 AVENUE D'OSTENDE, , 98000FRMonaco Monaco 98000 FR
Yachtr

2017 Overmarine 163' Mangusta 165 E

  • 49.90 m
  • Diesel
  • Power
  • Motor Yachts
La Seyne-sur-Mer, France
In Stock #2835674

2017 Overmarine Mangusta 165 E

163' (49.90 m) BLACK LEGEND

-

Flag of Registry: Malta

Port of Registry: Viareggio

La Seyne-sur-Mer, France
   Vessel ID: 2835674
FEATURES:

2017 Overmarine 163' Mangusta 165 E

  • 49.90 m
  • Diesel
  • Power
  • Motor Yachts
La Seyne-sur-Mer, France
In Stock #2835674

€ 23,950,000 Euro

$ 37,474,284 CAD*
£ 20,196,444 GBP*
$ 27,422,750 USD*
*estimated foreign exchange

LOA163'

LOA Inch8''

LOA49.90''

Beam30'

Beam Inch2''

Draft Max Feet6'

Draft Max Inch2''

Draft Min Feet1'

Draft Min Inch4''

Fuel Tank (Gallons)10567

Fuel Tank (Liters)40000

Fresh Water (Gallons)1057

Fresh Water (Liters)4000

TypePower

ConditionUsed

Specifications

Name

BLACK LEGEND

HIN/IMO

9830551

Stock Number

eb671225-3941-f011-b4cb-6045bd078eca

163'8" (49.90 Meters)

Power-Used

Year

2017

30'2"

6'2"

1'4"

Cabins

4

Sleeps

10

King Berths

1

Crew Sleeps

9

Maximum Speed

35 Knots

Cruise Speed

25 Knots

Range NMI

800

Fuel Type

Diesel

Hull Material

GRP

Air Conditioning

Yes

Stabilizers Brand

4x 30HD

10567 Gallons (40000 Liters)

1057 Gallons (4000 Liters)

Gross Tonnage

485

Displacement

300

Classification

ABS, A1, AMS, MCA LY3

MCA Certified

Yes

Interior Designer

Overmarine

Builder

Overmarine

Engines

Engine 1

  • Engine Make: MTU
  • ModelEngine Model: 16V 2000 M94
  • Power HPPower HP: 2600.00
  • HoursHours: 1447.00
  • Engine LocationEngine Location: Port

Engine 2

  • Engine Make: MTU
  • ModelEngine Model: 16V 2000 M94
  • Power HPPower HP: 2600.00
  • HoursHours: 1454.00
  • Engine LocationEngine Location: Starboard

Engine 3

  • Engine Make: MTU
  • ModelEngine Model: 16V 2000 M94
  • Power HPPower HP: 2600.00
  • HoursHours: 1420.00
  • Engine LocationEngine Location: Middle

Engine 4

  • Engine Make: MTU
  • ModelEngine Model: 16V 2000 M94
  • Power HPPower HP: 2600.00
  • HoursHours: 1420.00
  • Engine LocationEngine Location: Middle
  • Engine Quantity4

    • Full Details

    Overview

    LOA: 49.90m (163′ 8″)
    Beam: 9.20m (30′ 2″)
    Draft: 1.90m (6′ 2″)
    Builder: Overmarine (Mangusta)
    Year: 2017 (2022)
    Model: Mangusta 165 E
    Builder: Overmarine
    Engines: 4 x MTU 2600 HP
    Speed: 25/35 knots (approx)
    Range: 800nm
    Accommodation: 10 guests in 4 cabins (+ cinema room)
    Crew: 9
    Draft: 1.90m (6′ 2″)
    Gross Tonnage: 485
    Tax Status: VAT Paid
    Construction: GRP


    Key Features

    • The most iconic Mangusta 165E ever built
    • Pristine condition and very high spec
    • Under original private ownership with EU VAT Paid
    • Equipped with the latest MTU engines, still under warranty
    • ABS 5-year special survey completed in 2022
    • Full-beam amidships owner’s suite with private study and dressing
    • The largest aft deck found on any 50-meter yacht
    • Spacious exterior decks with jacuzzi, bar, seating and DJ booth
    • Zero speed and underway gyro stabilizers



    Description

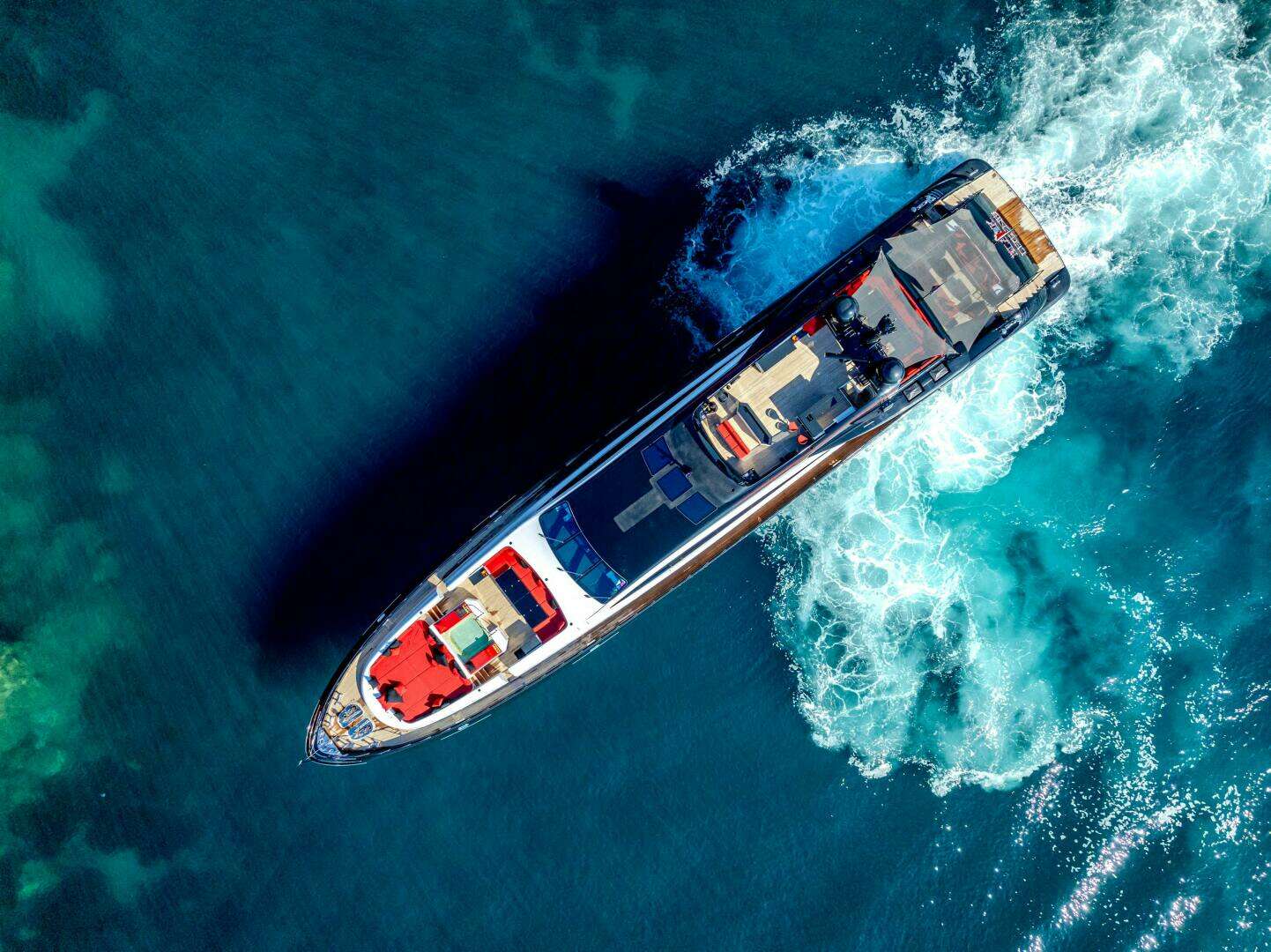

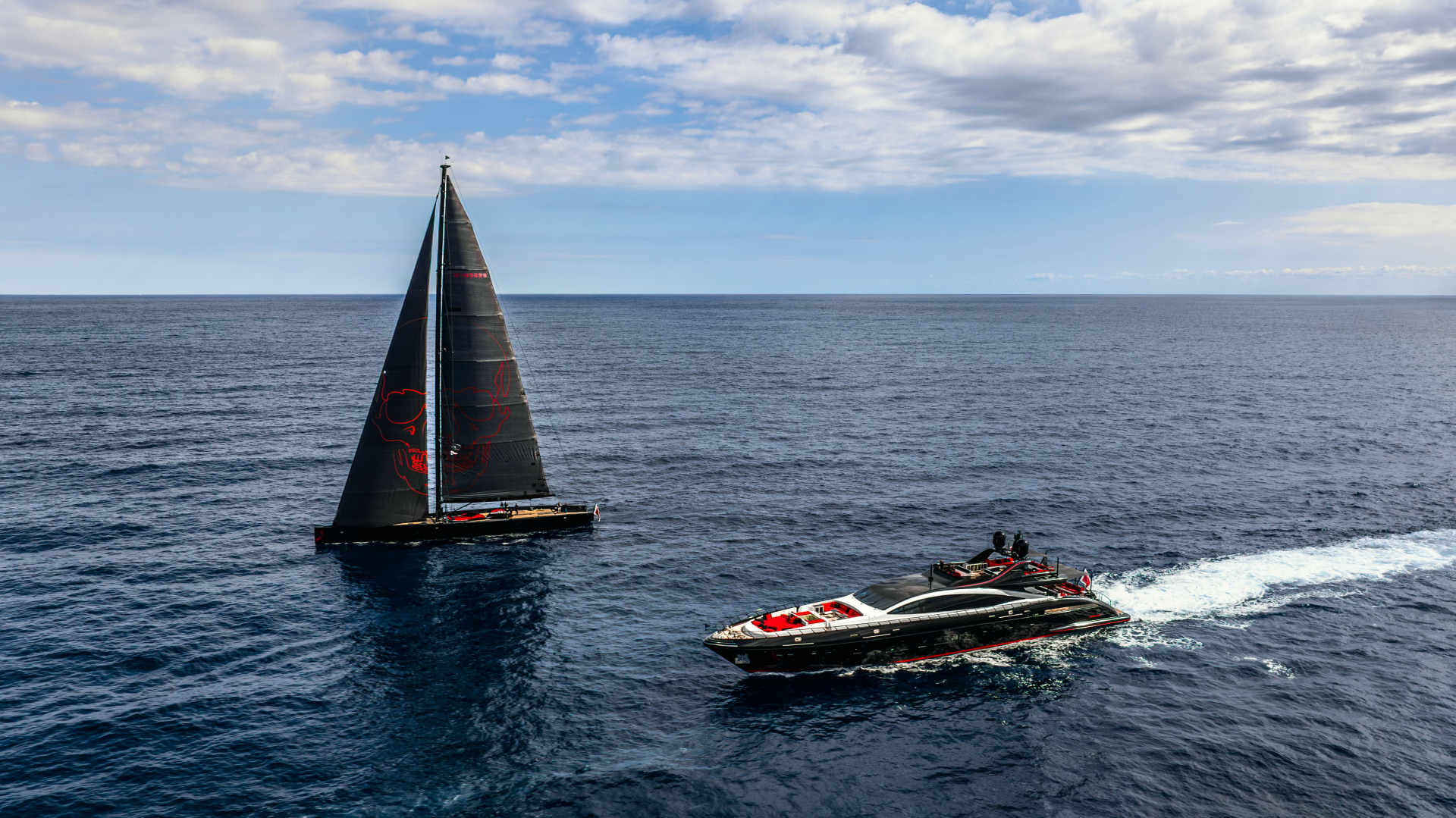

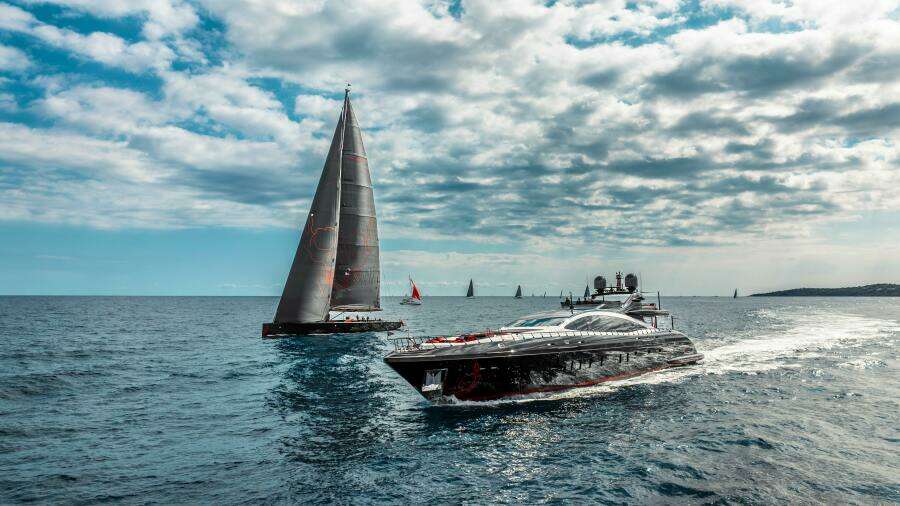

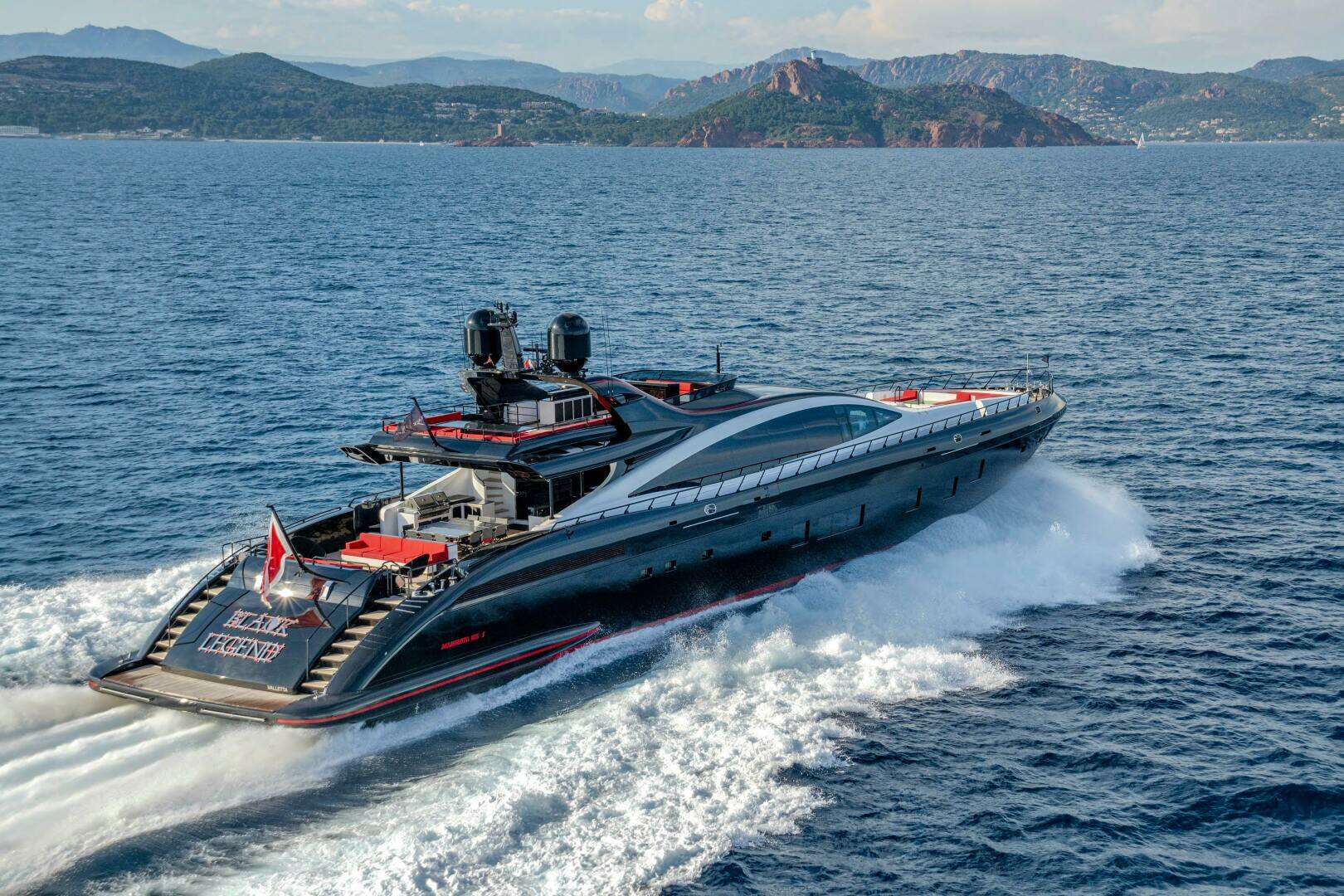

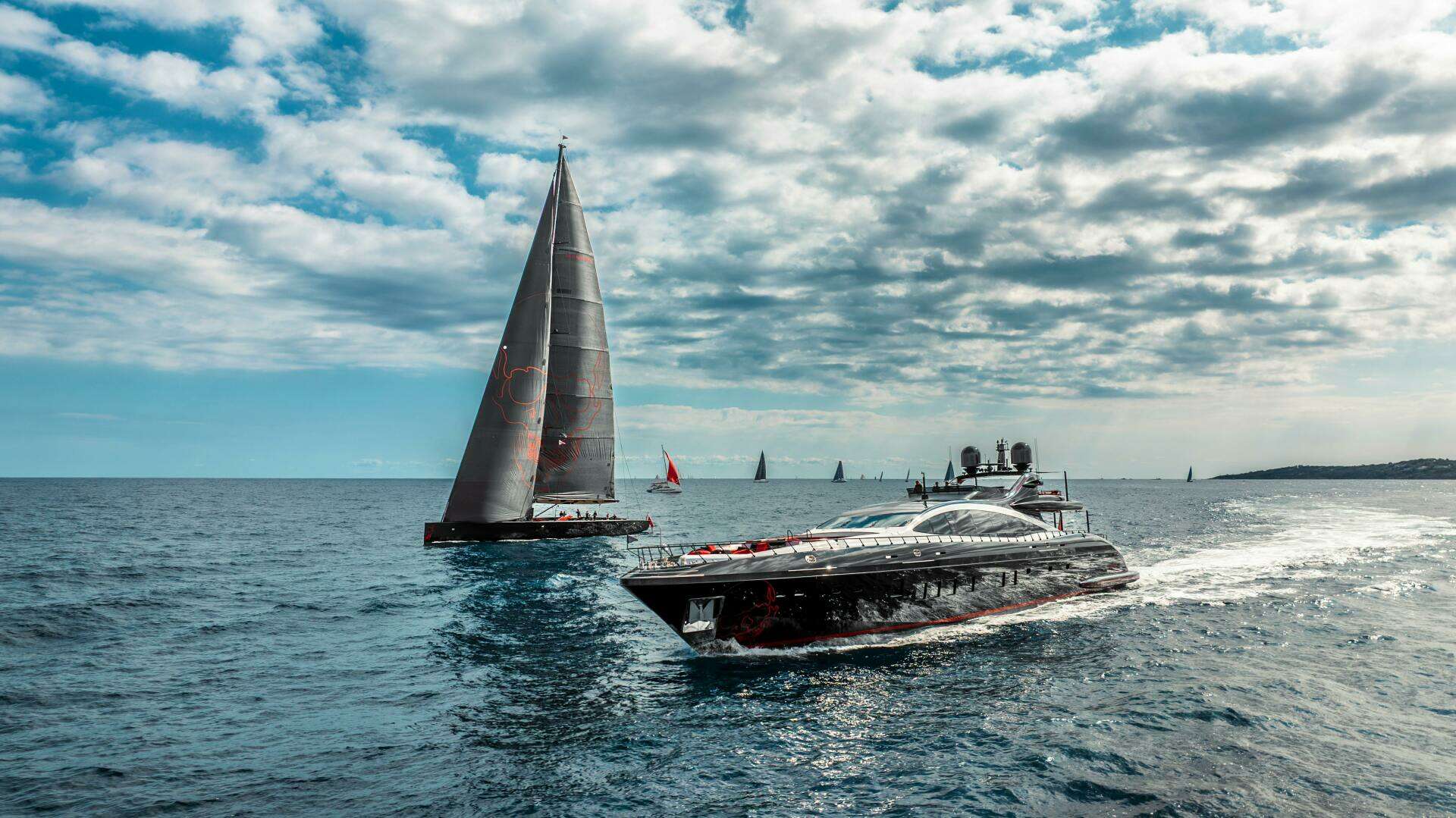

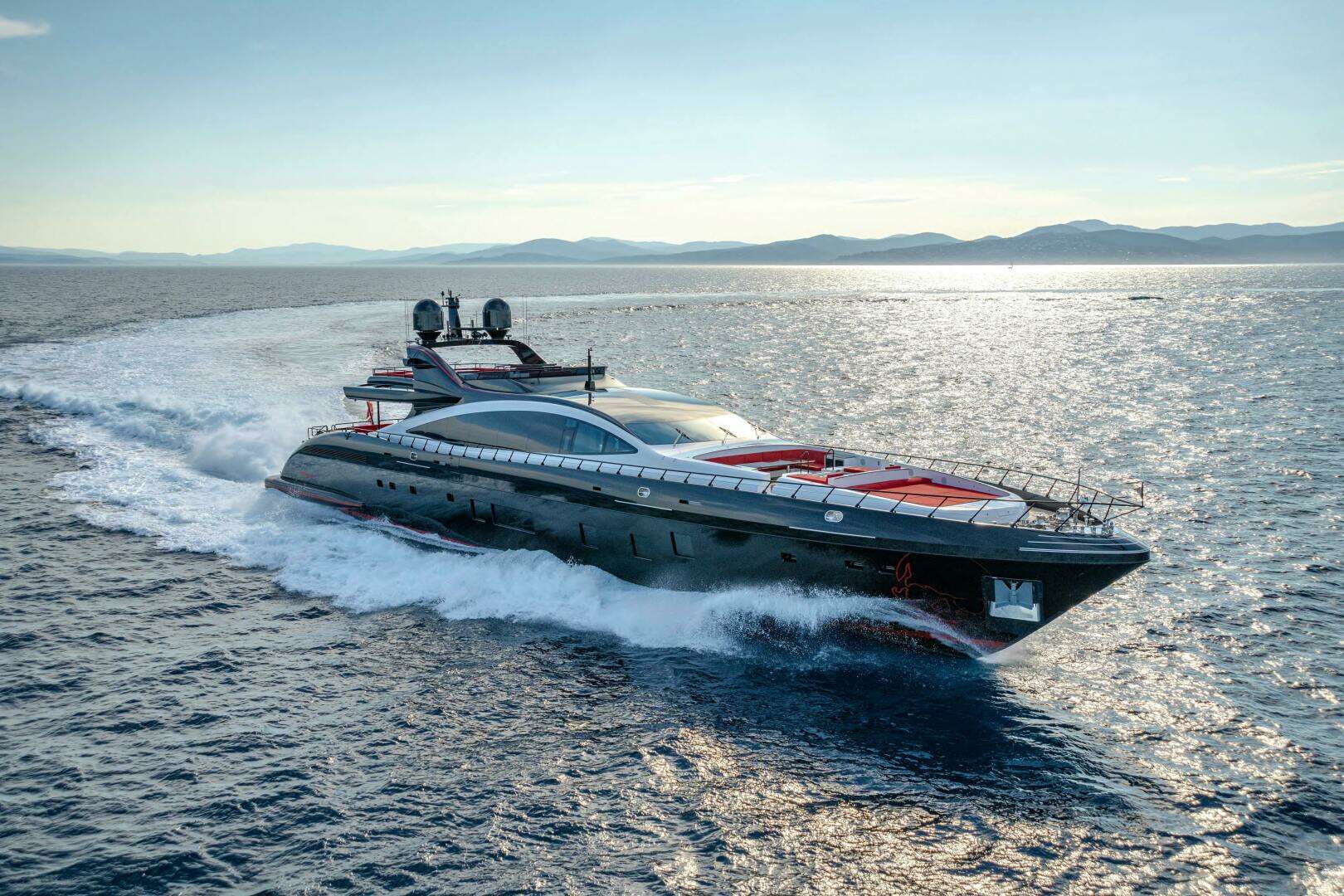

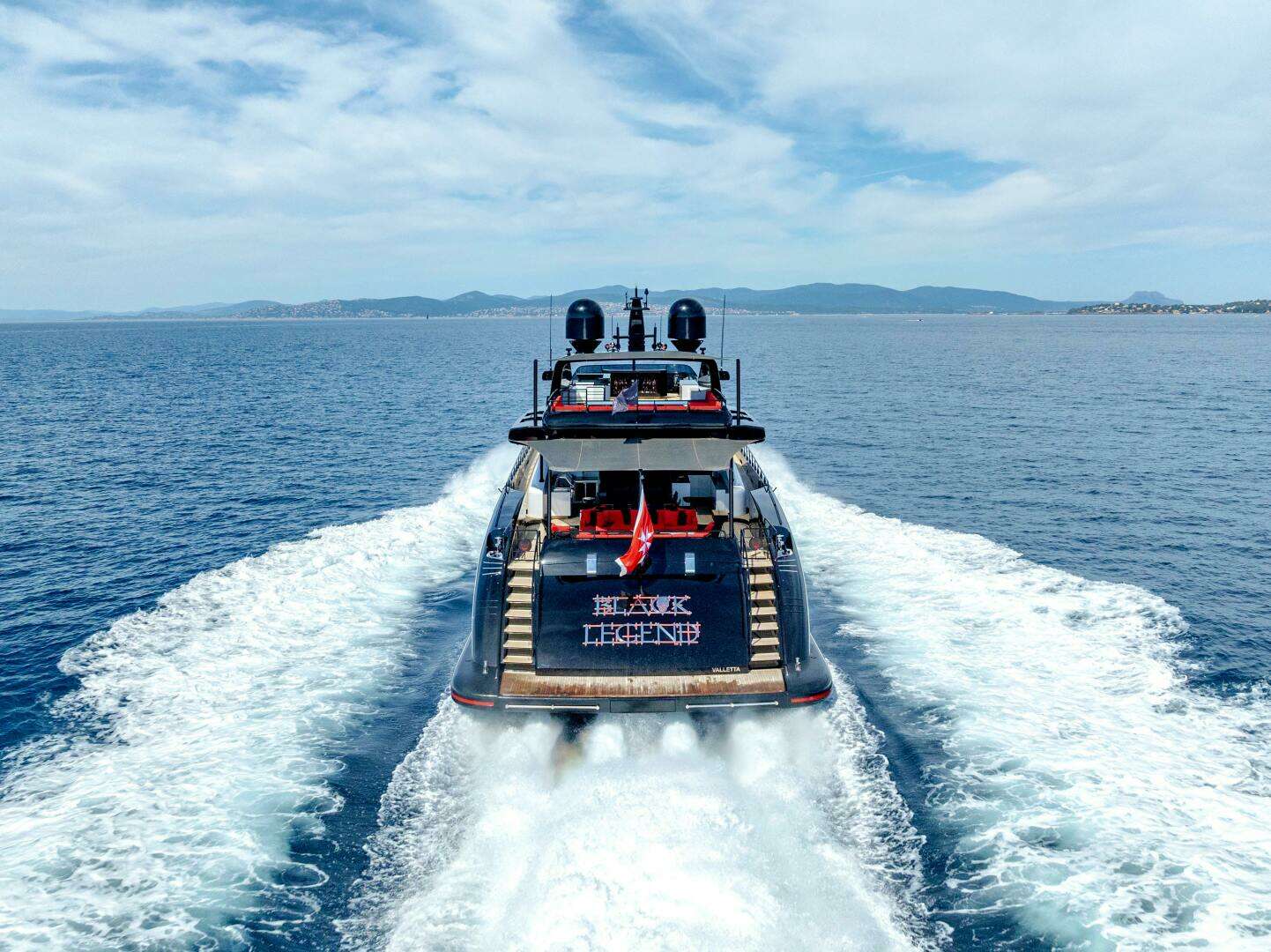

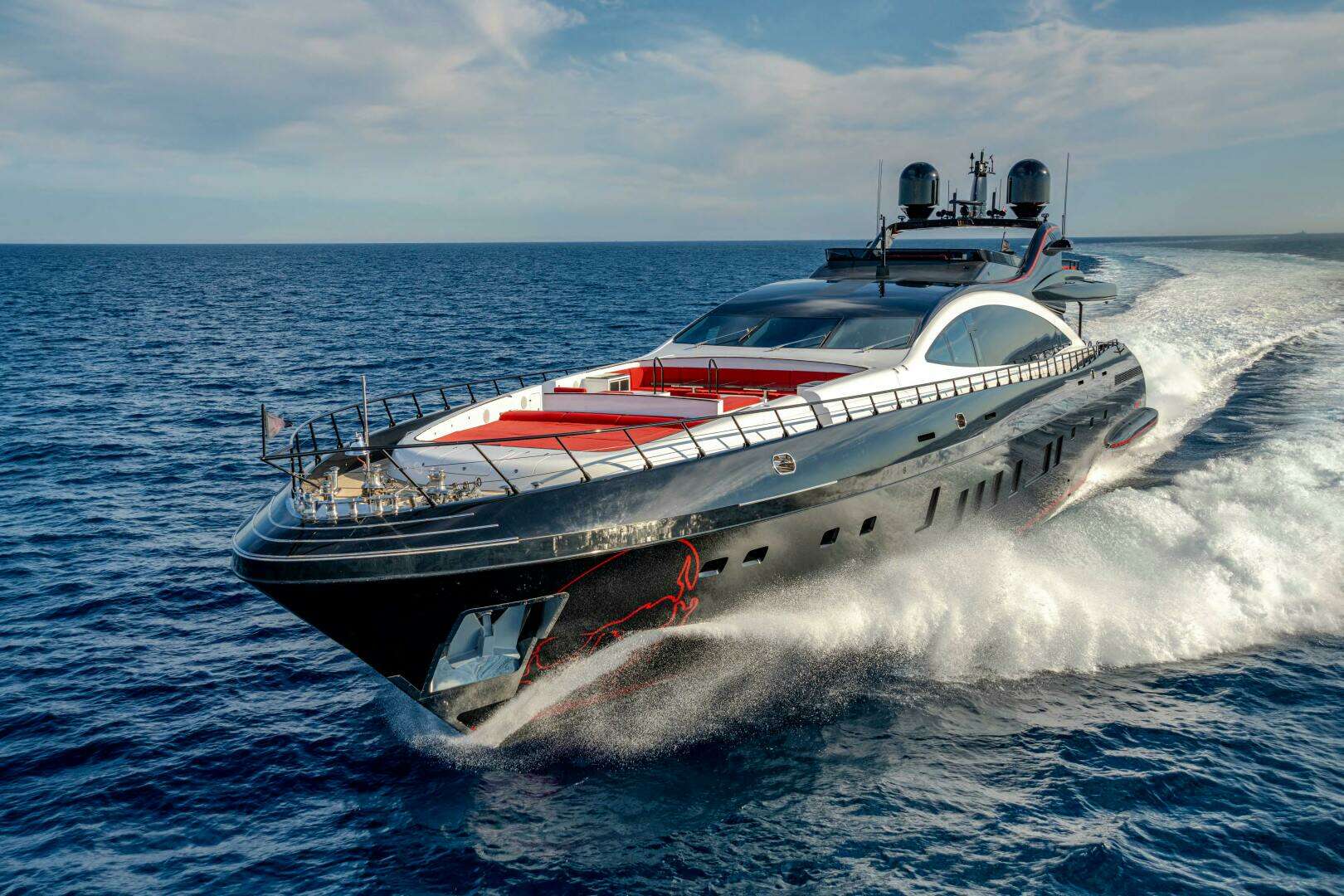

    The 50-metre Black Legend is an immaculately presented, fast and sporty Mangusta 165E, and the penultimate hull delivered in the series. Maintained in pristine condition by one private owner, equipped with the latest MTU engines for optimum efficiency, and boasting a blistering top speed of 35 knots, Black Legend is one of the most iconic Mangusta yachts ever built by Overmarine.

    The semi-custom open yacht was built for a highly experienced owner with performance, comfort and style in mind. Conceived with the support of a strong project management team, this truly unique superyacht is optimised at every turn to enhance the guest experience. She was awarded ‘Power Yacht over 40m’ at the International Yacht & Aviation Awards.

    Her meticulously designed Asian-inspired interior enjoys a modern achromatic colour palette, enhanced by exclusive fabrics. The spacious main deck salon leads directly to the largest aft deck found on any 50-metre yacht, with a bar, barbecue, al fresco dining area and comfortable sofas to accommodate large groups of friends and family.

    On the lower deck, a full-beam master suite with a private office and dressing room is complemented by a gym, cinema, and three further guest cabins, including a VIP. The cinema room can be converted to sleep a further two guests if required, bringing the total guest accommodations up to 10.

    Key highlights of the sprawling exterior deck spaces include an incredible foredeck area with a Jacuzzi, forward view seating and sunbeds with awnings. The sundeck is an ideal entertainment space, with sunpads, a cocktail bar and a DJ booth. On the lower deck, the beach club and stern platform provide waterside relaxation, while explorers and thrill seekers will appreciate the garage setup for watersports, chase boats and tenders.

    Black Legend has always been meticulously maintained and completed her ABS 5-year special survey in 2022. She’s also equipped with both zero speed and underway stabilisers for the smoothest and most comfortable of guest experiences. The yacht is offered with an MTU warranty extension.


    Main Characteristics

    Built by: Overmarine (Mangusta)
    Year: 2017
    Length: 49.90m (163′ 8″)
    Beam: 9.20m (30′ 2″)
    Draft: 1.90m (6′ 2″)
    Classification: ABS, A1, AMS, MCA LY3
    MCA: Yes
    Flag: Malta
    Hull colour: Black
    Gross tonnage: 485 t
    Displacement: 300 t
    Designer: Stefano Righini Design
    Naval Architect: Overmarine
    Interior Designer: Overmarine


    Capacities

    Cruising Speed: 25 knots (approx)
    Top Speed: 35 knots (approx)
    Range: 800nm at cruising speed
    Fuel capacity: 40,000 Litres (10,567 US Gallons)
    Water capacity: 4,000 Litres (1,057 US Gallons)
    Black water capacity: 5,400 Litres (1,427 US Gallons)


    Fuel consumption

    560 L/hour at 17knts
    1220 L/hour at 25knts
    1688L/hour at 30 knots

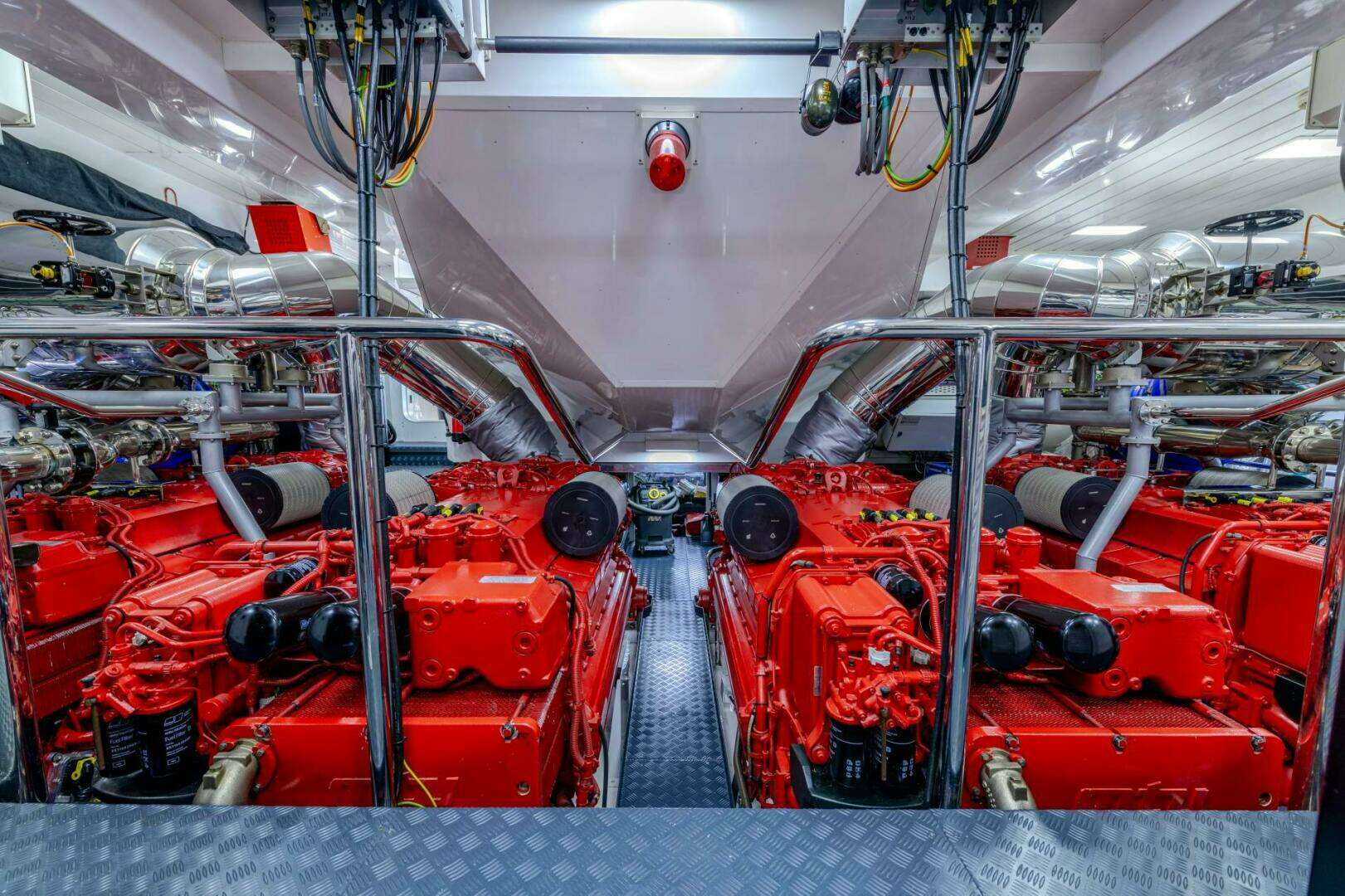

    Machinery

    Engines: 4 x MTU 2600 HP
    Engine model: MTU 16V 2000 M94
    Engine hours: Port: 1447hrs
    Starboard: 1454hrs
    Central Port Engine: 1420 hrs
    Central Starboard Engine: 1420 hrs
    Propulsion: Water Jets
    Gearboxes: ZF model 5050
    Steering: 2 x Waterjets Kamewa (RRAB) model 71-4 and 2 x 71-B4 (Booster)
    Emergency Waterjets steering through a RRAB/Kamewa back-up panel
    in Wheelhouse and ER.
    Stabilizers: 4 x Seakeeper 30HD
    Air Conditioning: Frigit Chiller C-18 - 2x18kW – 241,160 BTU
    Bow Thruster: Mod. 24” TRAC 90kW 400V/3ph/50Hz
    Water pressure system: 2 x Electrical pumps Gianneschi P&B / Jet 622 400V/3ph/50Hz
    Water maker: 2x Idromar / MC 5S, 230 lt/h reverse osmosis
    Sand Filters: Idromar
    Boilers: 6 x 120Lt
    UV Filters: Idromar
    Water Softener: Idromar
    Mesh Filter: Idromar
    Silver Ion Dosing Station: Idromar
    Active Carbon Filters : Idromar
    Sewage Treatmant plant: Selmar 12000 plus
    Trim Tabs: 8 x Humphree Interceptor


    Electrical

    Generators: 2 x KHOLER model 100 EFOZDJ 99 kW, 400 VAC, 50 Hz, three-phase.
    Starboard Generator: 6883 hrs
    Port Generator: 6394 hrs
    400 V, 50 Hz, 3 x phases for power consumers (TN-Net)
    230 V, 50 Hz, 1 x phase for small equipment and lighting (TN-Net)
    24 V DC for monitoring, external communication, different nautical and other consumers
    Shore power: Shore power 400 VAC 3-phase 50 Hz, insulator transformer primary 3- phase, secondary 3 phase with neutral grounded at one point, 80kVA
    Shore Power Cable: 25 metre 250 Amp. 400 V
    Services pack batteries: One bank of approximately 630Ah as auxiliary power supply and for emergency lighting
    Main emergency batteries: One bank of approximately 420Ah with battery charger.
    Secondary emergency batteries: One bank of 60Ah with battery charger.


    Accommodations

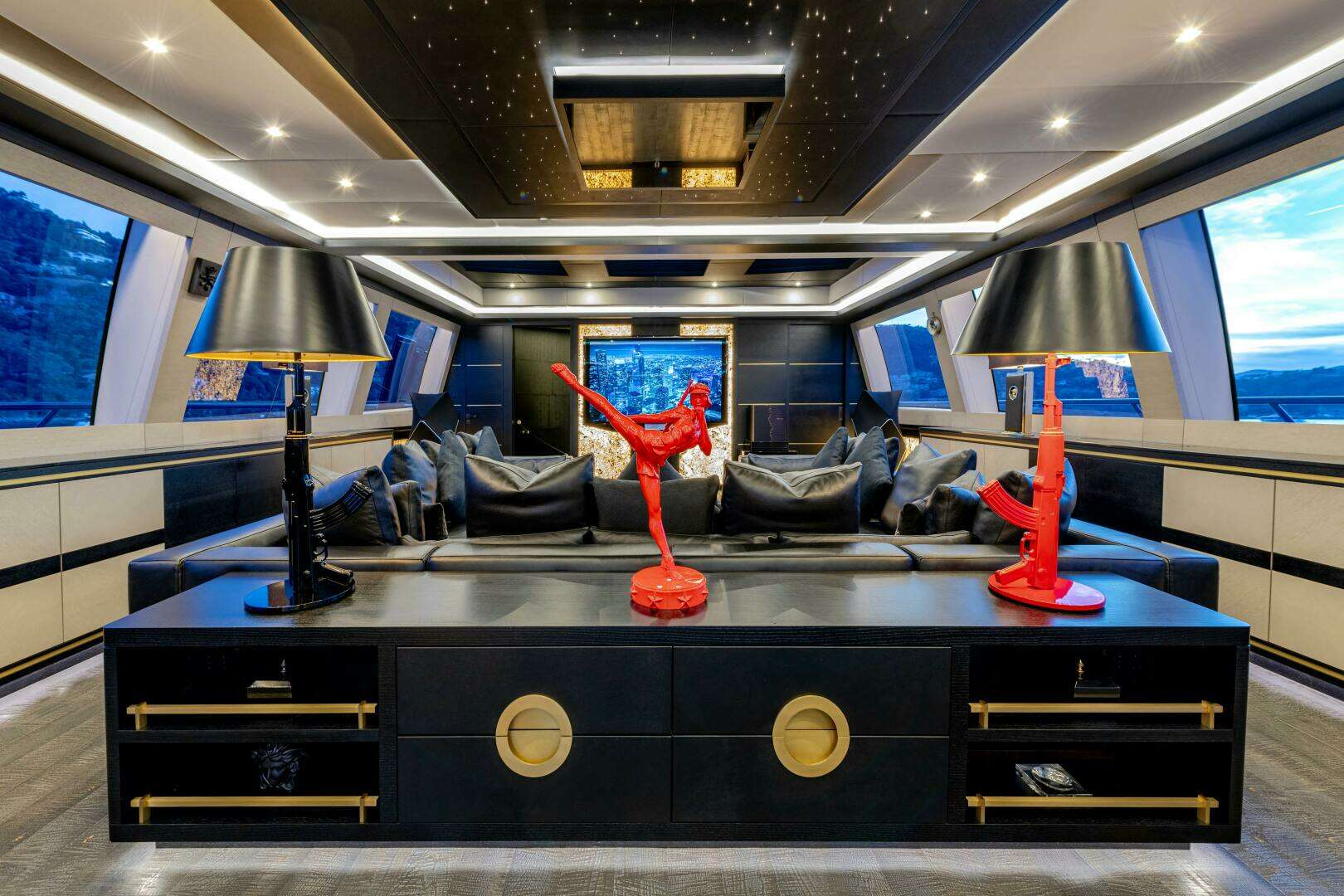

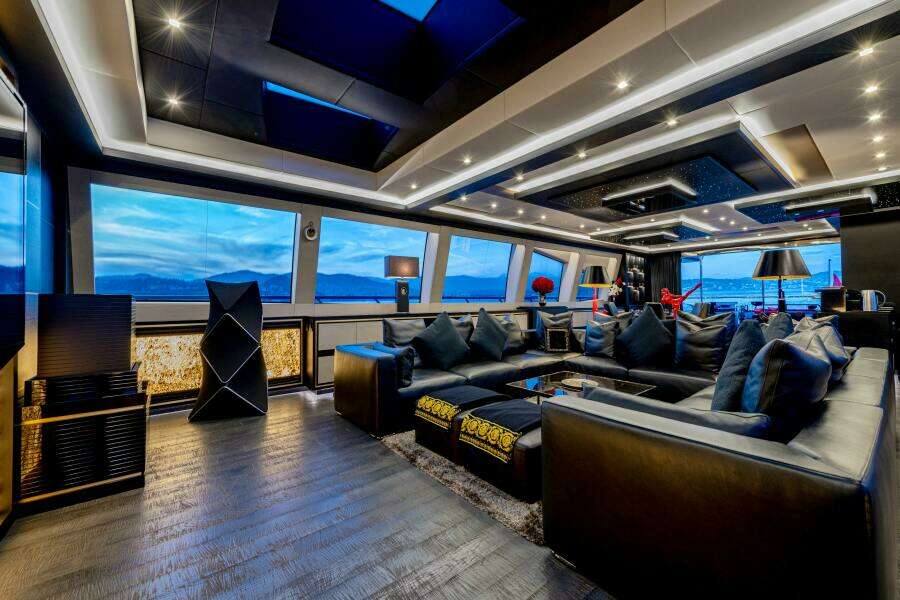

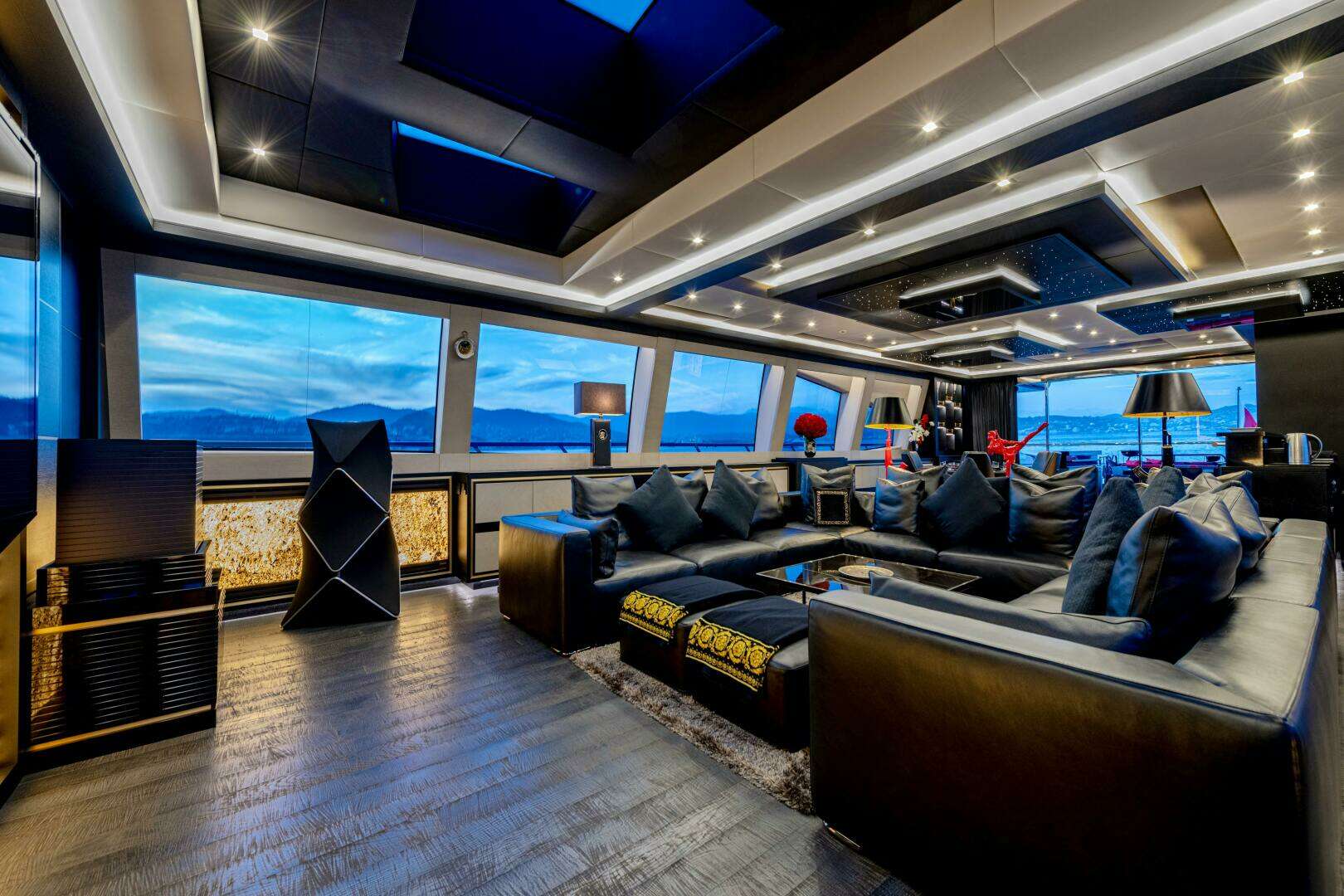

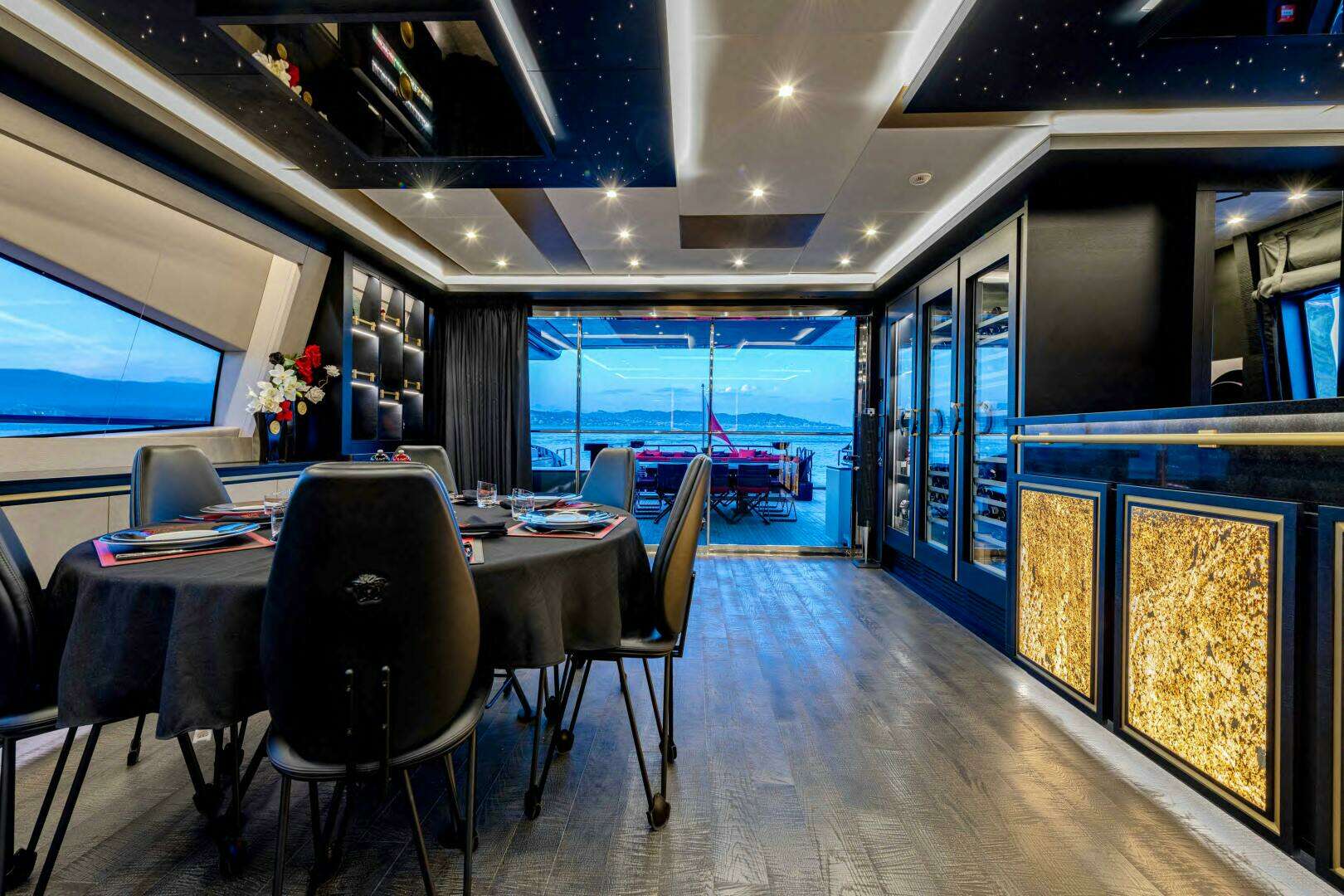

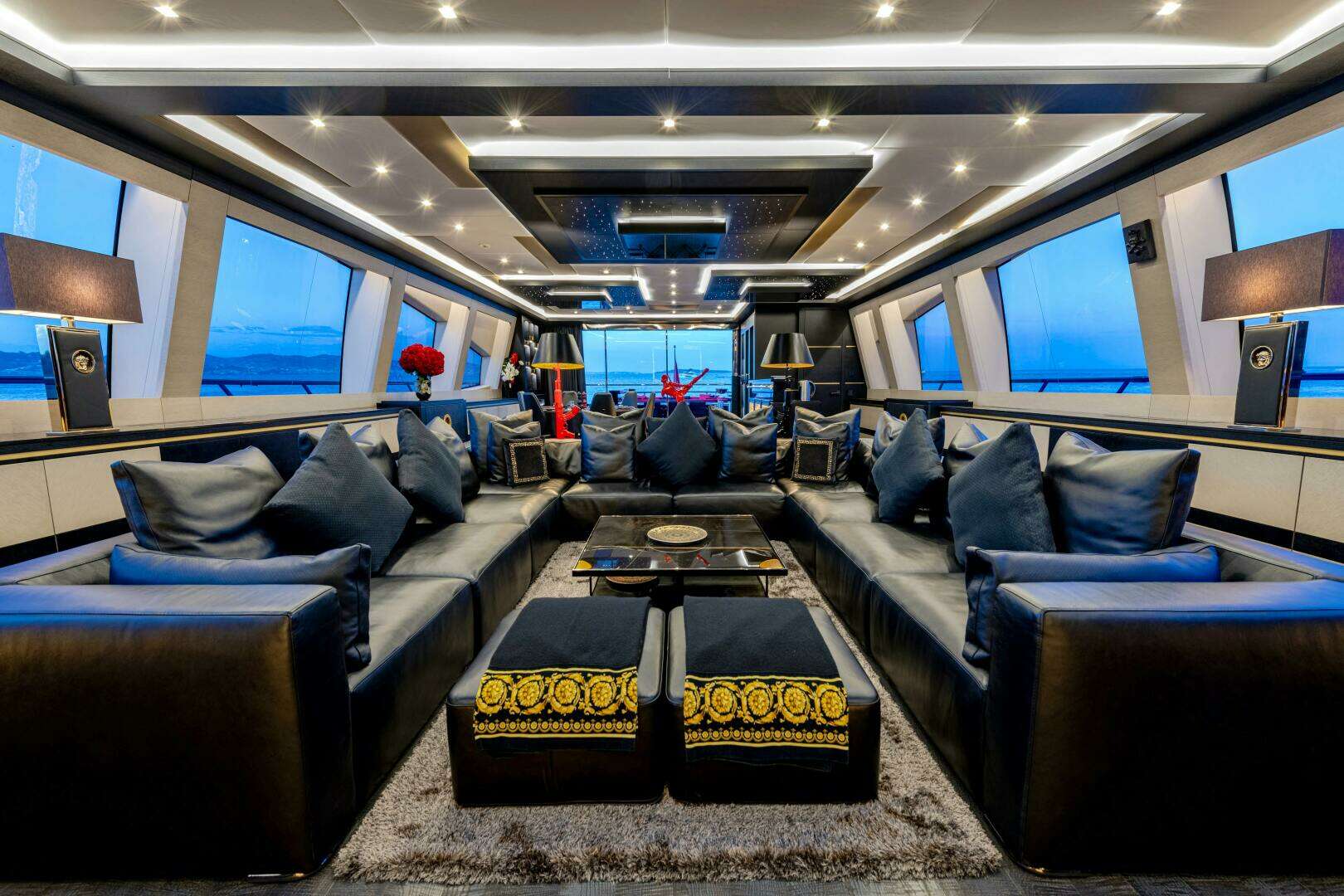

    Main deck salon

    • Glass showcase

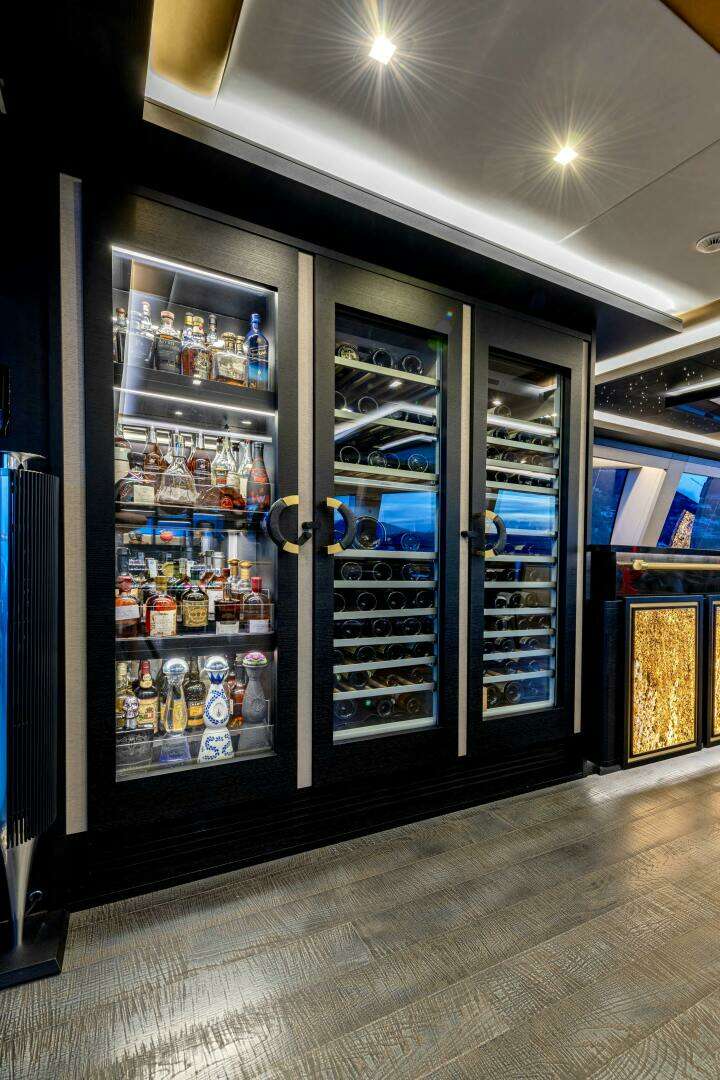

    • Wine cooler with bronze handle
    • Bronze handle/finishing on all storage furniture
    • Backlit panel with Slate Lite Elios gold
    • Black leather Minotti texture
    • Marble black granite
    • Relax Sofa Area with Minotti Leather Black and Tavolino Versace
    • Fully equipped bar
    • Day head
    • Versace guardian table & chairs
    • Celling composed with leather studio art pearl ora, white leather, black leather, fibreoptic light and indirect lighting

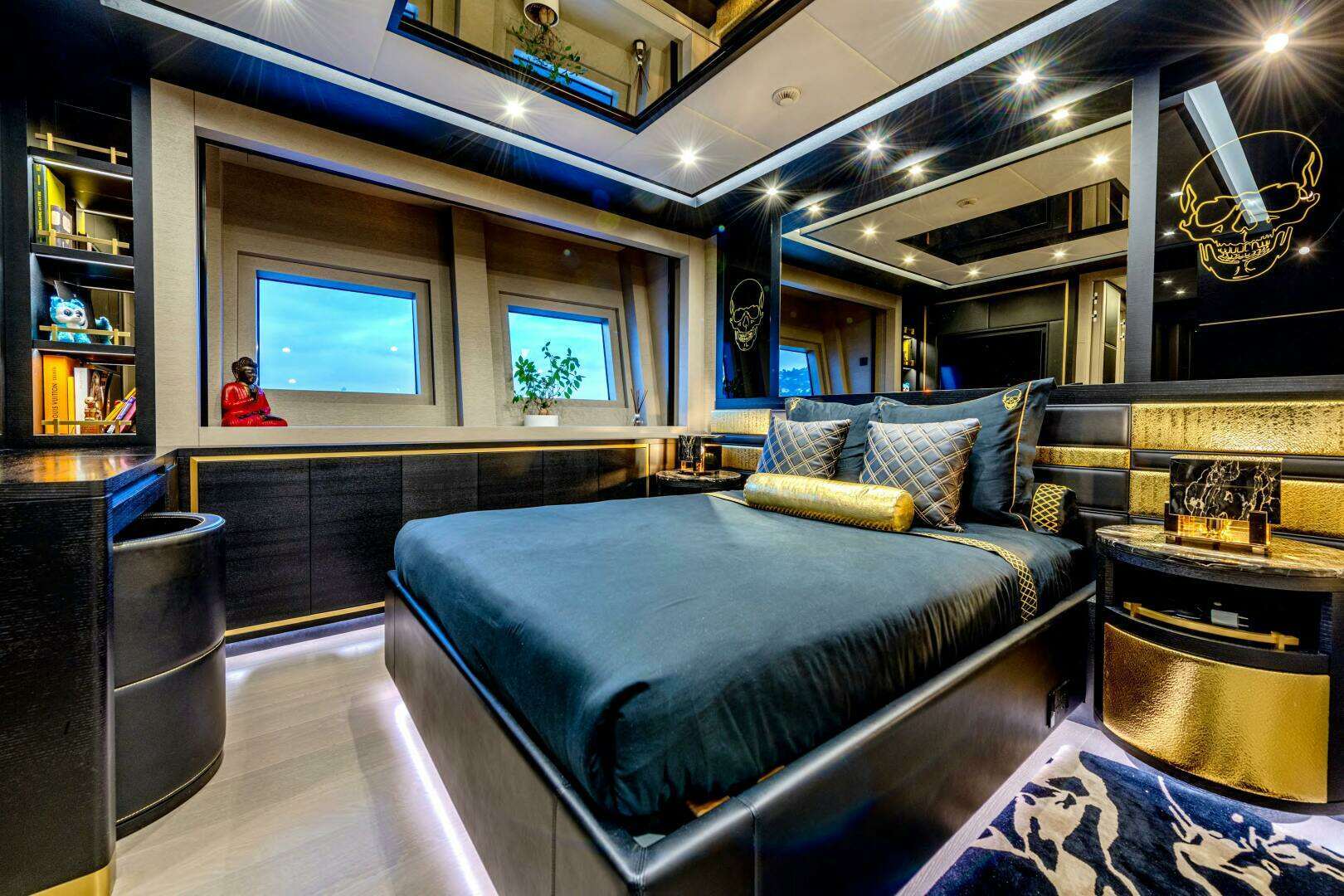

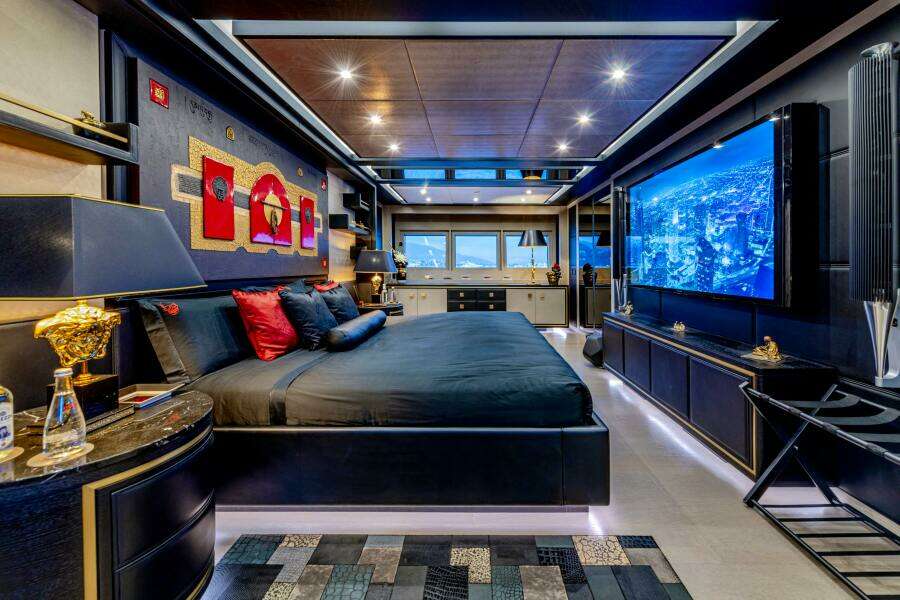

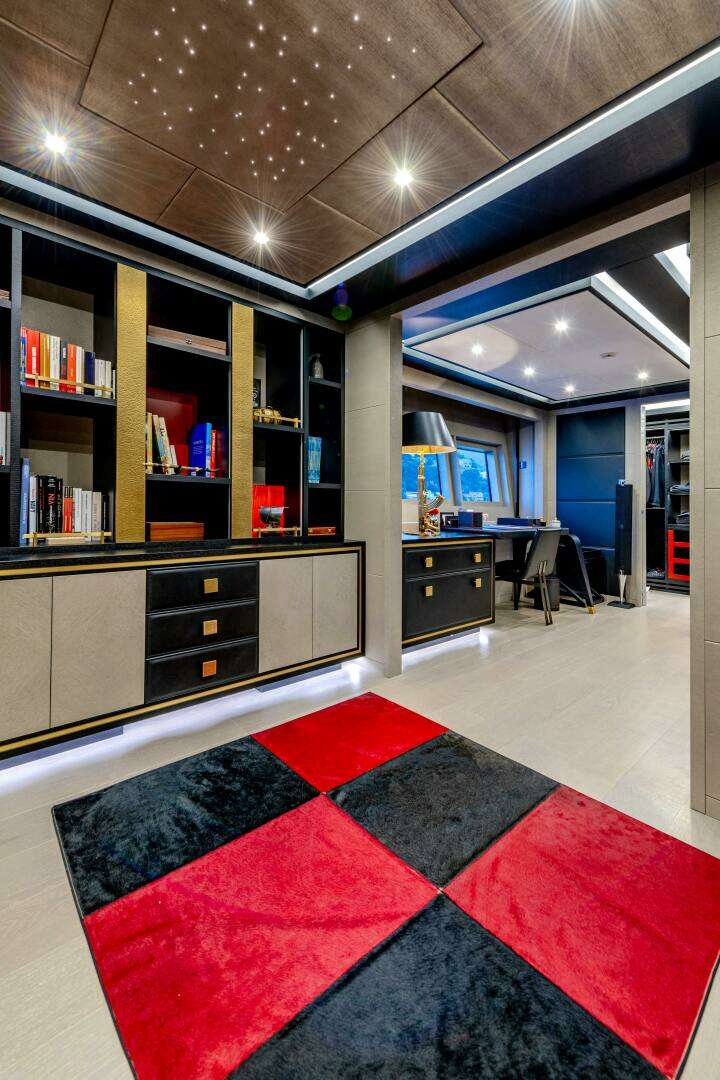

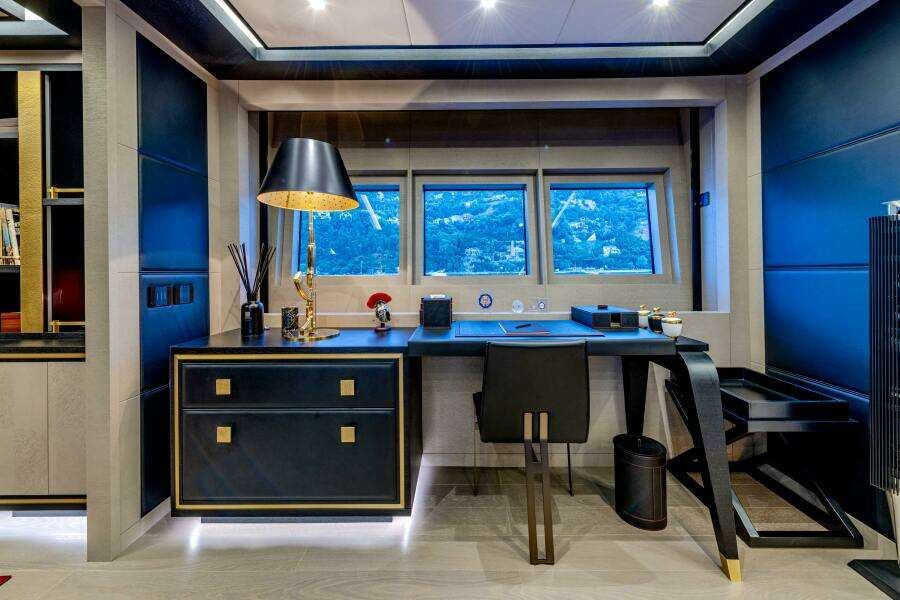

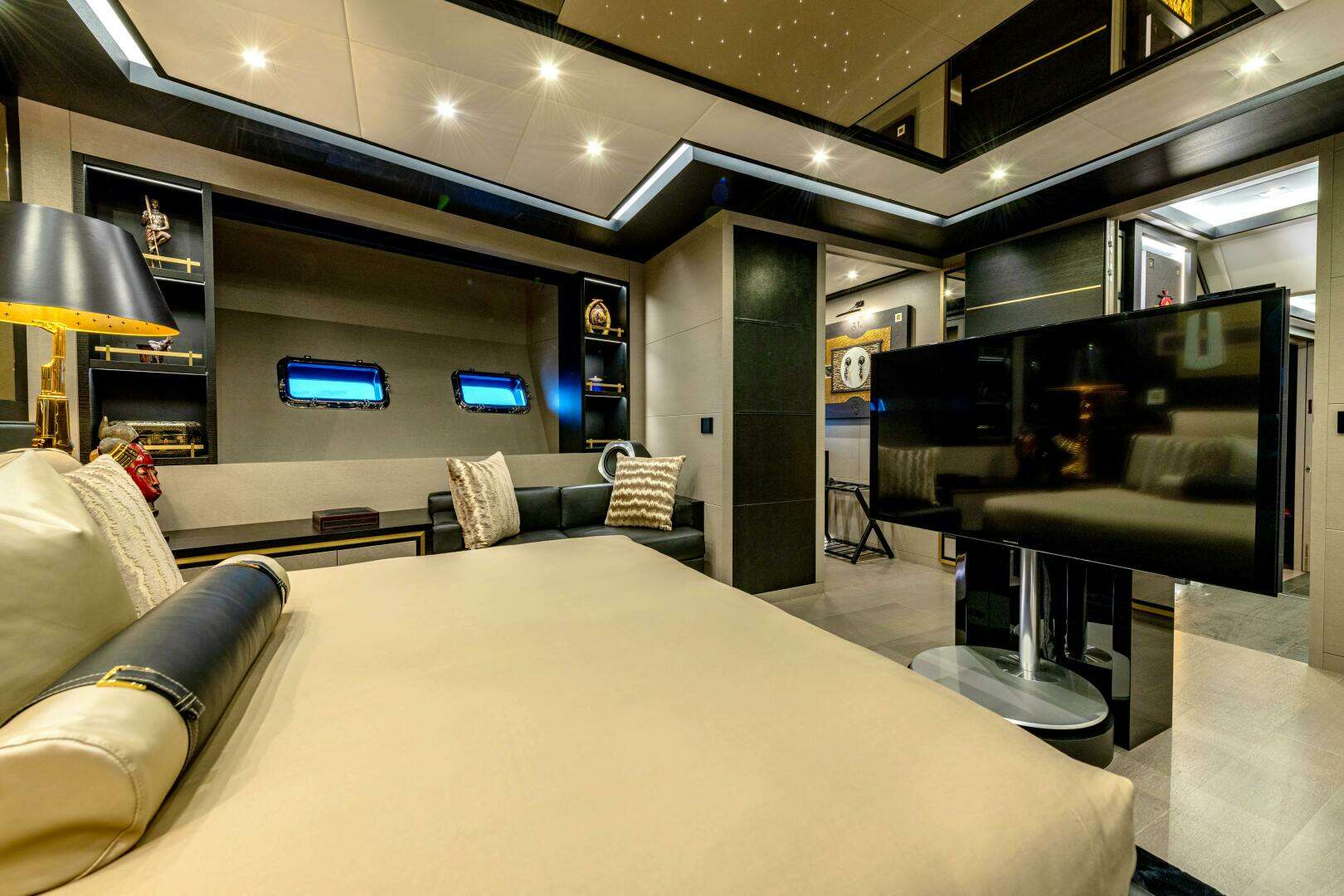

    Owner cabin

    • Entrance with a library and storage area
    • Full beam suite with bedroom

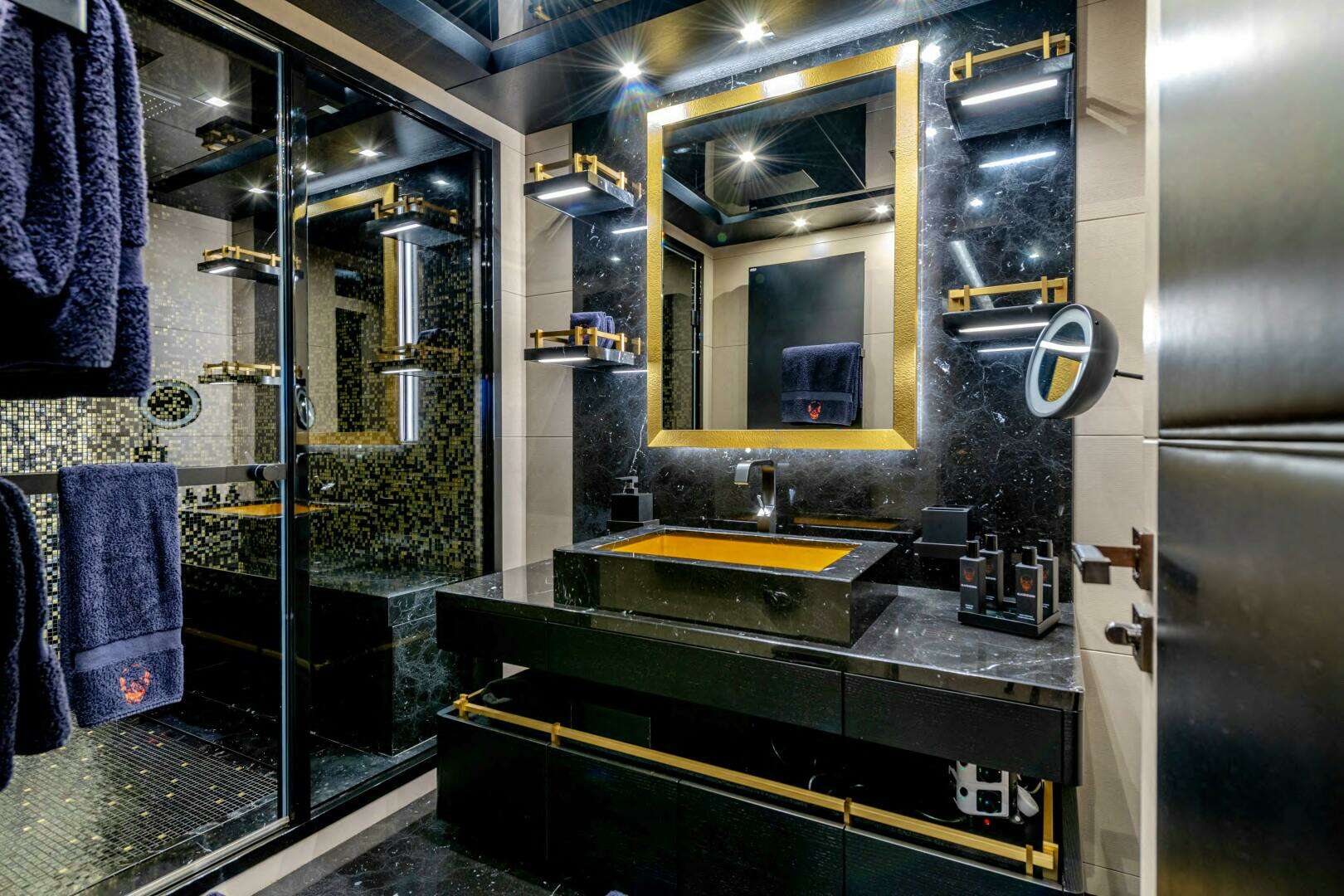

    • En-suite bathroom with hammam shower
    • Full size owner dressing
    • Marble Marquina

    VIP Cabin

    • Full beam cabin located forward
    • En-suite bathroom
    • Private dressing
    • Marble Portoro

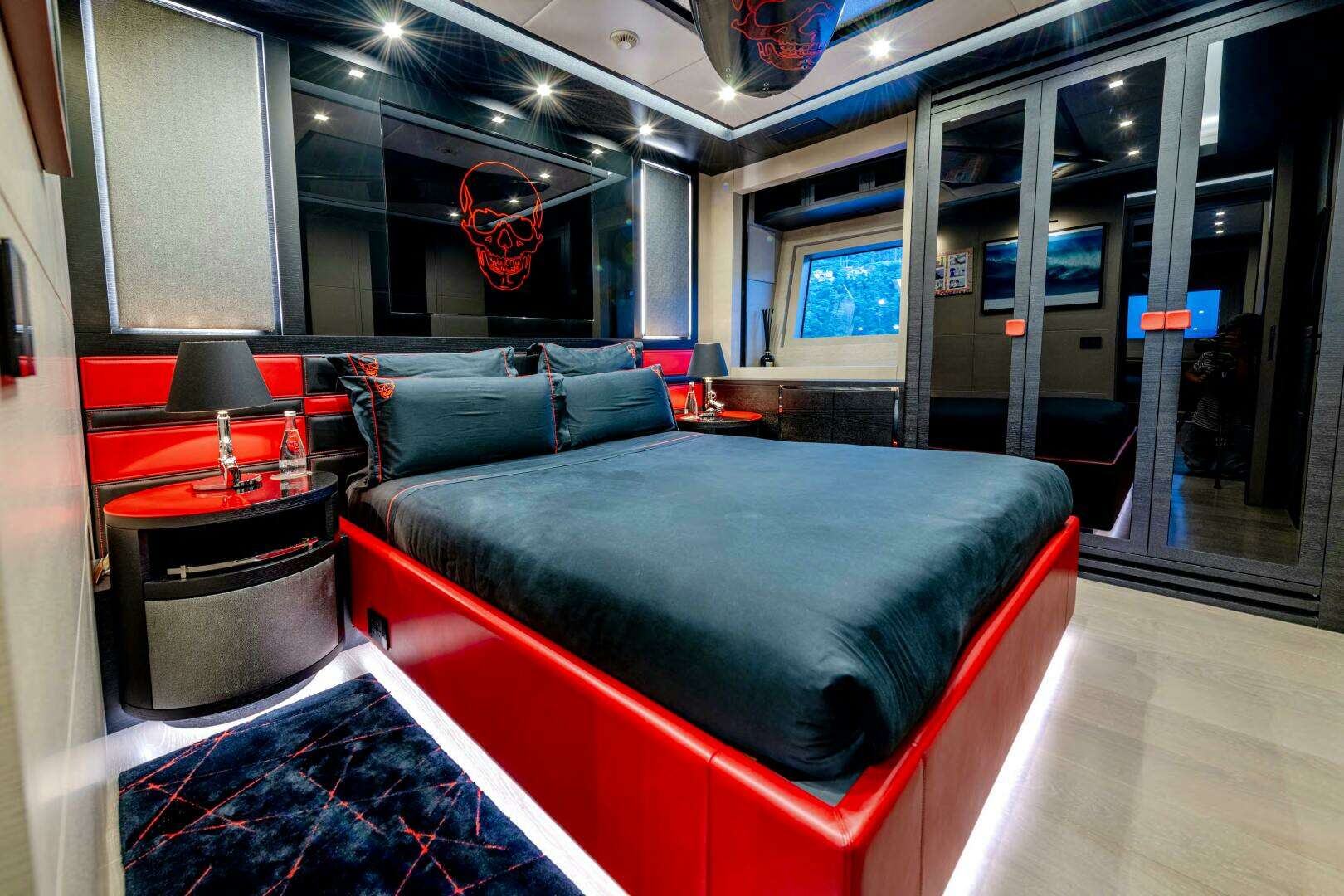

    2 x Double guest cabins

    • Cabins located portside and starboard
    • En-suite bathrooms
    • Private dressing on portside cabin
    • Marble Portoro

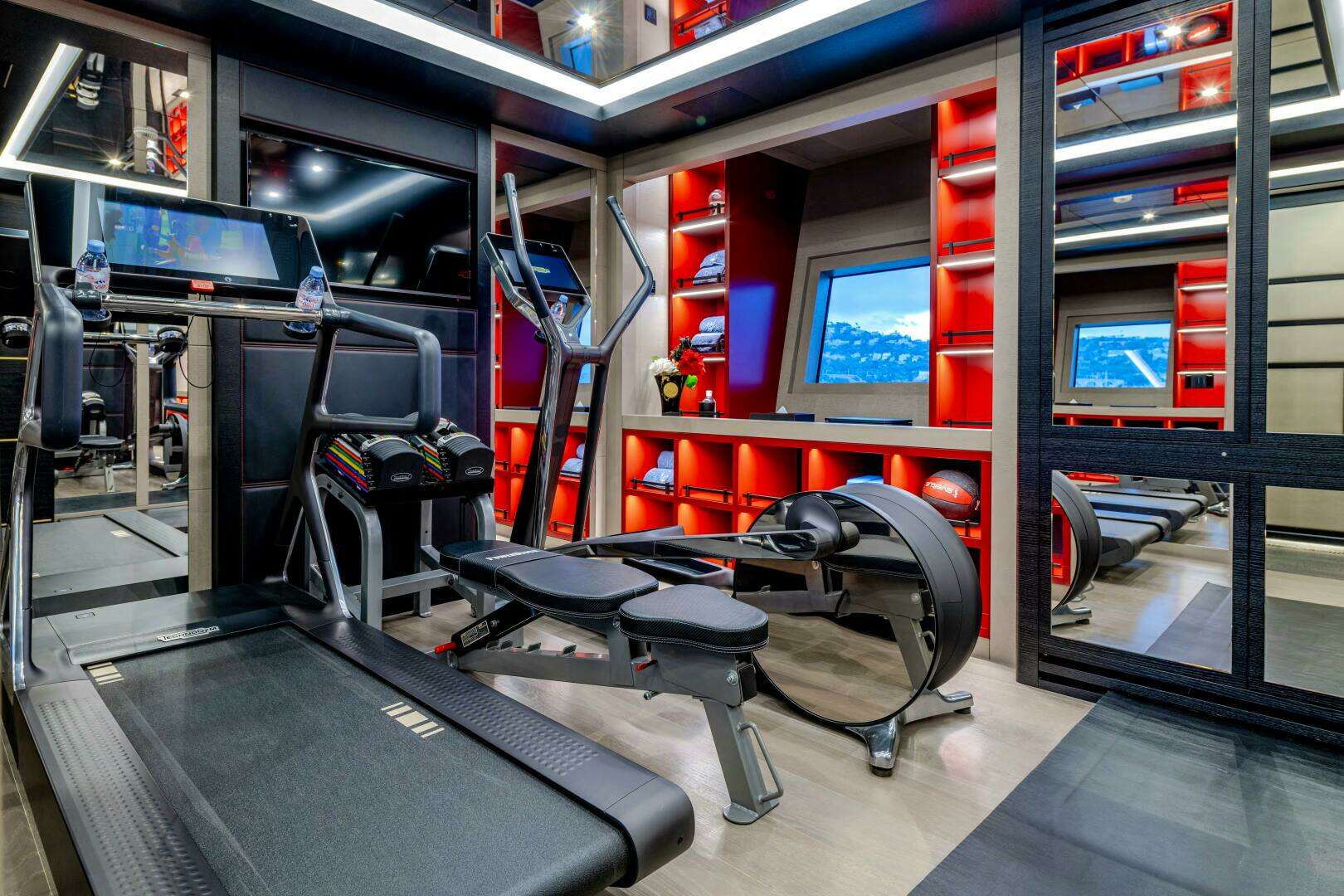

    Gym

    • Fully equipped gym by Technogym (treadmill and elliptical bike).

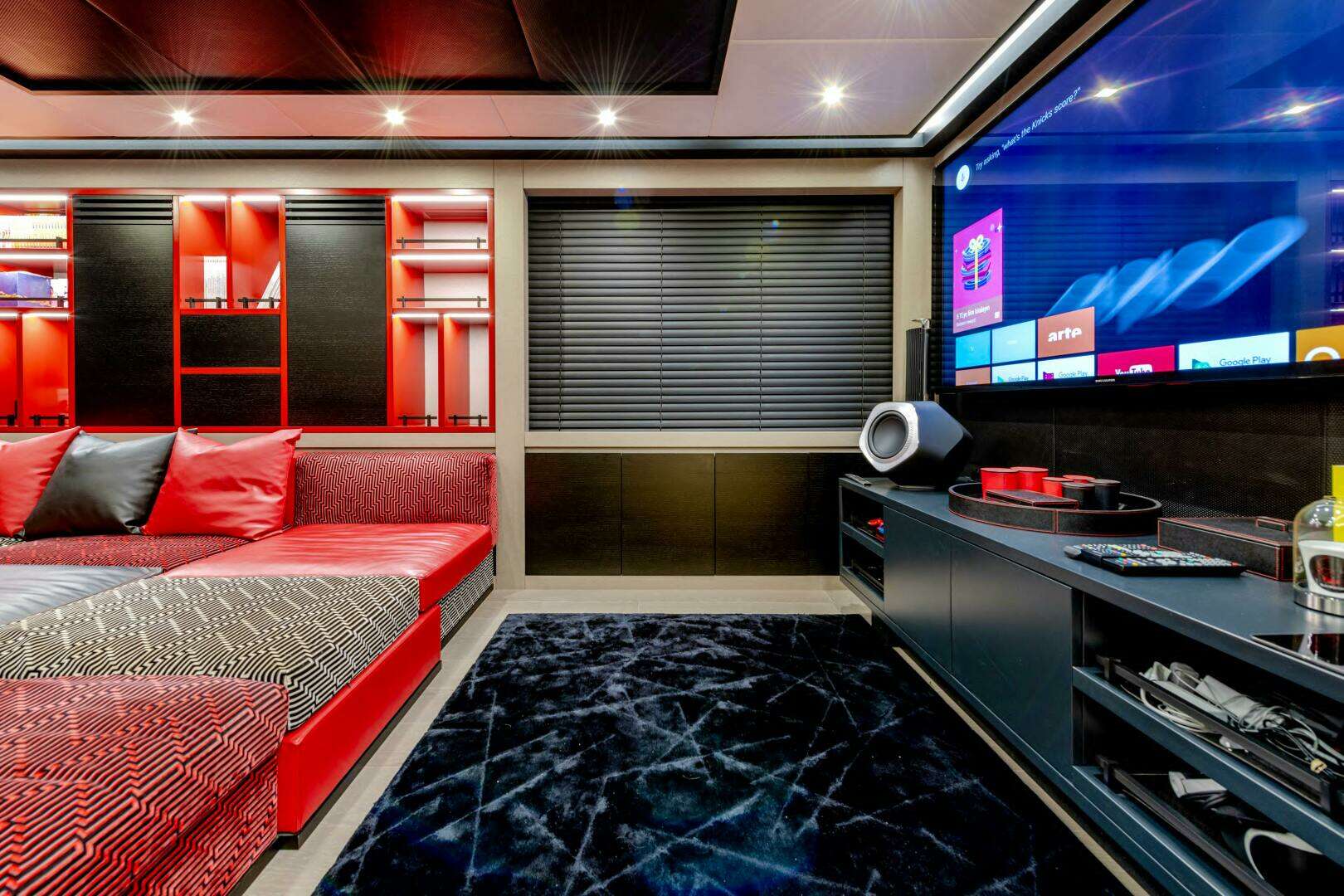

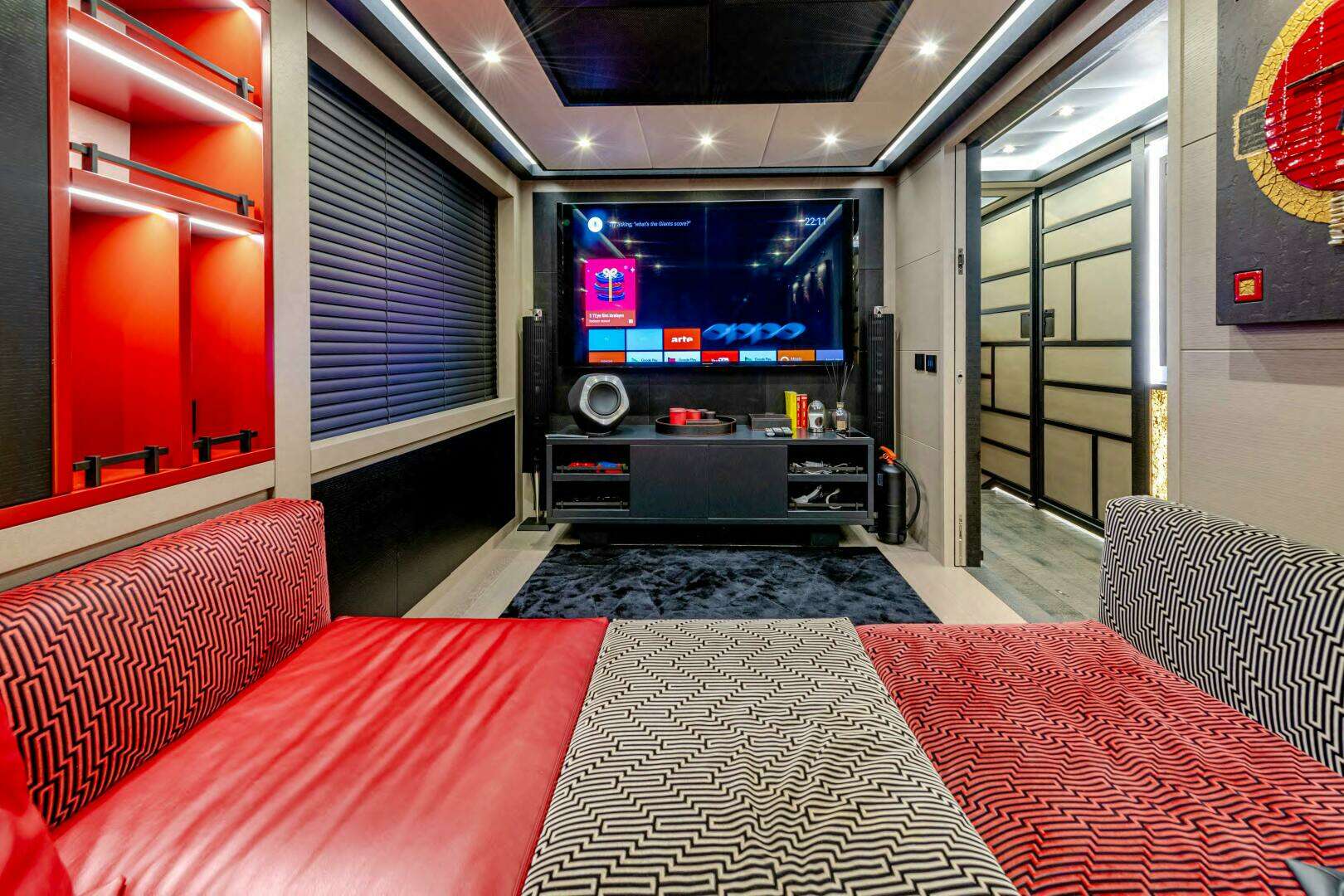

    Cinema Room

    • Cinema room with dedicated entertainment system. Can be converted into two beds.

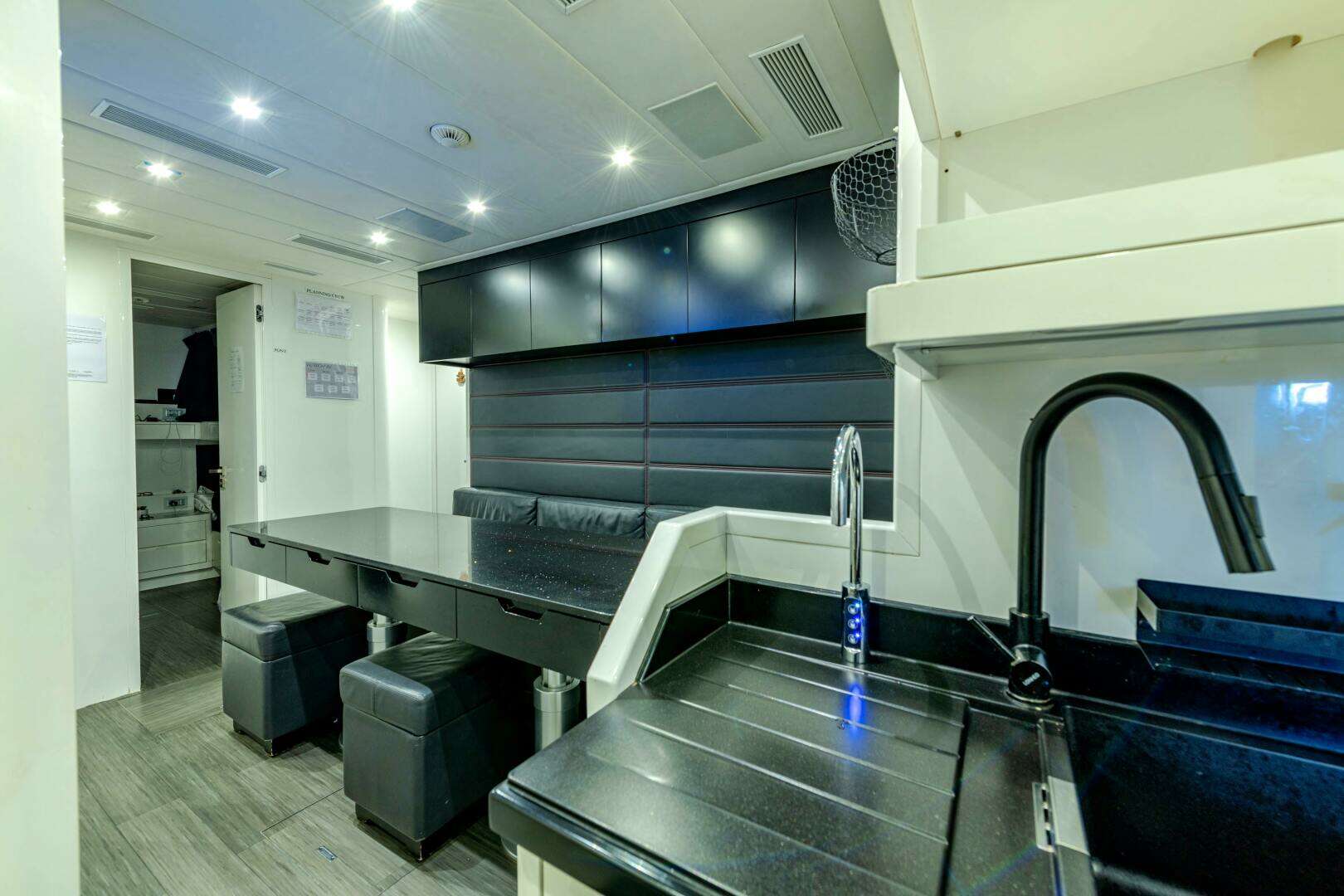

    Galley & Laundry

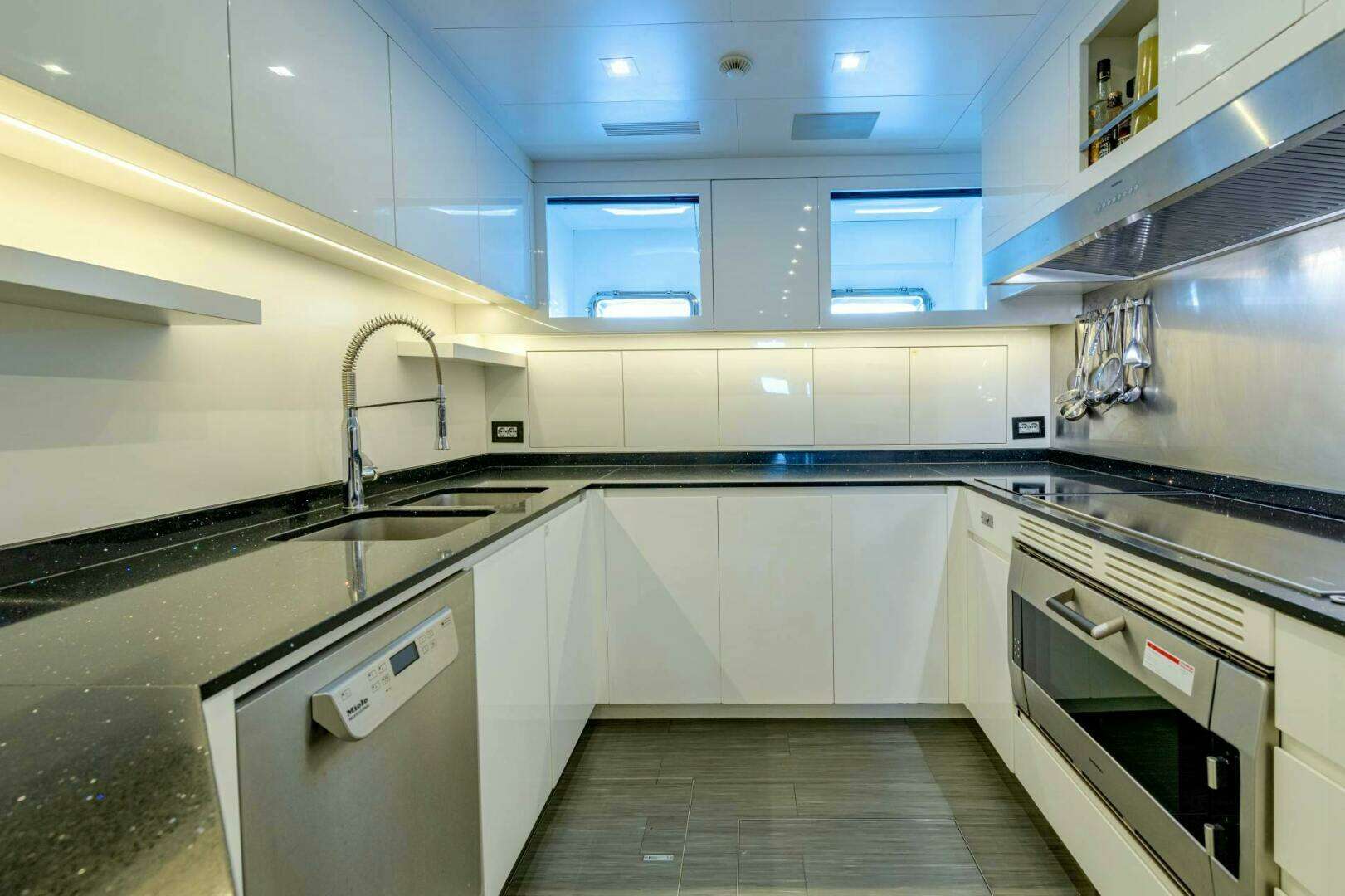

    Galley

    1 x Miele Induction Hob full surface
    1 x Miele Induction Hob
    1 x Gaggeneau oven
    1 x Microwave Gaggeneau
    8 x Custom fridges (with either positive cold or negative cold)
    2 x Freeze in bilge
    1 x Miele Dishwasher

    Laundry

    2 x Washing machine Miele Pro
    2 x Dryer machine Miele Pro


    Communication Equipment

    Pepwave 5G Router
    Pre-installation for Starlink
    VSAT V100 GX
    TV Satellite
    Peplink for WIFI distribution
    VHF-D FM-472


    Navigation Equipment

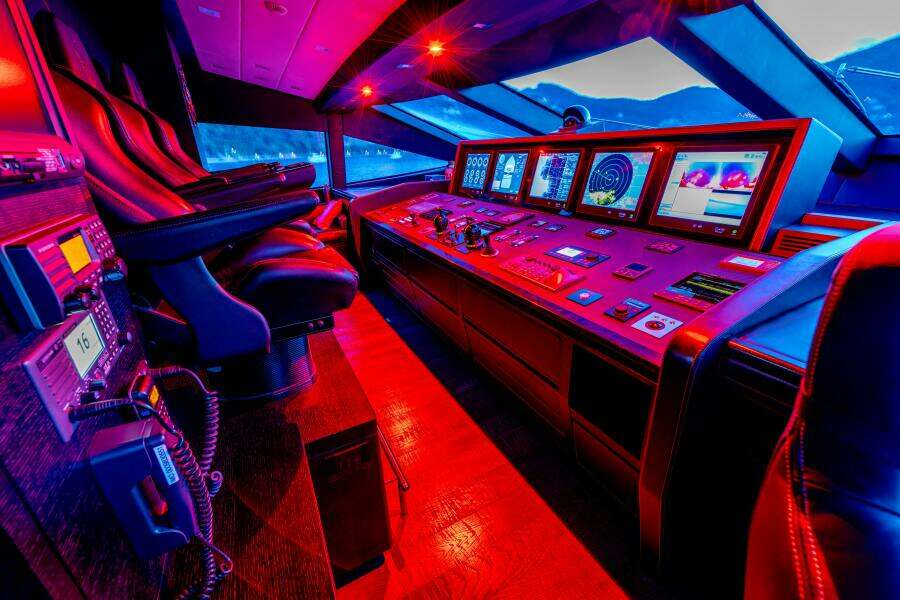

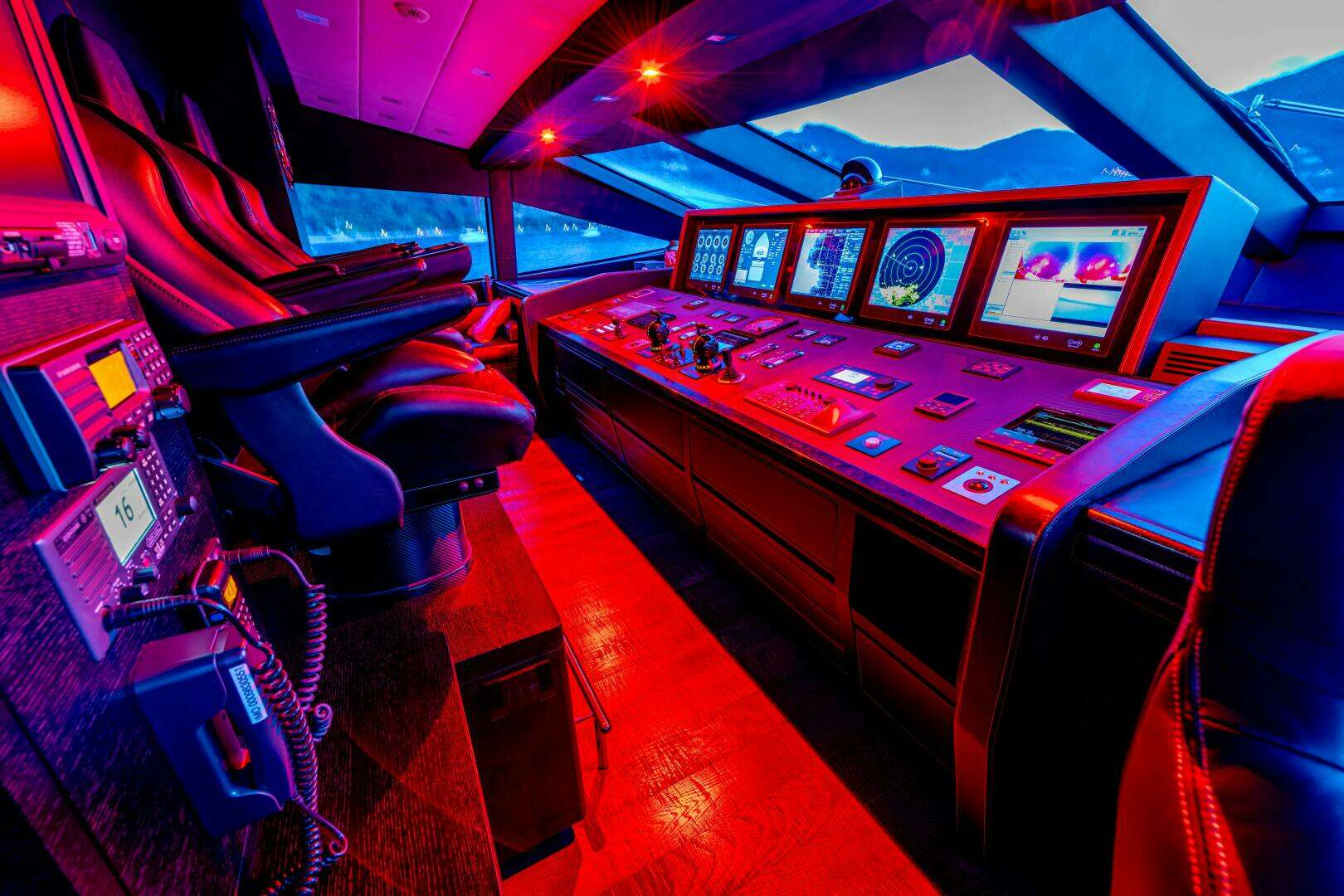

    Wheelhouse

    Displays: 5 x Hatteland 19” HD 19T21MMD
    Plotter: Transas Navisailor 4000 Conning Display
    AIS: Transas AIS Interface Level 3
    Computer: PC Wallmount WMT 300 PC Box
    GPS: Furuno GPS DGPS GP 1700 IMO approved + Furuno GPS GP-33
    Gyro Compass: Simrad GC80 + Simrad AR80 analogue repeater
    Compass: Cassens & Plath BETA 5
    Radar: Furuno FAR 211
    Depth Sounder: Furuno IMO Echo Sounder FE800
    Speed log: Furuno Doopler DS80
    Wind log: Airmar Weather WX150 NMEA 0183/2000
    Multifunction Displays: 2 x Furuno FI-70
    Autopilot: Sperry Navipilot 4000 C-PLATH
    Helm: C-Plath
    AIS: Furuno Ais Transponder FA 150 CLASS A
    BNWAS: Furuno BNWAS
    VHF: FM 8900S GMDSS Class A + VHF Furuno FM 4721 DSC Class D
    NAVTEX: Furuno NAVTEX NX700
    INMARSAT: 2 x Furuno INMARSAT STD C/LRIT – IMO FELCOM18 INMARSAT-C + Furuno INMARSAT SSAS system MINI-C FUR.FELCOM-19 SSAS
    SSB: 1x SSB Cables predisposition
    Intercom: Phonotec CIS 3100
    Infrared Camera: M-Series Flir  M-625XP

    Flybridge Wing Stations

    2 x Furuno FI-70 Multifunction Displays
    2 x VHF Repeater RB8900


    Deck Equipment

    Bollards / cleats (680mm W x 310mm H)
    4 x Bollards on foredeck
    2 x Bollards on the aft deck
    2 x Mooring line stowage winches on forepeak
    2 x Mooring line stowage winches on aft deck
    6m Telescopic gangway

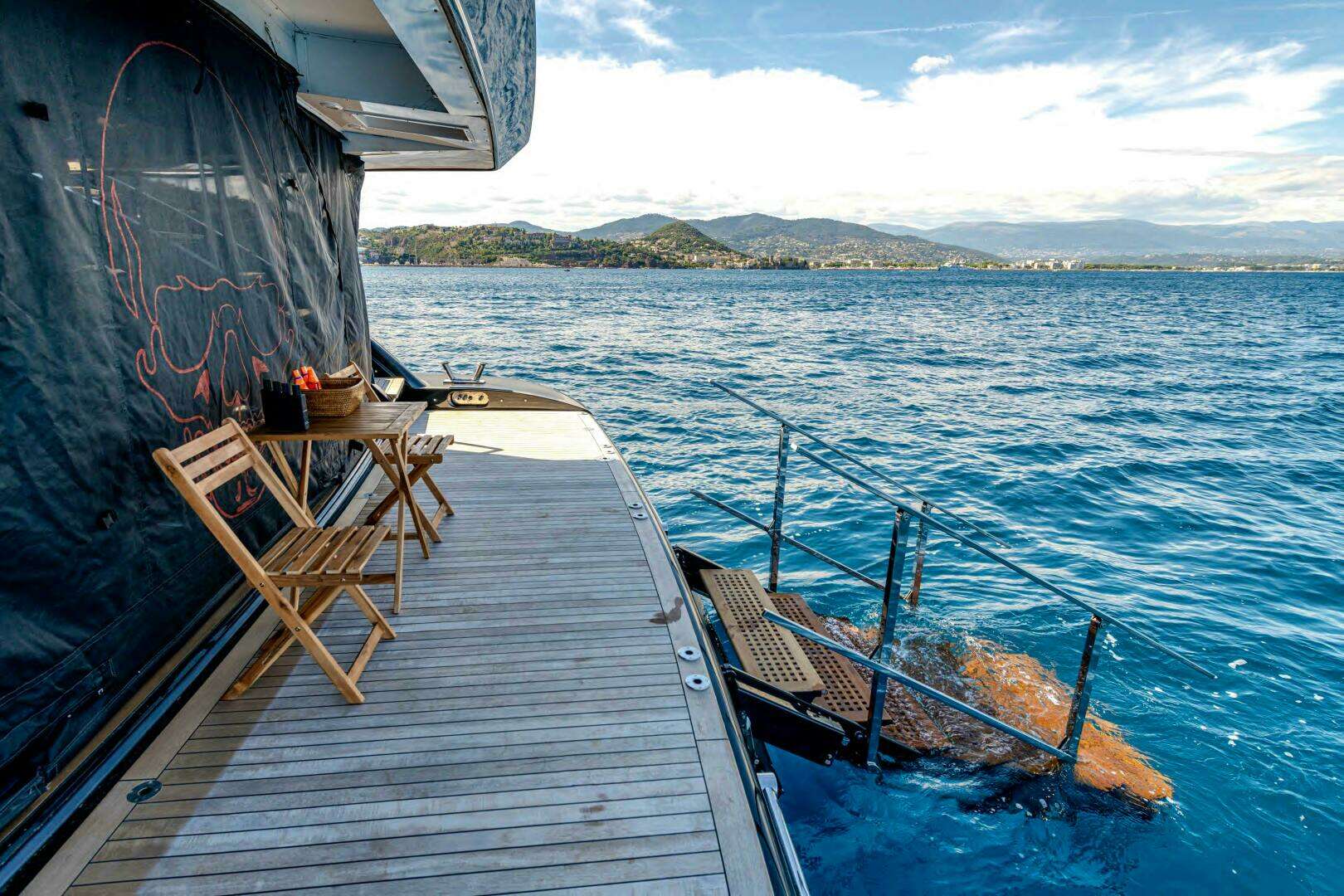

    Bathing ladder

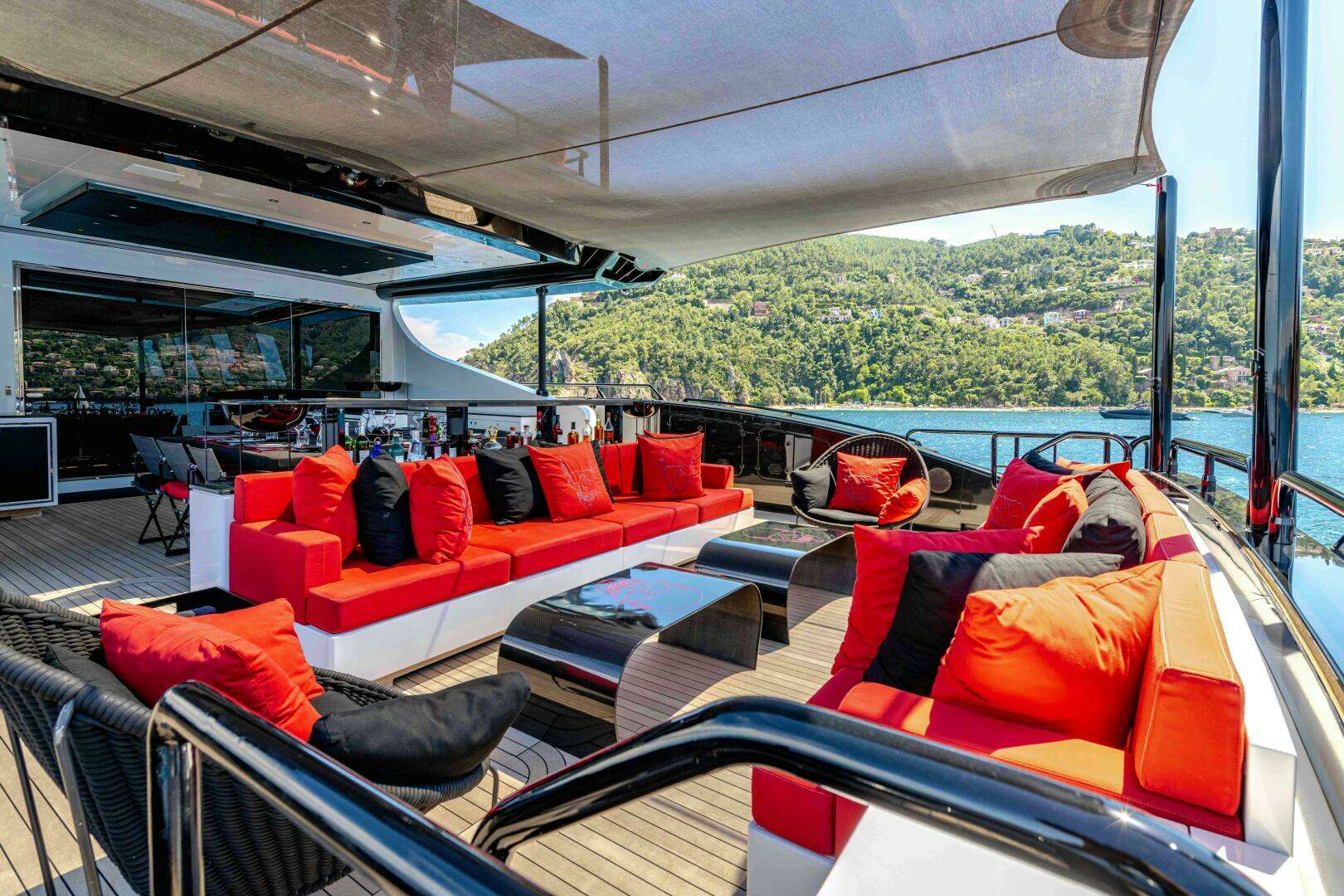

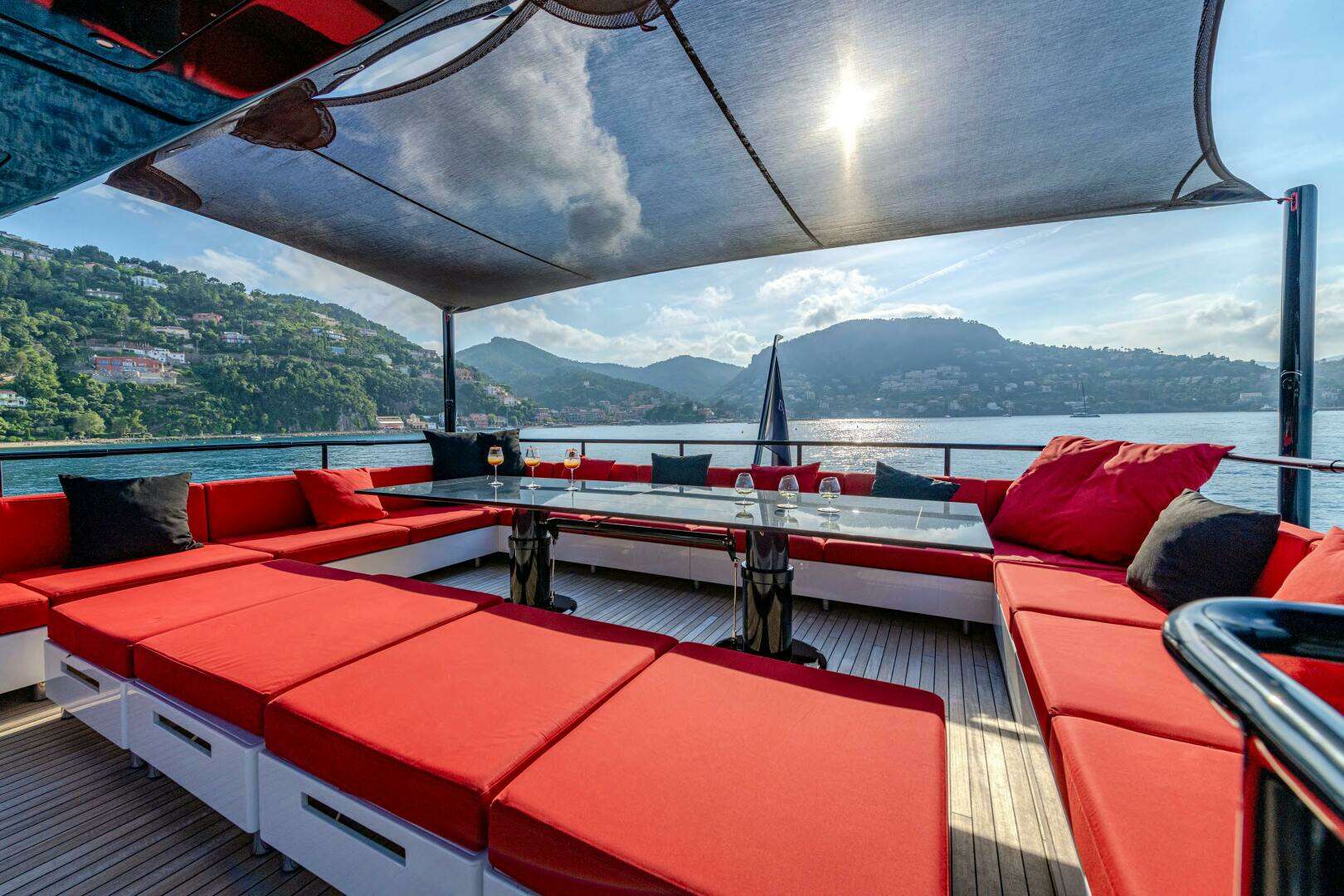

    Aft Deck

    • Black tanzania granite dining table with 8 x Dedon Seax chair
    • Aft lounge with 2 x Paola Lenti armchairs, 2 x large sofas, 2 x Paola Lenti cocktail tables
    • Bar with black tanzania granite countertop and white lacquered wood
    • Custom furniture with BBQ Napoleon bypro 825, sink, fridge, ice maker
    • Full lighting system on celling
    • Multiplex awning

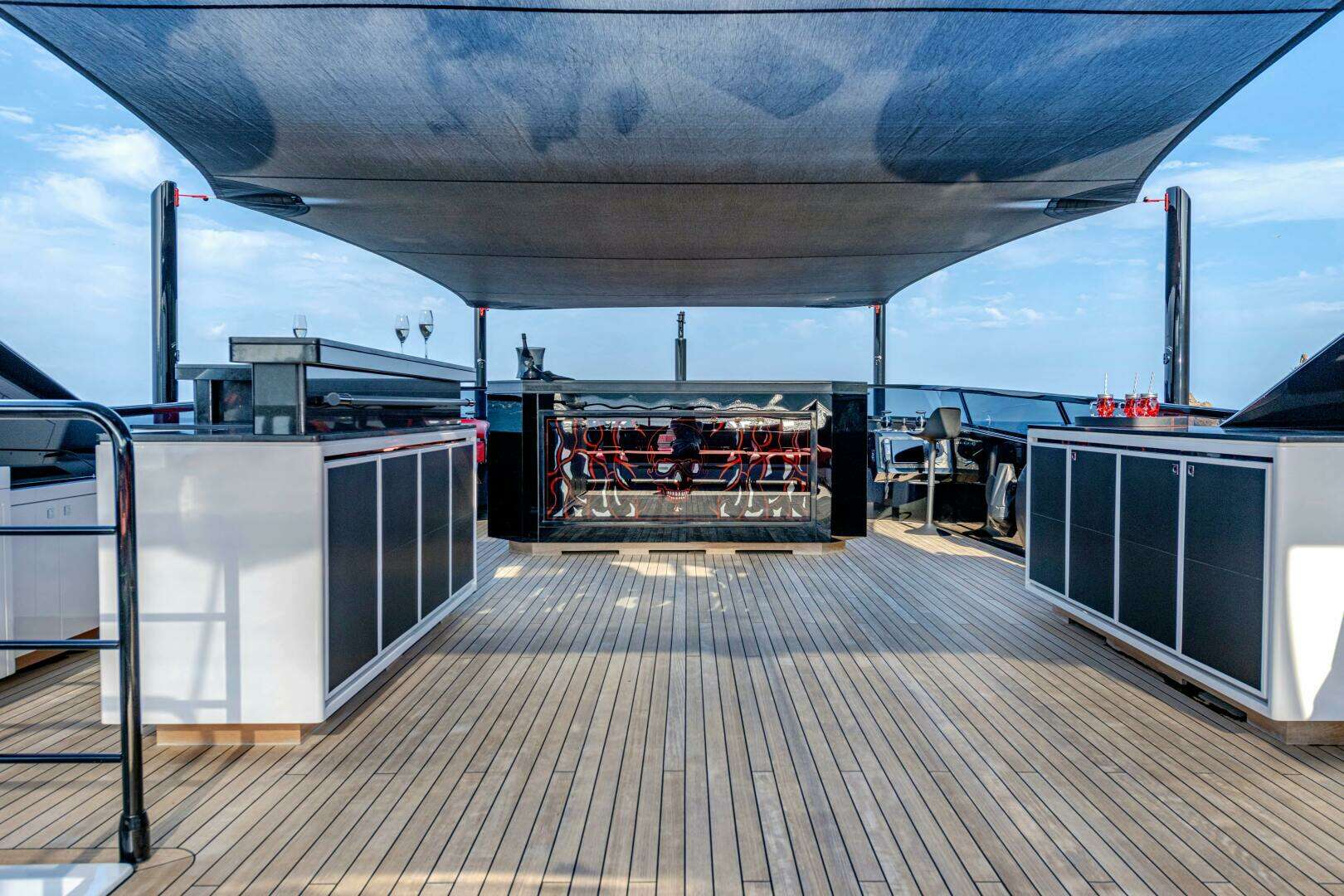

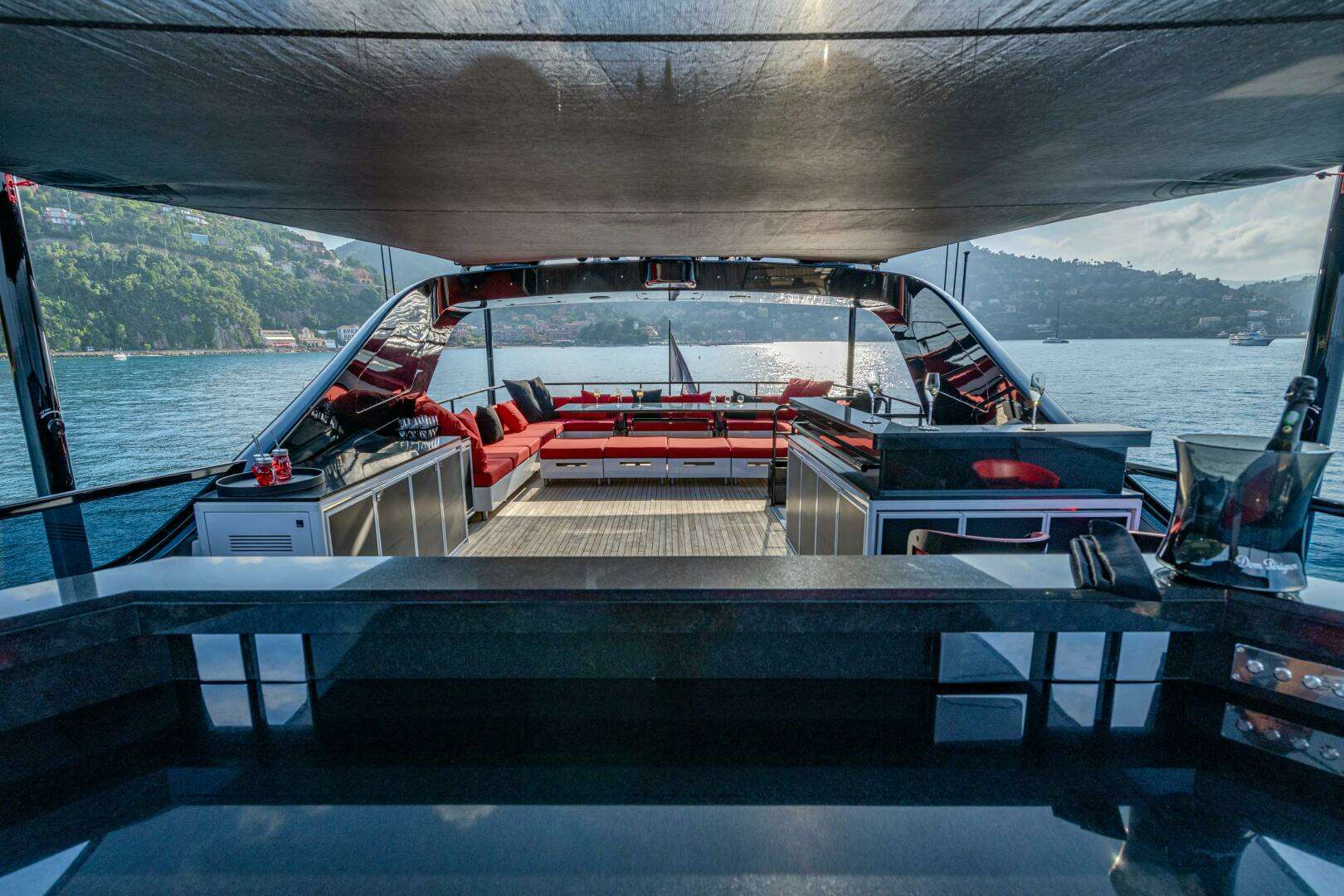

    Sun Deck

    • Very large sunbed area
    • Fully equipped bar with black granite countertop
    • Custom DJ booth
    • Sofa with forward view
    • Multiplex awning

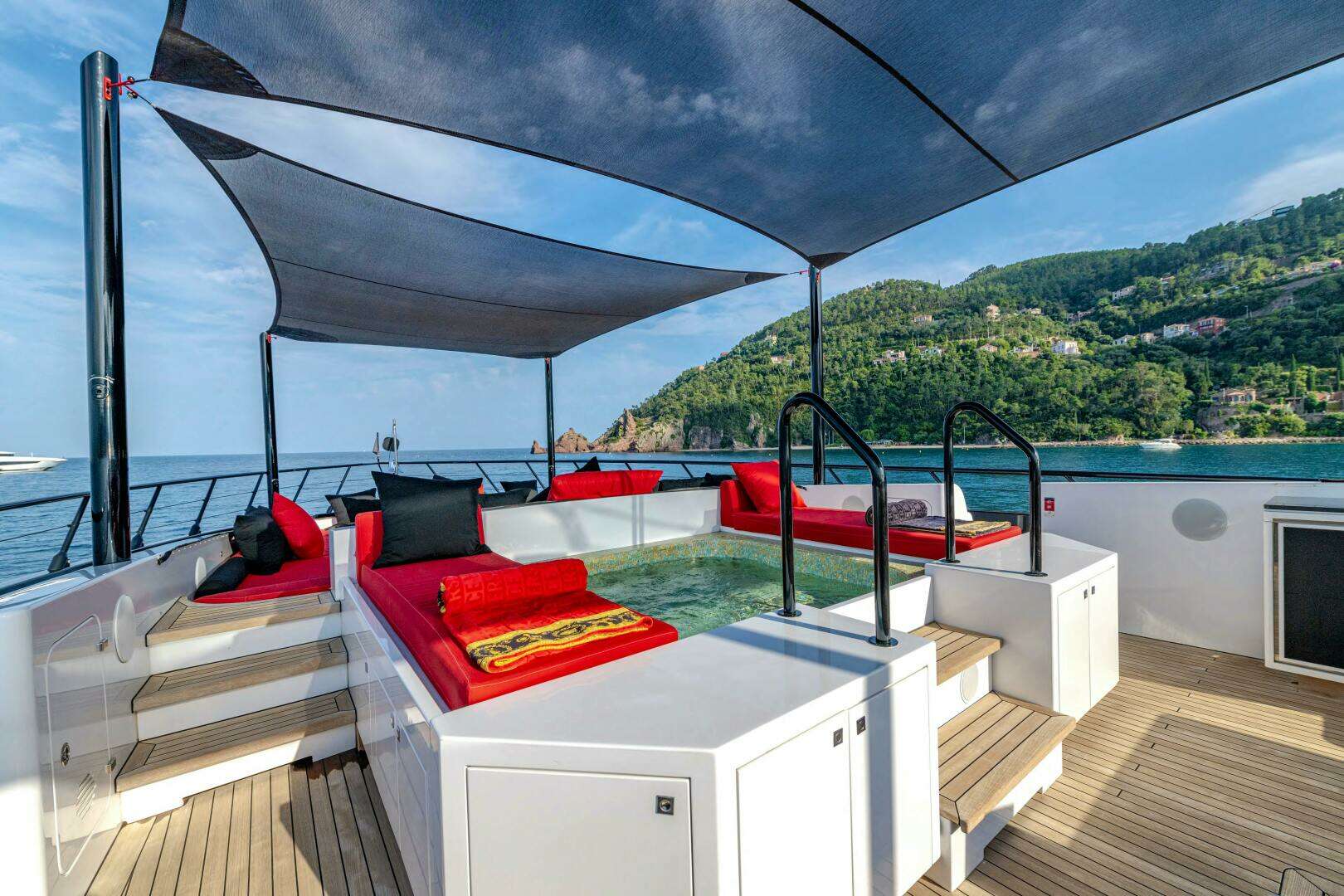

    Fore Deck

    • Large U shape sofa with 2 x cocktail tables with black granite counter-top
    • Large sunbed area
    • Mosaic jacuzzi
    • 2 x Custom storage furniture with icemaker and fridge
    • Multiplex awning

    Safety & Security Equipment

    All safety, bilge, and fire-fighting equipment according to class and flag
    Pump Gianneschi P&B / ACB 531 A – 400V - 4 Kw
    Bilge Oily Water Separator DVZ
    Bilge Oily Water Tank with capacity according to “Tank capacities”
    Emergency Pump (Diesel) outside engine room
    2 x Bilge/fire pumps, which are also used as fire pumps, are installed in the engine room
    Portable extinguishers are installed in all areas of the vessel according to the ABS/CISR regulations


    Entertainment Equipment

    Main Deck Salon

    • TV 85” Bang & Olufsen Beovision Avant
    • AVR Denon X4200
    • 1 x Beolab 19 Speaker
    • 2 x Beolab 90 Speakers
    • 2 x Beolab 18 Speakers
    • DVD OPPO BDP 1050 EU
    • Sealux HD / 3D A/V Client Spec
    • Apple Ipad Mini 4 64GB
    • Apple TV
    • Satellite Decoder HUMX TN7000HF

    Aft Deck

    • 4 x Sonance VT 6.5” Waterproof loudspeakers
    • 4 x Sonance XTR 6.5” Waterproof loudspeakers
    • Sonance Sonamp SDP8-130 Amplifier
    • Sealux HD Audio Client Spec
    • Apple Ipad Mini 4 64GB

    Foredeck

    • 8 x Sonance XTR 6.5” Waterproof loudspeakers
    • Sonance Sonamp DSP8-130 Amplifier
    • Sealux HD Audio Client Spec
    • Apple Airport Express
    • Apple Ipad Mini 4 64GB

    Garage

    • 2 x Sonance Mariner W82 Speakers
    • Sonance Sonamp DSP2-150 Amplifier
    • Volume control plate

    Flybridge

    • 4 x Sonance VT 6.5” Waterproof loudspeakers
    • 4 x Sonance XTR 6.5” Waterproof loudspeakers
    • Sonance Sonamp DSP8-130 Amplifier
    • Sealux HF Audio Client Spec
    • Apple Ipad Mini 4 64GB
    • Pioneer XDJ-RX
    • Pioneer RMX500
    • Pioneer HDJ-2000-K
    • 2 x Pioneer RM-07

    Owner’s Cabin

    • TV 75” Bang & Olufsen Beovision Avant
    • 1 x Beolab 19 Speaker
    • 4 x Beolab 18 Speakers
    • DVD Oppo BDP 105D EU
    • Sealux HD / 3D Client Spec
    • Apple Ipad Mini 4 64GB
    • Apple TV
    • Satellite Decoder HUMX TN7000 HD
    • AVR Denon X4200

    Owner’s Ensuite

    • 2 x Sonance VP66
    • Volume Control Plate

    Port Guest Cabin

    • TV 40” Samsung L Due 60 JU6410
    • AVR Denon X2200
    • 2 x Sonance VP 66 Speakers
    • Sonance Subwoofer VP12SUB NC
    • DVD Samsung BluRay BDH8900
    • Sealux HD / 3D AV Client Spec
    • Apple Ipad Mini 4 64GB
    • Satellite Decoder HUMX TN7000 HD

    Port Guest Ensuite

    • 2 x Sonance VP66 Speakers
    • Volume Control Plate

    Gym

    • TV Samsung L Due 40 JU6410
    • AVR Denon X2200
    • 2 x Sonance VP 66 Speakers
    • Sonance Subwoofer VP12SUB NC
    • DVD Samsung Bluray BD-H 8900
    • Sealux HD / 3D A/V Client Spec
    • Apple Ipad Mini 4 64GB
    • Satellite Decoder HUMX TN7000 HD
    • Apple TV

    Starboard Guest Cabin

    • TV 40” Samsung L Due 40 JU6410
    • AVR Denon X2200
    • 2 x Sonance VP66 Speakers
    • Sonance Subwoofer VP12SUB NC
    • DVD Samsung Bluray BD-H 8900
    • Sealux HD / 3D A/V Client Spec
    • Apple Ipad Mini 4 64GB
    • Satellite Decoder HUMX TN7000 HD

    Starboard Guest Ensuite

    • 2 x Sonance VP66
    • Volume Control Plate

    Cinema Room

    • TV 75” Bang & Olufsen Beovision Avant
    • AVR Denon X4200
    • 1 x Beolab 19 Speaker
    • 4 x Beolab 18 Speakers
    • DVD OPPO BDP 1050 EU
    • Sealux HD / 3D A/V Client
    • Apple Ipad Mini 4 64GB
    • Apple TV
    • Satellite Decoder HUMX TN700 HF
    • Sony Playstation 4
    • WII U Gaming Console

    VIP Cabin

    • TV 55” Bang & Olufsen Beovision Avant
    • AVR Denon X4200
    • 1 x Beolab 19 Speaker
    • 2 x Beolab 18 Speakers
    • DVD Samsung Bluray BD-H8900
    • Sealux HD / 3D A/V Client Spec
    • Apple Ipad Mini 4 64GB
    • Satellite decoder HUMX TN7000 HD

    VIP Ensuite

    • 2 x Sonance VP66 Speakers
    • Volume Control Plate

    Crew Mess

    • TV 40” Samsung L Due 40 JU6410
    • 2 x Sonance VP66 Speakers
    • AVR Denon X3200
    • Sealux HD / 3D A/V Client spec
    • Apple Ipad mini 4 64GB
    • Satellite decoder HUMX TN7000 HD
      Hatteland HD 19T21MMD 19” CCTV monitor
    • Furuno FI-70 Multifunction display
    • 9001-Indoor unit
    • Furuno BNWAS BR540
    • Furuno remote handset HS4721

    Laundry

    • Pioneer DEH4800FD
    • 2 x Sonance VP66 Speakers

    Galley

    • Pioneer DEH 4800FD
    • 2 x Sonance VP66 Speakers

    Captain’s Cabin

    • TV LED Samsung 32”
    • 2 x Sonance VP66 Speakers
    • AVR Denon X2200
    • Sealux HD / 3D A/V Client Spec
    • Apple Ipad Mini 4 64GB
    • Satellite decoder HUMX TN7000HD
    • Furuno BNWAS BR540
    • Furuno FI70 Multifunction display

    Crew Cabins

    • 2 x TV LED Samsung 22 H5500
    • 2 x Bluetooth headsets
    • Sealux HD / 3D A/V Client spec
    • Apple Ipad Mini 4 64GB
    • Satellite decoder HUMX TN7000 HD

    ECR

    • Pioneer DEH 4800FD
    • 2 x Sonance XTR 6.5” Waterproof speakers
    • 9003 Substation Headset

    Tender & Toys

    Milpro Commando Tender
    Seadoo RXPX 300
    2x Seabob F5S Carbon


    Refit History

    All machinery serviced annually according to best practices
    MTU engines still under warranty

    2017

    • MTU Engine Interface Module changed for port engine
    • Generators standard annual service

    2018

    • MTU standard annual service
    • Generators standard annual service
    • Seakeeper starboard centre ECU replacement

    2019

    • MTU 500hrs service
    • MTU replacement of alternator seals and bearings
    • KaMeWa standard annual service
    • Generators standard annual service

    2020

    • MTU port engine centre, modification of the condensation air manifold
    • MTU port and starboard engine centre, turbocharger casing
    • MTU 1000hrs service
    • ZF. A1 service
    • SELLMAR reconditioning of the 3 pumps, replacement of UV lamps and ballast
    • KaMeWa standard annual service. Oil analysis, alignment check, ultrasonic examination
    • Humphree cleaning of the blades and replacement of the through-hull fittings with engine rings
    • Generators 6000hrs service
    • Seakeepers annual service + bushing + accumulator / hydraulic circuit flushing

    2021

    • MTU standard annual service
    • SELLMAR removal of the probe plate, workshop service. Creation of a new gasket. Replacement of probes. Disassembly/reassembly of the seawater pump. Disassembly/reassembly of the discharge pump
    • KaMeWa standard annual service
    • Humphree cleaning of the blades and replacement of the motor bushings
    • Idromar replacement of UV lamps, replacement of level probes, replacement of seal kits for all pumps. Water quality test
    • Idromar test of RAS membranes. Removal of high-pressure pump for servicing. Replacement of quartz and UV lamp, cleaning of sand filter, replacement of low-pressure gauge
    • Generators turbo refurbishment, cylinder compression test, endoscopy
    • ZF. 5-year inspection

    2022

    • 5-year special survey
    • MTU QL1
    • KaMeWa 5-year service, PTO pump service on the external MP, replacement of fly screen.
    • Removal of directional KaMeWa’s
    • Humphree cleaning of the blades and replacement of the motor bushings. Blade removal and workshop inspection
    • Idromar microbiological water analysis, removal of membranes, testing, replacement of membrane caps, replacement of low-pressure pump, removal of high-pressure pump and electric motor for reconditioning, oil change for high-pressure pump, replacement of high-pressure hoses.
    • Generators replacement of exhaust elbows, replacement of injection pump, change of EDM pump seal
    • Seakeepers annual service, bushing, accumulators / hydraulic circuit flushing, glycol
    • Draining, seal replacement on the internal gyro cylinder port centre.
    • All anodes replaced

    2023

    • MTU standard annual service
    • SELLMAR general inspection, replacement of level probes, replacement of the charcoal filter, replacement of U.V. lamps, cleaning
    • KaMeWa service, oil analysis, alignment check. Removal of boosters, replacement of all hydraulic hoses
    • Humphree cleaning of the blades and replacement of the motor bushings
    • Idromar removal of high-pressure and low-pressure pumps for reconditioning (new low- pressure pump), replacement of quartz and UV lamp, replacement of pressure gauge
    • Generators replacement of injection rail port/starboard - replacement of EDM pumps, replacement of generator bearings. Removal of the temperature exchanger. Removal of the air exchanger. Removal of the fuel exchanger. Removal of the transmission oil exchanger. Removal of the Expansion Tanks. Cleaning (acid / degreaser / pressure wash). Replacement of seals. Pressure / vacuum tests.
    • Seakeeper service at 1000 hours for all. Port centre replacement of glycol pump No. 2.
    • Overhaul of the EDM pump
    • ZF service A and endoscopic analysis.

    2024

    • MTU standard annual service
    • SELLMAR replacement of the charcoal filter, installation of new suction pipes
    • KaMeWa standard service, oil analysis, replacement of KaMeWa wing station levers
    • Humphree cleaning of the blades and replacement of the motor bushings
    • Idromar winterizing, replacement of filter head, replacement of sand filters. Membrane testing
    • Generators standard annual service

    Exclusions

    Works of art and personal owner's items are not included in the sale.

    Contact

    For more information about this yacht, please contact Ed Dickinson We look forward to working with you!

    For more information about this yacht, please contact Ed Dickinson. We look forward to working with you!

    For more information about this yacht, please contact Ed Dickinson.

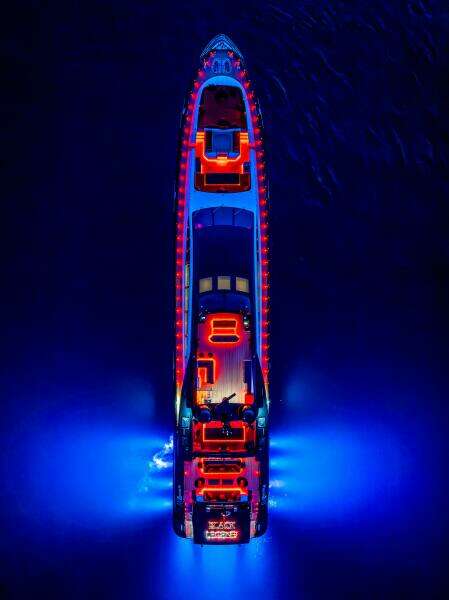

    BLACK LEGEND 163ft Overmarine Yacht For Sale
    Ed Dickinson
    Yacht Broker

    LE BEAU RIVAGE 9 AVENUE D'OSTENDE

    Monaco Monaco 98000 FR

    +33 6 48 90 59 13
