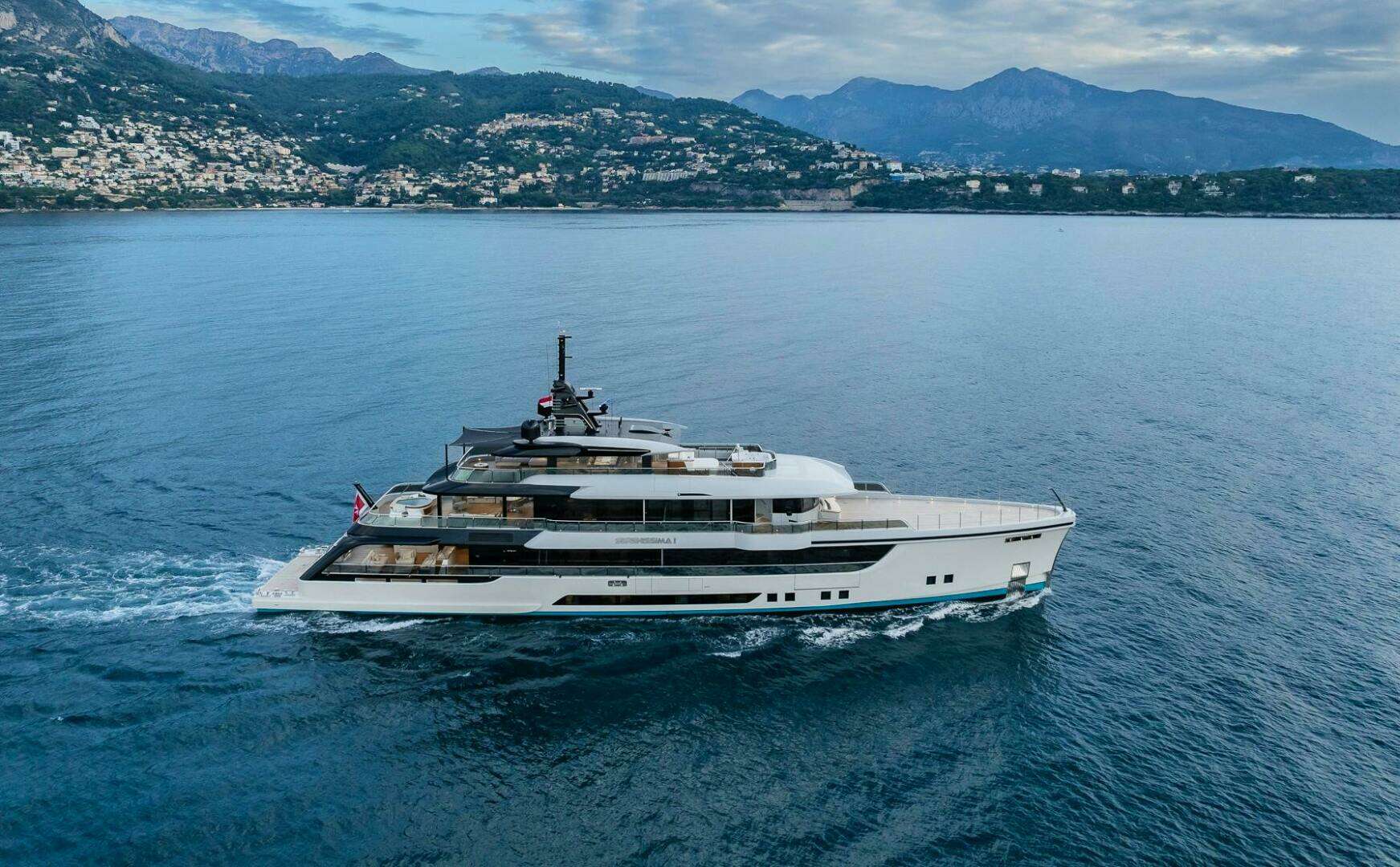

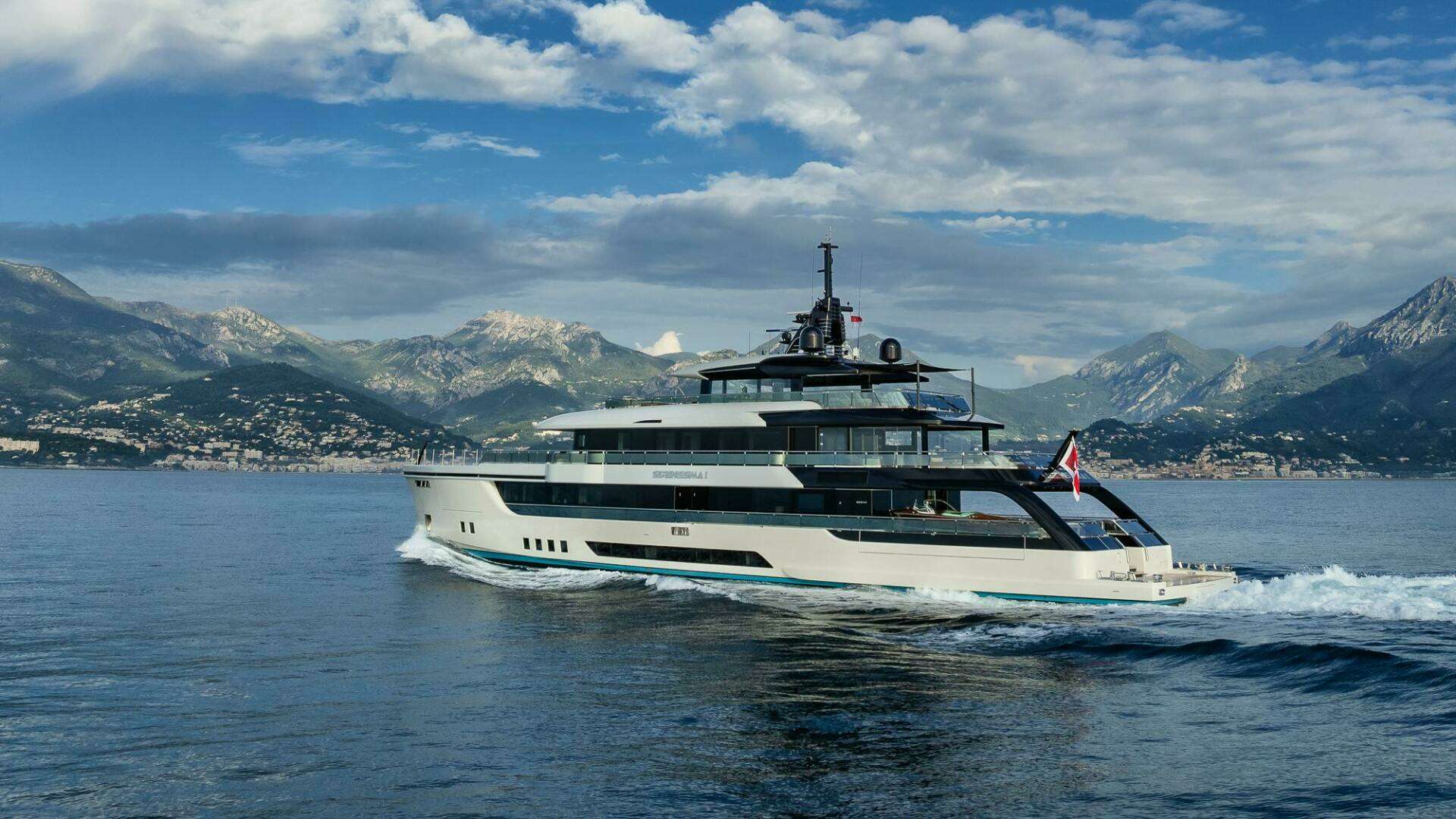

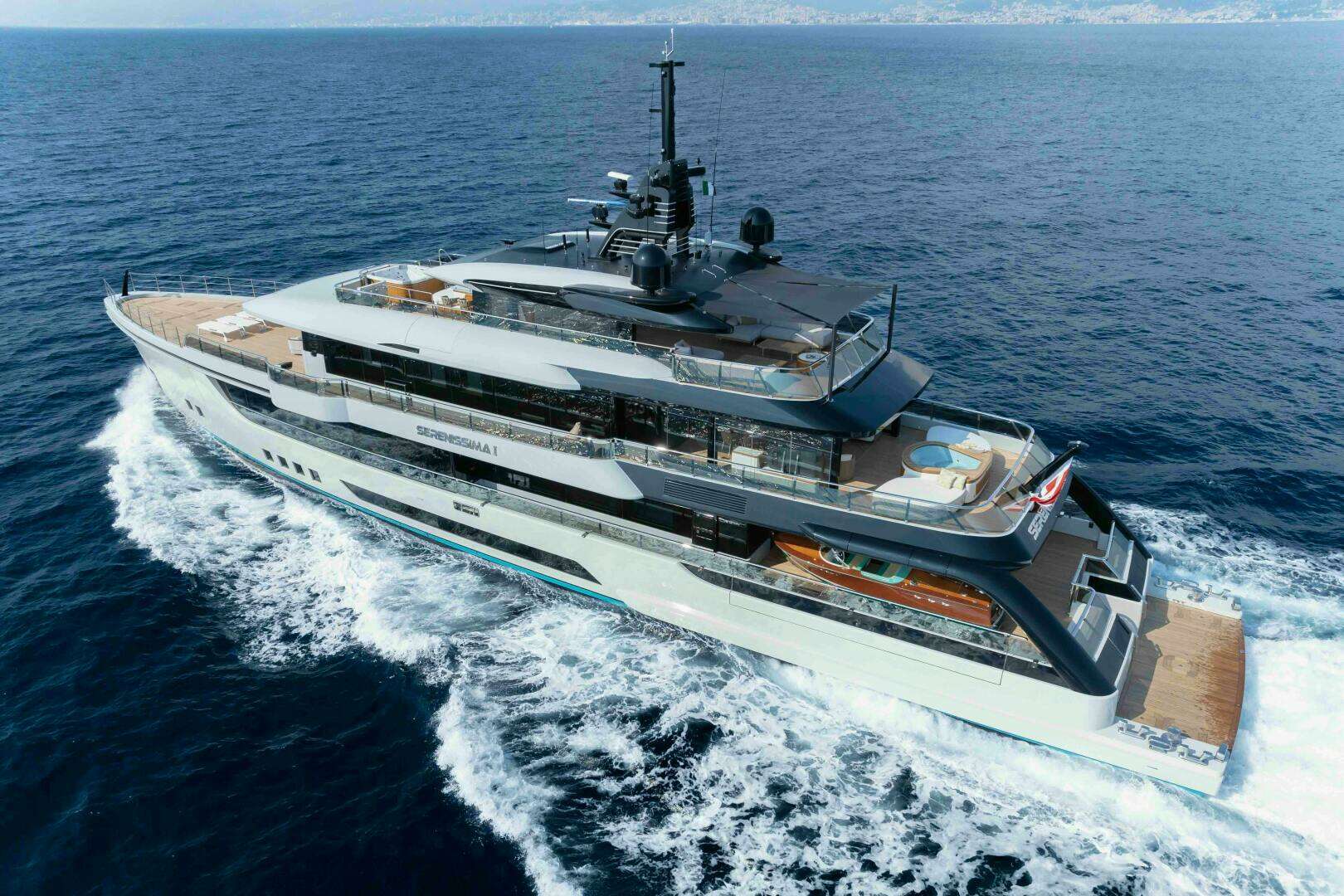

OVERVIEW

LOA 47m (154') Beam 8.85m (29’)
Draft 2.65m (8’7”)
Speed 12 cruise/17 max knots
Construction Steel Hull,
Aluminium Superstructure
Gross Tonnage 499 t
Engines 2x CAT C32 DITTA ACERT 1,450 Bhp (1,081 kW) Naval Architect Van Oossanen
Exterior Designer Nuvolari Lenard
Flag Malta
Classification RINA Mach Ych, Unrestricted
Navigation, DMS Compliance to REG
Yacht Code Part A

GUEST ACCOMMODATION

SERENISSIMA I sleeps up to 10 guests in 5 cabins.

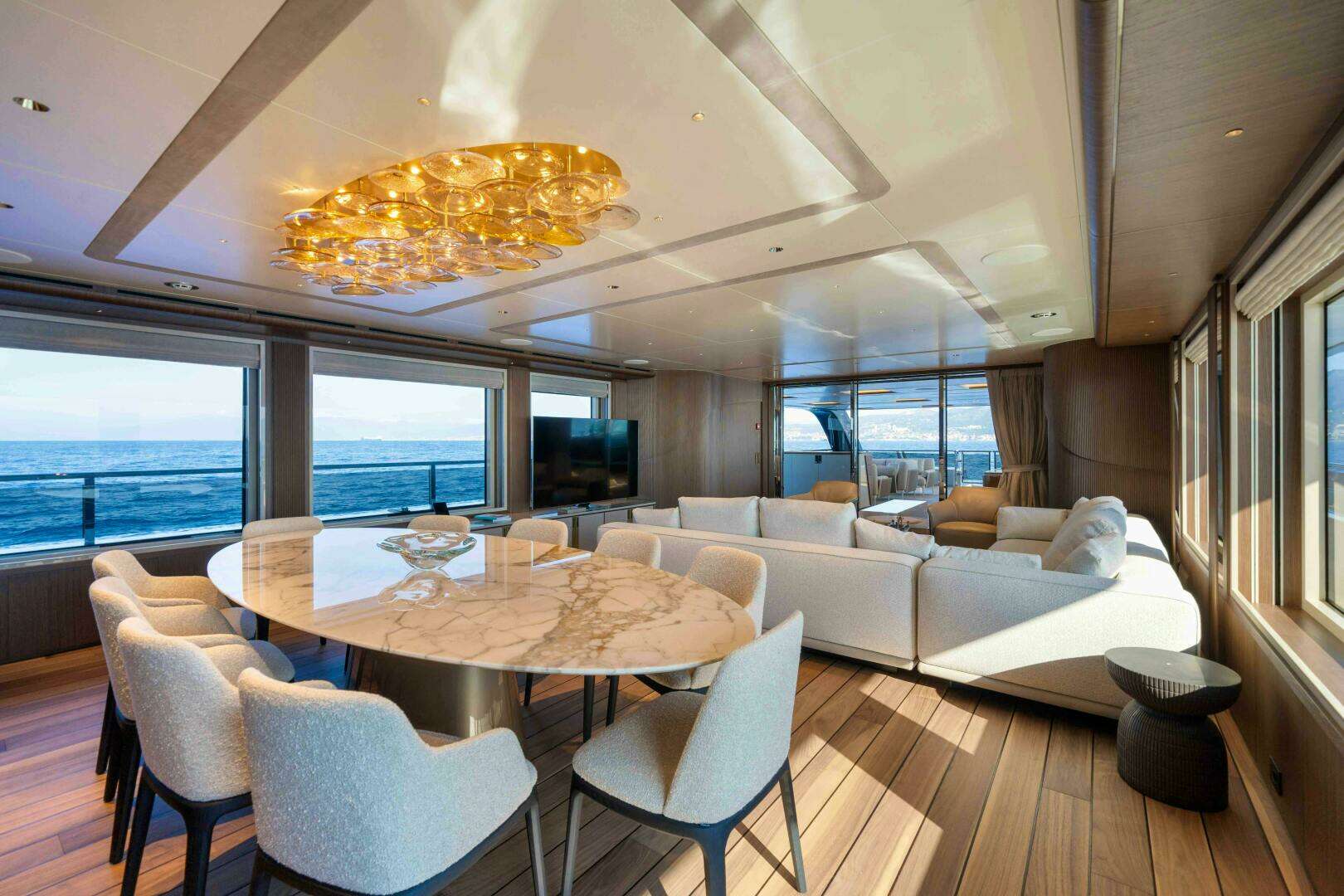

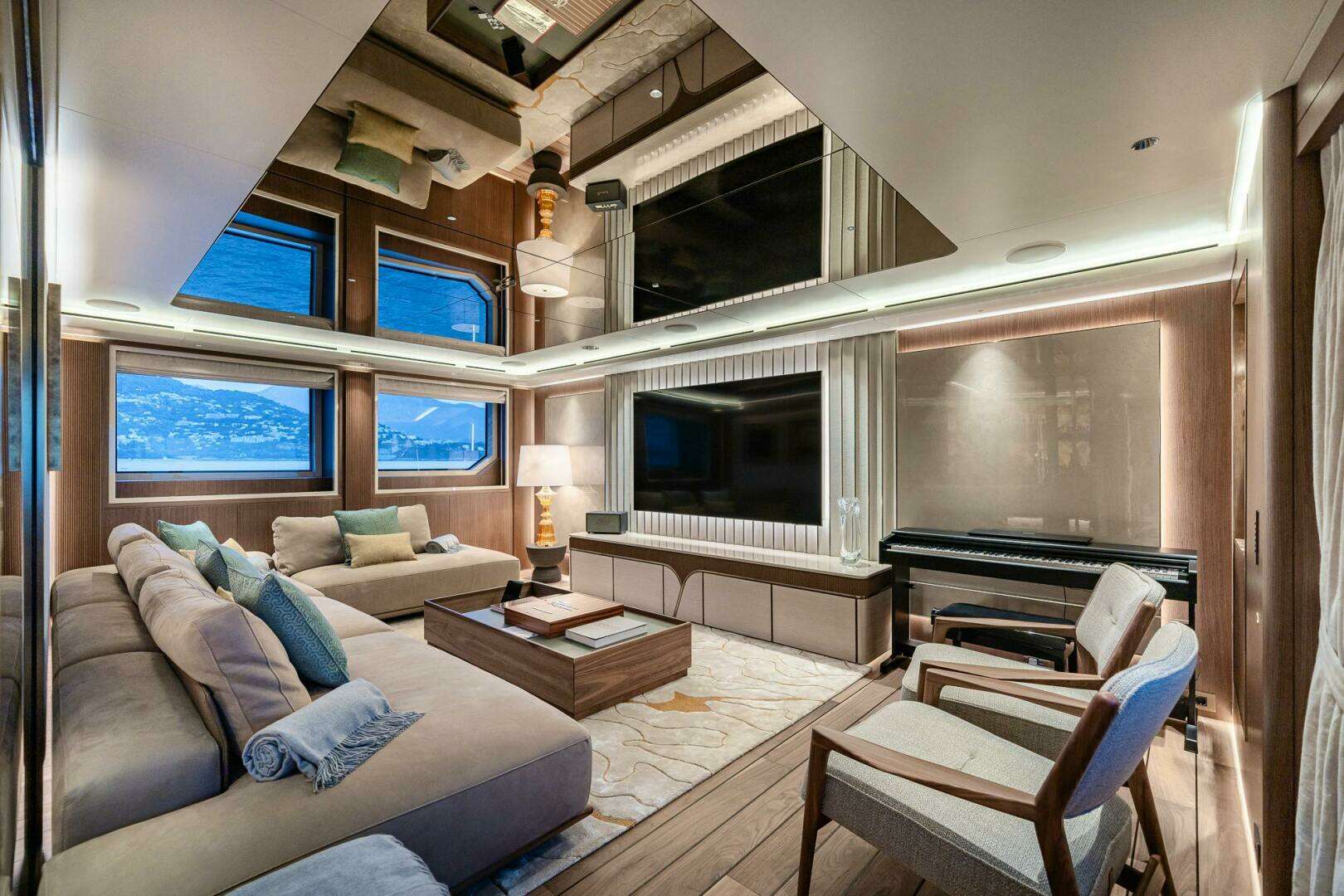

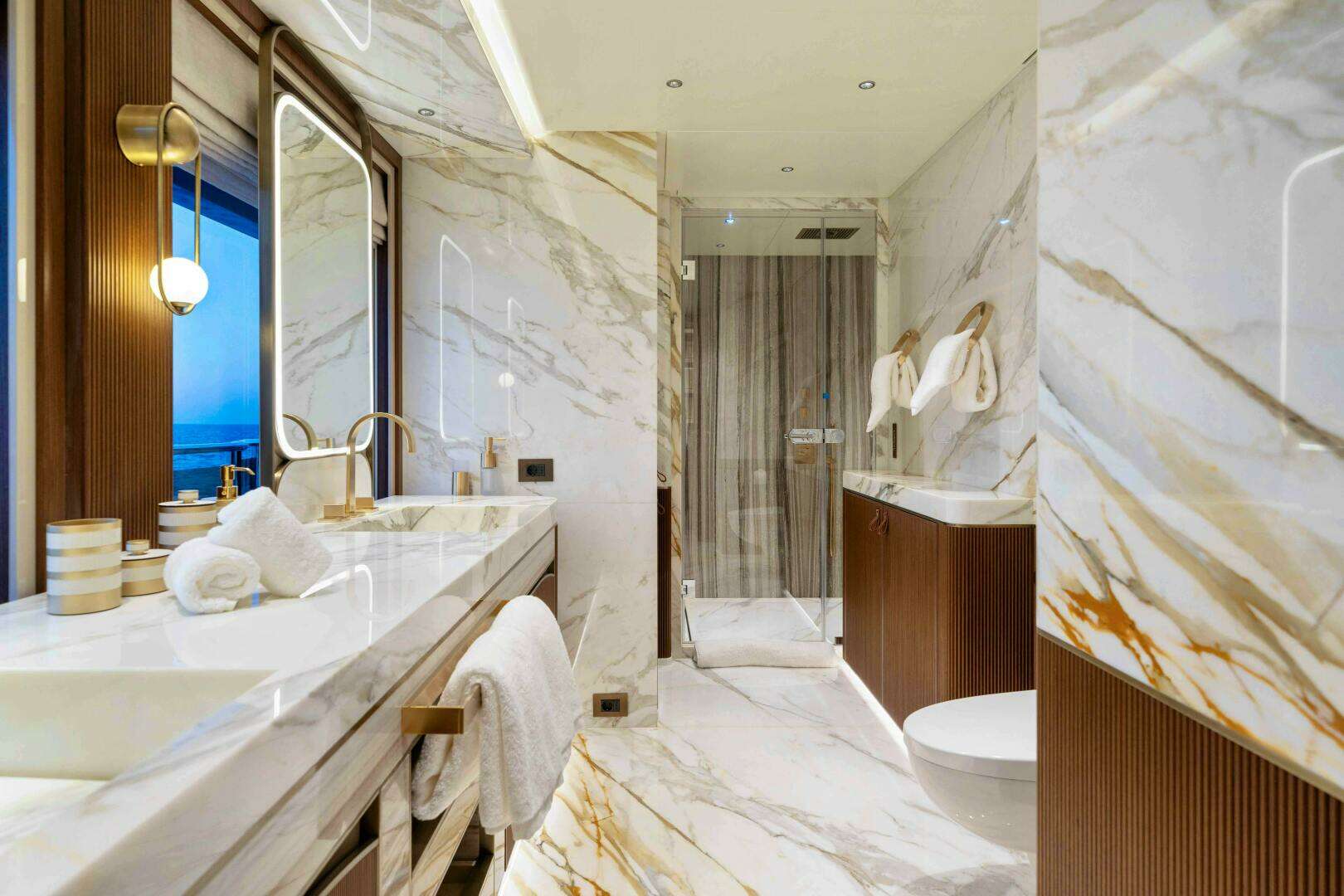

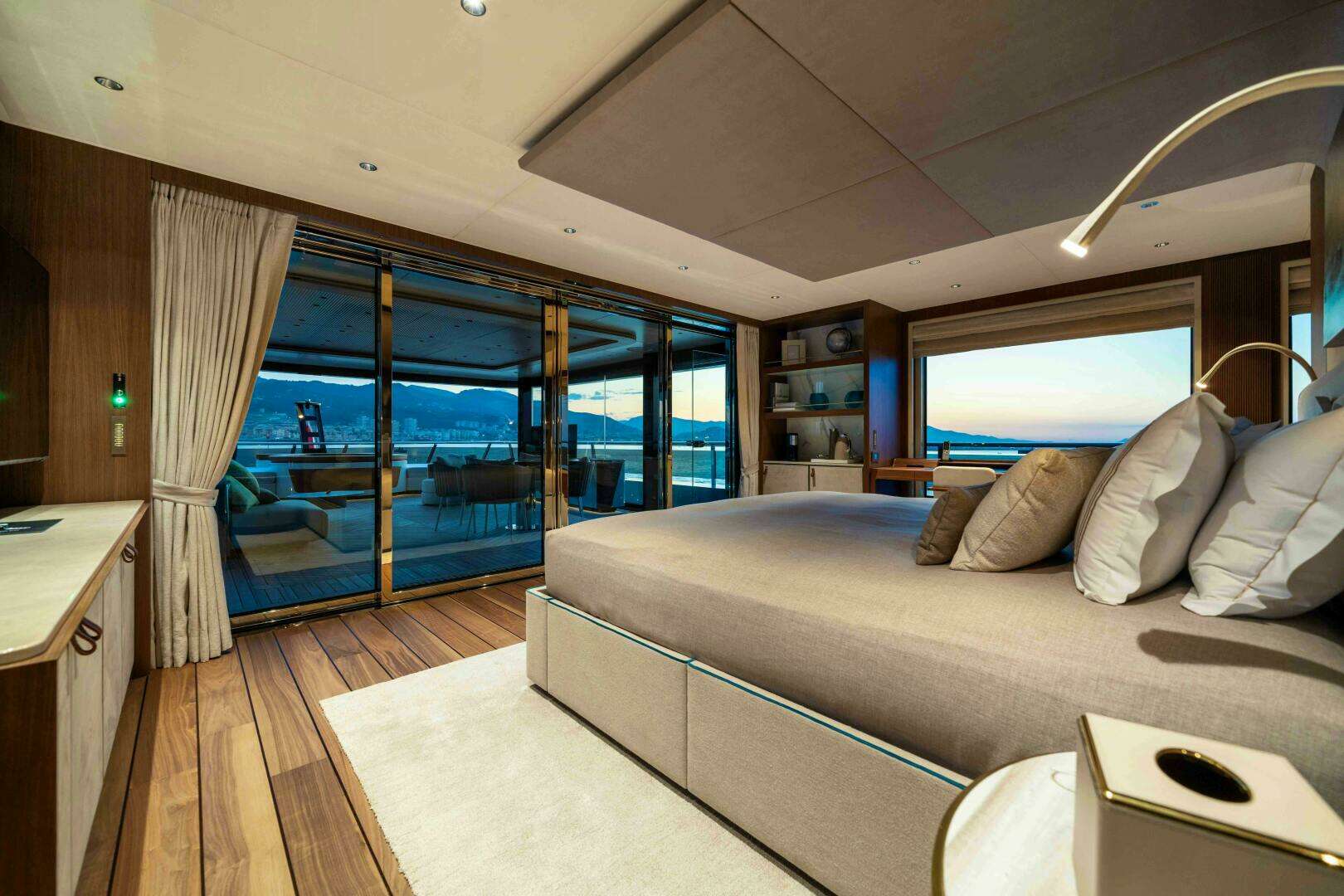

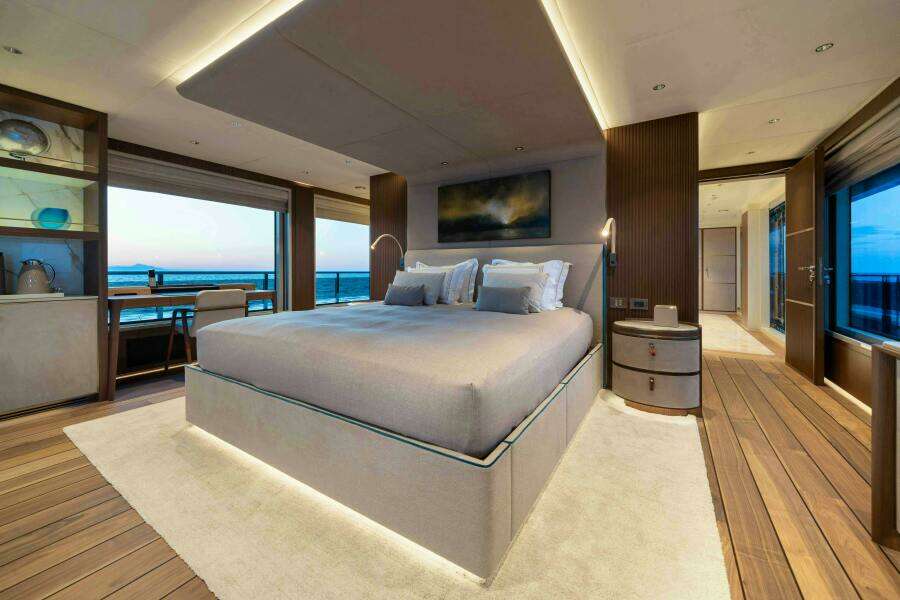

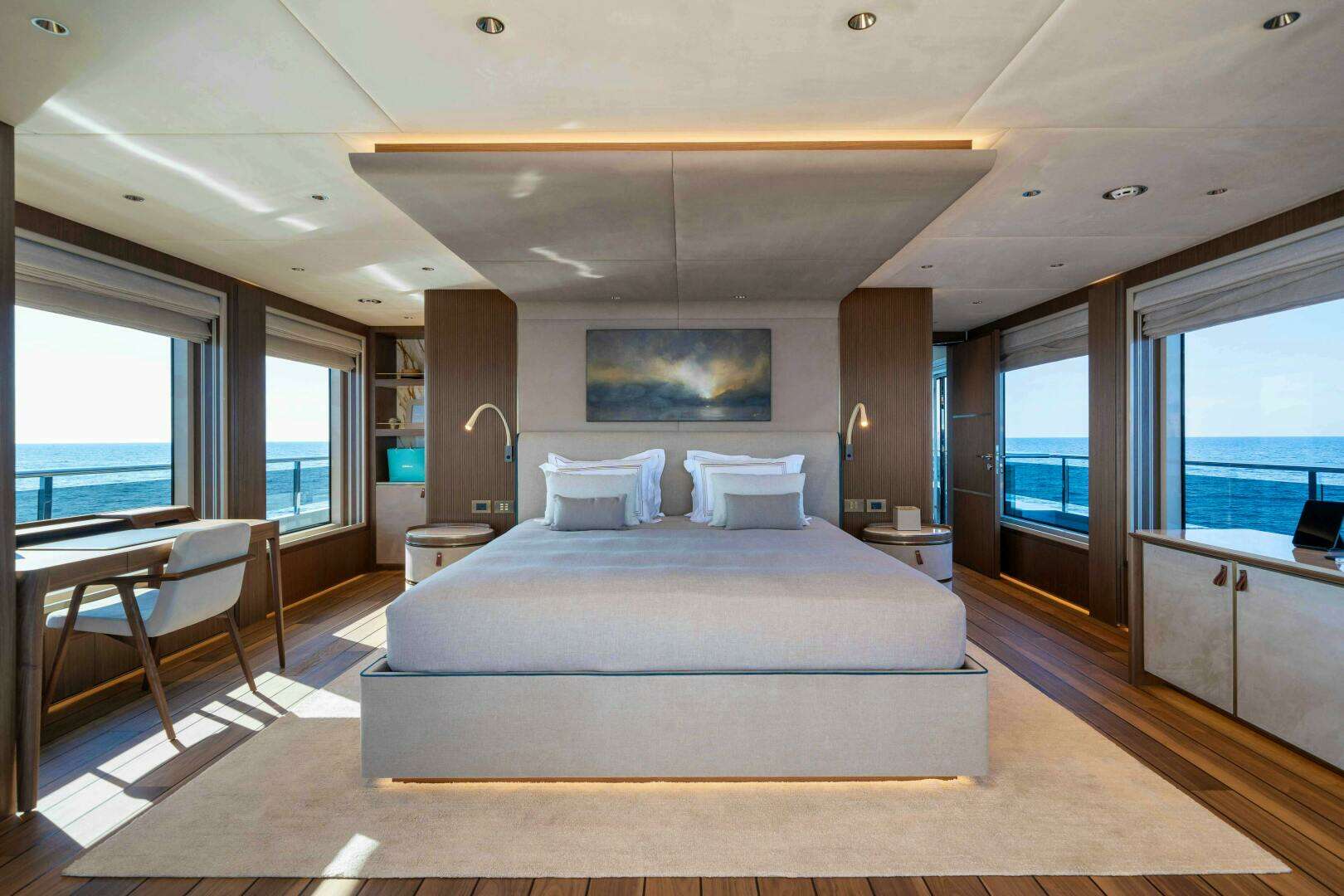

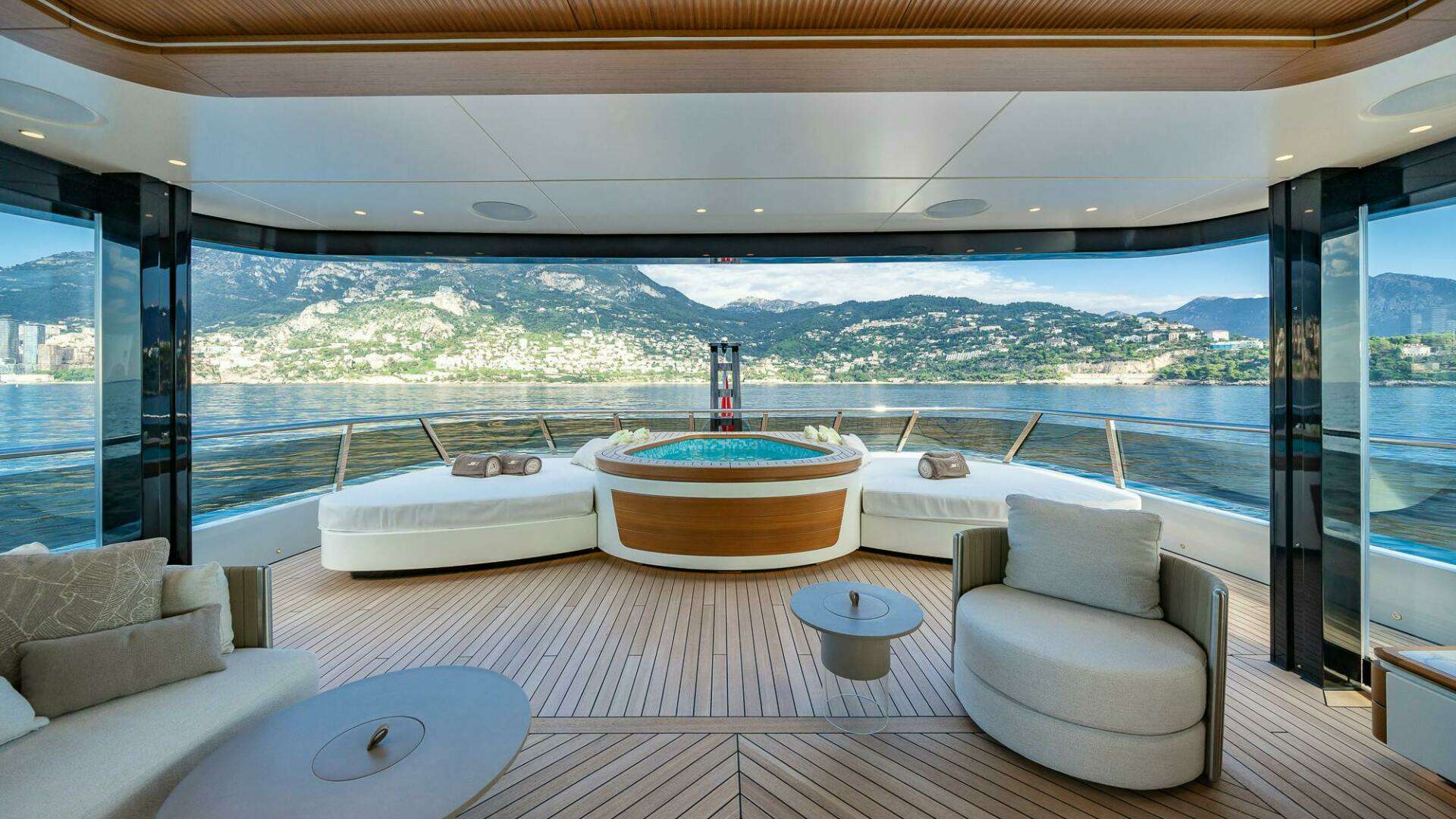

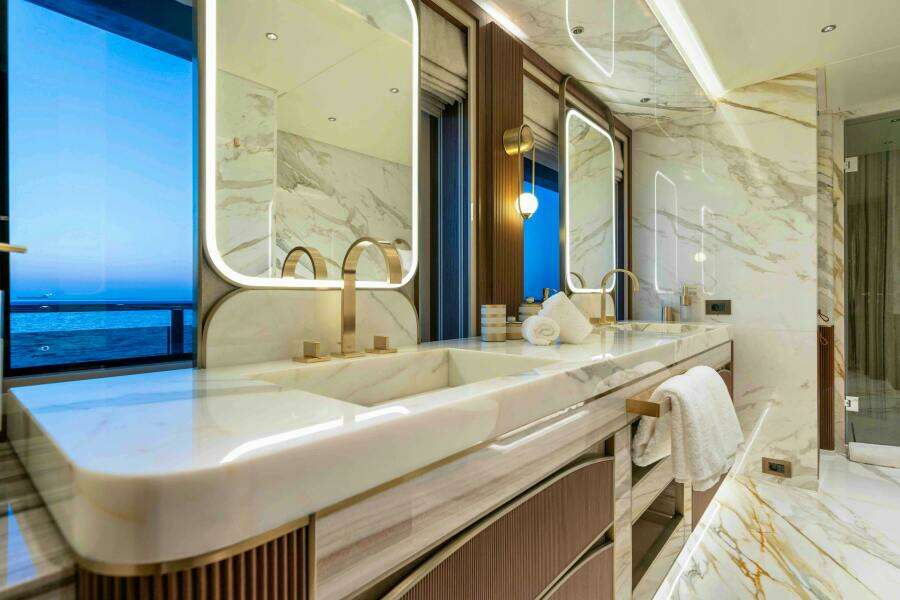

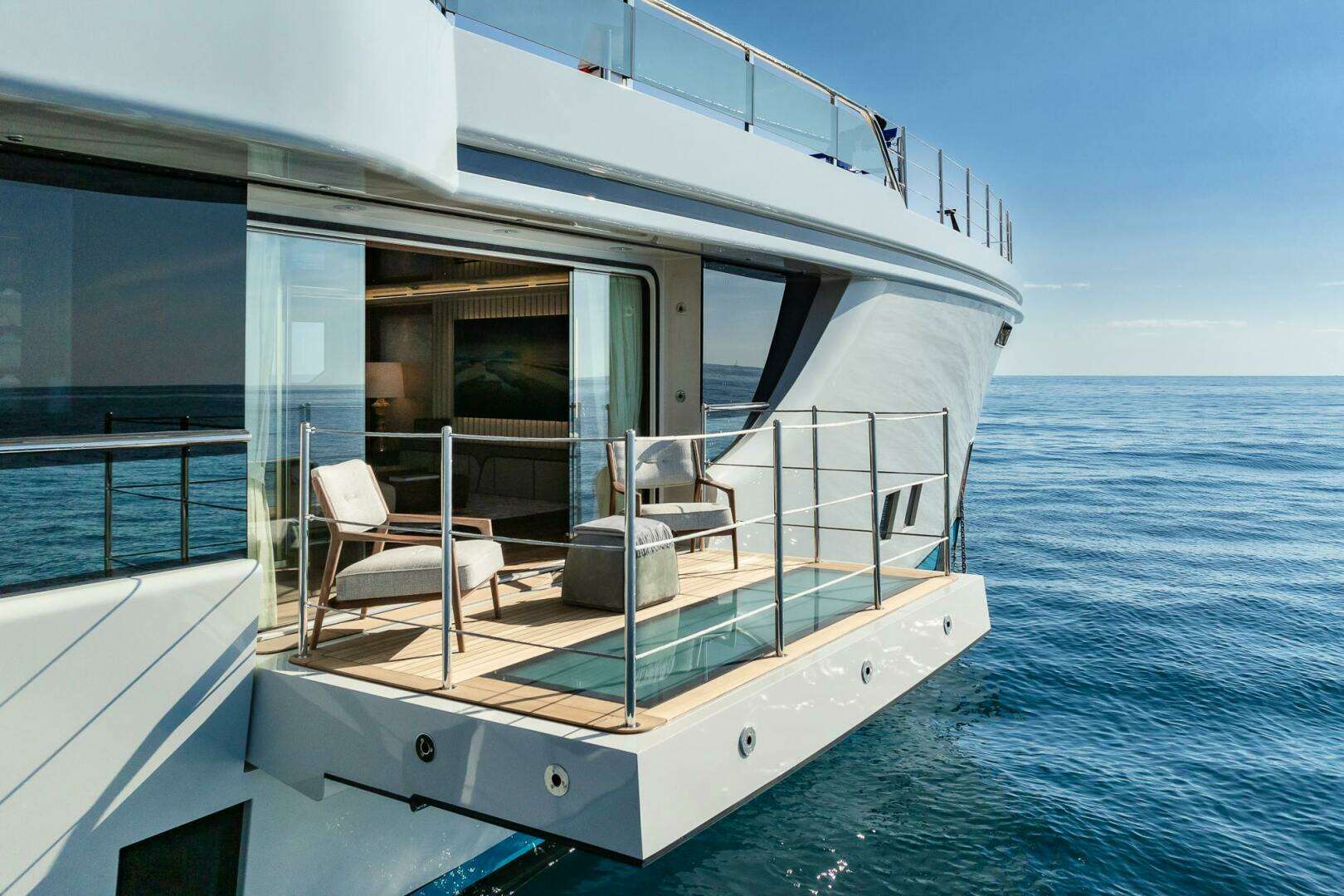

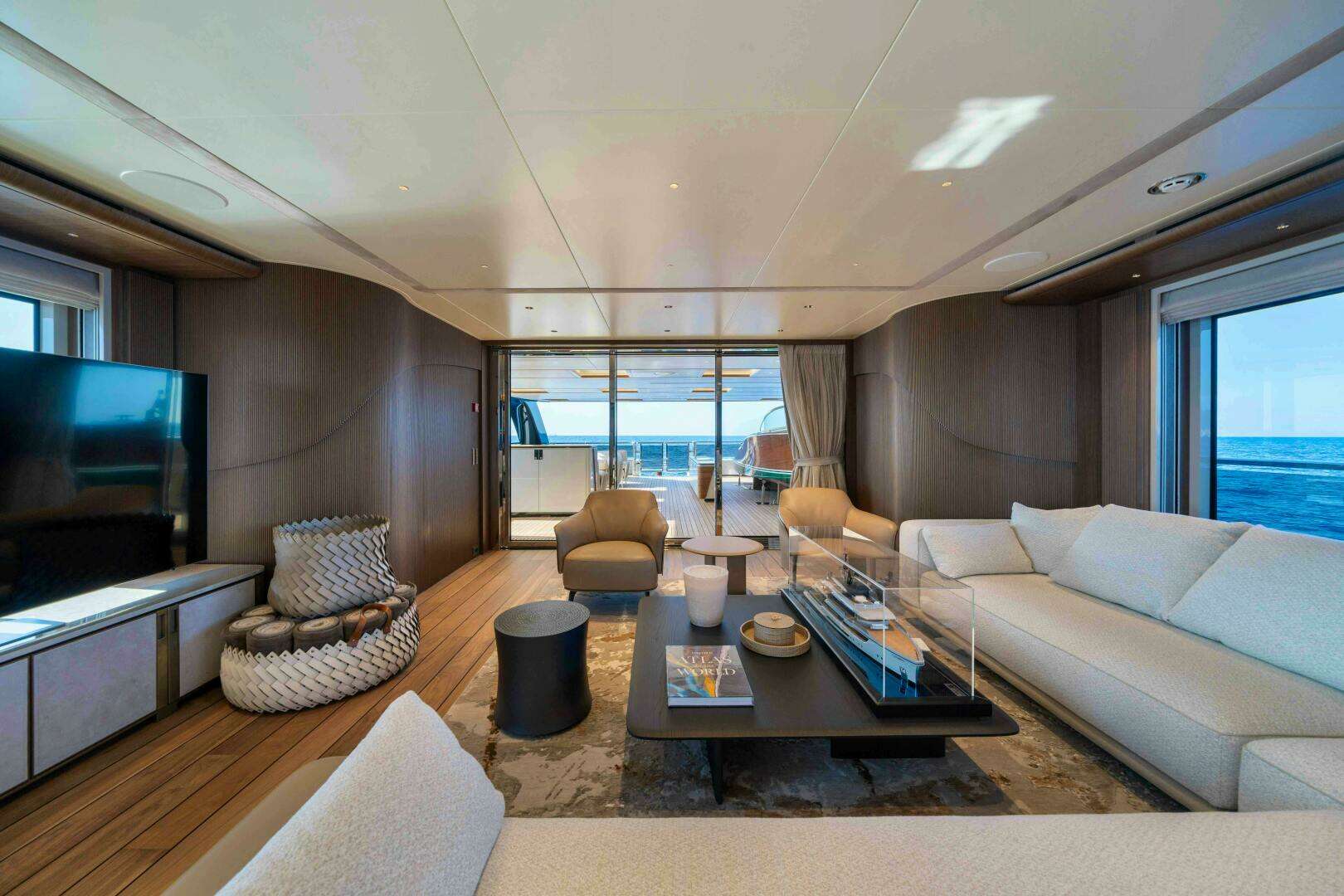

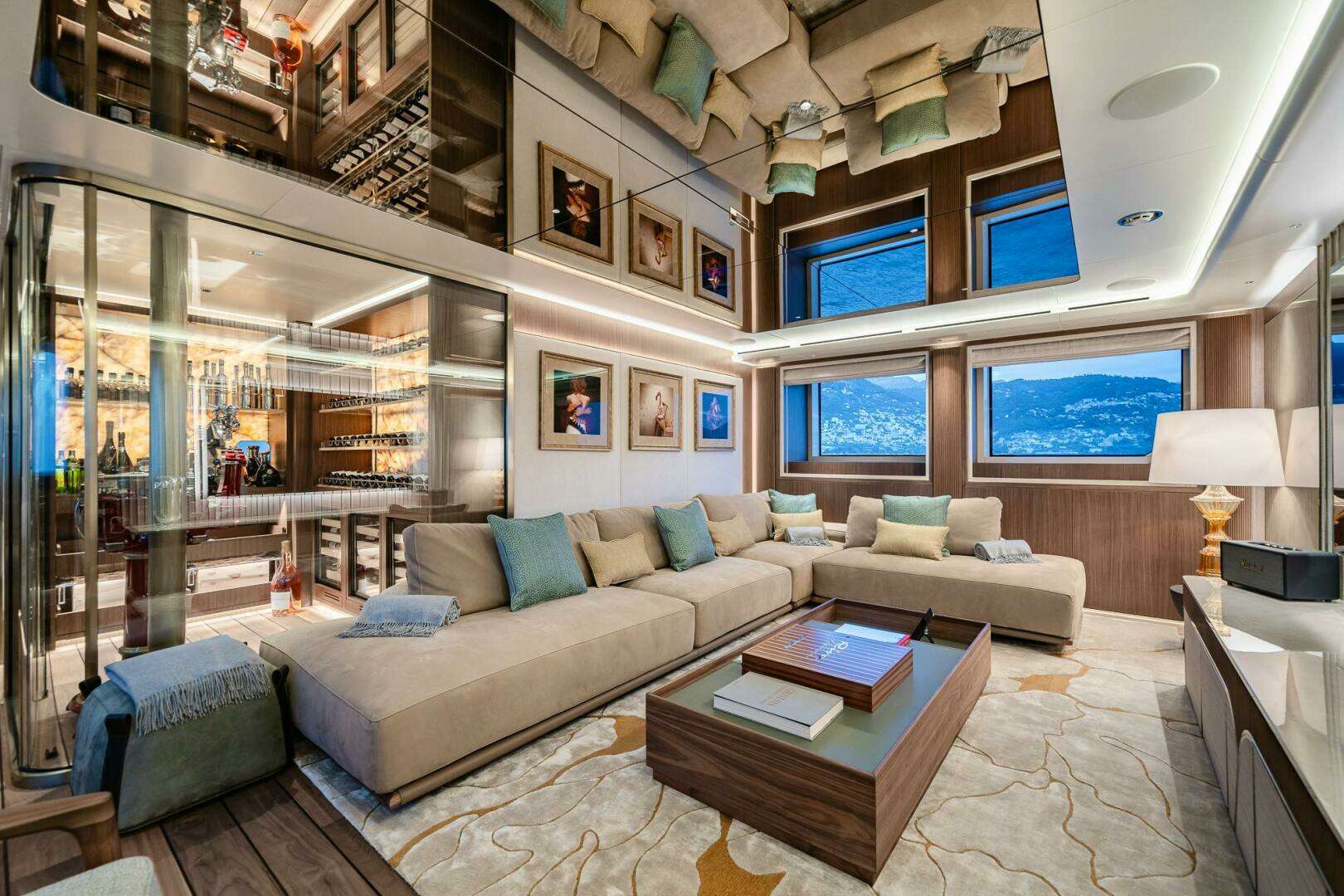

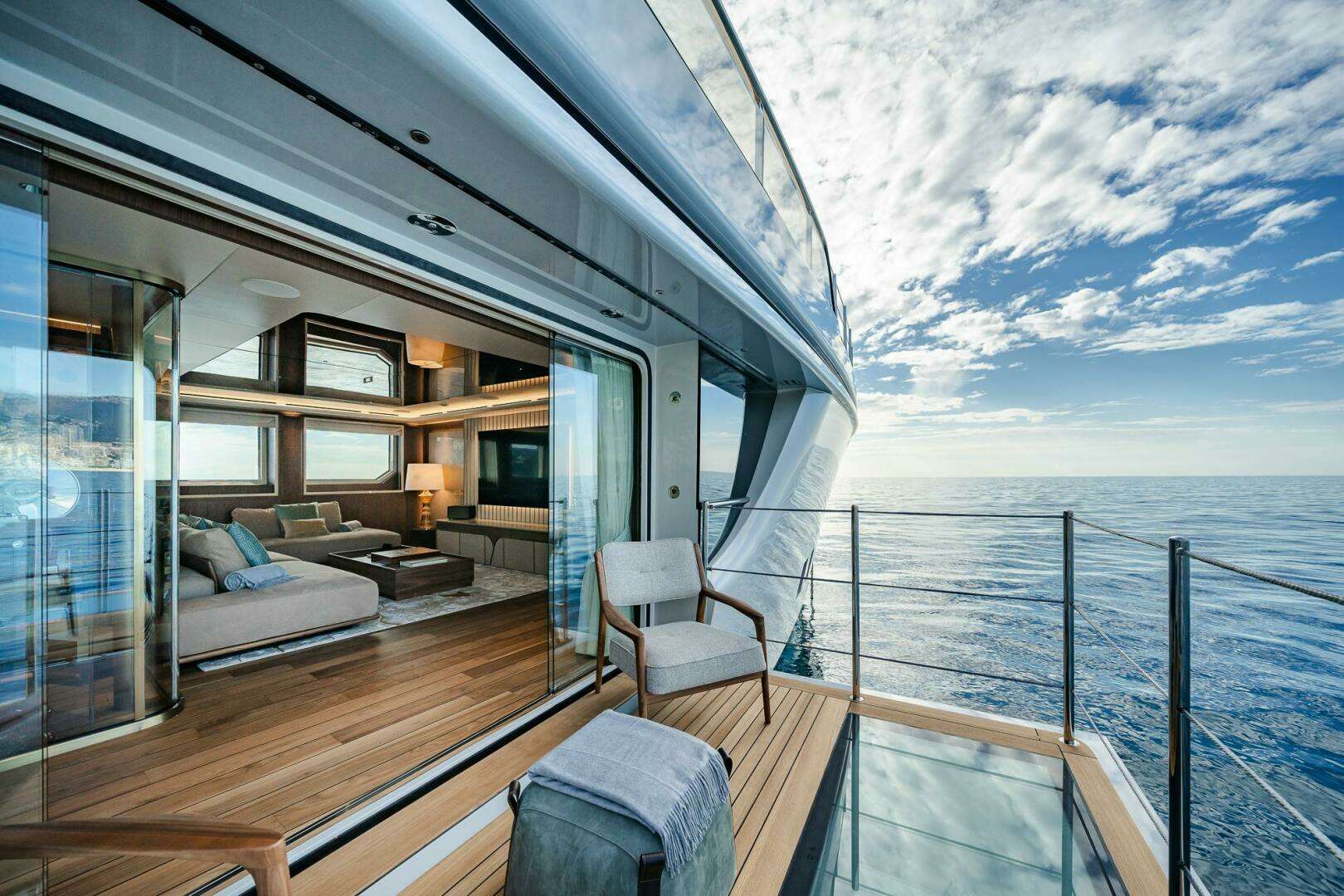

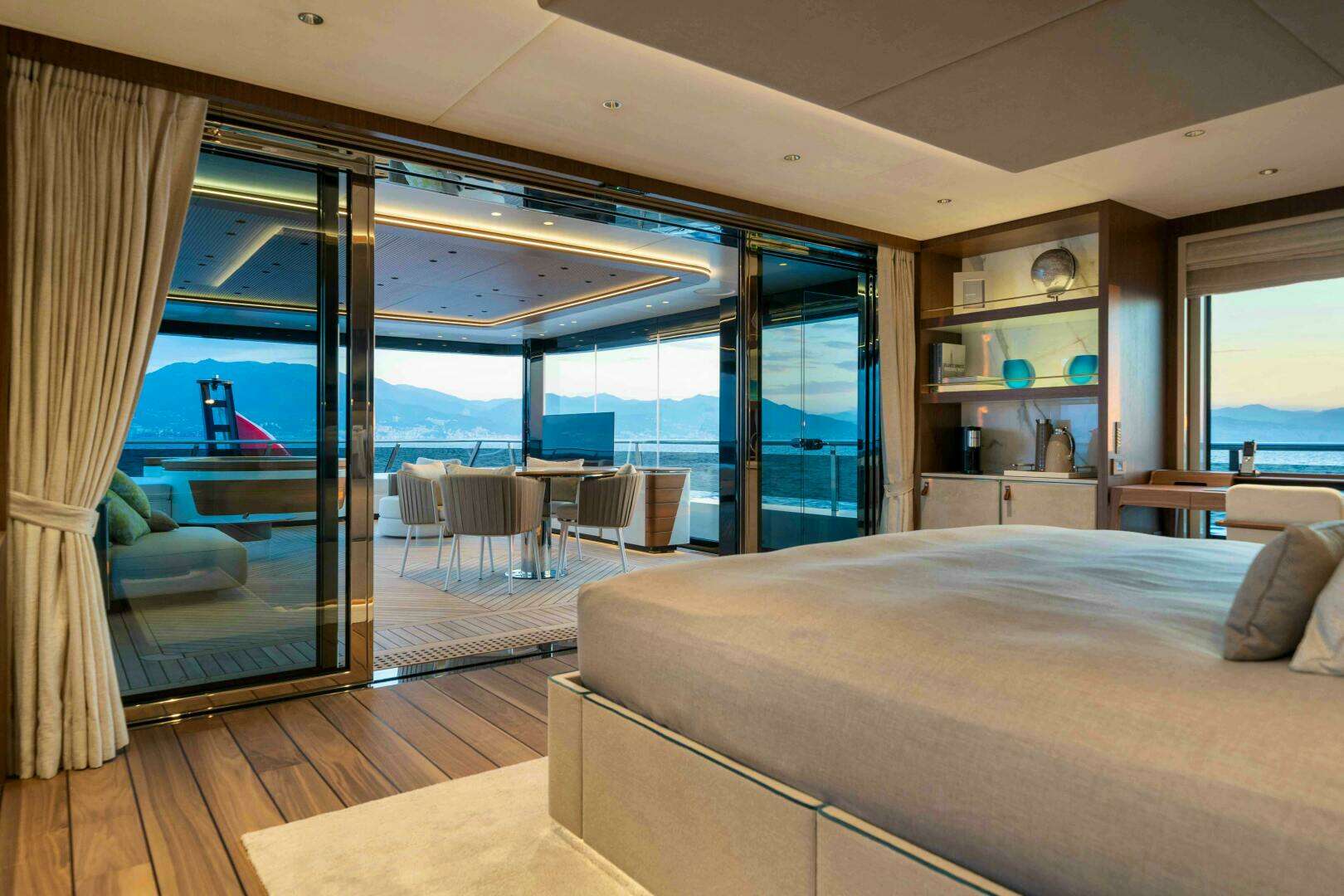

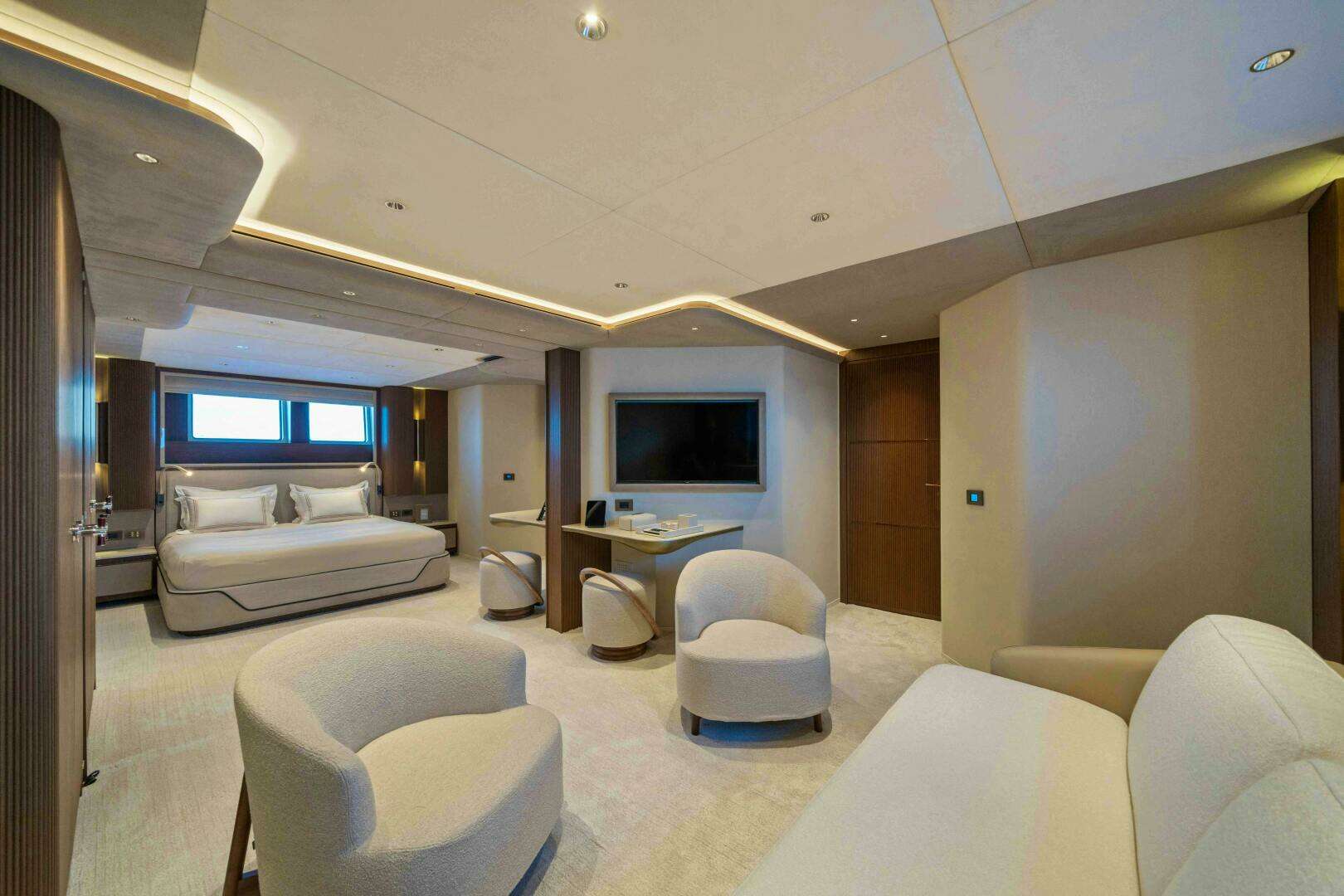

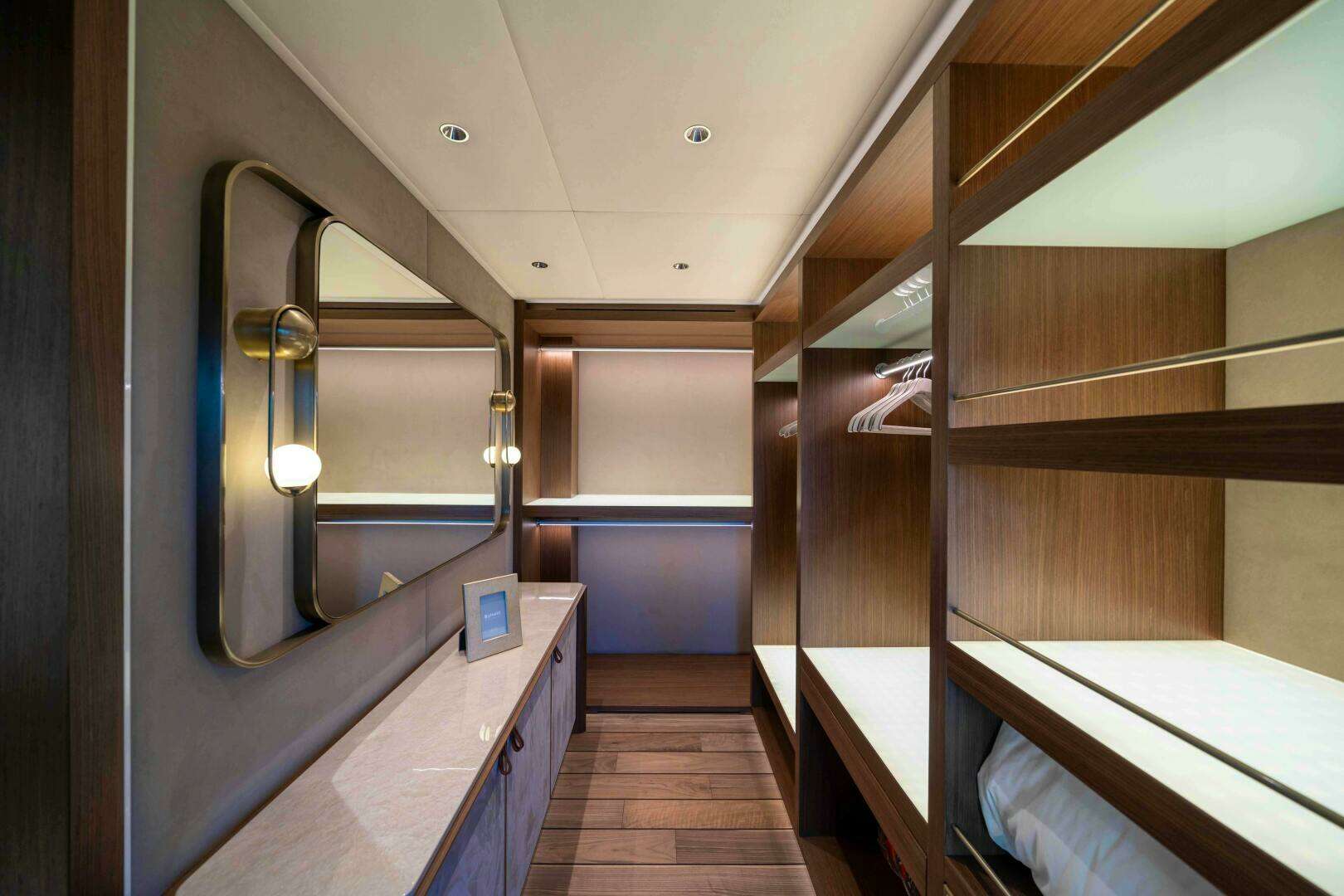

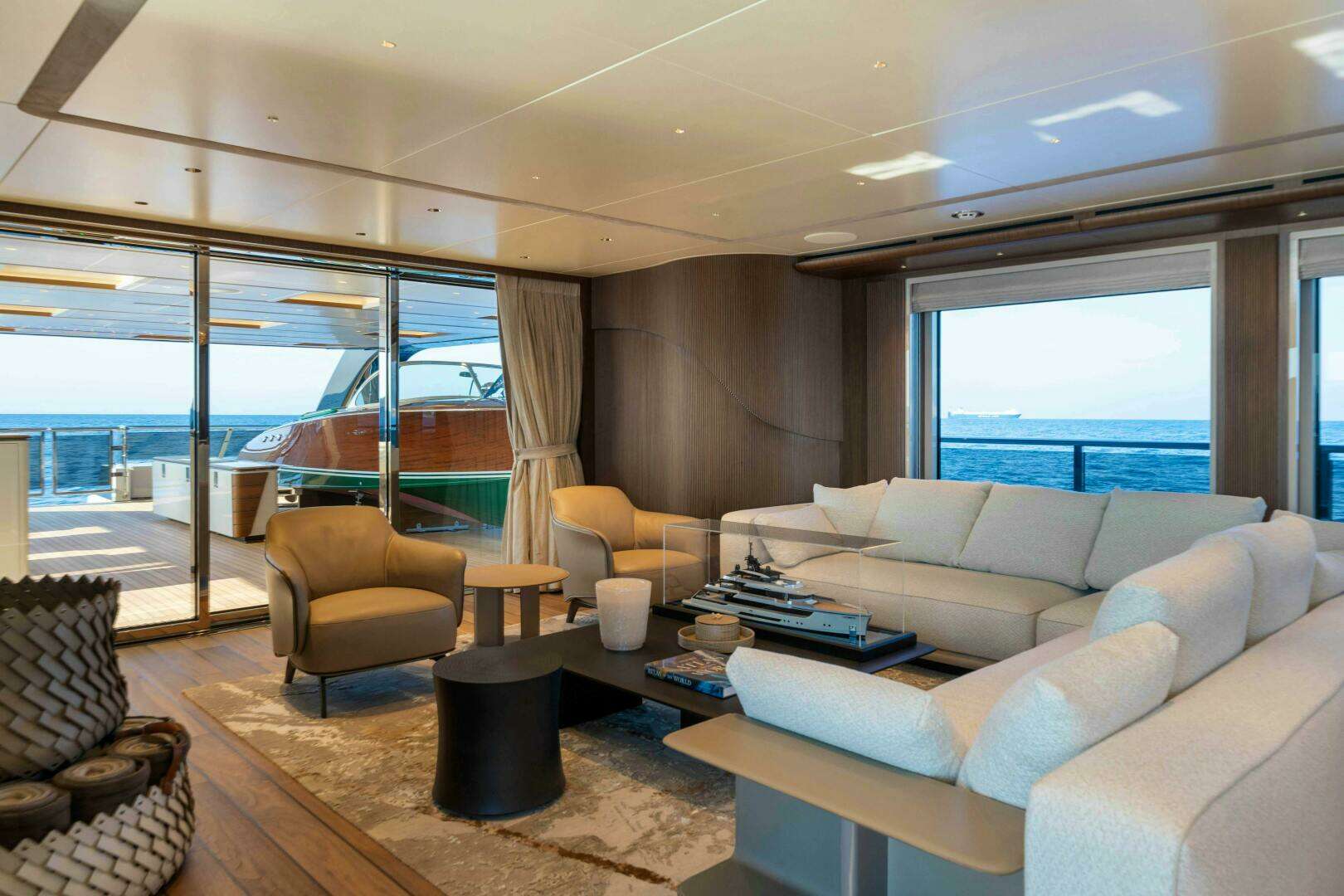

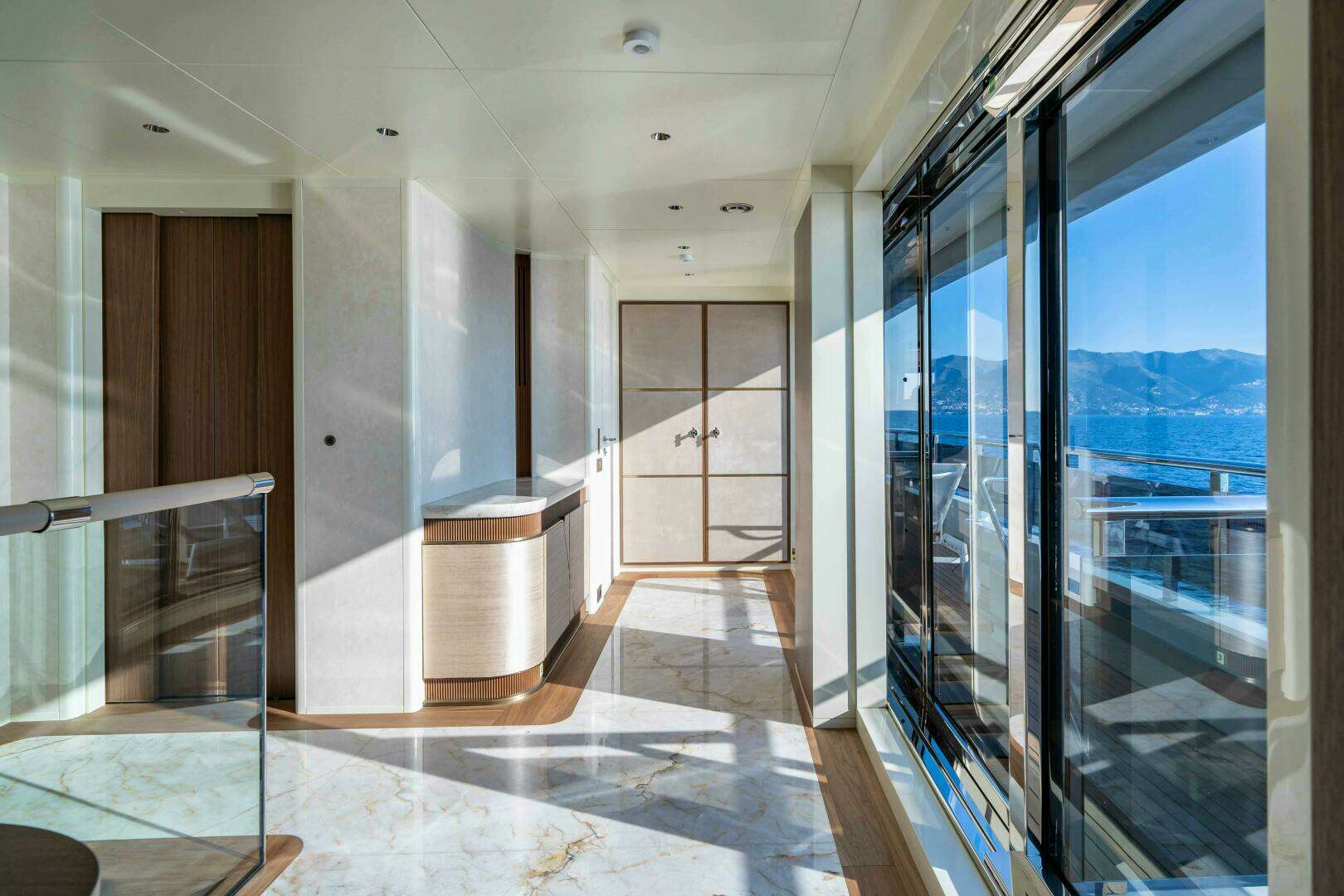

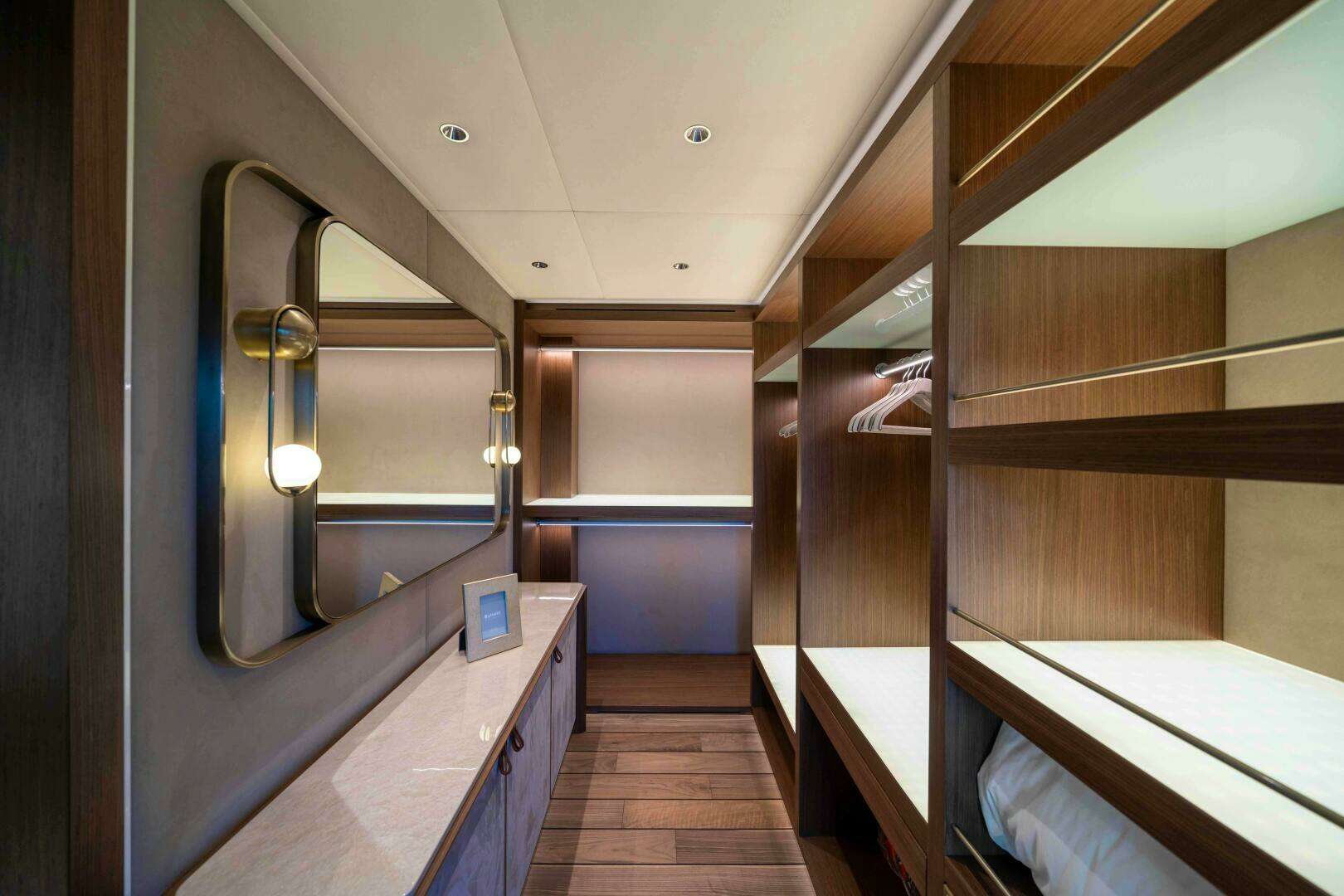

The master cabin is located on the bridge deck aft, featuring both a walk-in wardrobe and ensuite bathroom. The master cabin leads directly out onto a private deck with a small dining area, sun pads and jacuzzi. The yacht’s main deck interior space is dedicated to guest entertainment, with a traditional aft main salon and dining room leading through to the midship guest lobby. Forward is a guest  cinema room, with drop down balcony and walk-in wine cellar.

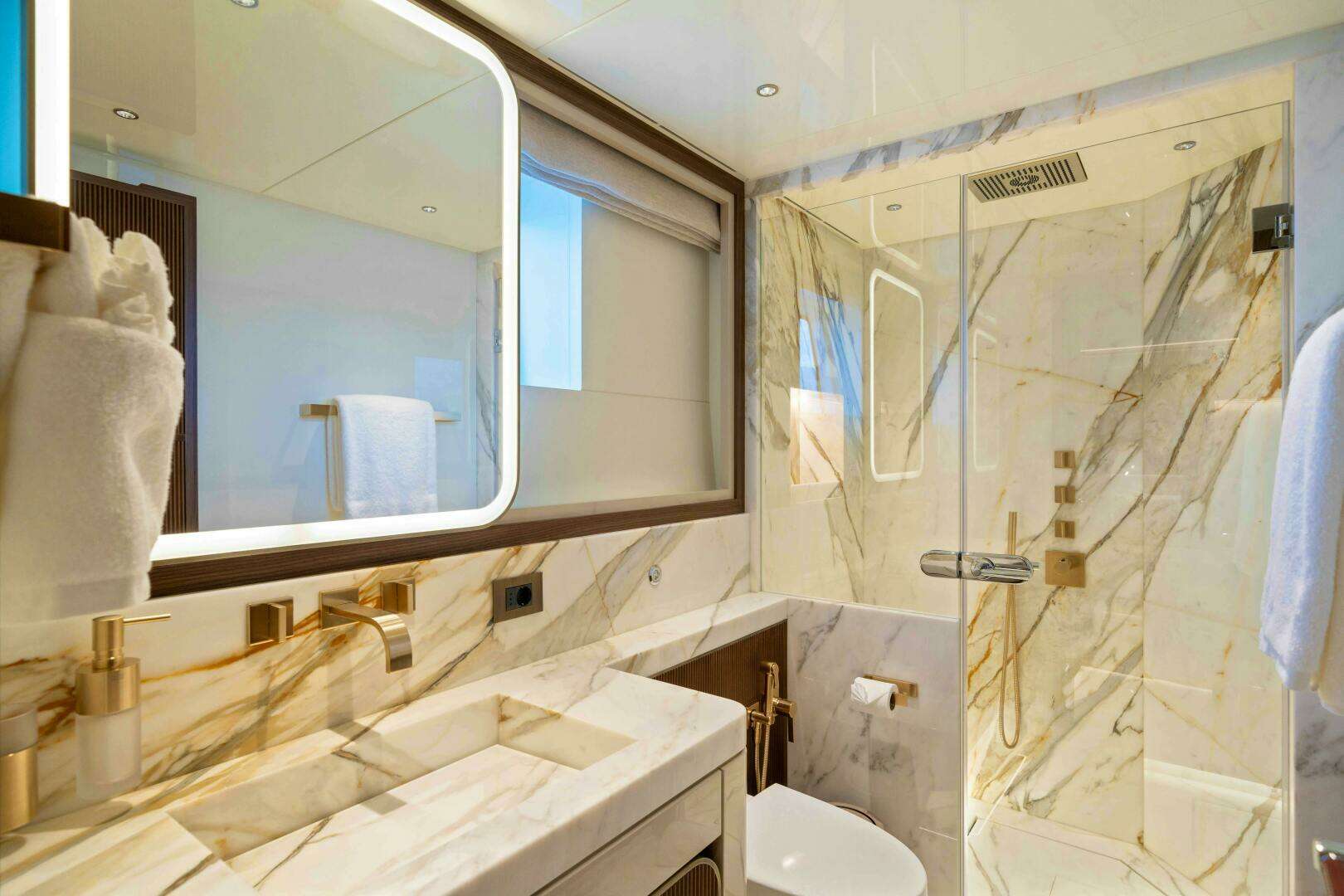

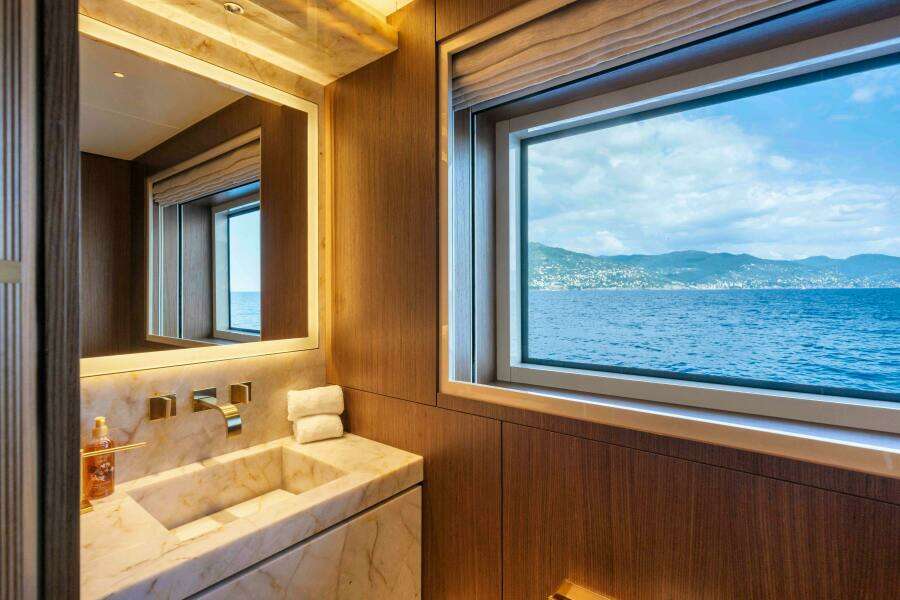

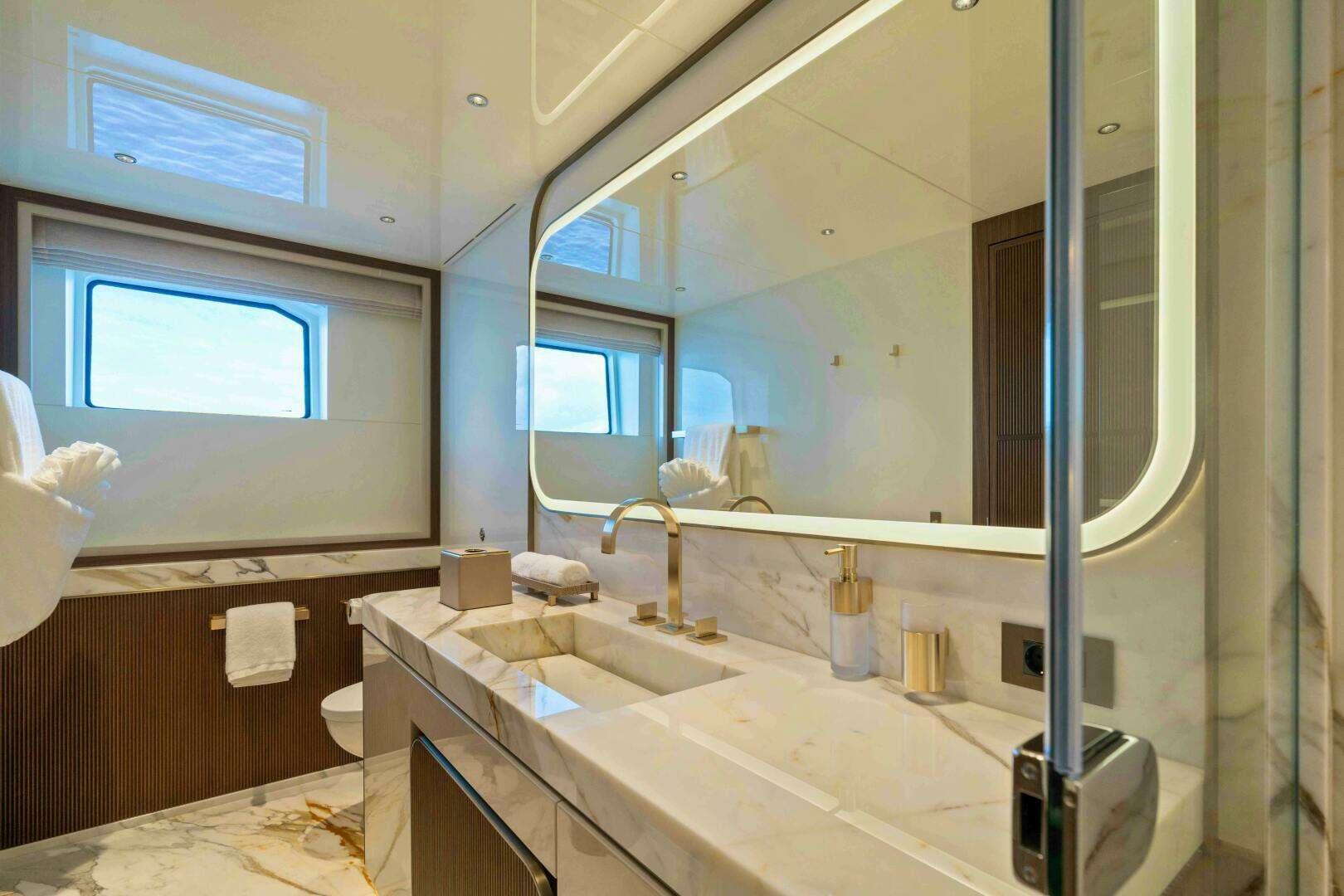

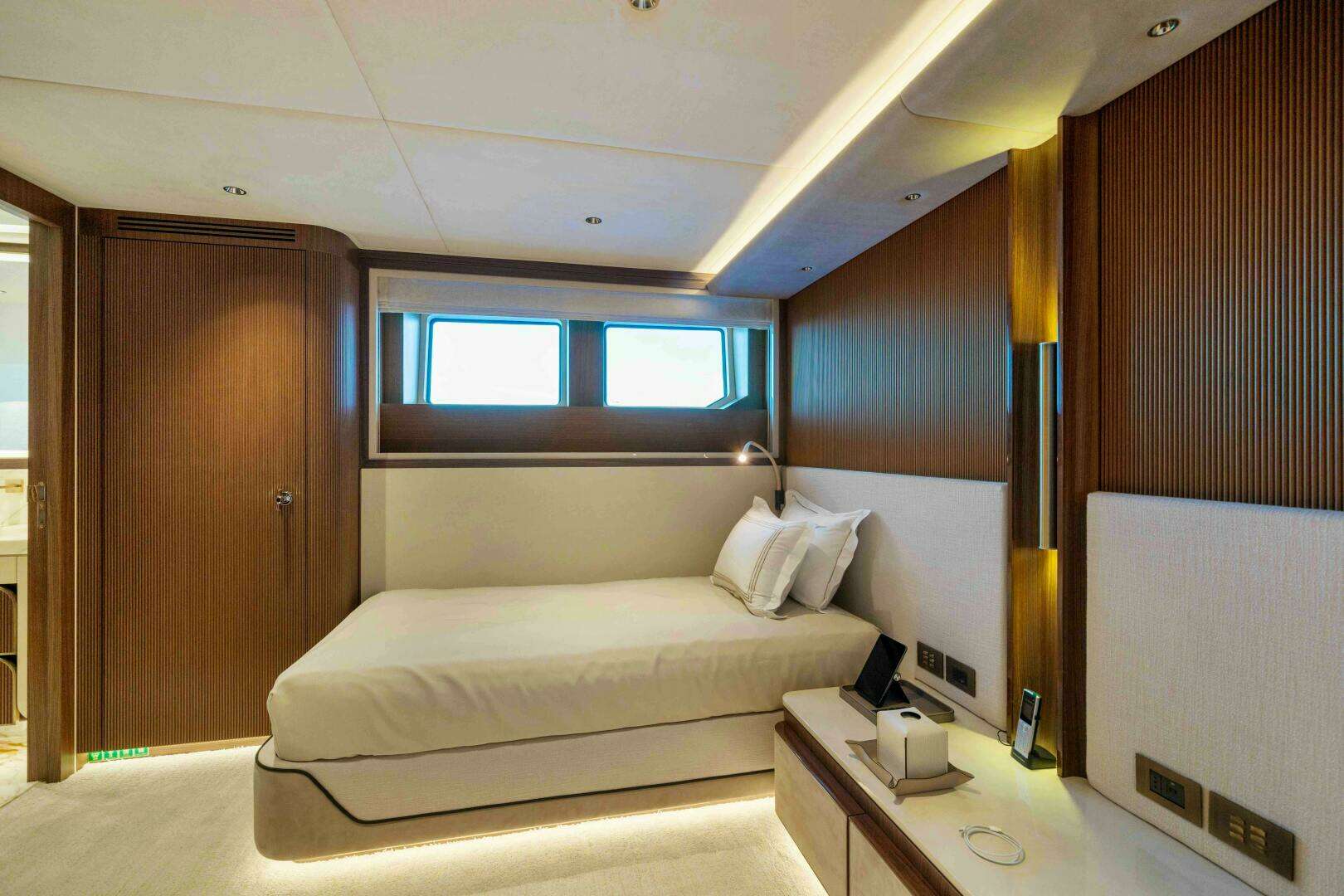

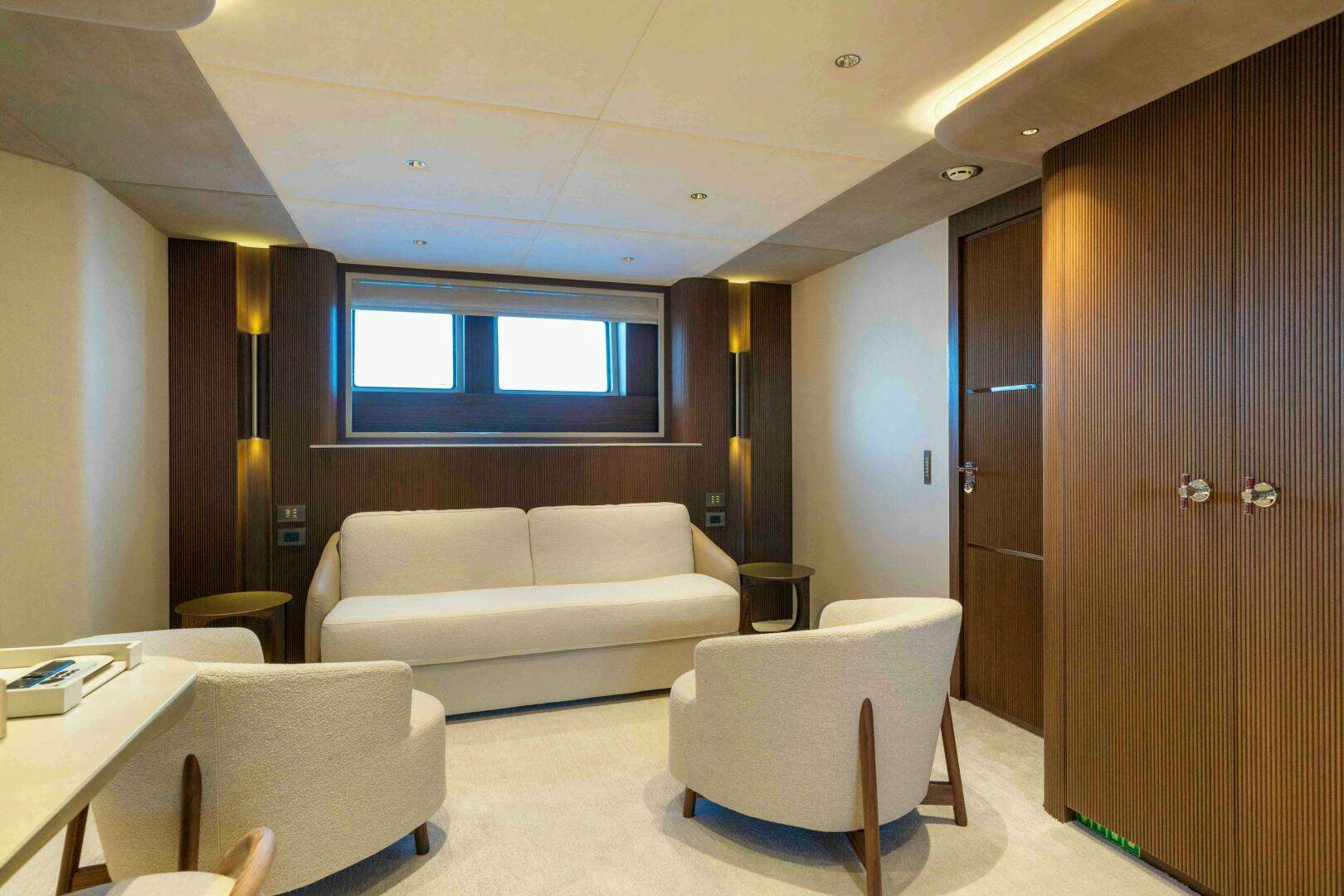

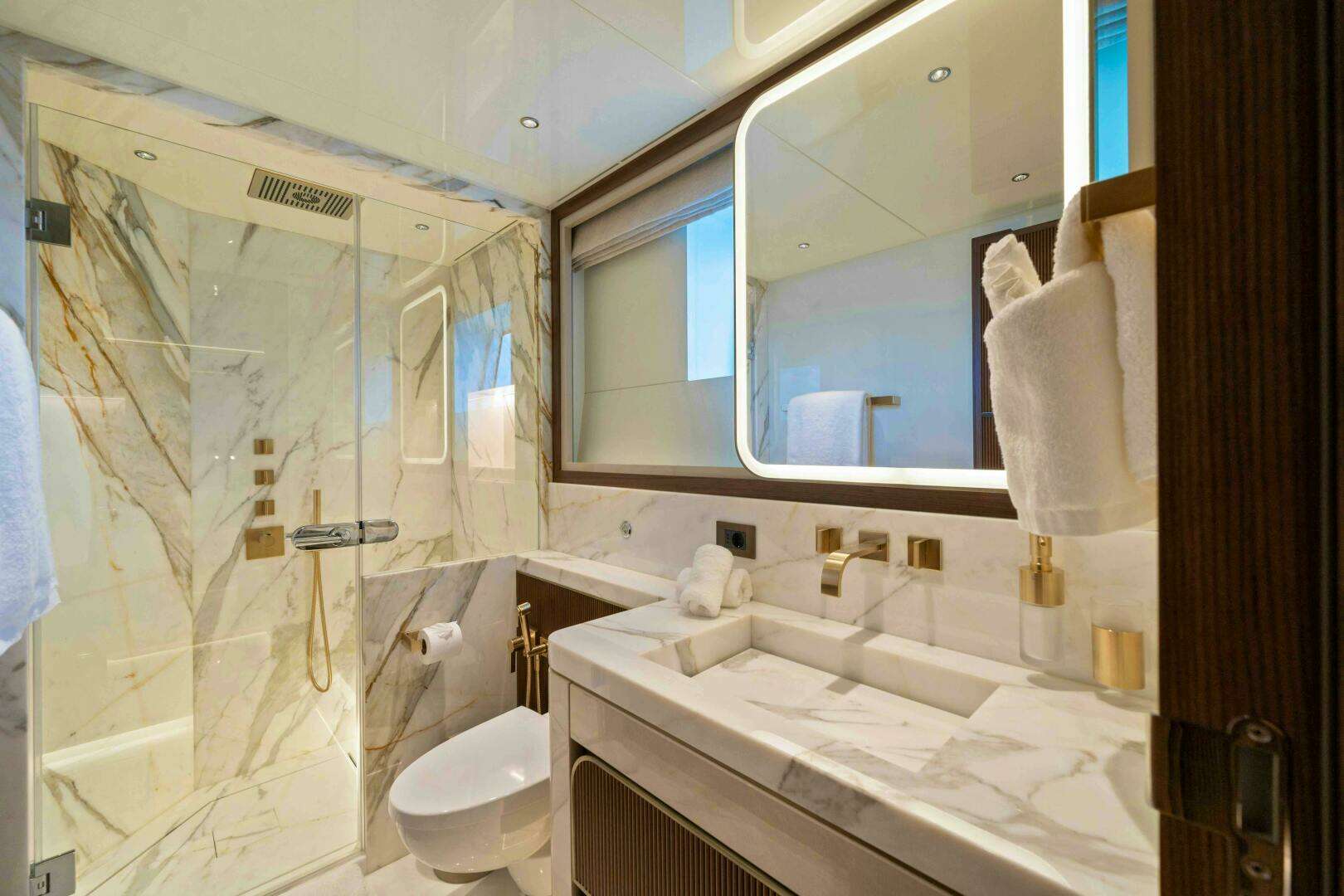

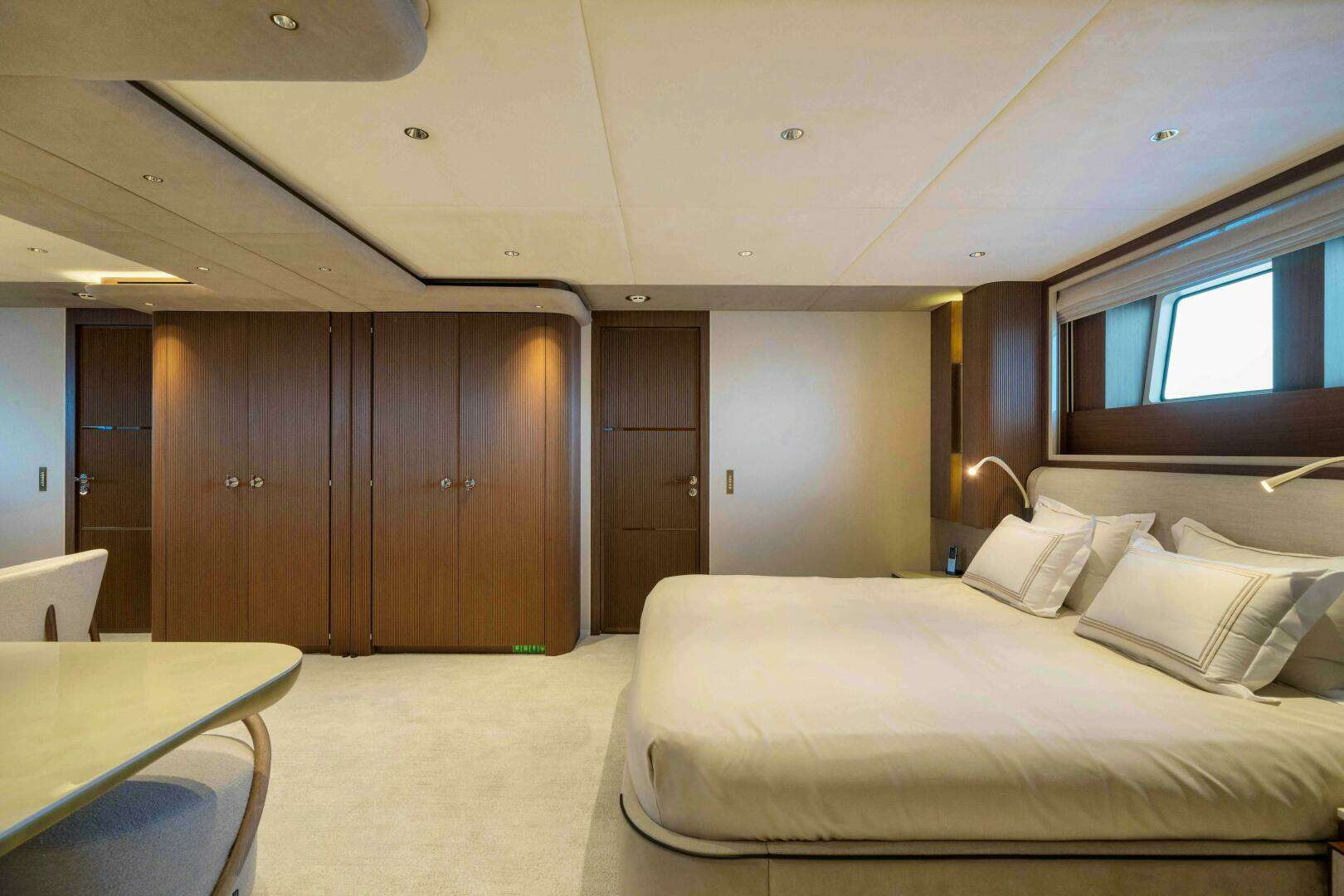

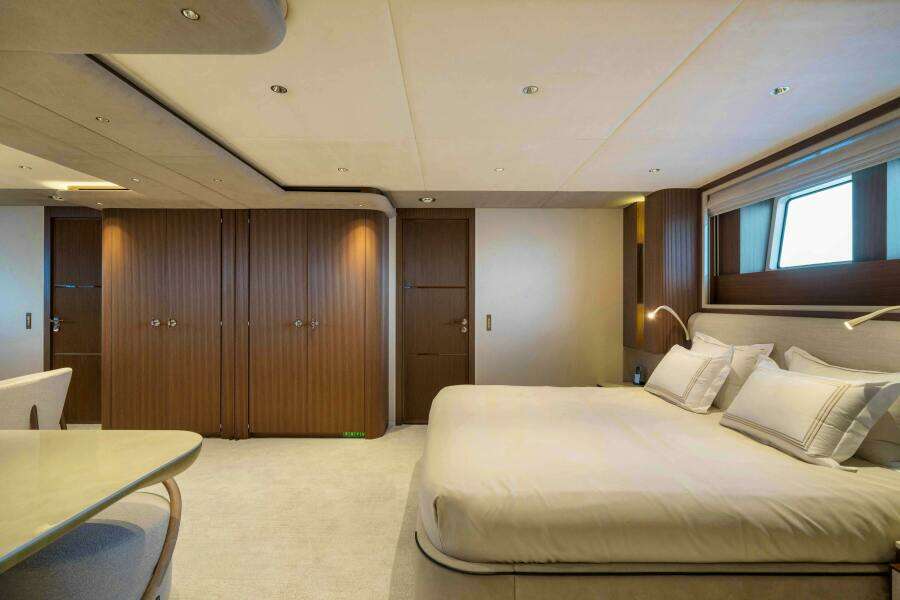

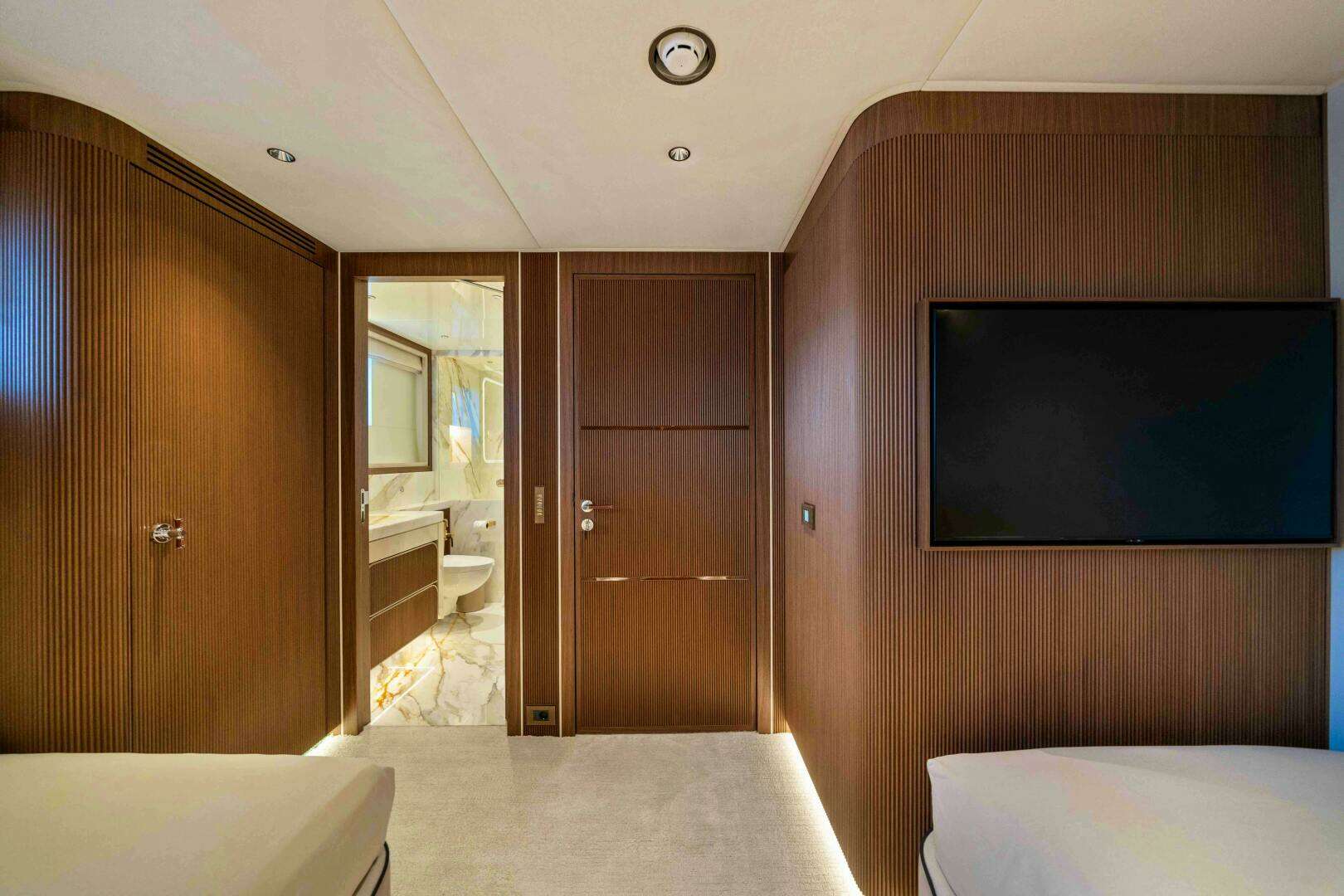

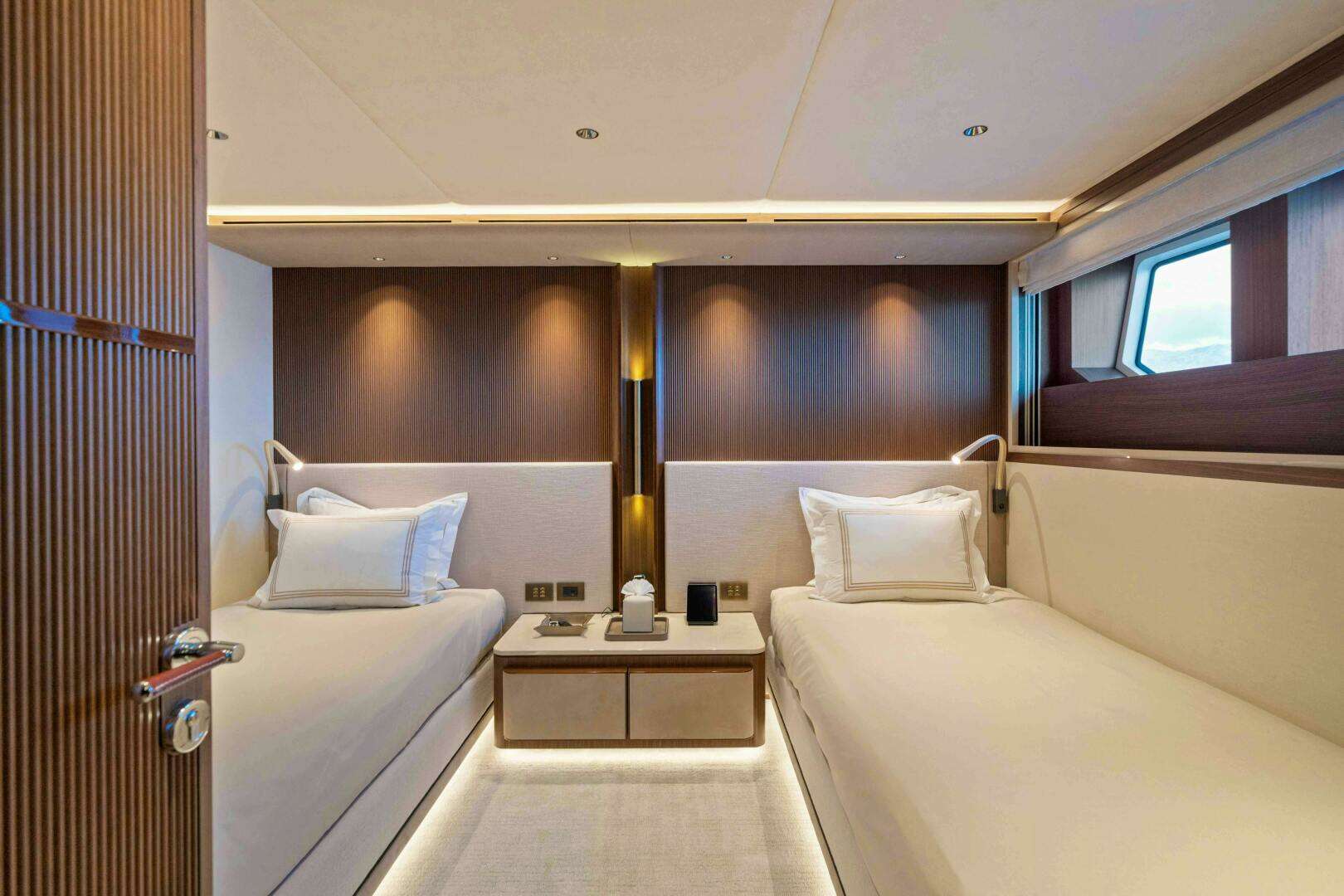

The lower deck features 4 further guest cabins. The forward cabins are twins, each with their own ensuite bathrooms. The aft cabins can either be set up as separate double cabins, alternatively, can be opened to make a full beam VIP suite.

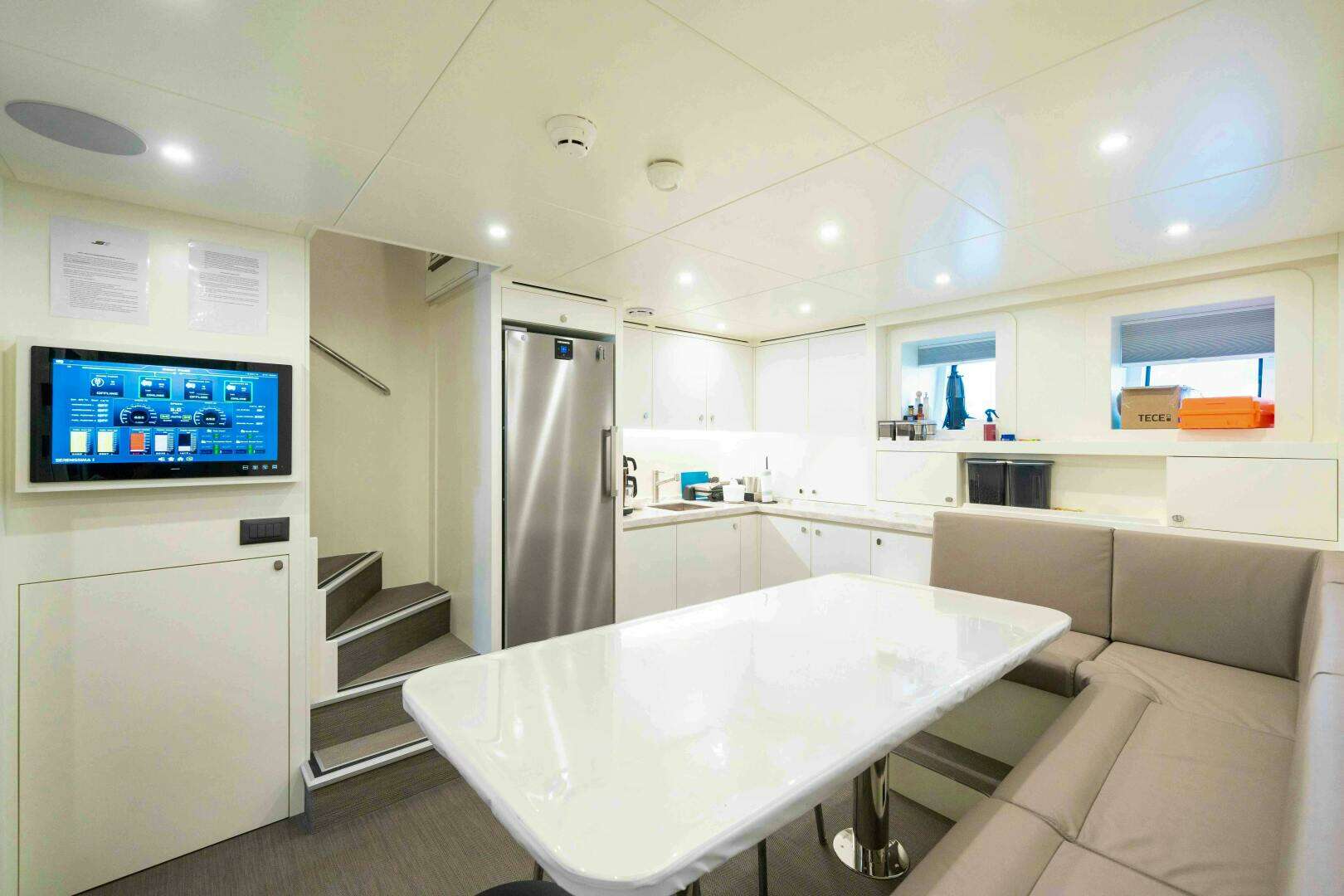

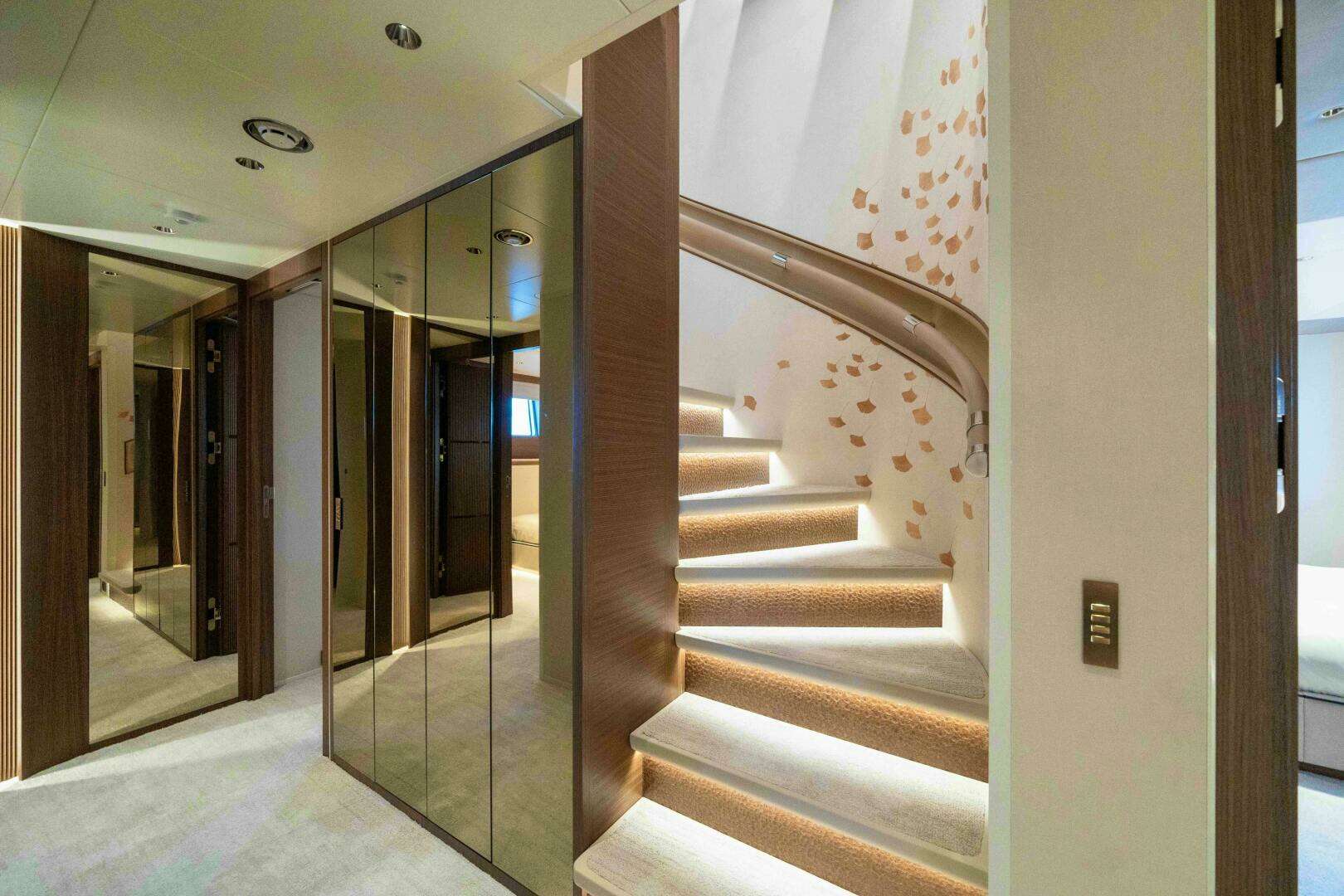

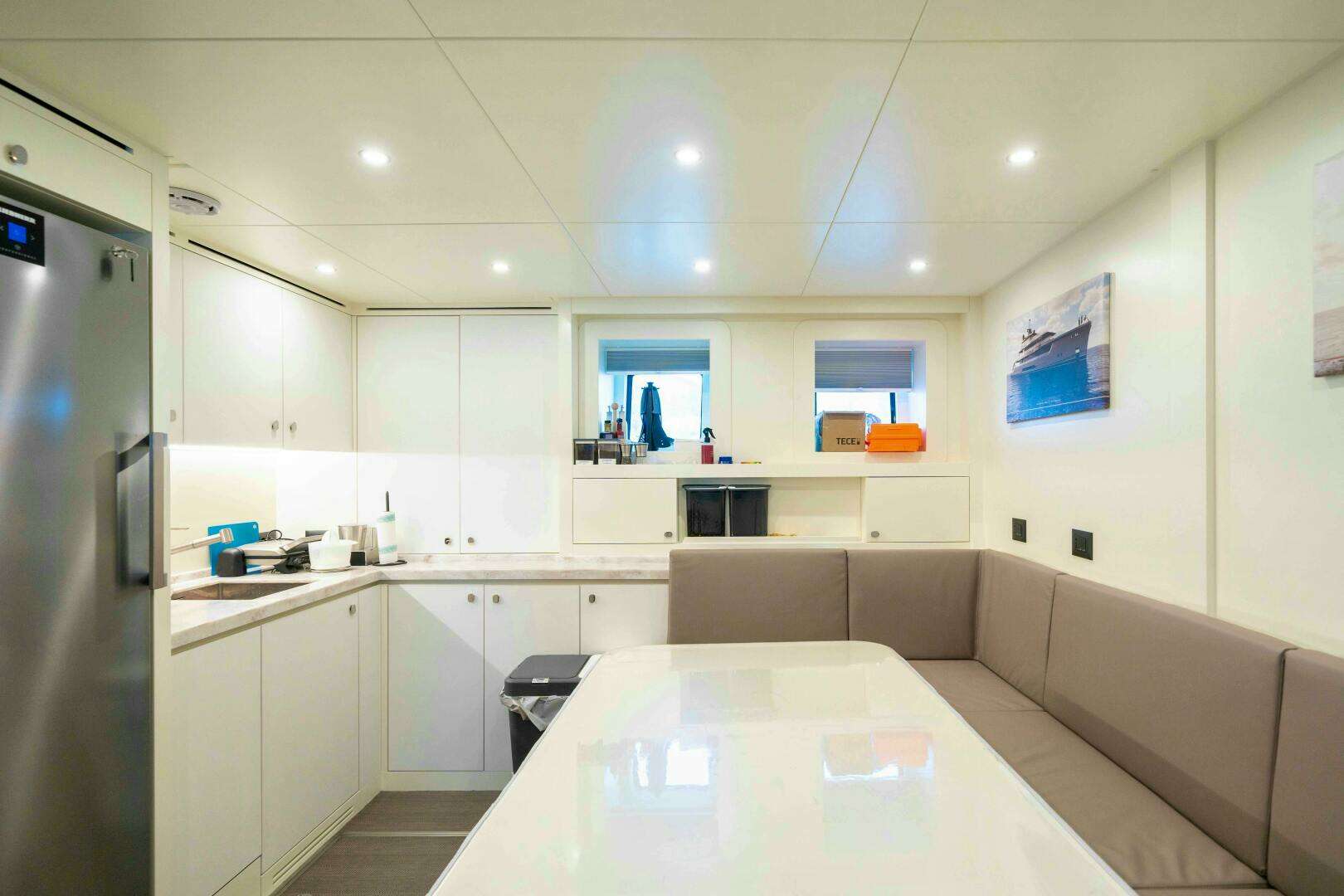

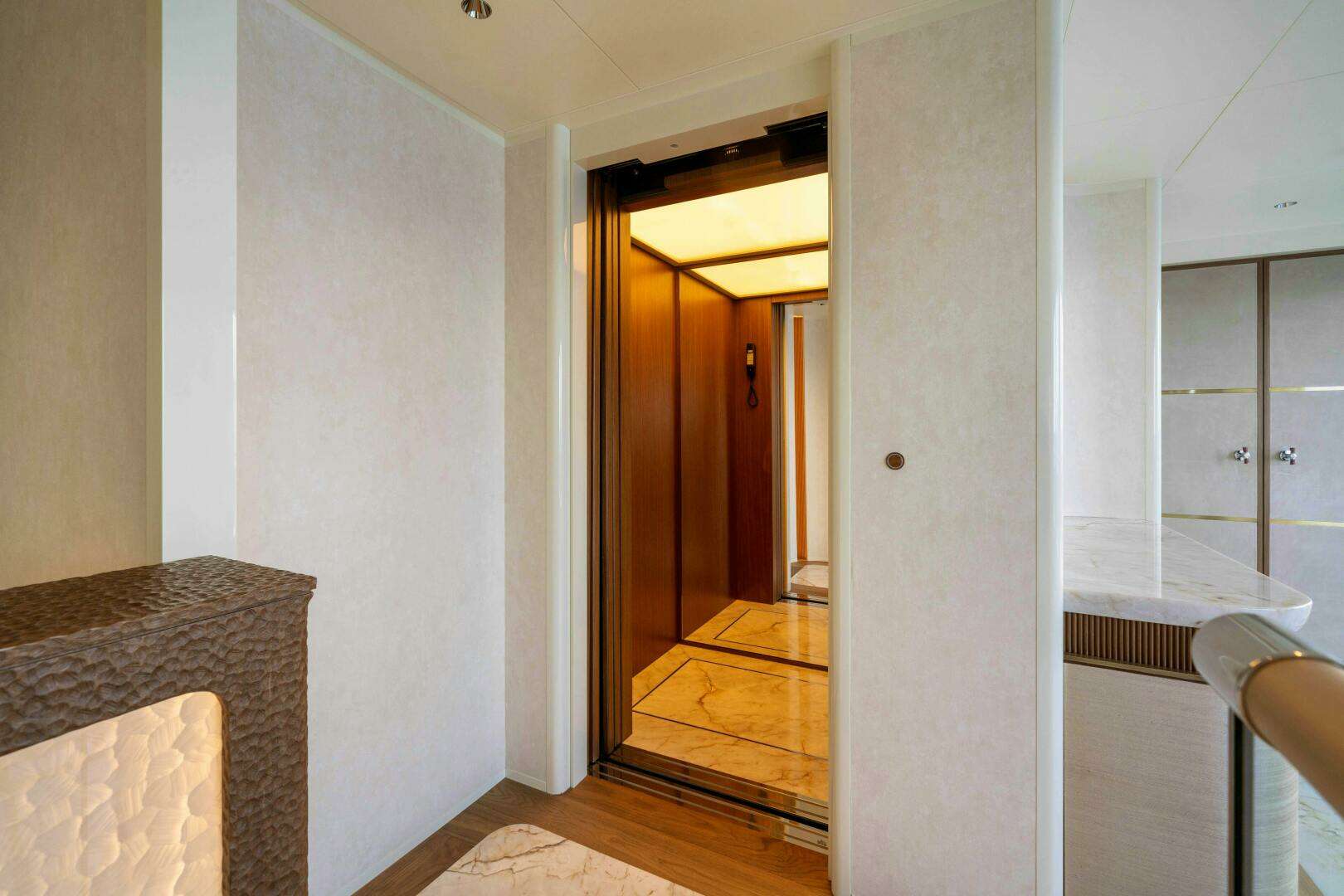

An elevator and central staircase connect the interior decks. Up to 9 crew are accommodated in 5 crew cabins, including a separate captain’s cabin. All crew cabins are located forward on the lower deck.

EXTERIOR DECK SPACES

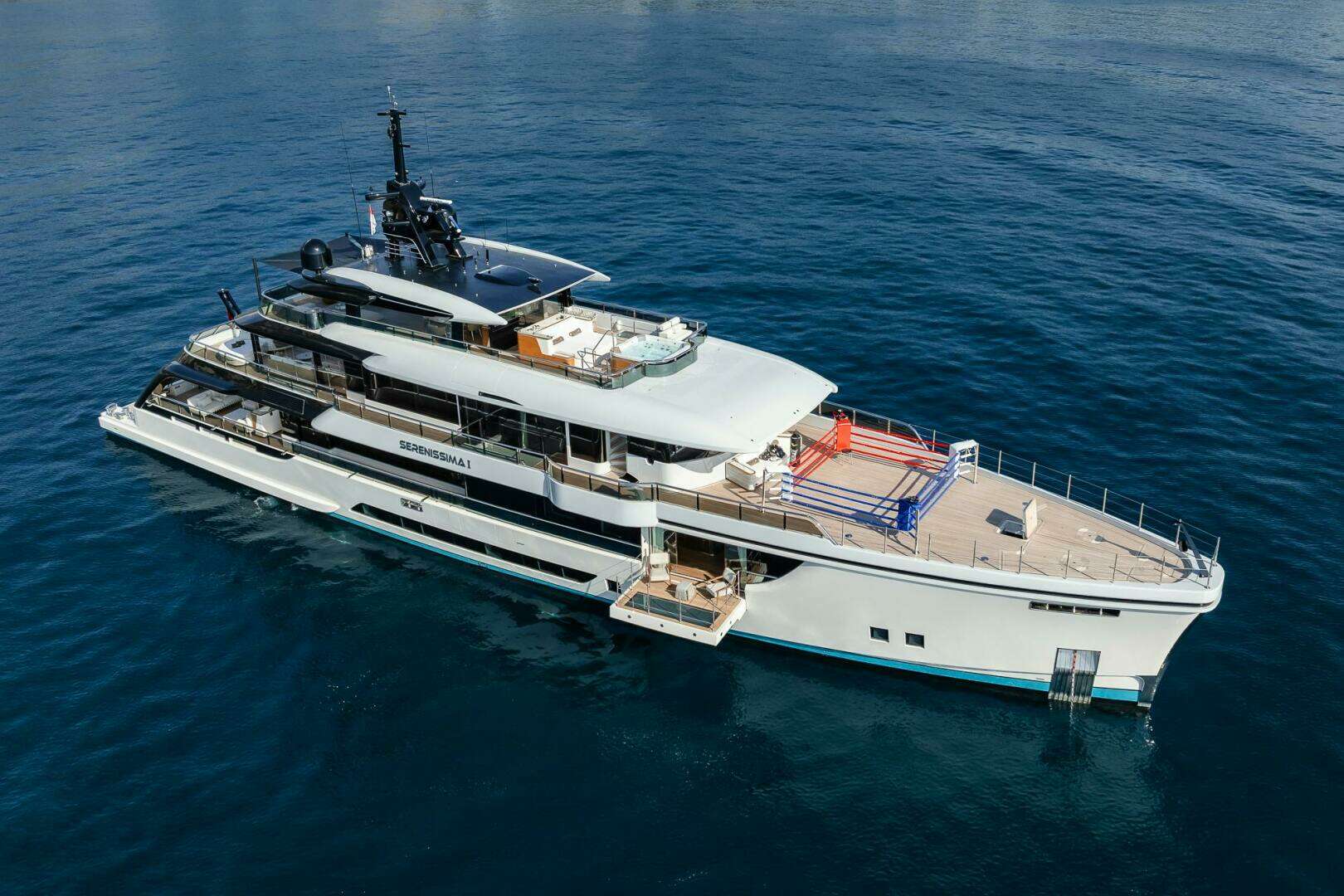

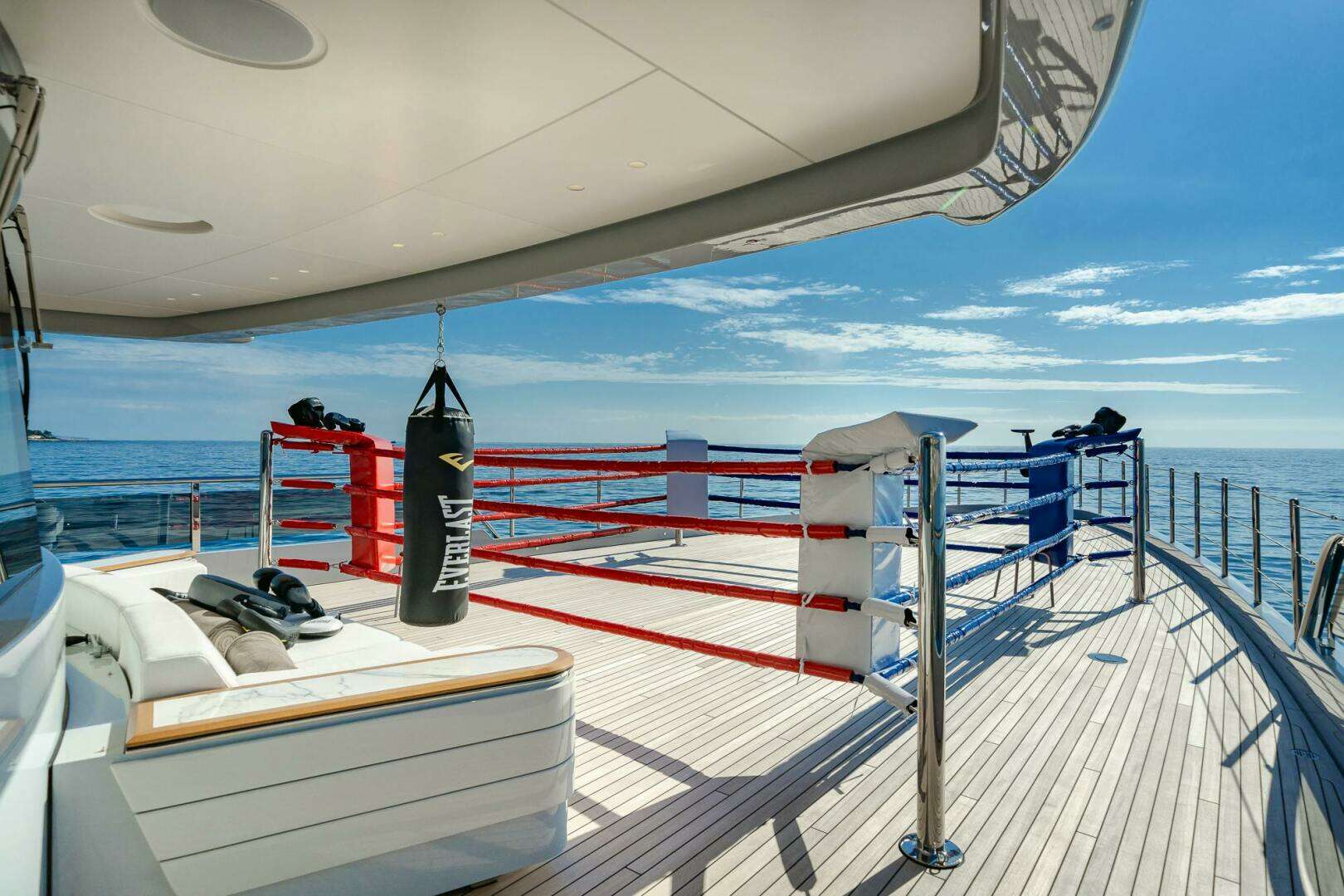

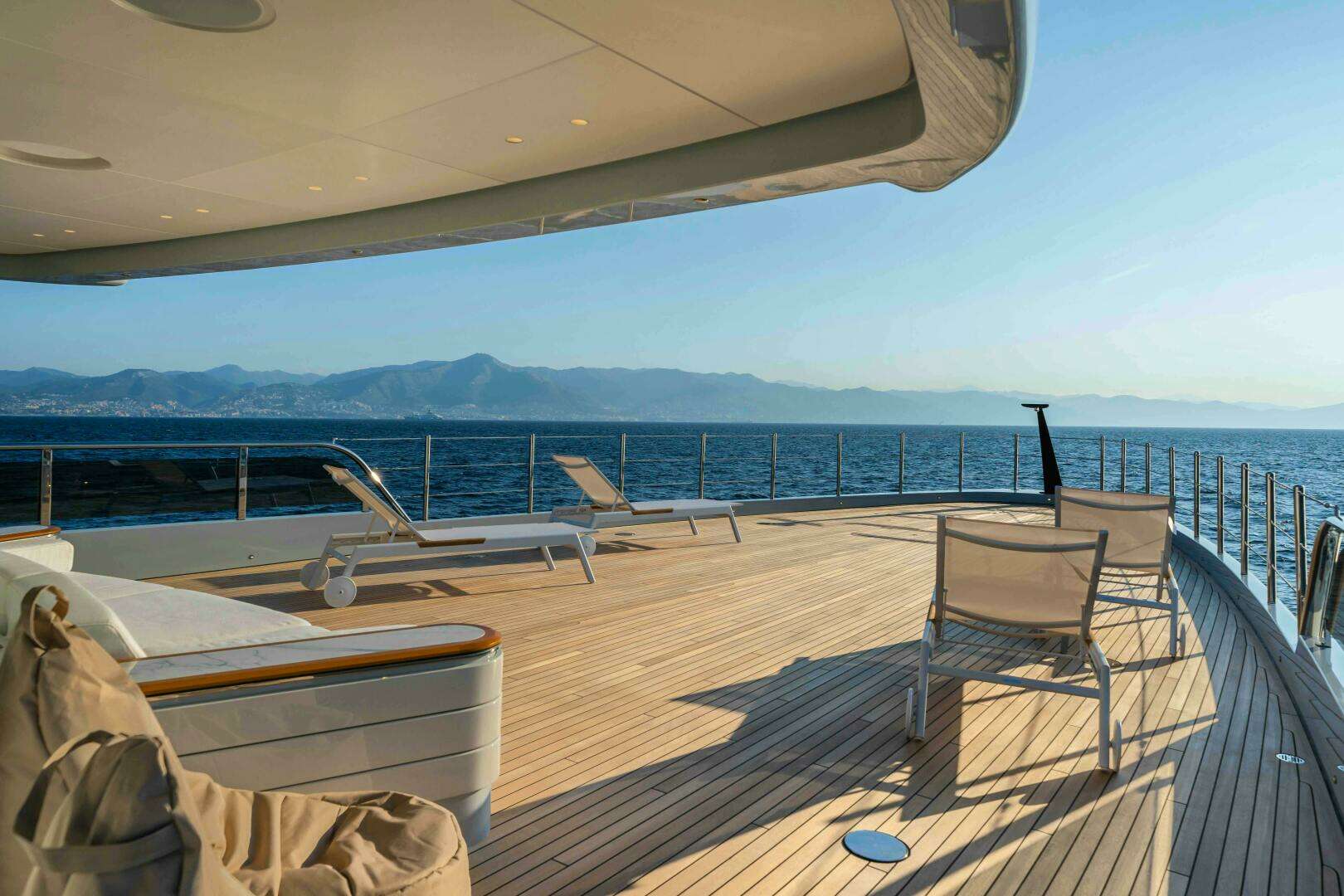

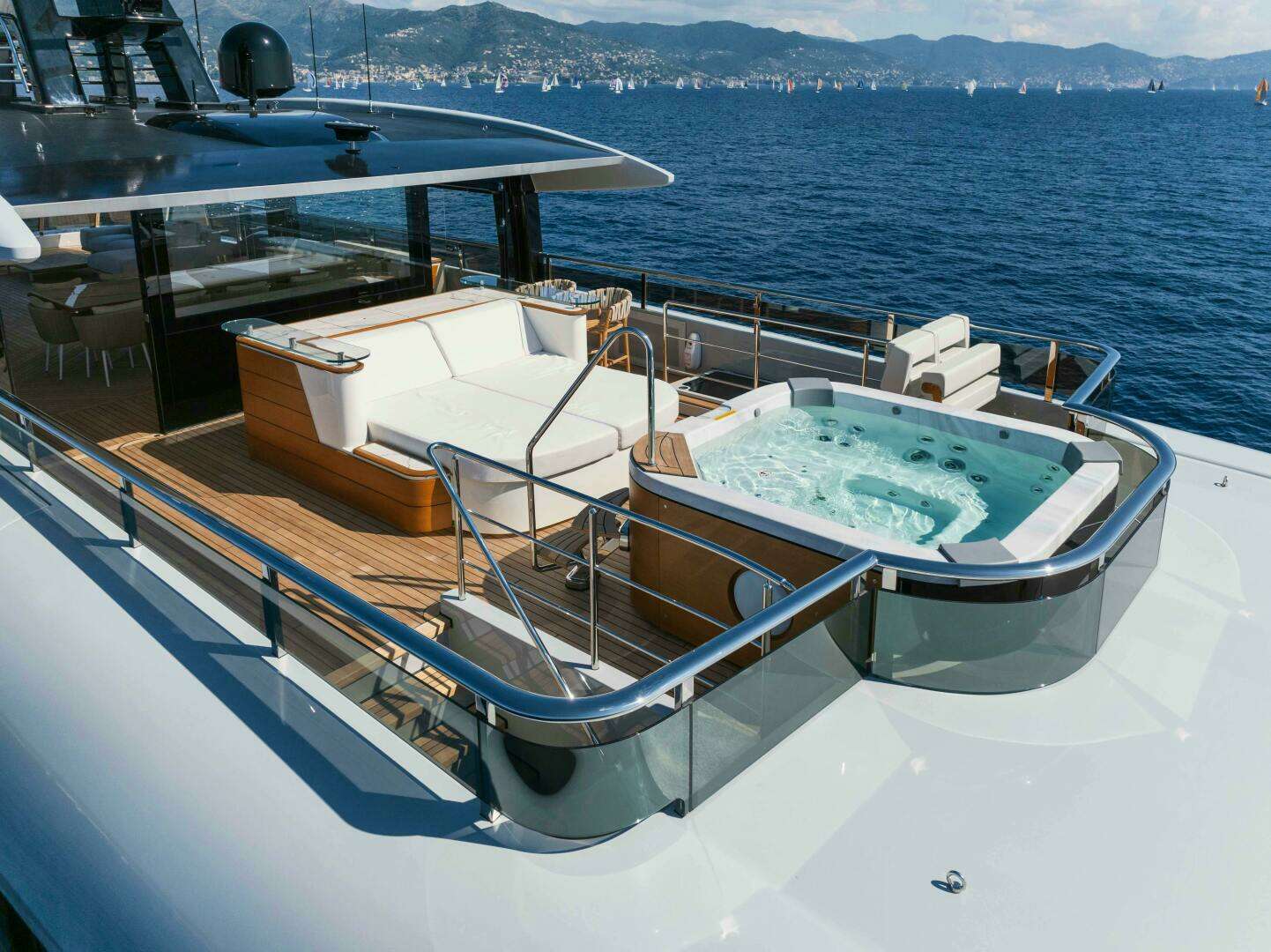

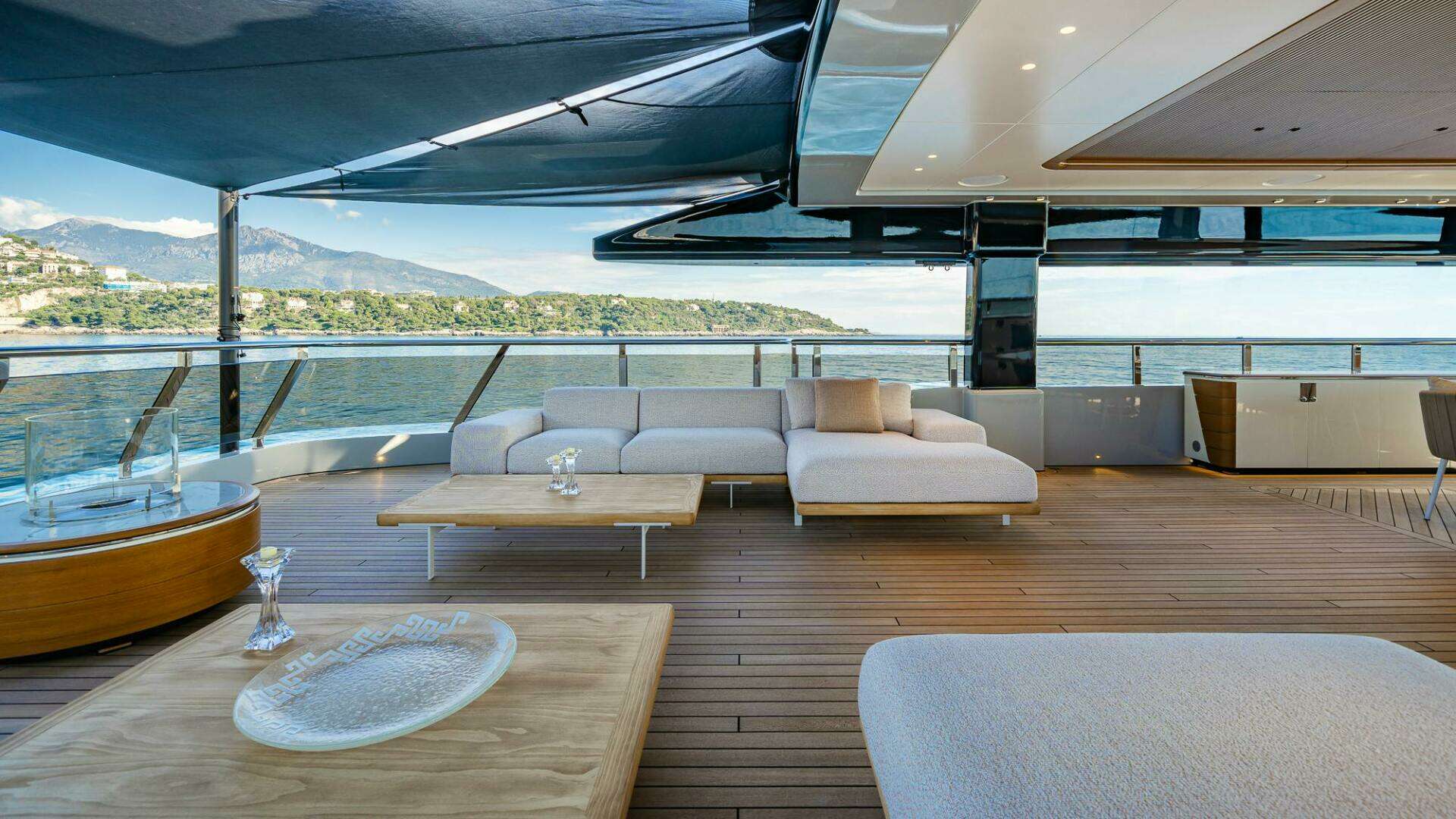

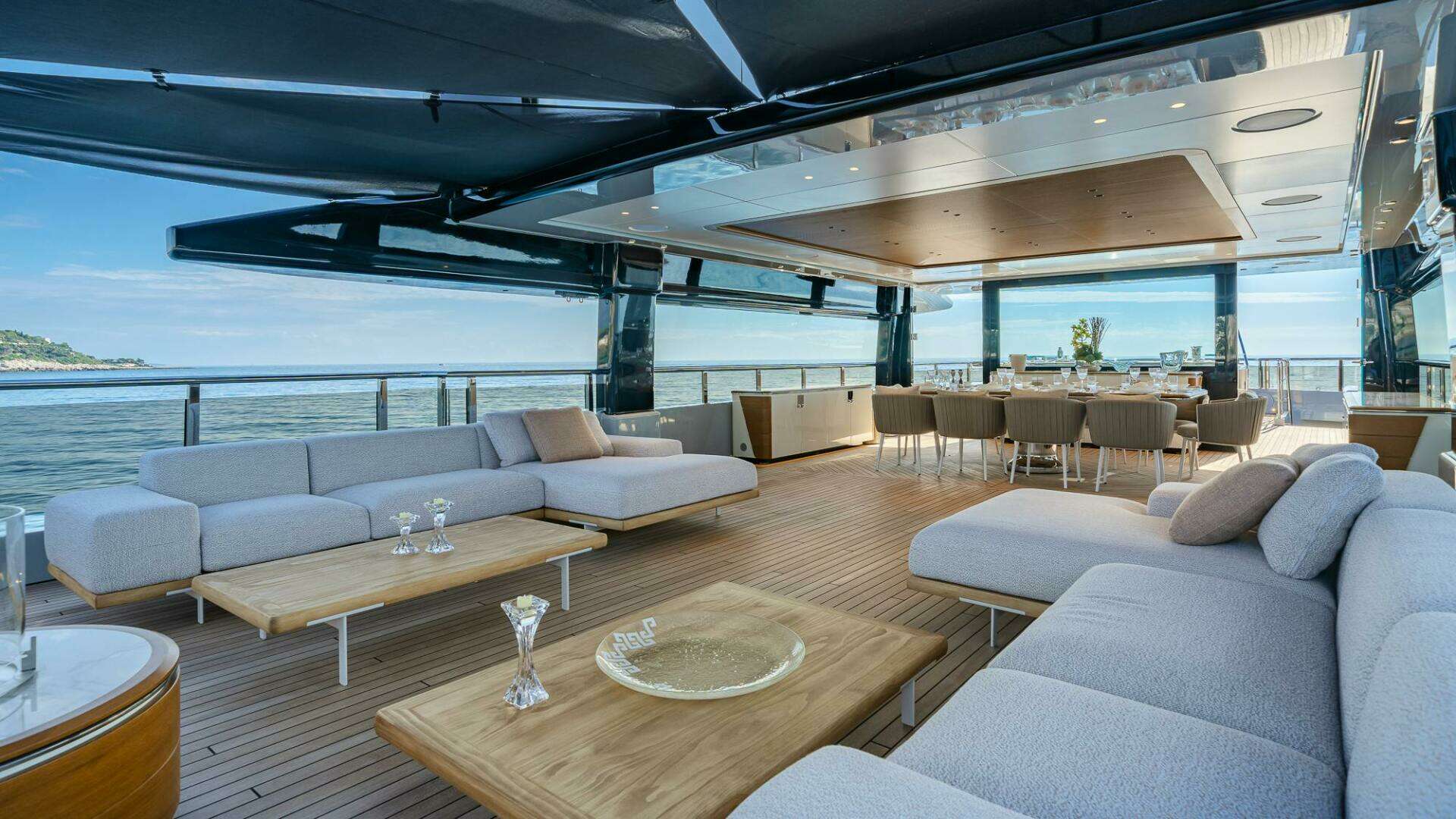

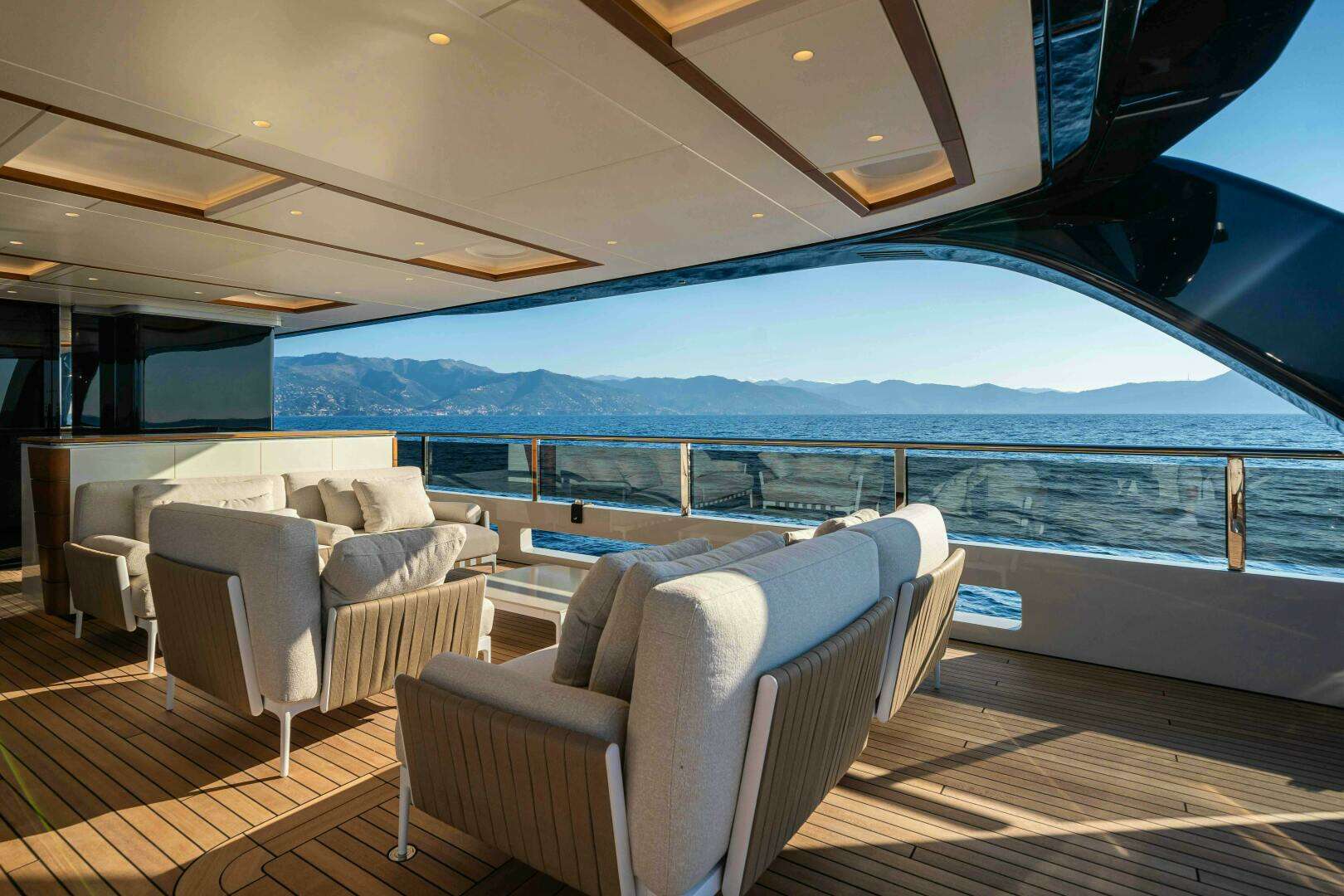

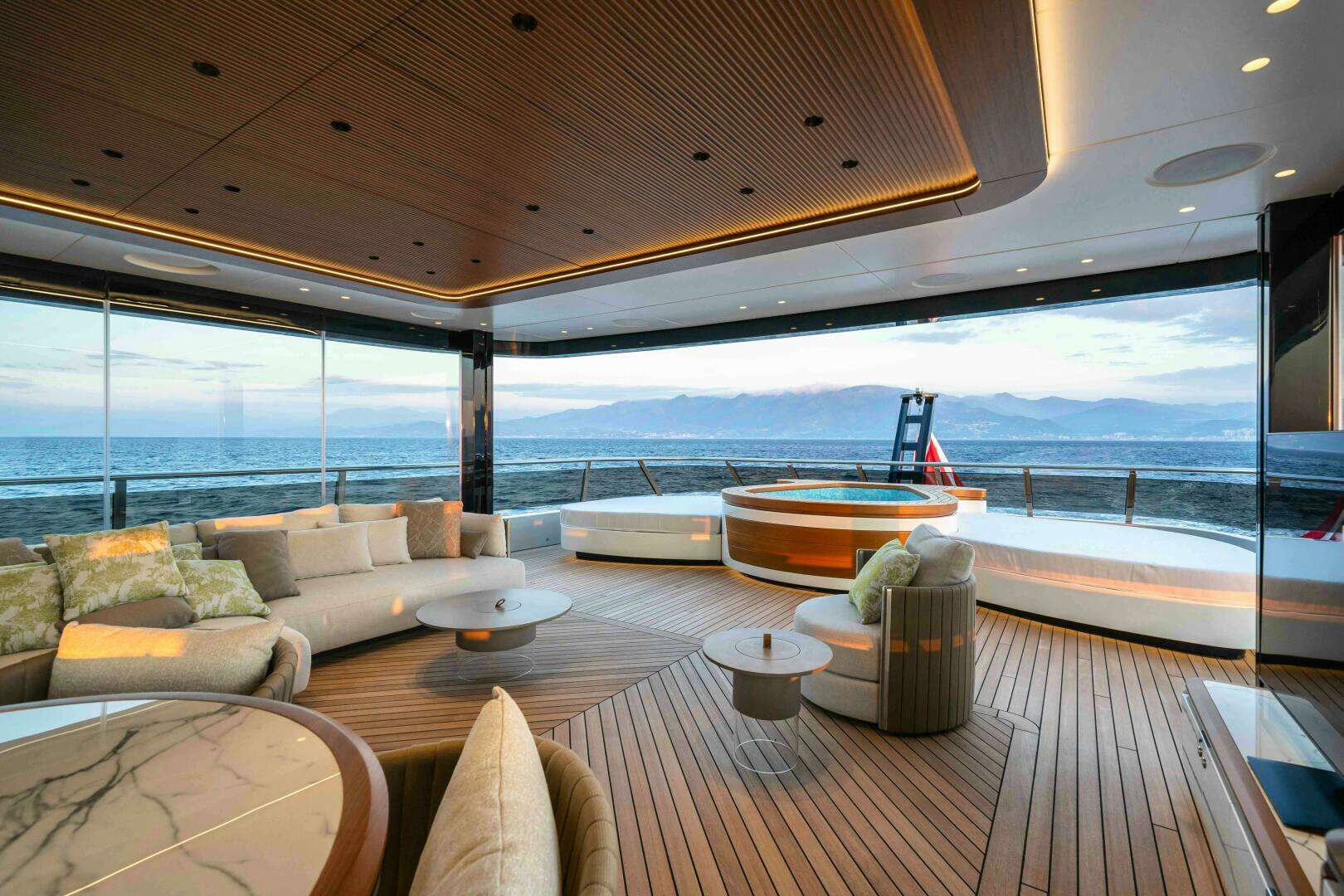

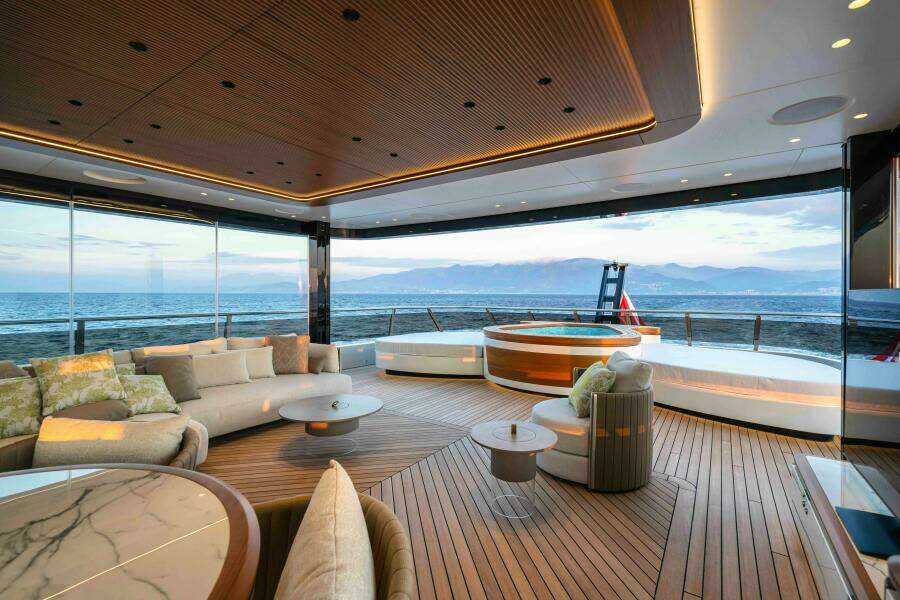

The primary guest exterior entertainment space can be found on the sundeck, which has been split with large, glass panels midship to shelter the aft area. The sundeck forward offers

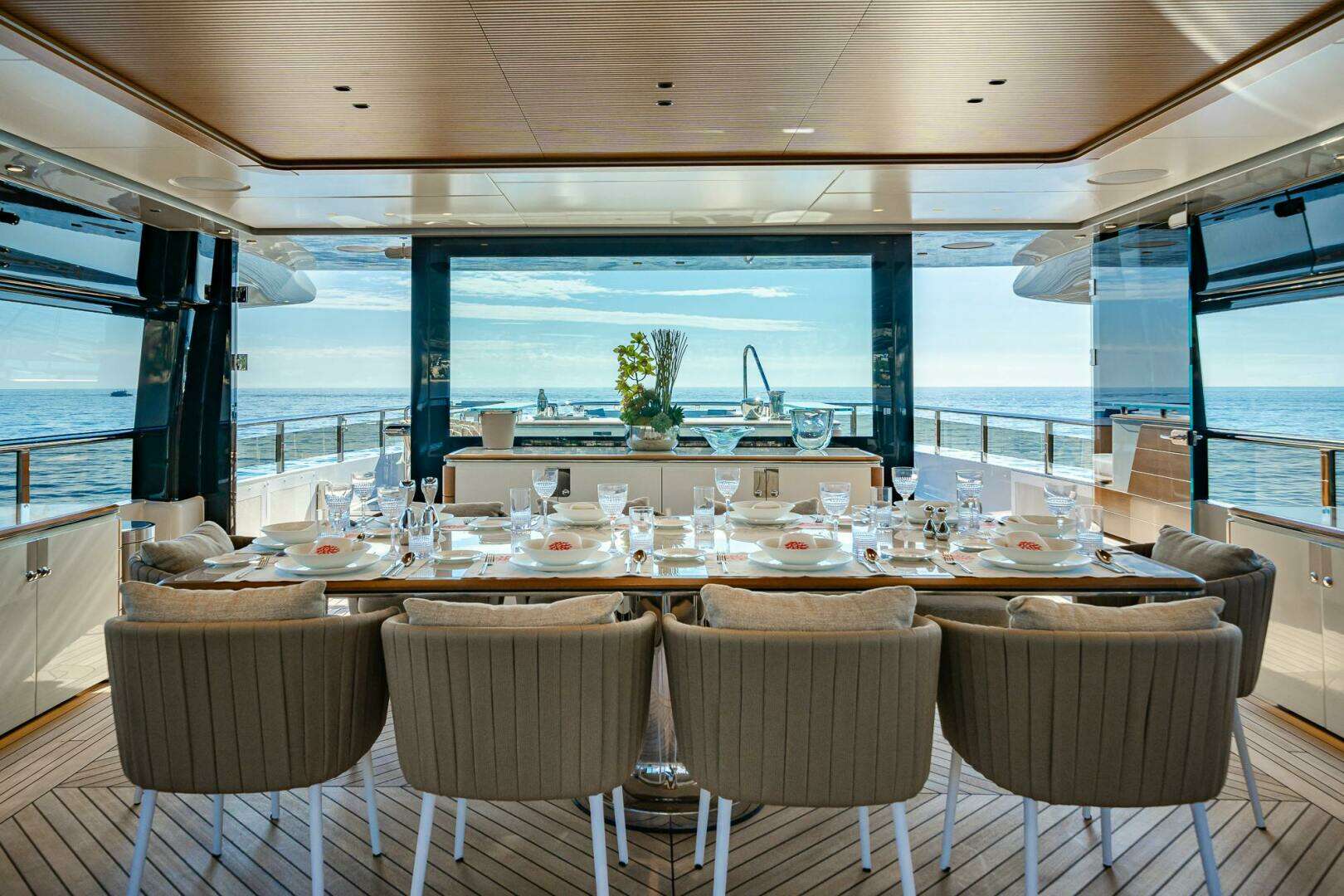

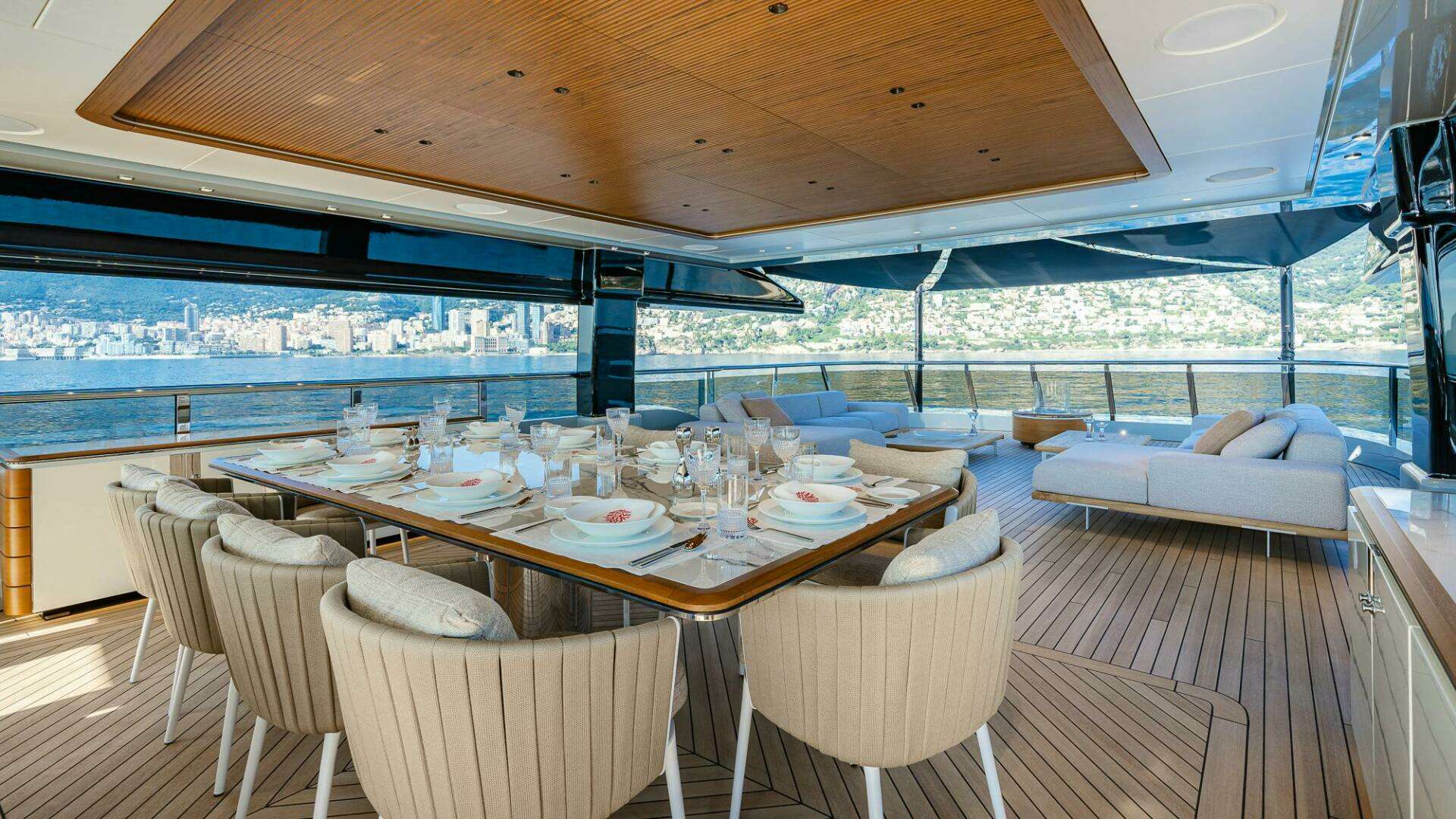

a large jacuzzi and sun pads. Midship, under the hard top shelter, can be found a dining table for 10 guests with further seating found aft around a firepit. The bridge deck offers a private space for the owner, with direct access out of the master cabin.

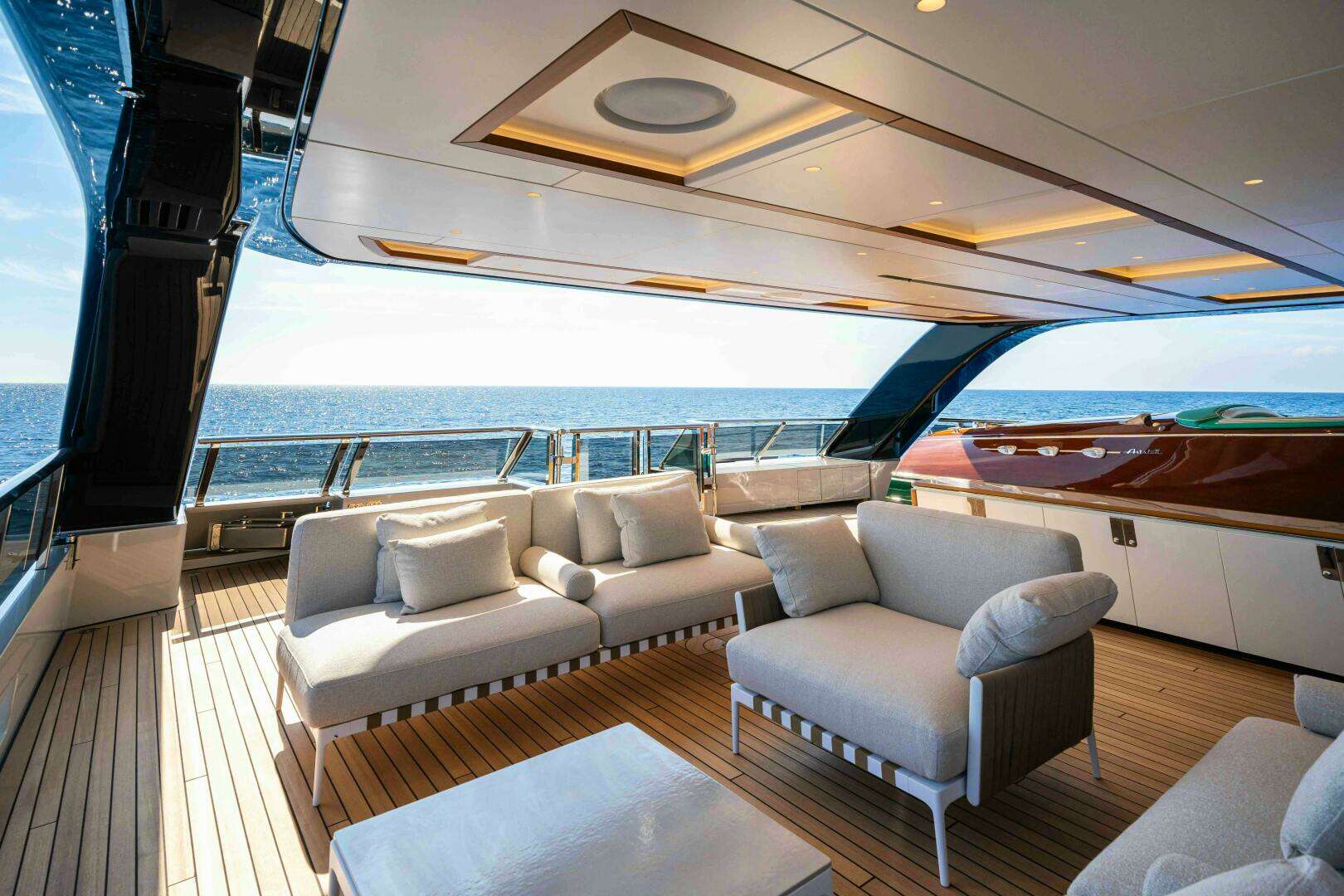

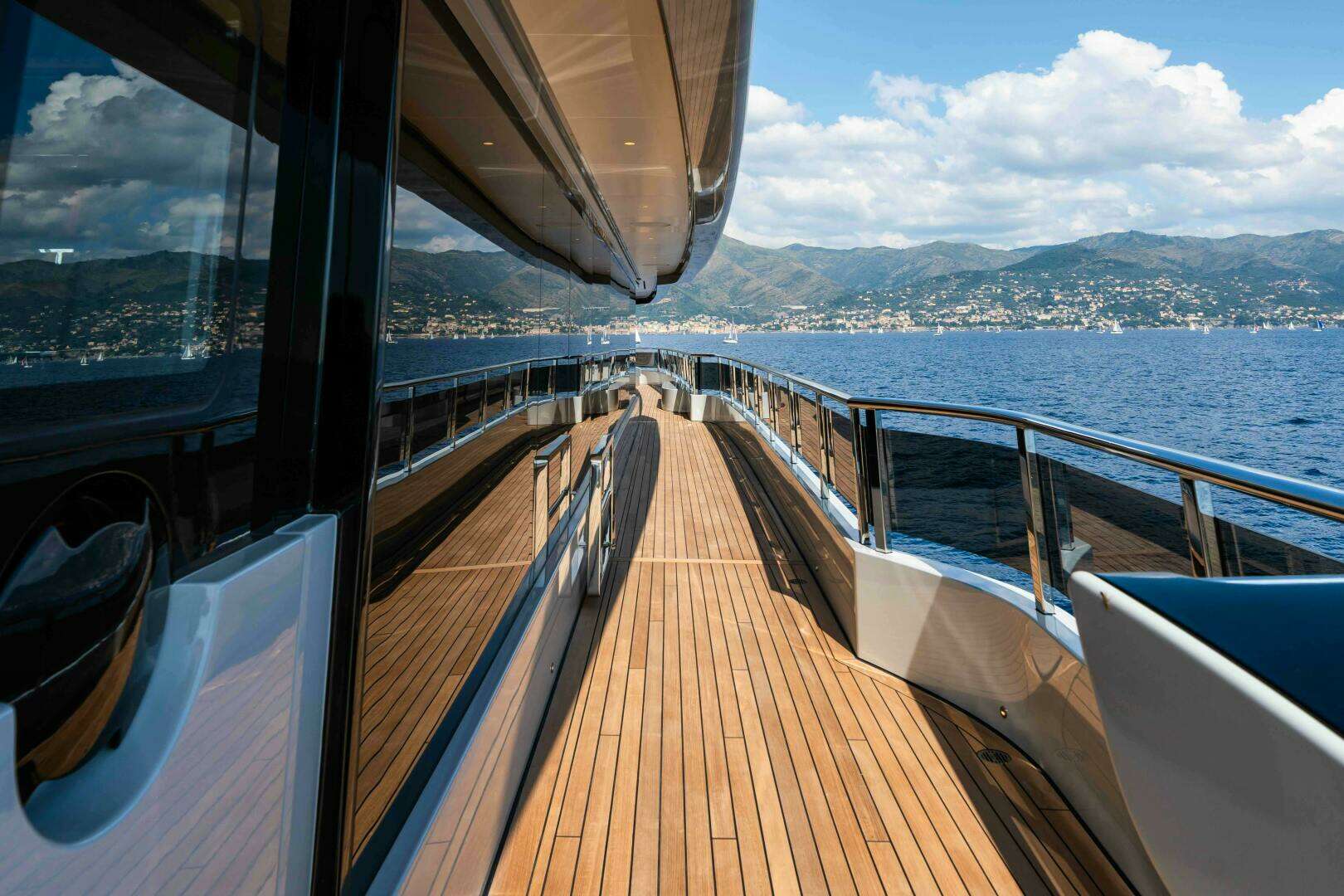

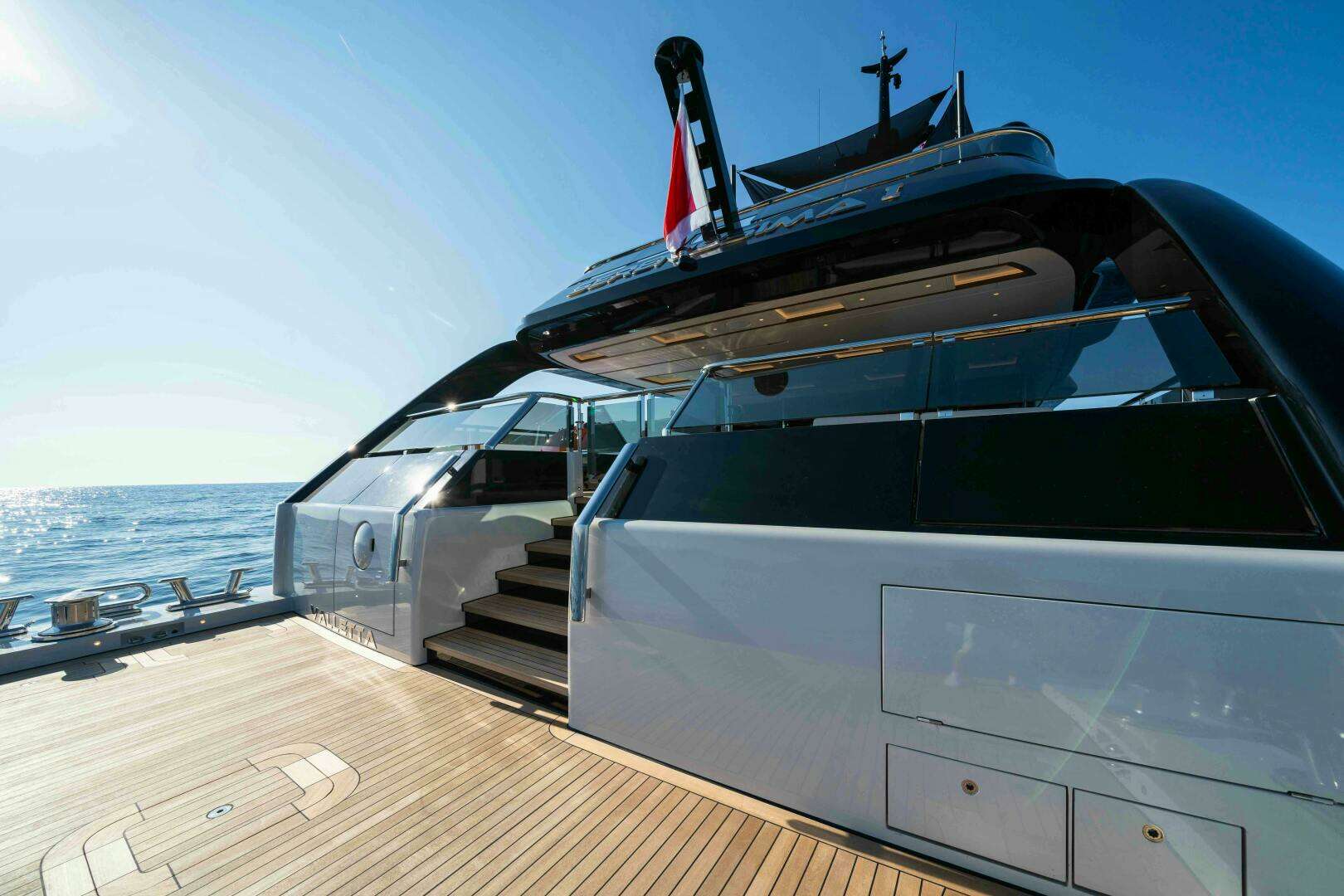

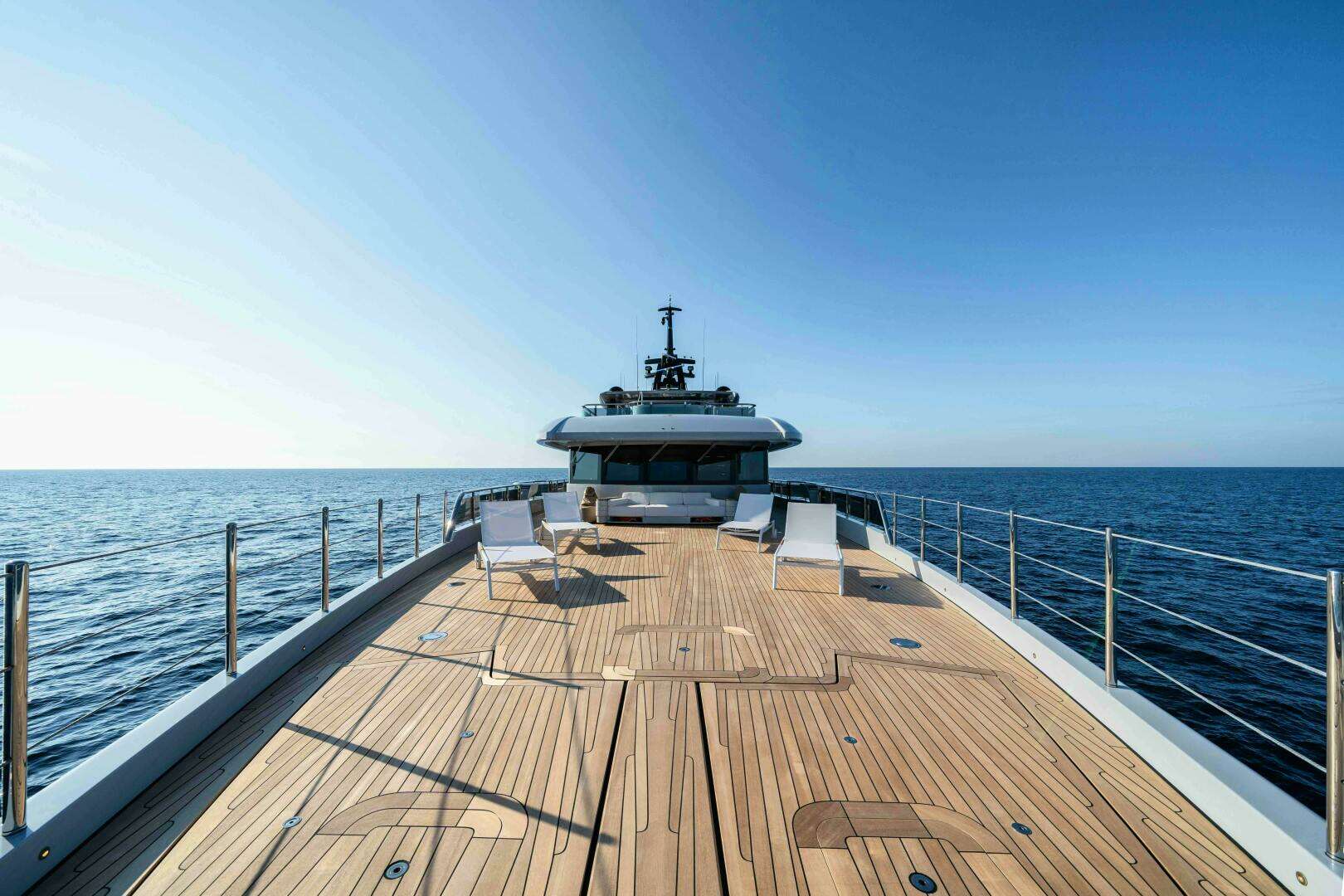

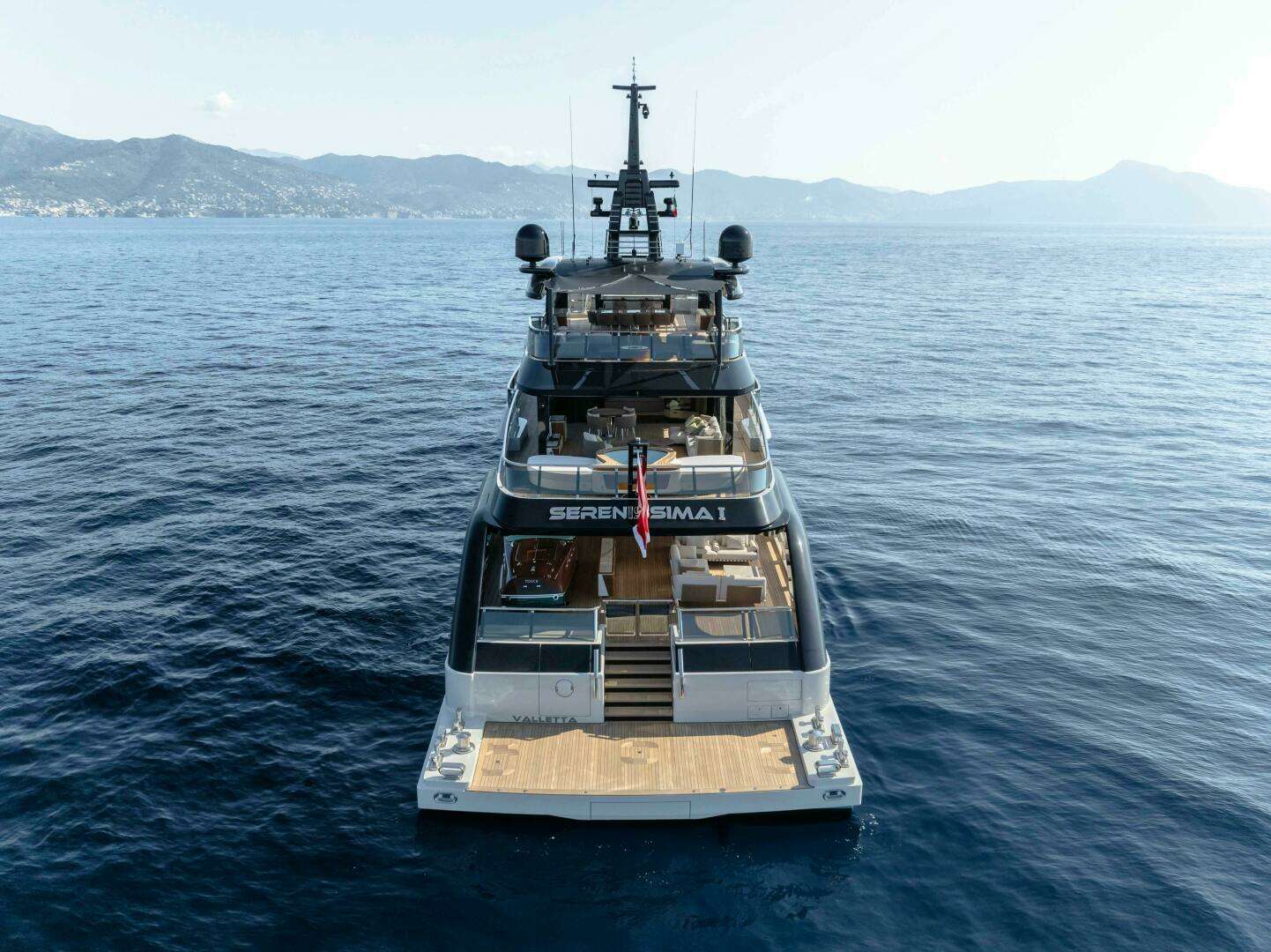

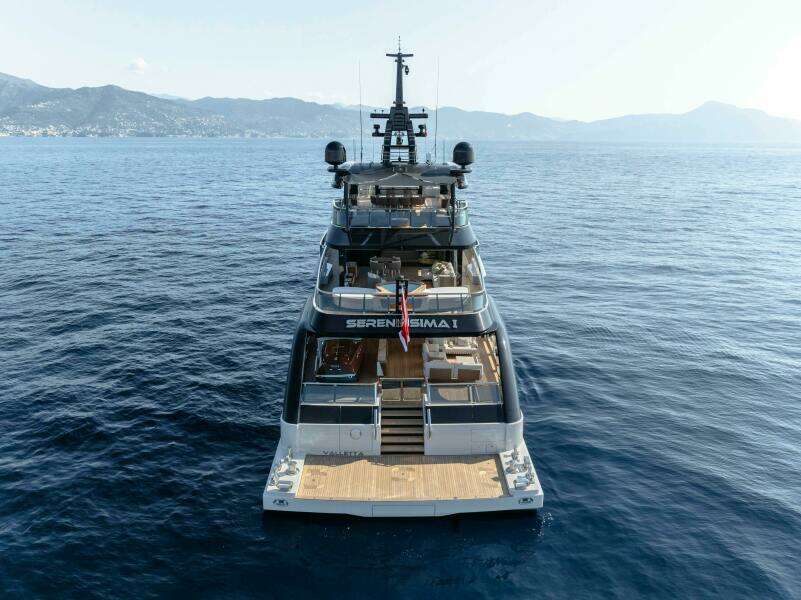

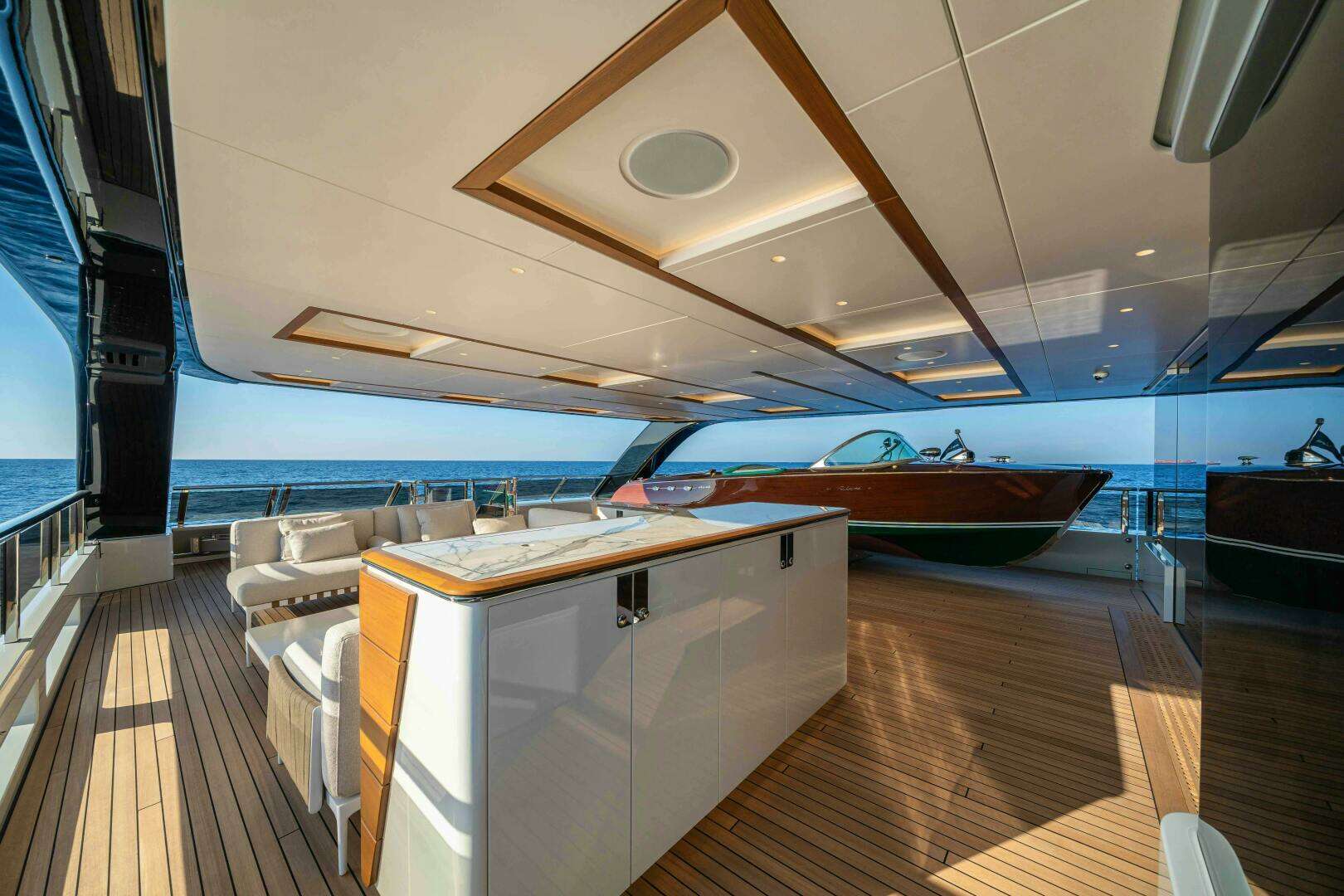

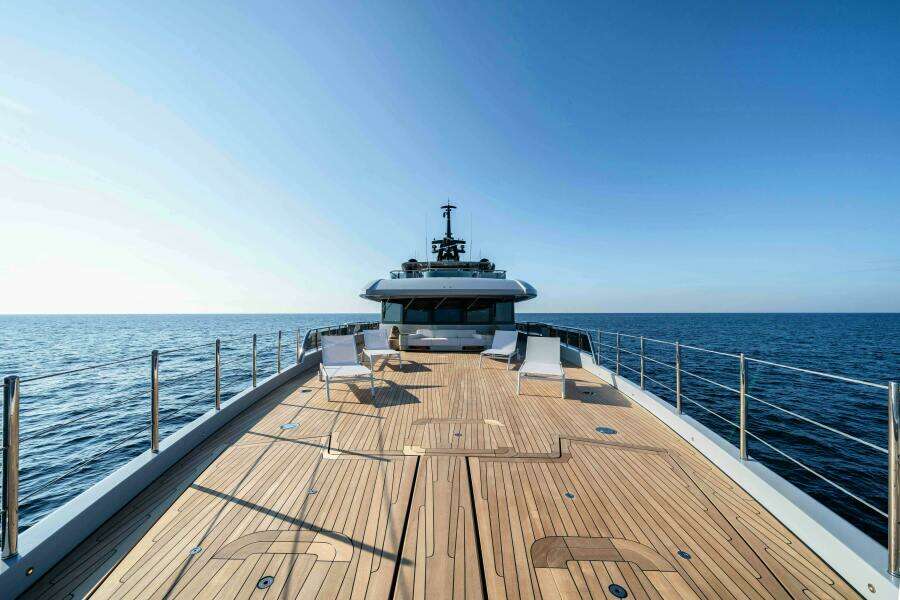

In addition, there are walk around side-decks leading to the flush foredeck. The main deck aft accommodates the primary guest tender to port, with additional guest seating to port. The main deck aft leads down a central staircase to the generous swim platform. There is a secondary tender garage forward on the main deck, to accommodate the rescue tender and jet skis.

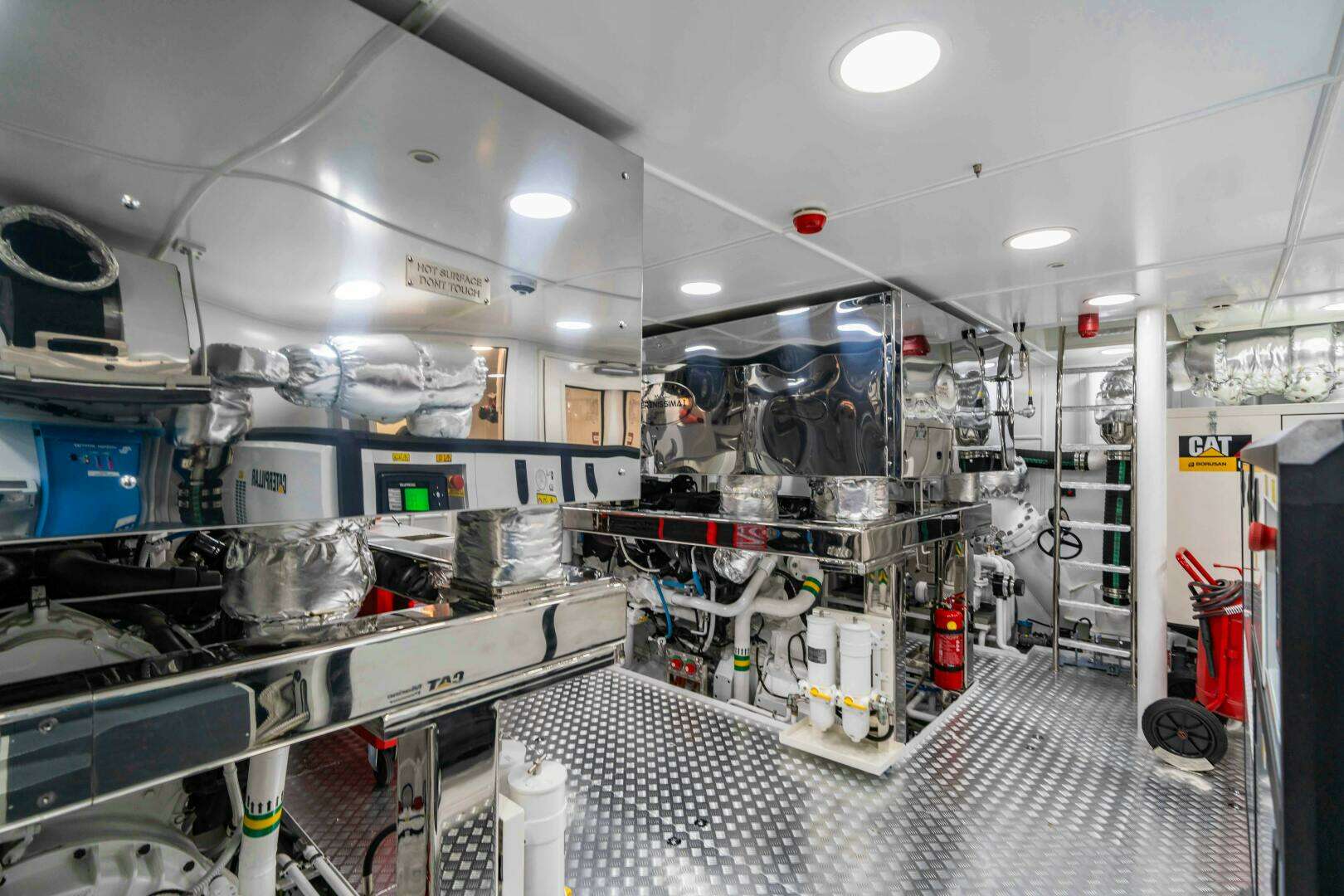

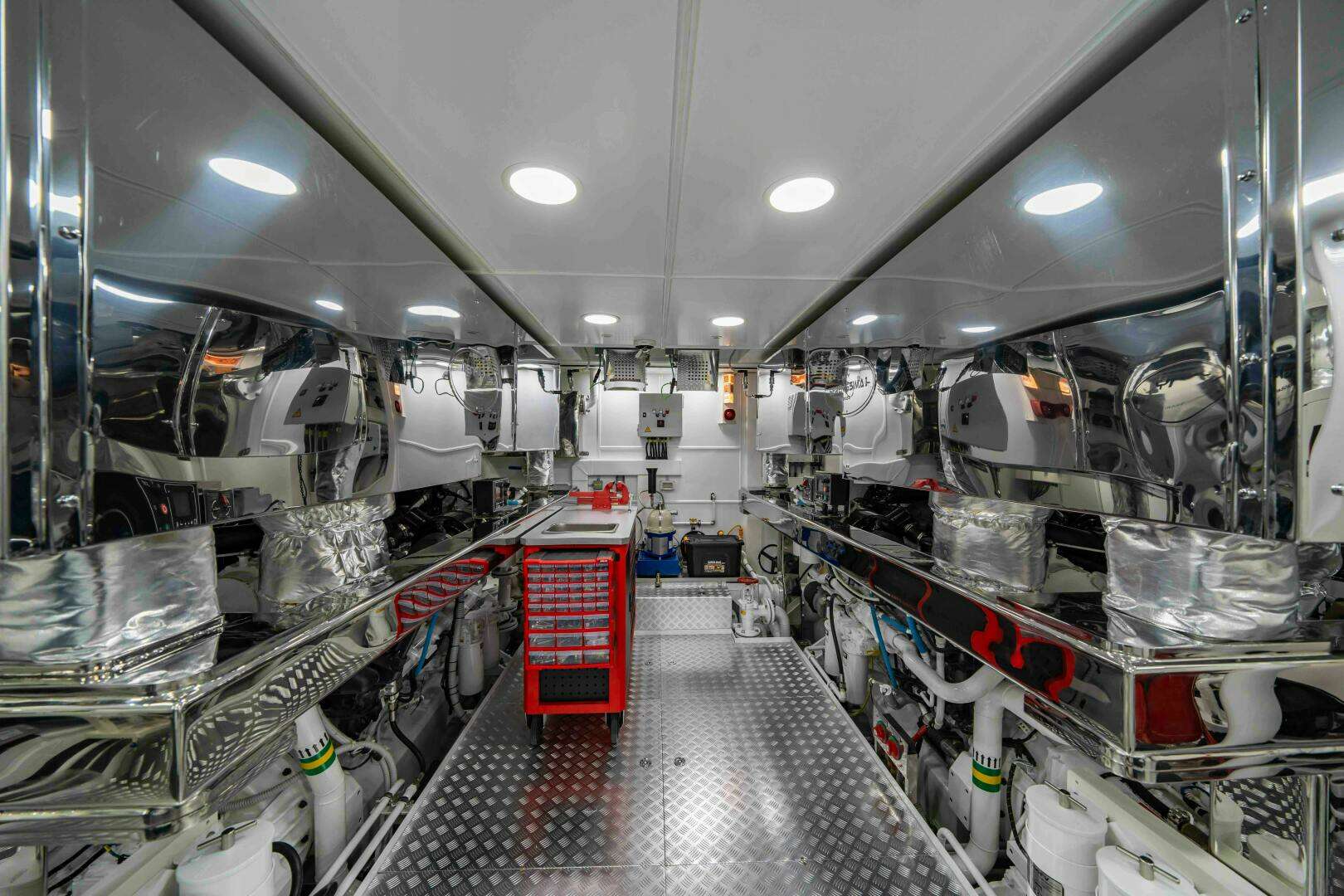

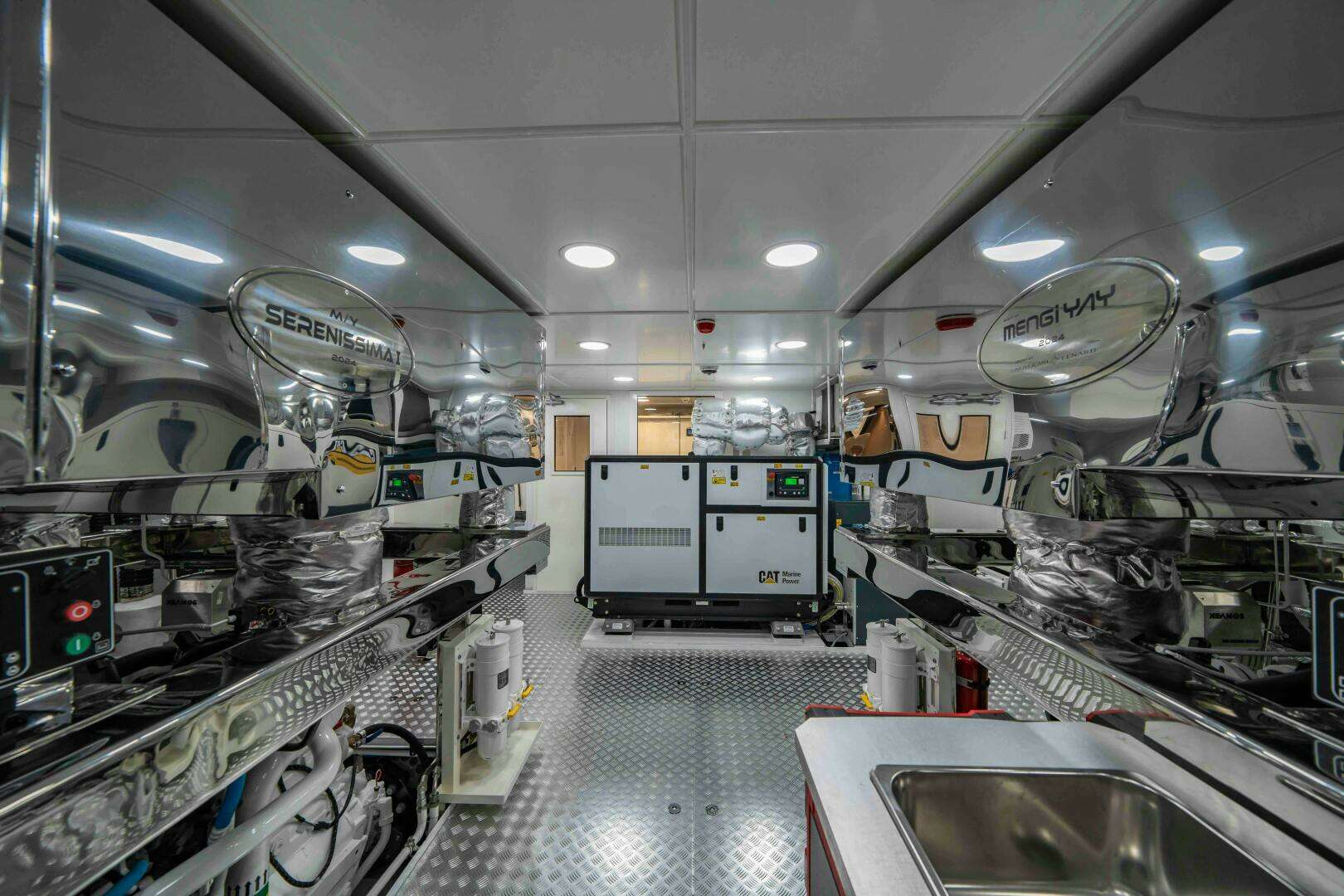

ENGINE ROOM

–

• Main Engines: 2 x CAT C32 DITTA ACERT 1,450 Bhp (1,081 kW)
• Gearboxes: 2 x ZF 3351 1:4478
• Propellers: 2 x Teignbridge 5 Blade
• Exhausts: Water cooled + Urea
• Generators: 2 x Caterpillar 118 kW
• Night Generator: 1 x Caterpillar 86kW
• Alternator: Leroy Somer AC 400V / 50 Hz
• ME Starter: 24V Electric
• Steering: Data Hydraulic DDS 2 x 1100
• Air Compressor: Gianneschi
• Bilge Separator: EPE Poseidon
• Bow Thruster: SP SAC 1400 Electric
• Stern Thruster: SP SAC 1400 Electric
• Stabilizers: Humphree Fins Zero Speed
• Bilge Pumps: 2 x Gianneschi
• Fresh Water Pumps: 2 x Gianneschi
• Hot Water Pumps: 2 x Wilo Top Z 30/7 R6
• Fuel Transfer: Pump + 2 x Alfa Laval MIB503
• Fuel Separator: 2 x Alfa Laval MIB503
• Boilers: Gianneschi 3 x 150L
• Water Maker: MC12 Duplex 1,000 L/H
• Water Softner: Idrofast 9100
• Toilet System: Evac Vacuum Optima Prestige
• Water Treatment: Hamann HLCP025
• HVAC & Chilled Water: Crusair / Dometic
• AC Chiller Guests: 393,000 BTU
• AC Chiller Technical: 129,000 BTU
• ER Ventilation: 2 x Gianneschi + Fan Coil
• AMS: Boning

TANKS

Fuel 64,000 L
Fresh Water 14,000 L
Grey & Black 7556 L
Bilge 700 L
Sludge Water 700 L
Lube Oil 770 L
Dirty Oil 770 L
Urea 4,350 L

FIREFIGHTING

• Pumps: 2 x Gianneschi ACB631/B
• Emergency Pump: Ganneschi MACB 531V
• Fire Extinguishers: Viking
• ER Firefighting: Hafex Aerosol
• Alarm & Monitoring: Siemens
• Heat Detectors: Galley & ER
• Gas Detector: Forward Garage

ELECTRICAL SYSTEMS

400/230 VAC and 24 VDC System

• Main Generators 400 VAC 50 Hz
• Emergency Battery 24 VDC
• Shore Power 180-520 VAC 45 - 65 Hz
• Main Lighting Cantalupi 230 VAC 50 Hz
• Underwater Lighting Cantalupi
• Emergency Lighting 24 VDC
• Service Batteries 24 VDC
• Batteries 24 VDC
• Circuit Breakers Schneider
• Shore Power Converter Magnus
• Shore Power Cable Hubbell 30m
• Inverters Victron

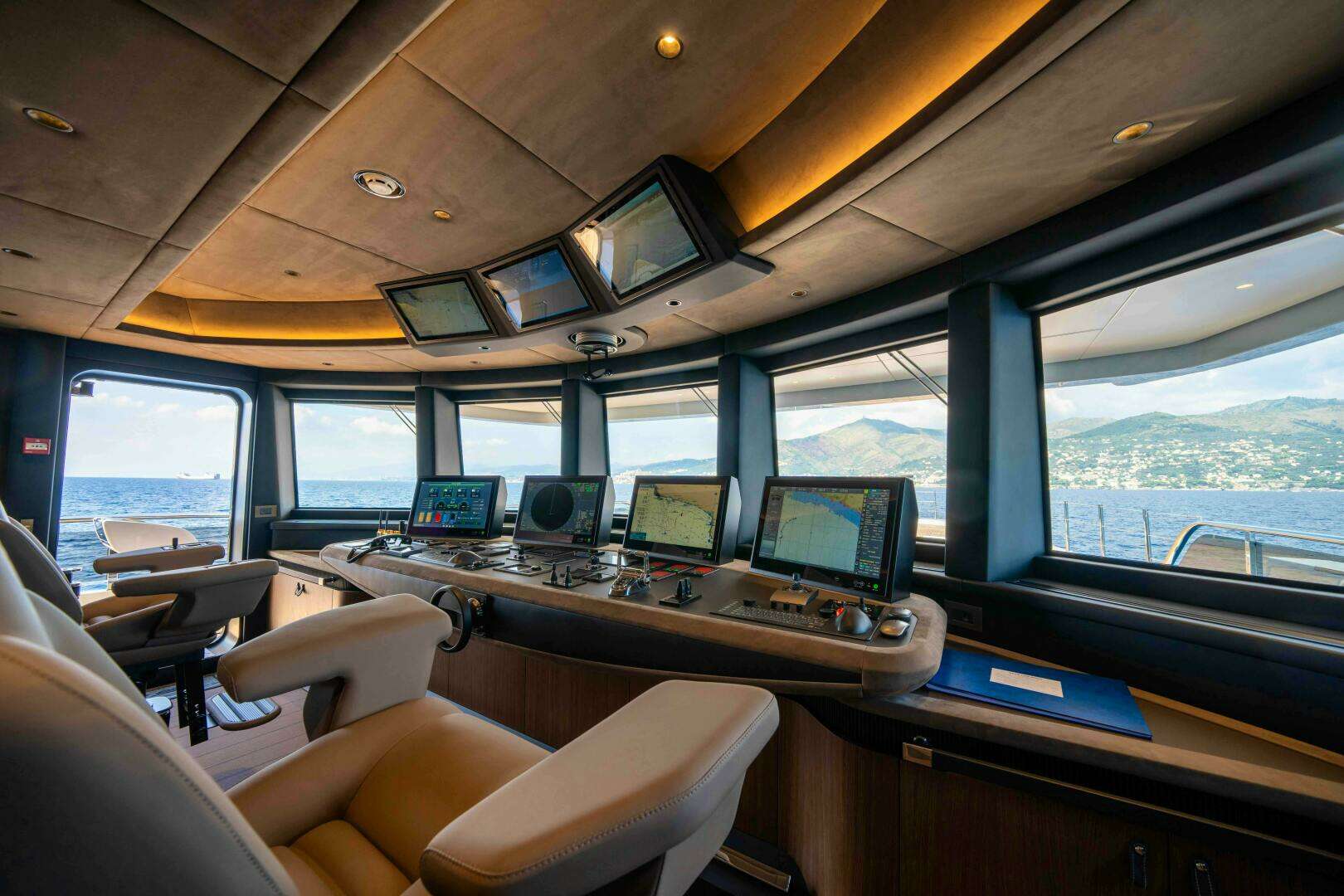

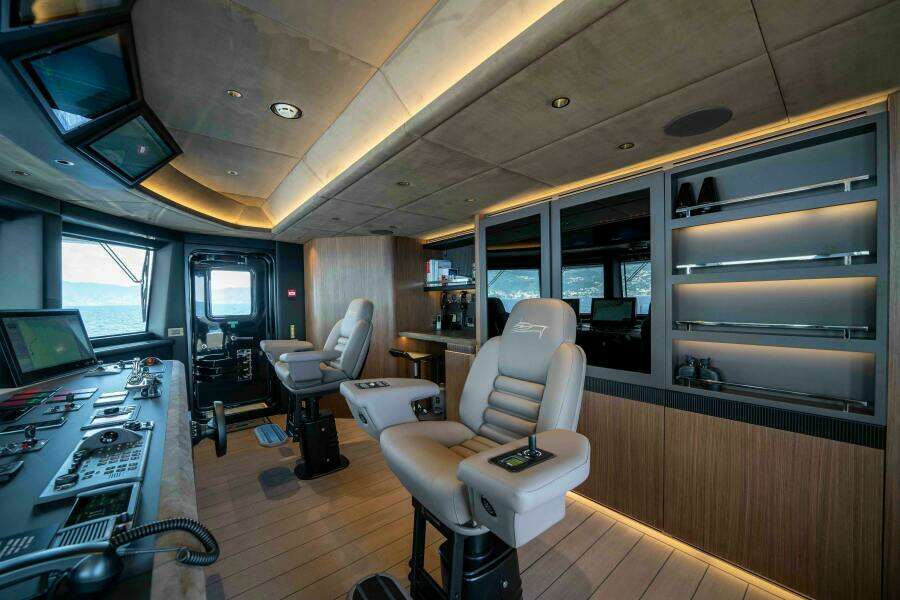

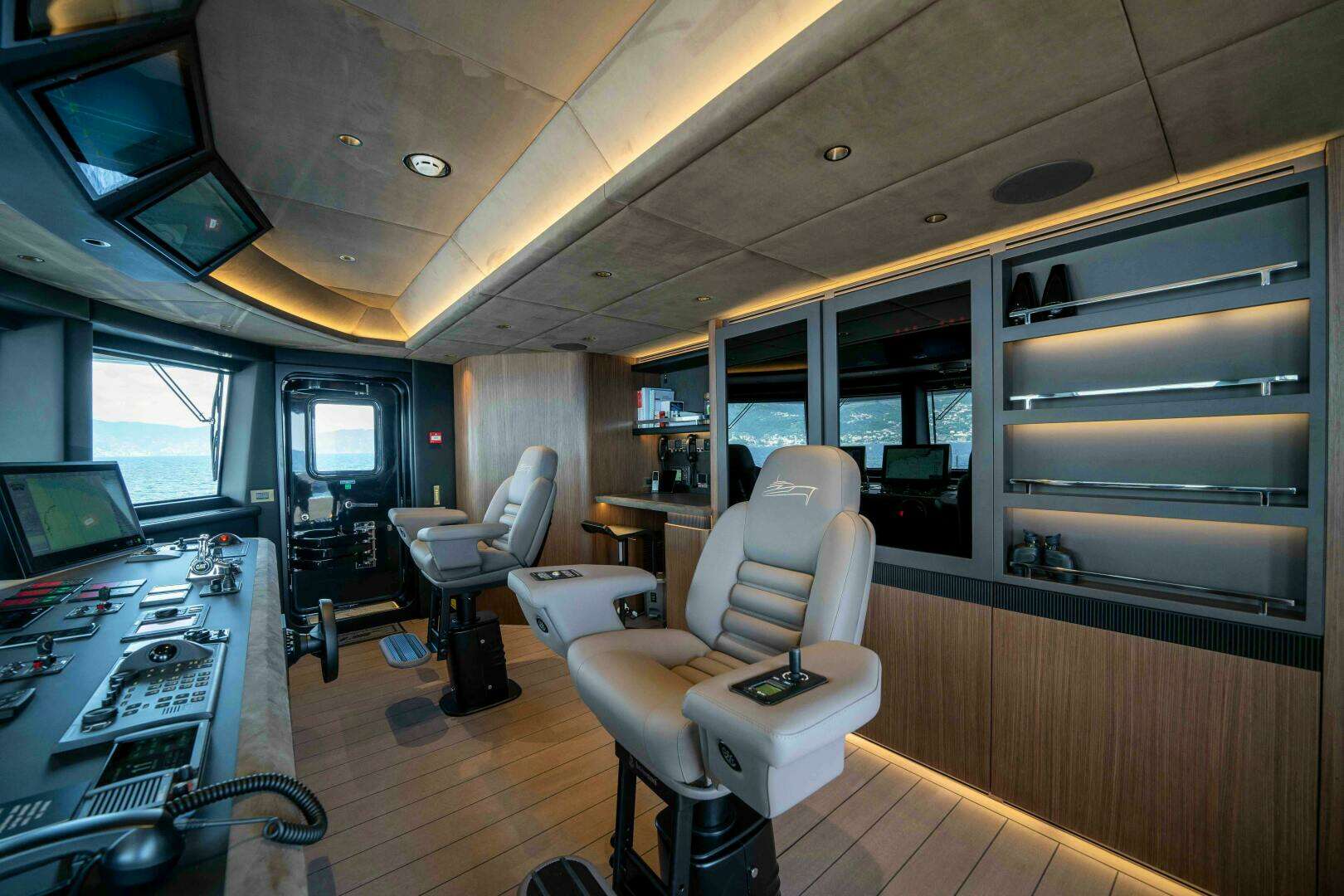

NAVIGATION/AV

• Horn Kahlenberg
• Navigation Lighting Lopolight 48V DC
• Central Alarm System ECR Marine, Boning
• Navigation System Furuno GP 170
• Entertainment Sonos / Pioneer
• Radar Furunp FAR2218BB/PM X Band
• ECDIS NS4000
• AIS Furuno FA170
• Wind indicator 110WX
• Auto Pilot AP70
• EPIRB Sailor 4065
• SART Sailor 5052
• Handheld VHF Sailor SP3520
• VHF Sailor 7222 DSC Class A
• Inmarsat C Sailor 6110 220V AC / 24V DC
• Radio Telephone Sailor 6310
• Navtex Sailor 6391
• BNWAS Walker P7007
• Echo Sounder Furuno FE800
• Speed Log Furuno DS85
• Compass Cassens & Plath 33005
• CCTV Vivotek FD8366-V
• WIFI Ruckus ZoneFlex R320 / T300
• 4G A-SPLT

AV SYSTEMS

•  B&W Speakers + Subwoofer Wetsounds
•  Sonos
•  Lutron Lighting system throughout

Guest Cabin TV Samsung 43” 4K UHD
Salon TV Samsung 75” QLED
Crew / Captain TV Samsung 32” HD LED
Master Cabin TV Samsung 55” QLED
Workshop TV Samsung 43” UHD
Cinema Samsung 85” QLED
Music AMP Bose PM8500N / Marantz Cinema 60
TV GrandStream IP TV
Telephones Gigaset C530

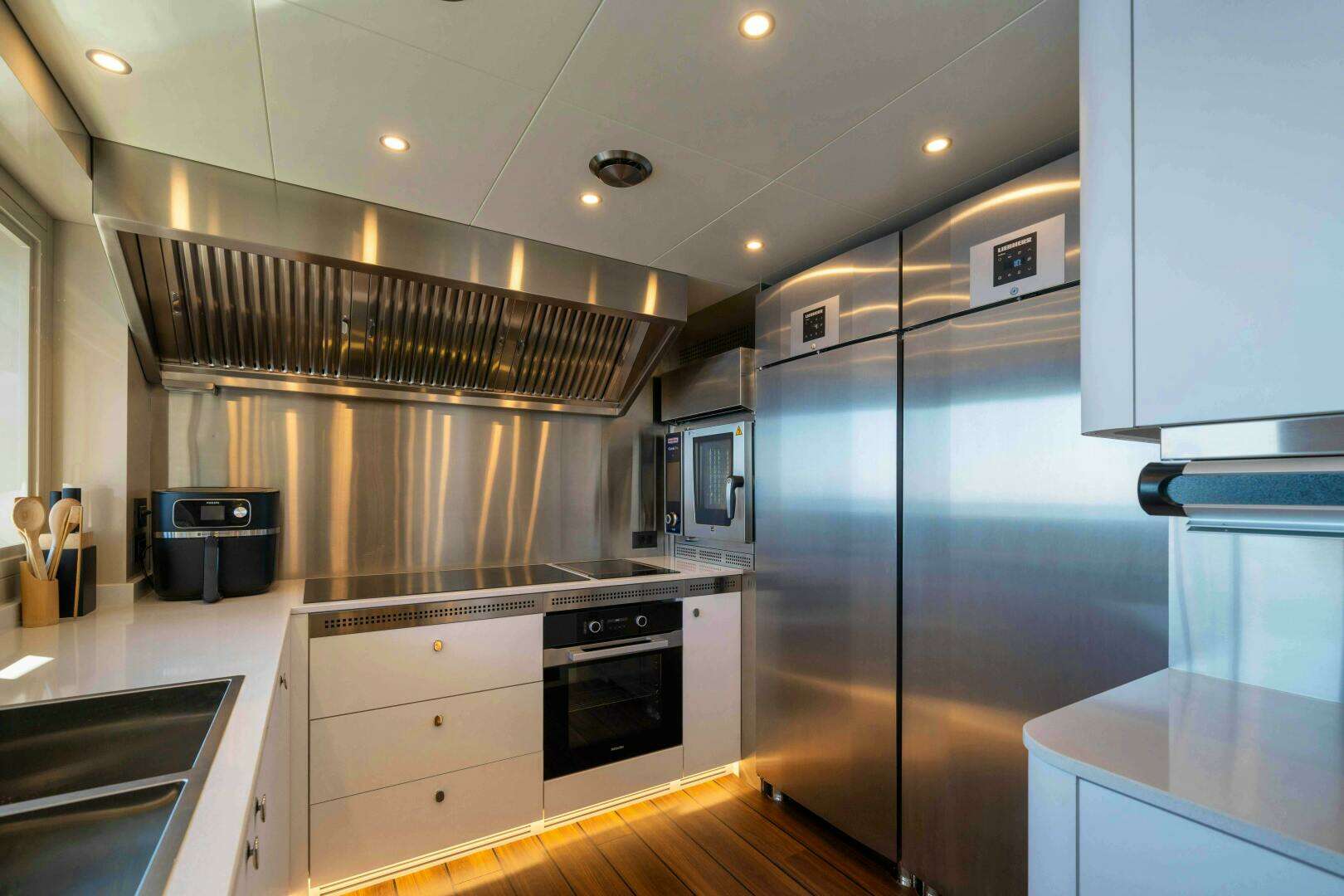

GALLEY & LAUNDRY

• Cooled garbage locker
• Wine Cellar
• Cook Plate Miele KM 7897 FL
• Oven Miele H2861BP
• Dishwasher Miele PFD 400 SEE + Hobart GCP 10B
• Fridge / Freezer 6 x 220V Liebherr WB
• Icemakers Hoshizaki
• Coffee Machine Miele CM 6350
• Extractor Mengi Yay Custom
• Steam Oven Rational SelfCooking Centre
• Washing Machine 3 x Miele PWM507 DP
• Dryer 3 x Miele PT 7135 3FAZ
• Drink Fridges Liebherr

ANCHOR & MOORING

• Windlasses 2 x Data Hydraulic DZC 3300
• Anchors 2 x 316L Stainless Steel
• Anchor Chains 2 x 250m Galvanised
• Bollards 10 x 316L
• Capstans 2 x Data Hydraulic DHC 3000

DECK EQUIPMENT

• Transformer REM Marine
• Balconies REM Marine
• Wipers 5 x 24VDC
• Caulking Sikaflex
• Gangway REM Marine
• Side Boarding REM Marine
• Swimming ladder Manual
• Tender Cranes REM Marine

PAINT

• Primer Awlgrip International
• Filler Awlgrip International
• Top Coats Awlgrip International
• Antifouling Awlgrip International

SAFETY EQUIPMENT

• Life rafts 4 x Viking 12 person
• Search Lights 2 x Sanshin 150W
• First Aid Kit SOLAS
• Fire hoses 5

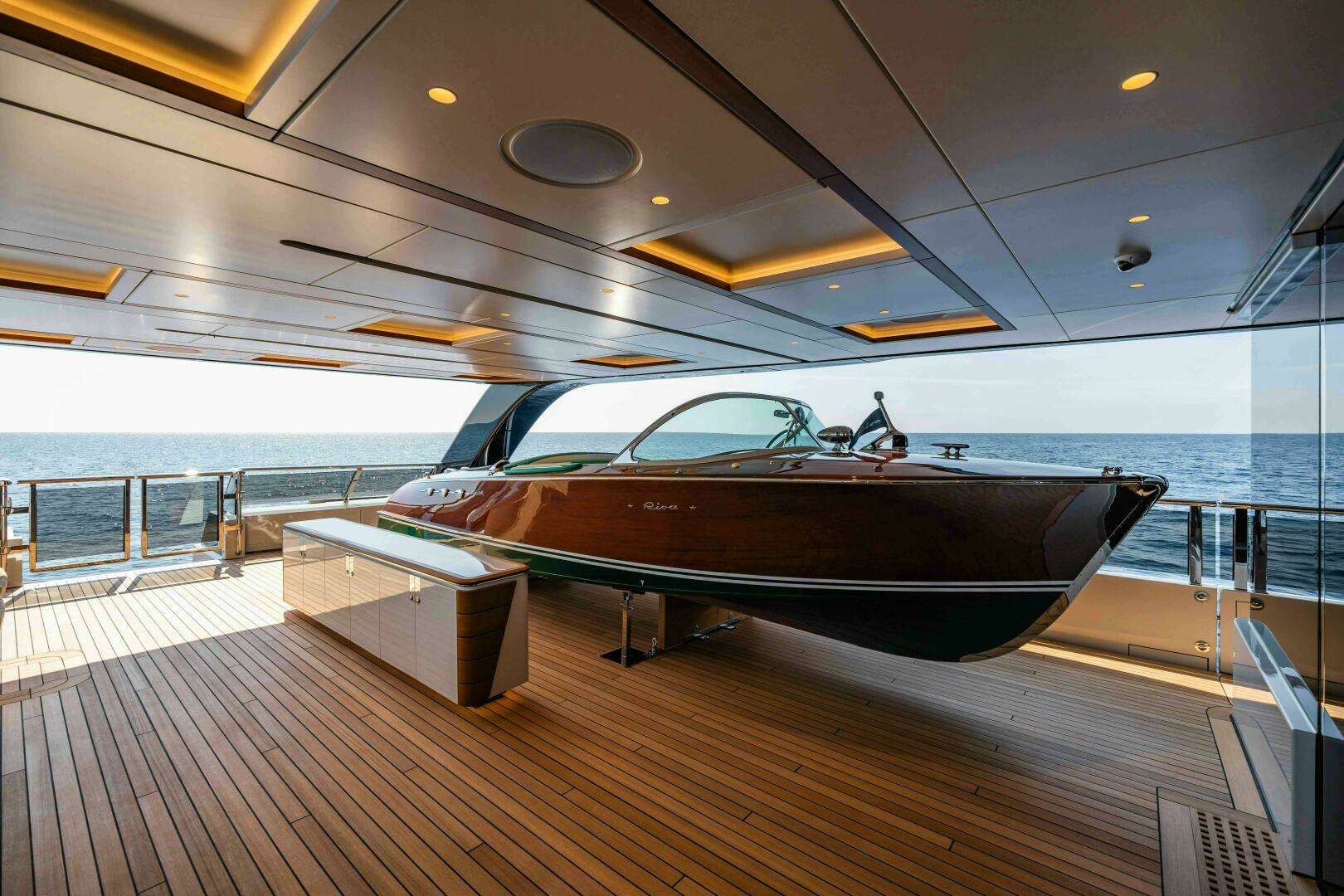

TENDER

Riva Ariston No. 131
