2026 Hargrave 132'
40.23 m
2026 Hargrave 132' E Series 40m
- 40.23 m
- Diesel
- Power
- Trideck
2026 Hargrave E Series 40m

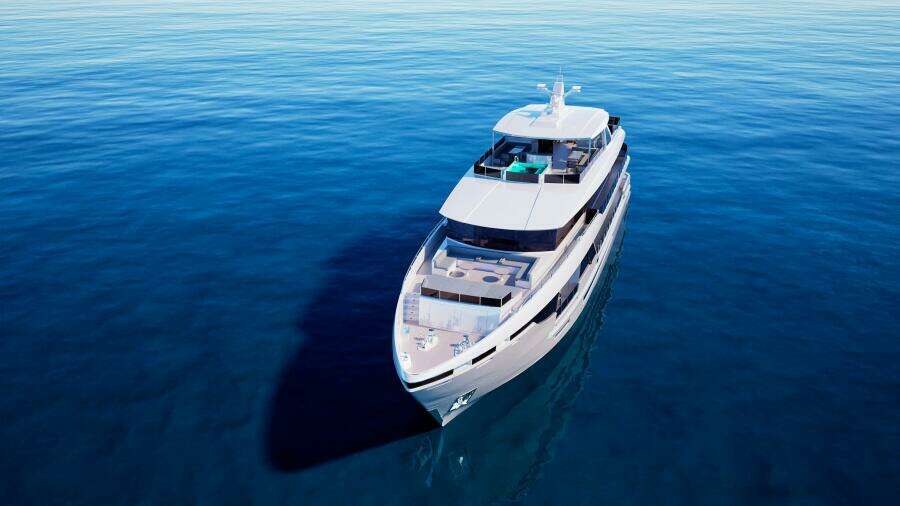

132' (40.23 m) Hargrave Superyachts Project 40
This new 40m (132ft) Hargrave Superyacht offers 399 GT, six cabins, a beach club, and fully custom exterior and interior design. Available at a pre-delivery price for an owner seeking a proven build team and a yacht tailored to their vision. Delivered with full support, warranty, and build oversight
| FEATURES: |
|---|
| 6 cabins layout |
| Full size Beach Club |
| 2800 Nautical Miles Rance |
| 10 years Structural Warranty |
| 10 year Main engine and Generators Warranty |

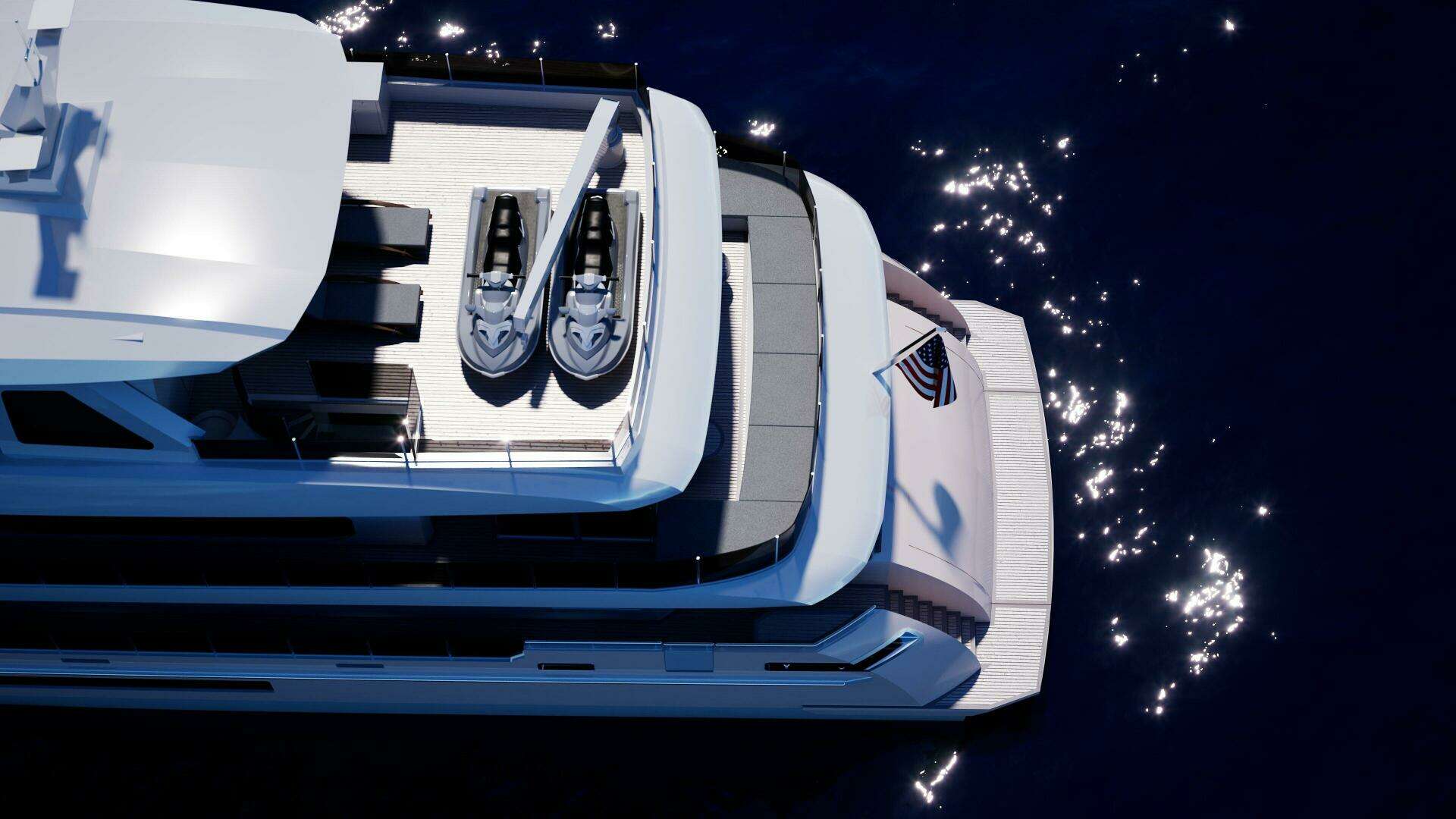

| Toys: 2 3 seater Jetskis |
2026 Hargrave 132' E Series 40m
- 40.23 m
- Diesel
- Power
- Trideck
Call for Price
Description
Overview

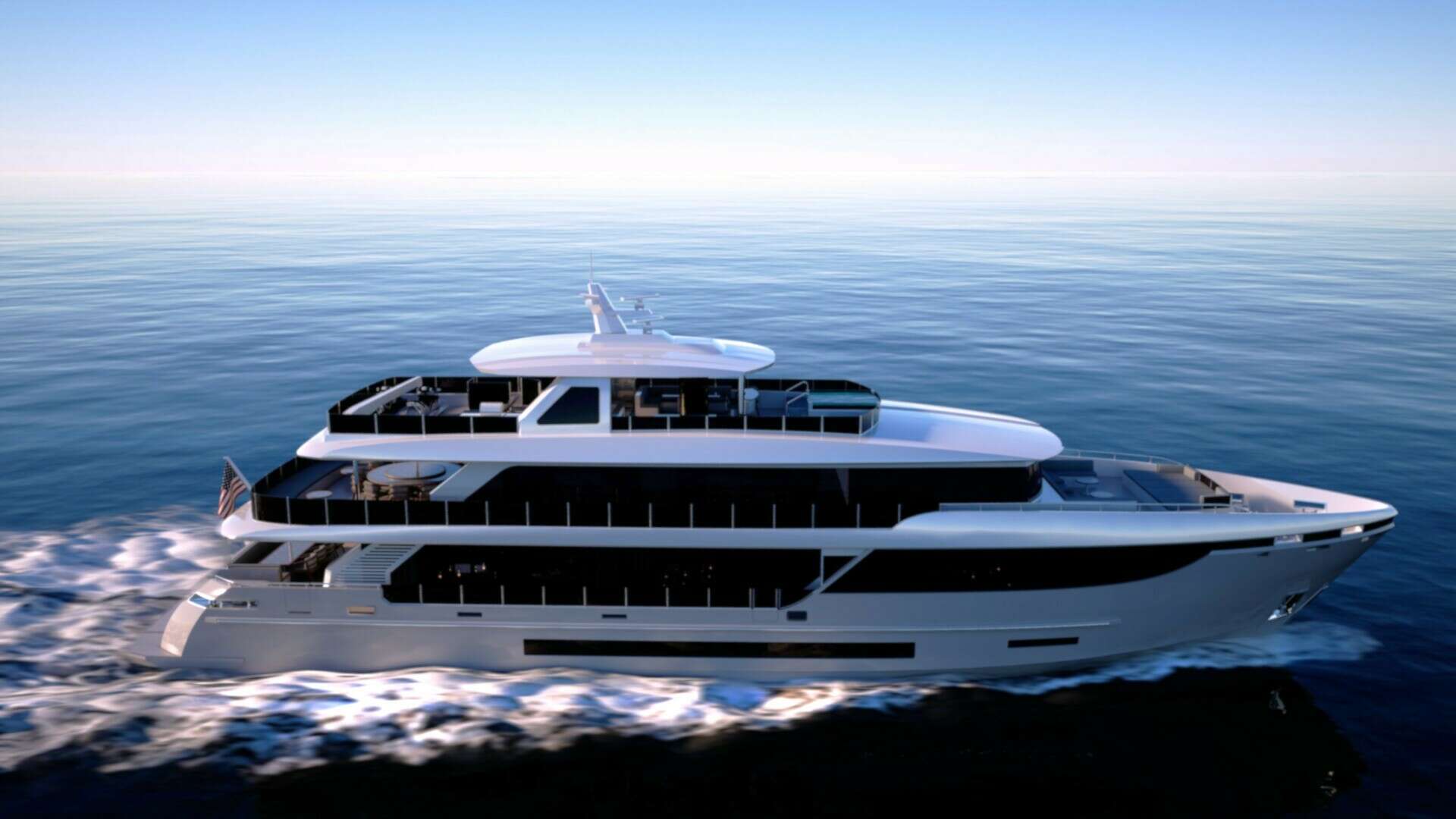

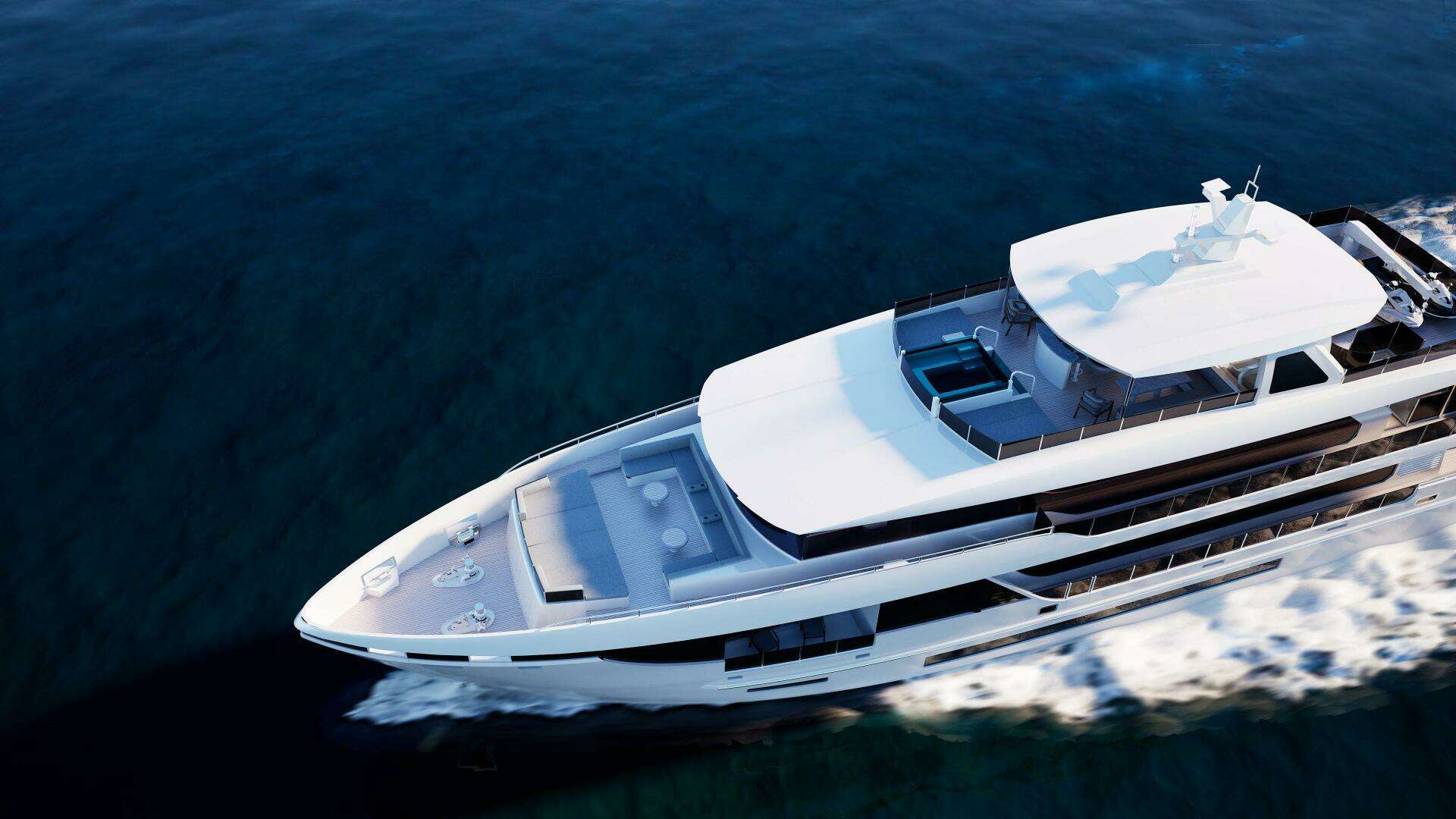

The new Hargrave 40M is the latest entry in our E-Series platform, An Owner-Driven, high-volume yacht designed for long-range cruising, real operational efficiency, and a fully custom lifestyle onboard. At 399 GT, she offers the interior footprint typically found on 140-ft yachts, made possible by advanced structural engineering and Hargrave’s inside-out design approach.

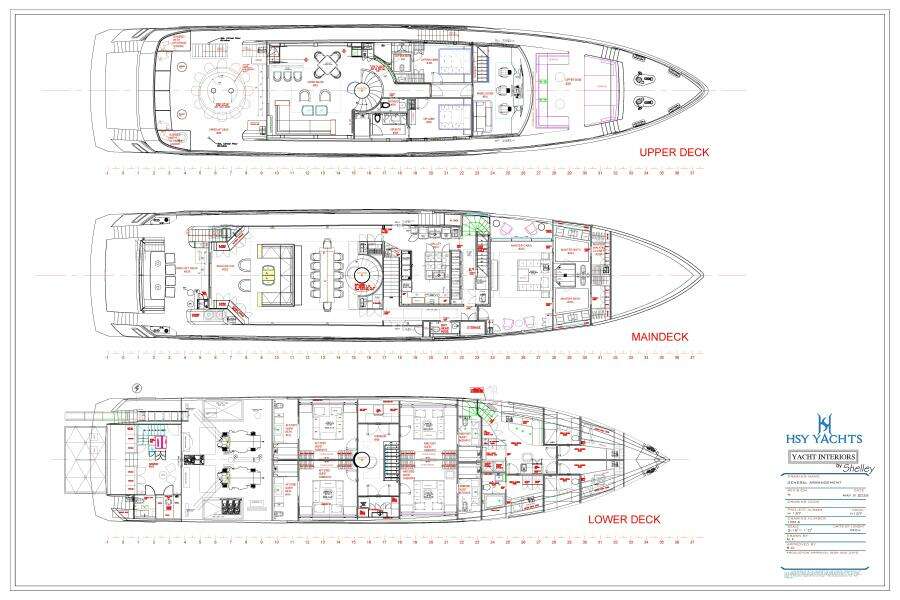

Six-Cabin Layout & Hand-Crafted Interior

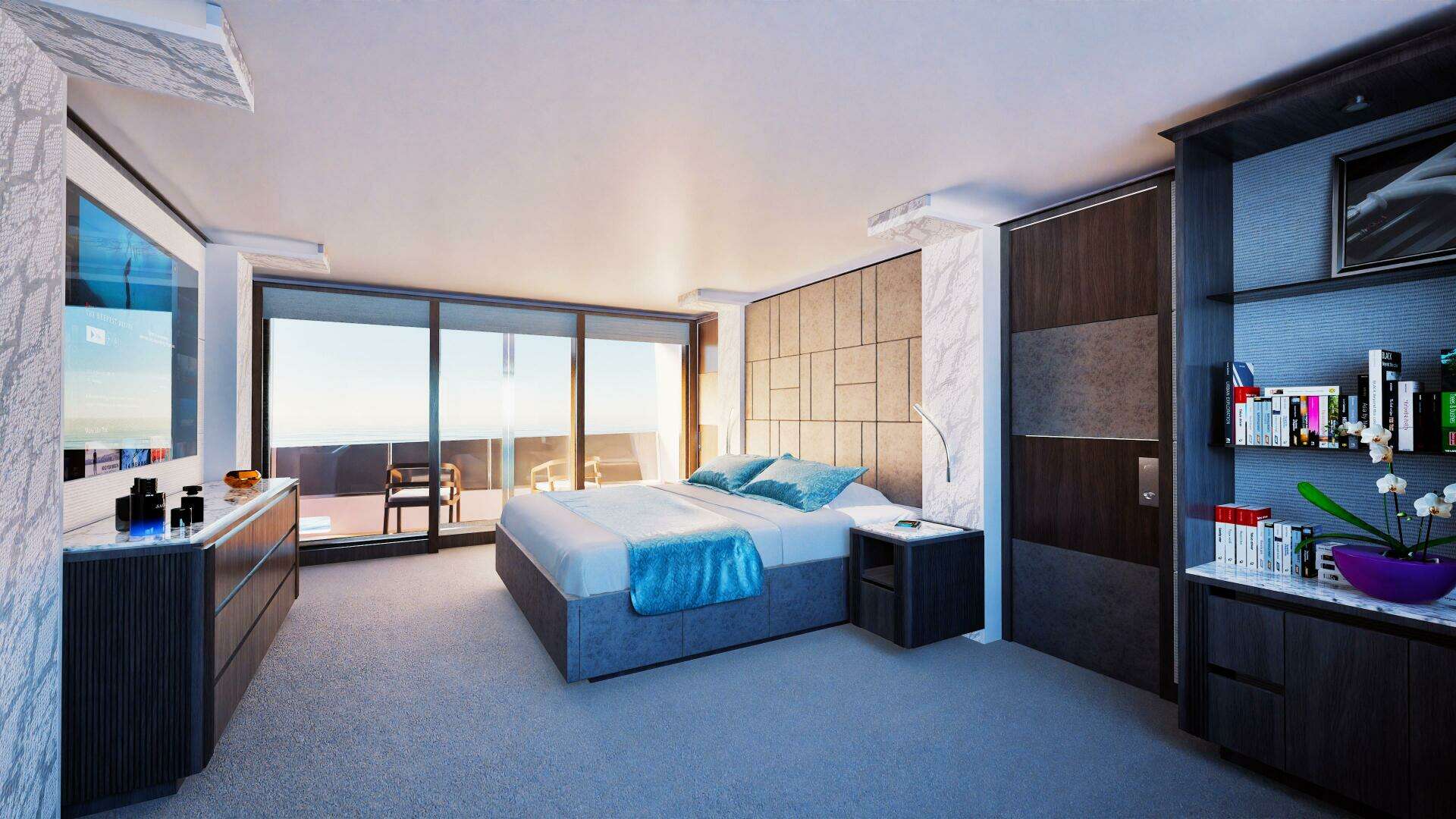

The yacht features six full cabins, including an expansive on-deck owner’s suite and king beds in all guest cabins. All interiors are hand-crafted, not CNC machined, allowing for precise joinery, superior sound control, and a level of finish consistent with traditional large-yacht craftsmanship.
Beach Club & Entertainment Areas

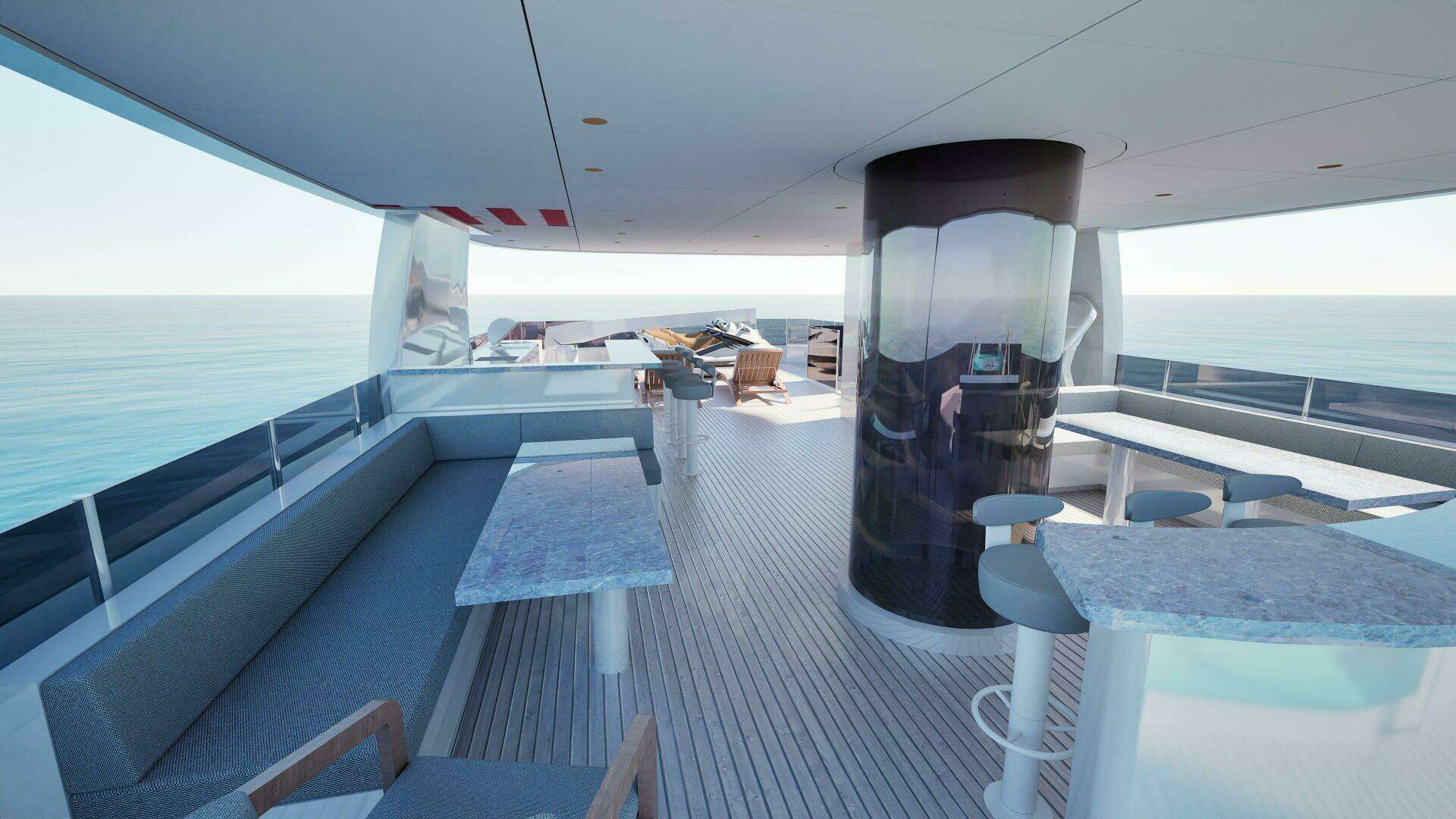

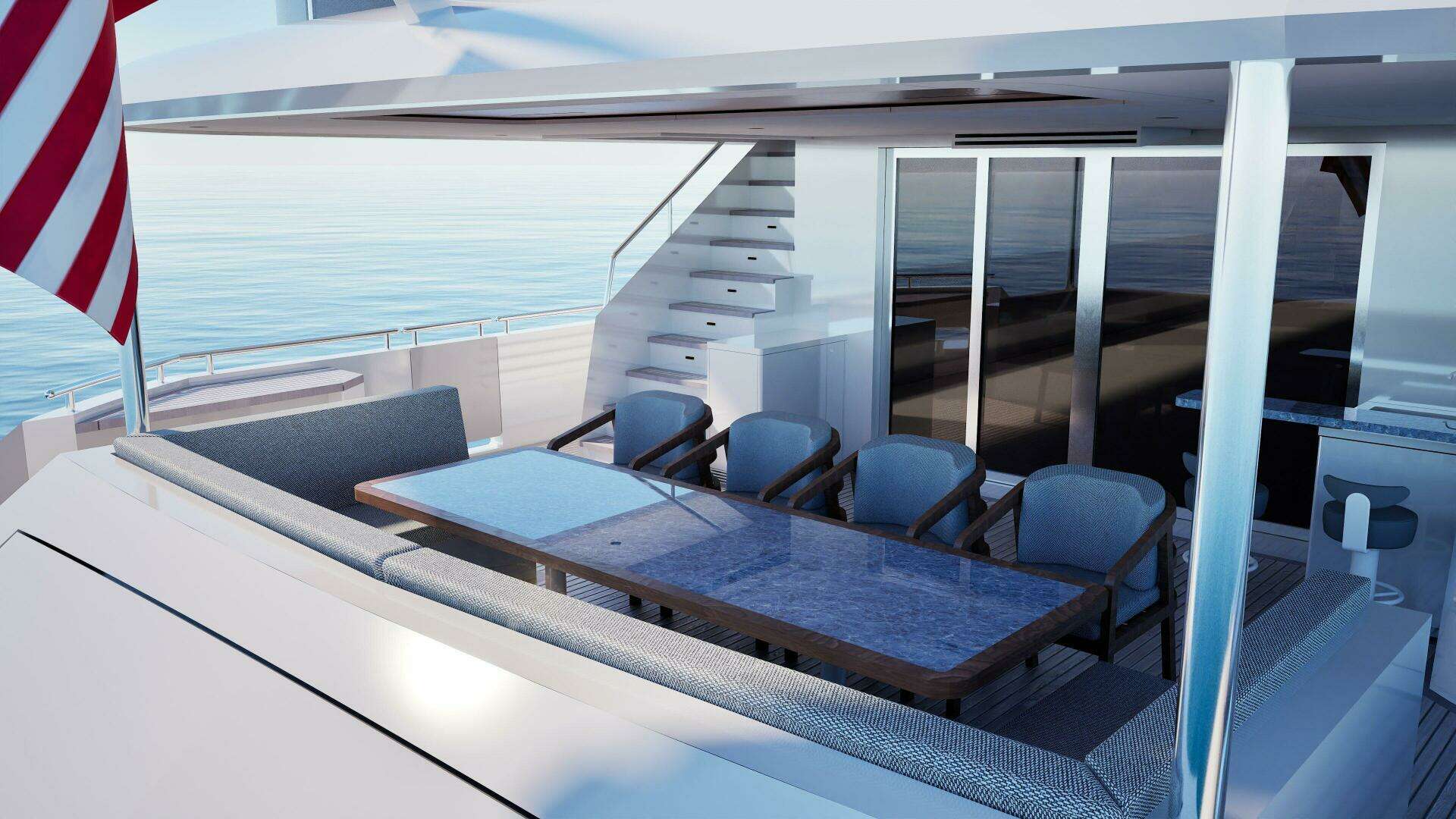

Designed for extended time onboard, the 40M includes a full beach club with proper headroom, multiple entertainment areas across all decks, large outdoor dining zones, and private relaxation spaces for guests.
E-Series Hull & Engineering Philosophy
The hull is built for a balance of shallow-water access, high stability, and long-range efficiency. Carbon-reinforced structure, Carbon fiber Stringers and Frames, tighter frame spacing, and a strengthened keel (Hargrave Signature) provide a rigid platform capable of safe operation in heavy seas. The yacht is engineered to meet classification standards that support unrestricted navigation.
Crew & Operational Logic
Crew areas are intentionally large, with proper flow, storage, and technical access to support real operations during extended cruising. Dedicated dayheads on all decks, a full-size galley, and clear service routes ensure smooth daily operation.
Long-Range Cruising & Ease of Maintenance
The E-Series design prioritizes autonomy and serviceability. System layouts, routing, and accessibility were developed to simplify maintenance and allow the yacht to operate efficiently in remote areas.
Mid-Construction Availability
With the yacht currently in the middle of construction, buyers have a rare opportunity to enter the project at the right moment, securing a brand-new Hargrave with the ability to finalize interior details and select finishing elements before delivery.
LOA132'
LOA40.23''
Beam28'
Draft Max Feet7'
Head Room Feet7'
Head Room Inch2''
Fuel Tank (Gallons)10000
Fuel Tank (Liters)37854.1
Fresh Water (Gallons)2500
Fresh Water (Liters)9463.52
Holding Tank (Gallons)2000
Holding Tank (Liters)7570.82
TypePower
ConditionNew
Specifications
Hargrave Superyachts Project 40
Power-New
2026
6
12
6
Yes
11
7'2"
4
Yes
8
1
Yes
16 Knots
14 Knots
2800
Diesel
Carbon Fiber Reinforced FRP
FRP
Whispering
Fast Displacement
10 years
Yes
Zero Speed
Sleipner x 4 Fins
Yes
10000 Gallons (37854.1 Liters)
2500 Gallons (9463.52 Liters)
2000 Gallons (7570.82 Liters)
399
RINA
Hargrave Superyachts
Yacht Interiors By Shelley
Hargrave Superyachts
Whispering Gray Hull, White Superstructure
24
12
Engines
Engine 1
- Engine Make: Caterpillar
- ModelEngine Model: C32
- Engine TypeEngine Type: Inboard
- Drive TypeDrive Type: Direct
- Power HPPower HP: 1925.00
- Power KWPower KW: 1435.47
- Feul TypeFeul Type: Diesel
- Engine LocationEngine Location: Port
Engine 2
- Engine Make: Caterpillar
- ModelEngine Model: C32
- Engine TypeEngine Type: Inboard
- Drive TypeDrive Type: Direct
- Power HPPower HP: 1925.00
- Power KWPower KW: 1435.47
- Feul TypeFeul Type: Diesel
- Engine LocationEngine Location: Starboard
Generators
Generator 1
- Generator Make: Caterpillar
- Generator Model: C 4.4
- Generator KW: 75.00
- Generator RPM: 1800.00
Generator 2
- Generator Make: Caterpillar
- Generator Model: C 4.4
- Generator KW: 75.00
- Generator RPM: 1800.00
Full Details
Short Specification
ELECTRIC SYSTEM
115 / 208 VAC 3P 60Hz Main Service
ASEA 75 kVA Shore Power Converter
24VDC Service and Engine Start System
Service Batteries: 2200 Ah ( 2x 100 A Charger )
Emergency Batteries: 880 Ah ( 1x 80 A Charger )
Radio Batteries: 260 Ah ( 1x 30 A Charger )
ME & Generator Batteries: (x2) 960 Ah ( 2x 40 A Charger )
Fire Puımp Batteries: 880 Ah ( 1x 80 A Charger )
BUILD / CONSTRUCTION
HULL / SUPERSTRUCTURE: CARBON RAINFORCED E-GLASS - EPOXY COMPOSITE SANDWICH
OPEN DECK : HANDLAID BURMESE / MYANMAR TEAK OR NON SKID PAINT
PAINT SYSTEM: AWLGRIP
MASTER EQUIPMENT LIST
Airhorn: Kahlenberg
Anchor winch and Capstans: (x2 )Maxwell VWC8000 Hyd. Windlass, VC4000 Capstans
Windscreen Wipers: (x4) Speich
Alarm & Monitoring system: Wago
Anchor and Chain: (x2) 200kg 316L S.S. Pool Anchor, (x2) 123m (400 ft) 16mm Grade 3 Studlink Chain
Audio / Video: Crestron Ready
Batteries and chargers: Victron
ER Venilation:Delta T System
Bow thrusters:Sleipner SH1400 double prop Bow thruster
Stabilizer: (x4) Fins Sleipner SSPS96 Anchor Stabilizers
Fuel Water filters: Separ
HVAC:TECHNICOLD Chiller assembly (x3) 120,000 BTU
Steering System: Wills Ridley Electro Hydraulic Steering
Insulation: Unifrax B15 Engine room and B0 Galley insulation Rockwool Thermal cabin insulation
Pumps: HeadHunter and FEIT
Sewage treatment :Headhunter TW-HMX-6001LP
Toilet system: Headhunter White Royal Flush Bravo

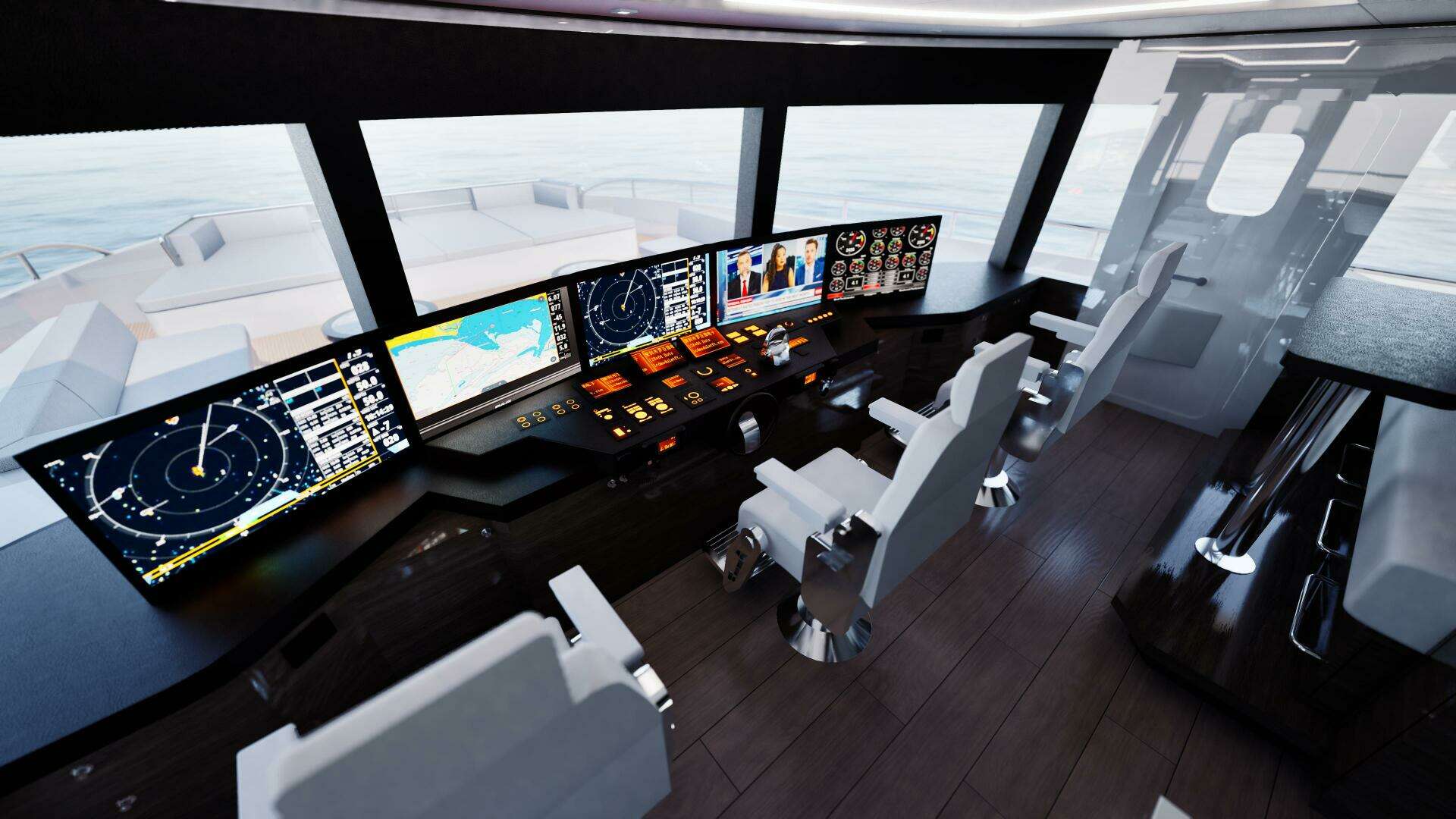

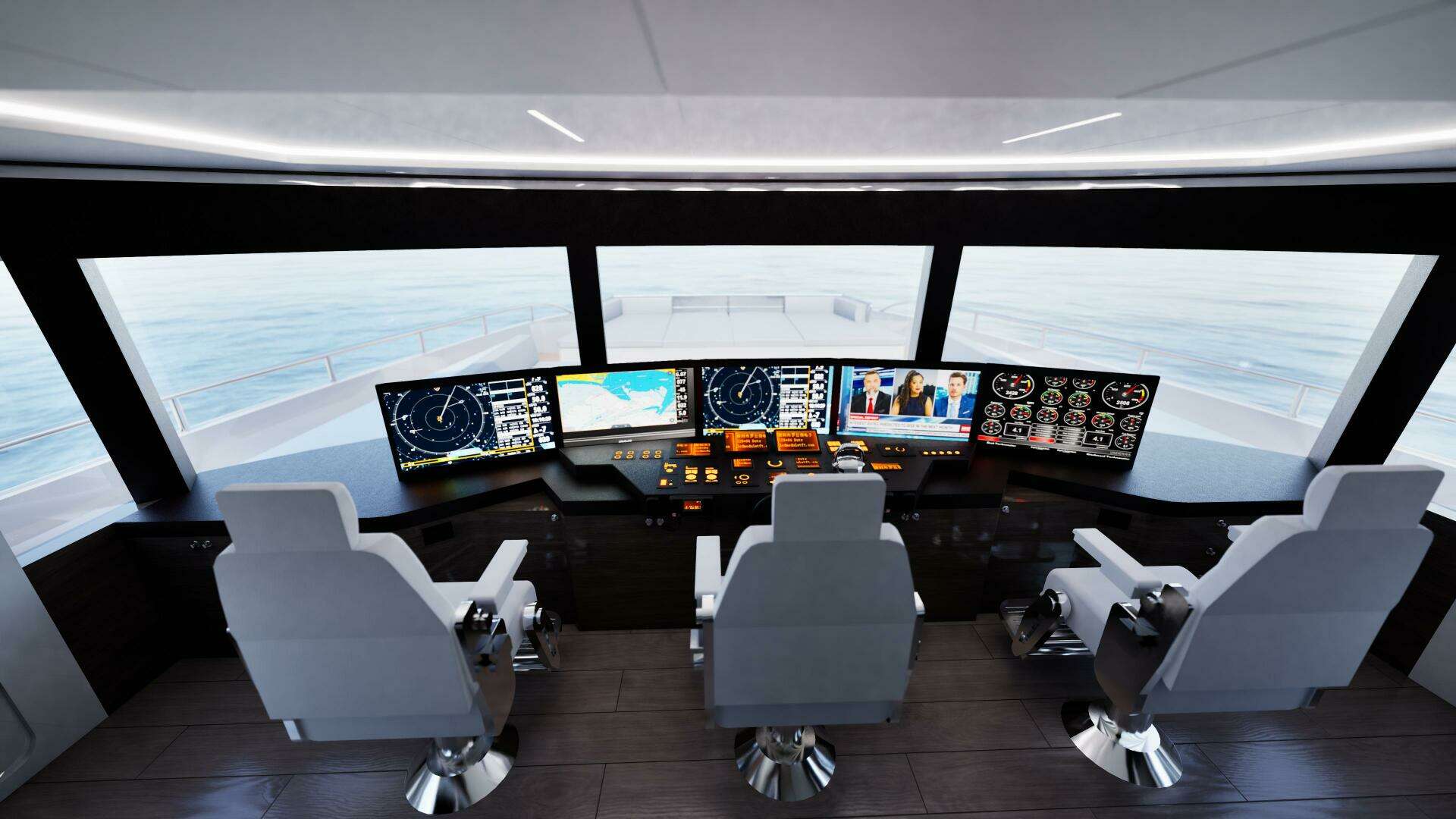

Navigation and communication equipment:
GARMIN & FURUNO:
(x5) Surveillance Cameras & FLIR N232 Thermal Camera
(x5) 32” Pilot House Touchscreen
(x2) Garmin 215 VHF Radio
Garmin Fantom 54 Radar / Furuno 6” Radar
Furuno NV700 Autopilot
Furuno Navtex, AIS and NavNet
(x2) Starlink Antenna
DECK EQUIPMENT
SWIM LADDER: 316L Stainles Steel
CRANE: SW 900 kg (2000lbs) Telescobic Hydraulic Deck Crane
PASARELLA:19ft Hydraulic Gangway
HANDRAILS: 316L S.Steel
PANTOGRAPH DOORS: (x4) Pantograph Door
SLIDING DOORS: Electric Operated main and upper saloon doors
BALCONY: Sliding Balcony door
ELEVATOR: PVE Vacuum elevator Lower Deck to Sundeck
WATERTIGHT DOORS AND DECK HATCHES: Watertight Deck Hatches and Engine room WT Fire Doors
AFT BEACH SHELL DOOR:Hydraulic Actuator Operated Carbon Reiforced Composite Watertight Door
SAFETY EQUIPMENT
LIFE RAFTS: Viking 2 x 12 Persons
FIRE PROTECTION: Fireboy FM200 Engine Room Fixed Fire Extinguishing System
FIRE & GENERAL ALARM SYSTEM: HAES Conventional Fire Detection System
APPLIANCES
COOKTOP:
36" VIKING COOKTOP (Galley)
WASHER &DRYER:
(x3) SPEED QUEEN COMMERCIAL STACK WASHER/DRYER Crewmess(2) / Guest Foyer(1)
REFIGERATOR:
Subzero 36" Classic Refrıgerator-Internal Dıspenser (Galley)
Subzero 36" Classic Freezer (Galley)
Subzero 30" CLASSIC WINE STORAGE (Galley Pantry)
(x4)Subzero 30" Designer Over-and-Under
WINE COOLER:
(x4)Zephr 24" French Door Dual Zone Wine Cooler
Guest Foyer(1) / Crewmess(1) / Sundeck(1) / UD Salon(1)
(x2) Zephr 15″ Single Zone Wine Cooler
Beach-club (1) / MD aft(1)
MICROWAVE OVEN
GE 2.1 cu. ft. Over-the-Range Sensor Microwave Oven (Galley)
GE 0.7 Cu. Ft. Countertop Microwave Oven (Crewmess)
GRILL
Fire Magic Deluxe Gourmet Drop In Grill (Sundeck)
DISHWASHER
(x2)Fisher&Paykel Series 7 Contemporary Tall Double (Galley)
GARBAGE DISPOSAL
(x2) GE 3/4 HP Continuous Feed Garbage Disposer (Galley)
RANGE HOOD
VIKING 5 SERIES CHIMNEY WALL HOODS – 18” HIGH (Galley)
OVEN
30" HESTAN DOUBLE WALL OVEN (Galley)
ICE MAKER
(x3) 15" HOSHIZAKI ICEMAKER
MD Aft(1) / UD Salon(1) / Sundeck(1)
30’’ HOSHIZAKI ICEMAKER KM301BAJ (Beachclub)
Crescent® Cuber Icemaker, Air-cooled, Built in Storage Bin
