Specification

MAIN CHARACTERISTICS

Name: TRUST FUN

Type: Mono hull, Tri-deck, Motor Yacht

Builder: Westport

Year: 2008

Refit Year: 2020 (Interior/Exterior/AC) / 2023 (Crew/Hull/Teak/AV)

Hull No: 1526

Yacht Model: Westport 130 (#26)

LOA (M/FT): 39.62 M 130’ 00”

LWL (M/FT): 35.02 M 114’ 11”

Beam: 7.92 M 26’ 00”

Draft: 2.01 M 6’ 07”

Gross Tonnage: 321

Displacement: 250

Hull Material: Fiberglass (FRP)

Hull Configuration: Semi-displacement

Superstructure: Composite (GRP)

Decks: 3 – Teak Overlay

Flag: USA

Classification: Private

Exterior Designer: Gregory C. Marshall Naval Architect Ltd.

Interior Designer: Perennials and Sutherland

Main Engines: (2) MTU 12V 4000 M90, Diesel, 2039kW/2,734hp each

Speeds: 28 knots Max

23 Cruising

XX Economical

Range: 1,800nm @ 12kn

Guest Accommodation: 10 guests / 5 staterooms

Crew Accommodation: 7 crew in 4 cabins

COMMENTS AND NOTEWORTHY FEATURES AT A GLANCE

• MASSIVE A/V UPGRADE COMPLETED in 2025 including STARLINK

• WORLDWIDE CRUISING- PASSARELLE & ASEA POWER CONVERTER

• AT ANCHOR & UNDERWAY STABILIZATION

• HIGH CRUISE SPEED & SHALLOW 6.5’ DRAFT

• EXCEPTIONAL CHARTER HISTORY & REPUTATION

ACCOMMODATIONS

OVERVIEW

ACCOMMODATIONS:

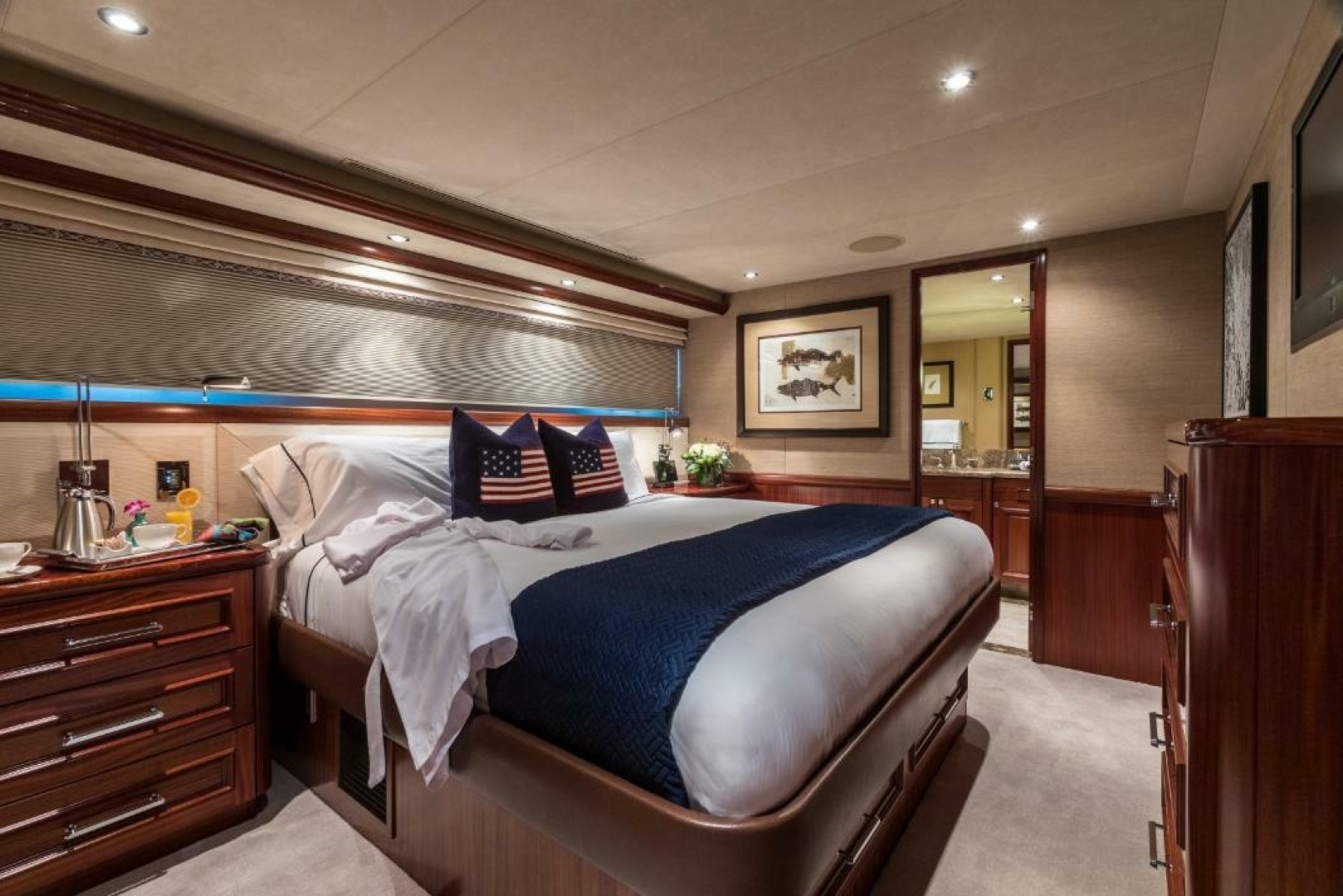

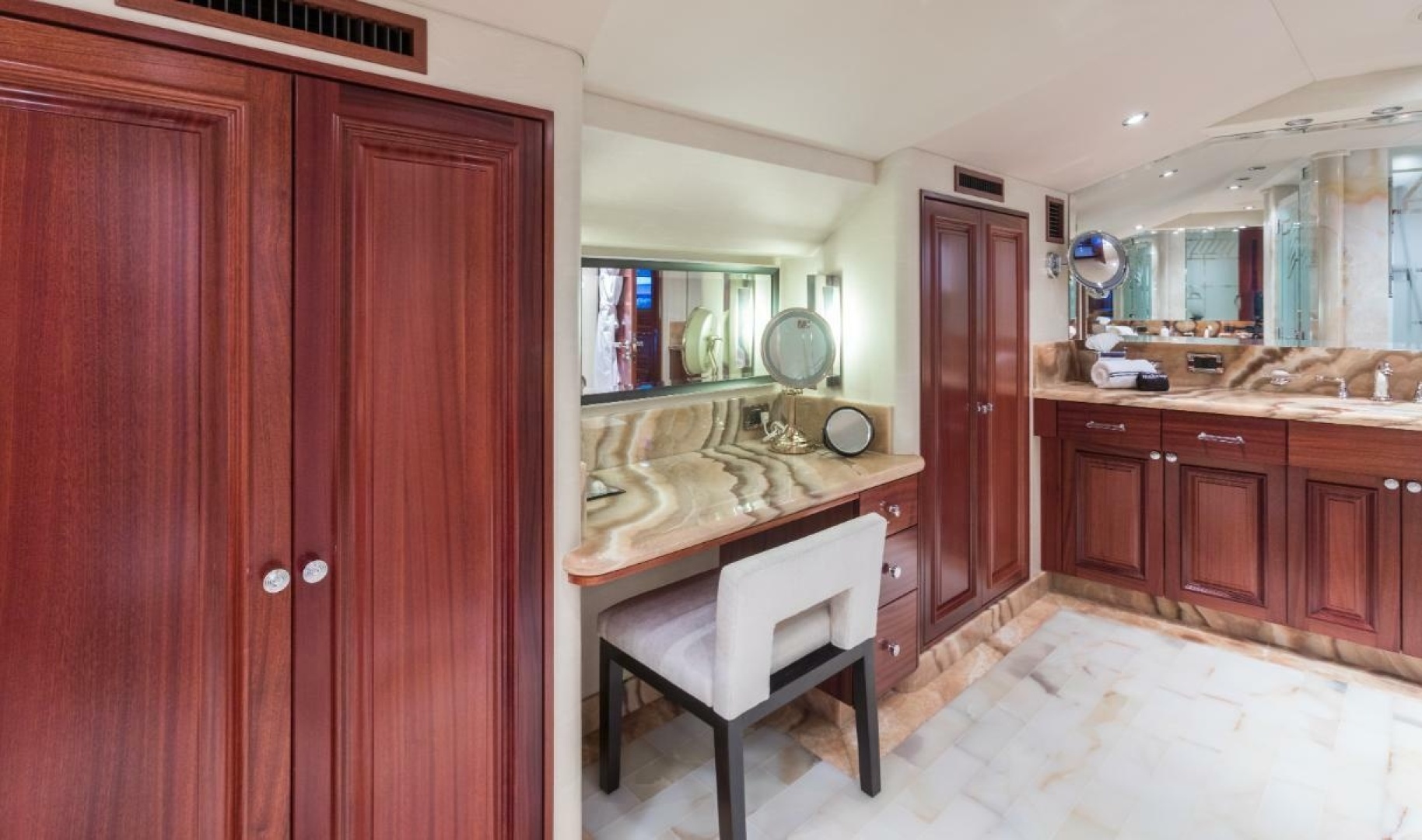

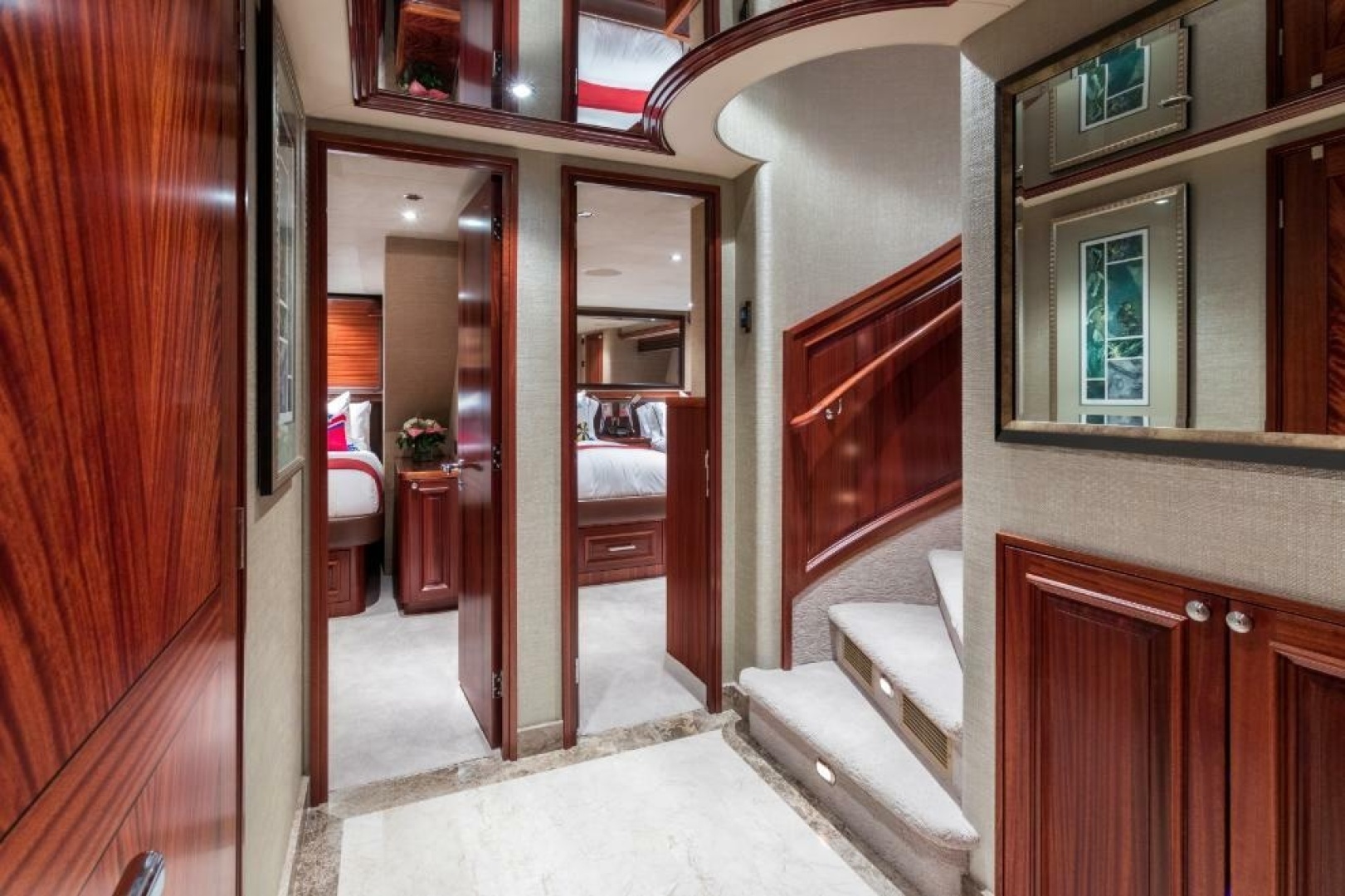

"TRUST FUN" offers a five stateroom plus crew layout. The master stateroom is on the main deck with large windows for great visibility. The master head is forward with his and hers access, large triple shower, and a custom vanity forward of the shower. The four staterooms are on the lower level with a separate staircase leading to a foyer. The two VIP staterooms are large with California king size berths and ensuite heads. The two guest staterooms are mirror images with twin berths that can be combined to offer queen berth stateroom. The port stateroom has an additional Pullman berth, each cabin with ensuite heads.

The crew quarters are located from the galley down steps going forward. The captain's stateroom is located to port with a double sized berth and ensuite head. To starboard from the captain's quarters is a large crew dinette. There are two crew cabins staterooms with upper and lower berths and ensuite heads. In addition, an engineer's cabin is located aft with a double berth and ensuite head.

MAIN DECK:

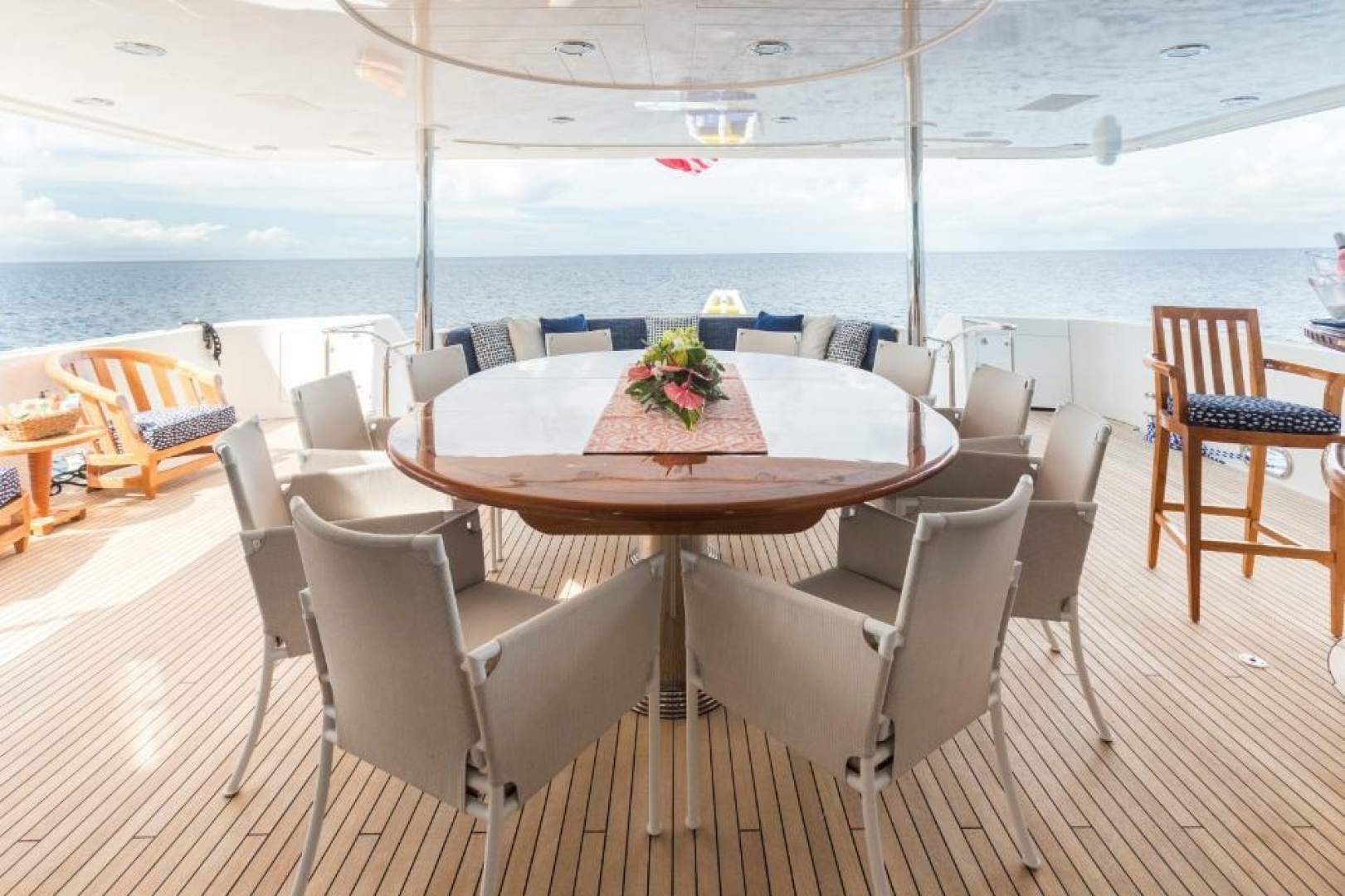

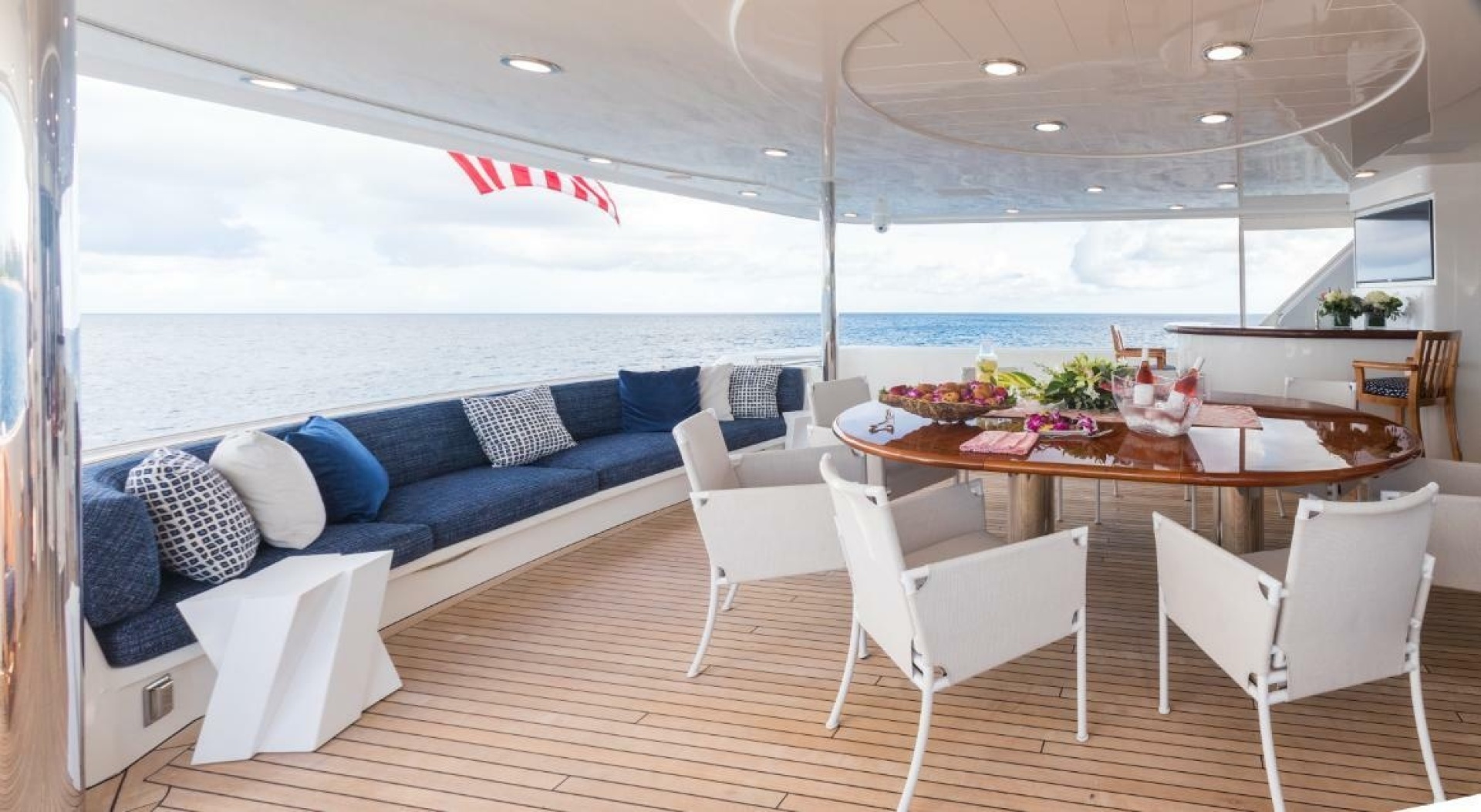

The 130' Westport offers an aft deck that is the most spacious in its class; featuring a large round table for casual alfresco dinners, an aft settee and occasional chairs and a functional service bar. A large party can be on this aft deck and not feel crowded. There is also a Barrett 2-sided aft deck enclosure that further protects the aft deck from the elements.

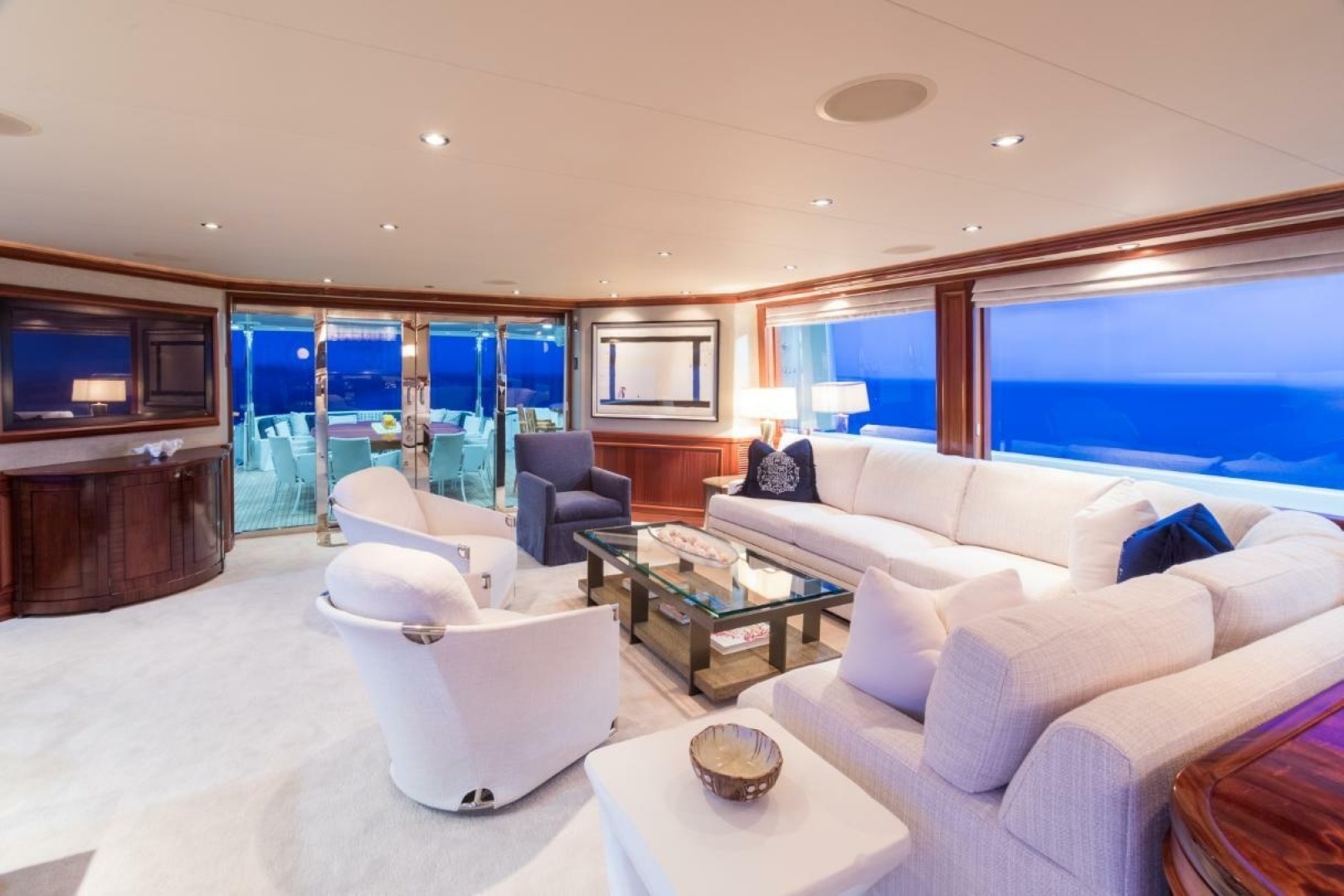

Going forward from the aft deck, you enter the main salon through double stainless steel glass doors. There is a large L-shaped sofa to port with (2) large occasional chairs with ottoman. The salon windows are very large, which offer panoramic views.

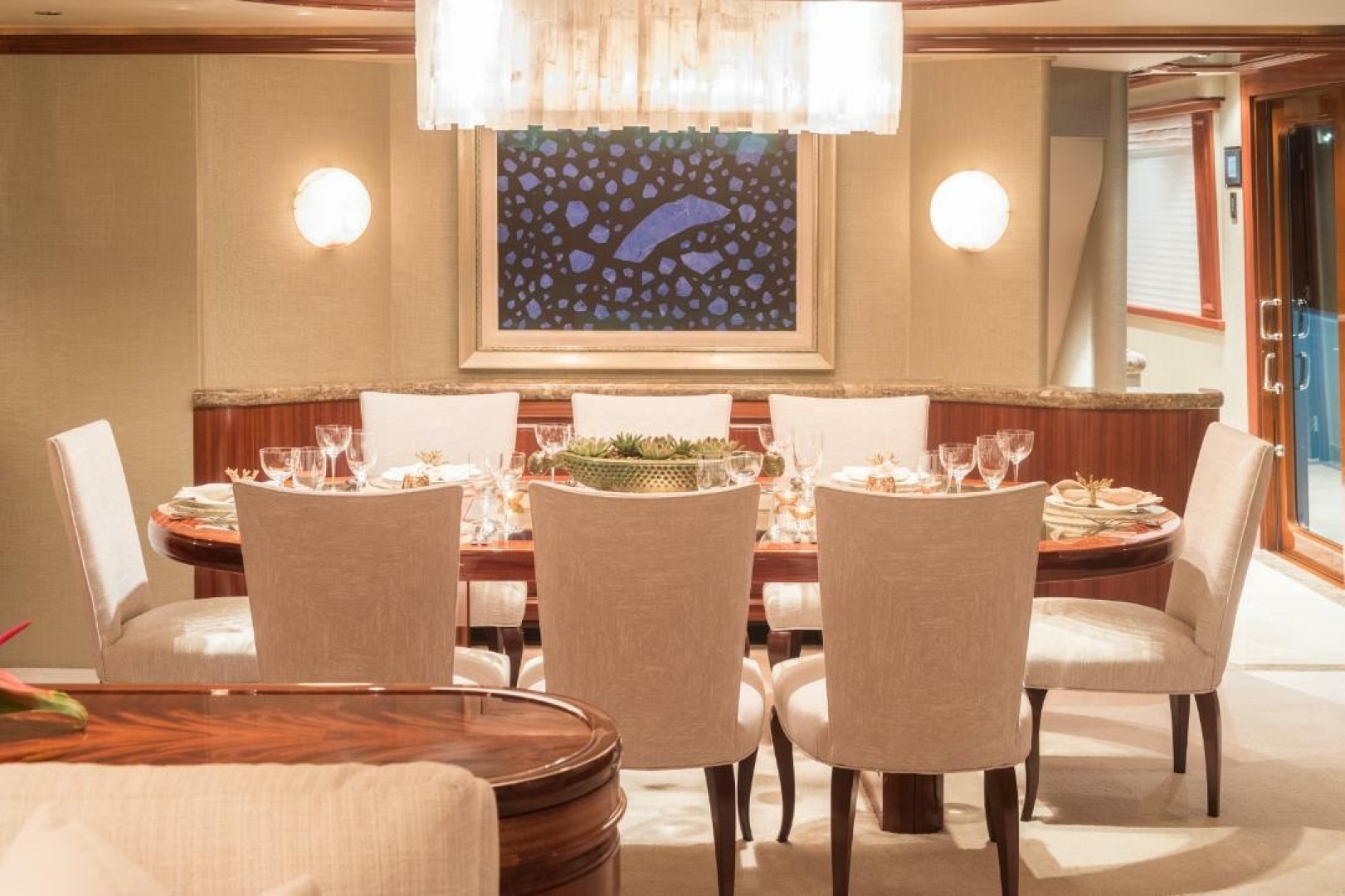

The formal dining is in the forward part of the salon. It comfortably accommodates ten guests with generous walkarounds for service. The dining table is custom built out of matching Mahogany with inlays of glass. The fine dining ware and flatware is stored in custom cabinets located port and starboard of the dining table.

The galley is very well-appointed with double ovens, double stainless-steel sinks and full-size double door refrigerator. Over the sink area is a large window that lets in the natural light and allows for great views. There is a custom stewardess pantry with a granite countertop, bar stool at the port window.

BRIDGE DECK:

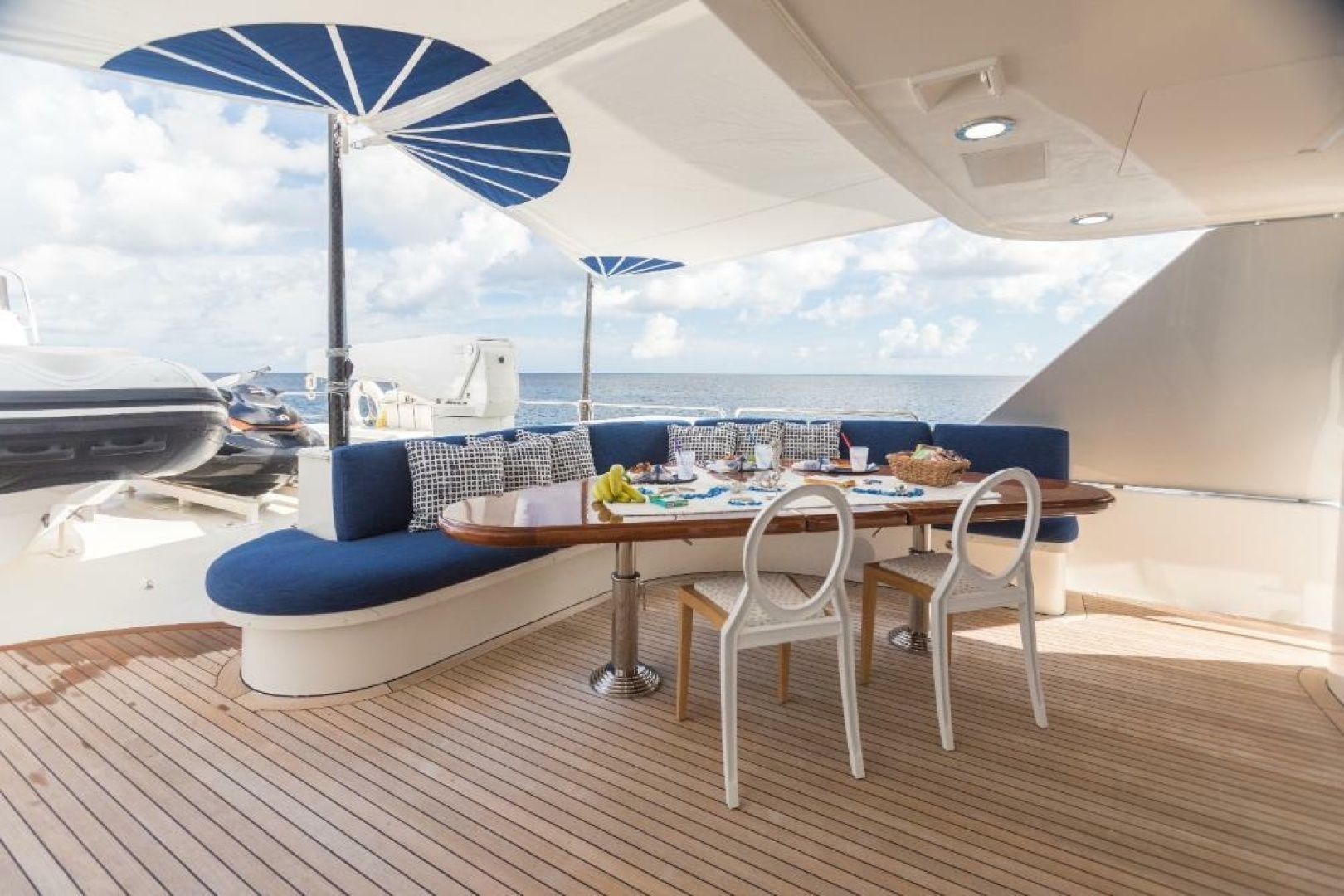

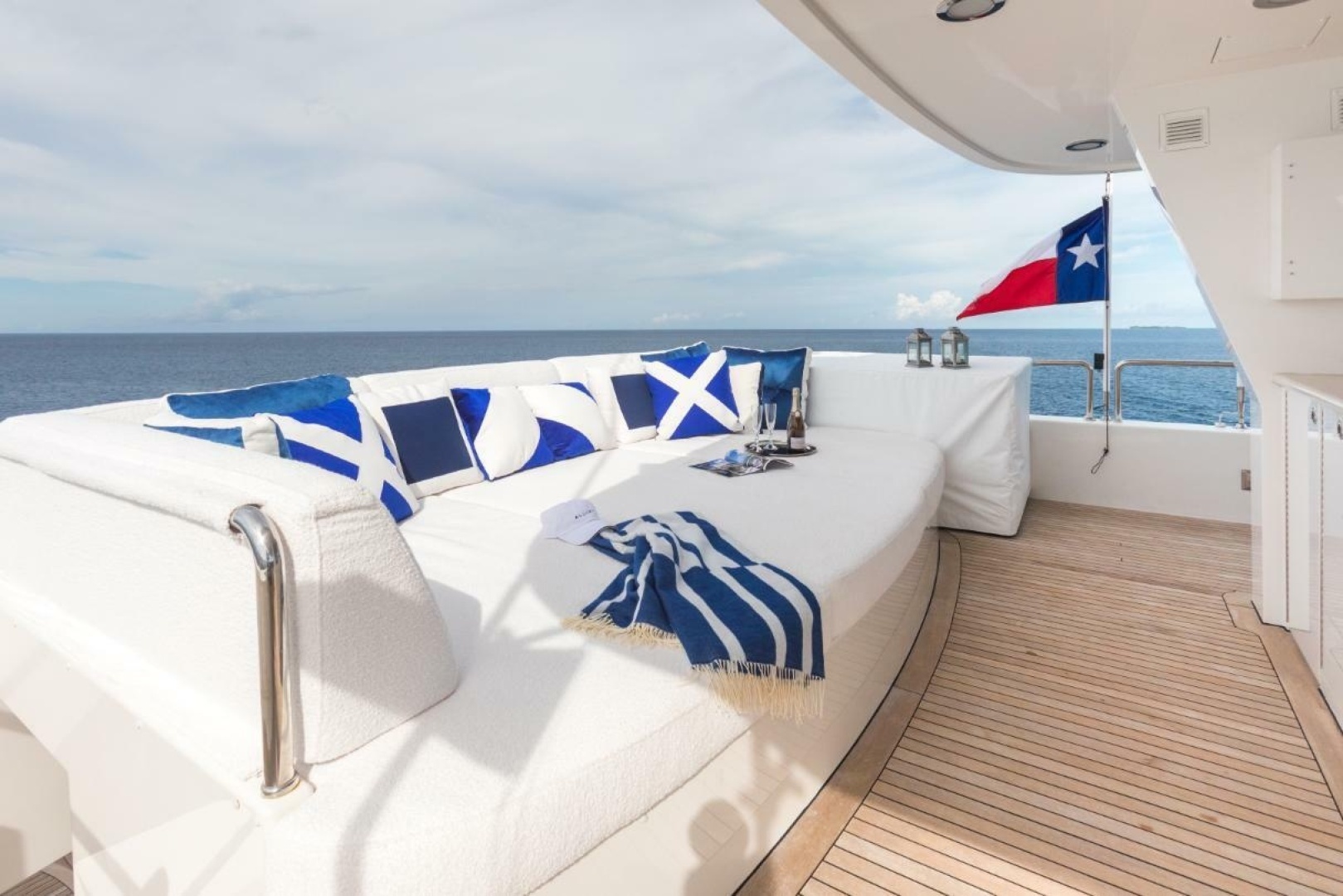

The upper aft deck is featured with a large L-shaped settee and table to port, built-in TV and an overhead customized awning that is supported by custom carbon fiber poles. This awning can be used in various manners to leave parts of awning open for versatile usage.

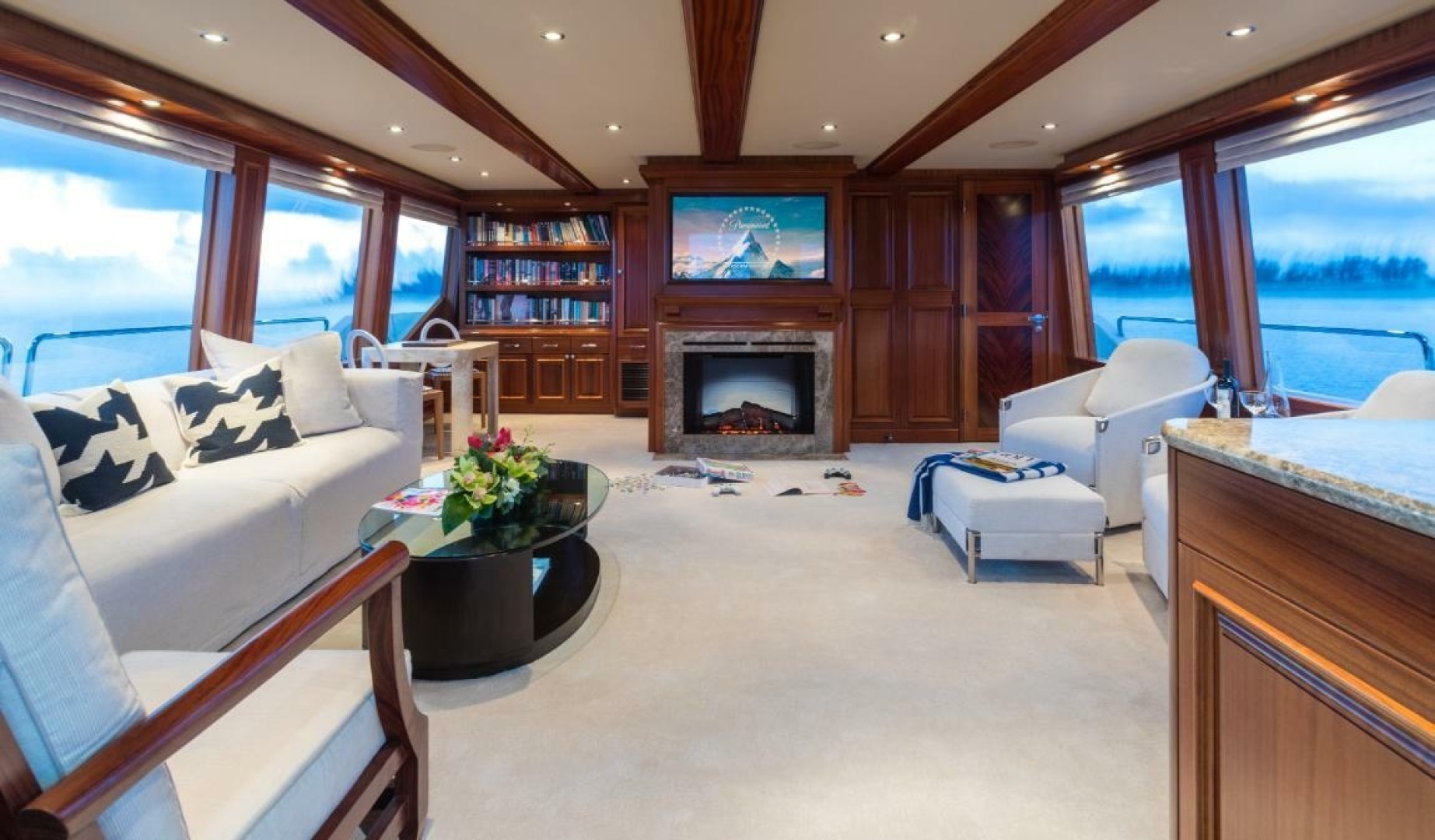

Going forward from the upper aft deck, you enter the sky lounge through double stainless steel glass doors. This room is well-appointed with large windows for excellent visibility, an office, day head, walk-up service bar, fireplace, large sofa plus two occasional chairs and matching ottoman.

CAPACITIES

Gross Tonnage: 321 GT ICT        267 G.R.T.

Net Tonnage:  96 NT ITC      223 N.R.T.

Fuel Capacity: 37,476 Litres 9,900 Gallons

Fresh Water Capacity: 6,132 Litres 1,619 Gallons

Water Makers: 10,599 Litres 2,800 Gallons

Grey & Black Water: 5,148 Litres 1,360 Gallons

Lube Oil: 674 Litres 178 Gallons

Waste Oil: 674 Litres 178 Gallons

Speed GPH Range RPM

  12  65 1800 1200

  13  75 1700 1300

  16        90                1600         1500

   22       180                1200         1950

   26       225                1100         2250

MAIN MACHINERY

Main Engines: (2) MTU 12V4000 M90, Diesel, @ 2735 HP with (4) station controls, integrated station selection and shifter 22-H.S. stocks control & synchronizer

Engine Hours: Port: 9352

Starboard: 9334

Propulsion Type: Direct Drive - Twin Screw Shaft Drive

Engine Controls: MTU integrated control

DDC/MTU Engine Instrumentation

Engine Mounts: Steel

Engines Exhaust System: Westport Shipyard

Gear Boxes: (2) ZF 4650

Rudders: 10 Sq. Ff. cast urethane foil-shape rudders with 4" Aquamet 22-H.S. stocks PYI Dripless packing boxes with spare seals (steady rest bearings in aluminum framework)

Shafting: Aquamet 22-HS 4 ½"

Shaft Log & Packing Glands: Shaft logs are one-piece fiberglass construction with PYI Dripless packing gland and spare seals (shaft log are laminated into hull)

Propellers: 5-Blade Michigan custom wheels (4)

Engine Ventilation: (2) Delta T Marine Axial Fans

GENERATORS & ELECTRICITY

Output/Electricity: Control of AC supply switching from all available sources with volts, line 1/line 2 Amps & KW monitored for each generator

Generators: (2) Northern Lights 65Kw gen sets – top-end rebuild @ 6,000 hrs

Generator Hours: Port: 2123

Starboard: 1978

Shore Power: (2) ASEA Power Converters AC36WH-3

(2) 100 Amp single-phase shore inlets with Glendenning CableMaster cord reels at starboard bustle (includes four adapters; (2) for 240V to 280V and (2) for 208V to 480V); TV and phone outlets are located at starboard bustle with 100' TV/phone cord

(2) 3G KVH 50-60 cycle shore power converters (180 to 500 VAC input)

Main distribution panel located in control room

Vimar receptacles and switching throughout

Batteries: All AGM-cell type batteries:

(2) Banks of 8-D, 225 amp hour batteries, wired in series parallel for starting the main engines (total of 4 batteries).

(2) 225 Amp hour batteries for generator starting.

(2) Banks of 8-D, 225 Amp hour batteries, wired in series – parallel for the 24V DC Ship's System power, (total of 4 batteries).

(2) 225 Amp hour batteries, wired in parallel for the 12V DC Ship’s System Power

Battery Chargers: (1) Newmar 95 Amp/24 V DC battery charger for the 12 V DC Ship's system;

(1) Newmar 40 Amp 24V DC battery charger for the main engine starting battery

(1) Newmar 40 Amp/12V DC battery charger for the generator starting battery bank

AUXILIARY MACHINERY

Steering System: Jastram CCO Commercial grade power steering; (4) stations; pilothouse, flybridge and (2) wing stations with electric controls (all stations are equipped with rudder angle indicators)

Bow Thruster: ABT 16" – 50HP hydraulic prop with four-station controls

Stern Thruster: ABT 16" – 50HP hydraulic prop with four-station controls

Stabilizers: At Anchor Stabilization – Factory Install: Naiad model #3520 with 22sq.ft. fins, one station Multisea 2000 control, with oil level warning, unloading valve kits - Completely Serviced during haul-out

Under Water Lights: (6) Across stern

FUEL & OIL SYSTEM

Fuel Filters: (2) Detroit provided SeaPro for each engine and one SeaPro 2005-MK for each gen

Fuel Oil Separator: Alfa Laval MIB 3035 (serviced 2026)

Fuel Transfer Pump: Fuel transfer pump is equipped with flow meter and timer

Fuel Filling Pump: Tuthill CLI102017 cast iron rotary gear pump 20 GPM

Dirty Oil Pump: Oberdorfer rotary gear pump 10.8 GPM (portable extraction pump with quick disconnects on pump and all engines)

Lubrication Oil Pump: (1) Tank with (2) 178-gallon chambers; (1) for new oil with deck fill, fill spigot and pneumatic transfer pump, and (1) for waste oil with deck fill and drain spigot

FIREFIGHTING & BILGE SYSTEM

Firefighting & Bilge Pump: All thirteen bilge alarm switches monitored for water detection. 3 gray water pumps monitored for operation. Gray water boxes have alarms on back up pumps. Forward and aft black water tanks alarmed at 75% and 100% full levels; Emergency fixed bilge pump system includes (2) electronic pumps with 1 ½" PVC lines to each major compartment with check valves, strainers and priming system

FRESH WATER SYSTEM

Fresh Water Makers: (2) Sea Recovery water makers SRC 1400 (2,800 gallons per day total)

Fresh Water Treatment: (5) Micron sediment filters with UV sterilization light

Fresh Water Pressure: (2) 220V AC Pumps and (1) 24V DC back-up pressure pump with pressure tank

Hot & Cold Circulation Pump: (1) 80-Gallon hot water tank with circulation pump (New in 2015)

Other: Freshwater wash-down with quick disconnects on foredeck boat deck and swim platform

BLACK & GREY WATER SYSTEM

Black & Grey Water System: (3) Gray water transfer boxes fitted with screen, supply and discharge line for all showers and sinks (except galley); forward tow transfer boxes have an AC sump pump and a 24V DC backup pump, with alarm on backup pump; aft transfer box has DC pump only; and all gray water pumps to have diverter valve for overboard discharge or ship’s holding tanks

Holding Tanks: (2) Composite tanks with inspection hatch; tanks are electronically monitored and have an approx. capacity of 1,360 gallons; and Headhunter MSD treatment with PLC touch screen, and Auto-Chlor treats black and grey water. System rebuilt 2026

WC's (toilets/bidets): Headhunter Royal Flush Hydro Vac toilets

AC & VENTILATION SYSTEM

Air Conditioning: (4) Chilled water system with air handlers in salon, pilothouse, galley, all staterooms, crew area and skylounge; make-up air system is included; chiller unit includes variable frequency drives (approx. capacity of 20 tons)

Air Compressor: 220V 2Hp Air Compressor engine room will operate horn, gasoline tank and general engine room air supply

Engine Room Ventilation: Delta T Marine Axial Fans & Control

ANTIFOULING SYSTEM

Type: Seahawk Bio-cop TF renewal 2025

NAVIGATION & COMMUNICATION SYSTEMS

NAVIGATION SYSTEMS

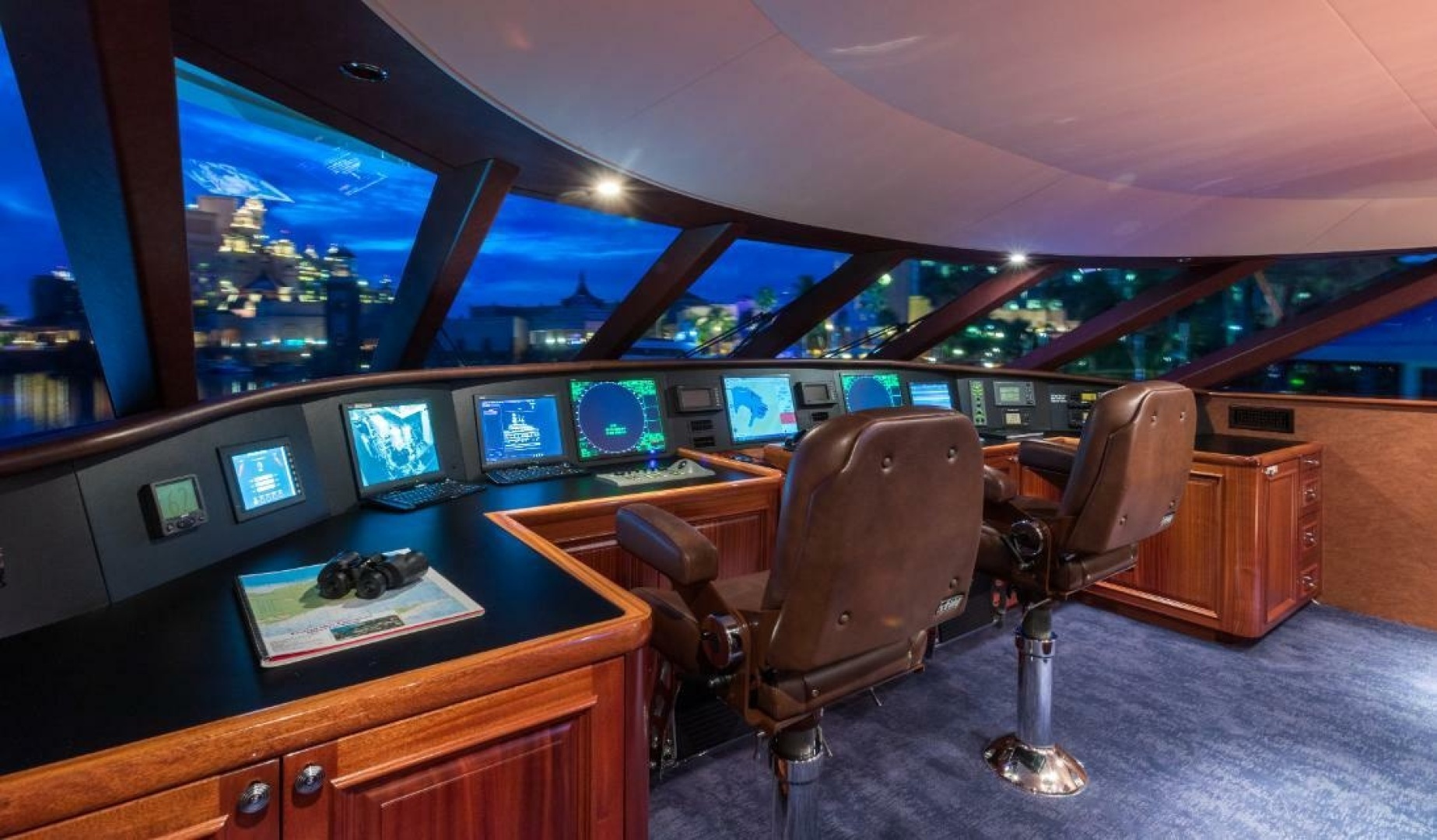

Navigation Bridge: B&G Hydra system for speed, depth, wind, water temp and full-function displays in pilothouse and crew lounge (Alarm buzzer in pilothouse)

Eletronic Chart System: (2) Nobeltec Trident computers with 20" LCD display in pilothouse and wireless keyboard/mouse. System includes ARPA and AIS interfaces, output to autopilot is provided – Rosepoint Navigation added in 2014

Nobeltec and radar feed to captain's cabin on separate monitor

(3) 12V DC Pilothouse chart lights at navigator's area, forward port and starboard

Radar: (2) Furuno FAR-2117

X-Band radars with 6.5ft. open arrays and 20" color displays, radars are heading stabilized with speed input for ARPA (Port radar can display AIS targets)

Magnetic Compass: Ritchie F600 G-5 mounted centerline at pilothouse helm station

Gyrocompass: Simrad RGC 85 compact system interfaced for display on autopilot, radars and electronic chart

Auto Pilot: Simrad AP50 with Gyro input and back-up Luxgate rate compass

Rudder Angle Indicator System: Jastram

Depth Sounder: Furuno FCV-1200L color video sounder with 15" LCD display in pilothouse

Aft Depth: Independent B&G Digital depth sounder with transducer aft between props (Displays in pilothouse and in crew lounge)

GPS: (2) Furuno commercial grade DGPS/WAAS/GPS units in pilothouse

AIS: Furuno FA-150 interfaced to radar and electronic chart

Navtex: Furuno NX-700 in pilothouse

Horn: (1) Hailer horn, integrated with pilothouse VHF for hail and auto foghorn

Search Lights: (1) Carlisle & Finch 200 Watt Xenon located on mast with single control

Tender Tracking System: AIS

Ships Computer: Personal computer with a 20" monitor in the pilothouse; (1) HO Officejet all-in-one printer/fax/copier/scanner in the pilothouse and computer and printer connected to ship's LAN

Ships Monitoring: Upgraded InteliSea Monitoring system (last updated 2023)

COMMUNICATION SYSTEMS

SAT com: Starlink Marine Unit + K4 ONE BOX Cellular WiFi and KVH VSat

INMARSAT – C: Furuno Felcom 15 GMDSS compliant standard C with printer and internal GPS

VHF Radiotelephones: (2) Icom M-604 in pilothouse with emergency battery back-up; (1) Icom M-604 in the crew lounge; (2) full-function VHF remote stations in main galley and flybridge and (2) handheld VHF radios with desktop chargers supplied

Telephone System: Panasonic Digital telephone system with (20) stations and (20) phone units; (2) phone stations have LCD display: (10) skylounge, (1) pilothouse, (2) salon (1) integrated for aft deck; telephone system is connected to Satcom, cell phone.

SSB: Icom M802 with automatic antenna tuner, radio control in pilothouse

EPRIB: McMurdo G5

DECK MACHINERY & EQUIPMENT

Anchor & Windlass: (2) Westport anchors w/ 5/8” BBB chains (Port 375’ / Stbd 400’)

(2) Maxwell VC 6000 series

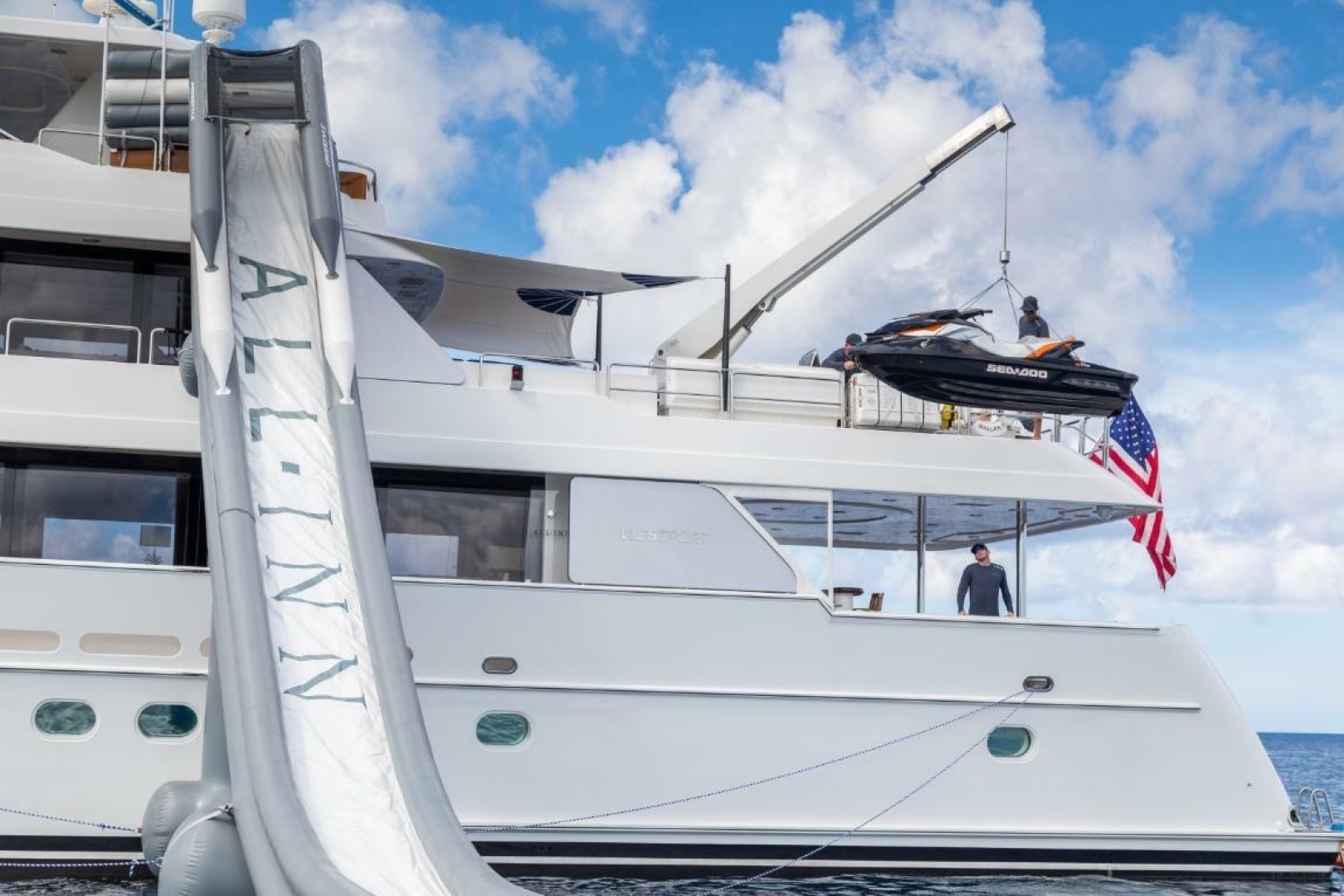

Cranes / Davits: (1) Steelhead Marine, CT 3500, 3,500lbs max, 13-20’ reach

Warping Capstans: Maxwell VC 3500 series

Ground Tackle: Westport Danfork

Fender Hooks, including 4 sets of Fender Hooks to hold kayaks & paddleboards

Passerelle: Besenzoni two-section rotating hydraulic, with handrail and wireless control for Med-Style mooring (#PI-384PM)

Boarding Ladder: (1) 8-Step carbon fiber with handrails on both sides, brackets at port & starboard gates, stowed in a recess on the starboard house side

Emergency Ladder: On transom, painted black to match hull

Spotlights: (1) Carlisle & Finch 200 Watt Xenon located on mast with single control

Other: (3) Exalto stainless steel pantograph wipers with delay circuits and freshwater wash-down

SAFETY, SECURITY, & FIREFIGHTING EQUIPMENT

Security System: Aft door, control room door, salon door, port & starboard doors, port & starboard pilothouse doors, & skylounge door monitored on InteliSea for unauthorized entry

InteliSea Alarm system Model IS-1 Vessel Information and Control (VIC) system.

HDAVR CCTV with 3 cameras, autodetection and record

(3) HDVAR hi-resolution color pan/tilt/zoom cameras located forward of main entrance on the starboard main deck, port aft corner of main deck and in the engine room

15" LCD monitor in the pilothouse, galley, crew mess, engineer's cabin, as well distributed throughout on-board audio/video system

Ship’s Safe: Digital wall safe in walk-in closet in Master

Fire Fighting: Engine room has a FM200 Fire Suppression system with manual/automatic controls; also, additional fire suppression is located on the electrical distribution panel

Fire pump Hat Z in control room

(30) Fire extinguishers, CO2, dry chemical installed in suitable locations

(2) Fire Blankets

Heat Sensors: (4) in Crew Quarters, Captain's Quarters and Crew Lounge; (5) in VIP Stateroom, Guest Staterooms and Laundry; (4) in Engineer’s Quarters, Control Utility and Engine Room; (3) in Galley, Salon and Master Stateroom and (3) in Pilothouse and Upper Lounge

Smoke & Gas Detection: (11) Kidde RF smoke detectors: (4) in Crew Quarters, Captain's Quarters and Crew Lounge; (5) in VIP Stateroom, Guest Staterooms and Laundry; (3) in Engineer’s Stateroom, Control & Utility; (3) in Galley, Salon & Master Stateroom; (3) in Pilothouse & Upper Lounge with remote alarm

(8) CO & Smoke detectors (SL, CM, PH, CR, EC, AV, AC, LAZZ)

Life Rafts: (2) 10-person life rafts mounted on boat deck

Lifejackets: (20) Coast Guard-Approved adult life preservers with water lights and (7) Coast Guard-Approved child life preservers with water lights

Life Rings: (4) 24" diameter ring buoys secured on exterior of vessel; (2) with Smoke/light

Ships Bell: Ship's bell per Coast Guard regulations, installed on bow railing over anchor windlass

EPIRB: (2) ACR, Ditch bag & Hydro on boat deck

SART: (2) ACR, Ditch bag, port & stbd

Flares: Flare Kit

Medical Equipment: MedAir full medical kit, splint kit, fluid O2 kit, DFib

ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS

Video Equipment: Kaleidescape music and video storage system (inop)

VSAT: KVH7 Satellite Television Antenna: TV At-Sea Gyro stabilized receive

Internet: Starlink

Control: Crestron WiFi with iPad control (Aft Deck)

Light Management: 110V AC Halogen recessed light fixtures

24V DC & 110V AC Rope indirect rope lighting

Exterior Lighting: The fore deck, house sides, aft deck stairs and flybridge lights are all controlled from the pilothouse Crestron display and the aft deck lights are switched locally. Lighting configurations can be programmed into the pilothouse Crestron for all interior and exterior lighting

Lighting protection with hull Dyna plate and mast probe

Reading Lights: All staterooms have 110V receptacles for table lamps, except captain, engineer and crew quarters have 24V lights

Main Salon: 50" Samsung High-Definition TV on starboard aft bulkhead

DVD/CD/Blu Ray HD Player

Surround Sound receiver

Surround Sound speaker system with (2) powered sub-woofers

UPS Battery backup

iPod docking station

Storage for CD's and DVD's

Kaleidescape music and video storage

Stereo with volume control and speakers from main salon system

Galley: 20" LG LCD TV with CCTV cameras for dining & side decks

(2) Speakers

Crestron WiFi with iPad control

Master Stateroom: Crestron WiFi with iPad control

UPS Battery backup

50" Samsung High-Definition Plasma TV

Kaleidescape music and video storage system

Satellite Receiver

DVD/CD Player

Surround sound speaker system with powered sub

VIP Stateroom: 26" Samsung High-Definition LCD TV with satellite receiver

Kaleidescape

DVD/CD Player

(1) Pair of speakers

Crestron WiFi with iPad control

UPS Battery back-up

Guest Staterooms: 26" Samsung High-definition LCD TV with satellite receiver

DVD/CD Player

Kaleidescape music and video storage system

(2) Speakers

Crestron WiFi 2 with iPad control

UPS Battery backup

Sky Lounge: Entertainment Center: 50" High Definition Plasma TV & electric fire place below (the A/V equipment is located in credenza)

Satellite Receiver

DVD/CD Player

Surround sound receiver

Surround sound speaker system with (1) powered sub

Crestron WiFi 2 with iPad control

UPS Battery backup

Aft Deck: 37" Samsung High-Definition TV with Satellite receiver

B & W Speakers

B & W Sub-woofers

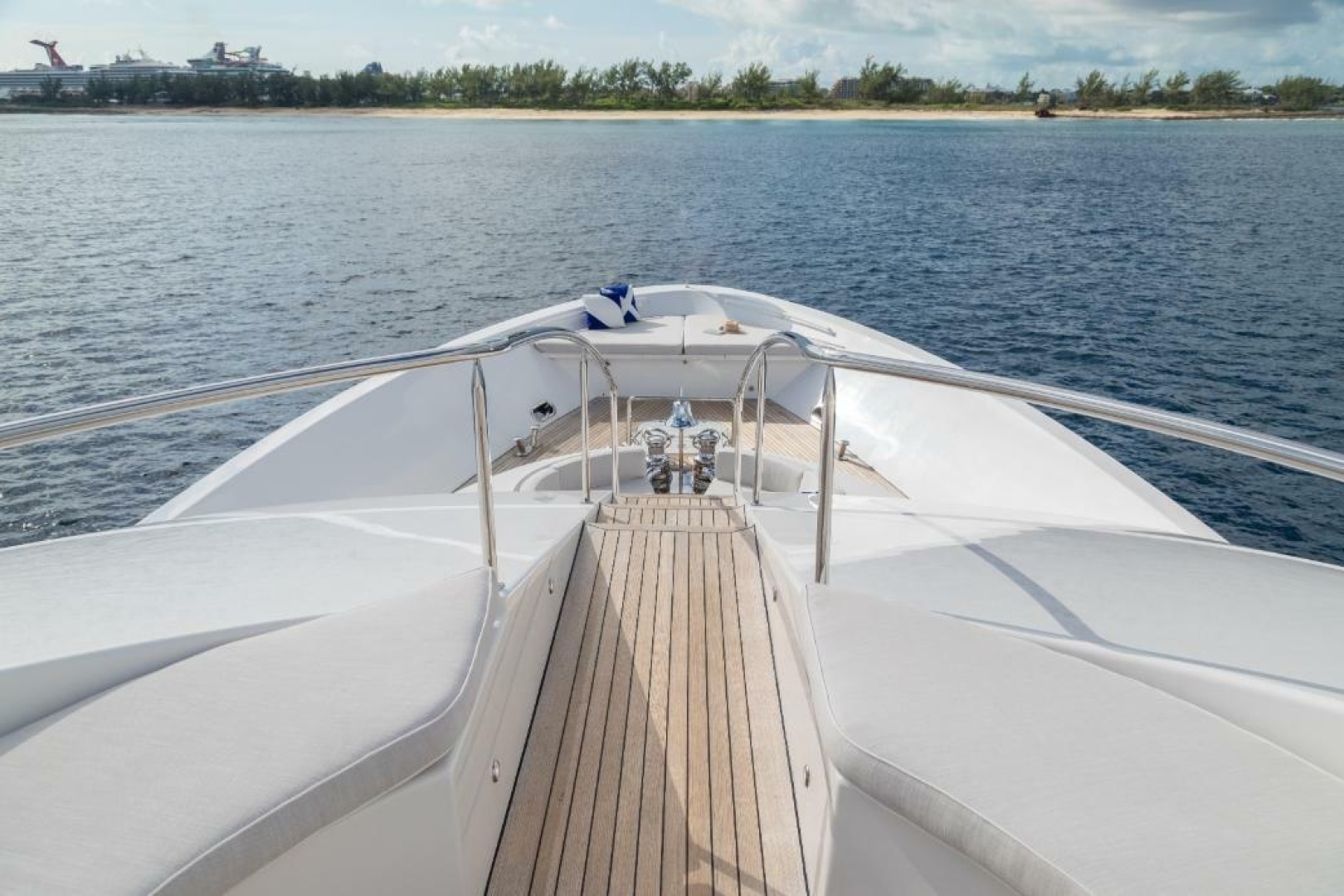

Foredeck: (2) Speakers

Crestron waterproof handheld remote with iPad control

Boat Deck: B & W speakers

Crestron waterproof handheld remote

Flybridge: (4) Speakers

Crestron waterproof handheld remote control with iPad control

Crew Mess: Captain's cabin: 20" LCD TV with DVD combo, satellite receiver, (1) pair or speakers and handheld remote to control Crestron system with iPad control (Additional 20" monitor with Transas and radar feed)

Crew Quarters: 15" LCD TV with DVD combo, satellite receiver and handheld remote

Storage/Utility/Engineer Cabin: 20" LCD TV with DVD combo, satellite receiver, (1) stereo speaker and handheld remote to control Crestron system

GALLEY & LAUNDRY EQUIPMENT

MAIN GALLEY EQUIPMENT

Double stainless Kohler sink with Grohe faucet

Broan trash compactor

Viking Cooktop

Stove Fiddles: Cooktop pan holders

KitchenAid dishwasher

Amtico commercial galley flooring in a hardwood pattern

Stainless Sharp microwave

Franke hot water dispenser - Replaced in 2015

Raised panel cabinetry

(1) 48" SunZero refrigerator/freezer

Double Gaggenau ovens

InSinkErator garbage disposal

Canarm 42" overhead range hood with light

Granite countertops with crescent edge

Cookware: 12-piece All-Clad stainless cookware, Henkel cutlery, Kitchen Aid mixer, Cuisinart, blender and accessories

STEW PANTRIES

Custom stewardess pantry

Granite countertops

Stainless steel sink

InSinkerator garbage disposal

Under-counter refrigerator

Granite countertop with (1) bar stool

Raised panel cabinetry

Cupboard storage for crockery/cutlery and glassware

Double garbage bins on sliding rack

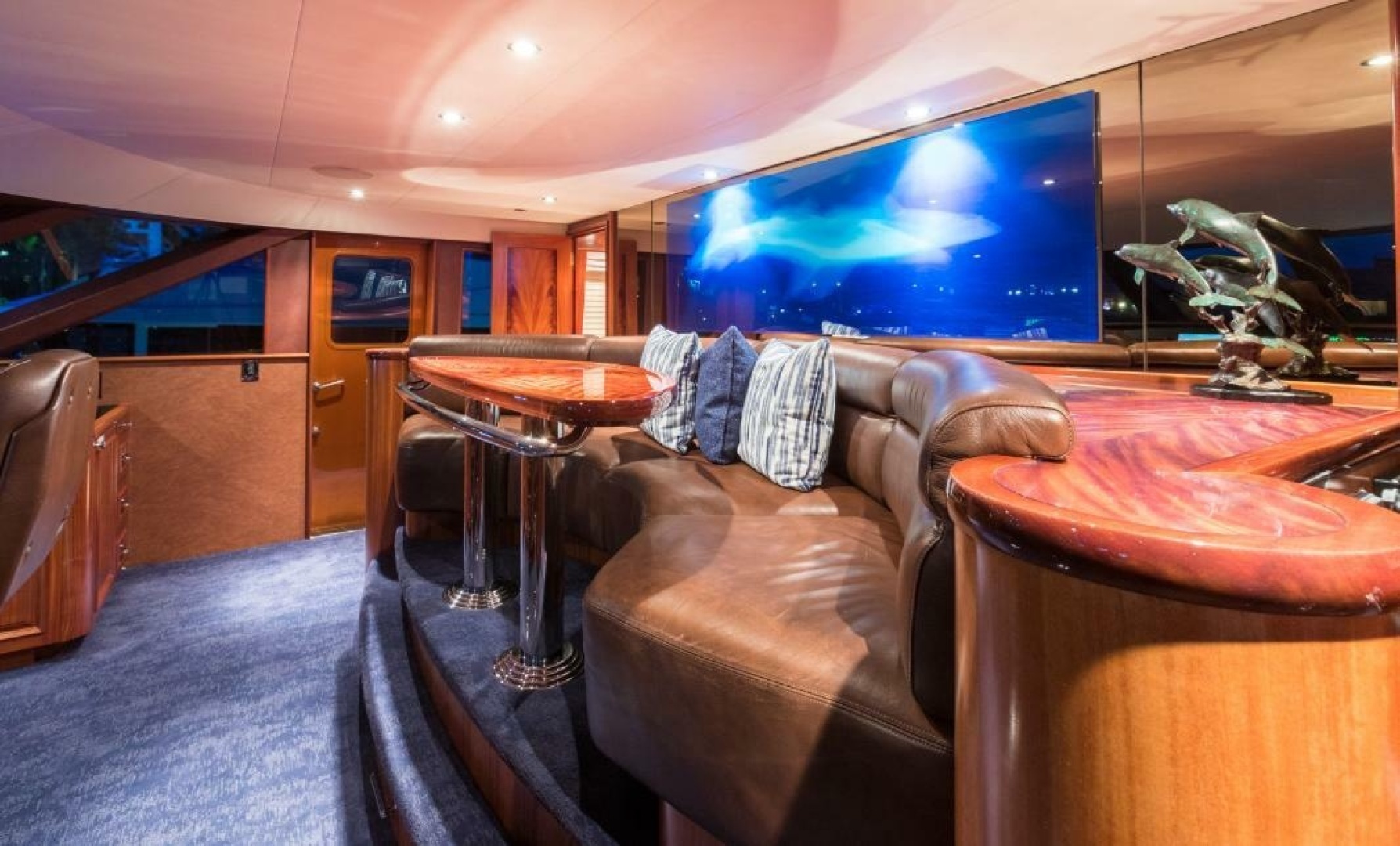

PILOT HOUSE

Stain resistant carpeting throughout

Leather-covered dash panels

Chart drawer built-in to risers beneath table

Leather settee

Crotch Mahogany top and Sapele edge with high gloss finish and stainless-steel grab rail

(2) Stidd 500XL low back helm chairs

Desk with bulkhead mounted 20" Flat screen monitor, stool, with bookcase above

(2) File drawers

High Gloss counters with Sapele trim

Clock/Barometer: 6" Weems & Plath

SALON

Wine Cooler: In custom cabinet

(1) Lounge chair with ottoman

(2) Occasional chairs

End tables

Hunter Douglas Silhouette blinds (electric)

FORMAL DINING

Custom satin wood dining table with (10) chairs

(3) Mirrored Lucite storage cases

U-line wine cooler

DAY HEAD (SALON)

Mirrored overhead

Marble vanity top with crescent edge and matching marble flooring

Freestanding glass vessel sinks with a polished chrome finish faucet

Polished chrome soap dish, toilet tissue holder and towel ring

MASTER STATEROOM

California king berth with innerspring pillow top mattress and upholstered headboard and bunk rail. The bed lifts up on gas springs to storage below; the pedestal has (2) raised panel drawers built-in; and berth flat extends from the pedestal to create a recess for under mount rope lighting.

Walk-in wardrobe, lined with aromatic cedar, with light, stainless closet rod and cedar shelf with keeper.

Counters: Crotch Mahogany top and Sapele edge with high gloss finish

(2) Nightstands with drawer storage.

Built-in dressers port, starboard and aft

Raised paneling

Hunter Douglas Silhouette blinds (electric)

Black-out shades

Digital wall safe in walk-in closet

MASTER ENSUITE

Shower: The shower is marble with faux-painted pillars to match marble, and the door opens outward and the fixture are Grohe and Jado in a platinum nickel finish

Additional lighting installed in shower cubicle

Sinks: (2) Kohler Vintage sinks, with Jado Wynd fixtures, platinum nickel finish

Mirror fixed above sinks

Vanities port & starboard

Make-up vanity forward with stool and light

Hanging lockers port and starboard

Mirrored medicine cabinets port and starboard

VIP STATEROOMS California king berths with innerspring pillow top mattress with upholstered headboard and bunk rail, the beds lift up on gas springs to storage below; the pedestal has two raised panel drawers built-in, and berth flat extends from the pedestal to create a recess for under mount rope lighting

Clear full-length mirror on wardrobe door inside mirror

Wardrobe lined with aromatic cedar with automatic light, stainless steel closet rod and cedar shelf with keeper

Fixed Roman shades

Lamps on nightstands

(2) Opening port lights

(2) Three drawer nightstands

Combination dresser and entertainment center with Cherry doors

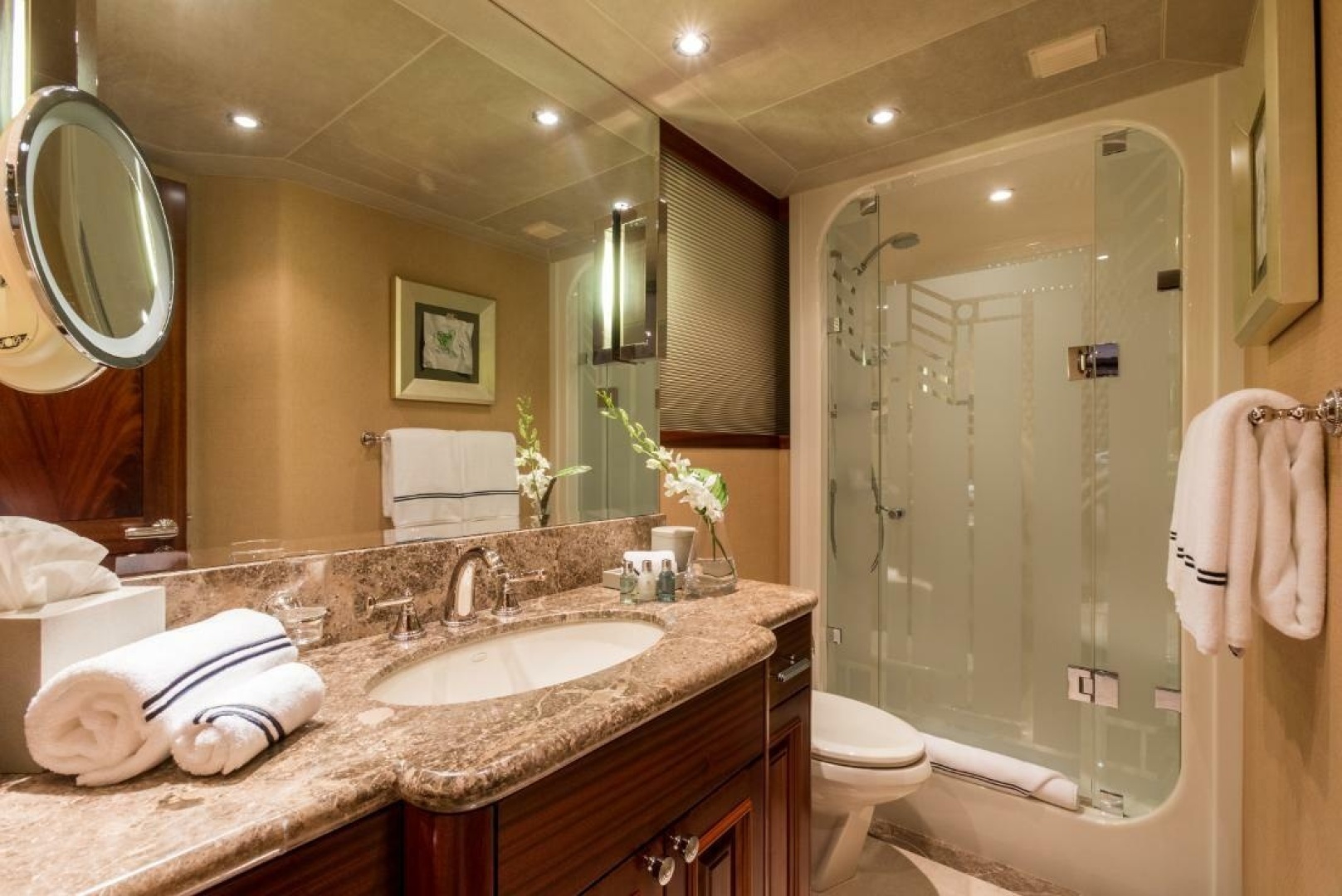

VIP ENSUITES

Shower: The shower is acrylic with frameless tempered glass doors; the fixtures are Grohe and Jado in a platinum nickel finish and the shower includes a sealed light

Sinks: Kohler vintage sinks, with Jado Wynd fixtures and platinum nickel finish

Vanity with lights and marble counter, with wall mirror above vanity

(1) Opening port light

GUEST STATEROOMS

Twin berths with innerspring pillow top mattress and upholstered headboard and bunk rail; the inboard berth is moveable and the pedestal has one raised panel drawer built-in, berth flat extends from the pedestal to create a recess for under mount rope lighting, and includes escape hatch at starboard guest inboard berth headboard

110 Recessed room and reading lights and indirect rope accent lighting under berth and above soffit

Framed mirrors on bulkhead above headboards

Clear full-length mirror on wardrobe door, inside door

Built-in entertainment center with Cherry doors, with dresser below

GUEST ENSUITES

Shower: The shower is acrylic with frameless tempered glass doors; the fixtures are Grohe and Jado in a platinum nickel finish and the shower includes a sealed light

Sinks: Kohler Vintage sinks, with Jado Wynd fixtures and platinum nickel finish

Wall mirror above vanity with light

Vanity

Port lights: Opening with screen

Lighting: 110V AC Recessed room lighting

Marble counter with crescent edge

AFT DECK

Refrigerator/freezer drawers, Manitowoc icemaker, sink with hot and cold water, with storage for acrylic barware

SKYLOUNGE

Aft Door: Large 2-panel polished stainless steel sliding door, weather tight, and direct bonded glass, Sofa, Cocktail table, End table, (3) Occasional chairs, (1) Ottoman, Game table with chairs, Built-in credenza on forward port bulkhead with book case, Privacy door between skylounge and stairwell, mini/wet bar, fridge, glass cabinet above bar, Manitowoc ice maker, fireplace and TV.

Day Head: Stone vanity top with crescent edge and matching marble tile flooring

Soap dish, toilet tissue holder and towel ring

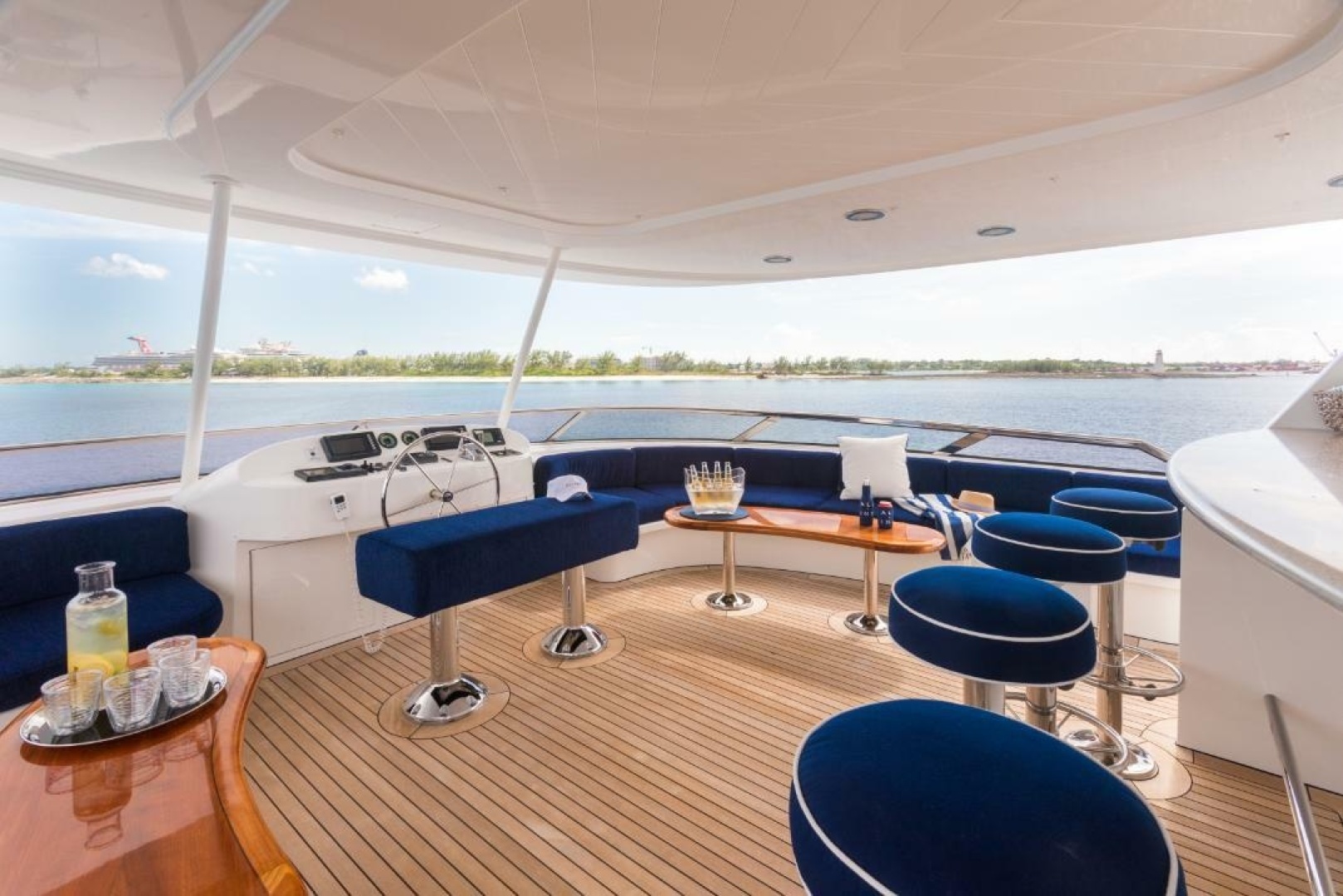

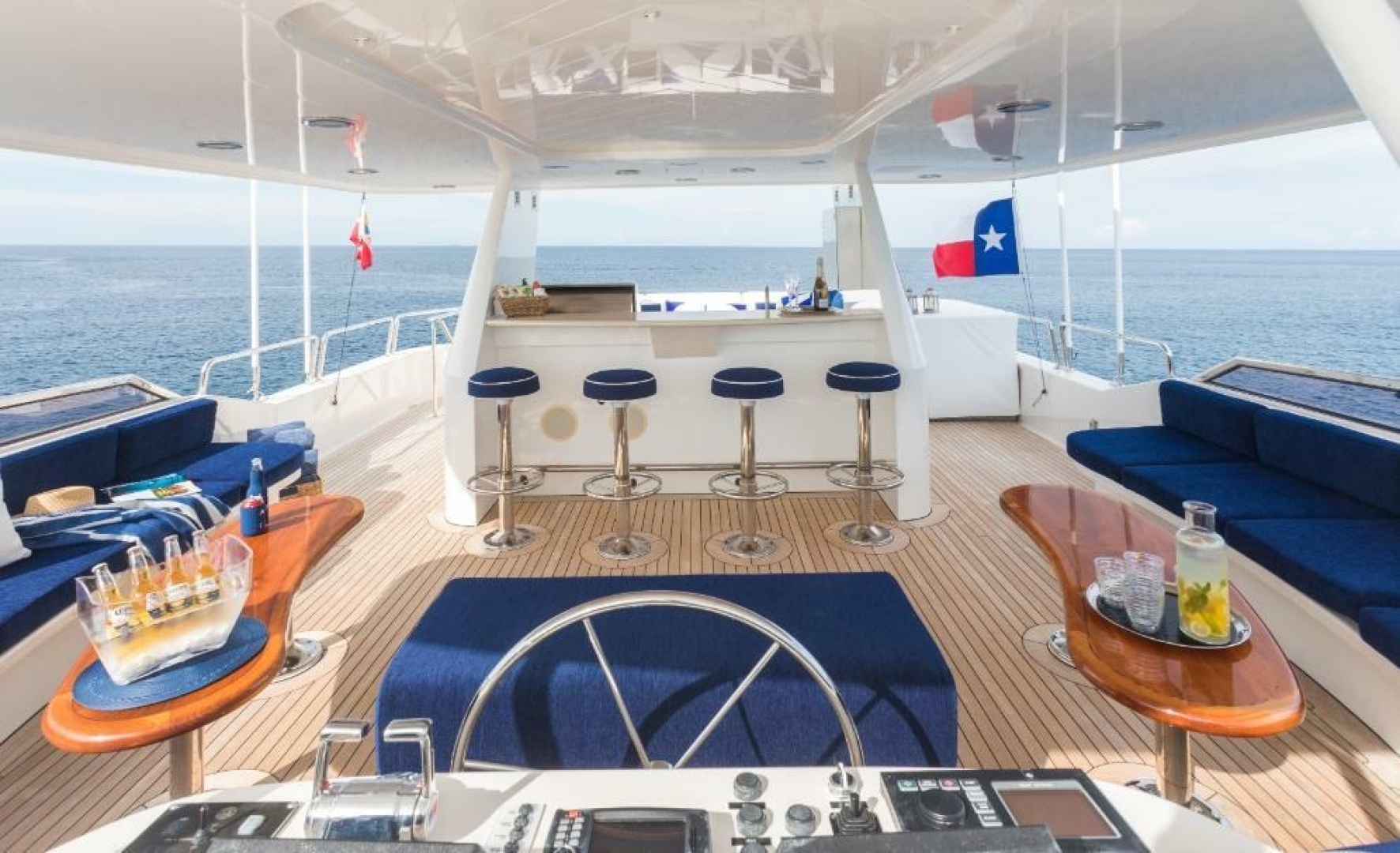

FLYBRIDGE

Fridge and Manitowoc ice maker

CAPTAIN’S / CREW QUARTERS

Berths: Captain full-size, crew is four twin berths innerspring pillow top mattresses

Anigre interior joinery

Lighting: 110V AC Recessed room lights and 24V DC reading lights

Mirrors: Clear dressing room mirror inside wardrobe door

Wardrobe: Lined with cedar, with automatic light, stainless closet door rod and cedar shelf with keeper

Anigre interior joinery

Asko stacking full-size washer & dryer

Lounge/Galley: Upholstered settee, built-in refrigerator and stainless microwave and stainless sink, cabinets

are Maple framed with Anigre door and solid surface tops

Port lights: (1) In crew's lounge and (1) in Captain's stateroom opening with screen

Shower: The shower is molded fiberglass, Grohe fixtures with polished chrome frame and clear glass shower doors, the shower includes sealed light, and additionally, the starboard crew shower has an escape hatch

Kohler Bolero sinks with Grohe Europlus II fixtures

Medicine cabinets have built-in mirrors

110V AC Recessed room lights and vanity lighting

LAUNDRY ROOM

Miele PT7138 Plus dryer

Miele PW 6065 Plus washer

Floor to ceiling storage cabinets

OTHER EQUIPMENT

Flybridge: Custom Paddleboard Racks on Flybridge Hardtop

Custom teak box to hold slide when not in use

Boat Deck: Balboa IDX-0 spa control system Hot tub with 11Kw heater

Molded-in settee with cushions, cover and locker space under

High/low corian white tables

(3) Teak chairs, all teak listed is high gloss with cushions and covers

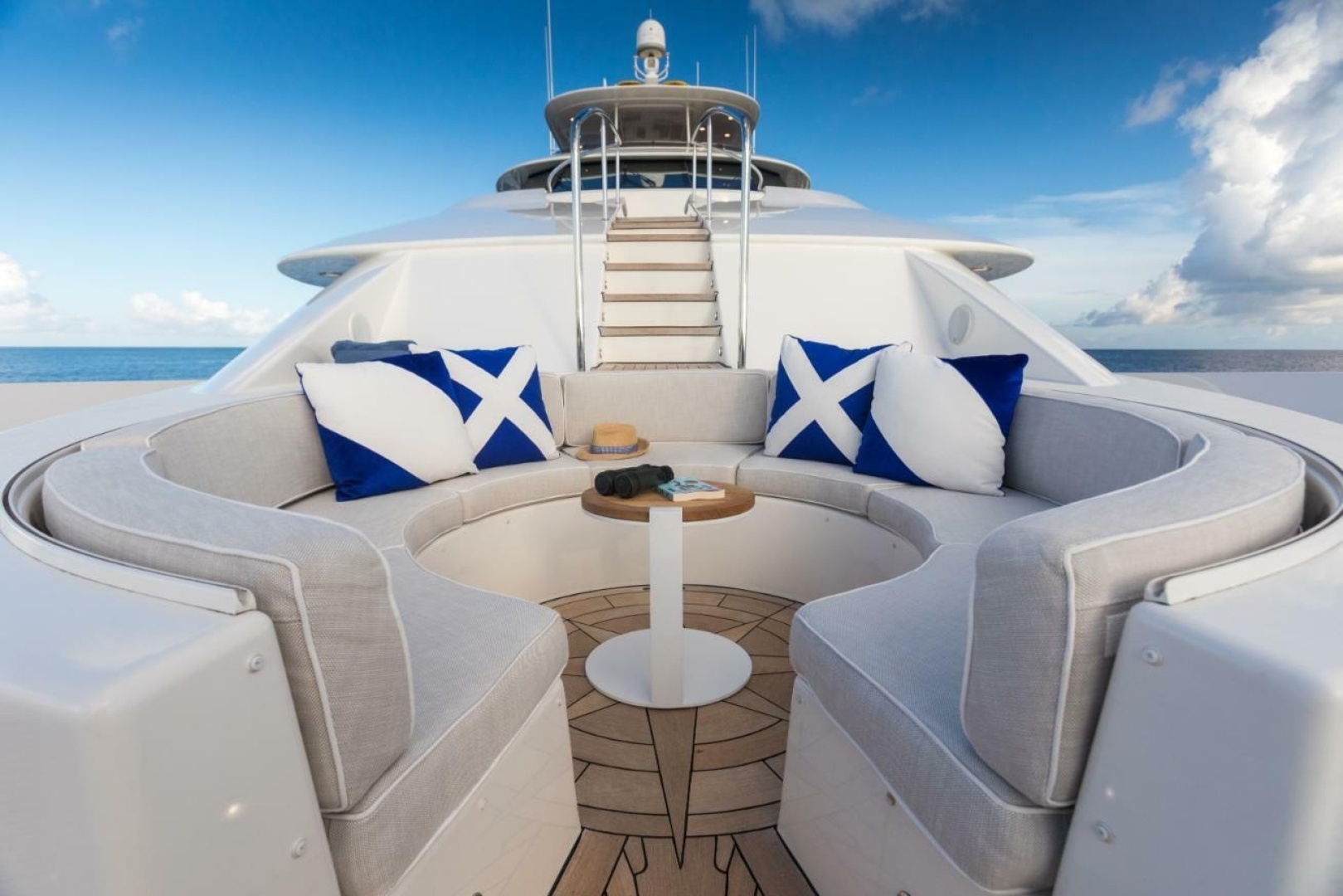

Forward Portuguese Settee: (2) Molded seats with cushions

Chocks for (1) tender, (2) Jet Skis

Hydraulic powered Steelhead crane features 359 degrees of rotation, proportional control, and a 3,000 lb. load capacity

Stern flagstaff

Deck: Teak over composite except tender area which is nonskid over composite

Custom 2-piece full-beam Awning supported by Carbon Fiber poles (May be used to cover dining area and hot tub or parts thereof)

(2) “Dock box” Storage Boxes

Lucite "Wing" doors fitted port and starboard providing wind free environment for hot-tub and seating/dining area

Cushions: Aft deck settee, bow sun pad, boat deck lounge settee and observation deck settee; Perennial fabric with dry fast foam fill

Covers: All covers have been upgraded to Stamoid with Boltrope and zipper attachment, Secondary Snap-on attachment is also provided

Covers provided for: Flybridge settee, tables, seating, shore boats, bow seat and aft deck seating; a black mesh windshield cover is provided in the pilothouse

Carbon Fiber Poles for Sunshade on Boat Deck

Spares: DDC/MTU spare parts kit; Northern Lights spare parts kit; Sea Recovery spare parts kit and Ship's spares kit

TENDERS & TOYS

Tenders: 18' Nautica Wide body tender with speakers (new tubes 2019) w/2023 115hp Yamaha

Jet Skis: (2) 2014 Sea Doo Spark (Trixx) 2022

Toys: (2) Kayaks

(4) Paddleboards

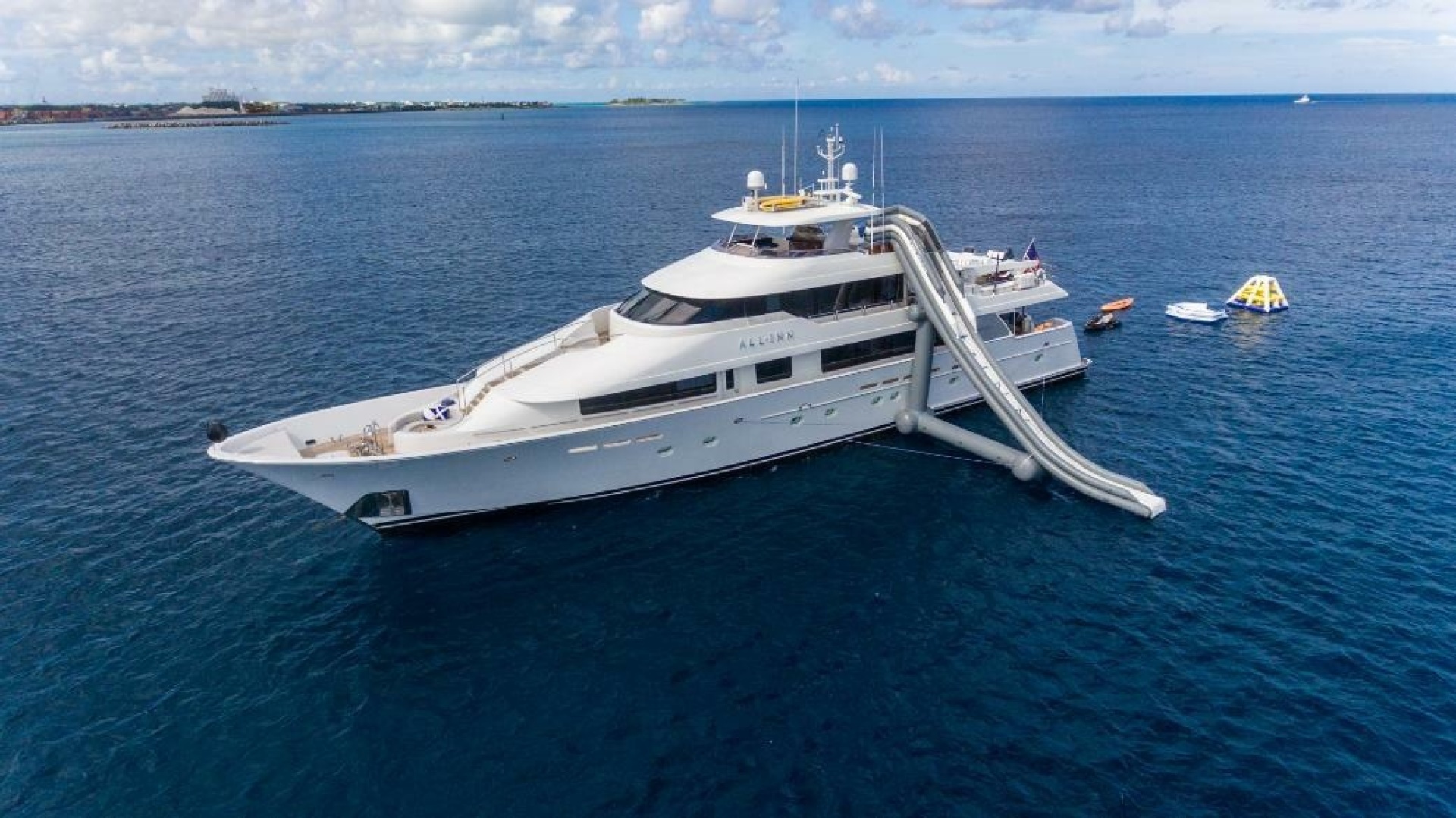

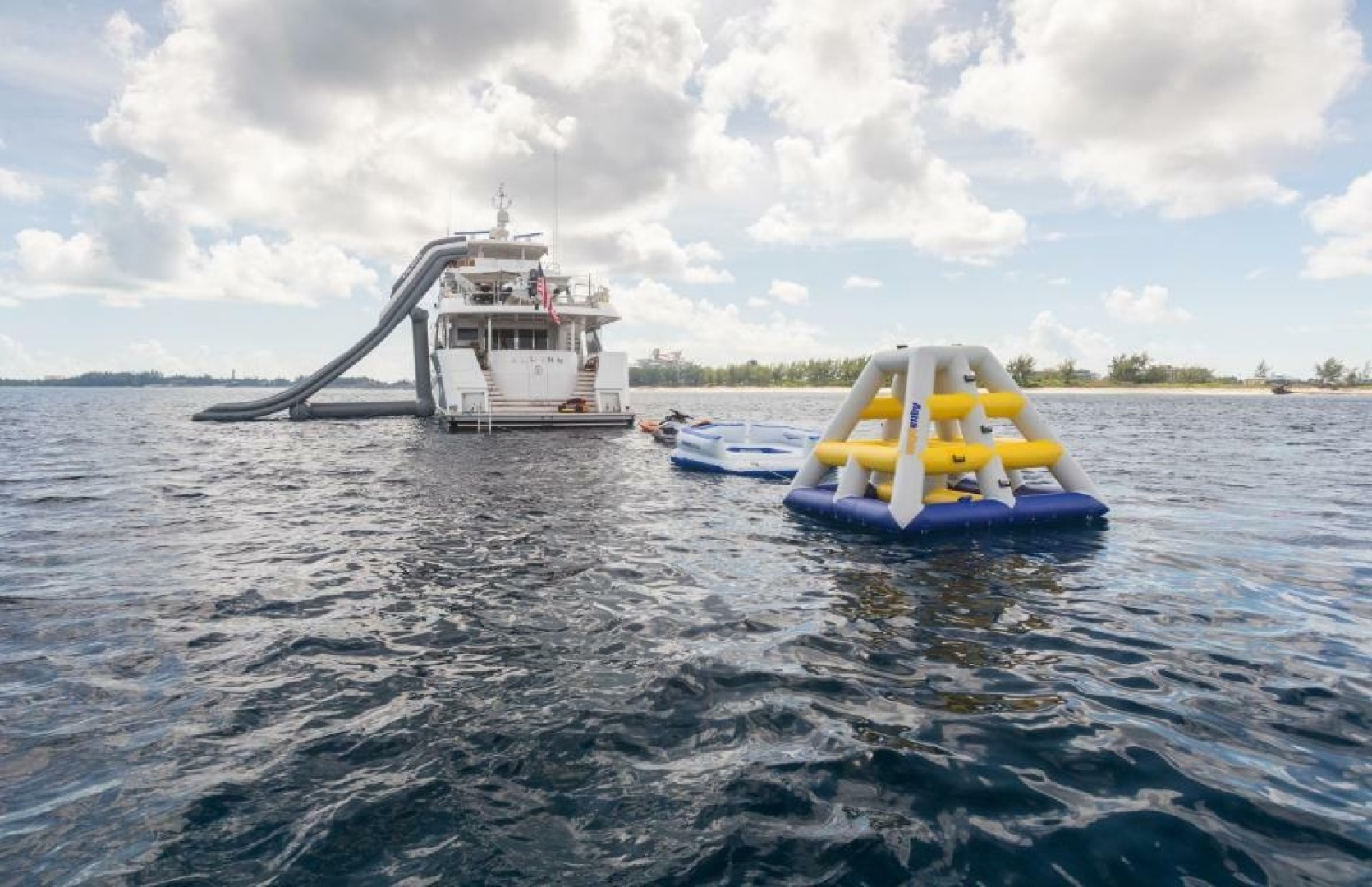

Custom water slide off flybridge deck

(4) Seabobs

CAPITAL IMPROVEMENTS

2023

All Running gear removed. Props and Shafts reconditioned, new Cutlass Bearings installed, Shaft Seals reconditioned, new spare seals installed, and engine alignment checked. Worked performed by High Seas Yacht Service at LMC Hull Paint. We painted the Hull from waterline, over the cap rail, inside the bulwarks down to the main deck teak. At the same time bottom paint and prop speed was renewed.

Bridge Deck Teak. Replace all bridge deck teak from the hot tub area, Portuguese deck, and the steps leading to the compass rose. We also had the other 2 decks sanded. All in total was $110K and took 9 weeks. All work was performed by OP Yacht Services at LMC.

Crew area refit. Replaced cracked countertops, recovered settee cushions and all new carpet. Total was 21K and took 3 weeks. This work was performed by Thomas Anthony, Ronnies Carpet and Senko yachts.

2022-2023

AV Upgrade. We re-wired the entire AV system, installed new AVR’s, TV’s, receivers, Apple TVs, and all new I-pad controllers with programming. This part of the project is complete. We are upgrading all the Crestron controllers and room boxes; at this time, we are waiting on Crestron controllers that are on back order. This is a 225K upgrade that is approximately 75% complete. Work performed by Peter Lauer at Global Marine Electronics.

2022

5000-hour generator service. Renewed everything down to the engine block. Service performed at 5000 hours by Duggan Marine, Northern Lights Specialists. Currently (8/9/2023) we have 8035 hours. This took 5 weeks and was a 25K service.

2021

Main engine QL3 service. This is the engine ½ life service in which they renew everything down to the main engine block. This took 7 weeks and $405K. Service performed at 6200 hours by TDW Marine, MTU Specialists. Currently (8/9/2023) we have 8050 hours on the engines.

V-Sat and Wi-Fi. Upgraded to a K4 One Box. And 2 directional antennas. This system has 12 cellular sim cards and “on demand” V-Sat service with VOIP connection. If the Starlink (installed 6/2023) were to fail, you can call KVH and on the spot pay for as much bandwidth as you would like, eliminating any loss of Wi-Fi, anywhere in the world. This was a 75K upgrade. Work performed by Peter Lauer at Global Marine Electronics.

2020

A/C refit. 2 new chillers and turned the entire chiller plant around gaining proper access for service. At the same time, we re-plumbed the chiller loop and raw water loop so we can shut ½ the system down for service. Previously, you had to shut the entire system off, leaving the boat without A/C. This took 2 weeks and was a 65K upgrade. All work was performed by Titan Marine A/C.

2019-2020

Interior and exterior refit. Includes all new carpet throughout boat (except crew area), entire exterior cushions replaced, all new exterior pillows, new exterior furniture, new countertops on aft deck and flybridge, new sky lounge furniture, new salon furniture (replaced or recovered), new wall coverings on main deck, new bedding for all guest and master staterooms, new overhead and wall coverings in crew area, new lighting in main salon, new wall coverings in galley, new *artwork through the boat and additional tabletop appointments. All furnishings and fabrics replaced with Sutherland Furniture and Perennials Fabrics. This upgrade and took 8 weeks. All work performed by Thomas Anthony Inc.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
