MAIN SPECIFICATIONS

MAIN SPECIFICATIONS

Length Overall: 130 ft / 39.6 m

Length at Waterline:

Beam: 26' 3" ft / 8 m

Draft: 6' 6" ft / 1.98 m

Year Completed: 2003

Model Year: 2003

Refit: 2020

Type: Motor Yacht

HIN: WPS01506C204

Tonnage: 298 GT

Displacement: Semi Displacement

Guests: 10

Crew: 7

CONSTRUCTION

Builder: Westport

Naval Architect: William Garden

Interior Design/Stylist: Pacific Custom Interiors

Hull Material: GRP

SPEED

Maximum: 24 Knots

Cruising: 13 Knots

Range: 2,500nm range @13kts/52gph/9,984 gal

CAPACITIES

Fuel: 9898.53 Gal / 37470 L

Water: 1619.37 Gal / 6130 L

Grey Water: 940 Gal / 3,560 L

Black Water: 1,360 Gal / 5,150 L

Lube Oil Capacity: 77 Gal / 291 L

CLASSIFICATION & CERTIFICATIONS

Flag: Cayman Islands

MACHINERY

MAIN ENGINES

Engine Type: 2 x MTU 12V 4000

Horsepower: 2,734 Hp

Engine Serial Numbers: 5262001231 Port, 5262001229 Starboard

Main Engine Hours (Port): 1746

Main Engine Hours (Stbd): 1749

GENERATORS & ELECTRICITY

Generators: 2 x Kohler 65EOZD (@1,800 rpm)

Port Generator Hours: 19119

Starboard Generator Hours: 19108

Shore power: ASEA 170-520V, 3-Phase, 60Hz

BATTERIES

Batteries: 3 x 12V sets, 6 x 24V sets

PROPULSION & STEERING

Stabilizer: Naiad 521 with datum control for at-anchor stabilization

Stabilizer at Anchor: Yes

Steering System: Jastram PTO pumps from main engines

OTHER MACHINERY

Water Makers: Sea Recovery SRV 1500-2 AWM

Bow Thruster: Wesmar Vortex V 2-16

Fuel Separator and Filtration: RCI Technologies water separator

Fresh Water System: Aquabox pump 110V

Air Conditioning: Dometic 6 ton with 72 BTU

COMMUNICATION AND NAVIGATIONAL EQUIPMENT

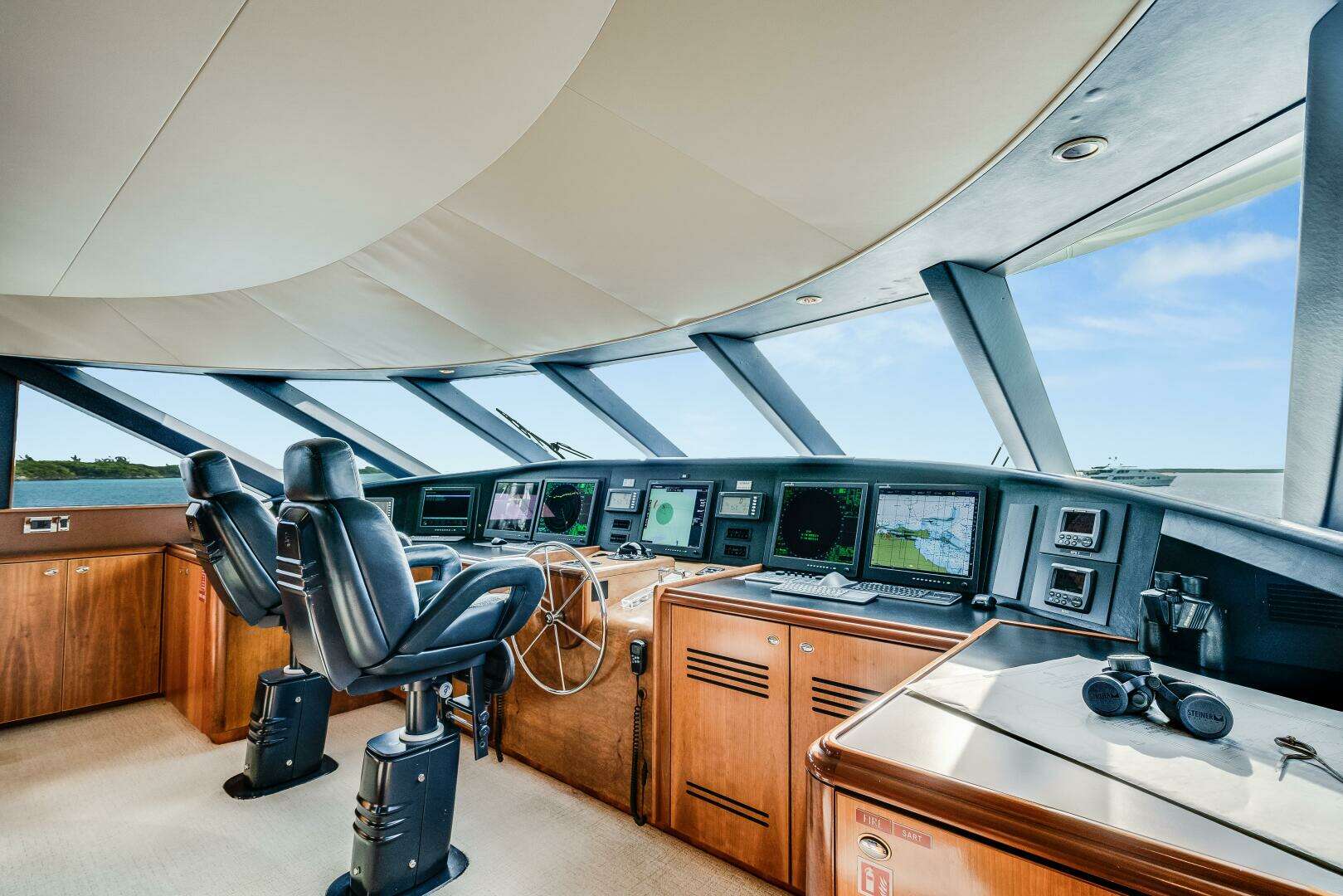

PILOTHOUSE

SAT COM: Fleet 33 Inmarsat

Telephone System: Nortel 4 line

VHF: Icom IC-M602

Navtex: Navtex Furuno NX700

NAVIGATION SYSTEMS

Radar: Furuno 2115B X-band, Furuno 2115 ARPA X-band

Gyrocompass: Sperry Marine Navigat X MK2

Auto Pilot: Sperry Marine Naviplot 4000+

Depth Sounder: Furuno RD-33

GPS: Furuno GP-33, Bridge Dash

ENTERTAINMENT SYSTEMS

VSAT1: Yes

iPads: Yes

GALLEY AND LAUNDRY EQUIPMENT

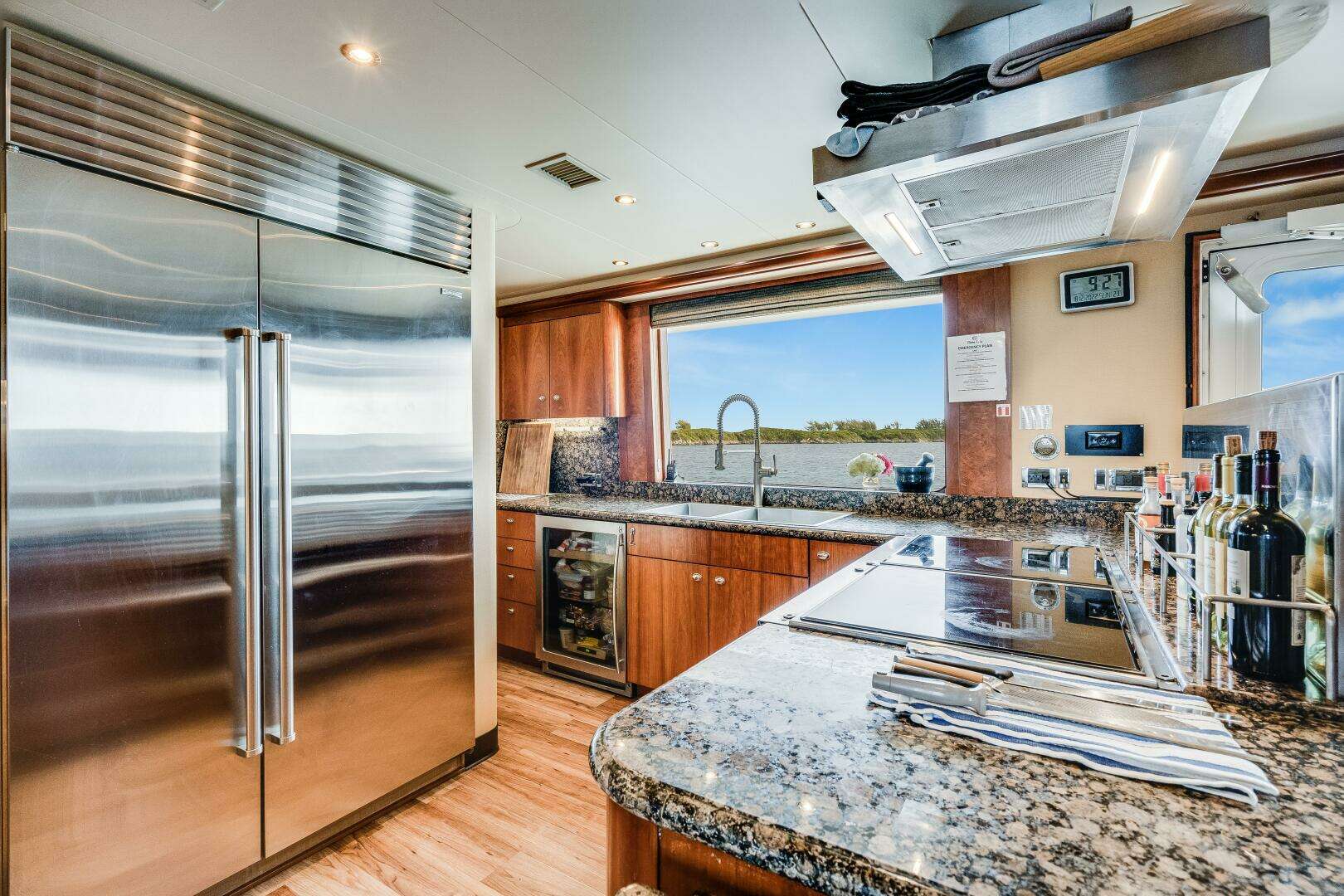

MAIN GALLEY EQUIPMENT

Oven: 2 x Miele ovens

Microwave: LG microwave

Refrigerator: Kitchen Aid refrigerator

Freezer: Kitchen Aid freezer

CREW GALLEY/ MESS

Fridge: Whirlpool refrigerator, Uline refrigerator

Microwave: LG Microwave

LAUNDRY

Washing Machines: 2 x Miele Washing Machines

Dryers: 2 x Miele clothes dryers

DECK EQUIPMENT

DECK EQUIPMENT

Anchor Windlass: Maxwell VWC 6000

Aft Warping Capstans:

Anchors: 2 x Poole 600lb

Anchor Chain: 2 x 400' 5/8"

Main Tender Davits: Nautical Structures CC2000 EX156 with 909kg capacity

Passarelle: Bensenzoni

TENDER & TOYS

16’ Walker Bay Tender w/Honda motor (May 2025)

2 x Yamaha Jet Skis

2 x CAYAGO AG Seabobs

Note: Subject to change and/or negotiation during the buying process.

SECURITY, FIRE FIGHTING AND SAFETY EQUIPMENT

SECURITY

CCTV System: Pelco CCTV

Cameras: 9 x cameras

Monitors: 4 x monitors

FIRE FIGHTING EQUIPMENT

Fire Control System: Custom Westport manufactured system

Fire Extinguishers: 26 x portable fire extinguishers

Alarms: Yes

SAFETY EQUIPMENT

Life Rafts: 2 x Zodiac Solas 25 life rafts

Life Rings: 4 x Life rings

EPIRBS: 2 x EPIRBS

Flares: 3 x Flares

Medical Equipment: Medical bag

UPGRADES AND REPAIRS LIST

Upgrades and Repairs List September 2025

- Upgraded fresh water system, with New Headhunter- Aquabox and Mach 5-

  pump(s). Also replaced old DC pump, with new.

- Jet-Ski(s) - sent out both unit(s) to be completely inspected and repaired, at the Jet

  Ski Doctor’s recommendations, for service and replacement of engine/unit- parts.

- MegaFend- mooring fender system- refurbished/renewed all fender hooks. Added

  additional fender hooks, for use on the stern.

- MegaFend- fenders- purchased various new fenders, for the yacht.

- Made new weather covers, for the bow, bow- settee, fly-bridge, boat-deck, and     aftdeck.

- Replaced bow, fly-bridge, boat-deck, and aft-deck cushions, with new.

- Engineer’s head- replaced macerator pump

- Crew Galley- bilge pump- replaced with new unit and float switch

- Crew Mattresses and Sheet sets- replaced all crew mattresses and sheet sets.

- SeaBobs- 2x unit battery replacements (April 2025)

- Numerous upgrades and cleanups to NEMA- system, for navigation system(s).

- New Furuno System - GPS Gyro.

- Annual service, to original/existing Gyro system.

- Numerous upgrades and replacements for Ship’s LAN- system(s)

- Windshield Wiper System- replaced

- Replaced all deck- gas shocks for hatches.

- All interior cabinet/drawer- push-buttons, were repaired or replaced.

- Added a Master closet divider, for charter purposes.

- Installed new wood panelling and railng(s) for guest area stairwell(s).

- Repainted boat deck non-skid

- New tender purchase - 16’ Walker Bay w/Honda motor (May 2025)

- New Crew plates and cutlery

- Added 2x new aft-deck- stair gates to swim-platform.

- Installed all-new exhaust system, for main engine(s) and generator(s). (May 2025).

 New/Replacement filters for DPF System, are in storage, at Metcalf Marine, FLL.

- 2x new Jetski covers

- Installed new auto-shades, in the master stateroom.

- Replaced Whisper Wall- overhead(s) in the Pilothouse, and Salon/Dining Room.

- Replaced Pilothouse- wall-paper.

- Installed all new Entertainment system, on the yacht.

- Installed new refrigerator and ice-maker, on the Fly-bridge.

- Installed 2x new sun shade systems, on the fly-bridge.

- Installed new sunshade system, on the boat-deck.

- Remove and serviced hydraulic system- heat exchangers (3)- (August 2025

- Removed and rebuilt Naiad Stabilizer- hydraulic rams (4)

- Complete valve-job performed on both MTU- main engines. (Mendol) (June 2025)

- Performed complete injector replacement on MTU- main(s)

- Installed new air-handler, in AC closet/Lazarette.

- Installed new control system for Lazarette- fridge/freezer system.

- Replaced all deck-lights, with new.

- Replaced swim-platform- shower system, with new.

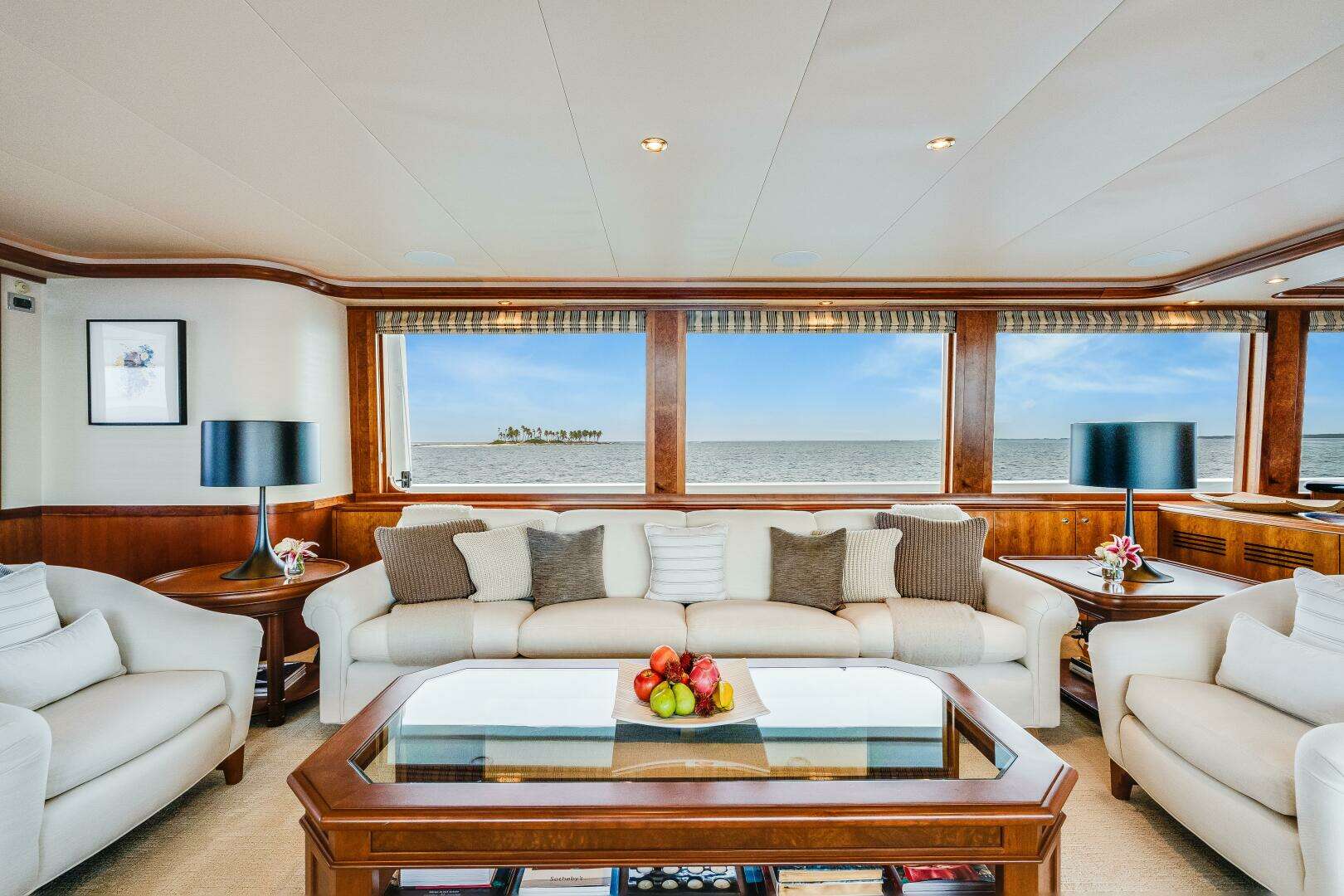

- Newly re-upholstered armchairs and sofa, in salon.

- Replaced various pic fittings/ valves, on Headhunter- system.

- Installed lockable drawers, in master- stateroom.

- Full wax on exterior of yacht. (September 2025)

- All new sheets and duvet(s) in the guest area(s).

- New P.H. printer.

- Replaced galley sink- faucet, with new.

- Installed new dishwasher, in stew- pantry (galley)

- Sanded all teak deck(s). (June 2025)

- R & R’s galley counter top extender

- Polished granite counter tops

- Replaced DEIF- system control box assemblies

- Replaced P.H. - windscreen, with new.

- Installed new water filtration system/tap, in stew pantry.

- Newly painted master- shower floor.
