MAIN MACHINERY

• Steering system: Electro-hydraulic with power unit

• Stabilizers: 2x ABT E Trac 370-16 X fins with sailing and anchor

functionality

• Bow thruster: ABT E TRAC 20” 75 Hp

• Watermaker: IDROMAR MC 2 duplex with daily capacity of 6200 l/day

• Fuel purification system: ALPHA LAVAL self-cleaning centrifugal fuel

separator

• Fuel oil purification system: RACOR filters

• Daily Fuel Service Tanks: 2 x Daily Service Tanks installed in the engine

room supplying the main propulsion engines, diesel generators, tender

refuelling station

• Bilge system: 1 x Self-priming centrifugal pump in common with the

firefighting system installed in the engine room, and local submerged

pumps positioned outside the engine room shore connection

• Sewage system:

TECMA for toilet drainage

HAMMAN 750 l wastewater treatment plant

• Possibility of discharging black water directly to the sea, where

permitted by the rules, by means of a GIANNESCHI pump

• Domestic Fresh Water System:

2 x Water heater with resistance (150 l each)

2 x Hot Water Circulation Pumps

1 x UV Sterilization Unit

1 x Filling Station

1 x GIANNESCHI Fresh Water Transfer Pump

1 x IDROMAR Bunker Water Softener

1 x Silver Ion Sterilizer

MAIN MACHINERY

• Air conditioning system: CONDARIA 240,000 BTU

All accommodation spaces (cabins, social areas, bathrooms,

wheelhouse) are air-conditioned by air handling units

(FCUs) integrated into the non-visible cabinets (accessible

for maintenance operations) maintaining internal thermohygrometric

conditions and noise levels

Each zone is equipped with a display including a thermostat

(temperature sensor and temperature controller)

ELECTRICAL EQUIPMENT

• Electrical circuits:

380 / 400V - 50 Hz - 3 phases + N AC

220 / 230V - 50 Hz - 1 phase + N AC

24V DC

• Generators: 2 x KOHLER 55 kW 55EFOZDJ 380V - 50 Hz

Generator Hours:

STBD 7583 h

PORT 7589 h

(Nov 2025)

• MMPP Starter Batteries DG1 Starter Batteries DG2 Starter Batteries

Service Battery

• MASTERVOLT Service Battery Chargers MASTERVOLT Emergency

Battery Charger

• Shore power: GLENDINNING 15 m cable with terminal socket with

400V EEC ring and automatic operation

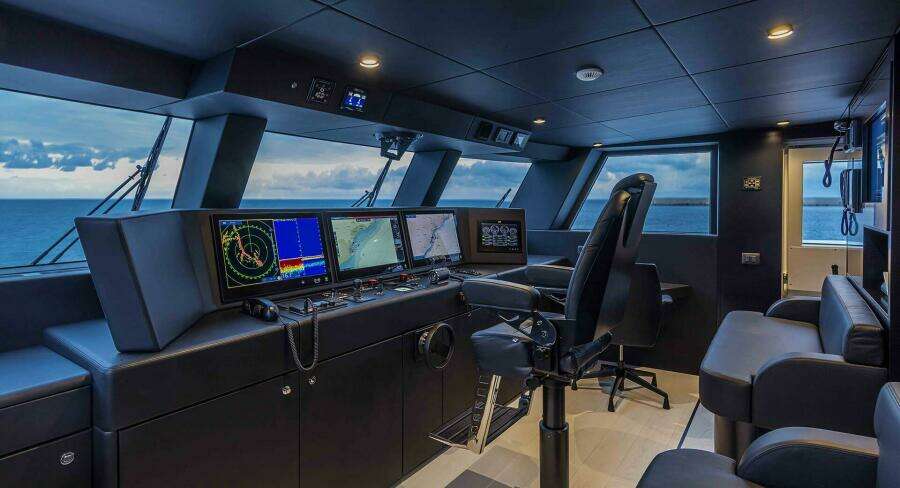

NAVIGATION AND COMMUNICATION SYSTEMS

• Servo-assisted hydraulic steering system Bow thruster control

• Rudder angle indicator

• CAT Electronic Motor Displays CAT Electronic Lever Motor Controls

• 2 x FURUNO S and X-band Radars

• 2x FURUNO sounders

• FURUNO mapping

• Mapping MAXSEA Time Zero Pro

• SIMRAD Autopilot Gyrocompass

• SIMRAD GC 80

• AIS FURUNO Class B FA50

• THURAYA XT Pro Satcom

• 2 x SAILOR VHF

• SAILOR Mini C Inmarsat

• SIMRAD compass output (20Hz), rate of turn and roll and pitch (10Hz)

on the NMEA 2000 network

• FURUNO TZT2BB Multifunction Black Box FURUNO MCU-004 Remote

Control Unit

• FURUNO GP33OB MCU GPS Receiver

• Extension FURUNO Vai NMEA2000 M1

• 3x HATTELAND HD24T22MMD 24 NMD Bonded DC (1920 x 1080)

displays Monitoring system

• FURUNO MB-1100 adapter box for connecting the 1 kW transducer

FURUNO 50/200-IT GOMMA 1 kW transducer

• FURUNO Open Array Antenna- XN12 A 4FT 6WA

• FURUNO FRU 2P55 30 M Cavo DRS4DL/NXT DRS6A Class

• FURUNO FRU 2P55 FF 30 M, Cavo 30 MT, DRS4DL/NXT and DRS6A

XClasse

• Display FURUNO F170 Tridata (digital)

• FURUNO Hob 101 ethernet hub

• FURUNO NMEA IF-NMEAFIxF1-70 Analog Converter NMEA

• FURUNO MD-550 Multi Dispenser NMEA

NAVIGATION AND COMMUNICATION SYSTEMS • 2000 Rudder Accessories

• FURUNO MD-550 Multi Dispenser NMEA

• FURUNO Class B AIS Transponder with AIS Class B Black Box GPS

Antenna GPA-017S

• VHF AIS Antenna

• Navtex FURUNO NX 7000 receiver

• Magnetic compass SPERRY MARINE Jupiter

• GPS navigator FURUNO GP 39

• Gyrocompass SIMRAD GC80

• Satcom THURAYA Phone

• THURAYA XT pro GMDSS

• Equipment

Transceiver Unit SAILOR 6222 VHF DSC Class A Station

SAILOR 6201 VHF DSC Class A

Inmarsat MINI-C System

GMDSS SAILOR 6110 System

GMDSS SAILOR 3027 Terminal

SAILOR 6018 Message Terminal

SAILOR 6001 Keyboard

SAILOR H1252B/TT - 3608A Printer and USB Interface Security

• Systems

EPIRB SAILOR 406 II

SART radar transponder

SAILOR II & SAILOR X-band 9 GHZ radar transponder

2 x Portable VHF SAILOR SPP 3520 GMDSS

ENTERTAINMENT SYSTEM

• Premium Entertainment System Installed on Board

• Surround Stereo Audio/Video Indoor/Outdoor Hi-Fi

• Crew Dining Room: 40” TV

• Captain’s Cabin: 32” TV

• Master Cabin: 65” TV

• Starboard VIP Cabin: 40” TV

• Port VIP Cabin: 40” TV

• Starboard Guest Cabin: 32” TV

• Port Guest Cabin: 40” TV

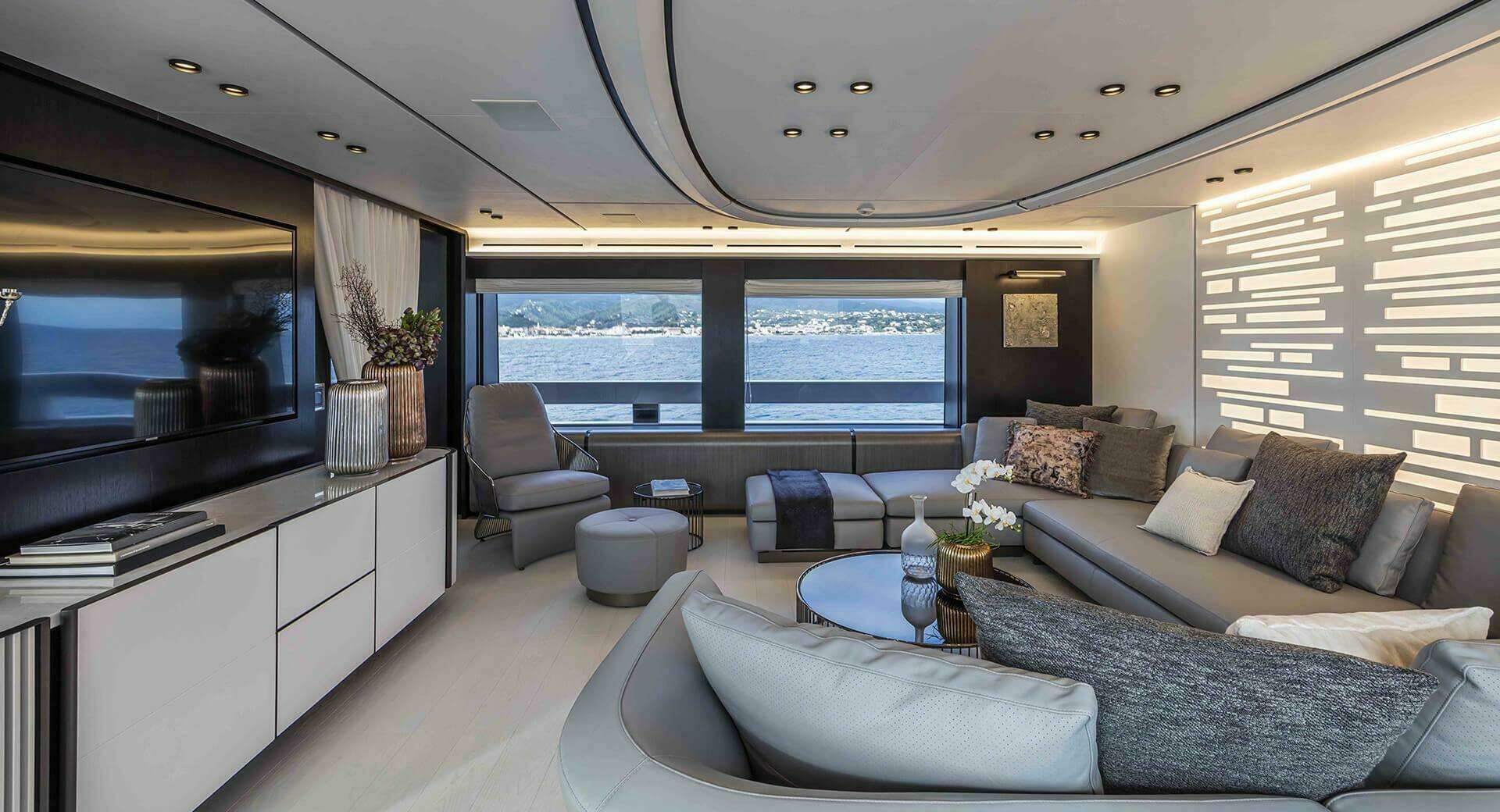

• Living room: 65” TV in the central cabinet with 180° lift and tilt

mechanisms

• Lounge Bar: Bar area with marble top, sink, faucet, ice maker,

refrigerator, storage, and bar stools

• Sky Lounge: 65” TV

• Internet & Connectivity: 4G internet and Wi-Fi available on board for

different users via routers

HOUSEHOLD EQUIPMENT

• Galley:

MIELE KWT6834 SGS Wine Cellar

Rational XS Oven

MIELE G 4997 SCVi XXL Jubilee Dishwasher for 14 people

2 x Sinks with mixer tap

Rational XS Oven

2 x LIEBHERR GKV 4360 Stainless Steel Refrigerator

MIELE Electric Teppanyaki C57632 Food elevator

• Pantry:

Cube Ice Cube Maker BREMA GB 306

VITRIFRIGO Ice Maker DW42RFX

Glass dishwasher WINTER HALTER UC S Masterpiece Energy

Excellence A S

Bypass for WINTER HALTER UC Energy

MIELE H6600 BM Microwave/Oven

• Crew Area:

MIELE Refrigerator

MIELE dishwasher

LG microwave

• Aft Deck:

VITRIFRIGO IM Classic Refill Ice Maker

VITRIFRIGO DW 42 RFX fridge bar

• Main Lounge Bar:

VITRIFRIGO IM Classic Refill Ice Maker

VITRIFRIGO DW 42 RFX fridge bar

• Laundry:

2 x MIELE tumble dryer

2 x MIELE WWW5880 washing machine

EMUCA folding ironing board

DECK EQUIPMENT

• Bollards & Fairleads:

4 x Bittons on the foredeck

4 x Fairleads on the foredeck

2 x Bittons/fairleads amidships

4 x Bittons on the aft deck

4 x Fairleads on the aft deck

2 x Fairleads at stern at lower deck elevation

• Shunting winches:

Maxwell winches, electrically driv en, made of polished s tainless

steel on the aft anchor deck

For normal operation, a plug-in remote control and fixed foot

controls are provided. Winches should be arranged for double

rotation

• Anchor Arrangement:

2 x Galvanised high-strength bow anchors of approx. 150 kg type

‘POOL’

The connection between the anchors and the chains is ensured by

a suitable type of pivot

Chains are self-floating and stored in a self-draining compartment

The chains are equipped with “Kenter” junction shackles

The chains are secured in the chain box by quick-release fasteners

at the upstream end

The chains are painted in colour and marked in 27.5 m intervals. The

markings on the anchor chain are in different colors to indicate

lengths

Access to the chain box is via the front pick

A chain washing system connected to the fire system must be

provided or an alternative proposal must be submitted

• Anchor winches:

2 x Maxell drum, electric winches with vertical axis installed on the

manoeuvring area

Each winch is controlled from a local control and from the

dashboard in the wheelhouse

Each winch is equipped with a gypsy and a manoeuvring head,

installed on the foredeck, with gypsies appropriate to the size of

the chain and sufficient power

The winches are arranged for double rotation

Gypsies are equipped with a chain counter

Shunting drums, brake handles, etc. are made of polished stainless

steel and the heads in the operating area are ribbed and/or ridged

For normal operation, a plug-in remote control and fixed controls

on the bulwark are provided

• Front Peak: Accessed through a watertight door on the foredeck. It

is equipped with shelves for storing various materials

• Exterior railings: All exterior railings are made of polished stainless

steel

• Fenders: 10 x Inflatable Cylindrical Fenders and 4 Inflatable Spherical

Fenders, with appropriate features, the fenders are stored in the front

peak

• Mooring lines: Adequate mooring lines provided according to the

requirements of the classification society

• Main Mast: Installed on the upper deck, freestanding and aluminum for

radar, antennas, navigation lights, satcom antenna, etc.

• Aft gangway:

1 x SANGUINETI CHIAVARI electro-hydraulic retractable telescopic

gangway

The stainless steel walkway has a total length of 4.5m, a minimum

passage width of 500mm, with removable stainless steel posts and

rails

The walking surface is made of teak

Lighting is provided at the level of the gate and with automatic

posts

The unit is capable of rising when extended (+/- 15° up/down

angle)

Load capacity at the east end of 150 kg in deployed condition.

Control is local, from the main aft deck, and remotely

A 24V backup power supply is also provided

• Bathing ladder: 1 x Hydraulic swim ladder with handrail is provided on

the aft platform to reach sea level. The length will be enough to allow 5

steps in the water. The ladder is made of steel with teak-covered steps

• Side gangway: 1 x Manual side gangway supplied, made of aluminium

with self-levelling steps covered with natural teak. The side doors on

the bulwark are equipped with sockets to safely install the manual side

gangway

• Jacuzzi on the foredeck: DELOS with hot water pump and 2 sun

loungers

• Deck shower: Shower with hot/cold water mixer tap

• Mattresses and outer cushions: SUNBRELLA fabrics, including

STAMOID covers

• Underwater lights: 6 x CANTALUPI underwater lights are installed on

the hull

ANNEX GARAGE

• The yacht is capable of storing the following tenders:

Annex 5.4 m x 2.3 m

Jet Ski 3.35 m x 1.3 m

• Designed in such a way that accidental flooding does not affect the

stability of the vessel and without causing damage to the garage

equipment

• 1 x Stern Hull Door, Hydraulic Type, with Emergency Manual Movement

• 1 x Sliding device system with electro-hydraulic telescopic crane in

a swivel structure for launching

• The boarding system will be compatible for launching and retrieving the

jet-ski stored on the port side of the garage

• Removable wedges for tenders are also provided

SAFETY AND SECURITY EQUIPMENT

• Fire Suppression System:

AERPRO fire exctinction System engine room

• Complete set of signal flags

• 2 x Fire Axe

• 2 x Fireman’s Blankets (Engine Room & Kitchen)

• 2 x Wash Hoses

• 1 x Firefighter Costume

• 1 x Rescue Flare Set

• First aid kit

ACCOMODATION

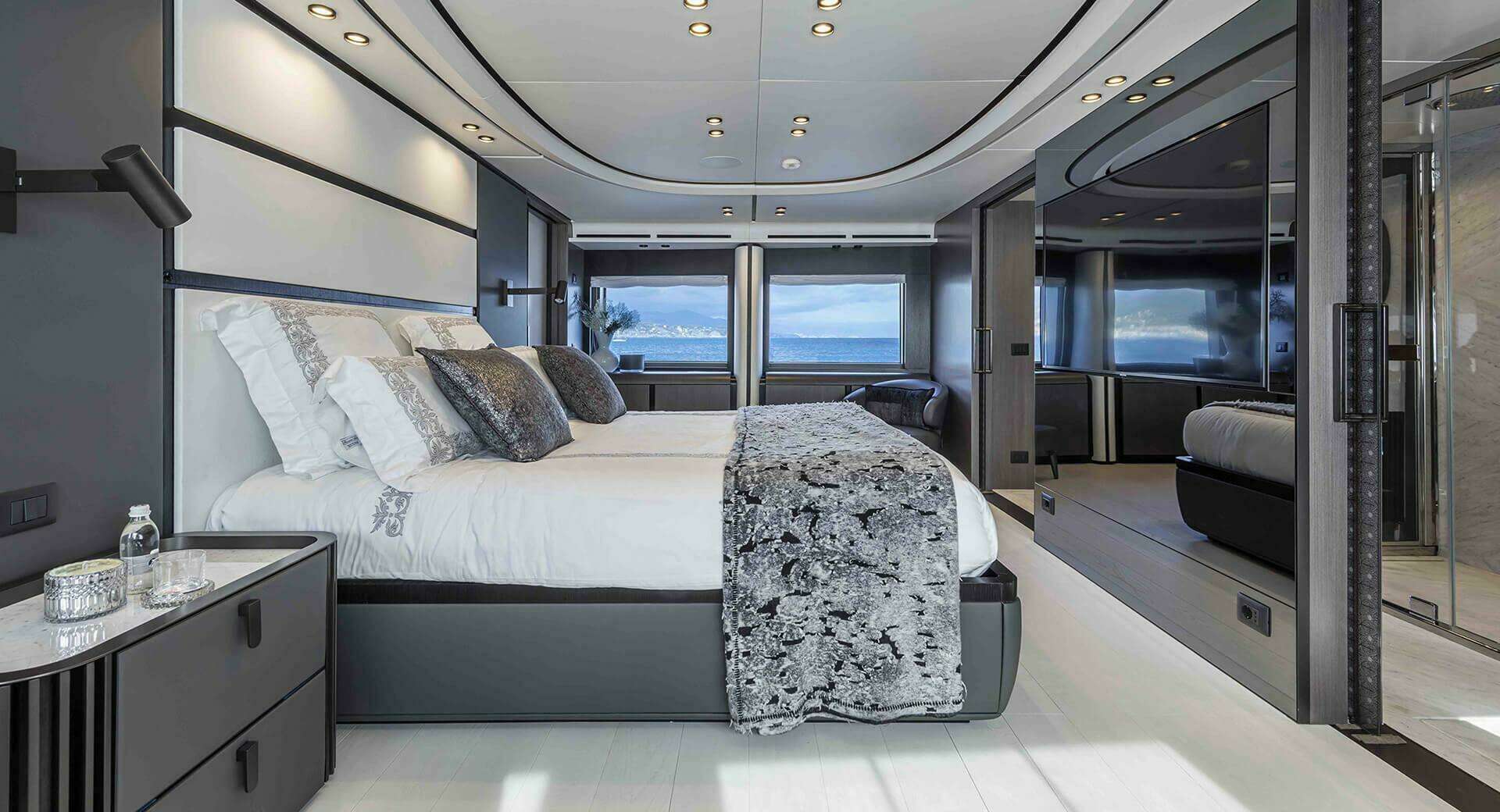

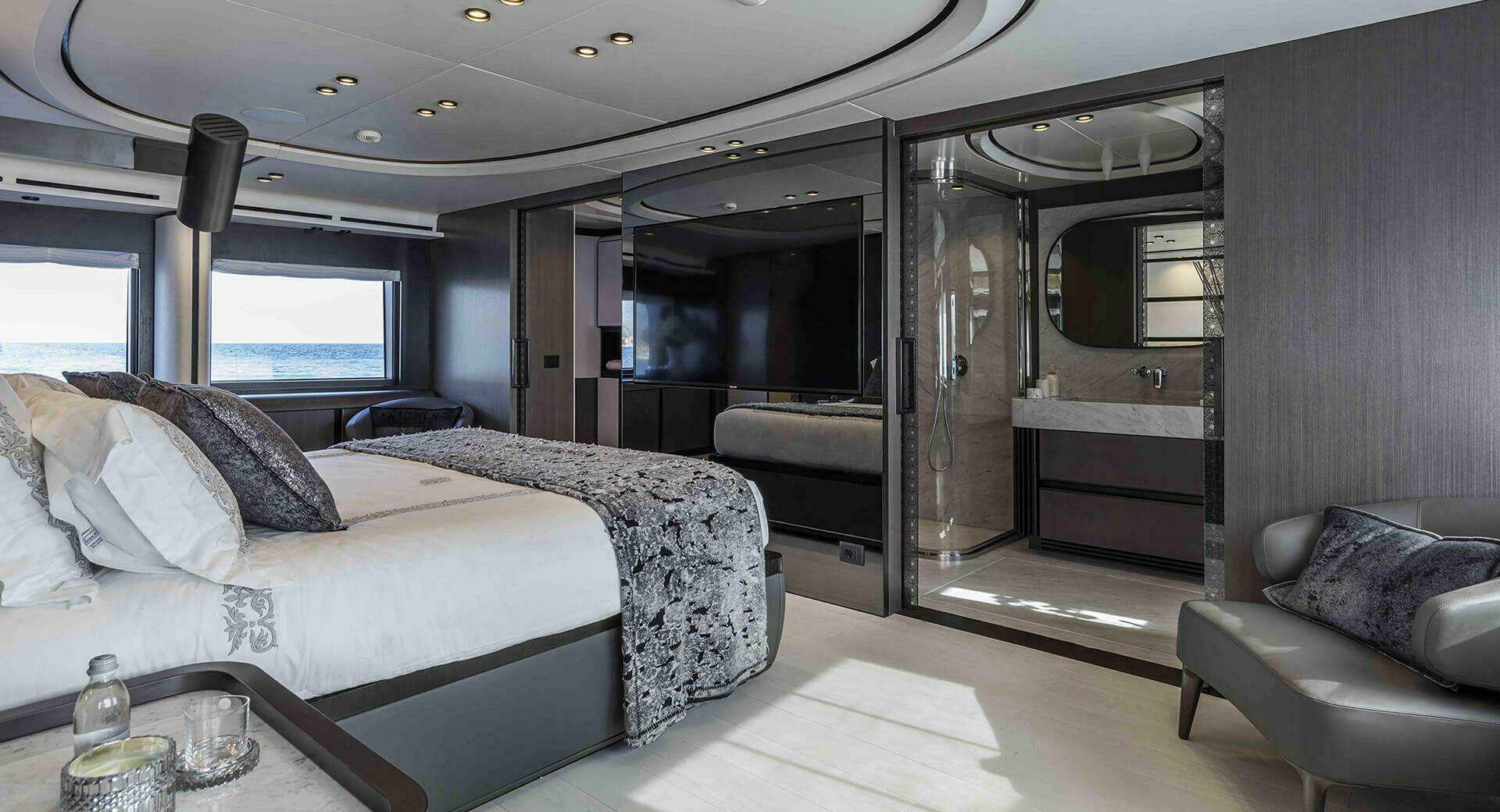

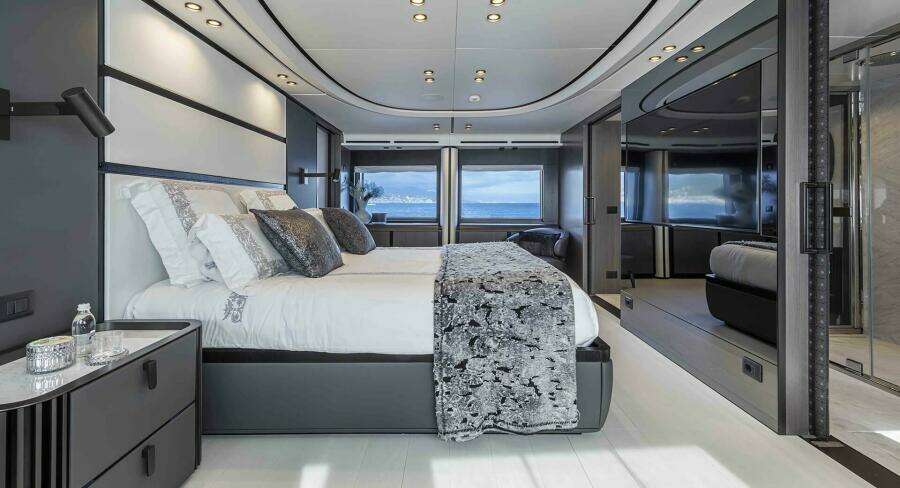

• Full-beam master cabin on the main deck with Queen size bed,

dressing room, fitted wardrobes, office, en-suite bathroom with double

sinks and central shower, separate WC. The marble can be heated in

• the master cabin head

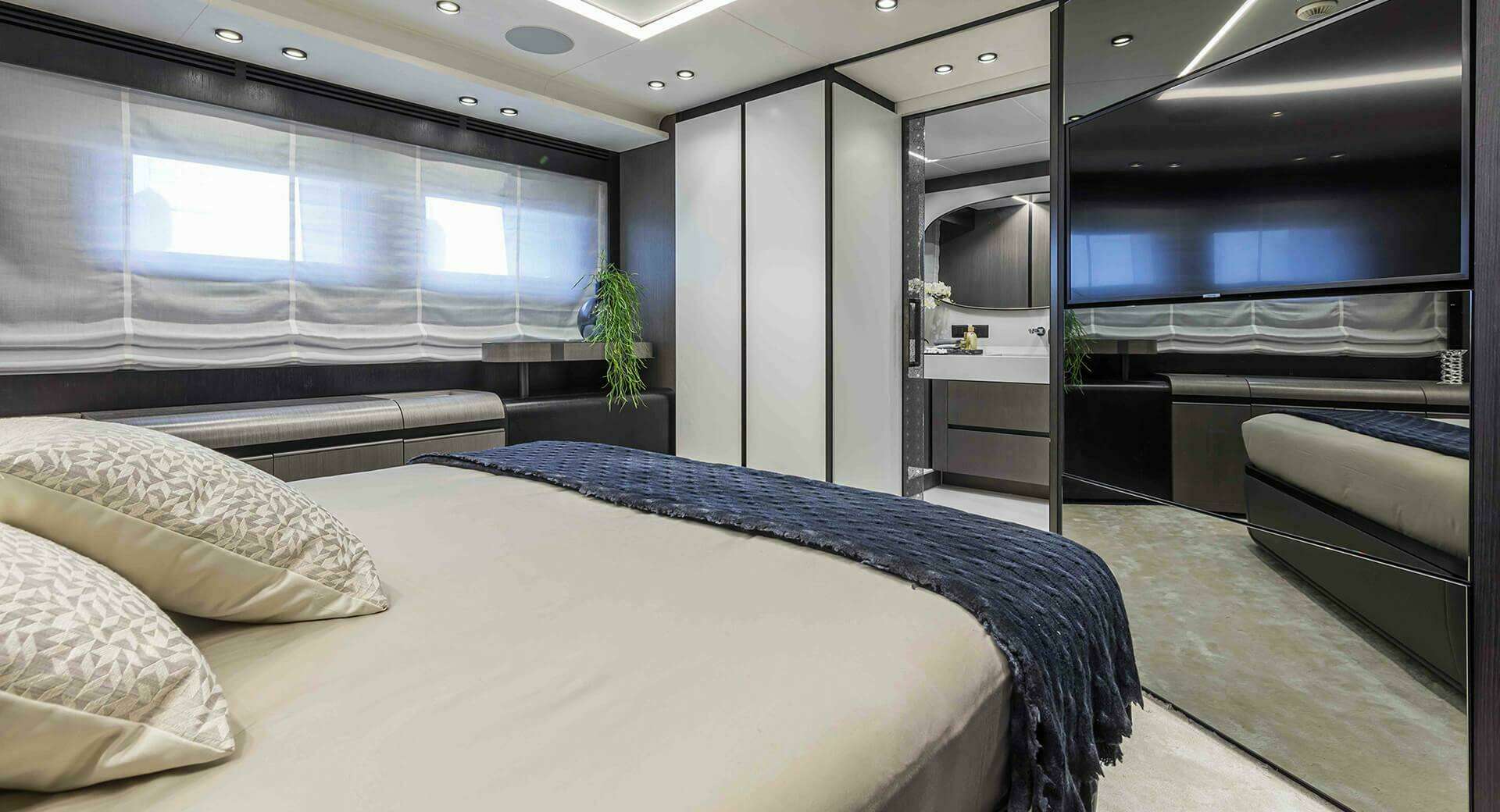

• 3 x VIP cabins on the lower deck with double island beds, fitted

wardrobes and en-suite bathrooms

• 1 x twin cabin on the lower deck with sliding bed mechanism, fitted

wardrobes and en-suite bathroom

• Crew accommodation:

Captain’s cabin on the navigation deck with en-suite bathroom

2 x cabins with bunk beds forward on the lower deck, each with ensuite

bathroom

2 x cabins with single beds forward on the lower deck, with ensuite

bathrooms

Crew dining room and laundry room

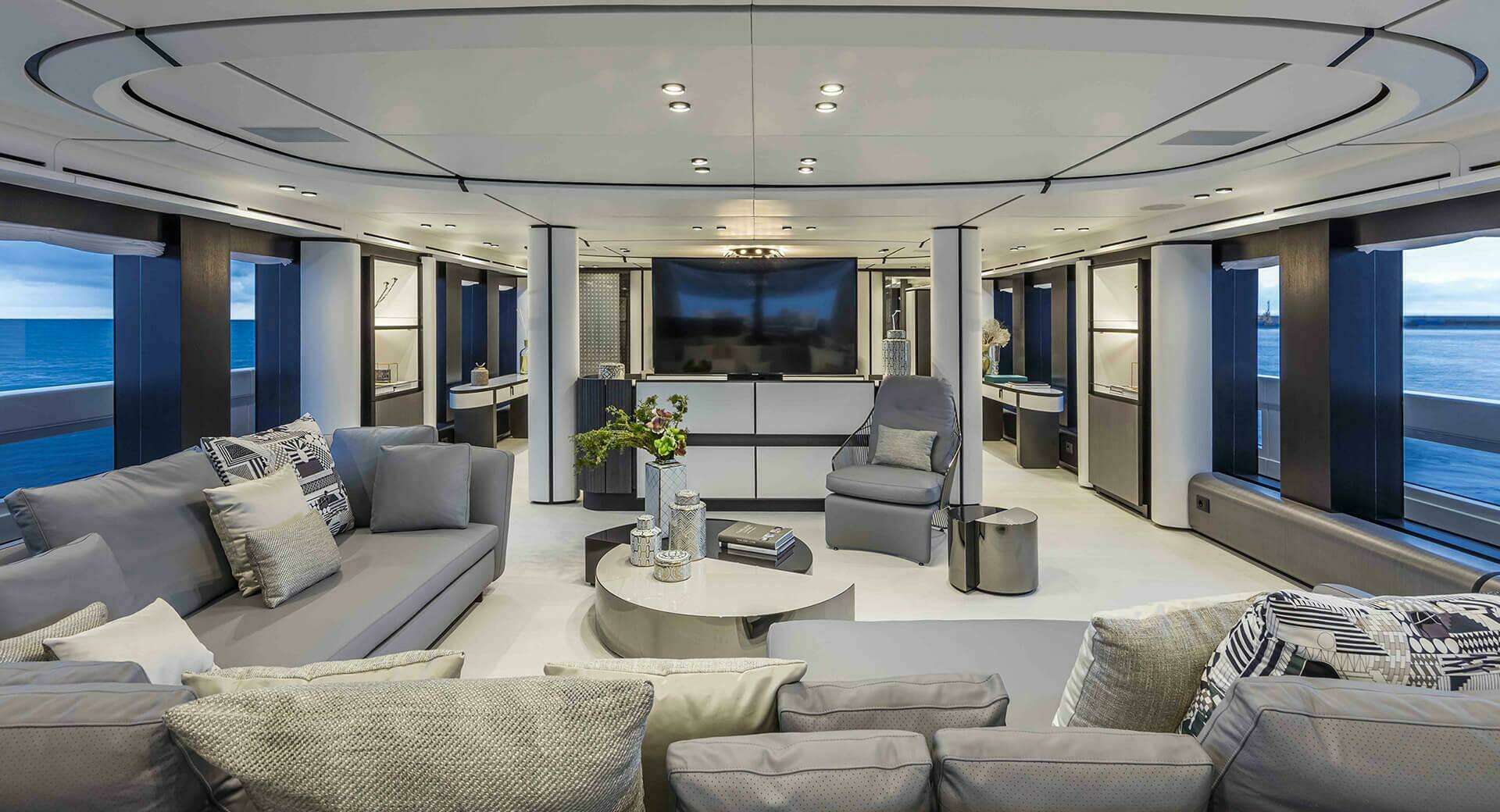

• Upper deck with sky lounge, media center, day WC, pantry and

wheelhouse

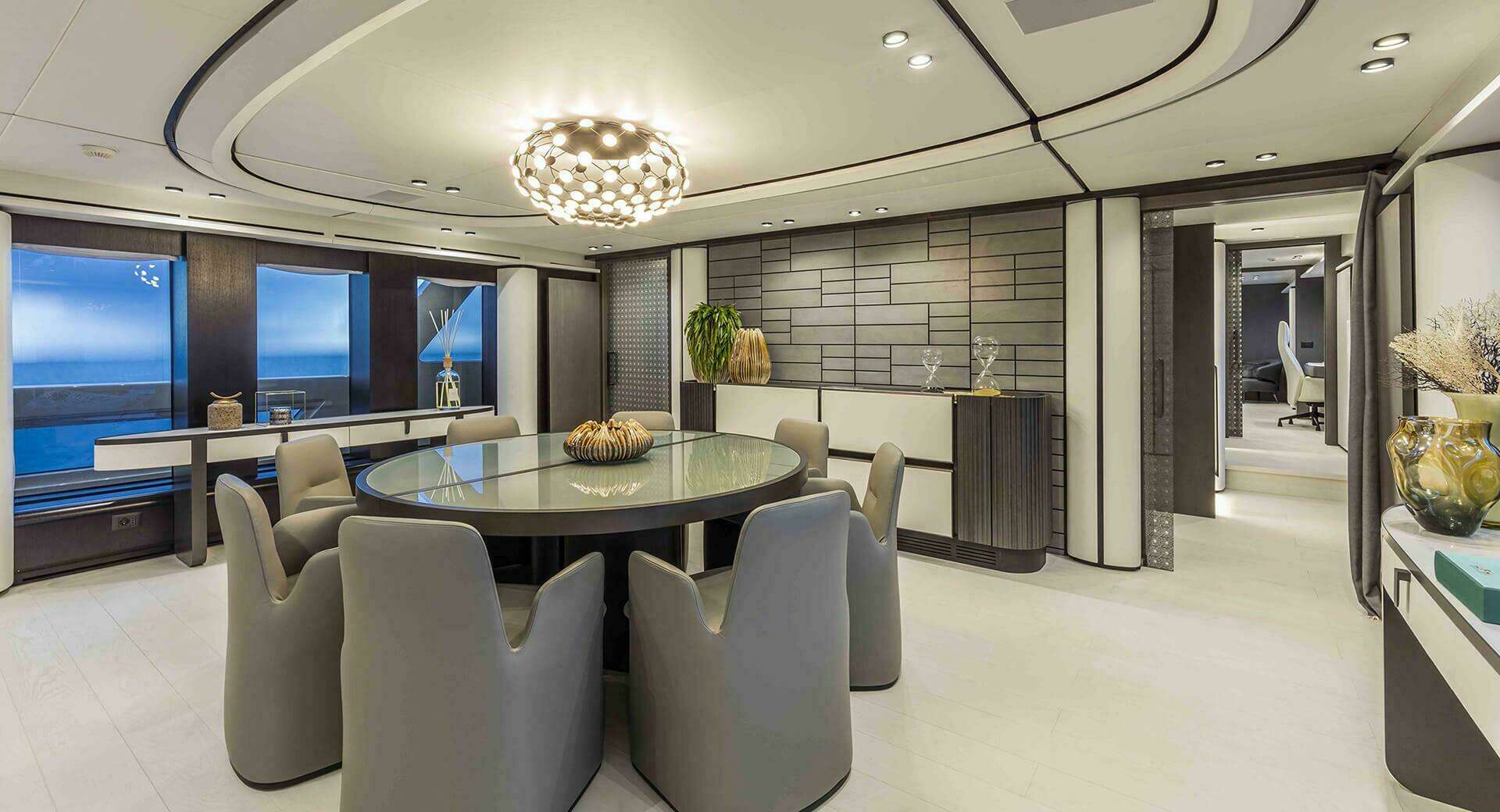

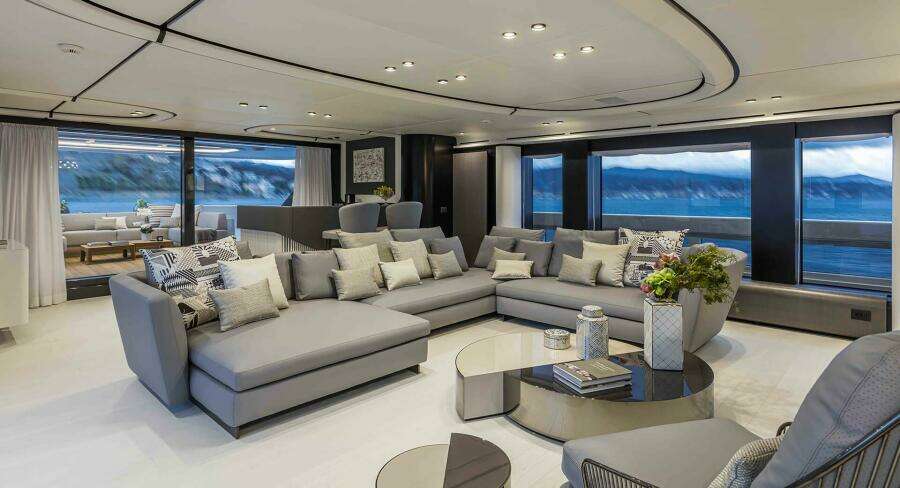

• Main deck with main saloon, bar, formal dining room, day WC and fully

equipped galley

TENDER AND TOYS

• 5.36 m CASTOLDI tender with 170 Hp (125 kW) engine

• SEA DOO Spark 2-seater 90 Hp jet ski

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
