Accommodations

MAIN DINING:

The main salon and dining area is open plan, which offers a spacious feel while keeping the area comfortable and safe with a relaxing atmosphere.

GALLEY:

The galley/dinette area is a country kitchen arrangement, forward on the main deck.

A low counter separates the dinette from the galley. Large U-shaped dinette with seating for approximately 8 along with two stools at the counter. Leading aft from the galley on the starboard side is a marble passageway with side deck door, stairs up to the raised pilothouse, a door to the crawlspace beneath the pilothouse, and a door to the day head. To port is a second marble passageway with side deck door, stairs up to the pilothouse, and stairs down to the master and guest accommodations.

PILOTHOUSE:

The raised pilothouse has a 5-panel windshield with three washer and wipers and three fixed windows on each side. It has a single pedestal mount Stidd helm chair. There is a raised lounge area with table aft. Across the front is a console with screens for monitors/electronics, gauges and switches, and steering.

ACCOMMODATIONS:

Features 4 cabins with 8 guest berths and 5 heads.

MASTER CABIN:

This cabin has a centerline King size bed with walk-in cedar lined wardrobe and plenty of storage space. Vanity dresser with settee and safe underneath. There are 4 port holes which allow lots of natural light into the cabin. The entertainment system consists of TV and CD/DVD player. The head consists of 2 sinks with shared large glass enclosed shower and separate Jacuzzi tub. There is marble throughout the bathroom with brass fittings and accents.

VIP STATEROOM:

Starting on the forward lower level is the VIP stateroom. This cabin features a centerline Queen size bed with walk-in cedar lined wardrobe. To starboard there is a small settee and large hatch for light and 2 small book shelves. Entertainment system consists of TV and CD/DVD player as well as a multi-function phone. The head has a toilet, shower, and sink. There are mirrored ceilings and marble throughout.

GUEST CABIN 1:

Centerline Queen size bed with entertainment system. The head consists of a toilet, enclosed shower, and wash basin with marble throughout.

GUEST CABIN 2:

Twin single berths with entertainment system. The head consists of a toilet, enclosed shower, and wash basin with marble throughout.

CREW QUARTERS:

The crew quarters are located aft of the engine room with access from a door and stairs on the starboard aft deck, or through the watertight transom door. There is a small crew mess with dinette and galley. The captain’s cabin has a double bed, small desk, and lockbox in the closet. There is also a TV and CD player. This cabin has its own head with toilet, shower, and wash basin. The Junior cabin has twin bunks and a single bunk with TV in the Engineer’s cabin. Both cabins share a head with a toilet, sink, and enclosed shower.

Generators

• (2) New Kohler 55 kW generators, 3 hrs. 05/15/24

Main Systems

• Stabilizers: CMC HS60 Stabilis Electra stabilizers, 2019. 3610 hrs. - 05 15 24
• Bow thruster: Wesmar V1-16H, 60 hp.
• Watermaker: (2) Sea Recovery, 1200 gallons/day
• (4) Steering stations: flybridge, pilothouse, (2) wing
• Type of Linkage: hydraulic Jastram Power System c/w wheel at main bridge and flybridge

Air Conditioning

• (3) Frigomar CU70VFD chillers with Aqua Air air handling units throughout

Tankage

• Fuel: 5500 gallons
• (2) Fresh water: 603 gallons forward; 535 gallons aft
• (2) Grey water: 13.5 gallons forward; 80 gallons aft
• Black water: 457 gallons
• Hamman Treatment: Engine Room – 50 gallons

Plumbing

• (6) Headhunter and (2) Galley Maid toilets
• Vanguard 6E016, 120-gallon hot water boilers
• Hamman grey and black treatment plant
• Wavebright grey water treatment
• (2) AC Rule / Jabsco bilge pumps
• (8) Rule 2001 bilge pumps
• Dockwater Octo Marine water softener

Fire Fighting Equipment

• Honda 3.6 hp portable fire pump
• FM200 Remote operated fire suppression system, engine room
• Seatouch monitored smoke, heat, and carbon monoxide detectors

Electrical System

• 120V / 220V, 60 Hz
• (2) Kohler 55 kW alternators
• Vectec modular frequency converter, serviced 2021; 50 / Hz 200-480VAC
• Seatouch by Attest vessel control and monitoring system; networked 2021 / updated 2024

Batteries

• (4) Main Engine start – 24VDC batteries, 12V 1100AH, new May 2024
• (2) Generator start 12VDC batteries, 12C 1200AH, new May 2024
• (4) Service 24VDC, 12V 1100AH, new May 2024
• (2) Service 12 VDC, 12V 1100AH, new May 2024

BATTERY CHARGERS:

• Generator: ProSport 12 PFC, 110V-240 – 12A@12VDC
• Main Engine: Victron Orion-Tr DC-DC 24-24VDC, new May 2024
• Service 12VSC: Victron Centaur charger – 12/100(3) 120-240V, new May 2024
• Service 24VDC: Victron Centaur charger – 24/160(3) 120-240V, new May 2024

Navigation and Communications

• E.S. Ritchie compass, 2002
• Furuno SX20 satellite compass/GPS, networked 2021
• Airmar log/depth/water temp, networked 2021
• Furuno BBDS1 depth sonder, networked 2021
• Raymarine depth sounder (Capt/Aft)
• Airmar wind instruments, networked 2021
• Furuno DRS6A-X radar, networked 2019
• (2) Furuno DRS12A-X radars, networked 2021
• Furuno TZT19F chart plotters - FB
• Furuno TimeZero3-PC chart plotters – TZ, networked 2021
• Furuno 711C autopilot, networked 2021
• (2) Furuno GP-39 GPS’s, networked 2016
• (3) Vesper GPS’s, networked 2021
• Furuno FM-4850 VHF, networked 2021
• (2) Vesper Cortex HP-1 VHF X (2) handsets, networked 2021
• Vesper Cortex AIS, networked 2021
• Sailor SATCOM
• Starlink Maritime, networked 2024
• Axis viewing/ security camera’s, networked 2021
• Panasonic Telephone PABX throughout

Entertainment

• Sharp Aquos Quattron 3D TV, salon, 2013
• Bose lifestyle V25 audio, 2013
• Sonos throughout vessel, networked 2021
• Apple TV throughout vessel, networked 2021
• PC/NAS, networked 2021

Galley and Appliances

• Liebherr SBSes-8773 refrigerator/freezer, new 2023
• Thermador PODS301W/09 oven (steam), 2020
• Thermador PODS301W/09 stove (induction top), 2020
• Thermador DWHD870WFMUP dishwasher, 2021
• Kitchen Air extractor, 2021
• InSinkErator
• Garbage compactor
• Marvel 61WC wine cooler, salon
• Whirlpool GI15NDXTS2 icemaker, salon bar
• ITV icemaker, flybridge
• Custom bar fridge, flybridge, 2023
• Galley water purifier

Crew Mess and Laundry

• Microwave
• Sub-Zero UC-24R refrigerator, 2013
• (2) Summit freezers
• (2) Miele WXF660 WCS Tdos USA washing machines, 2024
• (2) Miele TXI680 Eco and Steam USA dryers, 2024

Deck Equipment

• Anchor and chain: (1) 350lb. galvanized Forfjord stockless with 120 X 16mm galvanized chain and 2 x 100mm,
• 18mm Spectra lines
• (1) Fortress FX125
• Passerelle: Folding carbon fiber passerelle with extension
• Boarding ladder – side
• Bathing Ladder: stainless with teak steps
• Deck Wash: Zero TDS – wash n Go, 2016
• Windlass: Maxwell VWC 4500 hydraulic windlass, 2023; 2 x 2200 Maxwell 24V electric for aft deck lines
• Crane: Nautical Structures EZ-2000-EX. Lifting capacity 2,000 lbs.

Tender

• Tender: Novurania 18’ with Yamaha 2018 115 OB
• Color: white with grey trim
• Fuel capacity: 26 gal/98L
• Water capacity: 9 gal/34L

Safety

• Liferaft: Zodiac 16-man Xtrem liferaft SOLAS A, 2023, serviced 2024
• EPIRB: Serviced 05/2024
• PLB
• (10) Flares, replaced 05/2024
• (2) Life buoys
• (20) Life jackets, serviced 04/2024
• (18) Fire extinguishers, serviced 04/2024

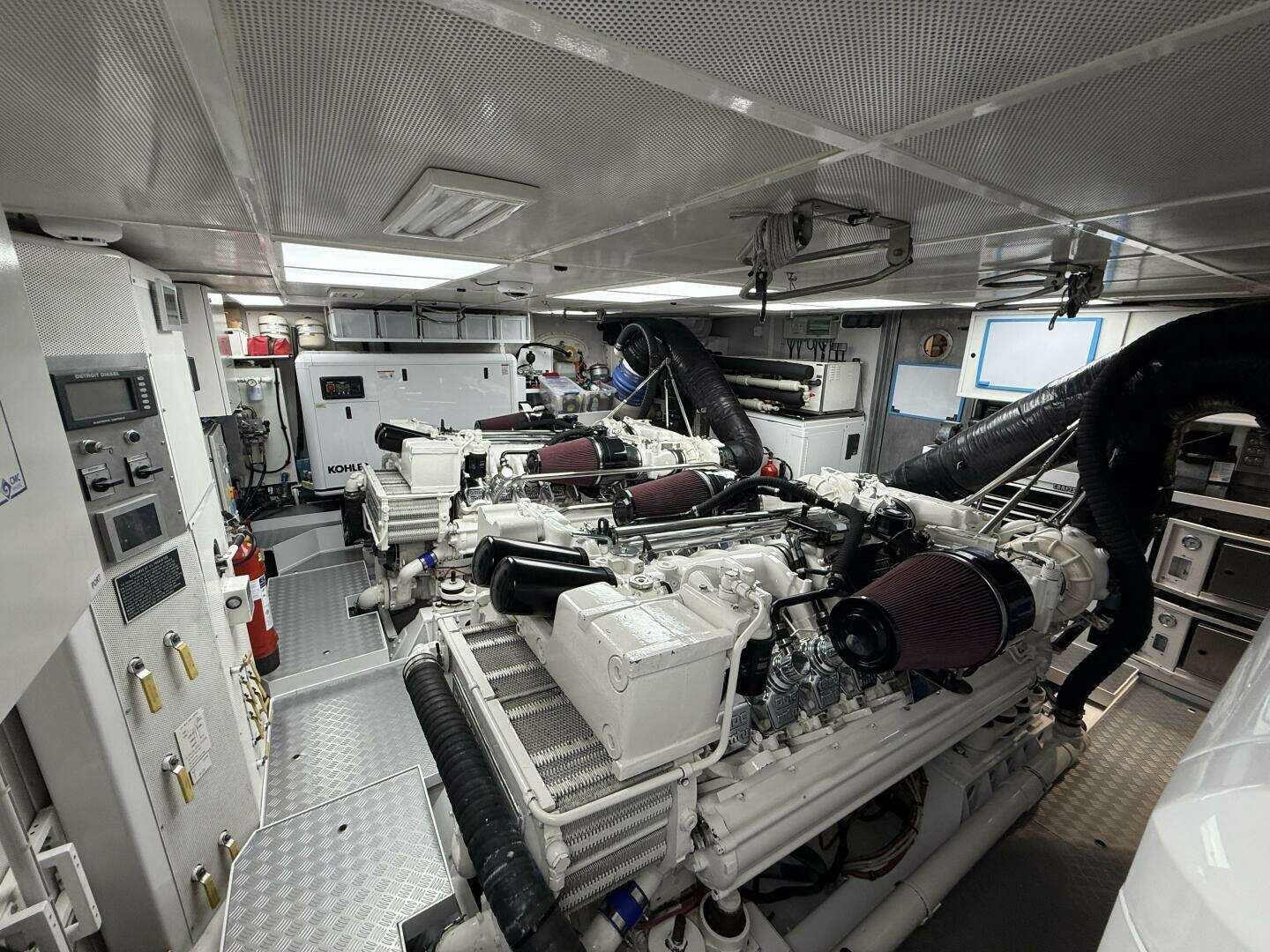

Engines

• Engines: Twin Detroit MTU Diesel Series 2000 V16, 1850 HP
• Engine Hours: 1973 hours to date (6/24) since W6 in 2016. 8,600 total hours.
• Gear Boxes: Twin Disc
• Propeller type: 5-Blade Michigan Federal CX500
• Max speed: 23 kts.
• Cruise speed: 12 kts.
• Consumption: 120 Liters per hour
• Range: 2500 nm @ 12 kts.

Survey and Maintance

2016:

• Full MTU W6 and gear box rebuild

2021/22:

• Interior refit including interior ceiling linings, wall hangings, carpets, and flooring
• New LED lighting and controls throughout
• New galley equipment
• New pilothouse bridge electronics package
• New flybridge electronics package
• New vessel management Seatouch monitor/control package

2023:

• New galley fridge/freezer
• New air conditioning plant

2024:

• New generators
• Starlink Marine installed

Additional Features

• Hull & Superstructure: Snow White Alex Seal
• Decks: Teak and non-skid white
