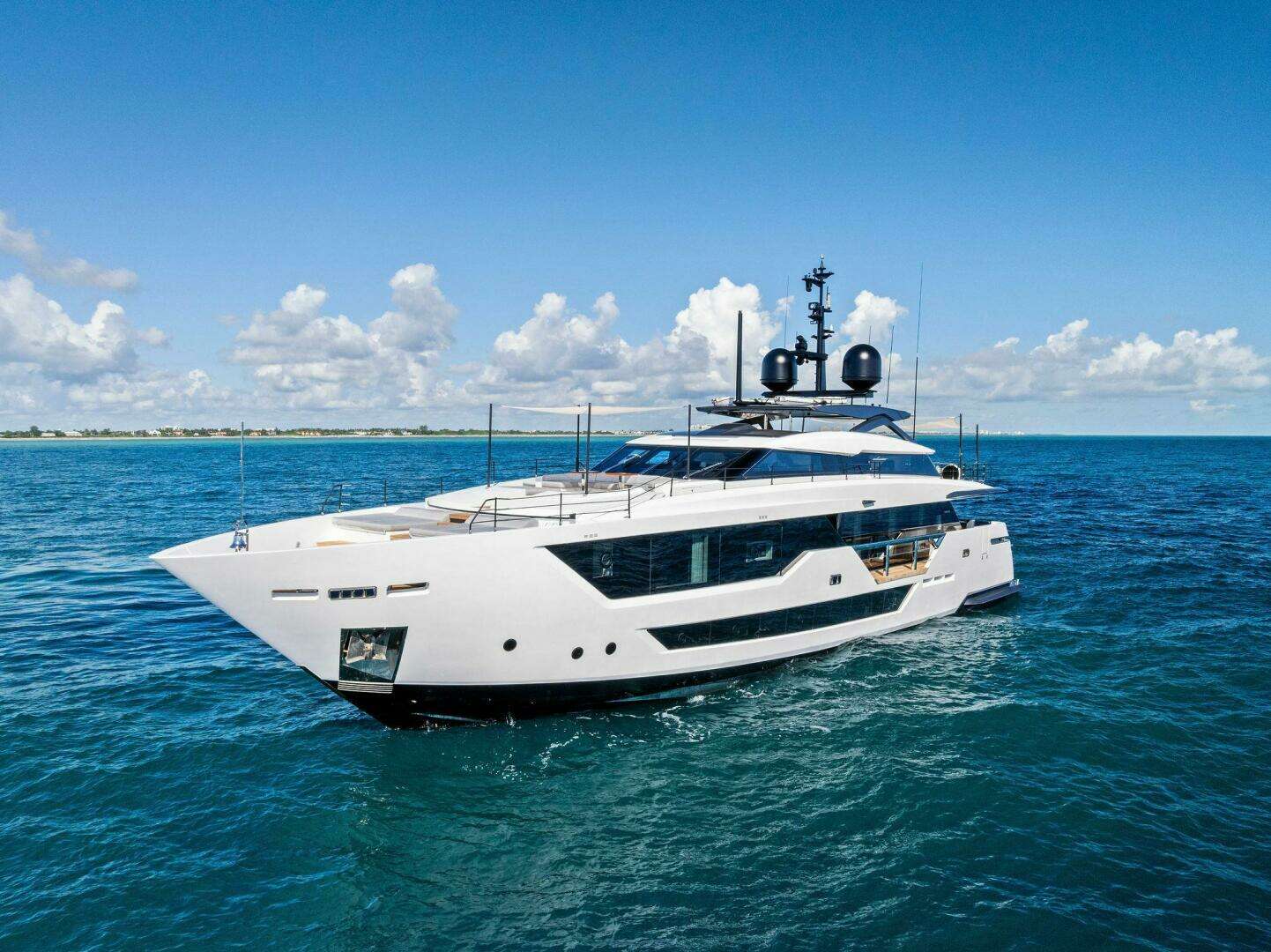

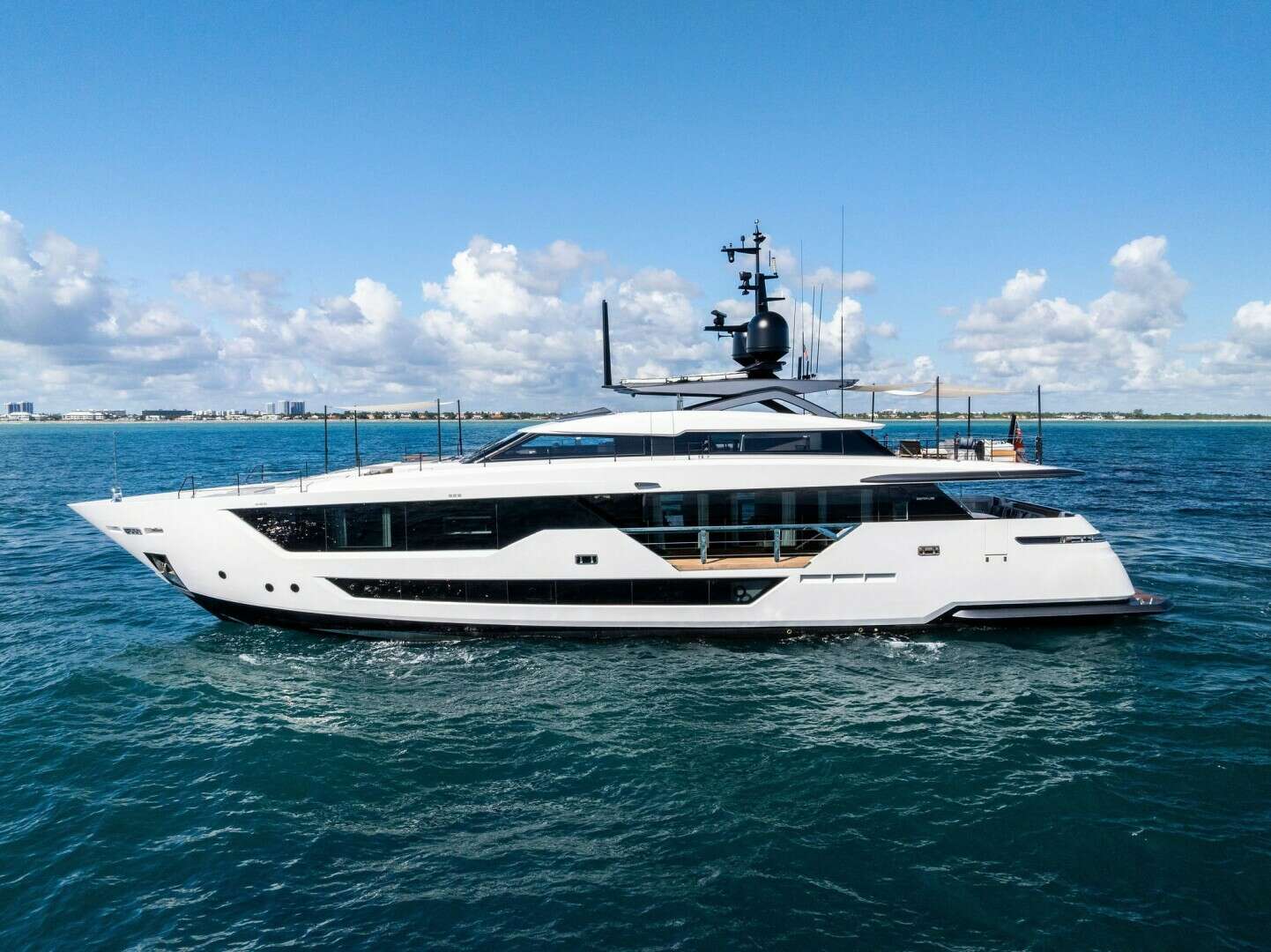

HULL AND DECK CONSTRUCTION

Classification & Structure

• Built to RINA Classification Rules
• Hull divided into 3 watertight compartments
• Watertight collision bulkhead in forepeak
• Watertight engine room bulkhead per Classification Rules
• Chain locker forward of collision bulkhead suitable for both port & starboard chain cables

Hull Construction

• Combination of sandwich and single skin GRP laminate
• Reinforcements: mat, unidirectional/biaxial E-glass and carbon fibers
• Closed-cell foam cores used in sandwich structures
• Vinylester resin skin coat applied to prevent osmosis
• Hull bottom, sides & deck primarily built via infusion process
• Hull structure framed with main longitudinal and transversal bulkheads, plus secondary members

Integrated Tanks

• Fuel oil, black water, grey water, and fresh water tanks integrated into structure
• Internal tank protection with vinylester resin system:
• Fuel tanks: 2 C-glass layers
• Fresh water tanks: food grade gelcoat
• Other tanks: 2 additional E-glass layers

Deck Structure

• Deck supported by longitudinal and transversal structural members
• Bulkheads constructed of GRP sandwich and composite marine plywood
• GRP bulwark integrated into hull sides
• Bulwark fitted with fairleads, access doors, freeing ports (per Classification Rules)
• GRP bow thruster tunnel with laminated installation
• Watertight penetrations where passing through bulkheads

Superstructure Construction

• Built with sandwich and single skin GRP laminate by infusion process
• Materials: mat, unidirectional/biaxial E-glass and carbon fibers
• Closed-cell foam cores in sandwich areas
• Structural frame reinforced with main longitudinal and secondary transversal members
• Carbon reinforcements in high-load areas
• Local reinforcements installed at concentrated load points
• Superstructure to hull/deck bolted joints

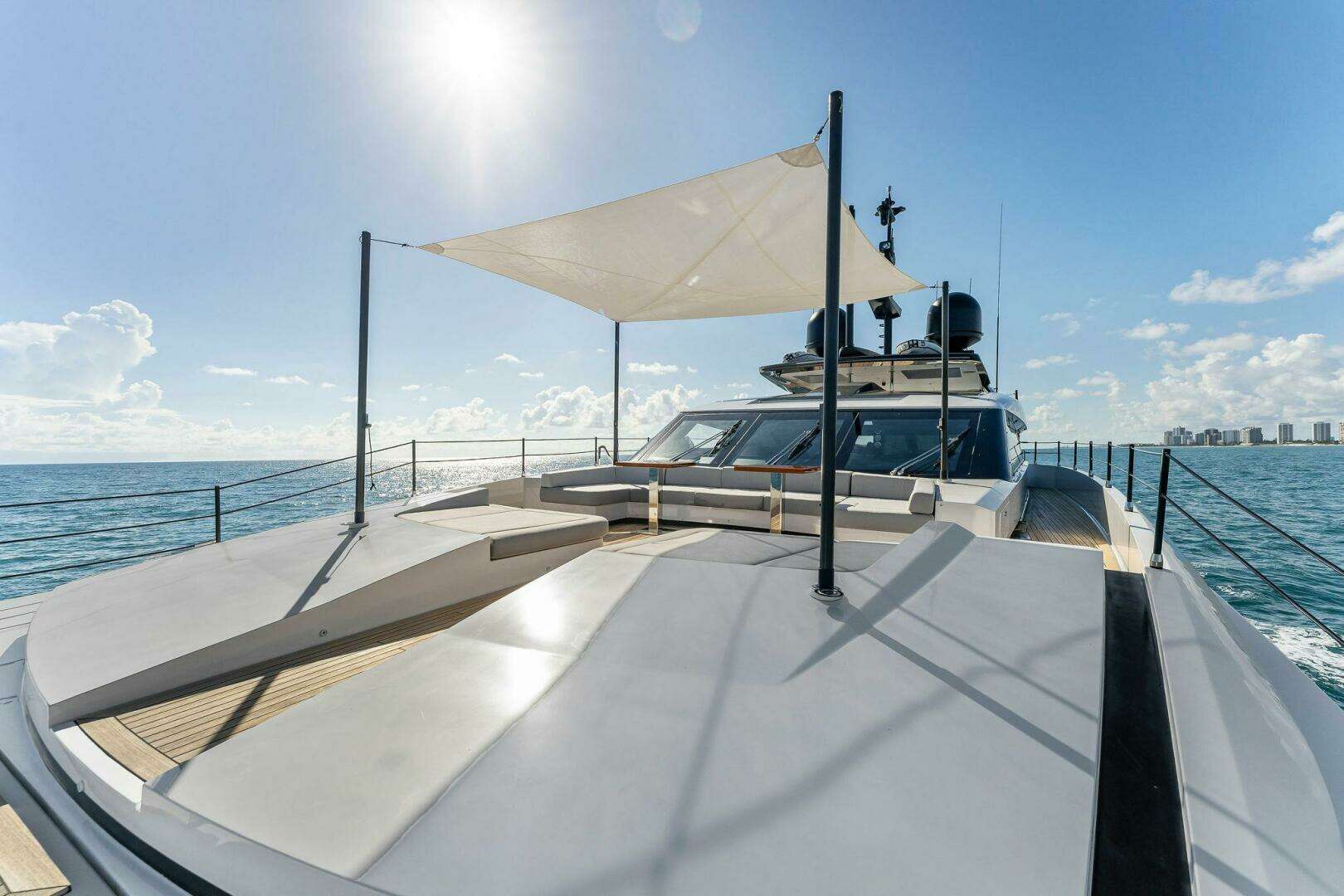

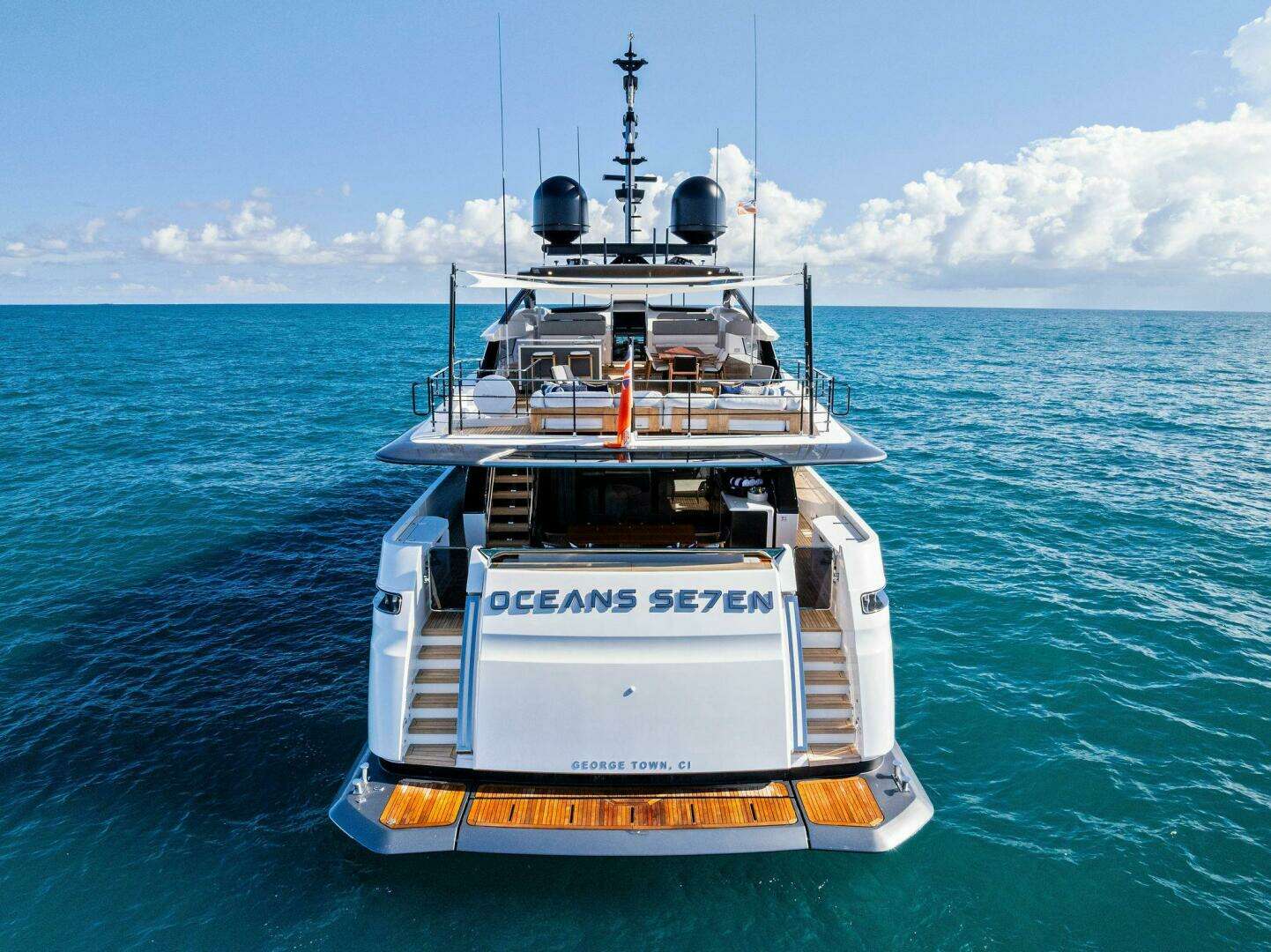

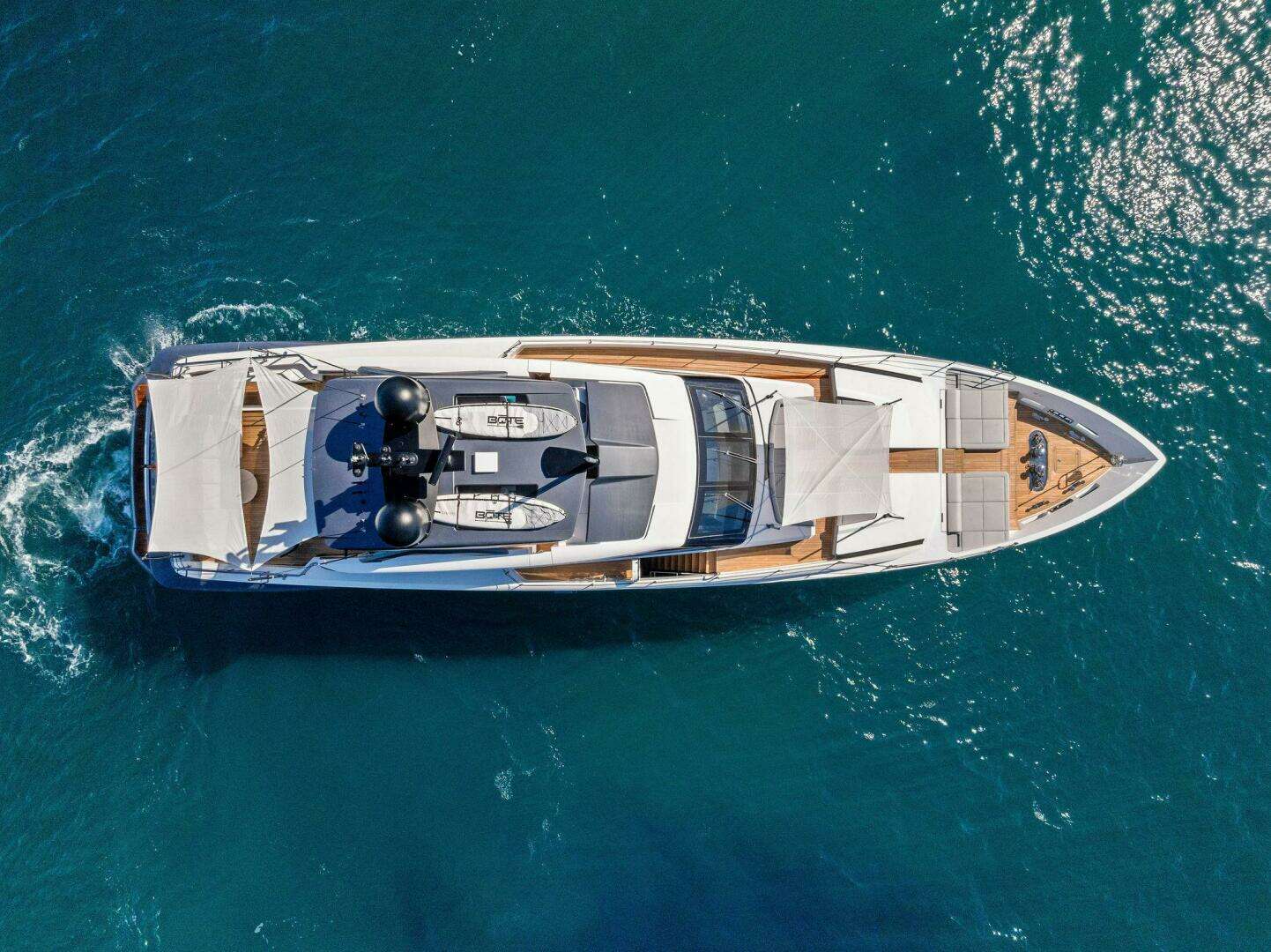

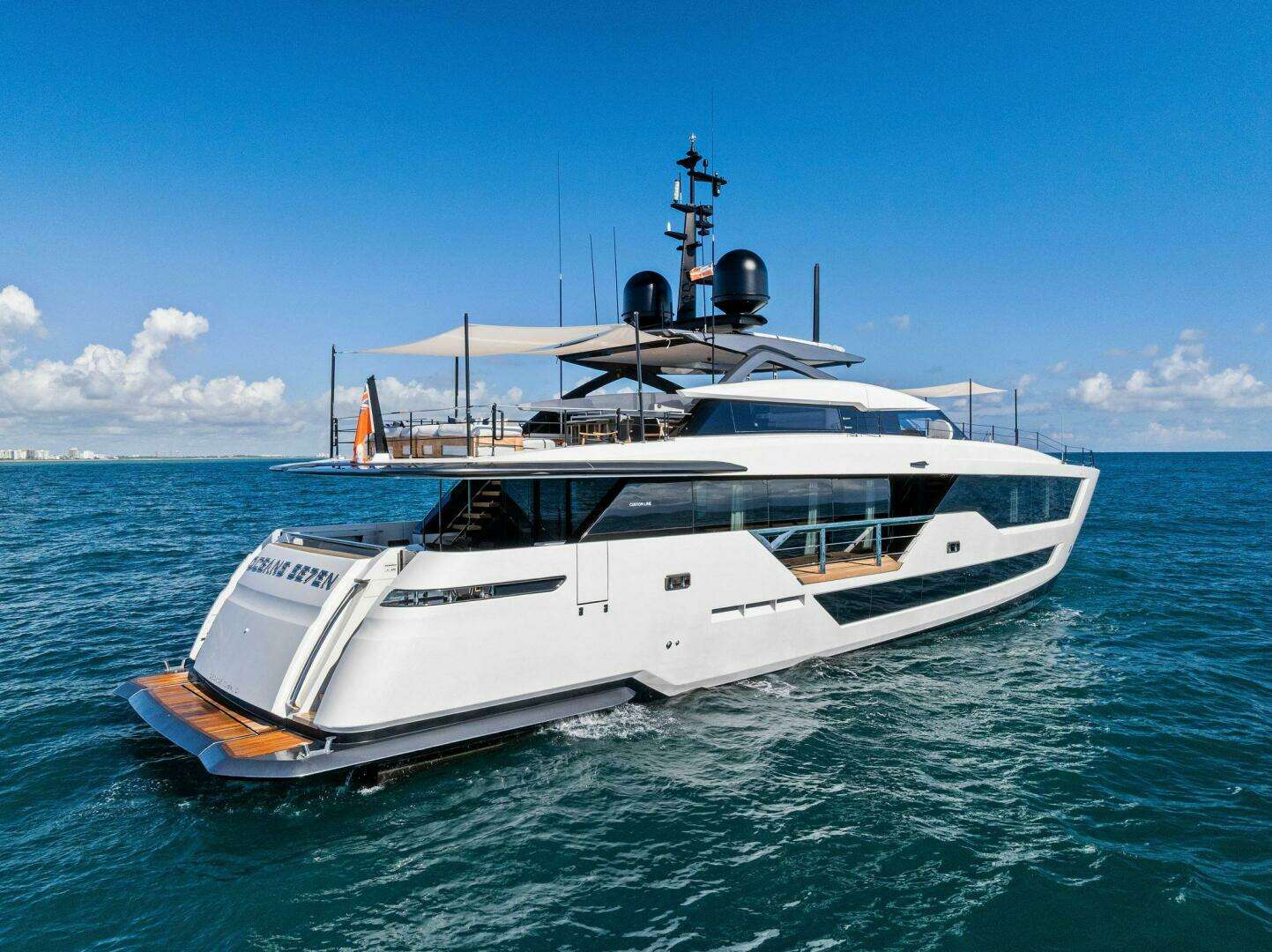

Hardtop

• Composite hardtop with forward & aft structural pillars
• Mounted equipment includes:
• Painted aluminum alloy mast with welded structure
• Radar systems
• Lightning conductor
• Navigation lights
• Sensors
• Navigation and communication equipment

SELECTED OPTIONS

• Yacht Controller
• Active carbon filter
• Auto opening for aft glass door in main deck salon
• Auto parallel system amongst gensets
• Bar cabinet in main deck cockpit
• Centralized system for engine/inverters/generators oil change
• Courtesy lights and dimmers for exteriors
• Courtesy lights and dimmers for interiors
• Crane in box garage – 500kg
• Electrical raising of curtains in lower deck (4 cabins)
• Standard American Version (60Hz)
• Frequency converter 60Hz
• Fuel oil filling station in garage for tender
• Fuel oil filter Alfa Laval
• Hand shower with removable pole
• Ice maker in main deck
• Idrostop system for shaft line seals
• Underwater lights – 12
• Manual bimini in bow sitting area
• Miele appliances upgrade in galley
• Side ladder removable
• Sliding bed in guest cabin
• Teak covering with black caulking on tender area
• Teak floor with black caulking on flybridge
• UV sterilizer for drinkable water
• Washer and dryer – Miele Professional
• Water softener
• Window with porthole in galley
• Gyrostabilizers
• A/V package domotic area A
• A/V package premium control area A
• A/V package premium sound area A
• A/V package premium sound external areas – Sonance 6.5"
• Additional control station on flybridge (starboard)

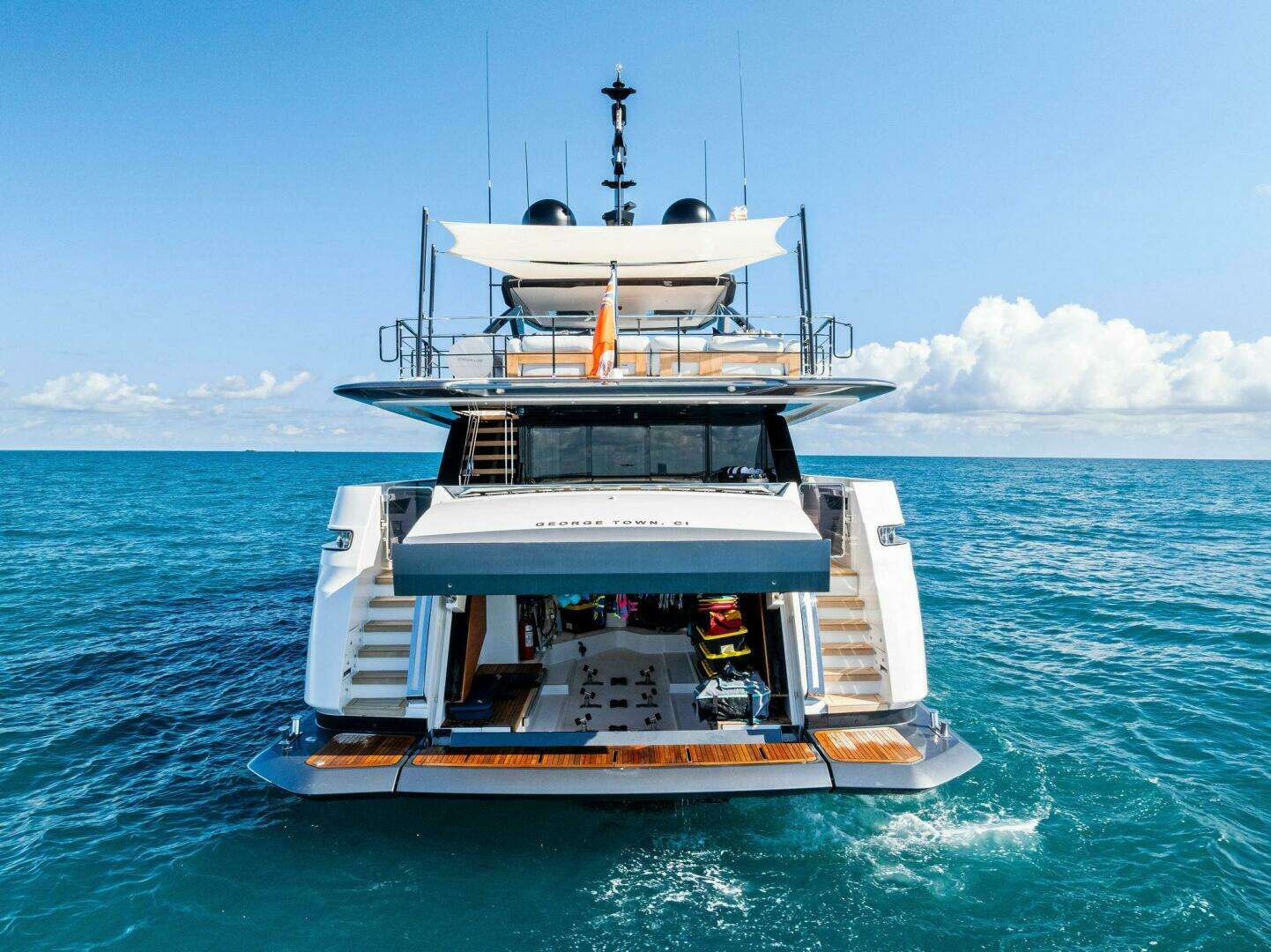

• Aft garage ceiling electro-hydraulic travel for jetski hauling/launching
• Antenna TV SAT KVH HD11 with receiver in salon and empty dome
• Auto Identification System (AIS) – Furuno Class B
• FLIR night vision camera
• CCTV: external color camera package
• Internet package “Silver”
• Stern thruster – 65 hp
• Super premium integrated bridge upgrade
• TV Samsung 28" – Captain cabin
• TV Samsung 50" – Portside guest cabin upgrade
• TV Samsung 50" – Portside VIP cabin upgrade
• TV Samsung 50" – Starboard guest cabin upgrade
• TV Samsung 50" – Starboard VIP cabin upgrade
• TV Samsung 55" – Master cabin upgrade
• TV Samsung 65" – Main deck salon upgrade
• Premium Interior Hard & Soft Goods Selection

UPGRADED ELECTRONICS

Main Helm

• Remote Keyboard X Furuno TZT MCU004
• (2) Monitor 27” Hatteland (Non-Touch) DA Int
• (2) Display 15” Genius 15 Kit C120
• (4) Monitor 24” Hatteland TS T22 MA4FOGP (touch)
• AP70 MK2 Autopilot Control Head
• (2) Navnet TZT2 BB Multi Function Black Box
• Transducer DST810 235KHZ N2K Simbrad
• Transducer Furuno 525 ST-MSD
• STARLINK, High Speed Internet

Crew Dinette

• Navnet TZT3 Furuno MFD
• Display TZT16F
• Display 15” Genius 15 Kit C120

Mast Station

• GPS Antenna Furuno GP-330B N2K
• Antenna Furuno GPS 330B NMEA0183
• (2) Antenna GPS Attiva SIMRAD GS25
• Antenna Radar Open Array 6kW X-Class + Array 3.5 Feet

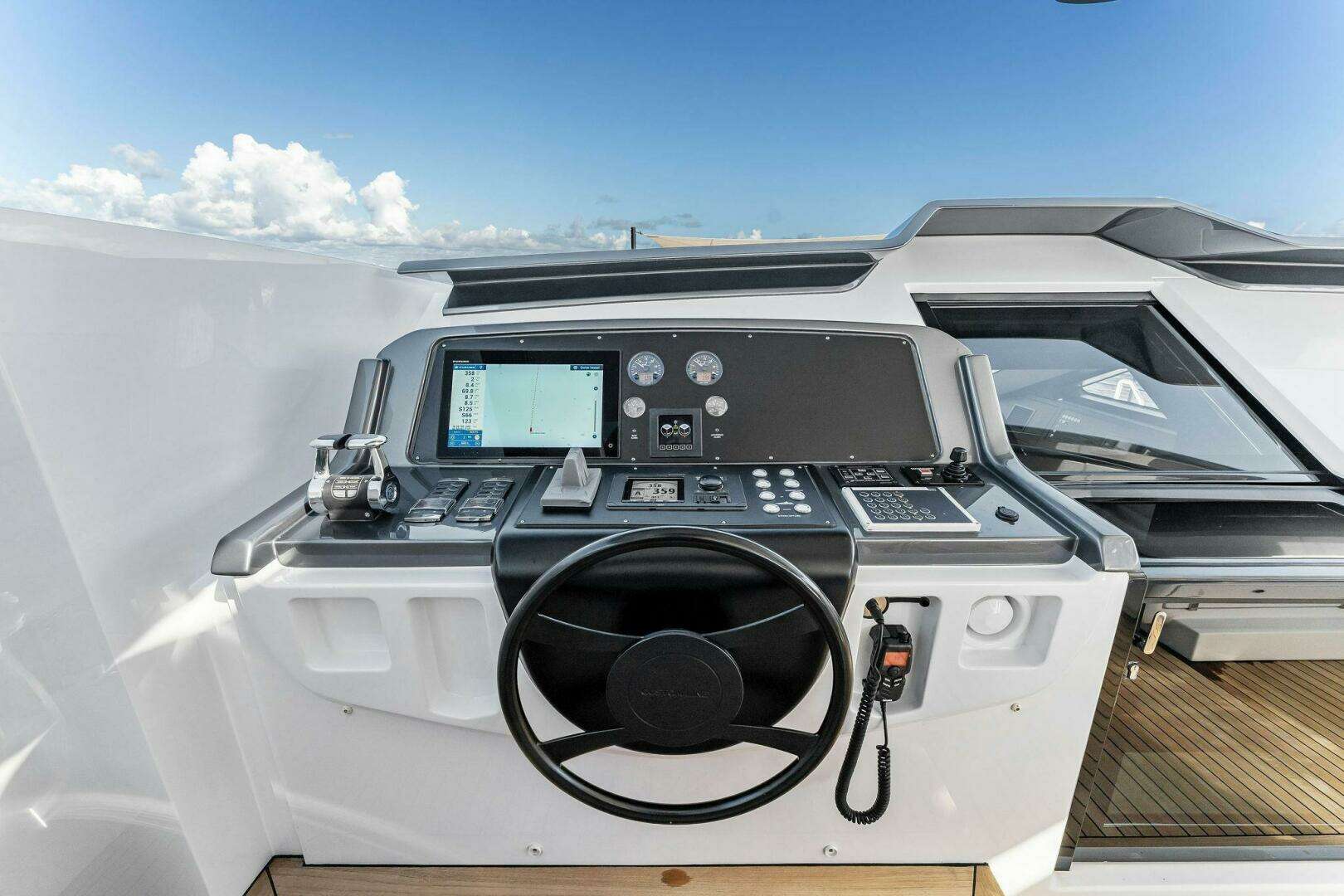

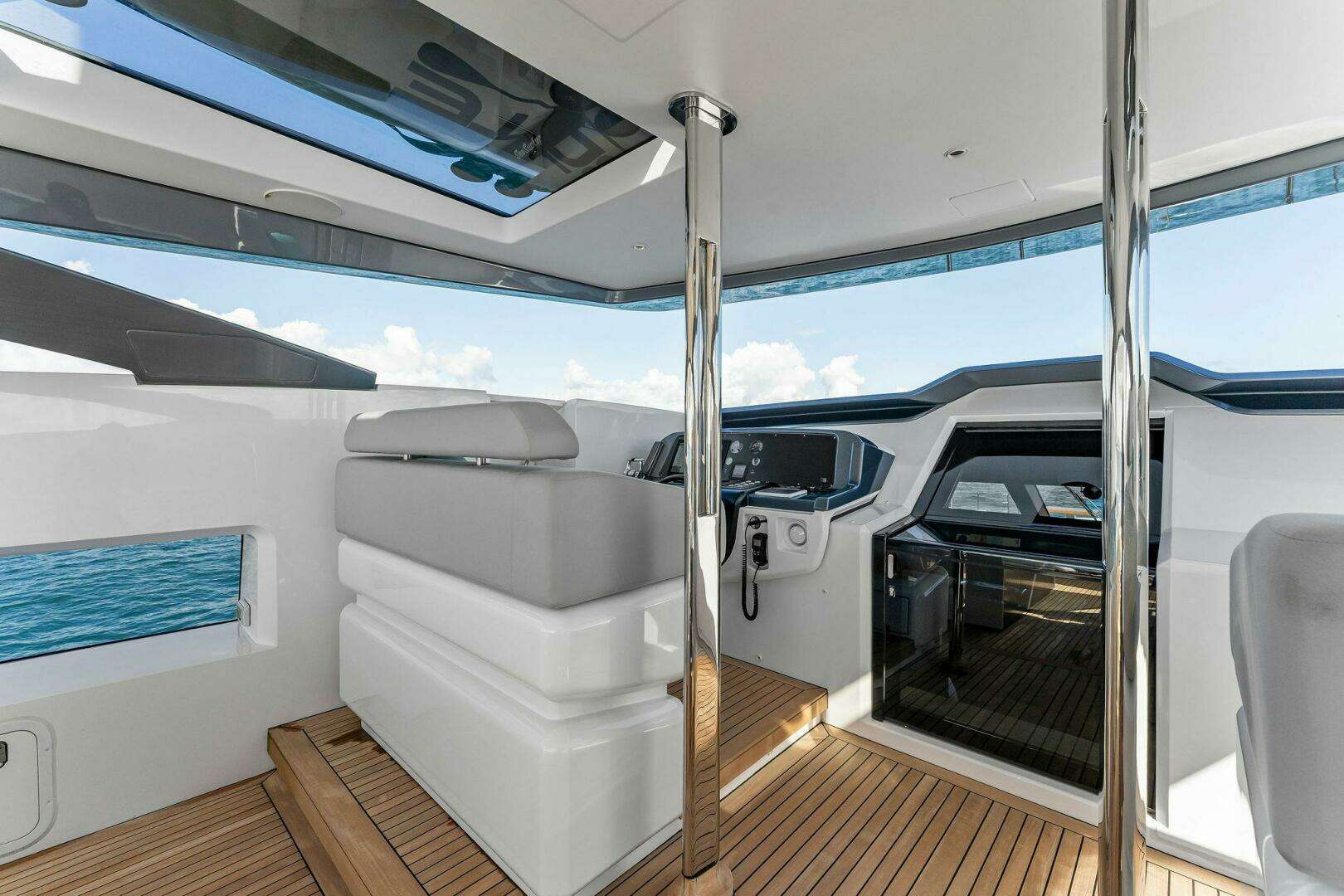

Sun Deck Station

• Navnet TZT3 Furuno MFD Display TZT12F
• AP70 MK2 Autopilot Control Head
• Main engines throttles
• Main engines control panels and indicators
• Steering tiller and rudder angle indicator
• Bow thruster control panel
• Search light control panel
• Autopilot
• Intercom, horn and VHF

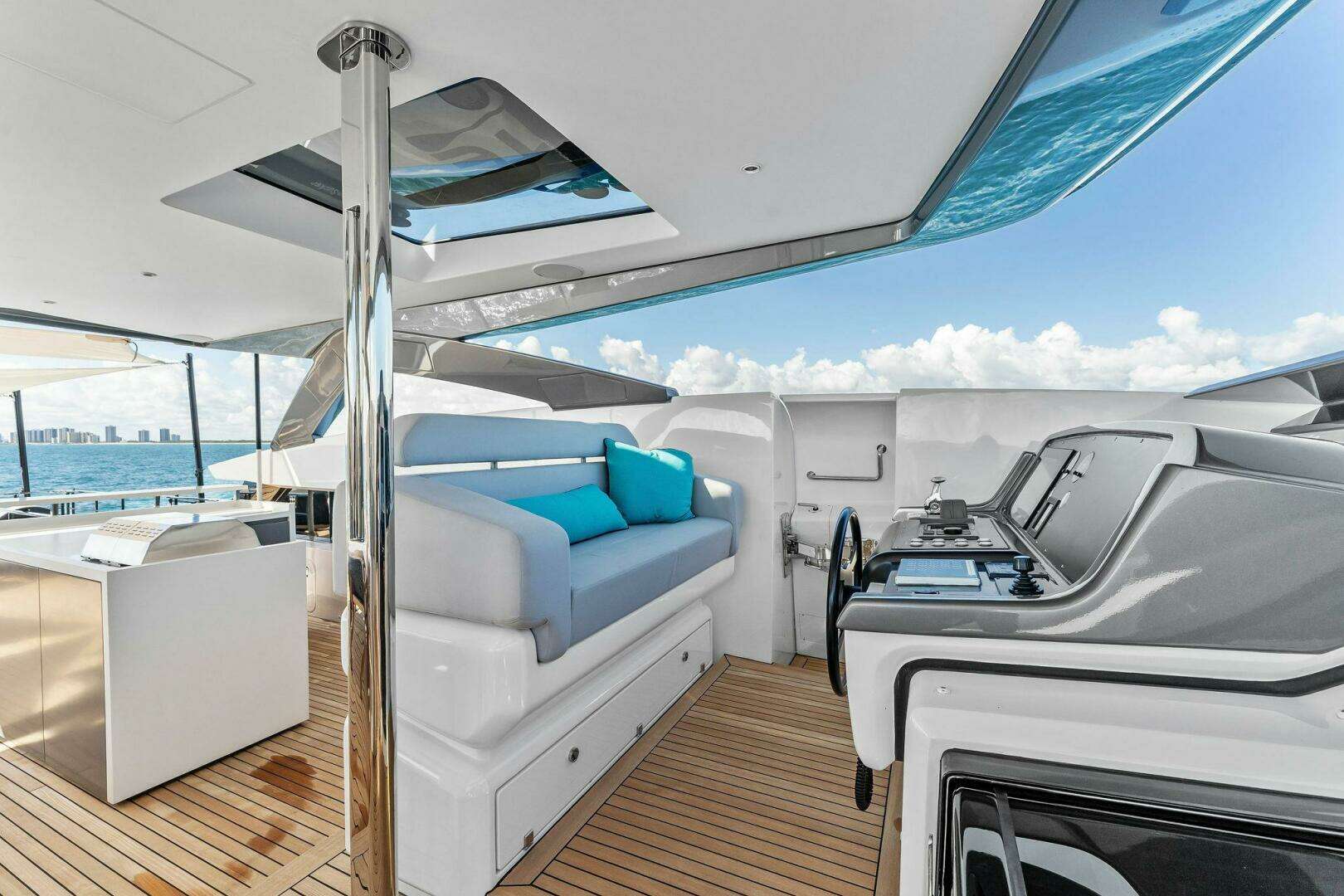

Aft Cockpit Station

• Main engines throttles
• Main engines control panels – bow thruster control panel

Tech Area

• C-ZONE N2K NTW BRIDGE INTERFACE
• CONNECTOR N2K T-JOINER MA/FE/FE SIMRAD-13
• CONNETTOR N2K DI TERMIN. FEMMINA SIMRAD-7
• CONNETTOR N2K DI TERMIN. MASCHIO SIMRAD-4
• HUB ETHERNET FURUNO 8 PORT
• SIMRAD COMPASS PRECISION 9
• FEEDBACK UNIT SIMRAD RF 300
• COMPUTER AUTOPILOTA AC80S
• CONNECTOR N2K T-JOINER MA/FE/FE SIMRAD-3
• NAVNET ECO-BOX FURUNO BBDS1
• DISPLAY 15" GENIUS 15 -KIT C120 STANDARD

Navigation Monitors Configuration & Controls

• Management Wheel House Device control scene
• Management Language selector (Italian – English)
• Integrated monitor brightness control (Hatteland)
• Wiper control
• Horn control
• CCTV control
• Search light control
• Fog Horn signaling control
• Wheelhouse light control
• Navigation Light control
• Heading
• Roll & Pitch
• Wind direction and speed
• Sea depth
• Yacht speed
• Compass light control and dimmer
• Steering control panel
• Stabilizer System
• Tank levels including high and low level alarms
• AC power page
• DC power page
• Batteries
• Main engines
• Gearboxes
• External doors and hatches and portholes (where applicable)
• Shell doors
• Internal watertight doors
• Bilge Alarms
• Fire detection system
• Water maker
• Bilge & fire pumps control
• ER ventilation control
• Underwater lights control
• External lights and cabin lights control
• Rudder pump
• Rudder position (RAI)
• Steering mode and take over
• Fire extinguishing
• Engine Data Conning Monitoring

MAKER'S LIST

• Bow Thruster: Sleipner

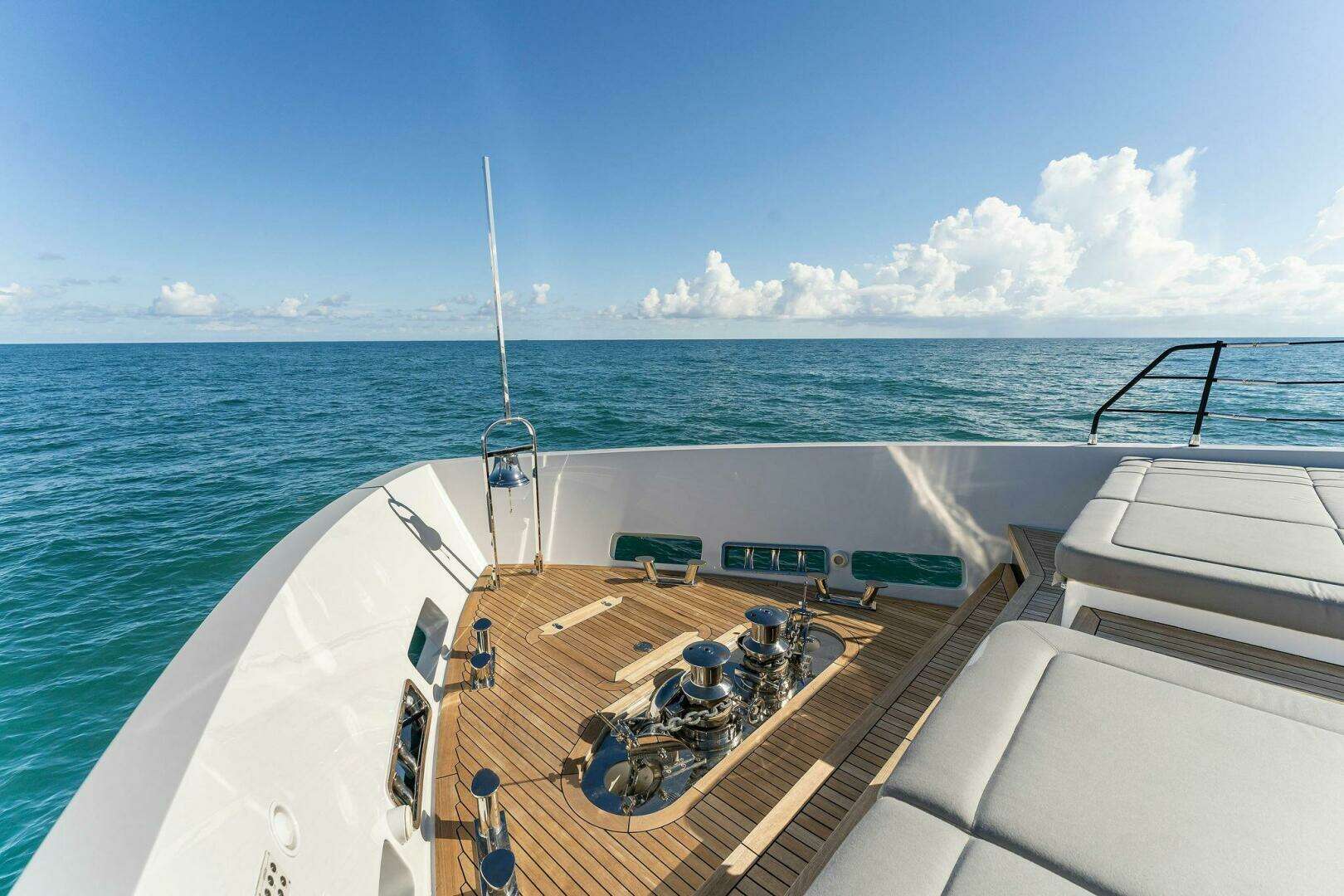

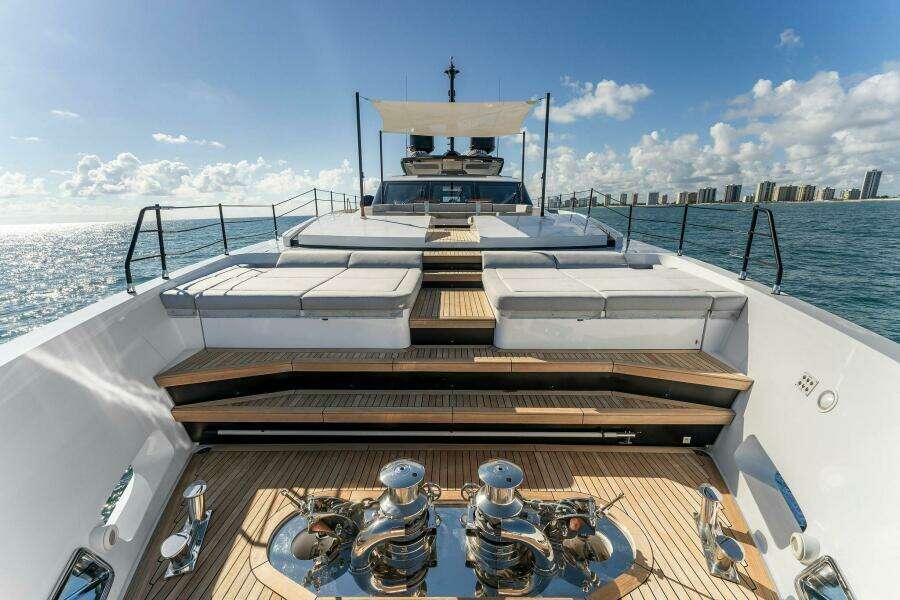

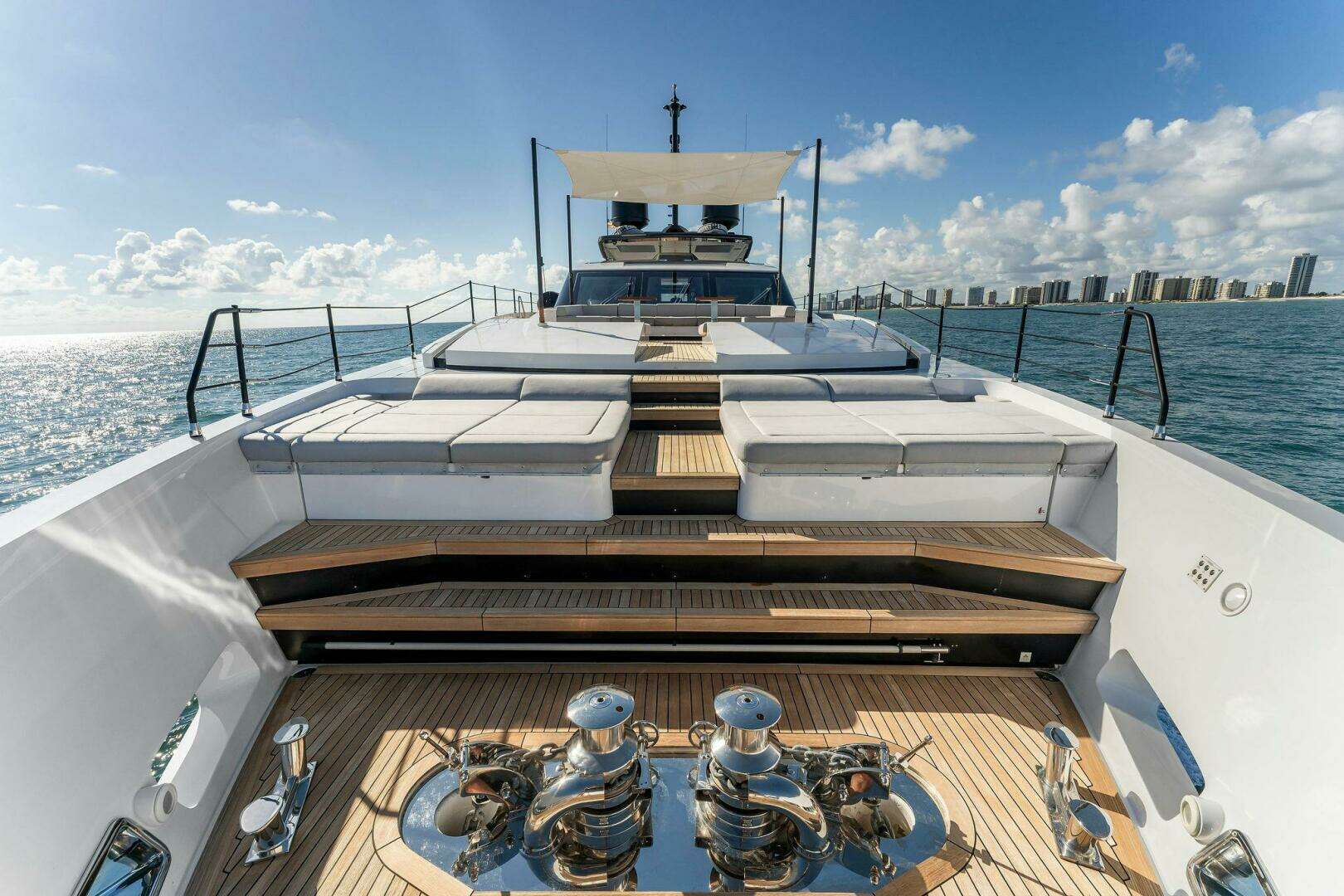

• Capstans, winches and windlasses: Lofrans
• Engine room fans: Gianneschi
• Main engines: MTU
• External doors: NEMO, TECHNOINOX
• Gear Boxes: ZF
• Gensets: Kohler
• General purpose electric pumps: Gianneschi or Calpeda
• Propellers: Veem or Rolla
• Shaft lines seal: Fluiten
• Stabilizer Fins: Sleipner
• Steering System: TwinDisc
• Galley: Ernesto Meda
• Gangway: Besenzoni, Amare
• HVAC system: Condurrai
• Water maker: Idromar
• Watertight doors: Calistri
• Navigation lights: Lopolight

ENGINE ROOM

Engine Room

• Engine room walls: aluminium/rubber sandwich plate
• Ceiling: DiBond/metal sheeting
• Smooth white finish paneling for easy cleaning and abrasion resistance
• White painted AISI 304 handrails fitted around engines and stairways (dismountable)

Main Engines

• Manufacturer: MTU
• Model: 16v 2000 M96L
• Rated power (each): 2638 mhp / 1939 kW @ 2450 RPM

Gear Boxes

• ZF 3070A
• Reduction ratio: 2.750:1 (matched to propeller design and propulsion set)

Shaft Lines, Bearings & Seals

• Sea water lubricated bearings for each propulsion shaft line
• Shaft material: Marinox17 — designed to Classification Rules
• Mechanical seals located inside the hull cooled by seawater system
• Custom designed single NiBrAl strut (per shaft) built to Classification Rules
• Support completed by heavy thickness tube bossing with hydro‑lubricated rubber bearing

Propellers

• Twin 5‑blade skewed propellers
• Approx. diameter: 1250 mm
• NiBrAl construction for high efficiency and low noise
• Static and dynamic balancing per ISO 484/2 CLASS S

Steering System

• Electro‑hydraulic steering system
• Drive‑by‑wire steering wheel at wheelhouse and flybridge
• Dashboard control panel with mode, alarm status & rudder angle
• Hydraulic system includes:
• One power pack (400V/50Hz/3ph pump)
• Two hydraulic cylinders (one per rudder)

Bow Thruster

• 65 Hp hydraulic motor driven bow thruster
• Installed in dedicated compartment
• Control joystick at wheelhouse and fly helm

Stabilizer Fins

• Two electro‑hydraulic stabilizer fins
• Operational underway and at zero speed
• Fin area approx. 1.65 sqm each
• 15 kW electric power unit for zero‑speed stabilizing
• Integrated dashboard control plus backup wheelhouse control

Electric Gensets

• Manufacturer: Kohler
• Rated output: 45 kW
• 400Vac / 50Hz – 3 phase
• RPM: 1500
• Insulation class: H
• Tension regulation: ±0.5%
• Frequency regulation: ±0.5%
• Starting system: 24Vdc
• EPA TIER 3 compliant
• Automatic shutdown alarms:
• Low oil pressure
• High water temperature
• Overspeed
• Equipment included:
• Sound‑proof enclosure with white RAL paint
• Resilient support system
• Freshwater cooling system with heat exchanger
• Oil cooler
• Electronic speed regulators
• External control panel: start/stop, volts, amps & hour meters

TENDER

2024 Williams Dieseljet 505Equipped with:

•  Standard Tubes Dark Grey
•  LED Deck Lights - 6 Lights
•  Tie Downs
•  Single point lift
•  Electric Inflator
•  Battery charger optimizer
