Hull & Dimensions

Hull #6

Type: Planning

Hull: GRP (Singleskin Composite)

Superstructure: GRP

Builder: Mangusta (Overmarine)

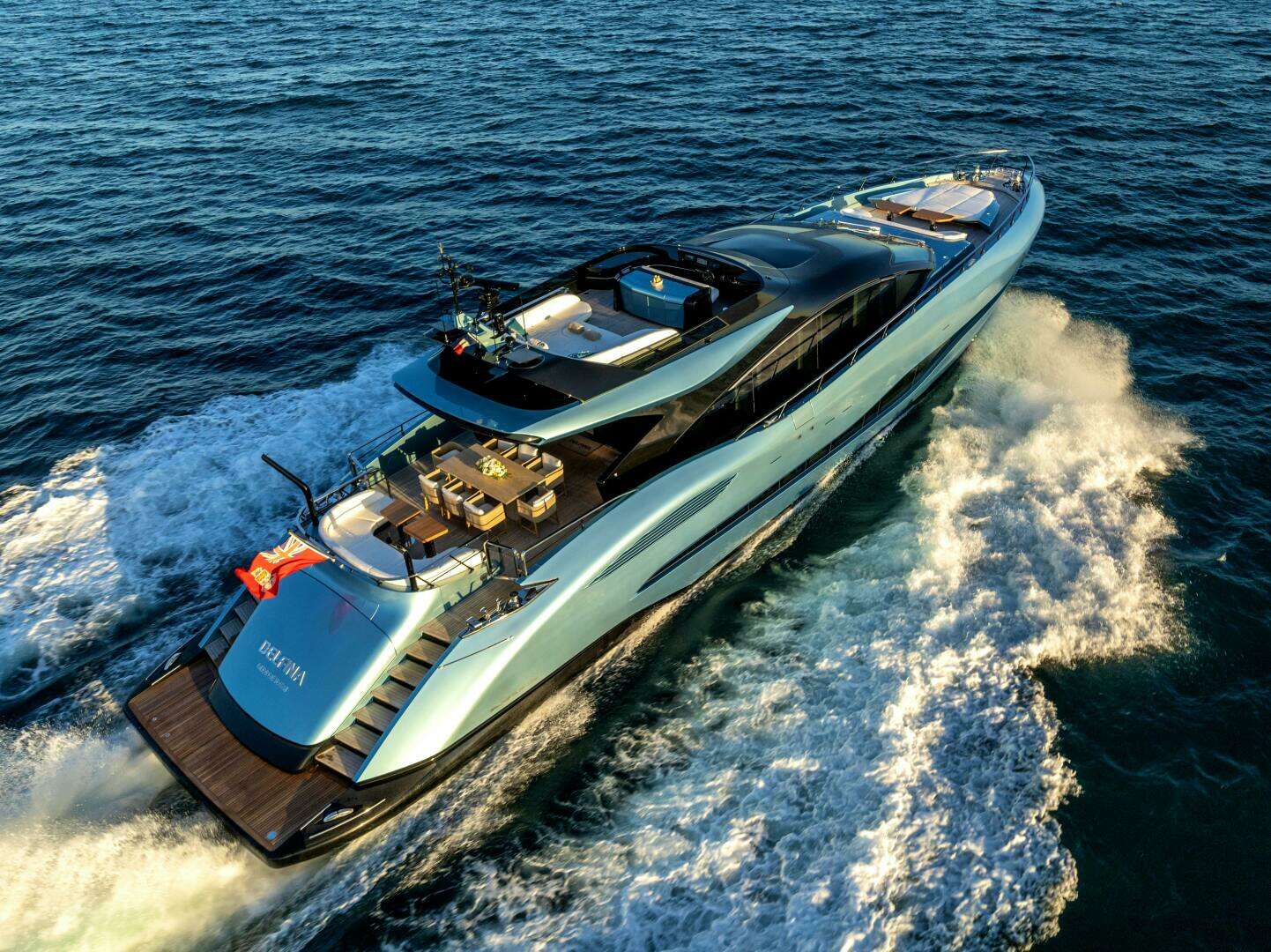

Model: Mangusta 104 REV

Year built: 2024

L.O.A: 31.80 meters

Hull length:

Beam: 7.10 meters

Draft: 1.50 meters

Gross Tonnage: 165

Cruising Speed: 30

Max speed: 35

Design: Lobanov Design / Overmarine Group

Flag: Cayman Islands

Classifciation: Bureau Veritas: I - HULL / •MACH - Yacht / Motor / C

REG Yacht Code Compliance (Malta Commercial)

Hull & Dimensions

Hull #6

Type: Planning

Hull: GRP (Singleskin Composite)

Superstructure: GRP

Builder: Mangusta (Overmarine)

Model: Mangusta 104 REV

Year built: 2024

L.O.A: 31.80 meters

Hull length:

Beam: 7.10 meters

Draft: 1.50 meters

Gross Tonnage: 165

Cruising Speed: 30

Max speed: 35

Design: Lobanov Design / Overmarine Group

Flag: Cayman Islands

Classifciation: Bureau Veritas: I - HULL / •MACH - Yacht / Motor / C

REG Yacht Code Compliance (Malta Commercial)

Mechanical Equipment

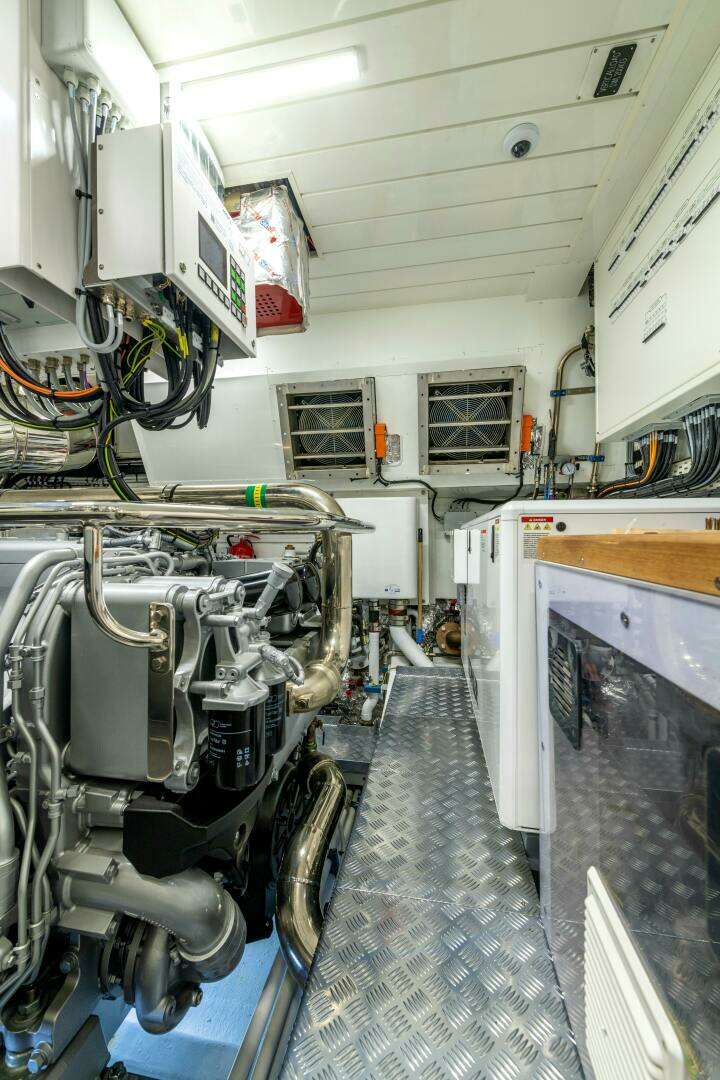

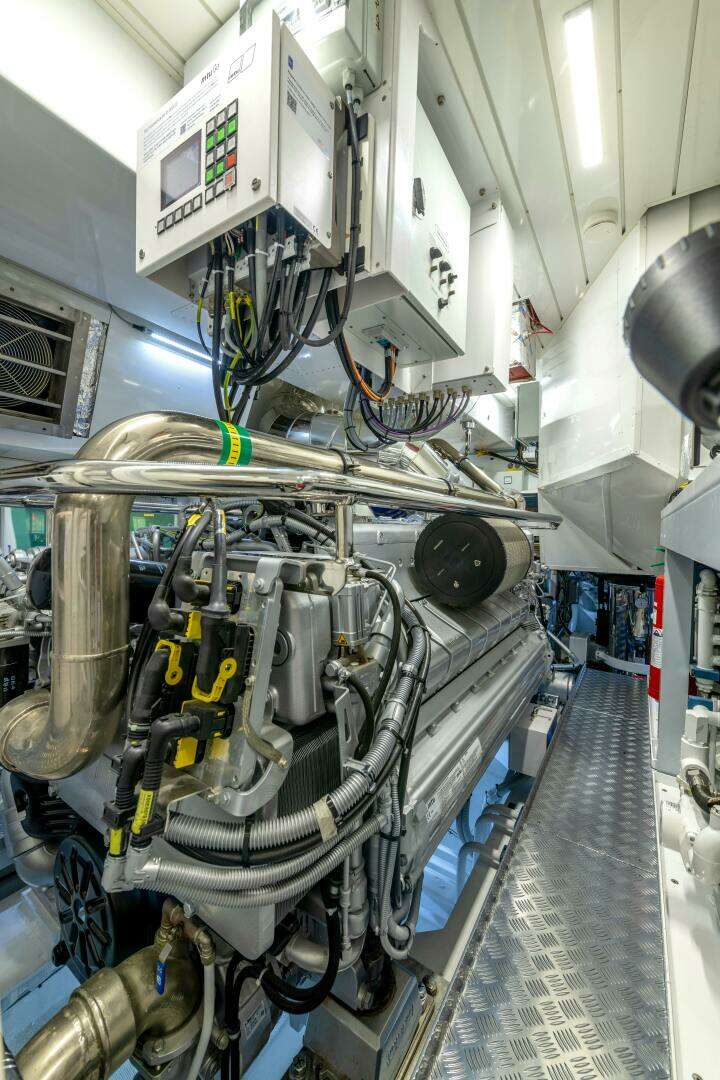

Engines: 2 X MTU 16V 2000 M96L 2600 HP @ 2450 RPM (1939 KW)

Engine hours: Port 184 hours ; Stbd 182 hours (as of 03/01/2025)

Propulsion: 2 X WATERJETS KAMEWA S63-4

Propellers: 2 X KONGSBERG 6 blades - clockwise - 1074 +/- 16RPM

Fuel Capacity: 10.500 liters

Fresh Water capacity: 1.600 liters

Black & Grey water tank: 2.000 liters

Generators: Two Kohler model 35 EFKOZD marine generator, each having a capacity of 35 kW, 400 VAC, 50 Hz, three-phase. Engine hours Port 338.3 hours / Stbd 410.1 hours (as of 03/01/2025)

Shore power transformer: Elettromare TrasfEco

Watermaker: Idromar XMINI/17SK
Water Pressure System: 2 X Gianneschi ECOJET 2 B C. E. Pumps
Hot Water: 2 X Gianneschi VER2 120L heaters
Stabilizers: Seakeeper upgrade to model 35
Bow Thruster: SLEIPNER model Side power - SAC400/300-C-4-H SERIES
Fuel depurator System: MTU / NFV KFWA 2 BY - Fuel Purifier

Mechanical Equipment

Engines: 2 X MTU 16V 2000 M96L 2600 HP @ 2450 RPM (1939 KW)

Engine hours: Port 184 hours ; Stbd 182 hours (as of 03/01/2025)

Propulsion: 2 X WATERJETS KAMEWA S63-4

Propellers: 2 X KONGSBERG 6 blades - clockwise - 1074 +/- 16RPM

Fuel Capacity: 10.500 liters

Fresh Water capacity: 1.600 liters

Black & Grey water tank: 2.000 liters

Generators: Two Kohler model 35 EFKOZD marine generator, each having a capacity of 35 kW, 400 VAC, 50 Hz, three-phase. Engine hours Port 338.3 hours / Stbd 410.1 hours (as of 03/01/2025)

Shore power transformer: Elettromare TrasfEco

Watermaker: Idromar XMINI/17SK
Water Pressure System: 2 X Gianneschi ECOJET 2 B C. E. Pumps
Hot Water: 2 X Gianneschi VER2 120L heaters
Stabilizers: Seakeeper upgrade to model 35
Bow Thruster: SLEIPNER model Side power - SAC400/300-C-4-H SERIES
Fuel depurator System: MTU / NFV KFWA 2 BY - Fuel Purifier

Air Conditioning

Type: Tropical configuration ; Brand: Frigit

2 X Calpeda NM25/160B/A chiller sea water pumps

2 X Calpeda CB 41/1E Circulation pumps

2 Chillers

18 X fancoils all around the boat

11 X Electtromare thermostats

Air Conditioning

Type: Tropical configuration ; Brand: Frigit

2 X Calpeda NM25/160B/A chiller sea water pumps

2 X Calpeda CB 41/1E Circulation pumps

2 Chillers

18 X fancoils all around the boat

11 X Electtromare thermostats

Electricity

- 4 X engines batteries Exide EP1200 140Ah, 12V / 1 X MastervoltMASS 24/100 charger

- 4 X Stabilizer batteries Exide ES2400 210Ah, 12V

- 2 X generators batteries PREMIUM EA1050 100Ah, 12V / 2 X MastervoltMASS 12/25 charger     - 12 X service batteries Exide ES1100/6 200Ah, 6V / 2 X MastervoltMASS 24/100 charger                 - - 2 X emergency batteries Exide ES2400 210Ah, 12V / 1 X MastervoltMASS 24/100 charger for Emergency and GMDS

- 2 X GMDSS batteries Exide ES650 56Ah, 12V

Electricity

- 4 X engines batteries Exide EP1200 140Ah, 12V / 1 X MastervoltMASS 24/100 charger

- 4 X Stabilizer batteries Exide ES2400 210Ah, 12V

- 2 X generators batteries PREMIUM EA1050 100Ah, 12V / 2 X MastervoltMASS 12/25 charger     - 12 X service batteries Exide ES1100/6 200Ah, 6V / 2 X MastervoltMASS 24/100 charger                 - - 2 X emergency batteries Exide ES2400 210Ah, 12V / 1 X MastervoltMASS 24/100 charger for Emergency and GMDS

- 2 X GMDSS batteries Exide ES650 56Ah, 12V

Navigation

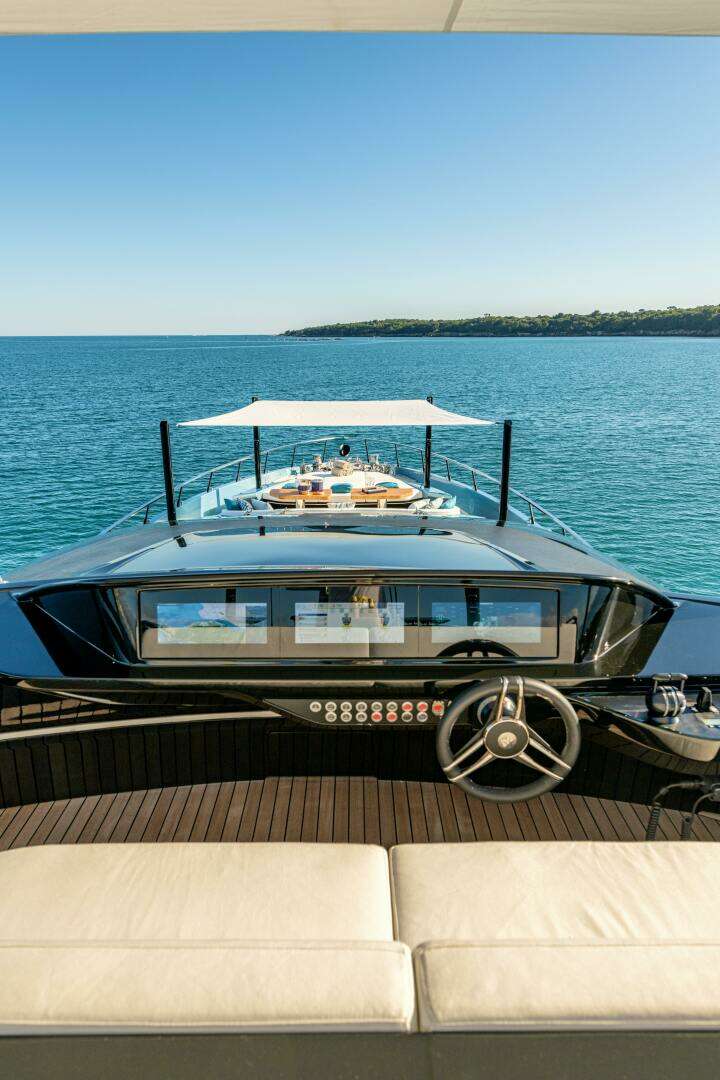

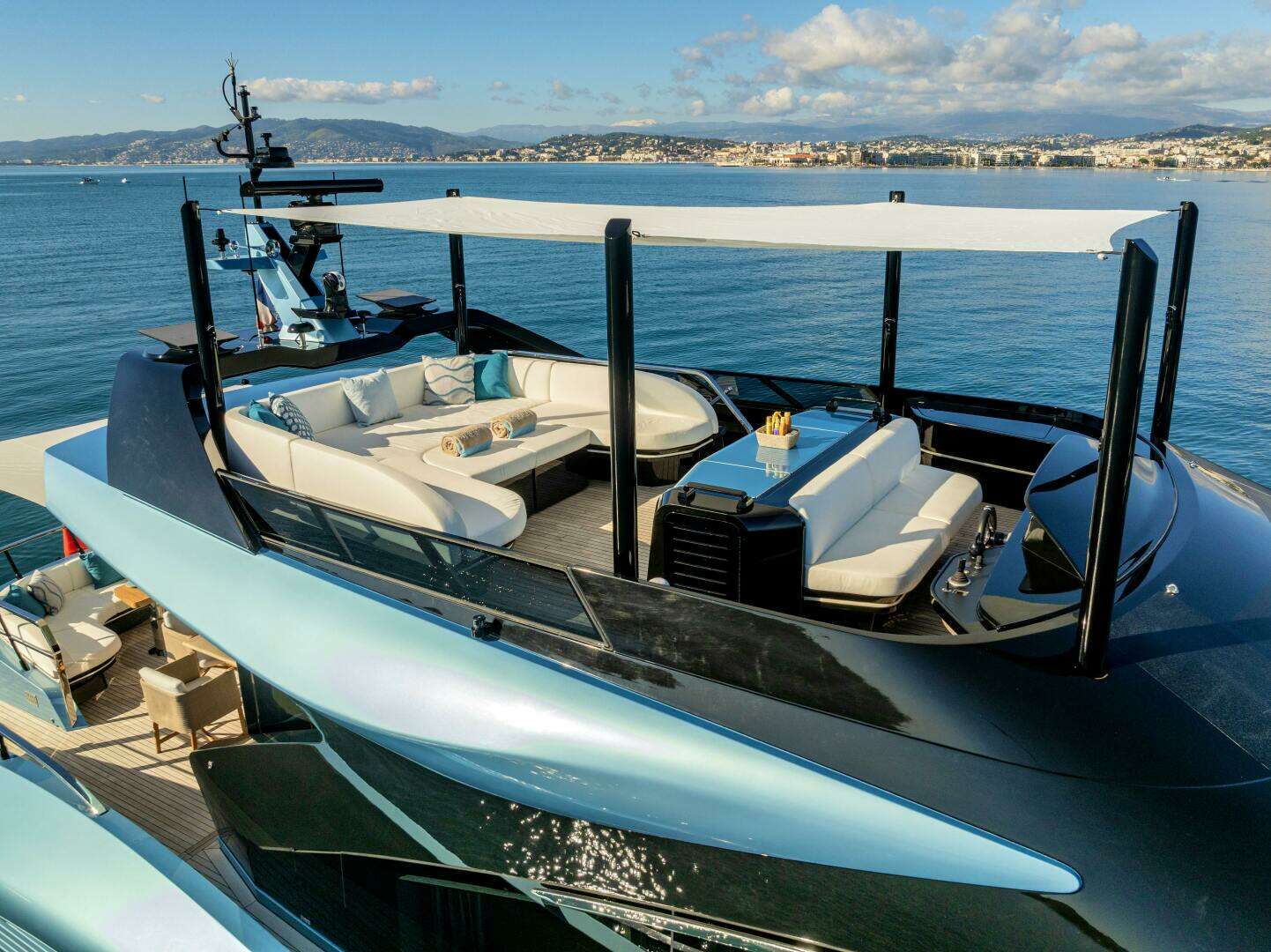

- Second Driving Station on the fly bridge

- Waterjet joystick control with dynamic positioning.

- Thermal camera E-Nav installed on hard top.

- CCTV System with 3 cameras and server storage.

- 1 VHF Furuno FM-8900S with one handset in the wheelhouse and one watertight remote station on the fly bridge                                                  - 1 Deadman Alarm System BNWAS Furuno BR-500 with repeater in the crew mess

- 1 AIS transponder Furuno FA-70 (B-Class)

- 1 Navtex Furuno NX-700

- 1 Satellite EPIRB Oceansignal Safesea EPIRB3 Pro on the fly bridge

- 1 radar transponder Oceansignal Safesea S100

- 2 GMDSS portable VHF Oceansignal Safesea V100

- 1 GPS Furuno GP-330B

- 1 Auto Pilot Simrad AP70 with AC80A autopilot processor and precision 9 fluxgate gyro which supplies accurate heading and rate of turn information. A joystick for the autopilot is present on the fly bridge

- Electronic Charts system Maxsea Navigation PC ECS on 2 X 24’’ 16:9 touch screens displays in the wheelhouse and one on the fly bridge

- 1 Gyrocompas Furuno SCX20 Satellite compass, and on console repeater Sperry Marine 360°/10°

- 1 radar Furuno DRS6A-NXT Solid State Ultra High Definition (Max range 72NM)

- 1 Echo sounder Furuno M260 (in-hull mounted transducer)

- 1 Speed and temperature sensor speed log Airmar ST800

- 1 wind transducer FI-5001

- 1 Satellite communication system LARS Thrane LT-3100

Navigation

- Second Driving Station on the fly bridge

- Waterjet joystick control with dynamic positioning.

- Thermal camera E-Nav installed on hard top.

- CCTV System with 3 cameras and server storage.

- 1 VHF Furuno FM-8900S with one handset in the wheelhouse and one watertight remote station on the fly bridge                                                  - 1 Deadman Alarm System BNWAS Furuno BR-500 with repeater in the crew mess

- 1 AIS transponder Furuno FA-70 (B-Class)

- 1 Navtex Furuno NX-700

- 1 Satellite EPIRB Oceansignal Safesea EPIRB3 Pro on the fly bridge

- 1 radar transponder Oceansignal Safesea S100

- 2 GMDSS portable VHF Oceansignal Safesea V100

- 1 GPS Furuno GP-330B

- 1 Auto Pilot Simrad AP70 with AC80A autopilot processor and precision 9 fluxgate gyro which supplies accurate heading and rate of turn information. A joystick for the autopilot is present on the fly bridge

- Electronic Charts system Maxsea Navigation PC ECS on 2 X 24’’ 16:9 touch screens displays in the wheelhouse and one on the fly bridge

- 1 Gyrocompas Furuno SCX20 Satellite compass, and on console repeater Sperry Marine 360°/10°

- 1 radar Furuno DRS6A-NXT Solid State Ultra High Definition (Max range 72NM)

- 1 Echo sounder Furuno M260 (in-hull mounted transducer)

- 1 Speed and temperature sensor speed log Airmar ST800

- 1 wind transducer FI-5001

- 1 Satellite communication system LARS Thrane LT-3100

Audio & Video

- Video on Demand Server Sealux with internal storage 8 TB RAID mode, with n.5 client A/V

- AV/IT speakers: upgraded package for interior and exterior speakers.

- 1 X Subwoofer in the Saloon ceiling and 1 X Subwoofer on aft deck ceiling

-  4 X Apple Tv in guest cabins, 1 X Apple TV in the saloon, 1 X Apple TV in the crew mess

- Starlink Internet

Audio & Video

- Video on Demand Server Sealux with internal storage 8 TB RAID mode, with n.5 client A/V

- AV/IT speakers: upgraded package for interior and exterior speakers.

- 1 X Subwoofer in the Saloon ceiling and 1 X Subwoofer on aft deck ceiling

-  4 X Apple Tv in guest cabins, 1 X Apple TV in the saloon, 1 X Apple TV in the crew mess

- Starlink Internet

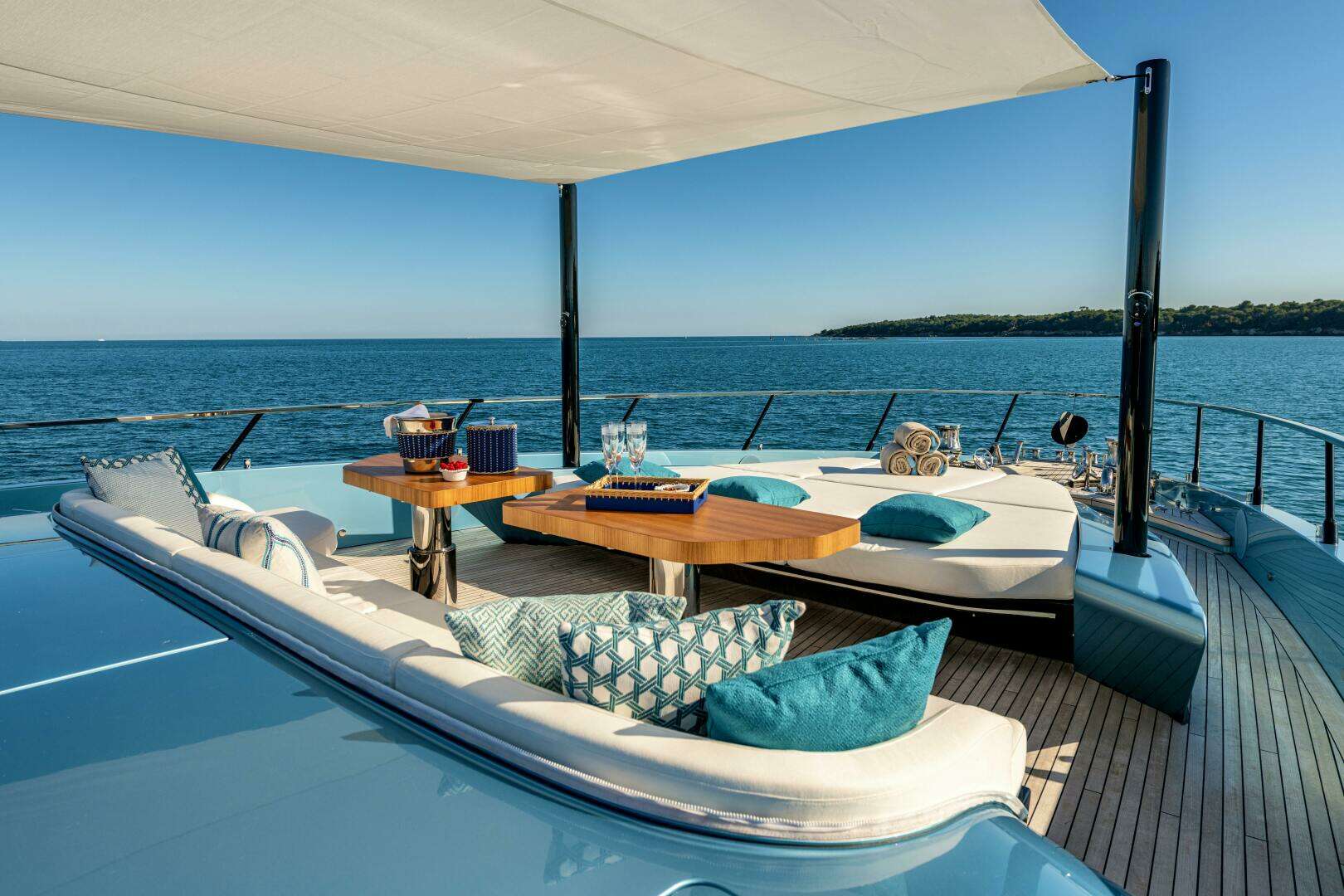

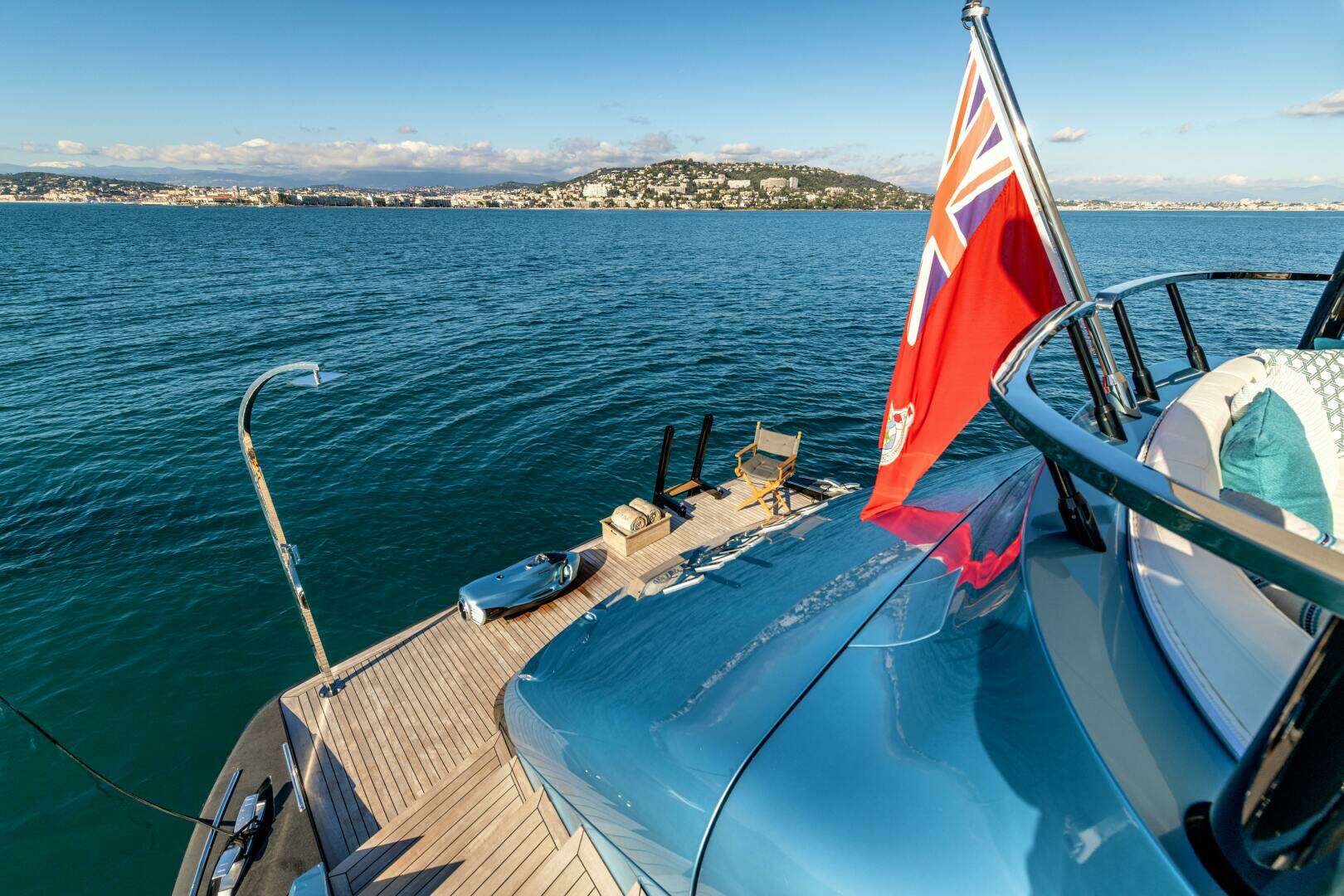

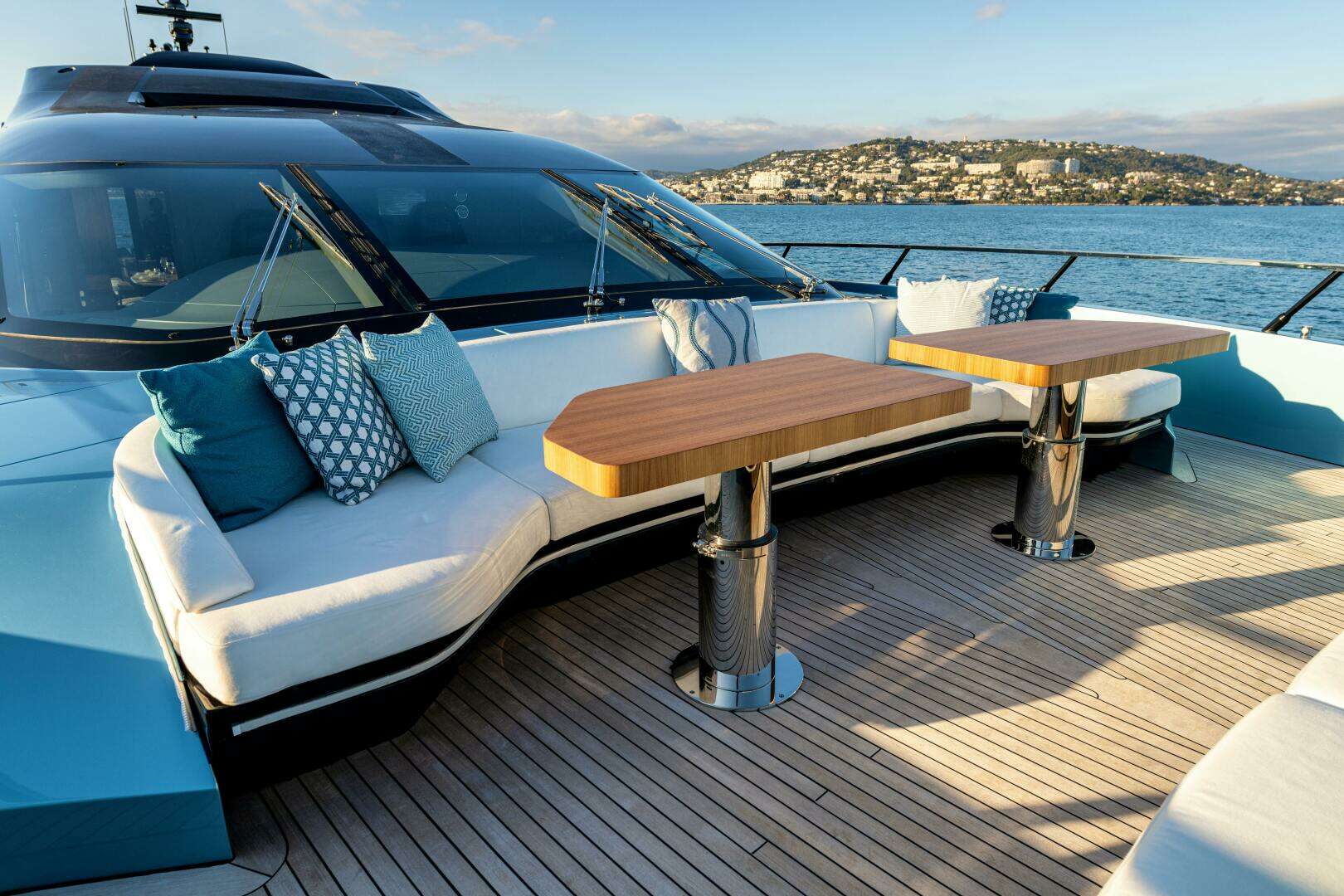

Deck Equipment

- Multiplex awning system with manually installed carbon fiber poles above main deck FWD dining area, main deck aft and sundeck.

- Side boarding ladder.

- Selmar black and gray water depurator Mod. Blue SEA 2500/Plus compliant with Mepc 227 Marpol and MED 2014/90/EC

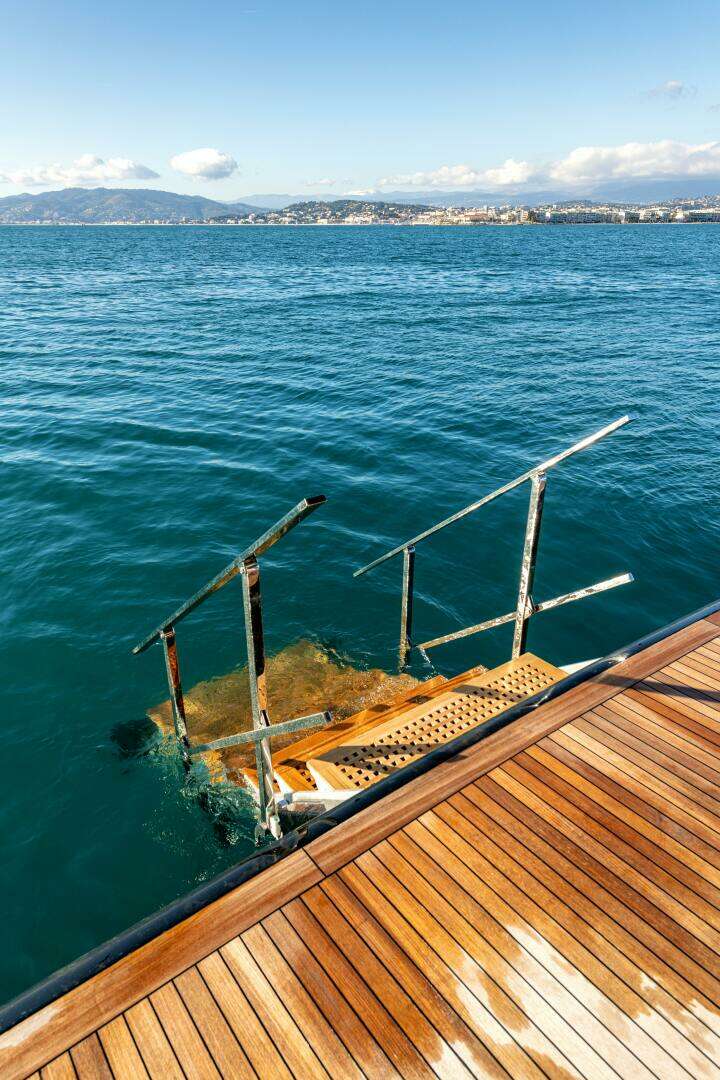

- Multiplex emergency swimming ladder with carbon and teak

- 8 cylindric inflatable fenders and 2 ball inflatable fenders

- One removable exterior shower connected to cold and hot fresh water

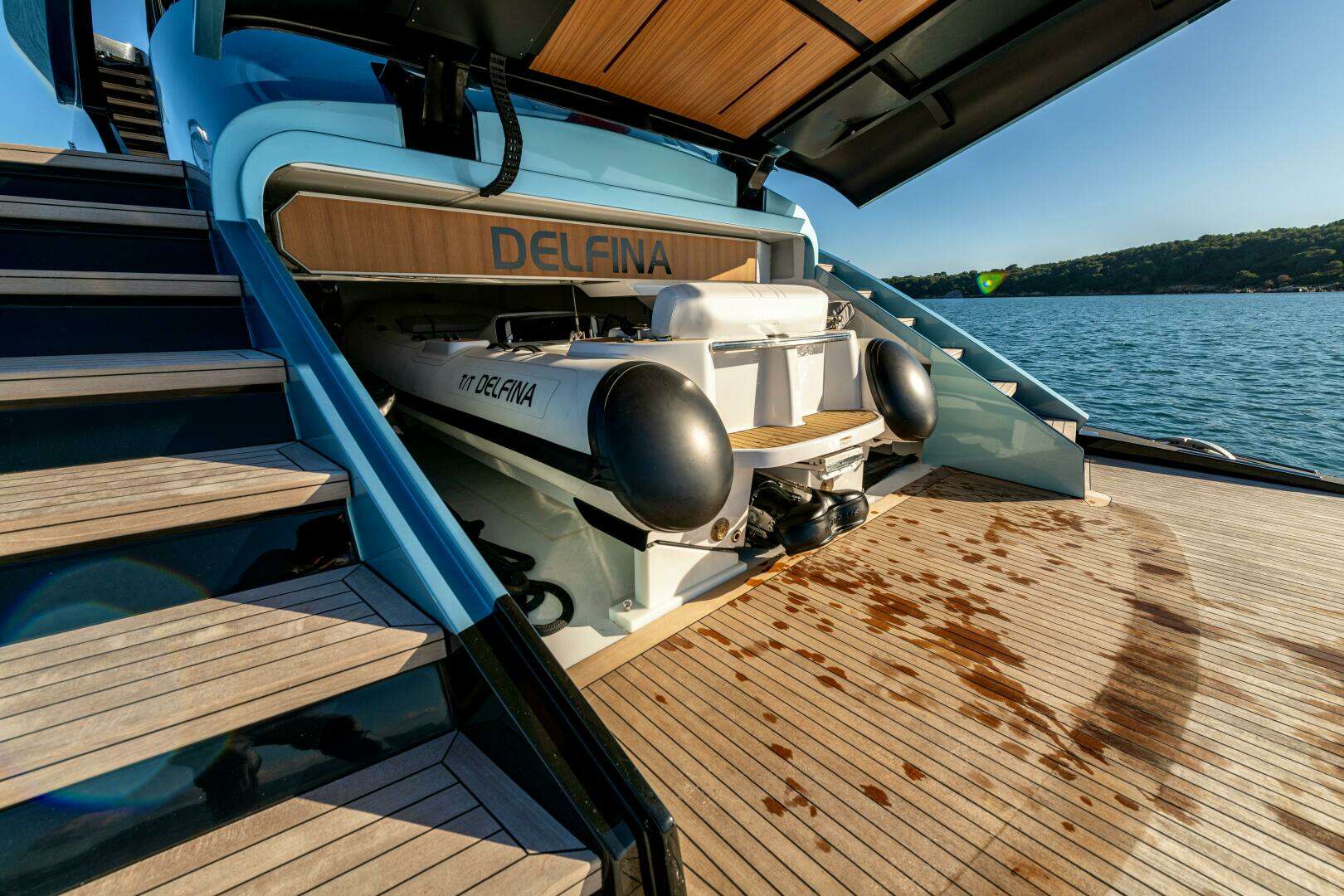

- One diesel jet Williams 505 tender in the garage

- One Seadoo spark trixx jet ski in the garage

- One hydraulic Sanguineti lifting crane used for the toys in the garage

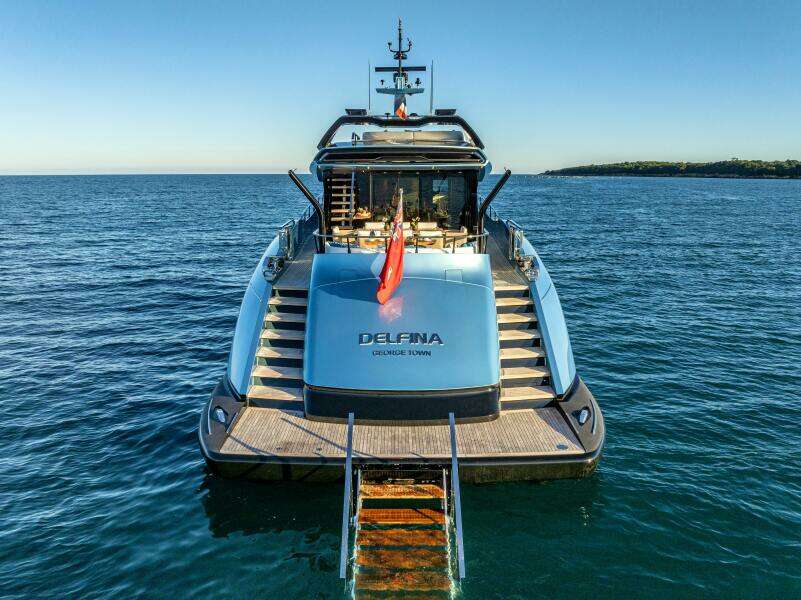

- One Sanguineti gangway and large swimming stairs

Deck Equipment

- Multiplex awning system with manually installed carbon fiber poles above main deck FWD dining area, main deck aft and sundeck.

- Side boarding ladder.

- Selmar black and gray water depurator Mod. Blue SEA 2500/Plus compliant with Mepc 227 Marpol and MED 2014/90/EC

- Multiplex emergency swimming ladder with carbon and teak

- 8 cylindric inflatable fenders and 2 ball inflatable fenders

- One removable exterior shower connected to cold and hot fresh water

- One diesel jet Williams 505 tender in the garage

- One Seadoo spark trixx jet ski in the garage

- One hydraulic Sanguineti lifting crane used for the toys in the garage

- One Sanguineti gangway and large swimming stairs

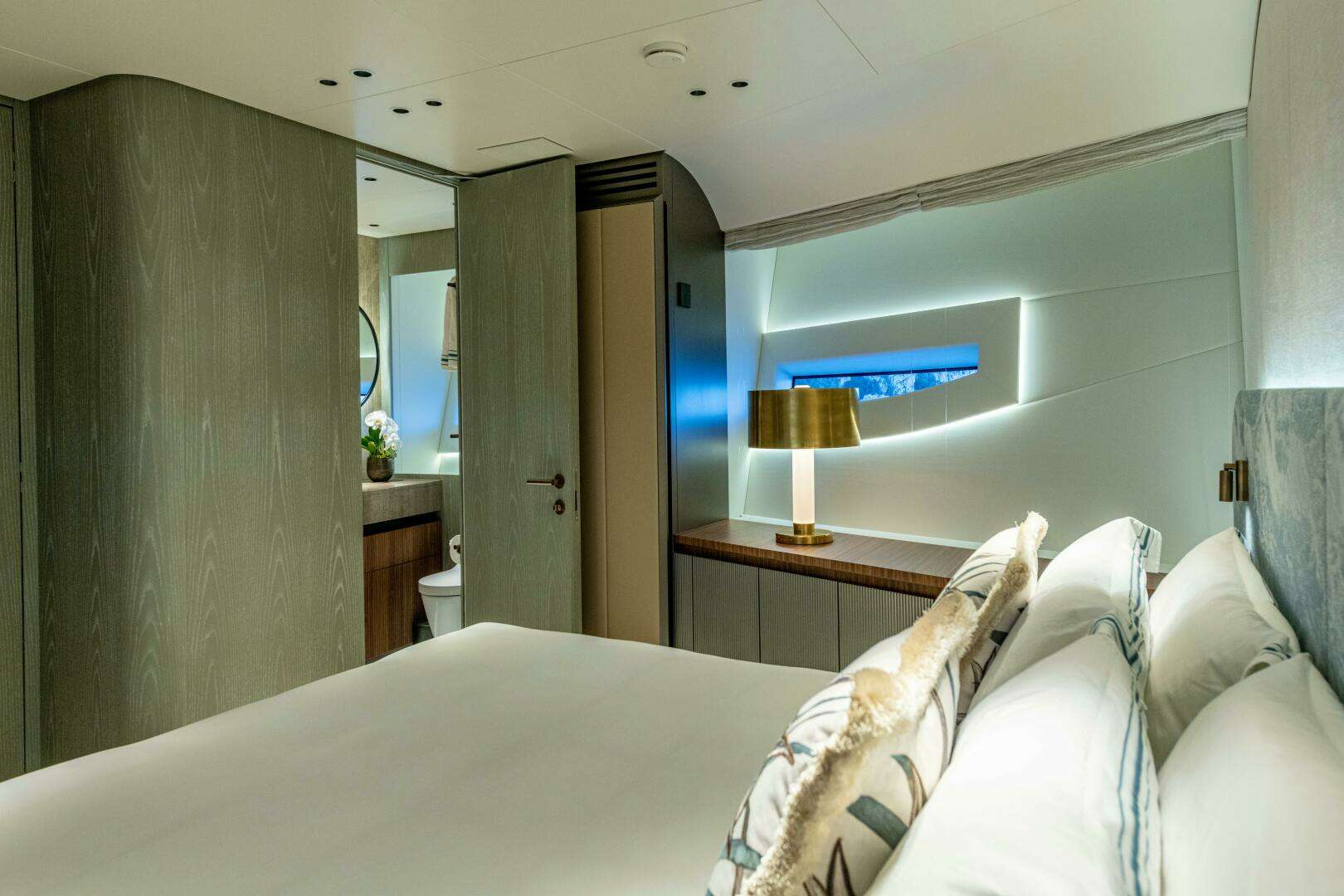

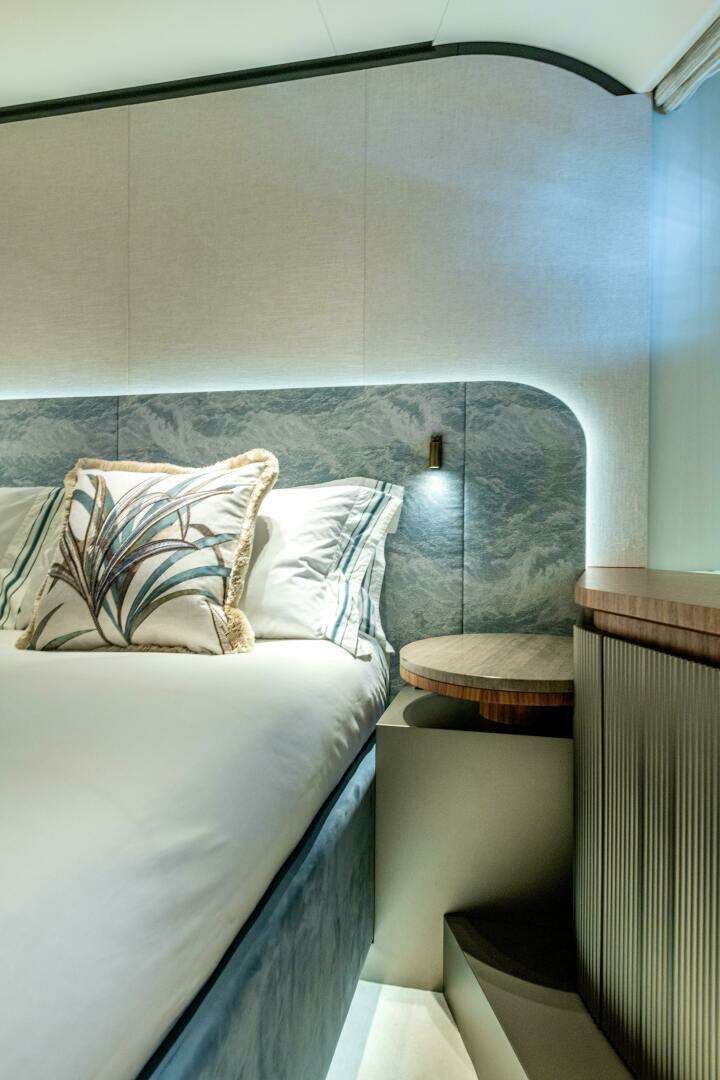

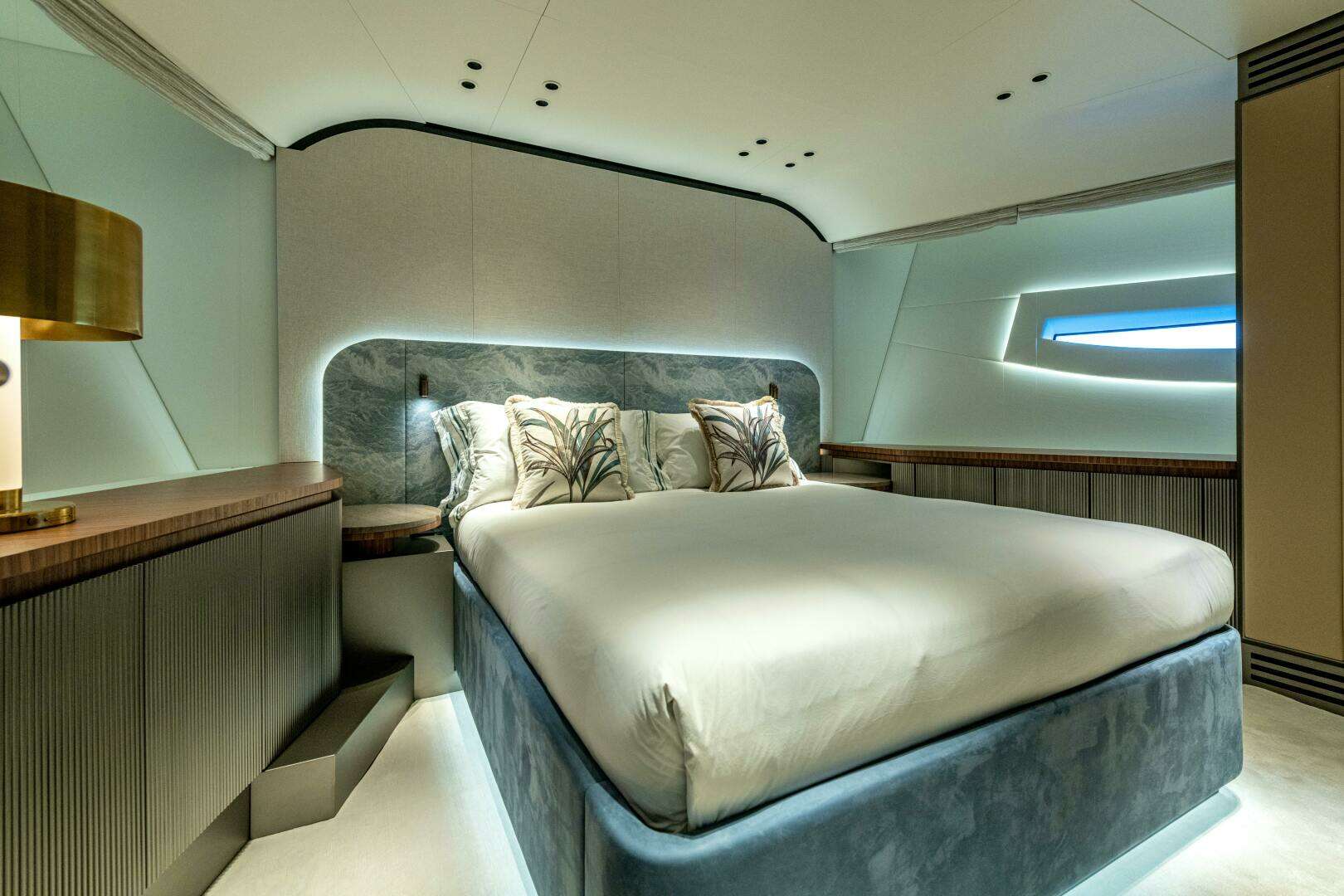

Accommodation

8 guests: in 4 cabins

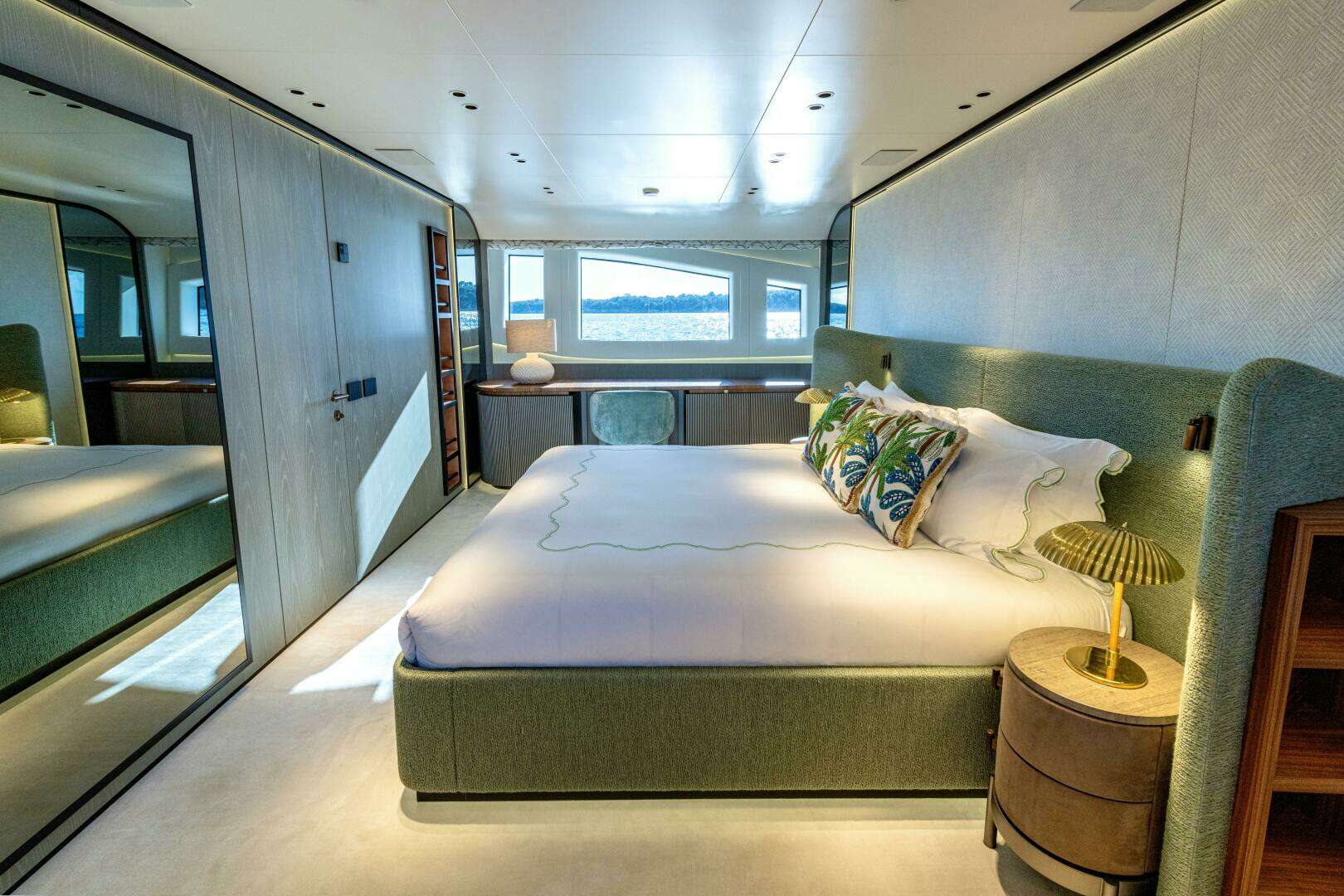

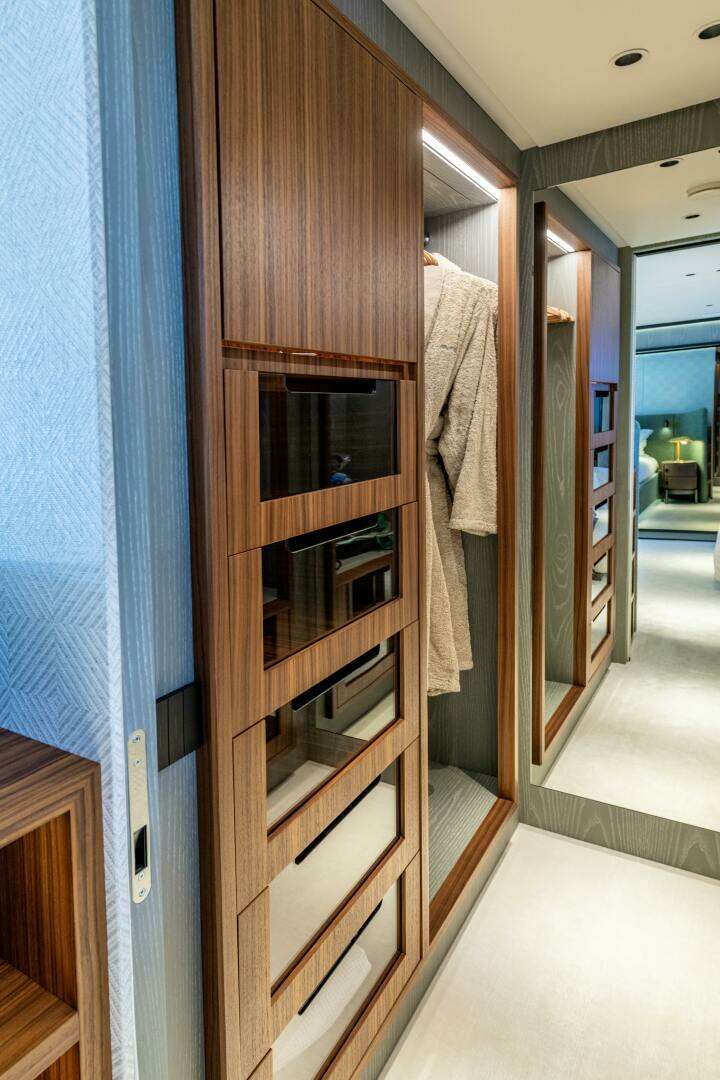

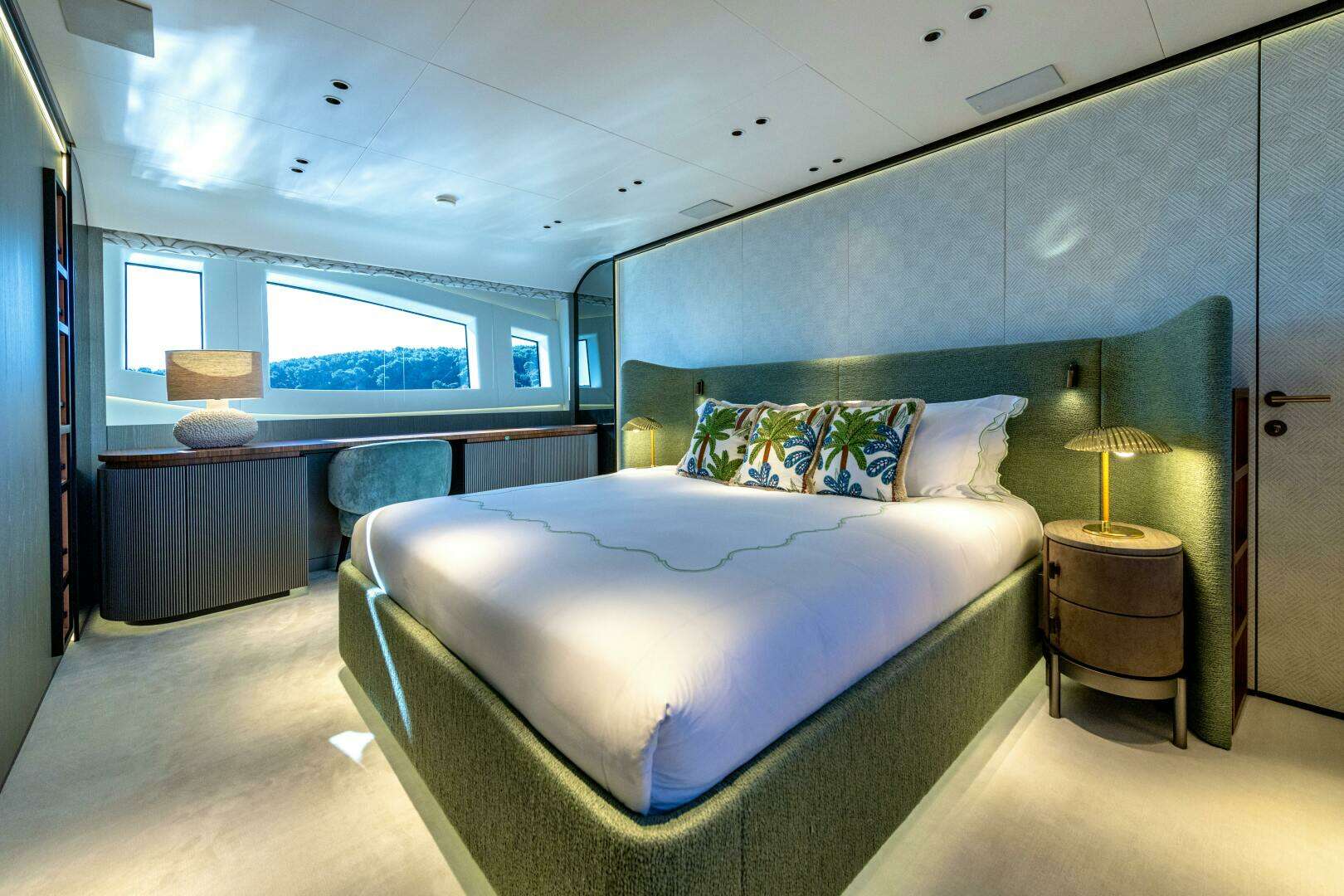

- Master Cabin

- VIP Cabin

- Double

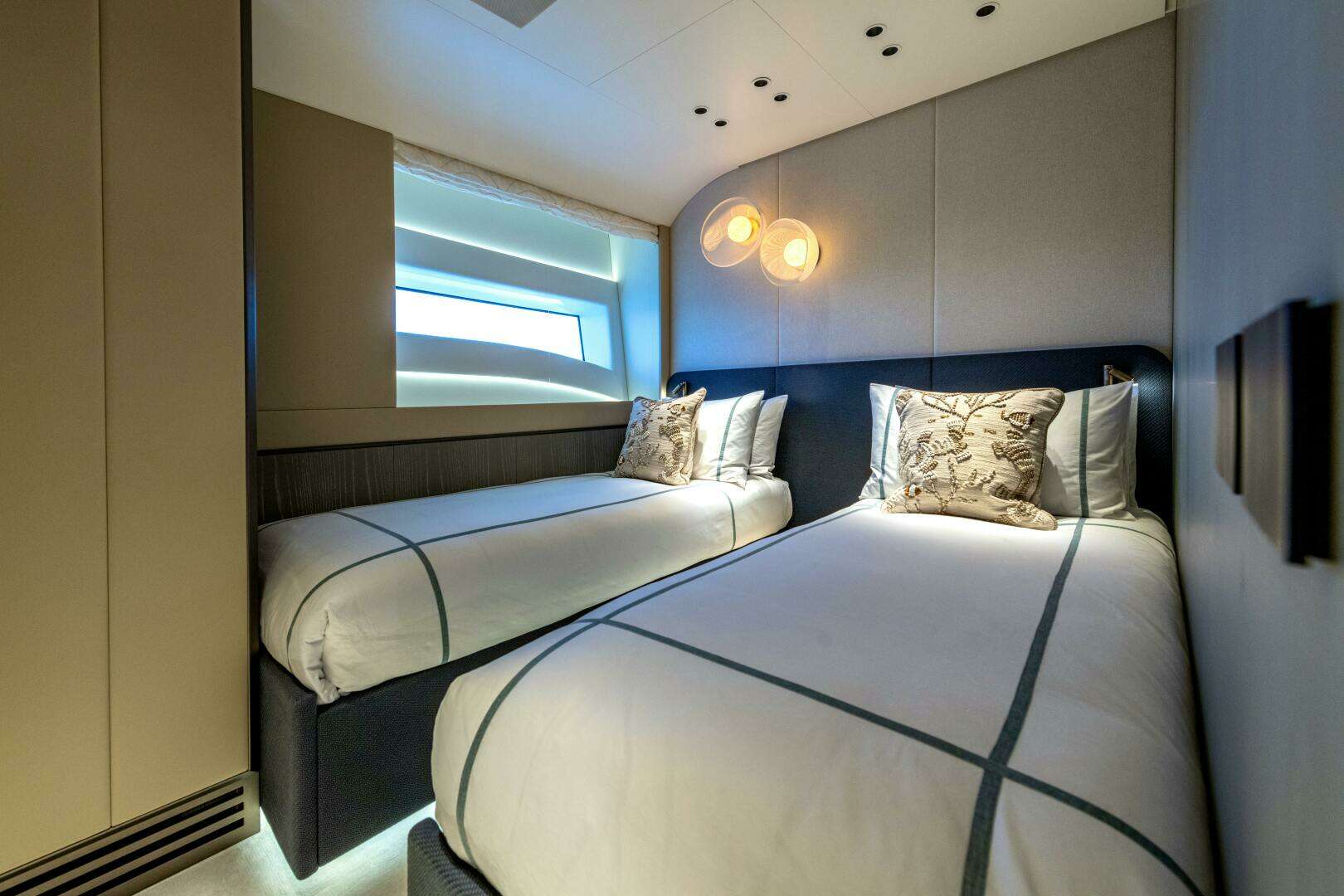

- Twin / convertible into double

4 crew members: in 2 cabins

Miele household appliances:

- One large oven

- One hot plate

- One microwave

- One exhaust hood

- One dishwasher

- One washer

-One dryer

Other household appliances:

- 4 fridges in the galley, one in the saloon, one on the aft deck, one on the fly bridge

- One freezer in the crew mess

- One ice maker on the fly bridge

- One electric grill on the fly bridge

Accommodation

8 guests: in 4 cabins

- Master Cabin

- VIP Cabin

- Double

- Twin / convertible into double

4 crew members: in 2 cabins

Miele household appliances:

- One large oven

- One hot plate

- One microwave

- One exhaust hood

- One dishwasher

- One washer

-One dryer

Other household appliances:

- 4 fridges in the galley, one in the saloon, one on the aft deck, one on the fly bridge

- One freezer in the crew mess

- One ice maker on the fly bridge

- One electric grill on the fly bridge

Safety Equipment

• LSA equipment :

                        * 3 X 8 persons life rafts (SOLAS) with HRU

                        * 2 life buoy with line

                        * 1 life buoy with MOB

                        * Pyrotechnic set with 2 orange smoke signals, 6 red hand flares, 6 rocket                                      parachute flares

                        * 2 line throwing appliances

                        * 2 immersion suits (SOLAS)

                        * 4 child thermal protective aids (SOLAS)

                        * 16 adult thermal protective aids (SOLAS)

                        * 4 child life jackets (SOLAS)

                        * 20 adult life jacket (SOLAS)

                        * 1 EEBD

                        * 1 portable search light

                        * 1 mate saver

• Fire fighting equipment

                        * 8 portable powder extinguishers (6Kg)

                        * 3 portable foam extinguishers (9Kg)

                        * 3 portable CO2 extinguishers (5Kg)

                        * 23 smoke detectors, 2 eat detectors, 1 gas detector. All the fire detectors are                            monitored by the fire detection monitoring system brand Autoprime

                        * 7 manual call points

                        * 2 fire blankets

                        * 4 fire hoses, nozzles and hydrants

                        * 1 AEROPRO fixed fire extinguishing system for the engine room using aerosols

                        * 1 portable emergency fire and bilge pump on deck

Safety Equipment

• LSA equipment :

                        * 3 X 8 persons life rafts (SOLAS) with HRU

                        * 2 life buoy with line

                        * 1 life buoy with MOB

                        * Pyrotechnic set with 2 orange smoke signals, 6 red hand flares, 6 rocket                                      parachute flares

                        * 2 line throwing appliances

                        * 2 immersion suits (SOLAS)

                        * 4 child thermal protective aids (SOLAS)

                        * 16 adult thermal protective aids (SOLAS)

                        * 4 child life jackets (SOLAS)

                        * 20 adult life jacket (SOLAS)

                        * 1 EEBD

                        * 1 portable search light

                        * 1 mate saver

• Fire fighting equipment

                        * 8 portable powder extinguishers (6Kg)

                        * 3 portable foam extinguishers (9Kg)

                        * 3 portable CO2 extinguishers (5Kg)

                        * 23 smoke detectors, 2 eat detectors, 1 gas detector. All the fire detectors are                            monitored by the fire detection monitoring system brand Autoprime

                        * 7 manual call points

                        * 2 fire blankets

                        * 4 fire hoses, nozzles and hydrants

                        * 1 AEROPRO fixed fire extinguishing system for the engine room using aerosols

                        * 1 portable emergency fire and bilge pump on deck

Upgrades & Modifications

• REG Yacht Code Compliance (Malta commercial)
• Dolfin Blue Metallic paint Alexseal
• Starlink Internet
• Fuel depurator System: MTU / NFV KFWA 2 BY - Fuel Purifier
• Selmar black and gray water depurator Mod. Blue SEA 2500/Plus compliant with Mepc 227 Marpol and MED 2014/90/EC.
• Seakeeper stabiliser upgraded to model 35
• Tender Williams Diesel Jet Tender 505 waterjet propulsion/inboard diesel engine 110 Hp.
• Stainless steel anchors
• Length of the anchor chain (diameter 12) upgraded from 110 meters to 150 meters
• 10underwater lights Ship Control RGB
• Tropical A/C configuration
• Thermal camera E-Nav installed on hard top
• Video on Demand Server Sealux with internal storage 8 TB RAID mode, with n.5 client A/V.
• CCTV System with 3 cameras and server storage
• Side Boarding Ladder
• Multiplex emergency swimming ladder (Carbon and teak) with its fixations of the aft platform
• Semi integrated wheelhouse.
• Additional control with Dynamic Positioning.
• Second Driving Station on the Sundeck
• Tender fuel system: retractable reel + fill counter
• AVIT speakers: upgrade package for interior and exterior speakers

Upgrades & Modifications

• REG Yacht Code Compliance (Malta commercial)
• Dolfin Blue Metallic paint Alexseal
• Starlink Internet
• Fuel depurator System: MTU / NFV KFWA 2 BY - Fuel Purifier
• Selmar black and gray water depurator Mod. Blue SEA 2500/Plus compliant with Mepc 227 Marpol and MED 2014/90/EC.
• Seakeeper stabiliser upgraded to model 35
• Tender Williams Diesel Jet Tender 505 waterjet propulsion/inboard diesel engine 110 Hp.
• Stainless steel anchors
• Length of the anchor chain (diameter 12) upgraded from 110 meters to 150 meters
• 10underwater lights Ship Control RGB
• Tropical A/C configuration
• Thermal camera E-Nav installed on hard top
• Video on Demand Server Sealux with internal storage 8 TB RAID mode, with n.5 client A/V.
• CCTV System with 3 cameras and server storage
• Side Boarding Ladder
• Multiplex emergency swimming ladder (Carbon and teak) with its fixations of the aft platform
• Semi integrated wheelhouse.
• Additional control with Dynamic Positioning.
• Second Driving Station on the Sundeck
• Tender fuel system: retractable reel + fill counter
• AVIT speakers: upgrade package for interior and exterior speakers
