2019 Cantiere Delle Marche 102'
31.00 m2019 Cantiere Delle Marche 102' CDM Darwin 102
- 31.00 m
- Diesel
- Power
- Expedition Yacht
2019 Cantiere Delle Marche CDM Darwin 102
102' (31.00 m) CAPE COD II
-
Tax Paid
Flag of Registry: Malta
Port of Registry: Ancona
FEATURES: |
---|
2019 Cantiere Delle Marche 102' CDM Darwin 102
- 31.00 m
- Diesel
- Power
- Expedition Yacht
€ 11,200,000 Euro
$ 17,511,504 CAD*£ 9,525,113 GBP*$ 12,667,200 USD*
LOA102'
LOA Inch8''
LOA31.00''
Beam24'
Beam Inch4''
Draft Max Feet8'
Draft Max Inch1''
Fuel Tank (Gallons)10568
Fuel Tank (Liters)40000
Fresh Water (Gallons)1585
Fresh Water (Liters)6000
TypePower
ConditionUsed
Specifications
CAPE COD II
8313d986-6fef-ef11-be21-6045bd081497
102'8" (31.00 Meters)
Power-Used
2019
24'4"
8'1"
5
11
3
6
13 Knots
11 Knots
4500
Diesel
Steel
Displacement
Yes
CMC fin stabilization upgraded with Flip on anchor (FULLY REBUILD FOR 6 YEARS TO COME
10568 Gallons (40000 Liters)
1585 Gallons (6000 Liters)
246
240
RINA, registered pleasure. Built in compliance with commercial LY3 code
Francesco Guida
Cantiere delle Marche
Engines
Engine 1
- Engine Make: Caterpillar
- ModelEngine Model: C18 Acert
- Power HPPower HP: 680.00
- Power KWPower KW: 500.00
- HoursHours: 3098.00
- Engine LocationEngine Location: Port
Engine 2
- Engine Make: Caterpillar
- ModelEngine Model: C18 Acert 500kW 680hP
- Power HPPower HP: 680.00
- Power KWPower KW: 500.00
- HoursHours: 3097.00
- Engine LocationEngine Location: Starboard
Engine 3
- Engine Make: Kohler
- Power KWPower KW: 55.00
- HoursHours: 6780.00
- Engine LocationEngine Location: Port
Engine 4
- Engine Make: Kohler
- Power KWPower KW: 55.00
- HoursHours: 6760.00
- Engine LocationEngine Location: Starboard
Full Details
Main characteristics
LOA: 31.00m / 102’8”
Beam: 7.34m / 24’4”
Draft: 2.45m / 8’1”
Builder: Cantiere Delle Marche (Italy)
Year: 2019
Construction: Steel / Aluminium
Type: Full displacement
Naval Architect: Hydro Tec SRL
Exterior Design: Hydro Tec SRL
Interior Design: Francesco Guida
Classification: RINA, built to LY3 compliance
Crew: 6
Flag: Malta
Engines: 2 x CAT C18 Acert
GRT: 246
Net Tonnage: 73 T
Introduction
Introduction

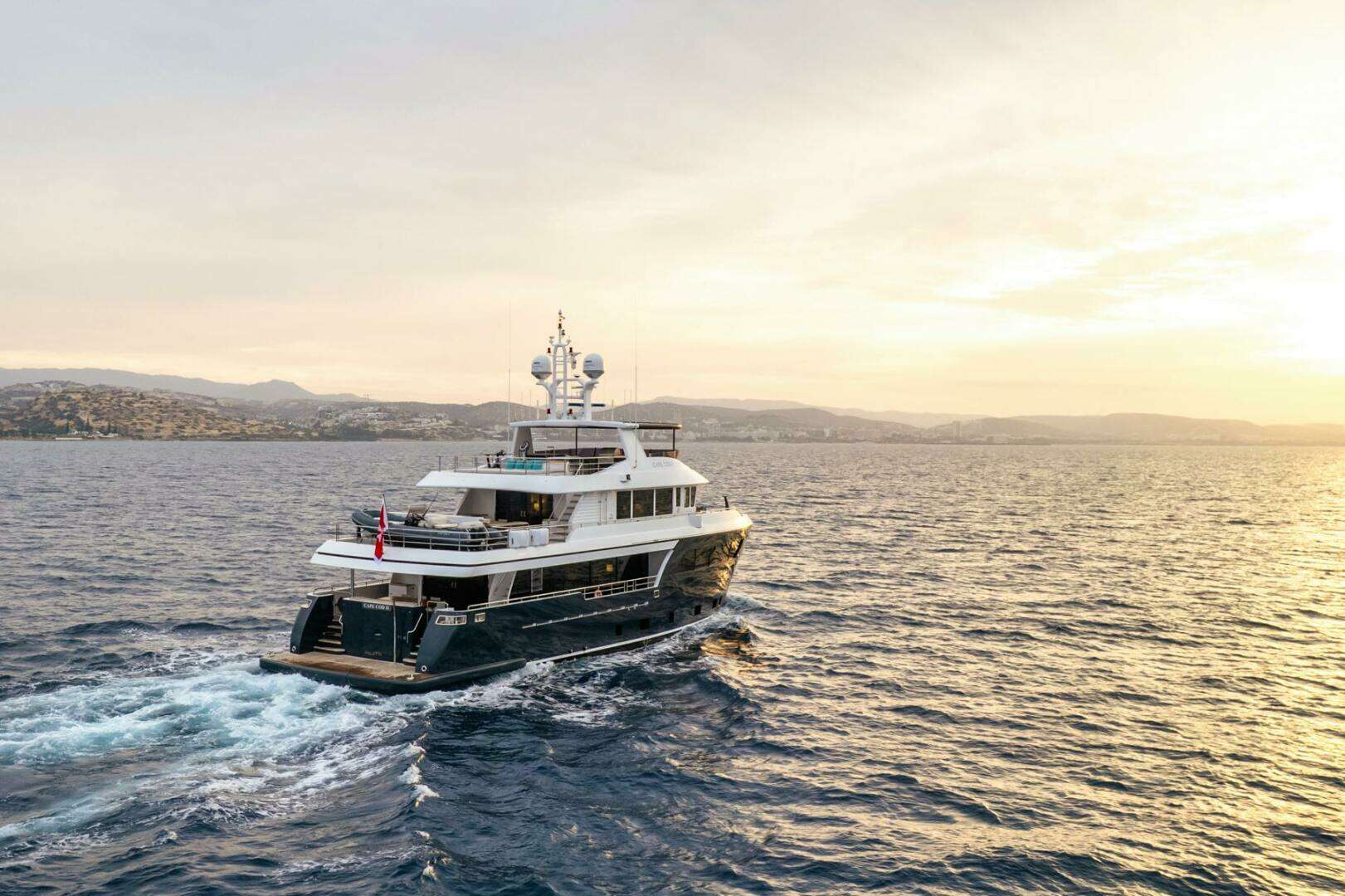

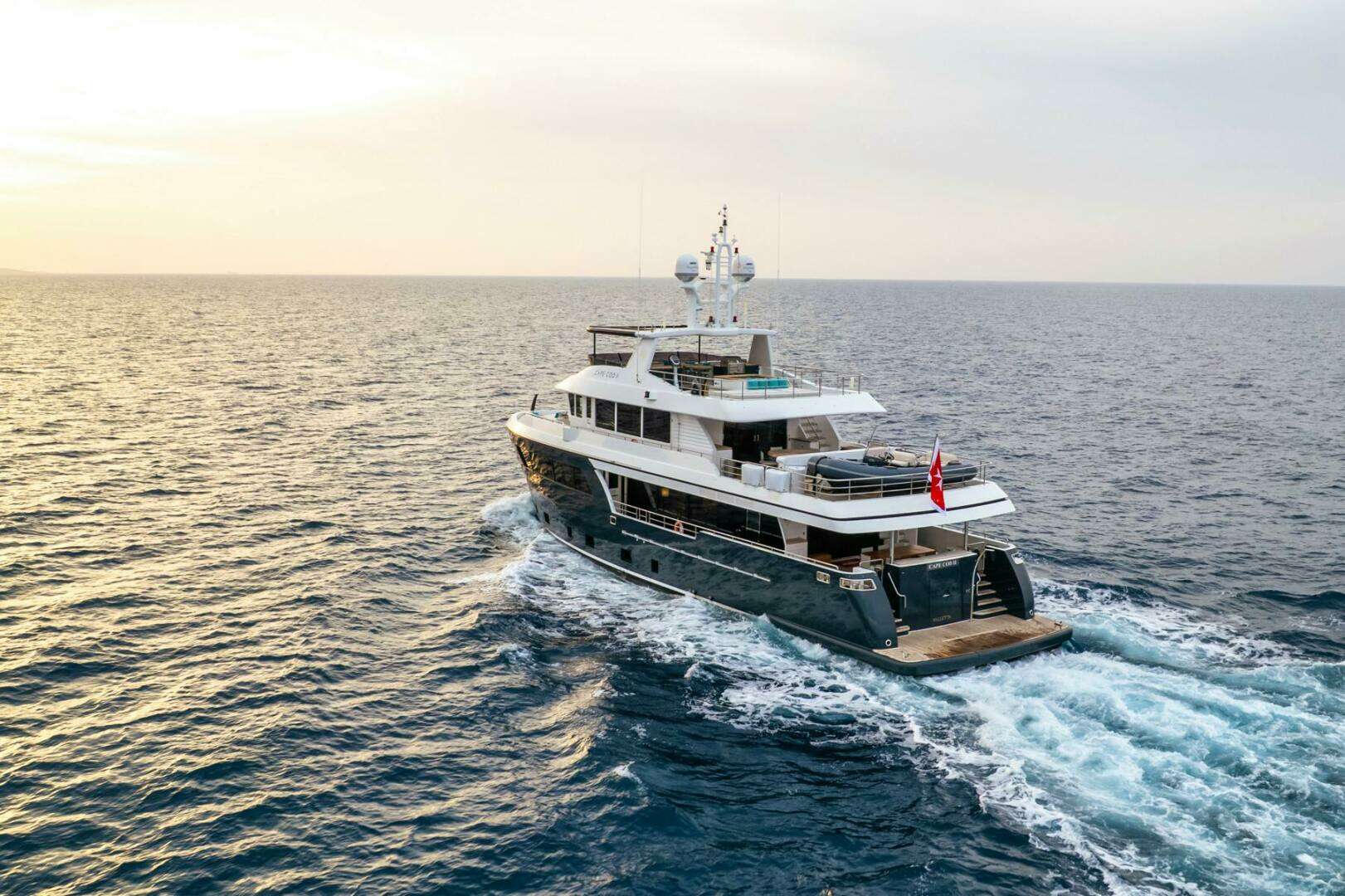

Cape Cod II is an exceptional example of the Cantiere Delle Marche 102 Darwin Class delivered in 2019. The Darwin Class is an icon in the Explorer Yacht’s world. She demonstrates the cruising evidence of how true to reality is CdM’s reputation for sturdy, reliable, seaworthy and low fuel consuming vessels.
The interior design has been masterfully penned by Francesco Guida, who has years of knowledge and experience in the luxury yacht sector, both in design and engineering, having collaborated for the last twenty-five years with many of the best industry brands. The result is a contemporary and stylish interior in which a neutral and pale oak veneered wood is embellished with materials of different shape and brightness: deco-metal panels, stainless steel rods, white glossy ceiling and textured fabrics.
Cape Cod II features five staterooms, with the Owner’s cabin in a privileged position forward on the main deck, one of few CdM 102’s to offer this. All guest spaces, including two wide saloons, have a minimum floor-to-ceiling height of 2.10m.

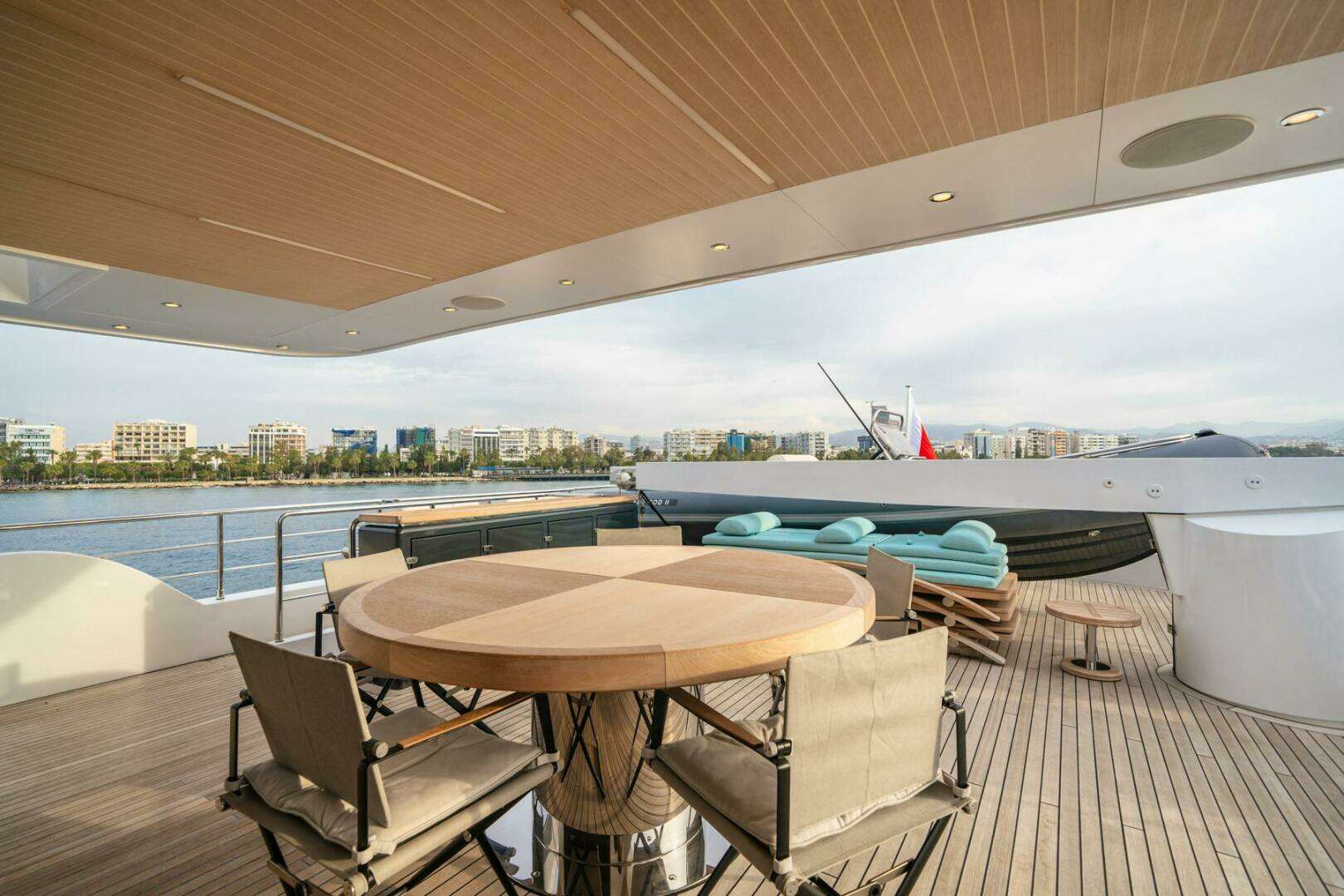

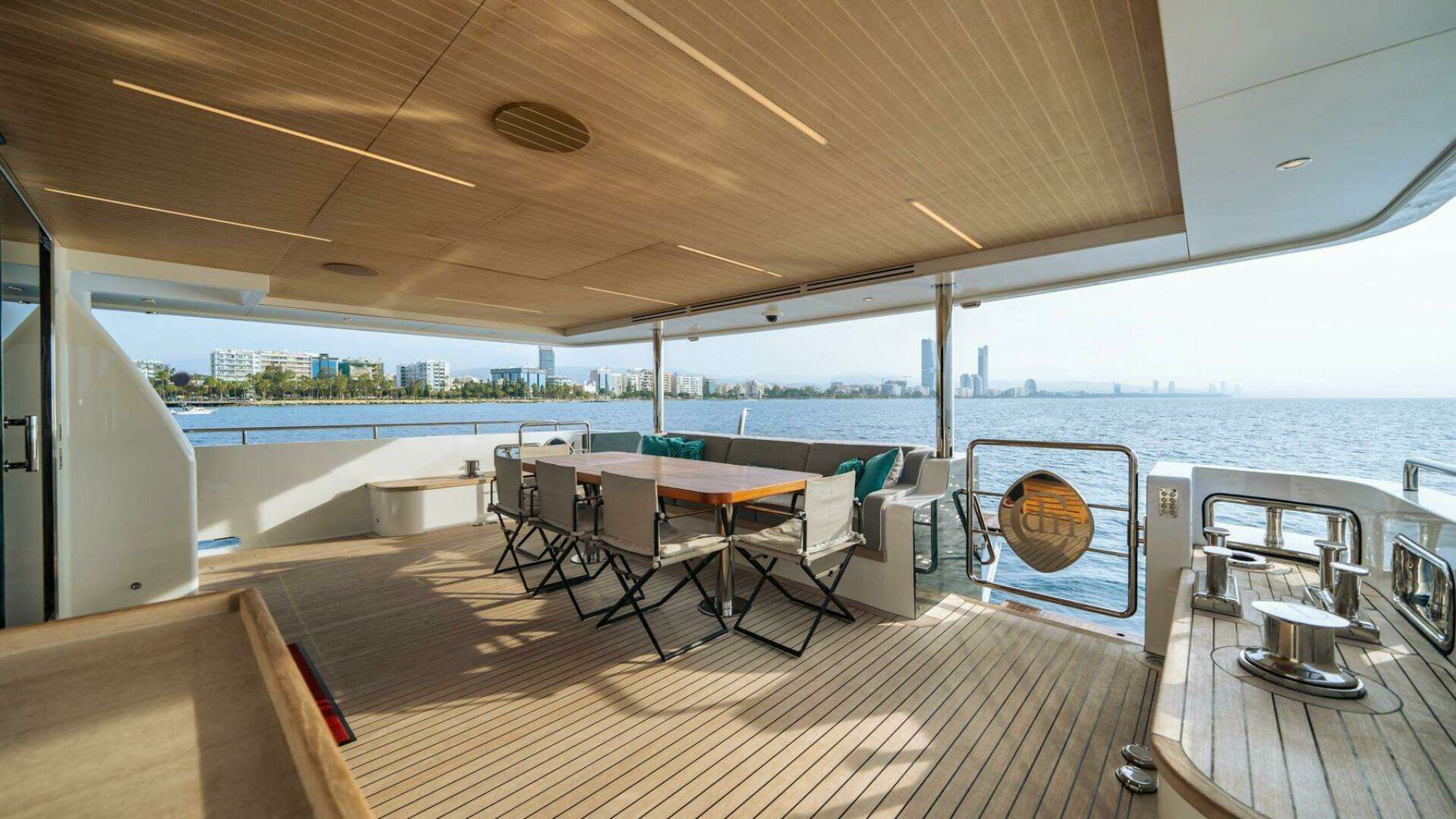

With 102’ in LOA and 246 GT, Cape Cod II offers plenty of volume for the comfort of both guest and crew. Likewise, the exterior areas are generous and flexible in their use. The main deck cockpit can be fully enclosed and air conditioned, so that food can be served either in cold climates or in warm ones. A second and more formal dining possibility is offered on the upper deck where a big round table can seat up to 10 people. Those who love to sunbathe and lazily relax can choose to lie in the sunbed area on the foredeck or join family and friends on the lovely sundeck. Here they can find a second sunbed area, a custom-built pool with bar, an open galley with BBQ, not to mention two tables and seating for all: the perfect set up to gather a large group of people, chatting and cheering while the Owner can captain his boat from the forward helm station.
Active Owners and intrepid guests can benefit from the large lazarette which has been fitted to accommodate water toys, diving and fishing gear. Drawing on the Shipyard’s experience of customising all kinds of spaces, the 26’sq area has been wisely engineered to safely store all sorts of equipment. Preferred cruising spots can be reached quickly and in comfort thanks to a Williams 565 tender that can be launched through a 2-ton crane.
The Darwin Class 102 offers exceptional cruising capabilities, with consumption of just 60 litres per hour at 10 knots cruising speed and deliver at this pace a range of 4,500 nautical miles. Cape Cod II has only been used privately, despite being built to LY3 commercial compliance. Most recently, she completed her 5-year class survey in 2024 along with a thorough technical overhaul.
Top Features
- RINA 5-year survey completed 2024
- Range of 4,500nm
- First 102 Darwin with main deck master cabin
- Exceptional build quality and cruising capabilities
- Only private use since delivery
- Built to LY3
Speed & Range
Maximum Speed: 13 knots
Cruising Speed: 11 knots
Fuel consumption: 60 L/H @ 10 knots
Range: 4,500nm @ 10 knots
Capacities
Fuel: 40,000 litres / 10,600 US gallons
Fresh Water: 6,000 litres / 1,585 US gallons
Grey Water: 2,100 litres / 550 US gallons
Black Water: 1,100 litres / 290 US gallons
Bilge: 1,100 litres / 290 US gallons
Dirty Lube Oil: 300 litres / 80 US gallons
Accommodations
Accommodation: 11 guests in 5 cabins
Crew: 6 crew in 3 cabins

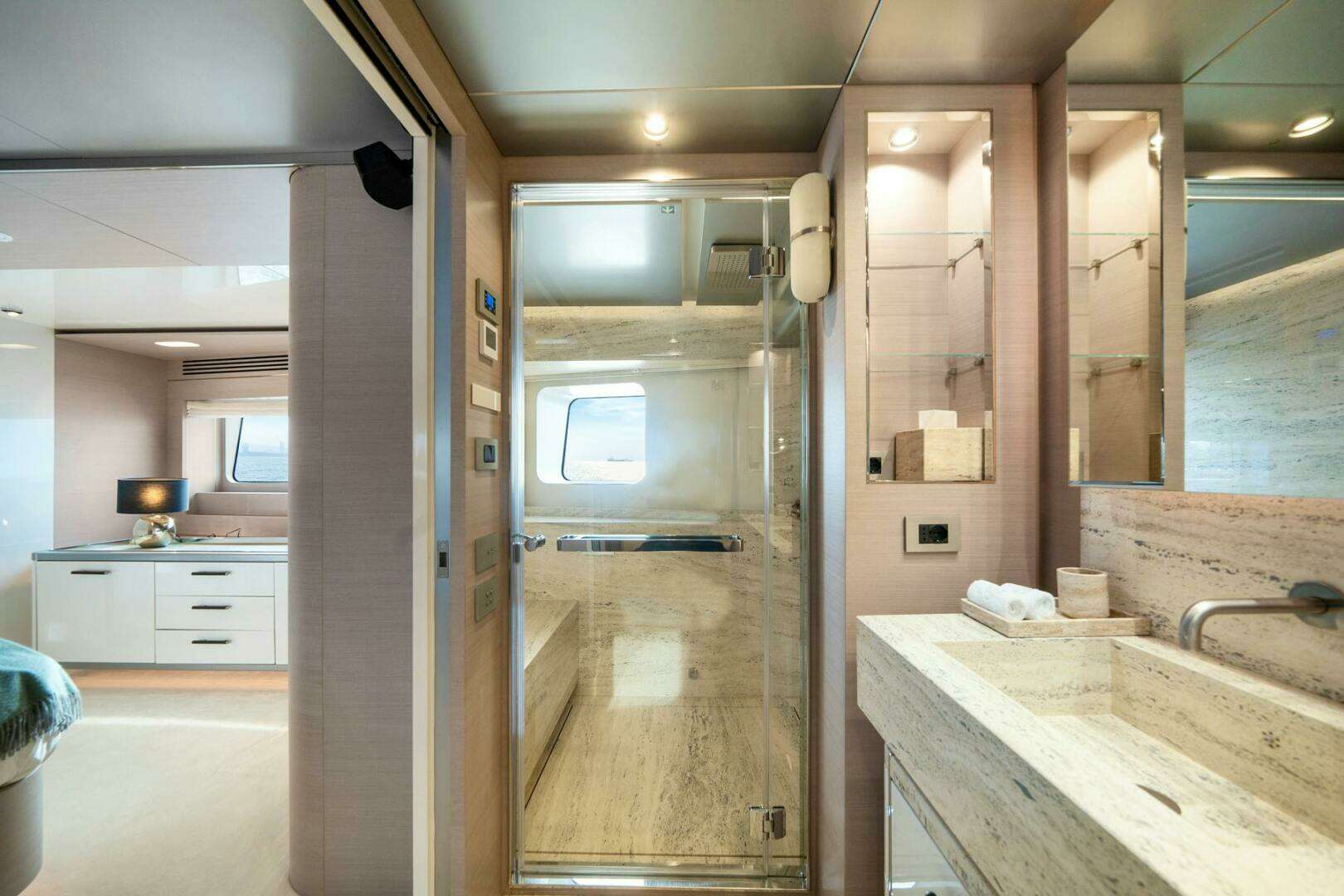

1 x Master cabin (main deck)
2 x Double cabins (lower deck)
2 x Twin cabins (lower deck, one with pullman)
1 x Captain cabin (bridge deck)
2 x Crew cabins (lower deck)

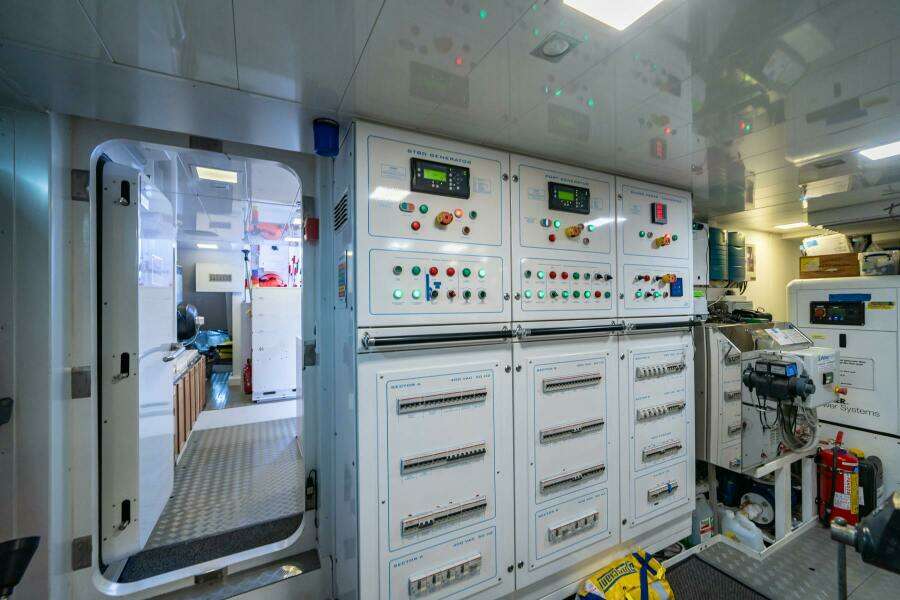

Mechanical Equipment
Engines: 2 x CAT C18 Acert 500kW 680hP
Port Engine Hours: 3,098
Starboard Engine Hours: 3,097
Bow Thruster: Electric 52kW
Stabilizers: CMC electrical (zero speed & underway)
Generators: 2 x 55kW Kohler
Electrical Output: 50 Hz 400V
Port Generator Hours: 6,780
Starboard Generator Hours: 6,760
Shore Power: Asea 50/60 Hz 100v / 400v
Drive: Shafts, both replaced 2024
Gearboxes: ZF
Steering: CMC rudders
Auxiliary Equipment
Underwater Lighting: 6
Water Maker: Idromar IDM 9 Duplex 7,200 L/Day
Water Treatment: Idromar Sterilize UV SH 8000
Water Pressure: 2 x Feit
Desalinisation: Idromar Combe
Sewage: Selmar black water treatment
Fuel Filters: Separds
Fuel Oil Separator: Alfa Laval
Tender Fuel Pump: Located in lazarette
Bilge Water Separator: Poseidon
Dirty Oil Pump: Indemar GP 707 24 Reverso
Firefighting & Bilge Pump: 2 x Electric Feit Pompe
Emergency Pump: 1 x Diesel pump in lazarette
Black Water Treatment: Selma Blue Sea 2500 Plus
WC: Tecma
Discharge Pumps: 2 x Feit
Airconditioning: 2 x Tropical chiller Condaria
Boiler: 4 x 8kw
Air Compressor: EAC MLR 40 10 Tri DD + Dryer MSR 6
Garbage Locker: 2 x Frigoboat SL46/121
ER Ventilation: Feit
Deck Equipment
Anchor Windlasses: 2 x Muir VRC 6000
Docking Capstan: 2 Muir VC 4000
Anchors: 2 x 230 Kg
Anchor Chains: 2 x Poseidon 16mm (140m new 2024)
Crane: Sanguinettti 2T
Passarelle: Bitecnomare Electro-hydraulic “Magnum Due” 5.3m
Stern Boarding Transformer: Opacmare
Exterior Paint: Alexseal
Bottom Paint: Hempel
Jacuzzi: Sundeck
Navigation Equipment
Monitors: 4 x Hatteland 19”
X Band Radar: ARPA FAR 2117BB 12kW IMO
S Band Radar: Furuno NAVNET 3D
Depth Echo Sounder: Furuno DFF1 / Wassap
Magnetic Compass: Furuno PG500
SAT Compass: Furuno SSSC50
Autopilot: Furuno Nav 70
Rudder Angle: Kobelt
GPS: Furuno GP170
DGPS: Furuno GP33
AISL Furuno AIS Class A FA 170
NAVTEX: Furuno NX700
Wind Instruments: Furuno
Horn: Kahlenberg
Search Light: Sanshing
Night Vision Camera: FLIR
Navigation Watch Alarm: Furuno BR510
Internet: Star Link / Peplink 5G
Inmarsat C: Furuno Felcom18
Electronic Charts: Timezero & Navnet 3D
VHF: Furuno DSC Class A GMDSS
Telephone System: Panasonic KXTS500
SART: ACR Pathfinder Pro
SSB: Furuno FS 55475C
Antennas: Tracvision TV8 KVH
Safety & Security
CCTV: Dahua 5 x Camera
Fixed Firefighting: 4 x Aerosol
Firefighting Tanks: 2 x Draeger
EEBD: 4
Masks: 6 x smoke
Extinguishers: 25 (Lithium, Foam, CO2, ABC Powder)
Fireman Suits: 2
Gas Detector: Consilium
Burglar Alarm: Bentel
Life rafts: 4 x Arimar A Pack 10 Person
Lifejackets: 20 x Valerna Giorgio 150nt. 4 x Infant
Immersion Suits: 2 x Adult, 2 x Children
Life Rings: 5
EPIRBS: Jotron Tron 60S
Flares: 12 (Smoke, Hand & Rocket)
Line thrower: 2 x PainWessex 250
Entertainment Equipment
Owner’s Cabin
TV 50” Samsung HD Smart
Lifestyle 235 Bose system
DVD Denon
Apple TV
Jacob Jensen Telephone
Main Salon
Russound muli-channel amp
Subwoofer 300W
2 x Bose 130W speakers
Apple Airport Express
Sonos Sound System
Jacob Jensen Telephone
Sky Lounge
TV 65’’ Samsung full-HD Smart TV
Lifestyle 525 BOSE system
DVD Bluray Denon
Apple TV
Telephone Jacob Jensen
5 x B&W Speakers
Sonos Sound System
VIP Cabins
TV 40’’ Samsung full-HD smart TV LED
Russound multi-channel amp
Apple TV
2 x Bose 50 W speakers
Jacob Jensen Telephone
Guest Cabins
TV 22’’ Samsung
Russound multi-channel amp
Apple TV
2 x Speakers Bose 50 W
Jacob Jensen Telephone
Bridge
Russound multi-channel amplifier
Airport Express Apple
2 x Speakers 80 W
Panasonic / display LCD Telephone
Dinette
TV 22’’ Samsung
Russound multi-channel amplifier
2 x Speakers Bose 50 W
Apple TV
Lazarette
Russound multi-channel amplifier
2 x Speakers JL Audio 80 W
Apple Airport Express
Galley
Russound multi-channel amplifier
2 x Speakers 80 W
Apple Airport Express
Telephone Jacob Jensen
Main Deck Aft
TV 50’’ Samsung full-HD smart TV led + pop down system • Apple TV
Apple Airport Express
Amplifier multi-channel Bose 4x250 W
2 x Speakers 130 W
Bridge Deck Aft
Apple Airport Express
Amplifier multi-channel Bose 4 x 250 W
2 x Speakers 130 W
Sundeck
Apple Airport Express
Amplifier multi-channel bose 4x205 W • Subwoofer Jl-Audio Marine 250 W
2 x Speakers 130 W
Galley & Laundry

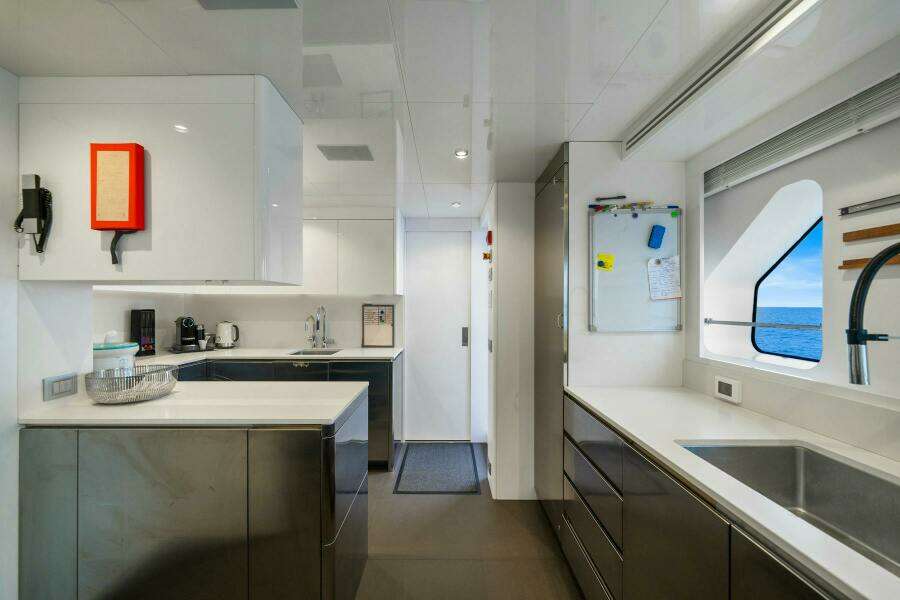

Galley
Miele hob KM 6381 – 90cm – 26638172
Miele cooker hood DA 3496 - 28349655
Miele dishwasher PG 8133 MAR SCVI – 61813364
Miele fridge/freezer KFN 37432 iDE – 383743520
Miele fridge K 37673 iD – 36376730
Miele freezer FNS 37402 I – 37374021
Miele oven + microwave H 6600 BM – 22660054
Miele oven H 6890 BP – 22689053
Miele wine cellar KWT 6321 UG - 3663100
Dinette
Fridge FR 80 RC
Lazarette
Miele washing machine WMH 121 WLW - 11MH1213
Miele tumble drier TKR 650 WP chrome 9kg. - 12KR6502
Miele combo washing- drier WTZH130 WPM
Freezer
Sundeck
Lynx BBQ LP 0-0C27
Isotherm icemaker Ice Drink Clear
Frigonautica fridge FR 50 RC
Frigonautica fridge FR 80 RC
Bridge Deck Aft
Isotherm fridge drawer box DR 105 L Inox
Barline icemaker B3015
Main Deck Aft
Isotherm freezer Cruise 90 Inox
Isotherm fridge drawer box DR 105 L Inox
Tender & Toys

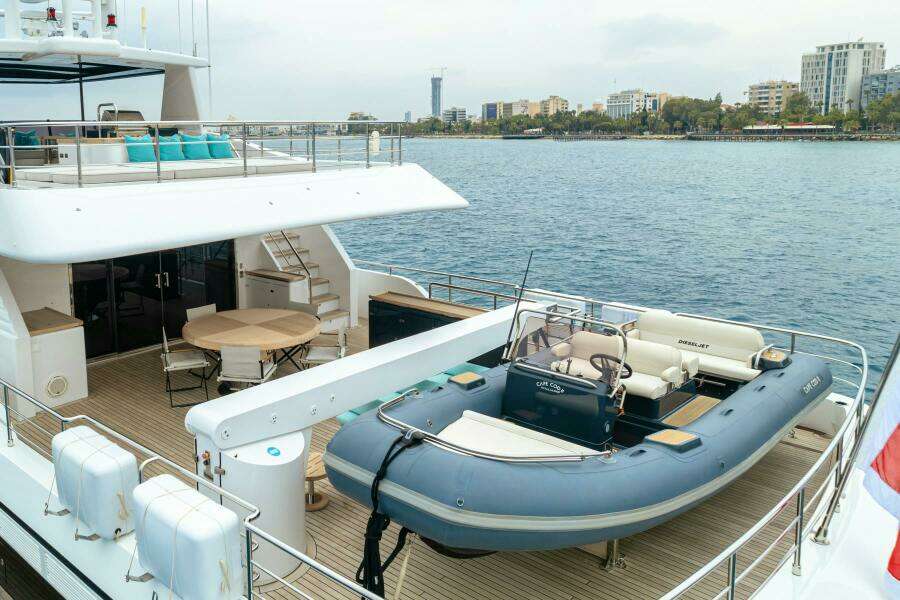

Tender: Williams 565 Diesel
Toys: 2 x Seabob
Dive Equipment: 1 Set + Compressor
