2016 Aydos Yat 100'

30.70 m
2,995,000 Euros
LE BEAU RIVAGE 9 AVENUE D'OSTENDE, , 98000FRMonaco Monaco 98000 FR
Yachtr

2016 Aydos Yat 100' Custom

  • 2022
  • 30.70 m
  • Diesel
  • Power
  • Expedition Yacht
Imperia, Italy
In Stock #2806017

2016 Aydos Yat Custom

Refit Year: 2022

100' (30.70 m) ZEEMAR

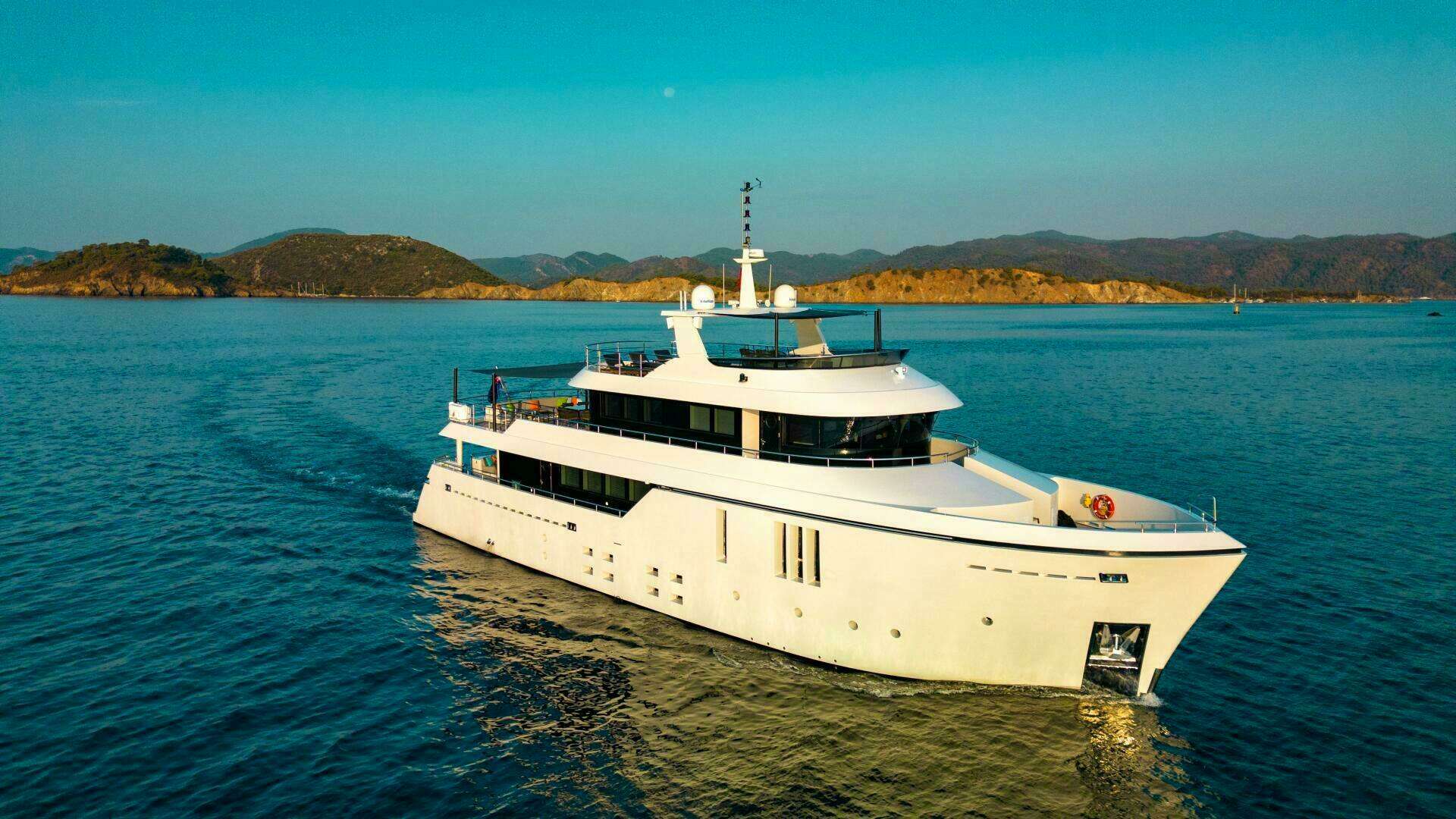

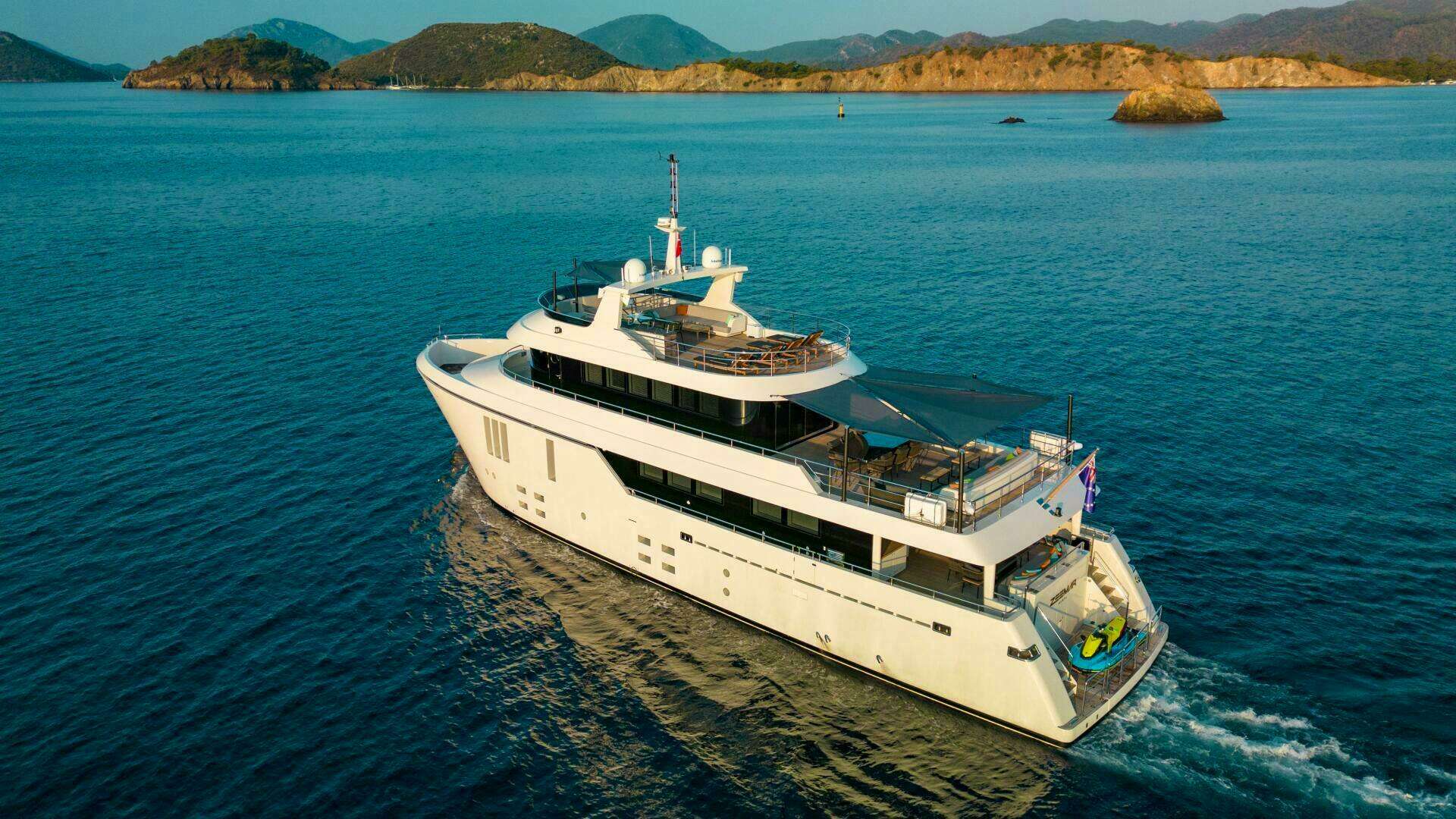

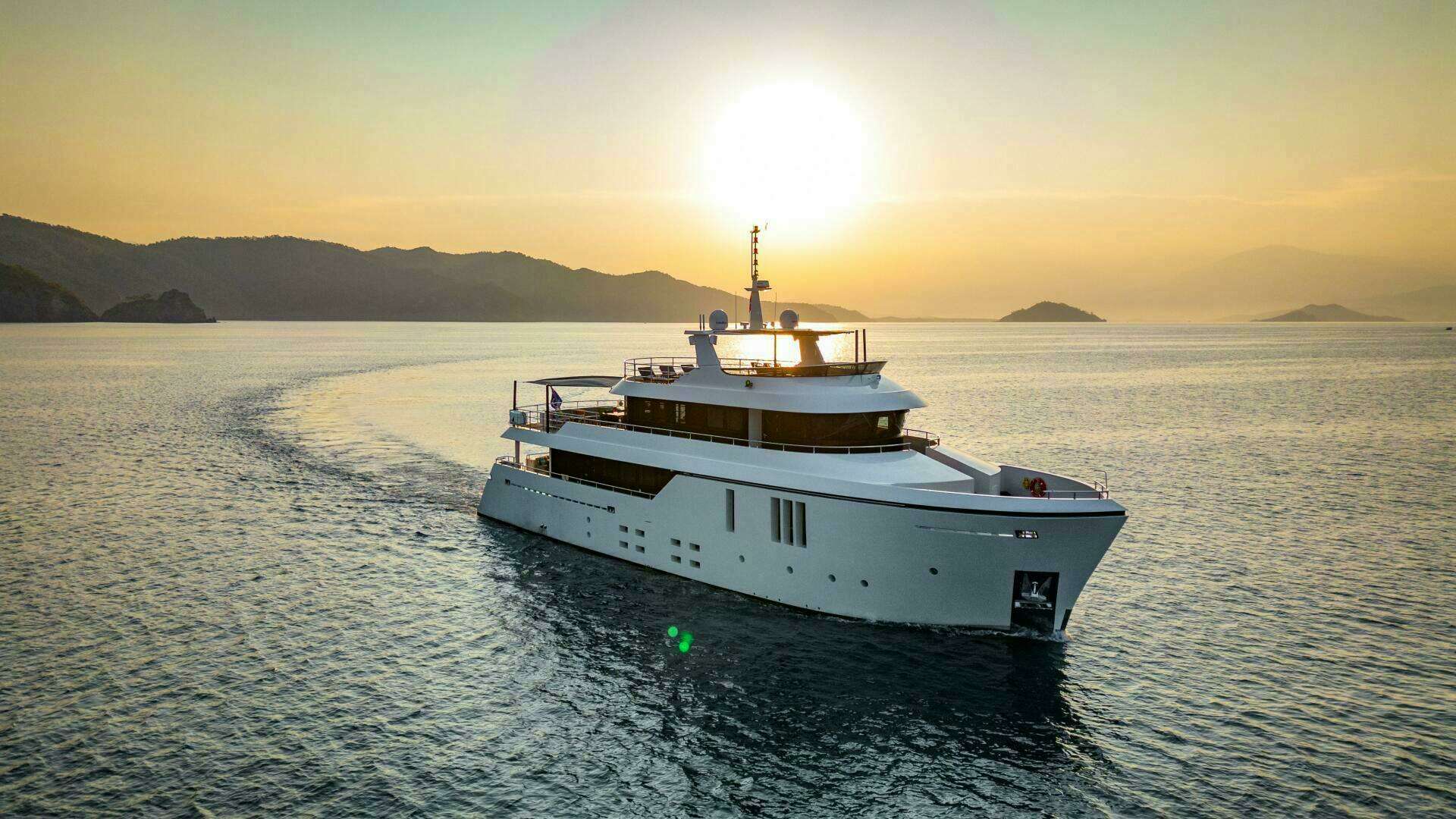

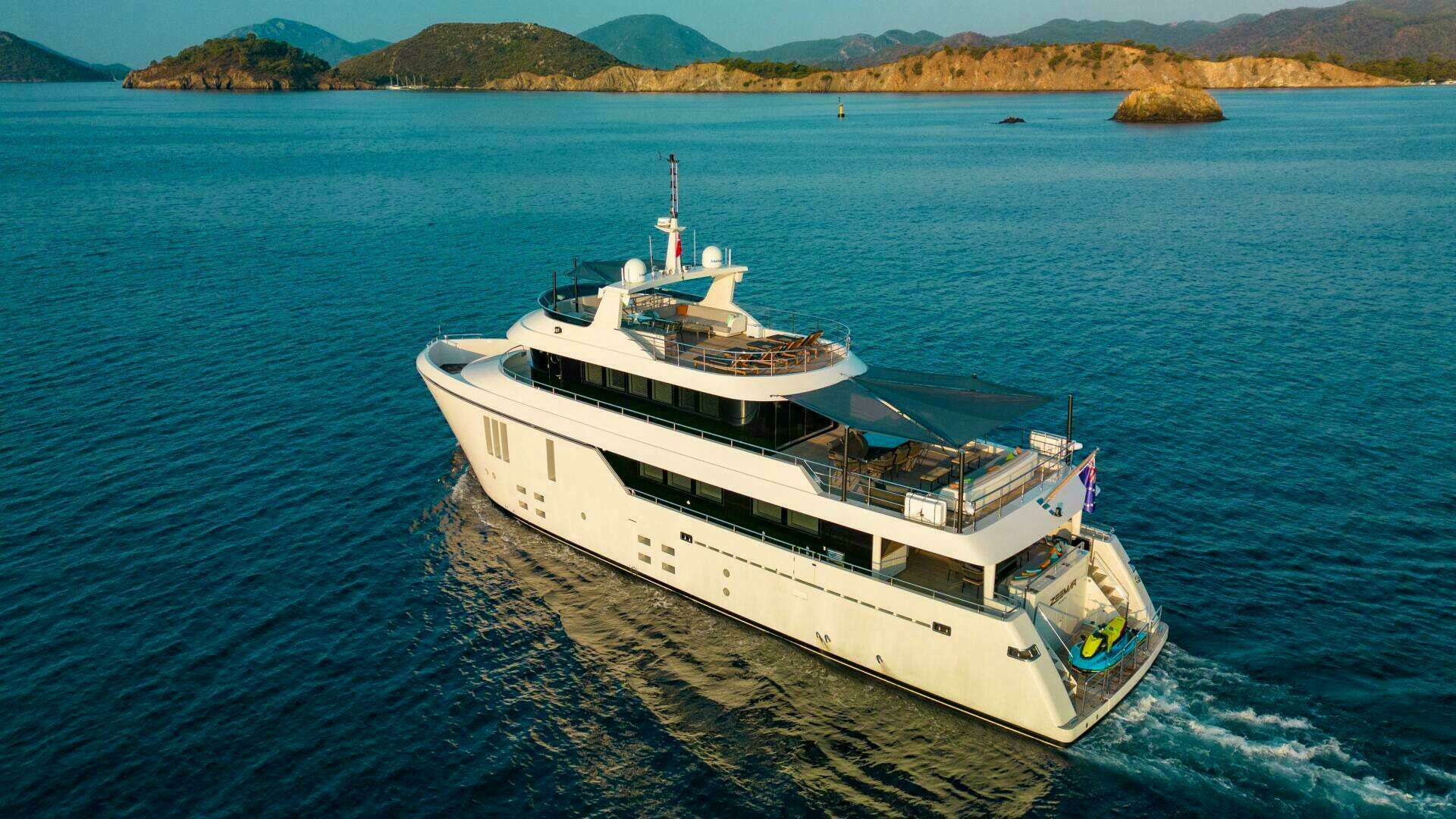

ZEEMAR is a 30.5m custom yacht built by Aydos Yatcilik delivered in 2016. Following an extensive refit in 2022, including the re-introduction to RINA classification, ZEEMAR has been maintained to a high standard.

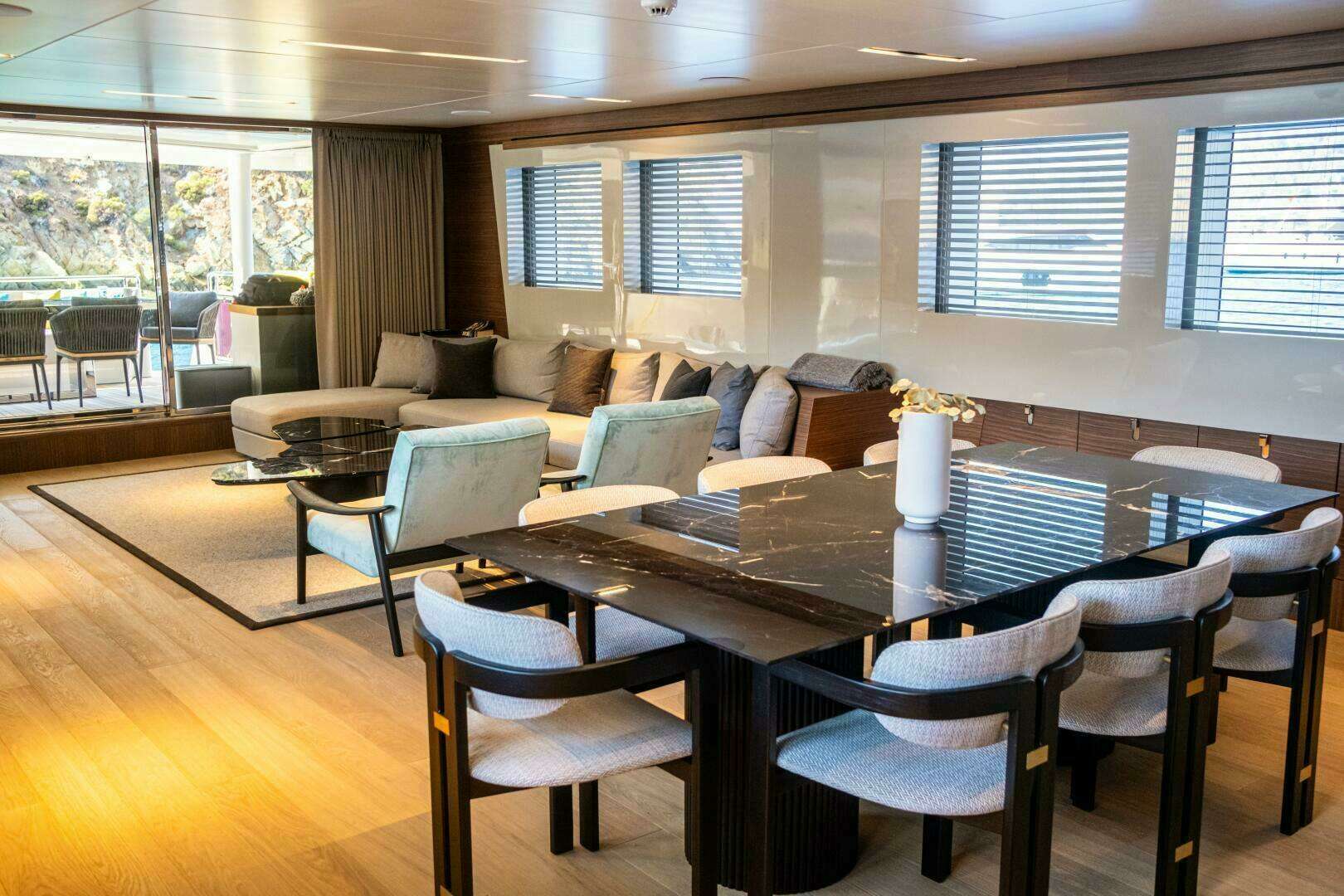

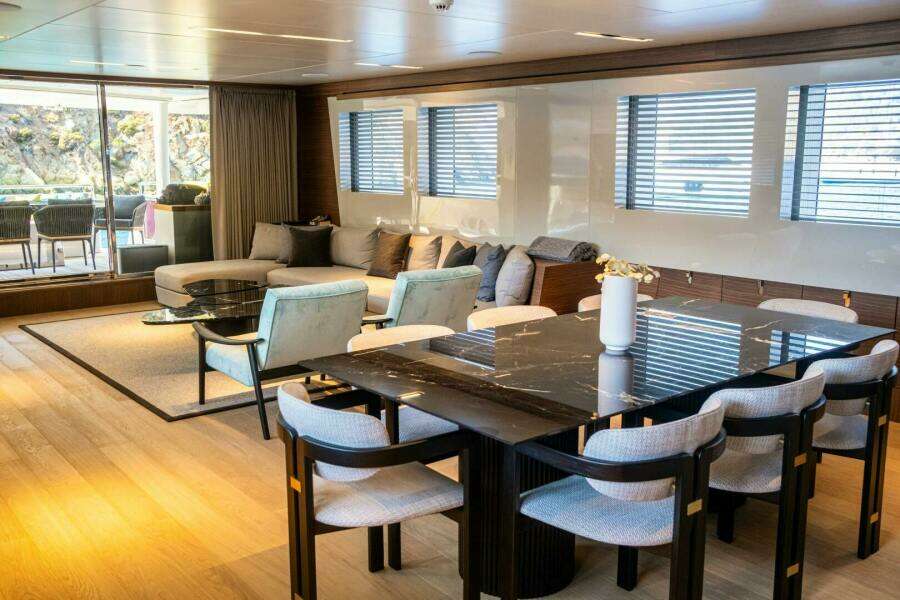

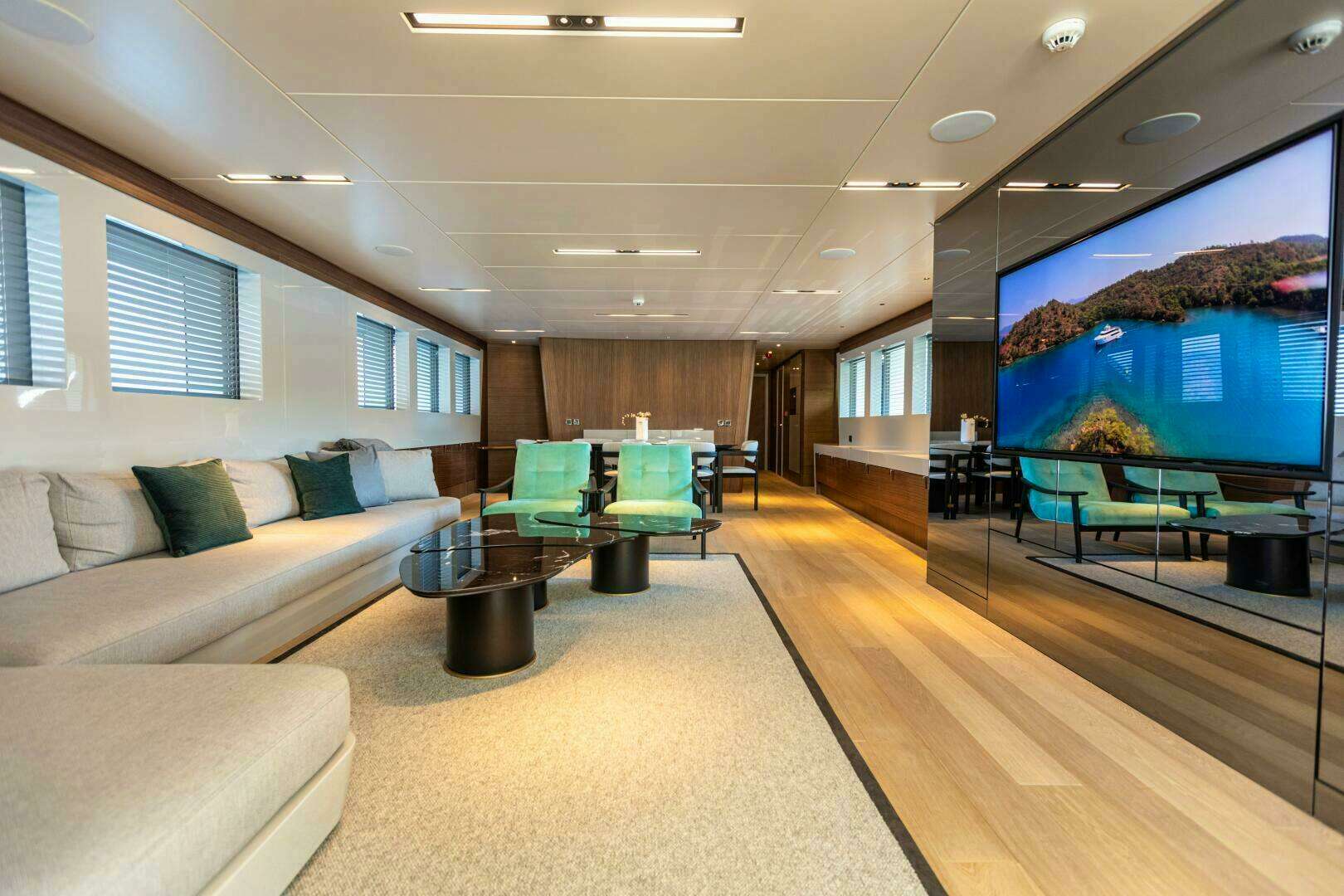

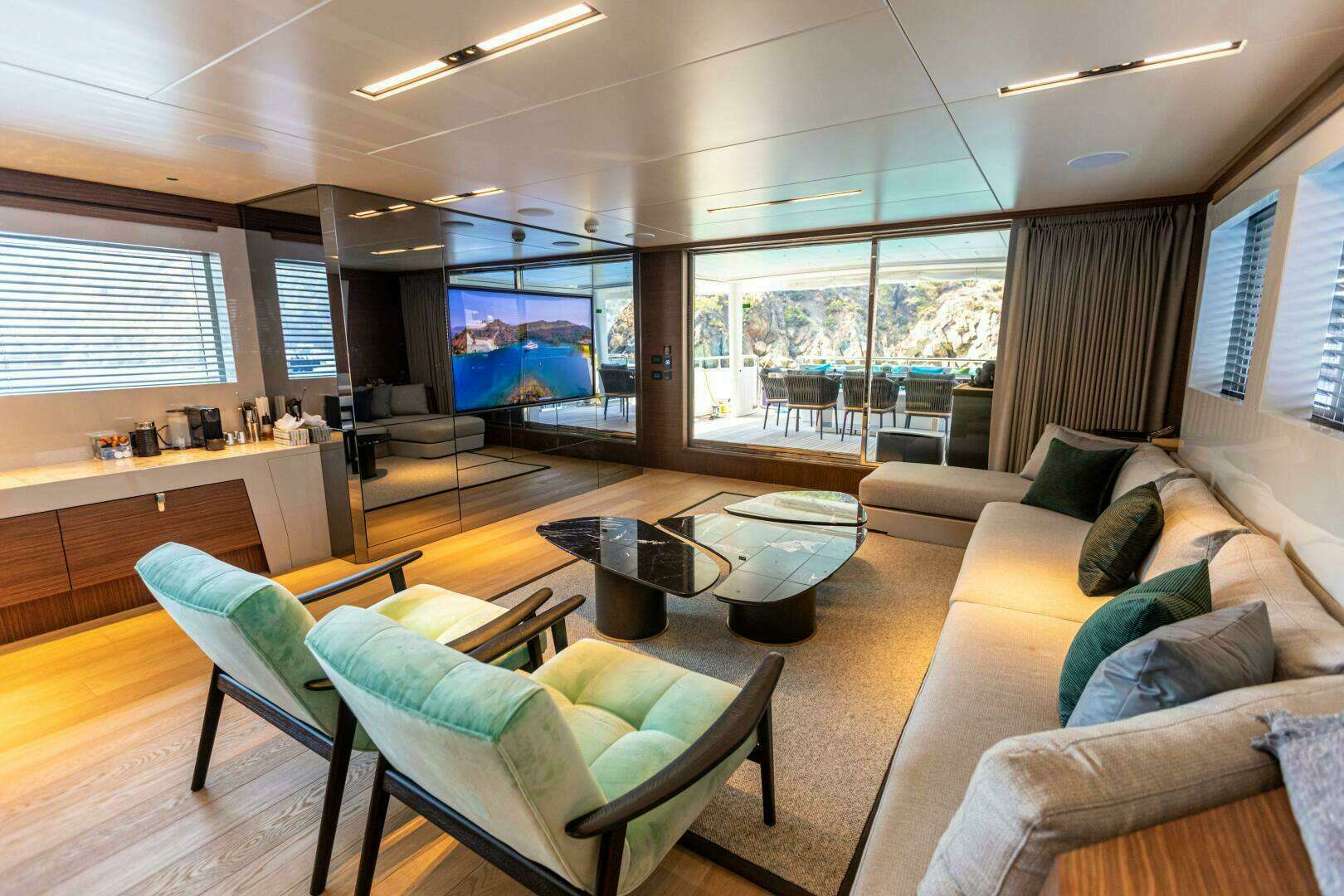

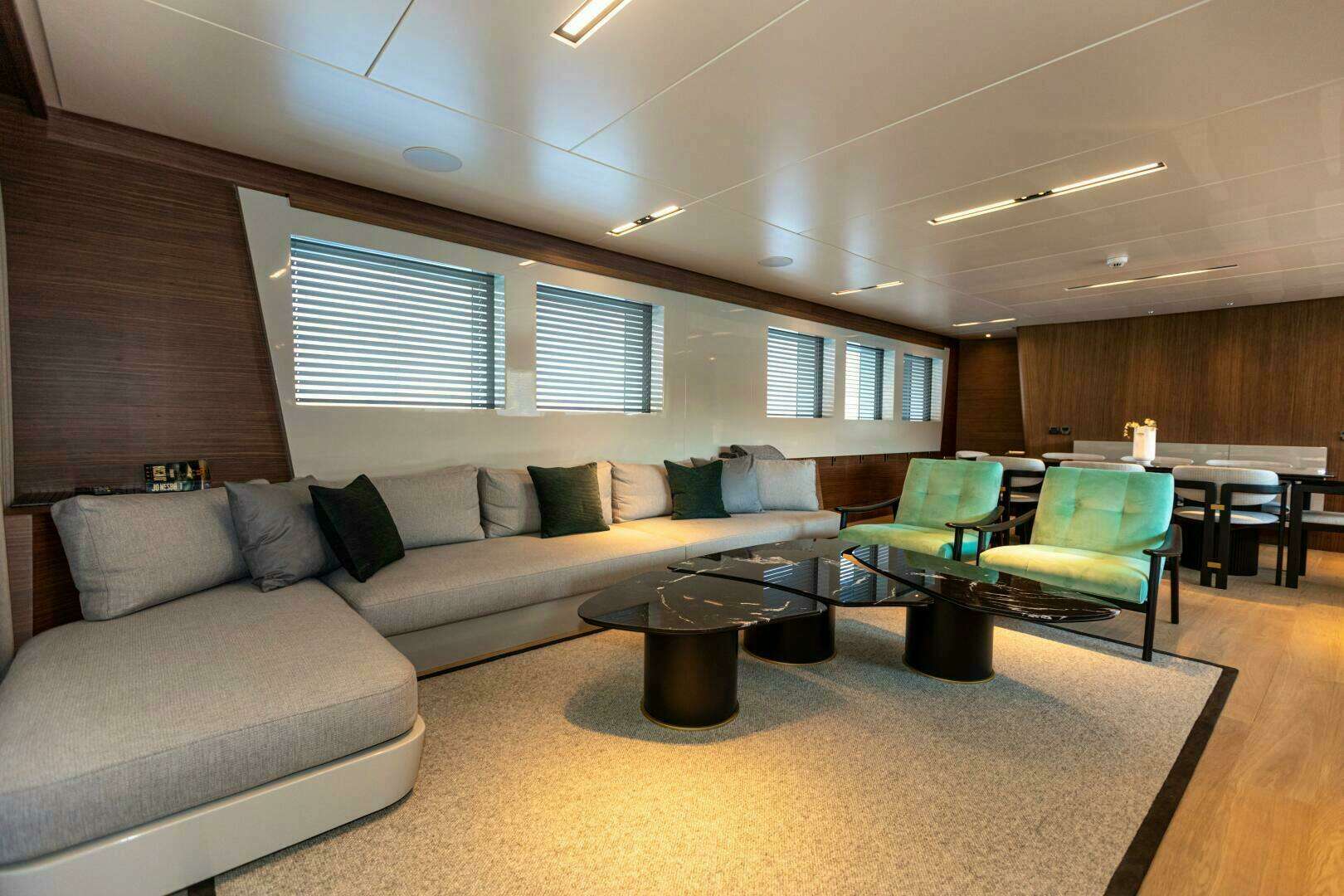

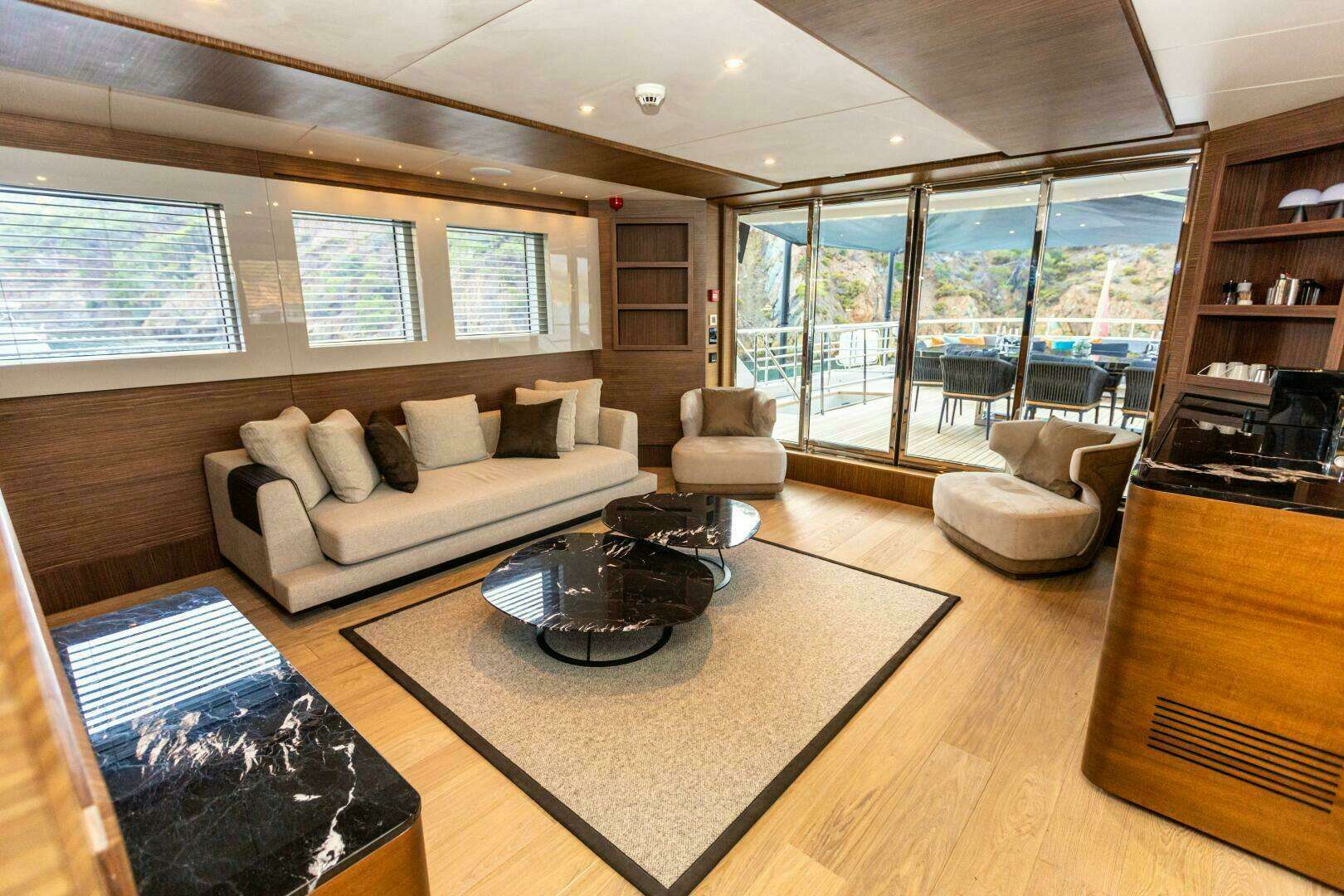

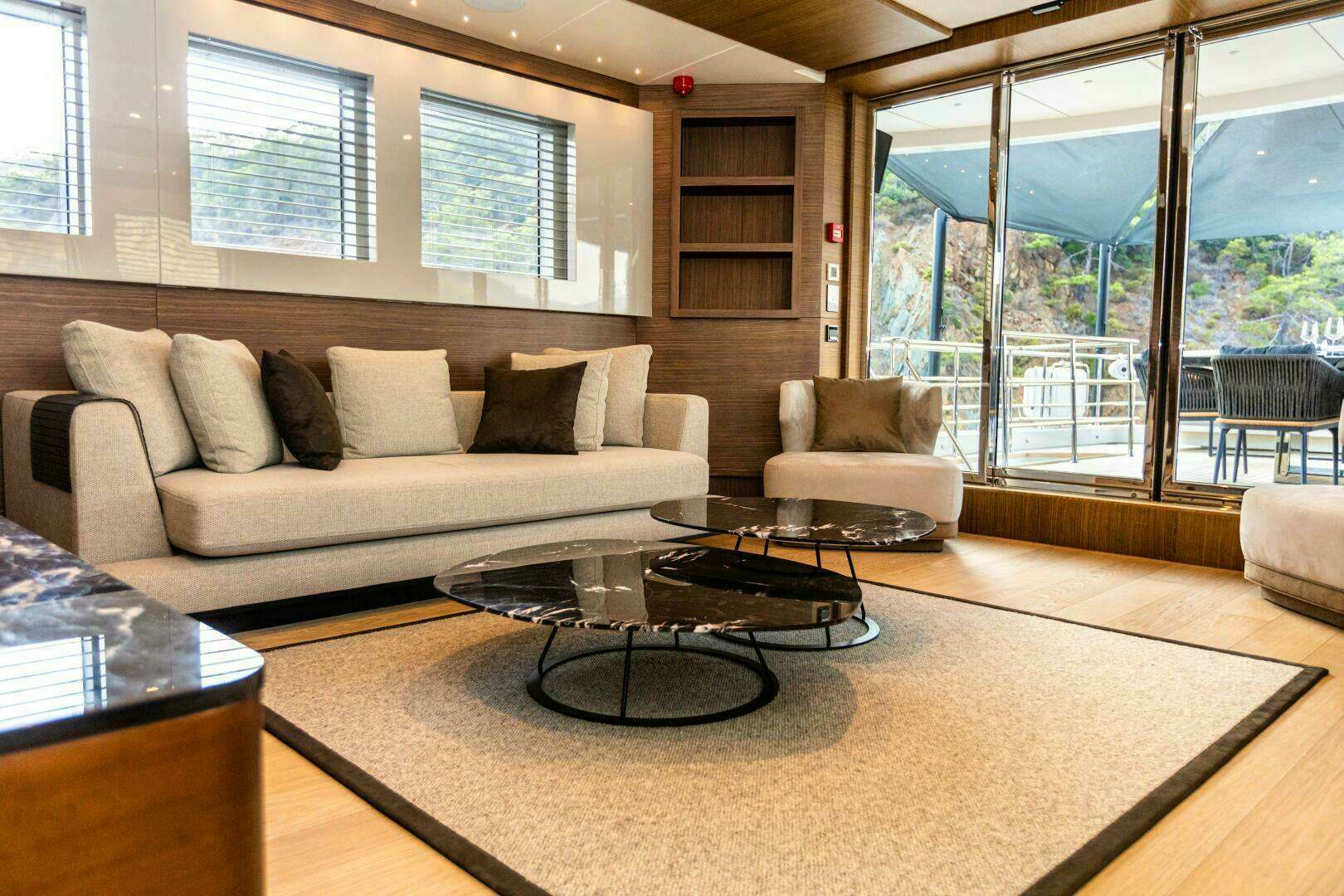

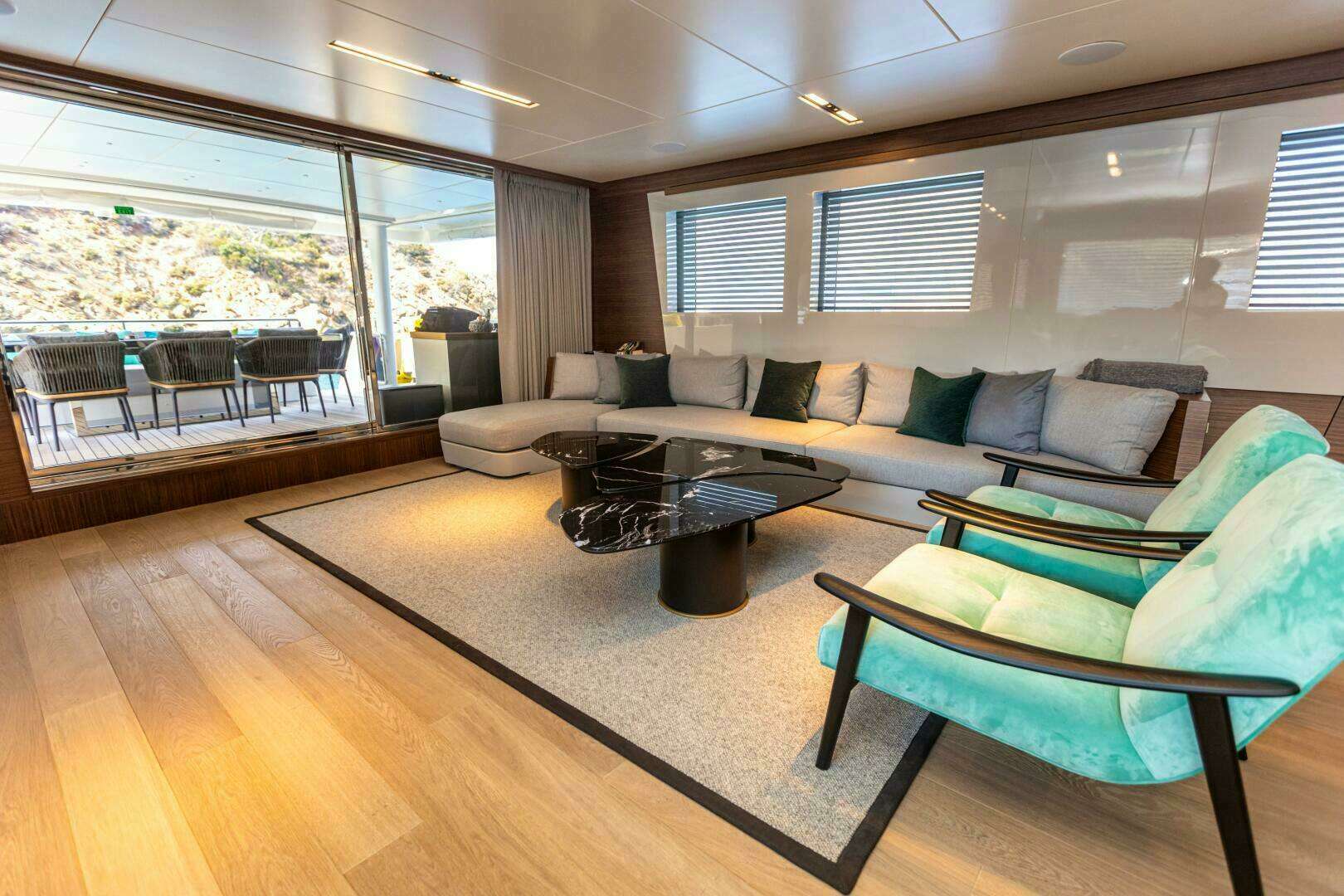

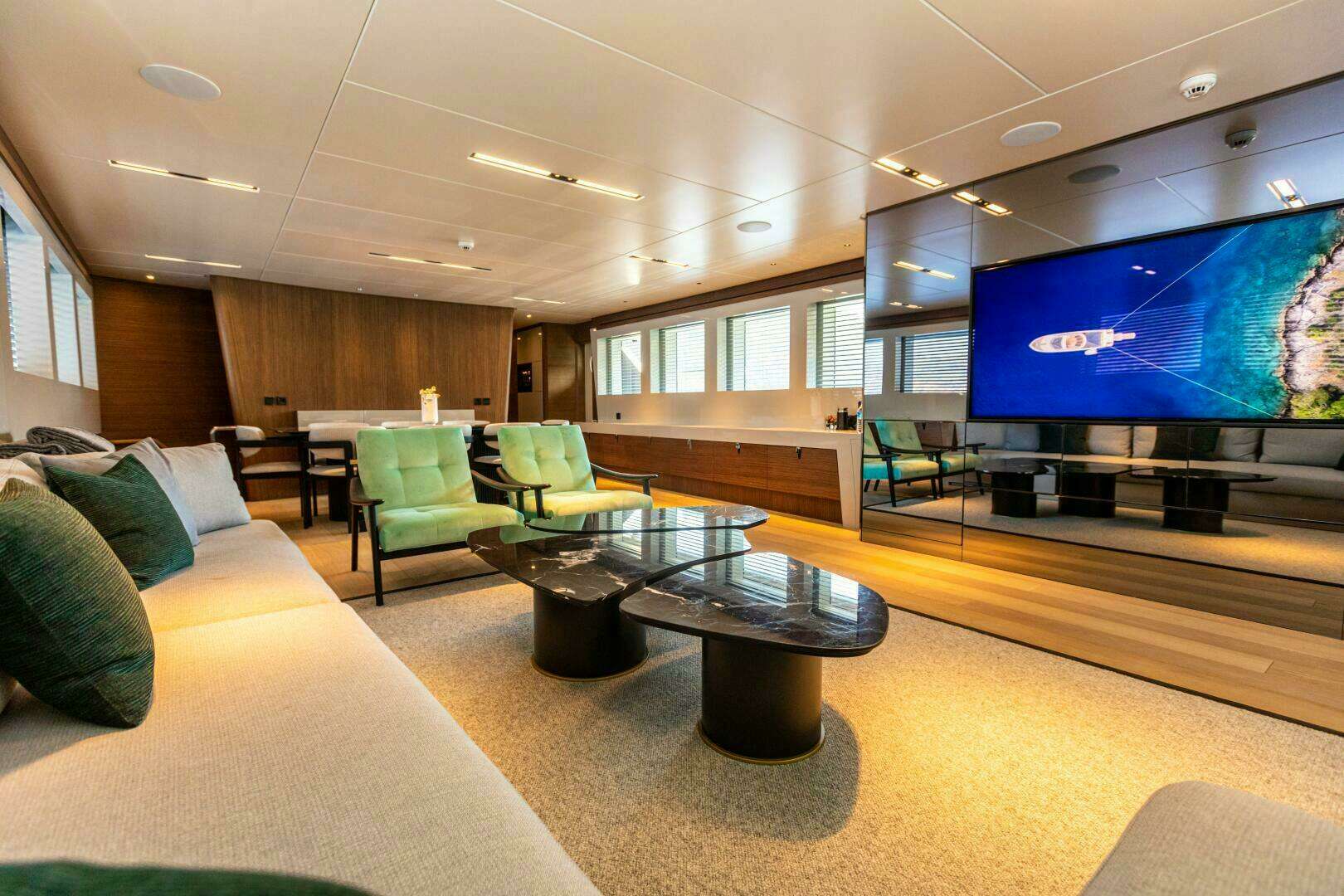

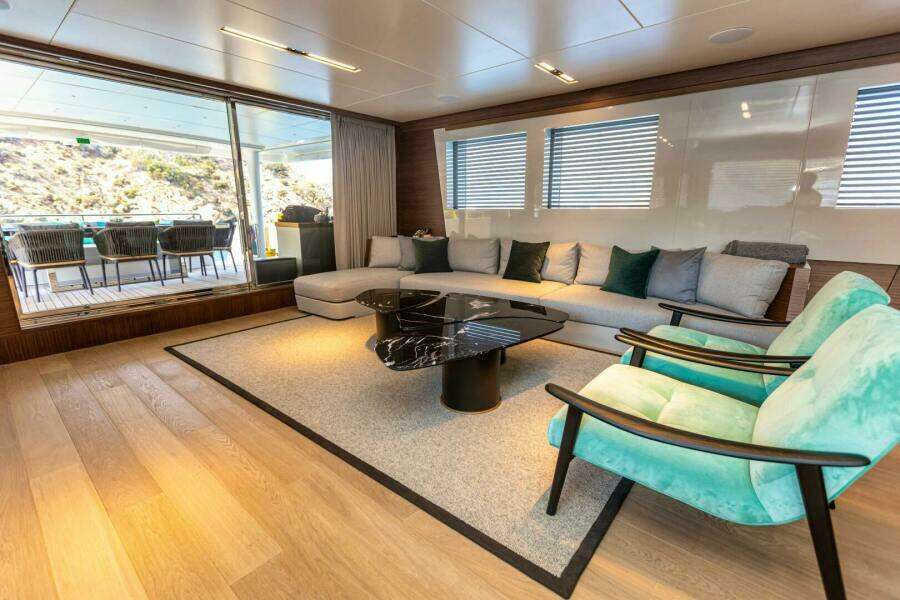

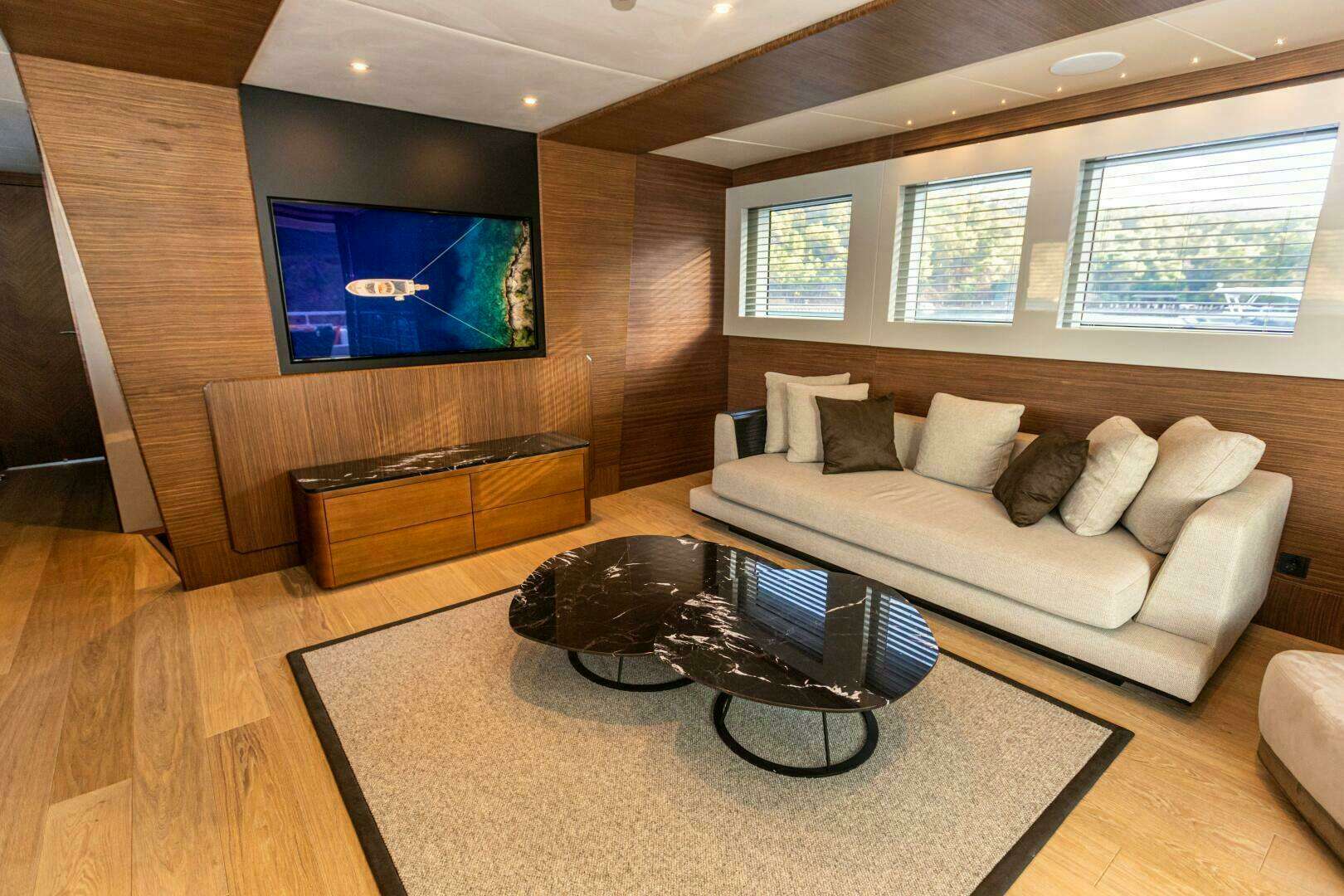

As you enter through the spacious sliding glass door from the cockpit, you're greeted by the inviting main salon. The custom-made "L" shaped seating arrangement with a marble-top coffee table and mint green chairs creates an atmosphere of relaxation and style. A 55” TV mounted in a glass cabinet ensures entertainment from any angle, while large windows infuse the space with natural light. Automated ascetic blinds offer privacy during evenings. Further forward is the dining area with a large marble table and seating for up to eight guests.

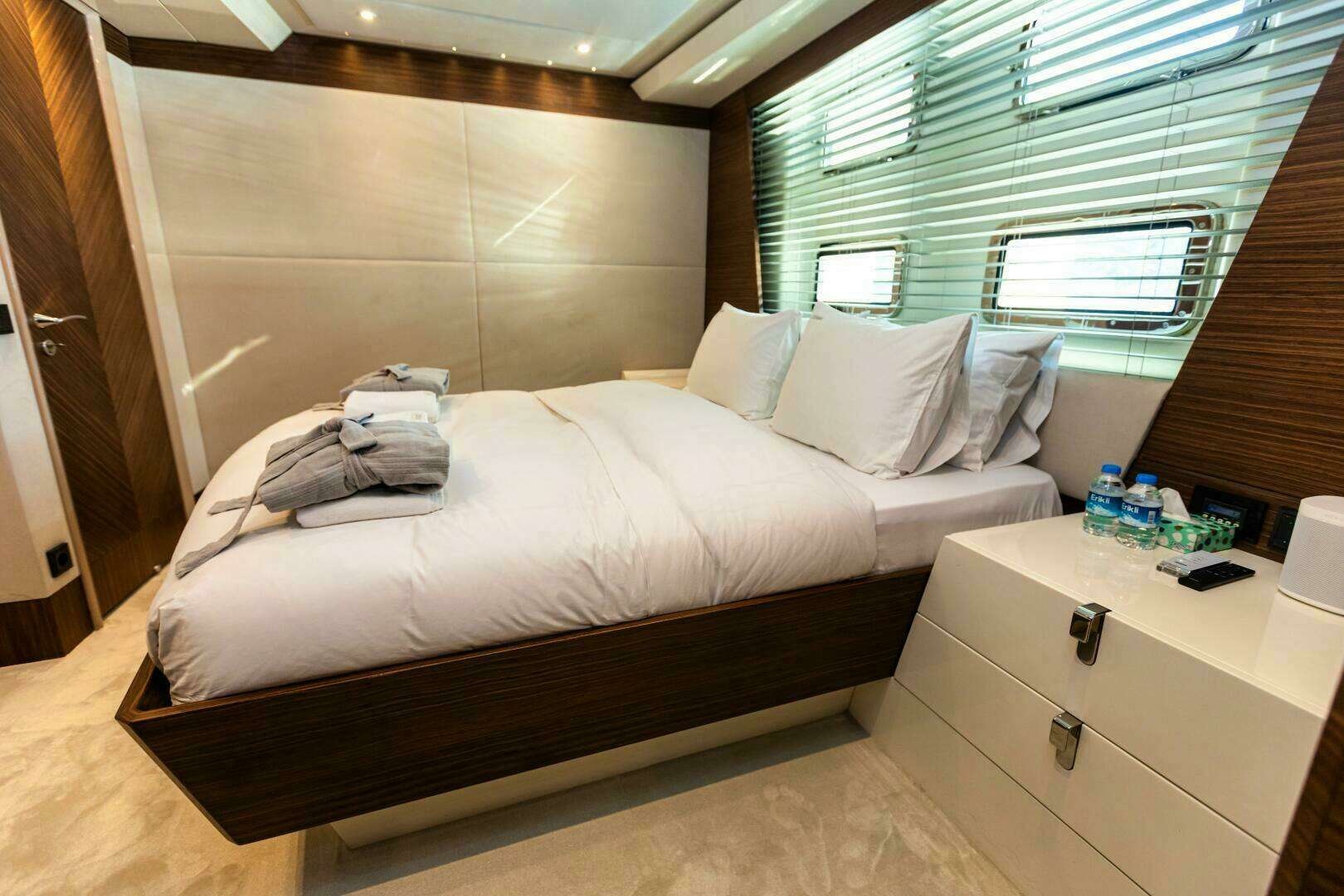

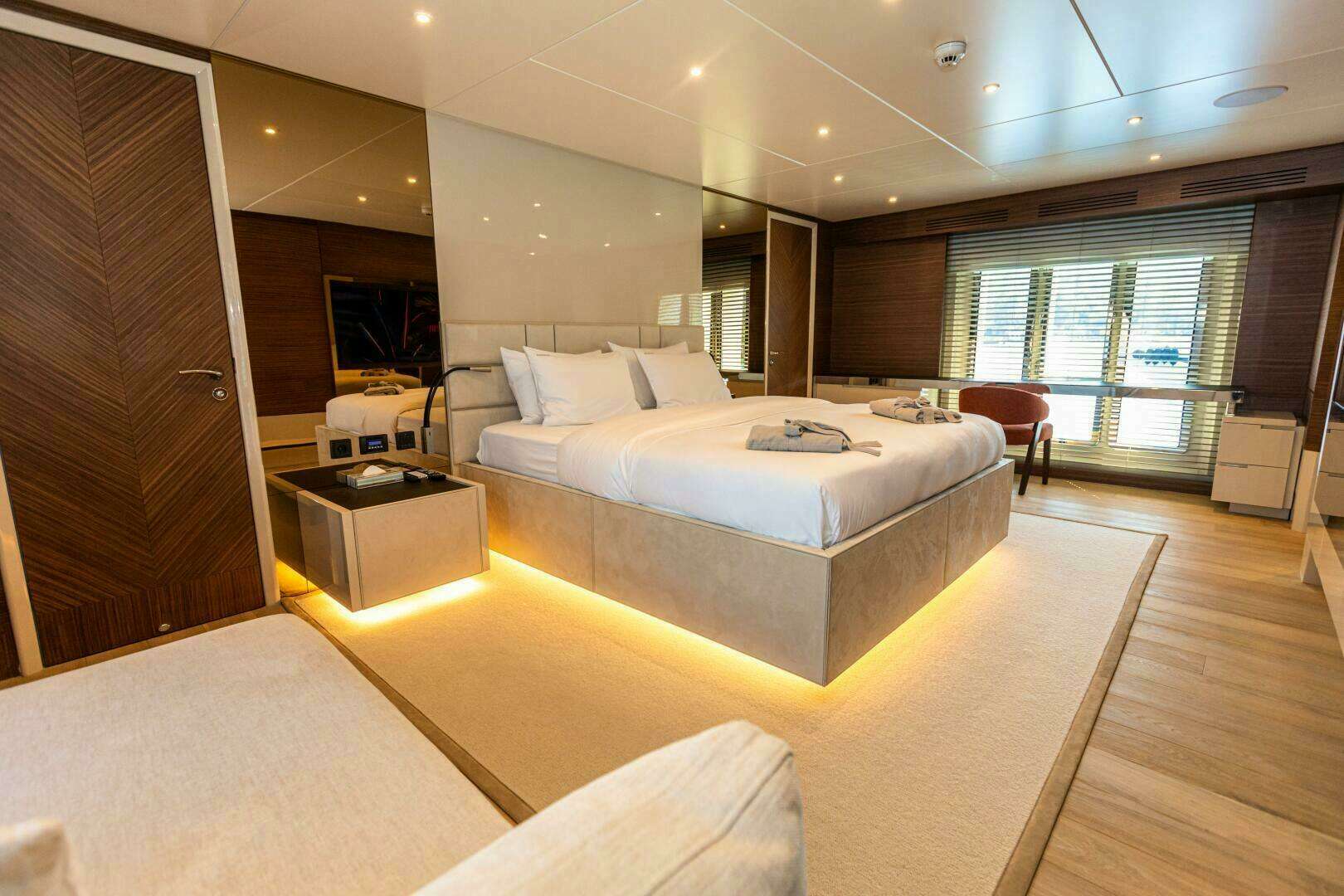

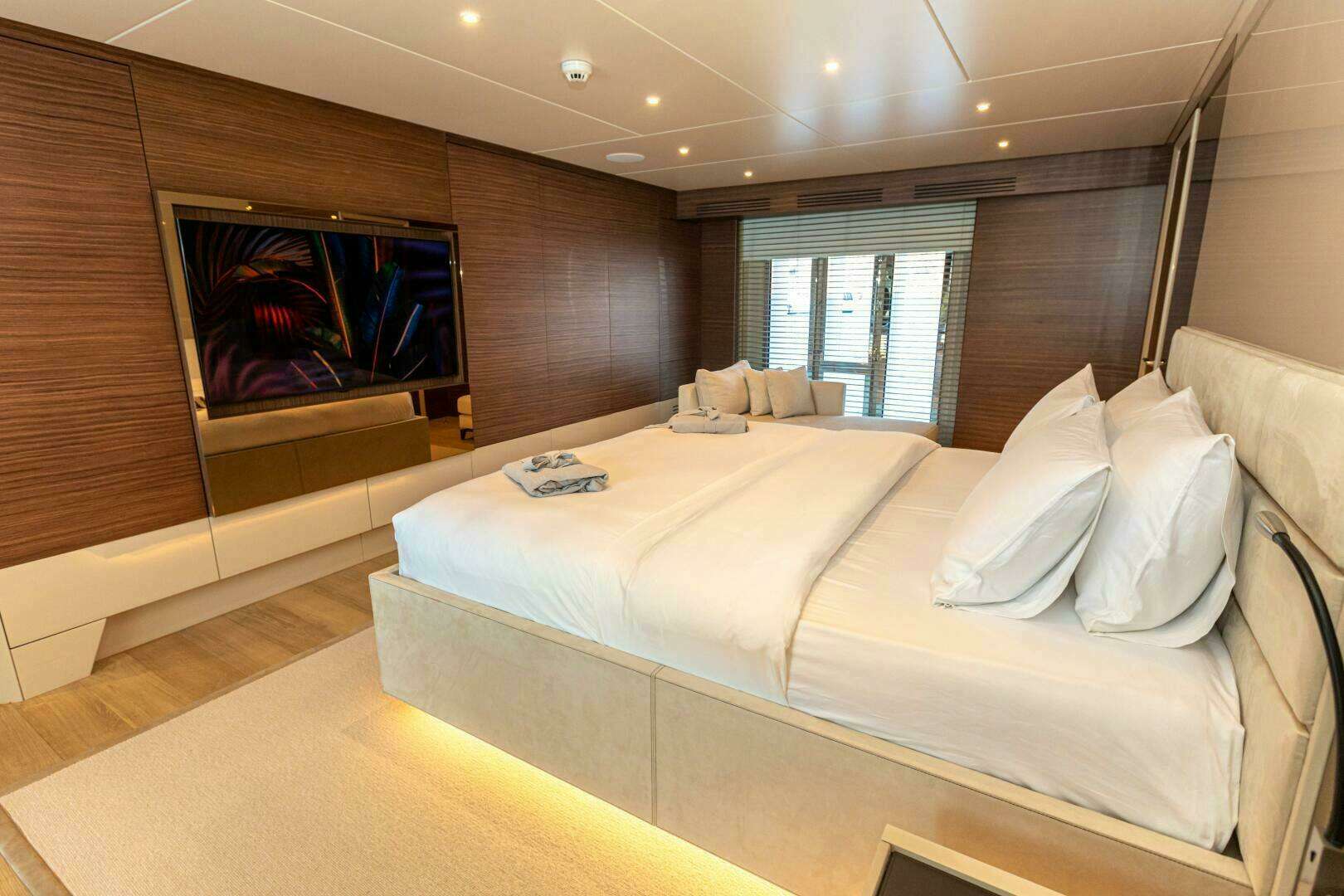

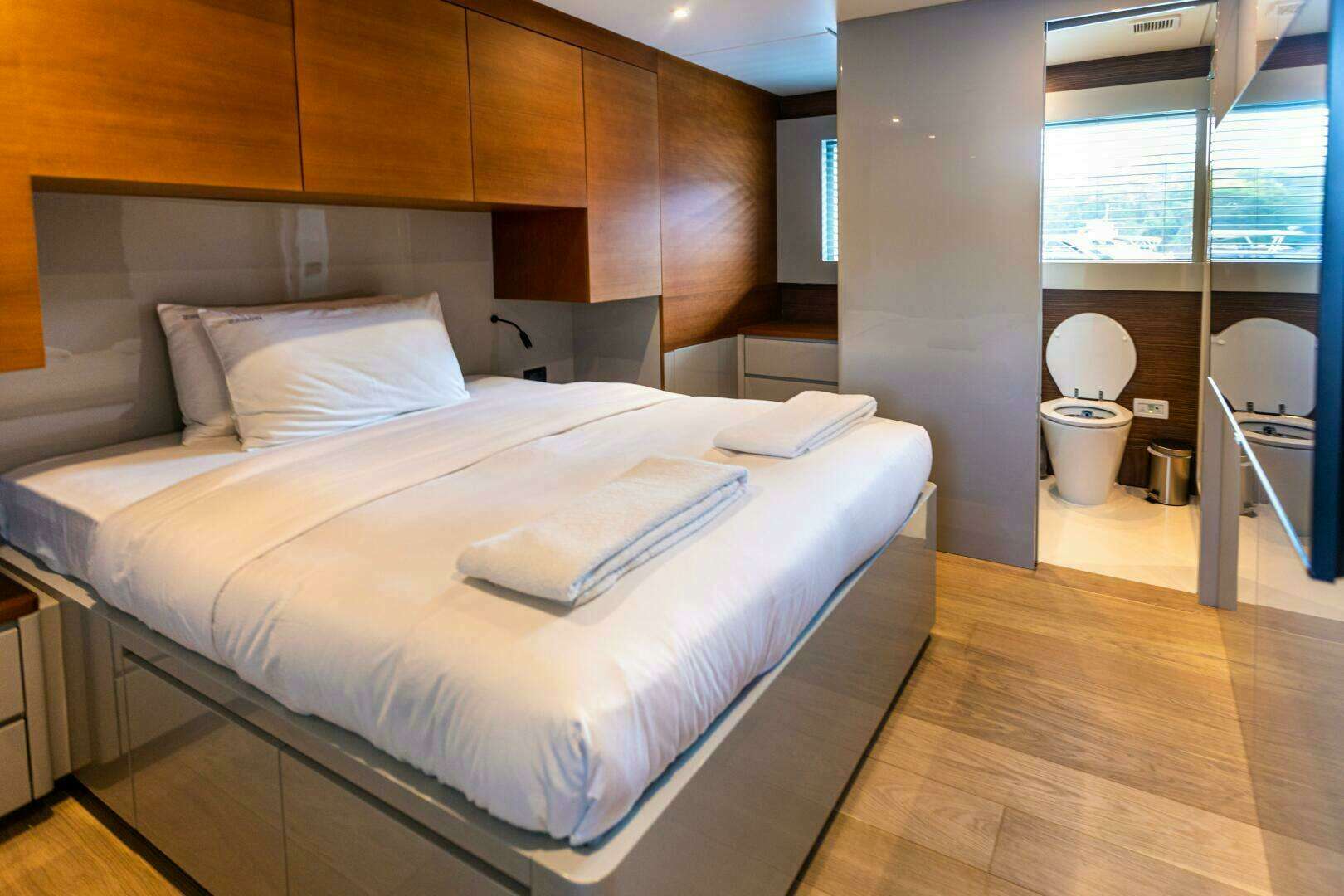

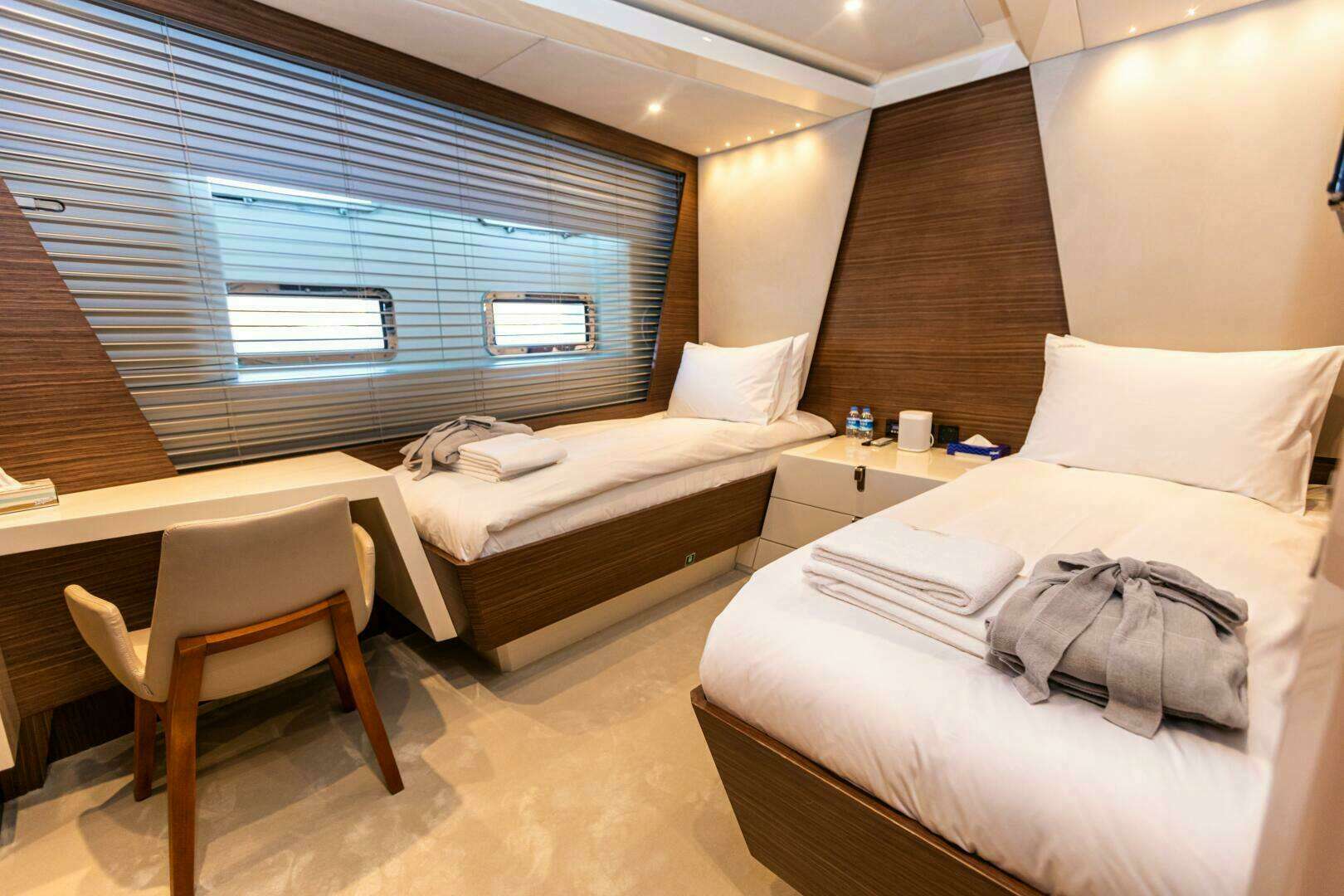

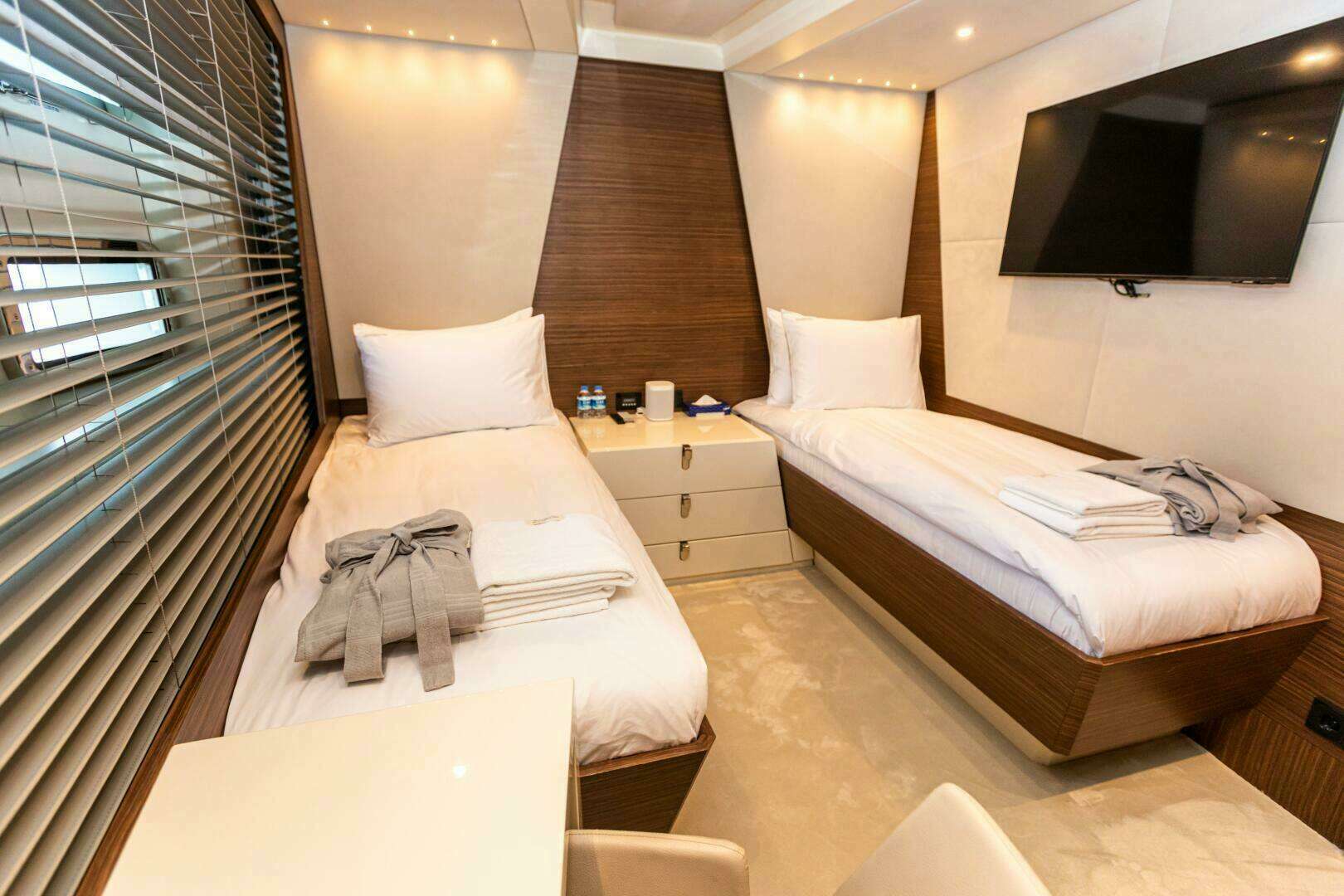

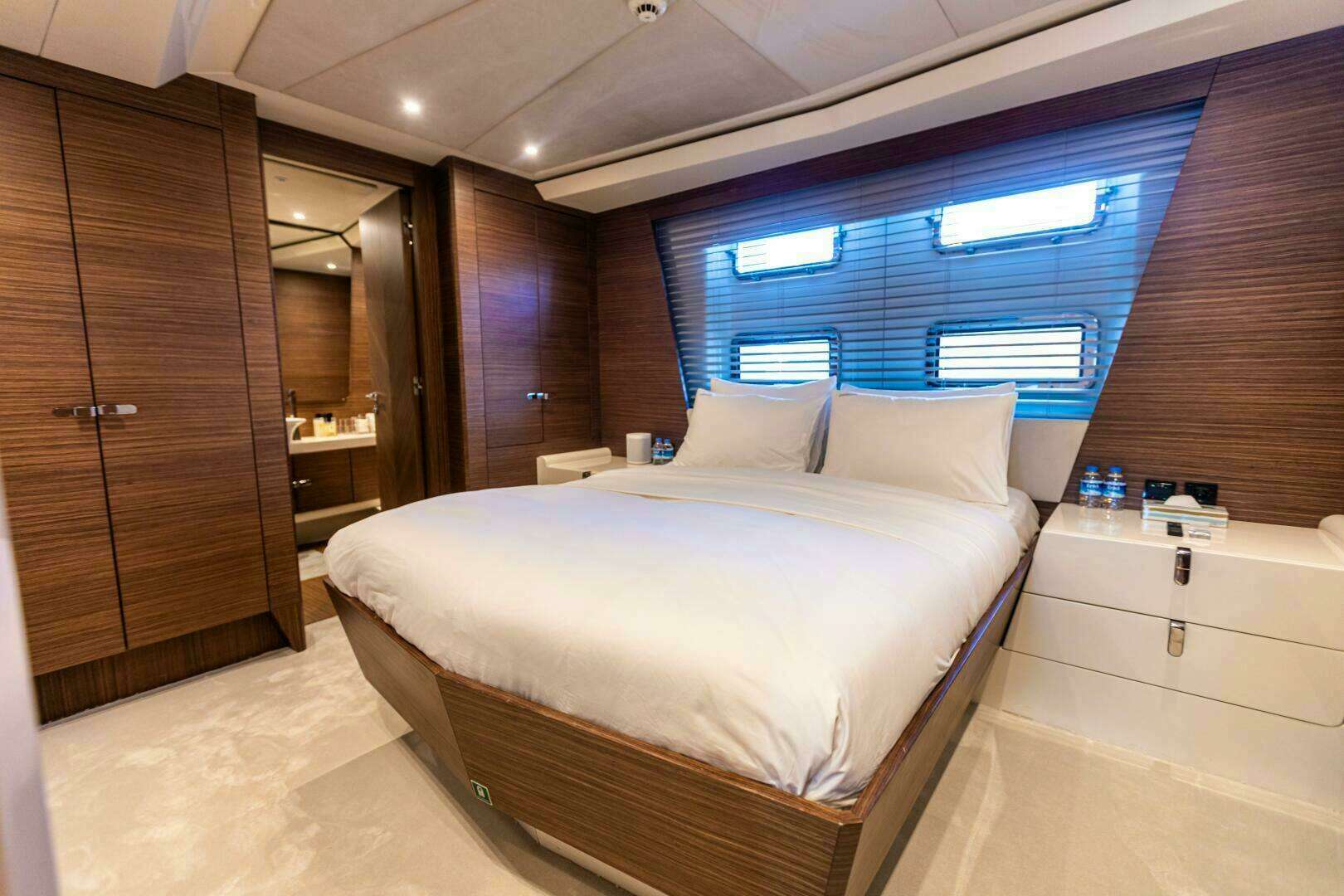

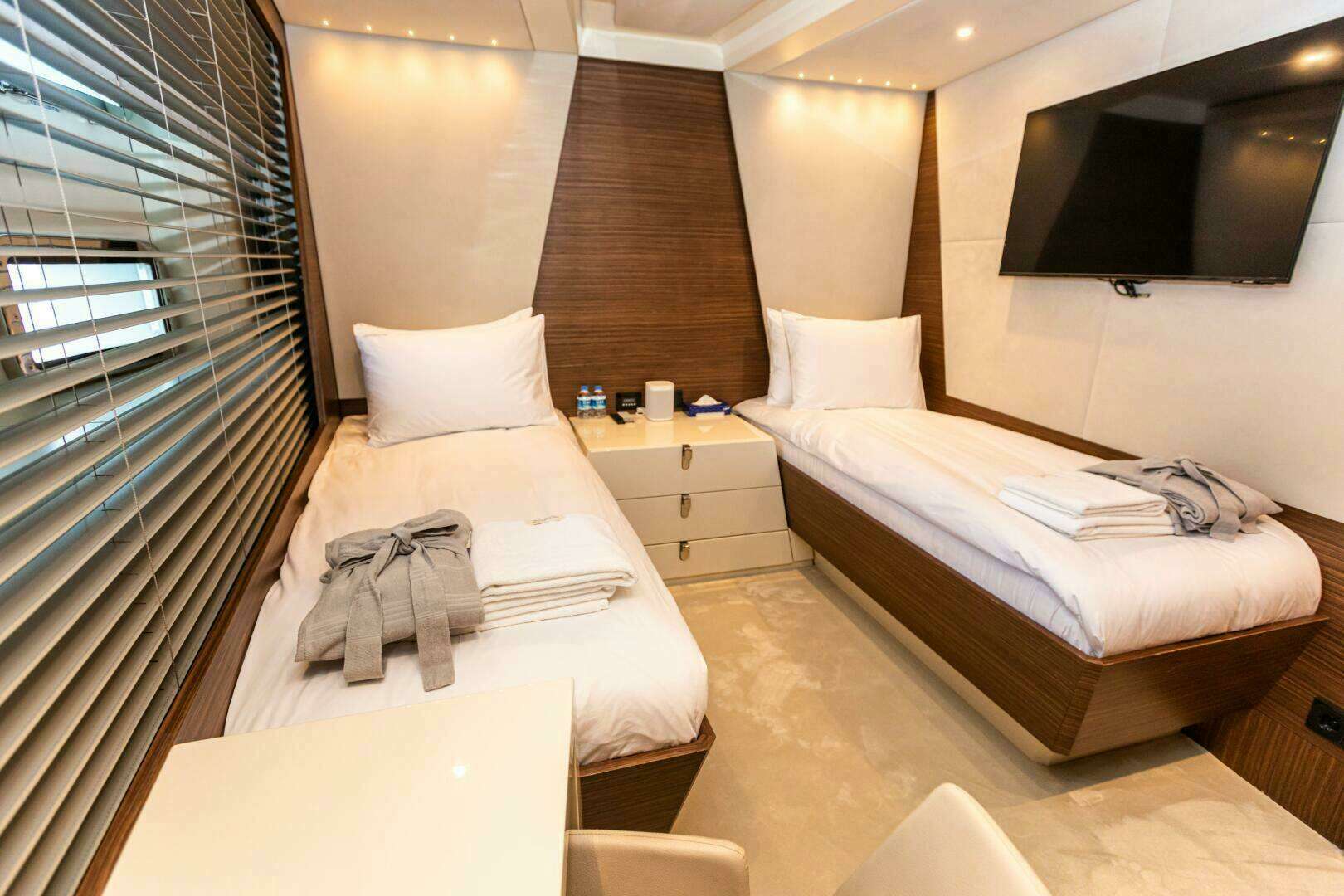

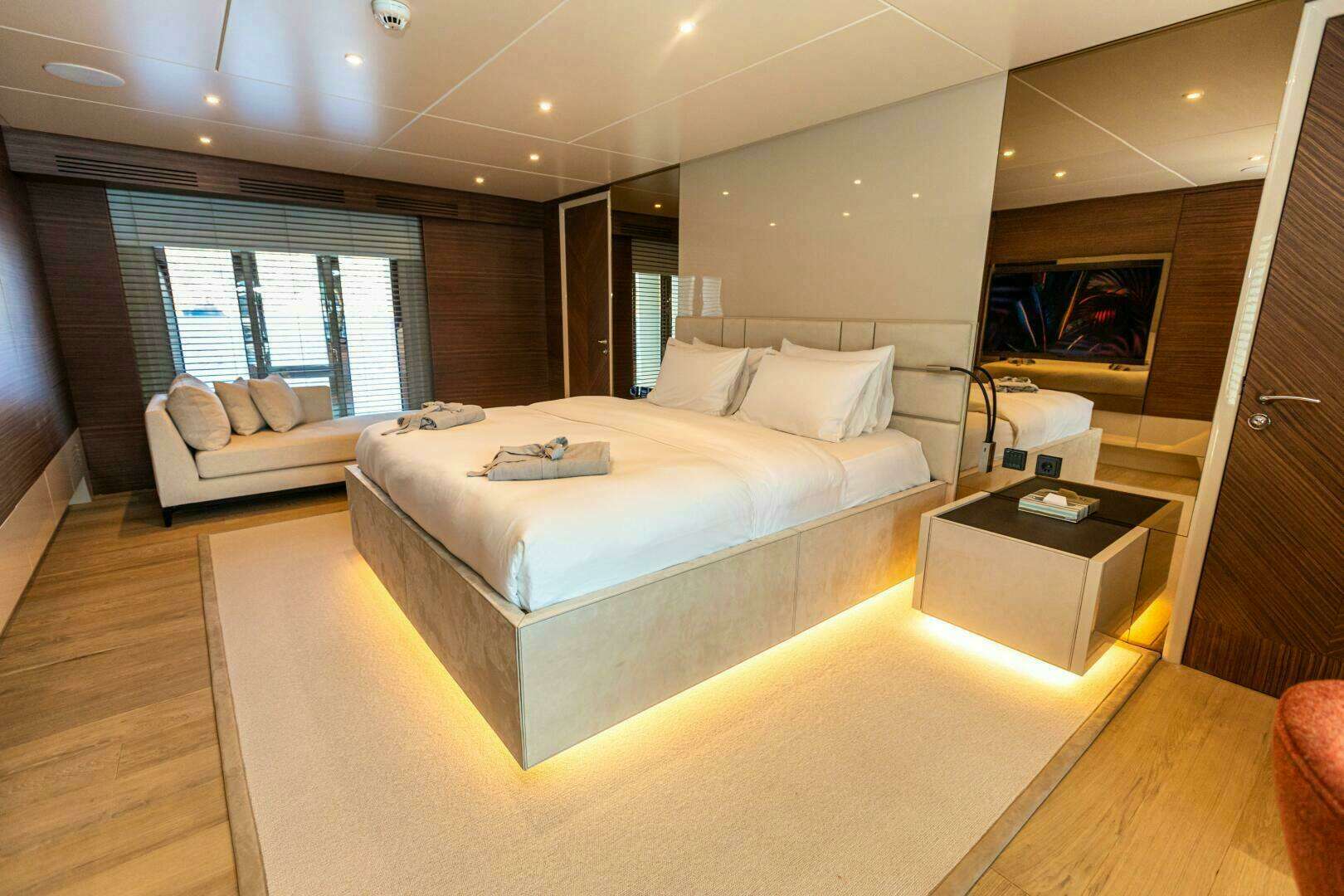

ZEEMAR boasts luxurious staterooms for up to 10 guests. Located on the main deck, the full-beam master cabin features a queen-sized bed against the aft bulkhead. Full-height windows bathe the space in natural light. The lower deck accommodates two mirrored VIP cabins and two mirrored twin cabins, each designed with queen-sized or twin beds.



The yacht’s crew area provides comfortable cabins, an engineers' cabin with an ensuite, and two twin crew cabins with a shared bathroom. A spacious mess/lobby and laundry area cater to the needs of the dedicated crew. The newly designed Captain’s cabin is located on the upper deck right behind the wheelhouse.

Flag of Registry: Cook Islands

Port of Registry: gocek,

Imperia, Italy
   Vessel ID: 2806017
FEATURES:

2016 Aydos Yat 100' Custom

  • 2022
  • 30.70 m
  • Diesel
  • Power
  • Expedition Yacht
Imperia, Italy
In Stock #2806017

2,995,000 Euro

$ 4,867,624 CAD*
£ 2,591,190 GBP*
$ 3,513,135 USD*
*estimated foreign exchange

LOA100'

LOA Inch8''

LOA30.70''

Beam24'

Beam Inch11''

Draft Max Feet6'

Draft Max Inch6''

Draft Min Feet2'

Fuel Tank (Gallons)2113

Fuel Tank (Liters)8000

Fresh Water (Gallons)2113

Fresh Water (Liters)8000

Holding Tank (Gallons)2113

TypePower

ConditionUsed

Specifications

Name

ZEEMAR

Stock Number

96ed9fd6-f73f-ee11-bdf3-000d3a32eaf7

100'8" (30.70 Meters)

Power-Used

Year

2016

Refit Year

2022

24'11"

6'6"

Cabins

5

Sleeps

10

Single Berths

2

Twin Berths

2

King Berths

1

Crew Sleeps

6

Maximum Speed

12 Knots

Cruise Speed

11 Knots

Range NMI

1100

Fuel Type

Diesel

Hull Material

Wood

Hull Shape

Displacement

Air Conditioning

Yes

2113 Gallons (8000 Liters)

2113 Gallons (8000 Liters)

2113 Gallons

Gross Tonnage

245

Displacement

165

Classification

RINA

Interior Designer

Aydos Yat

Builder

Aydos Yat

Engines

Engine 1

  • Engine Make: MAN
  • ModelEngine Model: D2876LE402
  • Engine TypeEngine Type: Electric
  • Power HPPower HP: 560.00
  • Feul TypeFeul Type: Diesel
  • HoursHours: 2028.00

Engine 2

  • Engine Make: MAN
  • ModelEngine Model: D2876LE402
  • Engine TypeEngine Type: Electric
  • Power HPPower HP: 560.00
  • Feul TypeFeul Type: Diesel
  • HoursHours: 2028.00
  • Engine Quantity2
  • Full Details

    MAIN CHARACTERISTICS

    Length: 30.5m (100’)
    Year: 2016 (2022)
    Builder: Aydos Yat
    LWL: 27.1m (88’9”)
    Beam: 7.54m (24’7”)
    Draft: 2m (6’6”)
    GRT: 245
    Net tonnage: 72 Tons
    Displacement: 260 Tons
    Top Speed: 12 knots
    Construction: Wood / Composite
    Engines: 2 x MAN 560 HP
    Guests: 10 in 5 cabins
    Crew: 6 in 4 cabins
    Asking price: EUR 2,995,000 Ex. VAT
    Class: RINA

    CONSTRUCTION

    Hull: Wood Composite
    Superstructure: Wood Composite
    Naval Architect: Alpaslan Tekogul
    Exterior Designer: Alpaslan Tekogul
    Interior Designer: Ali Gez and ICT Yachts

    CAPACITIES

    Top speed: 12 knots
    Range: 1100Nm @ 8,5 knots
    Fuel capacity: 2,113 Gal (8000 Lt)
    Water capacity: 793 Gal (3000 Lt)
    Black water capacity: 528 Gal (2000 Lt)
    Grey water capacity: 528 Gal (2000 Lt)


    FUEL CONSUMPTION

    230 L/H @ 12 knots
    120 L/H @ 10 knots
    50 L/H @ 8 knots

    ENGINES

    Engines: 2 x MAN 560HP
    Engine model: D2876LE402
    Engine hours: 2028
    Gearboxes: ZF
    Steering: Power Assisted Hydraulic
    Stabilizers: Wesmar Hydraulic Fin Zero Speed
    Dampers: 2 x ELL/APP Exhaust

    GENERATORS/ELECTRICAL

    Generators: 2 x 55Kw Auto Sync Caterpillar Gens
    Generator hours: 3692
    Electricity: 24v DC/380 + 220v AC electrical system
    Shore power: Glendenning

    BATTERIES

    Service batteries: 12 x Shonennein Gel 12V 1080 Amp
    Start batteries: 4 x Odyssey AGM 12V 170 Amp
    Generator batteries: 4 x Odyssey AGM 12V 100 Amp
    Emergency batteries: 2 x Odyssey AGM 12V 220 Amp
    VHF batteries: 1 x Victron Gel 12V 126 Amp
    Battery charger: Victron
    Battery inverters: 3 x Victron Multiplus

    AIR CONDITIONING

    AC: Cruisair 180,000 BTU chiller with 5 x fan coils
    Fresh air: Cruisair

    MECHANICAL EQUIPMENT

    Bow thruster: Wesmar 35kW Hydraulic
    Water makers: Idromar 280lt/hour & Seafari 200lt/hour
    Water softener: Octomarine
    Propellers: Teignbridge 5 Blade
    Shafts: Teignbridge 2 x NiBrAl Shaft
    Rudder angle indicators: Yes
    Fuel filters: Separ Filters
    Fuel oil polishing: Reverso Polishing System
    Fire bilge pump: Gianneschi
    Emergency fire pump: El Pompa
    Boilers: 2 x 100L new 2025
    Sewage treatment: Tecnicomar Ecomar 8 4000lt / day
    WC's: Tecma Toilet Systems

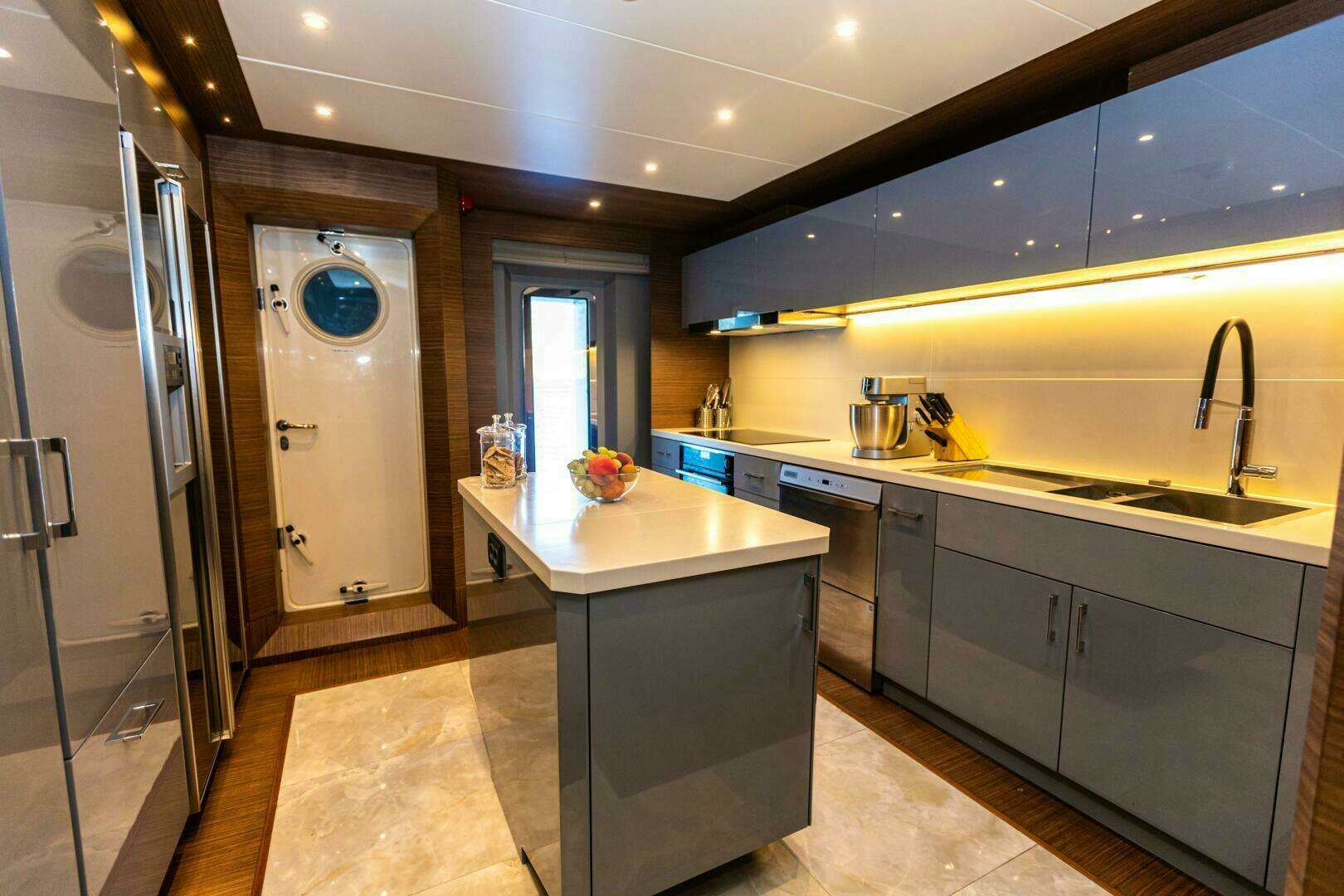

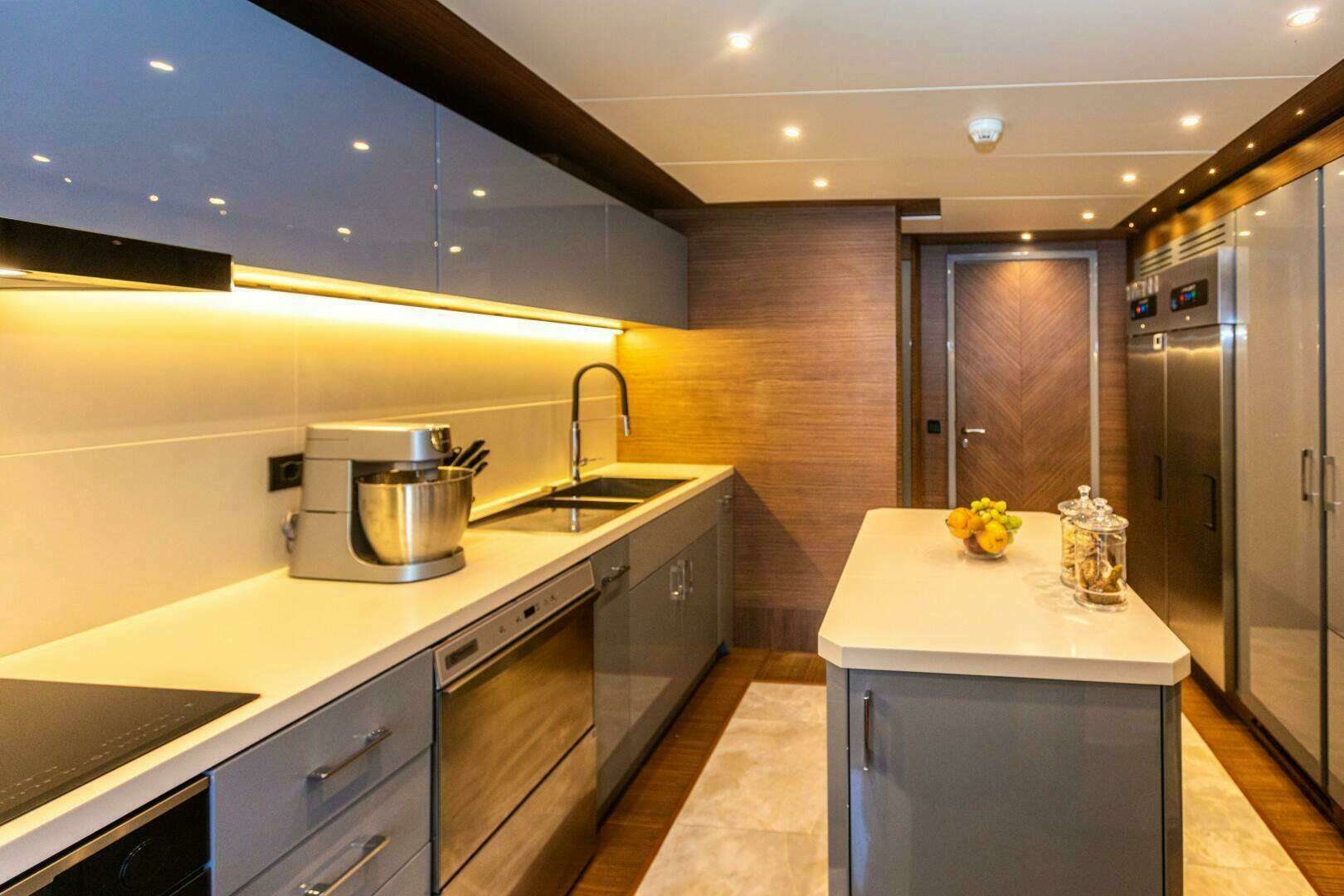

    GALLEY & LAUNDRY

    Custom freezer and full height refrigerator
    Electrolux full height refrigerator
    Electrolux cooktop
    Wine cooler
    Ratiobol oven
    Electrolux aspirator

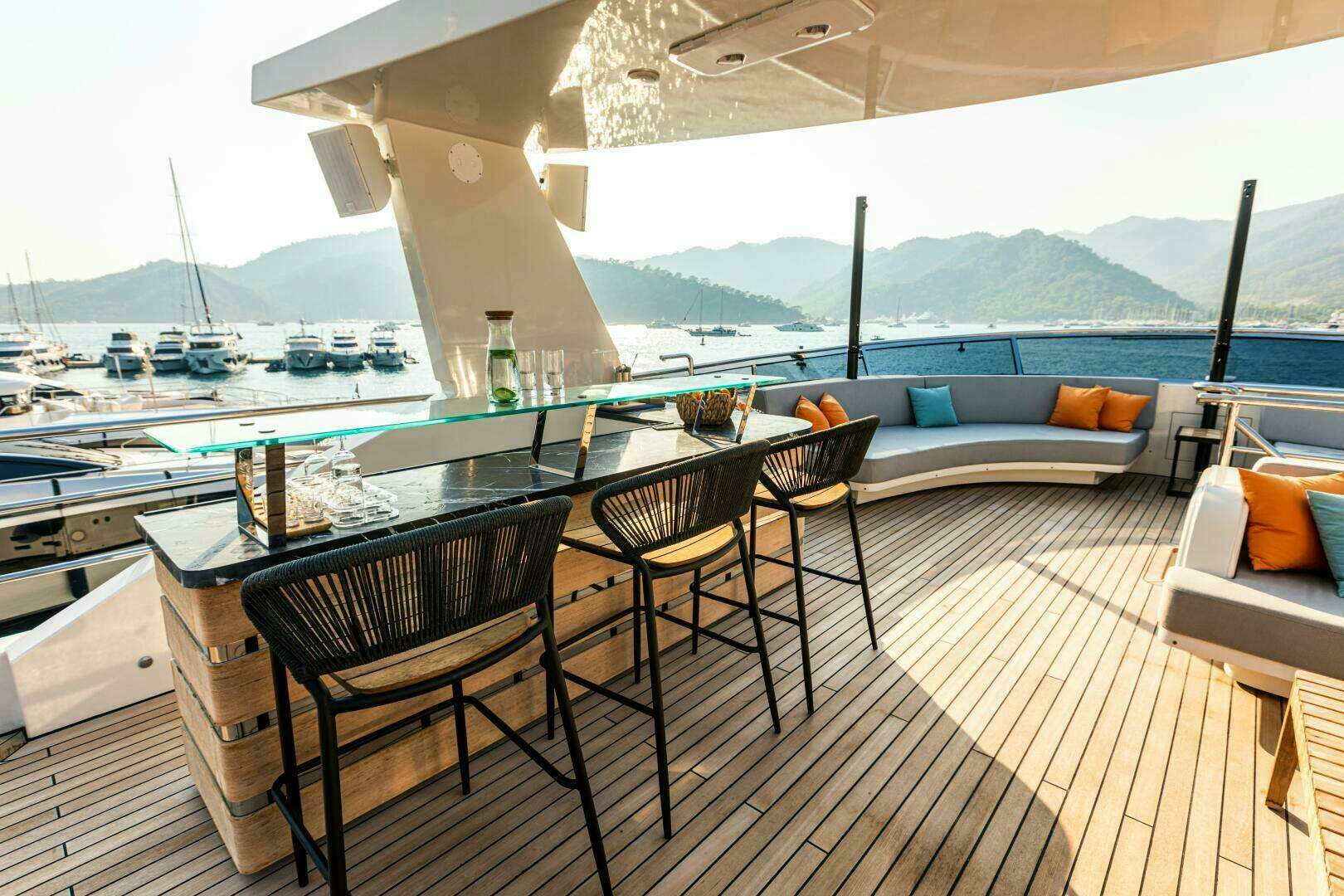

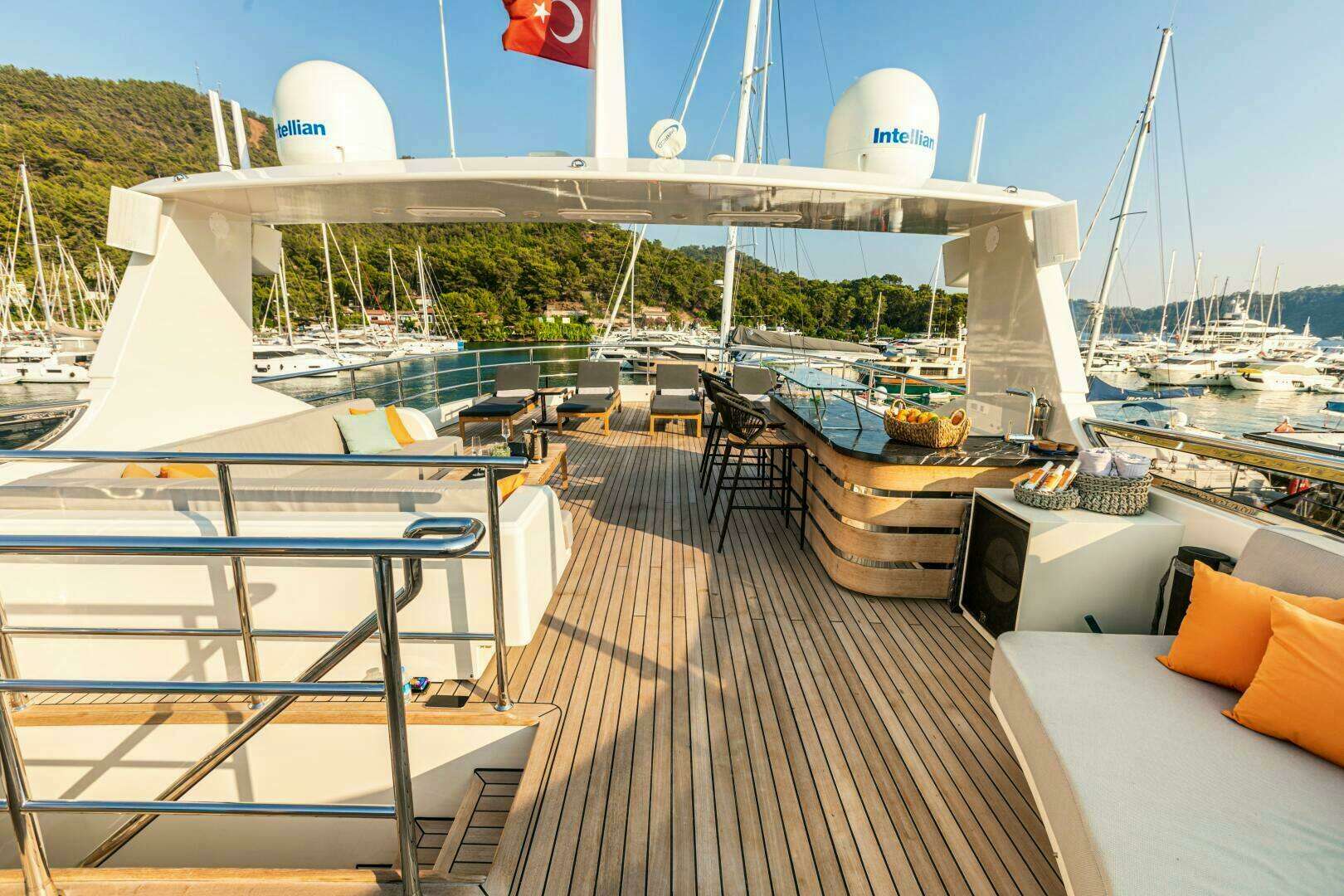

    Sundeck Bar – Isotherm fridge, icemaker, and sink
    Aft bar – Isotherm fridge, icemaker
    Crew mess – Fridge, sink and Miele dishwasher
    Laundry – Miele washer and Miele dryer

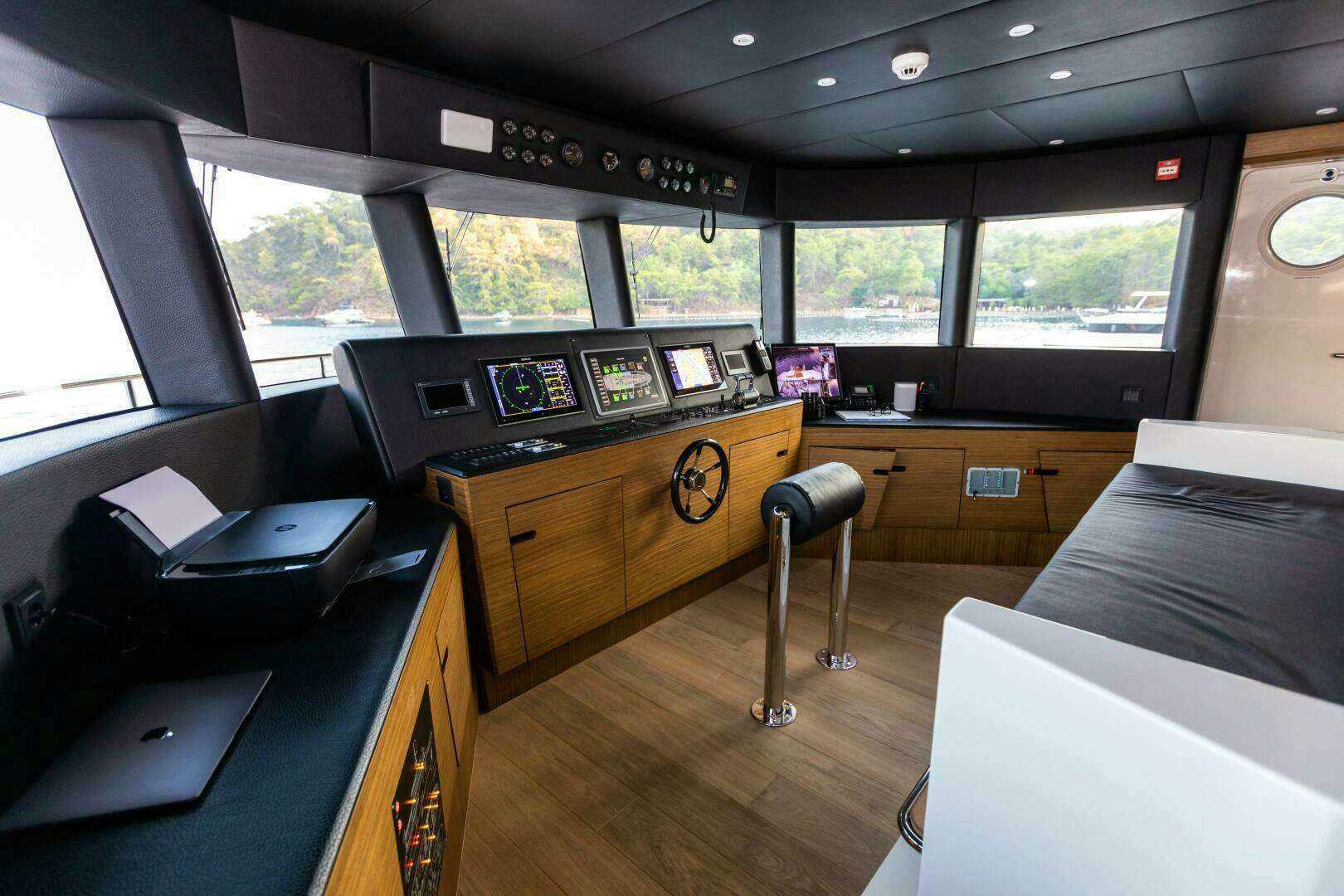

    NAVIGATION & AV

    Communications equipment: Simrad Communication Systems
    Chart plotters: Simrad 2 x 16”
    Depth Sounder
    Autopilot: Simrad
    VHF with AIS
    Navtex
    2 x Simrad 12” screen in Captain’s cabin and crew mess

    ENTERTAINMENT EQUIPMENT

    Main salon: 55” LED TV, Bose System
    Sun deck: Martin Audio
    Intelliain Sat TV 60 cm
    Owners cabin: 55” LED TV, Martin audio
    Guest Cabins: 43” LED TV, Sonos
    Captain's cabin and guests:  Sonos
    Wifi Systems : 4 x Antennas with Peplink

    DECK EQUIPMENT

    Steering System: DATA Hydraulic
    Windlass: 2 x Hidromar Vertical Hydraulic
    Anchors: 2 x 230kg Stainless Steel HHP
    Chains: 2 x EVREN U1 16mm 150mm + 200mm
    Capstan: 4 x Hydraulic capstan
    Underwater Lights: 4
    Pasarelle: Custom-made
    Sliding Door: 2 x Bofor
    Pantograph Doors: Bofor

    SAFETY & SECURITY

    Custom alarm and monitoring system
    Novec fire extinguishing system
    Seckin portable fire extinguishers
    6 x Cameras
    2 x SOLAS B10

    TENDER

    Northstar Orion 8m Chase

    REFIT HISTORY

    2022 Refit

    5-Year RINA class survey completed to re-instate class
    Exterior polishing of paint
    Replacement glass in sundeck windshield
    New glass around nameplate of skylounge
    New parquet flooring in skylounge
    New beige lacquer in skylounge
    New wall patrician with TV in skylounge
    New AC ducting in skylounge
    New L-shaped seating in skylounge
    New pantry station in skylounge New bridge deck captain’s cabin
    New parquet flooring in main salon
    New ceiling in main salon
    New beige lacquer in main salon
    New wine cooler in main deck lobby
    New parquet flooring in master cabin

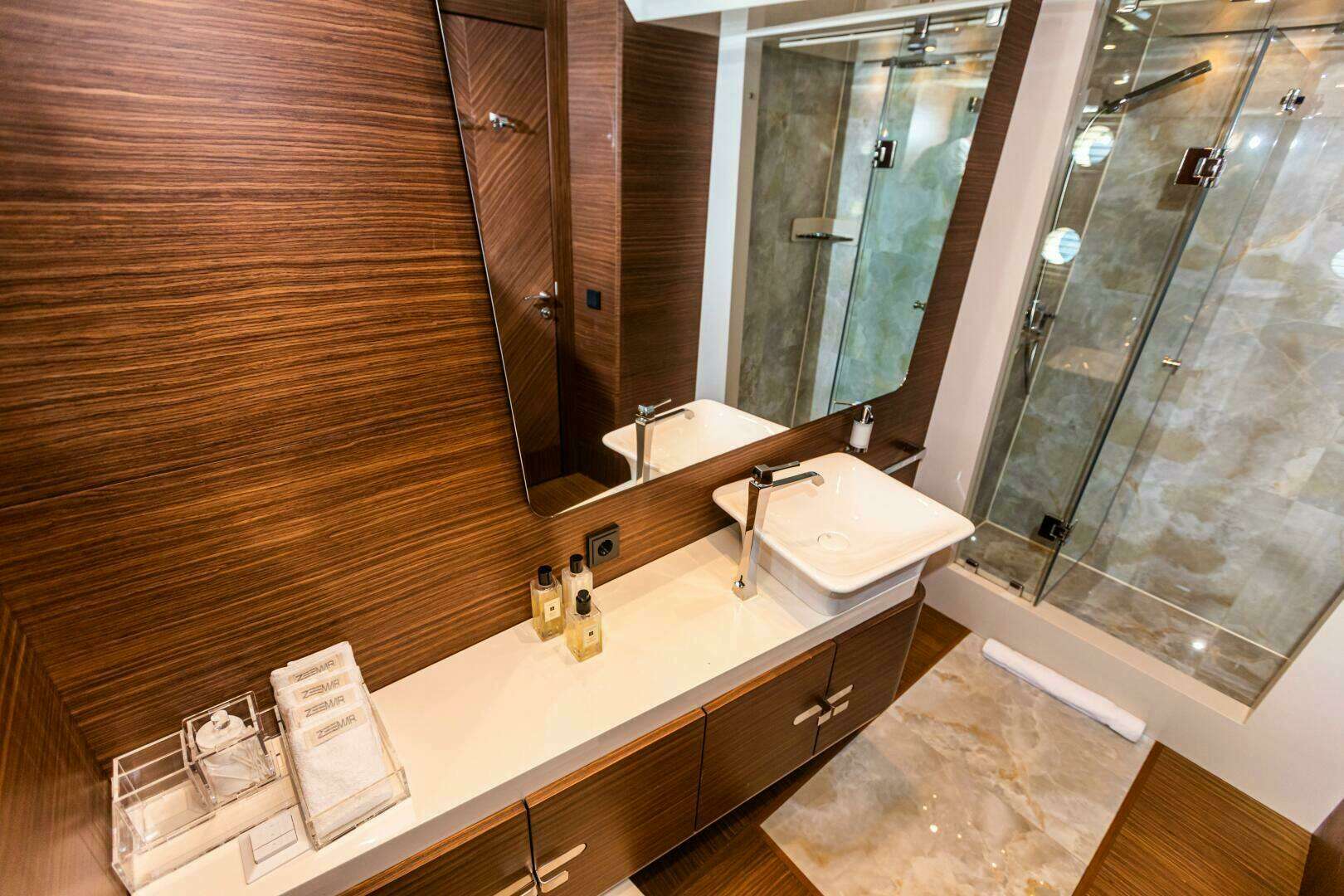

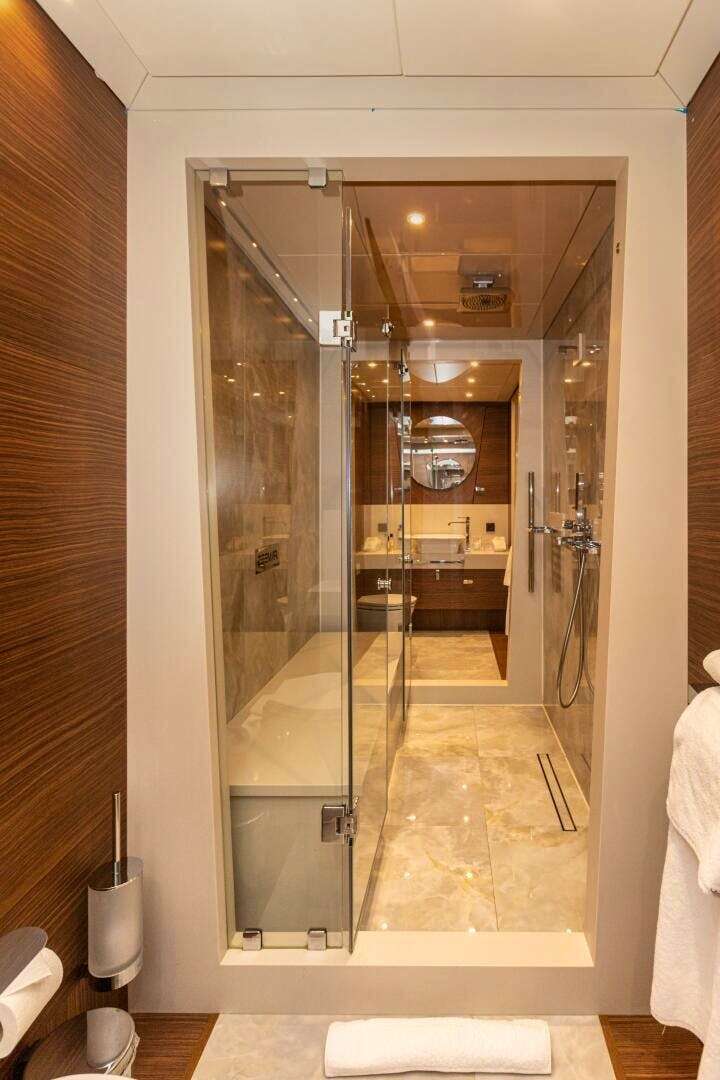

    Master ensuite reconfiguration
    New dishwasher in galley
    Reorganisation of crew mess seating
    New top-loading freezer in crew mess
    New crew mess lower deck bunks
    Exterior furniture repaint
    Garage door repaint

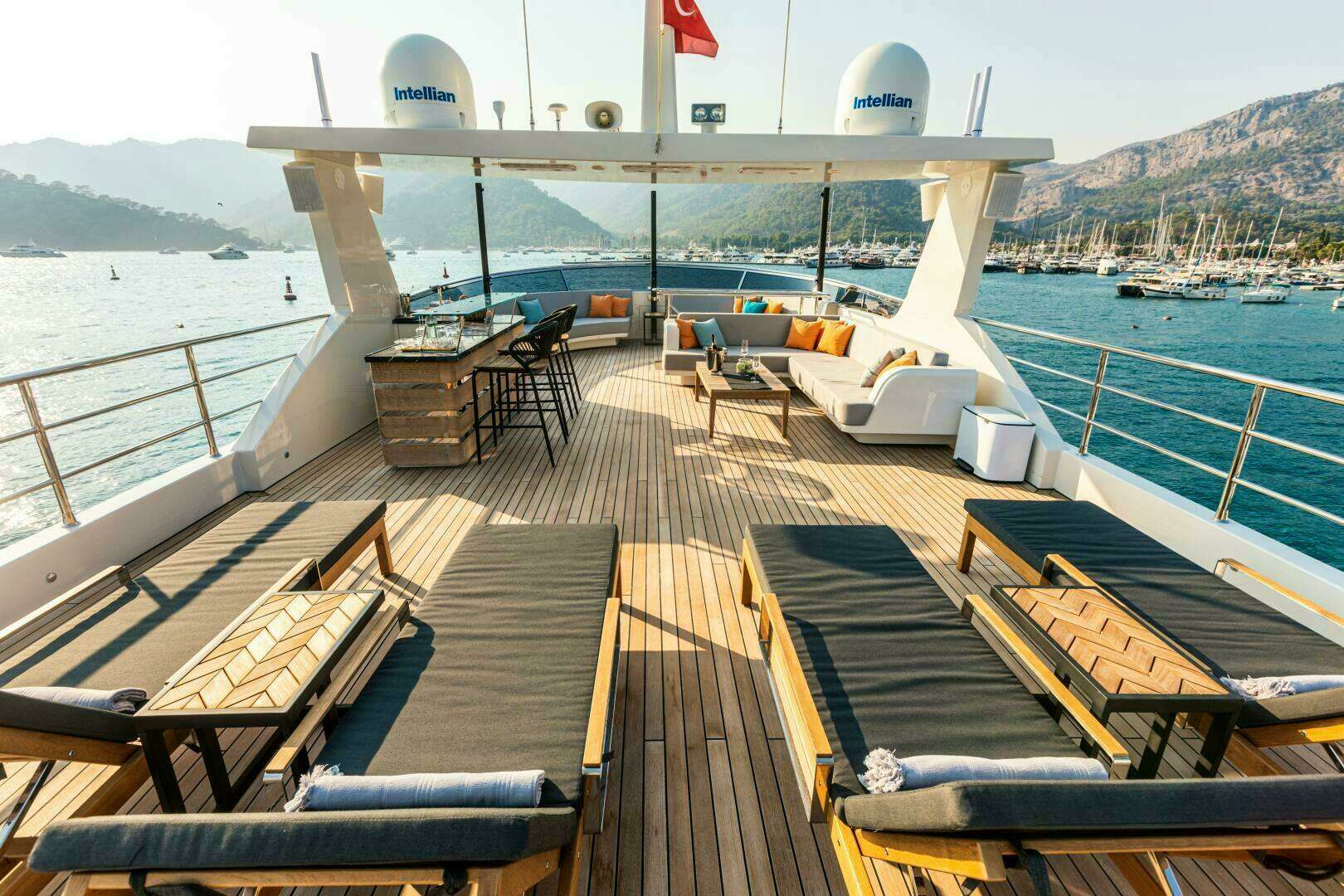

    New sundeck sunshades
    Vinyl wrap of superstructure in black

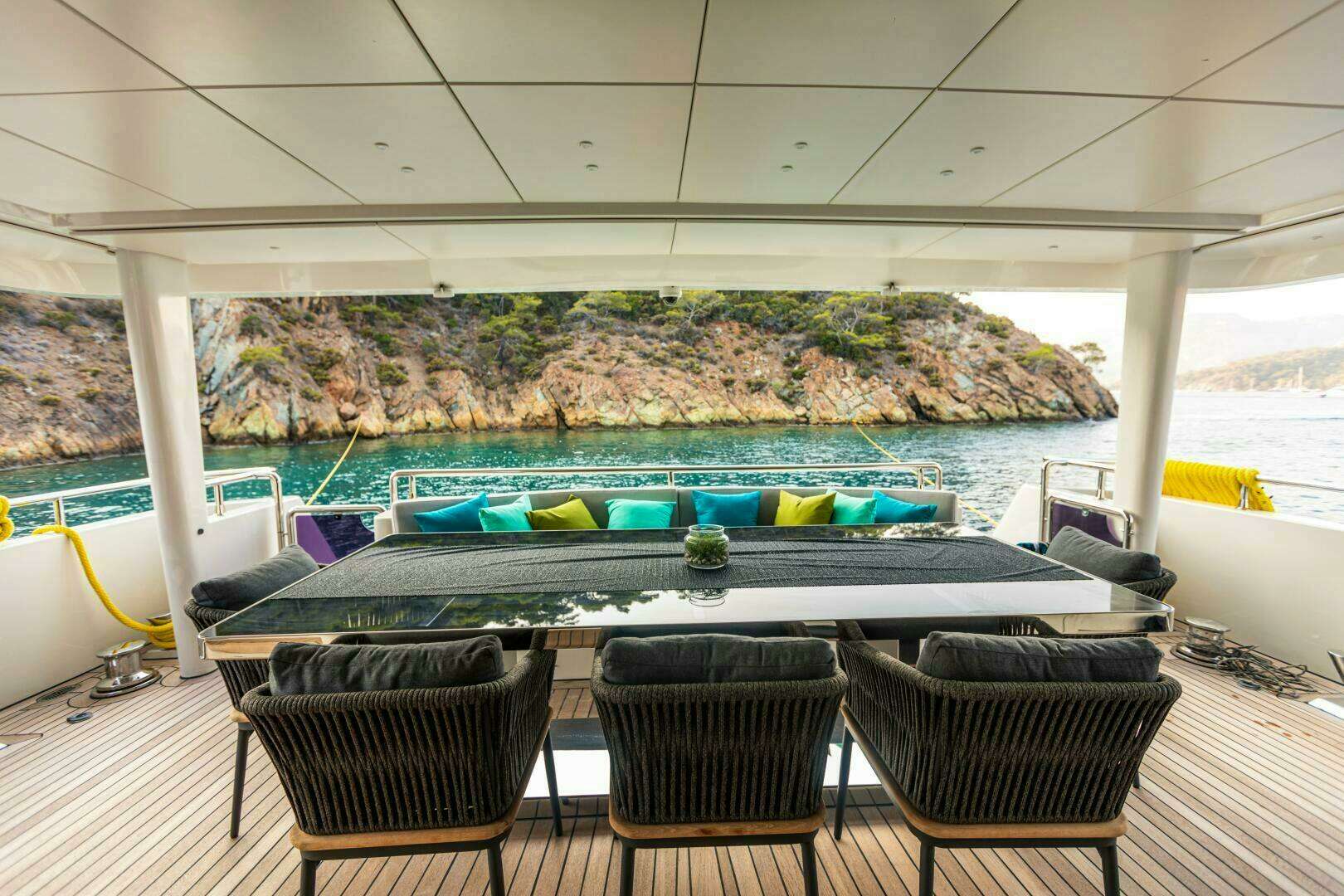

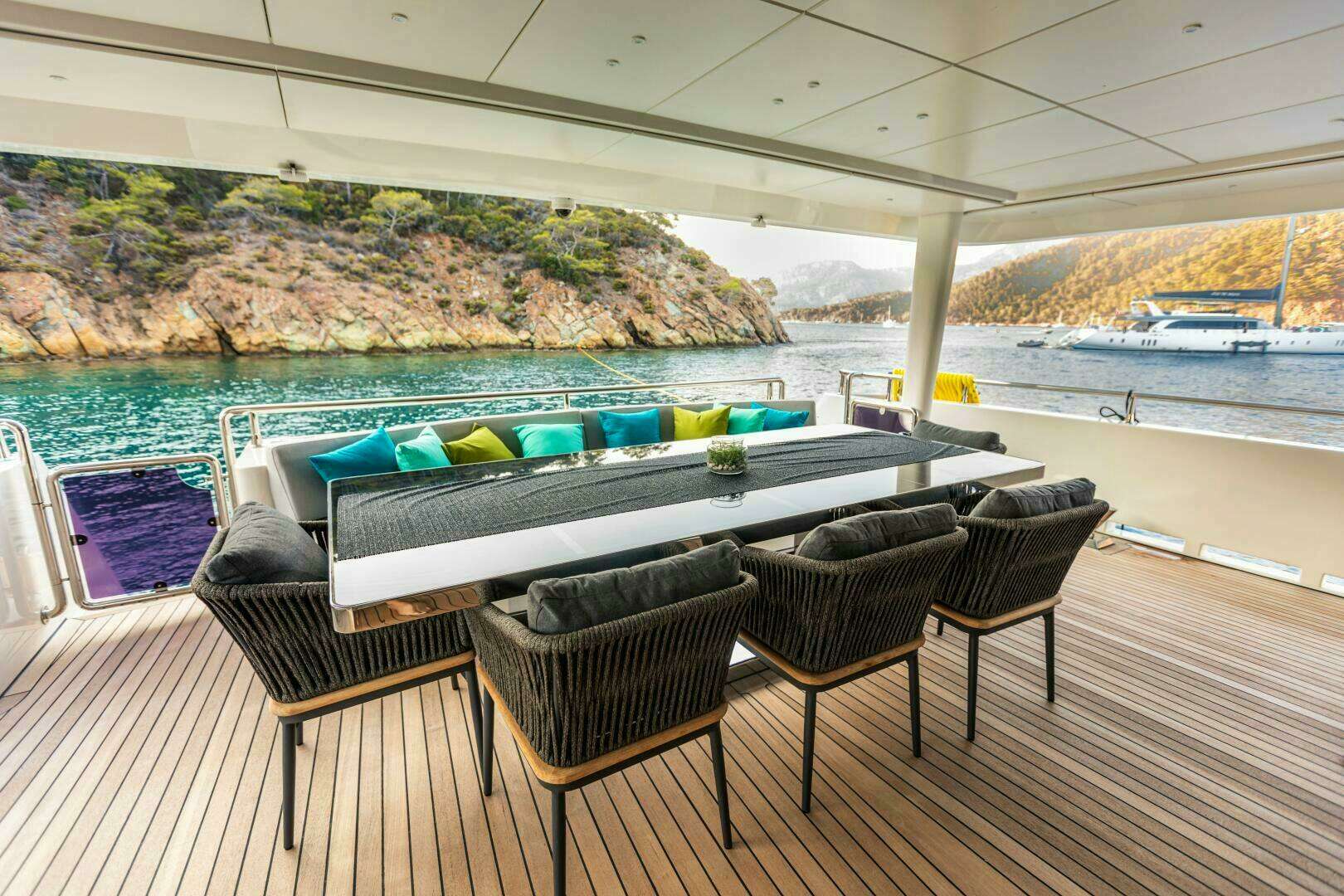

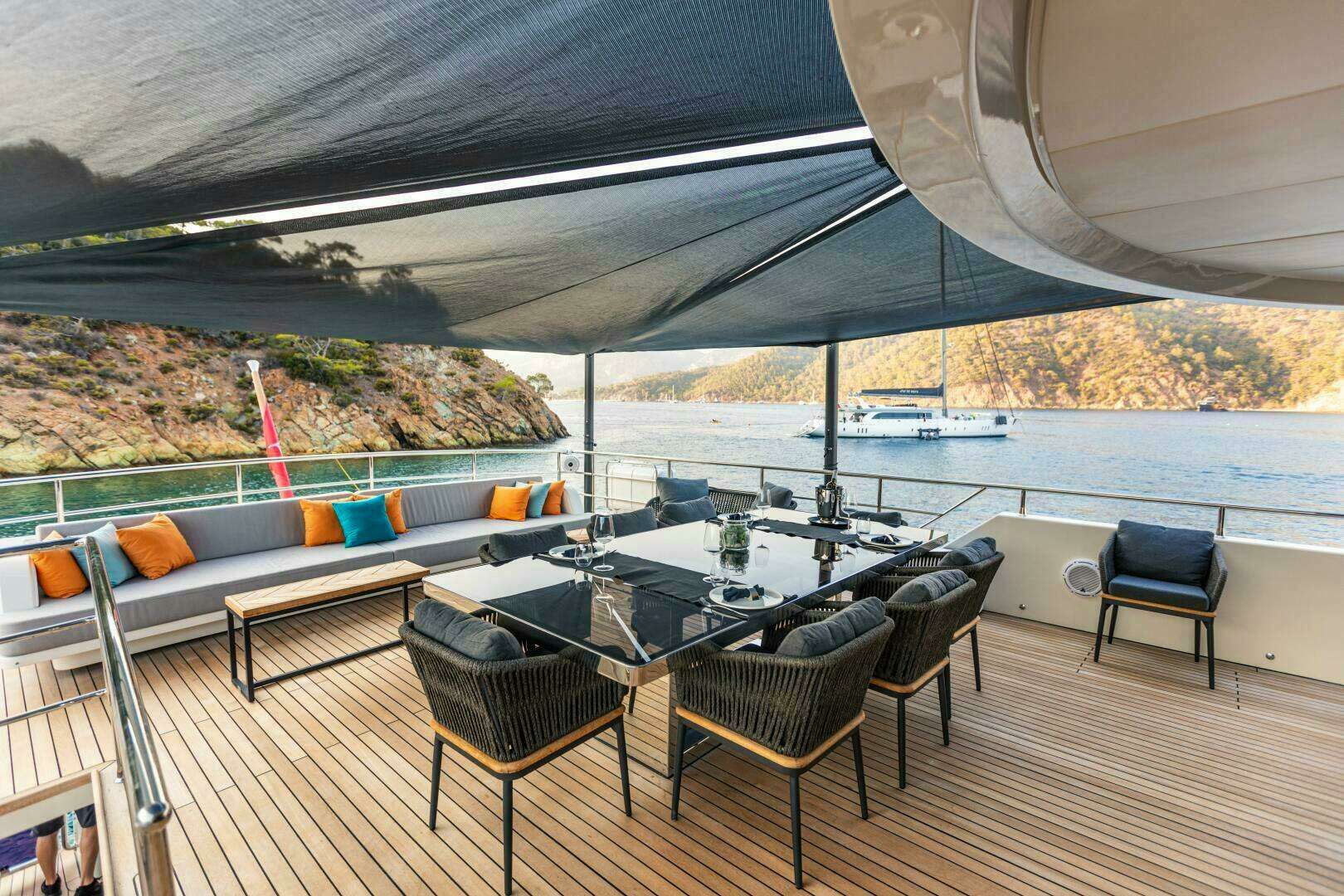

    New exterior dining table on bridge deck aft
    New shading and poles on bridge deck aft
    New main salon interior dining table
    New garage door fitted and reconfigured
    New black out shutters in master and guest cabins
    Teak replacement on the sundeck
    New sundeck fridge
    Reconfiguration of the sundeck bar
    New wifi access points throughout
    New exterior stereo system

    2024 / 2025 Refit

    Galley extraction inspection and cleaning
    Main engines - heat exchangers cleaned, aftercooler cleaned, rocker adjustment, injector inspection, turbos serviced, oil heat exchangers serviced.
    Generators - Oil change, oil filters changed, main fuel filters replaced, Racor fuel filters replaced, air filters serviced, crankcase breather serviced, valves adjustments on intake and outlet, cleaning of heat exchangers, removal of exhaust cooling lines, belts replacement, service of the sea water pumps, replacement of anodes, new heat exchanger antifreeze, software service, replacement of 2 siphon-break, replacement of exhaust elbows.
    Sewage treatment plant - all valves changed
    Seawater intake - new piping and repositioning of pump
    2 x new boilers
    Full servicing of all LSA equipment including fire extinguishers, BA sets, flares
    Engine room PTO service
    ER Grey & Black water pipes upgraded
    Radar service
    Autopilot new control system
    Full servicing of the toilet systems by manufacturer
    ER Water maker, new pumps and full service
    Full underwater test and thermo scans on the hull
    Hull repairs around the anchor pockets
    Service of the 3 chiller nits
    Emergency fire pump overhauls
    Stabilizers dismantled and 6-year service completed
    Bow thruster service
    Meger testing on the electrical panels
    Service batteries checked and replaced as necessary
    Bilge pump service
    Underwater lighting service
    Main deck aft doors serviced
    Teak works on upper deck
    Deck light replacements
    Cabling in lazarette tidied and reinstalled
    Life raft and hydrostatic release service
